Firman WT06073 Tri Fuel Inverter Portable Generator 7500W User Manual

FIRMAN and logo design are trademarks or

registered trademarks of FIRMAN. All rights

reserved.

Serial Number

360745472-00

Purchase Date

ITM. / ART. 1806293

MODEL #WT06073

TRI-FUEL

INVERTER GENERATOR

ATTACH YOUR RECEIPT

5 6 7

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

Thank you for purchasing this FIRMAN product.

Questions, problems or missing parts?

Before returning, contact us on:

844-347-6261, 8 a.m. - 8 p.m., EST, Monday - Sunday or

at www.rmanpowerequipment.com.

TABLE OF CONTENTS

Introduction.......................................................................................................................................................

Features, Controls and On -Product Hazard Labels...................................................................................

Operating Instructions.....................................................................................................................................

Maintenance - Storage....................................................................................................................................

Troubleshooting- Specications....................................................................................................................

Replacement Parts Lists .................................................................................................................................

Wiring Diagram ................................................................................................................................................

Service - Warranty ...........................................................................................................................................

FCC DECLARATION

Supplier’s Declaration of Conformity

47 CFR § 2.1077 Compliance Information

FIRMAN WT06073 TIR-FUEL INVERTER GENERATOR

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1a. This device may not cause harmful interference.

1b. This device must accept any interference received, including interference that may cause

undesired operation.

2. Changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

NOTE: The FIRMAN WT06073 inverter generator has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

FCC/IC Compliance Statement

Changes or modications to equipment not expressly approved by FIRMAN could void the user’s

authority to operate the equipment.

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is

connected.

● Consult the dealer or an experienced radio/TV technician for help.

Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engine

generator set designed and tested to give you years of satisfactory service. This generator is Tri-Fuel

and capable of running on gasoline, liquid petroleum gas (LPG), and natural gas (NG). This generator is

not intended to be run unattended or to supply power to life safety support.

This manual contains safety information to make you aware of the hazards and risks associated with

generator products and how to avoid them. This generator is designed and intended only for supplying

electrical power for operating compatible electrical lighting, appliances, tools and motor loads, and

is not intended for any other purpose. It is important that you read and understand these instructions

thoroughly before attempting to start or operate this portable generator. Save these original

instructions for future reference.

All information in this publication is based on the latest production information available at the time

of approval for printing. The manufacturer reserves the right to change, alter or otherwise improve the

generator and this documentation at anytime without prior notice.

INTRODUCTION

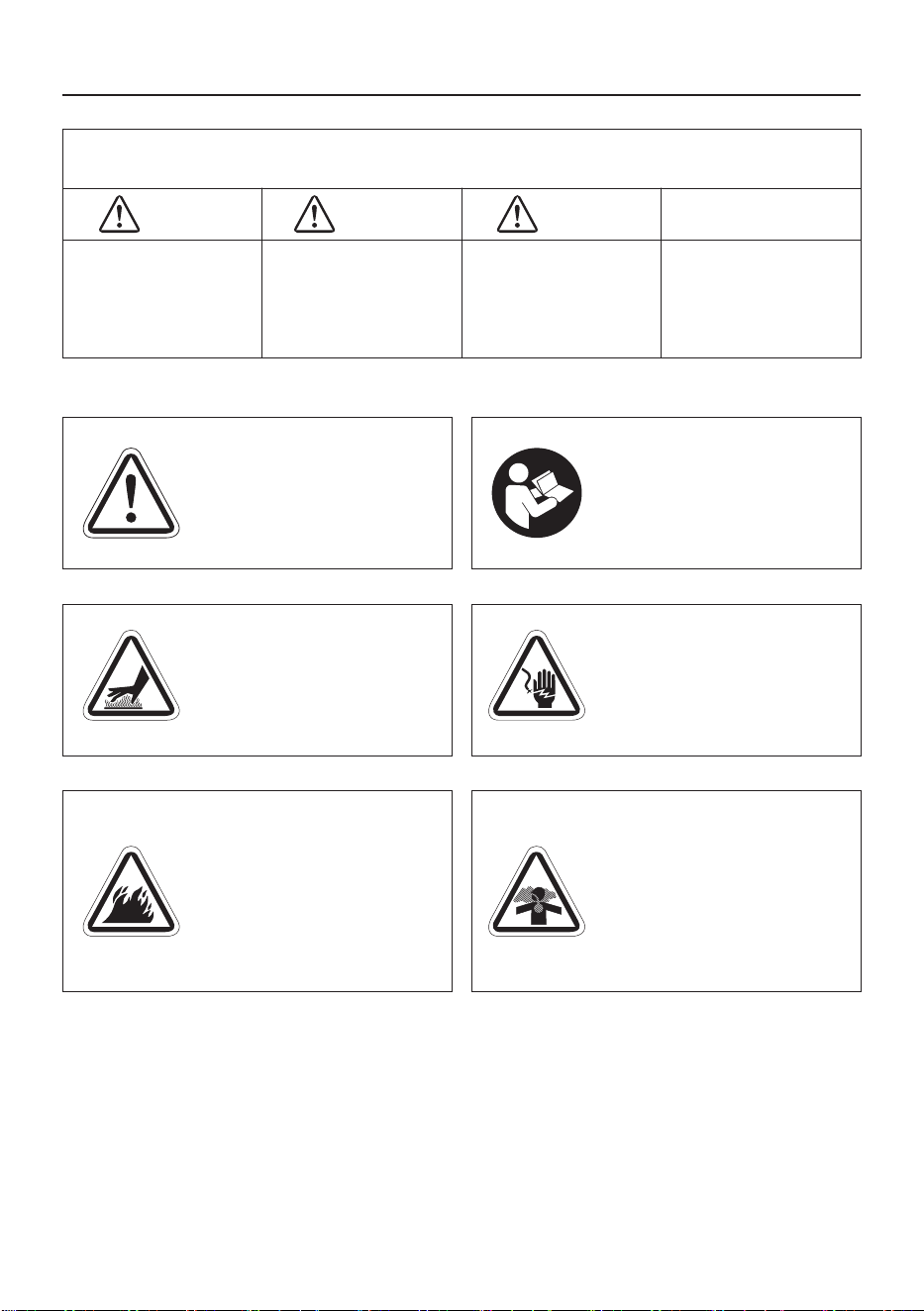

SIGNAL WORDS

WARNING

Indicates a hazard

which, if not avoided,

could result in death

or serious injury.

DANGER

Indicates a hazard

which, if not avoided,

will result in death or

serious injury.

Safety Alert Symbol Indicates

a potential personal injury

hazard.

Operator's Manual - Failure to

follow warnings, instructions

and operator's manual could

result in death or serious injury.

Toxic Fumes- Engine exhaust

contains carbon monoxide, a

poisonous gas that will kill

you in minutes. You cannot

smell it or see it.

Generator could cause

electrical shock resulting in

death or serious injury.

Fire- Fuel and its vapors are

extremely ammable which

could cause burns or re

resulting in death or serious

injury. Engine exhaust could

cause re resulting in death

or serious injury.

Hot Surface- Muffler could

cause burns resulting in

serious injury.

CAUTION

Indicates a hazard

which, if not avoided,

could result in minor or

moderate injury.

NOTICE

Indicates information

considered Important,

but not hazard-related.

INTRODUCTION

WARNING! This product can expose you to chemicals including gasoline engine

exhaust, which is known to the State of California to cause cancer, and carbon

monoxide, which is known to the State of California to cause birth defects or other

reproductive harm. For more information go to www.P65Warnings.ca.gov.

This outdoor generator can be used to power outdoor items using extension cords or to restore home

power using a transfer switch. A transfer switch is a separate device installed by a licensed electrician

that allows the portable generator to be cord connected, using a 120/240V receptacle directly into

your home’s electrical system. Install a listed transfer switch as soon as possible if this generator will

be used to restore power to your home.

NOTICE

If you have questions about intended use, contact FIRMAN customer service. This generator

is designed to be used only with FIRMAN authorized parts.

System Ground

The generator has a system ground that connects the generator frame components to the ground

terminals on the AC output receptacles. The system ground is connected to the AC neutral wire.The

neutral is bonded to the generator frame.

Compliance Requirements

There may be Federal or State regulations, local codes, or ordinances that apply to the intended

use of the generator. Consult a qualied electrician, electrical inspector, or the local agency having

jurisdiction. This generator is not intended to be used at a construction site or similar activity as

dened by NFPA 70-2023 (NEC) section 590.6.

To Restore Home Power Using a Listed Transfer Switch

Connections to your home’s electrical system must use a listed* transfer switch installed by a

licensed electrician. The connection must isolate the generator power from the utility power and

comply with all applicable laws and electrical codes.

To Restore Power Using Extension Cords

Typical

120/240V

Outlet

Transfer

Switch

Typical Indoor Items

INTRODUCTION

1. Only use grounded cords marked for outdoor use rated for your loads.

2. Follow cord safety instructions.

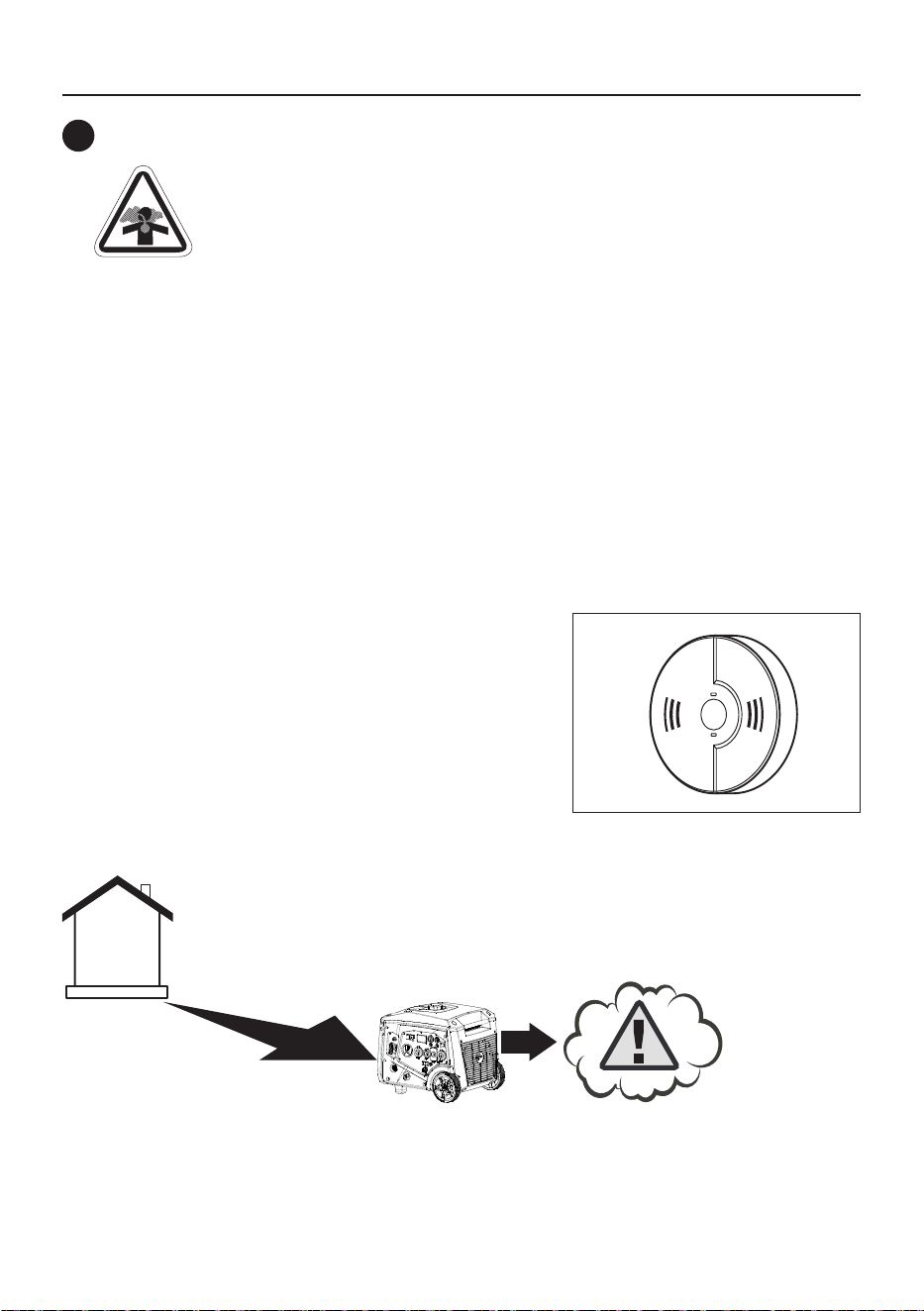

3. Install carbon monoxide alarm(s).

4. When operating portable generator with extension cords, make sure portable generator is located

in an open, outdoor area, at least 20 ft downwind from occupied spaces with exhaust pointed away.

5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.

Total

Amperage

Up to 13A

Up to 15A

Up to 20A

Up to 30A

Minimum Gauge, Outdoor Rated

Up to 50 ft

To provide power using

extension cords

DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill

you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell

exhaust fumes, you could still be exposed to carbon monoxide gas.

● Extension cords running directly into the home increase your risk of carbon monoxide poisoning

through any openings.

● If an extension cord running directly into your home is used to power indoor items, the operator

recognizes that this increases the risk of CO poisoning to people inside the home and assumes

that risk.

6. Install a listed *transfer switch as soon as possible if this or any generator will be used to restore

power to your home.

*Certied by a Nationally Recognized Testing Laboratory that the product complies to appropriate

product safety test standards.

FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

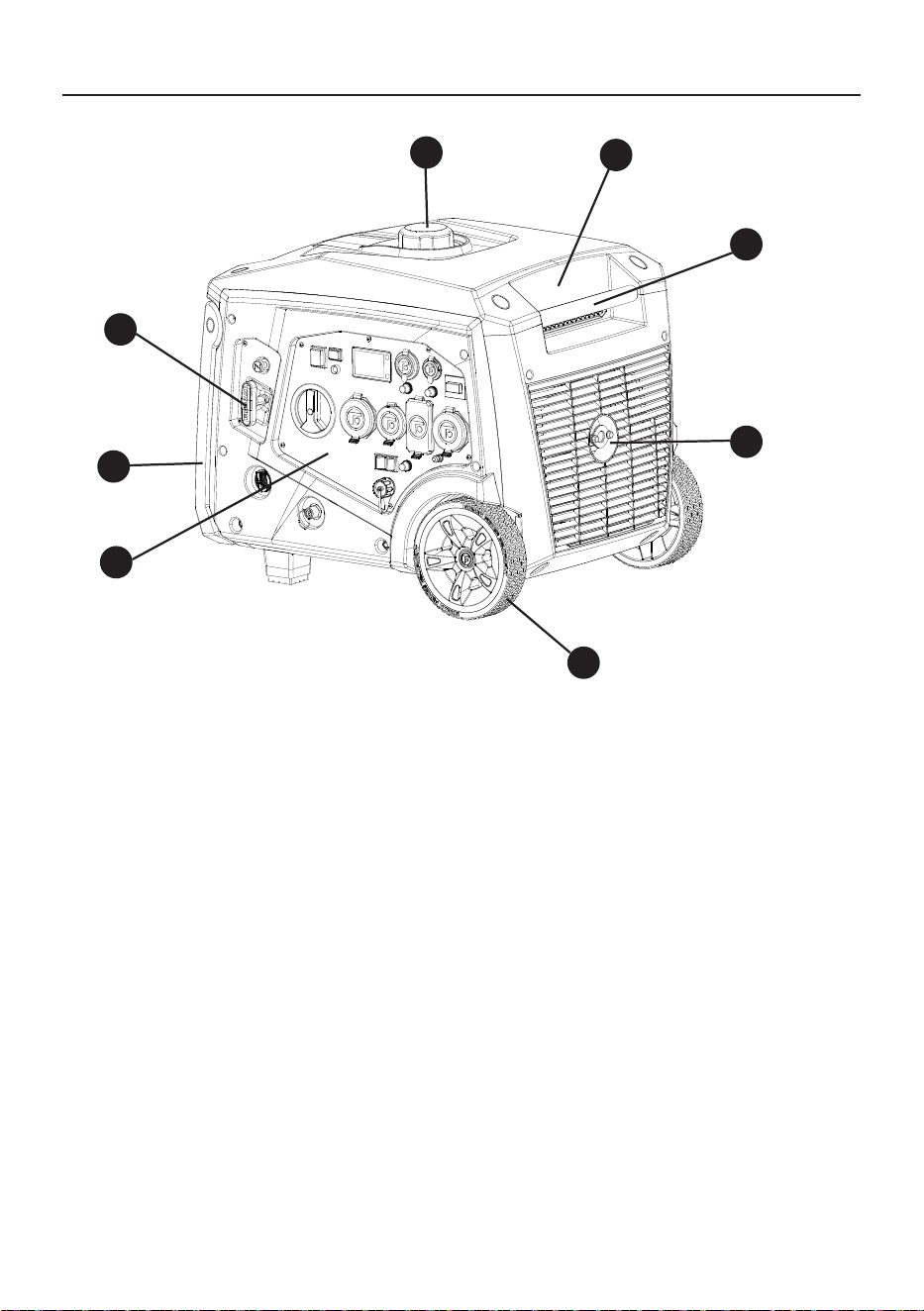

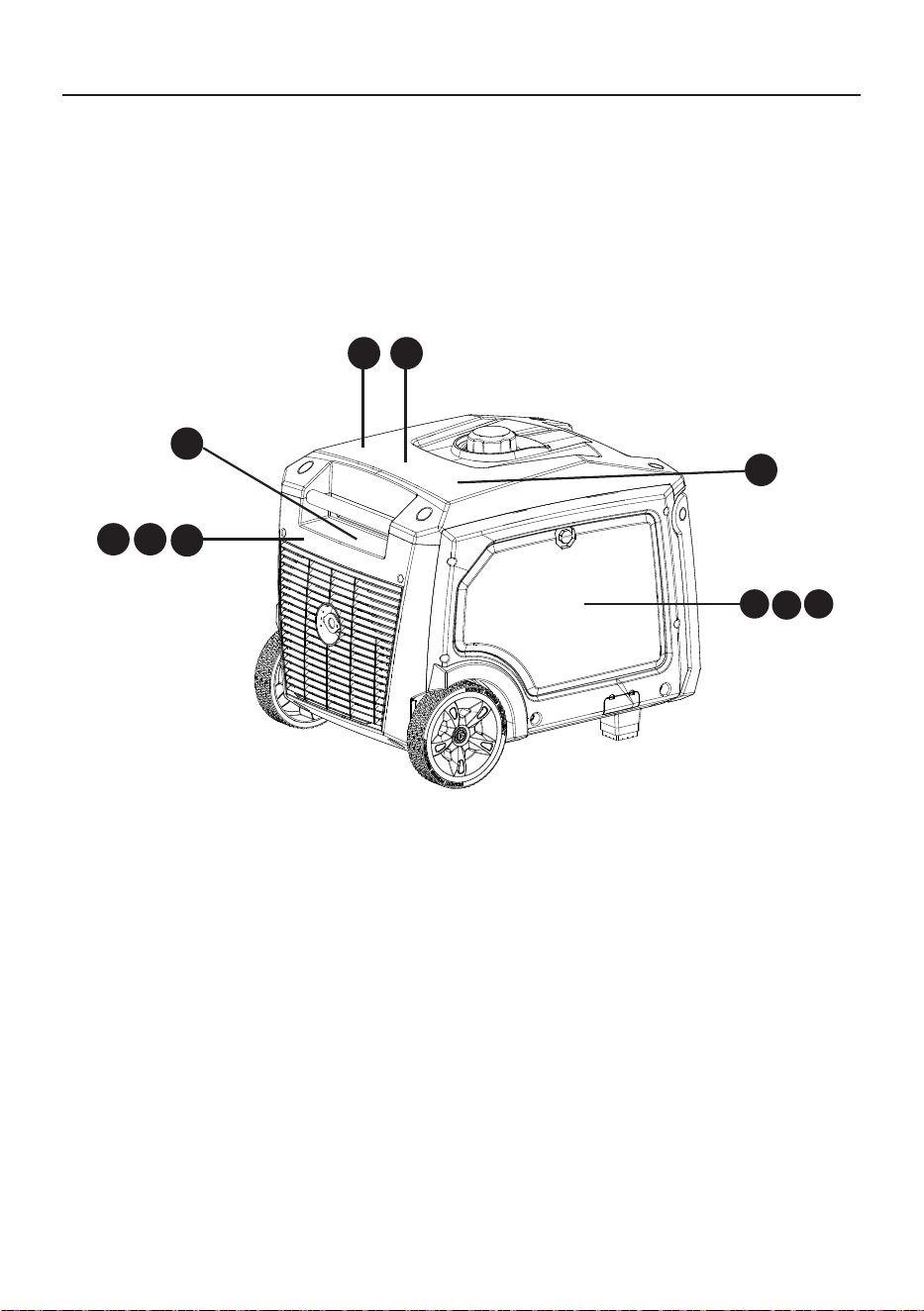

1- Fixed Carrying Handle

2- Fuel Cap

3- Recoil Starter

4- Folding Handle

5- Control Panel

6- Never Flat Wheel

7- Mu󰀪er/Spark Arrester

8- Data Decal / Serial Number

*We are always working to improve our products. Therefore, the enclosed product may di󰀨er slightly

from the image on this page.

FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

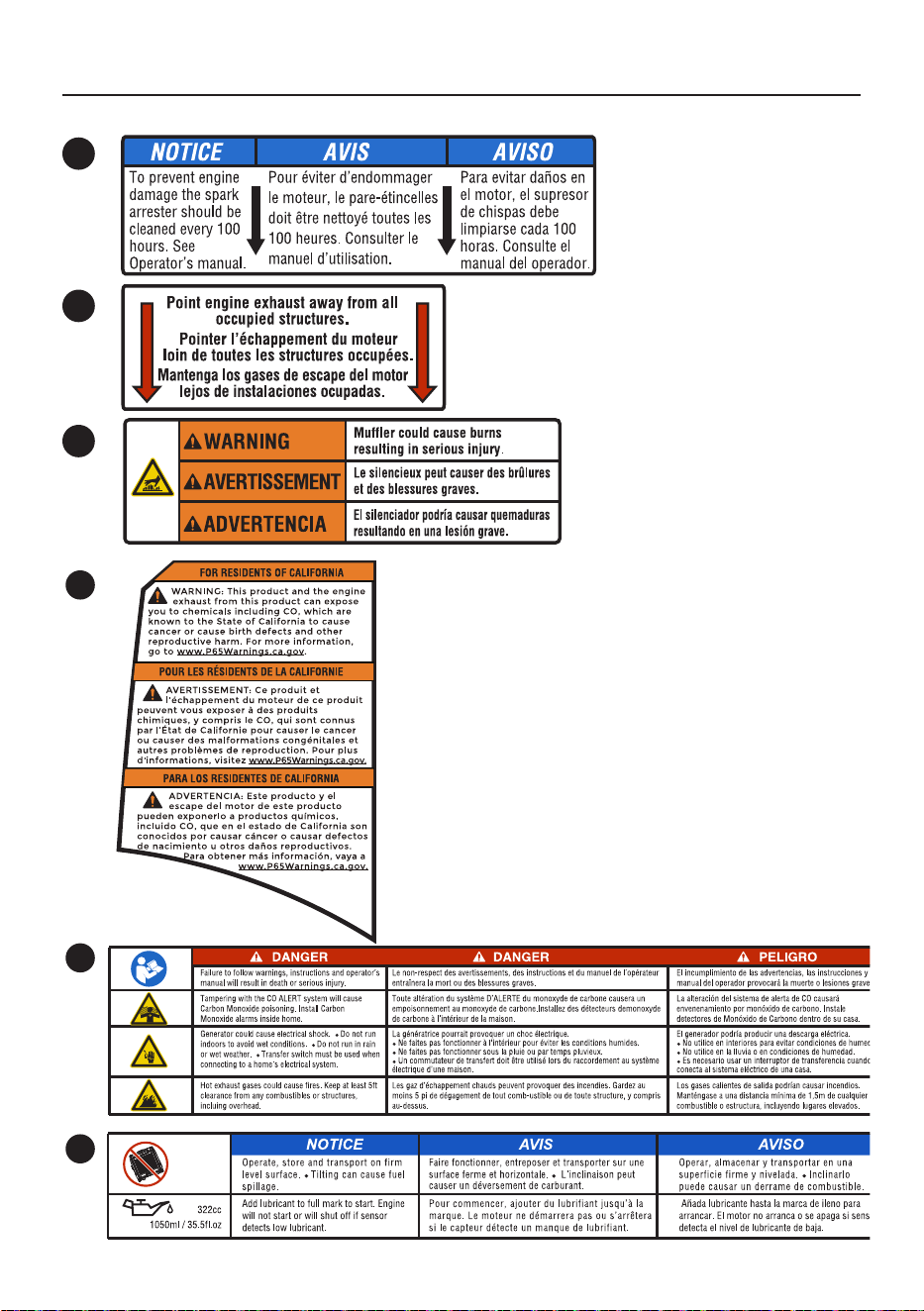

Location and content of on-product hazard labels

FREE WARNING LABEL REPLACEMENT. If hazard labels become illegible or are missing, contact

FIRMAN customer service for a free replacement.

FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

NOTICE

Total power drawn from all receptacles must not exceed the data decal rating.

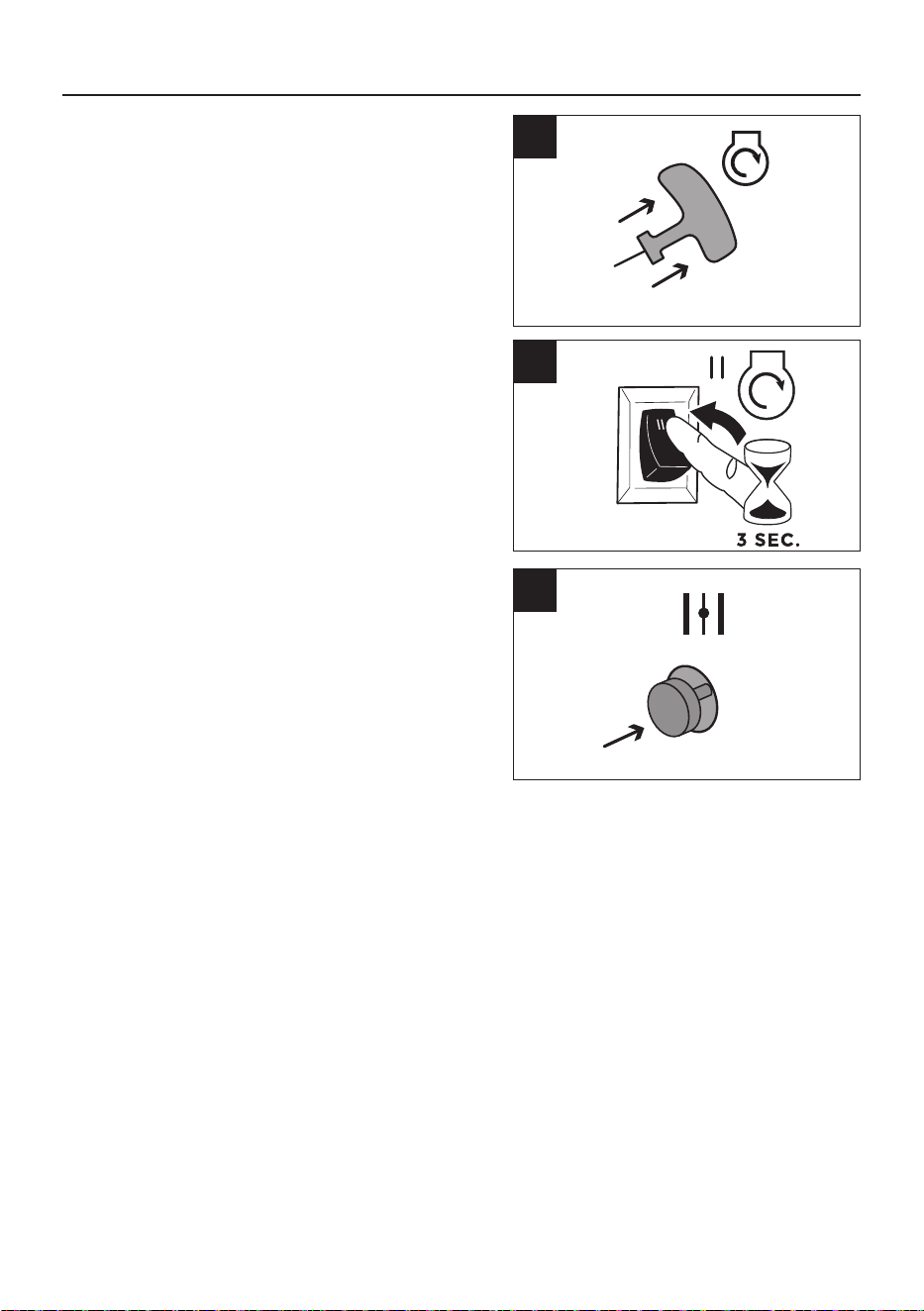

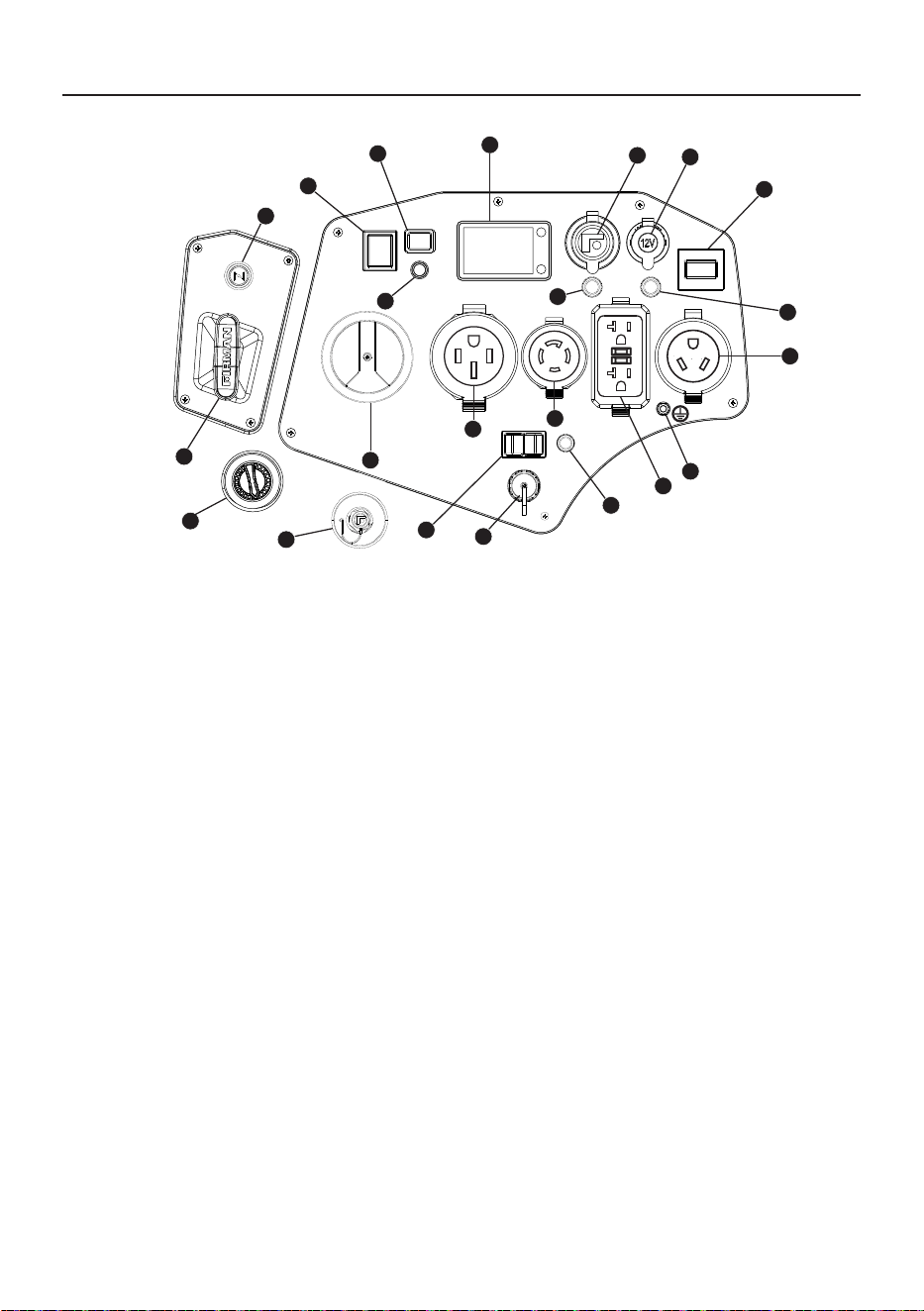

1. Engine Start Switch – To start engine, press and hold the switch in the START (ll) position, the

engine will crank and attempt to start. When the engine starts, release the switch to the RUN (l)

position.

2. Economy Control Switch - The Economy Control switch can be activated in order to minimize fuel

consumption and noise while operating the unit during times of reduced electrical output,allowing the

engine speed to idle during periods of non-use. The engine speed returns to normal when an electrical

load is connected. When the economy switch is o󰀨, the engine runs at normal speed continuously.

3. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown

due to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.

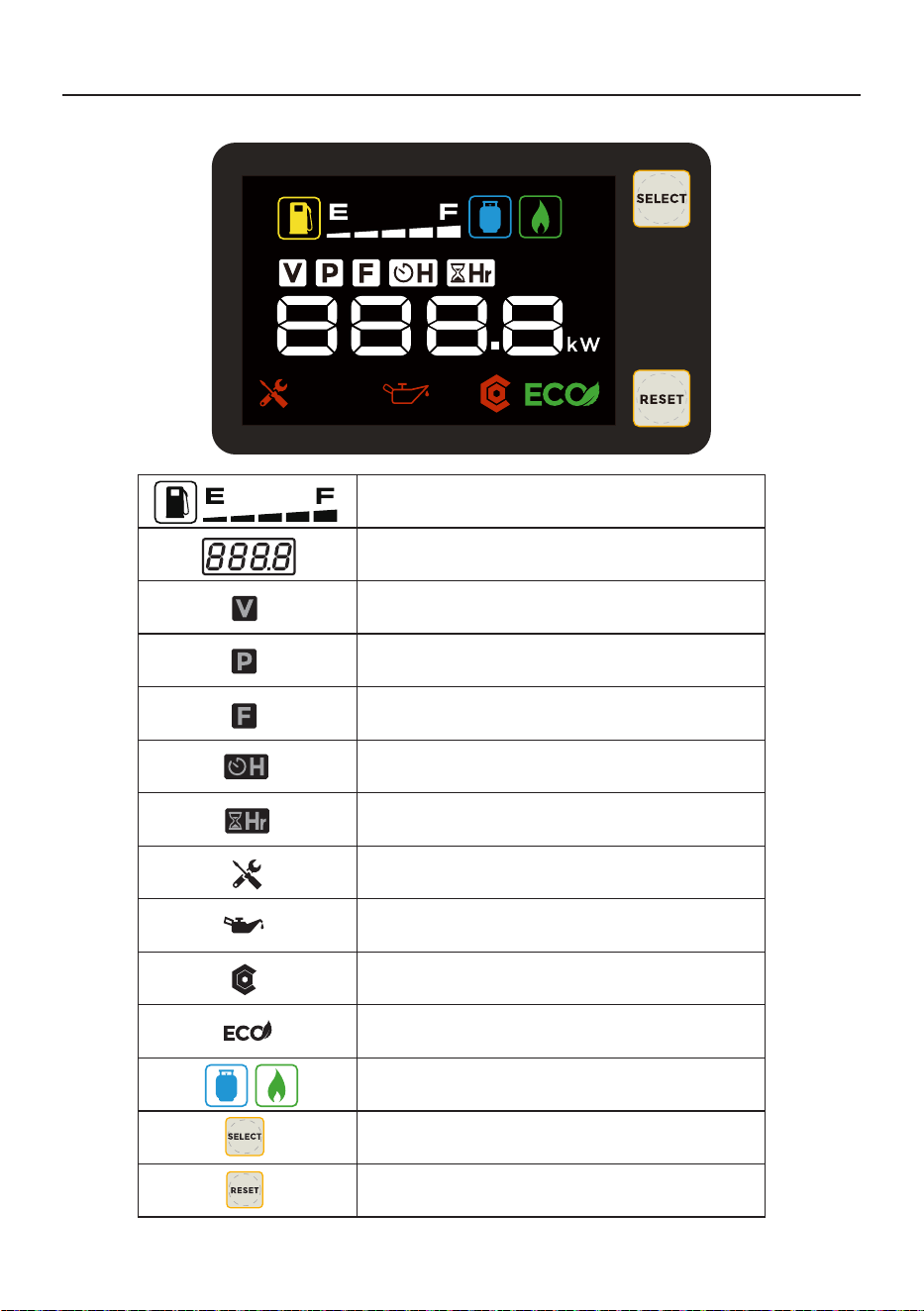

4. Intelligauge with LED Screen – The screen can show the Voltage, Hertz, Power , running hours,

Fault alarm, regular maintenance, low oil alarm and remaining running time .

5. Main Fuel Selector Switch/Engine Switch – Use to select and turn on gasoline (GAS) or LPG/NG

fuel source. The GAS valve is closed when the switch is in the OFF or LPG/NG positions. Engine

switch is on when the switch is in GAS or LPG/NG positions.

6. USB-C Output/Input Port

Devices that charge through a USB-C port, such as a MacBook Pro, Android phone, or other devices

can be charged by the USB-C port (5V, 9V, 12V, 15V & 20V output 60W maximum.).

The battery can be charged through USB-C port. USB-C charging input supports 5V/3A input 15W

maximum

7. DC 12V Output - 8.3 Amps of DC current may be drawn from this receptacle. Use this outlet to

charge 12V automotive type batteries ONLY. See 12V DC outlet (Battery Charger) section.

FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

Control Panel

8. AC Circuit Breaker – The receptacles are protected by AC circuit protectors. If the generator is

overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,disconnect

all electrical loads and determine the cause before attempting to continue using the generator. Reset

any tripped circuit protectors.

If multiple receptacles are used at the same time, the total current must be kept with-in the portable

generator data decal rating.

9. DC Circuit Breaker – The DC receptacles are protected by an DC circuit protector. If the DC output

is overloaded or an external short circuit occurs the circuit protector will trip.

10. 120V, 30A RV – NEMA TT-30R (not GFCI protected)

A maximum of 30 Amps current may be drawn from this receptacle.

11. Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding

requirements.

12. 120V, 20A Duplex GFCI (Ground Fault Circuit Interrupter)- NEMA 5-20R

A maximum of 20 Amps current may be drawn from this duplex receptacle.

13. 120/240V, 30A – NEMA L14-30R (not GFCI protected)

A maximum of 25 Amps current for 240 Volts or two independent 120 Volt loads at 25 Amps

current each can be drawn from this receptacle.

A maximum of 30 Amps current may be drawn from this receptacle (Parallel Operation).

14. 120/240V, 50A – NEMA 14-50R (not GFCI protected)

A maximum of 25 Amps current for 240 Volts or two independent 120 Volt loads at 25 Amps

A maximum of 45.8 Amps current may be drawn from this receptacle (Parallel Operation).

15. Parallel Operation Outlets – These outlets are used for connecting inverter generators for parallel

operation. A FIRMAN parallel kit(optional equipment) is required for parallel operation. For more

information see PARALLEL OPERATION section.

16. Choke Button – Used to start a cold engine.

17. Recoil Starter

18. LPG/NG Select Switch

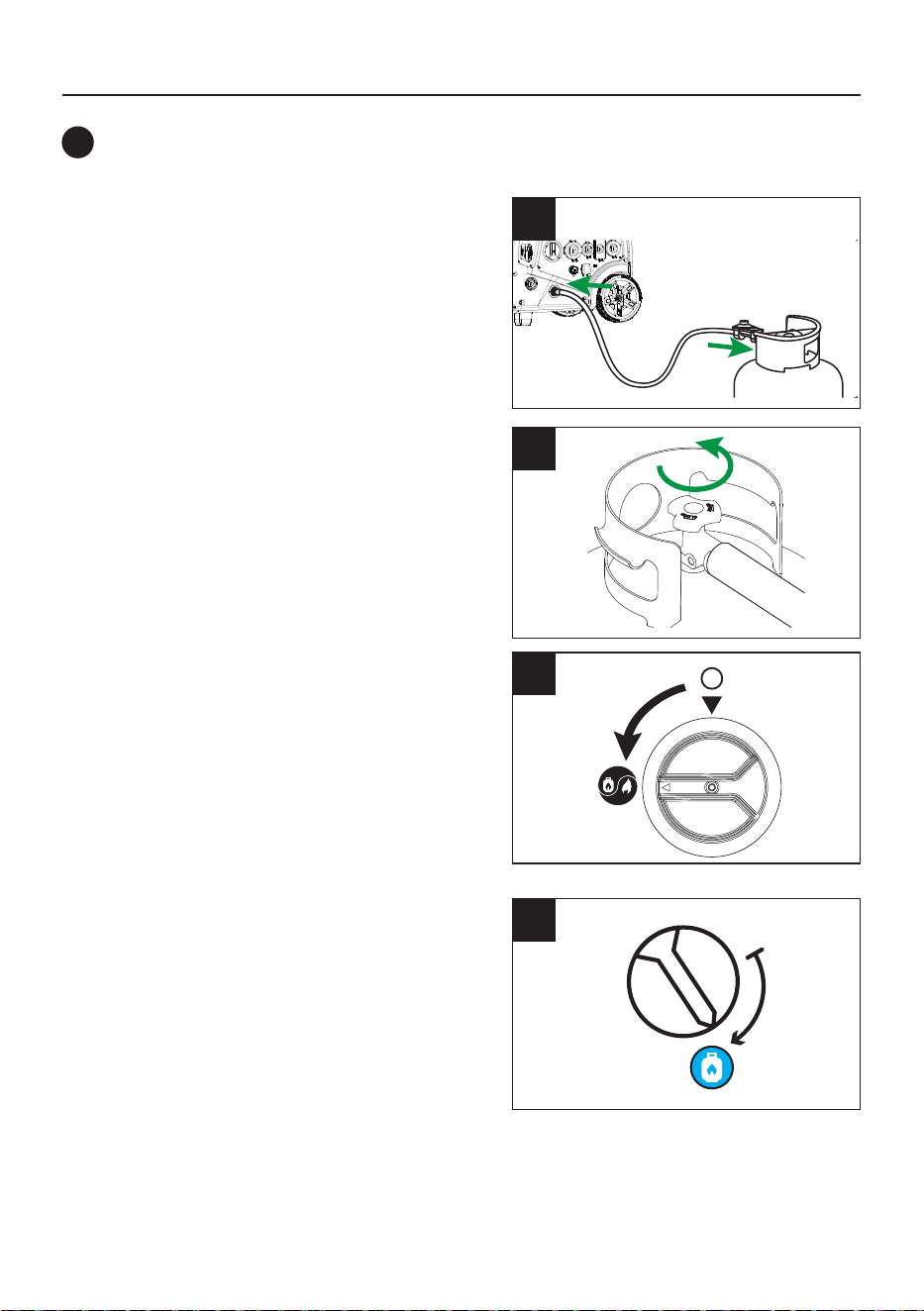

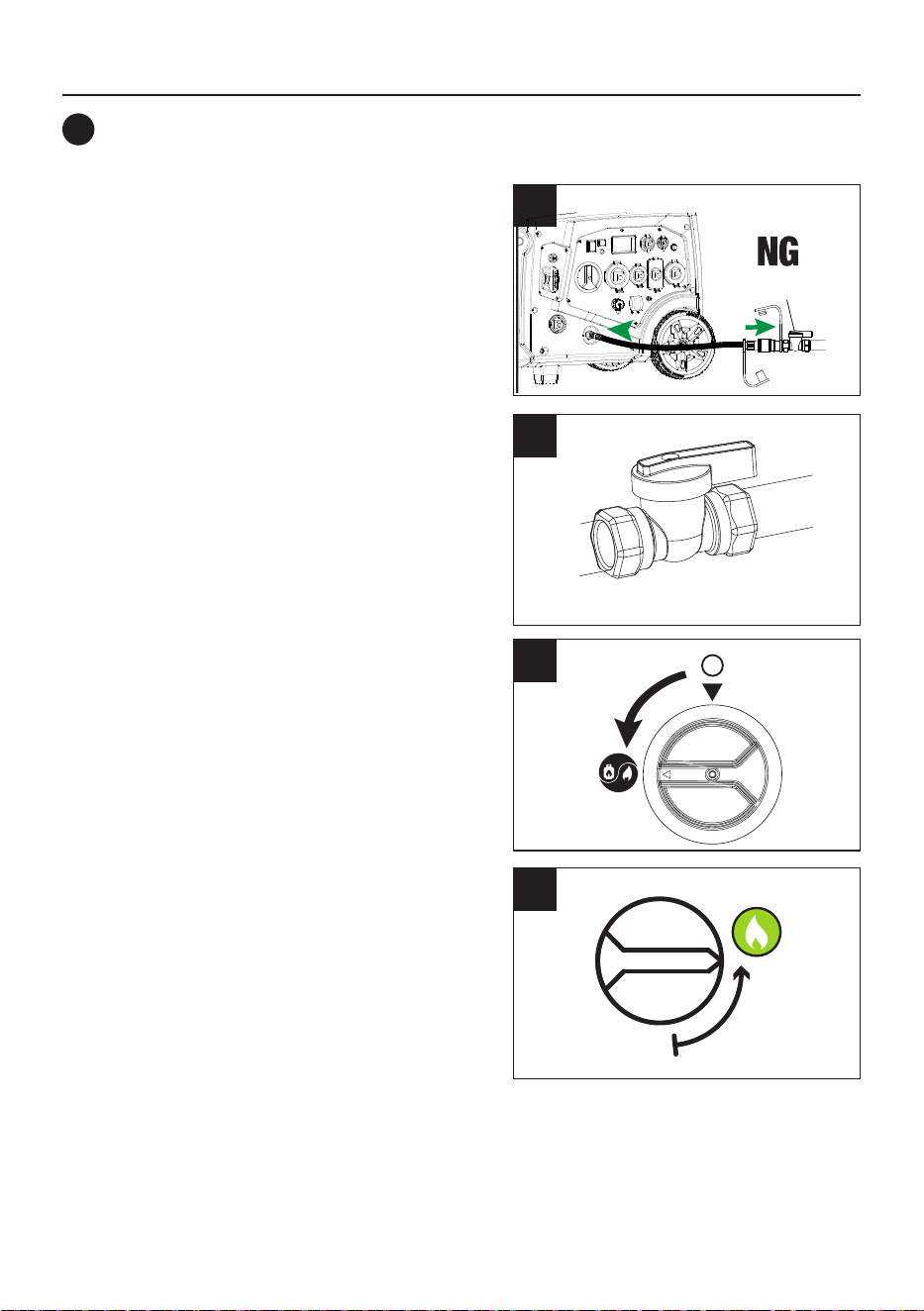

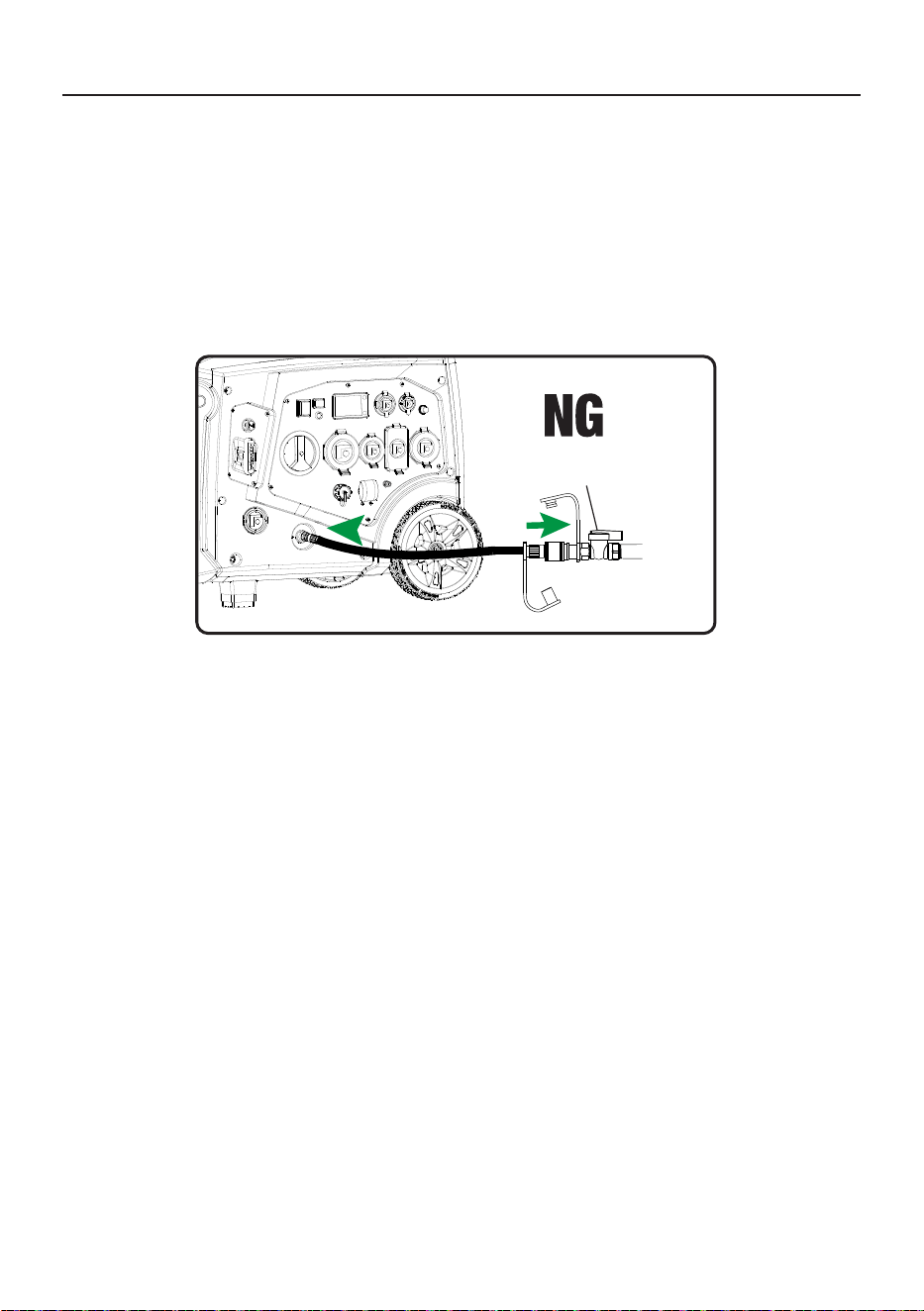

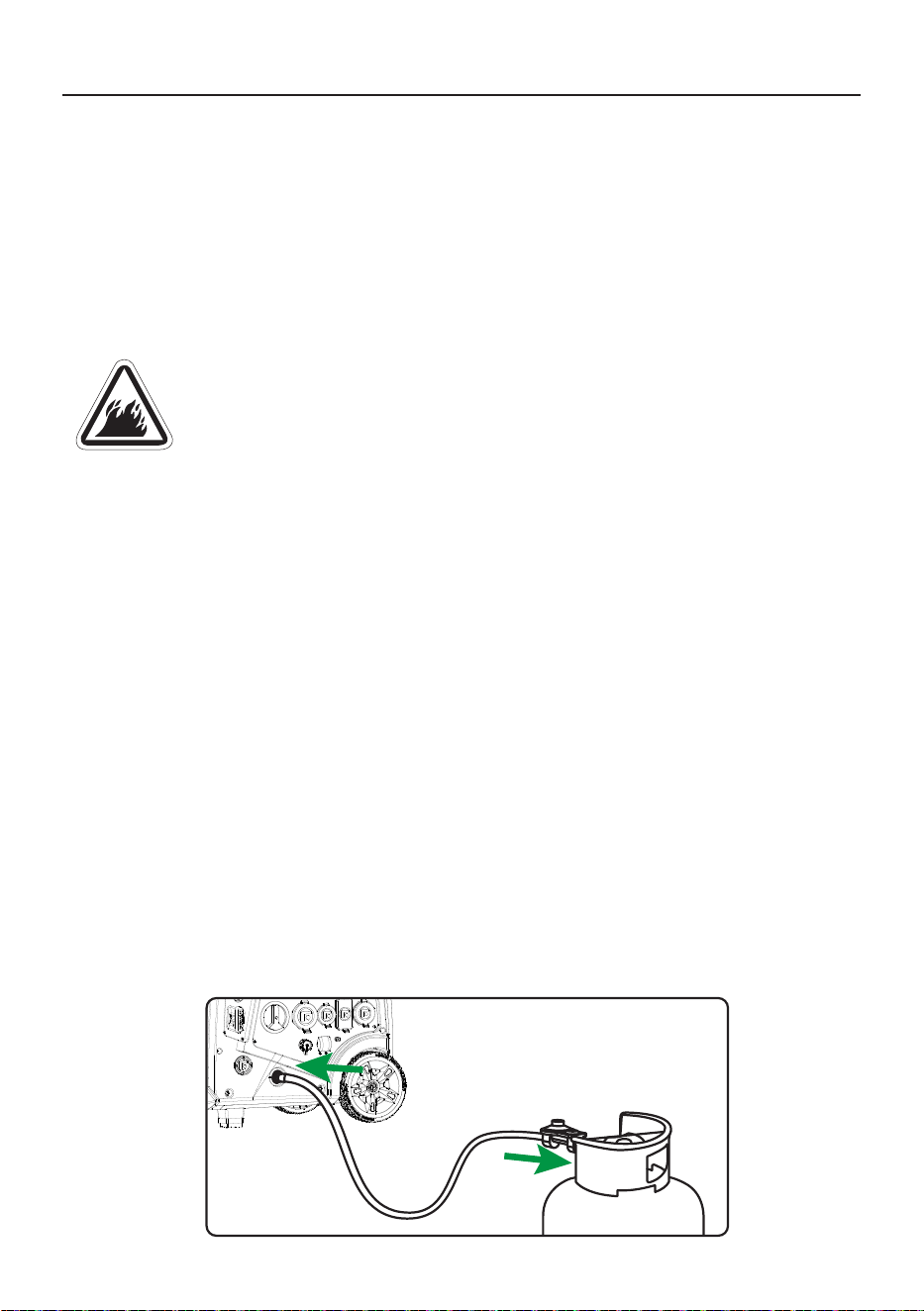

19. LPG/NG Hose Connector (Inlet: 3/8" Flare Male) – Used to connect LPG/NG hose to generator.

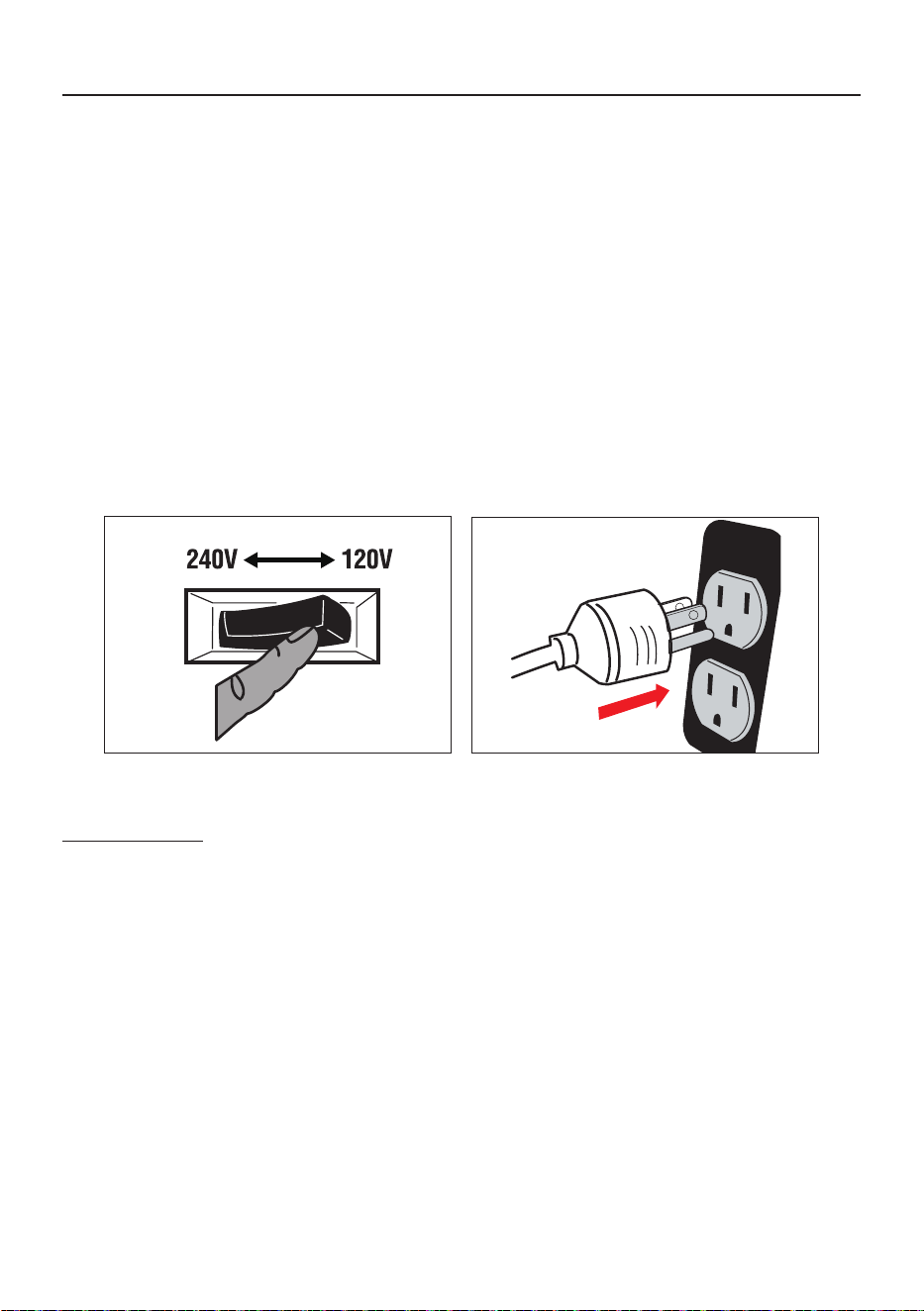

20. Voltage Selector Switch – To select between 120 Volt or 240 Volt.When you select the 120 Volt,

only 120V single voltage sockets 5-20R and TT-30R have outputs. When you select the 240 Volt, only

240V dual-voltage sockets L14-30R and 14-50R have outputs.

FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

Intelligauge Display Screen

English Customer Service: 1-844-FIRMAN1

Intelligauge Display Screen

Low oil level

Generator maintenance required

ECO mode (no load, low idle speed)

Voltage

Frequency

Power

Total run time

Remaining run time

CO Alert alarm

Display value

Remaining fuel

Restore output after generator overloaded and clear

maintenance icon flashing after the maintenance

Change to show the Voltage, Hertz, Power ,

Running hours and remaining running time.

FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS

LPG/NG

OPERATING INSTRUCTIONS

LOCATION

DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could

kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not

smell exhaust fumes, you could still be exposed to carbon monoxide gas.

● Operate portable generator only outdoors, at least 20 ft downwind from occupied spaces with

exhaust pointed away to reduce the risk of carbon monoxide accumulating.

● Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery

back-up according to the manufacturer's instructions.

Smoke alarms cannot detect carbon monoxide gas.

● Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or other

partially-enclosed spaces even if using fans or opening doors and windows for ventilation.

Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this

product has shut o󰀨.

● If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air

right away. Call emergency services. You may have carbon monoxide poisoning.

A. Carbon Monoxide Alarm(s)

Install carbon monoxide alarms inside your home.

Without working carbon monoxide alarms, you

will not realize you are getting sick and dying from

carbon monoxide poisoning.

Prevent Carbon Monoxide (CO) Poisoning

Use outdoors at least 20 ft downwind from any home.

Point exhaust away from all homes and occupied spaces.

Install CO alarms inside your home.

20 ft min.

To better educate yourself about all carbon monoxide risks, go to

www.takeyourgeneratoroutside.com.

OPERATING INSTRUCTIONS

Reduce Risk of Fire

WARNING! Exhaust heat/gases could ignite combustibles, structures or damage

fuel tank causing a re, resulting in death or serious injury.

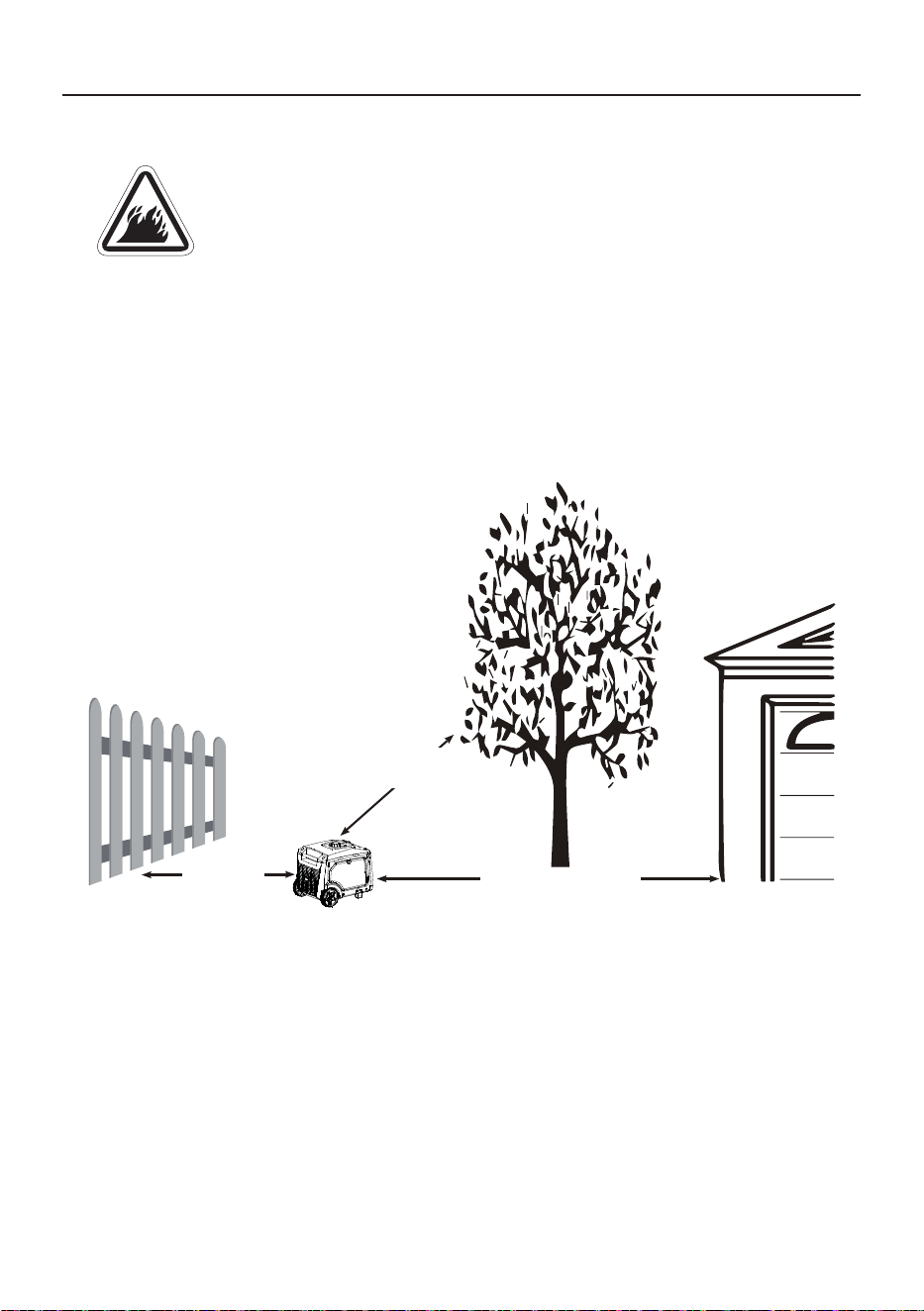

● Keep portable generator at least 5 ft from any structure, trees or vegetation over 12 in in height.

● Select an outdoor site that is dry and protected from the weather. Do not move portable generator

indoors to protect it from the weather.

● Do not locate the portable generator under a deck or other similar structure that may conne heat

and airow.

5 ft min.

20 ft min.

OIL AND GASOLINE

2A. Add Engine Oil

Low Oil Shutdown

OPERATING INSTRUCTIONS

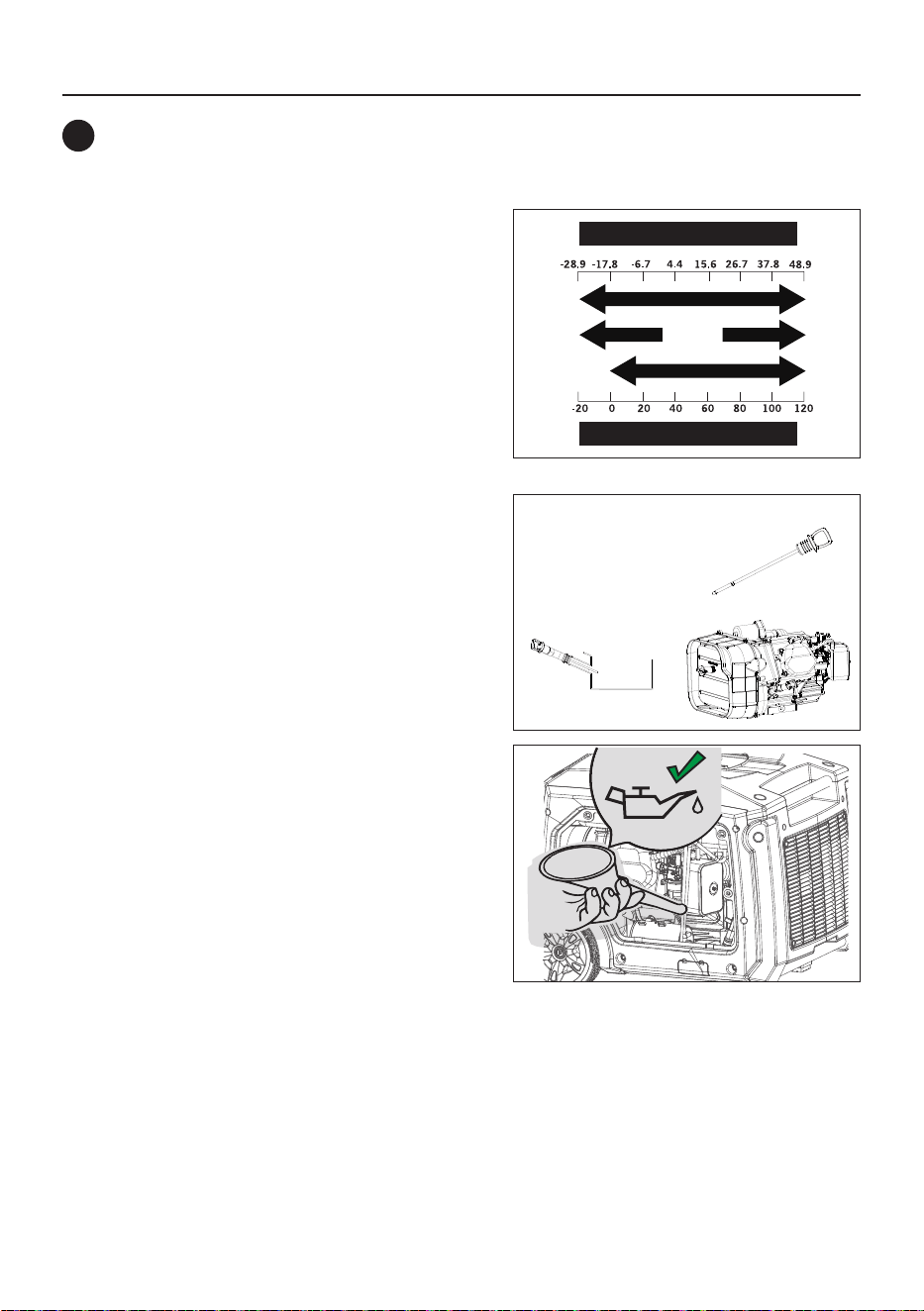

We recommend using SAE 10W-30 API SL or

higher oil for best performance. Do not use special

additives. Ambient temperature determines the

proper oil viscosity for the engine. Use the chart to

select the proper oil for the outdoor temperature

range expected.

NOTICE

Do not attempt to crank or start the

engine before it has been properly lled with the

recommended type and amount of oil. Damage

due to operation with no oil will void your warranty.

1. Place generator on a at, level surface.

2. Loosen the cover screw and remove the

maintenance cover.

3. Clean area around oil ll and remove yellow oil

ll cap/dipstick.

4. Wipe dipstick clean.

5. Using oil funnel, slowly pour contents of

provided oil bottle into oil ll opening until oil

reaches upper limit "H" mark on the dipstick.

Be careful not to overll. Overlling could cause

engine starting problems or engine damage.

6. Replace oil ll cap/dipstick and fully tighten.

7. Reinstall maintenance cover and tighten screws.

8. Oil level should be checked prior to each use or

at least every 8 hours of operation.

Keep oil level maintained.

The portable generator is equipped with a low oil shutdown. If the oil level drops below the minimum

required level, a sensor will activate an internal switch stopping the engine. If the engine shuts o󰀨

and the oil level is within specications, check to see if generator is sitting at an angle. Place portable

generator on an even surface to correct this. If engine fails to start, the oil level may not be high

enough to deactivate the internal low oil level switch. Make sure the sump is completely full of oil to

the upper limit (H). Do not operate engine until oil level issue is corrected. Contact FIRMAN customer

service.

Degrees Celsiusº(Outside)

Full Synthetic 5W-30

5W-30

10W-30

10W-40

Degrees Fahrenheitº(Outside)

NOTICE

Do not screw in cap/dipstick when

checking oil level.

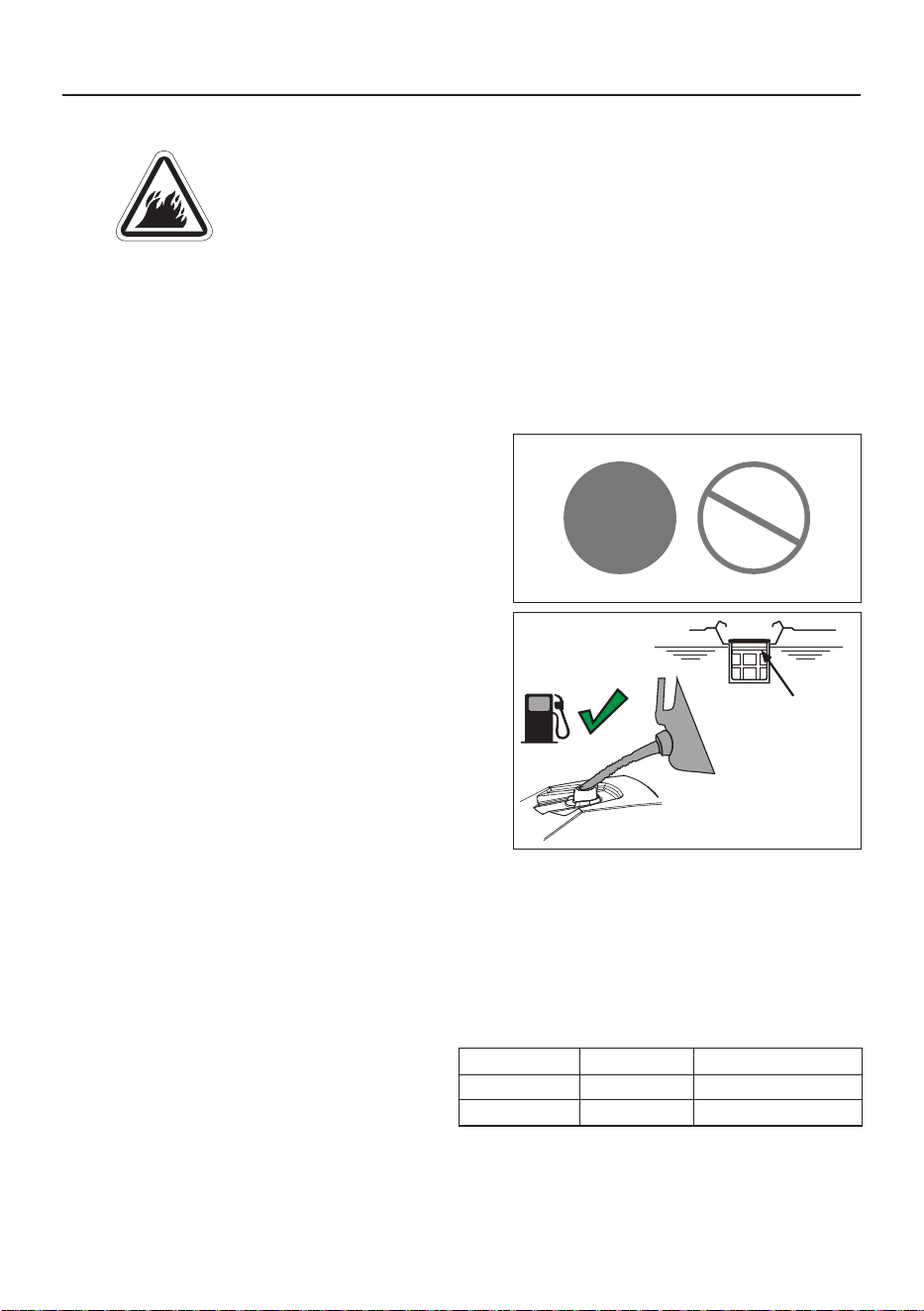

2B. Add Gasoline

OPERATING INSTRUCTIONS

WARNING! Fuel and its vapors are extremely ammable which could cause

burns or re resulting in death or serious injury.

● Turn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.

● Do Not refuel or move generator when engine is running.

● Move generator outdoors prior to adding or draining fuel

● Keep fuel away from any ignition sources.

● Do not overll tank, allow space for fuel expansion.

● If any fuel spills, wait until it evaporates before starting engine

● Check and replace fuel lines, tank, cap, and ttings prior to each use if any damage or leaks are

found.

Fuel must meet these requirements:

● Clean, fresh, unleaded gasoline with a minimum

of 87 octane.

● Gasoline with no more than 10% ethanol is

acceptable.

E10 E15

NOTICE

Do not mix oil in gasoline or modify

engine to run on alternate fuels not described

in this manual. Use of unapproved fuels could

damage engine and will not be covered under

warranty.

1. Clean area around fuel ll cap, remove cap.

2. Slowly add unleaded fuel to fuel tank. Be careful

not to ll above the RED fuel level indicator.

This allows adequate space for fuel expansion.

3. Install fuel cap and let any spilled fuel evaporate

before starting engine.

Red Line

Indicator

Operation at High Altitude

At altitudes over 5,000 ft, a minimum 85 octane gasoline is acceptable.

Engine power and generator output will be reduced approximately 3.5% for every 1000 ft of elevation

above sea level. High altitude may cause hard starting, increased fuel consumption and sparkplug

fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The

alternative main jet and installation instructions can be obtained by contacting Customer Support.

Altitude main jet 1

Altitude main jet 2

Altitude

3000-6000 ft

6000-8000 ft

NOTICE

Operation using an alternative main jet

at elevations lower than the recommended

minimum altitude can damage the engine. For

operation at lower elevations, the standard main

jet supplied must be used. Operating the engine

with the wrong main jet may increase exhaust

emissions, fuel consumption and reduce perfor-

mance.

322 cc

355717004

355717005

Operation at High Ambient conditions

Your FIRMAN Power Equipment product is designed and rated for continuous operation at ambient

temperatures up to 104°F. The generator may be operated at temperatures ranging from 5°F to 122°F

for short periods. If the generator is exposed to temperatures outside this range during storage, the

generator should be brought back within this range before operation. When operated above 77°F there

may be a decrease in power. Maximum wattage and current are subject to and limited by such factors

as ambient temperature, altitude, engine conditions etc.

OPERATING INSTRUCTIONS

Connecting LPG/ NG Fuel

WARNING! Liquid Petroleum gas (LPG) and Natural Gas (NG) are extremely

ammable which could cause burns or re resulting in death or serious injury.

● The fuel supply line must always be shut o󰀨 when the engine is not running. Failure to shut

o󰀨 fuel may allow fuel to leak at the generator.

● Do not place the LPG/NG sources in the path of mu󰀪er outlet or near any ignition source.

● Keep a re extinguisher near the generator all the time.

● Do not use or store LPG/NG portable sources not in use near generator or in a building, garage

or enclosed area.

● All LPG/NG supply/ piping lines must be installed by a qualied plumber.

● If you smell gas, close o󰀨 all gas sources and contact a qualied plumber to inspect and

repair the LPG or NG system.

● Prior to each days rst use spray a soapy water solution on LPG/NG fuel connections to check

for leaks.

● Never use a gas container, LPG/ NG connector hose, LPG cylinder or NG source that appears

to be damaged.

● Do not connect or disconnect the LPG/ NG source in an enclosed area.

● LPG is heavier than air and can accumulate in conned / low spaces if there is a leak.

NOTICE

If a fuel supply connection is necessary it must be installed in accordance with all local

codes or regulations, or in the absence of local codes or regulations, in accordance with the

National Fuel Gas Code (NFPA 54/ANSI Z223.1) and CSA B149.1 (Natural Gas and Propane

Installation Code), as applicable. If possible the fuel supply connection should be close to the

outdoor operating location. This will reduce the cost of the exible fuel run. An approved exible

fuel line must be installed between the generator LPG/NG Hose Connector (Inlet) and the fuel

supply connection. In no case should this information be interpreted to conict with any local,

state, or national code. If in doubt, always follow local codes.

LPG

● Always keep the LPG cylinder in an upright position.

● Use only DOT LPG cylinders in vapor service with type 1, right hand ACME threads. Verify the

re-qualication date on the cylinder has not expired.

● All new cylinders must be purged of air and moisture prior to lling. The purging process should be

done by your propane gas supplier.

Attach the LPG regulator hose assembly (included) to the LPG hose connector (inlet) on the control

panel of the generator. Tighten the nut with a 19 mm or adjustable wrench. Remove the safety plug

or cap from the LPG cylinder valve. Attach the LPG regulator to the cylinder valve. Do not use a

wrench to tighten LPG cylinder nut. Tighten the nut by hand clockwise to a positive stop. Using a

wrench may damage LPG cylinder components.

Connect the locally approved exible fuel supply line (not included) to the LPG/NG connector (inlet)

on the control panel and the fuel Source. We recommend you use FIRMAN 25 ft Quick Connect Hose

Kit (Model 1815) or 10 ft Quick Connect Hose Kit (Model 1805) for Natural Gas (NG) connection (This

item is not included). Hose requirements may vary in di󰀨erent regions depending on local codes.

Contact your local licensed plumber to ensure complete compliance with all codes. Make sure the

NG source location and hose used allows the portable generator to be located at least 20 ft from any

occupied spaces.

Intelligauge Display Screen - Battery Power Saving

This generator is equipped with an electronic module which consumes battery power. When the main

fuel selector switch is turned to the GAS or LPG/NG position, the intelligauge display screen will light

for up to 4 minutes (before going o󰀨). Start the engine successfully anytime during the 4 minutes. If

portable generator is not started during this 4-minute period the portable generator will switch to Bat-

tery Power Saving Mode to conserve battery life.

NOTICE

Your portable generator is equipped with an internal battery charger that will properly

charge the battery only when the engine is running.

The generator cannot be started in Battery Power Saving Mode. Turn main fuel selector switch to

the o󰀨 position and back to the GAS or LPG/NG position to reset the RED indicator 4-minute

electronic module.

OPERATING INSTRUCTIONS

NG Shut Off Valve

1. Before starting the generator, check for loose or

missing parts and for any damage which may

have occurred during shipment.

Ensure spark plug, mu󰀪er, fuel cap, and air

cleaner are all in place.

2. Operate portable generator only outdoors and

downwind at least 20 ft from occupied

spaces with exhaust pointed away to reduce the

risk of carbon monoxide accumulating.

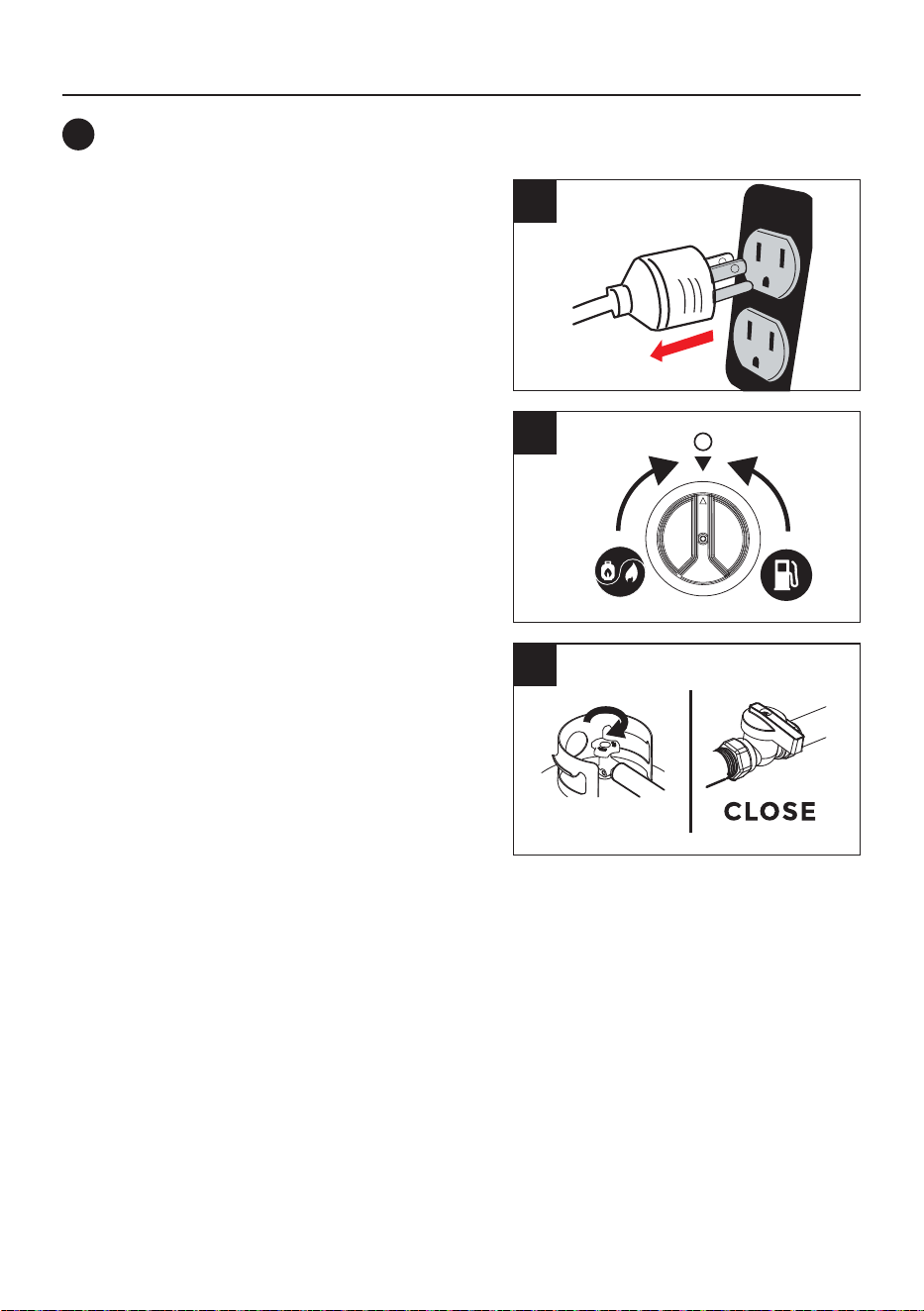

3. If connected make sure the LPG cylinder knob

or the NG source valve are fully closed or

disconnected.

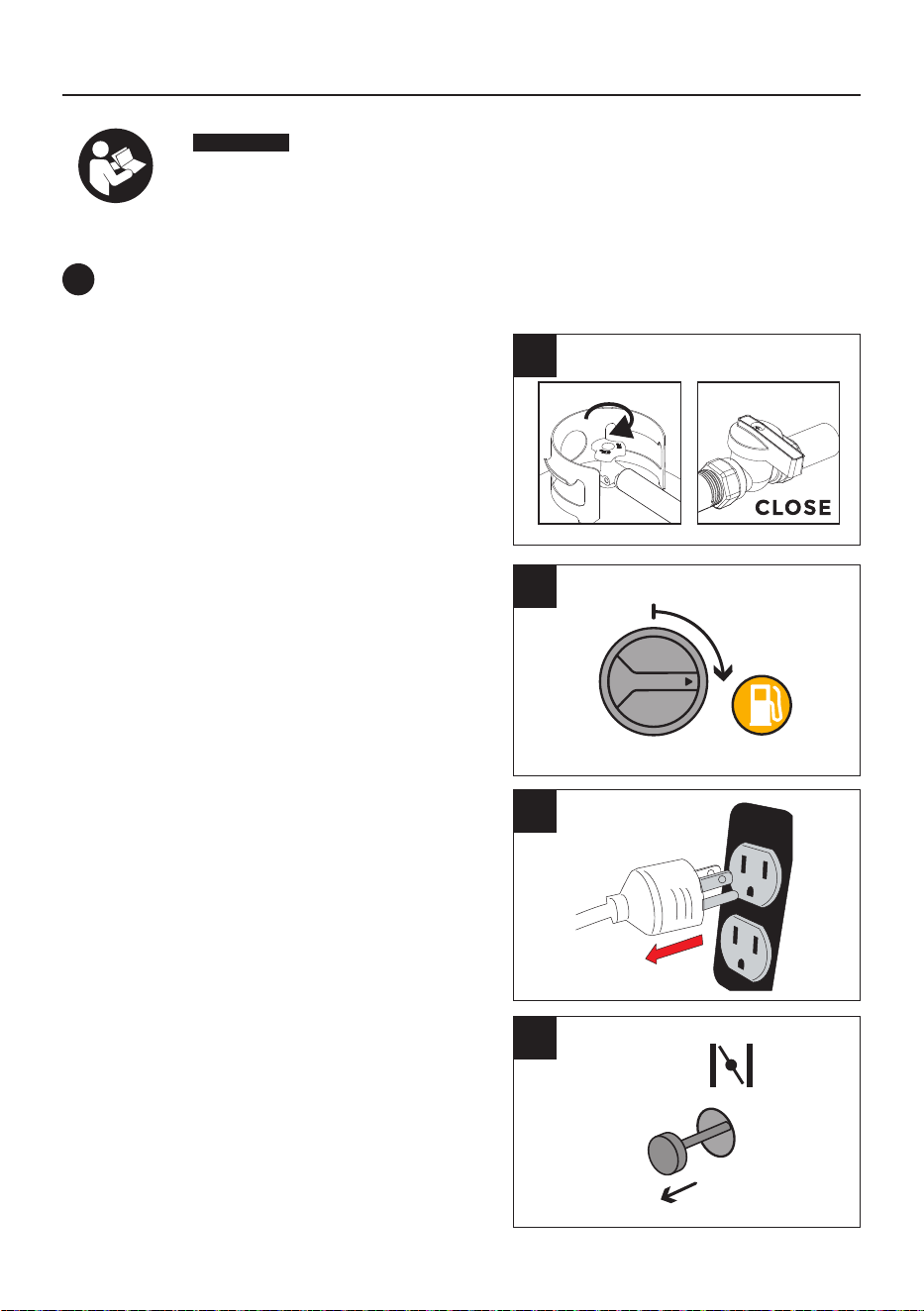

4. Turn the main fuel selector switch to “GAS”

position.

NOTICE

When the main fuel selector switch is

turned to the GAS position, the intelligauge display

screen will light for up to 4 minutes (before going

o󰀨)

6. Pull the choke button to the “CHOKE” position.

You do not need to choke a warm engine. (For

electric start move to step (8))

WARNING! Failure to read and follow all warnings and instructions in this

manual and on-product labels before attempting to start or operate this

portable generator could result in death or serious injury.

Starting the Generator on Gasoline

5. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in.

OPERATING INSTRUCTIONS

OFF

OPERATING INSTRUCTIONS

RUN

10. Allow portable generator to run at no load for

a few minutes to stabilize before plugging in any

electrical devices.

NOTICE

If engine starts but fails to run, or if

portable generator shuts down during operation,

check oil level. See Low Oil Shutdown section for

more information.

7. For recoil start only - Pull the starter cord slowly

until resistance is felt and then pull rapidly to

start engine.

8. For electric start only - Flip the engine switch to

the START (ll) position for a few seconds and

then release.

9. Do not over-choke. As soon as engine starts and

warms up, press the choke knob to return to the

run position.

OFF

OPERATING INSTRUCTIONS

1. Before starting the generator, check for loose or

missing parts and for any damage which may

have occurred during shipment.

Ensure spark plug, mu󰀪er, fuel cap, and air

cleaner are all in place.

2. Operate portable generator only outdoors and

downwind at least 20 ft from occupied

spaces with exhaust pointed away to reduce the

risk of carbon monoxide accumulating.

3. Connect the LPG hose with regulator to both

LPG cylinder and portable generator LPG/NG

Hose

4. Fully open the LPG cylinder knob.

6. Turn the LPG/NG selector switch to LPG postion.

Starting the Generator on LPG

5. Turn the main fuel selector switch to LPG/NG

position.

NOTICE

When the main fuel selector switch is

turned to the LPG/NG position, the intelligauge

display screen will light for up to 4 minutes (before

going o󰀨).

LPG

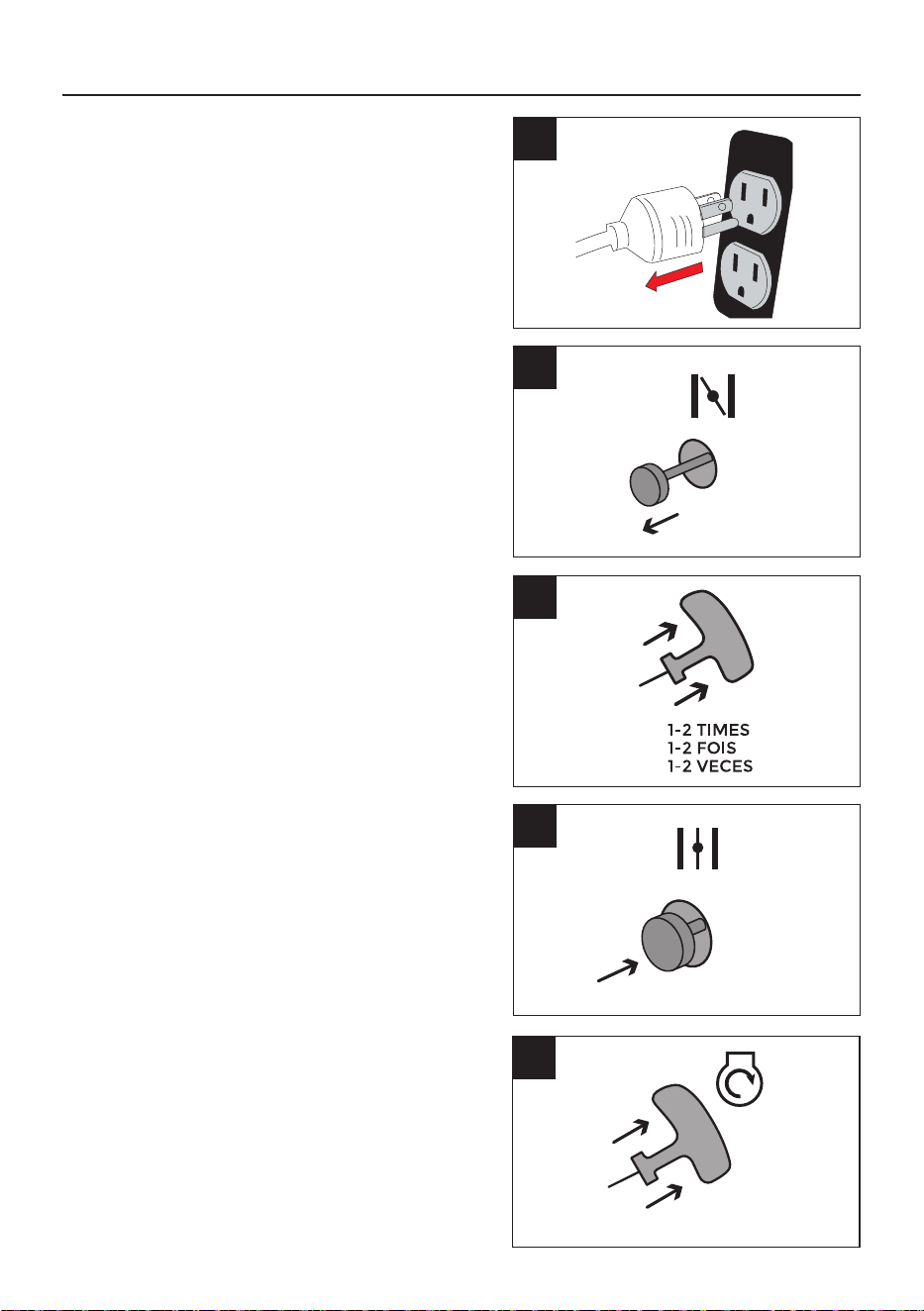

7. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in.

8. Pull the choke button to the “CHOKE” position.

You do not need to choke a warm engine. (For

electric start move to step (12))

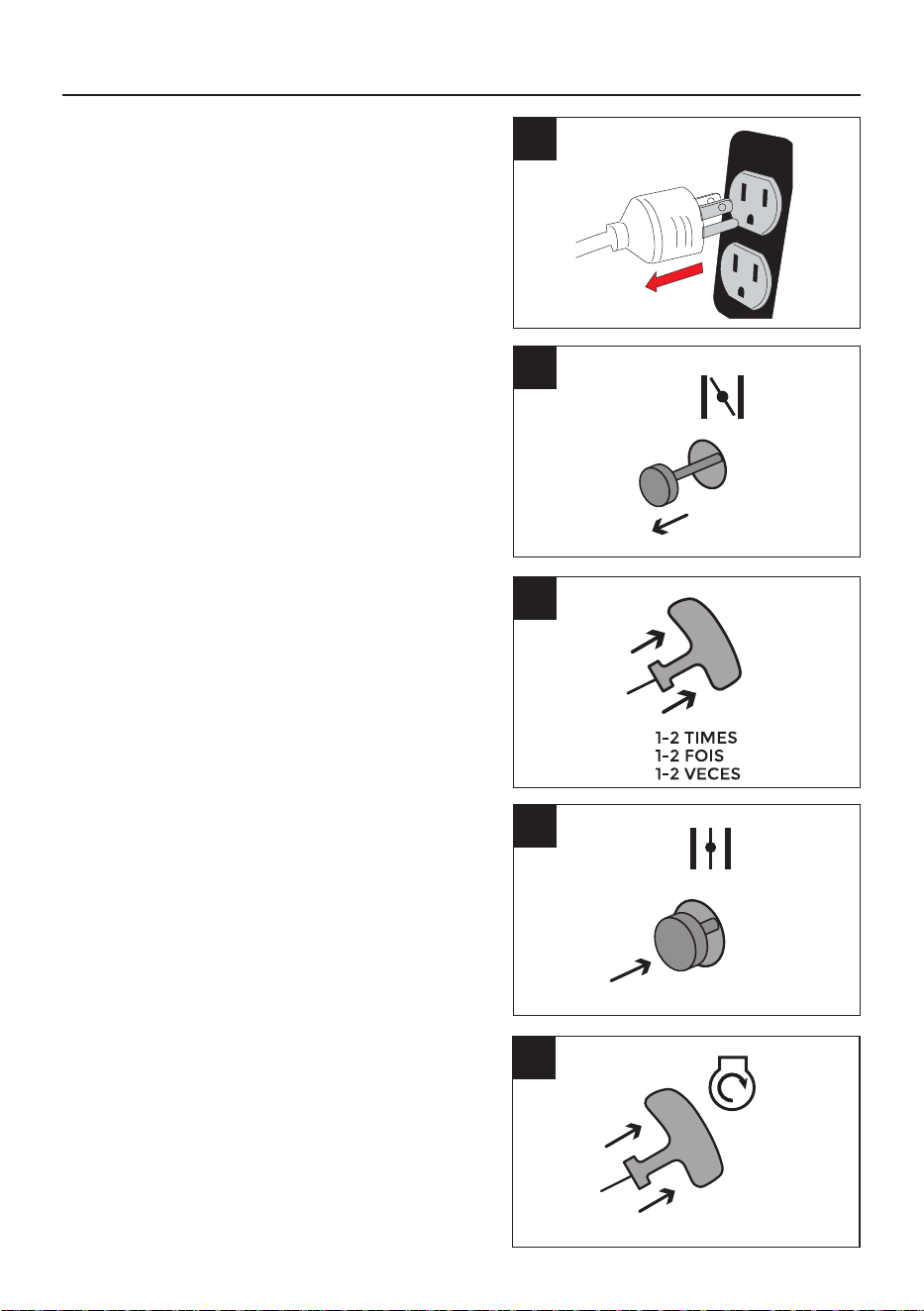

9. For recoil start only - PULL-TO-PRIME Pull the

starter cord 1-2 times. Pull slowly until resistance

if felt and then pull rapidly.

11. For recoil start only - PULL-TO-RUN Pull the

starter cord slowly until resistance if felt and pull

rapidly to run the portable generator.

If the engine fails to start in 1-2 pulls with choke in

the RUN position, move choke lever to START

position and repeat the PULL-TO-PRIME step (9).

10.For recoil start only - Press the choke button to

the run position.

OPERATING INSTRUCTIONS

OFF

Muffler

RUN

14. Allow portable inverter generator to run at no

load for a few minutes to stabilize before plugging

in any electrical devices.

NOTICE

If engine starts but fails to run, or if

portable generator shuts down during operation,

check oil level. See Low Oil Shutdown section for

more information.

NOTICE

Observing frost on LPG cylinder and

regulator is common during operation and normally

is not an indication of a problem. In unusual

situations this frost may eventually restrict the

ow of LPG gas to the generator resulting in

deteriorating performance. In these rare situations

it can be helpful to:

● Exchanging fuel cylinders to allow the rst

cylinder to warm up, repeating as necessary.

Placing the LPG cylinder at the end of the

generator near the handle, where engine fan air

ows out from the generator. This air is slightly

heated by air owing over the engine. Do not place

the LPG cylinder in the path of the mu󰀪er exhaust

outlet.

● The LPG cylinder and components can be

temporarily warmed by pouring warm water over

them.

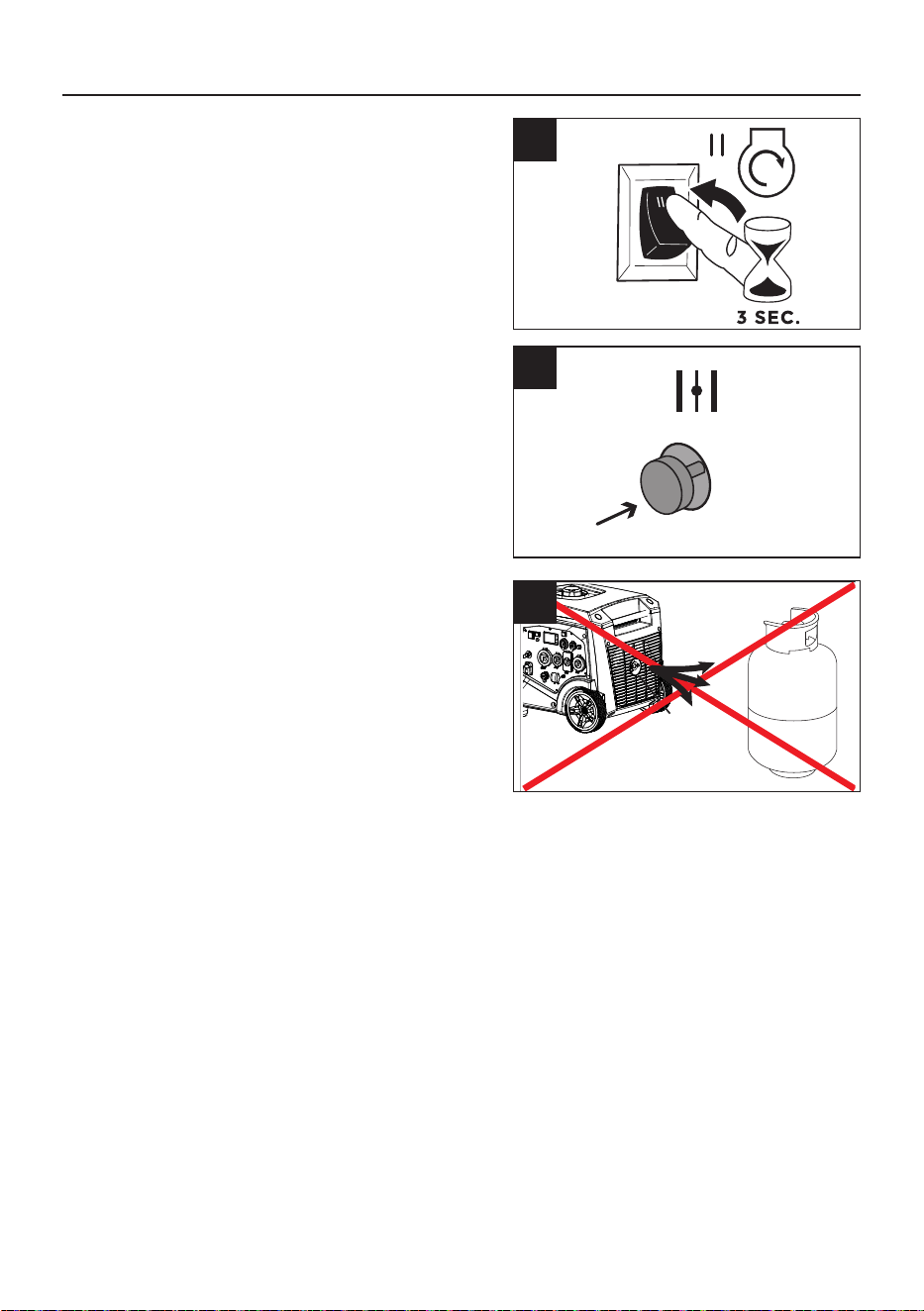

12. For electric start only - Flip the engine switch to

the START (ll) position for a few seconds and

then release.

13. For electric start only - Press the choke button

to the run position.

OPERATING INSTRUCTIONS

1. Before starting the generator, check for loose or

missing parts and for any damage which may

have occurred during shipment.

Ensure spark plug, mu󰀪er, fuel cap, and air

cleaner are all in place.

2. Operate portable generator only outdoors and

downwind at least 20 ft from occupied spaces

with exhaust pointed away to reduce the risk of

carbon monoxide accumulating.

3. Connect the LPG hose with regulator to both

LPG cylinder and portable generator LPG/NG

Hose.

4. Fully open the LPG cylinder knob.

6.Turn the LPG/NG selector switch to NG position.

Starting the Generator on NG

5. Turn the main fuel selector switch to LPG/NG

position.

NOTICE

When the main fuel selector switch is

turned to the LPG/NG position, the intelligauge

display screen will light for up to 4 minutes (before

going o󰀨).

OPEN

OPERATING INSTRUCTIONS

NG Shut Off Valve

7. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in.

8. Pull the choke button to the “CHOKE” position.

You do not need to choke a warm engine. (For

electric start move to step (12))

9. For recoil start only - PULL-TO-PRIME Pull the

starter cord 1-2 times. Pull slowly until resistance

if felt and then pull rapidly

11. For recoil start only - PULL-TO-RUN Pull the

starter cord slowly until resistance if felt and pull

rapidly to run the portable generator.

If the engine fails to start in 1-2 pulls with choke in

the RUN position, move choke lever to START

position and repeat the PULL-TO-PRIME step (9).

10.For recoil start only - Press the choke button to

the run position.

OPERATING INSTRUCTIONS

OFF

OPERATING INSTRUCTIONS

14. Allow portable inverter generator to run at no

load for a few minutes to stabilize before plugging

in any electrical devices.

NOTICE

If engine starts but fails to run, or if

portable generator shuts down during operation,

check oil level. See Low Oil Shutdown section for

more information.

12. For electric start only - Flip the engine switch to

the START (ll) position for a few seconds and

then release.

13. For electric start only - Press the choke button

to the run position.

OPERATING INSTRUCTIONS

This portable generator has been pretested and adjusted to handle its full capacity. The voltage is

regulated using an automatic voltage regulator (AVR). Readjusting the AVR will void warranty.

The duplex receptacle is equipped with GFCI protection. The GFCI protects against electric shock

that may be caused if you become a path which electricity travels to reach earth. Even with a GFCI

you may feel a shock, but the GFCI cuts power quickly so an average person should not su󰀨er any

injury. Manual test GFCI while generator is running to verify internal contacts will function.

●

Push the test button. The reset button will pop out, which should cut power to outlet.

●

Press the reset button until it locks in the depressed position. If the GFCI does not reset as

described do not use the receptacles. Call Firman customer service.

●

If GFCI trips while in use, reset and test the outlet. Electric cords laying on the ground with

worn insulation may trip the GFCI, only use cords in good condition.

In addition to the manual test / reset feature the GFCI receptacle tests itself periodically to conrm the

GFCI electronics are functional. The indicator light will be solid green when the GFCI is powered from

the generator and working correctly.

Self-test indications: If the indicator light is solid orange or ashing red a problem may exist.

Press the TEST button to trip the GFCI. If unable to reset, replace the GFCI

CONNECTING ELECTRICAL LOADS

RESET

TEST

TEST MONTHLY

FOLLOW DIRECTIONS

RESET BUTTON

Receptacle

Outlet

LED Indicator Light

TEST BUTTON

Outlet

SELF-TEST OPERATION

CONNECTING ELECTRICAL LOADS

WARNING! Generator voltage could cause electrical shock or burn

resulting in death or serious injury.

● Damaged or overloaded extension cords could overheat, arc, and burn resulting death or serious

injury.

● Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as metal

decking.

● Do not touch bare wires or receptacles.

Surge Protection

There is a remote chance that voltage uctuations may impair the proper functioning of some sensitive

electronic equipment. Electronic devices, including computers and many programmable appliances

may use components that are designed to operate within a narrow voltage range and may be a󰀨ected

by the portable generator’s momentary voltage uctuations. While there is no way to prevent all voltage

uctuations, you can take steps to protect your sensitive electronic equipment. Install a plug-in surge

suppressor on the receptacles feeding your sensitive equipment. Surge suppressors come in single or

multi-outlet styles. They are designed to protect against short duration voltage uctuations.

1.Ensure circuit breaker on control panel is in the closed (on) position.

2. Start the generator with no electrical load attached.

3. Allow the engine to run for several minutes to stabilize.

4. Set voltage selector switch to either 120 Volt or 240 Volt position. When 120 volts is selected only

120 volts is available. When 240 Volt position is selected only 120/240 volts is available.

5. Plug in and turn on the rst item. It is best to attach the item with the largest load rst.

6. Allow the engine to stabilize.

7. Plug in and turn on the next item.

8. Allow the engine to stabilize.

9. Repeat steps 6-7 for each additional item.

● Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.

● Do not operate generator in the rain or wet weather.

● Do not run indoors to avoid wet conditions.

● Do not handle generator or electrical cords while standing in water, while barefoot, or while

hands or feet are wet.

● Use listed transfer switch to prevent backfeed by isolating generator from electric utility workers.

OPERATING INSTRUCTIONS

CO Alert

Carbon Monoxide (CO) Shutdown System

CO Alert automatically shuts down the engine when harmful levels of carbon monoxide accumulate

around the generator or a CO Alert fault occurs. After shutdown, the CO Alert indicator light will blink

for at least ve minutes per the chart below. CO Alert DOES NOT replace carbon monoxide alarms.

Install battery-powered carbon monoxide alarm(s) in your home. Don’t run generator in enclosed

areas.

*Yellow light will blink for ve seconds at the startup of generator to show CO ALERT is functioning

properly.

Color

RED

Yellow

Carbon monoxide accumulated around generator. Prior to restart move

generator to an open, outdoor area 20 ft downwind from occupied

spaces with exhaust pointed away. Air out premises (open windows

and doors) before reoccupying property. Automatic shuto󰀨 is an

indication generator was improperly located.

If you start to feel sick, dizzy, weak, or your homes carbon monoxide

alarm sounds while using this product, get to fresh air right away. Call

emergency services. You may have carbon monoxide poisoning.

CO Alert fault occured*.

See FIRMAN authorized service dealer.

Description

OPERATING INSTRUCTIONS

Economy Control Switch

12V DC Outlet (Battery Charger)

The Economy Control switch can be activated in order to minimize fuel

consumption and noise while operating the unit during times of reduced

electrical output, allowing the engine speed to idle during periods of

non-use. The engine speed returns to normal when an electrical load is

connected. When the economy switch is o󰀨, the engine runs at normal

speed continuously.

NOTICE

For periods of high electrical load or momentary uctuations,

the Economy Control Switch should be turned OFF.

The amount of current owing will depend on the charging voltage and battery’s state of charge.

As the battery becomes more fully charged, the output current to the battery decreases and nearly

becomes constant. Taper chargers are intended to be used with the provision that they will be discon-

nected from the battery after a maximum time on charge. Normally a period of 30 to 120 minutes is

su󰀩cient to recharge a weak battery. The charge level of the battery should be checked periodically.

NOTICE

● For use with 12V direct current outlet, always keep the ECO mode deactivated (OFF Position).

● You can use the 12V direct current outlet and the 120V current at the same time, but keep the ECO

mode deactivated (OFF Position) at all times.

Do not start the vehicle while the battery charging Cable is connected and the generator is running.

It will not give the battery a boost of power. The Vehicle or the generator may be damaged. Charge

only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury

or damage.

WARNING!

● Storage batteries give o󰀨 EXPLOSIVE hydrogen gas while charging. Do not allow smoking, open

ames, sparks, or spark producing equipment in the area while charging.

● Battery electrolyte uid is comprised of sulfuric acid that can be very dangerous and cause severe

burns. Do not allow this uid to contact eyes, skin, clothing, etc. If contact or spillage does occur, ush

the area with water immediately.

● Do not continue to charge a battery that becomes hot or is fully charged.

1. Before connecting the battery charging cable to a battery that is installed in a vehicle, disconnect

the vehicle battery ground cable from the negative (–) battery terminal.

2. Plug the battery charging cable into the DC receptacle of the generator.

3. Connect the red (+) battery charger lead to the red (+) battery terminal.

4. Connect the black (–) battery charger lead to the black (–) battery terminal.

5. Start the generator.

OPERATING INSTRUCTIONS

STOPPING THE GENERATOR

1. Turn o󰀨 and remove all electrical loads.

Never stop the generator with electrical devices

plugged in and turned on.

Never stop the engine by moving the choke to the

start position.

2. Turn the main fuel selector switch to OFF (O)

position.

3. Fully close the LPG cylinder knob and NG

source valve.

If a cover is used, do not install until unit has

cooled.

Let the generator run at no-load for one minute to

stabilize internal temperatures of the engine and

generator.

OPERATING INSTRUCTIONS

If the engine oil drops below a preset level, an oil switch will stop the engine. Check oil level with

dipstick.

If oil level is between the LOW and HIGH mark on dipstick:

1.DO NOT try to restart the engine.

2.Contact an Authorized FIRMAN Service Dealer.

3.DO NOT operate engine until oil level is corrected.

If oil level is below the LOW mark on dipstick:

1.Add oil to bring level to HIGH mark.

2.Restart engine and if the engine stops again a low oil condition may still exist. DO NOT try to restart

the engine.

3.Contact an Authorized FIRMAN Service Dealer.

4.DO NOT operate engine until oil level is corrected.

Overloading a generator in excess of its rated wattage capacity can result in damage to the

generator and to connected electrical devices. To prolong the life of your generator and attached

devices, follow these steps to add electrical load:

1. Start the generator with no electrical load attached.

2. Allow the engine to run for several minutes to stabilize.

3. Plug in and turn on the rst item. It is best to attach the item with the largest load rst.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.

The “P” light will blink when the load exceeds 6240W(approximately) . If the load exceeds 6490W

(approximately), the light will turn on and cut power to the receptacles in 10 seconds. If the load

exceeds 6600W(approximately), the light will turn on and cut power to the receptacles in 2 seconds.

How to Correct

1. Disconnect any electrical devices, and then stop the engine.

2. Reduce the total wattage of connected electrical devices until it is within the generator’s rated

output

3. Inspect the Air Inlet and Control Panel for any blockage. Remove blockage if found.

4. Restart Engine.

Any two FIRMAN 120/240V inverter generators with parallel ports, including two FIRMAN inverters

model WT06073 can be paralleled to increase the total available electrical power to 11000 Watts.

Low Oil Shutdown

Do Not Overload Generator

Overload Operation

Parallel Operation

To be performed by knowledgable/experienced owner or by authorized service center.

General Recommendations

Regular maintenance will improve the performance and extend the life of the generator. See any

authorized dealer for service.

The generator's warranty does not cover items that have been subjected to operator abuse or

negligence. To receive full value from the warranty, the operator must maintain the generator as

instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your generator.

All service and adjustments should be made at least once each season. Follow the requirements in the

maintenance shedule chart above.

NOTICE

Once a year you should clean or replace the spark plug and replace the air lter. New

spark plug and clean air lter assure proper fuel-air mixture and help your engine run at peak

performance and last longer.

MAINTENANCE SCHEDULE

Check condition. Adjust gap

and clean. Replace if necessary.

Clean fuel tank strainer.

Replace if necessary.

Check fuel hose for cracks or other

damage. Replace if necessary.

Check for leakage. Retighten or

replace gasket if necessary.

Check spark arrester screen.

Clean/Replace if necessary.

Clean, replace if necessary.

Check adjust valve clearance.

Clean combustion chamber.

Check. Replace if necessary.

Check oil level.

Replace.

√

Daily

(Before

operation)

Initial

hours

Every

hours

Every

250

hours

Every

100 hours

(or annual)

√

MAINTENANCE - STORAGE

NOTES

ITEM

Fittings/

Fasteners

Exhaust

System

Fuel Line

Air Filter

Engine Oil

Spark Plug

Fuel

Engine

√

LPG Regulator

/Hose Assy.

Check for damage and leaks.

Replace if necessary.

√

When Transporting Generator

Transport with fuel tank EMPTY or with fuel valve in OFF position.

Do not tip generator at an angle which causes fuel to spill.

Disconnect LPG/ NG fuel hose and securely stow away.

Engine Maintenance

To prevent accidental starting, remove and ground spark plug wire before performing any service.

Change Engine Oil

Change engine oil every 100 hours (for a new engine, change oil after 25 hours). If you are using your

generator under extremely dirty or dusty conditions, or in extremely hot weather change the oil more

often.

CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been

shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with soap

and water.

MAINTENANCE - STORAGE

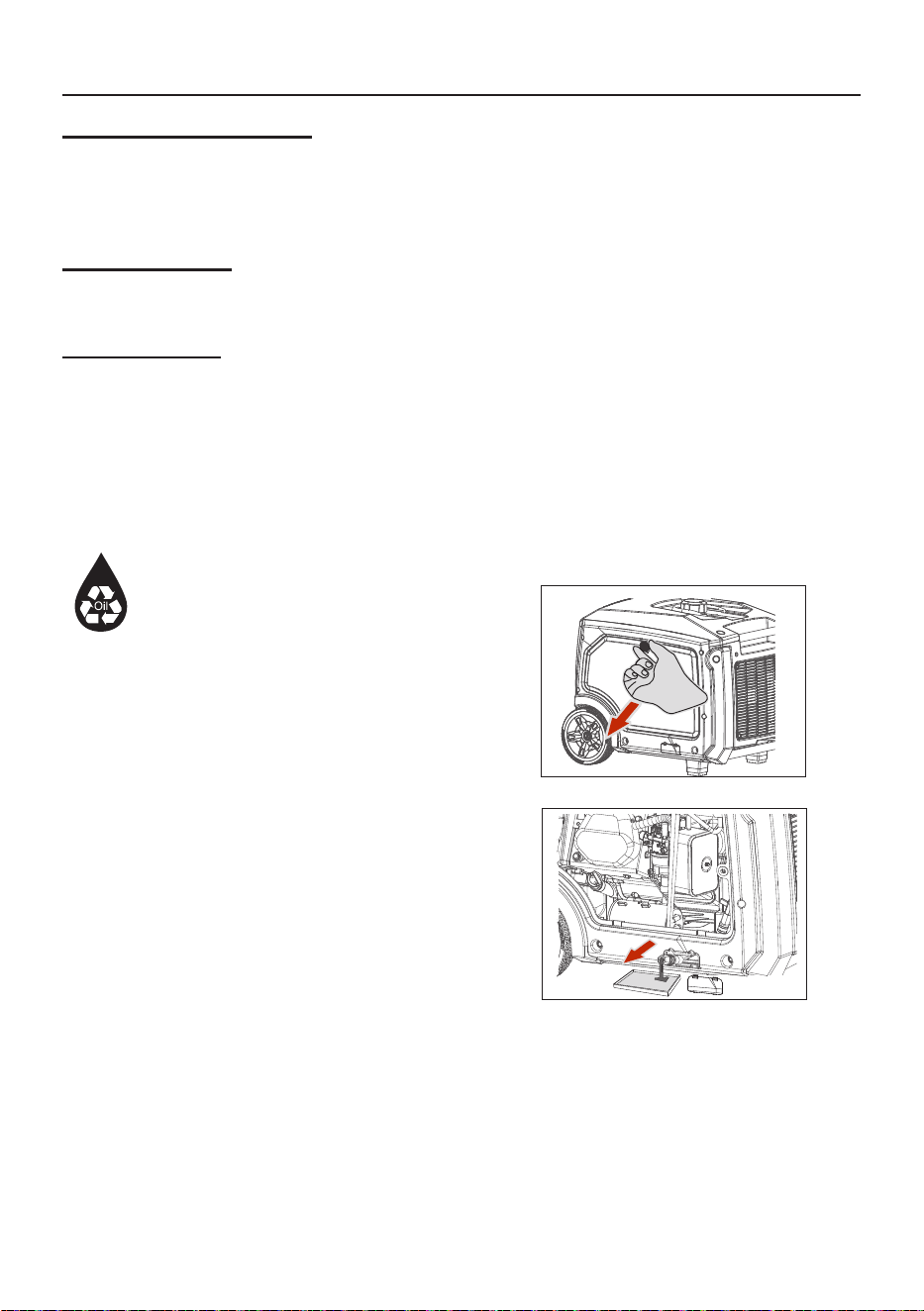

(a) Loosen the cover screws and remove the

maintenance cover.

(b) Pop up the plug from below yellow draining bolt.

(d) Tilt the generator on its side and allow the oil to

drain completely.

(e) Replace yellow drain bolt.

(f) On a level surface ll the engine with oil until it

reaches the HIGH(H) level on the oil ller cap. DO

NOT OVERFILL.

NOTICE

We recommend using SAE 10W-30 API SL

or higher oil for best performance. Do not use

special additives. See Oil and Gasoline section (page

16).

Keep Out Of Reach Of Children. Don’t

Pollute. Conserve Resources. Return

Used Oil To Collection Centers.

MAINTENANCE - STORAGE

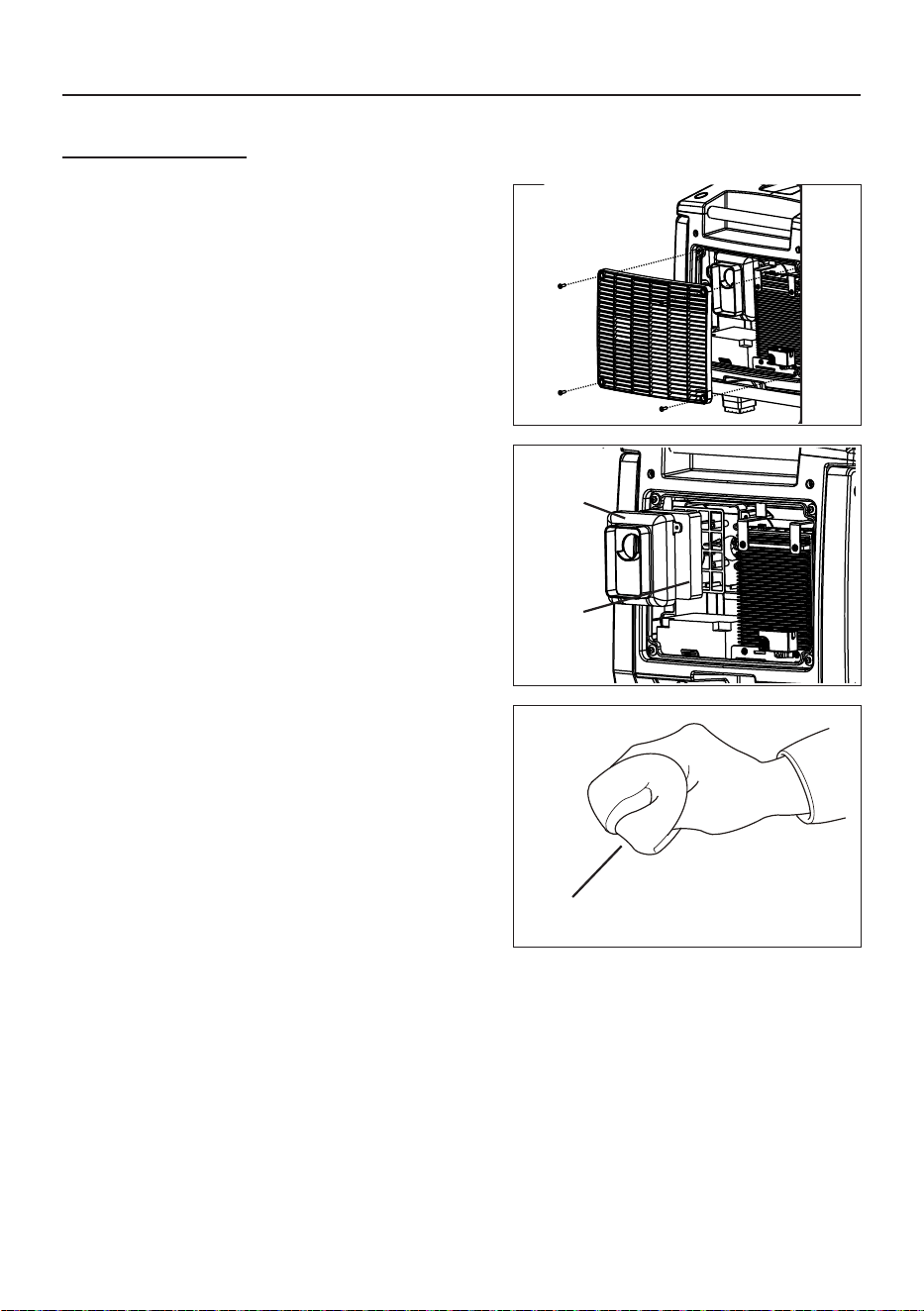

Air Filter Maintenance

(a) Remove the air cleaner cover and locate the air

lter plastic cover.

(b) Carefully remove foam air lter element and

wash it with liquid detergent and water only.

Squeeze dry in a clean cloth.

Air Filter Element

(d) Reinstall clean or new air lter element.

(e) Reattach the air lter cover.

(f) Reinstall the air cleaner cover and tighten the

cover screw securely.

engine oil and squeeze in a clean cloth to remove

excess oil.

Foam Element

Air Cleaner

Foam Element

Air Cleaner

Foam

Element

MAINTENANCE - STORAGE

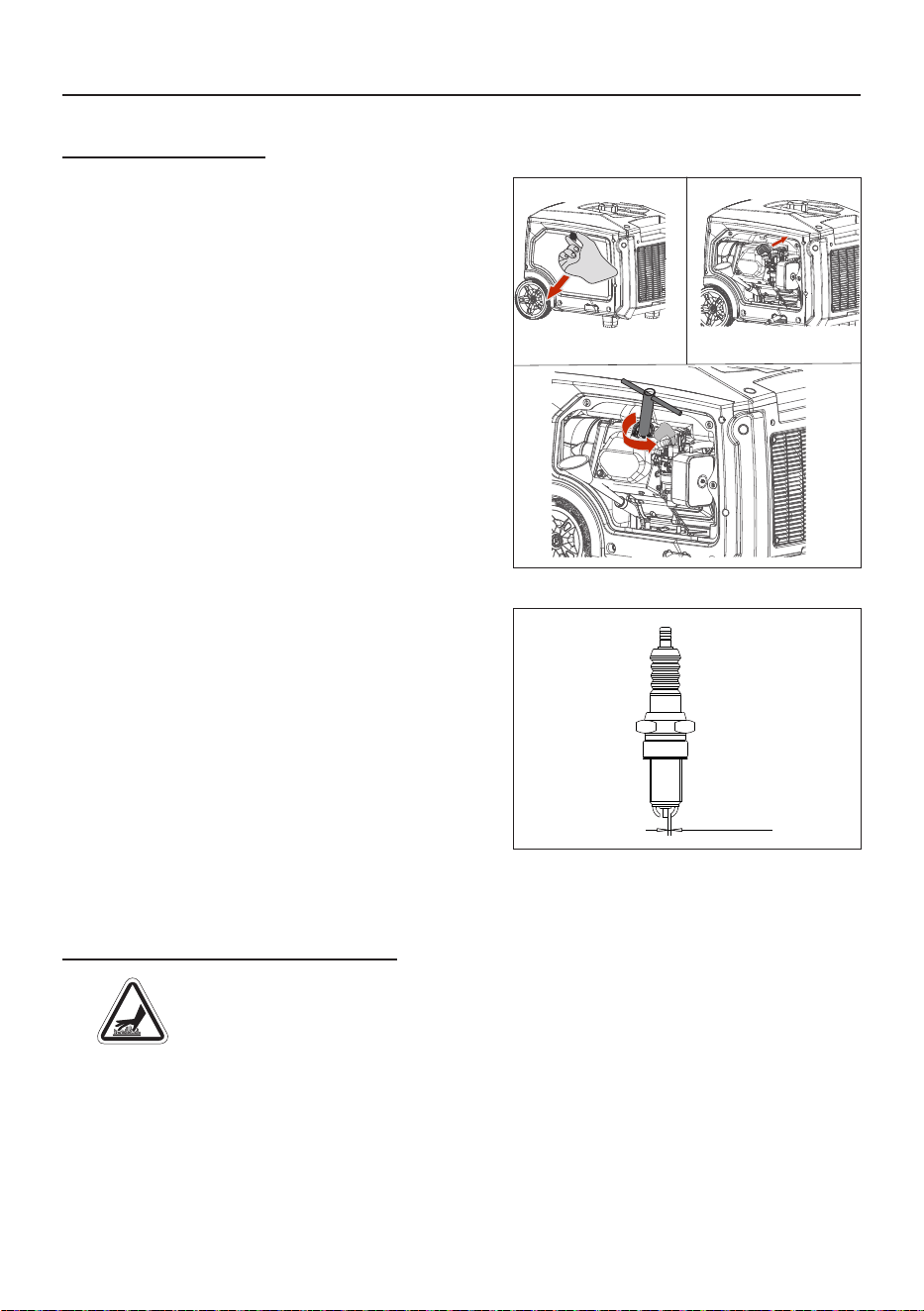

Spark Plug Maintenance

Mu󰀪er and Spark Arrester Maintenance

Changing the spark plug will help your engine start

easier and run at peak performance.

(a) Remove the maintenance cover.

(b) Remove the spark plug boot.

(d) Inspect spark plug for damage and clean with a

wire brush before reinstalling. Replace if damaged.

(e) Adjust the electrode gap to 0.031 - 0.039 in.

( ) Seat spark plug in position and thread by hand to

prevent cross threading.

(g) Tighten plug with provided wrench and put

the spark plug boot back on spark plug. Do not

overtighten.

Maintenance Valve Clearance

Intake: 0.004 – 0.006 in

Exhaust: 0.004 – 0.006 in

Spark Plug: F7RTJC

● Do not touch hot parts.

● It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on

any forest covered, brush-covered, or grass-covered land unless the exhaust system is equipped

with a spark arrester, as dened in Section 4442, maintained in e󰀨ective working order. Other states

or federal jurisdictions may have similar laws, reference Federal Regulation 36 CFR Part 261.52.

WARNING! Contact with mu󰀪er area could cause burns resulting in serious injury.

0.031 - 0.039 in

MAINTENANCE - STORAGE

Inspect Mu󰀪er and Spark Arrester

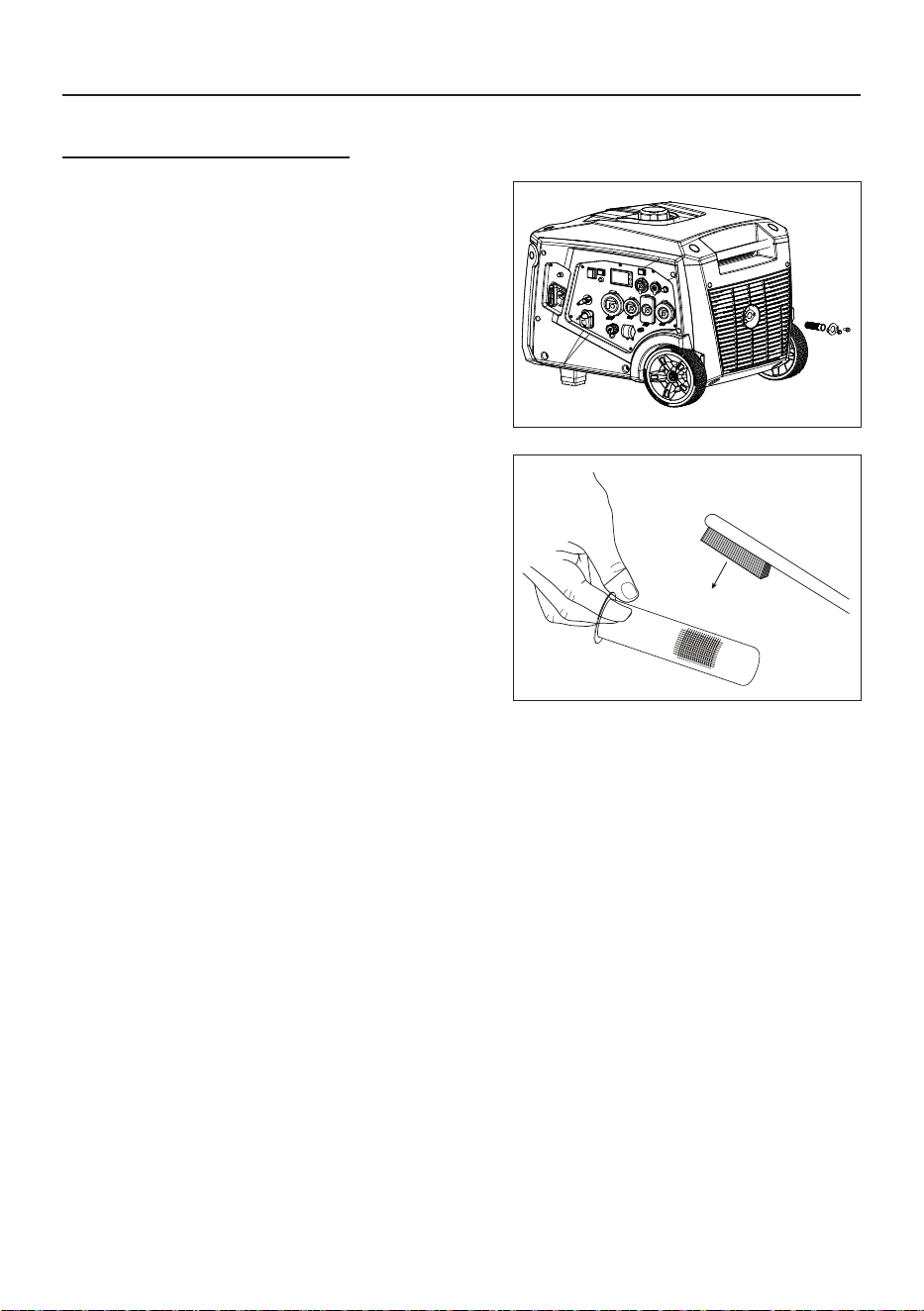

1.Inspect the mu󰀪er for cracks, corrosion, or other

damage.

2. Loosen the spark arrester clamp, remove the

spark arrester cover, and remove the spark arrester

with a thin blade screwdriver .

3. Carefully remove the carbon deposits from the

spark arrester screen with a wire brush.

4. Replace the spark arrester if it is damaged. If

replacement parts are required, make sure to use

only FIRMAN original equipment replacement

parts.

5. Position the spark arrester in the mu󰀪er and

attach spark arrester cover with the screws.

NOTICE

Failure to clean or replace spark arrester

may result in decreased engine performance.

Battery Replacement

Battery Charging

MAINTENANCE - STORAGE

GENERATOR MAINTENANCE

● Run the generator at least 30 minutes every month.

● Make certain that the portable generator is kept clean and dry.

● Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.

● Do not insert any objects through cooling slots.

● Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated

debris. Keep area around mu󰀪er free from any debris. Use a soft bristle brush to remove dirt or caked

on oil. Use a damp cloth to clean all exterior surfaces.

The battery powers the starter motor and control module. This portable generator is equipped with an

automatic battery charging circuit. The battery will receive charging voltage only when the engine is

running. The battery will maintain a proper charge if the portable generator is used on a regular basis

(about once every two weeks). If it is used less frequently, the battery should be connected to a trickle

charger (not included) or battery maintainer (not included) to keep the battery properly charged. If the

battery is not able to start the engine, the battery must be connected to a type-C style battery charger

for re-charging before it can be used. USB-C charging input supports 5V3A input 15W maximum.

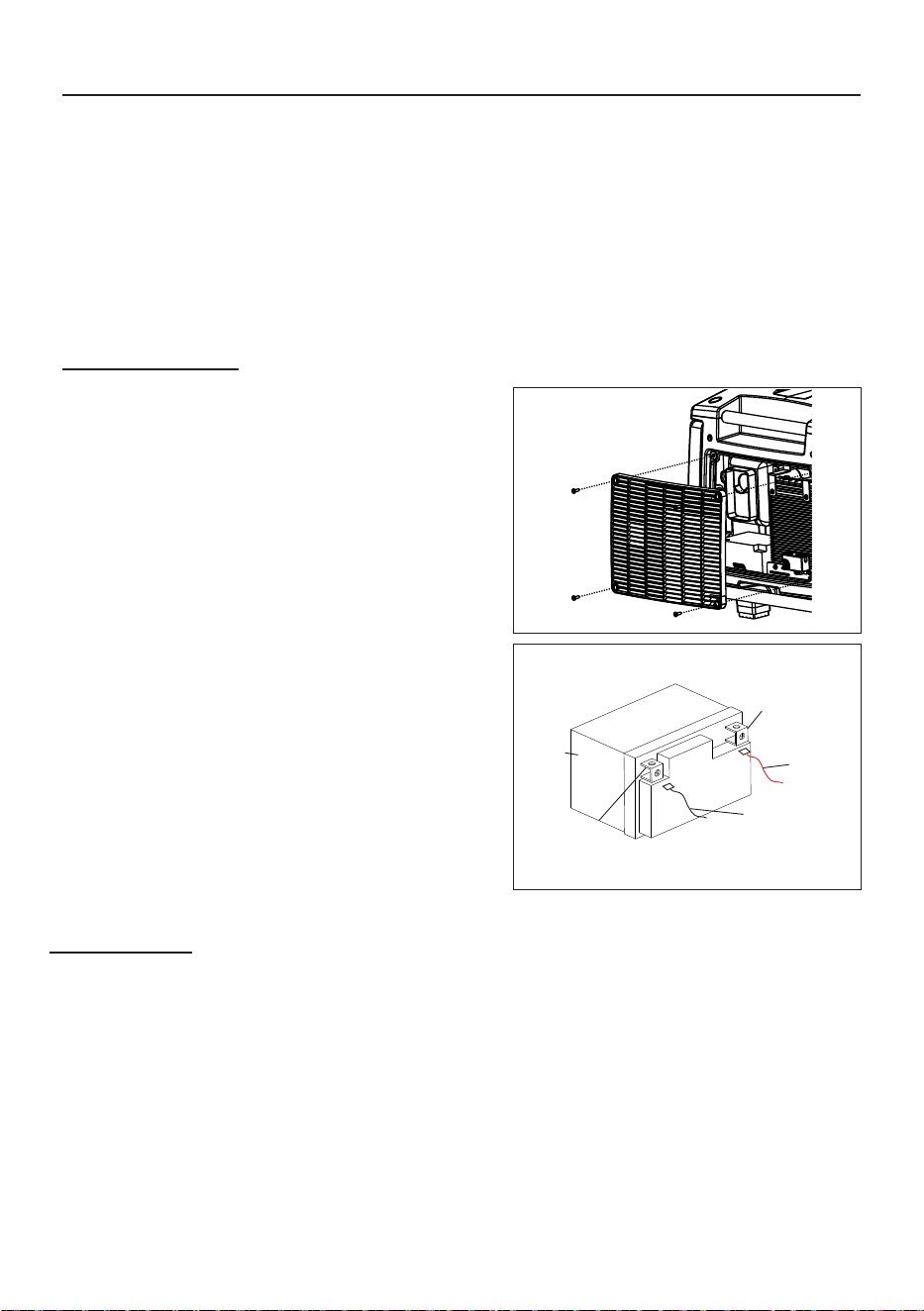

1.Unscrew the air cleaner cover by provided

screwdriver.

2. Release the battery retaining rubber belt.

3. Disconnect the black(-) cable from black(-) terminal

on the battery. Disconnect the red(+) cable from red(+)

terminal on the battery.

4. Remove the battery and recycle and dispose of

properly.

5. Install the new battery with following specication:

12V lithium battery 1.6AH

LXWXH:4.21X2.2X3.34 in.

6.Connect the red(+)batterycable to the positive termi-

nal of battery rst and then connect the black(-)

battery cable to the negative terminal of battery.

7. Reattach the air cleaner cover.

English Customer Service: 1-844-FIRMAN1

Battery

Positive(+)

Terminal

Negative(-)

Terminal

Red Cable

Black Cable

English Customer Service: 1-844-FIRMAN1

Battery

Positive(+)

Terminal

Negative(-)

Terminal

Red Cable

Black Cable

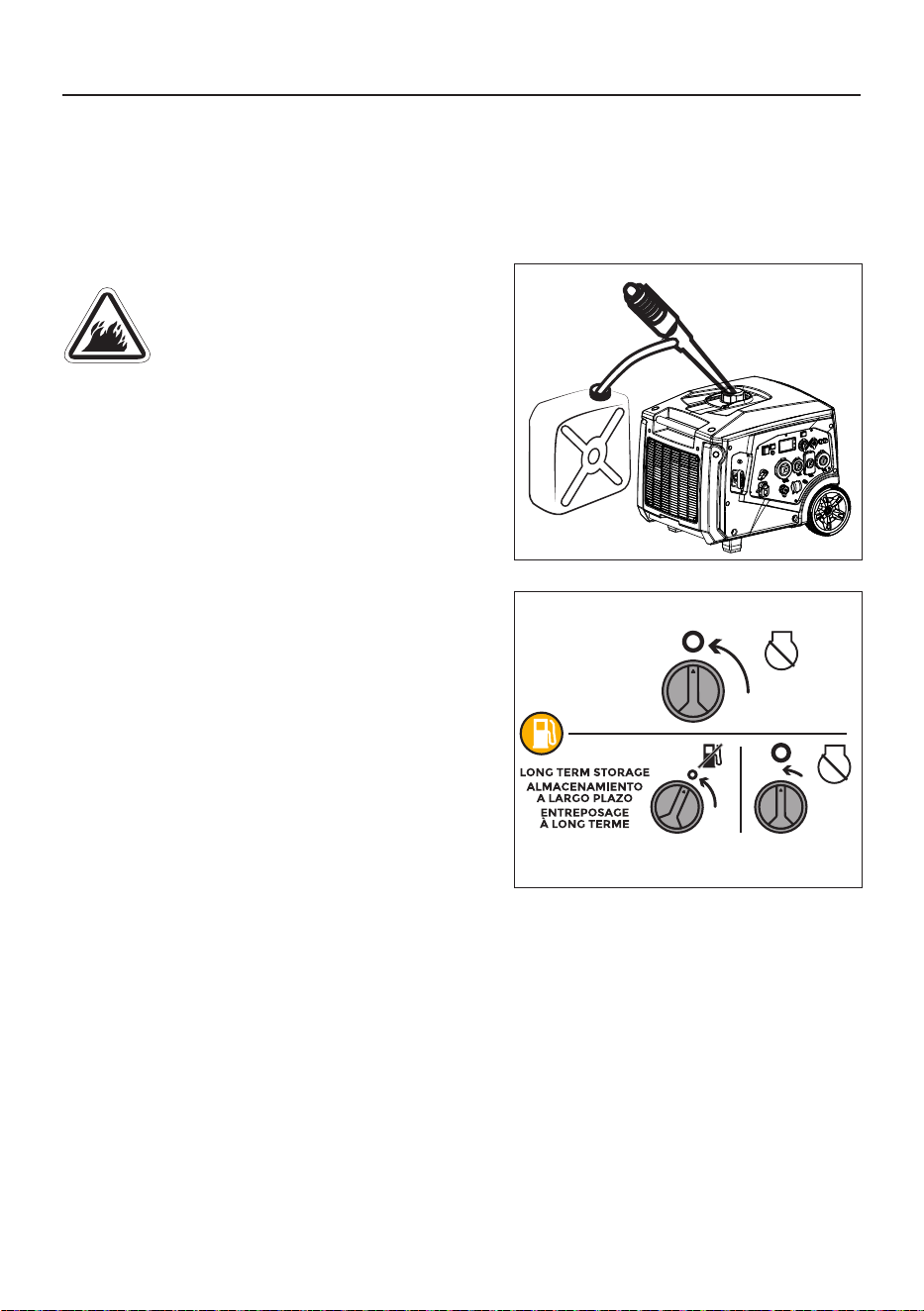

Long Term Storage

WARNING!

Fuel and its vapors are extremely

ammable which could cause burns or

re resulting in death or serious injury.

Do not store fuel near any ignition sources.

When draining fuel move generator outdoors and

use a commercially available non-conductive

vacuum siphon. Fuel must be drained into an

approved container.

It is important to prevent gum deposits from forming in essential fuel system components such as

the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol or

methanol) attract moisture, which leads to separation and formation of acids during storage.Acidic gas

can damage the fuel system of an engine while in storage.

When the generator set is being stored for more than one month, follow these instructions to avoid

engine problems:

1.Add a properly formulated fuel stabilizer to the gasoline

tank.

2.Start the generator as instructed in Starting the

Generator section.

3.Run the generator for 5-10 minutes so the treated

gasoline cycles through the fuel system.

4.Turn the main fuel selector switch to the “STORAGE

OFF” position until the engine stops. This may take 3-5

minutes. Then turn the fuel selector switch to “OFF(O)”

position.

5.Change oil after the engine cools down entirely.

6.Remove spark plug and pour about one teaspoon of

engine oil into the cylinder.

7.Pull the starter cord a few times to lubricate the cylinder

and then reinstall the spark plug.

8.Cover and store the unit in a clean, dry place out of

direct sunlight.

NOTICE

Any damage or hazards caused by using

improper fuel, improperly stored fuel, and/or improperly

formulated stabilizers, are not covered by manufacturer's

warranty.

Do not store gasoline from one season to another

season.

TROUBLESHOOTING – SPECIFICATIONS

Problem Cause Correction

Engine is running,

but no AC output is

available.

1. Circuit breaker is open.

2. Fault in generator.

3. Poor connection or defective cord

set.

4. Connected device is bad.

1. Reset circuit breaker.

2. Contact authorized service facility.

3. Check and repair.

4. Connect another device that is in

good condition.

Engine runs

good at no-load

but “bogs down”

when loads are

connected.

1. Short circuit in a connected load.

2. Engine speed is too slow.

3. Generator is overloaded.

4. Shorted generator circuit.

5. Clogged or dirty fuel lter.

1. Disconnect shorted electrical load.

2. Contact authorized service facility.

3. See Don’t Overload Generator.

4. Contact authorized service facility.

5. Clean or replace fuel lter.

Engine will not

start; starts and

runs rough or

shuts down when

running.

1. Fuel selector switch set to OFF

(O)position.

2. The indicator light is OFF or

ashing red.

3. Low oil level.

4. Dirty air cleaner.

5. Out of fuel.

6. Stale fuel.

7. Spark plug wire not connected to

spark plug.

8. Bad spark plug.

9. Water in fuel.

10. Flooded.

11. Excessively rich fuel mixture.

12. Clogged or dirty fuel lter.

13. Starting battery may have

insu󰀩cient charge.

14. Out of LPG/NG.

15. LPG cylinder knob / NG supply

valve is not open.

16. Out of battery power.

1. Set fuel selector switch to “GAS”

or “LPG/NG” position.

2. Must have solid red indicator light

to be able to start the engine.

3. Fill crankcase to proper level or

place generator on level surface.

4. Clean or replace air cleaner.

5. Fill fuel tank.

Drain fuel tank and carburetor; ll with fresh fuel.

7. Connect wire to spark plug.

8. Replace spark plug.

Drain fuel tank and carburetor; ll with fresh fuel.

10.

Wait 5 minutes and re-crank engine.

11. Contact authorized service facility.

12. Clean or replace fuel lter.

13. Check battery output and charge

battery as necessary.

14.

Replace LPG cylinder/ check NG supply.

15. Fully open LPG cylinder knob / NG

supply valve.

16. Start Engine in “GAS” position.

Charge or replace battery.

Engine lacks

power.

1. Load is too high.

2. Dirty air lter.

3. Clogged or dirty fuel lter.

4. Clogged spark arrester.

1. Don’t Overload Generator

2. Replace air lter.

3. Clean or replace fuel lter.

4. Clean or replace spark arrester.

Engine “hunts”

or falters.

Carburetor is running too rich or too lean.

2. Clogged or dirty fuel lter.

1. Contact authorized service facility.

2. Clean or replace fuel lter.

Engine shuts down

when running.

1. Out of gasoline or LPG/NG

2. Dirty air cleaner.

3. Low oil level.

1. Fill fuel tank with gasoline or replace

LPG cylinder / check NG supply.

2. Clean or replace air cleaner.

3. Fill crankcase to proper level or

place generator on level surface.

Engine shuts down

and yellow CO

fault light blinking.

1. CO system fault 1. Contact authorized FIRMAN

service facility.

For all other issues, contact authorized dealer or FIRMAN customer service.

TROUBLESHOOTING – SPECIFICATIONS

Specications

Model

Starting Watts

Running Watts*

Rated AC Voltage

Rated Fequency

Phase

Voltage Regulator

Power Factor

Alternator Type

Engine

Engine Type

Displacement

Low Oil Shutdown

Ignition System

Starting System

Fuel

Capacity Fuel Tank

Lubricating Oil Capacity

Carburetor Type

Air Cleaner

P.T.O. Shaft Rotation

Oil Type

AC Grounding System

Natural Gas Fuel Pressure Range

Natural Gas Fuel Consumption

LPG fuel consumption

WT06073

7500(GASOLINE)/6750(LPG)/5600(NG)

6000(GASOLINE)/5400(LPG)/4500(NG)

120/240V

60Hz

Single

Digital

Magneto Inductor

FIRMAN

Single Cylinder, 4-Stroke OHV Air Cooled

322cc

Yes

Breakless Ignition Type, Flywheel Magneto

Recoil/Electric

Unleaded Automotive Gasoline

20 L / 5.3 gallons

1050 ml / 35.5  oz

Float

Polyurethane Type

Counter Clockwise (Facing P.T.O.)

See “Add Engine Oil” Section

Neutral Bonded To Frame

1.7-2.7 kpa / 13- 20mm mercury

7-11 inches water column / 0.25-0.40 psi

*Generator certied in accordance with CSA (Canadian Standards Association) standard C22.2No.

100-14,Motors and Generators and complies with PGMA (Portable Generator Manufacturers’

Association) standard ANSI/PGMA G300-2023, Safety and Performance of Portable Generators.

Quarter load (25%)

Half Load Full Load

0.81 m

28.7 ft

30,856 BTU/h

9,049 W

1.3 m

45.5 ft

49,250 BTU/h

14,425 W

2.4 m

/hr

85.3 ft

/hr

92,411 BTU/h

27,080 W

41.2 MJ/h

39,078 BTU/h

11,454 W

75.5 MJ/h

71,584 BTU/h

21,002 W

126.9 MJ/h

120,216 BTU/h

35,241 W

REPLACEMENT PARTS LIST

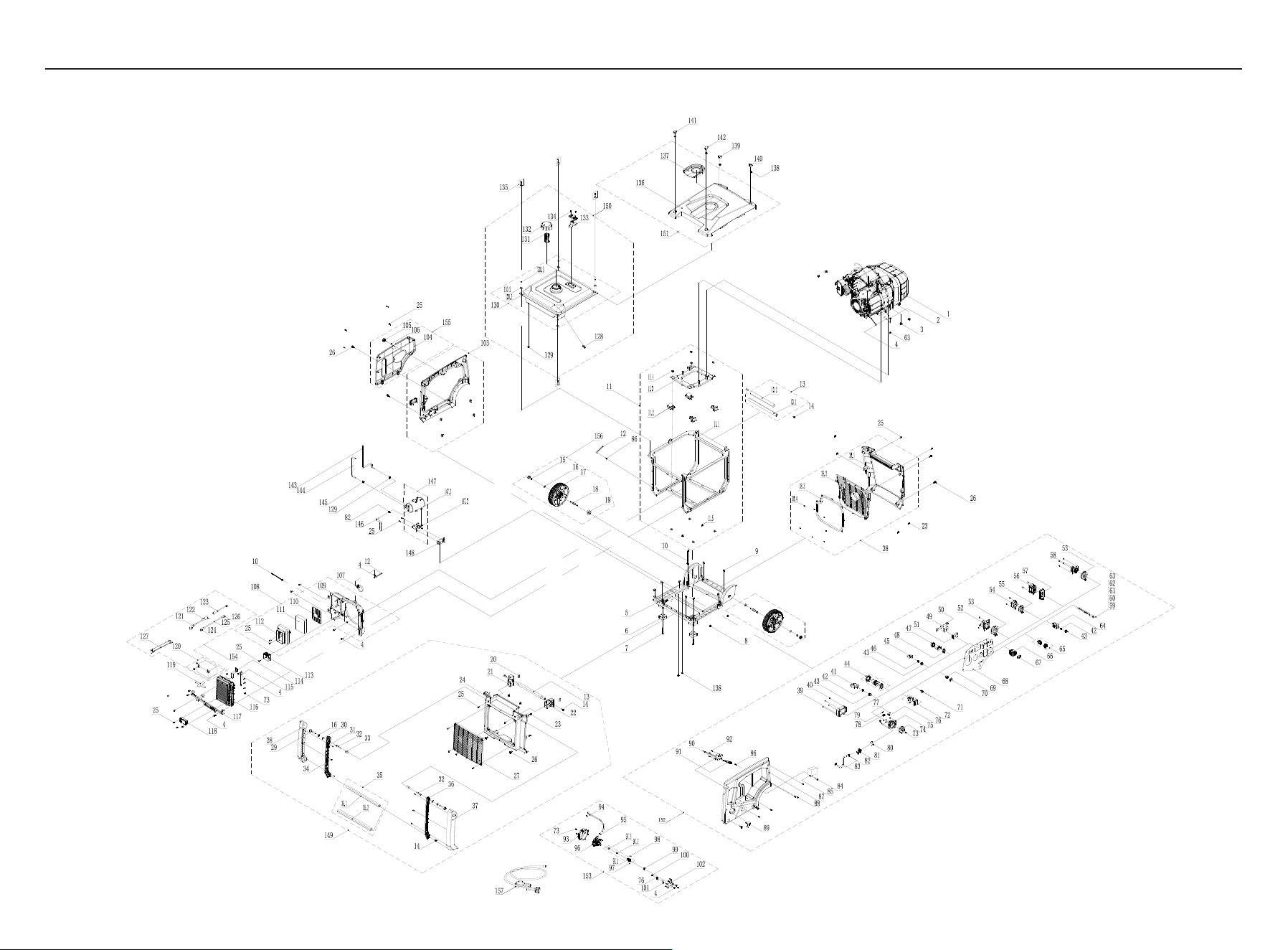

WT06073 Parts Diagram

For replacement parts, call our customer service department at 844-347-6261, 8 a.m. - 8 p.m., EST, Monday - Sunday.

REPLACEMENT PARTS LIST

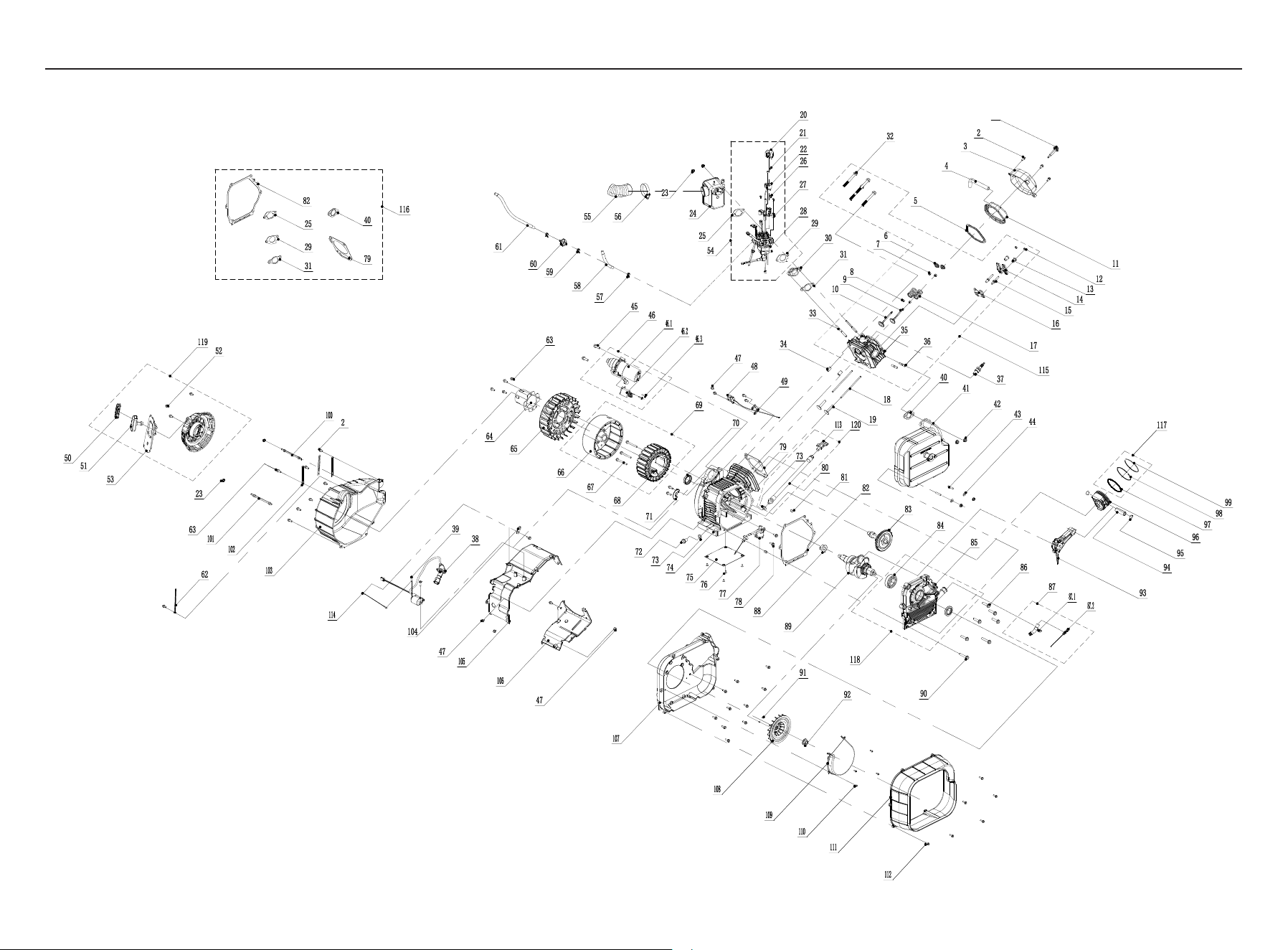

322cc Engine Parts Diagram

REPLACEMENT PARTS LIST

WT06073 Portable Generator

All replacement parts are covered under warranty.

NO.

Part

Number

Discription Qty.

38.2 355728328 Cover,Right Mufer 1

38.3 355728329 Rubber Seal Sleeve 1

38.4 355718335 Metal Clip 7

39 360428303 Multifunction Table 1

40 330713596 NUT M4 20

41 336713585 A.C 20A Breaker,Push 1

42 336457020 Nut, Push Button Breaker 1

43 336755005 Cover, Push Button 3

44 355718325

USB-C

45 329753003 DC 10A Breaker,Push 1

46 333728300

Push Button Breaker Nut

47 317713565 Receptacle, 12V DC 1

48 336713674 Outlet Cover 1

49 380713526 Circuit Breaker, 30A 1

50 336713569 Screw M4×8 4

51 393725501 Cover, Circuit Breaker 1

52 380713518 Receptacle 14-50R 1

53 330713601

Receptacle Cover, TT-30R/14-50R

54 336713601 Receptacle L14-30R 1

55 336713573

Receptacle Cover, L5-30R/L14-30R

56 357713588 Receptacle, 5-20R GFCI 1

57 357713541 Outlet Cover 5-20R GFCI 1

58 336713584 Receptacle TT-30R 1

59 357713542 Bolt M6×22 1

60 380713515 Nut M6 2

61 336713512 Lock Washer Ø6 2

62 336713513 Flat Washer Ø6 2

63 336713516 External Star Washer Ø6 1

64 336713586 Circuit Breaker Amp 30A 1

65 355718324 Parallel Port 1

66 336713600 120V/240V Switch 1

67 340725503 Switch Cover 1

360418303 Control Panel 1

317718305 Economic Switch 1

70 316735503 Switch Cover 1

71 336755002 Indicator Light 1

72 340715046 Engine Switch 1

73 336718383 Bolt M4×14 9

74 393427001

Fuel Valve Knob

75 393427003 Fuel Selector Switch 1

76 336713822 Micro Switch 4

77 399715591 Screw St2.9x16 4

78 336713821 Micro Switch 1

79 392715516 Screw St2.9x28 2

80 393717002 Screw M5x35 2

81 393417009 Fuel Valve 1

82 330713508

Clip（（Ø10.5×8（ 3

83 355728324 Fuel Pipe 1

N° Nb. Pièce Description Q..

360468301

Engine Subassembly 1

2 336718301 Flange Bolt M6×12 16

3 357713531 Nut M10 4

4 355718300 Ground Wire 1

5 355728300

Base Assy

6 355728301 Base Mounting 2

7 355718301 Flange Bolt M6×55 2

8 336718301 Bolt M6x12 4

9 333717014 Nut M6 8

10 360728301 Pin Zip Tie 2

11 355418300 Frame Assy 1

11.1 355418301 Frame 1

11.2 355428300 Isolator 4

11.3 355418302 Base Bracket 1

11.4 336718315 Nut M8 8

11.5 355718306 Bolt M5 2

12 317713577 Wire Clip 2

13 355418303 Upper Handle Assy 2

13.1 355718303 Upper Handle 2

13.2 355728302 Cover, Upper Handle 2

14 336713006 Flange Bolt M8×20 6

15 330713584

Retaing Ring （Ø12 2

16 330713585

Washer （Ø12 4

17 355728326 Wheel 2

18 355718328 Axle Comp 2

19 355718424 Nut M10x1.25 2

20 336718338 Bolt M6×12 4

21 355718316 Left Bracket, Handle 1

22 355718317 Right Bracket, Handle 1

23 317713524 Cage Nut M5 8

24 355728317

Left Cover Assy

25 355718304 Screw&Washer Assembly 27

26 355718417 Bolt M6×20 8

27 355728315 Maintenance Window 1

28 355728313 Left Handle Cover Plate 1

29 355718311 Handle Bolt 2

30 355718312

Washer(Ø23.4x（13.1x1) 2

31 355723002 Left Handle Support 1

32 355718425 Dawl Pin 2

33 355728314 Bushing 2

34 355718318 Screw M5×14 6

35 355418305 Lower Handle Assy 1

35.1 355718315 Lower Handle 1

35.2 355728316 Cover, Lower Handle 1

36 355723003 Right Handle Support 1

37 355728318 Right Handle Cover Plate 1

355428301 Right Cover Assy 1

38.1

355428305 Cover,Right Side 1

NO.

Part

Number

Discription Qty.

336718364

Screw M5x20 1

85 355458302 Charging Module 1

86 355718330 Screw M6×12 2

87 355728368 Front Cover 1

88 336718364

Screw M5×20

89 336713826 LPG Inlet Cover 1

90 355718407

Bracket（Choke Valve Rope 1

91 355418318 Choke Valve Rope Assy 1

92 355718421 Screw St3.5x13 3

93 355728365 Main Regulator Cover 1

94 355728364

Liqueed Petroleum Gas Pipe

95 336713835 Clamp 2

96 355418317 Main Regulator Assy 1

97 355428311 Switch Knob Assy 1

97.1 355728362 Switch Knob 1

97.2 355728372 O-Ring(Ø11xØ2.5) 1

97.3 355728373 O-Ring(Ø15xØ2.4) 1

98 355718405 Dawl Pin 1

99 355728366 Switch Knob Cover 1

100 355718406 Nut M3 3

101 355718422 Heel Block 1

102 355718404 Bracket,Main Regulator 1

103 355728310 Rear Cover 1

104 355728311 Protector ,Rear Cover 1

105 355718307 Rear Cover Knob 1

106 355718308 Limit Nut 1

107 355718320 Clamp 1

108 355728352 Air Filter Assembly 1

109 355728322 Left Cover 1

110 355728321 Air Cleaner Element 1

111 355728320

Element, Air Cleaner

112 355728319 Case,Air Cleaner 1

113 355458303 DC Module 1

114 355718310 Clip Of Control Unit 1

115 355718384 Ground Wire 1

116 360458301 Inverter 1

117 355718309 Stents,Inverter 1

118 355428303 CO Module 1

119 355728312 Grommet,Battery 1

120 355458305 Battery(1.6AH) 1

121

357713571 Sheath,Connecter Black 1

122 336713692 Battery Cable (Male) 1

123 355718416 Battery Cable 1

124 357713570 Sheath,Connecter Red 1

125 355718383 Battery Cable (Red) 1

126 336713611 Sheath 1

127

355728356 Battery Voltage Strip 1

128

360718306 Fuel Tank Fitting 1

NO.

Part

Number

Discription Qty.

129

317713553

Clip（Ø8×6（ 2

130 355418304 Fuel Tank Assy 1

130.1 355418326 Fuel Tank 1

130.2 336713542 Grommet, Fuel Tank 4

130.3 357713600

Bushing

131 333427007 Fuel Filter, Wire Mesh 1

132 330713500 Fuel Tank Cap 1

133 355428302 Fuel Gauge Assy 1

134 336417031 Screw M5×16 2

135 310715064 Bolt M6x20 4

136 355728305 Cover,Top 1

137 355728304 Fuel Guide Plate 1

138 355718306 Bolt M5 6

139 355728306 Plug 1

140 355728307 Plug 1

141 355728308 Plug 1

142 355728309 Plug 1

143 360728302 Pipe, Fuel Tank To Carbon 1

144 360728303

Pipe,Carbon Canister To

Air Cleaner

145 393713040 Clamp Ø9.4 × 8 1

146 360728304

Pipe,Carbon Canister To

Base Components

147 360428307 Carbon Canister Assy 1

147.1 360428306 Carbon Canister 1

147.2 360718304 Carbon Canister Board 1

148 360718303 Carbon Canister Holder 1

149 360428305 Base Components Assy 1

150 360428304 Left Cover Assy 1

151 360418305 Fuel Tank Installation Assy 1

152 355428314 Upper Cover Assy 1

153 360418304 Control Panel Assy 1

154 355418329

Main Regulator Installation

155 355458316 Battery Assy 1

156 355428315

Rear Maintenance Cover Assy

157 355428316

Wheel Assy 1

158 336713834 Regulator/Hose Assy 1

REPLACEMENT PARTS LIST

322cc Engine

REPLACEMENT PARTS LIST

NO.

Part

Number

Discription Qty.

357723527

Bolt 1

2 336718338 Bolt M6x12 8

3 355728331 Guard,Cyl. Head Cover 1

4 355728332 Breather Pipe 1

5 357723525

Cylinder Cover Gasket

6 355718337 Ret.,Valve Spring 2

7 355728333 Oil Seal,Valve 2

8 355718338 Lock Clip. Valve 4

9 355718339 Valve,Exhaust 1

10 355713001 Valve,Intake 1

11 355728348

Cover Subassembly, Cylinder Head

12 336723528

Nut, Valve Lock

13 336723529 Adjusting Nut,Valve 2

14 355718411 Arm,Valve Rocker 2

15 355718395 Bolt,Rocker Arm 2

16 355728334 Guide Plate,Push Rod 1

17 357723535 Spring,Valve 2

18 355718341 Push Rod 2

19 355718342 Valve Lifter 2

20 336723605 Cover,Stepper Motor 1

21 355718396 Screw M4×8 2

22 355458314

Stepper Motor ,Throttle Valve

23 336723555 Nut M6 6

24 360428302 Case,Air Cleaner Comp 1

25 355728349 Gskt,Air Cleaner 1

26 355718397 Screw M4x10 4

27 355728354 Stepper Motor Bracket 1

28 360418306 Carburetor Comp. 1

29 355718343 Gasket, Carburetor 1

30 355728337 Insulator.carburetor 1

31 355718344

Gasket,Insulator

32 355718346 Bolt 4

355718345 Stud Bolt(M6×M8×110) 2

34 357723544 Dawl Pin 2

35 355418319 Cylinder Head Comp 1

36 336723539 Stud Bolt(M8×35) 2

37 355718410 Spark Plug F7RTJC 1

38 355458307 Ignition Assy 1

39 317713538 Bolt M5×20 2

40 393723013 Mufer Gasket 1

41 355418308 Mufer Assy 1

42 336718318 Nut M8 2

43 330723555 Stud Bolt(M6×32) 2

44 355718413 Mufer Bracket Gasket 2

45 355718392 Bolt M8×28 2

46 355458313 Starter Motor Assy 1

46.1

355458317 Starter Motor 1

46.2

355458318 Relay,Starter 1

NO.

Part

Number

Discription Qty.

46.3

355718423

Bolt M4×16 2

47 355718349 Bolt M6×8 5

48 355458308 Trigger Assy. 1

49 355718350 Bracket,Trigger 1

50 330723526

Insert, Recoil Handle

51 355428307 Grip ,Starter 1

52 355718351 Bolt M6×10 3

53 355728370 Guide,Rope 1

54 360418307 Carburetor Assy 1

55 355728371 Air Duct 1

56 355718320 Clamp 1

57 330713508

Clip（（10.5×8（ 1

58 360728305 Fuel Hose 1

59 360718305 Clamp 2

60 333727010 Fuel Filter 1

61 360728306 Fuel Hose 1

62 360728307 Zip-Tie 1

63 312715017 Bolt M6×16 24

64 355718355 Pulley,Starter 1

65 355728339 Cooling Fan 1

66 355458310 Rotor Assy 1

67 336718384 Bolt M6×60 3

68 355458311 Stator Assy. 1

69 355458319 Alternator Assy 1

70 355728341 Oil Seal 2

71 355728340 Guard,Harness 1

72 380717007 Bolt, Drain Plug 1

73 357723502 Washer,Drain Bolt 2

74 355718358 1

75 355718359 Guard,Crank Case,Bottom 1

76 336713546

Screw M5x10

77 355728351 Oil Level Switch 1

78 336723526 Bolt M6×15 2

79 355718357 Gasket,Cylinder 1

80 360728300 Quick Oil Drain 1

81 399715765 Dawl Pin 2

82 355718362 Crankcase Gasket 1

83 360418301 Camshaft Comp 1

84 355718363 Radial Ball Bearing 1

85 360718301 Crankcase Cover 1

86 357713584 Bolt M8×35 5

87 360418302 Oil Dipstick Assy 1

87.1 360718302 Oil Dipstick Guide Tube 1

87.2 360428301 Oil Dipstick 1

88 357723571 Nut M16 1

89 355418311

Crank Comp 1

336713593 Bolt M8×45 2

355718364 Dawl Pin 2

Crankcase

REPLACEMENT PARTS LIST

NO.

Part

Number

Discription Qty.

NO.

Part

Number

Discription Qty.

317723505

Nut M12 1

93 355418312 Connecting Rod Assy 1

94 355718367 Piston Pin 1

95 399715726 Piston Pin Clip 2

96 355718368

Piston

97 355718369 Ring Coil 1

98 355718370 Ring ,Second Piston 1

99 355718371 Ring ,First Piston 1

100 355718365 Stud Bolt M6×126 1

101 355718372 Stud Bolt M6×132 1

102 317713577 Wire Clip 3

103 355728342 Fan Cover 1

104 355718373 Lifting Lugs 1

105 355728343 Guard,Upper 1

106 355728344 Guard,Lower 1

107 355728345 Guard,Muff.,Back 1

108 355728346 Exhaust Fan 1

109 355718374 Cover,Exhaust Fan 1

110 317713516 Screw,M4×14 4

111 355728347 Guard,Muff.,Front 1

112 399715657 Bolt M5×16 6

113 330723604

Bolt,Drain

114 355718394 Ground Wire 1

115 355418320 Cylinder Head Assy 1

116 355418321 Gasket Assy 1

117 355418322 Piston Rings Assy 1

118 360418300 Crankcase Cover Assy 1

119 355418324 Case Comp.,Recoil Starter 1

120 360428300 Quick Oil Drain Assy 1

WIRING DIAGRAM

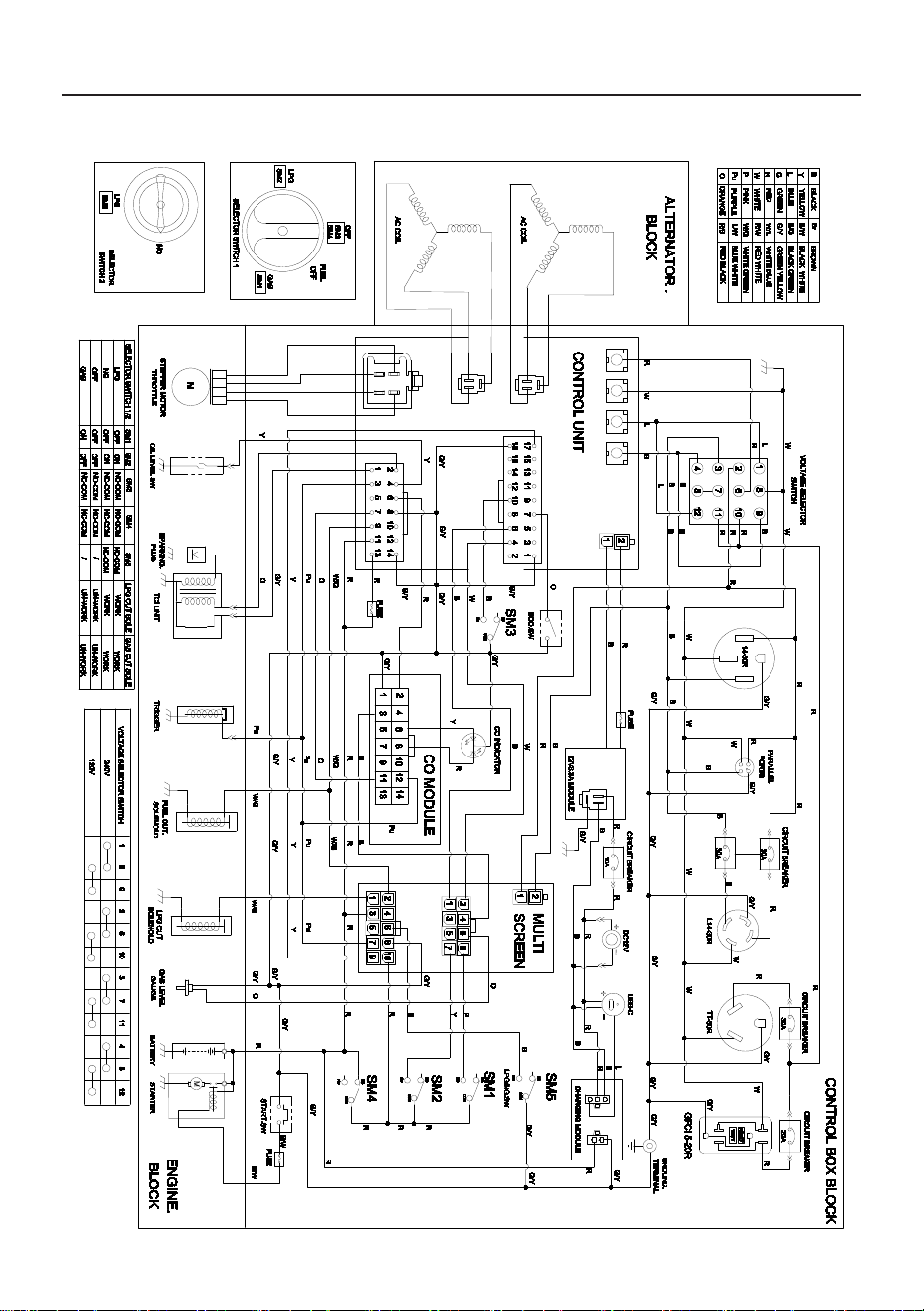

Wiring Diagram

SERVICE – WARRANTY

For service information contact FRIMAN customer service at 1-844-347-6261 or at www.

rmanpowerequipment.com to obtain warranty service information or to order replacement

parts or accessories.

HOW TO ORDER REPLACEMENT PARTS

Even quality-built equipment such as this electric generator may need occasional

replacement parts to maintain it in good condition over the years. To order replacement parts,

please give the following information:

● Model No. Rev. Level and Serial No. found on the Data Decal.

● Parts number or numbers as shown in the Parts List section.

● A brief description of the trouble with the generator.

FIRMAN 4 YEARS LIMITED WARRANTY

Repair/Replacement Warranty

FIRMAN warrants to the original purchaser that the mechanical and electrical components will be

free of defects in material and workmanship for a period of one (1) year (parts and labor) and 4 years

(parts and technical support) from the original date of purchase 90 days [parts and labor] and 180

days [parts] for commercial & industrial use. Transportation charges on product submitted for

repair or replacement under this warranty are the sole responsibility of the purchaser . This warranty

only applies to the original purchaser and is not transferable.

Do Not Return the Unit to the Place of Purchase

Contact the FIRMAN customer service and FIRMAN will troubleshoot any issue via phone or e-mail.

If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,

repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN

will provide you with a case number for warranty service. Please keep it for future reference.

Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be

covered by this warranty.

Warranty Exclusions

This warranty does not cover the following repairs and equipment.

Normal Wear

Your product needs periodic parts and service to perform well. This warranty does not cover repair

when normal use has exhausted the life of a part or the equipment as a whole.

Warranty Qualications

rmanpowerequipment.com.FIRMAN will also register the warranty upon

receipt of your Warranty Registration Card and acopy of your sales receipt

from one of FIRMAN’s retail locations as proof of purchase. Pleasesubmit

your warranty registration and your proof of purchase within ten(10) days of

the date ofpurchase.

SERVICE – WARRANTY

INSTALLATION, USE AND MAINTENANCE

This warranty will not apply to parts and/or labor if your product is deemed to have been misused,

neglected, involved in an accident, abused, loaded beyond the generator’

s limits, modied,

installed improperly or connected incorrectly to any electrical component. Normal maintenance is

not covered by this warranty.

Other Exclusions

This warranty excludes:

– cosmetic defects such as paint, decals, etc.

– wear items

– accessory parts

– failures due to acts of God and other force majeure events beyond the manufacturer’s control

– problems caused by parts that are not original FIRMAN parts

– units used for prime power in place of existing utility power where utility is present or in place

of utility power where utility power service does not normally exist.

LIMITS OF IMPLIED WARRANTY AND CONSEQUENTIAL DAMAGE

FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any

incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT

ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the

warranty governing the exchanged unit will remain calculated by reference to the purchase date of the

original unit.

This warranty gives you certain legal rights which may change from state to state. Your state may

also have other rights you may be entitled to that are not listed within this warranty.

Contact Information

You may contact FIRMAN at:

Firman Power Equipment Inc.

Attn: Customer Service

8644 W. Ludlow Dr.

Peoria, AZ 85381

www.rmanpowerequipment.com

We are FIRMAN POWER - And we are here for you.

SERVICE – WARRANTY

CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY

STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN

POWER EQUIPMENT INC.(FIRMAN) are pleased to explain the emissions control systems warranty

on your 2025-2026 or later Small O󰀨-Road Engine (“SORE”) and engine powered equipment. In

California, new equipment that use small o󰀨-road engines must be designed, built and equipped to

meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control systems

on your SORE and engine powered equipment for the periods of time listed below provided there has

been no abuse, neglect or improper maintenance of your small o󰀨-road engine or equipment leading

to the failure of the emissions control system.

Your emissions control system may include parts such as the carburetor or fuel-injection system, the

ignition system, catalytic converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps,

valves, canisters, lters, clamps and other associated components. Also included may be hoses,

belts, connectors, and other emission-related assemblies.

Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment

at no cost to you including diagnosis, parts and labor.

MANUFACTURER’S WARRANTY COVERAGE:

The exhaust and evaporative emissions control system on your small o󰀨-road engine and engine

powered equipment is warranted for two years. If any emissions-related part on your small o󰀨-road

engine and engine powered equipment is defective, the part will be repaired or replaced by FIRMAN.

OWNER’S WARRANTY RESPONSIBILITIES:

As the SORE and engine powered equipment owner, you are responsible for the performance of

the required maintenance listed in your operator’s manual. FIRMAN recommends that you retain all

receipts covering maintenance on your SORE and engine powered equipment, but FIRMAN cannot

deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance of

all scheduled maintenance.

As the SORE and engine powered equipment owner, you should however be aware that FIRMAN may

deny you warranty coverage if your small o󰀨-road engine or engine powered equipment or a part has

failed due to abuse, neglect, or improper maintenance or unapproved modications.

You are responsible for presenting your small o󰀨-road engine and engine powered equipment to a

FIRMAN distribution center or service center as soon as the problem exists. The warranty repairs

shall be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact

FIRMAN at 1-844-347-6261.

FIRMAN Emission Control Defects Warranty Provisions

The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser.

FIRMAN warrants to the ultimate purchaser and each subsequent purchaser that the engine is:

Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air

Resources Board and US EPA; and Free from defects in materials and workmanship that cause the

failure of a warranted part to be identical in all material respects to the part as described in the engine

manufacturers application for certication.

FIRMAN POWER EQUIPMENT INC.

Emission Control System Warranty

SERVICE – WARRANTY

The warranty on emissions-related parts is as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner’s

manual supplied, is warranted for the warranty period stated above. If any such part fails during the

period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the

owner. Any such part repaired or replaced under the warranty will be warranted for the remaining

warranty period.

(2) Any warranted part that is scheduled only for regular inspection in the owner’s manual supplied, is

warranted for the warranty period stated above. Any such part repaired or replaced under warranty will

be warranted for the remaining warranty period.

(3) Any warranted part that is scheduled for replacement as required maintenance in the owner’s

manual supplied, is warranted for the period of time prior to the rst scheduled replacement point for

that part. If the part fails prior to the rst scheduled replacement, the part will be repaired or replaced

by FIRMAN at no charge to the owner. Any such part repaired or replaced under warranty will be

warranted for the remainder of the period prior to the rst scheduled replacement point for the part.

(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to

the owner at a warranty station.

(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be

provided by FIRMAN that are franchised to service the subject engines.

(6) The owner must not be charged for diagnostic labor that leads to the determination that a

warranted part is in fact defective, provided that such diagnostic work is performed at a warranty

station.

(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under

warranty of any warranted part.

(8) Throughout the emissions warranty period dened in Subsection (b)(2), FIRMAN will maintain a

supply of warranted

parts su󰀩cient to meet the expected demand for such parts.

(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and

must be provided without

charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.

(10) Add-on or modied parts that are not exempted by the Air Resources Board may not be used. The

use of any non-exempted

add-on or modied parts by the ultimate purchaser will be grounds for disallowing a warranty claim.

The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-

exempted add-on or modied part

PARTS COVERED BY WARRANTY.

Listed below are the parts (if equipped) covered by the Federal and California Emission Control

System Warranty.

SERVICE – WARRANTY

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following:

(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or

equipment, etc.

(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.

FIRMAN POWER EQUIPMENT INC.

www.rmanpowerequipment.com

1. Ignition system including:

- Spark plug

- Ignition coil

2. Fuel metering system:

- Fuel tank

- Fuel cap

- Fuel lines(for liquid fuel and fuel vapors) and

related ttings/clamps

- Fuel regulator, carburetor and internal parts.

3. Catalytic mu󰀪er assembly including:

- Exhaust manifold

- Catalytic converter

- Mu󰀪er gasket

-pulse valve

4. Air induction system including:

- Intake pipe/manifold

- Air cleaner

5. Crankcase breather assembly including:

- Breather connection tube

6. Fuel tank evaporative emission control

system including:

- Purge valves

- Carbon canister

- Vapor hoses and tting/clamps

PARTS COVERED BY WARRANTY.

Listed below are the parts (if equipped) covered by the Federal and California Emission Control

System Warranty.

out the written permission is expressly prohibited.

P/N:360745472 Rev:00 0425

Distributed by:

Costco Wholesale Corporation

P.0.Box 34535

Seattle, WA 98124-1535

USA

1-800-774-2678

www.costco.com

Made in China

Firman WT06073 Tri Fuel Inverter Portable Generator 7500W

Product's Documents

WT06073 User Manual English

Specifications

Firman WT06073 Questions and Answers
