Tazz 40095 Walk-Behind String Mower User Manual

Operator Manual

Manuel de l’utilisateur

String Mower

Model Number, Numéros de modèle:

35258, 40095

P/N: 35270

ECN: 13381

REV 2: 08/07/21

Get parts or technical assistance online at

www.tazzoutdoorproducts.com or call (800) 345-6007

Pièces détachées et assistance technique en ligne à

www.tazzoutdoorproducts.com ou composer le (800) 345-6007

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

CE LIVRET D’INSTRUCTIONS CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LE LIRE ET LE CONSERVER POUR TOUTE

CONSULTATIONEXTÉRIEURE.

ENGLISHFRANÇAIS

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

Serial

Number

Decal

INTRODUCTION

Thank you for purchasing your product from Tazz™. We

have worked to ensure that this product meets the highest

standards for usability and durability. With proper care, your

purchase will provide many years of service.

Please read this entire manual before installation and use. The

manufacturer reserves the right to change, alter or improve

the product and this document at any time without prior

notice. Due to continuous product improvements, product

images may not be exact. Some assembly may be required.

CONTENTS

Introduction/Contents .............................................................................2

Warnings and Safety Precautions .....................................................3-7

Features .........................................................................................................7

Assembly ................................................................................................... 8-9

Operation ................................................................................................9-10

Maintenance and Storage ..............................................................11-15

Troubleshooting and Repair .......................................................... 15-17

STOP! ACTIVATE YOUR WARRANTY BEFORE USE

All products must be registered within 30 days from the date

of purchase in order to be covered under warranty. For more

information regarding Warranty and Registration please review

the Warranty and Registration terms and conditions expressed

in the warranty insert.

REGISTRATION AND SERVICE

Excluding emissions-related warranty items, the warranty is

valid only if the completed registration is received by Ardisam

within 30 days of purchase. You can register your warranty

online by visiting www.tazzoutdoorproducts.com. You may

also call our Customer Service department at (800) 345-6007

Mondays through Fridays from 8 a.m. to 4:30 p.m. CST.

This machine is intended to be used by residential

homeowners to trim grass as needed outdoors. Using this

product for purposes other than its intended use could prove

dangerous to you and bystanders.

Read this information carefully to learn how to operate and

maintain your product properly and to avoid injury and

product damage. You are responsible for operating the

product properly and safely.

WARNING

CALIFORNIA PROPOSITION 65 WARNING

THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER

REPRODUCTIVE HARM.

BATTERY POSTS, TERMINALS, AND RELATED

ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO

CAUSE CANCER AND REPRODUCTIVE HARM. WASH

HANDS AFTER HANDLING.

USE OF THIS PRODUCT MAY CAUSE EXPOSURE TO

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER

REPRODUCTIVE HARM.

Read and keep this manual for future reference. This manual

contains important information regarding safety, assembly,

operation and maintenance. The operator must be certain

that all the product information is included with the unit. This

information includes the manual, the replacement parts and

the warranties. This information must be included to make

sure state laws and other laws are followed. All persons to

whom rent/loan this unit must have access to and understand

this information. This manual should remain with the product

even if it is resold.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

NOTICE

NOTICE INDICATES YOUR EQUIPMENT CAN BE DAMAGED

IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL

WORD ARE NOT OBEYED.

WARNINGS AND SAFETY PRECAUTIONS

OWNER’S RESPONSIBILITY

Accurate assembly and safe and eective use of the machine is

the owner’s responsibility.

• Read and follow all safety instructions.

• Carefully follow all assembly instructions.

• Maintain the machine according to directions and

schedule included in this operator’s manual.

• Ensure that anyone who uses the machine is familiar with

all controls and safety precautions.

SPECIAL MESSAGES

Your manual contains special messages to bring attention to

potential safety concerns, machine damage as well as helpful

operating and servicing information. Please read all the

information carefully to avoid injury and machine damage.

NOTE: General information is given throughout the manual

that may help the operator in the operation or service of the

machine.

This symbol points out important safety instructions

which if not followed could endanger your personal

safety. Read and follow all instructions in this manual

before attempting to operate this equipment.

BEFORE OPERATING EQUIPMENT:

Please read this section carefully. Read entire operating and

maintenance instructions for this product. Failure to follow

instructions could result in serious injury or death. Operate the

machine according to the safety instructions outlined here and

inserted throughout the text. Anyone who uses this machine

must read the instructions and be familiar with the controls.

CAUTION

CAUTION INDICATES A HAZARD WHICH, IF NOT AVOIDED,

COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY

DAMAGE.

WARNING

WARNING INDICATES A HAZARD WHICH, IF NOT AVOIDED,

COULD RESULT IN DEATH OR SERIOUS INJURY AND/OR

PROPERTY DAMAGE.

DANGER

DANGER INDICATES A HAZARD WHICH, IF NOT AVOIDED,

CERTAINLY WILL RESULT IN DEATH OR SERIOUS INJURY

AND/OR PROPERTY DAMAGE.

IMPORTANT

IMPORTANT INDICATES HELPFUL INFORMATION FOR

PROPER ASSEMBLY, OPERATION OR MAINTENANCE OF

YOUR EQUIPMENT.

WARNING

YOU MUST READ, UNDERSTAND AND COMPLY WITH ALL

SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO SETUP AND OPERATE YOUR

MACHINE.

FAILURE TO COMPLY WITH ALL SAFETY AND OPERATING

INSTRUCTIONS CAN RESULT IN LOSS OF MACHINE

CONTROL, SERIOUS PERSONAL INJURY TO YOU AND/OR

BYSTANDERS, AND RISK OF EQUIPMENT AND PROPERTY

DAMAGE. THE TRIANGLE IN THE TEXT SIGNIFIES

IMPORTANT CAUTIONS OR WARNINGS WHICH MUST BE

FOLLOWED.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

GENERAL SAFETY RULES

• Read, understand, and follow all instructions on the

machine and in the manual(s). Be thoroughly familiar with

the controls and the proper use of the machine before

starting.

• Familiarize yourself with all of the safety and operating

decals on this equipment and on any of its attachments or

accessories.

• Do not put hands or feet near or under rotating parts.

• Only allow responsible individuals, who are familiar with

the instructions, to operate the machine.

• Thoroughly inspect the area where the machine is to be

used and remove all foreign objects. Your equipment can

propel small objects at high speed causing personal injury

or property damage. Stay away from breakable objects,

such as house windows, automobile, greenhouses, etc.

• Keep the area of operation clear of all persons, particularly

small children, and pets.

• Wear appropriate clothing such as a long-sleeved shirt

or jacket. Also wear long trousers or slacks. Do not wear

shorts.

• Do not wear loose clothing or jewelry. They can get

caught in moving parts.

• Always wear safety goggles or safety glasses with side

shields when operating machine to protect your eyes from

foreign objects which can be thrown from the unit.

• Always wear work gloves and sturdy footwear. Wear

footwear that will improve footing on slippery surfaces.

Leather work shoes or short boots work well for most

people. These will protect the operator’s ankles and shins

from small sticks, splinters, and other debris.

• It is advisable to wear protective headgear to prevent

the possibility of being struck by small ying particles,

or being struck by low hanging branches, twigs, or other

objects which may be unnoticed by the operator.

• Do not operate the machine without proper guards or

other safety protective devices in place.

• Use this equipment for its intended purpose only.

• See manufacturer’s instructions for proper operation and

installation of accessories. Only use accessories approved

by the manufacturer.

• Operate only in daylight or good articial light.

• Do not operate product when fatigued or under the

inuence of alcohol, drugs or other medication which

can cause drowsiness or aect your ability to operate this

machine safely.

• Never operate machine in wet grass. Always be sure of

your footing; keep a rm hold on the handle and walk;

never run.

• Before each use, inspect the throttle control lever and

cable. Make sure that the cable is free and that the lever is

not damaged. Also check the cable linkage running to the

carburetor for kinks, loose ttings, and obstructions. Verify

that the control bail is working properly.

• Stop the rotating machine head when crossing gravel

drives, walks, or roads. Wait for the cutting lines to stop

rotating.

• Watch for trac when operating near, or when crossing

roads.

• Stop the engine whenever you leave the equipment,

before cleaning, repairing or inspecting the unit, be sure

the machine head and all moving parts have stopped. Let

the engine cool, disconnect the spark plug wire and move

it away from the spark plug.

• If the equipment should start to vibrate abnormally, stop

the engine, disconnect the spark plug wire and prevent

it from touching the spark plug. Check immediately for

cause. Vibration is generally a warning of trouble.

• After striking a foreign object, stop the engine. Remove

the wire from the spark plug. Inspect the machine for

damage. If damaged, repair before starting and operating

the mower.

• Never leave the machine unattended when the engine is

running. Remove the wire from the spark plug.

• Regularly inspect the machine. Make sure parts are not

bent, damaged or loose.

• Allow muer and engine areas to cool before touching.

Never pick up or carry the machine while the engine is

running.

• Prolonged exposure to noise and vibration from gasoline

engine powered equipment should be avoided. Take

intermittent breaks and/or wear ear protection from

engine noise as well as heavy work gloves to reduce

vibration in the hands.

• Check local regulations for age restrictions on use of this

machine.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

• If the noise or vibrations of the machine increase, stop

immediately and perform an inspection.

• The fuel used in this machine is considered extremely

ammable and should be handled with care. When storing

extra fuel be sure that it is in an appropriate container and

away from any re hazards.

SLOPE OPERATION

Slopes are a major factor related to slip and fall accidents which

can result in severe injury. All slopes require extra caution. If you

feel uneasy on a slope, do not mow it. Do mow across the face of

slopes; never up and down. Do not mow excessively steep slopes

(maximum 15 degrees) or areas where the ground is very rough.

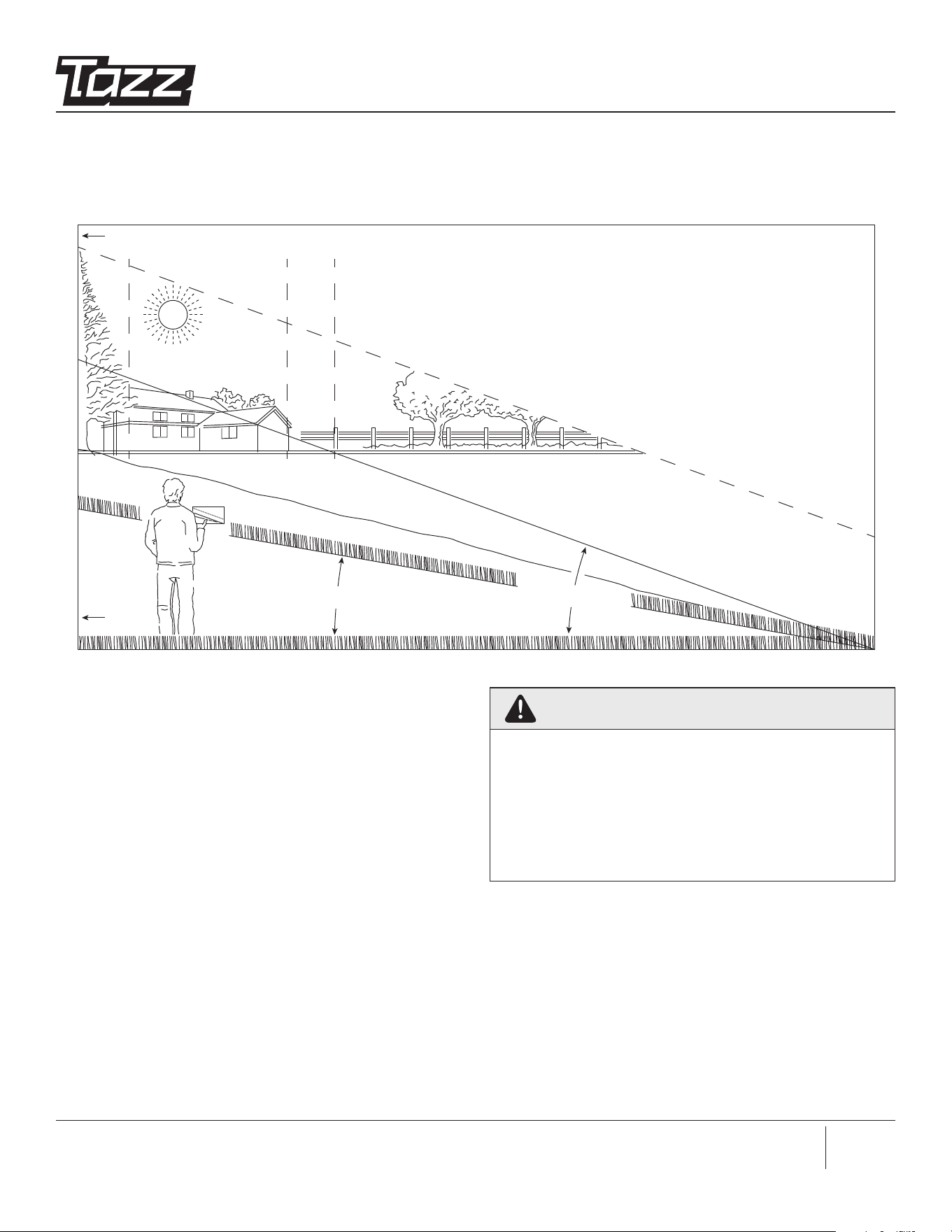

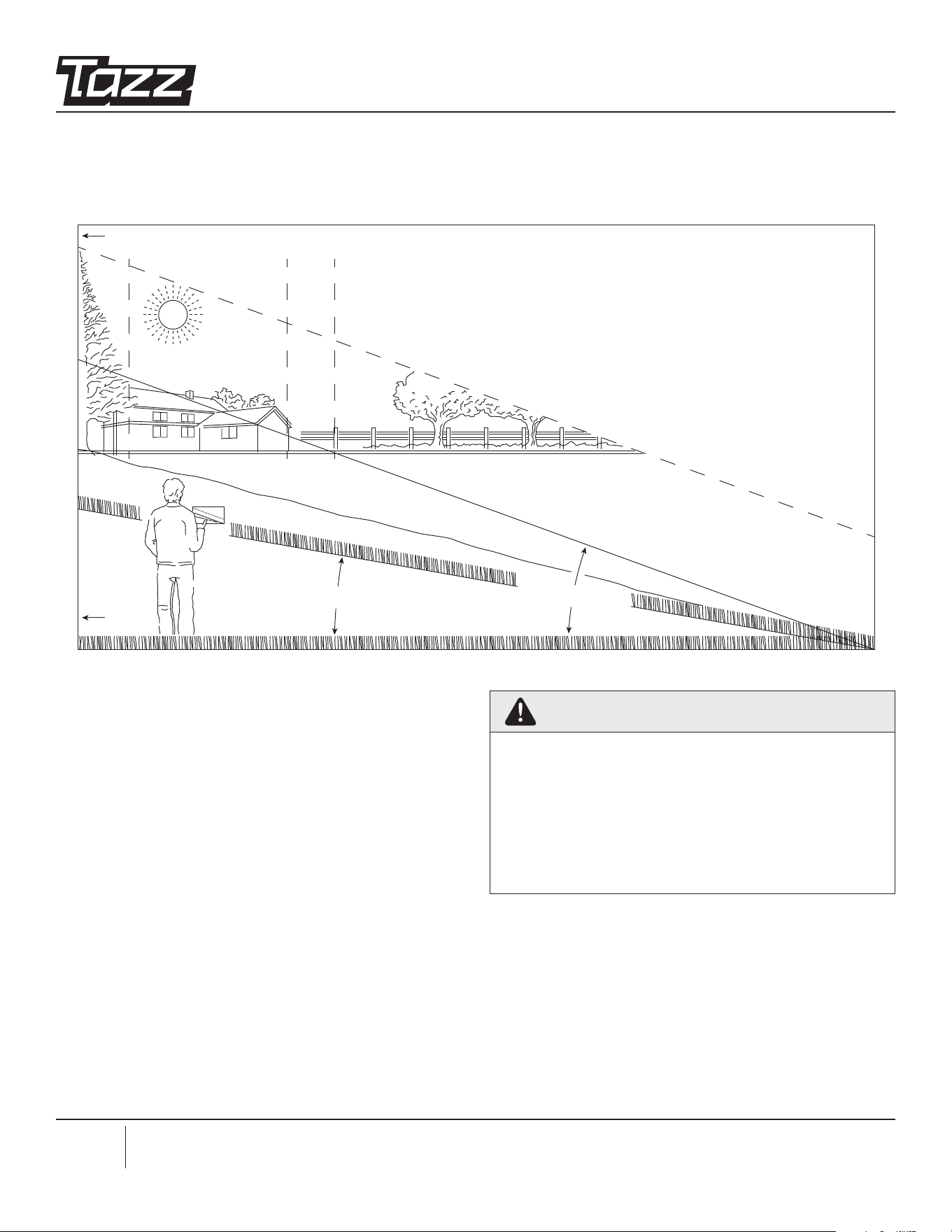

See the “Slope Guide” in the back of this manual to check a slope.

Exercise extreme caution when changing direction on slopes.

• Remove objects such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Tall grass can hide

obstacles.

• Do not mow near drop-os, ditches, or embankments. The

operator could lose footing or balance.

• Do not mow excessively steep slopes.

• Do not mow on wet grass. Reduced footing could cause

slipping.

CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

mower and the mowing activity. Never assume that children

will remain where you last saw them.

• Keep children out of the mowing area and under the

watchful care of a responsible adult.

• Be alert and turn machine o if children enter the area.

• Before and while moving backwards, look behind and

down for small children.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

SERVICE

• Use extra care in handling gasoline and other fuels. They

are ammable and vapors are explosive.

• Use only an approved container.

• Never remove gas cap or add fuel with the engine running.

Allow engine to cool before refueling. Do not smoke while

refueling.

• Fill fuel tank outdoors with extreme care. Never ll fuel

tank indoors or near appliances with pilot lights, heaters,

or other ignition sources. Replace fuel cap securely. If fuel

is spilled, do not start the engine but move product and

fuel container from area. Clean up spilled fuel and allow to

evaporate.

• Never store the machine or fuel container inside where

there is an open ame (such as a water heater), or other

ignition source.

• If the fuel has to be drained, this should be done outdoors.

The drained fuel should be stored in a container specically

designed for fuel storage or it should be disposed of

carefully.

• Engines give off carbon monoxide, an odorless, colorless,

poison gas. Breathing carbon monoxide can cause nausea,

fainting or death. Always start and run engine outdoors.

Do not start or run engine in an enclosed area, even if

doors or windows are open.

• Never make adjustments or repairs with the engine

(motor) running. Disconnect the spark plug wire, and keep

the wire away from the plug to prevent accidental starting

(remove the ignition key if equipped with an electric start).

Always wear eye protection when you make adjustments

or repairs.

• Check the mower head and engine mounting bolts at

frequent intervals for proper tightness.

• Keep all nuts and bolts tight and keep equipment in good

condition. Check mounting hardware on mower head

every time you change mower line and prior to each use.

• Never tamper with safety devices. Check their proper

operation regularly.

• When servicing or repairing the mower, do not tip the

machine over or up unless specically instructed to do so

in this manual. Service and repair procedures can be done

with the mower in an upright position. Some procedures

will be easier if the machine is lifted on a raised platform

or working surface.

• To reduce re hazard, keep machine free of grass, leaves,

or other debris build-up. Clean up oil or fuel spillage.

Allow mower to cool before storing.

• Stop and inspect the equipment if you strike an object.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

Repair, if necessary, before restarting.

• Always disconnect spark plug wire before cleaning,

repairing, or adjusting.

• Do not change the engine governor setting or over-speed

the engine.

• Clean and replace safety and instruction decals as

necessary.

• To guard against engine over-heating, always have engine

debris lter mounted and clean.

• Inspect mower before storage. When not in use,

disconnect spark plug lead and store indoors in a dry

place locked or otherwise inaccessible to children.

• Use only original equipment or authorized replacement

parts.

• Never replace the cutting lines with metal parts.

• When storing gasoline or equipment with fuel in the tank,

store away from furnaces, stoves, water heaters or other

appliances that have a pilot light or other ignition source

because they can ignite gasoline vapors.

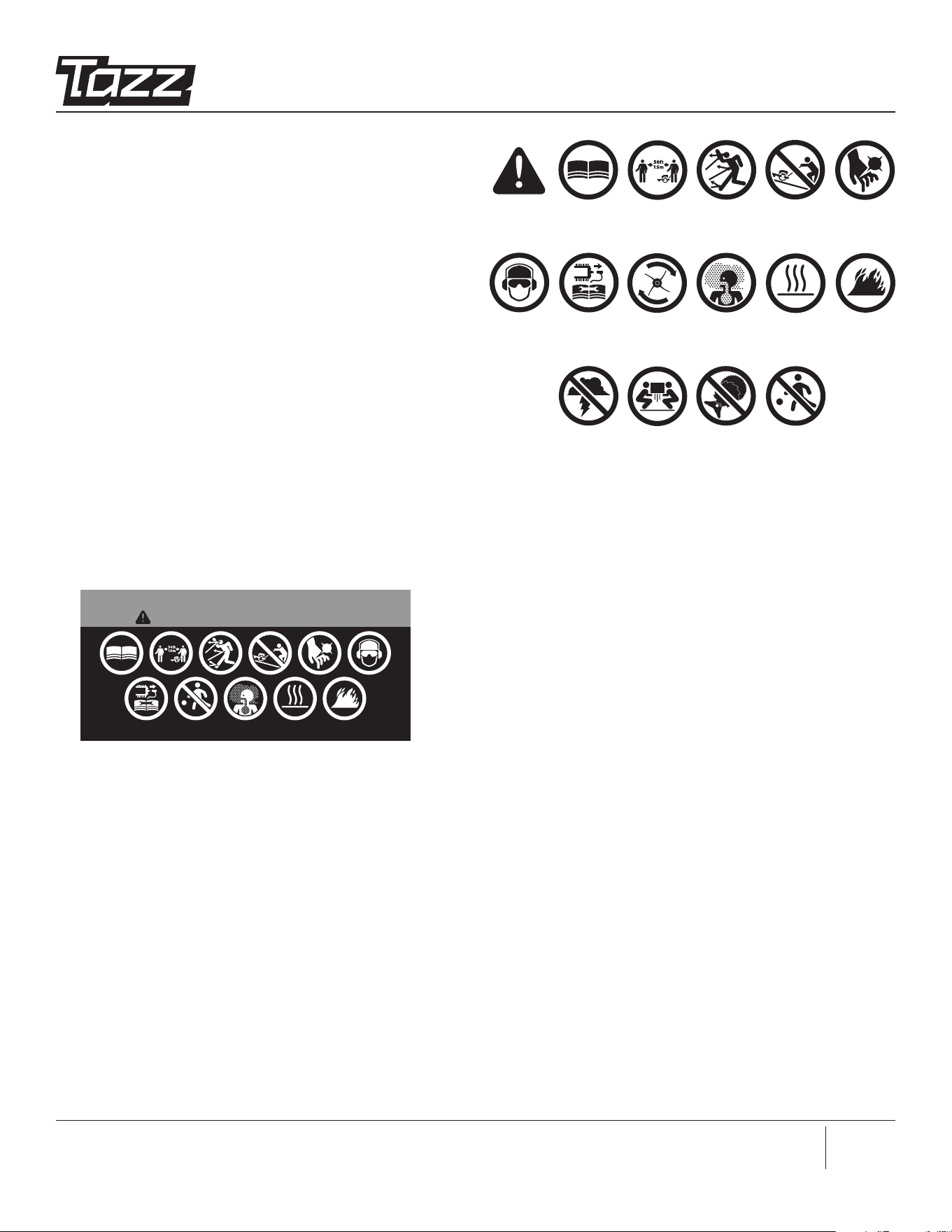

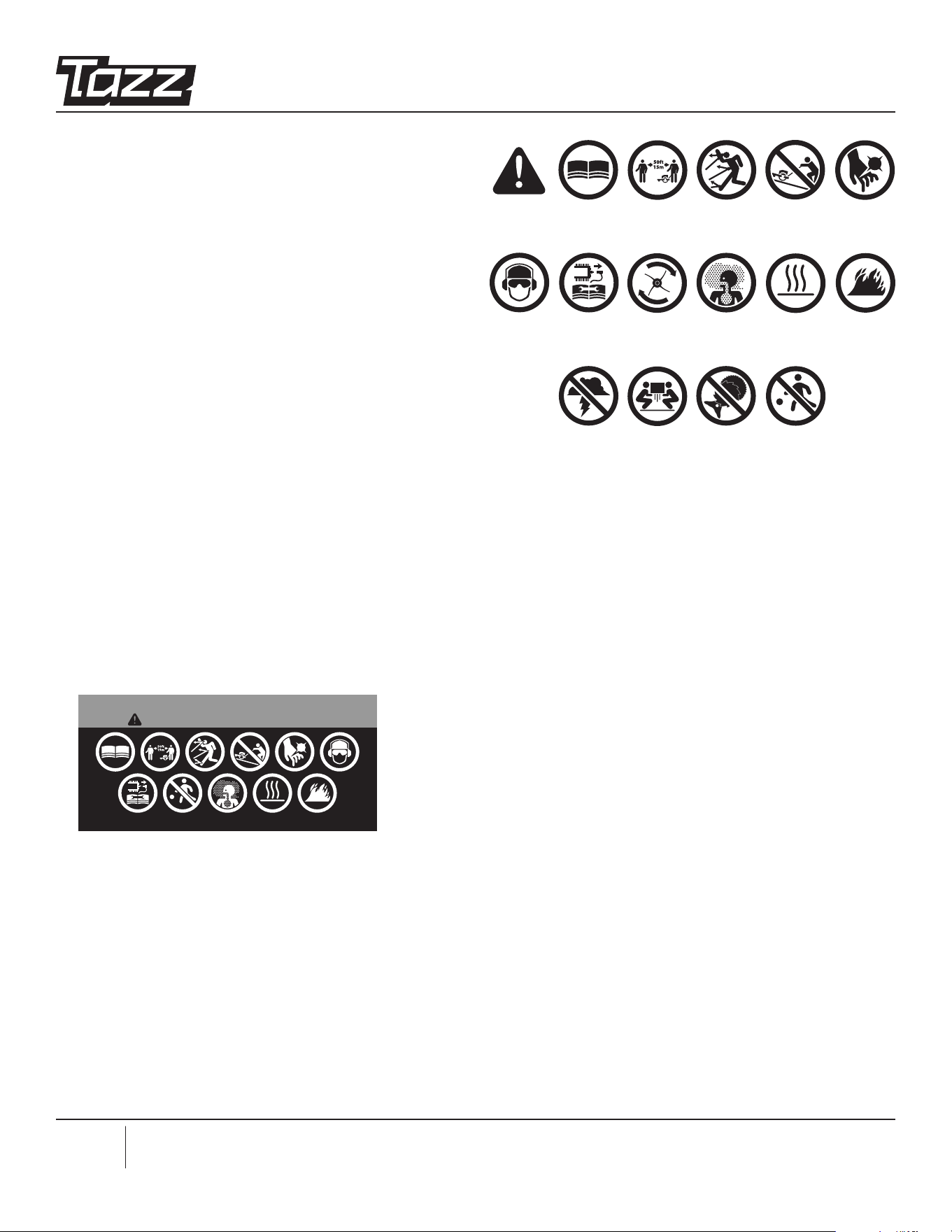

SAFETY DECALS AND WARNINGS

Pictured below are safety and hazard symbols on the unit

or in this manual. Before you operate your unit, learn and

understand the purpose for each symbol.

A: Warning!

B: Read Owner’s Manual Before Operating Machine.

C: Do Not Operate While Others Are Around.

D: Remove Objects that Could Be Thrown By This Machine.

E: Never Operate Machine Up and Down Slopes, ALWAYS

Operate Mower Across Slopes.

F: Beware of Moving and Rotating Parts.

G: Wear Ear and Eye Protection At All Times.

H: Do Not Service or Adjust Moving Parts Unless Engine is

Stopped and Spark Plug Wire is Disconnected.

I: Direction of Rotating Mower Lines.

J: Toxic Fumes —Do Not Operate in Unventilated Areas.

K: Hot Surfaces.

L: Fire Hazards.

M. Do Not Use In Thunderstorms —For severe weather, stop

operation of this machine and seek shelter.

N. Team Lift —For your safety, always have at least two people

when lifting this machine.

O. Never Fit Metal Cutting Parts —Do not attach any metal parts

to the cutting head of this machine.

P. Do Not Operate When Children Or Others Are Around.

M N

Avoid Serious Injury Or Death.

Read And Follow Owner’s Manual. Do Not Operate When Children Or Others Are Around.

Remove Objects That Could Be Thrown By The Cutting Lines. Do Not Service Or Adjust

Cutting Head Or Other Moving Parts, Unless Engine Is Stopped And Spark Plug Wire Is

Disconnected. Wear Safety Approved Eye Protection When Operating. Go Across Slopes,

Not Up And Down. Keep Safety Devices, Such As Guards And Deectors In Place And

Operating. Look Down And Behind Before And While Moving Backwards.

WARNING/AVERTISSEMENT

Danger de blessure grave ou de mort.

Lire et suivre le manuel de l’utilisateur. Ne pas utiliser en présence d’enfants ou autres

personnes. Enlever les objets susceptibles d’être projetés par les lignes de coupe. Ne pas

eectuer l’entretien ou le réglage de la tête de coupe ou d’autres pièces en mouvement

avant d’avoir coupé le moteur et débranché le câble de bougie. Porter une protection

oculaire homologuée pour la sécurité durant l’utilisation. Traverser les pentes

latéralement, pas de haut en bas. Maintenir les dispositifs de sécurité, tels que les carters

de protection et les déecteurs, en place et en état de marche. Regarder vers le bas et

l’arrière avant et durant les déplacements en marche arrière.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

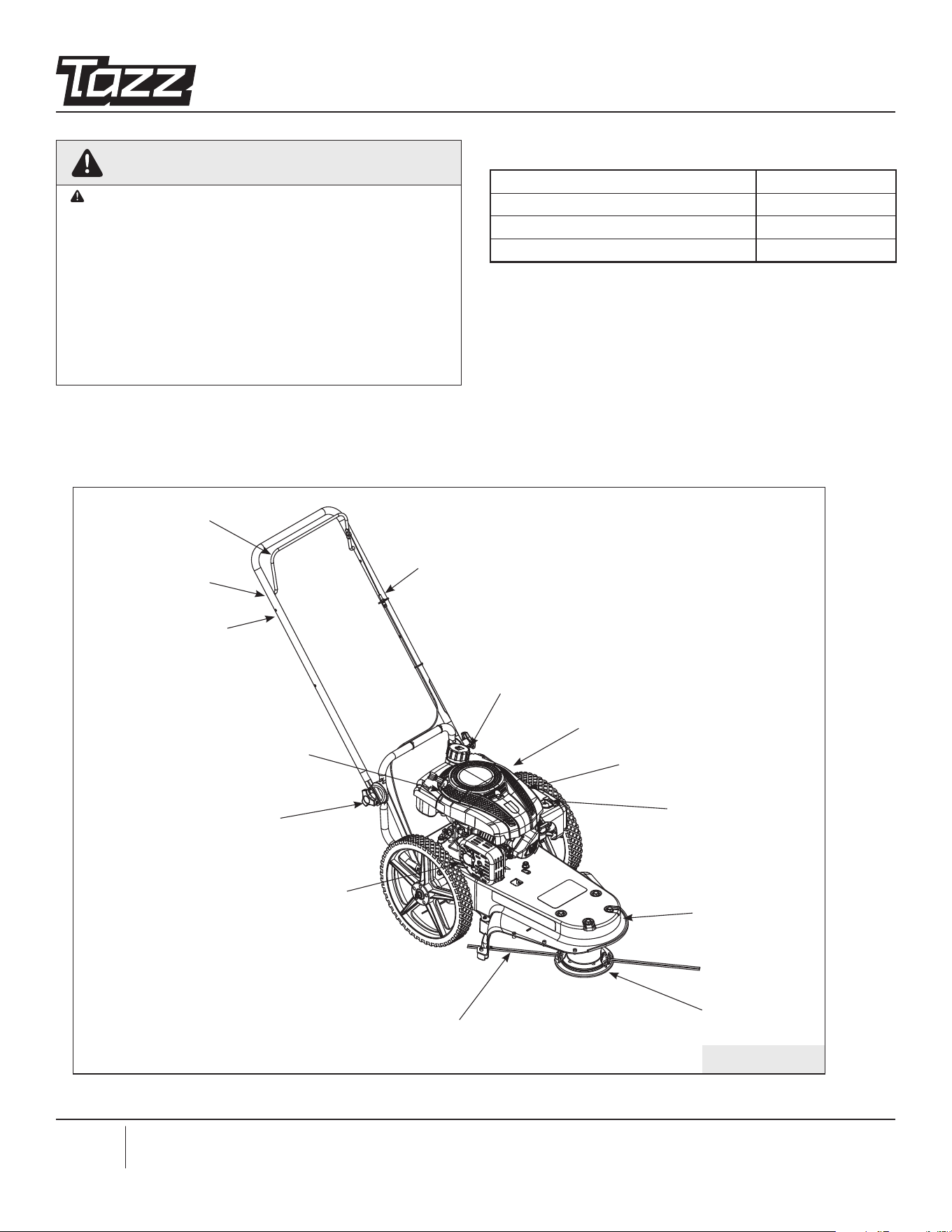

FIGURE 1

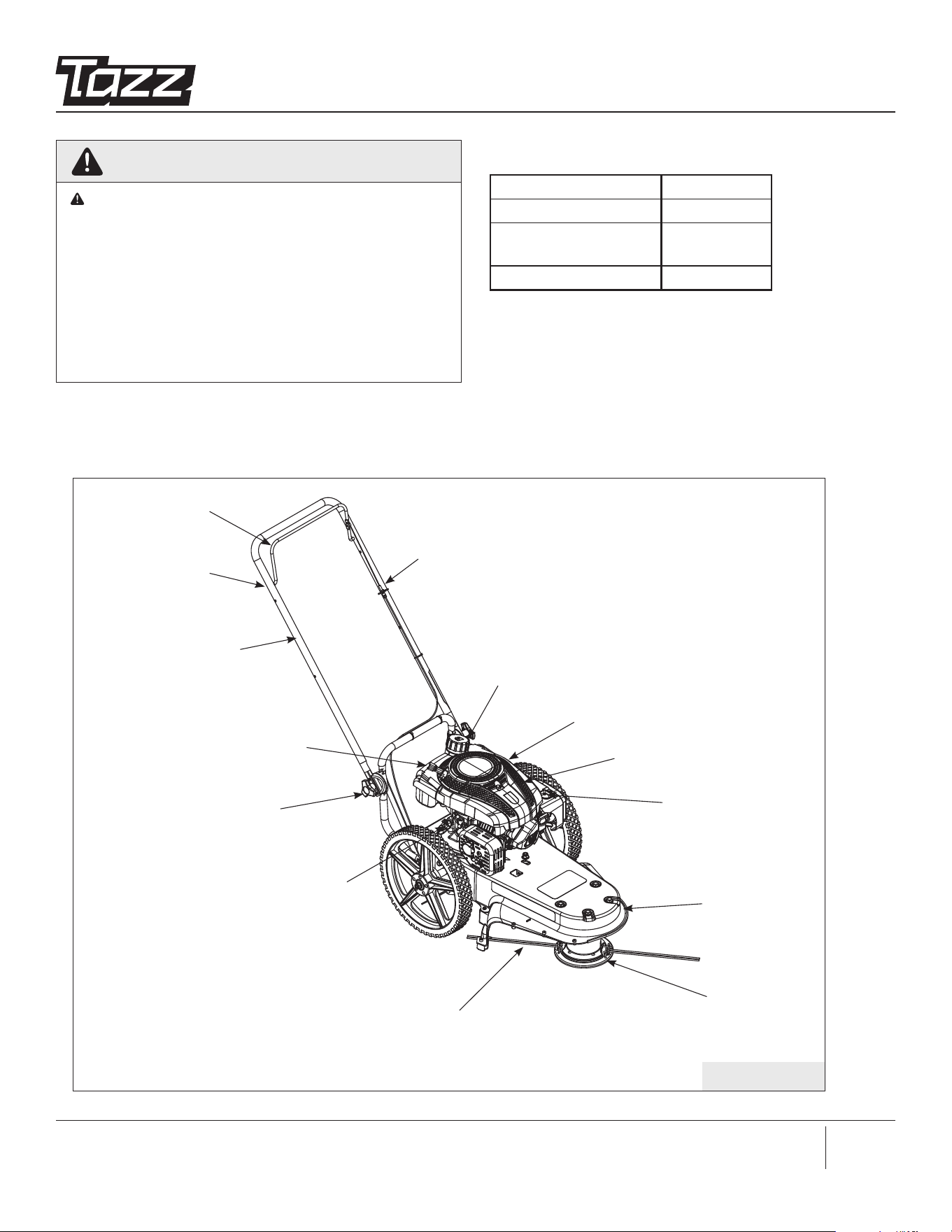

FEATURES

Read this owner’s manual and safety rules before operating your mower. Take time to compare the following illustration with the

mower to familiarize yourself with the product and its controls. SEE FIGURE 1.

MOWER HEAD

DRIVE LEVER

UPPER HANDLE

HANDLE ADJUSTMENT

KNOB

OIL LEVEL INDICATOR DIP

STICK AND FILL PORT

MOWER LINE

MOWER HEAD

PRIMER BULB

RECOIL STARTER PULL HANDLE

ENGINE ON/OFF

SWITCH

(MODEL DEPENDENT)

SPECIFICATIONS

Mower Line Diameter 0.155 Inches

Mower Line Length 21.5 Inches

Mower Cutting

Diameter

22 Inches

Wheel Diameter 14 Inches

WARNING

COMBUSTIBLE DEBRIS CAN CATCH FIRE. IT IS A VIOLATION

OF CALIFORNIA PUBLIC RESOURCE CODE, SECTION 4442,

TO USE OR OPERATE ENGINE-POWERED PRODUCTS ON

ANY FOREST-COVERED, BRUSH-COVERED, OR GRASS-

COVERED LAND UNLESS THE EXHAUST SYSTEM IS

EQUIPPED WITH A SPARK ARRESTER, AS DEFINED IN

SECTION 4442, MAINTAINED IN EFFECTIVE WORKING

ORDER. OTHER STATES OR FEDERAL JURISDICTIONS MAY

HAVE SIMILAR LAWS. CONTACT THE ORIGINAL EQUIPMENT

MANUFACTURER, RETAILER, OR DEALER TO OBTAIN A

SPARK ARRESTER DESIGNED FOR USE WITH THIS PRODUCT.

ADJUSTMENT CABLE

MOWER DECK

DEBRIS SCREEN

FUEL CAP AND FILL PORT

ENGINE ON/OFF SWITCH

(MODEL DEPENDENT)

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

UNPACKING AND ASSEMBLY

WARNING

USE THE CORRECT PERSONAL PROTECTION. WEAR

SAFETY GLASSES OR EYE SHIELDS WHILE ASSEMBLING OR

OPERATING THE STRING MOWER.

REMOVE SPARK PLUG WIRE FROM SPARK PLUG BEFORE

DOING ANY ASSEMBLY OR MAINTENANCE TO THE STRING

MOWER

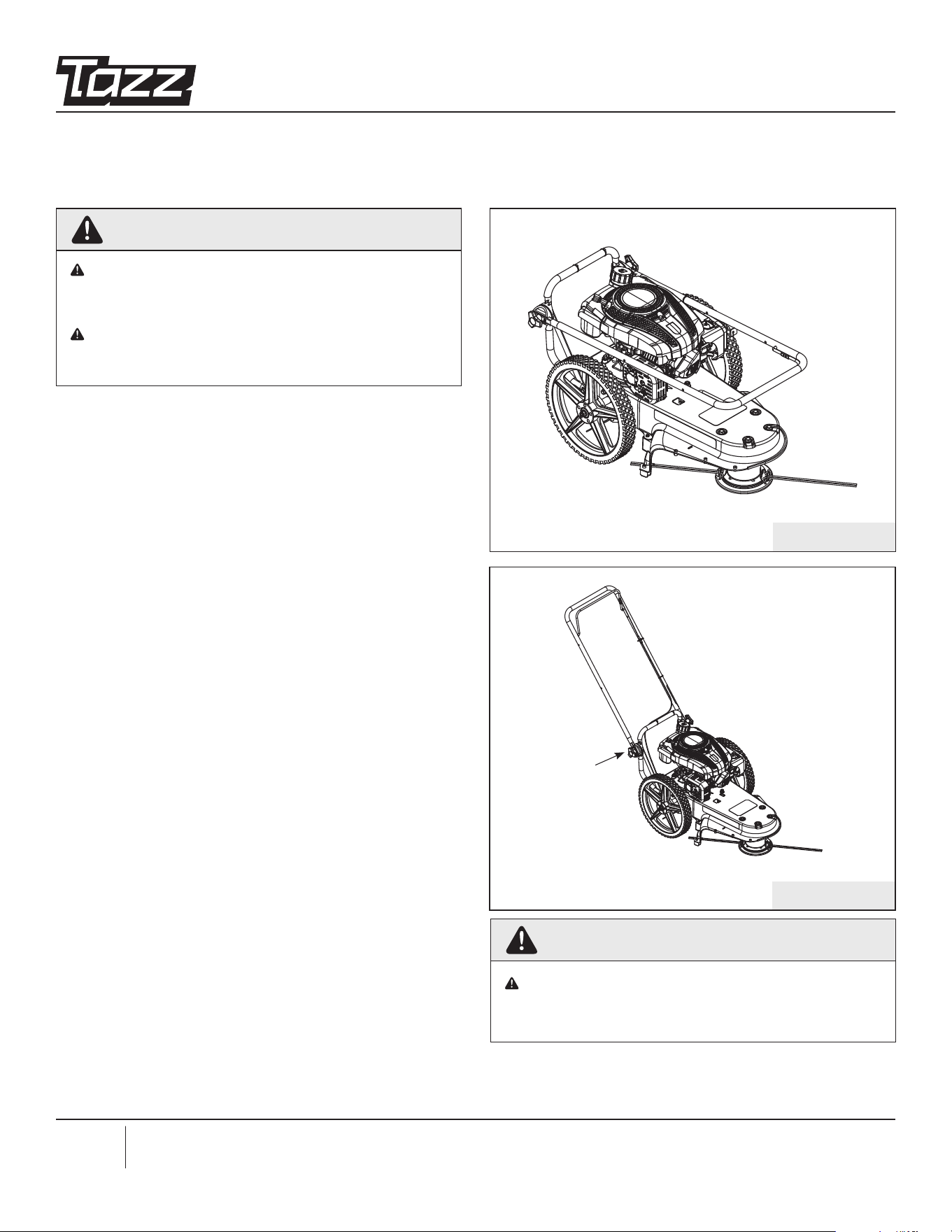

FIGURE 2

TO REMOVE THE MOWER FROM THE CARTON

1. Remove any of the loose parts in packaging, including the

parts bags, from the carton.

2. Remove the packing material positioned around the unit.

3 Cut down all four corners of the carton and lay the side panels

at.

4. Pull the mower out of the carton. SEE FIGURE 2.

HOW TO RAISE THE HANDLE

1. Hold the handle with one hand and loosen both handle

adjustment knobs until the ratchet teeth are disengaged.

Do not remove the handle adjustment knobs.

2. Raise the handle to the operating position.

3. Stand in the operator’s position behind the mower. Put

the handle in a comfortable position. Make sure both

sides of the handle are level.

NOTE: Make sure the cables are not caught between the

upper and lower handle.

4. Tighten the handle adjustment knobs. Make sure the

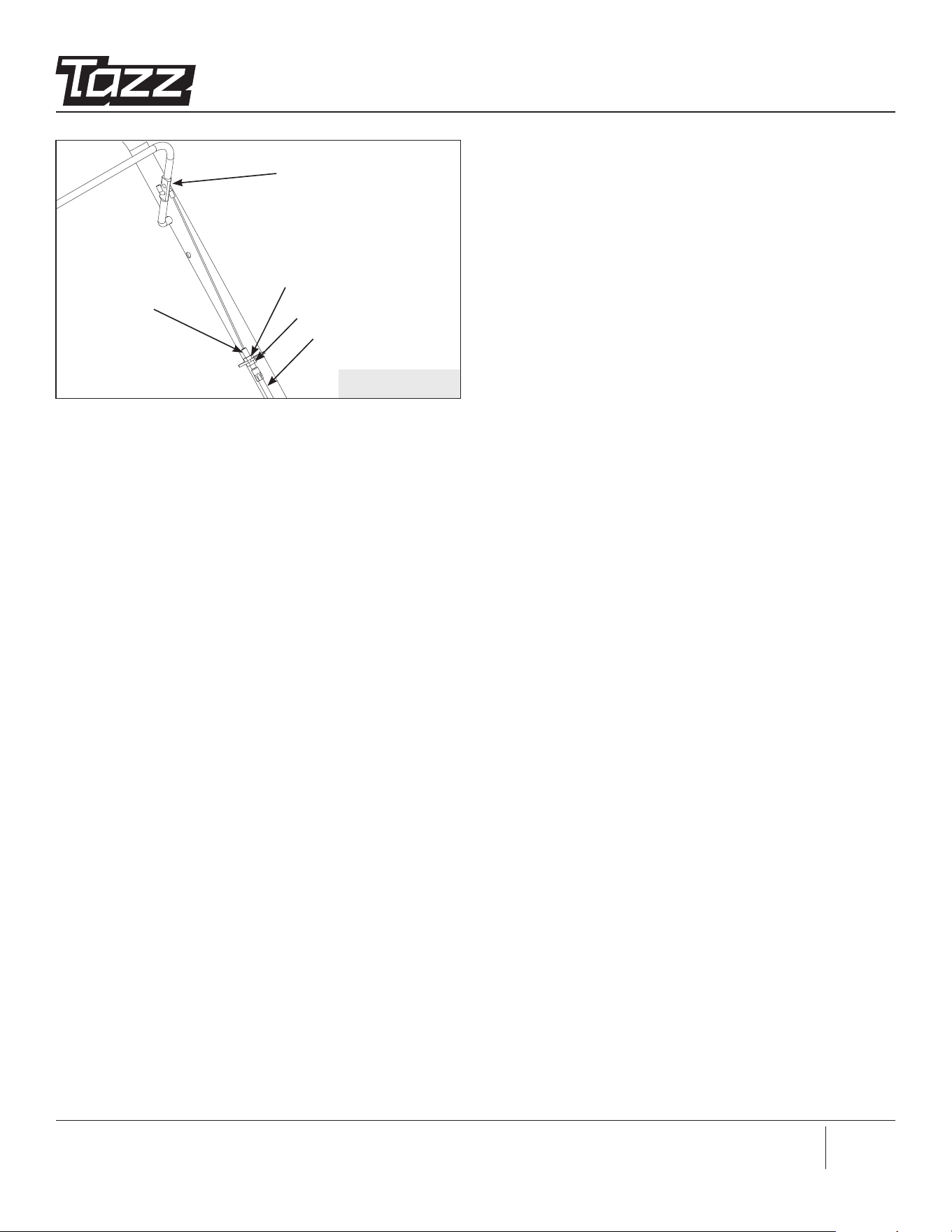

handle pivots are locked in place. SEE FIGURE 3.

FIGURE 3

HANDLE

ADJUSTING

KNOB

WARNING

BE CAREFUL AROUND MOVING PARTS. THE MOWER HEAD

WILL CONTINUE TO ROTATE FOR SEVERAL SECONDS AFTER

THE ENGINE HAS STOPPED.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

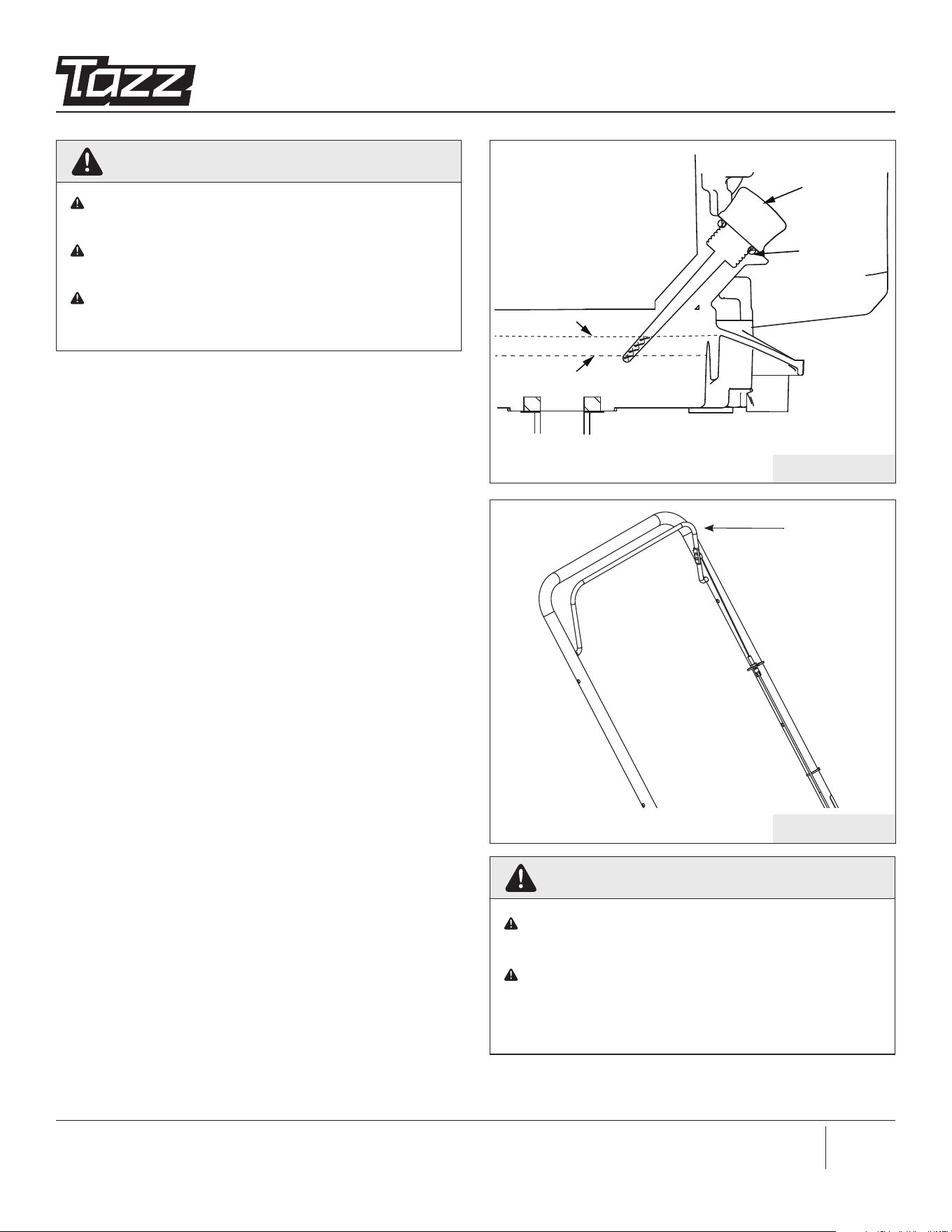

WARNING

FOLLOW THE ENGINE MANUFACTURER’S INSTRUCTIONS

FOR THE TYPE OF GASOLINE AND OIL TO USE.

ALWAYS USE A SAFETY GASOLINE CONTAINER. DO NOT

SMOKE WHEN ADDING GASOLINE TO THE ENGINE.

WHEN INSIDE AN ENCLOSURE, DO NOT FILL WITH

GASOLINE. BEFORE YOU ADD GASOLINE, STOP THE

ENGINE. LET THE ENGINE COOL FOR SEVERAL MINUTES.

ENGINE PREPARATION

See the engine manufacturer’s instructions for the type of

gasoline and oil to use. Before you use the unit, read the

information on safety, operation, maintenance, and storage.

NOTE: Engine does not contain OIL or GASOLINE when shipped

from the factory. You must service the engine before operation.

FILL CRANKCASE WITH OIL

1. Remove the oil dipstick. Fill the crankcase to the FULL line

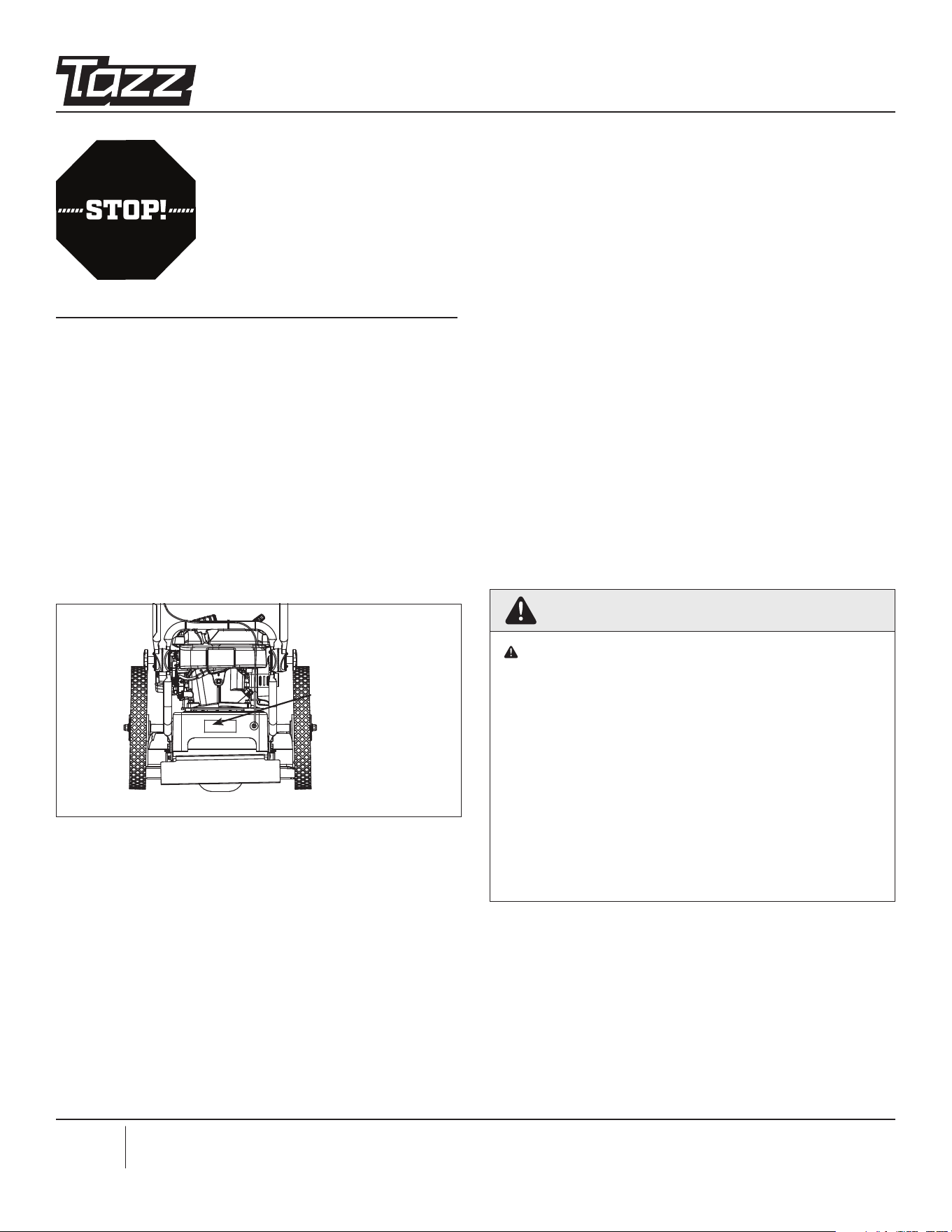

on dipstick. DO NOT OVERFILL. SEE FIGURE 4.

2. Install the oil dipstick and tighten securely.

FILL FUEL TANK WITH GASOLINE

See the engine manufacturer’s instructions for the type of

gasoline to use.

OPERATION

HOW TO STOP THE MOWER HEAD

Release the control lever. It will return to its open position and

disengage the mower head.

HOW TO STOP THE ENGINE

Set the ON/OFF Switch to the OFF position.

HOW TO USE THE MOWER HEAD CONTROL LEVER

1. To engage the mower head, hold the control lever against

the handle. The faster the engine runs, the faster the

mower head will rotate. SEE FIGURE 5.

2. Once the mower head is rotating, push the mower

forward to mow.

Upper Level

Lower Level

Oil Dipstick

Oil Fill Spout

19444-0012r1

FIGURE 4

MOWER HEAD

CONTROL

LEVER

FIGURE 5

CAUTION

IMPROPER TREATMENT OF THE STRING MOWER CAN

DAMAGE IT AND SHORTEN ITS LIFE.

DO NOT ATTEMPT TO CRANK OR START THE ENGINE

BEFORE IT HAS BEEN PROPERLY SERVICED WITH THE

RECOMMENDED OIL. THIS MAY RESULT IN AN ENGINE

FAILURE.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

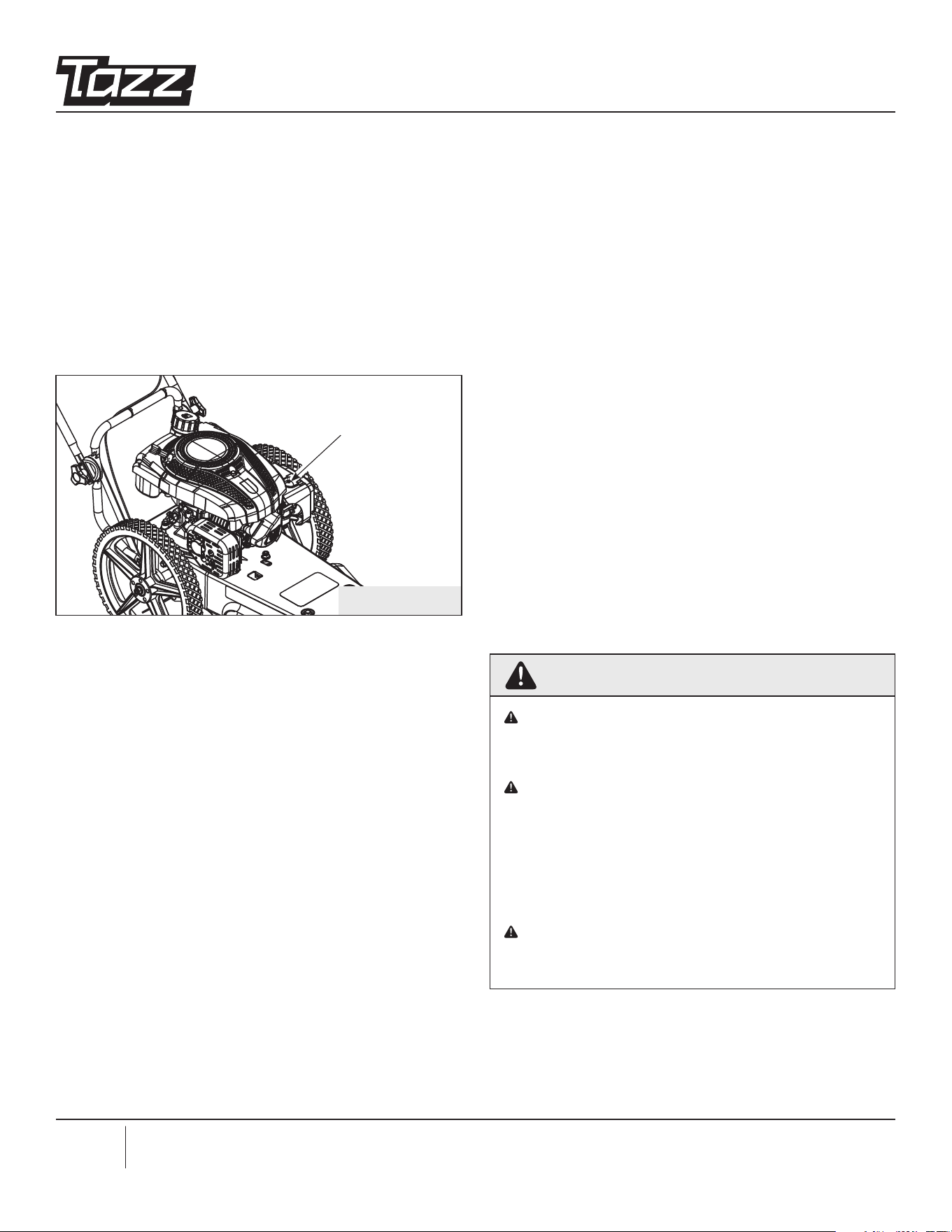

ENGINE THROTTLE CONTROL

The engine throttle speed is a factory setting. It is designed to

ensure proper speed of your string mower during all operating

conditions.

HOW TO USE THE PRIMER BULB

1. Push the primer bulb three times. Wait approximately two

seconds between each push. SEE FIGURE 6.

NOTE: Do not use the primer bulb to restart a warm engine

after a short shutdown. Over priming can cause the engine

to ood.

HOW TO START THE ENGINE

NOTE: Your engine will smoke the rst time it is started. It

is burning o the protective coating that is on the internal

engine parts.

1. Before each use, remove debris from the debris screen.

SEE FIGURE 1 IN “FEATURES” SECTION. Debris can

cause the engine to overheat. Wipe the debris screen with

a cloth or paper towel.

2. Set ON/OFF Switch to ON.

3. To start a cold engine, push the primer bulb three times.

Wait two seconds between each push of the primer bulb.

SEE FIGURE 6.

NOTE: Do not use the primer to start a warm engine.

4. Firmly hold the recoil starter handle with your right hand.

5. Pull back sharply on the recoil starter handle.

NOTE: Do not allow the starter rope to snap back. Let the

starter rope slowly rewind as you hold the recoil starter

handle.

TIP: If the engine fails to start after three pulls, push the

primer bulb two times and pull the recoil starter handle

again.

MOWER TIPS

• If the weeds or grass are tall and thick, operate the mower

at a slower walking speed.

• Frequently clean the underside of the mower to remove

any grass build up. See the “Maintenance, Service and

Storage” section for details.

• For best results and longer lasting line, use the ends of the

line to do the cutting. This is easily done by moving slowly

through very thick or heavy weeds.

• If the mower lines become too short, it will take longer

to complete the job. If the mower lines are worn to less

than half their original length, change to a new mower

line. See more on how to replace the mower line in the

“Maintenance, Service and Storage” section.

• Do not mow on excessively steep slopes. If a slope is

dicult to stand on, do not mow. Do not mow on slopes

when the ground is slippery or wet. Mow across the face

of a slope, not up and down.

• Mower head contact to concrete, asphalt and harder

surfaces may create premature wear to the height guide.

WARNING

DO NOT LEAVE THE STRING MOWER UNATTENDED WHILE

THE ENGINE IS RUNNING. WAIT FOR THE MOWER LINES TO

STOP ROTATING.

NEVER RUN THE ENGINE INDOORS OR IN A POORLY

VENTILATED AREA. ENGINE EXHAUST CONTAINS CARBON

MONOXIDE, AN ODORLESS AND DEADLY GAS. KEEP

HANDS, FEET, HAIR AND LOOSE CLOTHING AWAY FROM THE

MOWER AND ANY MOVING PARTS ON THE ENGINE. AVOID

TOUCHING THE MUFFLER AND SURROUNDING AREAS.

TEMPERATURES MAY EXCEED 150 DEGREES FAHRENHEIT.

DEBRIS SUCH AS STICKS, GRAVEL OR ROCKS CAN BE

THROWN WITH SUFFICIENT FORCE TO CAUSE PERSONAL

INJURY OR PROPERTY DAMAGE.

FIGURE 6

PRIMER

BULB

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

MAINTENANCE, SERVICE, AND STORAGE

NOTE: Maintenance, replacement or repair of the emissions control devices and systems may be performed by any

non‑road engine repair establishment or individuals. However, items must be serviced by an authorized dealer to

obtain “no charge” emissions control service. Good maintenance is essential to help reduce air pollution and for safe,

economical and trouble‑free operation.

MAINTENANCE SCHEDULE

Service Records Before Each Use Every 25 Hours As Noted Service Date

Check mower lines X 1

Check mower head engagement X

Engine/machine cleaning X 2

Check nuts and bolts X

Lubricate jackshaft assembly

(See ’How to Set the Height of the Cut’

section in this manual. Loosen and slide

cutting head up shaft. Apply ’NLGI grade

2’ grease to shaft. Retighten head at

preferred height.)

Lubricate wheel bearings X

Note 1 - When old line is half the original length, replace with new line.

Note 2 - Clean daily if used in extremely dusty or dirty conditions.

GENERAL RECOMMENDATIONS

The warranty on this mower does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, the operator must maintain the

mower as instructed in this manual.

Some adjustments must be made periodically to properly

maintain your mower. All adjustments in the “Service and

Adjustments” section of this manual must be checked at least

once each season.

WARNING

BEFORE YOU INSPECT, CLEAN OR SERVICE THE MOWER,

STOP THE ENGINE. MAKE SURE THAT ALL MOVING PARTS

HAVE STOPPED. DISCONNECT THE WIRE FROM THE SPARK

PLUG.

HOW TO CHANGE ENGINE OIL

Be sure the engine is not operating and is located on a level

surface before checking or relling oil. Engine should be warm

for easy removal of oil.

1. Detach spark plug wire and move away from spark plug. If

the engine uses a battery, disconnect at negative terminal.

2. Remove dipstick and carefully tip the engine toward the

dipstick side to empty oil from oil ll area. Empty oil into a

suitable oil container and dispose of oil properly.

SEE FIGURE 7.

3. Tip engine back onto a level surface and ll with

appropriate oil to the top of the marking on the dipstick

(SEE FIGURE 8). DO NOT OVERFILL. For proper oil

capacity, see the engine manufacturer’s instructions.

4. Reinsert dipstick and tighten. SEE FIGURE 8.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

FIGURE 10C

FIGURE 10BFIGURE 10A

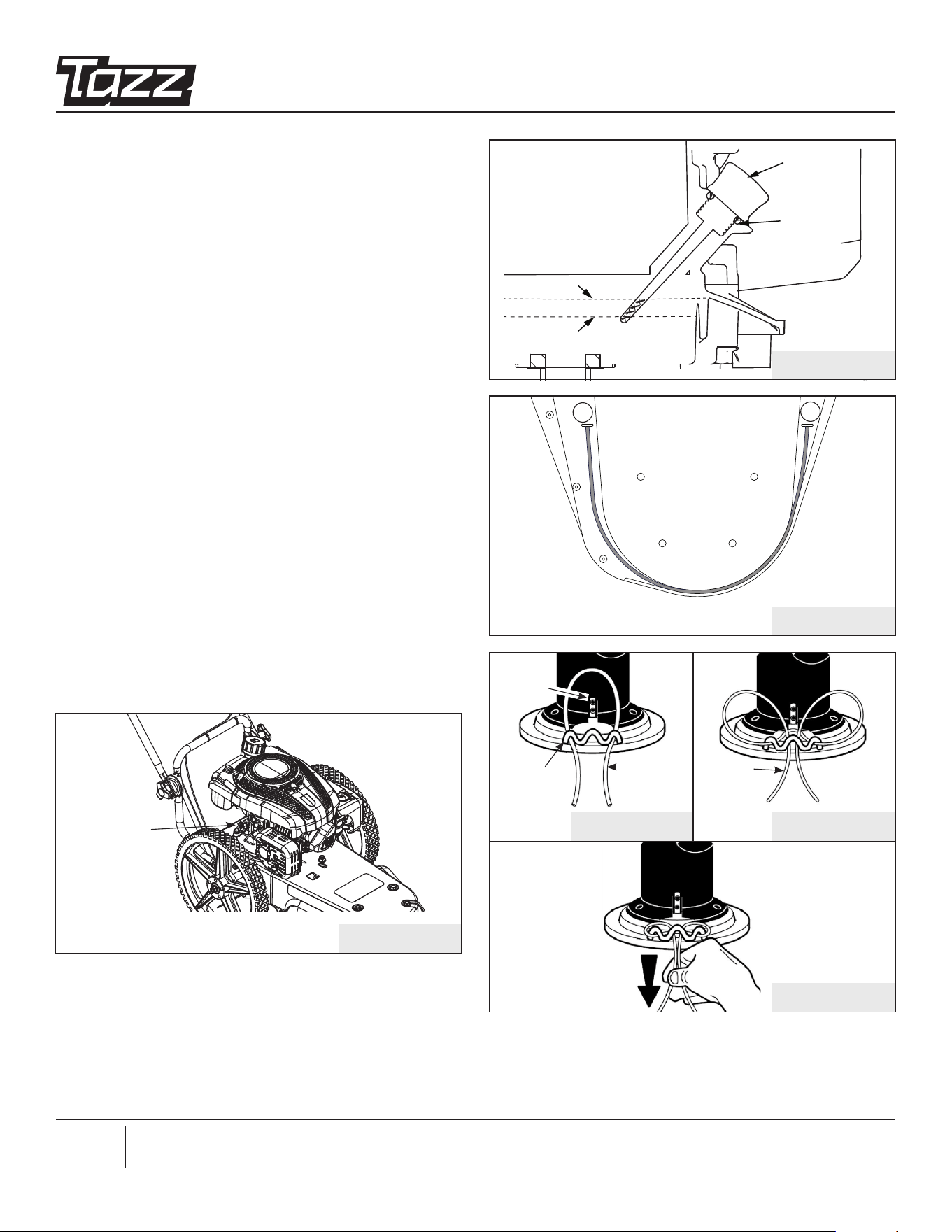

HOW TO REPLACE THE MOWER LINE

For the best performance, use a heavy gauge (0.155" diameter)

mower line. Cut the length of the mower line to 21.5". Use the

length guide, located on the shield, to make sure the mower

line is the correct length. Place one end of the mower line at

location “A” and bend it along the raised portion of the shield.

Cut line at location “B”. SEE FIGURE 9.

Do not allow the length of the lines to vary more than one

inch. This is important to make sure the mower head is

balanced and does not vibrate.

NOTE: To extend the life of the mower line, keep the mower line

moist. If not kept moist, the nylon mower line will become dry

and brittle. Keep extra mower line in a can of water. The line

will then stay exible and easy to change. A exible line will

also last much longer.

1. Stop the engine. Wait for all moving parts to stop.

2. Remove the worn mower line from the line retainer.

3. First, thread the ends of the new mower line through the

outside loops. SEE FIGURE 10A.

4. Next, take the ends of the line, cross over the line retainer,

and thread the ends through the center hold. SEE FIGURE

10B.

5. Then, check to make sure that the ends of the line are

even. SEE FIGURE 10C.

LINE

RETAINER

MOWER

LINE

CAP

SCREWS

Upper Level

Lower Level

Oil Dipstick

Oil Fill Spout

19444-0012r1

LINE

RETAINER

FIGURE 7

FIGURE 8

FIGURE 9

OIL DIPSTICK

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

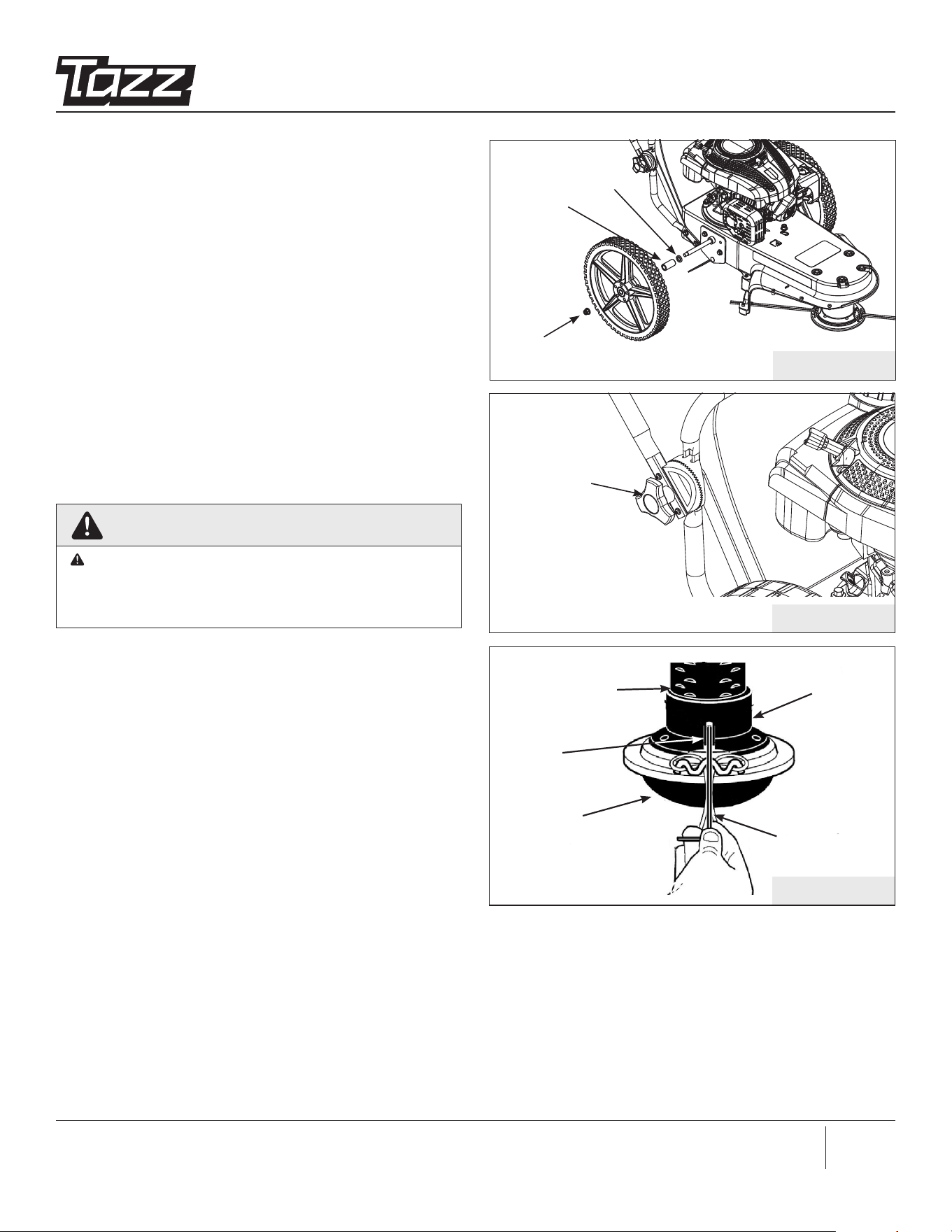

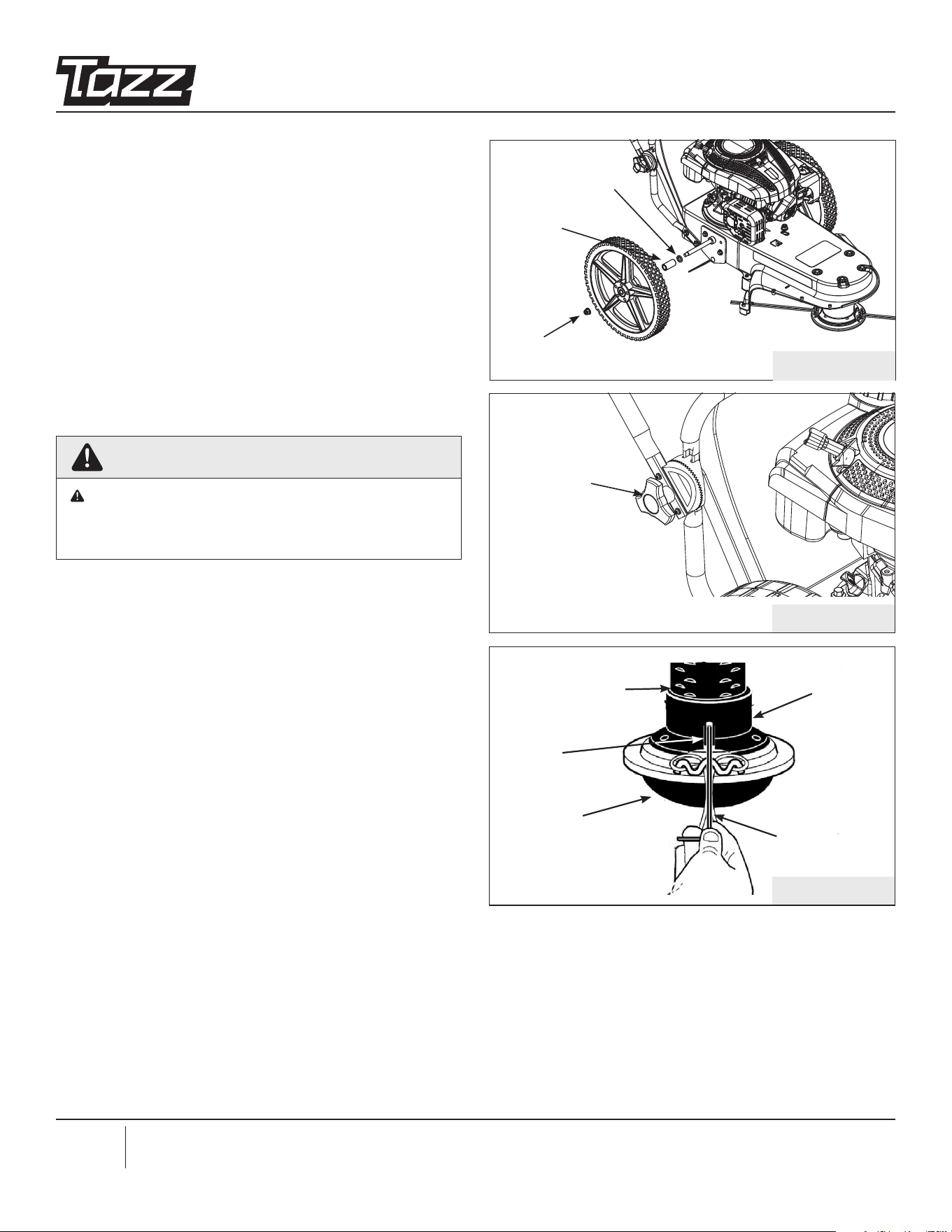

TO DETACH THE WHEELS

To detach the wheels, loosen the axle nuts and remove the

wheel, spacer and lockwasher. Reverse instructions to reattach

tire. SEE FIGURE 13.

HOW TO ADJUST THE HEIGHT/ANGLE OF THE HANDLE

Use the knobs on each side of the handle to adjust the height

of the handle. SEE FIGURE 14.

1. Hold the handle with one hand and loosen both knobs

until the ratchet teeth are disengaged. Do not remove the

bolts.

2. Move the handle up or down to the desired position, then

align the ratchet teeth. Make sure both sides of the handle

are level.

3. Tighten (lock) the knobs.

WARNING

BEFORE YOU SET THE HEIGHT OF THE CUT, STOP THE

ENGINE. WAIT FOR ALL MOVING PARTS TO STOP. ALLOW

THE ENGINE TO COOL AND DISCONNECT THE SPARK PLUG

WIRE.

HOW TO SET THE HEIGHT OF THE CUT

The height of the cut can be set from 1-1/2 inches to three (3)

inches. The recommended cutting height for the average yard

is two (2) inches. SEE FIGURE 15.

1. Use the L-handle wrench found in the parts bag to loosen

the socket head cap screws shown in the gure below.

NOTE: There are two socket head cap screws.

2. Set the mower head at the desired height.

3. Tighten the socket head cap screws.

SPACER

LOCKWASHER

FIGURE 13

AXLE NUT

HANDLE

ADJUSTING

KNOB

FIGURE 14

HEIGHT OF CUT

POSITIONS

HEIGHT

GUIDE

L-HANDLE

WRENCH

MOWER HEAD

SOCKET

HEAD CAP

SCREWS

FIGURE 15

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

FIGURE 16

WARNING

BEFORE YOU REMOVE THE DRIVE BELT, DISCONNECT THE

WIRE FROM THE SPARK PLUG.

IMPORTANT

TEST THE DRIVE SYSTEM. START THE ENGINE AND ENGAGE

AND DISENGAGE THE MOWER HEAD SEVERAL TIMES.

WHEN DISENGAGED, MAKE SURE THE MOWER HEAD

COMPLETELY STOPS WHEN RESTING ON THE GROUND.

IF THE MOWER HEAD CONTINUES TO ROTATE, TAKE THE

MOWER TO AN AUTHORIZED SERVICE CENTER.

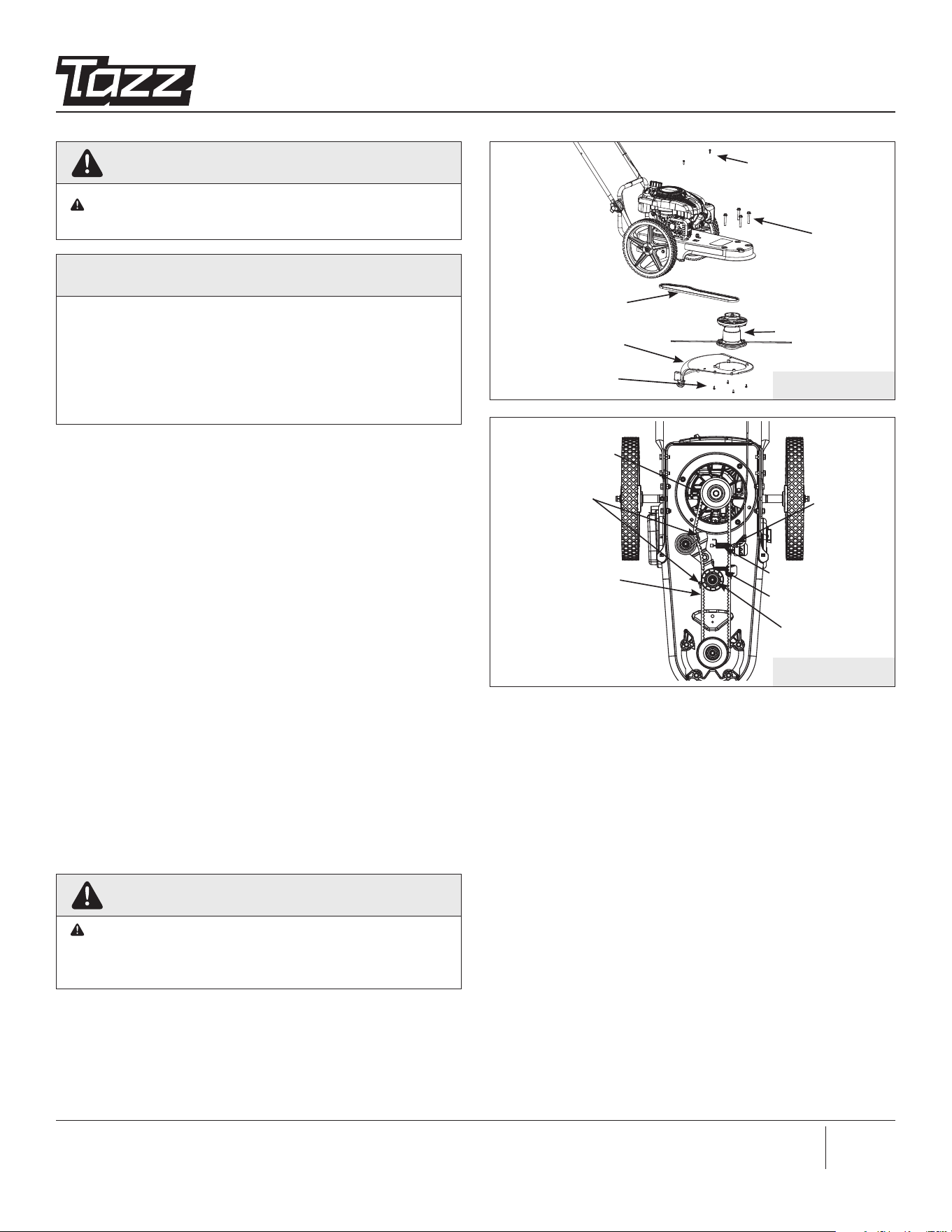

HOW TO REPLACE THE DRIVE BELT

To replace the drive belt, the debris shield and mower head

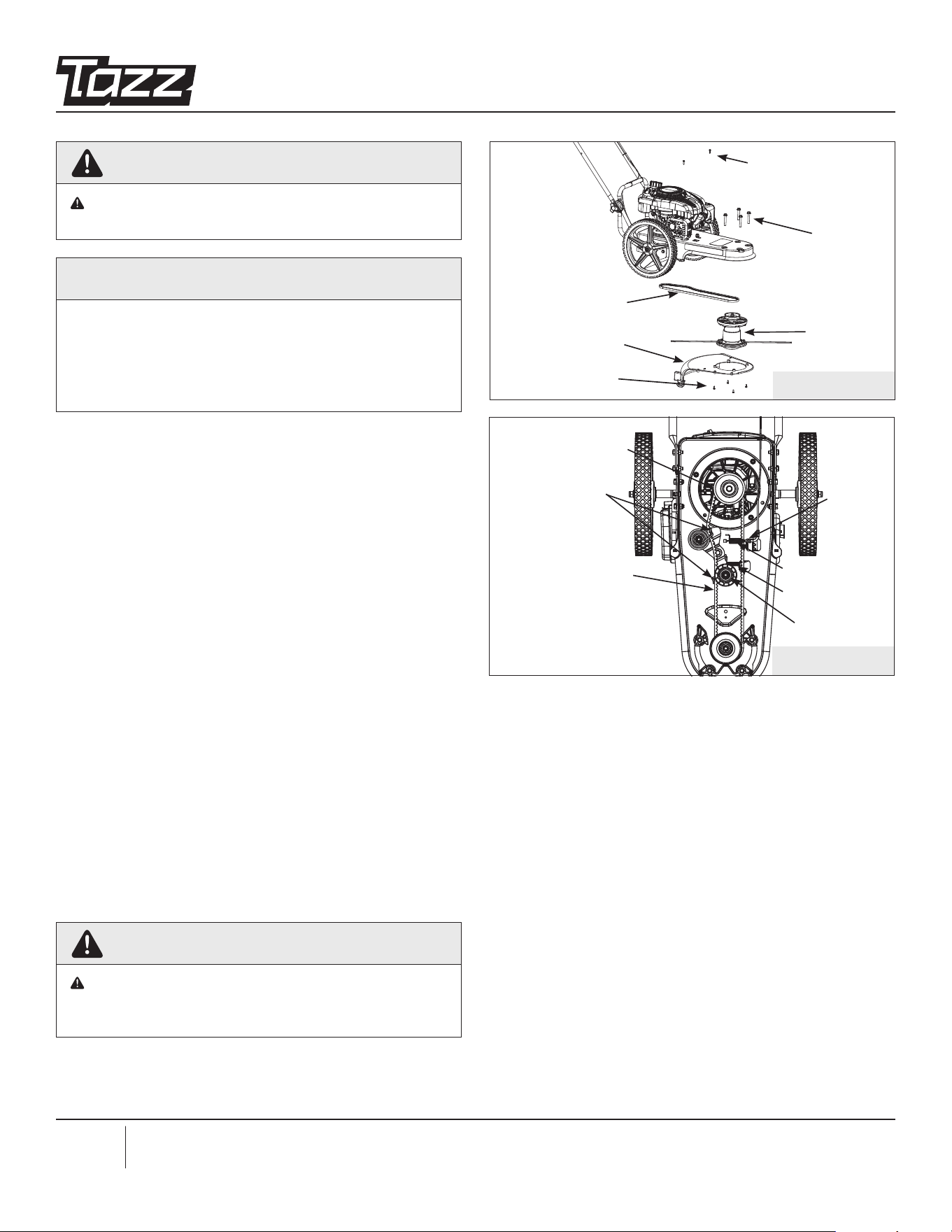

must be removed as follows: SEE FIGURES 16 AND 17.

1. Remove the two screws that hold the rear of the debris

shield to the mower housing.

2. Remove the four screws that hold the front of the debris

shield to the mower head.

3. Remove the four bolts that hold the mower head spindle

to the mower housing.

4. Remove the “V” pulley from the idler bracket.

NOTE: On some models, it is necessary to loosen the

mounting bolt for the drive pulley to remove the drive belt.

Do not bend the belt guides. Use only OEM replacement

belts.

5. To assemble the drive belt, reverse the above steps. Make

sure all fasteners are tight. Make sure the mounting bolt

for the drive pulley is tight.

6. Check the routing of the drive belt. Make sure the drive

belt is inside of all belt guides as shown.

WARNING

DO NOT REMOVE GASOLINE WHILE INSIDE A BUILDING,

NEAR A FIRE, OR WHILE YOU SMOKE. GASOLINE FUMES

CAN CAUSE AN EXPLOSION OR A FIRE.

DRIVE BELT

SHIELD

MOWER

HEAD

DRIVE BELT

DRIVE PULLEY

BELT GUIDES

FIGURE 17

BELT TENSION ADJUSTMENT

Proper belt tension is critical to good performance. After

1/2 hour of operation, the engagement cable may have to be

adjusted due to initial stretch. Thereafter, check tension after

every two hours of operation. Proper tension is achieved when

the beehive spring extends 1/8" - 1/4" when drive lever is

engaged.

To increase belt tension do as follows:

1. Loosen upper jam nut on adjustment cable. SEE

FIGURE 18.

2. Tighten the lower jam nut in 1/8" increments, making sure

not to over adjust the tension.

3. Check adjustment by measuring the beehive spring

extension when drive lever is engaged. (Proper spring

extension is 1/8" - 1/4")

4. When proper adjustment is achieved, tighten bottom jam

nut.

JAM NUT

“V” PULLEY

RETURN SPRING

BEEHIVE SPRING

BOLTS

REAR SCREWS

FRONT SCREWS

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

NOTE: A second cable adjustment can be found on the

engagement lever. The upper hole in the engagement lever

can be used to further tension the belt. SEE FIGURE 18.

NOTE: A short buzzing noise can be heard when engagement

lever is released. This is normal, caused by the teeth of the

cogged belt catching the wire guide, stopping the rotation of

the belt. This does not require the belt tension to be adjusted.

NOTE: The more threads of the barrel nut on the cable sit

below the bracket, the more tension on the belt.

STORAGE

When the mower is put in storage for thirty days or more,

follow the steps below to make sure the mower is in good

condition the following season.

MOWER:

Completely clean the mower

Remove and discard line or store in a sealed container. Put the

mower in a building that has good ventilation.

NOTE: A yearly check-up or tune-up at an authorized service

dealer will ensure that the mower will provide maximum

performance for the next season.

ENGINE:

IMPORTANT NOTE: It is important to prevent gum deposits

from forming in fuel system parts such as the carburetor, fuel

lter, fuel hose, and tank during storage. Also, using alcohol

blended fuels (called gasohol, ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of an

engine while in storage.

1. Drain all gasoline from the fuel tank. Let the engine run

until it is out of gasoline. If you do not want to remove

gasoline, add a fuel stabilizer to any gasoline left in the

tank. A fuel stabilizer will minimize the formation of gum

deposits and acids. If the tank is almost empty, mix the

fuel stabilizer with fresh gasoline in a separate container

and add the mixture to the tank. Always follow the

instructions on the stabilizer container. Run the engine

at least ten minutes after stabilizer is added to allow the

mixture to reach the carburetor.

2. Drain the oil from a warm engine. Fill the engine crankcase

with new oil.

3. Remove the spark plug from the cylinder. Pour one ounce

of oil into the cylinder. Slowly pull the recoil starter handle

so that the oil will protect the cylinder. Install a new spark

plug in the cylinder.

4. Completely clean the mower, including dirt and debris

from the cylinder cooling ns and the engine housing.

5. When not in use, disconnect spark plug lead and store in a

well-ventilated area inaccessible to children.

TROUBLESHOOTING & REPAIR

We build quality and durability into the design of our

products; but no amount of careful design by us, and careful

maintenance by you, can guarantee a repair-free life for your

String Mower. Most repairs will be minor, and easily xed by

following the suggestions in the troubleshooting guide in this

section.

The guide will help you pinpoint the causes of common

problems and identify remedies.

For more complicated repairs, you may want to rely on an

authorized service center. A parts breakdown is located on an

extra insert manual included with this product.

We will always be glad to answer any questions you have, or

help you nd suitable assistance. To order parts or inquire

about warranty, call or email us using the contact information

found below or listed on the “contact us” page on our website.

ORDERING REPLACEMENT PARTS

Parts can be obtained direct from the factory. To order parts

visit the website listed at the bottom of the page or call (800)

345-6007. Please include the following information with your

order:

Part Number(s), Part Description, Quantity, Model Number

and Serial Number.

FIGURE 18

ENGAGEMENT

CABLE

LOWER JAM NUT

UPPER JAM NUT

UPPER HOLE IN

ENGAGEMENT LEVER

BARREL NUT

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

Trouble Cause Correction

Engine does not start Spark plug wire disconnected Connect spark plug wire

Engine not primed Prime engine

Defective or incorrectly gapped spark plug Inspect or replace spark plug

Fuel tank empty Add fuel

Dirty carburetor or fuel line Clean carburetor or fuel line

Dirty air lter Replace air lter

Carburetor out of adjustment For carburetor adjustment, take the unit to an

authorized service center

Engine ooded Wait several minutes before starting

ON/OFF Switch in incorrect position Move switch to ON position

Stale gasoline Drain old gasoline and add fresh gas

Defective ON/OFF Switch or wire Inspect and replace damaged parts

Engine runs poorly Bad spark plug Replace spark plug

Dirty air lter Replace air lter

Carburetor out of adjustment For carburetor adjustment, take the unit to an

authorized service center

Stale gasoline Drain old gasoline and add fresh gas

Engine cooling system clogged Clean debris screen and engine cooling ns

Engine overheats Engine cooling system clogged Clean debris screen and engine cooling ns

Carburetor out of adjustment For carburetor adjustment, take the unit to an

authorized service center

Oil level is low Add oil

Engine will not stop

running

ON/OFF Switch failed Inspect and replace damaged parts

Wire disconnected from ON/OFF Switch Inspect, repair, or replace damaged parts

Poor mowing

performance

Mower line length is too short Correct line length is 21.5 inches. When the line is less

than 1/2 of this length, replace the line.

Belt stretched Adjust belt engagement

Mower vibrates Socket head cap screws for the mower head

are loose

Tighten socket head cap screws with L-handle wrench

Mower line lengths are substantially

dierent

Adjust mower line to approximately equal lengths

Loose nuts or bolts Check all bolts and nuts, including engine bolts

Broken mower head Replace broken part

Mower head does not

retain line

Mower line not properly attached Follow instructions on decal or in the “Maintenance,

Service and Storage” section of the owner’s manual

Broken line retainer Replace mower head assembly

Mower line not correct size Use a 0.155" diameter mower line

TROUBLESHOOTING GUIDE:

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

Use this guide to determine slope angle.

DO NOT MOW ON A SLOPE GREATER THAN 20

DEGREES.

• A 10 degree slope is a hill that increases in height at

approximately 1.76 feet (53.6 cm) in 10 feet (304.5 cm).

• A 20 degree slope is a hill that increases in height at

approximately 3.64 feet (110.9 cm) in 10 feet (304.5 cm).

SLOPE GUIDE

WARNING

USE EXTREME CARE AT ALL TIMES AND AVOID SUDDEN

TURNS OR MANEUVERS. FOLLOW OTHER INSTRUCTIONS

IN THIS MANUAL FOR SAFETY IN MOWING ON SLOPES.

NEVER OPERATE A MOWER UP AND DOWN SLOPES,

OPERATE ACROSS SLOPES ONLY. USE EXTRA CARE WHEN

OPERATING ON OR NEAR SLOPES AND OBSTRUCTIONS.

20 DEGREES FOLD ALONG DOTTED LINE

10 DEGREES

20 DEGREES

SLOPE GUIDE

Sight and hold this guide level with a vertical

tree, a corner of a structure, a power line

pole, or a fence.

Operator Manual

STRING MOWER

Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-4:30 CST

NOTES:

Manuel de l’utilisateur

DÉBROUSSAILLEUSE

Pièces détachées en ligne à www.tazzoutdoorproducts.com ou composer le 800-345-6007 L-V 8h-16h30 HNC

Autocollant

de numéro

de série

INTRODUCTION

Merci d’avoir acheté ce produit Tazz™. Nous nous sommes attachés

à ce que ce produit réponde aux plus hautes normes d’utilisation et

de durabilité. Moyennant des soins corrects, votre achat orira de

nombreuses années de service able.

Lire ce manuel en entier avant de l’installer et de l’utiliser. Tazz™ se

réserve le droit de changer, modier ou améliorer ce produit et cette

documentation à tout moment sans préavis. En raison des constantes

améliorations de nos produits, les représentations du produit peuvent

être inexactes. Un certain assemblage peut être requis.

Lire ce manuel et le conserver pour toute consultation ultérieure.

Ce manuel contient des renseignements importants concernant la

sécurité, l’assemblage, l’utilisation et l’entretien. Le propriétaire doit

veiller à ce que toute la documentation sur le produit soit fournie

avec l’appareil. Cette documentation comprend le manuel, la liste

des pièces de rechange et les garanties. Cette documentation doit

être fournie en vertu de la réglementation en vigueur. Toutes les

personnes à qui cette machine est louée/prêtée doivent avoir accès

à ces informations et les comprendre. Le présent manuel doit rester

avec le produit, notamment s’il est revendu.

Cet appareil est destiné à être utilisé par des propriétaires résidentiels

pour couper l’herbe comme il se doit à l’extérieur. L’utilisation de ce

produit à des ns autres que l’emploi prévu peut s’avérer dangereux

pour l’utilisateur et les personnes présentes.

Lire cette information avec attention pour savoir comment

faire fonctionner et entretenir correctement ce produit et éviter

les blessures et les dommages matériels. L’utilisateur a pour

responsabilité d’utiliser le produit de façon correcte et sécuritaire.

SOMMAIRE

Introduction / Sommaire .......................................................................19

Avertissements et mesures de précaution ............................... 20-24

Caractéristiques ........................................................................................24

Assemblage ......................................................................................... 25-26

Utilisation ............................................................................................. 26-27

Entretien et entreposage ................................................................ 28-32

Dépannage et réparation ...............................................................32-34

ARRÊTEZ!

ARRÊTEZ! ACTIVEZ LA GARANTIE AVANT

UTILISATION

Tous les produits doivent être enregistrés dans les 30 jours à compter

de la date d’achat pour être couverts par la garantie. Pour plus

d’information sur la garantie et l’enregistrement, veuillez consulter les

modalités et conditions de la garantie et de l’enregistrement gurant

dans l’encart de garantie.

ENREGISTREMENT ET SERVICE APRÈS-VENTE

Consigner le numéro de modèle et le numéro de série du produit

dans l’espace prévu pour y accéder facilement lors des commandes

de pièces détachées ou des demandes d’assistance technique. À

l’exception des articles couverts par la garantie sur le contrôle des

émissions, la garantie est valable uniquement si l’enregistrement

dûment rempli est reçu par Ardisam dans les 30 jours après l’achat.

L’enregistrement de la garantie peut se faire en ligne à www.

tazzoutdoorproducts.com. Il est aussi possible d’appeler notre

Service après-vente au (800) 345-6007 du lundi au vendredi de 8h00

à 16h30 HNC.

AVERTISSEMENT

AVERTISSEMENT PROPOSITION 65 DE

CALIFORNIE

L’ÉCHAPPEMENT DU MOTEUR DE CE PRODUIT CONTIENT

DES SUBSTANCES CHIMIQUES DÉCLARÉES RESPONSABLES

DE CANCER, MALFORMATIONS CONGÉNITALES OU

AUTRES ANOMALIES DE LA REPRODUCTION PAR L’ÉTAT DE

CALIFORNIE.

LES COSSES, BORNES DE BATTERIE ET ACCESSOIRES

ASSOCIÉS CONTIENNENT DU PLOMB ET DES COMPOSÉS

DE PLOMB, DES SUBSTANCES CHIMIQUES DÉCLARÉES

RESPONSABLES DE CANCER ET D’ANOMALIES DE LA

REPRODUCTION PAR L’ÉTAT DE CALIFORNIE. SE LAVER LES

MAINS APRÈS LA MANIPULATION.

L’UTILISATION DE CE PRODUIT PEUT ENTRAÎNER UNE

EXPOSITION À DES SUBSTANCES CHIMIQUES DÉCLARÉES

RESPONSABLES DE CANCER, MALFORMATIONS

CONGÉNITALES OU AUTRES ANOMALIES DE LA

REPRODUCTION PAR L’ÉTAT DE CALIFORNIE.

Manuel de l’utilisateur

DÉBROUSSAILLEUSE

Pièces détachées en ligne à www.tazzoutdoorproducts.com ou composer le 800-345-6007 L-V 8h-16h30 HNC

AVIS

AVIS INDIQUE QUE LE MATÉRIEL PEUT ÊTRE ENDOMMAGÉ

SI LES INSTRUCTIONS DE SÉCURITÉ QUI SUIVENT CE MOT-

INDICATEUR NE SONT PAS RESPECTÉES.

AVERTISSEMENTS ET MESURES DE

PRÉCAUTION

RESPONSABILITÉ DU PROPRIÉTAIRE

L’assemblage correct et l’utilisation sûre et ecace de la machine

relèvent de la responsabilité de l’utilisateur.

• Lire et respecter toutes les instructions de sécurité.

• Suivre avec attention toutes les instructions d’assemblage.

• Entretenir la machine conformément aux instructions et au

calendrier gurant dans le manuel de l’utilisateur Tazz™.

• S’assurer que quiconque utilise la machine est familiarisé avec

toutes les commandes et mesures de précaution.

MESSAGES SPÉCIAUX

Ce manuel contient des messages spéciaux attirant l’attention sur des

problèmes de sécurité et dommages potentiels à la machine, ainsi

que des informations utiles sur l’utilisation et l’entretien. Veiller à lire

toutes ces informations avec attention pour éviter les blessures et les

dommages à la machine.

REMARQUE: Des informations générales sont fournies à travers ce

manuel pouvant aider l’opérateur dans l’utilisation ou l’entretien de la

machine.

Ce symbole signale des instructions de sécurité importantes

qui doivent être respectées pour ne pas mettre en danger la

sécurité des personnes. Lire et respecter toutes les instructions

du manuel avant de tenter de faire fonctionner ce matériel.

AVANT D’UTILISER LA MACHINE:

Veiller à lire cette section avec attention. Lire l’ensemble

des instructions d’utilisation et d’entretien de ce produit. Tout

manquement à respecter ces instructions peut entraîner des

blessures graves ou la mort. Utiliser la machine conformément

aux instructions de sécurité fournies ici et tout au long du manuel.

Quiconque utilise cette machine doit lire les instructions et être

familiarisé avec les commandes.

ATTENTION

ATTENTION INDIQUE UN DANGER QUI, S’IL N’EST PAS ÉVITÉ,

PEUT PROVOQUER DES BLESSURES CORPORELLES ET DES

DÉGÂTS MATÉRIELS.

AVERTISSEMENT

AVERTISSEMENT INDIQUE UN DANGER QUI, S’IL N’EST PAS

ÉVITÉ, PEUT PROVOQUER LA MORT OU DES BLESSURES

CORPORELLES ET DÉGÂTS MATÉRIELS GRAVES.

DANGER

DANGER INDIQUE UN DANGER QUI, S’IL N’EST PAS ÉVITÉ,

PROVOQUERA IMMANQUABLEMENT LA MORT OU DES

BLESSURES CORPORELLES ET DES DÉGÂTS MATÉRIELS

GRAVES.

IMPORTANT

IMPORTANT SIGNALE DES INFORMATIONS UTILES

CONCERNANT L’ASSEMBLAGE, L’UTILISATION OU L’ENTRETIEN

DU MATÉRIEL.

AVERTISSEMENT

VEILLER À LIRE, À COMPRENDRE ET À RESPECTER TOUTES LES

INSTRUCTIONS DE SÉCURITÉ ET D’UTILISATION FIGURANT

DANS CE MANUEL AVANT DE TENTER D’INSTALLER ET DE

FAIRE FONCTIONNER LA MACHINE.

TOUT MANQUEMENT À OBSERVER LES INSTRUCTIONS

DE SÉCURITÉ ET D’UTILISATION PEUT PROVOQUER DES

BLESSURES CORPORELLES GRAVES POUR L’UTILISATEUR

ET D’AUTRES PERSONNES PRÉSENTES ET DES DÉGÂTS

MATÉRIELS. LE TRIANGLE DANS LE TEXTE INDIQUE DES MISES

EN GARDES ET AVERTISSEMENTS IMPORTANTS QUI DOIVENT

ÊTRE SUIVIS.

Manuel de l’utilisateur

DÉBROUSSAILLEUSE

Pièces détachées en ligne à www.tazzoutdoorproducts.com ou composer le 800-345-6007 L-V 8h-16h30 HNC

CONSIGNES GÉNÉRALES DE SÉCURITÉ

• Lire, comprendre et respecter toutes les instructions gurant

sur la machine et dans le(s) manuel(s). Veiller à bien se

familiariser avec les commandes et la bonne utilisation de la

débroussailleuse avant de la démarrer.

• Veiller à se familiariser avec tous les autocollants de sécurité et

d’exploitation apposés sur ce matériel et sur tous ses outils ou

accessoires.

• Ne pas placer les mains ni les pieds sous ou à proximité d’une

pièce en rotation.

• Permettre l’utilisation de la débroussailleuse uniquement à des

personnes responsables familiarisées avec les instructions.

• Examiner avec soin la zone où la machine doit être utilisée et

éliminer tous les objets étrangers. Ce matériel peut projeter

violemment de petits objets et provoquer des dégâts matériels

ou des blessures graves. Rester à l’écart des objets fragiles tes

que les fenêtres de maison, automobiles, serres, etc.

• Tenir toutes les personnes présentes à l’écart de la zone de

travail, en particulier les jeunes enfants et les animaux.

• Porter une tenue adaptée, notamment un blouson ou une

chemise à manches longues. Porter également un pantalon long.

Ne pas porter de pantalon court.

• Ne pas porter de vêtements amples ni de bijoux. Ils peuvent être

happés par les pièces en mouvement.

• Toujours porter des lunettes à coques ou des lunettes de sécurité

à écrans latéraux durant l’utilisation de la débroussailleuse

pour protéger les yeux des objets étrangers susceptibles d’être

projetés par la machine.

• Toujours porter des gants de travail et des chaussures robustes.

Porter des chaussures orant une bonne adhérence sur les

surfaces glissantes. Les chaussures de chantier ou bottines en

cuir conviennent généralement bien. Elles protègent les chevilles

et les tibias de l’utilisateur contre les petits bouts de bois,

échardes et autres débris.

• Il est conseillé de porter une protection de la tête contre les

projections de terre et petits cailloux et pour éviter de heurter

les branches basses et autres objets auxquels l’utilisateur n’aurait

pas prêté attention.

• Ne pas utiliser la débroussailleuse si tous les carters de

protection et autres dispositifs de sécurité ne sont pas en place.

• Utiliser ce matériel exclusivement aux ns prévues.

• Voir les instructions du fabricant concernant l’utilisation et

la pose d’accessoires. Utiliser exclusivement des accessoires

homologués par le fabricant.

• Travailler uniquement durant la journée ou sous une bonne

lumière articielle.

• Ne pas utiliser ce produit alors qu’on est fatigué ou sous l’emprise

de l’alcool, de drogues ou de médicaments susceptibles de

provoquer une somnolence ou d’altérer la capacité à utiliser la

machine en toute sécurité.

• Ne jamais utiliser la débroussailleuse dans de l’herbe mouillée.

Veiller à toujours avoir le pied ferme; tenir fermement la poignée

et marcher avec la machine; ne jamais courir.

• Avant chaque utilisation, contrôler le levier et le câble de

commande des gaz. S’assurer que le câble s’actionne librement

et que le levier n’est pas endommagé. Vérier aussi que le câble

de tringlerie vers le carburateur ne présente pas de plissements,

de raccords desserrés ou d’obstructions. Vérier que la barre de

commande fonctionne correctement.

• Interrompre la rotation de la tête de débroussaillage pour

traverser des allées, chemins ou routes en gravier. Attendre que

les ls de coupe cessent de tourner.

• Prendre garde à la circulation lors de travaux à proximité d’une

chaussée ou en traversant une rue.

• Couper le moteur avant de s’éloigner de la machine, de la

nettoyer, la réparer ou la contrôler; s’assurer de l’arrêt complet de

la tête de débroussaillage et de toutes les pièces en mouvement.

Laisser le moteur refroidir, débrancher le câble de la bougie et

l’éloigner de la bougie.

• Si la machine commence à vibrer anormalement, arrêter le

moteur, débrancher le câble de la bougie et l’empêcher de

toucher la bougie. Rechercher immédiatement la cause. Les

vibrations signalent généralement un problème.

• Après avoir heurté un objet étranger, arrêter le moteur.

Débrancher le câble de la bougie. Contrôler l’état de la

débroussailleuse. En cas de dommages, réparer avant de

démarrer et d’utiliser la débroussailleuse.

• Ne jamais laisser la débroussailleuse sans surveillance avec le

moteur en marche. Débrancher le câble de la bougie.

• Inspecter régulièrement la débroussailleuse. Vérier qu’aucune

pièce n’est déformée, endommagée ni desserrée.

• Laisser le silencieux et les surfaces du moteur refroidir avant de

les toucher. Ne jamais soulever ni porter la débroussailleuse avec

le moteur en marche.

• L’exposition prolongée au bruit et aux vibrations produits par

du matériel à moteur à essence doit être évitée. Faire des pauses

intermittentes et/ou porter une protection auditive contre le

bruit du moteur, ainsi que des gants de travail épais pour réduire

les vibrations dans les mains.

• Consulter la réglementation en vigueur concernant les

restrictions d’âge pour l’utilisation de cette machine.

• Si le bruit ou les vibrations de la machine augmentent, arrêter

immédiatement et contrôler la machine.

Manuel de l’utilisateur

DÉBROUSSAILLEUSE

Pièces détachées en ligne à www.tazzoutdoorproducts.com ou composer le 800-345-6007 L-V 8h-16h30 HNC

• Le carburant utilisé dans cette machine est considéré

extrêmement inammable et doit être manipulé avec

précaution. Veiller à bien entreposer la réserve de carburant dans

un bidon approprié et à l’écart de tout risque d’incendie.

UTILISATION EN PENTE

Les pentes sont un important facteur de risque de glissement et de

chute pouvant entraîner des blessures graves. Toutes les pentes exigent

des précautions supplémentaires. Ne pas débroussailler une pente si on

manque d’assurance. Débroussailler perpendiculairement à la pente,

jamais de haut en bas. Ne pas débroussailler les pentes trop raides (15

degrés maximum) ni les zones où le terrain est très accidenté. Pour

évaluer une pente, voir le Guide de pente au dos de ce manuel. Faire

preuve de beaucoup de précaution lors des changements de direction

dans les pentes.

• Retirer les objets tels que les roches, les branches d’arbre, etc.

• Prendre garde aux trous, aux ornières et aux bosses. Les hautes

herbes peuvent masquer des obstacles.

• Ne pas débroussailler à proximité de forts dénivelés, fossés ou

remblais. Cela peut déséquilibrer ou faire perdre pied.

• Ne pas débroussailler des pentes très raides.

• Ne pas débroussailler dans de l’herbe mouillée. On peut perdre

pied et glisser.

ENFANTS

Des accidents graves sont possibles si l’utilisateur n’est pas conscient

de la présence d’enfants. Les enfants sont souvent attirés par la

débroussailleuse et le débroussaillage. Ne jamais supposer que les

enfants restent toujours au même endroit.

• Tenir les enfants à l’écart de la zone à débroussailler et sous la

garde d’un adulte responsable.

• Rester alerte et arrêter la débroussailleuse si des enfants

s’approchent.

• Avant et durant les déplacements à reculons, regarder derrière soi

et vers le bas pour vérier qu’il n’y a pas de petits enfants.

• Ne jamais laisser d’enfant utiliser la débroussailleuse.

• Faire preuve de beaucoup de prudence lors de l’approche de

virages sans visibilité, d’arbustes, d’arbres ou autres objets

susceptibles de bloquer la vue.

ENTRETIEN

• Faire preuve d’extrême prudence lors de la manipulation de

l’essence et de tout autre carburant. Ils sont inammables et les

vapeurs sont explosives.

• Utiliser uniquement un récipient homologué.

• Ne jamais ouvrir le bouchon d’essence ni ajouter du carburant

avec le moteur en marche. Laisser le moteur refroidir avant de

refaire le plein. Ne pas fumer durant le remplissage.

• Faire le plein du réservoir de carburant à l’extérieur avec beaucoup

de précaution. Ne jamais remplir le réservoir de carburant à

l’intérieur ou près d’appareils à veilleuse, réchaueurs et autres

sources d’inammation. Bien refermer le bouchon de carburant.

En cas de déversement accidentel, ne pas démarrer le moteur mais

éloigner le produit et le bidon de carburant. Nettoyer le carburant

déversé et laisser évaporer.

• Ne jamais entreposer la machine ni un récipient de carburant

à l’intérieur en présence d’une amme nue (chaue-eau, par

exemple) ou autre source d’inammation.

• Si le réservoir doit être vidangé, le faire à l’extérieur. Le carburant

vidangé doit être conservé dans un bidon spéciquement conçu

pour le carburant ou il doit être éliminé avec précaution. Les

moteurs dégagent du monoxyde de carbone, un gaz toxique

inodore et incolore. Respirer du monoxyde de carbone peut

causer des nausées, un évanouissement ou la mort. Toujours

démarrer et faire tourner le moteur à l’extérieur. Ne pas démarrer

ni faire tourner le moteur dans un espace fermé, même avec des

portes ou des fenêtres ouvertes.

• Ne jamais eectuer des réglages ou des réparations avec le

moteur en marche. Débrancher le câble de la bougie et tenir

le câble à l’écart de la bougie pour éviter tout démarrage

accidentel (retirer la clé de contact si la machine est équipée d’un

démarreur électrique). Toujours porter une protection oculaire

pour eectuer des réglages ou des réparations.

• Contrôler fréquemment le serrage de la visserie de xation de la

tête de débroussaillage et du moteur.

• Maintenir tous les écrous et vis bien serrés et le matériel en bon

état. Vérier la visserie de xation de la tête de débroussaillage

chaque fois que le l de débroussaillage est changé et avant

chaque utilisation.

• Ne jamais altérer les dispositifs de sécurité. Vérier régulièrement

leur bon fonctionnement.

• Lors de l’entretien ou des réparations, ne pas basculer ni

retourner la débroussailleuse sauf sur instruction spécique dans

ce manuel. Les procédures d’entretien et de réparation peuvent

se faire avec la débroussailleuse en position verticale. Certaines

procédures sont plus faciles à eectuer si la machine est sur une

plateforme surélevée ou un plan de travail.

• Pour réduire le risque d’incendie, éviter toute accumulation

d’herbes, de feuilles et autres débris sur la débroussailleuse.

Nettoyer les déversements d’huile ou de carburant. Laisser la

débroussailleuse refroidir avant de l’entreposer.

• Arrêter et contrôler le matériel après avoir heurté un objet.

Réparer, le cas échéant, avant de redémarrer.

• Toujours débrancher le câble de la bougie avant tout nettoyage,

réglage ou réparation.

• Ne pas modier le réglage du régulateur de moteur ni faire

tourner le moteur en surrégime.

Manuel de l’utilisateur

DÉBROUSSAILLEUSE

Pièces détachées en ligne à www.tazzoutdoorproducts.com ou composer le 800-345-6007 L-V 8h-16h30 HNC

• Nettoyer et remplacer les autocollants de sécurité et

d’instruction comme il se doit.

• Pour protéger le moteur contre la surchaue, s’assurer que la

grille à débris du moteur est toujours en place et propre.

• Contrôler la débroussailleuse avant de l’entreposer. Lorsqu’il

n’est pas utilisé, débrancher le câble de bougie et entreposer

à l’intérieur dans un endroit sec verrouillé ou autrement

inaccessible aux enfants.

• Utiliser uniquement du matériel d’origine ou des pièces de

rechange autorisées.

• Ne jamais remplacer les ls de coupe par des pièces métalliques.

• Entreposer l’essence ou une machine avec du carburant dans le

réservoir à l’écart de chaudières, poêles, chauffe-eau et autres

appareils électroménagers comportant une veilleuse ou autre

source d’inflammation susceptible d’enflammer les vapeurs

d’essence.

AUTOCOLLANTS DE SÉCURITÉ ET MISES EN

GARDE

Les symboles de sécurité et de danger gurant sur la machine et dans

le manuel sont illustrés ci-dessous. Avant d’utiliser la machine, veiller

à apprendre et à comprendre la signication de chaque symbole.
