CAUTION FOR SAFETY.
1. Leave enough space from the wall to the cabinet and the ceiling; do not be sealed
completely in the back part of the cabinet. prepare an air vent to the outside.
Caution: It needs more than 20 cm from the cabinet to wall.
2. Please move away all out-package for bottom heat radiation to avoid fire.
3. It´s prohibited to store flammable and volatile chemical,or leading to exploding.
4. individual single-phase socket must be used.It should be reliably connected to a
grounding wire.
Caution: Do not connect grounding wire to a water or gas pipe.
5. Do not be hard collided or fiercely vibrated when in transportation; it is not larger than
45° for the inclination of the cabinet.
6. Please refer to the Trouble Shooting references when the unit is facing some prob-
lems.
Do no attempt to solve the problem on your own,Please refer to certified technician only.
DANGER -Risk of fire or explosion.Flammable refrigerant used.Do not use mechanical
devices to defrost refrigerator .Do not puncture refrigerant tubing.
DANGER - Risk of fire or explosion.Flammable refrigerant used.To be repaired only by
trained service personnel.Do not puncture refrigerant tubing.
CAUTION - Risk of fire or explosion.Flammable refrigerant used.Consult repair
manual/owner´s guide before attempting to service this product.All safety
precautions must be followed.
CAUTION - Risk of fire or explosion.Dispose of properly in accordance with federal or
local regulations.Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; follow handling
instructions carefully.Flammable refrigerant used.
CAUTION - Keep clear of obstruction all ventilation openings in the appliance enclosure
or in the structure for builfing-in.
CAUTION - servicing shall be done by factory authorized service personnel,so as to
minimize the risk of possible ignition due to incorrect parts or improper service.
IMPORTANT! PLEASE READ BEFORE INSTALLATION
• If the unit has recently been transported. Please let unit stand still for a minimum of
24 hours before plugging it in.
• Make sure that the unit drops down to desired temperature before loading the unit
with product.
• Maker sure that there is proper ventilation around the unit in the area where it will
operate.
• Make sure all accessories are installed (i.e. shelves, shelf clips, casters) before plug-
ging the unit in.
• Please read through the Operation / Owners Manual in its entirety.
CABINET LOCATION GUIDELINES
• Install the unit on strong and leveled surfaces
—unit may make unpleasant noises if surface is uneven
—unit may malfunction if surface is uneven
• Install the unit in an indoor, well-ventilated area
—unit performs more efficiently in a well-ventilated area
—for best performance, please maintain clearance of 4” on the back of the unit
• Avoid installation in a high humidity and/or dusty area
—humidity could cause unit to rust and decrease efficiency of the unit
—dust collected on condenser coil will cause unit to malfunction. Clean the condenser at
least once a month with a brush or clean cloth
• Select a location away from heat and moisture-generating equipment
—high ambient temperature will cause the compressor to overwork, leading to higher
emergency bills and gradual breakdown of the unit.
• Please ensure that the required voltage of the compressor is being supplied at all
times. Low or high voltage can detrimentally affect the refrigeration unit. All units
should be plugged into a grounded and properly-sized electrical outlet with appropri-
ate overcurrent protection. Please refer to the electrical requirements on the name-
plate. Please make sure that your unit has its own dedicated outlet. Do not use an
extension cord.
ELECTRICAL
Please ensure that the required voltage of the compressor is being supplied at all times.
Low or high voltage can detrimentally affect the refrigeration unit.
All units should be plugged into a grounded and properly-sized electrical outlet with
appropriate overcurrent protection. Please refer to the electrical requirement on the
nameplate. Please make sure that your unit has its own dedicated outlet. Do not use an
extension cord.
TEMPERATURE CONTROLS
The temperature controls are factory-set to maintain an average temperature of 0°F in
refrigeration. Allow unit to function several hours, completely cooling cabinet before
changing the control setting.
Temperature Control Location and Settings
Digital temperature control is located on the front or of the rear of the unit
Mechanical temperature control is located inside of unit.
LOADING PRODUCT
The bin dividers have been installed at the factory for your convenience. Feel free to
position the dividers as you see fit. To remove the bin dividers, simply push the divider
towards the back wall, then lift the divider is removed from the top mounting holes. To
install, position the front of the desired holes, making sure that the pressure spring is
installed properly.
NOTE: if the unit is disconnected or shut off, wait five minutes before starting again.
RECOMMENDATION - Before loading product we recommend you run your unit empty for
two to three days. This allows you to be sure electrical wiring and installation are correct
and no shipping damage has occurred.
Pay close attention to the load limit stickers located on the interior walls to the unit.do not
load product above the load limit stickers or above the top cross bar of the bin dividers.-
loading product above the load limit stickers will harm the performance of the unit.
CAUTION
Setting the temperature control to the coldest setting may cause the Evaporator coil to
freeze and ice up. This will eventually result in a warmer cabinet temperature.
Do not load product above
the top crossbar.
Doing so will
harm the refrigerator.
SAFETY / WARNING
Please pay close attention to the safety notices in this section.
Disregarding these notices may lead to serious injury and/or damage to the unit.
ATTENTION
To minimize shock and fire hazards, be sure not to overload outlet. Please Designate one
outlet for your unit.
Do not use extension cords.
Do not put your hands under the unit when the units is required to be moved.
When the unit is not in use for a long period o time, please unplug the unit from the
outlet.
After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so
could cause damage to the compressor.
UNPLUG CORD
To minimize shock and fire hazards, please do not plug or unplug the cord with wet
hands.
During maintenance and cleaning, please unplug the unit.
PROPER GROUNDING REQUIRED
To minimize shock and fire hazards, make sure that the unit is properly grounded.
PROHIBITION
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any flammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.
• Do not set the desired temperature out of the recommended temperature range.(Ref:
0°F)
USER MANUAL
Glass Froster
Model:
KoolMore Glass Froster
KM-GF25-BK, KM-GF25-SS, KM-GF36-BK,
KM-GF36-SS, KM-GF50-BK, KM-GF50-SS

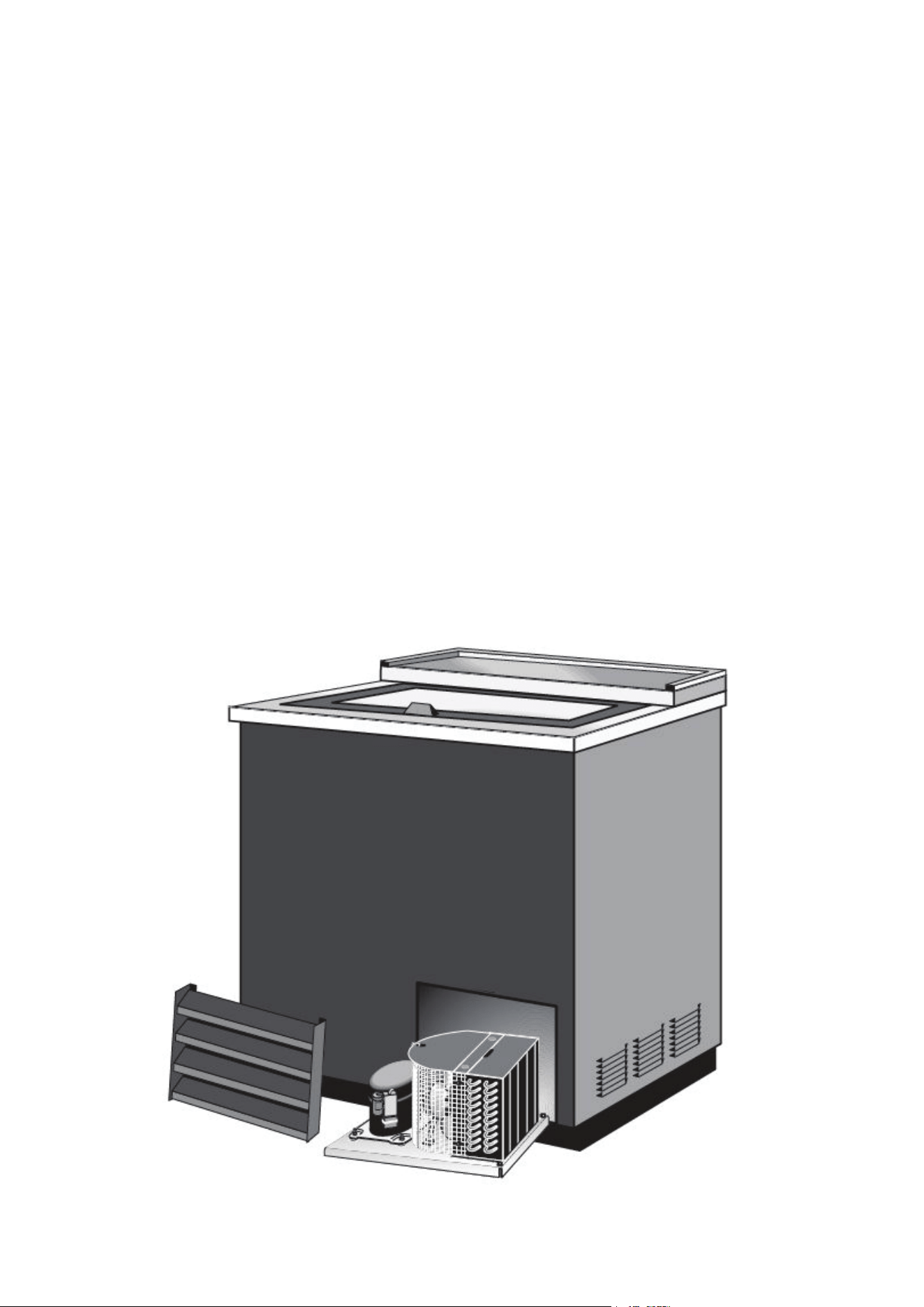

CLEANING THE CONDENSER COIL
For efficient operation, it is important that the condenser
surface be kept free of dust, dirt, and lint.
We recommend cleaning the condenser coil and fins at
least once per month.
Clean with a commercial condenser coil cleaner, avail-
able from any kitchen equipment retailer. Brush the
condenser fins from top to bottom, not side to side.
After cleaning, straighten any bent condenser fins with a
fin comb.
CLEANING THE FAN BLADE AND MOTOR
If necessary, clean the fan blades and motor with a soft cloth, if it is necessary to wash the
fan blades, cover the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF UNIT
When cleaning the cabinet interior, use a solvent of warm water and mild soap.
Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stain-
less steel surface.
Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from
the frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft
cloth, and replace.
Check door gaskets for proper seal after they are replaced.
Periodically remove the shelves and pilasters from the unit and clean them with mild soap
and warm water. To remove the pilasters, first remove the shelves and shelf brackets. Then,
simply lift the pilaster up and out.
WARNING
Disconnect power cord before cleaning any parts of the unit.
KM-GF25
KM-GF36
KM-GF50
