SERIES 5 INDUCTION COOKTOPS
PLANNING GUIDE
30CM 2 ZONE INDUCTION COOKTOP SMARTZONE
CI302ZCTB2
60CM 4 ZONE INDUCTION COOKTOP
CI604CTB2 | CI604CTPB2
60CM 4 ZONE INDUCTION COOKTOP SMARTZONE
CI604ZCTB2 | CI604ZCTPB2
90CM 5 ZONE INDUCTION COOKTOP
CI905CTB2 | CI905CTPB2
90CM 5 ZONE INDUCTION COOKTOP SMARTZONE
CI905ZCTB2 | CI905ZCTPB2
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
ALL MODELS
CONCEPT DESIGN PAGE
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | SERIES 5 INDUCTION COOKTOPS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
CONTENTS
SPECIFICATION GUIDE
Model Comparison 4
Model Overview
30cm 2 Zone Induction Cooktop SmartZone
CI302ZCTB2 5
60cm 4 Zone Induction Cooktop
CI604CTB2, CI604CTPB2 6
60cm 4 Zone Induction Cooktop SmartZone
CI604ZCTB2, CI604ZCTPB2 7
90cm 5 Zone Induction Cooktop
CI905CTB2, CI905CTPB2 8
90cm 5 Zone Induction Cooktop SmartZone
CI905ZCTB2, CI905ZCTPB2 9
Model Specification
30cm 2 Zone Induction Cooktop SmartZone
CI302ZCTB2 10
60cm 4 Zone Induction Cooktops
CI604CTB2, CI604CTPB2, CI604ZCTB2, CI604ZCTPB2 11
90cm 5 Zone Induction Cooktops
CI905CTB2, CI905CTPB2, CI905ZCTB2, CI905ZCTPB2 12
DATA SHEETS
30cm 2 Zone Induction Cooktop SmartZone
CI302ZCTB2 14
60cm 4 Zone Induction Cooktops
CI604CTB2, CI604CTPB2, CI604ZCTB2, CI604ZCTPB2 15
90cm 5 Zone Induction Cooktops
CI905CTB2, CI905CTPB2, CI905ZCTB2, CI905ZCTPB2 16
PLANNING CONSIDERATIONS

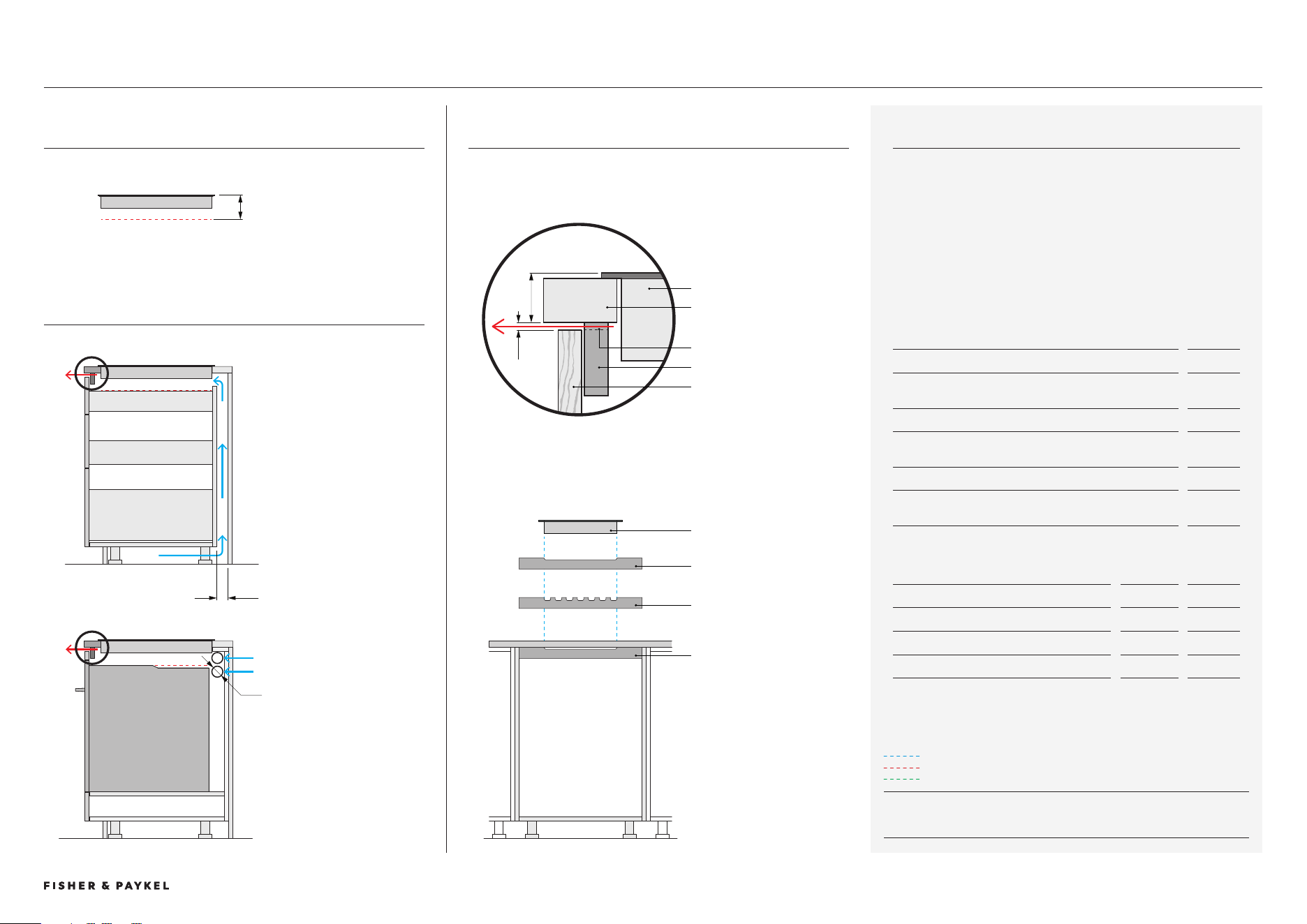

Cooktop Ventilation 18
Model Comparison 18
Cabinetry Clearances 19
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 202590004816A
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

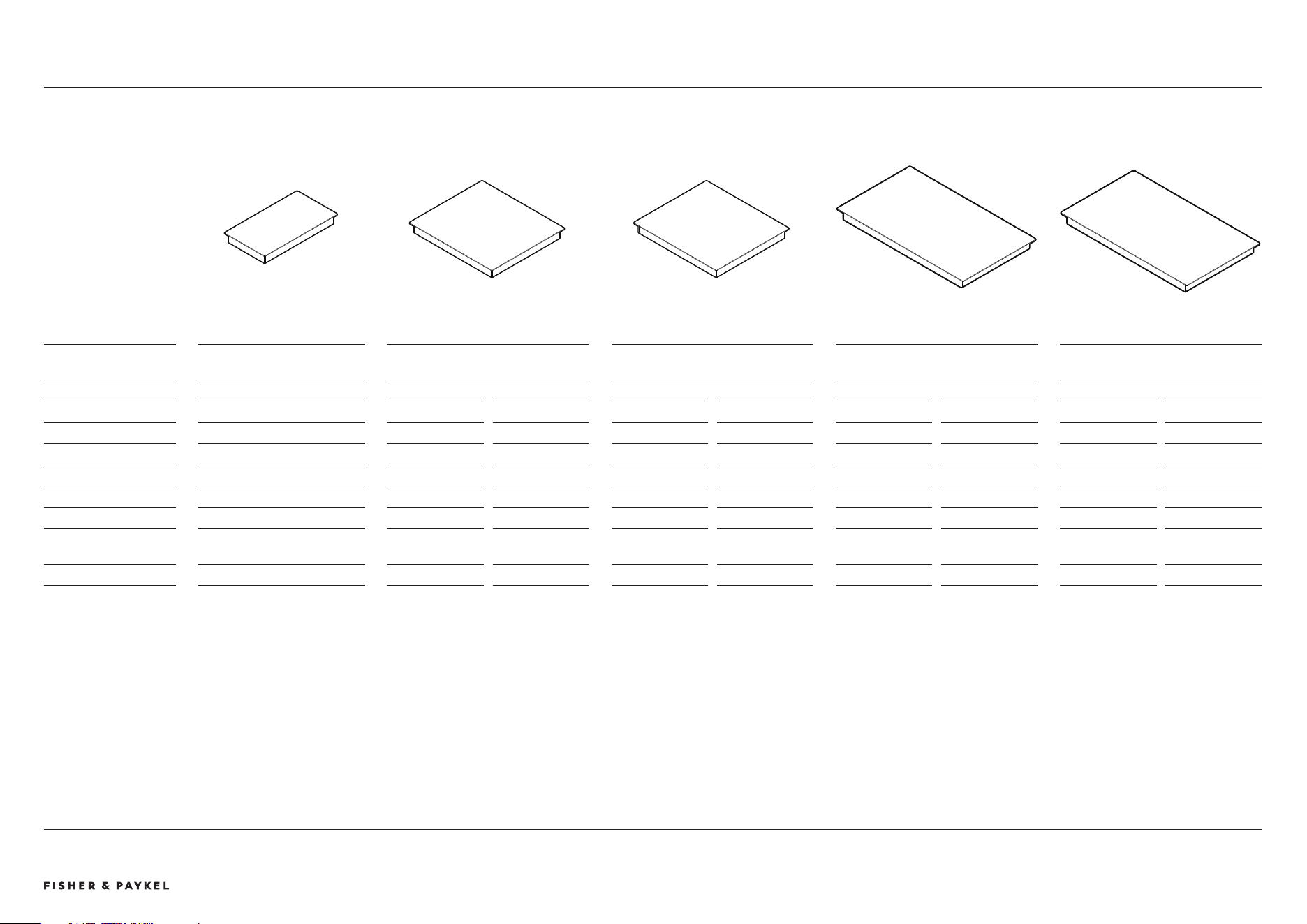

MODEL COMPARISON
SPECIFICATION GUIDE | SERIES 5 INDUCTION COOKTOPS
Induction Cooktop 30cm Series 5 2 Zone
Induction Cooktop SmartZone
60cm Series 5 4 Zone Induction
Cooktop
60cm Series 5 4 Zone Induction
Cooktop SmartZone
90cm Series 5 5 Zone Induction
Cooktop
90cm Series 5 5 Zone Induction
Cooktop SmartZone
Product Code CI302ZCTB2 CI604CTB2 CI604CTPB2 CI604ZCTB2 CI604ZCTPB2 CI905CTB2 CI905CTPB2 CI905ZCTB2 CI905ZCTPB2
Series Series 5 Series 5 Series 5 Series 5 Series 5 Series 5 Series 5 Series 5 Series 5
Zones 2 Zones 4 Zones 4 Zones 4 Zones 4 Zones 5 Zones 5 Zones 5 Zones 5 Zones
SmartZone SmartZone SmartZone SmartZone SmartZone SmartZone
Low Current Low Current Low Current Low Current Low Current
Product Size W x D x H 300 x 530 x 61 600 x 530 x 61 600 x 530 x 61 600 x 530 x 61 600 x 530 x 61 900 x 530 x 61 900 x 530 x 61 900 x 530 x 61 900 x 530 x 61
Cut Out W x D 265 x 500 560 x 490 560 x 490 560 x 490 560 x 490 850 x 490 850 x 490 850 x 490 850 x 490
Power Supply 220-240 V, 50 Hz 220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
220-240 V, 50 Hz
380-415 V, 50 Hz
Service 16 A 32 A 20A 32 A 20 A 45 A 20 A 45 A 20 A
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
This 30cm induction cooktop oers sleek black glass, intuitive
single slider control, and two zones with one SmartZone for
larger cooking areas. With hood-to-hob connectivity, it’s ideal
for modern kitchens with limited space.
PRODUCTS
CI302ZCTB2
30cm Series 5 2 Zone Induction Cooktop SmartZone
FEATURES
1 Two cooking zones with one SmartZone for larger cooking
surfaces.
2 Compact design, ideal for smaller kitchens or tight spaces.
3 Sleek black glass surface complements modern kitchen
designs.
4 Single slider control for precise and intuitive cooking
adjustments.
5 Hood-to-Hob connection activates rangehood automatically.
6 Auto switch-off feature for enhanced safety during cooking.
7 Overheating protection prevents damage to the cooktop
during high temperatures.
8 Over-spillage protection ensures safety in case of spills or
overflow.
9 PowerBoost activates a very high heat, bringing liquid to a
boil.
CI302ZCTB2
MODEL OVERVIEW | SERIES 5 INDUCTION COOKTOPS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 690004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

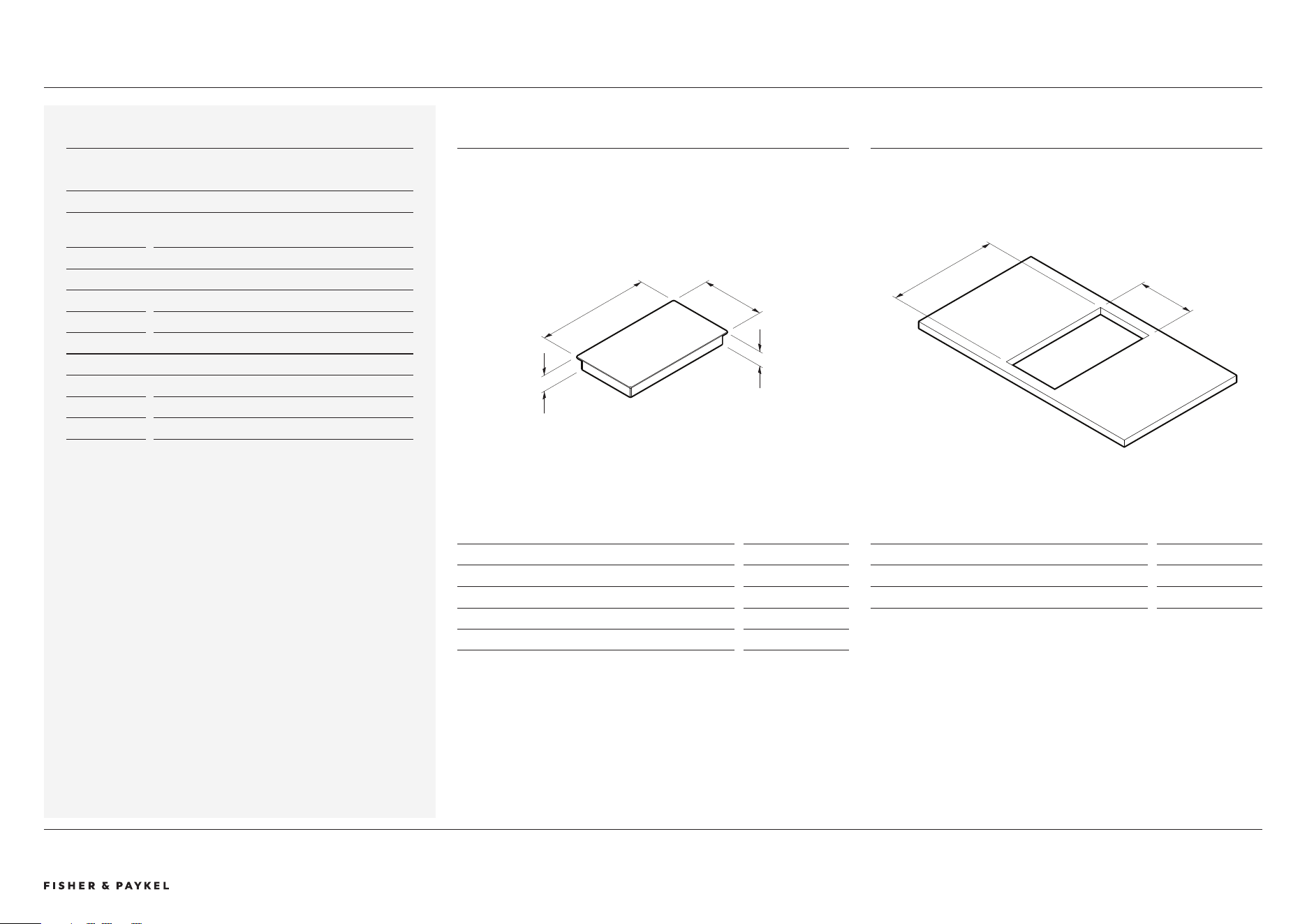

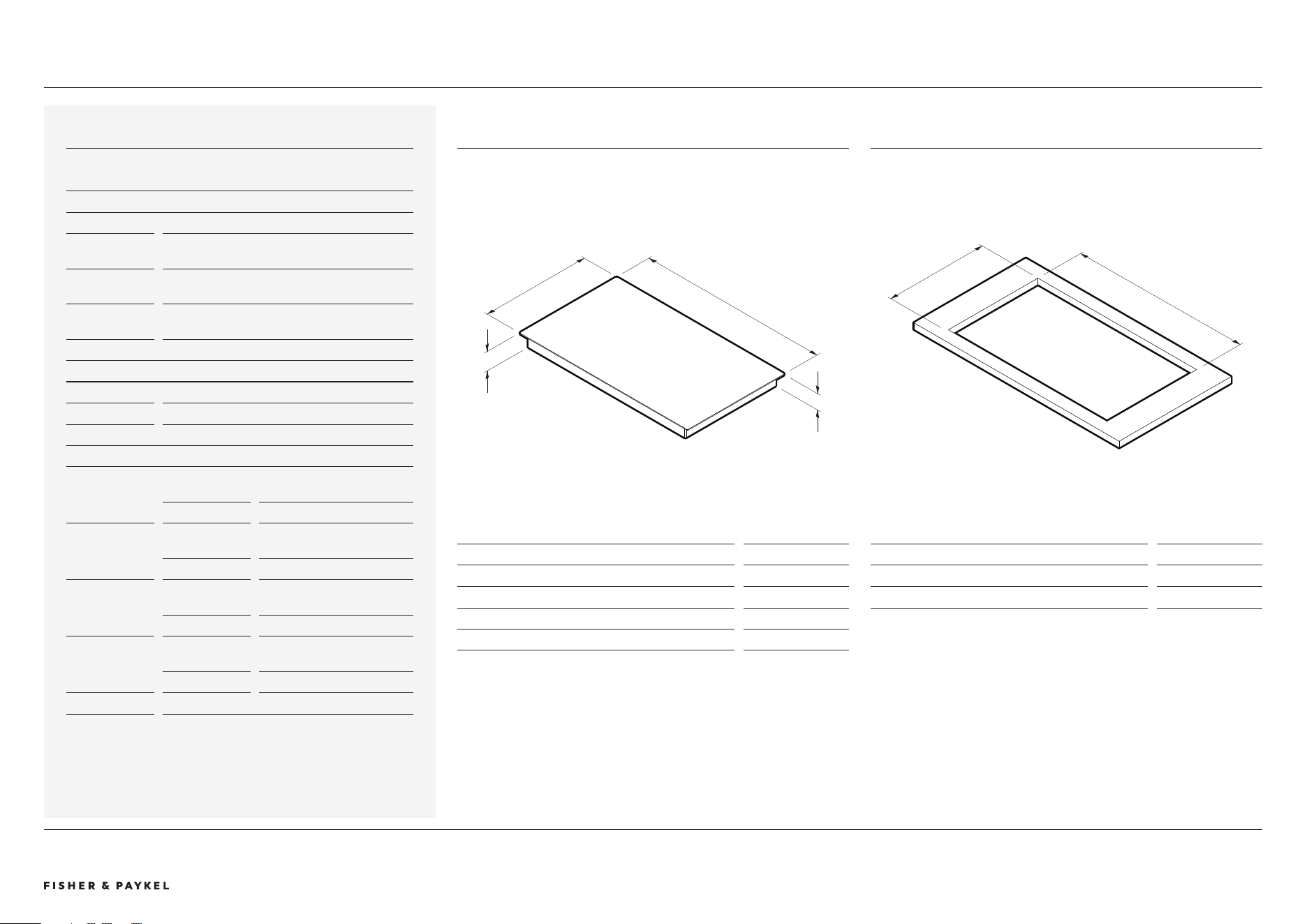

CUTOUT DIMENSIONS
Cutout Dimensions mm
A Cutout width 265
B Cutout depth 500
CI302ZCTB2
ISOMETRIC VIEW
MODEL SPECIFICATION | SERIES 5 INDUCTION COOKTOPS
PRODUCT DIMENSIONS
Product Dimensions mm
A Overall width of cooktop 300
B Overall depth of cooktop 530
C Overall height of cooktop 61
D Height of chassis 56
ISOMETRIC VIEW
b
a
c
d
a
b
SPECIFICATIONS
Model Number
CI302ZCTB2 30cm Series 5 2 Zone Induction Cooktop
SmartZone
Weight
Packaged 7 kg
Unpackaged 6 kg
Electrical
Supply 220–240 V, 50 Hz
Service 16 A
Connection 1200mm cable
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
These 60cm 4 Zone induction cooktops feature intuitive single
slider control, sleek black glass, and four versatile cooking
zones. With a Hood-to-Hob connection, SmartHQ™ connectivity,
and safety features, they provide ecient, convenient cooking.
FEATURES
1 Four versatile cooking zones for efficient multi-dish cooking.
2 Single slider control for precise and intuitive cooking
adjustments.
3 Sleek black glass surface complements modern kitchen
designs.
4 Hood-to-Hob connection activates rangehood automatically.
5 Auto switch-off feature for enhanced safety during cooking.
6 Overheating protection prevents damage to the cooktop
during high temperatures.
7 Over-spillage protection ensures safety in case of spills or
overflow.
8 PowerBoost activates a very high heat, bringing liquid to a
boil.
9 Low current model (CI604CTPB2) supports cost-effective
installation and energy efficiency.
CI604CTB2 | CI604CTPB2
MODEL OVERVIEW | SERIES 5 INDUCTION COOKTOPS
PRODUCTS
CI604CTB2
60cm Series 5 4 Zone Induction Cooktop
CI604CTPB2
60cm Series 5 4 Zone Induction Cooktop Low Current
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 890004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
These 60cm 4 Zone induction cooktops with SmartZone
technology allow you to create larger cooking surfaces. With
sleek black glass, single slider control, and Hood-to-Hob
connection, they ensure ecient cooking. SmartHQ™ app
connectivity, combined with safety features, ensures
convenience and performance in modern kitchens.
FEATURES
1 Four cooking zones with one SmartZone for larger,
combined cooking areas.
2 Sleek black glass surface complements modern kitchen
designs.
3 Single slider control for precise and intuitive cooking
adjustments.
4 Hood-to-Hob connection activates rangehood automatically.
5 Auto switch-off feature for enhanced safety during cooking.
6 Overheating protection prevents damage to the cooktop
during high temperatures.
7 Over-spillage protection ensures safety in case of spills or
overflow.
8 PowerBoost activates a very high heat, bringing liquid to a
boil.
9 Low current model (CI604ZCTPB2) supports cost-effective
installation and energy efficiency.
CI604ZCTB2 | CI604ZCTPB2
MODEL OVERVIEW | SERIES 5 INDUCTION COOKTOPS
PRODUCTS
CI604ZCTB2
60cm Series 5 4 Zone Induction Cooktop SmartZone
CI604ZCTPB2
60cm Series 5 4 Zone Induction Cooktop SmartZone Low
Current
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
CUTOUT DIMENSIONS
Cutout Dimensions mm
A Cutout width 560
B Cutout depth 490
CI604CTB2 | CI604CTPB2 | CI604ZCTB2 | CI604ZCTPB2
ISOMETRIC VIEW
MODEL SPECIFICATIONS | SERIES 5 INDUCTION COOKTOPS
PRODUCT DIMENSIONS
Product Dimensions mm
A Overall width of cooktop 600
B Overall depth of cooktop 530
C Overall height of cooktop 61
D Height of chassis 56
ISOMETRIC VIEW
b
a
c
d
a
b
SPECIFICATIONS
Model Number
CI604CTB2 60cm Series 5 4 Zone Induction Cooktop
CI604CTPB2 60cm Series 5 4 Zone Induction Cooktop Low
Current
CI604ZCTB2 60cm Series 5 4 Zone Induction Cooktop
SmartZone
CI604ZCTPB2 60cm Series 5 4 Zone Induction Cooktop
SmartZone Low Current
Weight
Packaged 10 kg
Unpackaged 9 kg
Electrical
CI604CTB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 32 A
CI604CTPB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 20 A
CI604ZCTB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 32 A
CI604ZCTPB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 20 A
Connection 1200mm cable
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1090004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
These 90cm 5 Zone induction cooktops feature sleek black
glass and five versatile cooking zones for maximum flexibility.
With sleek black glass, single slider control, and Hood-to-Hob
connection, they ensure ecient cooking. SmartHQ™ app
connectivity, combined with safety features, ensures
convenience and performance in modern kitchens.
FEATURES
1 Five versatile cooking zones for maximum cooking flexibility.
2 Sleek black glass surface complements modern kitchen
designs.
3 Single slider control for precise and intuitive cooking
adjustments.
4 Hood-to-Hob connection activates rangehood automatically.
5 Auto switch-off feature for enhanced safety during cooking.
6 Overheating protection prevents damage to the cooktop
during high temperatures.
7 Over-spillage protection ensures safety in case of spills or
overflow.
8 PowerBoost activates a very high heat, bringing liquid to a
boil.
9 Low current model (CI905CTPB2) supports cost-effective
installation and energy efficiency.
CI905CTB2 | CI905CTPB2
MODEL OVERVIEW | SERIES 5 INDUCTION COOKTOPS
PRODUCTS
CI905CTB2
90cm Series 5 5 Zone Induction Cooktop
CI905CTPB2
90cm Series 5 5 Zone Induction Cooktop Low Current
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
These 90cm 5 Zone induction cooktops oer sleek black glass
and five cooking zones with one SmartZone for larger cooking
areas. With a hood-to-hob connection, SmartHQ™ app
connectivity, and safety features like auto switch-o, they
deliver eciency, convenience, and enhanced performance for
modern kitchens.
FEATURES
1 Five cooking zones with one SmartZone for larger cooking
surfaces.
2 Sleek black glass surface complements modern kitchen
designs.
3 Single slider control for precise and intuitive cooking
adjustments.
4 Hood-to-Hob connection activates rangehood automatically.
5 Auto switch-off feature for enhanced safety during cooking.
6 Overheating protection prevents damage to the cooktop
during high temperatures.
7 Over-spillage protection ensures safety in case of spills or
overflow.
8 PowerBoost activates a very high heat, bringing liquid to a
boil.
9 Low current model (CI905ZCTPB2) supports cost-effective
installation and energy efficiency.
CI905ZCTB2 | CI905ZCTPB2
MODEL OVERVIEW | SERIES 5 INDUCTION COOKTOPS
PRODUCTS
CI905ZCTB2
90cm Series 5 5 Zone Induction Cooktop SmartZone
CI905ZCTPB2
90cm Series 5 5 Zone Induction Cooktop SmartZone Low
Current
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
CUTOUT DIMENSIONS
Cutout Dimensions mm
A Cutout width 850
B Cutout depth 490
CI905CTB2 | CI905CTPB2 | CI905ZCTB2 | CI905ZCTPB2
ISOMETRIC VIEW
MODEL SPECIFICATIONS | SERIES 5 INDUCTION COOKTOPS
PRODUCT DIMENSIONS
Product Dimensions mm
A Overall width of cooktop 900
B Overall depth of cooktop 530
C Overall height of cooktop 61
D Height of chassis 56
ISOMETRIC VIEW
b
a
c
d
a
b
SPECIFICATIONS
Model Number
CI905CTB2 90cm Series 5 5 Zone Induction Cooktop
CI905CTPB2 90cm Series 5 5 Zone Induction Cooktop Low
Current
CI905ZCTB2 90cm Series 5 5 Zone Induction Cooktop
SmartZone
CI905ZCTPB2 90cm Series 5 5 Zone Induction Cooktop
SmartZone Low Current
Weight
Packaged 17 kg
Unpackaged 14 kg
Electrical
CI905CTB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 45 A
CI905CTPB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 20 A
CI905ZCTB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 45 A
CI905ZCTPB2 Supply 220-240 V, 50 Hz
380-415 V, 50 Hz
Service 20 A
Connection 1200mm cable
PAGE 13© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 202590004816A
DATA SHEETS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1490004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

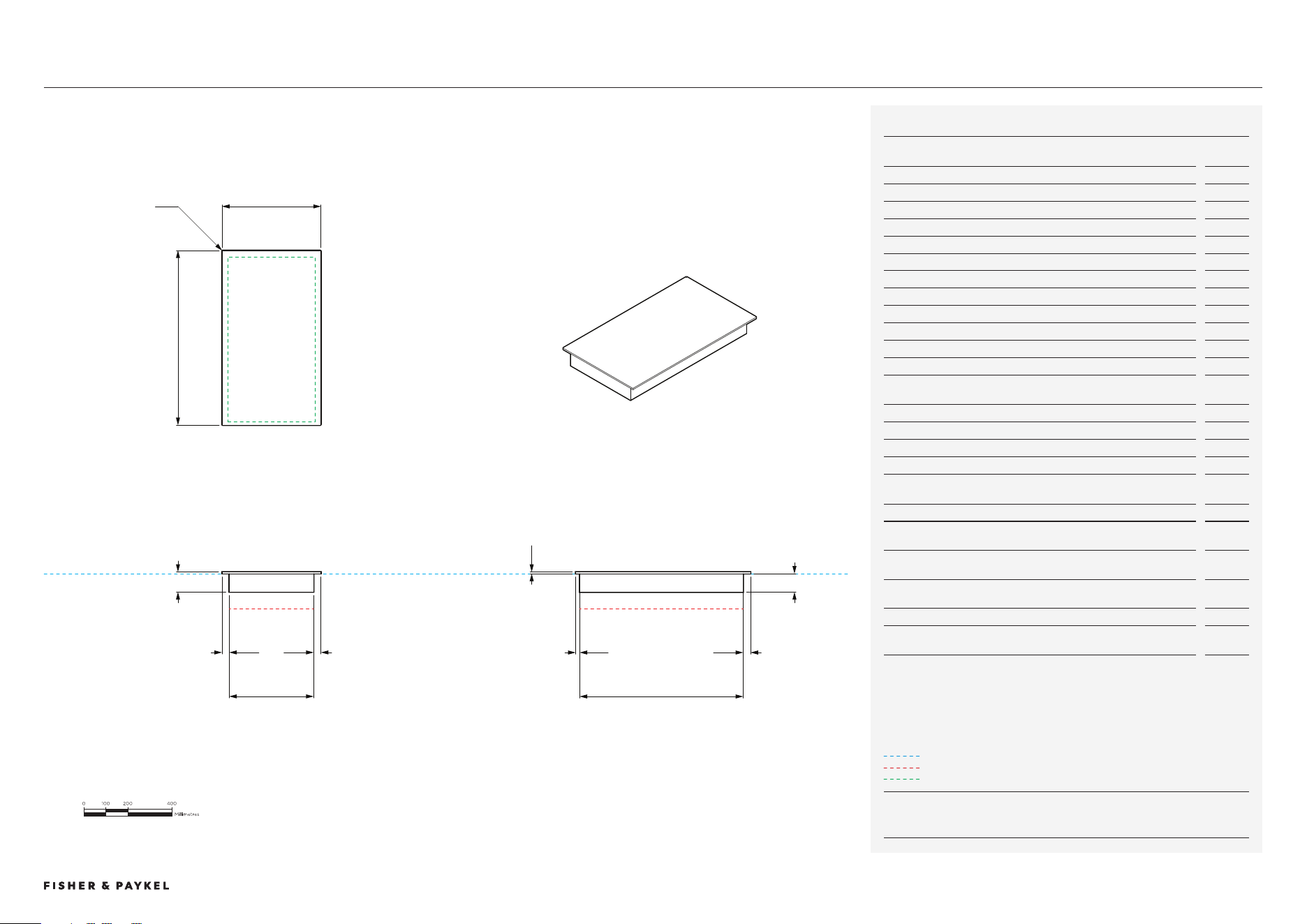

CI302ZCTB2
DATA SHEET | SERIES 5 INDUCTION COOKTOPS
Model no:
CI302ZCTB2 30cm Series 5 2 Zone Induction Cooktop SmartZone
Product Dimensions mm
A Overall height of cooktop
61
B Overall width of cooktop
300
C Overall depth of cooktop
530
D Height of cooktop glass (includes chassis flange)
5
E Corner radii of glass
2
F Height of chassis
56
G Width of chassis
256
H Depth of chassis
496
I Width of glass overhang at side of chassis
22
J Depth of glass overhang at front of chassis
12
K Depth of glass overhang at rear of chassis
22
Cutout Dimensions mm
Overall width of cutout
265
Overall depth of cutout
500
Maximum corner radii of cutout
10
Clearance Dimensions mm
Minimum clearance from side and rear edges of cutout to nearest
combustible surface
50
Minimum clearance from front edge of cutout to front edge of
benchtop
50
Minimum clearance from cook surface to top of any appliance,
companion product or obstruction below cooktop
111
Minimum clearance from cook surface to rangehood
600
Minimum ventilation gap between bottom of benchtop and top of
cabinetry fronts (not shown)
5
NOTE: An oven installed below the cooktop MUST have a cooling fan.
PROFILE VIEWFRONT VIEW
PLAN VIEW PROFILE VIEW
a
b
c
d
e
f
g
h
ii
kj
DATUM: BENCHTOP
CLEARANCE: BELOW COOKTOP
CLEARANCE:
BELOW COOKTOP
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1590004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

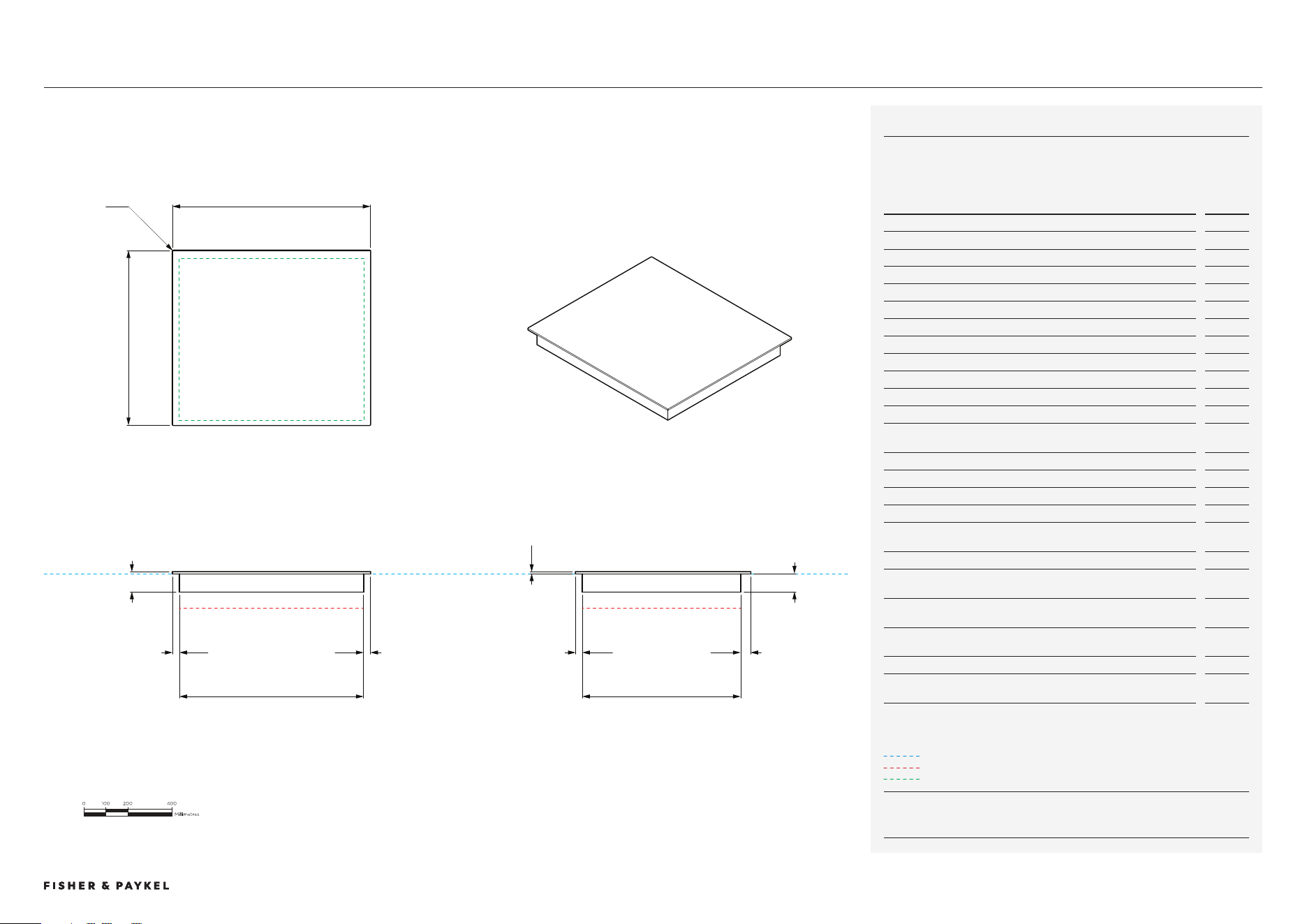

CI604CTB2 | CI604CTPB2 | CI604ZCTB2 | CI604ZCTPB2
DATA SHEET | SERIES 5 INDUCTION COOKTOPS
Model no:
CI604CTB2 60cm Series 5 5 Zone Induction Cooktop
CI604CTPB2 60cm Series 5 5 Zone Induction Cooktop Low Current
CI604ZCTB2 60cm Series 5 5 Zone Induction Cooktop SmartZone
CI604ZCTPB2 60cm Series 5 5 Zone Induction Cooktop SmartZone Low
Current
Product Dimensions mm
A Overall height of cooktop
61
B Overall width of cooktop
600
C Overall depth of cooktop
530
D Height of cooktop glass (includes chassis flange)
5
E Corner radii of glass
2
F Height of chassis
56
G Width of chassis
558
H Depth of chassis
480
I Width of glass overhang at side of chassis
21
J Depth of glass overhang at front of chassis
20
K Depth of glass overhang at rear of chassis
30
Cutout Dimensions mm
Overall width of cutout
560
Overall depth of cutout
490
Maximum corner radii of cutout
10
Clearance Dimensions mm
Minimum clearance from side and rear edges of cutout to nearest
combustible surface
50
Minimum clearance from front edge of cutout to front edge of
benchtop
50
Minimum clearance from cook surface to top of any appliance,
companion product or obstruction below cooktop
111
Minimum clearance from cook surface to rangehood
600
Minimum ventilation gap between bottom of benchtop and top of
cabinetry fronts (not shown)
5
NOTE: An oven installed below the cooktop MUST have a cooling fan.
PROFILE VIEWFRONT VIEW
VIEW PROFILE VIEW
a
b
c
d
e
f
g
h
ii
kj
DATUM: BENCHTOP
CLEARANCE: BELOW COOKTOPCLEARANCE: BELOW COOKTOP
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1690004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com

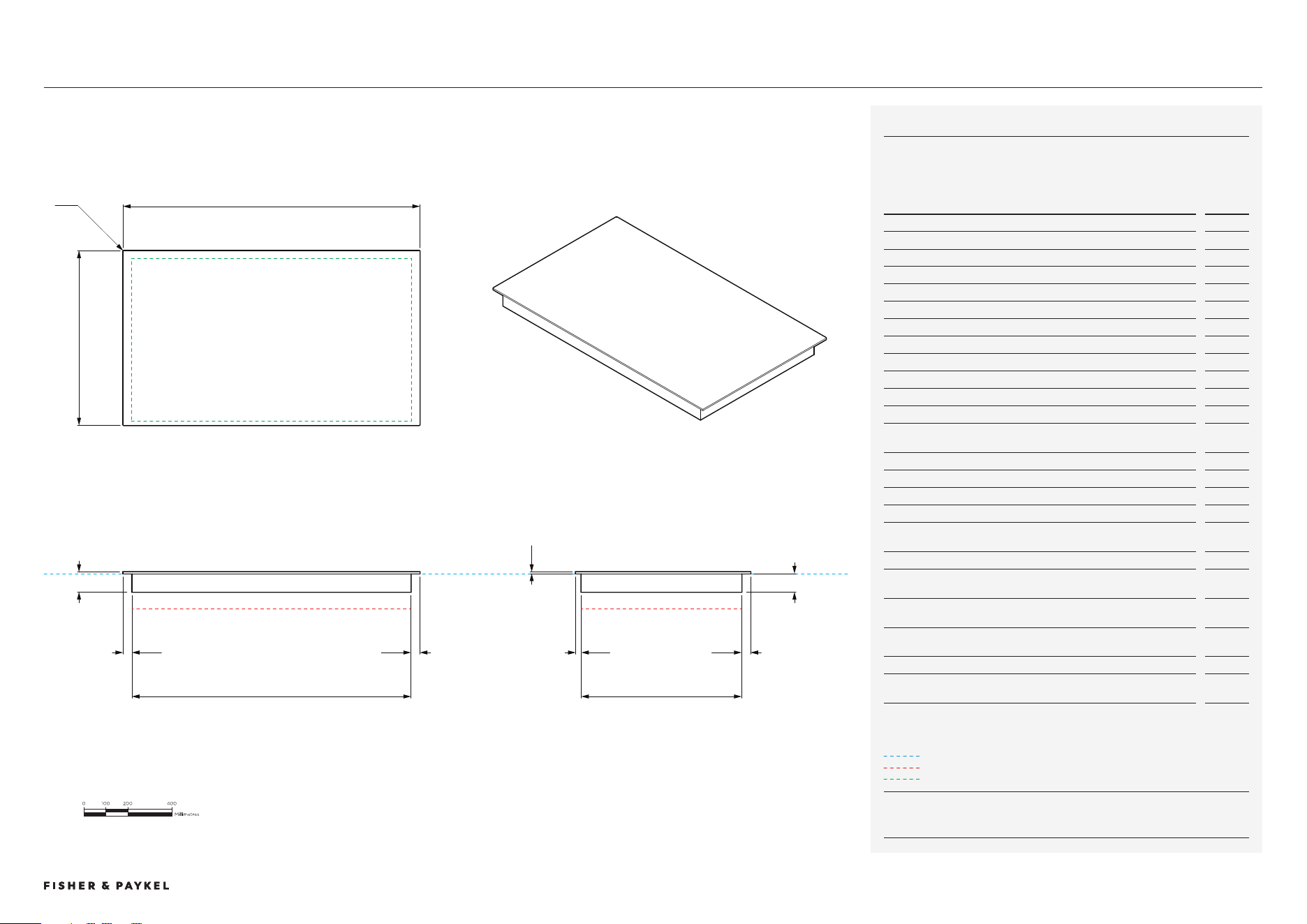

CI905CTB2 | CI905CTPB2 | CI905ZCTB2 | CI905ZCTPB2
DATA SHEET | SERIES 5 INDUCTION COOKTOPS
Model no:
CI905CTB2 90cm Series 5 5 Zone Induction Cooktop
CI905CTPB2 90cm Series 5 5 Zone Induction Cooktop Low Current
CI905ZCTB2 90cm Series 5 5 Zone Induction Cooktop SmartZone
CI905ZCTPB2 90cm Series 5 5 Zone Induction Cooktop SmartZone Low
Current
Product Dimensions mm
A Overall height of cooktop
61
B Overall width of cooktop
900
C Overall depth of cooktop
530
D Height of cooktop glass (includes chassis flange)
5
E Corner radii of glass
2
F Height of chassis
56
G Width of chassis
846
H Depth of chassis
486
I Width of glass overhang at side of chassis
27
J Depth of glass overhang at front of chassis
17
K Depth of glass overhang at rear of chassis
27
Cutout Dimensions mm
Overall width of cutout
850
Overall depth of cutout
490
Maximum corner radii of cutout
10
Clearance Dimensions mm
Minimum clearance from side and rear edges of cutout to nearest
combustible surface
50
Minimum clearance from front edge of cutout to front edge of
benchtop
50
Minimum clearance from cook surface to top of any appliance,
companion product or obstruction below cooktop
111
Minimum clearance from cook surface to rangehood
600
Minimum ventilation gap between bottom of benchtop and top of
cabinetry fronts (not shown)
5
NOTE: An oven installed below the cooktop MUST have a cooling fan.
PROFILE VIEWFRONT VIEW
PLAN VIEW PROFILE VIEW
a
b
c
d
e
f
g
h
ii
kj
DATUM: BENCHTOP
DAT UM:
BENCHTOP
CLEARANCE: BELOW COOKTOPCLEARANCE: BELOW COOKTOP
PAGE 17© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 202590004816A

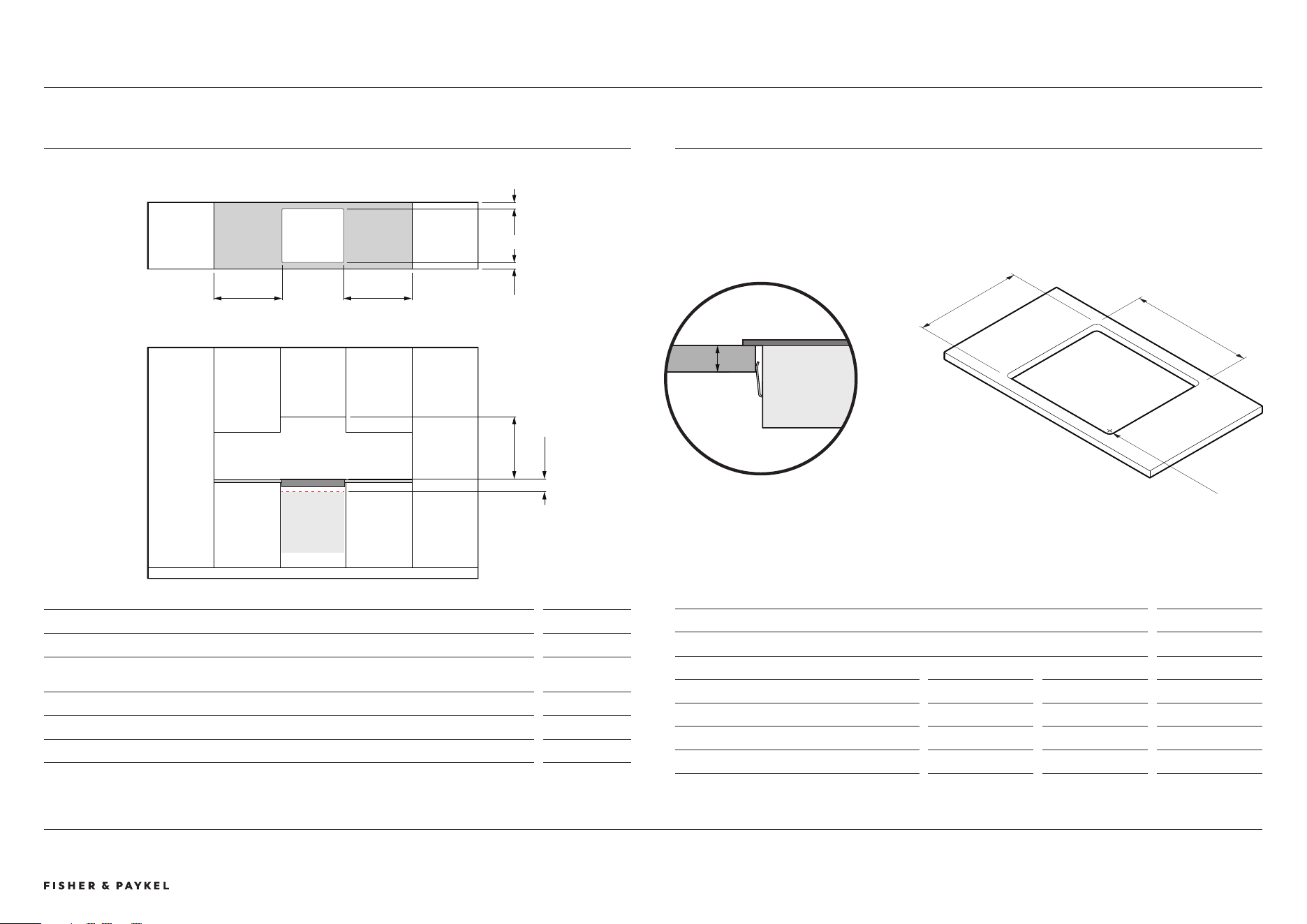

PLANNING CONSIDERATIONS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1890004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
VENTILATION CLEARANCE BELOW COOKTOP
VENTILATION AT REAR OF COOKTOP
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com
VENTILATION
VENTILATION OUTLET
Hot air must be able to exit at front of cabinets.
THE MOST DIRECT ROUTE IS RECOMMENDED.
CLEARANCE REQUIREMENTS
To ensure adequate airflow
clearance is required below
cooktop to any appliance,
companion product or
obstruction.
INTAKE OPTION A:
SERVICE CHANNEL
Fresh air is drawn up from the toe
kick cavity through a service channel
at rear of cabinetry.
If cavities are tightly sealed,
ventilation holes in the toe kick panel
are required.
INTAKE OPTION B:
ADJACENT CABINETS
2x Ø50 holes are required in each
side wall through to adjacent
cabinets. Total of 4x holes required.
PROFILE VIEW
Benchtop.
Cabinetry rail.
Cabinetry front panel.
Air vent through rail.
DETAIL 1 - PROFILE VIEW
VENTILATION AT FRONT
1
1
FRONT VIEW
EXAMPLE VENTILATION CUTOUTS IN CABINETRY RAIL
PLANNING CONSIDERATIONS | SERIES 5 INDUCTION COOKTOPS
VENTILATION OVERVIEW
These cooktops require adequate supply of cool air to ensure
optimum product performance.
The base of the cooktop must have direct unrestricted
ventilation to the room where the cooktop is installed. There
must be a 5mm air gap at the front of the cooktop.
Channels or cutouts are required in cabinetry to allow fresh air to
enter and hot air to exit.
Ventilation Dimensions mm
A Clearance from cook surface to any appliance,
companion product or obstruction below
111
B Minimum ventilation gap at rear of cabinet* 20
C Diameter of ventilation holes into adjacent
cabinets (4x required, 2x on each side of cabinet)*
50
D Ventilation gap at front of cabinet* 5
E Maximum position of ventilation gap from top of
cooktop
40
*ventilation gap or holes required, not both
**gap must run width of chassis
Ventilation Gap at Front of Cooktop w x h cm
2
30cm cooktop 256 x 5 13
60cm cooktops 558 x 5 28
90cm cooktops 846 x 5 43
c
b
a
DATUM:
WIDTH OF CHASSIS
Rail.
Single cutout in rail, full width of
chassis, 5mm high.
Example of alternate cutout where
equivalent ventilation area is
achieved.
Cooktop.
VENTILATION AT FRONT OF COOKTOP
NOTE:
Other cabinetry details are
possible but must meet
dimensions stated.
d
E
Cooktop.
PROFILE VIEW
PROFILE VIEW
Oven, drawer or other
obstruction.
Drawer, oven or other
obstruction.
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1990004816A PLANNING GUIDE SERIES 5 INDUCTION COOKTOPS VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. Throughout this guide, dimensions may vary by ±2mm. This Planning Guide should not be used as installation guidance for any product.
Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
CABINETRYPLANNING CONSIDERATIONS | SERIES 5 INDUCTION COOKTOPS
Cabinetry Clearance Dimensions mm
A Minimum clearance from cook surface to rangehood 600
B Minimum clearance from cook surface to any appliance, companion product or
obstruction below
111
C Minimum clearance from rear edge of cutout to nearest combustible surface 50
D Minimum clearance from front edge of cutout to front edge of benchtop 50
E Minimum clearance from side edges of cutout to nearest combustible surface 50
NOTE: An oven installed below the cooktop MUST have a cooling fan.
CABINETRY CLEARANCES BENCHTOP DIMENSIONS
b
c
Benchtop Dimensions mm
A Minimum thickness of benchtop for function of retention clips 18
Cutout Dimensions* 30cm Cooktop 60cm Cooktops 90cm Cooktops
B Width of cutout 265 560 850
C Depth of cutout 500 490 490
D Maximum corner radii of cutout 10 10 10
*Cutout tolerance ±2mm
a
d
a b
c
d
ee
TOP VIEW
FRONT VIEW
DETAIL - FRONT VIEW
BENCHTOP WITH COOKTOP
ISO VIEW
BENCHTOP WITH CUTOUT
