OUTDOOR FIREPLACES
MODEL:YSM19RPP(L)004 / YSM24RPP(L)006
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL: YSM19RPP(L)004 / YSM24RPP(L)006
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read instructions
manual carefully.
OUTDOOR FIREPLACES
2
HAZARDS AND PRECAUTIONS
DANGER：FIRE OR EXPLOSION HAZARD
1. If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which
could cause property damage, personal injury, or death.
WARNING:
Do not store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of
this or any other appliance.
For Outdoor Use Only.
Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
WARNING:If the information in this manual is not followed exactly, a re
or explosion may result causing property damage, personal injury, or loss
of life.
3
2. The device should always be stored in a well-ventilated area after
disconnection from the cylinder.
3. If you notice the smell of gas at any point during use, you should
immediately turn the device off before checking thoroughly for open flames.
If any open flames are present, you should extinguish these safely and
thoroughly. Always distance yourself from the unit if the gas smell
continues, and contact your local fire department and gas provider
immediately to prevent further risk, Failure to follow these instructions
could result in fire or explosion, which could cause property
damage.personal injury, or death
4. Due to the risk of fire, you must never use any flammable materials,
including vapors and gasoline, near this device or any other appliances.
gasoline, near this device or any other appliances. An LP-cylinder not
connected for use shall not be stored in the vicinity of this or any other
appliance.
5. WARNING: For Outdoor Use Only. installation and service must be
performed by a qualified installer, service agency, or the gas supplier.
60 inches
36 inches
The fire pit at work should be at least 36
inches away from other objects around it,
and at least 80 inches away from other
objects on the top to avoid fire hazard.
4
WARNING NOTES:
Don’t burn yourself! Do not touch or handle the Fireplaces when hot! To
avoid injury always allow the Fireplaces to cool down for at least 30
minutes before moving and handling the appliance.
The anticipated burn time for your BLUU fire pits using a full 20lbs (9kg)
propane cylinder is about 8 hours depending on where the flame height is
set.
We recommend that you ignite this unit only when safely placed on a non-
combustible surface.
This Is Not A Toy. Children Should Be Supervised At All Times When Using
This Unit Without Exception.
Do not place any objects other than supplied rocks inside the burner
component of the Fireplaces.
Do not add wood or any other materials to the re. It is designed to safely
combust propane only.
Do not connect to a remote gas supply.
Do not use this appliance if any part has been under water. Immediately
call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been under
water.
Do not leave this appliance in the rain.
Always inspect and clear all valve and gas orifices of any foreign debris
including spider webs prior to lighting.
Solid fuels shall not be burned in this appliance.
5
PRECAUTIONS WITH THE GAS CYLINDER AND
PREVENTING LEAKS
LP SAFETY:

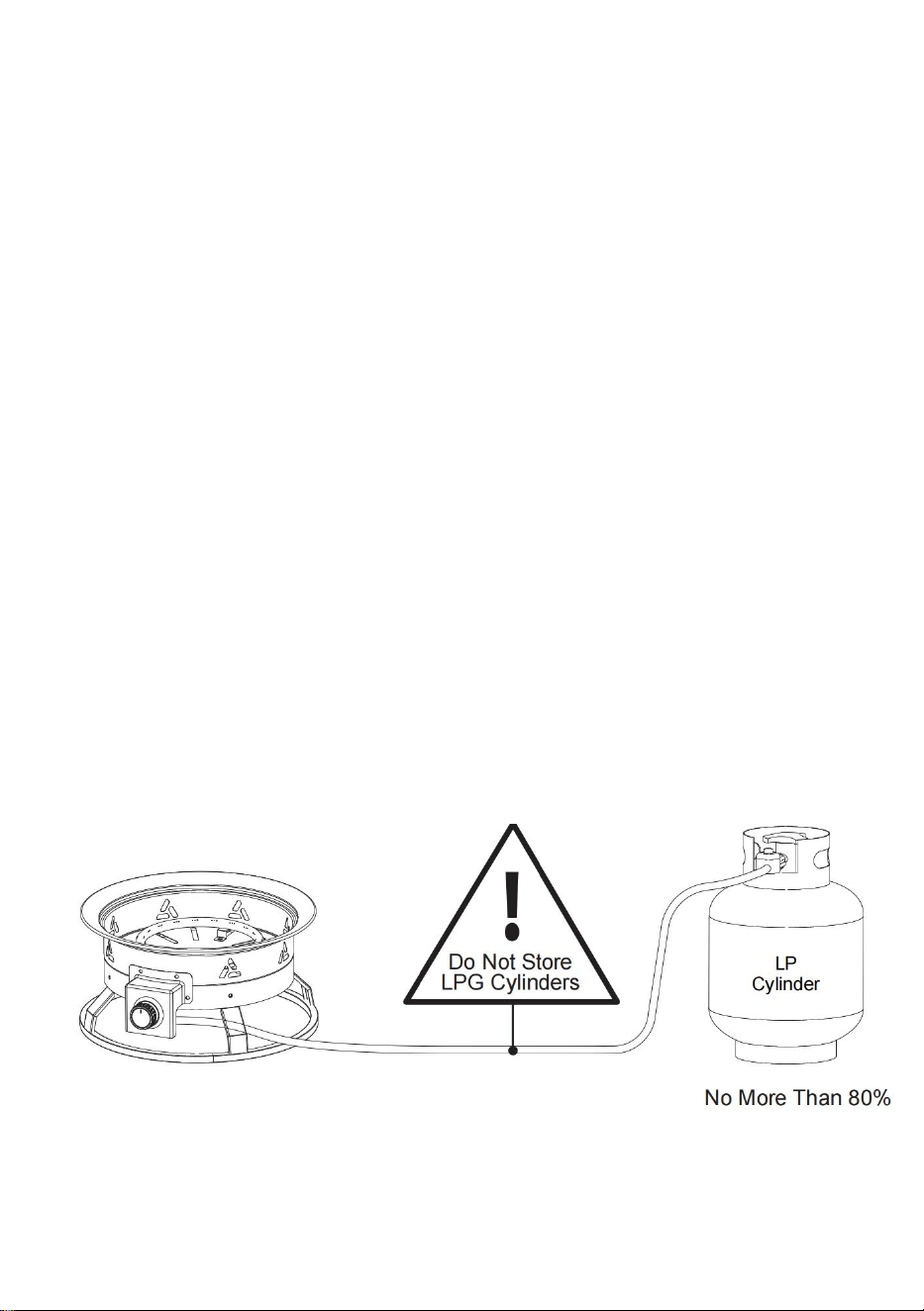

1. Do not store a spare LP-gas cylinder under or near this appliance.
2. Never fill the cylinder beyond 80 percent full.
3. If the information in "( 1) and "( 2 )" is not followed exactly, a fire causing death
or serious injury may occur.
4. The propane gas supply cylinder to be used must be:constructed and marked
in accordance with the U.S.Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres
and Tubes for Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable.
5. Only a 20 lbs (9 kg) LP gas cylinder is to be used for this appliance.
6. Do not use this appliance under overhead combustible surfaces.
7. Disconnected cylinders must have threaded valve plugs tightly installed and
must not be stored in a building, garage or any other enclosed area.
8. MINIMUM CLEARANCES:
Bottom: Non-Combustible Surface
60 inch from ceiling
For Installation on (or over) non-combustible floors only
Max. Input: 58,000 BTU/h (17.0kW)
Max Gas Supply Pressure: 11 in wc (2.74kPa)
6

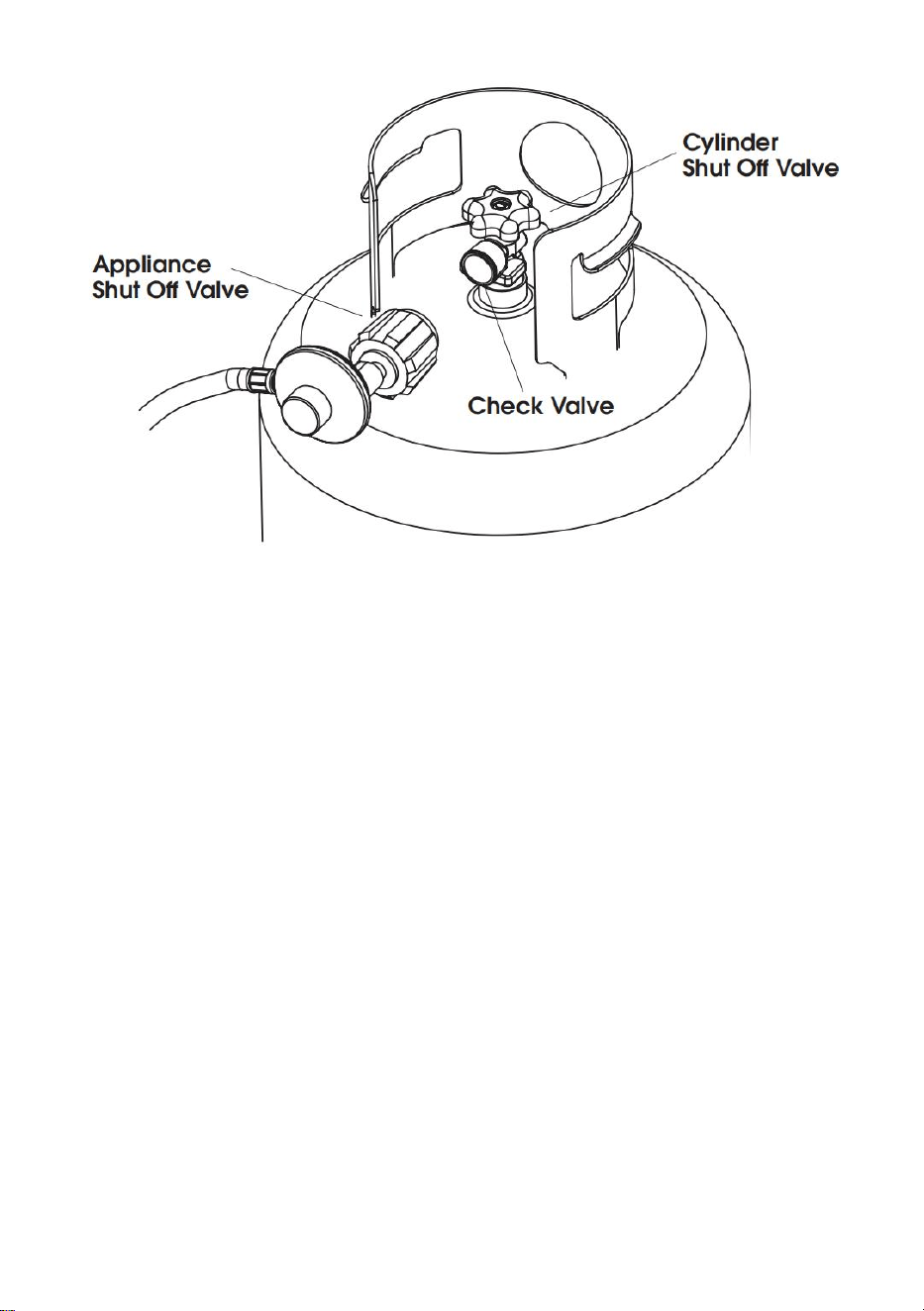

CONNECTION:
1. Be sure the cylinder valve and appliance valves are “o”.
2. Place full LP gas cylinder on tank stabilizer ring.
3. Center the nipple in the cylinder valve and hold in place.
4. Using the other hand, turn the hand wheel clockwise until there is a positive stop.
Do not use tools.
5. Only tighten the valves by hand, ensuring a straight connection with the
regulator and cylinder valve so as to prevent cross threading.
The gas pressure regulator provided with this appliance must be used, and must
be the same model as supplied with the unit. The cylinder supply system must be
arranged for vapor withdrawal.
Cylinders used with this unit must have a collar to protect the cylinder valve. An
approved LP-Cylinder stabilizer, such as the stabilizer ring included, must be used
when the appliance is in use.
LEAK TEST:
1. DO NOT USE OR PERMIT SOURCES OF IGNITION IN THE AREA WHILE
DOING THE LEAK TEST. THIS INCLUDES SMOKING.
2. Leak testing should be done once per year or whenever the LP gas cylinder or
7
any other gas system part is taken apart, serviced or replaced, whichever is more
frequent.
3. Ensure all gas system coupling joints are tight and properly attached.
4. Prepare a leak testing solution of half liquid detergent and half water.
5. Apply the solution to the LP gas delivery system at points as shown in illustration
indicated on page 4.
6. If parts of the fitting begin to produce bubbles, spray liquid, or if you smell liquid
propane gas, immediately close the valve on the tank.
7. Wait 5 minutes for any gas to dissipate.
8. After waiting for 5 minutes, the leak(s) must be stopped by tightening the loose
joints, if possible, or by replacing the faulty parts(s) with the part(s) recommended
by the appliance manufacturer.
The Appliance Is Not To Be Used Until Any Leak Is Corrected.
A gas appliance repairman or LP gas dealer should be called if attempts to stop
the leak(s) are unsuccessful and, in such case, the LP gas supply must be shut o
at the cylinder valve or the cylinder must be removed from the appliance until the
leak(s) is corrected.

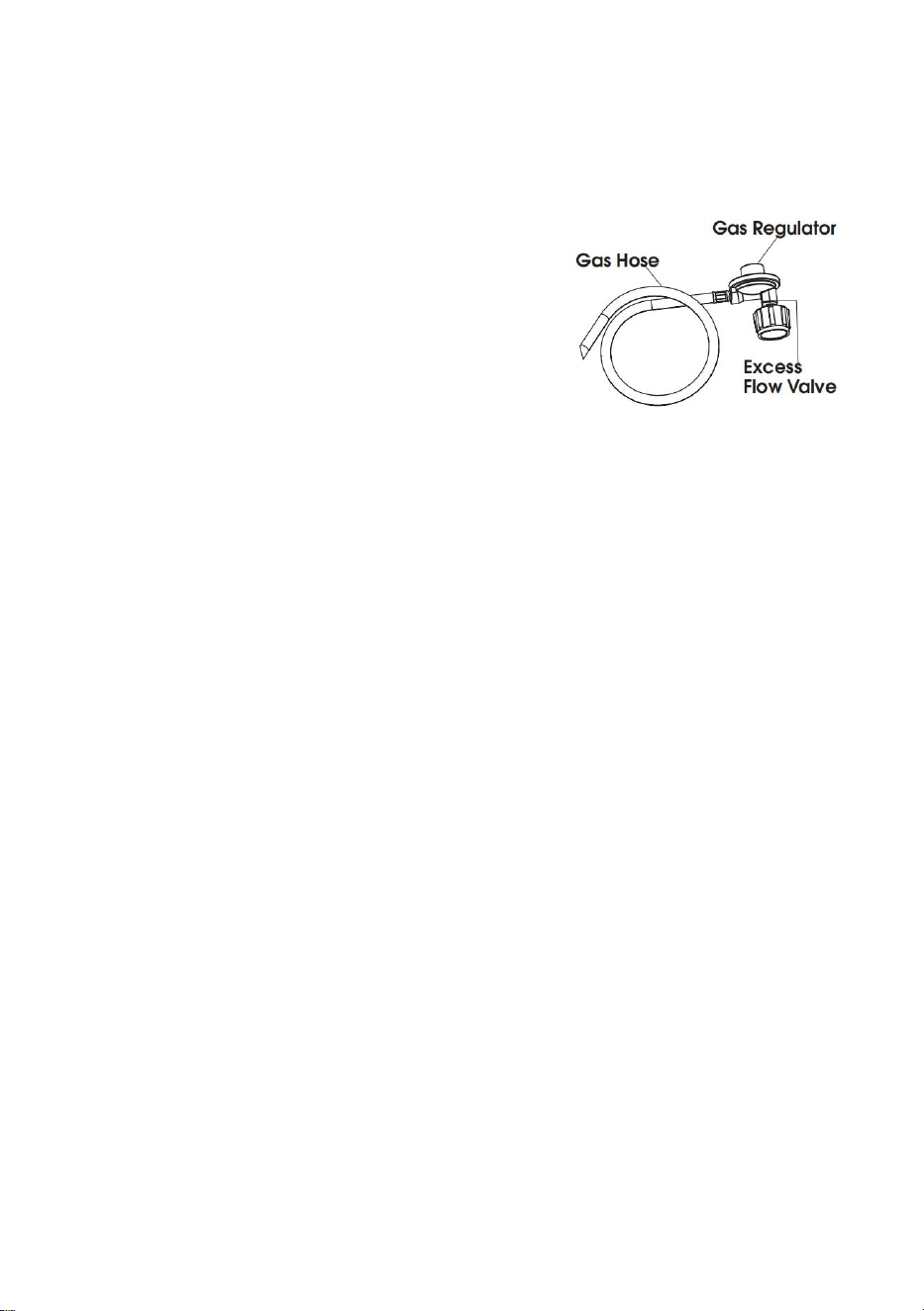

Inspect hose prior to each use of the unit. The hose assembly must be replaced
prior to the appliance being put into operation if there is evidence of excessive
abrasion or wear, or if the hose is damaged. Contact BLUU should you require a
replacement hose.
Inspect burner prior to each use. Burner must be replaced prior to the appliance
being put into operation if there is evidence of damage. Replacement burners are
available from BLUU.
Should any part of this appliance (including the burner) become soiled or dirty,
wipe lightly with a damp cloth. Do not use flammable or corrosive cleaning
products on or near this unit.
Ensure that gas hose is placed in an area where it is unlikely to be tripped over
(such as pathways or trails) or subject to other accidental damage.
Keep the appliance area clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
Solid fuels shall not be burned in this appliance.
Installation must conform with local codes or, in the absence of local codes, with
8
either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and
Propane Installation Code, CSA B149.1 or Propane Storage and Handling Code,
B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and
CSA Z240 RV Series, Recreational Vehicle Code, as applicable
WARNING:
If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury or loss of
life.Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
Please ensure that all adults and children which use or are near a unit in use
are aware of the hazard of high-surface temperatures present on the unit
during use and should use caution and stay away to avoid burns or clothing
ignition.
Carefully supervise young children in the area of this appliance. Clothing or
other flammable materials should not be hung from the appliance or placed
on or near the appliance. Any guard or other protective device removed for
servicing the appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The
appliance should be inspected before use and at least annually by a
qualified service person. More frequent cleaning may be required as
necessary. It is imperative that control compartment, burners and circulating
air passageways of the appliance be kept clean.
The burner must be replaced prior to the appliance being put into operation
if it is evident that the burner is damaged. The replacement burner shall be
that specified by Bluu.
9
SAVE THESE INSTRUCTIONS
PARAMETER LIST
Model
YSM19RPP(L)004
YSM24RPP(L)006
Style
19”
24”
Heat Output
58000BTU
58000BTU
Color
Black
Black
Ignition
Flame
Flame
Indoor/Outdoor
Outdoor
Outdoor
Heating Method
Propane
Propane
Propane
Consumption
8 hours (20LB
propane tank)
8 hours (20LB
propane tank)
10
PART LIST
When unpacking this product, ensure the parts listed below are included and
carefully inspect for any damage that may have occurred during transit. Do not
attempt to assemble or use the product if any part is missing or damaged.
ITEM
PART NAME
QTY
A
Lid
1
B
Lava Rock
1
C
Fire Bowl
1
USE AND STORAGE REQUIREMENTS
Pour lava rocks [B] into the burner.
11
Lighting instructions:
1. Ensure that unit valve dial is in the “OFF” position by pushing and turning
clockwise until the dial Stops.
2. Securely attach regulator (large end of hose) to your propane cylinder.
3. **SLOWLY*** turn cylinder valve to the open
position to avoid tripping the CSA excess flow
safety device in the gas regulator. For more
information about the CSA excess flow safety
device see.
What is an Excess Flow Safety Valve? (EFV)
The EFV is a safety mechanism contained within every propane gas regulator. The
purpose of the EFV is to restrict the gas supply if too much gas is - owing too
quickly through the gas hose. For example, this could happen if the gas hose was
severed.
It is normal that your Fire Bowl EFV trips if you open the propane tank valve too
quickly or if you leave the Fire Bowl gas knob open before lighting, or both.
4. Leak Test all connections. See section labeled “Leak Test”.
5. Make sure the control knob is in the “OFF" position.
6. Wearing heat-resistant gloves, connect the LP gas tank per "Assembly
the LP Gas Tank" Section, press the control knob and rotate to low position,
position a long match or long lighter near the burner to lit the product.
Remove match/lighter once the burner is lit;
7. After 10 seconds, rotate the control knob counterclockwise to adjust the
flame to the desired height.
NOTE: If burner fails to remain lit, all valves should be closed and a waiting
period of at least 5 minutes should pass before attempting to light.
12
TROUBLESHOOTING
Problem
Cause
Solution
There is only low
flame and low heat
output when the
control knob is
switched to high heat
output.
The ignition procedure
is not executed
correctly.
Carefully follow the ignition
instructions. The control knob
must be in the “OFF” position
when the gas cylinder valve is
going to open. Turn on the gas
cylinder valve slowly to
balance the pressure.
There is yellow flame
with the smell of gas
when the burner is lit.
There may be cobwebs
or other debris blocking
the burner inlet hole.
Clean up the burner hole and
the air inlet.
The burner stops
burning after turning
and holding the
control knob.
You did not push in the
control knob and hold it
long enough.
It requires time for the
thermocouple to heat up. You
can push in and hold the
control knob for a longer time
(about 10 seconds), then
release it.
It is too windy outside.
The burner should be closed if
wind speed is faster than 10
miles (16km/h). The fire bowl
can be moved to other places
sheltered from wind or used
under in lighter wind
conditions.
The ignition cover is
covered by lava rocks or
debris
The ignition cover should not
be fully covered by lava rocks
and the small holes should be
clear.
The thermocouple or
the thermocouple joint is
dirty or there is
Clean the thermocouple and
the connector between valve
and theromocouple. Ensure
13
breakdown in
thermocouple or valve.
the connector is fastened
correctly.
Replace the thermocouple or
the control knob.
The regulator is
buzzing.
It is normal in hot
weather.
It is caused by vibrations
within the regulator.
Performance or safety will not
be affected. No need to
replace the regulator.
The control knob is
in the “HIGH" position
but the flame is still
small.
There is also rumbling
sound and flickering
blue flame in the
burner.
There is no enough gas.
Check the gas cylinder
pressure.
Pressure reducing hose
is being squeezed.
Adjust the position of the
hose.
The burner hole is dirty,
clogged, or the air inlet
is blocked by cobwebs
or debris.
Clean up the burner hole and
the air inlet.
The hose cannot be
connected to the
cylinder or the pres
sure-reducing valve
is leaking.
The cylinder thread
does not fit.
Use the external threaded
cylinder.
The cylinder interface
size does not fit.
Use gas cylinders with
specifications of 1.3″
(33.3mm).
The gas cylinder gasket
is aging.
Replace the gas cylinder
gasket.
There is no gas in the
pipeline.
The control knob
deviates during
transportation.
When igniting, press the
control knob firmly to adjust its
position.
The control knob or the
knob plug is damaged.
Please contact customer
service.
The gas cylinder gasket
is aging.
Replace the gas cylinder
gasket.
14
Zhejiang Yocy Industry and Trade Co., LTD
Address: No.9, Jinheng SecondRoad, Jinyan Industrial Zone, Wuyi
County Jinhua, Zhejiang 321400 China
