Portion Control Grinder
Low Profile Grinders with 1 or 2 Hoppers
27091.0000 Q 04/25 © 1996 - 2025 Bunn-O-Matic Corporation
INSTALLATION & OPERATING GUIDE
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
www.bunn.com
LPG, LPG-2E
For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
2
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All coffee and tea dispensers/servers, MCR/MCP/MCA single cup brewers, and BUNNlink
®
electronic circuit and/or
control boards – 1 year parts and 1 year labor.
2) Product-specific warranties for Premia
™
,Crescendo
®
, Fast Cup
®
, Sure Immersion
®
, Sure Tamp
®
and others – 1 year
parts and 1 year labor. Please visit commercial.bunn.com/support/warranty-lookup for further details.
3) All other equipment – 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards – parts and labor for 3 years.
b) Compressors on refrigeration equipment – 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment for 4 years or 40,000 pounds of coffee, whichever comes first.
4) For customers subscribed to BUNNlink
®
, BUNN reserves the right to periodically auto-push critical software
updates that will enhance functionality or performance of the BUNN equipment, unless the customer requests
advance notice of such software updates from BUNN in writing.
These warranty periods run from the date of installation. BUNN warrants that the equipment manufactured by it will
be commercially free of defects in material and workmanship existing at the time of manufacture and appearing
within the applicable warranty period. This warranty does not apply to any equipment, component or part that was
not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper
installation or operation, improper maintenance or repair, non periodic cleaning and descaling, equipment failures
related to poor water quality, damage or casualty. In addition, the warranty does not apply to replacement of items
subject to normal wear with use including but not limited to user replaceable parts such as seals and gaskets. This
warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by
telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested
by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN.
Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be
relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE
SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT
BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss
of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment,
facilities or services, or any other special, incidental or consequential damages.
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
3
USER NOTICES
Carefully read and follow all notices on the grinder and in this manual. They were written for your protection.
All notices on the grinder are to be kept in good condition. Replace any unreadable or damaged labels.
05876.0000
20545.0000
WARNING
To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.
WARNING
37881.0000
00824.0002
INTRODUCTION
The LPG will store up to six pounds and the LPG-2E will store up to three pounds of whole bean coffee
in each of two hoppers and grind it to a preset grind and amount into an awaiting funnel and filter from
most commercial drip coffee brewers. The equipment is only for indoor use on a sturdy counter or shelf.
Adequate space must be available above the grinder to raise the lid when adding beans. Use only with
whole bean coffee.
The grind is preset at the factory to drip specifications as set forth by the United States Department of
Commerce and adopted by the Coffee Brewing Center of the Pan American Coffee Bureau. Adjustments
may be made to alter both the amount and grind from the factory setting.
CONTENTS
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY ......................................................................................2
INTRODUCTION .......................................................................................................................................................3
USER NOTICES ........................................................................................................................................................3
ELECTRICAL REQUIREMENTS ...............................................................................................................................4
OPERATING CONTROLS .........................................................................................................................................4
Off/On/Start Switch (Models LPG and LPG-2E) ....................................................................................................4
Hopper Selector Switch (Model LPG-2E only) .......................................................................................................4
CLEANING ................................................................................................................................................................4
Weekly....................................................................................................................................................................4
6 Month ..................................................................................................................................................................4
PREVENTIVE MAINTENANCE .................................................................................................................................5
6 Month ..................................................................................................................................................................5
1-Year .....................................................................................................................................................................5
COFFEE GRINDING .................................................................................................................................................5
INITIAL SETUP / ADJUSTMENTS ............................................................................................................................6
Burr Adjustment .....................................................................................................................................................6
Timer Adjustment (Model LPG) ..............................................................................................................................6
Timer Adjustment (Model LPG-2E) .......................................................................................................................7

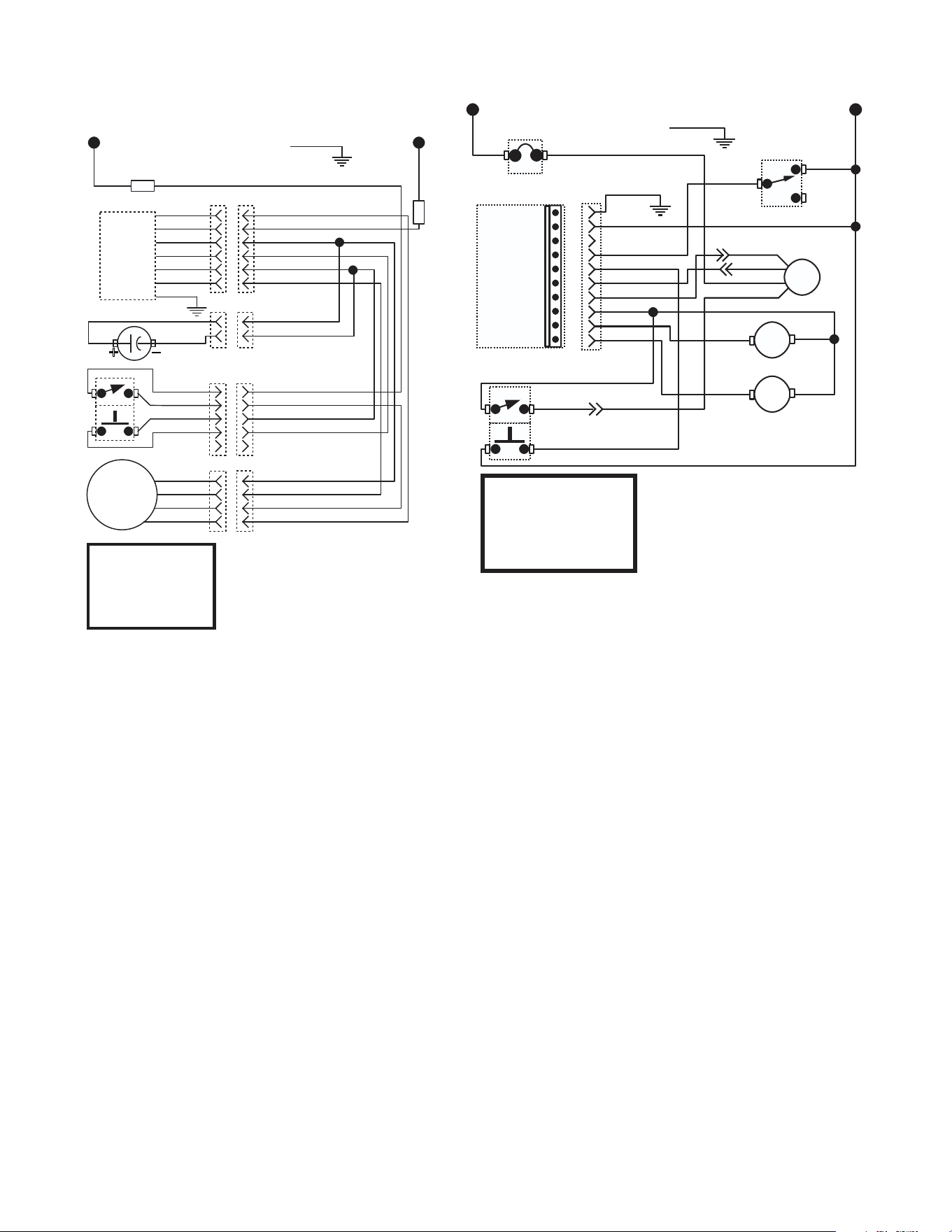

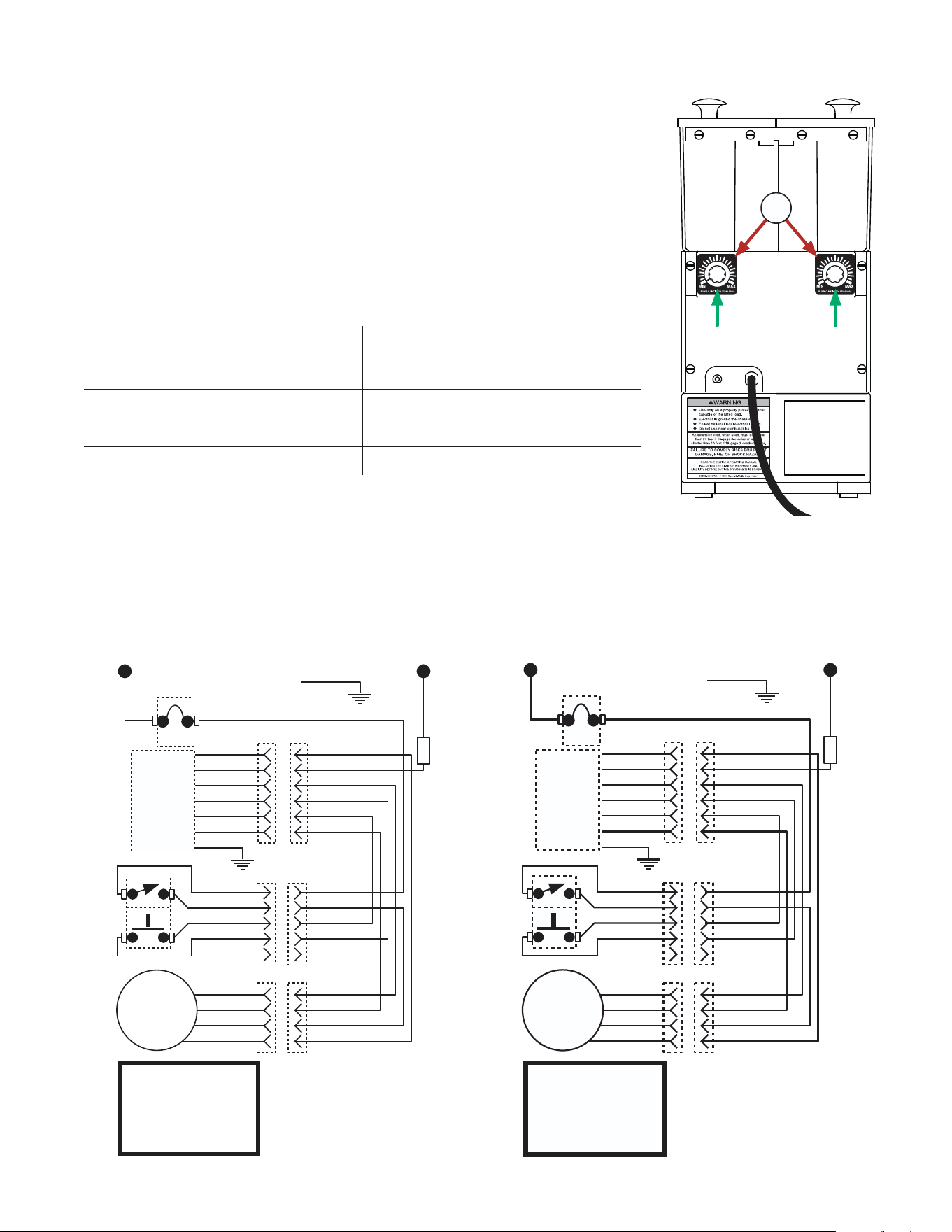

SCHEMATICS ...........................................................................................................................................................7
4
P1029
OFF/STOP
START
1. Place filter into funnel and slide funnel into rails.
2. Momentarily push the switch to "START" position.
3. Grinder will automatically stop when finished.
PER
S
O
N
A
L
H
A
Z
A
R
D
.
KEEP FI NG
E
R
S
A
N
D
FOREIGN OB
J
E
C
T
S
OUTOF HOPP
E
R
ORCH UTEOPENI
N
G
.
C
A
ELECTRICAL REQUIREMENTS
OFF - (upper position) Switching to this position stops all operation of
the grinder.
ON - (middle position) The switch will return to this position after a grind
cycle has begun and will remain in this position after grinding has ceased.
START - (lower, momentary position) Pressing the switch to this position
and releasing initiates a grind cycle.
Weekly
The grinder has an attached cordset and requires 2-wire, grounded service rated 120 volts ac, 15 amp,
single phase, 60 Hz for 120V models; and 100 volts ac, 15 amp single phase, 50Hz for 100V models.
OPERATING CONTROLS
P1028
CLEANING
Off/On/Start Switch (Models LPG and LPG-2E)
6 Month
1. WARNING - Unplug grinder before cleaning.
2. Empty all beans from both hopper(s).
3. Plug-in the grinder, place funnel with filter into funnel rails. Press the Off/On/Start switch to the “START”
lower position and release. Run a few grind cycles until all the coffee in the grind chamber is dispensed
and disconnect grinder from the power source.

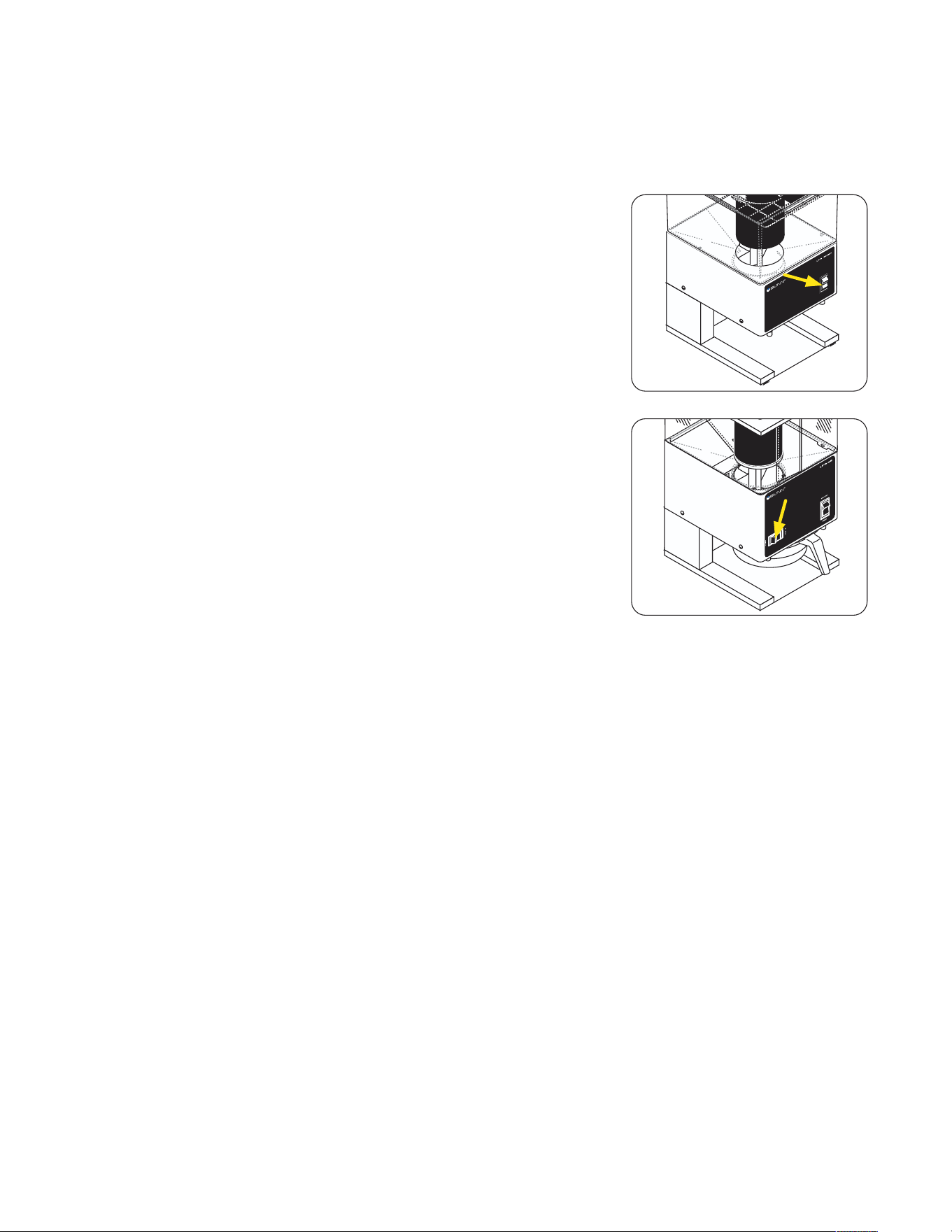

4. Remove the funnel with filter and carefully tip the grinder over on it’s back.
5. From the bottom, remove the two #10-32 screws securing burr housing cap assembly to the burr
housing and remove the burr housing cap assembly.
6. Remove load disc and slide rotator with lower burr, spring and brass bushing off to the motor shaft.
7. Clean the grind chamber and all parts with a dry non-metallic bristle brush and wipe with a dry clean cloth.
8. Reinstall brass bushing (flanged end first), spring and rotor with lower burr onto the motor shaft.
Reinstall load disc flat side toward rotor and burr housing cap assembly to the burr housing.
9. Refer to the initial setup/adjustments section to vary grind or weight of dispensed coffee if necessary.
Clean all exterior surfaces using a damp cloth rinsed in any mild, nonabrasive, liquid detergent. Care should
be taken not to scratch the grinder with any abrasive material.
Hopper Selector Switch (Model LPG-2E only)
LEFT - Switching to this position allows beans to be ground from the
left hopper.
RIGHT - Switching to this position allows beans to be ground from the
right hopper.
5
COFFEE GRINDING
1. On models LPG-2E, select (either left or right hopper) with selector switch and visually inspect the
desired hopper for an ample supply of whole bean coffee.
2. Place a paper filter into the brew funnel. The filter must not be folded-over or tilted to one side.
3. Insert the funnel into the funnel rails and push until it stops.
4. Momentarily press Off/On/Start switch to the “START” lower position and release. The grinding action
will stop automatically after the preset amount of ground coffee is dispensed into the funnel.
5. Remove the funnel from the grinder and level the bed of grounds by gently shaking.
6. The loaded funnel is now ready for use in any commercial drip coffee brewer according to the
manufacturer’s instructions.
PREVENTIVE MAINTENANCE
1-Year
1. On grinders with slide plates check the slide plates and clean.
2. Inspect and clean/replace burrs and grind chamber if necessary.
3. Adjust the burrs and grind time to your specifications for particulate size and throw weight.
6 Month
Replace the dechaffer assembly.
20588.0000 Dechaffer Plate (2 required)
Bunn-O-Matic
®
Corporation recommends that preventive maintenance be performed at regular intervals.
Maintenance should be performed by a qualified service technician. For Technical Service, contact
Bunn-O-Matic
®
Corporation at 1-800-286-6070.
NOTE: Replacement parts or service caused by failure to perform required maintenance is not covered
by warranty.
P1028

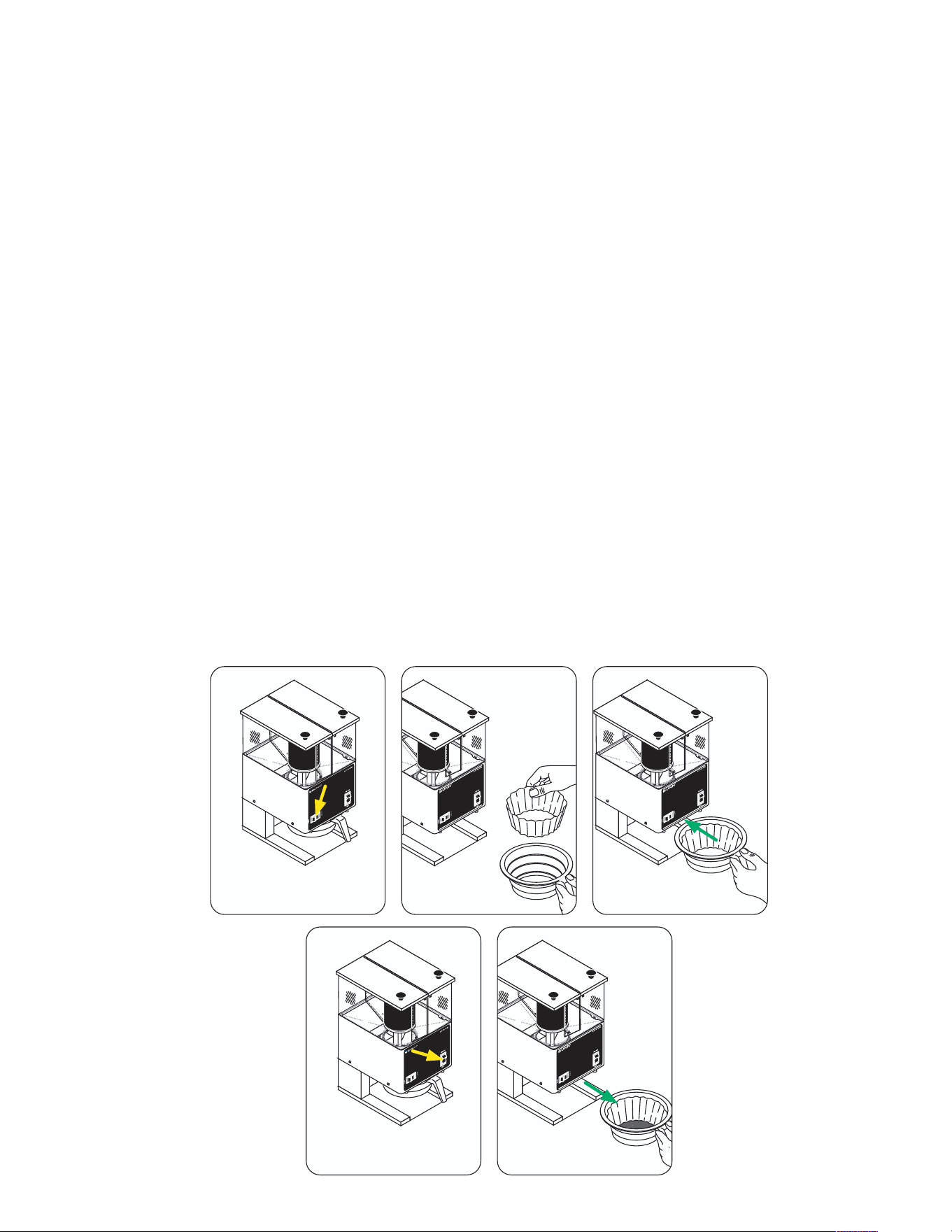

Step 1
