9.808-257.0-F (10/30/24)
High pressure cleaner
Electric motor - Cold water
Register
your product
www.kaercher.com/welcome
English..... 3
MODEL:
1.106-161.0
HD 2.0/1000 Dual Mister Cart
Service Manual Dual Mister Cart 9.808-257.0 - E
3
CONTENTS
Service Manual Dual Mister Cart 9.808-257.0 - E
Important Safety Information ................................................................4-5
Operating Instructions for Misting Mode .................................................. 6

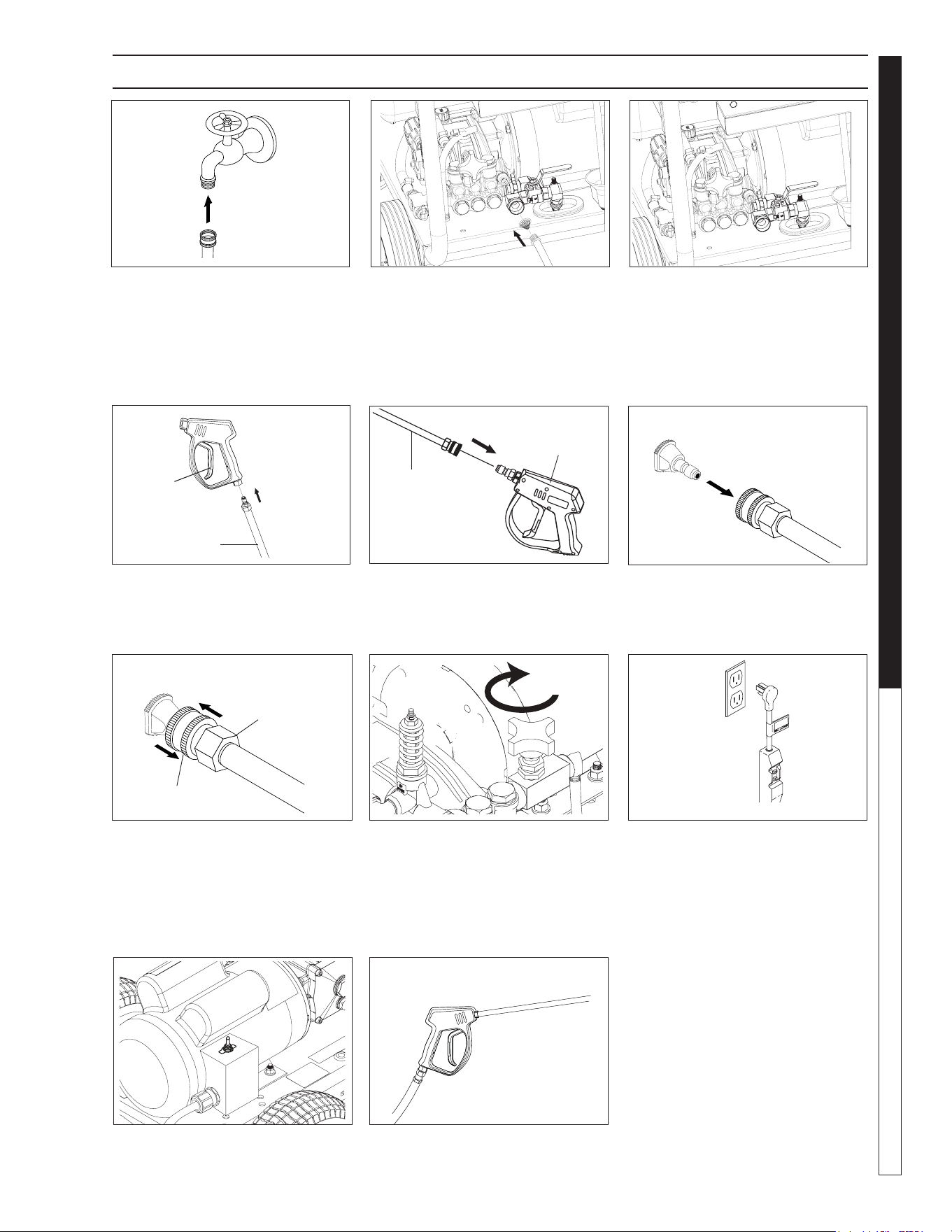

Operating Instructions for High Pressure Mode....................................... 7

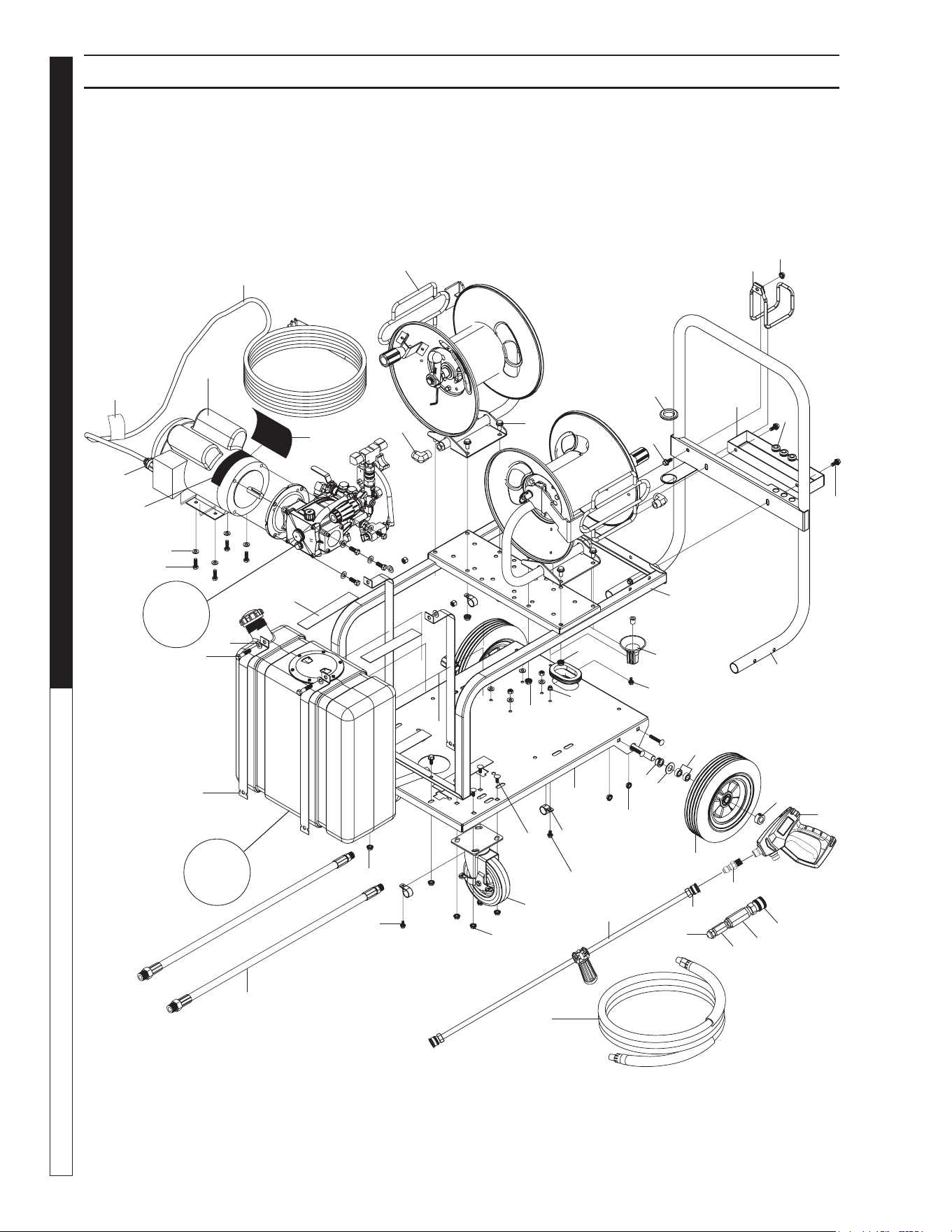

Exploded View & Parts List ...................................................................8-9

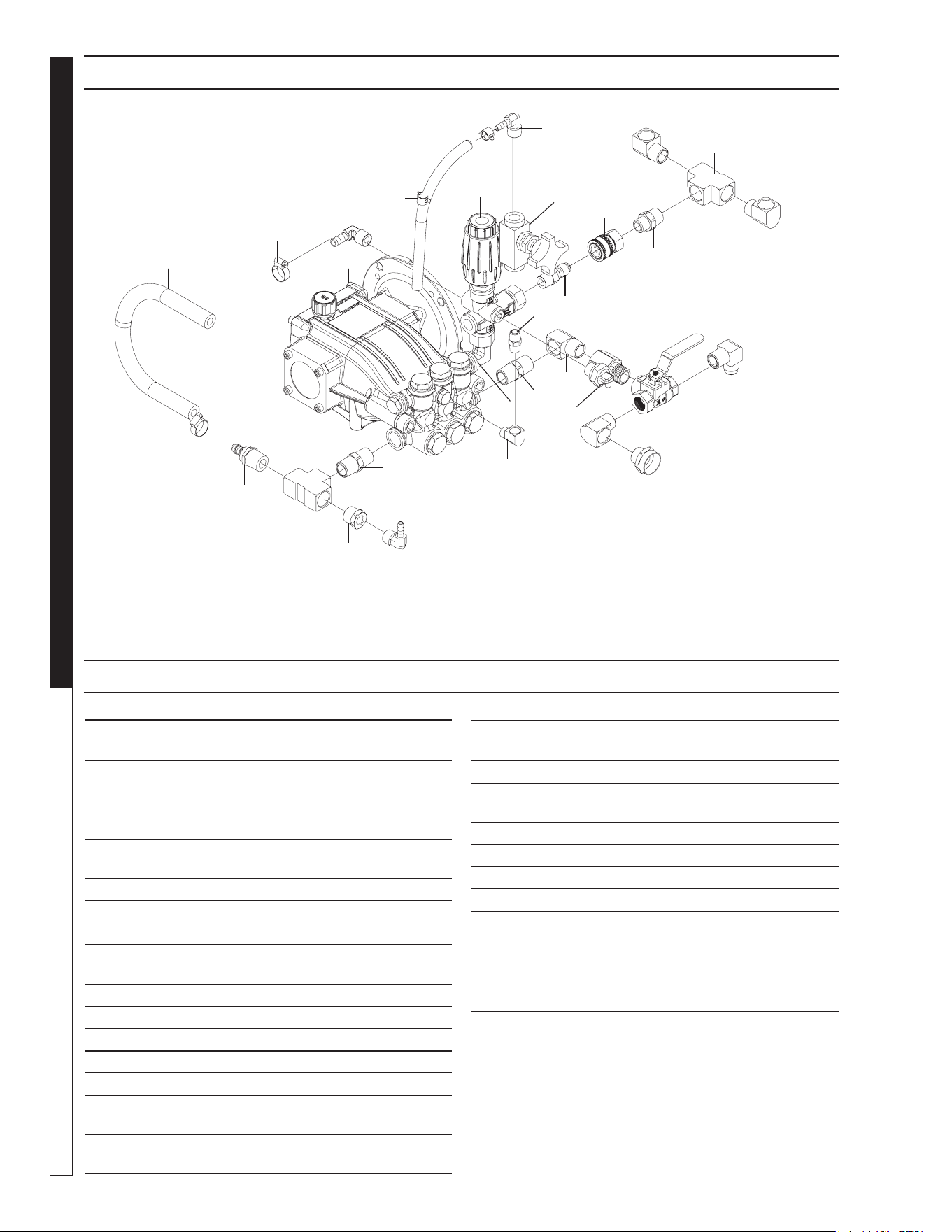

Pump Assembly, Exploded View ......................................................... 10

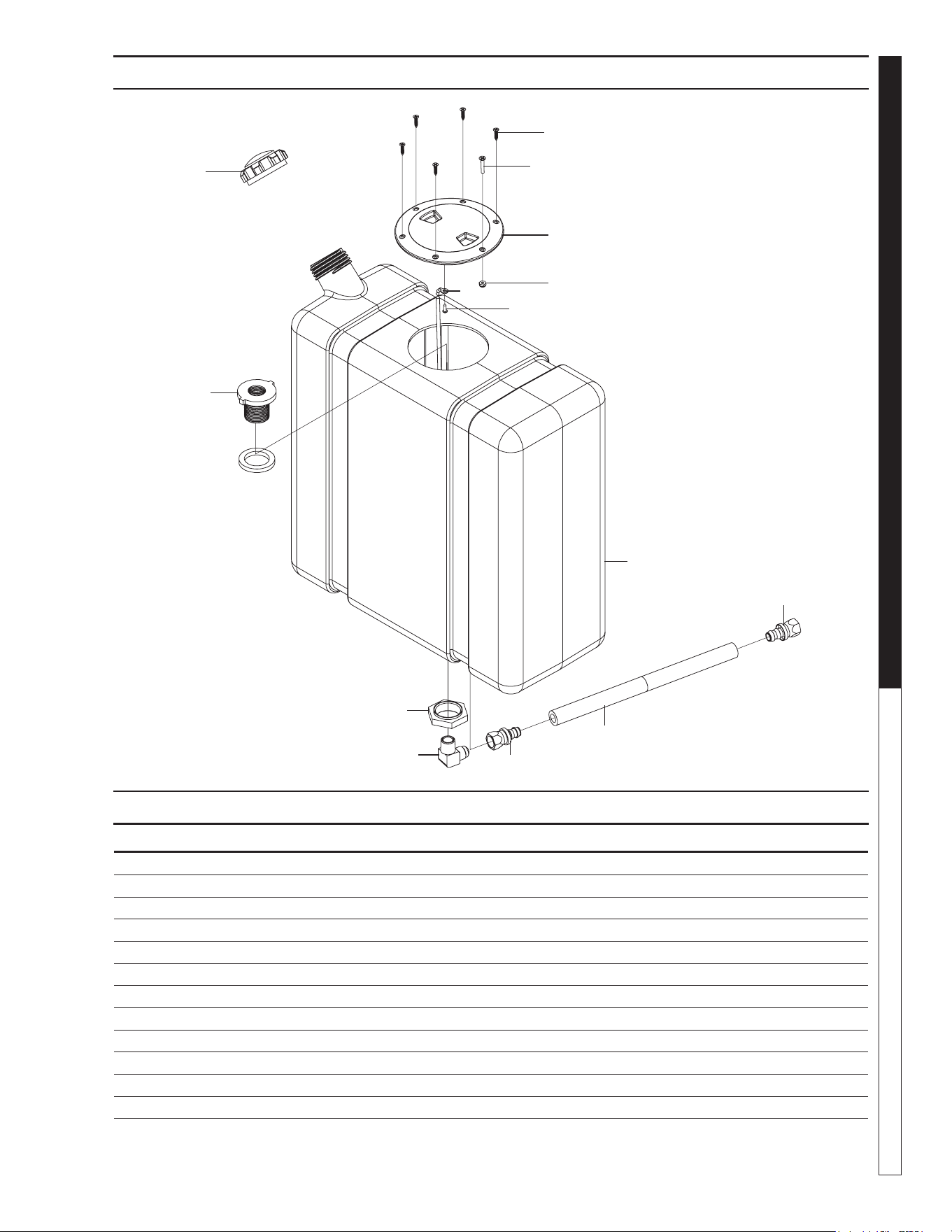

Chemical Tank Assy Exploded view .................................................... 11

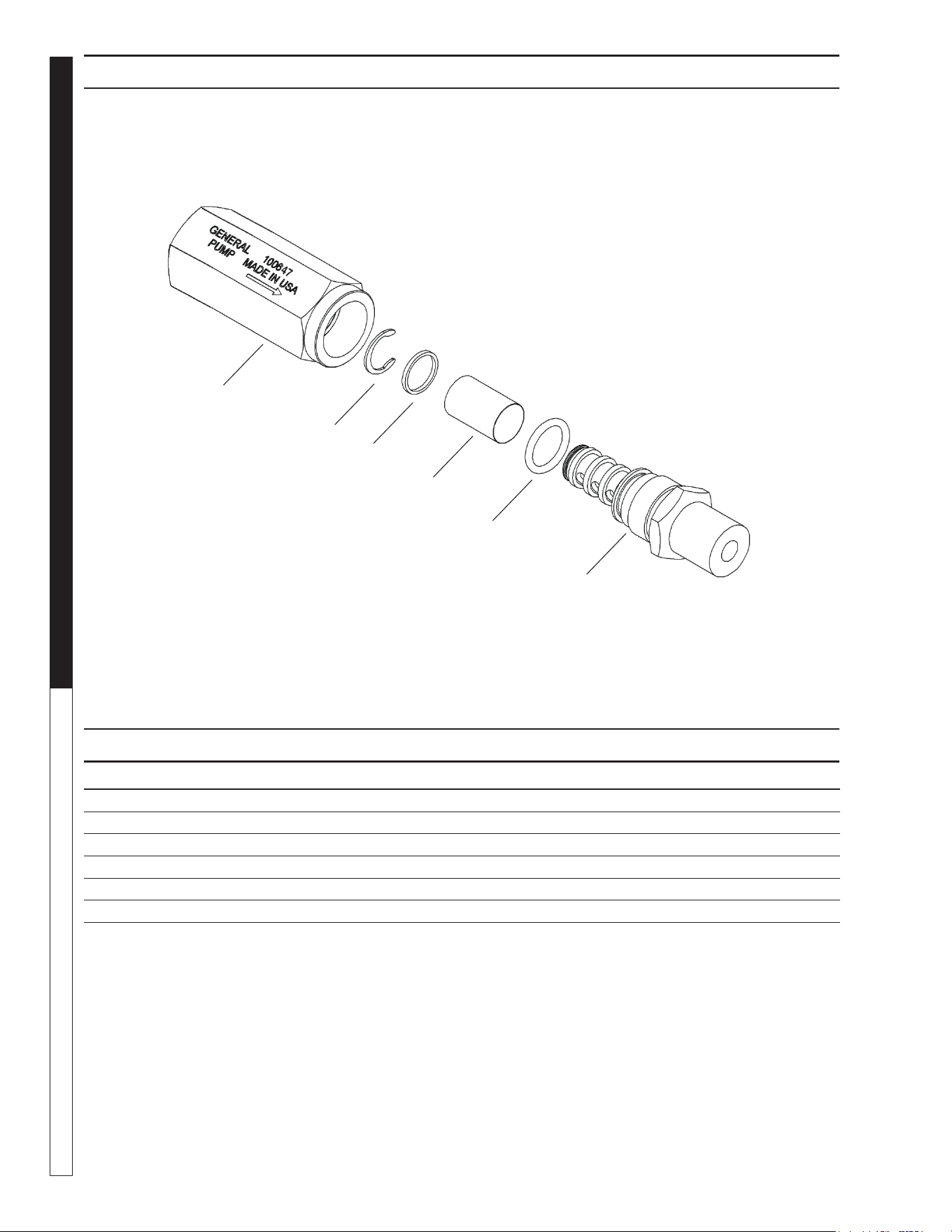

Filter Exploded View .............................................................................. 12
Cleaning The Water Inlet Filter .............................................................. 13

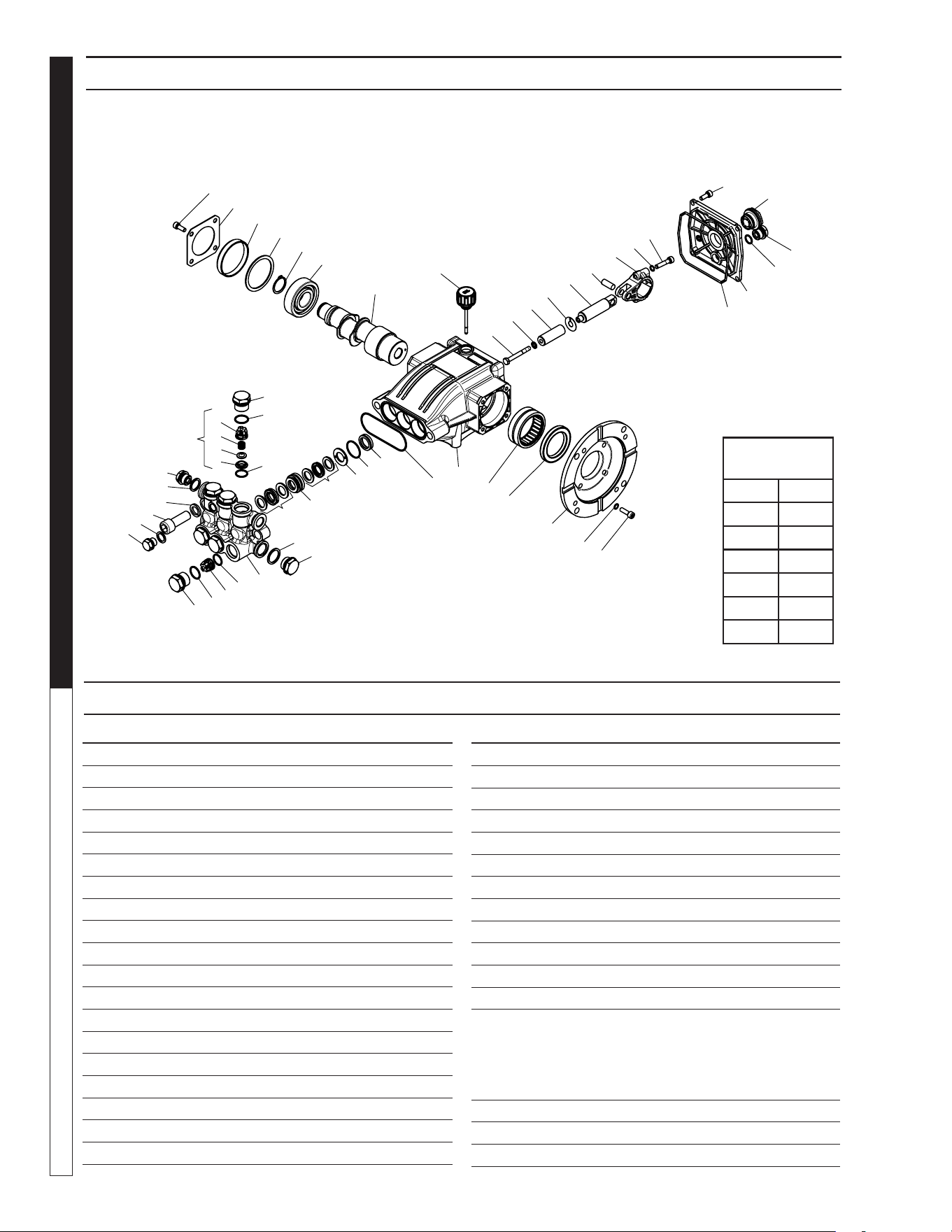

LF2030S Series Pump Exploded view and Parts List ......................14-15

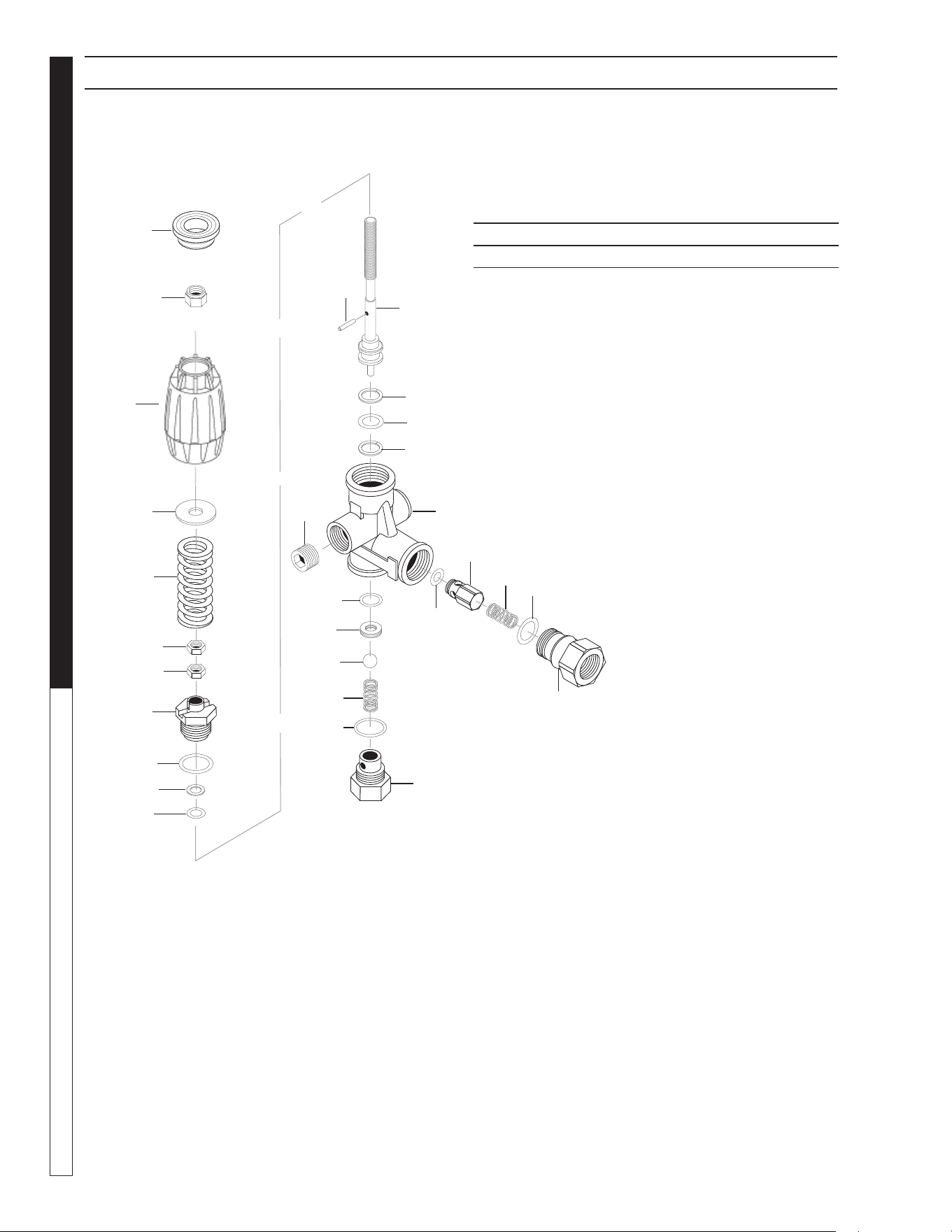

VRT3 Unloader Exploded View and Parts List ...................................... 16

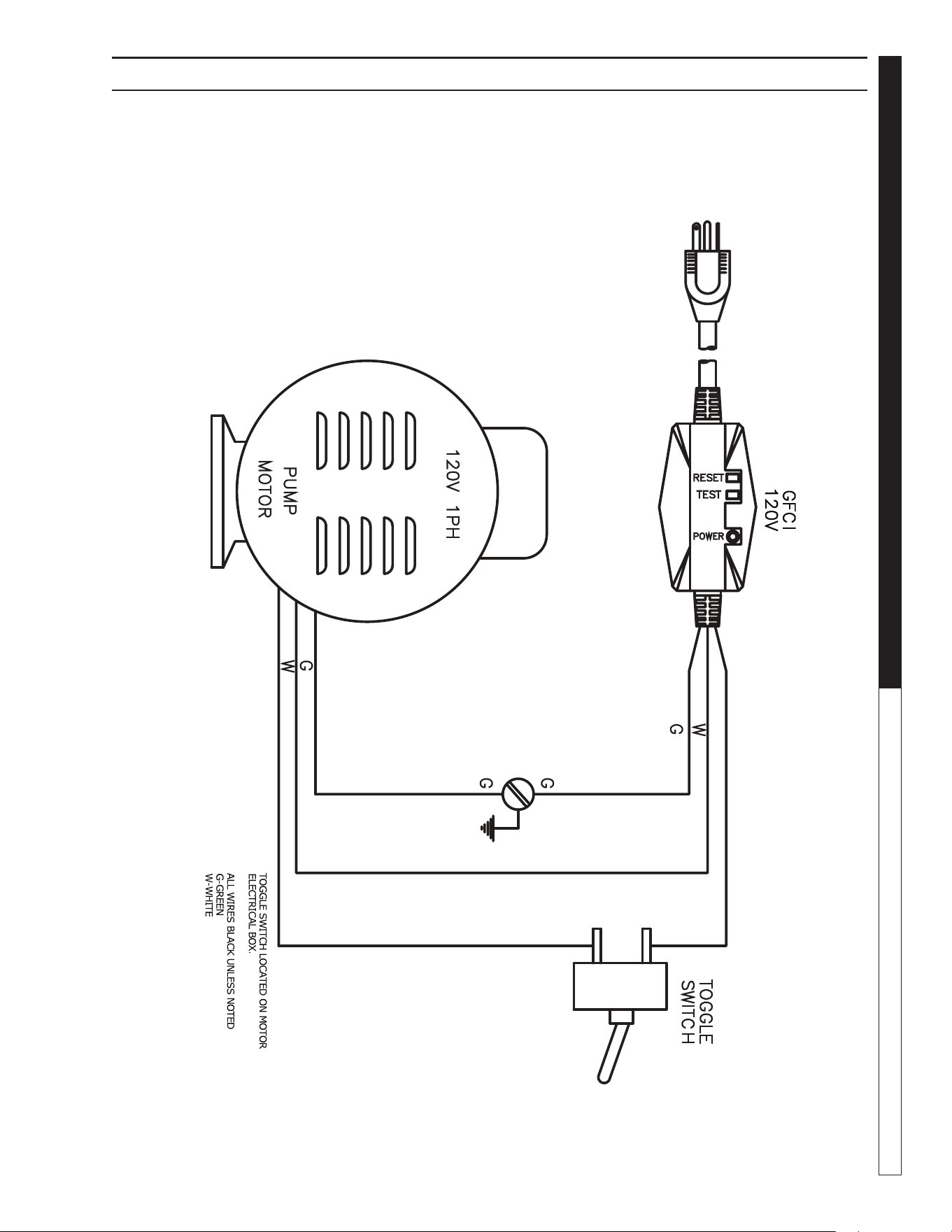

Wiring Diagram ...................................................................................... 17
Troubleshooting ..................................................................................... 18
Preventative Maintenance ..................................................................... 19
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
4
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator
is not uent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with
the operator in the operator’s native language by the
purchaser/owner, making sure that the operator com-
prehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement parts.
This machine is to be used only by trained operators.
IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
WARNING: To reduce the risk of
injury, read operating instruc-
tions carefully before using.
AVERTISSEMENT: Pour réduire
le risque de blessures, lire
attentivement les instruc-
tions de fonctionnement avant
l'utilisation.
1. Read the owner's manual
thoroughly. Failure to follow instructions could cause
malfunction of the machine and result in death, serious
bodily injury and/or property damage.
2. Know how to stop the machine and bleed pressure
quickly. Be thoroughly familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specic details. If your
machine is rated 250 volts or less, single phase will
be provided with a ground fault circuit interrupter
(GFCI). If rated more than 250 volts, or more than
single phase this product should only be connected
to a power supply receptacle protected by a GFCI.
DANGER: Improper connection of the equipment-
grounding conductor can result in a risk of elec-
trocution. Check with a qualied electrician or
service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the
plug provided with the product - if it will not t the
outlet, have a proper outlet installed by a qualied
electrician. Do not use any type of adaptor with
this product
DANGER: Une mauvaise connexion du conducteur
de terre de l'équipement peut entraîner un risque
d'électrocution. Vérier auprès d'un électricien
qualié ou du personnel d'entretien si vous avez
des doutes quant à savoir si la sortie est correcte-
ment mise à la masse. Ne pas modier la che
fournie avec le produit - si elle n'entre pas dans la
sortie, faire installer une sortie appropriée par un
électricien qualié. Ne jamais utiliser un adaptateur
avec ce produit.
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
DANGER: Garder la lance, le
boyau et le jet d'eau à l'écart de
tout câblage électrique ou des
chocs électriques mortels pou
raient survenir.
5. To protect the operator from electrical shock,
the machine must be electrically grounded.
It is the responsibility of the owner to connect this
machine to a UL grounded receptacle of proper
voltage and amperage ratings. Do not spray
water on or near electrical components. Do not
touch machine with wet hands or while standing
in water. Always disconnect power before servic-
ing.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE LIQUIDS.
WARNING
WARNING: Flammable liquids
can create fumes which can ig-
nite, causing property damage
or severe injury.
AVERTISSEMENT: Des liquides
inammables peuvent produire
des vapeurs qui peuvent
s'enammer, causant ainsi des
dommages à la propriété ou des blessures graves.
WARNING: Risk of explosion — Do not spray am-
mable liquids.
AVERTISSEMENT: Risque d'incendie - Ne pas pul-
vériser de liquides inammables.
6. Do not allow acids, caustic or abrasive uids to pass
through the pump.
Service Manual Dual Mister Cart 9.808-257.0 - E
5
PRESSURE WASHER
SERVICE MANUAL
12. Be certain all quick coupler ttings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine from
freezing.
AVERTISSEMENT: Protéger la
machine contre le gel.
13. To keep machine in best
operating conditions, it is
important you protect ma-
chine
from freezing. Failure to protect
machine from freezing could
cause malfunction of the
machine and result in death, serious bodily
injury, and/or property damage. Follow storage
instructions specied in this manual.
14. Inlet water must be clean fresh water and no
hotter then 90°F.
15. Manufacturer will not be liable for any changes
made to our standard machines or any components
not purchased from us.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING: Be extremely careful
when using a ladder, scaffolding
or any other relatively unstable
location. The cleaning area
should have adequate slopes
and drainage to reduce the pos-
sibility of a fall due to slippery
surfaces.
AVERTISSEMENT: Une modica-
tion non autorisée de la machine ou l'utilisation de
pièces de rechange non approuvées peut causer
des lésions corporelles et/ou des dommages à la
propriété, et annulera la garantie du fabricant.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Do not operate this machine when fatigued or under
the inuence of alcohol, prescription medications,
or drugs.
WARNING: Do not spray ma-
chine or any people, animals or
electrical parts.
AVERTISSEMENT: Ne pas va-
poriser sur la machine ou les
gens, les animaux ou les pièces
électriques.
19. Follow the maintenance instructions
specied in the manual.
IMPORTANT SAFETY INFORMATION
7. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
8. Keep operating area clear of all persons.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne
and y at high speeds. To avoid
personal injury, eye, hand and
foot safety devices must be
worn.
AVERTISSEMENT: Un jet haute-
pression peut écailler la pein-
ture ou provoquer l'émission
d'autres particules dans l'air et leur projection à
hautes vitesses. Pour éviter les lésions corporelles,
une protection des yeux, du visage, des mains et
des pieds doit être portée lors de l'utilisation de
cet équipement.
9. Eye, hand, and foot protection must be worn
when using this equipment.
TRIGGER GUN KICKS
BACK - HOLD WITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
AVERTISSEMENT: Agripper
la lance de nettoyage avec
les deux mains avant de com-
mencer. Le non-respect de cette
consigne pourrait mener à des
blessures causées par le mouvement violent de la
lance.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING: High pressure devel-
oped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when oper-
ating. Do not direct discharge
stream at people, or severe in-
jury or death will result.
AVERTISSEMENT: La haute
pression générée par ces ma-
chines causera des lésions corporelles ou des
dommages à l'équipement. Se tenir à l'écart de la
buse. Faire preuve de prudence lors de l'utilisation.
Ne pas décharger directement le jet vers des per-
sonnes ou des animaux, car cela risquerait de
causer des blessures graves ou même la mort.
10. To reduce the risk of injury, close supervision is
necessary when a machine is used near children.
Do not allow children to operate the pressure
washer. This machine must be attended during
operation.
11. Never make adjustments on machine while in op-
eration.
WARNING
DO NOT SPRAY
MACHINE OR ANY
PEOPLE, ANIMALS OR
ELECTRICAL PARTS.
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
6

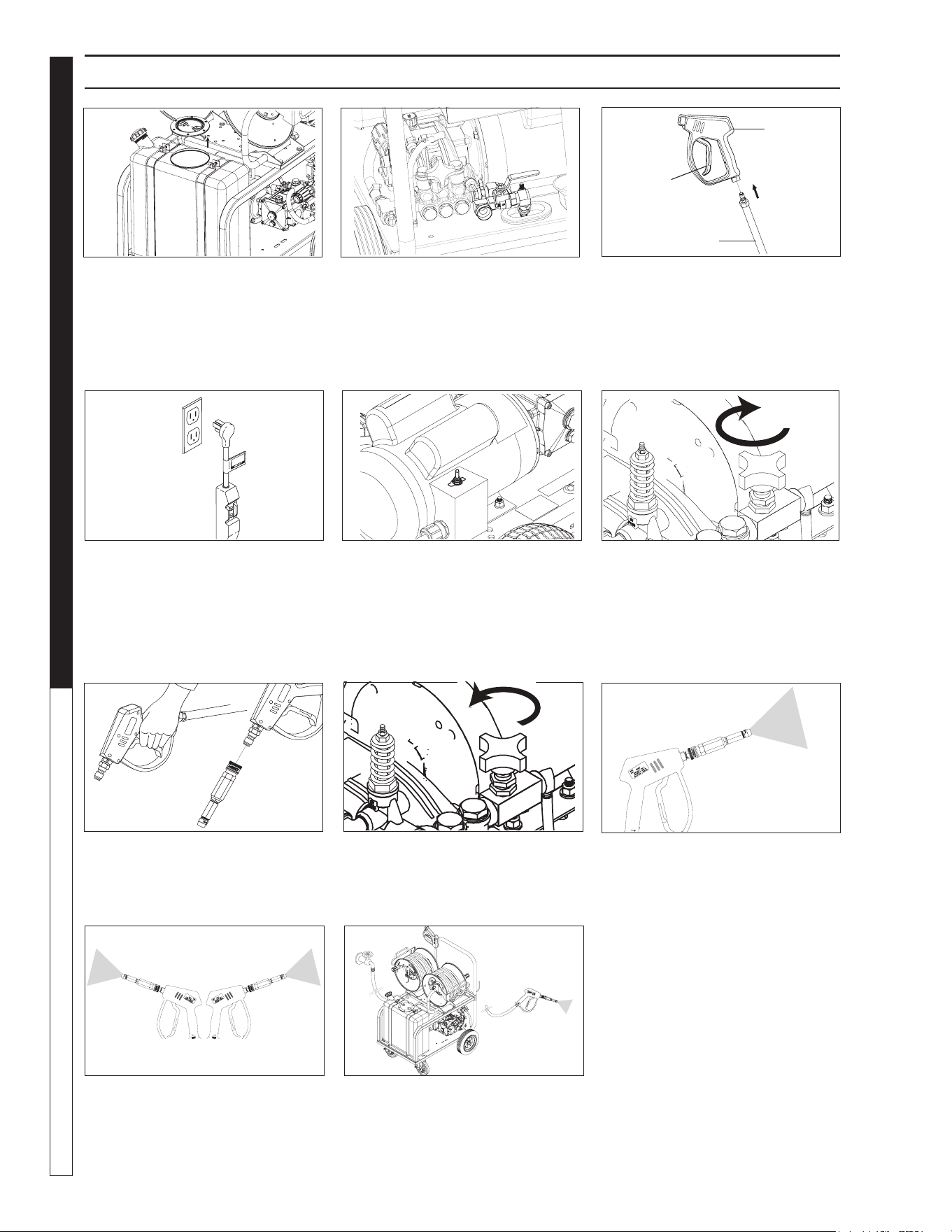

STEP 1: Open lid and ll solution
tank with disinfectant.
STEP 5: Start up the machine.STEP 4: Connect to a dedicated
20amp circuit. Push reset button
on GFCI.
CAUTION: Do not use extension
cord. Use only Factory supplied
power cord.
STEP 8: Open metering valve to use
Misting mode.
STEP 6: Close metering valve to
purge hose.
STEP 9: Ready to use, mist Vital
Oxide disinfectant.
CAUTION: If valve stays close
in misting mode nozzle may get
damage.
STEP 2: Be sure 3 way valve is in
the correct position
CAUTION: Do not run the pump
without water or pump damage
will result.
STEP 7: Purge any air trapped in
Hose. Then attach misting nozzle .
STEP 10: It is possible to operate
two guns on mist mode at the same
time.
IMPORTANT: After nish the job,
ush all chemical remains from
the unit. Fill tank with fresh water
and ush all system
OPERATING INSTRUCTIONS FOR MISTING MODE
STEP 3: Attach the high pressure
hose to the spray gun.
Safety
Latch
Spray
Gun
High
Pressure Hose
IMPORTANT: Do not allow the
machine to run in bypass for
more than 10 minutes at any
one time or damage to pump
may occur.
IMPORTANT: The use of a
backow preventer on the water
supply hose is recommended
and may be required by local
code.
Service Manual Dual Mister Cart 9.808-257.0 - E
7
PRESSURE WASHER
SERVICE MANUAL
STEP 11: Only one gun can be used
on High pressure mode.
OPERATING INSTRUCTIONS FOR HIGH PRESSURE MODE
STEP 4: Attach the high pressure
hose to the spray gun.
STEP 7: Close metering valve to
purge hose.
CAUTION: If valve is open, pres-
sure wont reach rate.
STEP 5: Attach wand to spray gun.
STEP 6: Pull spring-loaded collar
of the wand coupler back to insert
your choice of pressure nozzle.
STEP 1: Connect ½” hose to cold
water inlet.
STEP 2: Check inlets lters, remove
debris, then connect the garden
hose to pump water inlet.
CAUTION: Do not run the pump
without water or pump damage
will result.
STEP 3: Be sure 3 way valve is in
the correct position.
Safety
Latch
Spray
Gun
High
Pressure Hose
Wand
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Coupler
Collar
Cold
Water
Source
Garden
Hose
STEP 8: Close metering valve to
use High Pressure mode.
STEP 10: Start up the machine.
Spray
Gun/Wand
STEP 9: Connect to a dedicated
20amp circuit. Push reset button
on GFCI.
CAUTION: Do not use extension
cord. Use only Factory supplied
power cord.
IMPORTANT: Do not allow the ma-
chine to run in bypass for more
than 10 minutes at any one time
or damage to pump may occur.
IMPORTANT: The use of a
backow preventer on the water
supply hose is recommended and
may be required by local code.
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
8
EXPLODED VIEW
For
Detail
See Pump
Assy
For
detail
See Tank
Assembly
18
42
47
48
49
46
45
44
39
40
38
16
43
50
51
35
37
24
22
25
23
32
8
52
8
5
53
11
1
34
10
28
15
10
27
41
21
19
20
17
3
13
8
2
29
30
33
12
9
7
4
30
32
Service Manual Dual Mister Cart 9.808-257.0 - E
9
PRESSURE WASHER
SERVICE MANUAL
EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 8.929-589.0 Base Wheel Kit 1
2 8.623-262.0 Wheel & Tire Hard Rubber
10X2 3/4 2
3 9.802-274.0 Castor 6" DIAx 4.63 2
4 8.929-595.0 Handle Welded Mister Cart 1
5 9.802-103.0 Bushing, 5/8" Snap, P/N 2123 2
6 9.802-712.0 Bolt, 5/16-18 X 1-3/4", NC
Carriage Zinc 4
7 8.718-625.0 Bolt 5/16"-18X3/4",NC CRRGE
ZNC(615951) 8
8 9.802-778.0 Nut, 5/16" Whiz Loc Flange 17
9 8.929-591.0 Support body Mister Cart 1
10 9.803-551.0 Screw 5/16" x 3/4" Whiz
Loc Flange 5
11 9.802-810.0 Washer, 5/8", FLAT, SAE Zinc 2
12 9.803-545.0 Grommet, 2-5/16" Rubber,Cab
Washer,P/N80 1
13 9.802-782.0 Collar, 5/8" Bore Shaft 3010 2
14 8.911-227.0 Axle, 5/8" X 28.5" L 1
15 9.802-065.0 Grommet,1-5/16'Rubber,Drum
Cleanr,MB28 1
16 9.142-313.0 Hose Hanger Weld Assy,
Universal 1
17 8.755-187.0 Grommet, Rubber, Nozzle
Holder Base 3/16 3
18 8.759-044.0 Motor 1.5HP 1PH 115/230V F3
1750RPM 56C 1
19 9.122-002.0 Hose Reel_100ft_Fixed Base 2
20 8.757-340.0 Elbow 3/8", Street 90 Deg,
SteeL, W/SLNT 2
21 8.925-393.0 Hose 1/4"x75' 4000 PSI SWxSW
CPL S120 1
22 9.802-193.0 Gasket, Neoprene,
SC41-W/PSA, PER FT. 4
23 8.912-699.0 Strap, Mhp Fuel Tank W/Hole 4
24 9.198-004.0 3/8 USS F/W Zinc 4
25 9.802-727.0 Bolt, 3/8" x 1-3/4", TAP 2
26 9.802-779.0 Nut, 3/8", ESNA, NC 2
27 9.802-767.0 Screw, 3/8" X 3/4" Nc, Whiz
Loc Flange 8
28 8.929-630.0 Nozzle Holder 1
29 8.750-844.0 Holder, Wand 1
30 9.802-754.0 Screw, 1/4" X 1/2" Nc, Whiz
Loc Flange 4
31 8.600-562.0 Nut, 1/4-20 Well 2
32 8.709-090.0 Clamp, Wire/Tube, 0.750D 3
33 9.197-010.0 1/4-20" Nylon Insert Lock Nut
with Flang 2
34 9.802-781.0 Nut, 3/8" Nc, Whiz Loc Flange 4
35 8.718-980.0 Washer, 5/16" Flat,
Sae (780452) 8
ITEM PART NO. DESCRIPTION QTY
36 9.802-776.0 Nut, 5/16-18, ESNA 4
37 9.802-710.0 Screw 5/16" x 1" NC 4
38 8.752-969.0 Strain Relief,LT,STR,1/2NPT
0.39-0.75ID 1
39 8.900-305.0 Label, Landa, Home Depot,
ZE Warning 1
40 9.800-037.0 Label, French Inst./Warn 1
41 4.760-846.0 Pistol G3/8 155°C package
Generic 1
42 8.783-039.0 Wand 30" Zinc Plated,
Handle & Coupler 1
43 9.142-313.0 Hose Hanger Weld
Assy, Universal 1
44 8.758-918.0 Adapter 9/16 2
45 8.758-918.0 Filter,High Pressure
1/4'Npt-Fx1/4'Np 2
46 8.756-030.0 Coupler, 1/4 Socket,
Male, Brass 2
47 8.756-697.0 Fuel Nozzle, 2.50 X 80 BZ 2
48 8.707-139.0 Coupler, 1/4"Plug, Male,
Steel/Zinc 1
49 9.802-164.0 Coupler, 1/4"Socket,
Female, Brass 1
50 8.932-969.0 Label, Warning, Service Cord 1
51 9.802-432.0 GFCI, 120V 15A, W/ 36'
12-3 Cord 1
52 8.918-218.0 Hose,3/8"X 29",2 Wire,3/8M.
SOL X 1/2M 2
53 8.751-374.0 Spacer 5/8 X 1,25 Black 4
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
10
PUMP ASSEMBLY EXPLODED VIEW
PUMP ASSY EXPLODED VIEW PARTS LIST
11
13
18
17
12
12
10
6
2
20
9
19
22
4
23
23
1
8
11
12
24
16
3
14
22
6
15
25
5
7
ITEM PART NO. DESCRIPTION QTY
1 8.750-299.0 Unloader, Vrt3, 8 Gpm
@4500 Psi 1
2 8.759-036.0 Elbow Stainless Steel 3/8"
NPTF 1
3 8.929-275.0 Pump LFP2030S, 2.1@3000,
1725RPM 1
4 8.705-119.0 Hose Barb, Elbow,
3/8"Barbx3/8"Mpt/90deg 1
5 8.707-317.0 Valve, Flow Control 1
6 8.757-196.0 Nipple, 1/2" Hex, Brass 2
7 8.757-795.0 Nipple Hex Brass 1/4 Nptf 1
8 8.757-391.0 Elbow Brass 1/2 Sae (M)
X 1/2 Nptf (M) 1
9 8.707-212.0 Valve, 1/2" Brass, 3-Way Ball 1
10 8.757-198.0 Elbow, 1/4" Street, Brass 1
11 8.757-485.0 Tee, 1/2", Brass 2
12 8.757-342.0 Elbow, 1/2" Street, Brass 4
13 8.757-343.0 Bushing, 1/2" X 1/4", Brass 1
14 8.758-202.0 Hose Barb Push-On
3/8"X1/2" Mnpt W/Slnt 1
15 8.757-258.0 Hose Barb 1/4" X 3/8"
Nptf (M), 90 Deg 2
ITEM PART NO. DESCRIPTION QTY
16 9.802-166.0 Coupler, 3/8"Socket,
Female, Brass 1
17 8.707-152.0 Nipple, 3/8", Male, Ssteel 1
18 8.706-880.0 Nipple, 1/2" Mpt X 3/8"
Mpt Brass 1
19 8.711-785.0 Hose, 3/8" Push On, Per Ft 1
20 8.757-203.0 Swivel, 1/2" M-Nptf X 3/4" Ghf 1
21 9.802-259.0 Hose, 1/2" Push-On, /Ft 1
22 8.623-315.0 Clamp, 3/8 Hose (D-Slot) 2
23 6.390-126.0 Clamp Hose 2
24 8.757-193.0 Adapter, 1/2" F-Nptf X 1/2"
M-Nptf, Brass 1
25 8.758-203.0 Protection Pump 3/8"
145 Deg W/Slnt 1
Service Manual Dual Mister Cart 9.808-257.0 - E
11
PRESSURE WASHER
SERVICE MANUAL
CHEMICAL TANK ASSY EXPLODED VIEW
CHEMICAL TANK ASSY PARTS LIST
1
10
9
12
2
11
3
8
4
6
7
6
5
4
ITEM PART NO. DESCRIPTION QTY
1 8.759-035.0 Disinfectant Tank 9 Gallons 1
2 8.633-447.0 Cover Plate Complete 1
3 8.627-435.0 Screw, 10-24 X .5 PHPNHTC 5
4 8.750-743.0 Bulkhead, 1/2"""" Polypro 1
5 8.757-391.0 Elbow Brass 1/2 Sae (M) X 1/2 Nptf (M) 1
6 9.802-151.0 Swivel, 1/2" Barb X 1/2"Jic, Fem/Brass 2
7 9.802-259.0 Hose, 1/2" Push-On, /Ft 2
8 9.802-089.0 Cap, Fuel, Plastic H60-Av1 1
9 8.623-279.0 Chain,Asm, #10Ss Bd X 8" 1
10 8.627-756.0 Screw, 6-18 X .5 Phpnhsms Ss Typea 1
11 8.633-999.0 Screw, 8-32 X 1.0 Phhms Ss Blkox 1
12 8.627-202.0 Nut, 8-32 Hexthin Nylock SS 1
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
12
FILTER EXPLODED VIEW
FILTER PARTS LIST
ITEM DESCRIPTION QTY
1 Housing, Nozzle Filter, 1/4 NPT-F 1
2 Retainer, Filter 1
3 Screen, 100 Mesh, T304SS 1
4 O-Ring, 70 Duro, Buna-N, .426 ID x .070 CS 1
5 Outlet Fitting, Nozzle Filter, 1/4 NTP-M 1
6 Retainer, External, SS 1
1
6
2
3
4
5
Service Manual Dual Mister Cart 9.808-257.0 - E
13
PRESSURE WASHER
SERVICE MANUAL

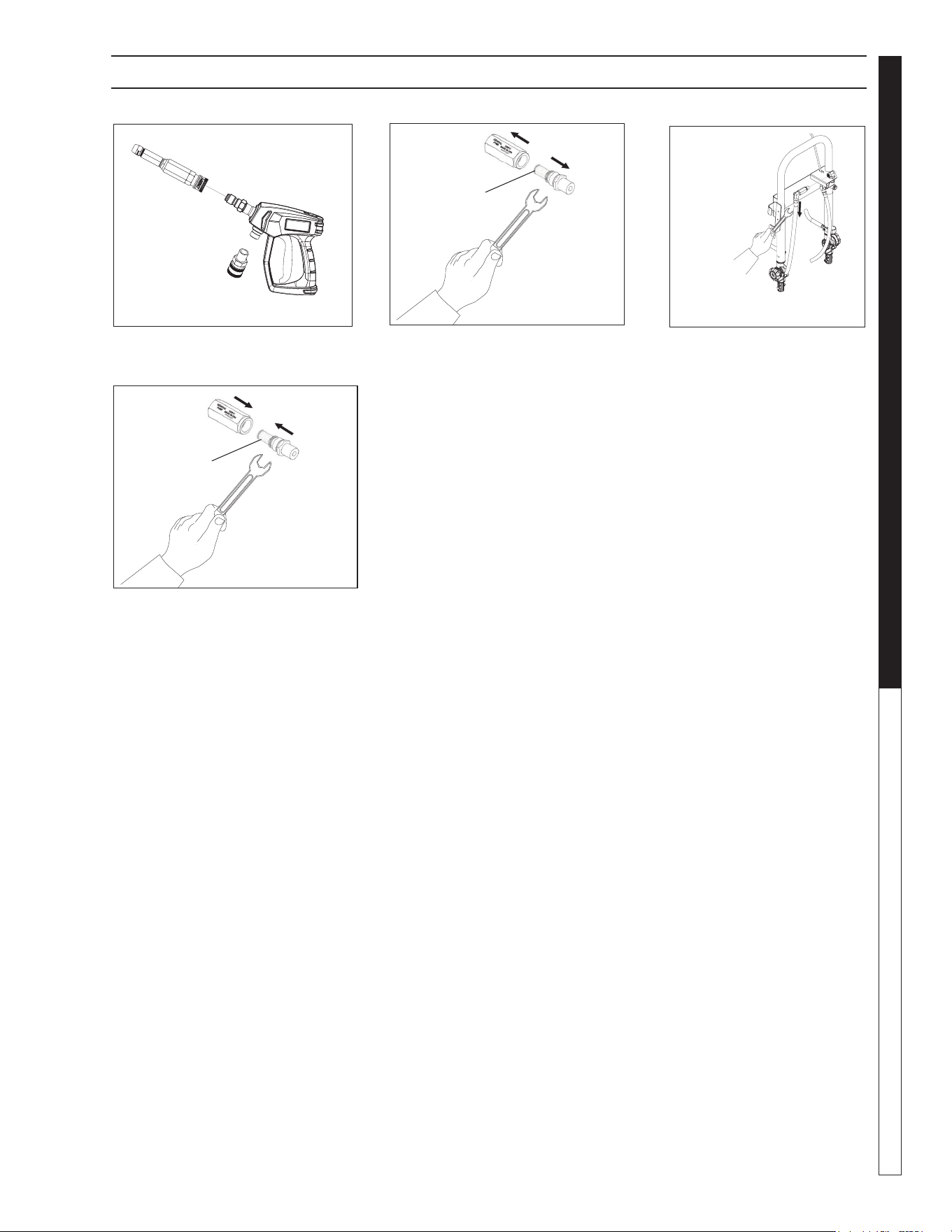

CLEANING THE WATER INLET FILTER
STEP 2: Pull out water inlet lter.
Use the necessary tools.
STEP 4: Assemble the water inlet
lter. Use the necessary tools.
STEP 1: Disconnect Spray nozzle
From the machine
STEP 3: Rinse out water
inlet lter in warm water.
Filter
Filter
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
14
13
6
8
1
3
9
10
11
12
13
14
15
21
20
17
16
12
14
15
22
23
24
25
26
27
28
31
32
33
35
39
40
41
42
43
45
44
37
46
47
48
26
2
5
7
18
19
29
30
34
36
38
49
4
37
50
21
TORQUE
SPECS
Item # Ft.-lbs
15 65
18 55
26 8
38 10
39 10
46 10
LFP 2030S SERIES PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 8.754-841.0 Crankcase 1
2 8.754-846.0 O-ring Ø1.78 X 72.75 1
3* See Kit Below Plunger Oil Seal 3
4* See Kit Below O-ring Ø1.78 X 26.7 3
5* See Kit Below Washer, Pressure Ring 3
6* See Kit Below U-Seal 3
7* See Kit Below Pressure Ring 3
8* See Kit Below U-Seal 3
9 9.803-199.0 Washer, Copper G1/2 1
10 9.802-926.0 Plug, Brass G1/2 1
11 8.754-852.0 Manifold 1
12* 8.717-233.0 O-ring Ø1.78 X 15.6 6 6
13* See Kit Below Valve Assembly 6
14* 9.803-948.0 O-ring Ø1.78 X 18.77 6
15 9.803-949.0 Valve Plug 6
16 8.754-851.0 Plug, Brass G1/4 1
17 8.754-845.0 Washer, Copper G1/4 1
18 8.754-854.0 Bolt, Manifold M14 X 40 2
19 8.754-850.0 Washer, Lock 2
ITEM PART NO. DESCRIPTION QTY
20 9.803-198.0 Washer, Copper G3/8 1
21 8.707-262.0 Plug, Brass G3/8 2
22* See Kits Below Valve Seat 6
23* See Kits Below Valve Plate 6
24* See Kits Below Valve Spring 6
25* See Kits Below Valve Cage 6
26 9.802-939.0 Screw, M6 X 16 8
27 8.717-137.0 Bearing Cover 1
28 9.803-954.0 Bearing Seal 1
29 8.754-843.0 Seal Spacer, Crankshaft 1
30 9.802-914.0 Snap Ring, 25 mm 1
31 9.803-955.0 Bearing, Ball 1
32 8.754-835.0 Shaft, 5/8" Hollow 2030F 1
8.754-836.0 Shaft, 5/8" Hollow 2030S 1
8.754-837.0 Shaft, 5/8" Hollow 2830F 1
8.754-838.0 Shaft, 5/8" Hollow 2830S 1
8.754-839.0 Shaft, 5/8" Hollow 3530F 1
33 8.754-219.0 Oil Dipstick 1
34 8.754-840.0 Bearing Needle 1
35 8.754-826.0 Seal, Crankshaft 1
LFP 2030S SERIES PUMP EXPLODED VIEW
8.758-069.0 LFP2030S
Service Manual Dual Mister Cart 9.808-257.0 - E
15
PRESSURE WASHER
SERVICE MANUAL
LFP 2030S SERIES PUMP PARTS LIST
REPAIR KITS
REPAIR KIT
NUMBER 8.759-015.0 8.929-348.0 8.754-858.0 8.754-859.0 9.803-937.0
KIT DESCRIP-
TION
Plunger
Seals 16
mm
Seal Packing
16 mm
Plunger
16 mm
Complete
Valve
Plunger Oil
Seals
ITEM NUMBERS
INCLUDED
4, 6, 8 3, 4, 5, 6, 7 39, 40, 41, 42 12, 13, 14 3
NO. OF CYLIN-
DERS KIT WILL
SERVICE
3 1 1 6 3
ITEM PART NO. DESCRIPTION QTY
36 8.754-844.0 Flange, Motor 1
37 9.803-210.0 Washer 10
38 8.752-824.0 Screw, 6 mm 4
39* 8.754-855.0 Bolt, Plunger 3
40* 8.754-092.0 Spacer, Copper 3
41 8.754-848.0 Plunger, 16mm
(2030S, 2830S) 3
8.754-849.0 Plunger, 14mm
(2030F, 2830F, 3530F) 3
42 9.803-962.0 Spacer, Copper 3
43 8.754-827.0 Plunger Rod 3
44 9.803-965.0 Connecting Rod Pin 3
45 9.803-966.0 Connecting Rod 3
46 8.933-020.0 Screw, Connecting Rod 6
47 8.754-847.0 O-ring Ø2.62 X 111.62 1
48 8.754-842.0 Cover, Crankcase 1
49 9.803-906.0 O-ring Ø1.78 X 14 1
50 9.803-202.0 Sight Glass, G3/4 1
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
16
VRT3 UNLOADER EXPLODED VIEW AND PART S LIST
9
8
23
26
3
16
1
10
24
11
6
4
13
14
20
25
12
22
19
15
2
15
21
17
7
9
5
6
18
8.750-299.0, 8 GPM, 4500 PSI
ITEM PART NO. DESCRIPTION QTY
25 8.750-713.0 Outlet Fitting 1
18 8.750-712.0 Knob, Unloader 1
8.750-709.0 Repair Kit, VRT3, 2320/3630
PSI 8.750-710.0 Repair Kit,
VRT3, 4500 PSI
(Kit Items: 1, 4, 8-12, 16, 21-22)
1. Remove lock nut (Item 19).
2. Remove adjustment knob (Item 18).
3. Loosen the two (2) nuts (Item 15), move them upward on stem (Item 8) until you see 4 or more threads below the nut.
4. Re-attach adjusting knob (Item 18).
5. Start machine. Open the trigger of the spray gun. Increase pressure by turning adjustment knob (Item 18) clockwise until
pressure is at the desired operating pressure.
6. Remove the adjustment knob (Item 18), tighten the lower nut (Item 15) tightly against the upper nut (Item 15). Reattach
adjustment knob (Item 18) and screw down until contact is made with the nuts (Items 15). Screw down lock nut (Item 19)
onto the stem (Item 8) until the threads cut into the nylon insert of the lock nut (Item 19).
*If adjustment knob (Item 18) DOES NOT make contact with upper nut (Items 15), remove adjusting knob (Item 18), re-adjust
(raise) nuts (Items 15) on stem (Item 8) and re-attach adjustment knob (Item 18), then repeat step #6.
**If adjustment knob (Item 18) DOES make contact with upper nut; release the trigger of the spray gun and watch the pressure
gauge for the pressure increase (“spike”). This “spike” SHOULD NOT exceed 500 psi above the operating pressure. If “spike” pres-
sure exceeds the 500 psi limit, remove the adjusting knob (Item 18) and re-adjust (lower) the nuts (Items 15) on the stem (Item 8).
Re-attach the adjusting knob (Item 18), then repeat step #6.
Unloader Adjustment Procedures
Service Manual Dual Mister Cart 9.808-257.0 - E
17
PRESSURE WASHER
SERVICE MANUAL
WIRING DIAGRAM
1.106-161.0 HD 2.0/1000 Dual Mister Cart
Service Manual Dual Mister Cart 9.808-257.0 - E
PRESSURE WASHER
SERVICE MANUAL
18
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
PUMP RUNNING
NORMALLY BUT
PRESSURE LOW ON
INSTALLATION
Pump sucking air Check water supply and possibility of air seepage.
Check valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
Nozzle incorrectly sized Check and replace if necessary.
Worn piston packing Check and replace if necessary.
FLUCTUATING
PRESSURE
Valves worn Check and replace if necessary.
Blockage in valve Check and replace if necessary.
Pump sucking air Check water supply connections.
Worn piston packing Check and replace if necessary.
Insufcient water Check lter and hose for breakage.
PRESSURE LOW AFTER
PERIOD OF NORMAL
USE
Nozzle worn Check and replace if necessary.
Suction or delivery valves worn Check and replace if necessary.
Suction or delivery lines blocked Check and clean if necessary.
Unloader valve seat worn Check and replace if necessary.
Worn piston packing Check and replace if necessary.
Water temperature excessive Reduce to below 160
o
F.
PUMP NOISY
Air in suction line
Check water supply and connections on suction
line.
Broken or weak suction or delivery
valve spring
Check and replace if necessary.
Foreign matter in valves Check and clean if necessary.
Worn bearings Check and replace if necessary.
Excessive temperature of water Reduce to below 160
o
F.
PRESENCE OF WATER
IN PUMP OIL
Oil seal worn Check and replace if necessary.
High humidity in air Check and replace if necessary.
Piston packing worn Check and replace if necessary.
WATER DRIPPING FROM
UNDER PUMP
Piston packing worn Check and replace if necessary.
O-ring plunger retainer worn Check and replace if necessary.
WATER DRIPPING FROM
PUMP PROTECTOR
Water supply pressure too high (over
90 PSI)
Lower water supply pressure using a regulator.
Spray gun is in the off position for over
5 minutes
Turn machine off if not in use for over 1-2 minutes.
OIL DRIPPING
Oil seal worn Check and replace if necessary.
EXCESSIVE VIBRATION
IN HIGH PRESSURE
HOSE
Irregular functioning of the pump
valves
Check and replace if necessary.
MOTOR DOES
NOT START WHEN
SWITCHED ON
Plug not well connected or lack of
power supply
Check plug, cable and switch.
WHEN SWITCHING ON
THE MACHINE, MOTOR
HUMS BUT DOES NOT
RUN
Main voltage is insufcient, lower than
the minimum required
Check to make sure main power supply is ad-
equate.
The pump is stuck or frozen Check by turning the motor manually.
MOTOR STOPS
Tripped thermal overload due to over-
heating
Check that main voltage corresponds to the speci-
cations. Wait a few minutes before turning on the
machine again by resetting the GFCI cord.
Service Manual Dual Mister Cart 9.808-257.0 - E
19
PRESSURE WASHER
SERVICE MANUAL
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However,
you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular pre-
ventative maintenance procedures will assist in preserving the performance of your equipment. Contact your
dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure
washer. Perform maintenance more often under severe conditions.
OIL CHANGE RECORD
Check pump oil and engine oil level before rst use of your new pressure washer.
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
MAINTENANCE SCHEDULE
Pump Oil
(Non foaming)
SAE 10W-40
Inspect Daily inspect the oil level
Change After rst 50 hours, then every 500 hours or annually
Replace High Pressure Nozzle Every 6 months
Replace Quick Connects Annually
Clean Water Screen/Filter Weekly
Replace HP Hose Annually if there is any sign of wear
Grease Motor Every 10,000 hours
Clean Mist Nozzle Filter Weekly
PREVENTATIVE MAINTENANCE
Registrieren Sie Ihr Prudukt und Sie von vielen Vorteilen.
Register your product and benefit from many advantages.
Enregistrez votre produit et bénéficiez de nombreux avantages.
Registre su producto y aproveche de muchas ventajas.
Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung.
Rate your product and tell us your opinion.
Évaluez votre produit et donnez-nous votre opinion.
Reseña su producto y díganos su opinión.
www.kaercher.com/welcome
www.kaercher.com/dealersearch
Kärcher North America
6398 N Kärcher Way
Aurora, CO 80019
Phone: +1 800 444-7654
DANKE!
THANK YOU!
MERCI!
GRACIAS!
!
