• Page 1 - English - : wood block Recommended Tools Entry Keyed Tools will depend on install type This manual can be used to install a variety of dead bolt Please determine your function type prior to installation Door Prep If you need help in preparing your door Installation and Reference Guide 54899001 Rev 01 English wwwkwiksetcom 18003275625 Welcome to the Kwikset family This guide will get you ready to install your new deadbolt If you have any issues please visit our support center kwiksetcomsupport or call us at 18003275625 Drilling template

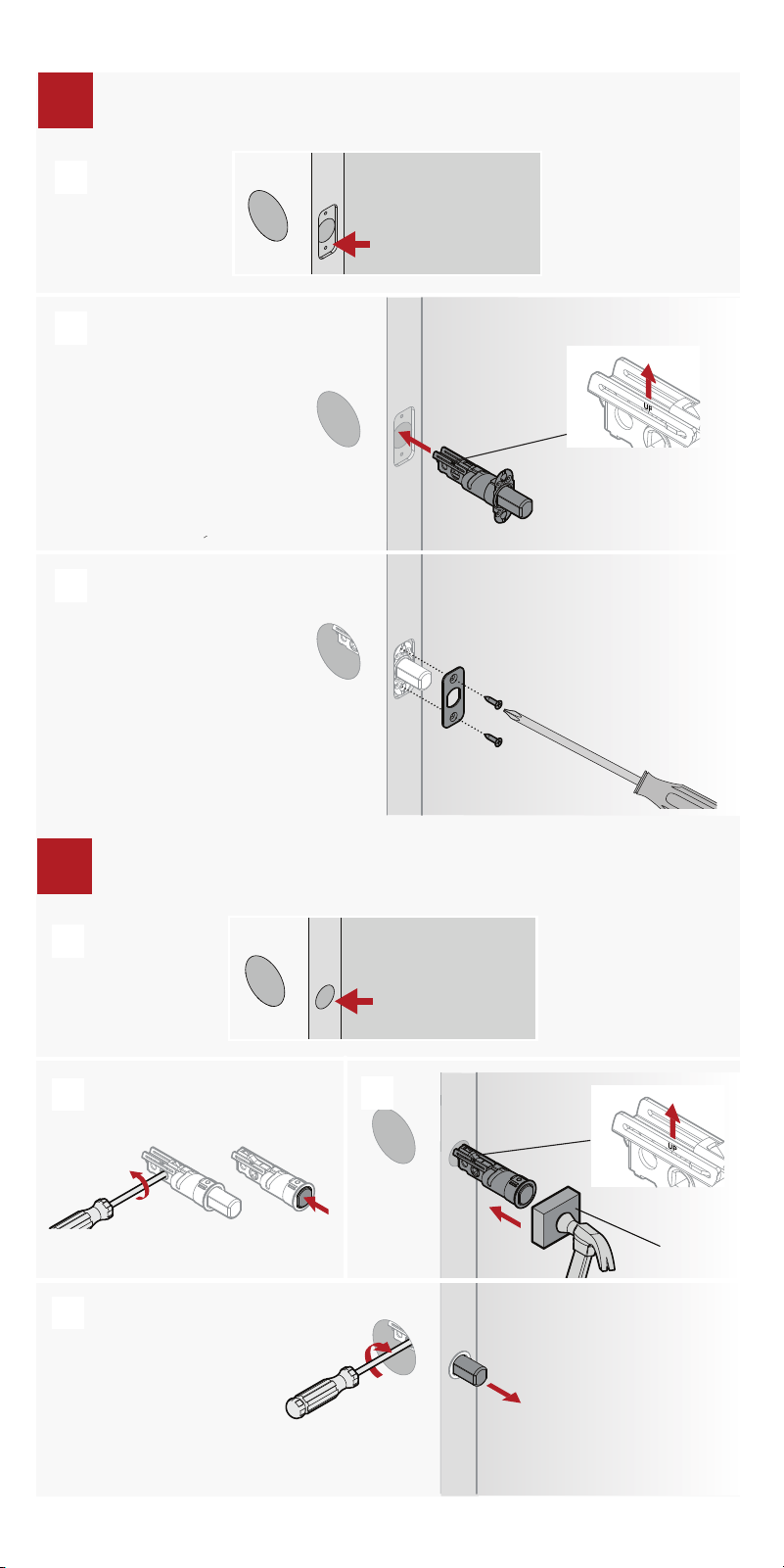

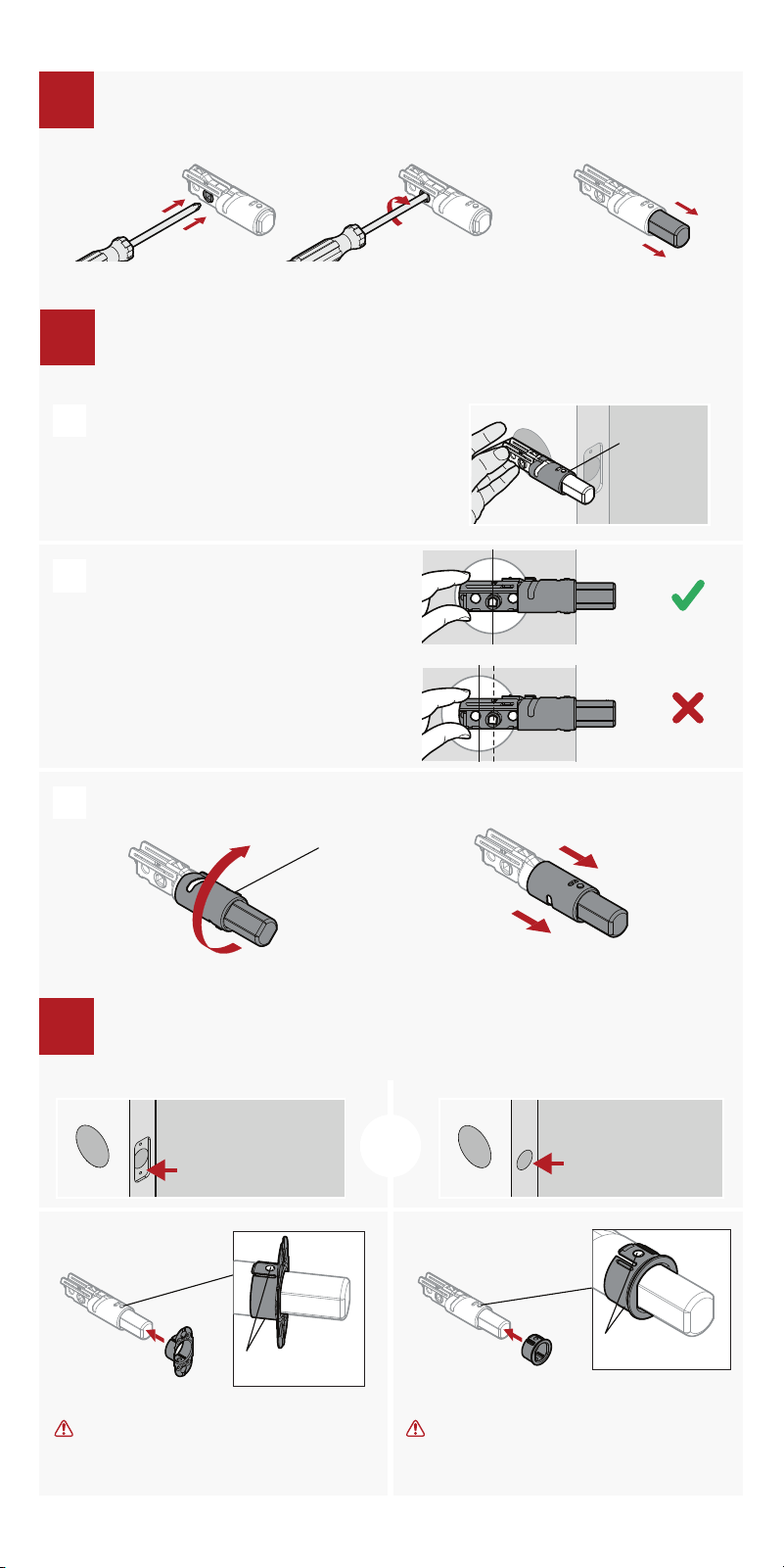

• Page 2 - English - : Extend latch bolt Prepare latch for installation if not preassembled Adjust backset of the latch if needed Hold the latch in front of the door hole with the latch face flush against the door edge If the latch holes are centered in the door hole no adjustment is required Proceed to step 3 If the Dshaped hole is NOT centered adjust latch See Latch Adjustment step C Latch Adjustment only if needed not centered centered A B C 180 Rotate the front of the latch to extend it Door edge NOT chiseled Door edge chiseled Install plate Ensure plate snaps into place Ensure collar snaps into place Install collar or 2 tabs 2 tabs Pull plate to test for tight fit Pull plate to test for tight fit latch case
• Page 3 - English - : Install latch chiseled door Install latch nonchiseled door Door edge chiseled A B C Install latch Install front plate UP is on top wood block Retract latch bolt Extend latch bolt UP is on top Door edge NOT chiseled A B D Install latch C

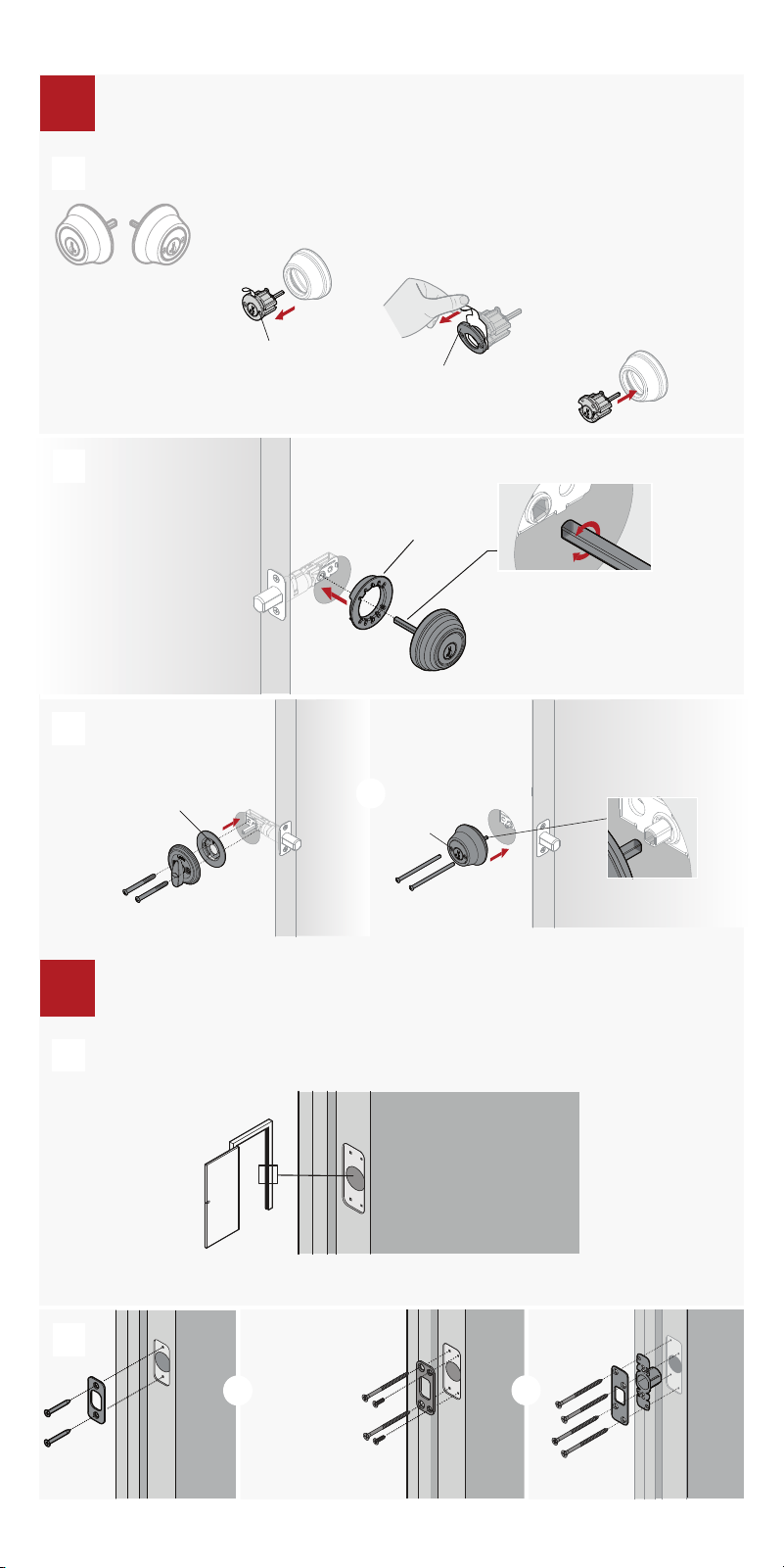

• Page 4 - English - : Install deadbolt Install strike on door frame interior Install deadbolt interior A C Ring adapter available with some models Insert interior torque blade into exterior torque blade exterior Rotate torque blade to align with Dshaped hole Install deadbolt exterior Not available with all models Remove interior cylinder Pull paper tab to remove cover plate Reinstall cylinder Do not reinstall cover plate cover plate Interior cylinder has holes or For double cylinders only Remove cover plate from interior cylinder B The cylinder with holes should be installed on the interior side of the door Make sure hole in door frame is drilled a minimum of 1 25mm deep A or Longer screws install closest to jamb B or interior
• Page 5 - English - : Copyright 2024 ASSA ABLOY Americas Residential Inc All rights reserved SmartKey Rekeying Instructions For rekeying instructions you can also visit httpswwwkwiksetcomsupportanswershowtorekeyyoursmartkeysecuritylocks WARNING This Manufacturer advises that no lock can provide complete security by itself This lock may be defeated by forcible or technical means or evaded by entry elsewhere on the property No lock can substitute for caution awareness of your environment and common sense Builders hardware is available in multiple performance grades to suit the application In order to enhance security and reduce risk you should consult a qualified locksmith or other security professional If you have any issues please visit our support center kwiksetcomsupport or call us at 18003275625
