Instruction Manual
Model: MCAI-8000
-
2
-
Warning
1. Before connecting the product with the electric power, please check if the power
provided in accordance with the rated power of the product.
2. If there are damages to the plugs, power wire or the product, you should no longer use
the product.
3. If the power wire is broken, for avoiding danger, it must be replaced by service
technicians from the manufacturer, manufacturer repairing department or similar
departments.
4. This product can be used by child over the age of 8 and persons with imperfect limbs,
lack of relevant experience and knowledge (Except for psychopath), but the specially
assigned person must give supervision and guidance to their using the product, thus to
ensure their safety.
5. Take care of the children, do not let them play the product as toy.
6. When the product is in power or is cooling, the product and the power wire must be
placed at a location out of reach of children under the age of 8.
7. Do not let the power wire touch surfaces with high temperature.
8. Never insert wet hands into the plugs and controlling panel of the product.
9. The product must be connected with a grounded socket, and one must make sure that
it is inserted correctly.
10. Never connect the product with external timer, in case danger might occur.
11. Never put the product on or near combustible material like the table cloth, or the
curtain etc.
12. Never put the product against the wall or other products. There should be at least
10cm of free space for the back side, left/ right sides, and the upper side of the product.
Do not put things on top of the product.
13. Never use the product for purposes not illustrated in the manual.
14. The product must be watched by someone while operating.
15. During the period of fat-free frying, steam with high temperature will be emitted from
the air outlet opening. The hands and face should be away from the steam and the air
outlet opening. And one should take care of the hot steam and air while moving the fryer
away from the product.
16. When using the product, the surface that it touches might become very hot.
17. If the product is smoking, unplug the power immediately. Remove the fryer away
from the product after it has stopped smoking.
18. The appliances are not intended to be operated by means of an external timer of
separate remote-control system.
-
3
-

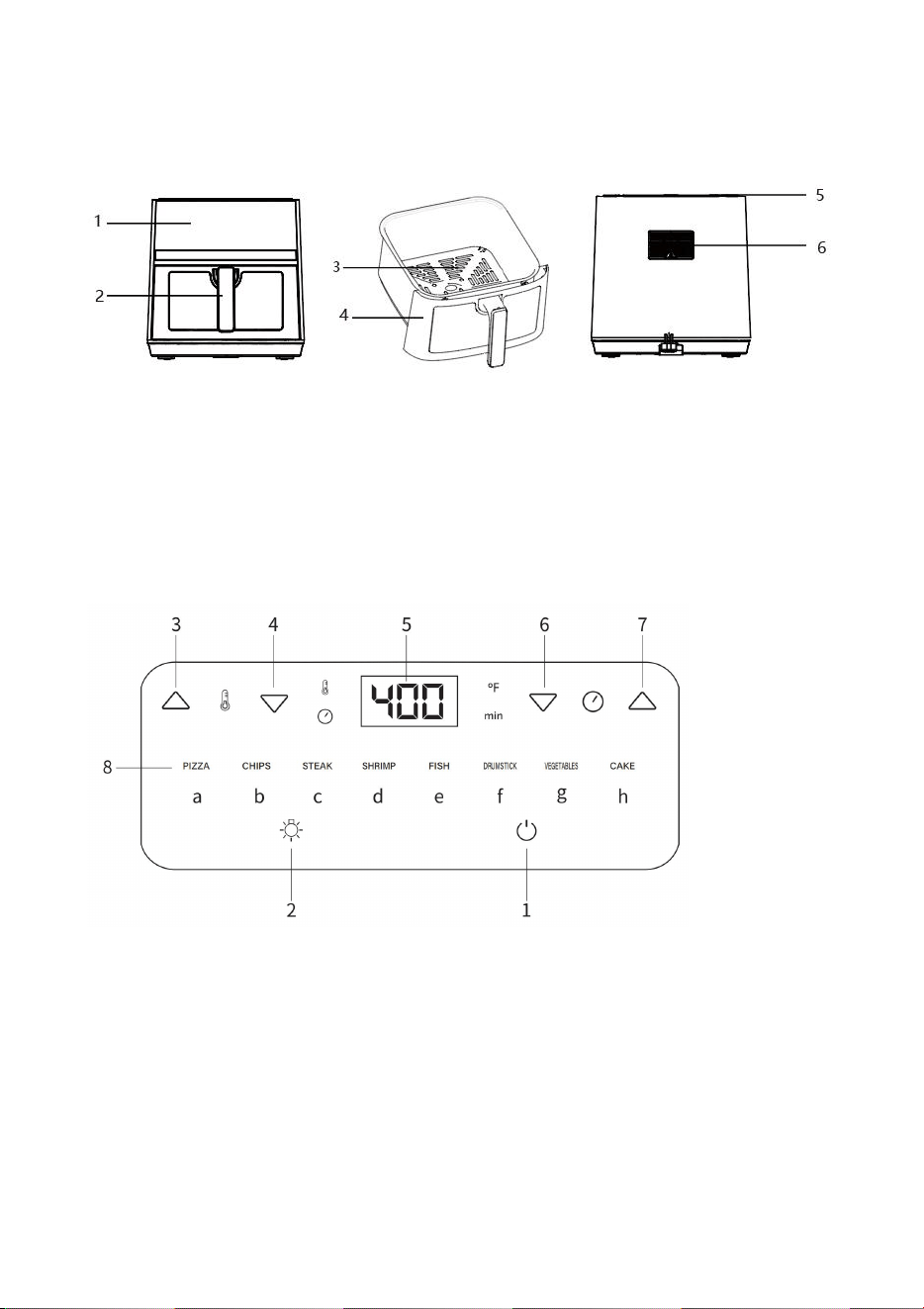

PARTS DESCRIPTION
1. Control panel and display
2. Handle
3. Frying grill
4. Fryer pot
5. Air inlet
6. Air outlet
CONTROL PANEL AND DISPLAY
1. On/off button
2. Light button
3. Temperature increase button
4. Temperature decrease button
5. Timer and temperature display
6. Timer decrease button
7. Timer increase button
8. Menu (listed below)
Menu: a), pizza, b). chips, c). steak, d). shrimps,
e). fish, f). drumsticks, g). vegetable, h). cake
-4 -
BEFORE FIRST USE
1.
Remove all the packing material.
2.
Remove the glue and labels on the product.
3.
Clean the frying tank and the frying tray thoroughly with hot water, detergent and
non-abrasive sponge.
4.
Clean the inside and outside of the product with warm wet cloth.
5.
The fat-free fryer uses the technology of hot air heating. Never pour oil or fat into the
fryer.
USE
1. Remove all containers from around and inside the skillet. Including tapes that can be glued
inside.
2. Wash the tray and grille with plenty of water and detergent.
3. Wipe the inside and outside of the device with a damp cloth.
4. Place the skillet on a flat, dry surface.
5. The frying pan is heated normally during use. Make sure the hot parts do not touch or get close
to the cables of other cookware or the same frying pan.
6. The frying pan is ready to use! Place the ingredients on the grate inside the basket and make
sure to place them correctly in the unit before starting. The skillet will not work if it is not fully
inserted.
7. After connecting the drive to the power supply, press the power button.
8. Place the cooked food on the grate inside the basket and insert it correctly into the unit.
9. Once you're ready, you can set the temperature and time to your liking. The default setting is
400°F for 18 minutes.
a. If you need to adjust the temperature or time, please press the corresponding button on the
previous paragraph. If you press and stay pressed, the value will change faster.
b. Another option is to choose a default cooking program. You can change their time and/or
temperature by pressing the appropriate button.
10. Press the power button to start cooking (Note: If you press the same button for more than 3
seconds, the power will turn off).
11. If necessary, press the internal light button to see the state of preparation work without moving
the basket and avoid heat loss.
12. Once the baking process is complete, the drive will display the word "off" on the display and
continue to close for a few seconds. If you want to stop and shut down ahead of time, just hold
down the power button for 3 seconds.
13. Take out the basket and verify that your food has been cooked to where you want it. If not,
simply shake the basket gently and let it sit for a few more minutes.
14. Once you have reached your desired cooking point, you can enjoy your food.
-5 -
TIPS
1. Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
2. A larger quantity of ingredients only requires a slightly longer preparation time than smaller
quantities.
3. Shaking smaller ingredients halfway through the preparation time optimises the end result and
can help to prevent unevenly-fried food.
4. Apply some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a
few minutes of adding the oil.
5. Do not prepare extremely greasy ingredients such as sausages in the air fryer.
6. You can also use the air fryer to reheat ingredients. To do this, set the device to 300 °F for up to
10 minutes.
CAUTION:
1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the pan to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm
free space around and above the appliance.
5. Filling the pan with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the pan from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a
safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the
appliance, which means the food is overcooked or the appliance broke down.
-6 -
FRYING TABLE
This table shows the food product quantities and required temperature and frying times. If the
instructions on the product pack should deviate from the values shown in this table, the instructions on
the pack should be followed.
Type
Minimum-
Maximum food
ingredients
amount (g)
Time
(minutes)
Temperature
(°F)
Overturning
Additional information
Pizza
100-800
5-10
400
Chips
200-800
20-25
400
Overturning
Adding 1/2 spoon of oil
Steak
100-800
15-20
360
Overturning
Shrimp
100-800
10-15
360
Overturning
Fish
100-800
12-16
360
Overturning
Drumstick
100-800
1-8pcs
20-25
360
Overturning
Adding 1/2 spoon of oil
Vegetables
100-800
12-18
360
Overturning
Adding 1/2 spoon of oil
Cake
100-450
28-32
320
CLEANING AND MAINTENANCE
1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes.
Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the pan to let the appliance cool down more quickly. Clean the pan and frying grill in
hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
Note: The frying grill is dishwasher safe.
-7 -
TROUBLE SHOOTING
Problem
Possible cause
Solution
The appliance
does not work.
The appliance is not plugged in.
Put the mains plug in an earthed wall
socket.
You have not pressed the on/off
button to turn on the machine.
Press the on/off button to turn on the
appliance.
The ingredients
are not fried
completely.
The amount of the food in the pan
is too high.
Put smaller batches of ingredients in the
pan. Smaller batches are fried more
evenly.
The temperature is too low or the
time is not enough.
Increase the temperature or cook more
time.
The ingredients
are fried
unevenly.
Different types of food may need to
be shaken halfway during cooking.
Shake food halfway during the cooking
time.
Fried snacks
are not crispy
You used a type of snacks which
shall be cooked in a traditional
deep fryer.
Use oven snacks or lightly brush some oil
onto the snacks for a crispier result.
White sm oke
comes out from
the appliance.
You are preparing greasy
ingredients.
When you fry greasy ingredients, oil will
leak into the pan. The oil produces white
smoke and the pan may heat up. This
does not affect the cooking result or hurt
the appliance.
The pan still contains grease
residue from previous use.
Clean the pan properly after each use.
Fresh fries are
fried unevenly.
You haven't used the right potato
type.
Use fresh potatoes.
You haven't rinsed the potato
sticks properly before frying.
Rinse the potato sticks properly to remove
starch from the outside of the sticks.
Fresh fries are
not crispy.
The crispness of the fries depends
on the amount of oil and water in
the fries
Make sure the potato sticks have been
dried properly before adding the oil.
Cut the potato sticks smaller for a crispier
result.
Add slightly more oil for a crispier result.
Warranty
90 Day Limited Warranty
1-424-543-1628
http://www.megachef.com
