FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
WARNING:
Read this material before using this product. Failure to do so can result in
serious injury.
1. This product is not a toy. Do not allow children to play with this item.
2. Use as intended only. Do not stand on the product.
3. This product needs to be used with a forklift truck.
4. Never exceed the load capacity of the fork extenders.
5. When picking up a load, the load center should never exceed 50% of the
fork extension.
OPERATION AS BELOW
1.Take out the extended fork cover, place it flat on the ground, and adjust
the distance between the forklift truck and the fork according to the width of
the goods.
2. Insert a straight end of the extension fork sleeve strap latch hole into the
fork tip of the forklift fork, and insert it horizontally until the bottom end of
the forklift fork.(Figure 1, Figure 2)

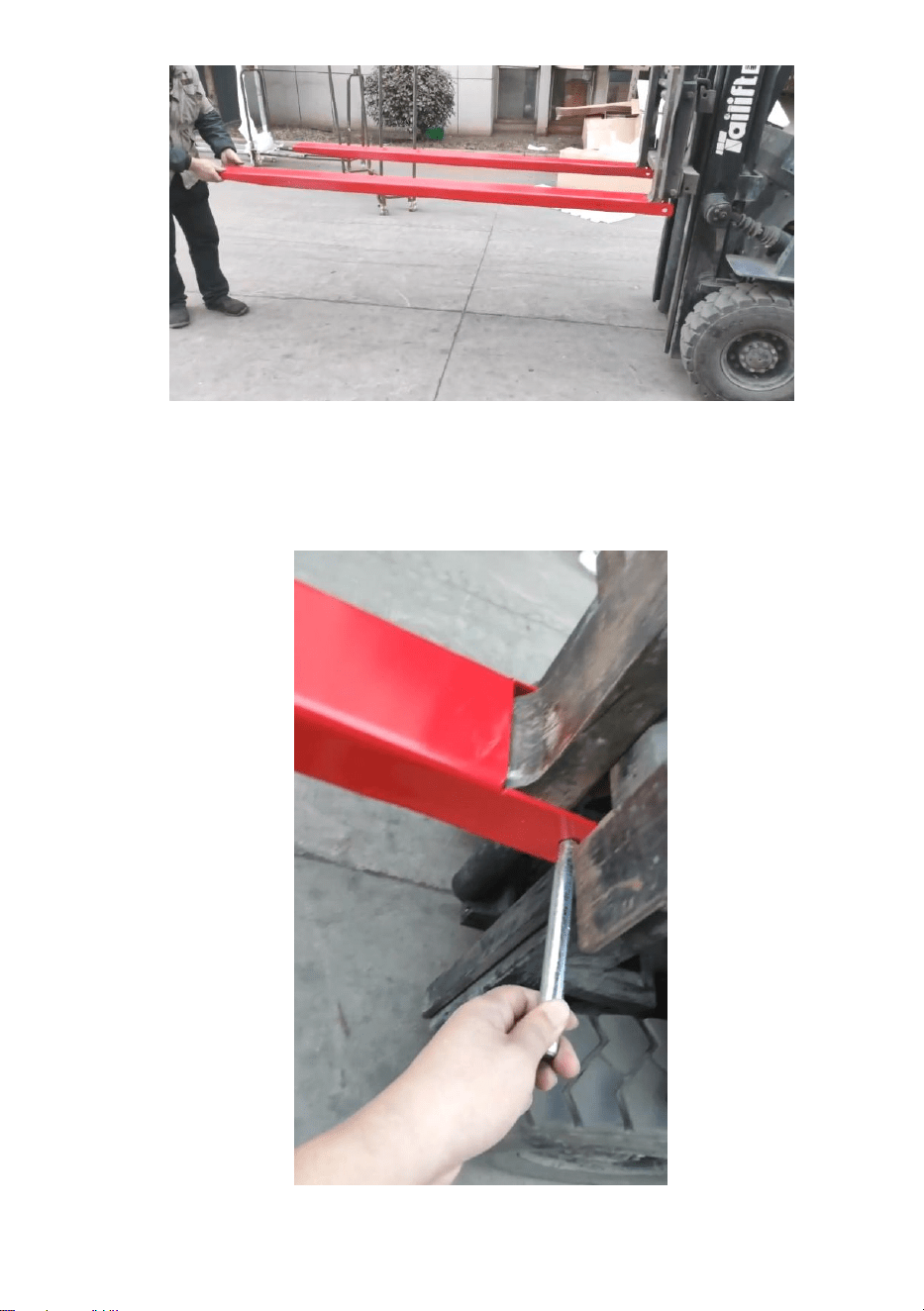

（Figure 1）
- 3 -
（Figure 2）
3. Insert the cylindrical pin into the pinhole of the extended fork sleeve.
(Figure 3)
（Figure 3）
- 4 -

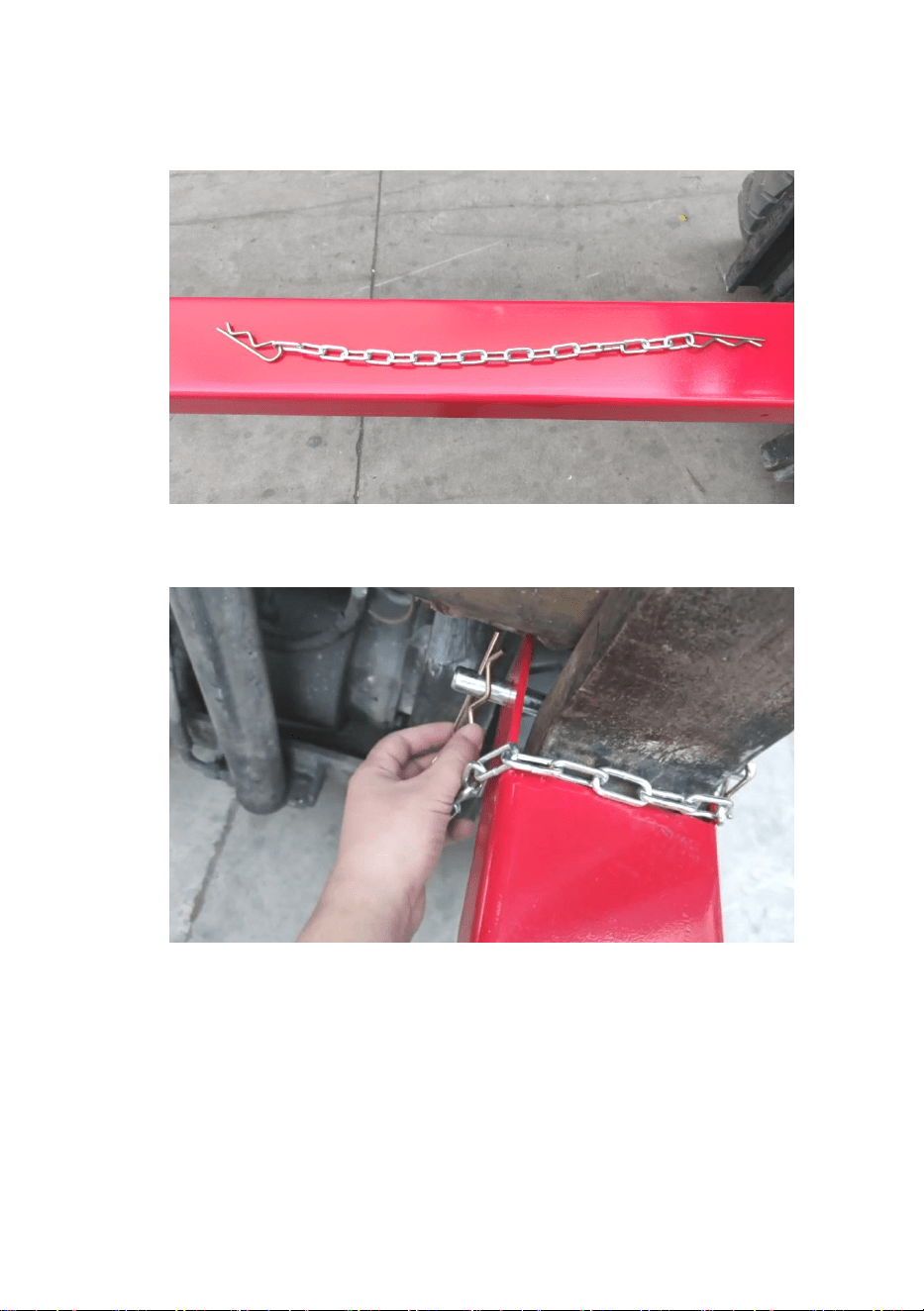

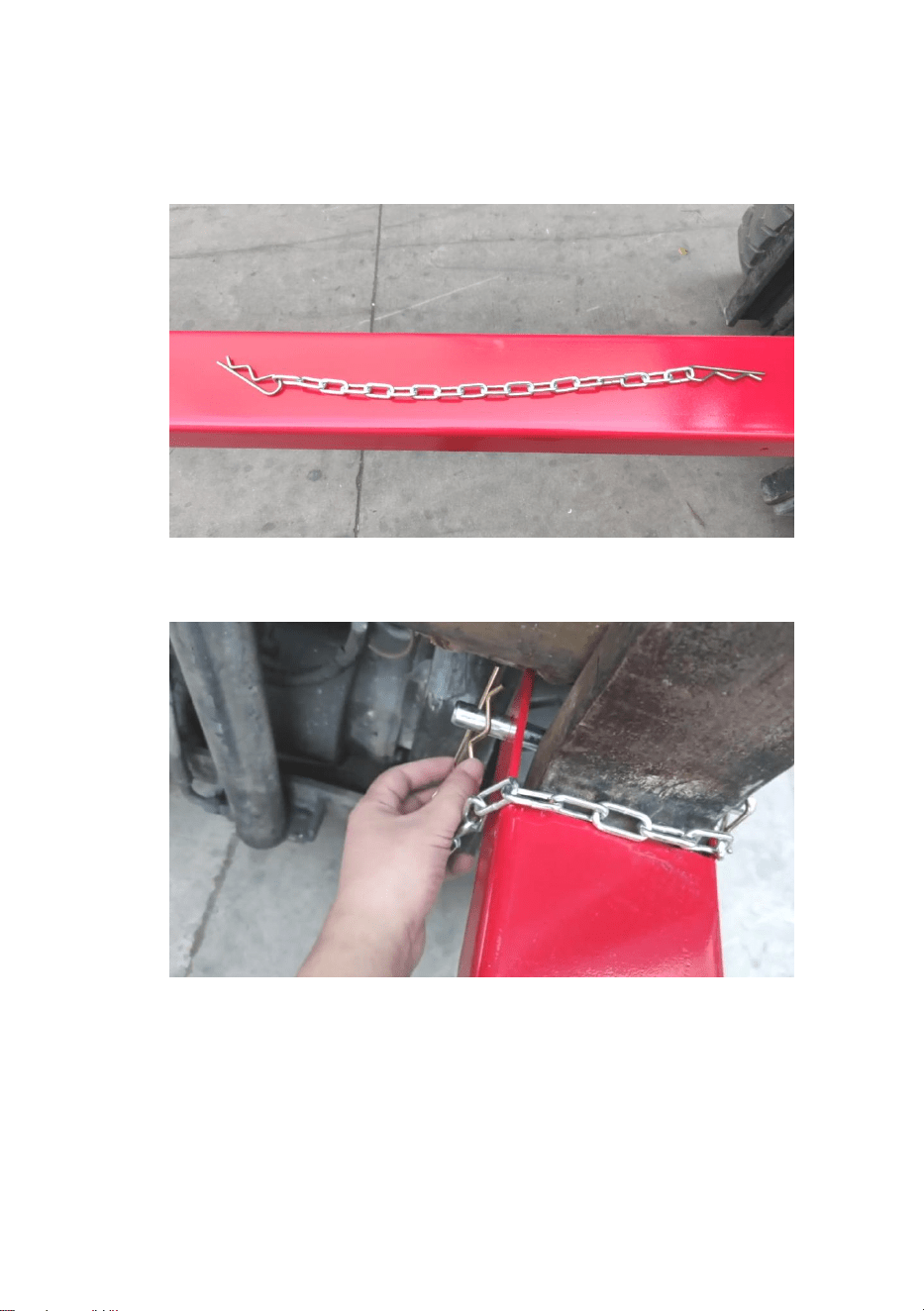

4. Then take out the iron chain with R-shaped pins at both ends and insert
the R-shaped pins into the round holes at both ends of the pin shaft.
(Figure 4, Figure 5)

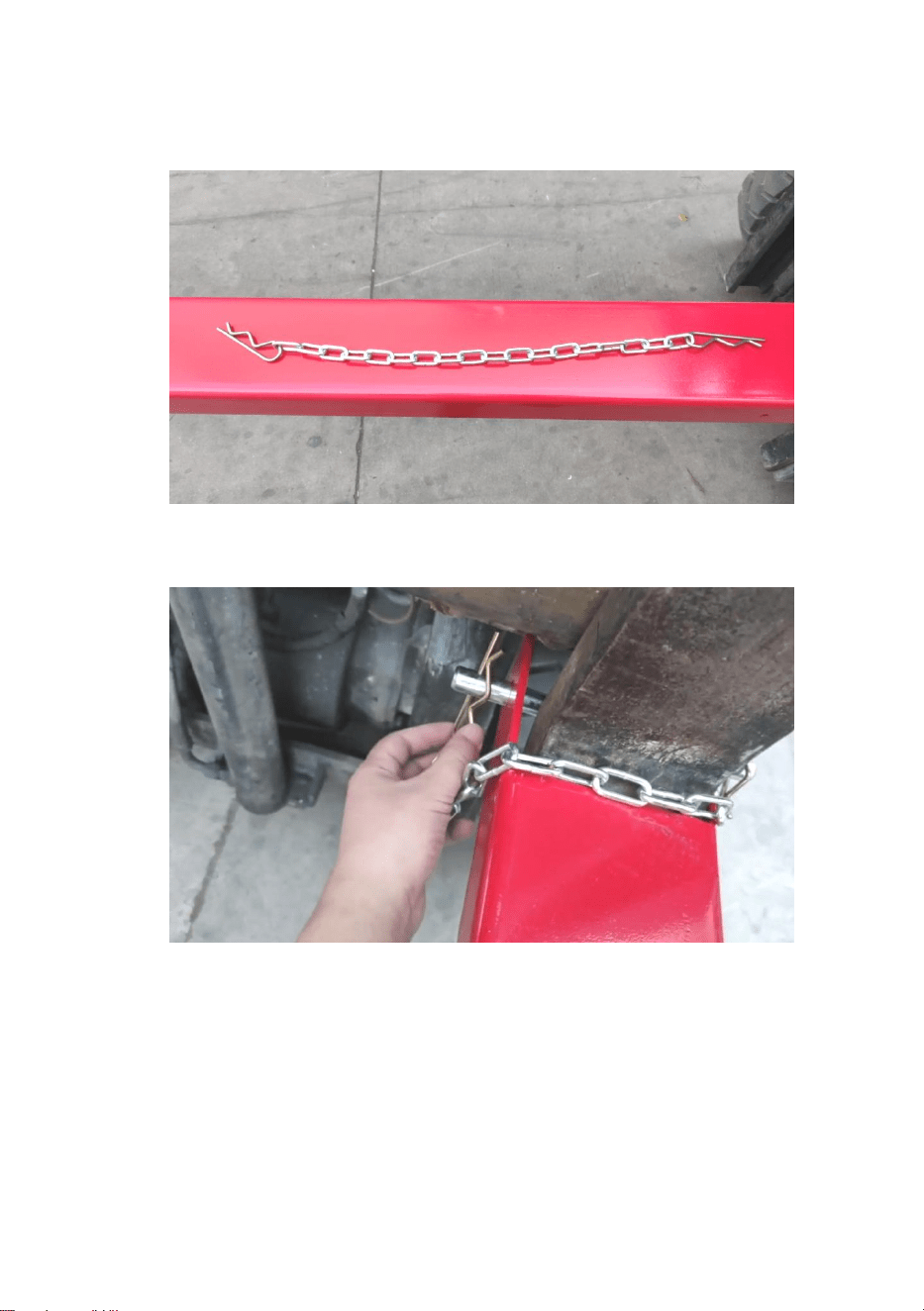

（Figure 4）
（Figure 5）
- 5 -

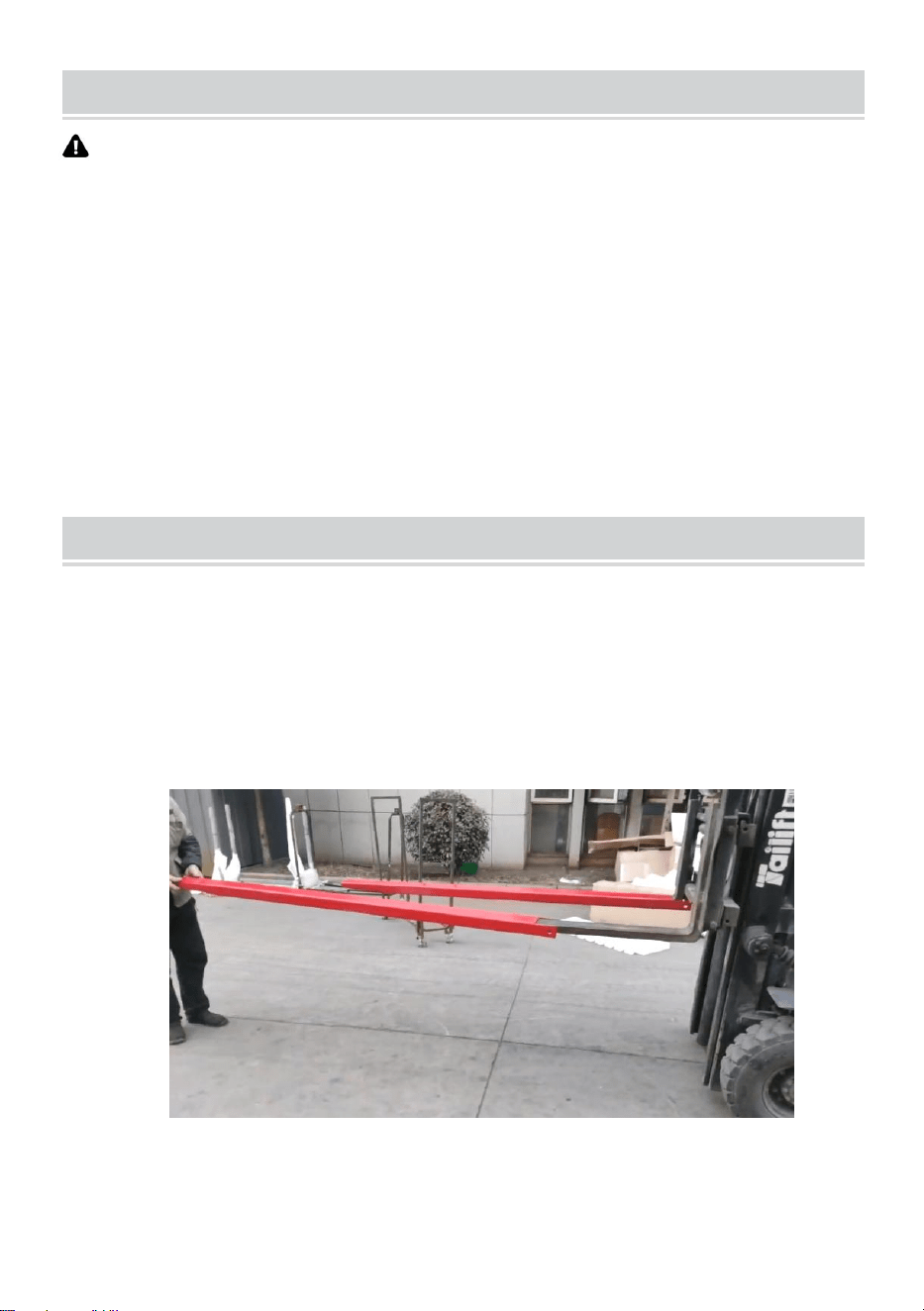

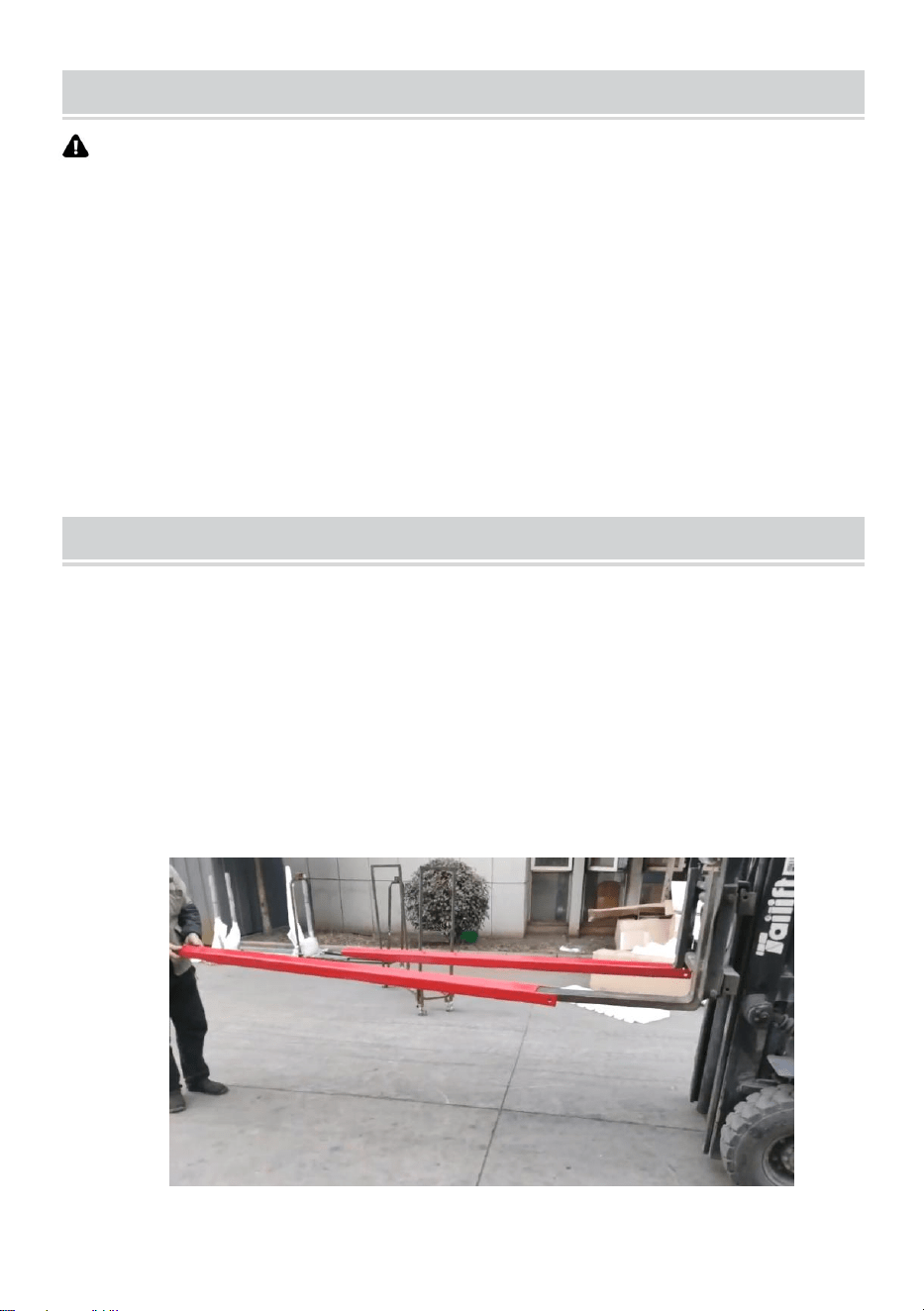

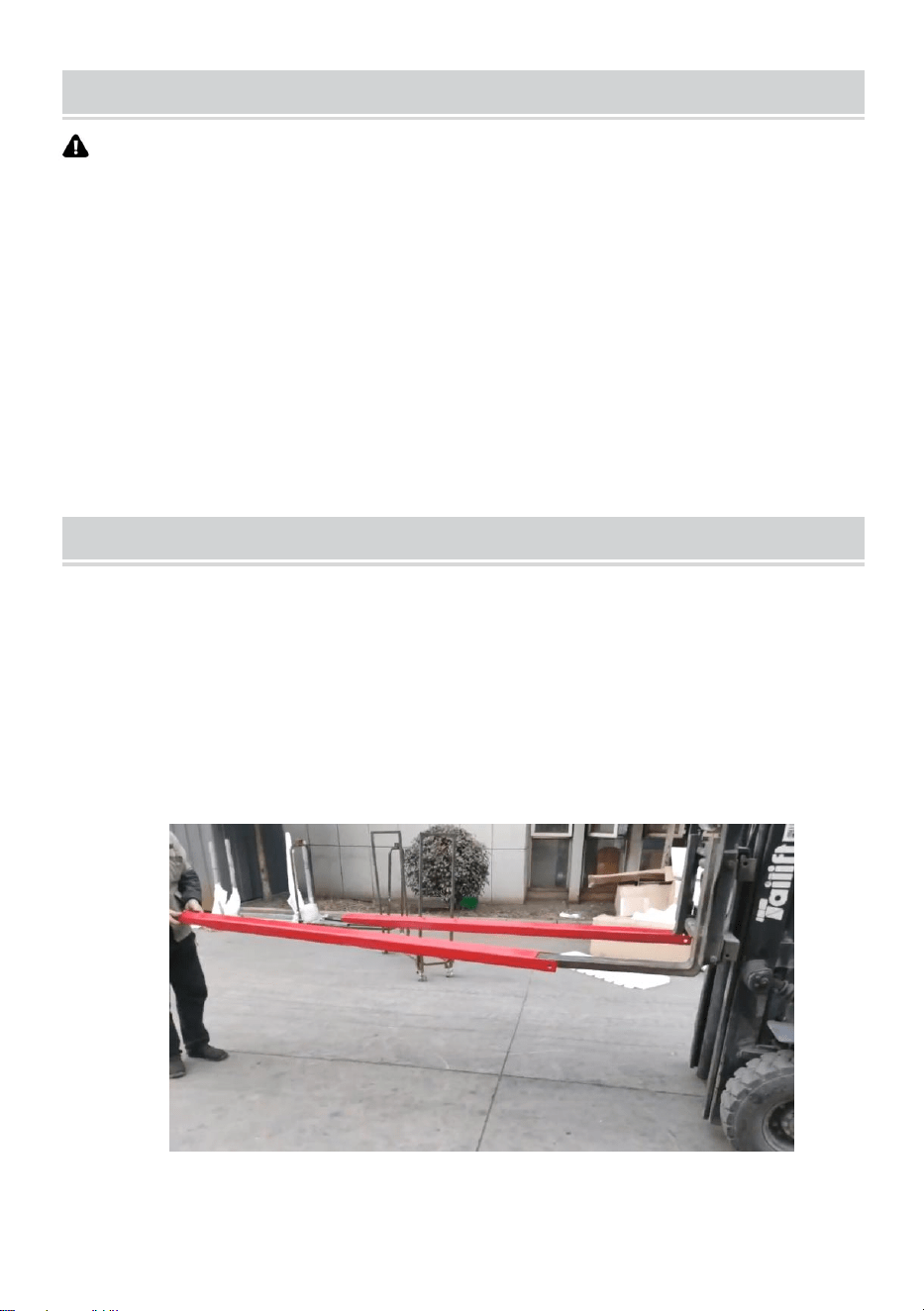

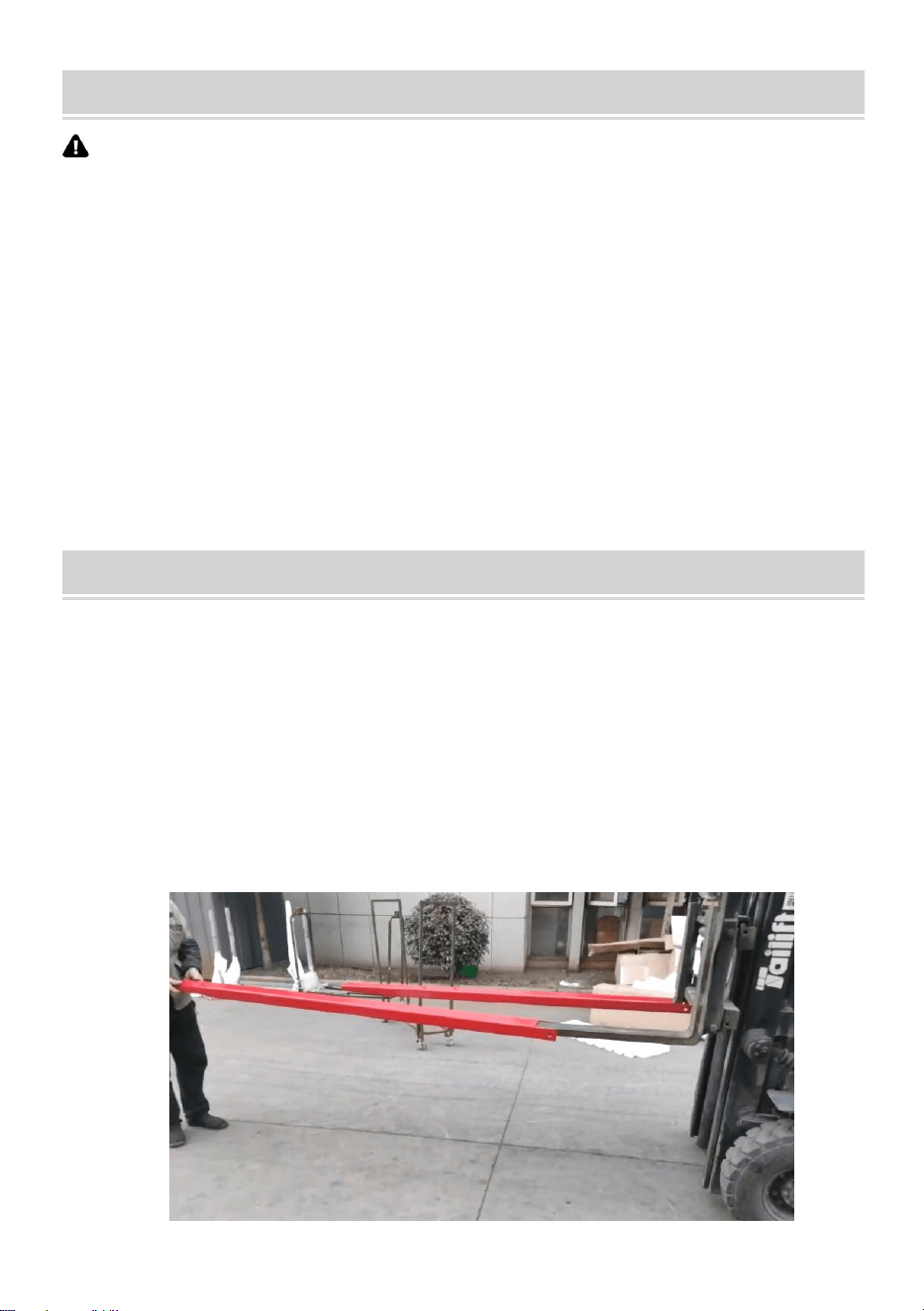

5. After the extension fork sleeve is installed, you can use the forklift to pick
up the goods normally. (Figure 6)

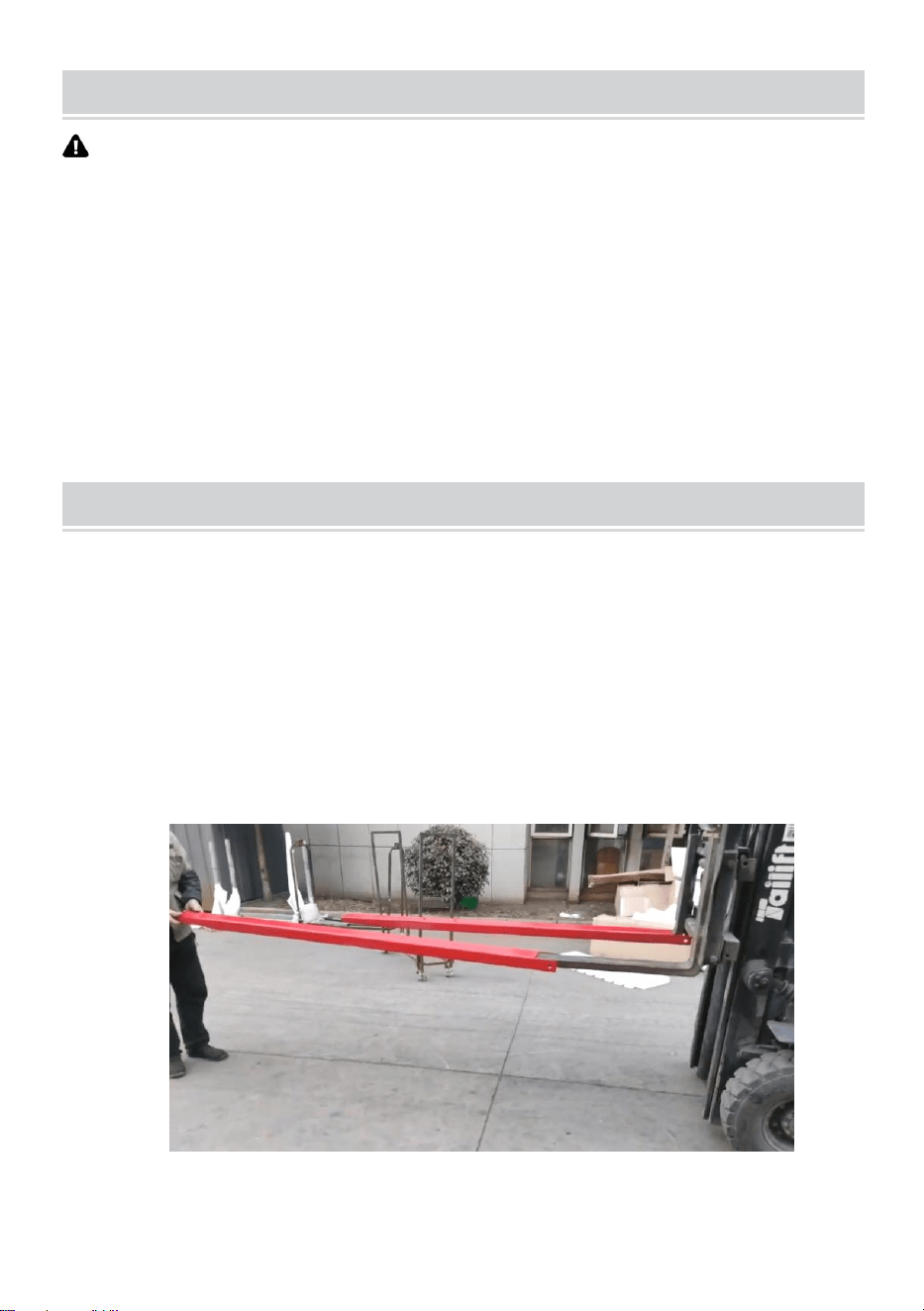

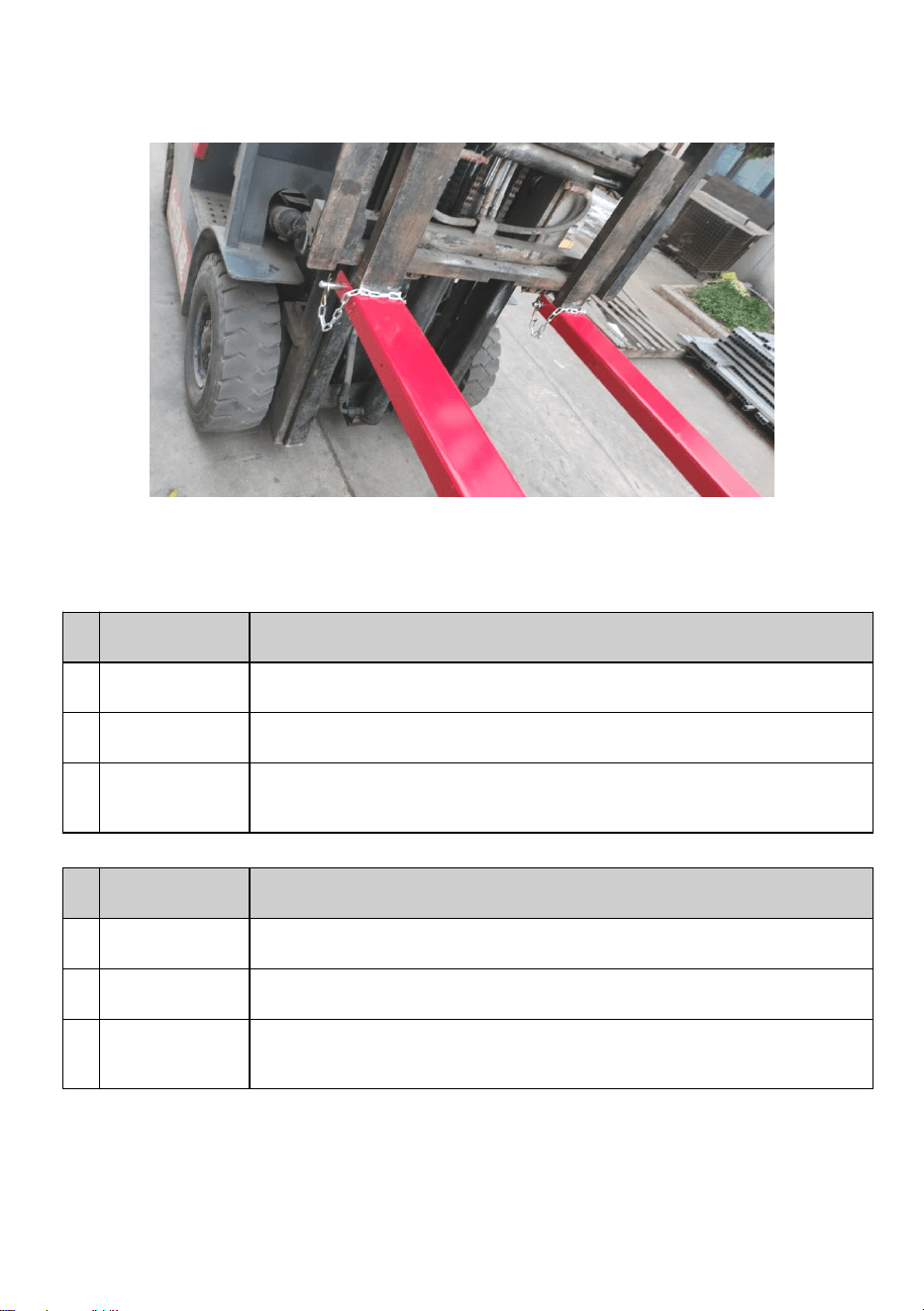

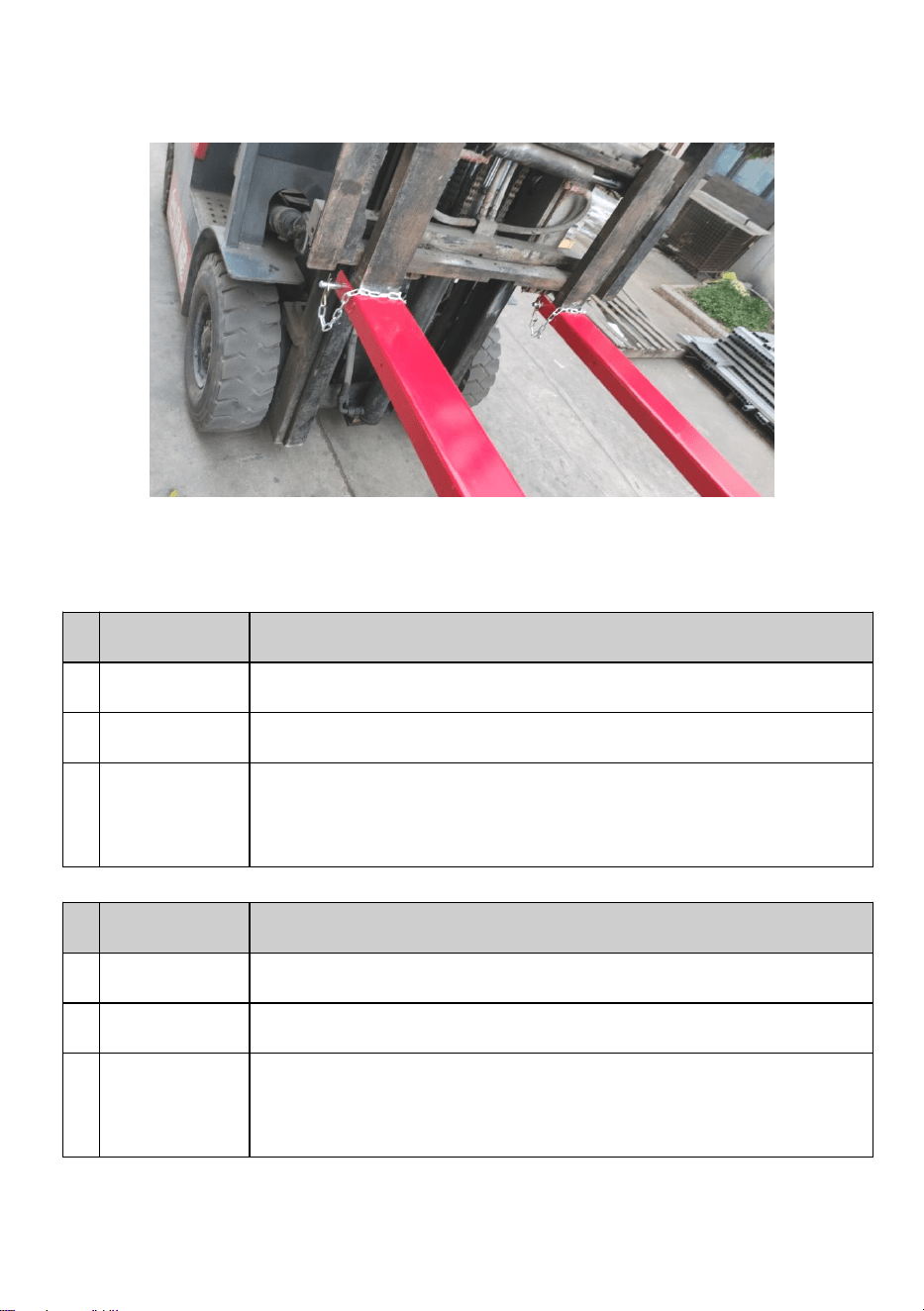

（Figure 6）
Items
Description
1
Name
Fork Extensions
2
Model
HX-9
3
Parameter
Length：1840mm，Inside width：115mm，Pin chain type
MAX load bearing：4000lbs(1.815t)/per pair
Items
Description
1
Name
Fork Extensions
2
Model
HX-10
3
Parameter
Length
：
2090mm
，
Inside width
：
115mm
，
Pin chain type
MAX load bearing
：
4000lbs(1.815t)/per pair
- 6 -
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Made In China
- 2 -
Assistance technique et certificat de garantie électronique
www.vevor.com/support
RALLONGES DE FOURCHE MANUEL DE
L'UTILISATEUR
MODÈLE: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODÈLE: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
AVERTISSEMENT:
Lisez ce document avant d'utiliser ce produit. Ne pas le faire peut entraîner
des blessures graves.
1. Ce produit n’est pas un jouet. Ne laissez pas les enfants jouer avec cet
article.
2. Utiliser uniquement comme prévu. Ne vous tenez pas debout sur le
produit.
3. Ce produit doit être utilisé avec un chariot élévateur.
4. Ne dépassez jamais la capacité de charge des rallonges de fourche.
5. Lors du ramassage d'une charge, le centre de charge ne doit jamais
dépasser 50 % de l'extension de la fourche.
OPERATION AS BELOW
1. Retirez le couvre-fourche étendu, placez-le à plat sur le sol et ajustez la
distance entre le chariot élévateur et la fourche en fonction de la largeur de
la marchandise.
2. Insérez une extrémité droite du trou de verrouillage de la sangle du
manchon de fourche d'extension dans l'extrémité de la fourche du chariot
élévateur et insérez-la horizontalement jusqu'à l'extrémité inférieure de la
fourche du chariot élévateur . (Figure 1, Figure 2).
- 3 -

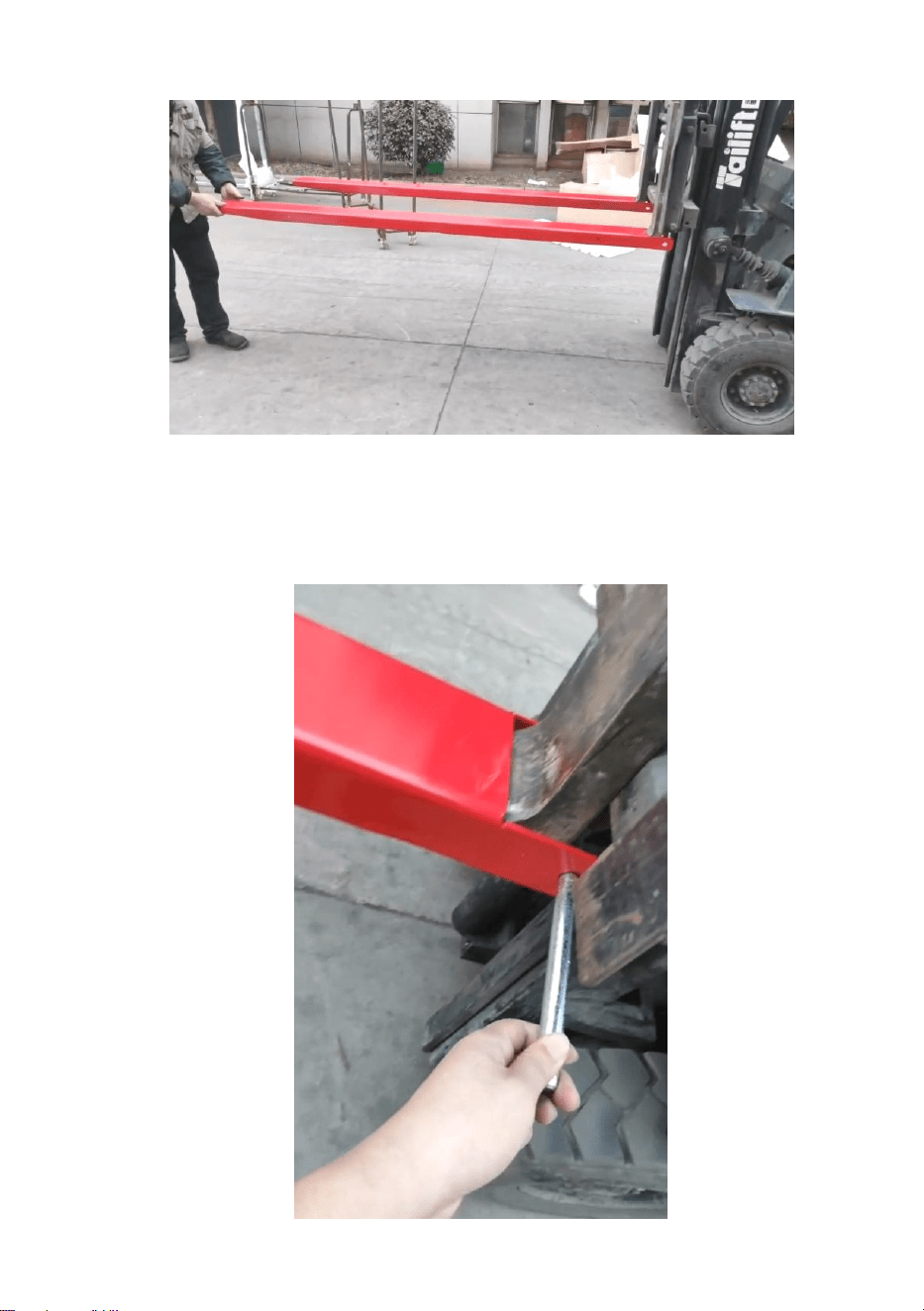

(Figure 1)

(Figure 2)
3. Insérez la goupille cylindrique dans le trou d'épingle du manchon de
fourche rallongé. (Figure 3)
- 4 -
(Figure 3)
4. Retirez ensuite la chaîne en fer avec les broches en forme de R aux
deux extrémités et insérez les broches en forme de R dans les trous ronds
aux deux extrémités de l'arbre de la broche. (Figure 4, Figure 5)
（Figure 4）
（Figure 5）
- 5 -
5. Une fois le manchon de fourche d'extension installé, vous pouvez utiliser
le chariot élévateur pour ramasser les marchandises normalement. (Figure
6)
（Figure 6）
Articles
Description
1
Nom
Rallonges de fourche
2
Modèle
HX-9
3
Paramètre
Longueur : 1840 mm, largeur intérieure : 115 mm, type de chaîne à
broches.
Charge maximale : 4 000 lb (1,815 t)/par paire
Articles
Description
1
Nom
Rallonges de fourche
2
Modèle
HX-10
3
Paramètre
Longueur : 2090 mm, largeur intérieure : 115 mm, type de chaîne à
broches.
Charge maximale : 4 000 lb (1,815 t)/par paire
- 6 -
Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETASTWOOD
NSW 2122 Australie
Importé aux États-Unis : Sanven Technology Ltd, Suite 250, 9166
Anaheim Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Fabriqué en Chine
- 2 -
Zertifikat für technischen Support und E-Garantie
www.vevor.com/support
GABELVERLÄNGERUNGEN
BENUTZERHANDBUCH
MODELL: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELL: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
WARNUNG:
Lesen Sie dieses Material, bevor Sie dieses Produkt verwenden.
Andernfalls kann es zu schweren Verletzungen kommen.
1. Dieses Produkt ist kein Spielzeug. Erlauben Sie Kindern nicht, mit
diesem Artikel zu spielen.
2. Nur bestimmungsgemäß verwenden. Stellen Sie sich nicht auf das
Produkt.
3. Dieses Produkt muss mit einem Gabelstapler verwendet werden.
4. Überschreiten Sie niemals die Tragfähigkeit der Gabelverlängerungen.
5. Beim Aufnehmen einer Last sollte der Lastschwerpunkt nie mehr als
50 % des Gabelauszugs betragen.
OPERATION AS BELOW
1. Nehmen Sie die verlängerte Gabelabdeckung heraus, legen Sie sie
flach auf den Boden und passen Sie den Abstand zwischen Gabelstapler
und Gabel entsprechend der Breite der Ware an.
2. Führen Sie ein gerades Ende des Verriegelungslochs der
Verlängerungsgabelhülse in die Gabelspitze der Gabelstaplergabel ein
und führen Sie es horizontal bis zum unteren Ende der Gabelstaplergabel
ein . (Abbildung 1, Abbildung 2)
- 3 -
(Abbildung 1)
(Figur 2)
3. Stecken Sie den Zylinderstift in das Stiftloch der verlängerten
Gabelhülse. (Figur 3)
- 4 -
(Figur 3)
4. Nehmen Sie dann die Eisenkette mit R-förmigen Stiften an beiden
Enden heraus und stecken Sie die R-förmigen Stifte in die runden Löcher
an beiden Enden des Stiftschafts. (Abbildung 4, Abbildung 5)
(Figur 4)
(Abbildung 5)
- 5 -
5. Nachdem die Verlängerungsgabelhülse montiert ist, können Sie die
Ware normal mit dem Gabelstapler aufnehmen. (Abbildung 6)
(Abbildung 6)
Artikel
Beschreibung
1
Name
Gabelverlängerungen
2
Modell
HX-9
3
Parameter
Länge: 1840 mm, Innenbreite: 115 mm, Stiftkettentyp
Maximale Tragfähigkeit: 1,815 t pro Paar
Artikel
Beschreibung
1
Name
Gabelverlängerungen
2
Modell
HX-10
3
Parameter
Länge: 2090 mm, Innenbreite: 115 mm, Stiftkettentyp
Maximale Tragfähigkeit: 1,815 t pro Paar
- 6 -
Adresse: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Importiert nach AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australien
In die USA importiert: Sanven Technology Ltd, Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
In China hergestellt
- 2 -
Supporto tecnico e certificato di garanzia elettronica
www.vevor.com/support
ESTENSIONI DELLA FORCELLA MANUALE
D'USO
MODELLO: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELLO: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
AVVERTIMENTO:
Leggere questo materiale prima di utilizzare questo prodotto. In caso
contrario si potrebbero causare lesioni gravi.
1. Questo prodotto non è un giocattolo. Non permettere ai bambini di
giocare con questo oggetto.
2. Utilizzare solo come previsto. Non salire sul prodotto.
3. Questo prodotto deve essere utilizzato con un carrello elevatore.
4. Non superare mai la capacità di carico delle estensioni delle forche.
5. Durante la presa di un carico, il baricentro non deve mai superare il 50%
dell'estensione delle forche.
OPERATION AS BELOW
1.Estrarre il copriforca esteso, posizionarlo a terra e regolare la distanza
tra il carrello elevatore e la forca in base alla larghezza della merce.
2. Inserire un'estremità diritta del foro di chiusura della cinghia del
manicotto della forca di estensione nella punta della forca del carrello
elevatore e inserirla orizzontalmente fino all'estremità inferiore della forca
del carrello elevatore . (Figura 1, Figura 2)
(Figura 1)
- 3 -
(Figura 2)
3. Inserire il perno cilindrico nel foro stenopeico del fodero esteso della
forcella. (Figura 3)
（Figura 3）
- 4 -
4. Quindi estrarre la catena di ferro con i perni a forma di R su entrambe le
estremità e inserire i perni a forma di R nei fori rotondi su entrambe le
estremità dell'albero del perno. (Figura 4, Figura 5)
（Figura 4）
（Figura 5）
- 5 -
5. Dopo aver installato il manicotto della forca di estensione, è possibile
utilizzare il carrello elevatore per prelevare normalmente la merce. (Figura
6)
（Figura 6）
Elementi
Descrizione
1
Nome
Estensioni della forcella
2
Modello
HX-9
3
Parametro
Lunghezza: 1840 mm, Larghezza interna: 115 mm, Tipo di catena a
perni
Portata MAX: 4000 libbre (1.815 t)/per coppia
Elementi
Descrizione
1
Nome
Estensioni della forcella
2
Modello
HX-10
3
Parametro
Lunghezza: 2090 mm, Larghezza interna: 115 mm, Tipo di catena a
perni
Portata MAX: 4000 libbre (1.815 t)/per coppia
- 6 -
Indirizzo: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Importato negli Stati Uniti: Sanven Technology Ltd, Suite 250, 9166
Anaheim Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Made in China
- 2 -
Soporte técnico y certificado de garantía electrónica
www.vevor.com/support
EXTENSIONES DE HORQUILLA MANUAL DE
USUARIO
MODELO: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELO: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
ADVERTENCIA:
Lea este material antes de usar este producto. De lo contrario, se pueden
producir lesiones graves.
1. Este producto no es un juguete. No permita que los niños jueguen con
este artículo.
2. Úselo únicamente según lo previsto. No se pare sobre el producto.
3. Este producto debe utilizarse con una carretilla elevadora.
4. Nunca exceda la capacidad de carga de los extensores de horquilla.
5. Al levantar una carga, el centro de carga nunca debe exceder el 50% de
la extensión de la horquilla.
OPERATION AS BELOW
1. Retire la cubierta de la horquilla extendida, colóquela plana sobre el
suelo y ajuste la distancia entre la carretilla elevadora y la horquilla de
acuerdo con el ancho de la mercancía.
2. Inserte un extremo recto del orificio del pestillo de la correa de la manga
de la horquilla de extensión en la punta de la horquilla del montacargas e
insértelo horizontalmente hasta el extremo inferior de la horquilla del
montacargas . (Figura 1, Figura 2)
(Figura 1)
- 3 -
(Figura 2)
3. Inserte el pasador cilíndrico en el orificio del casquillo de horquilla
extendido. (Figura 3)
(Figura 3)
- 4 -
4. Luego saque la cadena de hierro con pasadores en forma de R en
ambos extremos e inserte los pasadores en forma de R en los orificios
redondos en ambos extremos del eje del pasador. (Figura 4, Figura 5)
(Figura 4)
(Figura 5)
- 5 -
5. Después de instalar la funda de la horquilla de extensión, puede utilizar
la carretilla elevadora para recoger la mercancía normalmente. (Figura 6)
(Figura 6)
Elementos
Descripción
1
Nombre
Extensiones de horquilla
2
Modelo
HX-9
3
Parámetro
Longitud: 1840 mm, ancho interior: 115 mm, tipo de cadena con
pasador
Carga máxima: 4000 libras (1.815 t)/por par.
Elementos
Descripción
1
Nombre
Extensiones de horquilla
2
Modelo
HX-10
3
Parámetro
Longitud: 2090 mm, ancho interior: 115 mm, tipo de cadena con
pasador
Carga máxima: 4000 libras (1.815 t)/por par.
- 6 -
Dirección: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Importado a EE. UU.: Sanven Technology Ltd, Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Hecho en china
- 2 -
Wsparcie techniczne i certyfikat e-gwarancji
www.vevor.com/support
PRZEDŁUŻENIA WIDEŁ INSTRUKCJA
OBSŁUGI
MODEL: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
OSTRZEŻENIE:
Przeczytaj ten materiał przed użyciem tego produktu. Niezastosowanie się
do tego może spowodować poważne obrażenia.
1. Ten produkt nie jest zabawką. Nie pozwalaj dzieciom bawić się tym
przedmiotem.
2. Używaj wyłącznie zgodnie z przeznaczeniem. Nie stawaj na produkcie.
3. Ten produkt musi być używany z wózkiem widłowym.
4. Nigdy nie przekraczaj nośności przedłużek wideł.
5. Podczas podnoszenia ładunku środek ciężkości ładunku nie powinien
nigdy przekraczać 50% wysunięcia wideł.
OPERATION AS BELOW
1. Wyjmij wysuniętą osłonę wideł, połóż ją płasko na podłożu i wyreguluj
odległość wózka widłowego od wideł w zależności od szerokości towaru.
2. Włóż prosty koniec otworu zatrzaskowego paska tulei wideł
przedłużających w końcówkę wideł wideł wózka widłowego i włóż go
poziomo aż do dolnego końca wideł wózka widłowego. ( Rysunek 1,
Rysunek 2)
（Rysunek 1）
- 3 -
(Rysunek 2)
3. Włóż cylindryczny sworzeń w otwór wydłużonej tulei widelca. (Rysunek
3)
（Rysunek 3）
- 4 -
4. Następnie wyjmij żelazny łańcuch z kołkami w kształcie litery R na obu
końcach i włóż kołki w kształcie litery R do okrągłych otworów na obu
końcach wałka sworznia. (Rysunek 4, Rysunek 5)
（Rysunek 4）
（Rysunek 5）
- 5 -
5. Po zamontowaniu tulei wideł przedłużających można normalnie
podnosić towar za pomocą wózka widłowego. (Rysunek 6)
（Rysunek 6）
Rzeczy
Opis
1
Nazwa
Przedłużenia wideł
2
Model
HX-9
3
Parametr
Długość: 1840 mm, szerokość wewnętrzna: 115 mm, typ łańcuszka
kołkowego
Maksymalne obciążenie: 4000 funtów (1,815 t) / na parę
Rzeczy
Opis
1
Nazwa
Przedłużenia wideł
2
Model
HX-10
3
Parametr
Długość: 2090 mm, szerokość wewnętrzna: 115 mm, typ łańcuszka
kołkowego
Maksymalne obciążenie: 4000 funtów (1,815 t) / na parę
- 6 -
Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Szanghaj
Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW
2122 Australia
Import do USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Wyprodukowano w Chinach
- 2 -
Technische ondersteuning en e-garantiecertificaat
www.vevor.com/support
VORKVERLENGINGEN HANDLEIDING
MODEL: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
WAARSCHUWING:
Lees dit materiaal voordat u dit product gebruikt. Als u dit niet doet, kan dit
leiden tot ernstig letsel.
1. Dit product is geen speelgoed. Laat kinderen niet met dit artikel spelen.
2. Alleen gebruiken zoals bedoeld. Ga niet op het product staan.
3. Dit product moet worden gebruikt met een vorkheftruck.
4. Overschrijd nooit het draagvermogen van de vorkverlengers.
5. Bij het oppakken van een last mag het lastzwaartepunt nooit groter zijn
dan 50% van de vorkverlenging.
OPERATION AS BELOW
1. Haal de verlengde vorkafdekking eruit, plaats deze plat op de grond en
pas de afstand tussen de vorkheftruck en de vork aan op basis van de
breedte van de goederen.
2. Steek een recht uiteinde van het vergrendelingsgat van de
verlengingsvorkhuls in de vorkpunt van de vorkheftruckvork en steek het
horizontaal in tot aan het onderste uiteinde van de vorkheftruckvork .
(Figuur 1, Figuur 2)
(Figuur 1)
- 3 -
(Figuur 2)
3. Steek de cilindrische pen in het gaatje van de verlengde vorkhuls.
(Figuur 3)
(Figuur 3)
- 4 -
4. Haal vervolgens de ijzeren ketting met R-vormige pinnen aan beide
uiteinden eruit en steek de R-vormige pinnen in de ronde gaten aan beide
uiteinden van de pin-as. (Figuur 4, Figuur 5)
(Figuur 4)
(Figuur 5)
- 5 -
5. Nadat de verlengde vorkhuls is geïnstalleerd, kunt u de vorkheftruck
gebruiken om de goederen normaal op te halen. (Figuur 6)
(Figuur 6)
Artikelen
Beschrijving
1
Naam
Vorkverlengingen
2
Model
HX-9
3
Parameter
Lengte: 1840 mm, binnenbreedte: 115 mm, type pinketting
MAX draagvermogen: 1,815 ton (4000 lbs)/per paar
Artikelen
Beschrijving
1
Naam
Vorkverlengingen
2
Model
HX-10
3
Parameter
Lengte: 2090 mm, binnenbreedte: 115 mm, type pinketting
MAX draagvermogen: 1,815 ton (4000 lbs)/per paar
- 6 -
Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Geïmporteerd naar AUS: SIHAO PTY LTD, 1 ROKEVA
STREETEASTWOOD NSW 2122 Australië
Geïmporteerd naar de VS: Sanven Technology Ltd, Suite 250, 9166
Anaheim Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Gemaakt in China
- 2 -
Teknisk support och e-garanticertifikat
www.vevor.com/support
GAFFELFÖRLÄNGNINGAR
ANVÄNDARMANUAL
MODELL: HX-9/HX-10
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODELL: HX-9/HX-10
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FORK EXTENSIONS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
VARNING:
Läs detta material innan du använder denna produkt. Underlåtenhet att
göra det kan resultera i allvarliga skador.
1. Denna produkt är inte en leksak. Tillåt inte barn att leka med detta
föremål.
2. Använd endast på avsett sätt. Stå inte på produkten.
3. Denna produkt måste användas med en gaffeltruck.
4. Överskrid aldrig gaffelförlängarnas lastkapacitet.
5. Vid upptagning av en last får lastcentrum aldrig överstiga 50 % av
gaffelförlängningen.
OPERATION AS BELOW
1.Ta ut det förlängda gaffelskyddet, placera det plant på marken och
justera avståndet mellan gaffeltrucken och gaffeln efter godsets bredd.
2. Sätt in en rak ände av spärrhålet för förlängningsgaffelhylsan i
gaffelspetsen på gaffelgaffeln och för in den horisontellt tills gaffelgaffelns
nedre ände.( Figur 1, Figur 2)
(Figur 1)
- 3 -
(Figur 2)
3. Sätt in det cylindriska stiftet i hålet på den förlängda gaffelhylsan. (Figur
3)
(Figur 3)
- 4 -
4. Ta sedan ut järnkedjan med R-formade stift i båda ändarna och för in de
R-formade stiften i de runda hålen i stiftaxelns båda ändar. (Figur 4, Figur
5)
(Figur 4)
(Figur 5)
- 5 -
5. Efter att förlängningsgaffelhylsan är installerad kan du använda
gaffeltrucken för att plocka upp varorna normalt. (Figur 6)
（Figur 6）
Föremål
Beskrivning
1
namn
Gaffelförlängningar
2
Modell
HX-9
3
Parameter
Längd: 1840 mm, inre bredd: 115 mm, typ av stiftkedja
MAX belastningslager: 4000 lbs (1,815 t)/per par
Föremål
Beskrivning
1
namn
Gaffelförlängningar
2
Modell
HX-10
3
Parameter
Längd: 2090 mm, inre bredd: 115 mm, typ av stiftkedja
MAX belastningslager: 4000 lbs (1,815 t)/per par
