Pioneer DMH-WT5000NEX 9-inch Floating Multimedia Receiver User Manual

English

DMH-WT6000NEX

DMH-WT5000NEX

RDS AV RECEIVER

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be

sure to record this number on the Limited Warranty sheet. Please visit usa.pioneer/warranty to

download the warranty sheet, or you can receive a copy by calling 1-800-421-1404 or writing to

Customer Support, Pioneer Electronics (USA) Inc., P.O. Box 1720, Long Beach, California 90801 USA.

https://usa.pioneer/warranty

Operation Manual

- 2 -

English

Important

■Precaution................................................................................... 4

■About this manual ...................................................................... 6

■Important safety information.................................................... 7

■To avoid battery exhaustion...................................................... 9

■Protecting the LCD panel and screen...................................... 10

■Parts and controls..................................................................... 11

■Starting up the unit .................................................................. 17

■Using the “PxLink” App for the AV main unit ......................... 18

■Bluetooth® connection............................................................. 20

■Wi-Fi® connection..................................................................... 23

■Customizing the home menu screen....................................... 24

■Source/application ................................................................... 26

■Apple CarPlay............................................................................ 29

■Android Auto™ .......................................................................... 34

■WebLink®................................................................................... 39

■Hands-free phoning................................................................. 41

■Bluetooth audio........................................................................ 46

■HDRadio™ Technology............................................................. 48

■SiriusXM® Satellite Radio ......................................................... 52

Contents

Thank you for buying this Pioneer product.

Please read through these instructions so you will know how to operate your model

properly. After you have finished reading the instructions, keep this document in a safe

place for future reference.

The screen shown in the examples may differ from actual screens, which may be

changed without notice for performance and function improvements.

English

- 3 -

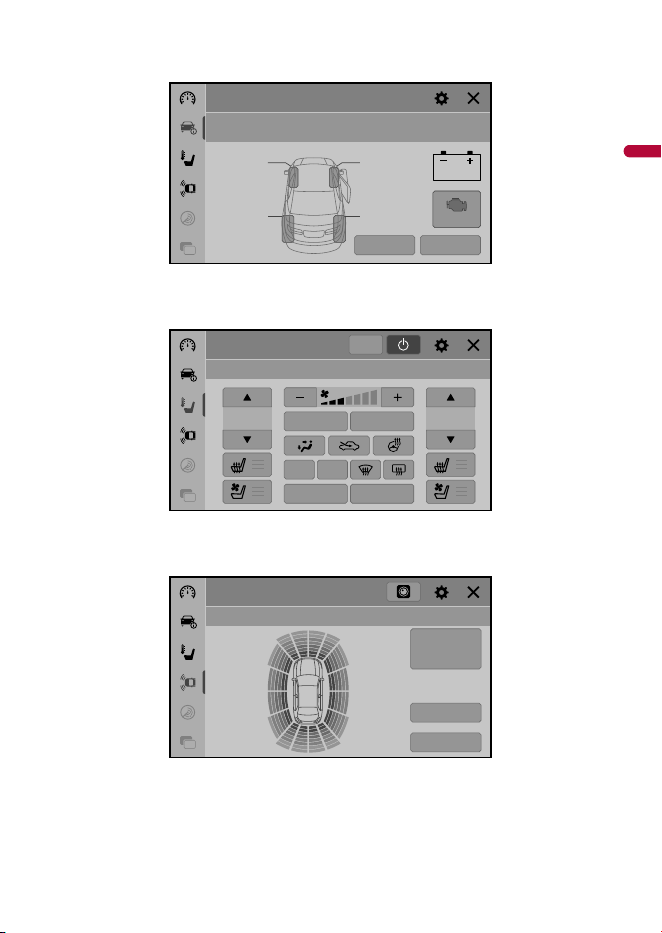

■iDatalink®.................................................................................. 58

■Metra Axxess............................................................................. 63

■Playing data in a USB................................................................ 66

■Using external devices (AUX)................................................... 72

■Displaying video images from the back camera/2nd

camera....................................................................................... 74

■Updating the firmware wirelessly........................................... 76

■Settings...................................................................................... 78

Displaying the setting screen..................................................................................................................... 78

Favorite menu................................................................................................................................................... 78

System settings................................................................................................................................................ 79

Theme settings................................................................................................................................................. 89

Audio settings .................................................................................................................................................. 90

Communication settings.............................................................................................................................. 95

■Other functions......................................................................... 98

■Compatible iPhone models.................................................... 101

■Handling the USB connector.................................................. 102

■Detailed information for playable media............................. 103

■Specifications.......................................................................... 107

■Trademark · Copyright, etc..................................................... 114

■Troubleshooting ..................................................................... 116

■Error messages........................................................................ 119

■Appendix................................................................................. 123

- 4 -

English

WARNING

•LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS

AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE

SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW

AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

•To avoid the risk of damage and injury and the potential violation of applicable laws,

this product is not for use with a video image that is visible to the driver.

•In some countries the viewing of video image on a display inside a vehicle even by persons

other than the driver may be illegal. Where such regulations apply, they must be obeyed.

If you attempt to watch video image while driving, the warning “Viewing of front seat

video source while driving is strictly prohibited.” will appear on the screen. To watch

video image on this display, stop the vehicle in a safe place and apply the parking brake.

Please keep the brake pedal pushed down before releasing the parking brake.

With an optional rear view camera, you are able to use this product as an aid to keep an

eye on trailers, or backing into a tight parking spot.

WARNING

•SCREEN IMAGE MAY APPEAR REVERSED.

•USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY

RESULT IN INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep an eye on the trailers, or while

backing up. Do not use this function for entertainment purposes.

Precaution

To ensure safe driving

Camera function

English

- 5 -

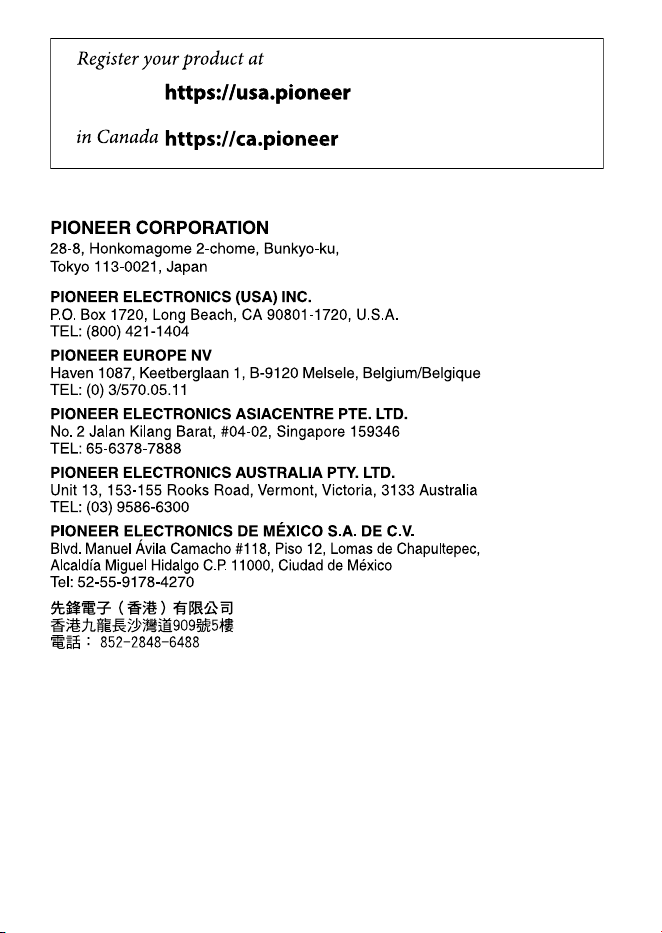

After-sales service for Pioneer products

•When taking this product to the dealer or authorized Pioneer Service Station, make

sure to bring both the unit and LCD display.

Visit us at the following site:

https://usa.pioneer

https://ca.pioneer

1Register your product.

2Receive updates on the latest products and technologies.

3Download owner’s manuals, order product catalogs, research new products, and

much more.

4Receive notices of software upgrades and software updates.

•The information will be erased by disconnecting the yellow lead from the battery (or

removing the battery itself).

•Some of the settings and recorded contents will not be reset.

Failure to operate

Please contact the dealer or distributor from which you purchased the product for after-sales service

(including warranty conditions) or any other information. In case the necessary information is not

available, please contact the companies listed below.

Please do not ship your product to the companies at the addresses listed below for repair without

making advance contact.

–USA&CANADA

Pioneer Electronics (USA) Inc.

CUSTOMER SUPPORT DIVISION

P.O. Box 1720 Long Beach, CA 90801-1720, U.S.A

800-421-1404

For warranty information, please see the Limited Warranty sheet.

For the Limited Warranty sheet, please see Important (Serial number) on the cover of this manual.

Visit our website

Notes on internal memory

- 6 -

English

•This manual uses diagrams of actual screens to describe operations. However, the

screens on some units may not match those shown in this manual depending on the

model used.

About this manual

Meanings of symbols used in this manual

This indicates to touch the appropriate soft key on the touch screen.

This indicates to touch and hold the appropriate soft key on the touch screen.

This indicates to swipe in the direction of the arrow on the touch screen.

This indicates to drag in the direction of the arrow on the touch screen.

English

- 7 -

WARNING

•Do not attempt to install or service this product by yourself. Installation or servicing of this

product by persons without training and experience in electronic equipment and automotive

accessories may be dangerous and could expose you to the risk of electric shock, injury or

other hazards.

•Do not allow this product to come into contact with liquids. Electrical shock could result. Also,

damage to the product, smoke, and overheating could result from contact with liquids.

•If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn

the ignition switch off (ACC OFF) immediately and consult your dealer or the nearest

authorized Pioneer Service Station. Do not use this product in this condition because doing

so may result in a fire, electric shock, or other failure.

•If you notice smoke, a strange noise or odor from this product, or any other abnormal signs on

the LCD screen, turn off the power immediately and consult your dealer or the nearest

authorized Pioneer Service Station. Using this product in this condition may result in

permanent damage to the system.

•Do not disassemble or modify this product, as there are high-voltage components inside

which may cause an electric shock. Be sure to consult your dealer or the nearest authorized

Pioneer Service Station for internal inspection, adjustments or repairs.

Before using this product, be sure to read and fully understand the following

safety information:

•Do not operate this product, any applications, or the rear view camera option (if

purchased) if doing so will divert your attention in any way from the safe operation of

your vehicle. Always observe safe driving rules and follow all existing traffic

regulations. If you experience difficulty in operating this product, pull over, park your

vehicle in a safe location and apply the parking brake before making the necessary

adjustments.

•Never set the volume of this product so high that you cannot hear outside traffic and

emergency vehicles.

•To promote safety, certain functions are disabled unless the vehicle is stopped and the

parking brake is applied.

•Keep this manual handy as a reference for operating procedures and safety

information.

•Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the

performance of any of the vehicle’s operating systems or safety features, including air

bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the

vehicle.

Important safety

information

- 8 -

English

•Please remember to fasten your seat belt at all times while operating your vehicle. If

you are ever in an accident, your injuries can be considerably more severe if your seat

belt is not properly buckled.

•Never use headphones while driving.

•Rear visibility systems (backup cameras) are required in certain new vehicles sold in

the U.S. and Canada. U.S. regulations began according to a two year phase-in on May

1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on

or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with

compliant rear visibility systems should not install or use this product in a way

that alters or disables that system's compliance with applicable regulations. If

you are unsure whether your vehicle has a rear visibility system subject to the U.S. or

Canadian regulations, please contact the vehicle manufacturer or dealer.

If your vehicle has a compliant backup camera that displays the backup view through

the factory receiver, do not use the Pioneer receiver unless it is connected to and

displays the same view as the factory backup camera. Connection to the factory

backup camera will require an adaptor, sold separately. Not all vehicles may be able to

connect. Please check with a qualified professional installer for installation options

specific to your vehicle.

English

- 9 -

Be sure to run the vehicle engine while using this product. Using this product without

running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an ACC wire or circuitry available.

To avoid battery exhaustion

- 10 -

English

•Do not expose the LCD screen to direct sunlight when this product is not used. This

may result in LCD screen malfunction due to the resulting high temperatures.

•If you use your mobile phone close to the LCD screen and the image gets distorted in

the form of spots, colored stripes, etc., move your cellular phone away from the screen.

•To protect the LCD screen from damage, be sure to touch the touch panel keys only

with your finger and do so gently.

•A shatterproof film is attached to the unit's display. This film cannot be taken off or

replaced with an alternative film. There may be glue on the edge of the film. However,

this does not affect the usability of this unit.

Protecting the LCD panel

and screen

English

- 11 -

Parts and controls

Main unit

DMH-WT6000NEX:DMH-WT5000NEX:

•Touch when the main unit and the iPhone/smartphone are not connected

via Bluetooth to display the Bluetooth connection screen.

•When the main unit and the iPhone/smartphone are connected via

Bluetooth, the screen that is displayed varies depending on the

configuration of [Companion App Key settings].

– When [PxLink] is set: Touch when PxLink app is linked with the main unit to

display the PxLink app of the iPhone/smartphone at the front. Touch when

PxLink app is not linked with the main unit to display a screen with

information on downloading the PxLink app.

– When [Phone] is set: Displays the phone screen of the running

Apple CarPlay or Android Auto. Touch when Apple CarPlay or Android Auto

is not running to display the call history screen of the device connected via

Bluetooth.

NOTE

If the main unit and the iPhone/smartphone are not connected via

Bluetooth, and are also not linked with the PxLink app, the illumination

color is different from the other keys.

For details on the setting method, see [Companion App Key settings] under

System settings (page 83).

•Touch when Apple CarPlay or Android Auto is running to display the screen

that was last displayed on Apple CarPlay or Android Auto.

•Touch when Apple CarPlay or Android Auto is not running to display mobile

device search or selection screen.

Touch to display the home menu screen.

Touch and hold to power off. To power back on, touch any button.

7685

- 12 -

English

You can operate this product by touching the keys on the screen directly with your

fingers.

NOTE

To protect the LCD screen from damage, be sure to touch the screen gently, only with your

finger.

: Returns to the previous screen.

: Close the screen.

Touch to activate the voice recognition mode such as Siri when the iPhone is

connected to the unit via Bluetooth or USB.

Touch when an Android phone is connected and Android Auto is running to

access hands-free help from Google Assistant.

Touch and hold to display the mobile device search or selection screen.

/The volume is adjusted each time the buttons are pressed.

Although the volume can also be adjusted by touching and holding the

buttons, the adjustment performed by touching and holding the + button

stops at a certain limit.

LCD screen

Luminous barThis bar lights up according to the music or audio being played, or the

directions of the application being used on Apple CarPlay or Android Auto.

For details, see [Luminous Bar settings] (page 80) in System settings.

MUTEThis button temporarily turns off the volume to mute. Cancel the mute state

either by pressing the button one more time or by operating the volume

buttons.

Using the touch panel

Common touch panel keys

English

- 13 -

Operating list screens

Touching an item on the list allows you to narrow down the options and

proceed to the next operation.

Drag the list to view any hidden items.

Appears when not all the characters can be displayed in the display area.

If you touch the key, the remaining characters will display via scroll.

NOTE

This function is available only when you stop your vehicle in a safe place and

apply the parking brake.

Appears when items cannot be displayed on a single page.

Drag the side bar or the initial search bar to view any hidden items.

Operating the time bar

You can change the playback point by dragging the key.

The playback time corresponding to the position of the key is displayed while

dragging the key.

"SUJTUT

"MCVNT

4POHT

(FOSFT

"CDEFGHIJKLMNOPQRSTUVWXYZ

・・・

4POHT

"CDEFGHIJ





;

Tag

File

9999’99”

- 14 -

English

Home menu screen

Favorite source/application area

Touch to see the selected source/application.

The source/application to be displayed can be changed as desired (page 24).

NOTE

If linking to PxLink app or update of the firmware is not complete, the

settings icon and setting items will be displayed with a red badge.

Album art

The artwork of the audio currently being played is displayed.

NOTE

The artwork may not be displayed depending on the audio source.

Current time

Touch to set the clock display (page 98).

Shortcuts

Functions frequently used are preset (page 16).

The displayed contents can be changed as desired with a dedicated application.

Edit

•Changing the home menu screen layout (page 24).

•Rearranging the displayed icons in the favorite source/application area

(page 25).

NOTE

Areas for which the layout can be changed and icons can be rearranged are

areas , , and .

Sources

Touch to display all sources/applications.

"QQMF$BS1MBZ

4PVSDFT&EJU

"OESPJE"VUP

'.".

8FC-JOL

#MVFUPPUI

"VEJP

4FUUJOHT

12:38

6/10

.PO

1/3

"CDEFGH

2 3 4

English

- 15 -

TIP

[Reconnect] is displayed on the home menu screen only when the Wi-Fi connection (Wireless

Apple CarPlay or Android Auto) has failed or been disconnected automatically (page 99).

- 16 -

English

Shortcuts enable you to easily operate frequently used functions on the home menu

screen.

NOTES

•The position of the shortcuts on the home menu screen depends on the driving position

setting (page 96).

•Some of the shortcut keys become unavailable depending on the source.

•Install PxLink app on your iPhone/smartphone (Android™) and connect to the main unit to

customize the shortcuts (page 18).

Shortcuts

1/3

"CDEFGH

2/3

1PXFSGVM

$VTUPN1

'MBU

3FBS

3/3

78.5

English

- 17 -

1Start the engine to boot up the system.

The [Select Program Language] screen appears.

From the second time on, the screen shown will differ depending on the previous

conditions.

2Select the language.

3Touch .

The [Speaker Mode settings] screen appears.

4Select the speaker mode.

Once the speaker mode is set, the setting cannot be changed unless this product is

restored to the default settings. Restore the default settings to change the speaker

mode setting (page 100).

[Standard Mode]

4-speaker system with front and rear speakers, or a 6-speaker system with front and

rear speakers and subwoofers.

[Network Mode]

3-way system with a high range speaker, middle range speaker and subwoofer (low

range speaker) for reproduction of high, middle and low frequencies (bands).

WARNING

Do not use the unit in Standard Mode when a speaker system for 3-way Network Mode is

connected to the unit. This may cause damage to the speakers.

5Touch [OK].

Initial Legal Disclaimer screen appears.

6Touch [OK].

A screen with information on downloading PxLink app is displayed.

7Touch [Connect] or [Skip].

Touch [Connect] to display a screen for linking the main unit and PxLink app.

Touch [Skip] to display the home menu screen.

Starting up the unit

- 18 -

English

PxLink is an app that allows you to configure and transfer various settings of this unit.

You can also update this unit's firmware wirelessly by using this app.

NOTE

If linking to PxLink app is not complete, the settings icon and [Companion App Info] setting

item will be displayed with a red badge.

WARNING

Do not attempt to operate the app while driving. Make sure to pull off the road and park your

vehicle in a safe location before attempting to use the controls on the app.

You can download PxLink App on the App Store or on Google Play.

This function is compatible with iPhones that have iOS 15.0 or later installed, or

smartphones that have Android OS 9.0 or later installed.

Promoting the use of the unit

You can use your iPhone/smartphone (Android) to change the interface of the main unit

or to operate the main unit.

Examples

•Operating or customizing the shortcuts on the home menu screen

•Customizing the wallpaper

•Downloading the latest firmware

For details, refer to “Help” in the PxLink app.

Using the “PxLink” App for

the AV main unit

Before you start

What kind of functions does the PxLink app have?

English

- 19 -

•When connecting PxLink app for the first time on your Android device, disconnect

AndroidAuto.

1Turn on the Wi-Fi and Bluetooth functions on your iPhone or smartphone.

2Touch .

3Touch then .

4Touch [Wi-Fi settings].

5Touch [Access point] and turn it [On].

6Touch .

7Touch [Connection].

8Touch .

The unit starts to search for available devices, then displays them in the device list.

9Touch in the list.

A connection confirmation message appears on the screen.

10Touch [Yes] on the pop-up message.

Transfer mode screen is displayed.

11Open PxLink app on the connected iPhone or smartphone, and add the main unit

on the Bluetooth connection screen of the app.

12Add the main unit on the Bluetooth LE Connection screen of the app.

13Follow the message displayed on the connected iPhone or smartphone to make a

Wi-Fi connection with this unit.

Receiver Internet Access connection is successfully established.

Starting procedure

$POOFDUJPO

"CDEFGHIJ1

- 20 -

English

•If five devices are already paired, the message confirming whether to delete the

registered device is displayed. If you want to delete the device, touch [Agree]. If you

want to delete other device, touch [Go to DeviceList] and delete the devices manually

on the mobile device select screen.

•If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the

display of this product. Make sure that the six-digit number matches the one that is

displayed on the mobile device before touching [Yes] to pair the device.

•The Bluetooth connection can also be made by detecting this product from the

Bluetooth device. Before registration, make sure that [Visibility] in the [Bluetooth

settings] menu is set to [On] (page 21). For details on Bluetooth device operations,

refer to the operating instructions supplied with the Bluetooth device.

•Two cellular phones can be connected to this product at the same time (page 21).

1Turn on the Bluetooth function on the device.

2Display the connected Bluetooth device list screen on the device.

3Touch .

4Touch then .

5Touch [Connection].

6Touch .

The unit starts to search for available devices, then displays them in the device list.

7Touch in the list.

If you touch the device name, a connection with Apple CarPlay, Android Auto, or

PxLink app may be established.

8Touch [Yes] to pair with the device.

9Perform the pairing operation by operating the device.

It may take up to around 80 seconds for the Bluetooth connection to be complete.

After the device is successfully registered, a Bluetooth connection is established by

the system. Once the connection is established, the device name is displayed on the

list.

Bluetooth® connection

Starting procedure

English

- 21 -

1Perform pairing from an unconnected Bluetooth device when two Bluetooth

devices are connected.

Of the two connected devices, the first device is disconnected and the unconnected

device is connected.

1Touch .

2Touch then .

3Touch [Bluetooth settings].

CAUTION

Never turn this product off and disconnect the device while the Bluetooth setting operation is

being processed.

•You can register up to five Bluetooth devices on this product (page 20).

•You can connect one of the registered devices to this product. In cases where the

registered device is equipped with a phone function, a total of two devices can be

Connecting a third Bluetooth device (HFP only)

Bluetooth settings

Menu ItemDescription

[Auto Connect]

[On] [Off]

Select [On] to connect the last connected Bluetooth device

automatically when using the hands-free phone function.

•If two Bluetooth devices were connected the last time,

the two devices are connected to this product

automatically in the order that they are registered in the

device list.

[Visibility]

[On] [Off]

Select [On] to make this product visible to the other device.

[PIN Code Input]Change the PIN code for Bluetooth connection.

The default PIN code is “0000”.

1Touch [0] to [9] to input the pin code (up to 8 digits).

2Touch .

[Device Information]Displaying the device name and address of this product.

[Sound Quality settings]

[Quality] [Connectivity]

Select [Quality] to prioritize the Bluetooth sound quality.

Select [Connectivity] to prioritize the Bluetooth

connection.

Switching the connected Bluetooth device

- 22 -

English

connected at the same time when using the phone function. If two of the five

registered devices are already connected, the third device can only be used as an

audio function. You can switch devices from the Switch Devices key on the Audio

source screen.

•The icon for the cellular phone currently being used is displayed on the phone menu

screen. If you connect two cellular phones to this product at the same time, you can

switch between the cellular phones using the switch devices key. The contents of the

phone menu are memorized for each connected cellular phone (page 41).

•The switch devices key will appear for some audio sources. The audio source may

automatically switch to another source depending on the selected device.

English

- 23 -

By connecting your Wi-Fi certified mobile device to this product via Wi-Fi connection,

you can use Apple CarPlay or Android Auto wirelessly.

See the following chapters for the procedure on how to use Apple CarPlay or

Android Auto wirelessly.

•Apple CarPlay (page 31)

•AndroidAuto (page 36)

This unit can be used as an access point for the infrastructure mode network. Use this

unit as an access point to use Apple CarPlay or AndroidAuto via Wi-Fi network.

1Touch .

2Touch then .

3Touch [Wi-Fi settings].

Wi-Fi® connection

Wi-Fi settings

Menu ItemDescription

[Access point]

[On] [Off]

Switches Wi-Fi connection on or off.

[Device Information]Displays this unit's infrastructure mode network

information.

[Password]Displays the infrastructure mode network password.

[Password reset]Touch [OK] to reset the infrastructure mode network

password and set a new random password.

- 24 -

English

The [Settings] icon cannot be removed from the favorite source/application area. The

[Apple CarPlay] icon and the [Android Auto] icon can be deleted from the favorite

source/application area, but if Apple CarPlay or Android Auto is started, the respective

icon is added automatically.

NOTE

This function is available only when you stop your vehicle in a safe place and apply the parking

brake.

1Touch .

2Touch [Edit].

3Touch [Add].

4Touch the icon you want to add to the favorite source/application area.

TIPS

•The clock and the artwork can also be set to be shown or hidden.

•If the area is full, remove unneeded icons, or the artwork first.

•When you cancel adding, touch .

5Touch [Done].

1Touch .

2Touch [Edit].

3Touch [Delete].

4Touch the icon you want to remove from the favorite source/application area.

Customizing the home

menu screen

Adding the source icons to the favorite source/

application area

Removing the displayed icons from the favorite

source/application area

English

- 25 -

TIPS

•The clock and the artwork can also be removed from the favorite source/application area.

•When you cancel removing, touch [Done].

5Touch [Done].

1Touch .

2Touch [Edit].

3Drag the icon to the desired position.

TIP

The clock display cannot be moved. However, it can be switched between a large size and

small size by sorting the other icons.

4Touch [Done].

Rearranging the icons in the favorite source/

application area

- 26 -

English

You can play or use the following sources or application with this product.

•HDRadio™ Technology (page 48)

•Playing data in a USB (page 66)

The following sources or applications can be played back or used by connecting an

auxiliary device.

•Bluetooth audio (page 46)

•SiriusXM® Satellite Radio (page 52)

•Using external devices (AUX) (page 72)

•Car Sources (iDatalink® (page 58))

•Car Features (iDatalink® (page 58) or Metra Axxess (page 63))

•Displaying video images from the back camera/2nd camera (page 74)

1Touch then [Sources].

The source/application screen appears.

You can display the hidden source icons by swiping left on the screen.

Source/application

Supported source and application

Displaying the source/application list screen

$POOFDUJPO"QQMF$BS1MBZ"OESPJE"VUP8FC-JOL'.".

#MVFUPPUI

"VEJP

64#

4JSJVT9.

"69

$BS4PVSDFT

"MM4PVSDFT

English

- 27 -

1Touch and then touch the Source list key.

The AV operation screen appears.

Source list

Touch to see the selected source.

TIP

Selecting [Power OFF] will turn off most of the functions on this unit. The

[Power OFF] mode is released in the following cases:

•Footage from the rear view camera is input when the vehicle is in reverse.

•A button on this unit is touched.

•The ignition switch is turned off (ACC OFF), then turned on (ACC ON).

Displays the next items in the list if there are more.

Displays the previous screen.

Displaying the AV operation screen

Settings (page 78) and Favorite menu (page 78)

A badge is displayed when information about the latest firmware update is

received, or when there is no linkage with PxLink app (page87) (page 96).

Selects or customizes the equalizer curve (page 93).

Hands-free phoning (page 41)

"CDEFGHIJKL

.PO

64#

"CDEFGHIJ

"CDEFG

.1

9999’99”

12:38

6/10

- 28 -

English

[Source OFF] is only available for AV sources.

1Touch then [Sources].

2Touch the source/application icon.

When you select [Source OFF], the AV source is turned off.

Selecting a source/an application

Source/application selection screen

English

- 29 -

You can operate iPhone applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

•The compatible finger gestures vary depending on the application for the iPhone.

•To use the Apple CarPlay function, first turn off the WebLink function.

•Certain uses of the iPhone may not be legal while driving in your jurisdiction, so you

must be aware of and obey any such restrictions. If in doubt as to a particular function,

only perform it while the car is parked. No feature should be used unless it is safe to do

so under the driving conditions you are experiencing.

Compatible iPhone models

For details about compatibility of iPhone models, refer to the following website.

https://www.apple.com/ios/carplay

When connecting an iPhone to this product, the settings are automatically configured

according to the device to be connected. For details of the compatibility, refer to

Compatible iPhone models (page 101).

•For USB connection, refer to the Quick start guide.

1Connect an Apple CarPlay compatible device to this product via USB.

2Touch .

3Touch [Apple CarPlay].

Apple CarPlay

Connecting your iPhone

Wired connection

#MVFUPPUI

"VEJP

"QQMF$BS1MBZ

4PVSDFT&EJU

"OESPJE"VUP

1/3

"CDEFGH

'.".

8FC-JOL

4FUUJOHT

12:38

6/10

.PO

- 30 -

English

The playback screen appears.

1Connect an Apple CarPlay compatible device to this product wirelessly (page31).

2Touch .

3Touch [Apple CarPlay].

The playback screen appears.

Apple CarPlay may not be available in your country or region.

For details about Apple CarPlay, visit the following site:

https://www.apple.com/ios/carplay

•The content and functionality of the supported applications are the responsibility of

the App providers.

•In Apple CarPlay, usage is limited while driving, with availability of functions and

content determined by the App providers.

•Apple CarPlay allows access to applications other than those listed that are subject to

limitations while driving.

•PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-

PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES

OR INCOMPLETE INFORMATION.

•Before using Apple CarPlay, make sure the GPS antenna and speed cable are properly

connected and installed, and the unit angle is properly set. For details on the

installation, refer to the Quick start guide.

•The accuracy of the directions by Apple CarPlay depends on the application.

Wireless connection

Using Apple CarPlay

#MVFUPPUI

"VEJP

"QQMF$BS1MBZ

4PVSDFT&EJU

"OESPJE"VUP

1/3

"CDEFGH

'.".

8FC-JOL

4FUUJOHT

12:38

6/10

.PO

English

- 31 -

To achieve optimum usability of Apple CarPlay, set the driving position setting correctly

according to the vehicle. The setting will be applied the next time an AppleCarPlay

compatible device is connected to this product.

1Touch .

2Touch then .

The communication setting screen appears.

3Touch [Driving Position] then select the item.

[Left]

Select for a left-hand drive vehicle.

[Right]

Select for a right-hand drive vehicle.

1Touch the Apple CarPlay icon.

The Apple CarPlay home screen appears.

TIP

You can also start Apple CarPlay from the source/application list screen by touching [Sources]

on the home menu screen.

•Before using Apple CarPlay wirelessly, perform the following:

– Attach the GPS antenna to this product.

– Turn on Apple CarPlay in the setting menu of your iPhone.

•When the device for Apple CarPlay is connected to this unit, the device is also

connected via Bluetooth at the same time. If five devices are already paired, the

message confirming whether to delete the registered device is displayed. If you want

to delete the device, touch [Agree]. If you want to delete other device, touch [Go to

DeviceList] and delete the devices manually on the mobile device select screen.

•If an Apple CarPlay compatible device has been connected and another screen is

displayed, touch Apple CarPlay icon on the source/application screen to display the

Application menu screen.

•The Bluetooth connection with the Apple CarPlay compatible device will be

terminated automatically if Apple CarPlay is turned on. While Apple CarPlay is turned

Setting the driving position

Starting procedure

Wired connection

Wireless connection

- 32 -

English

on, only a Bluetooth audio connection will be possible for devices other than the

device connected via Apple CarPlay.

•Hands-free phoning via Bluetooth wireless technology is not available while

Apple CarPlay is on. If Apple CarPlay is turned on during a call on a cellular phone

other than an AppleCarPlay compatible device, the Bluetooth connection will be

terminated after the call ends.

NOTE

To use a wireless connection, you must set [Access point] to [On] (page 23).

1Turn on the Wi-Fi function and the Bluetooth function on the device.

2Display the Bluetooth setting menu on the device.

3Touch .

4Touch the Apple CarPlay icon.

The device search screen appears.

NOTE

You can also display the device search screen by touching and holding .

5Touch if the device that you want to connect does not appear.

The available devices appear on the list.

6Touch the desired device on the screen.

You can also start Apple CarPlay with the desired device by opening the Bluetooth or

AppleCarPlay setting menu while displaying the device search or device list screen.

7Touch [Yes] to pair with the device.

8Perform the pairing operation by operating the device.

The unit configures the connection then starts the application.

▶How can Siri help?

You can use the Siri function by touching the button once Apple CarPlay is activated.

You can adjust the enhanced Siri (if available on your device) or guidance volume

separately from the main sound volume when Apple CarPlay is used.

1While Apple CarPlay is activated, press VOL (+/-).

The volume menu will be displayed on the screen.

The volume menu is displayed for four seconds. If the menu disappears, press VOL

(+/-) again. The menu reappears.

Adjusting the volume

English

- 33 -

You can display the screen of Apple CarPlay and of the unit at the same time on one

screen if the split screen function is available on your iPhone.

This function is useful such as when you want to operate the radio source while

displaying the map screen.

•The screen positions of the Apple CarPlay and of the unit depend on the [Driving

Position] setting (page 31).

1Touch to switch to the split screen view.

Touch if you want to return to the full screen.

Touch to mute. Touch again to cancel mute.

The mute function is not available while the enhanced Siri function is used.

Touch [+]/[-] to adjust the guidance volume.

Displays the main sound volume. To adjust the main sound volume, press

VOL (+/-) on the unit or touch [+]/[-].

Using shortcuts

(VJEBODF

"QQMF$BS1MBZ

WPM

12:38

- 34 -

English

You can operate Android applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

•The compatible finger gestures vary depending on the application for the

smartphone.

Compatible Android devices

For details about compatibility of Android models, refer to the following website.

https://support.google.com/androidauto

For wireless connections

Compatible Android phone and compatible active data plan required.

WARNING

Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you must

be aware of and obey any such restrictions. If in doubt as to a particular function, only perform

it while the car is parked. No feature should be used unless it is safe to do so under the driving

conditions you are experiencing.

•For USB connection, refer to the Quick start guide.

1Connect an Android Auto compatible device to this product via USB.

2Touch .

AndroidAuto™

Connecting your Android™ device

Wired connection

English

- 35 -

3Touch [Android Auto].

The playback screen appears.

1Connect an Android Auto compatible device to this product wirelessly (page 36).

2Touch .

3Touch [Android Auto].

The playback screen appears.

Android Auto may not be available in your country or region.

For details about Android Auto, please refer to the Google support site:

Wireless connection

Using Android Auto

"QQMF$BS1MBZ

4PVSDFT&EJU

"OESPJE"VUP4FUUJOHT

1/3

"CDEFGH

'.".

8FC-JOL

#MVFUPPUI

"VEJP

12:38

6/10

.PO

"QQMF$BS1MBZ

4PVSDFT&EJU

"OESPJE"VUP4FUUJOHT

1/3

"CDEFGH

'.".

8FC-JOL

#MVFUPPUI

"VEJP

12:38

6/10

.PO

- 36 -

English

https://support.google.com/androidauto

•The content and functionality of the supported applications are the responsibility of

the App providers.

•In Android Auto, usage is limited while driving, with availability of functions and

content determined by the App providers.

•AndroidAuto allows access to applications other than those listed that are subject to

limitations while driving.

•PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-

PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES

OR INCOMPLETE INFORMATION.

•Before using Android Auto, make sure the GPS antenna and speed cable are properly

connected and installed, and the unit angle is properly set. For details on the

installation, refer to the Quick start guide.

•The accuracy of the directions by Android Auto depends on the application.

1Connect an Android Auto compatible device to this product via USB.

2Touch the Android Auto icon.

The Android Auto home screen appears.

To use a wireless connection, you must set [Access point] to [On] (page 23).

1Turn on the Wi-Fi function.

2Display the connected Bluetooth devices list screen on the device.

3Touch .

4Touch the Android Auto icon then [Start] to display the device search screen.

The device search screen appears.

You can also display the device search screen by touching and holding .

5Touch if the device that you want to connect does not appear.

The available devices appear on the list.

6Touch the desired device on the screen.

7Touch [Yes] to pair with the device.

8Perform the pairing operation by operating the device.

The unit configures the connection then starts the application.

Starting procedure

Wired connection

Wireless connection

English

- 37 -

▶How can the voice recognition function help?

You can use Google Assistant by touching the button once Android Auto is

activated.

NOTES

•For details on USB connection, refer to the Quick start guide.

•When the device for Android Auto is connected to this unit, the device is also connected via

Bluetooth at the same time. If five devices are already paired, the message confirming

whether to delete the registered device is displayed. If you want to delete the device, touch

[Agree]. If you want to delete other device, touch [Go to DeviceList] and delete the devices

manually on the mobile device select screen.

•If AndroidAuto is turned on during a call on a cellular phone other than the Android Auto

compatible device, the Bluetooth connection will switch to the Android Auto compatible

device after the call.

You can adjust the voice recognition or guidance volume separately from the main

sound volume when Android Auto is used.

1While Android Auto is activated, press VOL (+/-).

The volume menu will be displayed on the screen.

The volume menu is displayed for four seconds. If the menu disappears, press VOL

(+/-) again. The menu reappears.

Adjusting the volume

Touch to mute. Touch again to cancel mute.

Touch [+]/[-] to adjust the guidance volume.

Displays the main sound volume. To adjust the main sound volume, press

VOL (+/-) on the unit or touch [+]/[-].

(VJEBODF

"OESPJE"VUP

WPM

- 38 -

English

If this function is set to on, the Android Auto screen is displayed automatically when an

Android Auto compatible device is connected to this unit.

•The Android Auto screen is displayed automatically only when an Android Auto

compatible device is correctly connected to this product.

1Touch .

2Touch then .

3Touch [Android Auto Auto-launch] to switch [On] or [Off].

Setting the auto-launch function

English

- 39 -

You can operate WebLink® compatible applications with finger gestures such as tapping,

dragging, scrolling, or flicking on the screen of this product.

•The supported finger gestures may vary depending on the WebLink® compatible

application.

•To use WebLink®, you must first install the WebLink Host app on the iPhone or

smartphone. For details about the WebLink®Host app, visit the following site: http://

helloweblink.com/

•Be sure to read Using app-based connected content (page 123) before you perform

this operation.

•Copyright protected files such as DRM cannot be played.

•Certain uses of the iPhone or smartphone may not be legal while driving in your

jurisdiction, so you must be aware of and obey any such restrictions. If in doubt as to a

particular function, only perform it while the car is parked. No feature should be used

unless it is safe to do so under the driving conditions you are experiencing.

Important

•Pioneer is not responsible for content or functions accessed via WebLink®, which are the

responsibility of the application and content providers.

•Availability of non-Pioneer content and services, including apps and connectivity, may

change or discontinue without notice.

•For the latest OS support information, please visit HelloWebLink.com.

•When using WebLink® with the Pioneer product, available content and functions will be

limited while driving.

System requirement

For the latest OS support information, please visit HelloWebLink.com.

1Unlock your iPhone and connect it to this product via USB.

2Touch .

WebLink®

Using WebLink®

Starting procedure

For iPhone users

- 40 -

English

3Touch [WebLink].

System requirement

•For the latest OS support information, please visit HelloWebLink.com.

•The video playback capability depends on the connected Android device.

•For USB connection, refer to the Quick start guide.

•Make sure that file transfer mode for USB connection is enabled on your smartphone if

WebLink® does not start automatically.

1Unlock your smartphone and connect it to this product via USB.

2Touch .

3Touch [WebLink].

Touch the desired application icon after the WebLink® app is launched. The desired

application is launched, and the application operation screen appears.

•Check the Bluetooth connection between the mobile device and this unit if there is no

sound output from this unit (page 20).

For smartphone (Android) users

Basic operation

Displays the main menu of the WebLink® source screen.

•If you connect your device to this product while a WebLink® compatible

application is already running, the application operation screen will appear on

this product.

"QQMF$BS1MBZ

4PVSDFT&EJU

"OESPJE"VUP4FUUJOHT

1/3

"CDEFGH

'.".

8FC-JOL

#MVFUPPUI

"VEJP

12:38

6/10

.PO

English

- 41 -

To use this function, you need to connect your cellular phone to this product via

Bluetooth in advance (page20).

1Touch then [Sources].

2Touch [Phone].

The phone menu screen appears.

3Touch one of the call icons on the phone menu screen.

Hands-free phoning

Making a phone call

The following items are displayed.

•Name of the current cellular phone

•List number of the current cellular phone

•Reception status of the current cellular phone

•Battery status of the current cellular phone

TIP

If you connect two cellular phones to this product at the same time, you can

switch between the cellular phones using the switch devices key.

Switches the search language to English or system language.

It may not appear depending on the system language setting.

Using the preset dial lists (page 42)

1IPOF#PPL

"CDEFGHIJ

"CDEFGH

"#$

"CDEFGHIJ





;

1 2

- 42 -

English

1Touch .

You can easily store up to six phone numbers per device as presets.

1Touch then [Sources].

2Touch [Phone].

3Touch or .

On the [Phone Book] screen, touch the desired name to display the contact’s phone

number.

4Touch .

1Touch then [Sources].

2Touch [Phone].

3Touch .

4Touch the desired entry on the list to make a call.

The dial screen appears and dialing starts.

Using phone book

Select a contact from the phone book. Touch the desired name on the list then

select the phone number.

•The contacts on your phone will be automatically transferred to this product.

•Update the phone book manually.

•[Visibility] of the [Bluetooth settings] screen should be on (page 21).

•If two cellular phones are automatically connected to this product with the

Bluetooth device auto connect function, the phone book of the first phone is

displayed.

Using call history

Make a phone call from the received call , dialed call , or missed call .

Direct phone number input

Touch the number keys to enter the phone number then touch to make a call.

To end the call

Using the preset dial lists

Registering a phone number

Dialing from the preset dial list

English

- 43 -

1Touch then [Sources].

2Touch [Phone].

3Touch .

4Touch .

5Touch [Yes].

1Touch to answer the call.

Touch to end the call.

•Touch while receiving an Incoming Call to put current call on hold and accept

new call.

•Touch while receiving an Incoming Call to decline the call.

NOTE

When two phones are connected at the same time, if an incoming call is received on the second

phone while you are talking on the first phone, the Incoming Call Screen for the second phone

will be displayed.

By connecting your iPhone to this product, you can use the voice recognition function

(Siri Eyes Free Mode) on this product.

•If two cellular phones are automatically connected to this product with the Bluetooth

device auto connect function, the voice recognition function (Siri Eyes Free Mode) will

be set on the first phone.

•If you want to use the voice recognition function (Siri Eyes Free Mode) on another

connected iPhone, touch the numbered linked to the other iPhone. The iPhone

that you switch to will be set as the current device.

NOTE

When an iPhone is used, Siri Eyes Free Mode is available with this product.

1Touch then [Sources].

2Touch [Phone].

3Touch .

The voice recognition function launches and the voice control screen appears.

You can also launch the voice recognition function by touching the button.

Deleting a phone number

Receiving a phone call

Voice recognition function (for iPhone)

- 44 -

English

1Touch .

2Touch then .

3Touch [Bluetooth settings].

During a conversation, you can switch to private mode (talk directly on your cellular

phone).

•If two cellular phones are connected to this product and the first phone is set to

private mode, you can receive incoming calls on the second phone while maintaining

the call in progress on the first phone.

•When two cellular phones are connected to this product and private mode of the first

phone is turned off, if an incoming call on the second phone is answered while a call is

in progress on the first phone or while dialing or receiving a call on the first phone, the

call, dialing, or receiving on the first phone is ended.

1Touch or to turn private mode on or off.

This product can be adjusted to the other party’s listening volume.

1Touch to switch between the three volume levels.

•Connection to all cellular phones featuring Bluetooth wireless technology is not

guaranteed.

Phone setting

Menu ItemDescription

[Auto Answer]

[On] [Off]

Select [On] to answer an incoming call automatically.

[Ring Tone]

[On] [Off]

Select [Off] to use the ring tone of the paired device, or

select [On] to use the ring tone of this unit.

[Invert Name]Select [Yes] to change the order of the first and last names

in the phone book.

Setting the private mode

Adjusting the other party’s listening volume

Notes for hands-free phoning

General notes

English

- 45 -

•The line-of-sight distance between this product and your cellular phone must be 10

meters or less when sending and receiving voice and data via Bluetooth technology.

•With some cellular phones, the ring sound may not be output from the speakers.

•If private mode is selected on the cellular phone, hands-free phoning may be disabled.

•Cellular phone operations vary depending on the type of cellular phone. Refer to the

instruction manual that came with your cellular phone for detailed instructions.

•When phone book transfer does not work, disconnect your phone and then perform

pairing again from your phone to this product.

•You may hear a noise in the following situations:

– When you answer the phone using the button on the phone.

– When the person on the other end of the line hangs up the phone.

•If the person on the other end of the line cannot hear the conversation due to an echo,

decrease the volume level for hands-free phoning.

•With some cellular phones, even after you press the accept button on the cellular

phone when a call comes in, hands-free phoning may not be performed.

•The registered name will appear if the phone number is already registered in the

phone book. When multiple names are registered for the same phone number, the

names are displayed in the same order as in the phone book.

•You cannot make a call to the entry of an unknown user (no phone number) in the

received call history.

•If there are more than 1 000 phone book entries on your cellular phone, not all entries

may download completely.

•Depending on the phone, this product may not display the phone book correctly.

•If the phone book in the phone contains image data, the phone book may not be

transferred correctly.

•Depending on the cellular phone, phone book transfer may not be available.

Registration and connection

Making and receiving calls

The received call and dialed number histories

Phone book transfers

- 46 -

English

Before using the Bluetooth audio player, register and connect the device to this product

(page 20).

•Depending on the Bluetooth device connected to this product, the available

operations with this product may be limited or differ from the descriptions in this

manual.

•While you are listening to songs on your Bluetooth device, refrain from operating the

phone function as much as possible. If you try operating, the signal may cause noise

for song playback.

•When you are talking on the Bluetooth device connected to this product via

Bluetooth, it may pause playback.

NOTE

Depending on the Bluetooth audio player connected to this product, the available operations

with this product may be limited to the following two levels:

•A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is

possible.

•A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting

songs, etc., are possible.

1Touch then [Sources].

The source/application screen appears.

2Touch [Bluetooth Audio].

The Bluetooth audio playback screen appears.

Bluetooth audio

Basic operation

"CDEFGHIJKL

.PO

#MVFUPPUI"VEJP

"CDEFG

9999

9999’99”

12:38

6/10

"CDEFGHIJ

English

- 47 -

Track number indicator

Switches between playback and pause.

Skips files forward or backward.

Sets a repeat play range.

Switches between random and normal file playback order.

Selects a file or folder from the list to playback.

NOTE

This function is available only when the AVRCP version of the Bluetooth

device is 1.4 or higher.

Switches among the Bluetooth devices when the devices are connected to

this product via Bluetooth (page 21).

- 48 -

English

HDRadio stations offer high quality audio and data services. HDRadio stations are

brought to you by your local FM or AM stations.

HDRadio stations feature the following:

•High quality audio

•FM multicasting

•Data service

Digital, CD-quality sound. HDRadio Technology enables local radio stations to broadcast

a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

HDRadio™ Technology

About HDRadio stations

: Sub channel

AM band

Analog AM

Analog AM Digital AM

FM band

Analog FM

Analog FM Digital FM

Analog FM Digital FM-1ch

Digital FM-2ch

Digital FM-3ch

: Main channel

English

- 49 -

Program Info: Contributes to the superior user experience of HDRadio Technology.

Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other relevant data

streams.

Adjacent to traditional main stations are extra local FM channels. These HD2/HD3

Channels provide new, original music as well as deep cuts into traditional genre.

Visual information related to content being played on your HDRadio receiver, such as

Album Art, historical photographs, still art from live broadcasts, among other related

content.

1Touch then [Sources].

2Touch [FM/AM].

The radio screen appears.

Starting procedure

Basic operation

999.9

MHz

"CDEFGHIJKL

"CDEFGHIJ

"CDEFG

.PO

'.".

12:38

6/10

- 50 -

English

The BSM (best stations memory) function automatically stores the six strongest

broadcast frequencies under the preset channel keys [1] to [6].

•Storing broadcast frequencies with BSM may replace those you have already saved.

•Previously stored broadcast frequencies may remain stored if the number of

frequencies stored has not reached the limit.

1Touch and hold to begin search.

The six strongest broadcast frequencies will be stored under the preset channel keys

in the order of their signal strength.

1Touch [Cancel].

Recalls the preset channel stored to a key from memory.

Stores the current broadcast frequency to a key.

Displays the preset channel list.

Select an item on the list ([1] to [6]) to switch to the preset channel.

Selects the FM1, FM2, FM3 or AM band.

Performs BSM (best stations memory) function (page 50).

Manual tuning

Seek tuning or non stop seek tuning

Releasing the key in a few seconds skips to the nearest station from the

current frequency. Keep holding the key for long seconds to perform non

stop seek tuning.

Switches the text display between the main channel and sub channels.

Storing the strongest broadcast frequencies (BSM)

To cancel the storage process

English

- 51 -

1Touch .

2Touch then .

The system setting screen appears.

3Touch [AV Source settings].

4Touch [Radio settings].

Radio settings

Menu ItemDescription

[Blending]

[On] [Off]

Switches to the analog broadcast of the same

frequency level automatically when reception

of a digital broadcast becomes weak. Select

[Off] to receive only an analog signal.

[Seek]Select the method of seek tuning.

[Seek All]Seeks stations from both analog and digital

broadcasting.

[Seek HD]Only seeks stations from digital broadcasting.

[Local]

[Off]

FM: [Level1] [Level2] [Level3] [Level4]

AM: [Level1] [Level2]

Local seek tuning allows you to only tune into

radio stations with sufficiently strong signals.

•The FM [Level4] (AM [Level2]) setting allows

reception of only stations with the strongest

signals.

•This setting is available only when [FM/AM] is

selected as the source.

- 52 -

English

SiriusXM is where moments happen. The widest, deepest variety of music, ad-free. More

games, more sports, more coverage than anywhere. The most extensive entertainment,

complete news coverage and every kind of comedy. Listen in your car, on your phone,

online and at home. A SiriusXM Vehicle Tuner and subscription are required. For more

information, visit www.siriusxm.com

To take full advantage of all the SiriusXM capabilities, such as TuneMix™, please use the

SXV300 tuner or one of the newer SiriusXM tuners (sold separately). Other tuners are

compatible but may limit the features.

1Touch then [Sources].

2Touch [SiriusXM].

You should be able to tune in to Channel 1. If you cannot get Channel 1, ensure that

your SiriusXM Connect Vehicle Tuner is installed correctly.

3Switch to Channel 0 and check the Radio ID.

The SiriusXM Radio ID can be found by tuning in to Channel 0. In addition, the Radio

ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging.

You will need this number to activate your subscription.

NOTE

The SiriusXM Radio ID does not include the letters I, O, S, or F.

4Activate the service either online or by phone.

TIP

In the USA, you can activate online or by calling SiriusXM Listener care:

•Visit www.siriusxm.com/activatenow

•Call SiriusXM Listener Care at

1-866-635-2349

For Canadian Subscriptions, please contact:

•Visit www.siriusxm.ca/activate

•Call SiriusXM Customer Care at

1-888-539-7474

NOTES

•The SiriusXM satellites will send an activation message to your tuner. When the tuner has

received the message, [Subscription Updated Press Enter to Continue] is displayed.

•The activation process usually takes 10 to 15 minutes, but it may take up to an hour. Do not

turn off this product while the activation message is displayed.

SiriusXM® Satellite Radio

Subscribing to the SiriusXM Satellite Radio service

English

- 53 -

1Touch then [Sources].

2Touch [SiriusXM].

•On the Featured Favorites™ Band, the current broadcast frequency cannot be stored to

a key (page 56).

•If fewer than two music channels are stored as presets, you cannot use the TuneMix

function.

•[RADIO ID] is displayed when Channel 0 is selected.

Current channel display (Live broadcast mode)

Listening to SiriusXM

Basic operation

Selects a channel directly.

Recalls the preset channel stored to a key from the memory.

Stores the current channel to a key.

Displays the preset channel list.

Select an item on the list ([1] to [6]) to switch to the preset channel.

Selects a band.

There are 3 bands and a Featured Favorites. You can store 6 channels per band for

a total of 18 presets.

- 54 -

English

Replay Mode (Time bar display)

Switches TuneMix to on or off.

You can use TuneMix from each of the music channels stored as presets on the

current band.

•When fewer than two music channels are stored as presets, you cannot use

TuneMix.

•Locked channels will not be used by TuneMix until the channels are unlocked by

entering the parental control passcode.

Performs TuneScan™ (page 55).

Performs channel number up/down.

Performs fast channel number up/down.

Switches to Replay Mode.

Selects a channel from the list.

Select the category name or the list of all channels then touch the desired channel.

To switch the display list, touch .

•The displayed list switches in the following order.

Channel Name—Artist Name—Song Title—Content Info

•If you touch , you can scan each channel in the selected category.

•When there is no category, you can select the channel from [Others].

•The types of categories available depend on the types of channels available.

•It may take time to display the channel list depending on the SiriusXM reception

condition.

Switches between playback and pause.

Performs content forward or backward.

Scan

"CDEFGHIJKL

"CDEFGHIJ

"CDEFG

.PO

4JSJVT9.

12:38

6/10

9999’99”

-99’99”

UVOF

NJY

-JWF

SXM1

English

- 55 -

When you activate the TuneScan feature, you will hear a few seconds of the songs which

have not been listened to from each of the music channels stored as presets on the

current band.

•When fewer than two music channels are stored as presets, you cannot use TuneScan.

•TuneScan may take a few minutes to become available after the product is turned on

or the preset band is changed.

1Touch to display the following display.

All preset channels will buffer the content to be used for Replay, TuneStart™, TuneScan

and TuneMix features.

Performs fast forward or rewind.

The operation stops if the icon is touched and held for more than 30

seconds. To resume the operation, touch and hold the icon again.

Switches to live broadcast mode.

TuneScan

Continues playing the current scanning song or channel.

Skips to the previous/next song during TuneScan or to the previous/next

channel during category scan.

Cancels scan play and returns to the previous channel.

SmartFavorites

4DBO

"CDEFGHIJKL

"CDEFGHIJ

"CDEFG

.PO

4JSJVT9.

12:38

6/10

SXM1

- 56 -

English

Featured Favorites are groups of channels that are created by the SiriusXM Programming

department allowing you to discover new channels. Featured Favorite channels are

dynamic and can change often, allowing you to discover new channels.

For details, see [Featured Favorites] (page 57) and [Featured Band Update Message]

(page 57) in SiriusXM settings.

When there is a Featured Favorite, access it with the band key.

1Touch the band key.

SXM1—SXM2—SXM3—Featured

When there are multiple Featured Favorites, access them from the category list.

It is displayed at the bottom of the category list (page 54).

The Parental Control feature allows you to limit access to any SiriusXM channels,

including those with mature content. When enabled, the Parental Control feature

requires you to enter a passcode to tune to the locked channels.

For details, see [Parental Control] (page 57) in SiriusXM settings.

1Touch .

2Touch then .

The system setting screen appears.

3Touch [AV Source settings].

4Touch [SiriusXM settings].

The menu items vary depending on whether SiriusXM is selected as the source.

Using Featured Favorites Band

How to access

Parental lock

SiriusXM settings

Menu ItemDescription

[Tune Start]

[On] [Off]

Start songs automatically from the beginning when you tune to

one of your preset channels in the current preset band when

TuneStart is turned on.

English

- 57 -

[Parental Control]Enter the current passcode then touch to set this function

(the default passcode is 0000).

•To edit the passcode, touch [Edit Code] then touch

followed by entering the new passcode.

•To lock the channel, touch the appropriate channel.

appears and the channel is locked.

•When you touch the locked channel, the channel is unlocked.

•When you touch [Clear All], all locked channels are unlocked.

[Featured Favorites]

[On] [Off]

Set to [On] to allow you to discover new channels created by

the SiriusXM Programming department.

•When [Featured Band Update Messages] is set to [On] and the

Featured Favorite Band is updated, the Featured Band Update

message will appear.

[Featured Band

Update Message]

[On] [Off]

Set to [On] to be notified when the featured seasonal theme is

updated.

•To display [Featured Band Update Messages] at all times,

[Featured Favorites] needs to be set to [On].

[SiriusXM Reset]Set to restore to the default SiriusXM settings by touching

[Restore].

•The source is turned off before the process starts.

CAUTION

Do not turn off the engine while restoring the settings.

Menu ItemDescription

- 58 -

English

You can access the satellite radio source provided for the vehicle. The vehicle

information and many OEM systems such as steering wheel controls, warning chimes,

driver safety systems, and etc. can be displayed on this product by connecting the

optional iDatalink adaptor. It is also possible to add visual screens such as gauges,

vehicle information, climate control, and parking assist. However, an extra interface

module is required to access these features.

•The operating buttons, text information, etc. overlaid on the camera view screen may

not appear immediately after turning on the ignition switch.

NOTE

Since the type of module varies depending on the vehicle model, search for your vehicle via the

following URL to determine which features are available for each module. Remember to select

the correct radio model for accurate results.

https://www.idatalinkmaestro.com/en

Important

•For details about vehicle models that are compatible with the iDatalink adaptor, refer to the

information on our website.

•After installing the iDatalink adaptor, be sure to check that it operates properly.

•Functions and displays vary depending on the vehicle model. For details on the functions

available for each model, refer to the information on our website.

•For troubleshooting information about iDatalink functions, visit the following website:

https://www.idatalinkmaestro.com/en/support/faq

Limitations

•The data is transmitted to this product from your vehicle system via the connected

iDatalink adaptor. Therefore, the actual data contents displayed on your product may

differ from the contents on the screen described in this manual.

•When information on your vehicle or on the devices in your vehicle is sent from the

iDatalink® Maestro® module, a screen notifying you of such information may pop up.

Before using and/or connecting the iDatalink Maestro adaptor, you will need to first flash

the Maestro RR module with the appropriate vehicle and head unit firmware.

•For details on installing the firmware, refer to iDatalink Maestro website.

•For details on connecting this product to iDatalink Maestro, refer to the Quick start

guide.

iDatalink®

Using iDatalink

Activating iDatalink Maestro®

English

- 59 -

•You can also check the device number on the [Firmware Information] screen of this

product (page 86).

1Find the device number (12 alphanumeric characters) on the label on the

packaging of this product or on the product itself.

2Access the following website and follow the on-screen instructions to configure

the desired firmware.

https://www.idatalinkmaestro.com/en

NOTE

When the serial number input is required, input the device number of this product.

3Install the vehicle/head unit-specific firmware on your iDatalink Maestro module.

4Connect this product to the iDatalink Maestro and install this product to the

vehicle.

The iDatalink function will be active.

The iDatalink function is available only when the input signal is received by the iDatalink

Maestro adaptor.

1Connect the iDatalink Maestro adaptor to this product.

For details, refer to the Quick start guide.

2Touch .

3Touch then .

4Touch [Input/Output settings].

5Touch [AV Input].

6Confirm that [Maestro] is selected.

7Touch then [Sources].

8Touch [Car Sources] or [Car Features].

The menu screen you touched appears.

[Car Sources] is operated almost the same way as the built-in AV sources on this product

is operated. For details on the operation, refer to the following relevant pages.

•Operating via USB/iPhone (page 66) (page 29)

•Operating via SiriusXM (page 52)

Starting procedure

Using the functions on [Car Sources]

- 60 -

English

•Operating via Bluetooth audio (page 46)

•Operating via Hands-free phone (page41)

You can check and use the following screens after selecting [Car Features] in the starting

procedure. Touch one of the icons on the left side of the screen to change a feature.

Gauges screen

Using the functions on [Car Features]

Displays the Gauge screen.

Displays the Vehicle Information screen.

Displays the Climate screen.

Displays the Parking Assist screen.

Displays the Speed Radar Detector screen.

Displays rear monitor mirroring when the rear monitor is connected via

iDatalink.

(BVHFT

*HOJUJPOJT0''

#VUUPO#VUUPO

QTJ

*OUBLF.BOJ"JS1SFTTVSF

5BDINFUFS

1&",

147

&OHJOF$PPMBOU5FNQ

*OUBLF"JS5FNQ



&OHJOF-PBE

5200

31.

English

- 61 -

Vehicle Information screen

Climate screen

Parking Assist screen

7FIJDMF*OGPSNBUJPO

-PX5JSF1SFTTVSF

#VUUPO#VUUPO

$IFDL&OHJOF

W



QTJ



QTJ



QTJ



QTJ

$MJNBUF

0655&.1n'

n'n'

"VUP

"$

.BY"$

%VBM

3FBS

#VUUPO#VUUPO

1BSLJOH"TTJTU

GFFU

#VUUPO

$BNFSB

DPNQPTJUJPO

#VUUPO

- 62 -

English

Speed Radar Detector screen

This function is only available for vehicles equipped with a parking sensor system.

CAUTION

This function is intended solely to assist the driver’s vision. It does not detect all dangers and

obstacles and is not a substitute for your attentiveness, judgement, and care while parking your

vehicle.

1Touch .

2Touch then .

3Touch [OEM settings] or [OEM Volume settings].

The setting screen for iDatalink appears.

Displaying obstacle detection information

iDatalink settings

Menu ItemDescription

[OEM settings]Setting for iDatalink function when the iDatalink adaptor is

connected to the unit.

[OEM Volume settings]Setting for iDatalink function volume when the iDatalink

adaptor is connected to the unit.

3BEBS%FUFDUPS

'SPOU3BEBS"MFSU

"VUP-PDL"VUP.VUF

$JUZ

$VTUPN

$VTUPN$VTUPN

$VTUPN

$VTUPN

$VTUPN

41&&%

-*.*5

105

120

135

150

English

- 63 -

Access the vehicle information and many of the OEM systems such as climate control,

driver safety systems, etc. and display them on this product by replacing the Metra parts

kit with interface conversion.

NOTE

Since the type of module varies depending on the vehicle model, search for your vehicle via the

following URL to determine which features are available for each module.

http://metraonline.com/

Important

•For details about vehicle models that are compatible with the Metra interface conversion unit,

refer to the information on Metra website.

•After installing the Metra interface conversion unit, be sure to check that it operates properly.

•Functions and displays vary depending on the vehicle model. For details on the functions

available for each model, refer to the information on our website.

•For troubleshooting information about the Metra interface conversion functions, visit the

following website. http://www.metraonline.com/contact-us

Limitations

•The data is transmitted to this product from your vehicle system via the connected

Metra interface conversion unit. Therefore, the actual data contents displayed on your

product may differ from the contents on the screen described in this manual.

1Connect the Metra interface conversion unit to this product.

For details, refer to the Quick start guide.

2Touch then [Sources].

3Touch [Car Features].

The menu screen appears.

You can check and use the following screens after selecting [Car Features] in the starting

procedure. Touch one of the icons on the left side of the screen to change a feature.

Metra Axxess

Using Metra

Starting procedure

Using the functions on [Car Features]

- 64 -

English

Displays the Vehicle Information screen.

Displays the Climate screen.

Displays the Radio ID screen.

7FIJDMF*OGPSNBUJPO

*HOJUJPOJT0O

4QFFE

1,#

5SBOTNJTTJPO4UBUF

$IFDL&OHJOF

31.

$PNQBTT)FBEJOH

%JNNFS7BMVF

"NQMJFS5ZQF

.1)

0

%SJWF

n



"OBMPH

5JSF1SFTTVSF<QTJ>

'-



3-

'3

33

"CDEFGHIJ



3500

Vehicle information screen

$MJNBUF

n'

n'n'

"$

"VUP4ZOD%VBM

.BY"$

'SPOU

Climate screen

English

- 65 -

.FUSB*OGPSNBUJPO

*OUFSGBDF)87FSTJPO

*OUFSGBDF'87FSTJPO

0.43

Radio ID screen

- 66 -

English

You can play audio, video, or still image files stored in a USB storage device.

•This product may not achieve optimum performance with some USB storage devices.

•Connection via a USB hub is not possible.

•A USB cable is required for connection.

1Pull out the plug from the USB port of the USB cable.

2Plug a USB storage device into the USB cable.

1Pull out the USB storage device from the USB cable.

Check that no data is being accessed before pulling out the USB storage device.

2Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.

1Plug the USB storage device into the USB cable.

2Touch then [Sources].

3Touch [USB].

Playing data in a USB

Plugging/unplugging a USB storage device

Plugging a USB storage device

USB cable

USB storage device (sold separately)

Unplugging a USB storage device

Starting procedure

English

- 67 -

Playback is performed in order of folder numbers. Folders are skipped if they contain

no playable files.

You can set the screen size for the video and image files (page 98).

Audio source screen 1

Basic operation

Audio source

Displays the link search screen.

Touch the song to play back followed by touching the song information, after

switching to Music Browse mode (page 68).

This function is available for the USB storage device only.

Switches between playback and pause.

Skips files forward or backward.

Sets a repeat play range for all files/the current folder/the current file.

Switches between random and normal file playback order.

Displays the hidden function bar.

You can also display the hidden function bar by flicking the bar from the right to

the left.

"CDEFGHIJKL

.PO

64#

"CDEFGHIJ

"CDEFG

.1

9999’99”

12:38

6/10

- 68 -

English

Audio source screen 2

▶Selecting a file using Music Browse mode

You can select files to play back using the category list if the files contain tag

information.

Once the database is created in this unit, there is no need to create the database again as

long as the same contents are saved. To enter the Music Browse mode directly, touch

and then touch [Tag] before selecting the song.

Switches the following media file types.

[Music]: Audio files

[Video]: Video files

[Photo]: Image files

Selects a file from the list.

Touch a file on the list to playback.

Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

NOTE

When you play audio files stored in a USB storage device, you can search for

a file using Music Browse (page68).

Displays the hidden function bar.

You can also display the hidden function bar by flicking the bar from the left to the

right.

Selects the previous folder or the next folder.

Constructs the database for using the Music Browse mode (page 68).

Switches the current music information display.

"CDEFGHIJKL

.PO

64#

"CDEFGHIJ

"CDEFG

.1

9999’99”

12:38

6/10

English

- 69 -

This function is available for the USB storage device only.

1Touch to create a database.

Music Browse mode will be available after the database has been created.

2Touch .

3Touch the desired category to display the file list.

4Touch the item.

Refine the item until the desired song title or file name is displayed on the list.

5Touch the desired song title or file name to play back.

If the selection made with Music Browse has been canceled, you can switch to Music

Browse mode again by touching the [Tag] tab on the file/folder list screen and

touching the desired track.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view

video images, stop in a safe place and apply the parking brake.

Video source

Hides the touch panel keys.

To display the keys again, touch anywhere on the screen.

Switches between playback and pause.

Performs fast reverse or fast forward.

Touch again to change the playback speed.

Stops playback.

Touch again to start from the beginning next time.

.PO

64#

"CDEFGHIJ

'VMM

"CDEFGHIJ

9999’99” 9999’99”

12:38

6/10

- 70 -

English

Performs frame-by-frame playback.

Performs slow-motion playback.

Sets a repeat play range for all files/the current folder/the current file.

Switches the audio language.

Switches the following media file types.

[Music]: Audio files

[Video]: Video files

[Photo]: Image files

Selects a file from the list.

Touch a file on the list to playback.

Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

Skips files forward or backward.

Still image source

Hides the touch panel keys.

To display the keys again, touch anywhere on the screen.

Switches between playback and pause.

.PO

64#

"CDEFGHIJ

/PSNBM

"CDEFGHIJ

12:38

6/10

English

- 71 -

This setting can be used only when the media format to play is [Photo].

1Touch .

2Touch then .

The system setting screen appears.

3Touch [AV Source settings].

4Touch [USB settings].

Skips files forward or backward.

Selects the previous folder or the next folder.

Rotates the displayed picture 90° clockwise.

Sets a repeat play range for all files/the current folder.

Switches between random and normal playback order of the files that are

currently selected for repeat playback.

Switches the following media file types.

[Music]: Audio files

[Video]: Video files

[Photo]: Image files

Selects a file from the list.

Touch a file on the list to playback.

Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

USB settings

Menu ItemDescription

[Time Per Photo Slide]

[5sec] [10sec] [15sec] [Manual]

Select the interval of image file slideshows on

this product.

- 72 -

English

You can display the video image output by the device connected to video input.

•A Mini-jack AV cable (sold separately) is required for connection. For details, refer to

the Quick start guide.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view

video images, stop in a safe place and apply the parking brake.

1Touch .

2Touch then .

3Touch [Input/Output settings].

4Confirm that [AUX Input] is turned on.

5Touch then [Sources].

6Touch [AUX].

The AUX screen appears.

Using external devices

(AUX)

Starting procedure

English

- 73 -

Basic operation

Hides the touch panel keys.

To display the keys again, touch anywhere on the screen.

•You can set the screen size for the video image (page 98).

Switches between the video input and audio input.

'VMM

.PO

12:38

6/10

"69

- 74 -

English

You can display the video image output using the device connected to the back camera

input or 2nd camera input. For details, refer to the Quick start guide.

1Touch then [Sources].

2Touch [Camera View].

Video footage is displayed on the screen.

1Touch .

2Touch then .

3Touch [Input/Output settings].

4Touch [AV Input] and select [2nd Camera].

Switch between [OFF], [2nd Camera] and [Maestro] with each touch ([Maestro] is

only displayed when connected to the iDatalink adaptor).

5Touch then [Sources].

6Touch [Camera View].

Displaying video images

from the back camera/2nd

camera

Starting procedure

Displaying 2nd camera view

English

- 75 -

7Touch to switch the camera view.

The 2nd camera video footage is displayed on the screen.

NOTE

If you touch , the previous screen temporarily appears and the rear view mode resumes

after 7 seconds. (If you switch to another screen, the rear view mode may not resume

depending on the screen, such as in the case of menu screens.)

- 76 -

English

To update the firmware wirelessly, PxLink app must be installed in advance.

You can only update the firmware when the vehicle is stopped and the parking brake is

engaged.

CAUTION

•Never turn this product or your iPhone/smartphone off while the firmware is being updated.

•You cannot update the old firmware version once the latest firmware is updated.

1Download the firmware update files into your iPhone or smartphone through

PxLink app.

2Operate PxLink app to perform a Bluetooth connection, Bluetooth LE connection,

and Wi-Fi connection (page 18).

3Touch .

4Touch then .

5Touch [System Information].

6Touch [Firmware Update].

7Touch [Yes].

Follow the on-screen instructions to finish updating the firmware.

•This product will reset automatically after the firmware update is completed if the

update is successful.

Updating the firmware

wirelessly

4ZTUFN*OGPSNBUJPO

'JSNXBSF*OGPSNBUJPO

'JSNXBSF6QEBUF

$POOFDUJPO4UBUVT

-JDFOTF

%$BMJCSBUJPO4UBUVT

English

- 77 -

• If an error message appears on the screen, touch the display and perform the

above steps again.

NOTES

•When an iPhone/smartphone (Android) on which PxLink app is installed is connected to the

main unit and information about the latest firmware update is received, a notification is

displayed on the screen of the main unit.

For details on the notification, check [Notifications] under Communication settings (page 96).

•If the update is not complete after a notification regarding the latest firmware has been

received, the settings icon and the [Notifications] and [Firmware Update] setting items will be

displayed with a red badge.

•For details on how to update the firmware wirelessly and for any other doubts, check PxLink

app Help.

•If the firmware update process does not start or does not work well, touch [Connection] to

display the device list and touch to disconnect Android Auto and retry.

- 78 -

English

You can adjust various settings in the main menu.

1Touch .

2Touch .

3Touch one of the following categories, then select the options.

System settings (page 79)

Theme settings (page 89)

Audio settings (page 90)

Communication settings (page95)

[Favorites] screen to the desired menu screen with a single touch.

•Up to 12 menu items can be registered in the favorite menu.

1Touch .

2Touch .

Settings

Displaying the setting screen

Favorite menu

Registering the menu items in Favorites

4ZTUFNTFUUJOHT

7PMVNFTFUUJOHT

-VNJOPVT#BSTFUUJOHT

*OQVU0VUQVUTFUUJOHT

$BNFSBTFUUJOHT

"74PVSDFTFUUJOHT

English

- 79 -

3Touch the star icon of the menu item to register in Favorites.

The star icon for the selected menu is filled in.

To cancel the registration, touch the star icon in the menu column again.

1Touch .

2Touch .

3Touch .

4Touch the desired menu item.

1Touch .

2Touch .

3Touch .

4Touch and hold the menu item that you want to remove.

The selected menu item is removed from the [Favorites] screen.

The menu items vary according to the source.

Selecting a menu item registered in Favorites

Deleting a menu item registered in Favorites

System settings

4ZTUFNTFUUJOHT

7PMVNFTFUUJOHT

-VNJOPVT#BSTFUUJOHT

*OQVU0VUQVUTFUUJOHT

$BNFSBTFUUJOHT

"74PVSDFTFUUJOHT

- 80 -

English

[Luminous Bar settings] can be used on DMH-WT6000NEX only.

[Volume settings]

Menu ItemDescription

[Operation Sounds]

[On] [Off]

Set the operation sounds for the main unit.

[Receiver Volume]

[0] to [40]

Touch [+]/[-] to adjust the volume of the speaker’s voice.

[Ring Volume]

[0] to [40]

Touch [+]/[-] to adjust the ring volume.

[Luminous Bar settings]

Menu ItemDescription

[Brightness]

[1] to [10]

Touch or to adjust the brightness of the luminous

bar.

[Guidance]

[On] [Off]

Set whether to link the directions of the application being

used on Apple CarPlay or Android Auto with the luminous

bar.

[Music Sync]

[Mode1] [Mode2] [Off]

Set the manner of linking the music or audio being played

with the luminous bar.

[Ambient Light]

[On] [Off]

Touch [On] to keep the luminous bar lit at all times. Even if

this is set to [Off], if [Guidance] is [On], the luminous bar

lights up when road directions are being given.

[AV Source settings]

Menu ItemDescription

[Radio settings](page 51)

[SiriusXM settings](page 56)

[USB settings](page 71)

[Input/Output settings]

Menu ItemDescription

[AV Input]

[2nd Camera] [Maestro]

[Off]

Select AV input source.

English

- 81 -

A separately sold rear view camera (e.g. ND-BC010) is required for utilizing the rear view

camera function. (For details, consult your dealer.)

•The range projected by the rear view camera is limited. Also, the vehicle width and

distance guidelines displayed on the rear view camera image may differ from the

actual vehicle width and distance. (The guidelines are straight lines.)

•The image quality may deteriorate depending on the usage environment, such as at

night or in dark surroundings.

▶Rear view camera

This product features a function that automatically switches to the full-screen image of the

rear view camera installed on your vehicle when the shift lever is in the REVERSE (R) position.

Camera View mode also allows you to check what is behind you while driving.

•While the rear view camera image is displayed when backing up your vehicle, is

shown. Each touch of shows and hides the parking assist guidelines temporarily.

•The guidelines can be adjusted. For details on how to adjust the guidelines, see

[Parking Assist Guide Adjust] (page 82).

▶Camera for Camera View mode

Camera View can be displayed at all times. Note that with this setting, the camera image

is not resized to fit, and that a portion of what is seen by the camera is not viewable.

To display the camera image, touch [Camera View] on the source/application selection

screen (page 28).

•To set the rear view camera as the camera for Camera View mode, set [Back-up Camera

Input] to [On] (page 82).

•When using the 2nd camera, set [AV Input] to [2nd Camera] (page 80).

•When the camera view of both the rear view camera and 2nd camera are available, the

key to switch the display appears. Touch this key to switch the display between the

rear view image and 2nd camera image.

CAUTION

Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the

screen image may appear reversed.

•Immediately verify whether the display changes to the rear view camera image when the shift

lever is moved to REVERSE (R) from another position.

•When the screen changes to full-screen rear view camera image during normal driving, switch

to the opposite setting in [Camera Polarity].

[2nd Camera view]

[Normal] [Reverse]

Select the way the screen image of a camera appears.

[AUX Input]

[On] [Off]

Set to [On] for AUX source (page 72).

[Camera settings]

Menu ItemDescription

- 82 -

English

•If you touch while the camera image is displayed, the displayed image turns off

temporarily.

Menu ItemDescription

[Back-up Camera Input]

[Off] [On]

Setting rear view camera activation.

[Camera Polarity]Setting the polarity of the rear view camera.

[Battery]The polarity of the connected lead is positive.

[Ground]The polarity of the connected lead is negative.

•This function is available when [Back-up Camera Input] is

set to [On].

[Parking Assist Guide

Adjust]*

1Adjusting the guidelines by dragging or touching /

//// on the screen.

Touch [Default] to reset the settings.

2Turn the vehicle off before getting out to place the

markings.

CAUTION

When adjusting the guidelines, park the vehicle in a safe

place and apply the parking brake; this setting is

available only when the vehicle is parked with the

parking brake applied.

3Use painter's tape or similar tape to place markings as

shown below before setting up the guidelines.

4Adjust the guidelines so that they overlay the tape

markings as closely as possible.

Install the rear view camera as near the center of the

vehicle as possible, and do not install it too low.

Otherwise, the guideline comes on the edge of the

screen, preventing the guideline from being adjusted.

50 cm (1.67 ft)

Markings

Rear bumper

2 m (6.67 ft)

25 cm (0.83 ft)

MAX 2.7 m (9 ft)

English

- 83 -

*This setting may not be available according to the connected camera if the iDatalink adaptor is

connected to the unit.

[Parking Security settings] can be used on DMH-WT6000NEX only.

[Parking Security settings]

Menu ItemDescription

[Parking Security Mode]

[On] [Off]

When this setting is set to [On], both ends of the luminous

bar flash red during parking.

[Video Signal settings]

Menu ItemDescription

[AUX]

[Auto] [PAL] [NTSC]

[PAL-M] [PAL-N] [SECAM]

Select the suitable video signal setting when you connect

this product to an AUX equipment.

[Back-up Camera]

[Auto] [PAL] [NTSC]

Select the suitable video signal setting when you connect

this product to a rear view camera.

[2nd Camera]

[Auto] [PAL] [NTSC]

Select the suitable video signal setting when you connect

this product to a 2nd camera.

[RSE]

[Auto] [PAL] [NTSC]

[PAL-M] [PAL-N] [SECAM]

Select the suitable video signal setting when you connect

this product to a rear monitor via iDatalink.

[Companion App Key settings]

Menu ItemDescription

[Companion App Key

settings]

[PxLink] [Phone]

Set the screen to display when is touched.

For details on the screen that is displayed, see “Main unit”

(page 11).

[Demo Mode]

Menu ItemDescription

[Demo Mode]

[On] [Off]

Setting the demo mode.

- 84 -

English

•This setting is available only when you stop your vehicle in a safe place and apply the

parking brake.

•The source is turned off and the Bluetooth connection is disconnected before the

process starts.

•Before starting the restore process, disconnect any device that is connected to the USB

port. Otherwise, some settings may not be restored correctly.

CAUTION

Do not turn off the engine while restoring the settings.

This setting is available only when you stop your vehicle in a safe place and apply the

parking brake.

[Steering Wheel Control]

Menu ItemDescription

[Steering Wheel Control]

[Off] [With Adapter]

Select [With Adapter] or [Off] according to your wired

remote control.

•This setting is available only when you stop your vehicle

in a safe place and apply the handbrake.

•Depending on your vehicle, this function may not work

properly. In this case, contact your dealer or an authorised

PIONEER Service Station.

[Restore settings]

Menu ItemDescription

[Restore All settings]Touch [Restore] to restore the settings to the default

settings.

[Restore Audio settings]To initialize the contents set in [Audio settings], touch

[Restore].

[Restore Bluetooth

settings]

To initialize the settings related to Bluetooth, touch

[Restore].

[Dimmer settings]

Menu ItemDescription

[Dimmer Trigger]Setting the dimmer brightness.

When [Dimmer] is selected in the [Appearance] setting

(page 90), the Light mode or the Dark mode is switched

automatically according to the following settings.

[Auto]Switches the dimmer to on or off automatically according

to your vehicle’s headlight turning on or off.

English

- 85 -

You can adjust the picture settings for each source, including the rear view camera.

[Manual]Switches the dimmer to on or off manually.

[Time]Switches the dimmer to on or off at the time you adjusted.

[Day/Night]Setting the dimmer duration by day or night.

You can use this function when [Dimmer Trigger] is set to

[Manual].

[Day]Turns the dimmer function to off.

[Night]Turns the dimmer function to on.

[Dimmer Duration]Adjust the time that the dimmer is turned on or off by

dragging the cursors or touching or .

You can use this function when [Dimmer Trigger] is set to

[Time].

•Each touch of or moves the cursor backward or

forward in the 15 minute width.

•When the cursors are placed on the same point, the

dimmer available time is 0 hours.

•When the cursor for off time setting is placed on the left

end and the cursor for on time setting is placed on the

right end, the dimmer available time is 0 hours.

•When the cursor for on time setting is placed on the left

end and the cursor for off time setting is placed on the

right end, the dimmer available time is 24 hours.

•The time display of the dimmer duration adjusting bar

depends on the clock display setting (page 98).

[Clock settings]

Menu ItemDescription

[Clock settings]Setting or adjusting the following time and clock display.

•Date display format:

day-month-year, month-day-year, or year-month-day

•Time display format:

[12hour] or [24hour]

•UTC (Universal Time Coordinated) time zone difference:

[UTC-12h] to [UTC+14h]

•Day-light saving time:

[ON] or [OFF]

[Picture Adjustment]

Menu ItemDescription

- 86 -

English

CAUTION

For safety reasons, you cannot use some of these functions while your vehicle is in motion. To

enable these functions, you must stop in a safe place and apply the parking brake.

To adjust following menu, touch , , , to adjust.

*With some pictures, you cannot adjust [Hue] and [Color].

NOTES

•The adjustments of [Brightness], [Contrast], and [Dimmer] are stored separately when your

vehicle's headlights are off (daytime) and on (nighttime).

•[Brightness] and [Contrast] are switched automatically depending on the setting of [Dimmer

settings].

•[Dimmer] can be changed the setting or the time to switch it to on or off (page 84).

•The picture adjustment may not be available with some rear view cameras.

•The setting contents can be memorized separately.

Menu ItemDescription

[Brightness]

[-24] to [+24]

Adjust the black intensity.

[Contrast]

[-24] to [+24]

Adjust the contrast.

[Color]*

[-24] to [+24]

Adjust the color saturation.

[Hue]*

[-24] to [+24]

Adjust the tone of color (which color is emphasized, red, or

green).

[Dimmer]

[+1] to [+48]

Adjust the brightness of the display.

[Temperature]

[-3] to [+3]

Adjust the color temperature, resulting in a better white

balance.

[System Information]

Menu ItemDescription

[Firmware Information]Displaying the firmware version.

English

- 87 -

[Firmware Update]Update to the latest version of the firmware by using a USB

storage device or wireless connection. To update the

firmware via wireless connection, PxLink app is required.

For details on performing the wireless update, refer to

Updating the firmware wirelessly (page 76).

When information about the latest firmware update is

received, a notification badge is displayed in the [Firmware

Update] item.

CAUTION

•The USB storage device for updating must contain only the

correct update file.

•Never turn this product off, disconnect the USB storage

device while the firmware is being updated.

•You can only update the firmware when the vehicle is

stopped and the parking brake is engaged.

1Download the firmware update files into your

computer.

2Connect a blank (formatted) USB storage device to

your computer then locate the correct update file and

copy it onto the USB storage device.

3Connect the USB storage device to this product

(page 66).

4Turn the source off (page 28).

5Display the [System settings] screen (page 78).

6Touch [System Information].

7Touch [Firmware Update].

8Touch [Yes].

Follow the on-screen instructions to finish updating the

firmware.

NOTES

•This product will reset automatically after the firmware

update is completed if the update is successful.

•If an error message appears on the screen, touch the

display and perform the above steps again.

•If the update is not complete after a notification

regarding the latest firmware has been received, the

settings icon and the [Notifications] and [Firmware

Update] setting items will be displayed with a red

badge.

Menu ItemDescription

- 88 -

English

[3D Calibration Status]Check the sensor learning status, such as the degree of

learning. You can also check the current sensor values and

the total number of speed pulses.

To delete the learned results stored in the sensor, follow

the below instructions.

•Touch [Reset All] to reset the sensor after changing the

installation position or angle.

•If you touch [Reset Distance], all learned results stored in

[Distance] are cleared.

1Touch [Distance] or [Speed Pulse], and then touch

[Yes].

2Touch [Learning status] and then touch [Reset All].

[Connection Status]Check that the leads are properly connected between this

product and vehicle.

[GPS Antenna]Displays the connection status of the GPS antenna ([OK] or

[NOK]) and the reception sensitivity.

•If reception is poor, change the installation position of

the GPS antenna.

[Positioning Status]Displays the positioning status (3D positioning, 2D

positioning, or no positioning), the number of satellites

used for positioning (orange), and the number of satellites

that have received signals (yellow). If signals from more

than three satellites are received, the current location can

be measured.

[Installation]Indicates whether the installation position of this product

is correct or not. If installed correctly, [OK] appears. When

this product is installed at an extreme angle exceeding the

limitation of the installing angle, [NOK(Inst. Angle)] is

displayed. If the installation of this product is continually

changed and it is not firmly fixed into place,

[NOK(Vibration)] is displayed.

[Speed Pulse]The speed pulse value detected by this product is shown.

[Back Signal]When the shift lever is shifted to “R” (reverse position), the

signal switches to [High] or [Low]. The signal displayed

varies depending on the vehicle.

[Parking brake]When the parking brake is applied, [ON] is displayed, and

when the parking brake is released, [OFF] is displayed.

[Illumination]When the vehicle lights are illuminated, [ON] is displayed,

and when the vehicle lights are turned off, [OFF] is

displayed.

[License]Displays the open source license for this unit.

Menu ItemDescription

English

- 89 -

The menu items vary according to the source.

[System Language]

Menu ItemDescription

[System Language]Select the system language.

•If the programmed language and the selected language

setting are not the same, the text information may not

display properly.

•Some characters may not be displayed properly.

[OEM settings]

Menu ItemDescription

[OEM settings](page 62).

[OEM Volume settings]

Menu ItemDescription

[OEM Volume settings](page 62).

Theme settings

Menu ItemDescription

[Background]Select the wallpaper from the preset items of the main unit

or an original image via PxLink app.

The wall paper can be set from selections for the home

menu screen and AV operation screen.

•You can preview how each wallpaper will appear in [Light

mode] or [Dark mode].

Preset DisplaySelect the desired preset background display.

•When the preset background display image with the

icon is selected, the color changes to match the color of

the artwork image.

(custom)Displays the wallpaper image transferred from PxLink app.

•Depending on the selected background image, the

characters on the display may be difficult to see. In that

case, try to set [Background Filter ON].

(off)Hides the background display.

[Illumination]*1Select an illumination color from the color list or create a

defined color.

- 90 -

English

*1You can preview the home menu screen or the AV operation screen by touching [Home] or [AV]

respectively.

The menu items vary according to the source. Some of the menu items become

unavailable when the volume is set to mute.

Colored KeysSelect the desired preset color.

(custom)Displays the screen to customize the illumination color.

To customize the defined color, touch then touch

or to adjust the brightness and the level of red, green

and blue to create favorite color.

To store the customized color in the memory, touch and

hold [Memo], and the customized color will be available at

the next illumination setting by touching .

•You can also adjust the color tone by dragging the color

bar.

(rainbow)Shifts gradually between the preset colors in sequence.

[Appearance]Switches the screen appearance to Light mode or Dark

mode. (This setting is also applied to the screen of

Apple CarPlay or Android Auto.)

[Dimmer]Switches to the Light mode or the Dark mode

automatically according to the [Dimmer settings]

(page 84).

[Light]Sets the Light mode to see the screen clearly under strong

sunlight.

[Dark]Sets the Dark mode when the inside of your vehicle is dark.

[Splash screen]

[Import] [Restore]

Select [Import] to change the image on the opening screen

to the one imported from the connected USB device.

Select [Restore] to restore the default image.

•The image files that can be imported are as follows:

– Format: JPEG

– Data size: 3.5 MB or less

– Image size (W × H): The product of the vertical and horizontal

dimensions of the image must be within 2 880 000 pixels (e.g.,

1 920 × 1 080, 2 436 × 1 125, etc.)

•If multiple image files are stored on the USB device, the

desired image file may not be imported from the USB

device. Store only one desired image file on the USB

device.

Audio settings

Menu ItemDescription

English

- 91 -

Menu ItemDescription

[Fader/Balance]Touch or to adjust the front/rear speaker balance.

Set [Front] and [Rear] to [0] when using a dual speaker

system.

Touch or to adjust the left/right speaker balance.

•You can also set the value by dragging the point on the

displayed table.

•This function is available when [Standard Mode] is

selected as the speaker mode and [Rear] is selected in

[Rear Speaker Output].

[Loudness]

[Off] [Low] [Mid] [High]

Compensates for deficiencies in the low-frequency and

high-frequency ranges at low volume.

[Auto Sound Levelizer]

[OFF] [LOW] [MID-LOW]

[MID] [MID-HIGH] [HIGH]

Corrects the volume according to the travel speed.

[Source Level Adjuster]

[-4] to [+4]

Adjust the volume level of each source to prevent radical

changes in volume when switching between sources other

than FM.

Touch or to adjust the source volume after

comparing the FM tuner volume level with the level of the

source.

•If you directly touch the area where the cursor can be

moved, the SLA (source level adjustment) setting will be

changed to the value of the touched point.

•Settings are based on the FM tuner volume level, which

remains unchanged.

•This function is not available when the FM tuner is

selected as the AV source.

[Sound Retriever]

[Off] [Mode1] [Mode2]

Enhances compressed audio and restores rich sound

automatically.

•[Mode2] has a stronger effect than [Mode1].

- 92 -

English

[Speaker Level]

Listening Position*1*2

[Off] [Front Left]

[Front Right] [Front] [All]

Standard Mode*3

[Front Left] [Front Right]

[Rear Left] [Rear Right]

[Subwoofer]

Network Mode*3

[High Left] [High Right]

[Mid Left] [Mid Right]

[Subwoofer]

Speaker output level

[-24] to [10]

Adjust the speaker output level of the listening position.

•You can adjust the subwoofer output level if the

[Subwoofer] setting is set to [On].

1Touch or to select the listening position then

select the output speaker.

2Touch or to adjust the selected speaker

output level.

[Listening Position]*1

[Off] [Front Left]

[Front Right] [Front] [All]

Select a listening position that you want to make as the

center of sound effects.

[Time Alignment]

[On] [Off]

Listening Position*1*2

[Off] [Front Left]

[Front Right] [Front] [All]

Standard Mode*3*4

[Front Left] [Front Right]

[Rear Left] [Rear Right]

[Subwoofer]

Network Mode*3*4

[High Left] [High Right]

[Mid Left] [Mid Right]

[Subwoofer]

Distance

[0] to [150]

Select or customize the time alignment settings to reflect

the distance between the listener’s position and each

speaker. You need to measure the distance between the

head of the listener and each speaker unit.

•If you touch [TA On], the time alignment is turned off

mandatorily.

•This function is available only when the listening position

setting is set to [Front Left] or [Front Right].

1Touch or to select the listening position then

select the alignment speaker.

2Touch or to input the distance between the

selected speaker and listening position.

Menu ItemDescription

English

- 93 -

[EQ]

[Super Bass (S.Bass)]

[Powerful] [Natural]

[Vocal] [Flat] [Custom1]

[Custom2]

Select or customize the equalizer curve.

Select a curve that you want to use as the basis of

customizing then touch the frequency that you want to

adjust.

•If you make adjustments when a curve [Super Bass

(S.Bass)], [Powerful], [Natural], [Vocal] or [Flat] is selected,

the equalizer curve settings will be changed to [Custom1]

mandatorily.

•If you make adjustments when the [Custom2] curve is

selected for example, the [Custom2] curve will be

updated.

•[Custom1] and [Custom2] curves can be created common

to all sources.

•If you trail a finger across the bars of multiple equalizer

bands, the equalizer curve settings will be set to the value

of the touched point on each bar.

[Subwoofer]

[On] [Off]

Select enable or disable rear subwoofer output from this

product.

[Crossover]Select a speaker unit (filter) to adjust the HPF or LPF cutoff

frequency and the slope for each speaker unit (page 94).

[Bass Boost]

[0] to [+6]

Adjust the bass boost level.

[Rear Speaker Output]

[Rear] [Subwoofer]

Select the rear speaker output.

•This function is available when [Standard Mode] is

selected as the speaker mode and the source is off.

[Mute Level]If an interruption caused by an audio signal occurs while

Apple CarPlay or Android Auto is being used, select mute

or attenuate the volume of the AV source and iPhone/

smartphone application.

[ATT]The volume becomes 10 dB lower than the current volume.

[Mute]The volume becomes 0.

[Off]The volume does not change.

[Subwoofer settings]Select the subwoofer phase (page 94).

[Save settings]Save to recall the following current sound settings by

touching [OK]: slope, subwoofer phase, speaker level, EQ,

HPF/LPF, listening position, crossover, time alignment.

•When you touch [Cancel], return to the [Audio settings]

screen.

Menu ItemDescription

- 94 -

English

*1[All] is not available when [Network Mode] is selected as the speaker mode.

*2 If you change the listening position setting, the set values for all speakers will change in

conjunction with this setting.

*3To use this function, the vehicle’s acoustics must be measured in advance.

*4This function is available only when the listening position setting is set to [Front Left] or [Front

Right].

You can adjust the cutoff frequency value of each speaker.

The following speakers can be adjusted:

[Standard Mode]: Front, Rear, Subwoofer.

[Network Mode]: High, Mid, Subwoofer.

•[Subwoofer settings] is available only when [Subwoofer] is [On].

1Touch .

2Touch then .

3Touch [Crossover] or [Subwoofer settings].

4Touch or to switch the speaker.

5Drag the graph line to set the cutoff position.

6Drag the lowest point of the graph to set the cutoff slope.

The following items can also be set.

[Load settings]

[Initial settings]

[Sound setting]

Load the sound settings.

•[Sound setting] is available only when you have already

saved the sound settings (page 93).

Adjusting the cutoff frequency value

Switches the subwoofer phase between normal and reverse position.

•You can also adjust the [High] and [Mid] phase in [Network Mode].

[LPF]/[HPF]

Switches the [LPF]/[HPF] setting to [On] or [Off]. When it is turned off, the high-

pass filter or low-pass filter of each speaker can also be turned on by touching the

graph lines.

Menu ItemDescription

English

- 95 -

Setting the Bluetooth (page 21) and Hands-free phone (page 41).

Communication settings

[Connection]

Menu ItemDescription

[Connection]Displaying a list of mobile devices that have been

connected via Bluetooth or USB.

Connect, disconnect, or delete registered mobile device

manually.

Touch to delete registered device.

To connect a registered device manually, perform the

following:

•For an Apple CarPlay or Android Auto connection, touch

the icon of the device.

•For a Bluetooth connection, touch .

To disconnect the device, touch in the list.

TIP

If there are no devices in the list, the device search list screen

will appear so you can connect a selected device.

NOTES

•Connect the Bluetooth device manually in the following

cases:

– Two or more Bluetooth devices are registered, and you want to

manually select the device to be used.

– You want to reconnect a disconnected Bluetooth device.

– Connection cannot be established automatically for some

reason.

•If you have deleted the registered Bluetooth device from

the unit, also delete the registered unit’s information from

your iPhone or smartphone.

[Bluetooth settings]

[Wi-Fi settings]

Menu ItemDescription

[Wi-Fi settings](page 23).

- 96 -

English

[Driving Position]

Menu ItemDescription

[Driving Position]

[Left] [Right]

Setting the driving position.

•Setting the driving position (page31)

NOTE

The position of the shortcuts on the home menu screen

depends on the driving position setting (page 16).

[Notifications]

Menu ItemDescription

[Notifications]A notification is displayed if it is possible to update to the

latest version of the firmware.

If there is a notification of a firmware update that has not

been checked, a badge is displayed in the [Notifications]

item.

NOTE

If the update is not complete after a notification regarding

the latest firmware has been received, the settings icon and

the [Notifications] and [Firmware Update] setting items will

be displayed with a red badge.

[Companion App Info]

Menu ItemDescription

[Companion App Info]A screen with information on downloading PxLink app is

displayed.

Touch [Connect] to display a screen with information on

linking the main unit and PxLink app.

Touch [Skip] to display the home menu screen.

If the main unit and PxLink app are not linked, a badge is

displayed in the [Companion App Info] item.

NOTE

If linking to PxLink app is not complete, the settings icon and

[Companion App Info] setting item will be displayed with a

red badge.

English

- 97 -

[Android Auto Auto-launch]

Menu ItemDescription

[AndroidAuto Auto-

launch]

[On] [Off]

Select [On] to display the Android Auto screen

automatically when an Android device is connected to the

unit.

- 98 -

English

You can set the time format, time zone, daylight saving, and the date format.

However, the time and date are automatically adjusted by the GPS antenna and cannot

be adjusted by the user.

1Touch the current time on the screen.

2Set the following items in the settings.

•The date display format:

day-month-year, month-day-year, or year-month-day

•The time display format:

[12hour] or [24hour]

•The UTC (Universal Time Coordinated) time zone difference:

[UTC-12h] to [UTC+14h]

•Day-light saving time:

[ON] or [OFF]

You can also configure these items in [Clock settings] (page 85).

You can set the screen mode for the AV screen and image files.

•Different settings can be stored for each video source.

•Depending on the software version of this unit, this function may vary.

Other functions

Setting the clock display

Changing the widescreen mode

English

- 99 -

1Touch the screen display mode key.

2Touch the desired mode.

When a video is viewed in the widescreen mode with a setting that does not match

its original aspect ratio, it may appear different.

Image files can be set to either [Normal] or [Trimming] in the widescreen mode.

You can reconnect the iPhone or smartphone by touching [Reconnect] on the home

menu screen.

TIPS

•[Reconnect] is displayed on the home menu screen only when the Wi-Fi connection (Wireless

Apple CarPlay or Android Auto) has failed or been disconnected automatically.

• If you touch [Reconnect], the message confirming whether to restart this product appears on

the display. Touch [Yes] to restart this product.

Screen display mode key

[Full]Displays images across the entire screen.

•Some images may not be displayed across the entire screen.

[Zoom]Displays images by enlarging them vertically.

•The video image will appear coarser when viewed in [Zoom] mode.

[Normal]Displays images without changing the ratio.

[Trimming]An image is displayed across the entire screen with the horizontal-to-vertical ratio

left as-is. If the screen ratio differs from the image, the image may be displayed

partly cut off either at the top/bottom or sides.

•[Trimming] is for image files only.

About the reconnection function

'VMM

.PO

12:38

6/10

"69

- 100 -

English

You can restore settings or recorded content to the default settings from [Restore all

settings] in (page 84).

Restoring this product to the default settings

English

- 101 -

•iPhone 14 Pro Max

•iPhone 14 Pro

•iPhone 14 Plus

•iPhone 14

•iPhone SE (3rd generation)

•iPhone 13 Pro Max

•iPhone 13 Pro

•iPhone 13

•iPhone 13 mini

•iPhone 12 Pro Max

•iPhone 12 Pro

•iPhone 12

•iPhone 12 mini

•iPhone SE (2nd generation)

•iPhone 11 Pro Max

•iPhone 11 Pro

•iPhone 11

•iPhone XR

•iPhone XS Max

•iPhone XS

•iPhone X

•iPhone 8

•iPhone 8 Plus

Depending on the iPhone models, it may not be compatible with some AV sources. For

details about iPhone compatibility with this product, refer to the information on our

website.

Compatible iPhone models

- 102 -

English

CAUTION

•To prevent data loss and damage to the storage device, never remove it from this product

while data is being transferred.

•Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no

responsibility for any loss of data on media players, iPhone, smartphone, or other devices

while using this product.

•It may not be recognized properly by this product if a USB device that had been incorrectly

disconnected from the computer is connected.

Handling the USB

connector

English

- 103 -

•Do not leave the USB storage device in any location with high temperatures.

•Depending on the kind of the USB storage device you use, this product may not

recognize the storage device or files may not be played back properly.

•The text information of some audio and video files may not be correctly displayed.

•File extensions must be used properly.

•There may be a slight delay when starting playback of files on an USB storage device

with complex folder hierarchies.

•Operations may vary depending on the kind of an USB storage device.

•It may not be possible to play some music files from USB because of file characteristics,

file format, recorded application, playback environment, storage conditions, and so

on.

USB storage device compatibility

•For details about USB storage device compatibility with this product, refer to

Specifications (page 107).

•Protocol: bulk

•You cannot connect a USB storage device to this product via a USB hub.

•Partitioned USB storage device is not compatible with this product.

•Firmly secure the USB storage device when driving. Do not let the USB storage device

fall onto the floor, where it may become jammed under the brake or gas pedal.

•There may be a slight delay when starting playback of audio files encoded with image

data.

•Some USB storage devices connected to this product may generate noise on the radio.

•Do not connect anything other than the USB storage device.

Handling guidelines and supplemental information

•Copyright protected files cannot be played back.

Detailed information for

playable media

Compatibility

Common notes about the USB storage device

- 104 -

English

•Maximum playback time of audio file stored on an USB storage device: 8 h (480

minutes)

USB storage device

•Ver. 2.x of ID3 tag is prioritized when both Ver. 1.x and Ver. 2.x exist.

•This product is not compatible with the following: MP3i (MP3 interactive), mp3 PRO,

m3u playlist

•This product is not compatible with the following: Windows Media™ Audio 9.2

Professional, Lossless, Voice

•If the sampling frequency of the file exceeds 48 kHz, the sampling frequency is

reduced automatically to 48 kHz when the file is played.

Media compatibility chart

General

CODEC FORMATMP3, WMA, WAV, AAC, FLAC, AVI, MPEG-PS, MPEG-TS, MP4, 3GP, MKV,

MOV, ASF, FLV, M4V

MP3 compatibility

SAMPLING FREQUENCY8 kHz to 48 kHz

TRANSMISSION RATE8 kbps to 320 kbps (CBR)/VBR

ID3 TAGFolder Browse mode

ver.1.0/1.1/2.2/2.3/2.4

Music Browse mode

ver.2.2/2.3/2.4

WMA compatibility

SAMPLING FREQUENCY32 kHz to 48 kHz

TRANSMISSION RATE8 kbps to 320 kbps (CBR)/VBR

WAV compatibility

SAMPLING FREQUENCY16 kHz to 192 kHz

QUANTIZATION BIT RATE8 bit/16 bit/24 bit/32 bit (int only)

English

- 105 -

•This product plays back AAC files encoded by iTunes.

•If the sampling frequency of the file exceeds 48 kHz, the sampling frequency is

reduced automatically to 48 kHz when the file is played.

•Files may not be played back properly depending on the environment in which the file

was created or on the contents of the file.

•This product is not compatible with packet write data transfer.

•This product can recognize up to 32 characters, beginning with the first character,

including extension for the file and folder name. Depending on the display area, this

product may try to display them with a reduced font size. However, the maximum

number of the characters that you can display varies according to the width of each

character, and of the display area.

•Folder selection sequence or other operations may be altered, depending on the order

in which files are saved to the USB storage device.

•Regardless of the length of blank section between the songs of original recording,

compressed audio files play with a short pause between songs.

•Files may not be able to be played back depending on the bit rate.

•The maximum resolution depends on the compatible video codec.

•This product's display does not have Full HD rendering capability.

.avi

.mpg/.mpeg

.mp4

AAC compatibility

SAMPLING FREQUENCY8 kHz to 48 kHz

TRANSMISSION RATE16 kbps to 320 kbps (CBR)

FLAC compatibility

SAMPLING FREQUENCY8 kHz to 192 kHz

QUANTIZATION BIT RATE8 bit/16 bit/24 bit

Video files compatibility

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution720 × 576

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

- 106 -

English

.3gp

.mkv

.mov

.flv

.wmv/.asf

.m4v

.ts/.m2ts/.mts

NOTE

This product assigns folder numbers. The user cannot assign folder numbers.

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080

Maximum frame rate30 fps

Maximum resolution1 920 × 1 080 (MPEG4, H.264), 720 × 576 (MPEG2)

Maximum frame rate30 fps

English

- 107 -

Rated power source:

14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system:

Negative type

Maximum current consumption:

10.0 A

<DMH-WT6000NEX>

Dimensions (W × H × D):

Body (excluding the monitor mounting part):

178 mm × 50 mm × 156 mm (7 in. × 2 in. × 6-1/8 in.)

Nose:

170 mm × 46 mm × 10.5 mm (6-3/4 in. × 1-3/4 in. × 3/8 in.)

Monitor:

259.5 mm × 164 mm × 36 mm (10-1/4 in. × 6-1/2 in. × 1-3/8 in.)

Weight:

Body:

0.98 kg (2.2 lbs)

Monitor:

1 kg (2.2 lbs)

<DMH-WT5000NEX>

Dimensions (W × H × D):

Body (excluding the monitor mounting part):

178 mm × 50 mm × 156 mm (7 in. × 2 in. × 6-1/8 in.)

Nose:

170 mm × 46 mm × 7 mm (6-3/4 in. × 1-3/4 in. × 1/4 in.)

Monitor:

234.5 mm × 136.5 mm × 54 mm (9-1/4 in. × 5-3/8 in. × 2-1/8 in.)

Weight:

Body:

1.03 kg (2.3 lbs)

Monitor:

0.76 kg (1.7 lbs)

Specifications

General

- 108 -

English

<DMH-WT6000NEX>

Screen size/aspect ratio:

10.1 inch wide/16:9 (effective display area: 223.680 mm × 125.820 mm)

Pixels:

1 280 (Width) × 720 (Height) × 3 (RGB)

<DMH-WT5000NEX>

Screen size/aspect ratio:

9.0 inch wide/16:9 (effective display area: 196.608 mm × 114.150 mm)

Pixels:

1 024 (Width) × 600 (Height) × 3 (RGB)

Display method:

TFT Active matrix driving

Color system:

PAL/NTSC/PAL-M/PAL-N/SECAM compatible

Temperature range:

-10 ˚C to +60 ˚C (+14 ˚F to +140 ˚F)

Maximum power output:

•50 W × 4

•50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω LOAD, Both Channels Driven)

Load impedance:

4 Ω (4 Ω to 8 Ω [2 Ω for 1 ch] allowable)

Preout output level (max): 4.0 V

Equalizer (13-Band Graphic Equalizer):

Frequency:

50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/500 Hz/800Hz/1.25 kHz/2 kHz/3.15kHz/5 kHz/

8 kHz/12.5 kHz

Gain: ±12 dB (2 dB/step)

HPF: ON/OFF

Frequency:

25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Slope:

-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

LPF (Subwoofer): ON/OFF

Frequency:

25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Display

Audio

English

- 109 -

Slope:

-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct

Phase: Normal/Reverse

Time alignment:

0 to 150 inch (0.6 inch/step)

Speaker level:

-24 dB to +10 dB (1 dB/step)

HPF (High):

Frequency:

1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/12.5 kHz

Slope:

-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

Phase (High): Normal/Reverse

HPF (Mid): ON/OFF

Frequency:

25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Slope:

-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

LPF (Mid): ON/OFF

Frequency:

1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/12.5 kHz

Slope:

-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

Phase (Mid): Normal/Reverse

LPF (Subwoofer): ON/OFF

Frequency:

25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Slope:

-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct

Phase (Subwoofer): Normal/Reverse

Time alignment:

0 to 150 inch (0.6 inch/step)

Speaker level:

-24 dB to +10 dB (1 dB/step)

USB standard spec:

USB 1.1, USB 2.0 full speed, USB 2.0 high speed

Max current supply: 1.5 A

USB Class:

MSC (Mass Storage Class)

File system: FAT16, FAT32, NTFS, exFAT

USB

- 110 -

English

MP3 decoding format:

MPEG-1 & 2 & 2.5 Audio Layer 3

WMA decoding format:

Ver 9.2 Profile L1

AAC decoding format:

AAC-LC (Low Complexity)

FLAC decoding format:

Ver. 1.3.0

Sampling frequency:

8 kHz to 192 kHz

WAV signal format:

Linear PCM

Sampling frequency:

16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz/96 kHz/192 kHz

JPEG decoding format:

.jpeg, .jpg, .jpe

Pixel Sampling: 4:2:2, 4:2:0

Decode Size:

MAX: 7 680 (H) × 8 192 (W)

MIN: 32 (H) × 32 (W)

PNG decoding format:

.png

Decode Size:

MAX: 576 (H) × 720 (W)

MIN: 32 (H) × 32 (W)

BMP decoding format:

.bmp

Decode Size:

MAX: 936 (H) × 1 920 (W)

MIN: 32 (H) × 32 (W)

English

- 111 -

Version:

Bluetooth 5.2 certified

Output power:

+4 dBm Max. (Power class 2)

Bluetooth Low Energy output power:

+5 dBm Max.

Frequency band(s):

2 402 MHz to 2 480 MHz

Bluetooth profiles:

HFP (Hands Free Profile) 1.7.2

PBAP (Phone Book Access Profile) 1.2.3

A2DP (Advanced Audio Distribution Profile) 1.3.2

AVRCP (Audio/Video Remote Control Profile) 1.6.2

SPP (Serial Port Profile) 1.2

AVCTP (Audio/Video Control Transport Protocol) 1.4

AVDTP (Audio/Video Distribution Transport Protocol) 1.3

DIP (Device ID Profile) 1.3

GAVDP (Generic Audio/Video Distribution Profile) 1.3

IOP (Interoperability Test Specification)

OPP (Object Push Profile) 1.2.1

RFCOMM (RFCOMM with TS 07.10) 1.2

Bluetooth

: Supported : Not supported

AVI

QuickTime

(MOV)

WMV MKV FLV MPEG2-PS TS Stream

Video codec

Audio codec

H.264

H.263

WMV9

(VC-1)

MPEG-4

MPEG-2

WMA

MP3

AAC

LPCM

Playable video format

(container)

EXTENSION

.avi mp4/.m4v .mov .wmv .v.mkv

.mpg/

.mpeg

.ts/.m2ts/

.mts

MP4/M4V

Vorbis

3GP

.3gp

- 112 -

English

Frequency range:

87.9 MHz to 107.9 MHz

Frequency range:

530 kHz to 1 710 kHz

Version:

IEEE 802.11 a/n/ac (5 GHz)

Frequency channel:

149 ch (5 GHz)

Security:

WPA2 (Personal)/WPA3 (Personal)

Output power:

+14.5 dBm Max (5 GHz)

GNSS receiver

System:

GPS L1C/A, SBAS L1C/A, GLONASS L1OF, Galileo E1B/C

SPS (Standard Positioning Service)

Reception system:

92 channel Multi-channel reception system

Reception frequency:

1 575.42 MHz/1 602 MHz

Sensitivity:

-140 dBm (typ)

Sensitivity on product when combined with GPS antenna.

Frequency:

Approx. once per second

GPS antenna

Antenna:

Micro strip flat antenna/right-handed helical polarization

Antenna cable:

3.55 m (11ft. 7in.)

Dimensions (W × H × D):

33 mm × 14.7 mm × 36 mm (1-1/4 in. × 1/2 in. × 1-3/8 in.)

FM tuner

AM tuner

Wi-Fi

GPS

English

- 113 -

Weight:

73.7 g (0.2 lbs)

NOTE

Specifications and design are subject to possible modifications without notice due to

improvements.

English

- 114 -

•The Bluetooth® word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such

marks by Pioneer Corporation is under

license. Other trademarks and trade

names are those of their respective

owners.

•SiriusXM and all related marks and

logos are trademarks of Sirius XM

•HDRadio™ Technology manufactured

under license from iBiquity Digital

Corporation, a subsidiary of Xperi Inc.,

U.S. and Foreign Patents. For patents

see https://xperi.com/hd-radio-

patents/. Xperi, HDRadio, HD, and ‘ARC’

logos and their respective logos are

trademarks or registered trademarks of

Xperi Inc. and its subsidiaries in the

United States and other countries.

•Wi-Fi is a registered trademark of Wi-Fi

Alliance®.

•Windows Media is either a registered

trademark or trademark of Microsoft

Corporation in the United States and/or

other countries.

•This product includes technology

owned by Microsoft Corporation and

cannot be used or distributed without a

license from Microsoft Licensing, Inc.

•AAC is short for Advanced Audio

Coding and refers to an audio

compression technology standard used

with MPEG-2 and MPEG-4. Several

applications can be used to encode

AAC files, but file formats and

extensions differ depending on the

application which is used to encode.

This unit plays back AAC files encoded

by iTunes.

•WebLink® is a registered trademark of

Abalta Technologies, Inc.

•Google, Android, GooglePlay,

Android Auto and other marks are

trademarks of Google LLC.

•This Product uses the Source Code of T-

Kernel 2.0 under T-License 2.2 granted

by TRON Forum (www.tron.org).

•Pioneer accepts no responsibility for

data lost from an iPhone, even if that

data is lost while using this product.

Please back up your iPhone data

regularly.

•Do not leave the iPhone in direct

sunlight for extended amounts of time.

Extended exposure to direct sunlight

Trademark · Copyright, etc.

English

- 115 -

can result in iPhone malfunction due to

the resulting high temperature.

•Do not leave the iPhone in any location

with high temperatures.

•Firmly secure the iPhone when driving.

Do not let the iPhone fall onto the floor,

where it may become jammed under

the brake or gas pedal.

•For details, refer to the iPhone manuals.

•Please note that the use of this

accessory with an Apple product may

affect wireless performance.

•Apple CarPlay, iPhone, iTunes,

QuickTime, and Siri are trademarks of

Apple Inc., registered in the U.S. and

other countries and regions.

•Use of the Apple CarPlay logo means

that a vehicle user interface meets

Apple performance standards. Apple is

not responsible for the operation of this

vehicle or its compliance with safety

and regulatory standards. Please note

that the use of this product with

iPhone, iPod, or iPad may affect wireless

performance.

•Works with Siri through the

microphone.

•AppStore is a service mark of Apple

Inc., registered in the U.S. and other

countries and regions.

•IOS is a trademark or registered

trademark of Cisco in the U.S. and other

countries and is used under license.

•LTE is a trademark of ETSI.

•iDatalink, Maestro and iData are

registered trademarks of Automotive

Data Solutions Inc.

English

- 116 -

If you have problems operating this

product, refer to this section. The most

common problems are listed below,

along with likely causes and solutions. If a

solution to your problem cannot be

found here, contact your dealer or the

nearest authorized Pioneer service

facility.

A black screen is displayed, and

operation is not possible using the

touch panel keys.

•[Power OFF] mode is on.

–Touch any button on this product to

release the mode.

Bluetooth operation does not work.

•The power failed for the Bluetooth

module of this product.

–Turn the ignition switch to OFF and

then to ON.

If the error message is still displayed

after performing the above action,

please contact your dealer or an

authorized Pioneer Service Station.

Android device connection fails via

Bluetooth wireless technology or

Android Auto or using the PxLink app.

•Delete this product from the paired

devices list or Bluetooth connection

history on your mobile device and

delete your mobile device from the

device list on this product, then retry

connection.

The screen is covered by a caution

message and the video cannot be

shown.

•The parking brake lead is not connected

or the parking brake is not applied.

–Connect the parking brake lead

correctly, and apply the parking brake.

•The speed sensor detects that the

vehicle is moving.

–Park your vehicle in a safe place and

apply the parking brake.

No video output from the connected

equipment.

•The [AV Input] or [AUX Input] setting is

incorrect.

–Correct the settings.

The audio or video skips.

•This product is not firmly secured.

–Secure this product firmly.

No sounds are produced. The volume

level will not rise.

•Cables are not connected correctly.

–Connect the cables correctly.

The icon is displayed, and operation

is impossible.

•The operation is not compatible with

the video configuration.

–The operation is not possible.

The picture is stretched, with an

incorrect aspect ratio.

•The aspect setting is incorrect for the

display.

Troubleshooting

Common problems

Problems with the AV

screen

English

- 117 -

–Select the appropriate setting for that

image.

iPhone cannot be operated.

•The iPhone is frozen.

–Reconnect the iPhone with the USB

interface cable for iPhone.

–Update the iPhone software version.

•An error has occurred.

–Reconnect the iPhone with the USB

interface cable for iPhone.

–Park your vehicle in a safe place, and

then turn off the ignition switch (ACC

OFF). Subsequently, turn the ignition

switch to on (ACC ON) again.

–Update the iPhone software version.

–Reconnect the iPhone via the Wi-Fi

connection.

•Cables are not connected correctly.

–Connect the cables correctly.

Sound from the iPhone cannot be

heard.

•The audio output direction may switch

automatically when the Bluetooth and

USB connections are used at the same

time.

–Use the iPhone to change the audio

output direction.

No back camera image when the vehicle

is in reverse.

•The back camera input setting on the

receiver is set to Off.

–Change the back camera setting to On

in the settings menu. (Refer to the

System settings section of this manual

to adjust.)

•The camera input may be loose or not

connected.

–Check the connection and make sure

the male end of the camera is

connected to the brown input on the

back of the receiver. (Refer to the

Quick start guide.)

•The reverse lead on the receiver may

not be connected to the proper wire at

the reverse lamp.

–Check the connection and make sure

that the violet/white lead of the

receiver is connected to the lead

whose voltage changes when the shift

lever is put in reverse. (Refer to the

Quick start guide.)

A black screen displayed when the

vehicle is in reverse, with no camera

installed.

•Back camera input is set to On.

–Turn the setting to Off in the settings

menu. (Refer to the System settings

section of this manual to adjust.)

Back image displayed when vehicle is

not in reverse.

•The camera polarity is not set properly

in the Camera settings menu.

–Review System settings section of this

manual for steps to switch the camera

polarity. Park in a safe place, then

while keeping your foot firmly on the

brake, put the vehicle in reverse,

access the System settings menu, and

change the camera polarity setting.

Put vehicle back in park. (Refer to the

System settings section of this manual

to adjust.)

Dialing is impossible because the touch

panel keys for dialing are inactive.

•Your phone is out of range for service.

–Retry after re-entering the range for

service.

•The connection between the cellular

phone and this product cannot be

established.

Problems with the

phone screen

English

- 118 -

–Perform the connection process.

•Of the two cellular phones connected to

this product at the same time, if the first

phone is dialing, ringing or a call is in

progress, dialing cannot be performed

on the second phone.

–When the operation on the first of the

two cellular phones is completed, use

the switch devices key to switch to the

second phone and then dial.

A black screen is displayed.

•While operating an application, the

application was ended on the

smartphone side.

–Touch to display the home menu

screen.

•The smartphone OS may be awaiting

screen operation.

–Stop the vehicle in a safe place and

check the screen on the smartphone.

The screen is displayed, but operation

does not work at all.

•An error has occurred.

–Park your vehicle in a safe place, and

then turn off the ignition switch (ACC

OFF). Subsequently, turn the ignition

switch to on (ACC ON) again.

–When an Android device is connected,

disconnect the Bluetooth connection

from this product and then reconnect

it.

The smartphone was not charged.

•Charging stopped because the

temperature of the smartphone rose

due to prolonged use of the

smartphone during charging.

–Disconnect the smartphone from the

cable, and wait until the smartphone

cools down.

•More battery power was consumed

than was gained from charging.

–This problem may be resolved by

stopping any unnecessary services on

the smartphone.

Problems with

Application screen

English

- 119 -

When problems occur with this product,

an error message appears on the display.

Refer to the table below to identify the

problem, then take the suggested

corrective action. If the error persists,

record the error message and contact

your dealer or your nearest Pioneer

service center.

AMP Error

•This product fails to operate or the

speaker connection is incorrect; the

protective circuit is activated.

– Check the speaker connection. If the

message fails to disappear even after the

engine is switched off/on, contact your

dealer or an authorized Pioneer Service

Station for assistance.

Product overheat. System will be shut

down automatically in 15 seconds.

Restart the product by ACC-Off/On may

fix this problem. If this message keeps

showing up, it is possible that some

problem occurred in the product.

•The temperature of the main unit is too

high.

– Turn off the ignition switch (ACC OFF) then

wait until the main unit temperature reaches

low.

Check Antenna

•The antenna connection is incorrect.

– Check the antenna connection. If the

message fails to disappear even after the

engine is switched off/on, contact your

dealer or the nearest authorized Pioneer

service center for assistance.

Check Tuner

•The SiriusXM Connect Vehicle Tuner

connection is incorrect.

– Check the tuner connection and battery

voltage. If the message fails to disappear

even after the engine is switched off/on,

contact your dealer or the nearest authorized

Pioneer service center for assistance.

No Signal

•The SiriusXM Connect Vehicle Tuner is

having difficulty receiving the SiriusXM

satellite signal.

– Verify that your vehicle is outdoors with a

clear view of the southern sky.

– Verify that the SiriusXM magnetic mount

antenna is mounted on a metal surface on

the outside of the vehicle.

– Move the SiriusXM antenna away from any

obstructions.

No Content

•TuneScan is not available.

– Perform the operation with another preset

channel.

Channel Not Available

•The channel that you have requested is

not a valid SiriusXM channel.

– Visit www.siriusxm.com for more information

about the SiriusXM channel lineup.

Subscription Updated Press Enter to

Continue

•This product has detected a change in

your SiriusXM subscription status.

– Touch [Enter] to clear the message.

In the U.S.A., visit www.siriusxm.com or call

1-866-635-2349 if you have questions about

Error messages

Common

SiriusXM® Satellite

Radio

English

- 120 -

your subscription. In Canada, visit

www.siriusxm.ca or call 1-888-539-7474 if

you have questions about your subscription.

Channel Not Subscribed. Call SiriusXM

to Subscribe.

•The channel that you have requested is

not included in your SiriusXM

subscription package.

– Check the content of your SiriusXM

subscription package.

In the U.S.A., visit www.siriusxm.com or call

1-866-635-2349 if you have questions about

your subscription package or would like to

subscribe to this channel. In Canada, visit

www.siriusxm.ca or call 1-888-539-7474.

Channel Locked Please Enter the Lock

Code

•Locked by the radio Parental Control

feature.

– Release the channel lock.

Memory Full

•The memory has become full while

playback was paused.

– Resume playback.

Memory Nearly Full

•The memory has become nearly full

while playback was paused.

– Resume playback.

There are no qualified TuneMix music

channels in this band.

•There are no qualified TuneMix

channels in this band.

– Requires two or more qualified music

channels to be stored as presets in the

current band.

Error-02-9X/-DX

•Communication failed.

– Turn the ignition switch OFF and back ON.

– Disconnect the USB storage device.

– Change to a different source. Then, return to

the USB storage device.

Unplayable File

•There is no playable file in the USB

storage device.

– Check that the files in the USB storage device

are compatible with this product.

•Security for the connected USB storage

device is enabled.

– Follow the USB storage device instructions to

disable security.

Skipped

•The connected USB storage device

contains DRM protected files.

– The protected files are skipped.

Protect

•All the files on the connected USB

storage device are embedded with

DRM.

– Replace the USB storage device.

Incompatible USB

•The connected USB storage device is

not supported by this product.

– Disconnect your device and replace it with a

compatible USB storage device.

Check USB

•The USB connector or USB cable has

short-circuited.

– Check that the USB connector or USB cable is

not caught in something or damaged.

•The connected USB storage device

consumes more than maximum

allowable current.

– Disconnect the USB storage device and do

not use it. Turn the ignition switch to OFF,

then to ACC or ON and then connect a

compliant USB storage device.

HUB Error

•The connected USB hub is not

supported by this product.

– Directly connect the USB storage device to

this product.

USB storage device

English

- 121 -

No Response

•This product cannot recognize the

connected USB storage device.

– Disconnect the device and replace it with

another USB storage device.

•The USB connector or USB cable has

short-circuited.

– Check that the USB connector or USB cable is

not caught in something or damaged.

•The connected USB storage device

consumes more than maximum

allowable current.

– Disconnect the USB storage device and do

not use it. Turn the ignition switch to OFF,

then to ACC or ON and then connect a

compliant USB storage device.

•The USB interface cable for iPhone has

short-circuited.

– Confirm that the USB interface cable for

iPhone or USB cable is not caught in

something or damaged.

Audio Format not supported

•This type of file is not supported on this

product.

– Select a file that can be played.

Connection failed.

•Communication failed and the system

is trying to connect.

•Wait for a while. Then, perform the

actions below if the error message is

still displayed.

– Restart the iPhone.

– Disconnect the cable from the iPhone, and

then connect the iPhone again after a few

seconds.

– Turn the ignition switch to OFF and then to

ON.

Please attach the GPS antenna in order

to use Apple CarPlay over Wireless.

•This unit cannot properly detect the

GPS signal from the GPS antenna.

– Check the GPS antenna installation and

connection. For details about the connection

and installation, refer to the Quick start

guide.

The speed sensor is disconnected.

Please attach it.

•The speed sensor cannot detect any

signal.

– Check the speed signal cable connection. For

details about the connection, refer to the

Quick start guide.

Please attach the GPS antenna and the

speed sensor in order to use

Apple CarPlay over Wireless.

•This unit cannot detect the GPS signal

from the GPS antenna and the speed

signal from the speed sensor.

– Check the connection and installation for

both. For details about the connection and

installation, refer to the Quick start guide.

If the error message is still displayed after

performing the above action, please

contact your dealer or an authorized

Pioneer Service Station.

To use Android Auto, please check the

screen of your Android phone when it is

safe to do so.

•The time set in the smartphone is not

correct.

– Set the correct time.

If the error message is still displayed after

performing the above action, please

contact your dealer or an authorized

Pioneer Service Station.

Bluetooth pairing failed.

•The Bluetooth pairing failed for some

reasons.

– Pair this product with the device manually.

Apple CarPlay

AndroidAuto

English

- 122 -

To use Android Auto, please stop your

car and check your Android phone.

•The default settings are displayed on

the screen of the Android Auto

compatible device or images are not

output from the Android Auto

compatible device.

– Park your vehicle in a safe place, and follow

the instructions displayed on the screen. If

the error message is still displayed after

performing on-screen instructions, please

reconnect the device.

English

- 123 -

Reset the main unit in the following

cases:

•When it is not operating properly

•When the screens are not being

displayed properly

1Touch and simultaneously for

5 seconds or longer.

The main unit restarts.

NOTE

Even if the main unit is reset, the

contents and settings registered in the

main unit are not erased.

Important

Requirements to access app-based

connected content services using this

product:

•Latest version of the Pioneer compatible

connected content application(s) for the

smartphone, available from the service

provider, downloaded to your smartphone.

•A current account with the content service

provider.

•Smartphone Data Plan.

Note: if the Data Plan for your smartphone

does not provide for unlimited data usage,

additional charges from your carrier may

apply for accessing app-based connected

content via 3G, EDGE and/or LTE™ (4G)

networks.

•Connection to the Internet via 3G, EDGE,

LTE (4G) or Wi-Fi network.

•Optional Pioneer adaptor cable connecting

your iPhone to this product.

Limitations:

•Access to app-based connected

content will depend on the availability

of cellular and/or Wi-Fi network

coverage for the purpose of allowing

your smartphone to connect to the

Internet.

•Service availability may be

geographically limited to the region.

Consult the connected content service

provider for additional information.

•Ability of this product to access

connected content is subject to change

without notice and could be affected

by any of the following: compatibility

issues with future firmware versions of

smartphone; compatibility issues with

future versions of the connected

content application(s) for the

smartphone; changes to or

discontinuation of the connected

Content application(s) or service by its

provider.

•Pioneer is not liable for any issues that

may arise from incorrect or flawed app-

based content.

•The content and functionality of the

supported applications are the

responsibility of the App providers.

•In WebLink®, Apple CarPlay and

Android Auto, functionality through

the product is limited while driving,

with available functions determined by

the App providers.

•Availability of WebLink®, Apple CarPlay

and AndroidAuto functionalities is

Appendix

How to reset the main

unit

Using app-based

connected content

English

- 124 -

determined by the App provider, and

not determined by Pioneer.

•WebLink®, Apple CarPlay and

AndroidAuto allow access to

applications other than those listed

(subject to limitations while driving),

but the extent to which content can be

used is determined by the App

providers.

•Connected services require connection

to a wireless network via a compatible

iPhone or Android smartphone device,

which is subject to your wireless

carrier’s terms of service and data plan.

Review your wireless service and data

plan terms for any applicable

restrictions, limitations and charges.

Ability to use such services will depend

on network availability and carrier

Pioneer content and services, including

apps and connectivity, may change

without notice due to changes in

operating systems, firmware or app

versions; changes to, restrictions on or

discontinuation of the service or service

plans; non-Pioneer hardware changes;

or other events.

Remember that use of this system for

commercial or public viewing purposes

may constitute an infringement on the

author’s rights as protected by the

•When the LCD screen is subjected to

direct sunlight for a long period of time,

it will become very hot, resulting in

possible damage to the LCD screen.

When not using this product, avoid

exposing it to direct sunlight as much

as possible.

•The LCD screen should be used within

the temperature ranges shown in

Specifications on page 107.

•Do not use the LCD screen at

temperatures higher or lower than the

operating temperature range, because

the LCD screen may not operate

normally and could be damaged.

•The LCD screen is exposed in order to

increase its visibility within the vehicle.

Please do not press strongly on it as this

may damage it.

•Do not push the LCD screen with

excessive force as this may scratch it.

•Never touch the LCD screen with

anything besides your finger when

operating the touch panel functions.

The LCD screen can scratch easily.

•If the LCD screen is near the vent of an

air conditioner, make sure that air from

the air conditioner is not blowing on it.

Heat from the heater may break the

LCD screen, and cool air from the cooler

may cause moisture to form inside this

product, resulting in possible damage.

Notice regarding video

viewing

Using the LCD screen

correctly

Handling the LCD screen

Liquid crystal display (LCD)

screen

English

- 125 -

•Small black dots or white dots (bright

dots) may appear on the LCD screen.

These are due to the characteristics of

the LCD screen and do not indicate a

malfunction.

•The LCD screen will be difficult to see if

it is exposed to direct sunlight.

•When using a cellular phone, keep the

antenna of the cellular phone away

from the LCD screen to prevent

disruption of the video in the form of

disturbances such as spots or colored

stripes.

•When removing dust from or cleaning

the LCD screen, first turn this product

off and then wipe the screen with a soft

dry cloth.

•When wiping the LCD screen, take care

not to scratch the surface. Do not use

harsh or abrasive chemical cleaners.

A light emitting diode is used inside the

display to illuminate the LCD screen.

•At low temperatures, using the LED

backlight may increase image lag and

degrade the image quality because of

the characteristics of the LCD screen.

Image quality will improve with an

increase in temperature.

•The product lifetime of the LED

backlight is as follows;

DMH-WT6000NEX: More than 10 000

hours.

DMH-WT5000NEX: More than 30 000

hours.

However, it may decrease if used in

high temperatures.

•If the LED backlight reaches the end of

its product lifetime, the screen will

become dimmer and the image will no

longer be visible. In that case, please

consult your dealer or the nearest

authorized Pioneer Service Station.

Maintaining the LCD screen

LED (light-emitting diode)

backlight

<OPM_DMHWT6000NEXUC_EN_B> UC

Pioneer DMH-WT5000NEX 9-inch Floating Multimedia Receiver DMHWT5000NEX

Product's Documents

Owner's Manual

Specifications

Pioneer DMH-WT5000NEX Questions and Answers
