Ariston MSKA103X 45cm Built In Steam Oven User Manual

English

Instructions for use

OVEN

Contents

Steam cooking

What your oven looks like

Accessories

Installing your oven

Electrical connection

Fitting

Using your oven

Setting the clock

Display lock

Display stand-by mode

Programming for immediate cooking

Water management

Programming cooking with a delayed start

Using the timer

Description of the functions

Cooking chart

Caring for your oven

Changing the bulb

What to do in the event of problems

Important safety instructions.

Read carefully and retain for future use.

Installing your appliance

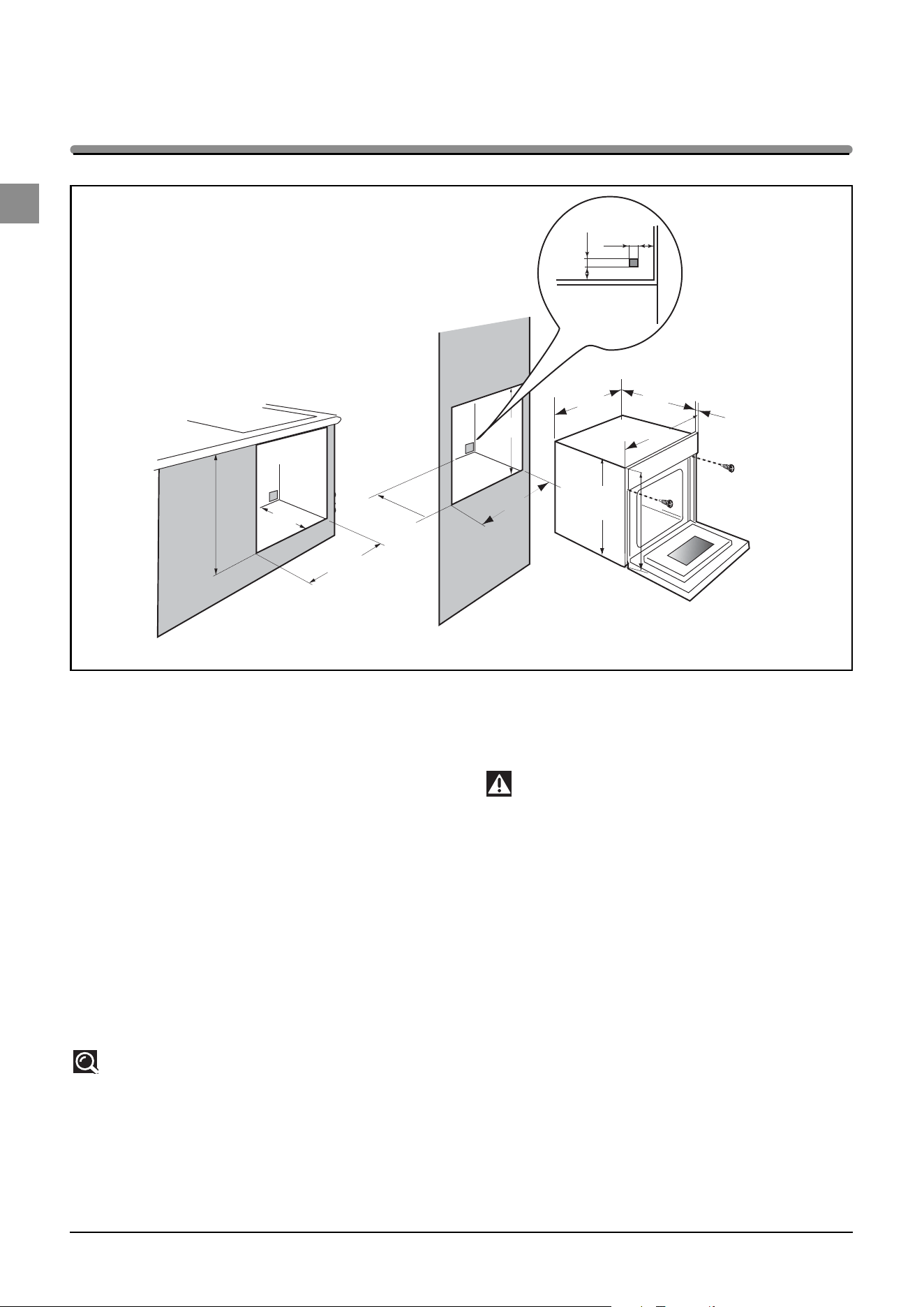

CHOICE OF LOCATION

The above diagrams show the dimensions required for a cabinet

to contain your oven.

The oven may be installed either under a worktop or in a full-height

unit (open or closed) that has the appropriate dimensions for

built-in installation.

• For greater stability, secure the oven in the cabinet with two

screws through the holes provided for this purpose on the side

panels.

1) Drill a pilot hole in the cabinet panel to avoid splitting the wood.

2) Secure the oven with the two screws.

550

595

400

378

450

560

550

mini

560

550 mini

450

456

445

Tip

To be certain that you have installed your

appliance correctly, do not hesitate to contact a

household appliance specialist.

Note

We cannot be held responsible for any accident

resulting from a non-existent, defective or

incorrect earth connection..

If the electrical installation in your residence

requires any changes for connecting your

appliance, call a qualified electrician.

If the oven malfunctions in any way, unplug the

appliance or remove the fuse for the circuit to

which the oven is connected.

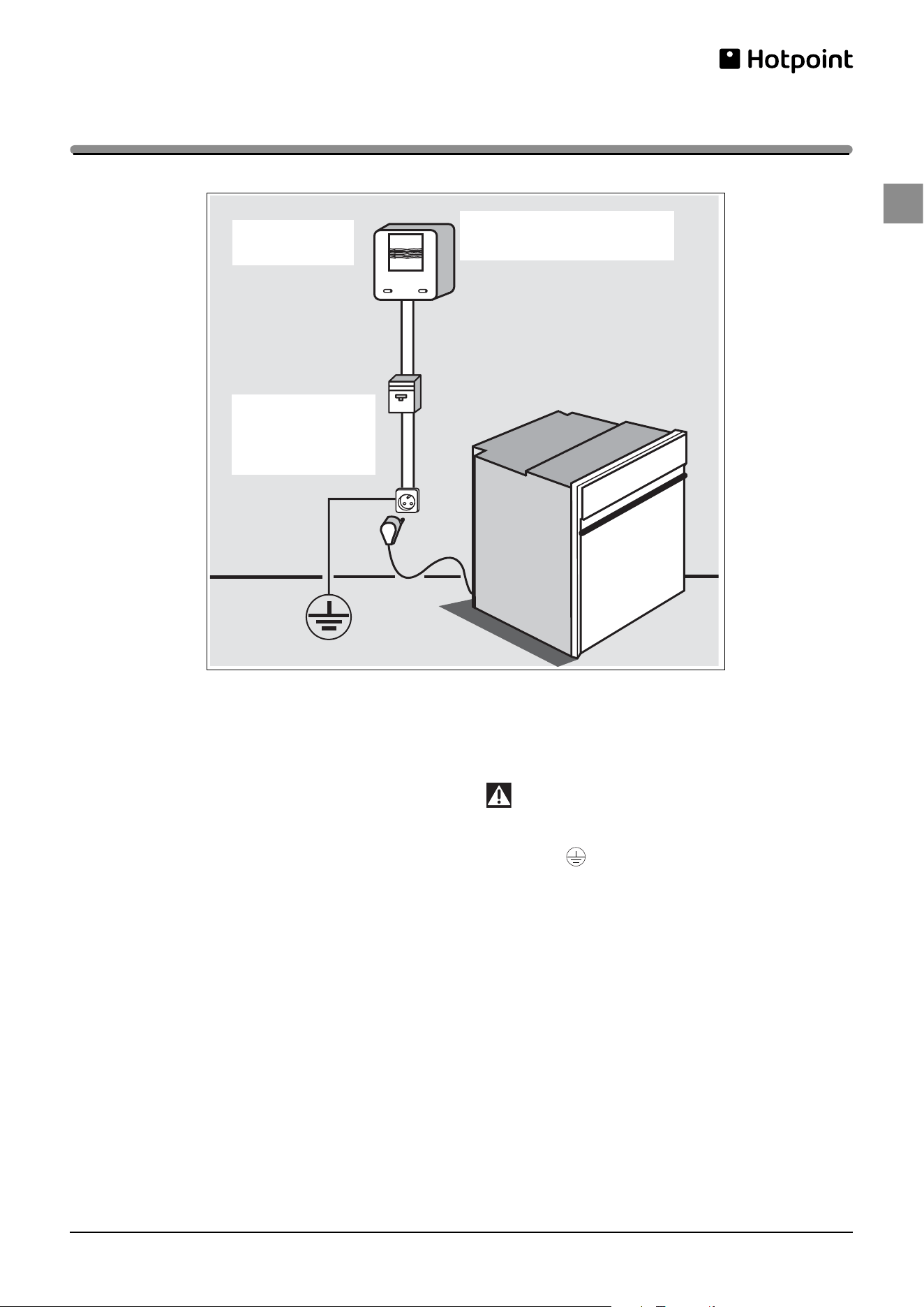

ELECTRICAL CONNECTION

Single-phase 20A Meter

220-240V

50 Hz

Electrical socket

2 pin + earth

to IEC 60083

standard

220-240 V

single-phase line

Power

supply cable

length 1.50 m

approx.

10A fuse or residual

current circuit breaker

The appliance must be fitted correctly to ensure electrical safety.

During fitting and maintenance operations, the appliance must be

unplugged from the electrical system; fuses must be switched off

or removed.

The electrical connections are made before the appliance is

installed in its housing.

Ensure that:

- the electrical installation has sufficient power,

- the electrical wires are in good condition,

- the diameter of the conductors complies with the requirements

of the installation.

Your oven must be connected with a (standardised) power cable

with three conductors of 1 mm² (1ph + 1N + earth) which must be

connected to a 220-240V

single-phase supply via a

1ph + 1 neutral + earth IEC 60083 standardised power socket or

via an all-pole cut-off device in compliance with installation rules.

Installing your appliance

Note

The safety wire (green-yellow) is connected to the

appliance’s terminal and must be connected to

the electrical installation’s earth system.

Where connected to a wall socket, the socket must

remain accessible after installation.

The circuit should be protected with a 10 Amp fuse.

If the power cable is damaged, it must be replaced by

the manufacturer, its After-Sales Service Department

or a similarly qualified person to prevent danger.

Description of the appliance

ON/OFF

Réglage

Temperature

AFFICHEUR

Touche

verrouillage commandes

Sélection du

mode Décongélation

églage

Temps

lce

Touche -

Touche +

lche

Haut

START/

STOP

Indication du

menu sélectionné

Indication

verrouillage clavier

Indication de

Température

Mode de cuisson

sélectionnée

indique :

Heure,Durée de cuisson

indique :

Minuterie

Fin de cuisson

Control

panel

Tank

Display

Steam

generator

Water intake

tube

Gutter

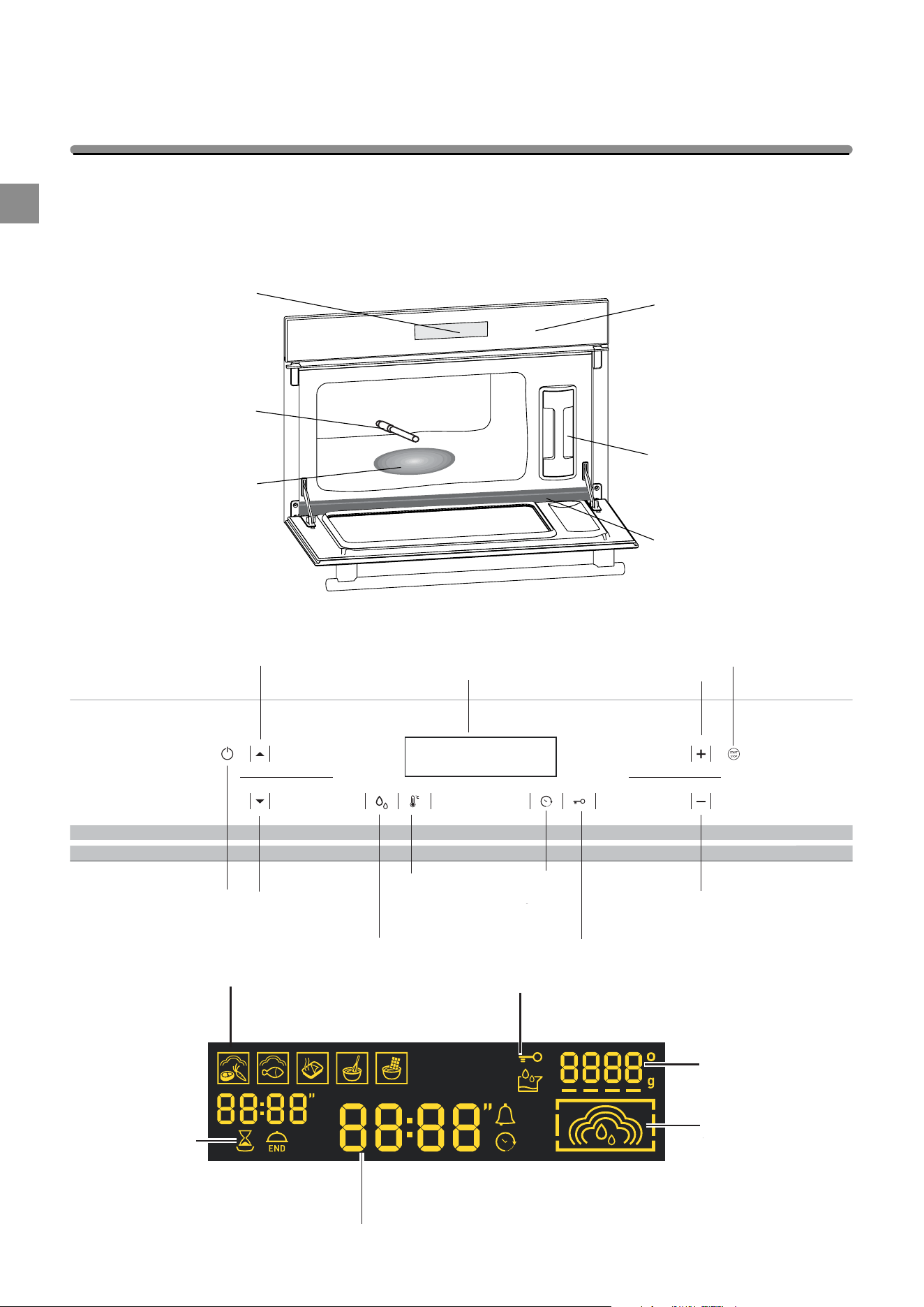

Overview

DISPLAY

+ button

– button

Control locking button

Defrost mode

Time

setting

Temperature

setting

Down

arrow

Cooking mode

selected

Control panel lock

indication

Selected menu

indication

Time, Cooking time,

End of

cooking

Temperature

indication

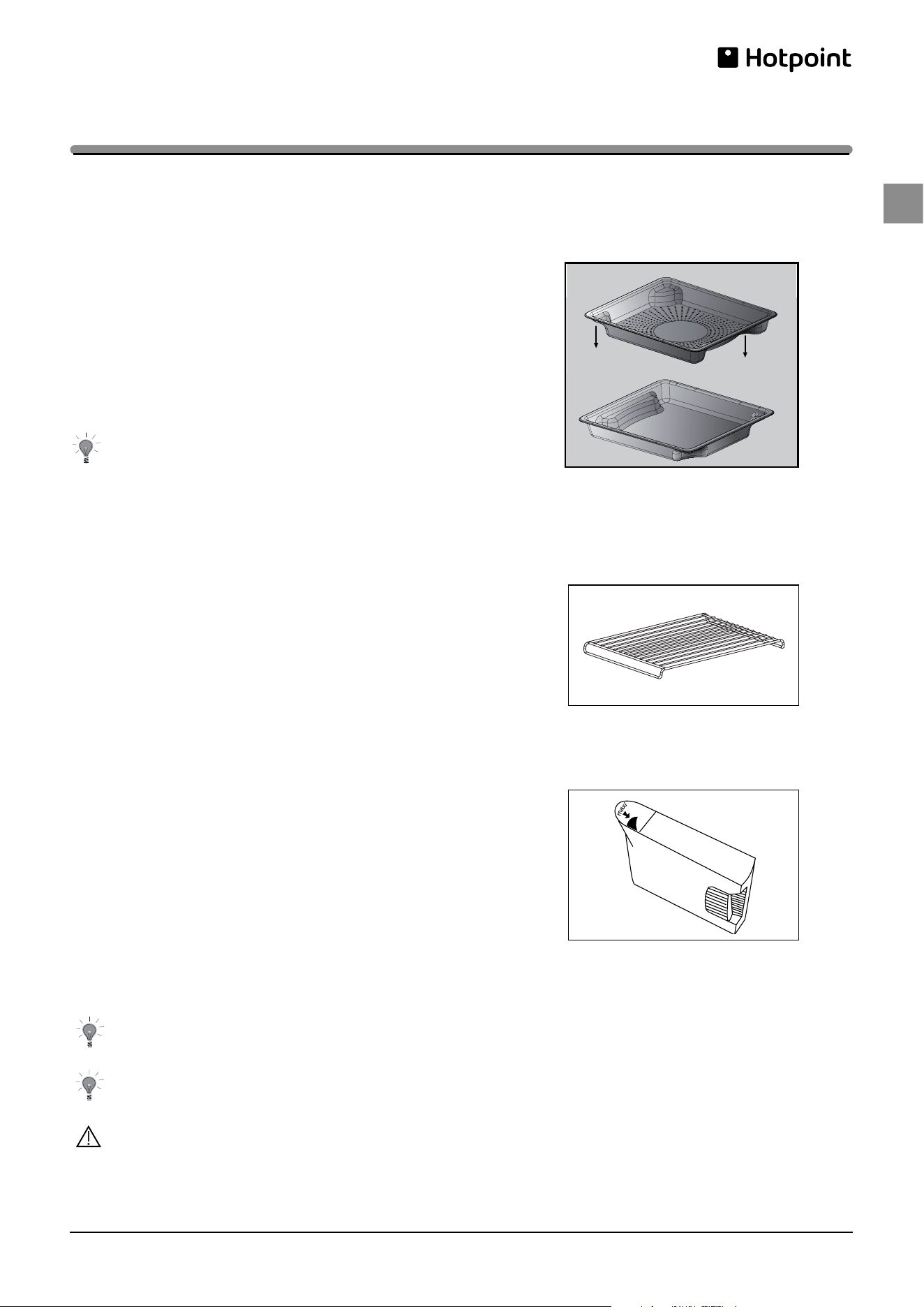

Accessories

ACCESSORIES

•

• Food dish (fig.1)

Perforated stainless steel dish preventing contact between the food and

condensation water.

• Condensate dish (fig.2)

Stainless steel dish for the recovery of condensation water.

• Shelf (fig.3)

Stainless steel removable shelf: must be used when cooking.

• Removable tank (fig.4)

Tank for the independent water supply to the oven.

Its capacity is approximately one litre (maximum level).

Using softer water will make it easier to care for your oven.

The use of demineralised water is prohibited (not food

quality). The use of softened water may deteriorate the

surface of the steam generator, Bottled mineral water

should be used for preference.

The dishes may be cleaned in a dishwasher.

fig.3

fig.1

fig.2

fig.4

When cooking, place the dish in fig. 1 on the dish in fig.2

counter to each other, so that that they do not nest (see

diagram opposite).

For storage, fit the dish in fig. 1 into the dish in fig. 2, so that

they nest.

Steam is also appropriate for blanching, defrosting and

reheating or even keeping foods warm, especially sauces.

First use a very small amount of fat to heat meats like poultry,

veal and pork so that they take on an appetising browned

appearance. Then finish cooking them using the steam

method.

Cut into pieces, food cooks faster and more evenly than if left

whole.

Operating principle

The water contained in the tank arrives in the cavity via a pipe.

This water is transformed into steam when it comes into contact

with the hot surface of the floor of the cavity: this is the steam

generator.

There is no need to add water to the cooking dish. To ensure

REAL STEAM COOKING, your oven is supplied with specially

designed cookware that will produce perfect cooking.

General

There are only advantages to steam cooking, if you follow the

instructions for use. Healthy and natural, steam cooking

preserves the full flavour of foods. A delicate sauce or

aromatic herb seasoning adds that something extra that

makes the difference.

This kind of cooking produces no cooking smells. There is no

need to season the cooking water with herbs or spices;

however, you can flavour a fish by placing it on a bed of

seaweed or make a savoury poultry dish by adding a bunch of

rosemary or tarragon.

You can cook meat, fish and vegetables simultaneously.

Steam cooking gently reheats pasta, rice and mashed

potatoes with no risk of food sticking or drying out.

It facilitates cooking custard creams and tarts, rice

pudding...covered with aluminium foil, food is not wetted by

condensation water.

There is no need to add salt before cooking, not even the

steam water.

To make meat look more appetising, quickly brown it on all

sides in a frying pan using hot butter.

Compared to boiling, steaming offers only advantages:

It is quick: cooking starts immediately whereas for food in a

water-filled dish, the cook time only begins counting down

once the water returns to a full boil.

It is healthy: vitamins (those that are water soluble) and

minerals are well preserved because they scarcely dissolve in

the condensation water that touches the food.

Moreover, no fats are used for this type of cooking.

Steam maintains the taste of food. It does not add odours, nor

the taste of the grill or the pan. Furthermore, it takes nothing

away because the food is not diluted in the water.

Words of advice: there is no point in using this cooking

method to prepare fish that is not fresh or vegetables left in

the refrigerator for a week: the results will be catastrophic!

Steam does not spread tastes or odours therefore do not

hesitate to save both time and money by cooking items side by

side, but without touching. For example, you can cook a fish

next to a dessert.

Steam cooking

Warning

You MUST fill the water tank to the max.level before

cooking. Return the tank to its housing by firmly

pushing ALL THE WAY until you feel it LOCK INTO

POSITION.

Warning

When in use, the appliance becomes hot. Hot steam

will escape when you open the door of the appliance.

Keep children at a distance.

Important

Keep this user guide with your appliance. If

the appliance is ever sold or transferred to

another person, ensure that the new owner

receives this user guide. Please familiarise

yourself with these instructions before installing

and using your appliance. They were produced

for your safety and the safety of others.

SAFETY INSTRUCTIONS

— This oven was designed for use by private persons in

their homes. It is intended solely for cooking foodstuffs.

This oven does not contain any asbestos-based

components.

— This appliance is not intended to be used by persons

(including children) with physical, sensory or mental

disabilities, or those lacking experience or awareness,

unless supervised by someone responsible for their

safety, or they have received suitable instruction on

how to use the appliance.

— When you receive the appliance, unpack it or have it

unpacked immediately. Check its overall condition.

Make a note of any concerns or reservations on the

delivery slip and make sure that you keep a copy.

— Your appliance is intended for standard household

use. Do not use it for commercial or industrial purposes

or for any purpose other than that for which it was

designed.

— Do not modify or attempt to modify any of the

characteristics of this appliance. This would be

dangerous for your safety.

— Keep young children away from the appliance while it

is in operation. That way, you will avoid the danger of

them being burned by knocking over cooking pans.

— Never pull your appliance by the door handle.

— During cooking, ensure that the door of your oven is

properly closed so that the seal can do its job properly.

— Please ensure that children do not play with the

appliance.

— When in use, the appliance becomes hot. Do not

touch the heating elements inside the oven. You would

run the risk of serious burns.

— When placing dishes inside or removing them from

the oven, use heat-protective kitchen gloves.

— At the end of cooking, do not touch dishes with bare

hands.

— When you remove the condensation tray, it contains

very hot (boiling) water; take great care when handling.

— Do not place heavy weights on an open oven door and

make sure that children cannot climb or sit on it.

— The oven must be turned off when cleaning the inside.

— Intensive and prolonged use of the appliance may give

rise to the need for additional ventilation, by opening a

window, or by increasing the power of the mechanical

fan.

— Apart from the accessories supplied with your oven,

only use dishes which are suitable for use at high

temperatures (follow the manufacturer’s instructions).

— After using your oven, make sure that all controls are

returned to the ‘off’ position.

— Never use steam or high-pressure devices to clean the

oven (electrical safety requirement).

Information for the user

CARING FOR THE ENVIRONMENT

— This appliance’s packing materials are recyclable. Please

recycle the packaging and help protect the environment by

depositing it in municipal containers provided for the purpose.

— Your appliance also contains various recyclable

materials. It therefore carries this logo to indicate that

used appliances should not be disposed of together

with other waste. The manufacturer will arrange for the

appliance to be recycled properly, in accordance with

European Directive 2002/96/EC on Waste Electrical and

Electronic Equipment. Contact your local council or your retailer to

find out details of your closest used appliance collection point.

—Thank you for helping to protect the environment.

Information for the user

Warning

This appliance should only be installed by qualified

installers and technicians.

This appliance complies with the following European

directives:

- Low Voltage Directive 73/23/EEC modified by directive

93/68/EEC for the insertion of the CE marking.

- Electromagnetic Compatibility Directive 89/336/EEC

modified by directive 93/68/EEC for the application of

CE marking.

- EC regulation no. 1935/2004 concerning materials and

items intended to come into contact with food products.

Getting started

and using your oven

Prolonged pressure on the - and + buttons causes

the display to scroll quickly through the set lists and values.

Oven lighting

The display switches off after 2 minutes without a button

being pressed.

Using your oven for the first time

After connecting the oven to the mains and switching on for

the first time, activate the control panel by pressing the

button

TIMER Setting the timer

TIME Setting the clock

SOUND Touchpad volume

EXIT Exit from the menu

Setting the time

To set the time, first press the button to switch on the

oven.

1. Set the time using the + and - buttons.

2. Press “ ” to confirm.

3. Set the minutes using the + and - buttons.

4. Press “ ” to confirm.

Child safety function

The child safety function can be used to lock the oven

controls.

To activate it, press the button, the symbol appears

in the display. To de-activate it, repeat the operation until the

symbol disappears from the display. The child safety function

may be activated whether the oven is on or off. The child

safety function may be deactivated when the oven has

finished cooking and in all situations described above.

Immediate cooking

MANUAL cooking programme

In MANUAL mode, it is possible to adjust the cooking time

as well as the temperature (from 100° to 50°).

1. Press the button to switch on the control panel.

2. Make your selection using the buttons:

3. Press the “ ” button to start cooking.

4. During cooking, it is possible to change the temperature

at any time, by pressing the “°C” button. Adjust using the +

and - buttons and press “ ” to confirm.

- programme the cooking time;

- stop cooking by pressing the “ ” button;

- set the timer;

- switch off the oven by pressing the button.

5. In the event of a power cut, if the oven temperature is not

too low, a special facility causes the programme to restart at

the point where it was was interrupted. However, any

programmes that have not yet started must be

reprogrammed once the power returns.

Automatic defrosting

Press the button:

55°C, pre-programmed time: 30 min
