RB3B250* RB3B280*
English
EN
USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference
Safety and warning information .....................................................................................................................
Description of the appliance..............................................................................................................................
Electronic controls......................................................................................................................................................
First use and installation........................................................................................................................................
Reverse the door.........................................................................................................................................................
Daily use...........................................................................................................................................................................
Helpful hints and tips...............................................................................................................................................
Cleaning and care....................................................................................................................................................
Troubleshooting..........................................................................................................................................................
Disposal of the appliance....................................................................................................................................
01
12
13
18
28
31
32
33
35
38
Contents
For your safety and correct usage, before installing and first
using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to make sure that all
people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and
be sure that they remain with the appliance if it is moved or
sold, so that anyone using it throughout its life, will be
properly informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
responsible for damages caused by omission.
01
Safety and warning information
According to EN standard
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Safety for children and others who are vulnerable people
According to IEC standard
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
Keep all packaging away from children as there is risk
of suffocation.
If you are discarding the appliance, pull the plug out
of the socket, cut the connection cable (as close to
the appliance as you can) and remove the door to
prevent children playing from suffering an electric
shock or from closing themselves inside it.
If this appliance, featuring magnetic door seals, is to
replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make the spring
lock unusable before you discard the old appliance.
This will prevent it from becoming a death trap for a
child.
Safety for children and others who are vulnerable people
02
Safety and warning information
WARNING
This appliance is intended to be used in household and
similar applications such as
1. staff kitchen areas in shops, offices and other working
environments;
2. farm houses and by clients in hotels, motels and
other residential type environments;
3. bed and breakfast type environments;
4. catering and similar non-retail applications.
WARNING
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
WARNING
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
General safety
03
Safety and warning information
WARNING
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING
Do not damage the refrigerant circuit.
WARNING
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING
The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so
only at an authorized waste disposal center. Do not
expose to flame.
WARNING
When positioning the appliance, ensure the supply cord
is not trapped or damaged.
WARNING
Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
General safety
04
Safety and warning information
WARNING
The illuminating lamps must not be replaced by the
user! If the illuminating lamps is damaged, contact the
customer helpline for assistance. This warning is only for
refrigerators that contain illuminating lamps.
Replacing the illuminating lamps
05
Safety and warning information
The refrigerant isobutene (R600a) is contained within
the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable. During transportation and
installation of the appliance, ensure that none of the
components of the refrigerant circuit become
damaged. The refrigerant (R600a) is flammable.
WARNING
Refrigerators contain refrigerant and gases in the
insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
Refrigerant
06
Safety and warning information
If the refrigerant circuit should be damaged:
Avoid opening flames and sources of ignition.
Thoroughly ventilate the room in which the appliance
is situated.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a short circuit, fire,
and/or electric shock.
WARNING
Risk of fire / flammable materials
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or
damaged. A crushed or damaged power plug may
overheat and cause a fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the
power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the
interior lighting lamp cover.
Electrical safety
7. The fridge is only applied with power supply of single
phase alternating current of 220~240V/50Hz. If
fluctuation of voltage in the district of user is so large
that the voltage exceeds the above scope, for safety
sake, be sure to apply A. C. Automatic voltage
regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of
common one with other electric appliances. Its plug
must match the socket with ground wire.
Electrical safety
07
Safety and warning information
Do not store flammable gases or liquids in the appliance,
there is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e. g. electric ice cream makers, mixers etc.).
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Do not place food products directly against the air outlet
on the rear wall.
Store pre-packed frozen food in accordance with the
frozen food manufacture’s instructions.
Daily use
08
Safety and warning information
The appliances manufactures storage recommendations
should be strictly adhered to. Refer to relevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight
from the freezer compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked
flames away from the appliance and do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet. You should take care when move it as
the appliance is heavy.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
Never use the base, drawers, doors etc. to stand on or as
supports.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
Frozen food must not be refrozen once it has been thawed
out.
To avoid items falling and causing injury or damage to the
appliance, do not overload the door racks or put too much
food in the crisper drawers.
Never cover or obstruct the ventilation slats on the
appliance.
In order to sense the temperature near the appliance and
make the appliance run better, add temperature sensor
outside the box of appliance.
The WiFi module is installed in the control box at the top of
appliance. In order to avoid interference and cause weak
signal, it is recommended to cancel large-area metal
products or water-containing drinks around the top of the
box.
09
Safety and warning information
Care and cleaning
Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do use a plastic scraper instead of a sharp objects to
remove frost from the appliance.
CAUTION
Safety and warning information
10
Installation
For electrical connection carefully, follow the instructions
given in this manual. Unpack the appliance and check if
there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought
it. In this case retain packing.
It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back in
the compressor.

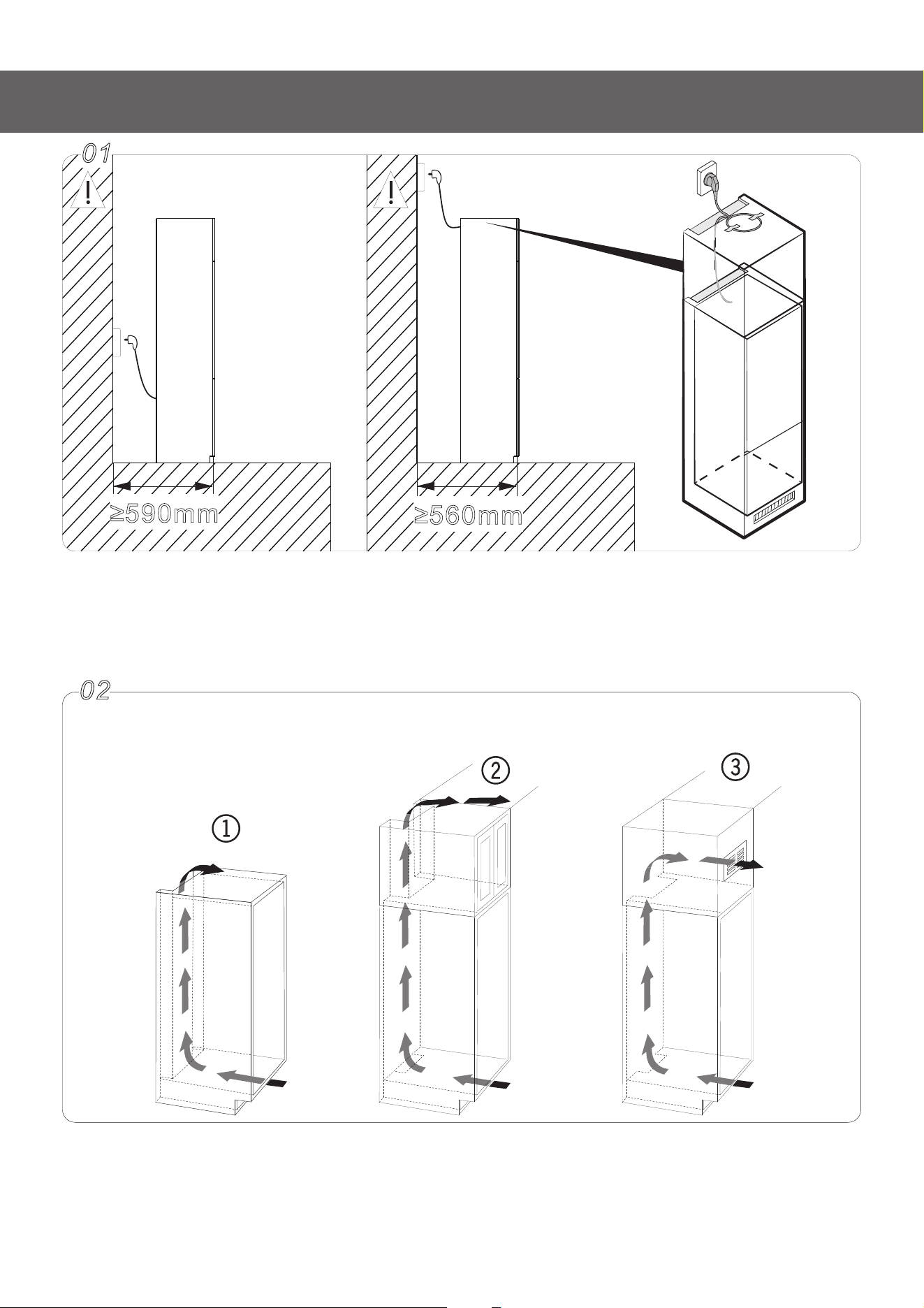

Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible, the back of the product should not be
too close to a wall to avoid touching or catching warm
parts (compressor, condenser) to prevent the risk of fire,
follow the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Transmitting frequency band(s) and max allowed
transmitting power in the operating frequency band(s):
2400-2483.5MHz, less than or equal t 20dbm.
11
Safety and warning information
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician
or competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1. If the appliance is Frost Free.
2. If the appliance contains freezer compartment.
Service
This equipment should be installed and operated with
minimum distance 20cm between the radiator & your
body.
lf a malfunction occurs on the appliance, please look first in
the “Trouble shooting” section of these instructions. If the
information given there does not help, please do not
perform any further repairs yourself. Under no circumstance
should you attempt to repair the appliance yourself. Repairs
carried out by inexperienced persons may cause injury or
serious malfunctioning.
In case of malfunction
The appliance and the interior fittings are protected for
transportation. Pull off the adhesive tape on the left and
right side of the door. You can remove any remnants of
adhesive using white spirit. Remove all adhesive tape and
packing pieces from the interior of the appliance.
Remove transport packaging
12
Safety and warning information
Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances. (This clause
applies only to the EU region.)
NOTE
Description of the appliance
8
Due to constant modification of our products, your refrigerator may be
slightly different from this instruction manual, but its functions and using
methods remain the same.
To get the best energy efficiency of this product, please place all shelves,
drawers and baskets on their original position as the illustration above.
NOTE
8
7
6
5
4
3
2
1
Electronic control
Multi-function rack
Storage shelves
Fresh drawer
Vegetable drawer cover
Vegetable drawer
Freezer drawers
Door rack
View of the appliance
8
Freezer
Fridge
RB3B250* RB3B280*
Electronic controls
All functions and controls of the unit are accessible from a control panel
conveniently located on the roof of the cabinet. A display circuit board allows easy
configuration of features and settings in a simple and intuitive manner.
13
Display Controls
Use your appliance according to the following control regulations, your appliance
has the corresponding functions and models as the display panels showed in the
pictures below. When the appliance is powered on for the first time, the backlighting
of the icons on display panel starts working. If no button have been pressed and the
doors are closed, the backlighting will turn off after one minute.
Electronic Control(located at the top of appliance)
1. Power
If you want to stop using it, you can
turn the appliance off by pressing
“Power” button for 3 seconds.
Press and hold “Power” button for 3
seconds to turn the standby function
on or off.
When the standby function is on, the
display panel will show “--”.
I !MPORTANT
Do not store any food in the fridge
during this time. If you will not use the
refrigerator for a long time, please pull
the plug.
When the standby function is on, the
refrigerator is stopped cooling.
NOTE
2. Eco
Press the “Eco” button to turn on
the energy saving function, the
“ ” icon will be illuminated.
When the Eco function is on, the
temperature of fridge is automatically
switched to 6°C and the temperature of
freezer is automatically switched to
-17°C.
When Eco function is on, you can switch
it by pressing the “Temp” or
“Eco” button and the refrigerator
temperature setting will revert back to
the previous setting.
3. Super Cool
The Super Cool feature helps to
keep food stored in the refrigerator
at the set temperature during
periods of high usage, large grocery
loads, or temporarily warm room
temperatures.
The Super Cool feature lowers the
temperature in the fridge compartment.
1. Press the “Super Cool” button to
activate this function. The “ ” icon will
be illuminated the fridge temperature
indicator will display 2°C.
2. Super cool will automatically turn off
after 6 hours.
3. When super cool function is on, you
can turn it off by pressing the “Super
Cool” button or left “Temp” button.
To manually turn off the Super Cool
function, the fridge temperature setting
will revert back to the previous setting.
14
Each press of the button decreases
the setting by one degree.
NOTE
Each press of the button decreases
the setting by one degree.
NOTE
4. Fridge Compartment Temperature
Press the left “Temp” button
repeatedly to cycle through the
available temperature settings
from 8°C to 2°C.
5. Freezer Compartment Temperature
Press the right “Temp” button
repeatedly to cycle through the
available temperature settings
from -14°C to -24°C.
Setting Compartment Temperatures
When you set a temperature, you are
setting an average temperature for the
entire compartment. The actual
compartment temperatures may vary
from the temperatures displayed
depending on the amount and
placement of stored food, and the
surrounding room temperature.
Recommended Temperature Settings
Fridge Compartment: 4°C
Freezer Compartment: -18°C
6. Super Freeze
Super Freeze will quickly lower the
temperature within the freezer so
food will freeze faster than usual.
This feature also helps to keep vitamins
and nutrition of fresh food fresh for
longer period.
1. Press the “super Freeze” button to
activate this function. The “ ” icon will
be illuminated and the temperature for
the freezer is set to -24°C.
2. Super freezer will automatically turn
off after 52 hours.
3. When Super Freeze function is on, you
can turn it off by pressing the “Super
Freeze” button or pressing the right
“Temp” button.
To manually turn off the Super freezer
function, the freezer temperature setting
will revert back to the previous setting.
Electronic controls
15
When you selecting the Super Freeze
function, ensure there are no bottled
or canned drinks (especially
carbonated drinks) in the freezer
compartment. Bottles and cans may
explode.
NOTE
Electronic controls
7. Alarm
High temperature alarm:
If the temperature inside the
appliance is too high, an alarm will
sound to alert you and the “ ” icon will
illuminated.
In non-standby function, the
temperature inside the box is detected
after 24 hours of powering on. If the
temperature remains too high for 4
hours, the high temperature alarm will
be triggered.
Switching off the alarm:
If you want to switch off the acoustic
alarm, briefly press the Alarm button.
The “ ”icon will remain illuminated
until the actual temperature in the
appliance drops below the alarm level.
When the appliance reaches an
adequate temperature, then he “ ”
icon will extinguished, high temperature
alarm cleared.
If you have not cancelled the high
temperature alarm, the alarm icon will
remain illuminated, and the buzzer will
sound three times per minute. After
more than 10 minutes, the alarm will
stop.
Door Open Alarm:
If a door is open for longer than 1
minutes, an alarm will sound to alert
you. The alarm will sound 5 times every
minute in the first and second minutes.
Starting from the third minute, the alarm
will sound once per second. If the alarm
beeps for a long time, the buzzer will
stop after 10 minutes of opening the
door.
During the alarm period, pressing any
button can cancel the alarm sound, To
turn off the alarm, close all doors
completely.
Demo mode
Demo mode is for store display, and it
prevents the refrigerator from
generating cool air. In this of Cooling off
Mode, the refrigerator may seem like it is
working but it will not make cool air.
To switch on demo mode, press and
hold "Power" And "Wi-Fi" buttons at same
time for three seconds and the buzzer
beeps 3 times. the display panel will
show “OF” the Demo mode has been，
turned on.
If there is no button operation for 10
seconds, it will keep display “OF”,
otherwise it will display the set
temperature.
To switch off demo mode, press and
hold "Power" And "Wi-Fi" buttons at same
time for three seconds and the buzzer
beeps 3 times.
16
Electronic controls
8. Convert
Press and hold “Convert” button
for 5 seconds to turn the Convert
function on or off.
The entire freezer compartment can be
converted into a Smart Zone
compartment. The temperature in this
compartment is at or slightly below 0°C.
Therefore, do not store food that is
sensitive to low temperature in this
compartment, as such food could
freeze. Before switching to Smart Zone
function, empty the freezer
compartment to prevent the frozen
food from defrosting and perishing.
• Activating the Convert function:
press the “Convert” button for 5
seconds. A beep will be sounded, and
the “ ” indicator will light up.
• When this function is activated, the
temperature in the freezer
compartment will be set to 0°C, while
the refrigerator compartment
temperature will be set to 4°C. “ ” will
flash on the display until the
temperature in the freezer
compartment reaches the appropriate
temperature. When this temperature is
reached, the “ ” indicator will be
constantly lit.
• Setting the temperature in the Smart
Zone compartment use the right:
“Temp” button to set the temperature
between -5°C and +3°C.
• Setting the temperature in the Fridge
compartment use the left “Temp”:
button to set the temperature between
+2°C and +8°C.
• When the Convert function is activated,
the Super Cool, Super Freeze, and Eco
functions will be deactivated, while other
functions can be activated.
• When the Convert function is activated,
the Freezer High temperature alarm
function will be disabled.
• Deactivating the Convert function:
press the “Convert” button for 5
seconds again. A beep will be sounded,
and the Convert indicator will no longer
be lit.
When the Convert function is
deactivated, the temperature in the
freezer compartment will be set to -18°C,
while the refrigerator compartment
temperature will be set to 4°C.
9.Wi-Fi
Connecting your refrigerator to
Wi-Fi
Connect Life app
Connect Life is a smart home app that
allows you to communicate with your
smart appliances using a smartphone
or tablet.
Installation
1. Open the Apple App Store (IOS) or the
Google Play Store (Android) on your
smartphone.
2. Search for the “ConnectLife ” app.
You will see an app with the following
icon:
17
Electronic controls
3. Download and install the ConnectLife
app provided by Connect Life, LLC.
Alternatively, you can scan the following
QR code with your smart phone or
tablet to find the ConnectLife app:
Connecting your refrigerator
After installing the Connectlife app, sign
in or create an account and follow these
steps:
1. Ensure the appliance is powered on
and the display panel is active. You'll
know it's ready when the panel lights up.
• The distance between your
appliance and the Wi-Fi router can
impact the performance. If they are
too far apart pairing your appliance
might fail or take longer.
• The appliance supports 2.4 GHz Wi-
Fi networks only. The Wi-Fi network
SSID must be visible.
• The surrounding wireless
environment (other connected
devices) can affect the performance
of your network.
• Your appliance Wi-Fi connection
may experience interruptions due to
external factors such as your home
network environment or Internet
service provider.
NOTE
2. Press & hold the Wi-Fi button for 3
seconds until you hear a beep and see
the “ ” light flashing after it constantly
on for a few seconds.
3. Ensure Bluetooth is enabled on your
phone and open the ConnectLife app.
Look for the pop-up indicating that a
new appliance has been found. Tap the
button on the pop-up and follow the
instructions to proceed.
4. If a pop-up doesn't appear, tap the
button called “Add appliance” or “+” in
the app.
5. Locate “Refrigerator” in the device list
and select it.
6. Follow the instructions in the app to
connect your refrigerator. Once the
setup is complete, your refrigerator will
appear on your home screen.
18
Electronic controls
• The appliance will remain in pairing mode for a maximum of 5 minutes.
• To factory reset your network settings, press & hold the Wi-Fi button for 6
seconds. You will hear two beeps once the appliance is reset.
• After resetting, the appliance will automatically go into pairing mode.
• A solid Wi-Fi light indicates the appliance is successfully connected to the
home network.
NOTE
First use and installation
Built-In Fridge Freezer
Please ensure there is enough space of the cabinet for the refrigerator, it is
necessary for the installation, repairs and air circulation. Before installation, please
confirm that the cabinet size.
≥ 0 m4 m
56.5
a
11.5
11
≥40
a
d
c
b
≥ ²200cm
≥560
H
First use and installation
19
f
I
g
e
h
g
Distance from bottom to upper of hinge
h
Distance from top to center
Profundity
Freezer door height
Refrigerator door height
Width
Height
Door-opening angle
• Your product is designed and built for domestic household use only. The
product must be correctly installed, located and operated in accordance
with the instructions contained in the User Instructions provided.
• Parameters provided in table are design parameters. Because of the
various reasons there will a slight deviation between actual dimension and
design parameter. The data listed are only for reference.
NOTE
1772
540
1932
115697625.5 781125.5 714.5 1217.5540
115
g
697625.5 78965.5
h
714.5
I
1057.5
e
d
c
b
a
f
1772
1932
Model height
H(cabinet height)
1772 1780
~
1932 1940
~
20
This diagram shows the state of the hinge
side of the product after installation.
The gap between the left and right cabinet
doors is recommended as shown in the
figure above,
the wall thickness of the cabinet 19mm≤
Use anti-cut safety gloves whilst
performing the installation.
First use and installation
Installation instructions
115°
4
2
T
5
PART LIST(Accessories package)
24
D
B
C
A
1
3
E
1
I
4
1
1
G
J
1
First use and installation

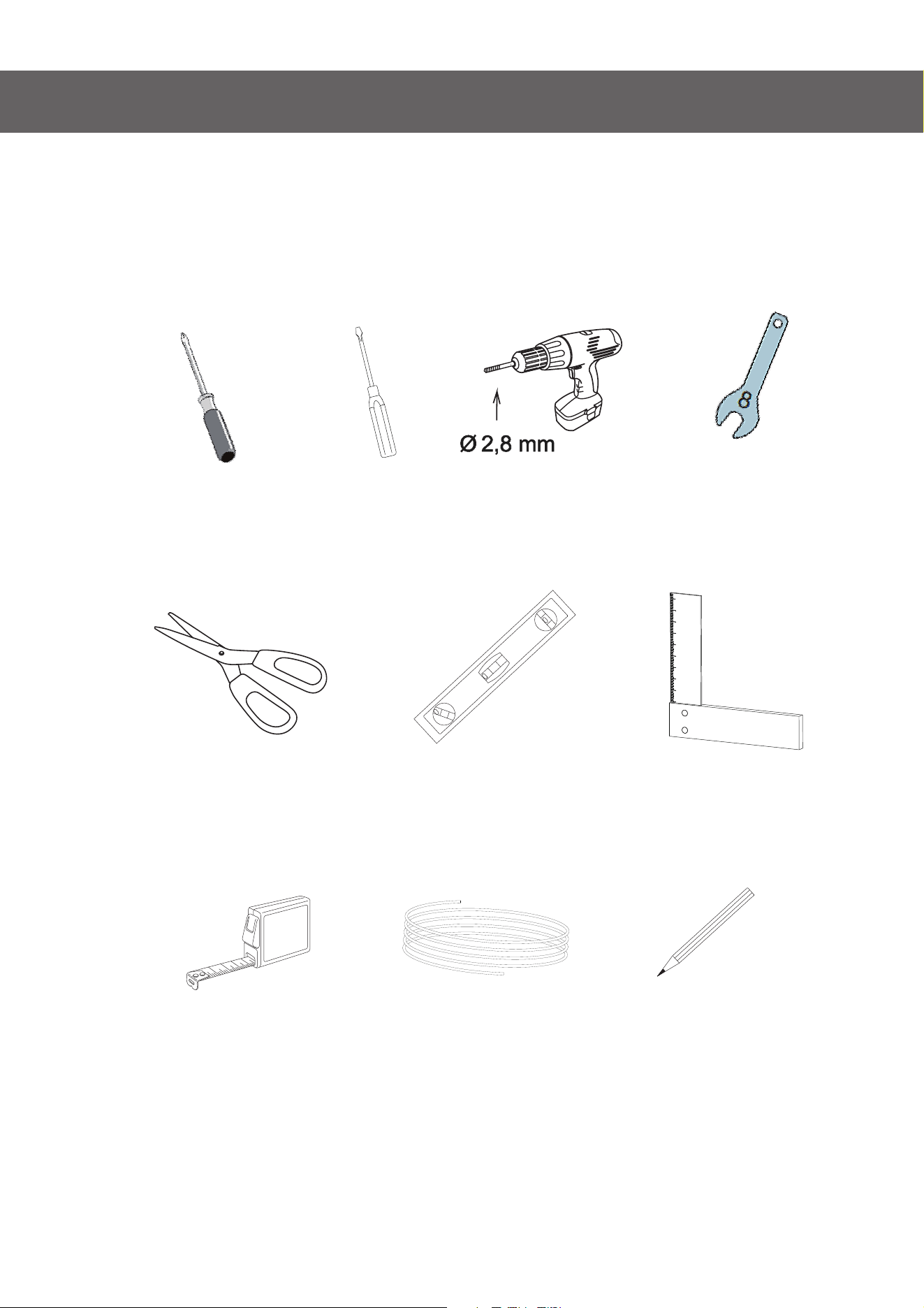

You may need:
cross
screwdriver
straight
screwdriver
electric
portable drill
Spirit level
spanner
ruler
pen
square
scissors
string
21
22
First use and installation
≥590mm
≥560mm
01
If you install the refrigerator in a cabinet with a 560 mm
depth, make sure the power cord is arranged on a side
of the refrigerator before plugging into a power socket.
If the power cord is in the rear of the refrigerator,
it could decrease the energy efficiency.
Consideration for socket outlet
location and required space
Types of air outlet
1. Directly above the appliance
2. Above the top unit
3. From the front of the top unit with decor grille
02
When using decor grilles, it must be taken into account that the clear ventilation cross-
section corresponds to the sum of the individual openings in the grille. A cut-out
section of merely 200 cm for installing the ventilation grille is thus not sufficient.²
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
≥ ²200cm
23
First use and installation

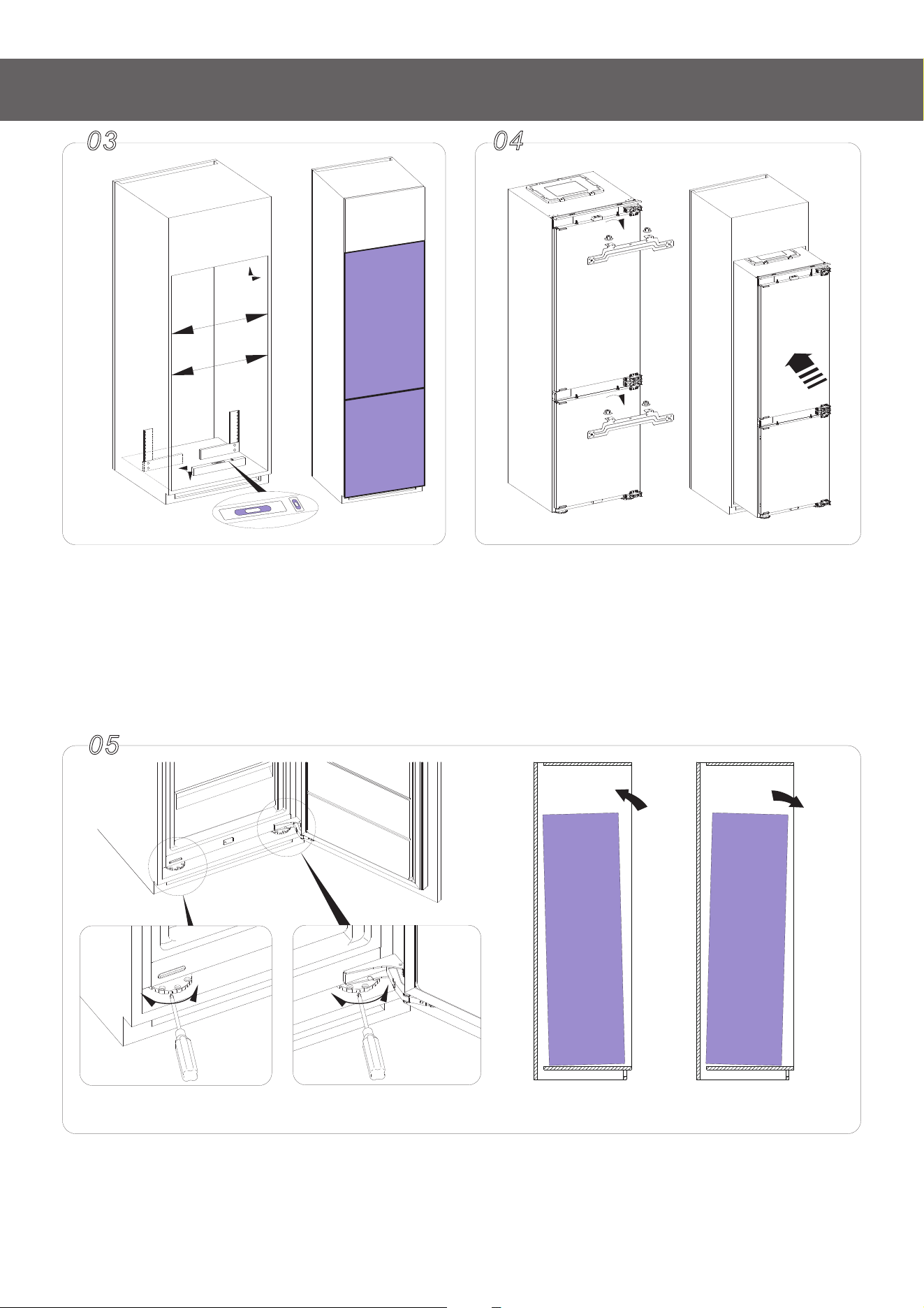

1. Check the flatness level of the cabinet
with the spirit level
2. Check the squareness of the cabinet
with the square
3. The weight of the R cabinet door is less
than 18kg,The weight of the F cabinet
door is less than 12kg
90°
=
90°
R 18KG≤
F 12KG≤
1.Use wrench A to loosen the nut and remove
the connecting plate from the door
2.Slowly and carefully push the unit into the
installation compartment. Great care needs
to be taken to avoid scratching floor because
of the metal compressor supporting board.
03 04
05
Turn clockwise Turn counter
clockwise
When the refrigerator is tilted forward or backward, turn the adjustable feet to adjust.
When turned clockwise, the refrigerator tilts backward, and when turned
counterclockwise, the refrigerator tilts forward.
24
First use and installation
44mm
44mm
5mm
44mm
44mm
06
Adjust the position of the refrigerator as shown in the instruction figure.
(44mm indicates the distance between the front of the cabinet and the front of
the refrigerator 5mm refers to the distance between the right wall of the cabinet,
and the side of the refrigerator box)
C
2
07
Tighten the adjustable feet with screw C. Tighten the top hinge brackets andplace
the screw covers B.
C
2
B
2
08
L2
L3
25
First use and installation
I
C
I
F
4
2
09
I
E
1
Use screws F to gently secure the connecting
bracket E, Adjust the connecting bracket E to fit in
with the cabinet side wall, tighten the screws F
and C, and close the cover.
Remove the screw hole cover and screw,
shown in the instruction figure
L1
L2
L3
10
“L1"is the distance from the top of the upper cabinet door to the top of the refrigerator door,
L2" is the gap in between upper and lower cabinet doors, "L3" is the distance from the top of the"
lower cabinet door to the top of the freezer door. "T" is the lap size of the cabinet door and the
middle partition, refer to the diagram on page 20, "R" is the distance from the top of the upper
cabinet door to the center of the hole on the connecting plate, "F" is the distance from the top
of the lower cabinet door to the hole center of the connecting plate .
26
First use and installation
T+31.5
I
5
R :L1+51.5
F :L3+51.5
11
Open the door to degree above 45°, refer to the instruction figure, hang the cabinet's door
was assembled fridges door. Then, adjust the gaps at left and right, top and bottom.
confirm the balancing and the gaps are even . Please mount the screw C to fix the cabinet's
door and fridge's door.
12
cabinet door
hinge
4
2
sidewall
T
C
2
=
=
27
First use and installation
13

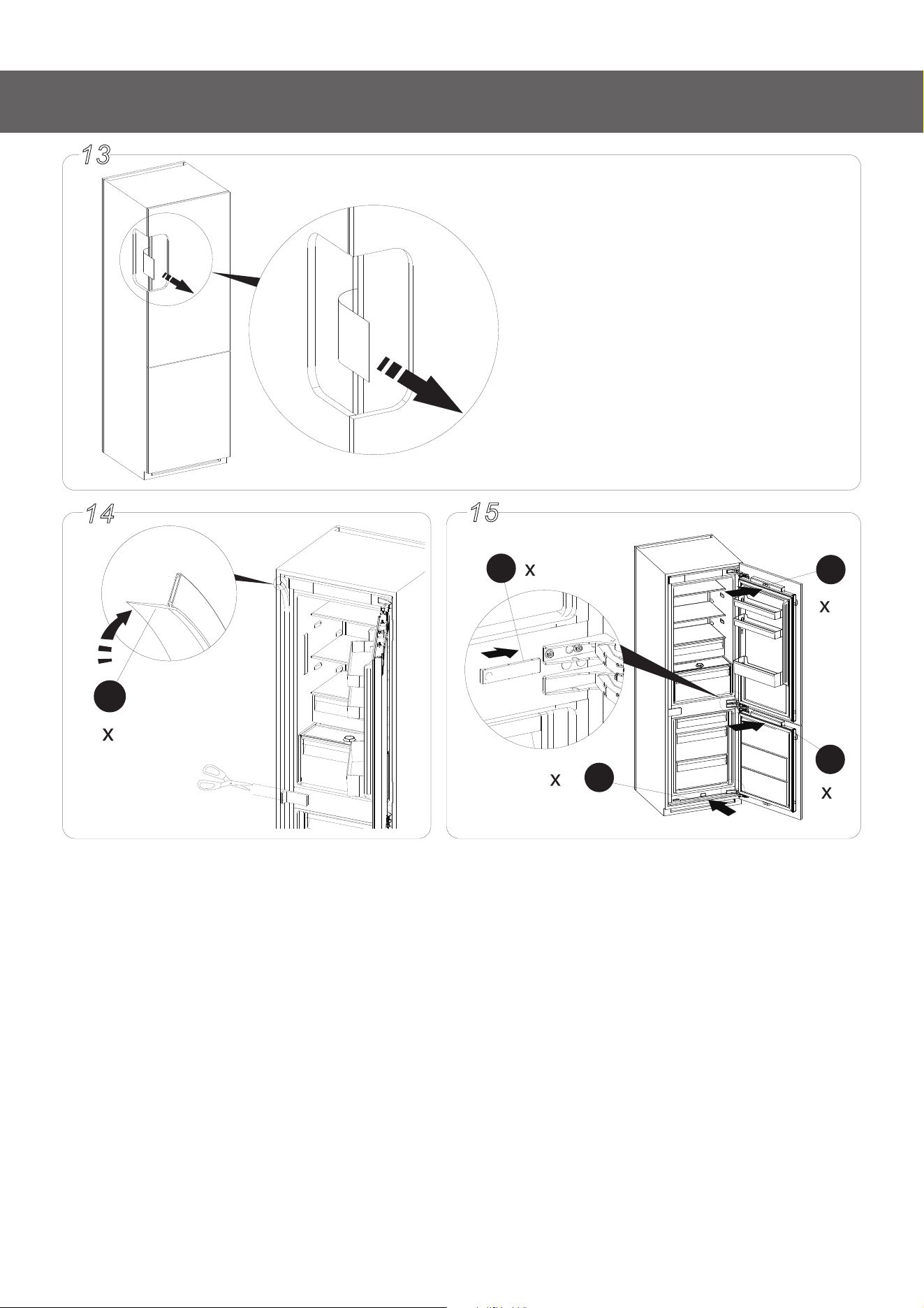

To ensure the doors are fully closed/
sealed, conduct a test on both doors
following the installation of cabinet door,
such as using a sheet of paper
in-between the unit door and its seal
and closing the cabinet door and seeing
if there is any tension observed when
pulling the sheet of paper – the sheet
should hold in place and not fall out.
Install four decorative stripsrefer to the
instruction figure
I
H
J
Cut the right length of the rubber strip G
and attach it to the side of the refrigerator.
14
G
3
D
15
1
1
1
1
28
Reverse the door
The side in which the door opens can
be changed from the right side (as
supplied) to the left side, if the
installation site allows for it.
When reversing the door, the
appliance must not be connected to
the mains. Ensure that the plug is
removed from the mains socket.
WARNING
Tools you will need:
1. 8mm socket driver
2. Cross-shaped screwdriver
3. Putty knife or thin-blade screwdriver
you should rest the appliance on soft
foam packaging or similar materil to
avoid damage. Stand the refrigerator
upright. Open the upper door to take
out all racks (to avoid racks
damaged) and then close the door.
NOTE
1
1
2
2
Reverse
29
Reverse the door
3
4
5
2
1
6
Please be careful your
hands when take out
the hinge
30
Reverse the door
When reversing the door, the cabinet
installation can refer to Built-In Fridge
Freezer installation instructions.
1. To ensure the doors are fully
closed/sealed, conduct a test on
both doors following the installation
of decor door, such as using a sheet
of paper in-between the unit door
and its seal and closing the decor
door and seeing if there is any
tension observed when pulling the
sheet of paper-the sheet should hold
in place and not fall out.
2. For reversing the door, the hole
covers need to be removed from the
current location and refitted to cover
the new holes. If these break when
removing and can be replaced by
accessory bag.
NOTE
Cleaning before use
Before using the appliance for the first
time, wash the interior and all internal
accessories with lukewarm water and
neutral soap in order to remove the
typical smell of a brand new product,
then dry thoroughly.
Installation Positioning
Before installing, read the instructions
carefully for your safety and the
correct operation of the appliance.
WARNING
• Position the appliance away from
sources of heat such as stoves,
radiators, direct sunlight, etc.
• Maximum performance and safety
are guaranteed by maintaining the
correct indoor temperature for the class
of unit concerned, as specified on the
rating plate.
• The appliance operates well in the
corresponding climate type. The
appliance may not work properly if it is
left for a longer period at a temperature
above or below the indicated range.
Important!
It is necessary to have good ventilation
around the refrigerator to allow for the
dissipation of heat, high efficiency, and
low power consumption. For this
reason. sufficiently cleared space
should be available around the
refrigerator.
Leveling
The appliance should be level in order
to eliminate vibration. To make the
appliance level it should be upright and
adjusters should be in stable contact
with the floor. Also adjust the level by
unscrewing the appropriate level
adjustment in the front (use your fingers
or a suitable spanner).
31
Reverse the door
Electrical connection
Any electrical work required to instal
the appliance should be carried out
by a qualified or authorized person.
CAUTION
This appliance must be grounded.
The manufacturer declines any
liabiliy should these safety measures
not be observed.
WARNING
Daily use
Accessories 1)
Movable shelves/trays
• Various glass, plastic storage shelves
or wire trays are included with your
appliance. Different models have
different combinations and different
models have different features.
• The walls of the refrigerator are
equipped with a series of runners so
that the shelves can be positioned as
desired.
Positioning the door racks
• To permit the storage of food
packages of various sizes, the door racks
can be placed at different heights.
• To adjust, gradually pull he rack in the
direction of the arrows until it comes
free, then reposition as required.
Vegetable Drawer
• For storing fruit and vegetables.
Freezer Drawer
• For storing frozen food.
Ice-cube tray
• For making ice and storing ice-cubes.
Refrigerator compartment
2)
• For storing food that does not nee to
be frozen and different sections suitable
for different kinds of food.
Freezer food compartment 2)
• For freezing fresh food and storing
frozen and deep-frozen food for long
periods of time.
32
Daily use
Thawing food 2)
• In the refrigerator compartment.
• At room temperature.
• In a microwave oven.
• In a conventional or convection oven.
• Food once thawed should be re-frozen with the exception of special cases.
1) lf the appliance contains related accessories and functions.
2) If the appliance contains a freezer compartment.
Helpful hints and tips
Noises during operation
Clicks-Whenever the compressor
switches on or off, a click can be heard.
Humming-As soon as the compressor is
in operation, you can hear it humming.
Bubbling-When refrigerant flows into
thin tubes, you can hear bubbling or
splashing noises.
Splashing-Even afer the compressor
has been switched off this noise can be
heard for a short time.
Energy saving tips
• Do not install the appliance near
stoves, radiators or other sources of
warmth.
• Keep the time the appliance is open to
a minimum.
• Do not set the temperature colder
than necessary.
• Make sure the side plates and back
plate of the appliance are at some
distance from the wall, and follow the
instructions relevant to installation.
• If the diagram shows the correct
combination for the drawers, crisper
and shelves, do not adjust the
combination as it would produce an
effect on energy consumption.
Hints for fresh food refrigeration
• Do not store warm foods or
evaporating liquids in the appliance.
• Do cover or wrap the food, particularly
if it has a strong flavor or door.
• Position food so that air can circulate
freely around it.
Hints for refrigeration
• Meat (all types): wrap in polyethylene
(plastic) bags and place on the glass
shelf above the vegetable drawer. For
safety, store in this way only one or two
days at the most.
• Cooked foods, cold dishes, etc: these
should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer provided.
• Butter and cheese: these should be
placed in aluminum foil or polyethylene
(plastic) bags while removing as much
air as possible.
Helpful hints and tips
33
• Milk bottles: these should have a cap
and should be stored in the bottle rack
on the door.
Hints for freezing
When first starting-up or after a period
out of use. Before putting the food in the
compartment, let the appliance run at
2 hours on the higher settings.
• Prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible to
subsequently thaw only the quantity
required.
• Wrap up the food in aluminum foil or
polyethylene (plastic) and make sure
that the packages are airtight.
• Do not allow fresh, unfrozen food to
touch food that is already frozen, thus
avoiding a rise in the temperature of
the later.
• Iced products, if consumed
immediately after removal from the
freezer compartment, can possibly
Switching off your appliance
• Empty the appliance.
• Pull out the power plug.
• Clean and dry the interior thoroughly,
• Ensure that all doors are wedged
open slighty to allow air to circulate.
If the appliance contains related
accessories and functions.
NOTE
cause skin to become freezer burnt.
• It is recommended to label and date
each frozen package in order to keep
track of the storage time.
Hints for the storage of frozen food
• Ensure that frozen food has been
stored correctly by the food retailer.
• Once defrosted, foods deteriorate
rapidly and can not be re-frozen,
• Do not exceed the storage period
indicated by the food manufacturer.
Cleaning and care
For hygienic reasons, the appliance
(including exterior and interior
accessories) should be cleaned
regularly at least every two months.
The appliance must not be
connected to the main power during
cleaning. Before cleaning, switch the
appliance off and remove the plug
from the main power supply, or shut
off the circuit breaker or fuse.
WARNING
Danger of electrical shock!
Do not use sharp objects as they are
likely to scratch the surface.
Do not use Thinner, Car detergent
Clorox, ethereal oil, abrasive
cleansers or organic solvent such as
Benzene for cleaning. They may
damage the surface of the
appliance and may cause fire.
CAUTION
Interior cleaning
• You should clean the appliance
interior regularly. It will be easier to
clean when food stocks are low.
Wipe the inside of the fridge freezer with
a weak solution of bicarbonate of soda,
and then rinse with warm water using a
wrung-out sponge or cloth. Wipe
completely dry before replacing the
shelves and baskets. Thoroughly dry all
surfaces and removable parts before
putting them back into place.
Cleaning and care
34
Exterior cleaning
To maintain good appearance of your
appliance, you should clean it regularly.
• Wipe the digital panel and display
panel with a clean, soft cloth.
• Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of moisture
to the surface.
• Clean the doors and cabinet surfaces
with a mild detergent and then wiped
dry with a soft cloth.
• Although this appliance automatically
defrosts, a layer of frost may occur on
the freezer compartment’s interior walls
if the freezer door is opened frequently
or kept open too long. If the frost is too
thick, choose a time when the freezer is
nearly empty and proceed as follow.
• Remove existing food and accessories
baskets, unplug the appliance from the
mains power and leave the doors open.
Ventilate the room thoroughly to
accelerate the process.
• When defrosting is completed, clean
your freezer as described above.
Do not use sharp objects to remove
frost from the freezer compartment.
Only after the interior is completely
dry should the appliance be
switched back on and plugged back
into the mains socket.
CAUTION
Defrosting
Fridge compartment
• This compartment defrosts
automatically. The defrosting water
runs to the drain tube via a collection
container at the back of the appliance.
Only after the door seals are
completely dry should the appliance
be powered on.
CAUTION
To replace the LED light, the below steps
can be followed:
1. Unplug your appliance.
2. Remove light cover by pushing up
and out.
3. Hold the LED cover with one hand and
pull it with the other hand while
pressing the connector latch.
4. Replace LED light and snap it
correctly in place.
Cleaning and care
Freezer compartment
• This compartment defrosts
automatically.
Door seals cleaning
• Take care to keep door seals clean.
Sticky food and drinks can cause
seals to stick to the cabinet and tear
when you open the door. Wash the
seals with a mild detergent and warm
water. Rinse and dry them thoroughly
after cleaning.
35
The LED light must not be replaced
by the user! If damaged, contact the
customer heipline for assistance.
WARNING
Replacing the LED light
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks before
calling for service, please see below. You can carry out some easy checks according
to this section before calling for service.
Troubleshooting
Don't try to repair the appliance yourself. If the problem persists after you
have made the checks mentioned below, contact a qualified electrician,
authorized service engineer or the shop where you purchased the product.
WARNING
Problem
Possible cause & Solution
Appliance is not
working correctly
Check whether the power cord is plugged into the power
outlet properly.
36
Troubleshooting
Problem
Possible cause & Solution
Appliance is not
working correctly
Odours from the
compartments
The ambient temperature is too low. Try setitng the chamber
temperature to a colder level to solve this problem.
It is normal that the freezer is not operating during the
automatic defrost cycle, or for a short time after the
appliance is switched on to protect the compressor.
The interior may need to be cleaned.
Some food, containers or wrapping cause odours.
Noise from the
appliance
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the freezer
compartment or other compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic defrosting.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may
need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers fallen or rolling.
The motor runs
continuously
It is normal to frequently hear the sound of the motor, it will
need to run more when in following circumstances:
Temperature setting is set colder than necessary.
Large quantity of warm food has recently been stored within
the appliance.
The temperature outside the appliance is too high.
Doors are kept open too long or too often.
After your installing the appliance or it has been switched off
for a long time.
Check the fuse or circuit of your power supply, replace if
necessary.
Troubleshooting
A layer of frost
occurs in the
compartment
Temperature
inside is too
warm
Check that the air outlets are not blocked by food and ensure
food is placed within the appliance to allow sufficient
ventilation. Ensure that the door can be fully closed . To
remove the frost, please refer to the “Cleaning and care”
chapter.
You may have left the doors open too long or too frequently;
or the doors are kept open by some obstacle; or the
appliance is located with insufficient clearance at the sides,
back and top.
Temperature
inside is too cold
Increase the temperature by following the “Display controls”
chapter.
Check whether the top of the refrigerator is tilted back by 10-
15mm to allow the doors to self close, or if something inside is
preventing the doors from closing.
Doors can’t be
closed easily
Problem
Possible cause & Solution
37
Water drips
on the floor
The light is not
working
The LED light may be damaged. Refer to replace LED lights in
cleaning and care chapter.
The control system has disabled the lights due to the door
being kept open too long, close and reopen the door to
reactivate the lights.
The water pan (located at the rear bottom of the cabinet)
may not be properly leveled, or the draining spout (located
underneath the top of the compressor depot) may not be
properly positioned to direct water into this pan, or the water
spout is blocked , or the water is not fully inserted into the
connector. You may need to pull the refrigerator away from
the wall to check the pan and spout.
Unable to connect
appliance to WiFi
network
The password for home Wi-Fi network was entered
incorrectly. Make sure the password is correct and connect
again.
The home Wi-Fi router frequency is not 2.4GHz.The appliance
only supports 2.4GHz radio frequency. Set up a dedicated
2.4GHz Wi-Fi SSID and connect the appliance to it.
38
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
Disposal of the appliance
Troubleshooting
Problem
Possible cause & Solution
Unable to connect
appliance to WiFi
network
The router and appliance kept far apart causing the poor
network. Consider either moving the router closer to the
appliance or purchasing Wi-Fi range extender and installing
it.
Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment o human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
return and collection systems or contact the retailer where
the product was purchased. They can take this product for
environmental safe recycling.
Disposal of the appliance
39
To avoid contamination of food, please respect the following instructions.
Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh
food.
Appropriate food
Eggs, cooked food, packaged food,
fruits and vegetables, dairy products,
cakes, drinks and other foods which
are not suitable for freezing.
Compartments
type
Order Target storage
temp.[°C]
1
Fridge
+2~+8
2
**-Freezer
≤-12
3
4
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 3
months - nutrition values and taste
decrease with time), suitable for
frozen fresh food.
(***)*-Freezer
≤-18
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended time
is 3 months – nutrition values and
taste decrease with time). Not
suitable for freezing fresh food.
***-Freezer
≤-18
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended time
is 2 months – nutrition values and
taste decrease with time). Not
suitable for freezing fresh food.
Disposal of the appliance
Appropriate foodCompartments
type
Order Target storage
temp.[°C]
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended time
is 1 month – nutrition values and
taste decrease with time). Not
suitable for freezing fresh food.
*-Freezer
≤-6
5
0-star
-6~0
Fresh pork, beef, fish, chicken, some
packaged processed foods, etc.
(Recommended to eat within the
same day, preferably not later than 3
days). Partially packed/wrapped up
encapsulated processed foods (non-
freezable foods)
6
40
7
8
Fresh/frozen pork, beef, chicken,
freshwater aquatic products, etc.(7
days below 0°C and above 0°C is
recommended for consumption
within that day, preferably no more
than 2 days). Seafood (less than 0°C
for 15 days, it is not recommended to
store above 0°C).
chill
-2~+3
9
Fresh pork, beef, fish, chicken, cooked
food, etc. (Recommended to eat
within the same day, preferably no
more than 3 days).
Fresh Food
0~+4
Red wine, white wine, sparkling wine
etc.
Wine
+5~+20
Disposal of the appliance
41
Please store different foods according to the compartments or target storage
temperature of your purchased products.
If the refrigerating appliance is left empty for long periods, switch off,
defrost, clean, dry, and leave the door open to prevent mould developing
within the appliance.
NOTE
Food needs to be packed in bags before putting into the refrigerator, and
liquids need to be packed in bottles or capped containers to avoid the
problem that the product design structure is not easy to clean.
Warning
Water dispenser cleaning (special for water dispenser products):
Clean water tanks if they have not been used for 48h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
