USER GUIDE
60
COMMERCIAL GRADE WET-DRY-BLOW VACUUMING SYSTEM
3
Congratulations on purchasing a Bennett Read
Tough 60 wet & dry vacuum cleaner.
This product is packed with the power and technology to provide fast
and efficient cleaning. It is manufactured to the highest quality and is
backed by a one year guarantee by Tevo.
Should you need any support from us, please visit: www.tevo.co.za
or call 0861 77 88 88.
4
» Use the system only for its intended use
» To protect against a risk of electric shock,
do not immerse any part of the system in
water or other liquids
» Do not allow cord to touch hot surfaces
» Do not run appliance over cord
» Do not operate the system with a damaged
cord or plug, or if the appliance or any
other part of the system has been dropped
or damaged. To avoid the risk of electric
shock, do not disassemble or attempt to
repair the Tough 60. Return the unit for
examination and repair. Incorrect
reassembly or repair can cause a risk of
electrical shock or injury and will not be
covered by the guarantee
» Keep hair, loose clothing, fingers and all
parts of body away from openings and
moving parts
» Do not use to pick up flammable or
combustible liquids such as gasoline or use
in areas where they may be present
» Do not pick up anything that is burning or
smoking such as cigarettes, matches or hot
ashes
» Use extra care when cleaning on stairs
» Do not use the Tough 60 without the
Microparticle filter in place, except when
vacuuming up liquids. Refer to page 7 for
operating instructions
» When using as a Wet Vacuum take
caution not to over-fill the tank with liquid
to avoid risk of electrical shock and
damage to your Tough 60. Refer to page
7 of this manual for instructions
» This appliance is intended for Commercial
use only. Follow all user instructions in this
manual
» Do not leave the Tough 60 plugged in
when unattended
» Unplug the electrical cord when not in use
and before servicing
» Not intended for use by persons (including
children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge
» Do not allow to be used as a toy
» Close attention is necessary when used near
children, pets or plants
» Children should be supervised to ensure that
they do not play with the appliance
» Use only as described in this manual. Use only
manufacturer’s recommended accessories
» Do not pull cord, use cord as a handle, close
a door on cord, or pull cord around sharp
edges or corners.
» Turn off all controls as applicable before
unplugging from electrical outlet
» Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord
» Do not handle plug or vacuum with wet hands
or operate without shoes
» Do not put any objects into openings.
» Do not use with any opening blocked
» Keep free of dust, lint, hair and anything else
that may reduce airflow
» Store your Tough 60 indoors in a cool,
dry area
» Keep your work area well lit
» Keep end of hose, wands and other openings
away from your face and body
» Using improper voltage may result in damage
to the motor and possible injury to the user.
Correct voltage is listed on rating label. For
operation on a 220-240V, 50/60Hz power
supply only
» Use only identical replacement parts
» See instructions for Servicing of
Double-Insulated Appliances
WARNING:
» To reduce the risk of injury from moving
parts – Unplug before servicing
» To reduce the risk of electric shock –
Unplug before cleaning or servicing
» Do not use outdoors
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE USING YOUR VACUUM.
When using your Tough 60, basic safety
precautions should be observed,
including the following:
!
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY:
WARNING
SAVE THESE INSTRUCTIONS
FOR FUTURE USE.
5
PRODUCT VIEW
1. On/off Switch
2. Vacuum Function Hose Port
3. Motor Unit
4. Dirt/water Tank
5. Front Wheels
6. Blower Function Hose Port
7. Crevice Tool
8. Dusting Brush
9. Drainage Plug
10. Flex Hose
11. Carry Handle
12. Extension Tubes
13. Large Rear Wheels
14. Multi-Surface Vacuum
Nozzle (Dry Vacuuming Only)
15. Wet Pick-up Vacuum Nozzle
16. Power Cord Hook
17. Motor Unit Securing Clips
18. Park Brake
19. Steering Handle
20. Accessories Storage Caddy
21. Power Cord With Plug
ASSEMBLY INSTRUCTIONS:
Your Bennett Read Tough 60 will need some assembly, please read and follow
the below instructions carefully:
1. Remove unit from packaging
2. Remove attachments from their packaging
3. Some of the packaging poses a choking risk to small children.
Dispose of the packaging responsibly. Recycle if possible
4. Before using for the first time check that all attachments listed are
included. If the unit is incomplete, return to the retailer immediately.
Take entire unit, packaging and proof of purchase to the store
where your purchase was made
5. Remove the Motor Unit (3) from the Dirt Tank (4) by loosening the
Securing Clips (17). Push Securing Clips (17) outwards to release
6. Turn the Dirt Tank (4) upside down
Note: you will need a Phillips screwdriver to complete the assembly
1
2
3
11
12
19
17
13
4
7
10
8
14
9
6
5
15
20
21
16
18
6
OPERATIONS
Only operate your Bennett Read Tough 60 in accordance with the instruction manual. Failure
to follow these instructions will result in decreased cleaning performance and may invalidate
your guarantee.
DRY VACUUMING:
Your Bennett Read Tough 60 Vacuum is perfect for vacuuming carpets, tiles, mattresses,
upholstery, curtains and car upholstery.
Setting up your Bennett Read Tough 60 for dry vacuuming:
1. Remove the Motor Unit (3) from the Dirt Tank (4) by pushing the Locking Clips (17)
outwards

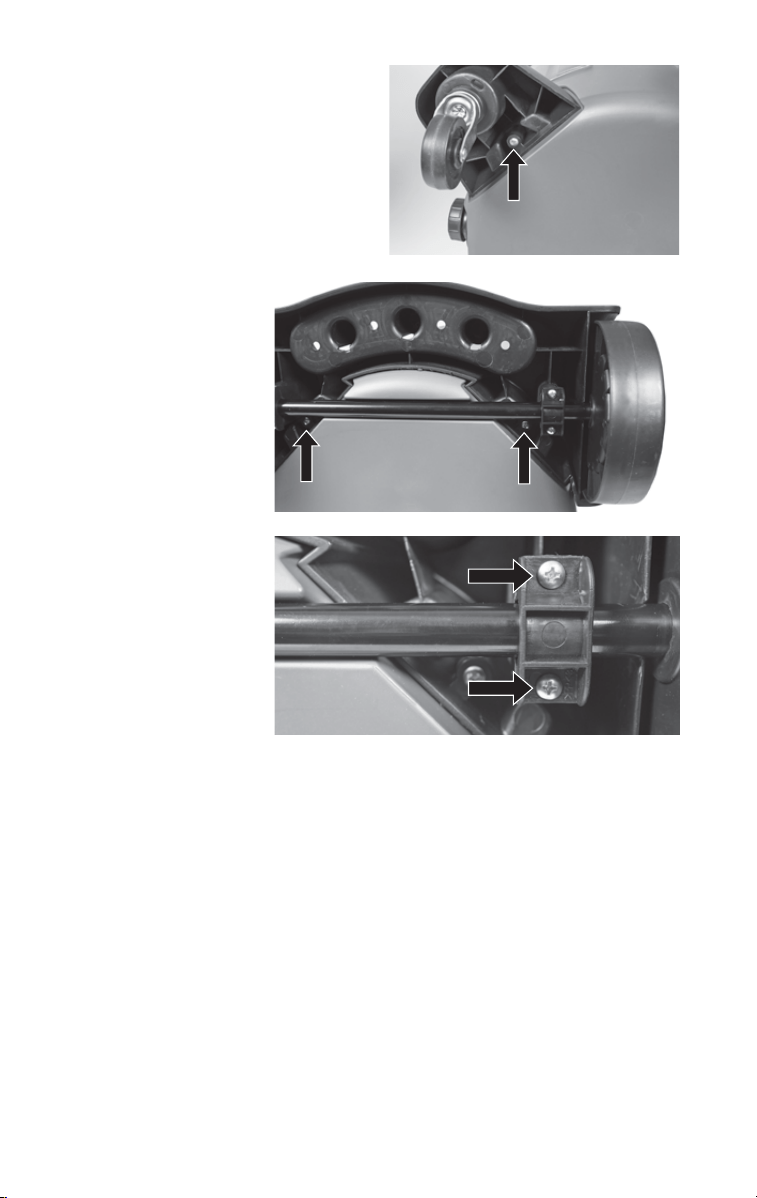

7. Insert both front caster wheel
assemblies (5) at the bottom
of the Dirt Tank (4) into the holes
provided, insert the screw and
tighten with Phillips screwdriver.
Take care not to over-tighten the
screws as this may damage the
thread.
8. Attach the
Accessories
Storage Caddy to
the back of the Dirt
Tank [4] and
secure with the
screws as shown
on the right:
9. Install the Rear
Wheel assembly
and secure both
sides with the
screws as shown
on the right:
10. Turn the Dirt Tank [4]
onto its wheels.
11. Your Tough 60 is now ready to be set up for your desired application.
7
WET VACUUMING:
Your Bennett Read Tough 60 can also suck up liquids
*
in and around your home…
Setting up your Bennett Read Tough 60 for wet vacuuming:
1. Remove the Motor Unit (3) from the Water/dirt Tank [4] by pushing the Locking Clips (17)
outwards
2. Remove the Microparticle filter (22) (as explained below in the Maintenance and Care
section on the following page)
3. Replace the Motor Unit (3) and clip locks in place (17)
4. Insert the large end of the Flex Hose (10) into Vacuum Function Hose Port (2)
5. Attach the Extension Tubes (12) to the free end of the Flex Hose
6. Attach the Wet Pick-up Vacuum Nozzle (15) to the free end of the Extension Wand
7. Plug the Power Cable into the wall socket
8. Switch on unit using the Power Switch (1)
9. Vacuum wet spill / liquid from surface
10. When you are done, follow the cleaning instructions as outlined below
After each cleaning session it is advisable that:
• The dirt tank be emptied and thoroughly rinsed and dried before storing
• The Microparticle filter is checked and cleaned if needed
This will ensure that the unit continues to deliver outstanding performance time & again
*Please note that the Bennett Read Tough 60 is NOT a carpet deep cleaner.
Carpet deep cleaning should be done with specialized deep cleaners.
*Do not use to pick up boiling hot, flammable or combustible liquids
Your Bennett Read Tough 60 is equipped with a float valve located at the
bottom of the motor unit which will partially shut off the suction as soon
as the tank reaches capacity. Immediately switch off the machine and empty
the tank before continuing.
2. Ensure that the Microparticle filter (22) is securely installed in place:
7. Plug the power cable into the wall socket
8. Switch on the unit using the Power Switch (1)
9. Vacuum in different directions across your surfaces to give you best results
(A) (B)
8
MAINTENANCE AND CARE
BLOWER FUNCTION:
Your Bennett Read Tough 60 has an additional function that allows you to blow away dirt and
dust that collect on various surfaces and hard to reach areas.
Setting up your Bennett Read Tough 60 to use the blower function:
1. Remove the Motor Unit (3) from the Dirt Tank (4) by pushing the Locking Clips (17) outwards
2. Ensure that the Microparticle filter is securely installed in place
3. Replace the Motor Unit (3) and lock clips in place (17)
4. Insert the large end of the Flex Hose (10) into the Blower function hose port (6). Turn
clockwise to lock in place
5. Attach the Extension tubes (14) to the free end of the Flex Hose (optional)
8. Plug the Power Cable into the wall socket
9. Switch on the unit using the Power Switch (1)
EMPTYING THE DIRT TANK:
1. Disconnect the Flex Hose (10) from the Motor Unit by turning anticlockwise and then
pulling the hose outward
2. Take the unit to disposal area
3. Unclip and lift the Motor Unit (3) from the Dirt Tank and place on the ground
4. Lift the Dirt Tank and empty the contents into the disposal area
5. The Dirt Tank (4) is also equipped with a Drain Plug (9) to easily dispose of liquids
6. Rinse the Dirt Tank under running water and dry before storing
It is necessary to clean the filter after every use / daily
• To remove the Microparticle filter, turn the Motor Unit (3) upside down
• Grasp the locking mechanism at the bottom of the Microparticle filter (22). Twist
anticlockwise and pull the filter outward to remove – see pictures below.
• Gently tap the filter on a solid surface, like the inside of a dust bin, to remove all visible dirt
and dust. Use a brush to remove any large dirt particles or hair from the filter
Wash the Microparticle filter weekly
• Wash the filter in warm water.
You may use a mild detergent
• Allow to dry completely before
re-installing the filter
• Replacement Microparticle filters are
available from major retail outlets
• Reassemble and store, ready to use!
CLEANING THE FILTER:
Note: Your Tough 60 is equipped with a Thermal Cut-off Switch that is designed to protect the
motor from overheating. Should the machine switch off whilst working, unplug and check the
Microparticle filter. Clean as explained below. Your machine will be ready for use again as
soon as it has cooled down. See the Troubleshooting Guide for more information.
TIP: You can also use compressed air to remove dust and dirt from the filter.
IMPORTANT: NEVER USE THE MACHINE WITH A WET FILTER!
TROUBLESHOOTING
Machine not
switching on
PROBLEM POSSIBLE CAUSES REMEDIES
1. Power cord not firmly plugged in
or not switched on at wall socket
1. Check electrical plug
Weak suction
power
1. Microparticle filter dirty or
clogged
1. Remove and clean
Microparticle filter
as explained on page 7
6. It is important
to check and clean
filter regularly
2. Remove Flex Hose,
nozzle and extension
pipes as explained
on page 5.
Clean and check for
any obstructions
Visible dust
escaping from
the machine
while vacuuming
Machine
switches off
during operation
– Thermal Cut-off
switch
1. Microparticle filter not installed
2. Microparticle filter dirty
1. Check Microparticle
filter, situated
underneath the
motor unit
1. Clean Microparticle
filter as explained on
page 7
1. Filter dirty or clogged
2. Obstruction in flex
hose/extension tubes
The machine will only switch on after it has cooled down sufficiently.
Permanent damage will be caused to your machine if you continue
to use the machine without addressing the root cause of the
overheating as explained above…
1. Clean or replace the
Microparticle filter as
explained in previous
section
Check and clean flex
hose/extension tubes
2. Obstruction in Flex Hose,
vacuum nozzle or extension
pipes
Other maintenance or service not included in the manual should be performed by
an authorized Tevo service representative.
For any questions or concerns, contact customer care listed on page 9.
9
The Bennett Read Tough 60 has a one year product guarantee from Tevo (Pty)
Ltd. In the event of the unit malfunctioning, Tevo will replace or repair, at
Tevo’s option, any faulty component, free of charge from the date of purchase
by the original purchaser for one year. This guarantee does not apply to
routine maintenance components such as filters and brushes. Damage or
malfunction caused by negligence, abuse, unauthorized repair, or use not in
accordance with the User Guide is not covered. Tevo is not liable for
incidental or consequential damages of any nature associated with the use of
this product. Tevo’s liability will not exceed the purchase price of this product.
Guarantee and Service enquiries can be made by contacting:
Tevo (Pty) Ltd
Gauteng 086 111 8386
Durban (031) 570 5900
Cape Town (021) 380 0038/9
Customer Service Help Line 0861 77 88 88
www.tevo.co.za
TECHNICAL SPECIFICATIONS:
Nominal voltage: 220-240 V AC Nominal frequency:
50/60 Hz Power Output : 1200 W (nom)
Dirt Tank Capacity : 60 Litres
10
CONSUMER GUARANTEE
60
COMMERCIAL GRADE WET-DRY-BLOW VACUUMING SYSTEM
Brought to you by:
www.tevo.co.za | info@tevo.co.za
0861 77 88 88
