Knife Making Belt Grinder
Angle Grind Guide

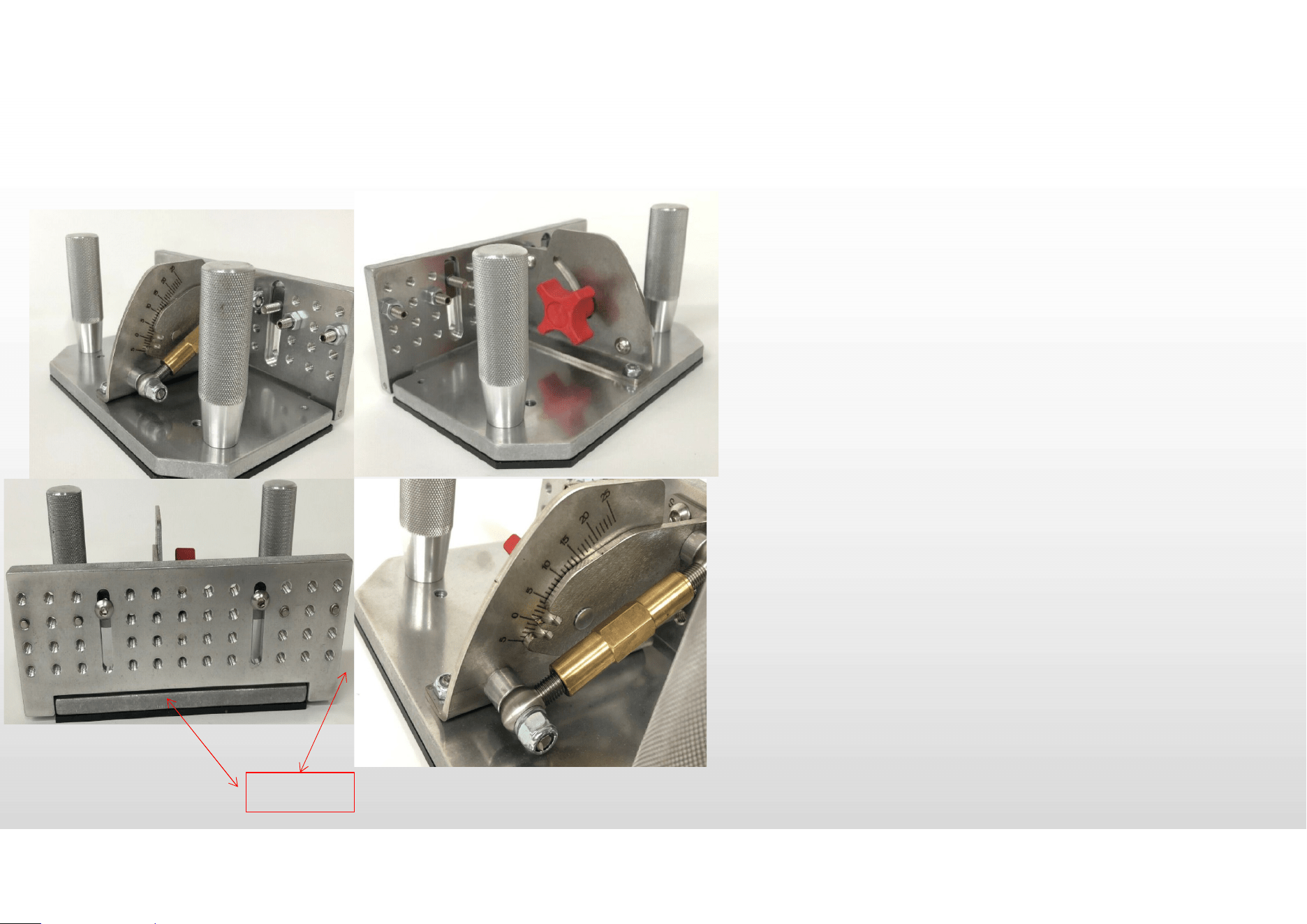

An g le G rin d Guide - regula r
l Front mounting plate measures 7-3/4"
wide & stands 3-1/4" tall.
l 1/4-20 Tapped mounting holes
l 2 slotted mounting points
l Lasered stainless-steel protractor plate
l Needle pointer can be adjusted with a
screwdriver for absolute accuracy
l Zero play hinges
l Two aluminum knurled handles for
secure grip & superior "feel"; handles
are 3-1/2" tall
l .150" ABS sheet on the bottom plate to
provide an exceptionally smooth
sliding action when plunge grinding.
Stainless-steel dog point set screws
which can be placed strategically
along spine of blade.

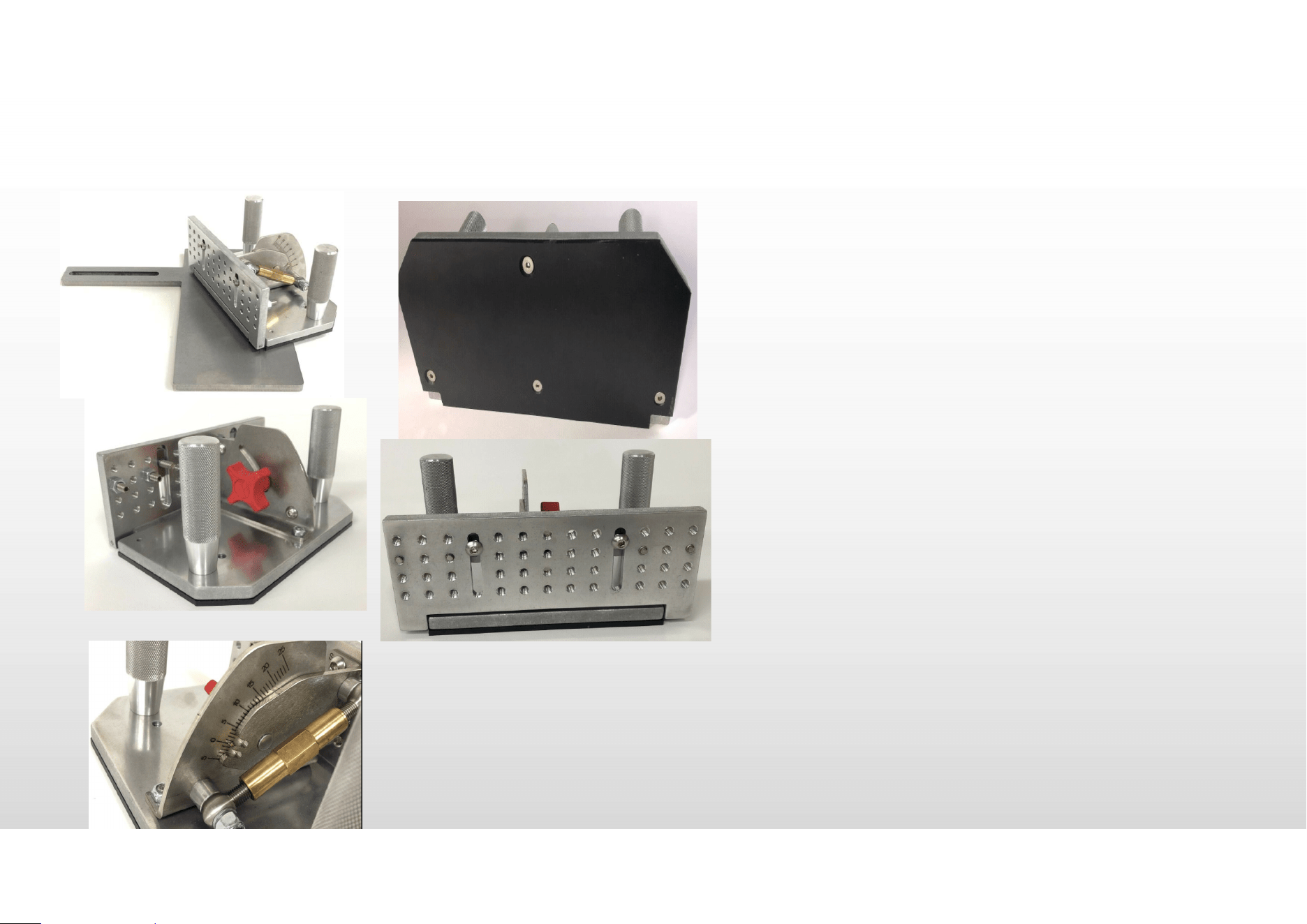

A n g l e G r i n d G u i d e - r e g u l a r w i t h L a r g e To o l R e s t
l Front mounting plate measures 7-3/4" wide &
stands 3-1/4" tall.
l 1/4-20 Tapped mounting holes
l 2 slotted mounting points
l Lasered stainless-steel protractor plate
l Needle pointer can be adjusted with a
screwdriver for absolute accuracy
l Super fine thread turnbuckle for absolute
precision adjustments
l Lock knob & turnbuckle combination assures
zero movement
l Zero play hinges
l Two aluminum knurled handles for secure grip &
superior "feel"; handles are 3-1/2" tall
l .150" ABS sheet on the bottom plate to provide
an exceptionally smooth sliding action when
plunge grinding.
TOOL REST:
Solid steel tool rest, 3/8" thick unfinished steel.
This rest bolts directly onto a 1.5"x1.5" main tooling
arm, or to an extra tooling arm in the bottom slot of
the grinder.

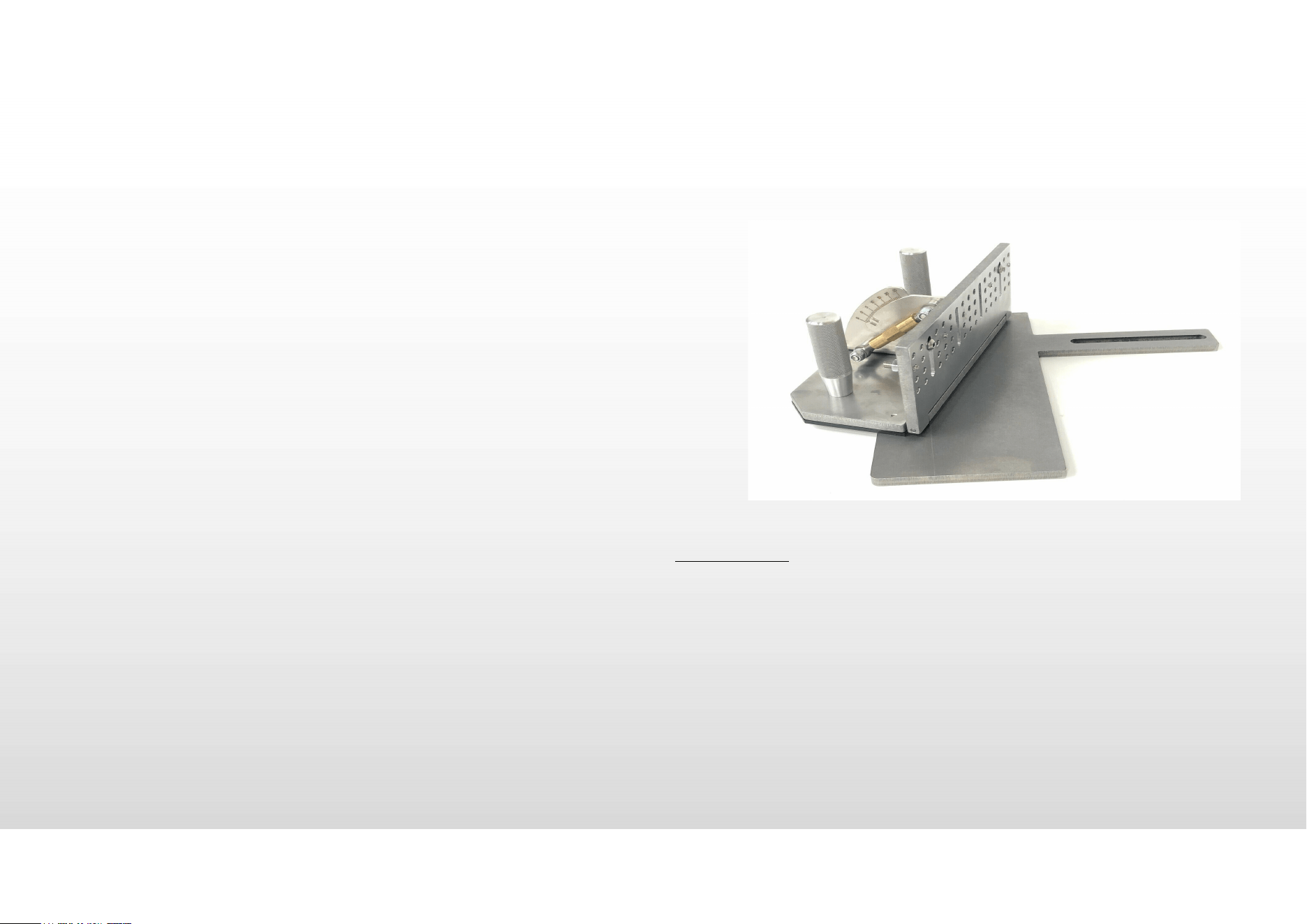

A n g l e G r i n d G u i d e - r e g u l a r w i t h L a r g e To o l R e s t
TOOL REST:
l Solid steel tool rest, 3/8" thick unfinished steel.
l This rest bolts directly onto a 1.5"x1.5" main
tooling arm, or to an extra tooling arm in the
bottom slot of the grinder.
l The slot allows it to be moved closer to or further
away from the belt.
l We leave the surface unfinished: sand it smooth
or drill & tap it easily for your fixtures.
l The work surface measures 11-3/4" wide by 5-
1/4" deep.
l Front mounting plate measures 9-3/4" wide &
stands 4" tall.
l 1/4-20 Tapped mounting holes
l 4 slotted mounting points
l Lasered stainless-steel protractor plate
l Needle pointer can be adjusted with a
screwdriver for absolute accuracy
l Super fine thread turnbuckle for absolute
precision adjustments
l Lock knob & turnbuckle combination assures
zero movement
l Zero play hinges
l Two aluminum knurled handles for secure grip
& superior "feel"; handles are 3-1/2" tall
l .150" ABS sheet on the bottom plate to provide
an exceptionally smooth sliding action when
plunge grinding.
l Stainless-steel dog point set screws which can
be placed strategically along spine of blade

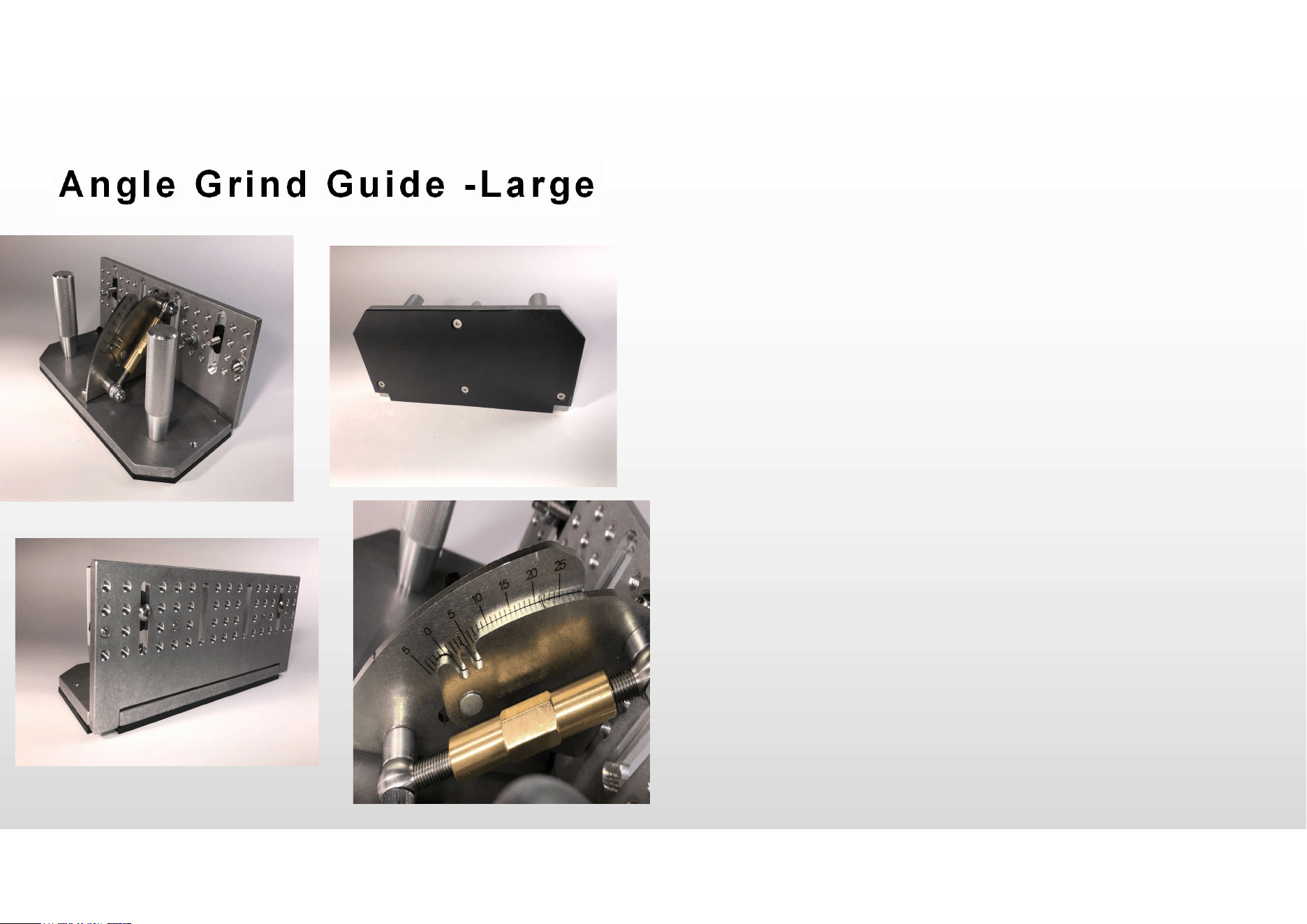

A n g le G r i n d G u i de ( La r g e ) & L a r g e Too l R e s t
l Front mounting plate measures 9-3/4" wide & stands 4" tall.
l 1/4-20 Tapped mounting holes
l 4 slotted mounting points
l Lasered stainless-steel protractor plate
l Needle pointer can be adjusted with a screwdriver for absolute accuracy
l Super fine thread turnbuckle for absolute precision adjustments
l Lock knob & turnbuckle combination assures zero movement
l Zero play hinges
l Two aluminum knurled handles for secure grip & superior "feel"; handles are 3-1/2" tall
l .150" ABS sheet on the bottom plate to provide an exceptionally smooth sliding action when
plunge grinding.
l Stainless-steel dog point set screws which can be placed strategically along spine of blade.
A n g le G r i n d G u i de ( La r g e ) & L a r g e Too l R e s t
l TOOL REST:
l Solid steel tool rest, 3/8" thick unfinished steel.
l This rest bolts directly onto a 1.5"x1.5" main tooling arm, or to an extra tooling arm in the
bottom slot of the grinder.
l The slot allows it to be moved closer to or further away from the belt.
l We leave the surface unfinished: sand it smooth or drill & tap it easily for your fixtures. Also
easy to weld angles or holding plates onto.
l The work surface measures 11-3/4" wide by 5-1/4" deep.

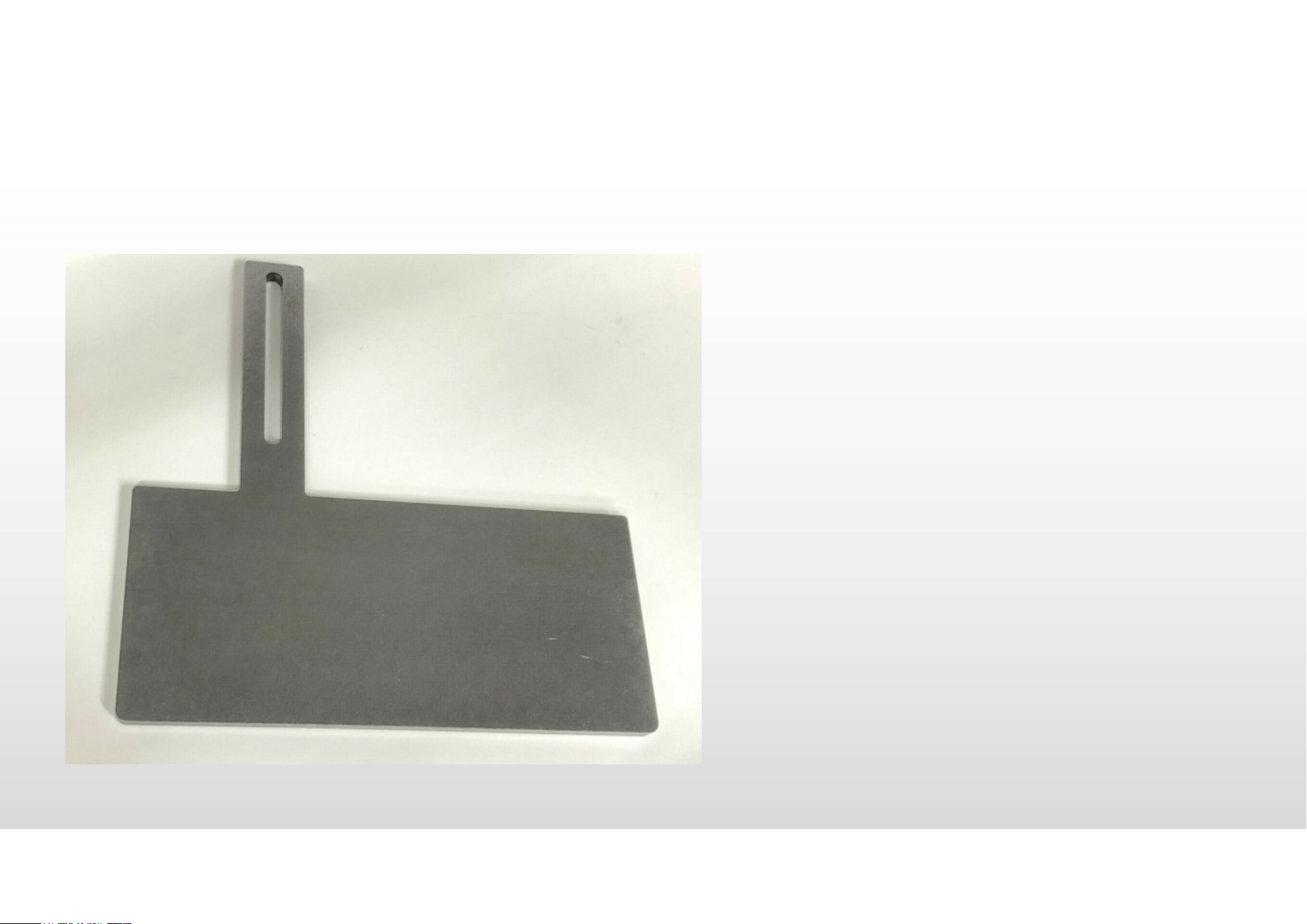

Belt Grinder Tool Rest Large
Solid steel tool rest, 3/8" thick unfinished
steel. This rest bolts directly onto a 1.5"x1.5"
main tooling arm, or to an extra tooling arm
in the bottom slot of the grinder. The slot
allows it to be moved closer to or further
away from the belt. We leave the surface
unfinished: sand it smooth or drill & tap it
easily for your fixtures. Also easy to weld
angles or holding plates onto.
The work surface measures 11-3/4" wide by
5-1/4" deep. This rest works very well with
our Grind Guides.
