DESIGNED SMART. BUILT SOLID.
®
WARNING: Improper installation, operation, service or maintenance can cause
property damage, injury or death. Read and understand these instructions
thoroughly before positioning, installing, maintaining or servicing this equipment.
APW Wyott
®
cooking equipment has been engineered to provide you with year-round dependable
service when used according to the instructions in this manual and standard commercial kitchen
practices.
APW Wyott Food Service Equipment Company
1307 N. Watters Road, Suite 180 • Allen, TX 75013
APW Wyott Food Service Equipment Company is a wholly owned subsidiary of Standex International Corporation.
972.908.6100 Phone +1.800.527.2100
214.565.0976 Fax www.apwwyott.com
INSTALLATION AND OPERATING INSTRUCTIONS
Coldwell
Models: RTR-4
Intended for other than household use. Unit must be kept clear of combustibles at all times.
P/N 88049 09/18
WARNING: California Residents Only. This product can expose you to chemicals including
chromium which is known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov.
2
TABLE OF CONTENTS
ITEM PAGE
Safety Precautions .....................2
Specications .........................4
Installation ............................4
Electrical Connections ...................5
Operating Instructions ...................5
ITEM PAGE
Maintenance ..........................5
General Troubleshooting .................6
Wiring Diagram ........................7
Exploded View & Parts List ...............7
Warranty ............................10
APW Wyott takes pride in the design and quality of our products. When used as intended and with
proper care and maintenance, you will experience years of reliable operation from this equipment.
To ensure best results, it is important that you read and follow the instructions in this manual
carefully. Installation and start-up should be performed by a qualied installer who thoroughly read,
understands and follows these instructions.
If you have questions concerning the installation, operation, maintenance or service of this product,
write Technical Service Department APW Wyott, 1307 N Watters Rd # 180, Allen, TX 75013
SAFETY PRECAUTIONS
Before installing and operating this equipment be sure everyone involved in its operation is fully
trained and is aware of all precautions. Accidents and problems can result by a failure to follow
fundamental rules and precautions.
The following words and symbols, found in this manual, alert you to hazards to the operator, service
personnel or the equipment. The words are dened as follows.
DANGER: This symbol warns of imminent hazard which will result in serious injury
or death.
WARNING: This symbol refers to a potential hazard or unsafe practice, which could
result in serious injury or death.
CAUTION: This symbol refers to a potential hazard or unsafe practice, which may
result in or moderate injury or product or property damage
NOTICE: This symbol refers to information that needs special attention or must be
fully understood even though not dangerous.
CAUTION: These models are designed, built, and sold for commercial use. If these
models are positioned so the general public can use the equipment make sure that
cautions, warnings, and operating instructions are clearly posted near each unit so
that anyone using the equipment will use it correctly and not injure themselves or
harm the equipment.
WARNING: Check the data plate on this unit before installation. Connect the unit
only to the voltage and frequency listed on the data plate. Connect only to 1 or 3
phase as listed on the data plate.
3
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
NOTICE: The unit when installed, must be electrically grounded and comply with
local codes, or in the absence of local codes, with the national electrical code ANSI/
NFPA70- latest edition. Canadian installation must comply with CSA-STANDARD
C.22.2 Number 0 M1982 General Requirements-Canadian Electrical Code Part II,
109-M1981- Commercial Cooking Appliances.
NOTICE: Local codes regarding installation vary greatly from one area to another.
The National Fire Protection Association, Inc. states in its NFPA96 latest edition that
local codes are “Authority Having Jurisdiction” when it comes to requirement for
installation of equipment. Therefore, installation should comply with all local codes.
WARNING: IMPROPER GROUNDING COULD RESULT IN ELECTRICAL SHOCK!
This appliance is equipped with a three prong (grounded) plug for your protection
against electrical shock hazard and should be plugged directly into a properly
grounded three prong receptacle. Do not cut or remove the grounding prong from
this plug.
WARNING: Disconnect device from electrical power supply and place a Tag Out-
Lockout on the power plug, indicating that you are working on the circuit.
NOTICE: Install per the spacing requirements listed in the installation section of
this manual. We strongly recommend having a competent professional install this
equipment. A licensed electrician should make the electrical connections and
connect power to the unit. Local codes should always be used when connecting
these units to electrical power. In the absence of local codes, use the latest version
of the National Electrical Code.
CAUTION: Maintenance & repair should be handled by a factory authorized agent.
Before doing any maintenance or repair, contact APW Wyott.
WARNING: SHOCK HAZARD - Do not open any panels that require the use of tools.
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
WARNING: Appliance must be connected by an earthing cable to all other units in
the complete installation and thence to an independent earth connection.
WARNING: Never clean any electrical unit by immersing it in water. Turn o before
cleaning surface.
WARNING: Shock Hazard – De-energize all power to equipment before cleaning the
equipment.
4

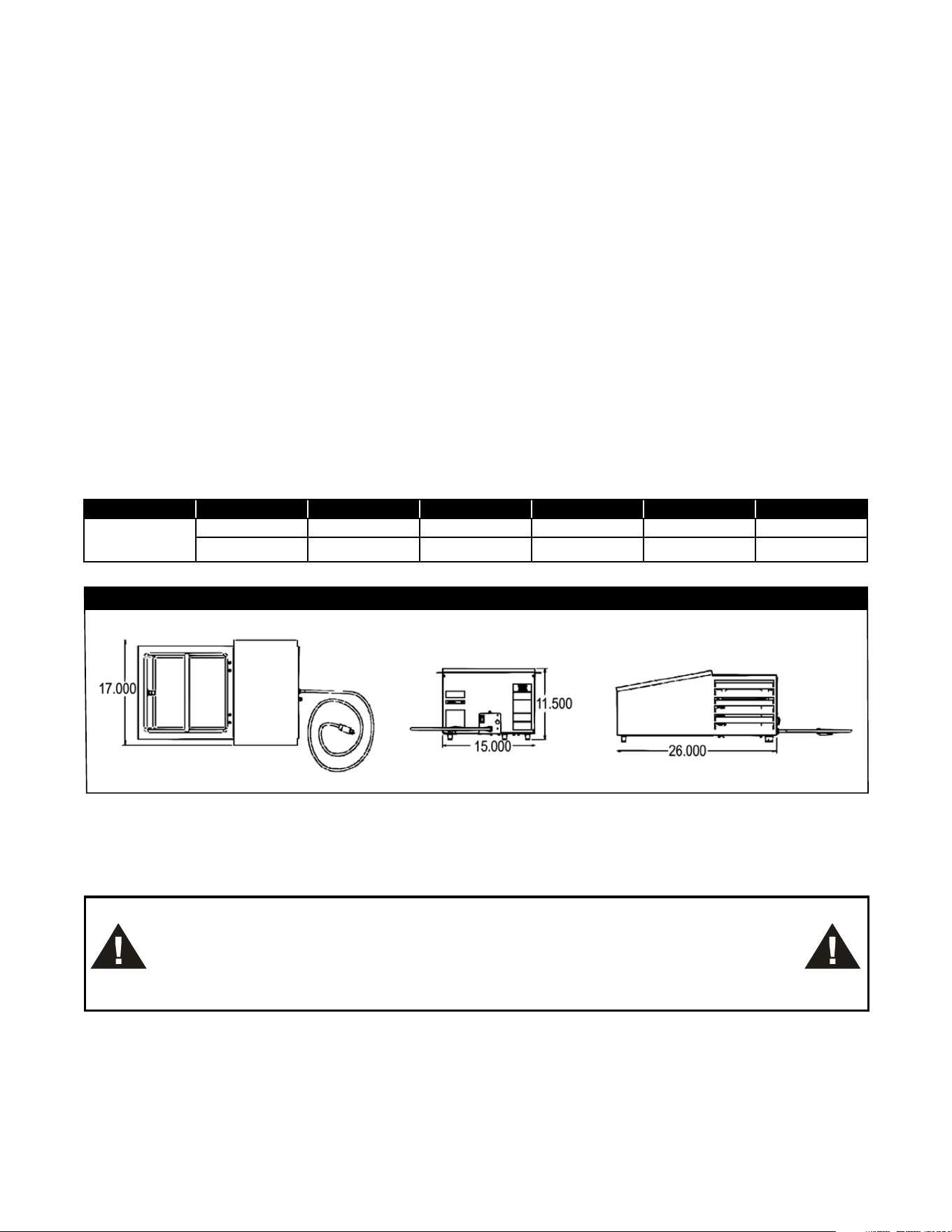

DIMENSIONS
Location of Data Plate
The data plate for the RTR-4 is located on the back panel to the left of the power switch.
Immediately Inspect for Shipping Damage
All containers should be examined for damage before and during unloading. The freight carrier has
assumed responsibility for its safe transit and delivery. If equipment is received damaged, either
apparent or concealed, a claim must be made with the delivering carrier.
A) Apparent damage or loss must be noted on the freight bill at the time of delivery. It must then be
signed by the carrier representative (Driver). If this is not done, the carrier may refuse the claim. The
carrier can supply the necessary forms.
B) Concealed damage or loss if not apparent until after equipment is uncrated, a request for
inspection must be made to the carrier within 15 days. The carrier should arrange an inspection.
Be certain to hold all contents and packaging material.
Installation and start-up should be performed by a qualied installer who thoroughly read, understands
and follows these instructions.
SPECIFICATIONS
Electrical
Model Volts Hz Phase Amps Compressor Charge
RTR-4 120 60 1 3 1/6 HP 6.25 oz - R134a
240 50 1 1.5 1/5 HP ____ oz - R134a
INSTALLATION
Clean the unit before using. Wipe body and the inside of the unit with a hot, wet cloth to remove any
shipping dust or protective oil.
CAUTION: This device should never be positioned upside down or on its side. If the
unit arrived or was stored in any position other than “THIS END UP” as marked on
the shipping container, then allow the unit to set upright 24 hours before applying
power or turning on the unit. Failure to do this will cause the unit to function
incorrectly. The unit will not be able to cool to the desired temperature.
5

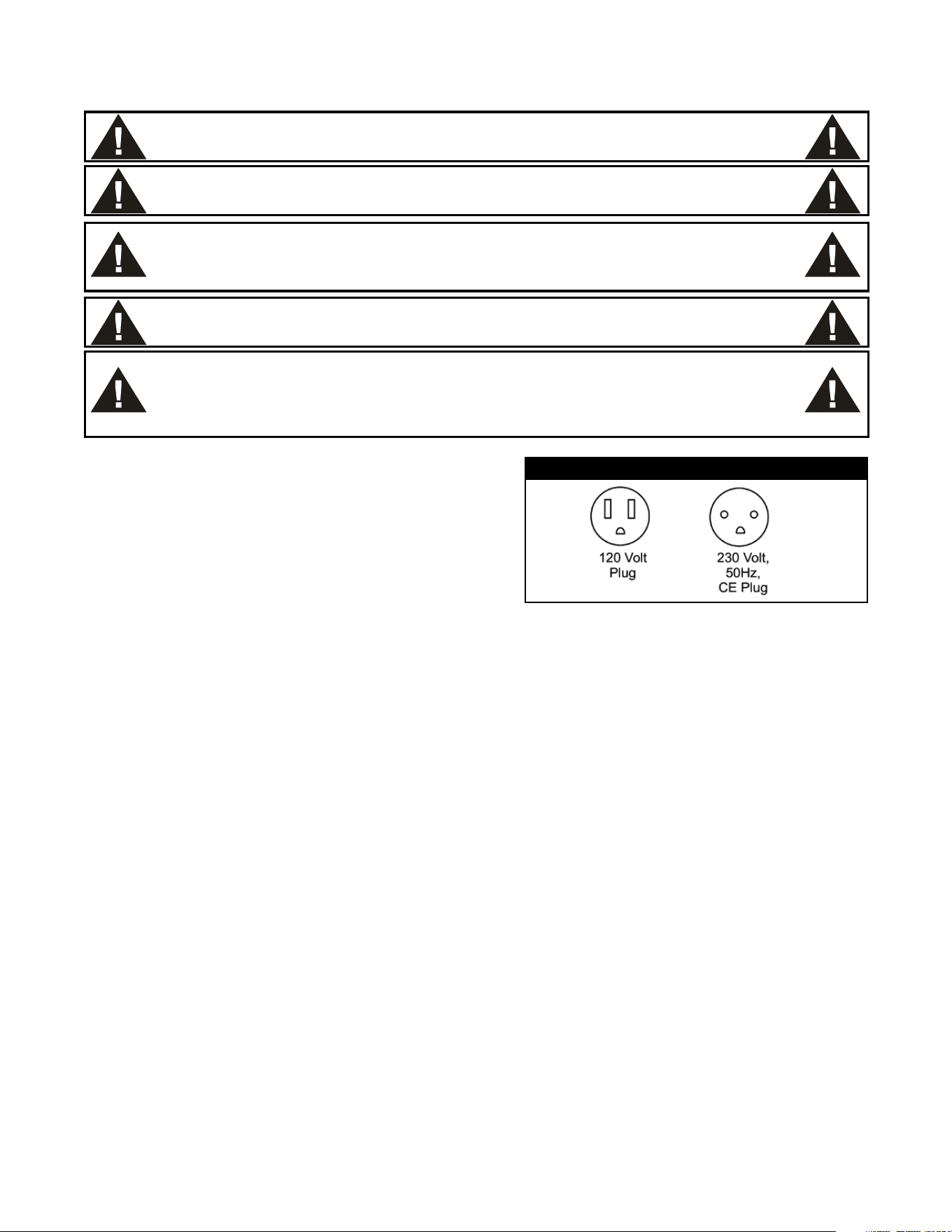

ELECTRICAL CONNECTIONS
WARNING: Check the data plate on this unit to determine what voltage this unit is
wired for and what voltage service to use.
CAUTION: When installed, the plug for this unit should be accessible.
WARNING: Check the data plate on this unit before installation. Connect the unit
only to the voltage and frequency listed on the data plate. Connect only to 1 or 3
phase as listed on the data plate.
CAUTION: If the power cord is damaged, replace only with an identical power cord.
WARNING: IMPROPER GROUNDING COULD RESULTIN ELECTRICAL SHOCK! This
appliance is equipped with a three prong (grounded) plug for your protection against
electrical shock hazard and should be plugged directly into a properly grounded three
prong receptacle. Do not cut or remove the grounding prong from this plug.
Clearance
*Installation must allow at least one (1”) inch
clearance for each louvered side.
PLUGS
OPERATING INSTRUCTIONS
Plug Coldwell in and turn on the power switch. The unit has been calibrated at the factory for 35°
F-39° F at sea level. Wait about 45 to 60 minutes for the unit to cool. If the product is too cold or
too warm, adjust the thermostat. The thermostat adjustment is located above the power switch on
the compressor housing. To access the thermostat adjustment, remove the hole cover to reveal
the at screw driver adjust shaft. Turning the screw 1/4 turn clockwise will lower the temperature
approximately 6° F. Conversely, turning the screw 1/4 turn counterclockwise will raise the temperature
5° F. If you are unable to set your Coldwell to the desired temperature, contact your factory authorized
service agent for adjustment.
To avoid product in container from freezing, make sure the container is not touching the wall of the
cold well.
1. All food service equipment should be operated by trained personnel.
2. Never hold food below 150°F or above 40°F.
MAINTENANCE
Once a week or more often if necessary clean the unit thoroughly. Turn o the unit and allow it to cool.
Pan supports are to be removed for cleaning. Machine washing is preferred but hand washing is
acceptable. Follow all state and local codes for sanitation when cleaning the pan supports.
STAINLESS STEEL: To remove normal dirt or product residue from stainless steel, use ordinary soap
and water (with or without detergent) applied with a sponge or cloth. Dry thoroughly with a clean cloth.
Never use vinegar or corrosive cleaner. Do not use chorine based cleaners.
6
To remove grease and food splatter or condensed vapors that have baked on the equipment, apply
cleaners to a damp cloth or sponge and rub cleanser on the metal in the direction of the polished lines
on the metal. Rubbing cleanser as gently as possible in the direction of the polished lines will not mar
the nish of the stainless steel. NEVER RUB WITH A CIRCULAR MOTION. Soil and burnt deposits
which do not respond to the above procedure can usually be removed by rubbing the surface with
SCOTCH-BRITE scouring pads or STAINLESS scouring pads.
CAUTION: Do not use ordinary steel wool as any particles left on the surface will
rust.
NEVER USE a wire brush, steel or abrasive scouring pads (except stainless), scraper, le or other steel
tools. Surfaces which are marred collect dirt more rapidly and become more dicult to clean. Marring
also increases the possibility of corrosive attack.
NEVER use any corrosive cleaner. Use only cleaners approved for stainless steel.
NEVER use cleaning solvents with a hydrocarbon base.
WARNING: Never clean any electrical unit by immersing it in water. Turn o before
cleaning surface.
WARNING: SHOCK HAZARD - De-energize all power to equipment before cleaning
the equipment.
GENERAL TROUBLESHOOTING
If the unit fails to operate check the following:
1. Make sure the unit connected to a live power source.
2. Check the circuit breaker to be sure it has not been tripped.
3. Check if the power switch is on and the indicator light is glowing.
4. Check the data plate and make sure the unit is operating on the proper voltage.
If the above checks out and you still have problems, call an APW Wyott authorized service agency.
NOTICE: Service work should be performed only by a qualied technician who is
experienced in and knowledgeable with the operation of commercial gas, electric,
steam cooking equipment. Contact the Authorized Service Agency for reliable
service, dependable advice or other assistance and for genuine factory parts.
Warranty will be void and the manufacturer is relieved of all liability if:
A) Service work is performed by other than an APW WYOTT Authorized Service Agency; or
B) Other than Genuine APW WYOTT replacement parts are installed.
A current listing of all authorized APW WYOTT authorized parts/service distributors is included with
this product manual at the time of shipment. In the absence of this list you can call the APW WYOTT
24 hour Service Hot Line which gives access to the nearest Authorized APW WYOTT parts/service
distributor. Call 1-800-733-2203.
7

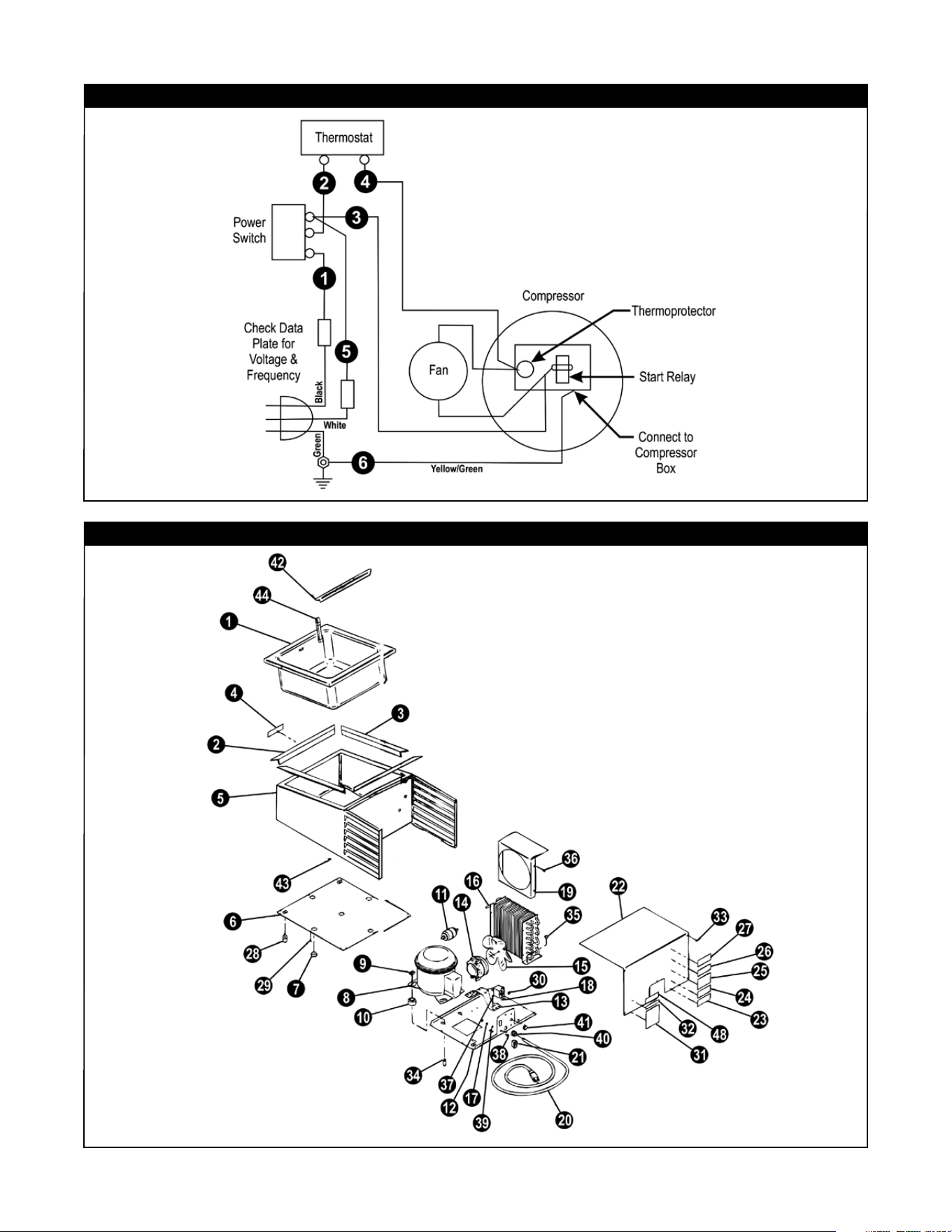

WIRING DIAGRAM: RTR-4
EXPLODED VIEW: RTR-4
8
PARTS LIST
Item Part Number Description Qty
1 300508-25 WELDMENT WELL 1
2 300508-14 BREAKER FRONT AND BACK 2
3 300508-13 BREAKER SIDES 2
4 88301-00 LABEL APW Wyott 1
5 300508-05 BODY WELDMENT 1
6 300508-15 BOTTOM FRONT 1
7 16183-00 PLUG HOLE .875 5
8 18071-00 COMPRESSDR 1/6 HP 1
18069-22 COMPRESSOR 1/5 HP (240V, 50Hz) 1
9 18008-04 CLIP COMPRESSOR 4
10 BUSHING MOUNT TALL 4
11 18125-00 DRYER 134 A 1
12 300508-18 COMPRESSOR BASE WELDMENT 1
13 12001-10 MOTOR MOUNT 1
14 12002-00 MOTOR FAN 1
12003-00 MOTOR FAN (240V, 50Hz) 1
15 12000-00 BLADE FAN 1
16 18014-00 CONDENSER 1
17 84224-00 #10-24 HX NUT GRN 2
18 14894-00 THERMOSTAT 25-50°F 1
19 217014-03 SHROUD FAN 1
20 15067-00 CORD SET 16-3 1
15066-00 CORD SET (240V, 50Hz) 1
21 13056-10 SWITCH ROCKER 1
22 300508-06 WELDMENT COWLING 1
23 88252-00 LABEL SHOCK HAZARD 1
24 88251-00 LABEL MOVING PARTS 1
25 88626-50 LABEL WARNING SERVICE TECH 1
26 88223-30 LABEL UL STD 7 1
27 88253-00 DECAL, LEG 1
28 86621-00 LEG 1” CHROME 4
29 83530-00 POP RIVET 20
30 8601100 ROLLER .0654 WALL X .375 OD 2
31 88610-00 LABEL SPEC 1
32 88326-00 LABEL SERVICE HOTLINE 1
33 81414-00 8-32x1/2MS 5
34 18008-01 PIN COMP MOUNT 4
35 82005-00 1/4-20 X 3/8 MS 2
36 81546-00 #8 x 3/8 4
37 81531-00 #8-32 x 3/8 TYPE T 4
38 81629-00 #10-24 X 1/2 TR HD S/S 1
39 85089-00 LOCK WASHER #10 EXT 1
40 89680-00 RELIEF STRAIN CORD 1
41 16218-00 PLUG BEAUTY 1/2” CHROME 1
42 218075-60 BAR PAN ADAPTOR 1
43 84176-00 NUT HEX 10-32 S/S 2
44 14533-00 THERMOMETER -40-120 1
*45 29010-00 CARTON RSC RTR-4 1
*46 300508-75 PAD TOP & BOTTOM RTR-4 2
*47 300508-76 PAD SIDES RTR-4 2
48 88014 LABEL 86° F 1
9
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment.
For Warranty Service and/or Parts, this information is required.
Model Number Serial Number Date Purchased
Notes
10
APW Wyott EQUIPMENT LIMITED WARRANTY
APW Wyott Foodservice Equipment Company warrants its equipment against defects in materials and workmanship, subject to the
following conditions:
This warranty applies to the original owner only and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits dened in this warranty, at the option of APW
Wyott such product will be repaired or replaced by APW Wyott or its Authorized Service Agency. APW Wyott will only be responsible for
charges incurred or service performed by its Authorized Service Agencies. The use of other than APW Wyott Authorized Service Agencies
will void this warranty and APW Wyott will not be responsible for such work or any charges associated with same. The closest APW Wyott
Authorized Service Agent must be used.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, metropolitan areas of Alaska and Canada. There will be
no labor coverage for equipment located on any island not connected by roadway to the mainland.
Warranty coverage on products used outside the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada may
vary. Contact the international APW Wyott distributor, dealer, or service agency for details.
Time Period
One year for parts and one year for labor, effective from the date of purchase by the original owner. The Authorized Service Agency may, at
their option, require proof of purchase. Parts replaced under this warranty are warranted for the un-expired portion of the original product
warranty only.
Exceptions
* Gas/Electric Cookline: Models GCB, GCRB, GF, GGM, GGT, CHP-H, EF, EG, EHP. Three (3) Year Warranty on all component parts,
except switches and thermostats. (2 additional years on parts only. No labor on second or third year.)
* Broiler Briquettes, Rock Grates, Cooking Grates, Burner Shields, Fireboxes: 90 Day Material Only. No Labor.
* Heat Strips: Models FD, FDL, FDD, FDDL. Two (2) Year Warranty on element only. No labor second year.
* Glass Windows, Doors, Seals, Rubber Seals, Light Bulbs: 90 Day Material Only. No Labor.
In all cases, parts covered by extended warranty will be shipped FOB the factory after the rst year.
Portable Carry In Products
Equipment weighing over 70 pounds or permanently installed will be serviced on-site as per the terms of this warranty. Equipment weighing
70 pounds or under, and which is not permanently installed, i.e. with cord and plug, is considered portable and is subject to the following
warranty handling limitations. If portable equipment fails to operate in its intended manner on the rst day of connection, or use, at APW
Wyott’s option or its Authorized Service Agency, it will be serviced on site or replaced.
From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized
Service Agency for in-warranty repairs. No mileage or travel charges are allowed on portable units after the rst day of use. If the customer
wants on-site service, they may receive same by paying the travel and mileage charges. Exceptions to this rule: (1) countertop warmers and
cookers, which are covered under the Enhanced Warranty Program, and (2) toasters or rollergrills which have in store service.
Exclusions
The following conditions are not covered by warranty:
* Equipment failure relating to improper installation, improper utility connection or supply and problems due to ventilation.
* Equipment that has not been properly maintained, calibration of controls, adjustments, damage from improper cleaning and water damage
to controls.
* Equipment that has not been used in an appropriate manner, or has been subject to misuse or misapplication, neglect, abuse, accident,
alteration, negligence, damage during transit, delivery or installation, re, ood, riot or act of god.
* Equi
pment that has the model number or serial number removed or altered.
If the equipment has been changed, altered, modied or repaired by other than an Authorized Service Agency during or after the
warranty period, then the manufacturer shall not be liable for any damages to any person or to any property, which may result
from the use of the equipment thereafter.
This warranty does not cover services performed at overtime or premium labor rates. Should service be required at times which
normally involve overtime or premium labor rates, the owner shall be charged for the difference between normal service rates
and such premium rates. APW Wyott does not assume any liability for extended delays in replacing or repairing any items
beyond its control.
In all cases, the use of other than APW Wyott Authorized OEM Replacement Parts will void this warranty.
This equipment is intended for commercial use only. Warranty is void if equipment is installed in other than commercial
application.
Water Quality Requirements
Water supply intended for a unit that has in excess of 3.0 grains of hardness per gallon (GPG) must be treated or softened before
being used. Water containing over 3.0 GPG will decrease the efciency and reduce the operation life of the unit.
Note: Product failure caused by liming or sediment buildup is not covered under warranty.
“THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR
PURPOSES AND CONSTITUTES THE ENTIRE LIABILITY OF APW WYOTT. IN NO EVENT DOES THE
LIMITED WARRANTY EXTEND BEYOND THE TERMS STATED HEREIN.”
9/05
