CORDLESS 16GA STRAIGHT
FINISH NAILER
OPERATING MANUAL
Part No. 916500
www.paslode.com
Model IM250S-Li2
IMPORTANT!
DO NOT DESTROY
It is the customer’s responsibility to have
all operators and service personnel read
and understand this manual.
Printed in U.S.A.
©2024 Illinois Tool Works Inc.
916510-1
06/24
1
Contents
The battery charger system meets all safety requirements for power tools.
Paslode® is a member of:
RBRC
RBRC
Li-ion
Power Nailers are designed and assembled in the U.S.A.
is a trademark
Paslode
An Illinois Tool Works Company
155 Harlem Avenue
Glenview, IL 60025
www.paslode.com
Subject Page
Introduction and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
An Overview of the Paslode Cordless 16GA Straight Finish Nailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

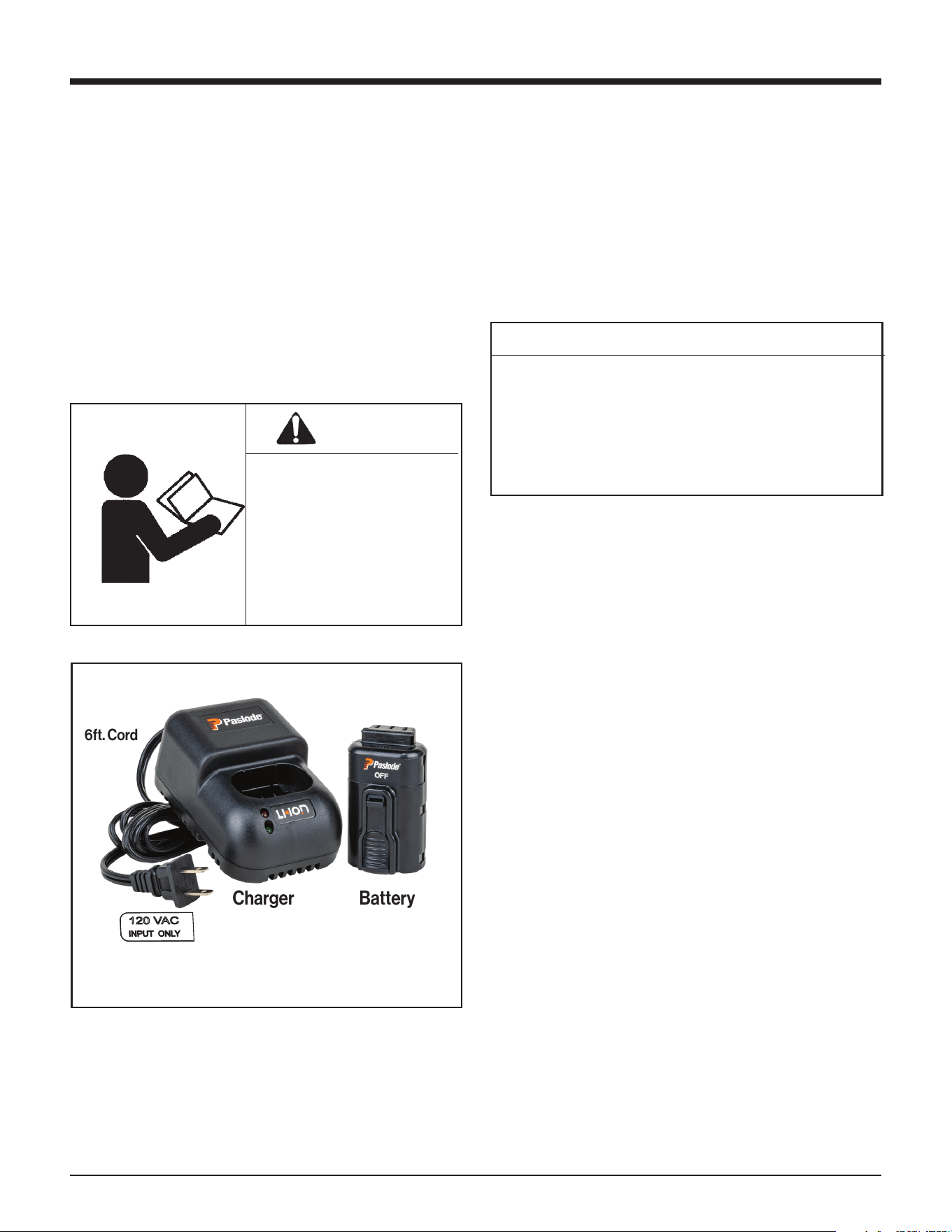

Battery and Charging System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fuel Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparing the Paslode Cordless 16GA Straight Finish Nailer for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Paslode Cordless 16GA Straight Finish Nailer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

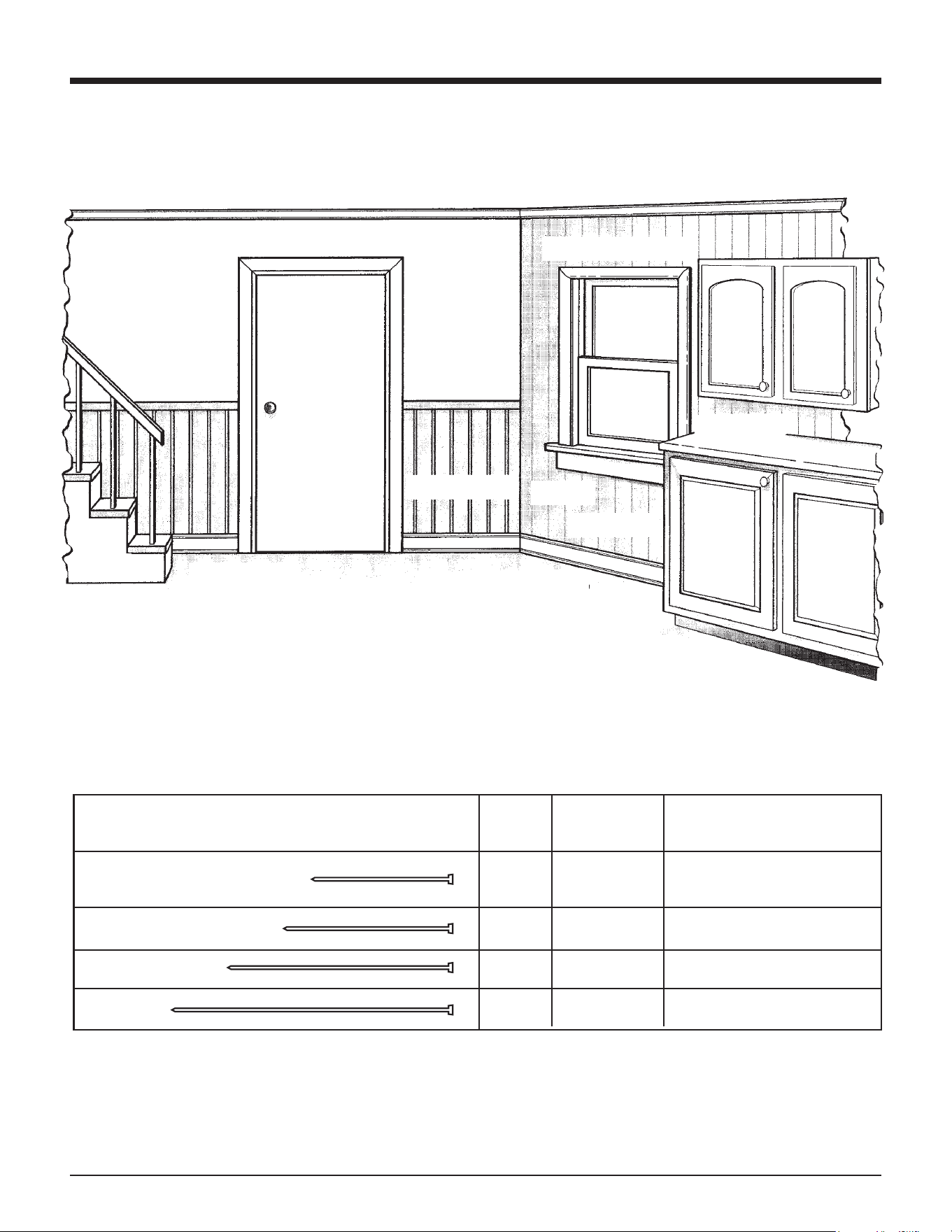

Fasterners and Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

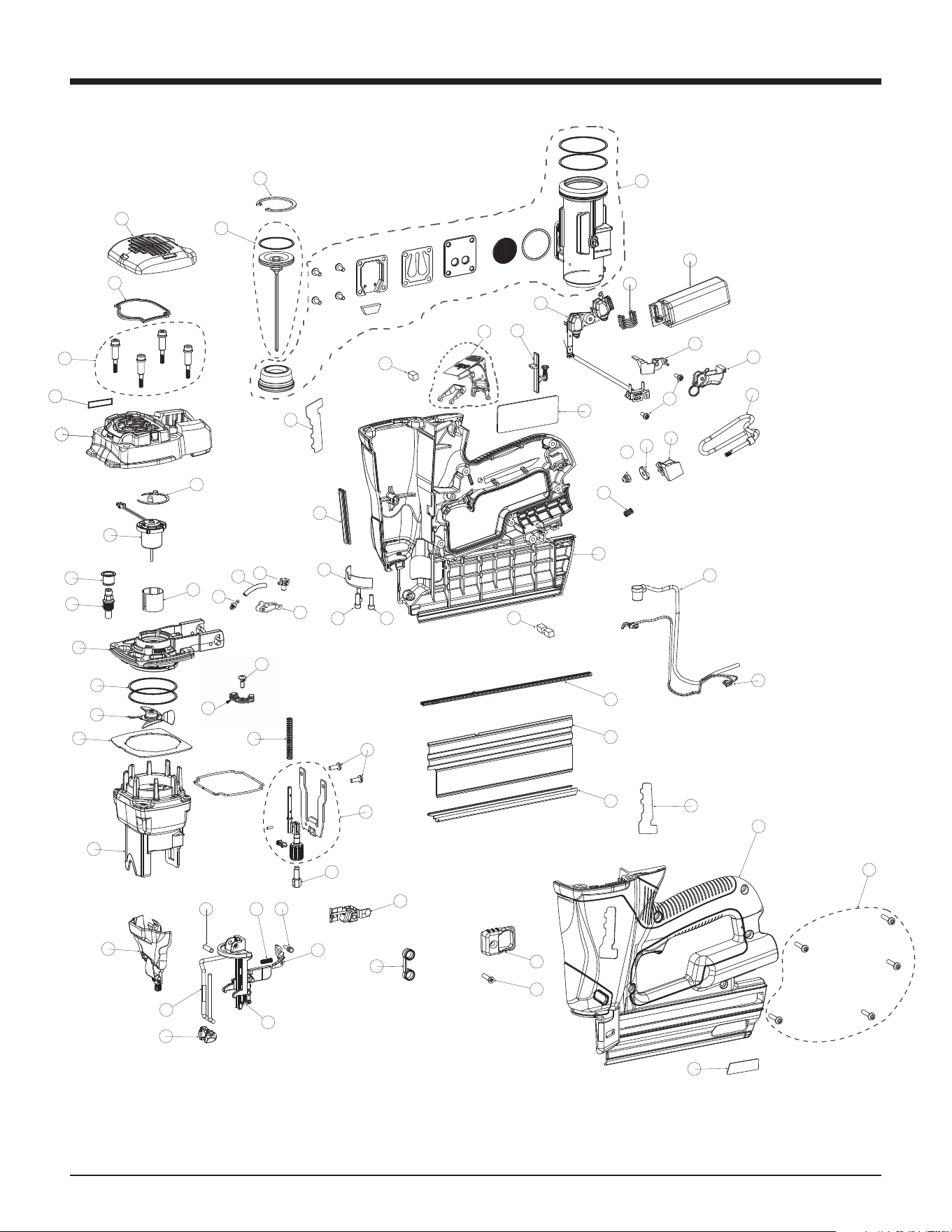

Tool Schematic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2
Introduction and Warranty
Paslode Cordless 16GA Straight Finish
Nailer Operating Manual
This manual is intended to acquaint you with the
Paslode Cordless 16GA Straight Finish Nailer.
Unlike other power fastening tools, this Cordless
Nailer is powered by an internal combustion linear
motor. In simpler terms, your Cordless Nailer is
powered by a motor similar to the one that powers
an automobile. The Nailer ignites a fuel and air
mixture to produce the energy to drive the motor,
which in turn drives the fastener. The Nailer is
totally self-contained. It carries its own fuel supply
and battery, along with a supply of fasteners.
For ease of use, this manual is divided into sections
(see Contents). Each section of the manual is
written with you, the tool operator, in mind. We have
left out many of the technical terms so that you can
easily understand how to get the maximum perfor-
mance from your Cordless Brad Nailer, and how to
avoid damaging the tool or injuring yourself. But, to
accomplish this, we need you to do two things:
1. READ THE MANUAL FROM COVER TO COVER
BEFORE USING THE TOOL.
2. FOLLOW ALL INSTRUCTIONS IN THE
MANUAL.
Paslode warranties that new Cordless power
fastening tools, parts and accessories will be free
from defects in material and workmanship for the
period shown below, after the date of delivery to
the original user.
ONE-YEAR LIMITED WARRANTY
A one-year warranty will apply to all parts, except
those specifically covered by an extended
warranty.
FIVE-YEAR EXTENDED LIMITED WARRANTY
A five-year warranty will apply to all molded nylon
parts:
• Motor Housing, Cap, and Grille
• Handle Halves and Actuator
• Trigger
• Magazine Parts
WARRANTY STATEMENT
This warranty is limited to tools sold and service requested in the
United States. To obtain information on warranty service in the
United States, refer to the Service Center listing that was provided
with your tool.
Paslode’s sole liability hereunder will be to replace any part or accessory
which proves to be defective within the specific time period. Any
replacement part or accessory provided in accordance with this
warranty will carry a warranty for the balance of the period of warranty
applicable to the part it replaces. This warranty does not apply to part
replacement required due to normal wear.
This warranty is void on any tool which has been subjected to misuse,
abuse, accidental or intentional damage, use with fasteners, fuel,
batteries, or battery chargers not meeting Paslode specification, size, or
quality, improperly maintained, repaired with other than genuine Paslode
replacement parts, damaged in transit or handling, or which, in Paslode’s
opinion, has been altered or repaired in a way that aects or detracts
from the performance of the tool.
PASLODE MAKES NO WARRANTY, EXPRESSED OR IMPLIED,
RELATING TO MERCHANTABILITY, FITNESS OR OTHERWISE,
EXCEPT AS STATED ABOVE, and Paslode’s liability AS STATED
ABOVE AND AS ASSUMED ABOVE is in lieu of all other warranties
arising out of, or in connection with, the use and performance of the
tool, except to the extent otherwise provided by applicable law.
PASLODE SHALL IN NO EVENT BE LIABLE FOR ANY DIRECT,
INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT
LIMITED TO, DAMAGES WHICH MAY ARISE FROM LOSS OF
ANTICIPATED PROFITS OR PRODUCTION, SPOILAGE OF MATERI-
ALS, INCREASED COST OF OPERATION, OR OTHERWISE.
Paslode reserves the right to change specifications, equipment or
designs at any time without notice and without incurring obligation.
The Cordless Finish Nailer should be handled like
other power fastening tools that you use. Like most
tools, when used improperly injury could result. If
you are going to allow others to use the Nailer, it is
your responsibility to make sure that they also read
and comply with the instructions in this manual
before attempting to operate the tool.
Should you have questions about the Cordless
Finish Nailer, or wish to obtain additional copies of
this manual, please contact your Paslode represen-
tative. The space below is provided so that you may
record your representative’s name and contact info.
Name
Address
City, State, Zip
Phone Number
Paslode Cordless Warranty and Limitations
CORDLESS 2 YEAR SERVICE PROMISE
Paslode will service the tool and replace all parts (including
battery and charger system) which have failed during normal
use for FREE for a period of 2 years from date of purchase.
For 2 Year Service Promise details and limitations see
paslode.com/service-and-support
3

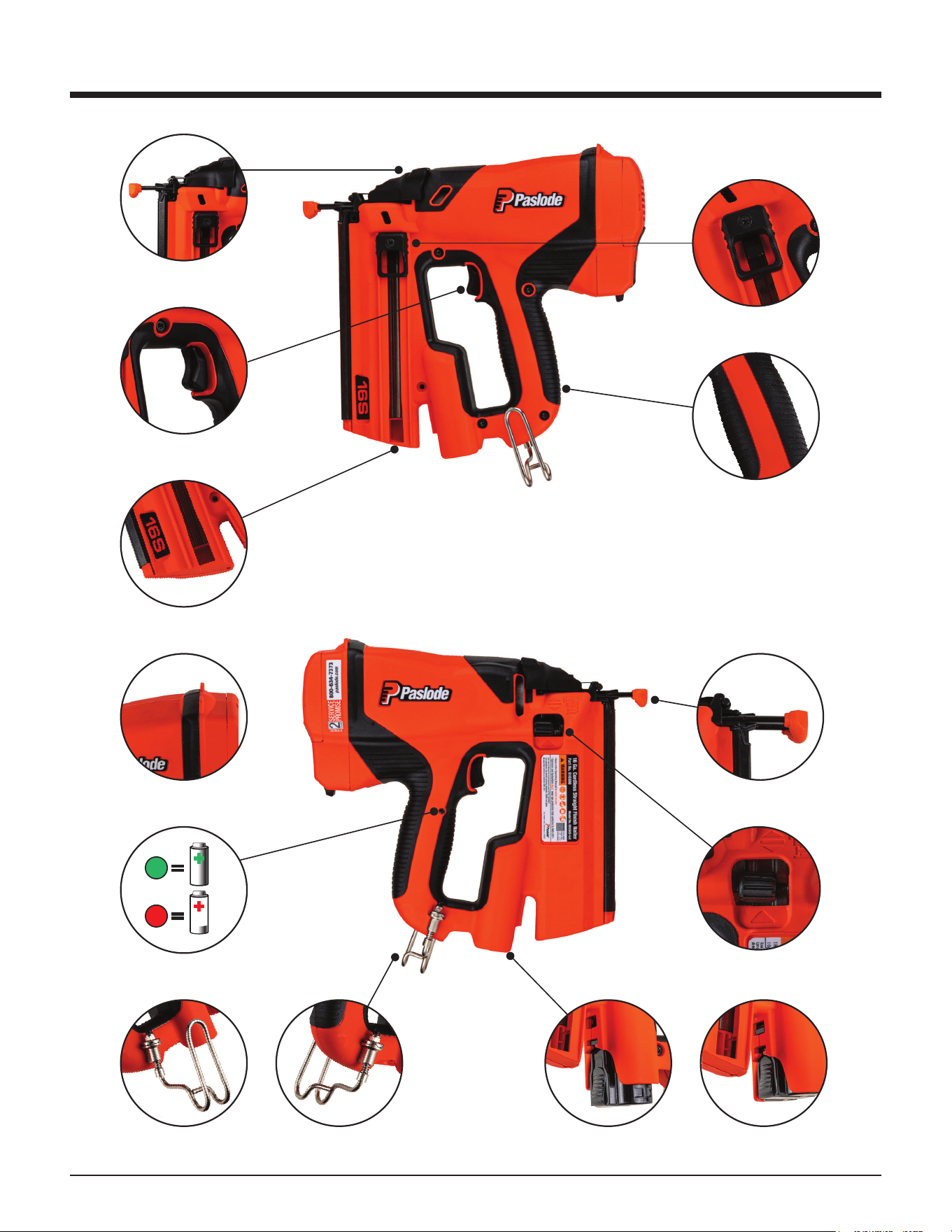

Overview of the Paslode Cordless
16GA Straight Finish Nailer
Description
The Paslode Cordless 16GA Straight Finish Nailer is
a self-contained, fully portable nailer that uses liquid
hydrocarbon fuel to power a unique linear drive
internal combustion motor.

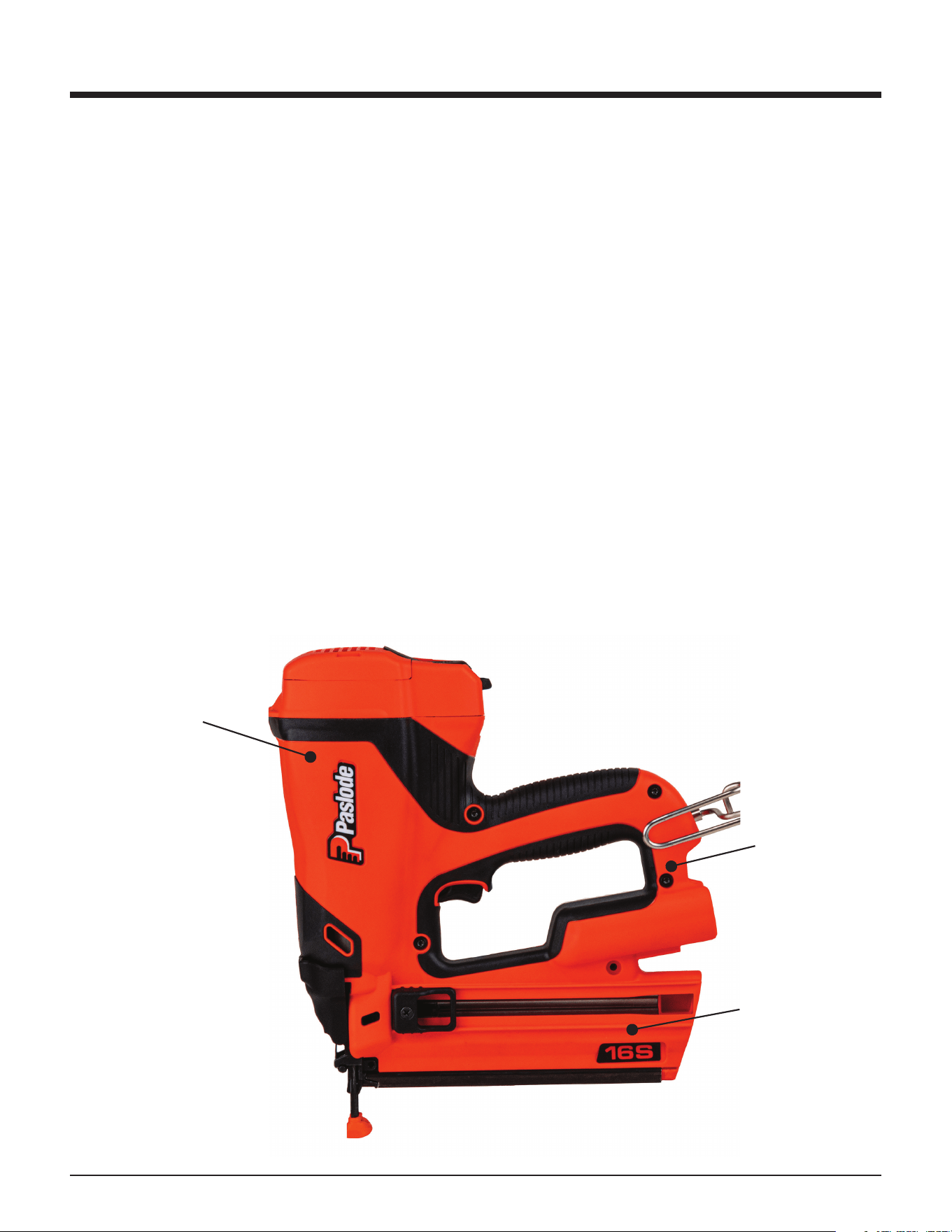

In order for you to fully understand the information
contained in this manual, you need a basic under-
standing of the Cordless Nailer. As you can see in
the illustration below, the Nailer is made up of three
major areas: handle, motor, and magazine.
As you examine the Nailer, become familiar with the
three major areas and the various components
located in each of them.
The Handle Assembly contains the fuel cell,
battery, indicator light, and trigger.
The Motor Assembly contains the cover and filter,
the motor housing, the nose, and the depth-of-drive
adjustment.
The Magazine Assembly contains the components
to load and control the fasteners.
Specifications
Dimensions: Weight-with battery 4.6 lbs
Height 11-1/2 inches
Length 10-3/4 inches
Width 3-1/2 inches
Magazine 16GA straight
Cycle Rate: Intermittent Operation -
2 to 3 nails per second
NOTE: Exceeding these cycle rates could cause the
tool to overheat, resulting in loss of performance or
damage to tool components.
By using the Paslode Cordless Finish Nailer at its
recommended cycle rate, you will be able to drive
several thousand nails in a typical workday.
Fasteners: 16GA Straight Finish
Magazine Capacity: 2 Nail Strips or 100 Fasteners
Battery: 7 V DC, provides enough
energy to drive approximately
12,000 fasteners on a full
charge.
Fuel Cell: Part #816007
Liquid hydrocarbon -
Provides enough fuel to drive
approximately 1200 fasteners
Motor
Assembly
Handle
Assembly
Magazine
Assembly
4
Overview of the Paslode Cordless
16GA Straight Finish Nailer
QUICK RELEASE-
NOSE PLATE ASSEMBLY
SOFT RUBBER TRIGGER
REAR LOAD MAGAZINE
TOOL REST FIXTURE
FLASHING GREEN
= CHARGED
FLASHING RED
= NEEDS CHARGING
ADJUSTABLE BELT HOOK BATTERY OFF / ON
DEPTH OF DRIVE ADJUSTMENT
NO MAR PROBE
SOFT GRIP HANDLE
BYPASS FOLLOWER
OFF ON
5
WARNING
WARNING
Safety Instructions
The following safety instructions have been includ-
ed in this booklet to provide you with basic informa-
tion necessary for safe operation of the Paslode
Cordless 16GA Straight Finish Nailer.
DO NOT ATTEMPT TO OPERATE THIS TOOL
UNTIL YOU HAVE READ AND UNDERSTAND
ALL SAFETY PRECAUTIONS AND MANUAL
INSTRUCTIONS.
1. Eye protection must meet the requirements of
ANSI Z87+ and should have side shields for
increased protection.
2. NEVER ASSUME THE TOOL IS EMPTY.
3. NEVER ENGAGE IN “HORSEPLAY” WITH THE
TOOL.
The Cordless Nailer is not a toy – it is a tool.
Careless and improper use may result in a
serious accident.
4. NEVER CARRY THE TOOL WITH YOUR
FINGER ON, OR SQUEEZING THE TRIGGER.
This practice may result in the accidental
discharge of a fastener.
5. NEVER OPERATE A MALFUNCTIONING TOOL.
Refer to the servicing or troubleshooting section
of this manual to correct the problem. If the
problem cannot be corrected, stop using the tool
and report it to your supervisor or Paslode
representative.
6. DO NOT LOAD FASTENERS WITH THE TRIG-
GER AND/OR WORK CONTACTING ELEMENT
PRESSED IN.
A fastener may be accidentally discharged.
7. NEVER OPERATE THE TOOL WITH THE
PROBE REMOVED OR DISABLED.
This device helps reduce the possibility of acci-
dental fastener discharge by preventing the tool
from operating until it is completely against the
work surface.
NEVER operate the tool if the Probe is not work-
ing properly.
8. ALWAYS POINT THE TOOL AWAY FROM
YOURSELF AND OTHERS WHEN CLEARING A
JAM OR REMOVING FASTENERS.
Pull the follower slightly back and push the
release lever. Tip the tool nose up slightly and
fasteners should slide out of the rear of the
magazine. If fasteners are jammed, refer to the
appropriate servicing section of this manual.
9. NEVER OPERATE THE NAILER IF PARTS ARE
LOOSE, DAMAGED OR MISSING.
10. DO NOT DRIVE FASTENERS INTO KNOTS OR
ON TOP OF OTHER FASTENERS.
A fastener may ricochet and cause serious injury.

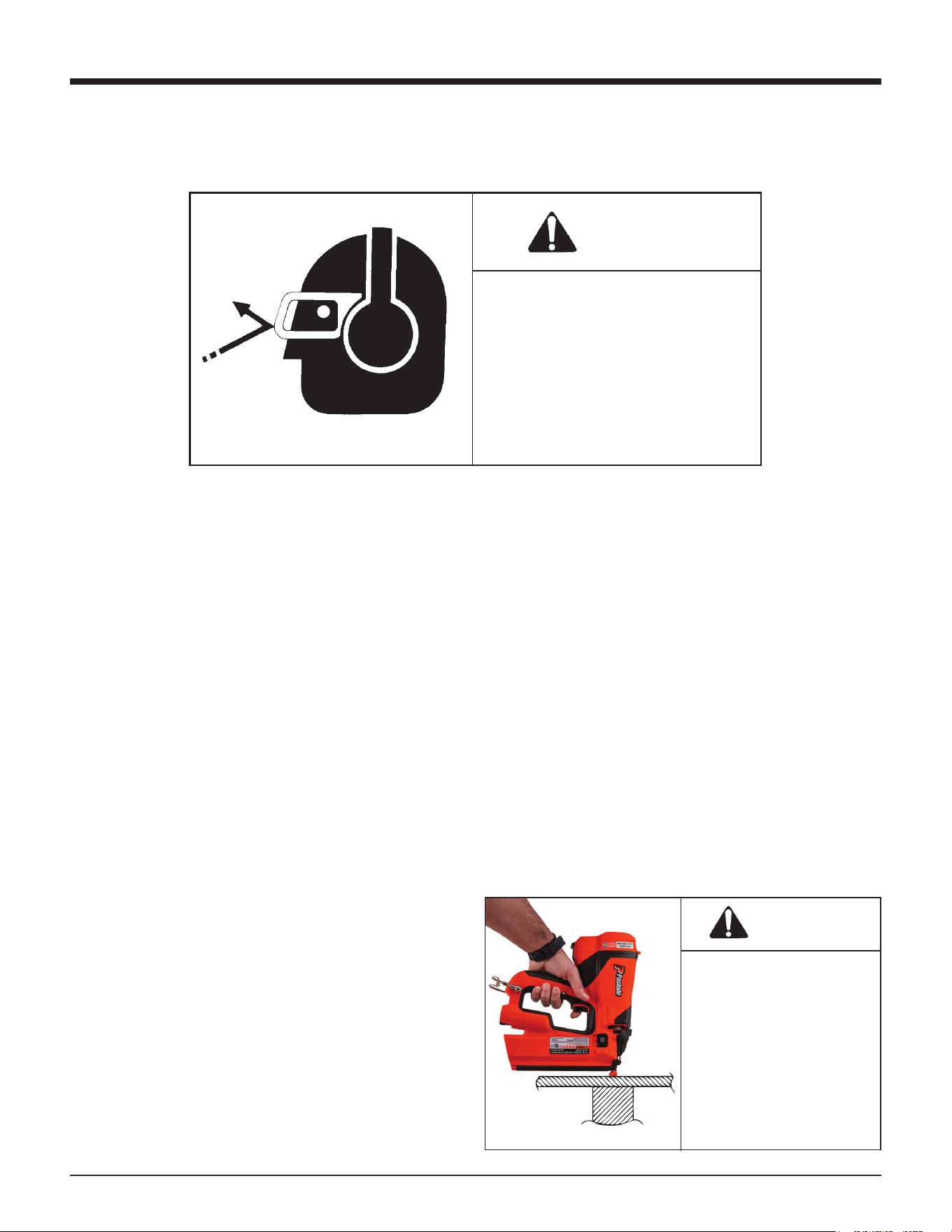

11. OPERATE THE TOOL ONLY ON THE WORK-
PIECE.
The Cordless Finish
Nailer should be operat-
ed only when it is contact
with the work surface.
When fastening thin
materials such as
plywood, be sure to
position the tool so that
the fastener is driven into
the underlying piece.
Always wear EYE and EAR
safety gear when working
with or in the vacinity of
the Paslode Cordless
16GA Straight Finish
Nailer.
6
Safety Instructions

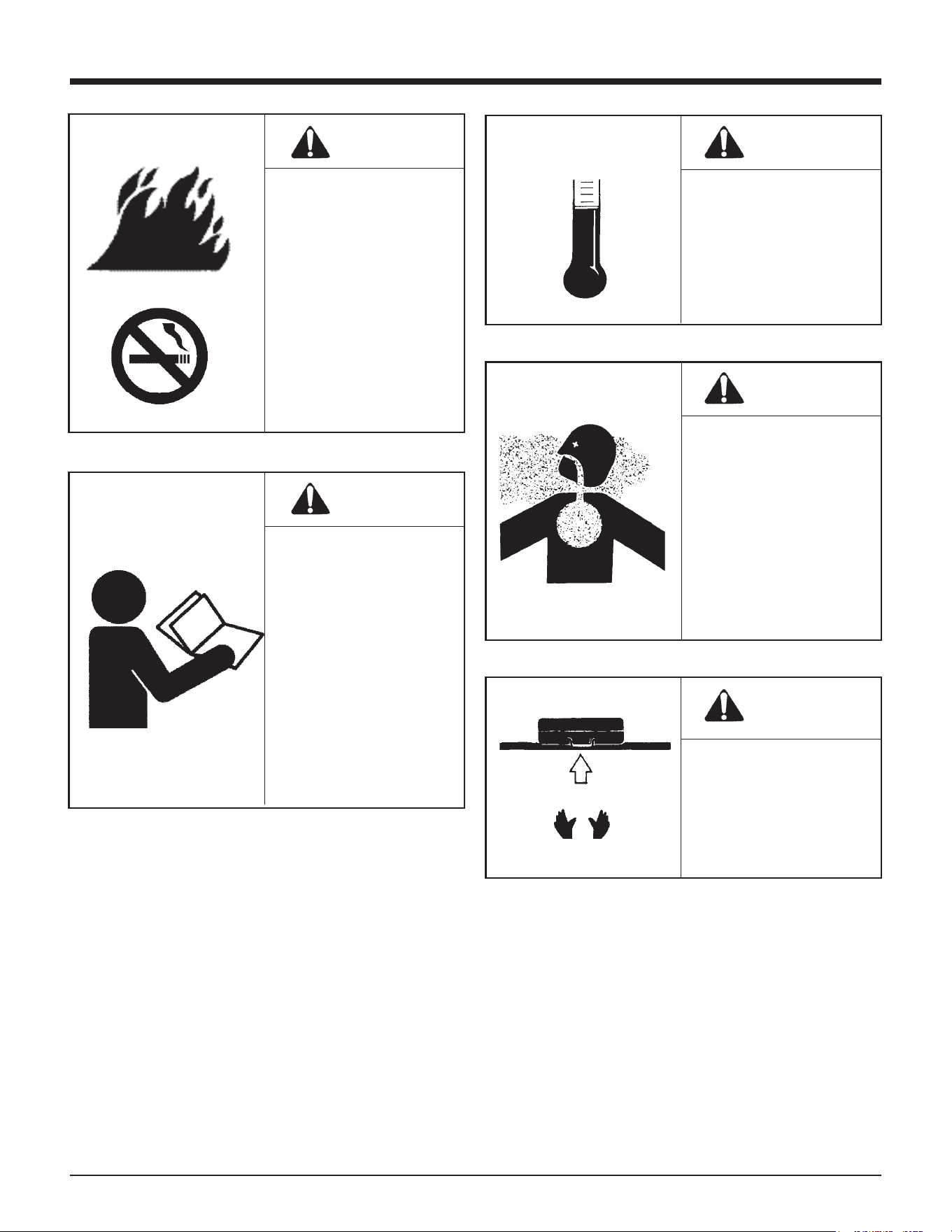

WARNING
This tool must be
operated only in a
well-ventilated
environment, because
the tool exhausts carbon
monoxide similar to a
gas chainsaw or lawn-
mower. Exposure to
carbon monoxide may
cause dizziness, nausea,
or unconsciousness.
WARNING
ALWAYS keep the
Cordless Finish Nailer,
fuel cell, battery, and
battery charger out of
the reach of children.
WARNING
Do not attempt to
operate this tool until
you have read and
understood all safety
precautions and manual
instructions.
Failure to follow all
safety precautions and
instructions may result
in a permanent loss of
vision, serious personal
or even fatal injury,
property damage and/or
tool damage.
DANGER
The Cordless Finish
Nailer is an internal
combustion device. It
produces hot exhaust
gases that may ignite
flammable materials.
This tool must not be
used in a combustible
environment or in the
presence of combustible
materials, such as
flammable chemicals,
adhesives, gasoline, or
solvents.
WARNING
Do not expose the tool
to temperatures in
excess of 120ºF (49º C).
Fuel and/or the battery
may burst, releasing
flammable gas.
F C
120º 49º
7
DANGER
CHARGING SYSTEM SAFETY
INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS!
SAVE THESE INSTRUCTIONS!
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
Safety Instructions
WARNING
WARNING
WARNING
WARNING

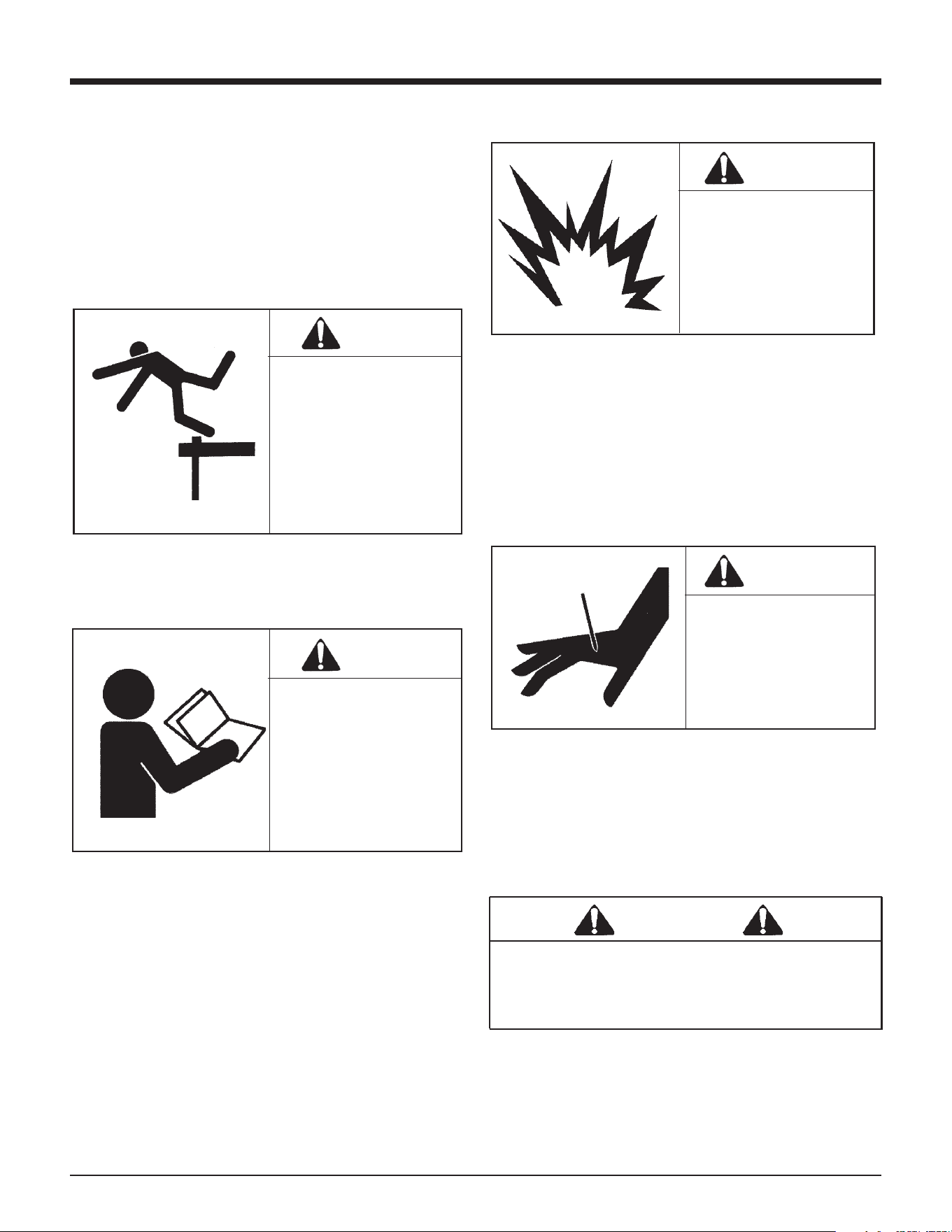

12. NEVER DRIVE FASTENERS INTO AREAS WITH
CONCEALED HAZARDS.
Always check the area behind the work surface
for electrical wiring, gas pipes, water pipes,
sewer drains, or other potential hazards.
13. ALWAYS MAINTAIN SECURE AND UNOB-
STRUCTED FOOTING WHEN ON LADDERS,
PLATFORMS, OR OTHER HIGH LOCATIONS.
15. PROPERLY STORE FUEL CELL.
16. ALWAYS STORE THE TOOL WITH THE FUEL
CELL AND BATTERY REMOVED.
Store the fuel cell in the case with the Cordless
Nailer.
17. KEEP THE TOOL CLEAN.
A clean tool is less likely to jam or malfunction.
18. KEEP YOUR HANDS CLEAR OF THE WORK
AREA SURFACE.
Battery Disposal:
The Paslode batteries contain lithium and should be
recycled or disposed of properly. It is illegal in some
areas to place a lithium battery into the trash or solid
waste stream. You may contact your local recycling
center for information on where to return the spent
battery or call 1-800-822-8837 for information on
battery recycling in your area.
For connection to a supply outside North
America, use an attachment plug adapter
of the proper configuration for the power
outlet, if needed.
14. ALLOW ONLY QUALIFIED PERSONNEL TO
OPERATE THE CORDLESS FINISH NAILER.
Never over-reach, since
tool recoil may cause a
loss of balance. Always
be aware of edges and
drop-os when nailing
on rooftops and other
high locations. Keep
them in full view.
Always store fuel cells
where they will not be
exposed to an open
flame, sparks, or
temperatures above
120º F (49º C).
A fastener may exit at
an angle unexpectedly
and cause injury.
Only persons who have
read and fully under-
stand all tool operation,
safety, and maintenance
instructions should be
allowed to operate the
tool.
Charging Instructions
1. Remove the charger unit from the tool case and
plug it into a 120V AC outlet. Set the charger base
on a stable surface. A green light will come on to
indicate the power is on and the charger circuit is
ready.
2. Remove the battery from tool or case and insert
terminals down into the charger. The red light will
come on indicating that the battery is charging
and the green light will go out.
3. After charging is complete, the red light will go out
and the green light will come on, indicating that
the battery is fully charged. The charger will keep
the battery at full charge until it is removed.
4. Unplug the charger from the 120V AC outlet.
CHARGING TIMES:
First charge (new battery) 1.5 hours
Discharged Battery: 5 minutes to 1.5 hours
CHARGING DON’TS:
1. Do not charge battery outdoors or in temperatures
below 45ºF (7ºC).
2. Do not allow metal objects to come in contact
with the battery terminals.
3. Do not puncture or attempt to open battery case
or cells.
4. Do not store battery where it will be subjected to
temperatures above 120ºF (49ºC).
5. Do not incinerate battery.
6. Do not use a defective battery charger, one that
overheats and/or smokes when plugged in.
7. Do not immerse the battery or charger in water.
8
Battery and Charging System
NOTE
WARNING
CHEMICAL / EXPLOSION
HAZARD
Read ALL instructions
before charging or using
battery. Failure to follow
ALL instructions may result
in fire, severe burns, or
release of toxic materials,
If battery is completely discharged, the red light
and green light may alternate back and forth for
up to 20 minutes. This safety feature slowly
recharges the battery until it is ready to accept the
full charging current. If the red and green lights
continue to alternate after 20 minutes, replace
the battery.
Battery and Charging System
The Paslode Cordless 16GA Straight Finish Nailer
comes with a rechargeable battery and its own
charging system. This charging system is the only
one that will work with the Paslode
lithium-ion batteries. The first step in preparing a
new tool for operation is to fully charge the battery.
New batteries are shipped partially discharged
and must be charged prior to first use. Batteries
will take 5 minutes to 1.5 hours to recharge (time will
be dependent on the amount of discharge of the
battery).
Important Charging Notes
Charging System Accessories:
Battery Charger - Part No. 902672
Battery
THE PASLODE BATTERY CHARGING SYSTEM
6ft. Cord
Charger
9
Battery and Charging System

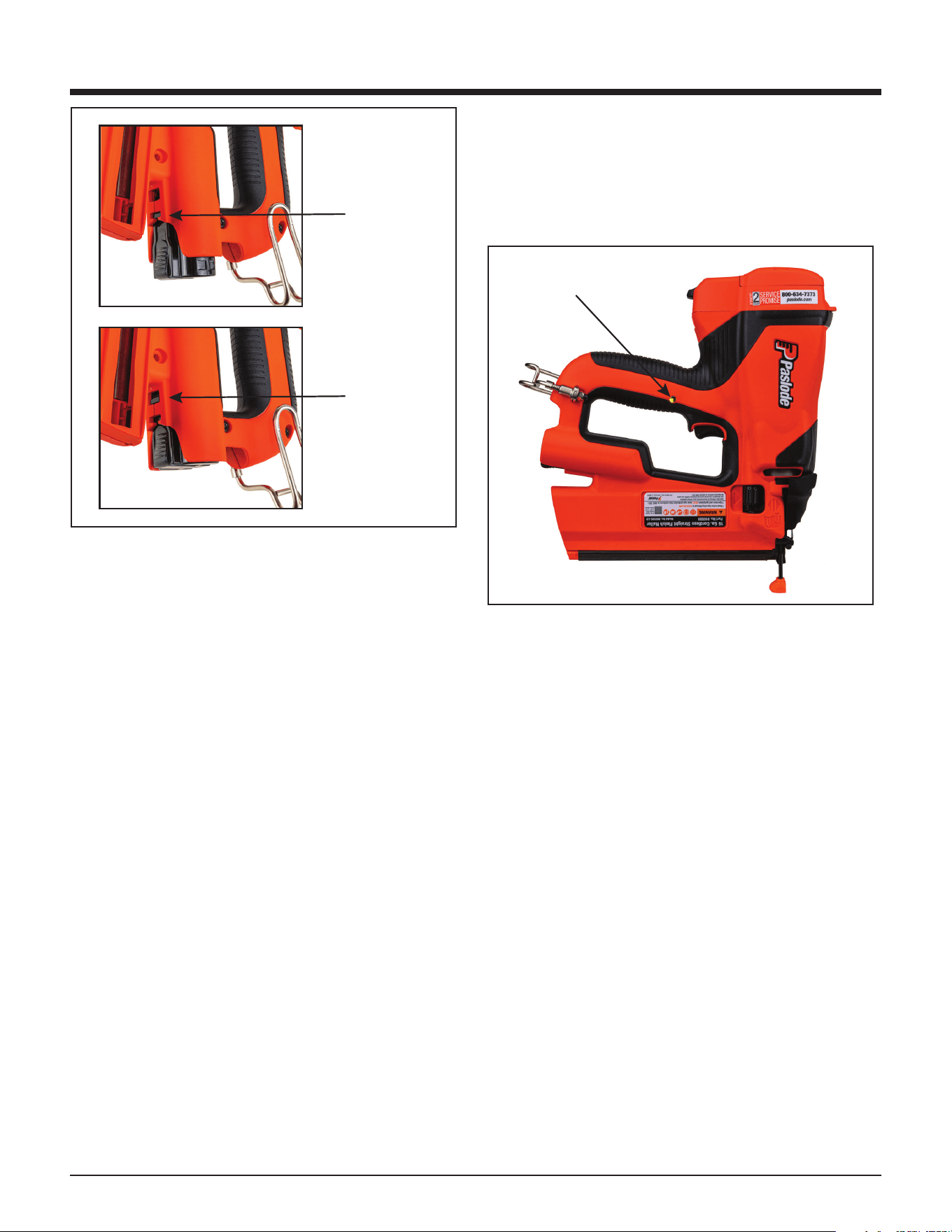

Inserting Battery
1. Load the battery, contacts first, into the Cordless
Finish Nailer.
2. Push battery fully forward into its locked
Ready Position. The battery indicator light
will light.
3. To disengage the battery, push down on locking
tab and slide battery back until it locks into the
Standby Position.
4. To remove battery, push down on locking tab and
slide battery out.
Battery Indicator Light
On the right side of the handle is a small plastic lens.
This is the battery indicator light. When you insert a
fully-charged battery into the tool, you will see a
blinking green light. If the indicator light blinks red,
recharge the battery.
NOTE: If battery is left in tool for an extended
period, the battery will discharge completely and will
require recharging.
Standby
Position
Ready
Position
Battery Indicator
Light
10
Fuel Cell
Fuel Cell
There is a second container inside the fuel cell. The
inner container holds the fuel. The space between
the inner container and the outer cylinder is filled
with a gas, called the propellant, which is under
pressure.
To eject the fuel, propellant pressure squeezes the
inner fuel container. This squeezing action ensures
that all the fuel is used, and that the Cordless Nailer
can operate in any position.
Because of this container-within-a-container
design, you might hear the sound of fluid when
shaking the fuel cell after all the fuel has been used.
This is the propellant, which remains between the
containers even after all the fuel has been expelled.
If you expose the empty fuel cell to extreme
temperatures, the propellant gas will expand and
could cause the container to burst, releasing flam-
mable gases.
WARNING
DANGER
F C
120º 49º
EXPLOSION / FIRE
HAZARD
Read ALL safety instruc-
tions before using or
handling the fuel cartridge.
Failure to follow ALL
instructions may result in
explosion or fire. This may
cause severe personal
injuries or property
damage.
Keep the fuel cell away
from heat, sparks, and
open flame.
Exposure to temperatures
above 120ºF (49ºC) may
cause the fuel cell to burst,
releasing flammable gas.
Sunlight can raise the inside temperature of an
unventilated car or van to above 140ºF (60ºC).
Never puncture or attempt to open the fuel cell,
it is non-refillable.
Never incinerate, reclaim, or recycle the fuel cell.
Never smoke while installing the fuel cell.
Never inhale the spray.
Keep out of the reach of children.
Store fuel cell(s) in well-ventilated areas only.
NOTE
NOTE: Altitude Restriction

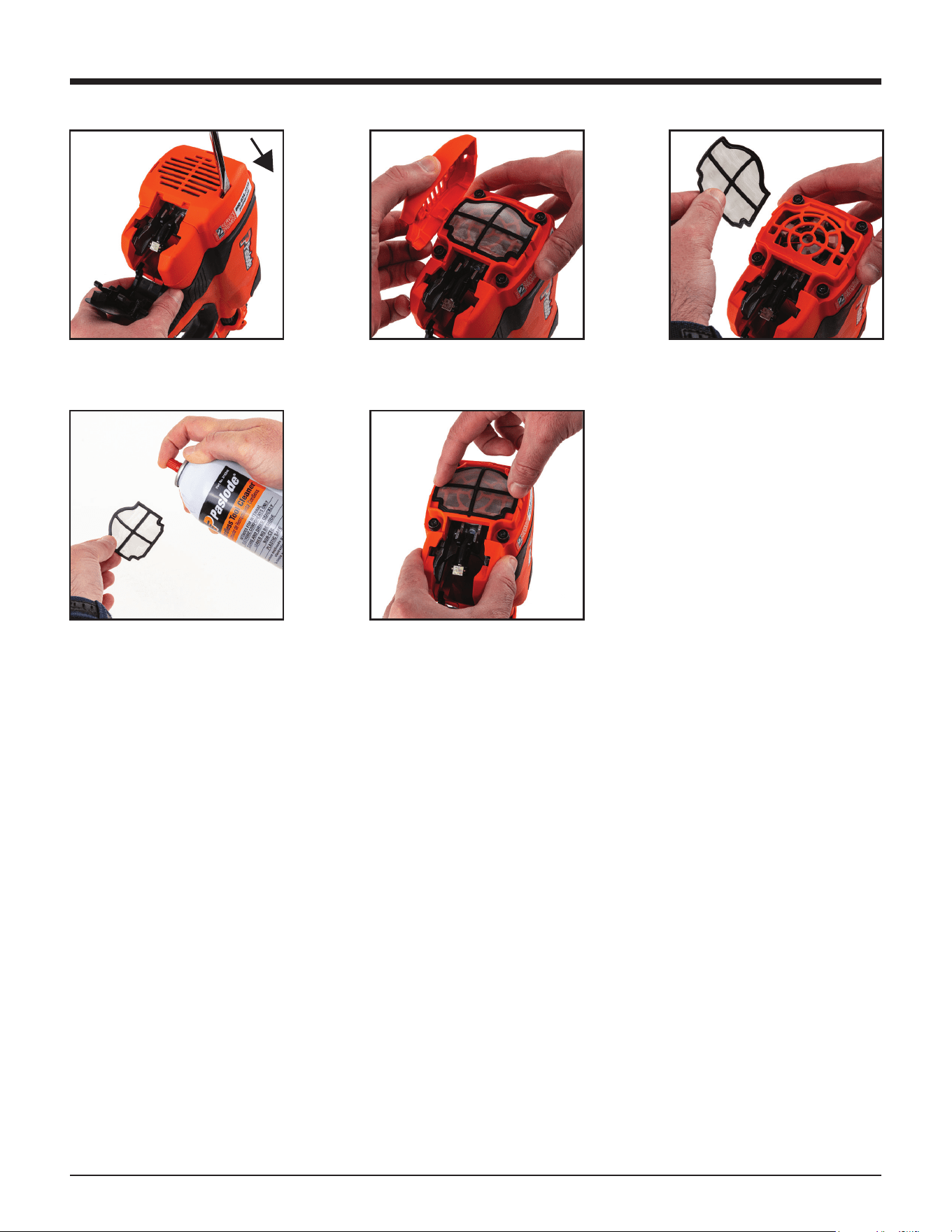

When replacing the fuel cell also clean or replace
the air filter for optimum tool operation.
Paslode Cordless technology is powered by an
internal combustion engine, which is aected by
altitude. The tool may lose power or become
erratic at elevations of 6000 feet or greater.
11
Fuel Cell
Paslode Cordless Fuel Cells are flammable.
Do not remove fuel cartridge cap or install on
other fuel cells!
DANGER
Paslode, the industry leader in cordless technology,
provides this information to assist users with the
proper disposal of discarded fuel cells. Acceptable
disposal options vary depending on the type of fuel
cell user. All users must consider federal, state, and
local solid waste regulations to ensure that discard-
ed fuel cells are disposed of properly. Users must
contact their local solid waste authority for further
guidance.
Discarded fuel cells (used or unused) may be
considered hazardous waste under the Resource
Conservation and Recovery Act (RCRA). In general,
“household wastes” generated by homeowners and
their contractors are exempt from hazardous waste
regulation because those wastes are expressly
excluded from the definition of hazardous waste. For
example U.S. EPA has excluded as “household
waste” aerosol cans that contain residual product
and propellant. Thus under federal hazardous waste
Note:
Paslode Fuel Cells are marked with a “Best Used Before” date on the bottom of the can.
For maximum performance use fuel before the “Best Used Before” date.
regulations homeowners and contractors may
dispose of discarded fuel cells as general refuse in a
properly permitted municipal landfill. These users
must still contact their local solid waste authority to
determine if any state or local regulation prohibits or
restricts such disposal.
Paslode takes no responsibility for improper fuel cell
disposal. Proper disposal remains the responsibility
of sellers and users. All sellers and users must
contact their local solid waste authority to deter-
mine if any federal, state, or local regulation prohib-
its or restricts disposal. Users may obtain more
information about U.S. EPA hazardous waste regula-
tions at the following internet address: www.epa.gov
Alternatively users may contact U.S. EPA’s Toxic
Release Information Center at 1-800-424-9346 to
receive more information.
Paslode Cordless Fuel Cell Disposal Guidelines
12

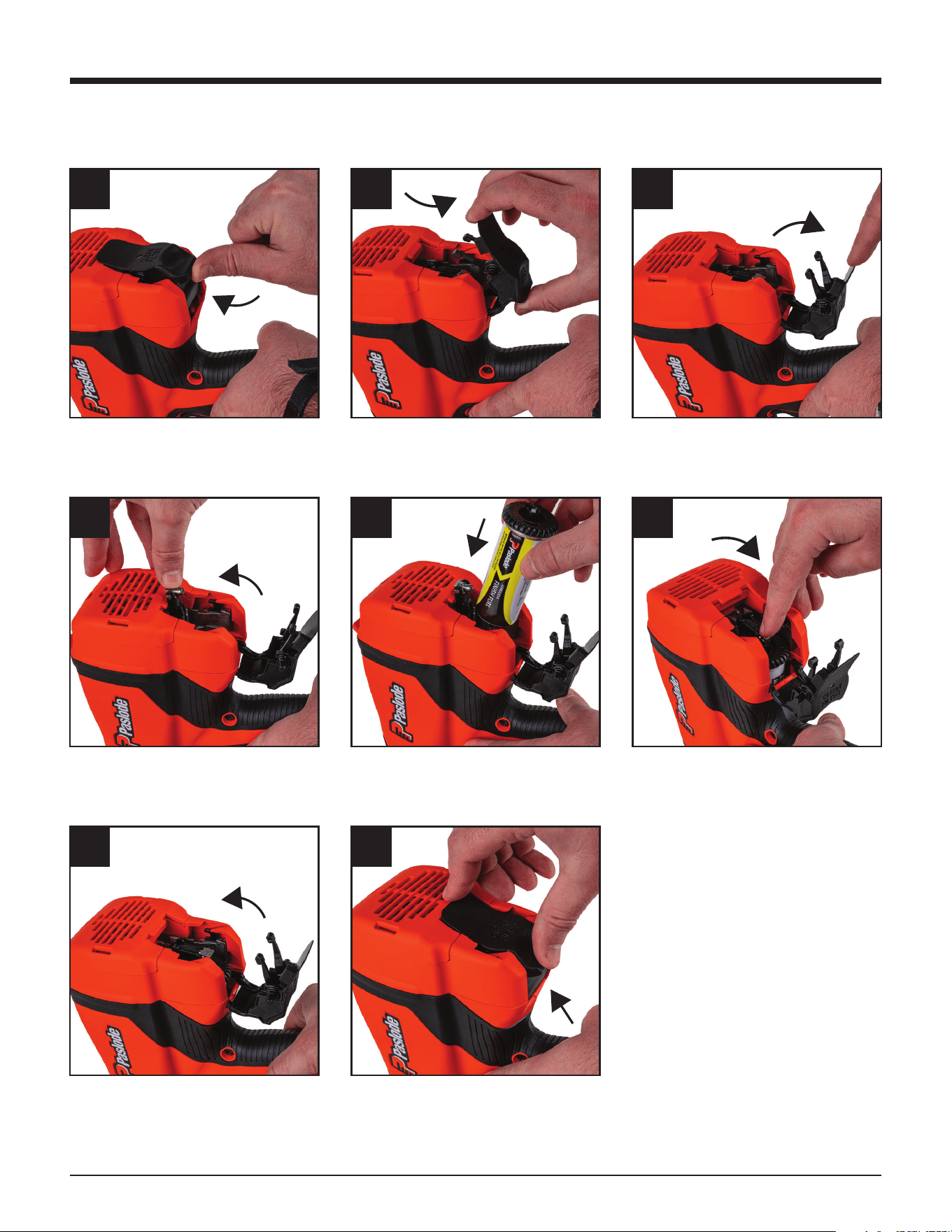

CORRECT FUEL CELL LOADING PROCEDURE
To open - Push forward, lift
then back
Open fuel door assembly Open fuel door fully
To close - Push forward, then
down to lock fuel door
Note: Fuel cell Dosing Lever must
be in the down position
Raise fuel tube block assembly,
it will lock in up position
Load fuel cell Carefully align fuel adaptor and
cell stem
1 2 3
4 5 6
7 8
Fuel Cell
13
Preparing the Paslode Cordless
16GA Straight Finish Nailer for Use

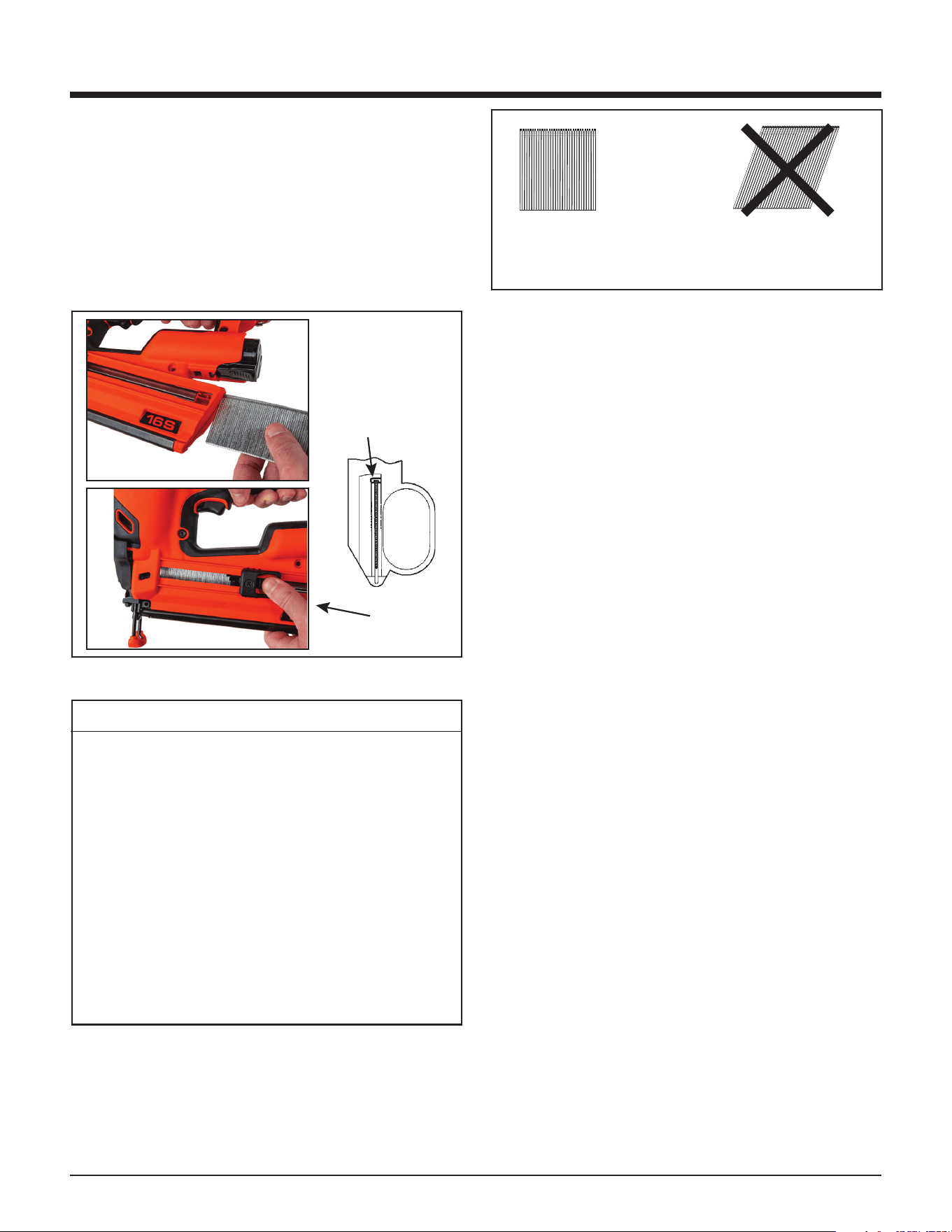

Fasteners
The Paslode Cordless 16GA Straight Finish Nailer
drives Paslode 16 gauge straight finish nails
designed to be used with the tool. The use of
fasteners that do not meet Paslode standards could
cause tool damage and will void all warranty claims.
Hot Weather Operation
The Cordless Nailer requires cooling of the motor
assembly to work properly. The fan normally
provides the necessary air flow to permit continuous
operation. Whenever the Nailer is idle for extended
periods, keep the fuel and tool out of direct sunlight
and in surroundings where temperatures will not
exceed 120ºF (49ºC). After extended periods of
continuous use, it may be necessary to cool the
motor by setting tool aside for 10-15 minutes or until
the tool operates normally. An overheated tool may
not drive nails completely or may operate erratically.
Cold Weather Operation
When storing the Cordless Nailer in temperatures
below 45ºF (7ºC) it may be necessary to first warm
up the fuel and tool for proper operation.
Fuel cells at colder temperatures can lose their
required propellant pressure. To correct this simply
warm up the fuel cell by placing it in an inside coat
pocket for several minutes.
Once the fuel is warm, insert the cartridge into the
tool. Quickly depress the tool two times onto the
work surface and hold the tool in the down position
after the second actuation. Wait one or two
seconds, then pull the trigger. This action is referred
to as “double-pumping” and provides a richer fuel
mixture to the cold tool to help initiate combustion.
Paslode Cordless 18GA Straight Brad Finish
Nailer and Outdoor Weather
Use the Cordless Finish Nailer outdoors, in dry
weather, when the nailer, fuel cell, and battery are
between 45ºF (7ºC) and 120ºF (49ºC).
Lockout Feature
When the follower reaches the lockout area (5
nails remaining) the tool will automatically lock
to prevent it from firing. To unlock the tool,
simply reload another strip of nails.
The purpose of this feature is to prevent need-
less blank cycling, which could mar woods,
waste fuel, and damage tool components. Five
(5) nails will be left in the magazine when the
follower reaches the lockout area. When
changing fastener length or loading the tool
you should inspect the magazine and nose for
any fasteners left in the tool. These nails will not
be visible unless you open the quick-clear of
the tool.
Use only
Paslode 16 gauge
Straight Finish Nails.
Do NOT use
Angled
Finish Nails!
Loading Fasteners
Nail
Channel
Pull
Follower
Load Nails
14
INCREASE
DEPTH OF DRIVE
If Nails
are
Proud
DECREASE
DEPTH OF DRIVE
If Nails
are too
Deep

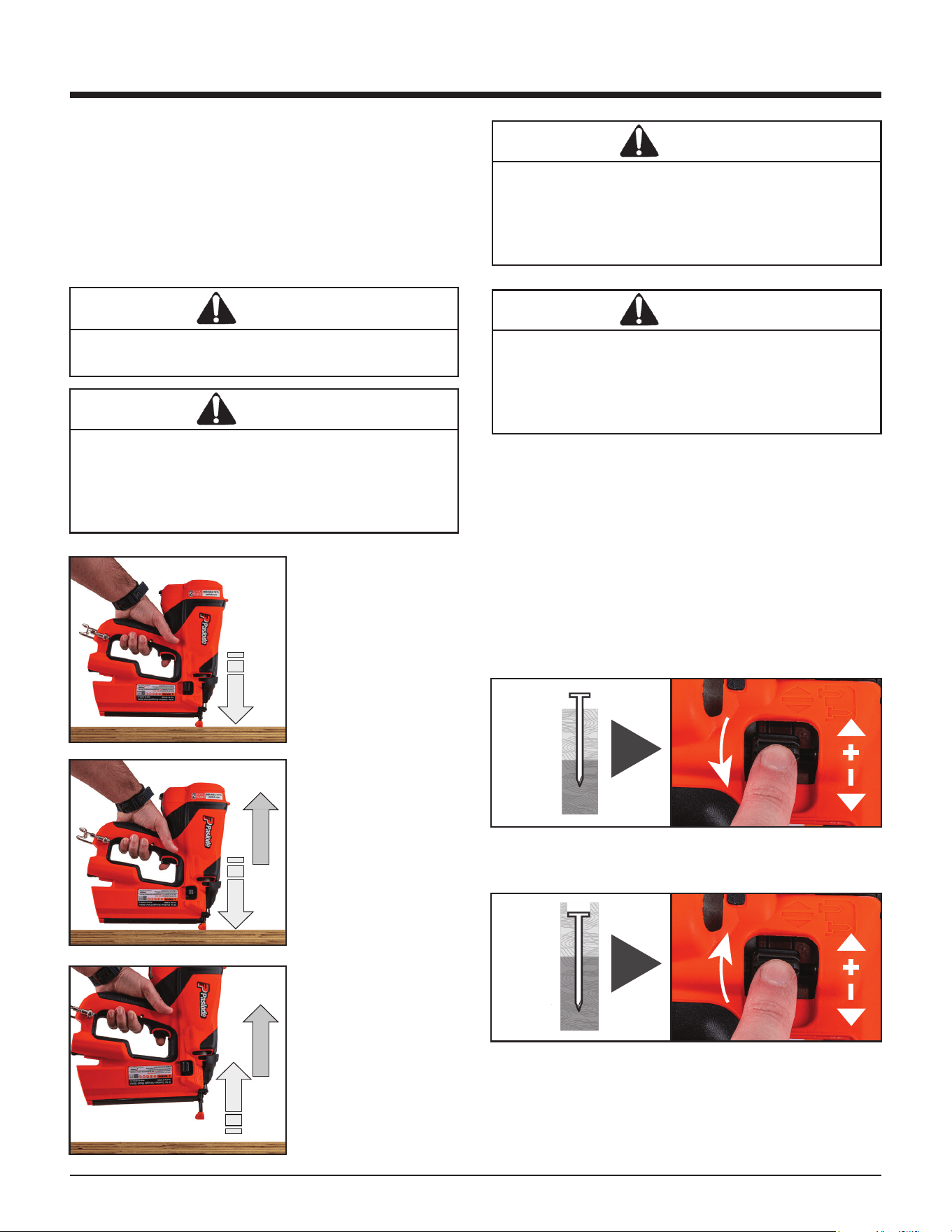

Paslode Cordless 16GA
Straight Finish Nailer Operation
Cold Weather Operation (Continued)
It will be necessary to repeat this procedure several
times until the temperature of the tool warms up
enough to operate in its normal mode.
Once the tool reaches operational temperature the tool
will generate its own heat and will function normally.
If the tool sits for an extended period of time and cools
down, it may be necessary to repeat these steps.
Depth of Drive Adjustment
Remove the battery before adjusting the
depth of drive.
The depth of drive adjustment is done by turning the
adjustment wheel as shown by the arrows on the side
of the tool.
WARNING
CAUTION
During the warm-up process, never expose the
tool, fuel cell, or battery to flame.
The Cordless Nailer should not be used in the rain
or where excessive moisture is present. The use of
the Paslode Cordless Technology under these
conditions may result in damage to the tool
components and cause the tool to malfunction.
DANGER
The Probe and nose will become hot after
prolonged or rapid use. If it becomes necessary to
adjust the Probe, avoid touching it with bare
hands.
CAUTION
This tool must be operated in a well ventilated
environment, because the tool exhausts carbon
monoxide similar to a chainsaw or lawn mower.
Exposure to carbon monoxide may cause dizzi-
ness, nausea, or unconsciousness.
PRESS NO MAR
PROBE AGAINST
THE WORK
SURFACE.
Fan motor starts, fuel
is injected into
combustion chamber
and mixed with air by
the fan.
SQUEZE TRIGGER
Spark plug ignites the
fuel/air mixture,
driving the piston
assembly down on the
fastener.
RELEASE TRIGGER -
LIFT TOOL
Combustion
chamber opens.
Fan exhausts, cooling
internal components.
15
Fasteners and Applications
Applications
The Paslode Cordless 16GA Straight Finish Nailer is suited for a variety of applications. These include securing
door and window casings, attaching baseboards where walls meet floors, attaching moldings where walls meet
ceilings, securing paneling, chair rails, picture molding and other decorative trim.
Fasteners
The Paslode Cordless 16GA Straight Finish Nailer drive Paslode 16GA Straight Finish Nails. Fasteners are collated
into strips of 50 for easy loading. Paslode fasteners are designed to be used in Paslode tools. Use of other fasteners
may cause damage to the tool or injury to the tool operator.
Crown Molding
Hand Rail
Stairs
Door Jamb
Door Stop
Chair Rail
Wainscoting
Apron
Paneling
Window Casings
Cabinets
Door
Casings
Baseboard Molding,
Cap & Base Shoe
PART
NO. LENGTH APPLICATION
THE PASLODE CORDLESS 16GA STRAIGHT FINISH NAILER
DRIVES THESE NAILS
650282 1- 1/4" Cap/Shoe Molding
650283 1-1/2" Baseboard, Crown, Chair
650285 2" Baseboard, Casings, Crown
650287 2-1/2" Casings
16

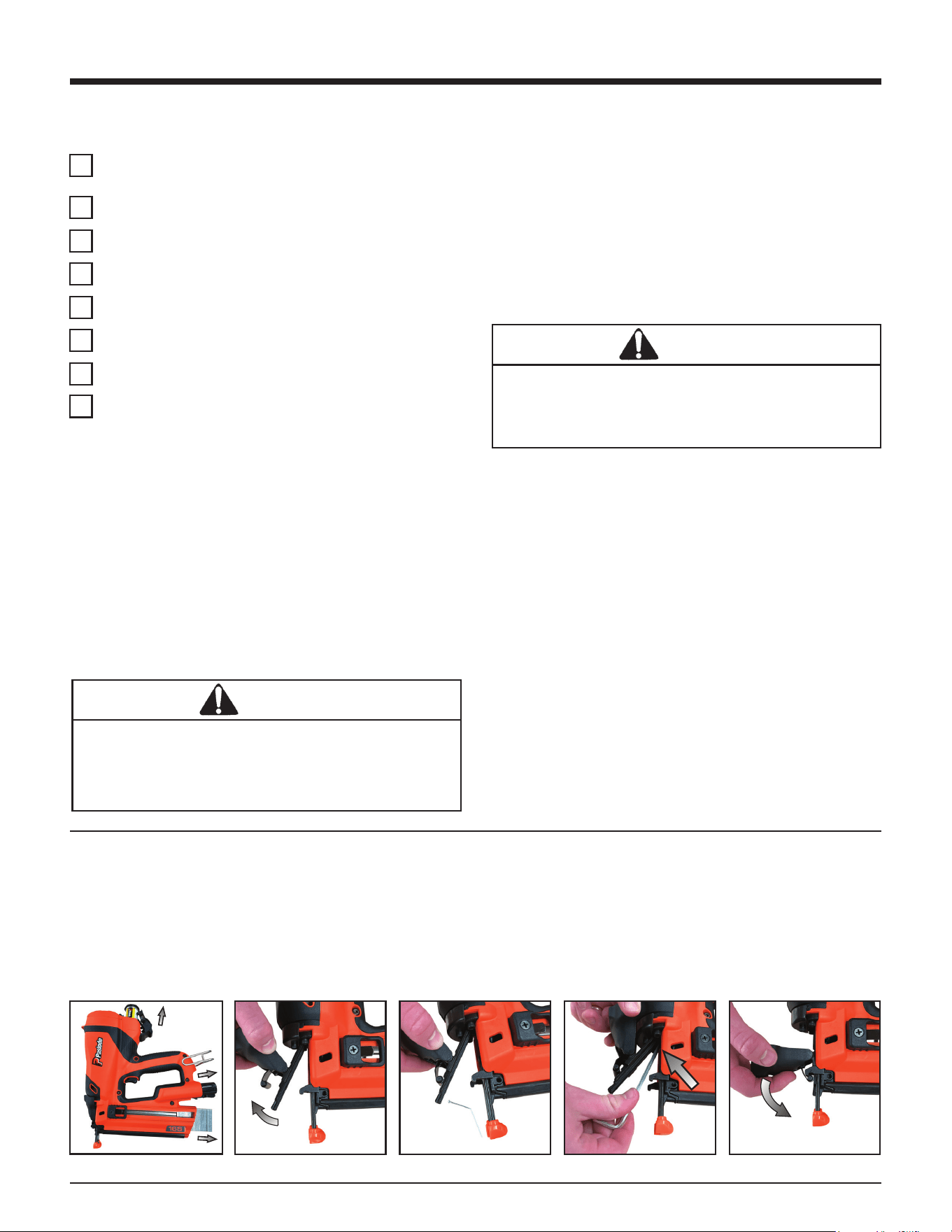

Servicing
Restrict Field Service to the Following
CHECKING THE CHARGE LEVEL OF THE
BATTERY
RECHARGING THE BATTERY
CHECKING THE FUEL CELL
REPLACING THE FUEL CELL
CLEANING/REPLACING THE AIR FILTER
CLEARING A JAM
CLEANING THE TOOL (See cleaning Manual)
REPLACING TIP
Attempts to go beyond these procedures could result
in serious personal injury or damage to the Cordless
Nailer and voiding the warranty.
There are certain problems you may encounter when
you are using the Cordless Nailer that you will be able to
correct on the work site. The following field service
procedures are the only service procedures you should
attempt. Anything else that may appear wrong with the
Cordless Nailer should only be diagnosed and repaired
by a fully trained service technician. If you have any
reason to believe that your problem is beyond the
service procedures in this manual, contact Paslode.
Fuel Cartridge Check
If the Cordless Nailer’s fan operates and the indicator
light is green, but the tool will not cycle or does not drive
fasteners completely, check the fuel cell. With the fuel
cell out of the tool, check to see if the fuel cell still
contains fuel. To determine if there is any fuel left in the
fuel cell, hold in the upright position and simply place
the metering stem against a solid object, and gently
push about three or four times. A small amount of fuel
should be released each time.
If fuel is not released with each operation of the meter-
ing stem, this indicates that there is no more fuel left in
the fuel cell and it must be replaced. Dispose of the
empty fuel cell (see page 11).
Also remember that the fuel cells have a “best used by”
date on the bottom of each cell. If your fuel cell is old, it
may have lost some power.
Battery Check
Periodically check the battery indicator light in the
handle of the Cordless Nailer. When encountering a
problem, the first step should always be to make sure
the battery has enough charge to operate the tool.
When the Probe is depressed on the work piece, the
fan motor should turn on and the blinking green indica-
tor light should turn solid green. If the indicator light
blinks red or glows red, recharge the battery.
Clearing a Jam
An occasional problem you may encounter is a jammed
fastener. Because of the unique design of the Cordless
Nailer, clearing a jammed fastener is easy:
DANGER
Never attempt any maintenance of a Paslode
Cordless tool without first removing the fuel cell
and battery. Maintenance should be started only
after the tool is completely inoperative.
DANGER
Wear safety glasses when performing this test.
Never perform this test near an open flame or
sparks, while smoking, or where the fuel might get
in your eyes.
1 2 3 4 5
Pull Quick Clear Latch
Forward to release
Remove Battery, Fuel,
And Nails
Open Front Guide To
Release Jam
Return Driver Blade Close And Latch
Front Guide
17
CLEANING THE AIR FILTER
Use a flat bladed screwdriver to
remove cap, ease locking tabs
open to avoid damage to cap.
Make sure fuel door is open,
then remove filter cover.
Remove filter. Check filter for
holes, replace if needed.
Use Cordless Tool Cleaner or soap
and water to restore the filter.
Filter will look like new after
cleaning.
Servicing
End-of-Workday Routine
These simple steps are based on maintaining the
safety and operational eciency of the Cordless Nailer.
Before you leave the work site:
1. Remove battery and store in tool case. Always use
the Cordless Nailer Case for transporting and storing
the tool.
2. Dispose of all empty fuel cells (see page 11).
Remember to dispose of fuel cells where they will not
be crushed, punctured, burned, or found by children.
When you get home:
1. Place the battery in its charger if it needs charging as
indicated by the red charge light on the handle.
2. Wipe your Cordless Nailer with a clean, soft cloth.
3. Remove and clean the filter if needed.
4. Check the Probe to ensure it is operating
freely.
Paslode Cordless Tool Accessories
A variety of accessories are available for the Paslode
Cordless 16GA Straight Finish Nailer:
No-Mar Replacement Tip
Single Tip - Part No. 902425
Three Pack - Part Number 902473
Battery - Part No. 902654
Cordless Tool Cleaner - Part No. 219348
Clear Safety Glasses - Part No. 401382
Paslode Cordless Lubricating Oil - Part No. 401482
Battery Charger - Part No. 902672
Paslode Cordless Finish Nailer Case - Part No. 905640
Contact your Paslode representative for additional
information.
Tools
A 9/64 Hex Wrench (Part No. 900736) is provided with
each Cordless 16GA Straight Finish Nailer.
REP CODE QUANTITY DESCRIPTION
01 013637 1 FUEL DOOR
02 401356 1 MOTOR SLEEVE
03 403099 1 PISTON RETAINING RING
04 404702 2 SCREW 6-32 X 3/8
05 405140 4 SCREW,TORX,PAN-HD, 8-32 X 3/8
06 900596 1 SCREW,SEMS, 8-32 X 7/16 THREAD FORMING
07 900602 1 LOCKOUT BAR
08 900609 1 MUFFLER
09 900612 4 SEAL RING
10 900616 1 O-RING
11 900619 1 DOWEL PIN
12 900627 1 SPRING/SADDLE
13 900629 1 CLIP, HIGH TENSION
14 900630 1 LOCKOUT PIN
15 900631 1 SPRING
16 900648 1 FILTER
17 900662 1 WIRE, ESU POWER
18 900664 1 REED VALVE
19 900665 1 REED PLATE
20 900668 1 COVER
21 900680 1 BUMPER
22 900697 1 FUEL ADAPTOR
23 900700 1 AIR DAM
24 900708 1 SCREW SHC 8-32 X 1/2 (RED)
25 900709 1 FAN ASSEMBLY
26 900726 1 SLIDE SWITCH ASSEMBLY
27 900728 1 DRIVER AND PISTON ASSEMBLY
28 900729 1 COMBUSTION CHAMBER ASSEMBLY
29 900739 1 PCB ASSEMBLY
30 900746 2 SCREW, 1-32 X 7/16
31 900754 1 SHCS
32 901064 4 SCREW SHC 8-32 X 1-3/8
33 901066
5 SCREW TX 8-16 X 3/4
34 901082 1 TRIGGER ASSEMBLY
35 901089 1 DISK FILTER
36 901111 1 MOTOR ASSEMBL Y
37 901119 1 RETAINING RING
38 902041 1 FOLLOWER ASSEMBLY
39 902425 2 PROBE TIP
40 904562 1 FAN MOTOR HARNESS
41 904567 1 SPARK PLUG WIRE ASSEMBLY
42 916206 1 LOWER PROBE
43 916212 1 DOD STUD
44 916218 1 FOLLOWER BODY
45 916222 1 GRILLE
46 916229 1 FRONT CHANNEL
47 916231 1 RETAINING FLANGE
48 916232 1 SLEEVE
49 916236 1 SPARK PLUG
50 916239 1 SPRING, YOKE
51 916241 1 ON-CAN CAP
52 916246 1 ON-CAN CYL INDER HEAD
53 916249 1 INSULATOR
54 916257 2 SHOULDER SCREW
55 916258 1 MSU
56 916285 1 YOKE ASSEMBLY
57 916287 1 SCREW, 18-16 X 3/4 PLASTITE
58 916501 1 RIGHT HANDLE
59 916502 1 LEFT HANDLE
60 916503 1 NOSE
61 916505 1 BINDING CHANNEL
62 916515 1 MAGAZINE
63 916584 1 LATCH COYER ASSEMBLY
64 916585 1 NAME PLATE LABEL
65 916586 1 WARNING LABEL
66 916620 1 BRAD CHANNEL
67 918903 2 FOAM PAD, BATTERY
68 918906 1 BELT HOOK ASSEMBLY
69 918909 1 CAP NUT
70 918910 1 BUTTON-UTILITY HOOK
71 918911 1 BLOCK-UTILITY HOOK
72 918913 1 SPRING-UTILITY HOOK
73 918919 2 PASLODE LOGO
74 918938 1 MOLDED CIRCUIT ASSEMBLY
Part No. 916576 (EU)
Part No. 916575 (UK)
PART LEGEND
03
34
04
68
02
40
59
33
1 1
0
01
REP CODE QUANTITY DESCRIPTION
01 1 FUEL DOOR$66(0%/<
02 401356 1 MOTOR SLEEVE
03 403099 1 PISTON RETAINING RING
04 404702 2 SCREW 6-32 X 3/8
05
SCREW,6(06;7+5($')250,1*
06 9 1
/2&.287%$5
07 9 1
'2:(/3,1
08 9 1
635,1*6$''/(
09 9
&/,3+,*+7(16,21
10 9 1
/2&.2873,1
11 9 1
635,1*
12 9 1
),/7(5
13 9 1
:,5((6832:(5
14 9 1
)8(/%/2&.
15 9 1
$,5'$0
16 9
6&5(:6+&;5('
17 9 1
)$1$66(0%/<
18 9 1
6/,'(6:,7&+$66(0%/<
19 9 1
'5,9(5$1'3,6721$66(0%/<
20 9 1
&20%867,21&+$0%(5$66(0%/<
21 9 1
3&%$66(0%/<
22 9
&5(:;
23 9 1
6+&6
24 9
6&5(:6+&;
25 9
6&5(:7;;
26 9 1
75,**(5$66(0%/<
27
1
02725$66(0%/<
28 9 1
5(7$,1,1*5,1*
29 9 1
)2//2:(5$66(0%/<
30 9
352%(7,3
31 9 1
)$102725+$51(66
32 9
63$5.3/8*:,5($66(0%/<
33 9
/2:(5352%(
34 9 1
'2'678'
35 9 1
)2//2:(5%2'<
36 9 1
*5,//(
37 9 1
)5217&+$11(/
38 9 1
5(7$,1,1*&$3
39
40
41
42
43
44
45
46
47
48
49
916236 1 SPARK PLUG
50
916239 1 SPRING, YOKE
51
9 1 CAP
52
9162 1 CYLINDER HEAD
53
916249 1 INSULATOR
54
55
916258 1 MSU
56
916285 1 YOKE ASSEMBLY
57
916287 1 SCREW, 18-16 X 3/4 PLASTITE
58
916501 1 RIGHT HANDLE
59
916502 1 LEFT HANDLE
60
916503 1 NOSE
61
916505 1 BINDING CHANNEL
62
916515 1 MAGAZINE
63
916584 1 48,&.&/($5ASSEMBLY
64
9165 1 NAME PLATE LABEL
65
9165 1 WARNING LABEL
66
916620 1 BRAD CHANNEL
67
918903
FOAM PAD, BATTERY
918906 1 BELT HOOK ASSEMBLY
918909 1 CAP NUT
1 BUTTON-UTILITY HOOK
1 BLOCK-UTILITY HOOK
918913 1 SPRING-UTILITY HOOK
918919 2 PASLODE LOGO
918938 1 MOLDED CIRCUIT ASSEMBLY
Part No. 86
PART LEGEND
09
03
48
10
19
35
45
18
27
20
55
16
17
74
05 08
01 26
13
32
21
04
54
65
73
51
51
71
70
69
37
72
46
36
47
53
41
02
49
22
31 24
67
52
06
29
09
66
25
23
50
62
30
61
73
56
28
43
38
11
15 14
63
07
12
44
57
42
60
39
64
IM65 F16 LITHIUM
918910 1 BUTTON-UTILITY HOOK
918911 1 BLOCK-UTILITY HOOK
918913 1 SPRING-UTILITY HOOK
918919 2 PASLODE LOGO
918938 1 MOLDED CIRCUIT ASSEMBLY
1
)8(/%$5%
1
1
1
1
)8(/78%(
1
<($53520,6(/$%(/
1
3,927$50
6
6
11
6/((9($66(0%/<
11
6($/5,1*
18
Tool Schematic
Parts Legend IM250S-Li2 CORDLESS 16GA STRAIGHT FINISH NAILER 916500
1 916286 Fuel Door Assembly 1
2 401356 Motor Sleeve 1
3 403099 Piston Retaining Ring 1
4 404702 Screw 6-32 x 3/8 2
5 900596 Screw, SEMS, 8-32 x 7/16 Thread Forming 1
6 900602 Lockout Bar 1
7 900619 Dowel Pin 1
8 900627 Spring/Saddle 1
9 900629 Clip, High Tension 1
10 900630 Lockout Pin 1
11 900631 Spring 1
12 900648 Filter 1
13 900662 Wire, ESU Power 1
14 902406 Fuel Block 1
15 900700 Air Dam 1
16 900708 Screw SHC 8-32 x 1/2 (RED) 2
17 900709 Fan Assembly 1
18 900726 Slide Switch Assembly 1
19 900728 Driver and Piston Assembly 1
20 900729 Combustion Chamber Assembly 1
21 900739 PCB Assembly 1
22 900746 Screw, 1-32 x 7/16 2
23 900754 SCHS 1
24 901064 Screw SHC 8-32 x 1-3/8 4
25 901066 Screw TX 8-16 x 3/4 5
26 901082 Trigger Assembly 1
27 901112 Motor Assembly 1
28 901119 Retaining Ring 1
29 902041 Follower Assembly 1
30 902425 Probe Tip 1
31 904562 Fan Motor Harness 1
32 904567 Spark Plug Wire Assembly 1
33 916206 Lower Probe 1
34 916212 DOD Stud 1
35 916218 Follower Body 1
36 916222 Grille 1
37 916229 Front Channel 1
38 916231 Retaining Cap 1
39 916236 Spark Plug 1
40 916239 Spring, Yoke 1
41 916216 Cap 1
42 916208 Cylinder Head 1
43 916249 Insulator 1
44 904521 Pivot Arm 1
45 916258 MSU 1
46 916285 Yoke Assembly 1
47 916287 Screw, 18-16 x 3/4 Plastite 1
48 916501 Right Handle 1
49 916502 Left Handle 1
50 916503 Nose 1
51 916505 Binding Channel 1
52 916515 Magazine 1
53 916584 Quick Clear Assembly 1
54 916590 Name Plate Label 1
55 916591 Warning Label 1
56 916620 Brad Channel 1
57 918903 Foam Pad, Battery 3
58 918906 Belt Hook Assembly 1
59 918909 Cap Nut 1
60 918910 Button-Utility Hook 1
61 918911 Block-Utility Hook 1
62 918913 Spring-Utility Hook 1
63 918919 Paslode Logo 2
64 918938 Molded Circuit Assembly 1
65 904517 Fuel Barb 1
66 904546 Fuel Tube 1
67 918940 2 Year Promise Label 1
68 916288 Sleeve Assembly 1
69 900612 Seal Ring 1
WARNING
Always wear EYE and EAR
safety gear when working
with or in the vacinity of
the Paslode Cordless
18GA Straight Brad Finish
Nailer.
19
Tool Schematic
REP CODE QUANTITY DESCRIPTION
01 013637 1 FUEL DOOR
02 401356 1 MOTOR SLEEVE
03 403099 1 PISTON RETAINING RING
04 404702 2 SCREW 6-32 X 3/8
05 405140 4 SCREW,TORX,PAN-HD, 8-32 X 3/8
06 900596 1 SCREW,SEMS, 8-32 X 7/16 THREAD FORMING
07 900602 1 LOCKOUT BAR
08 900609 1 MUFFLER
09 900612 4 SEAL RING
10 900616 1 O-RING
11 900619 1 DOWEL PIN
12 900627 1 SPRING/SADDLE
13 900629 1 CLIP, HIGH TENSION
14 900630 1 LOCKOUT PIN
15 900631 1 SPRING
16 900648 1 FILTER
17 900662 1 WIRE, ESU POWER
18 900664 1 REED VALVE
19 900665 1 REED PLATE
20 900668 1 COVER
21 900680 1 BUMPER
22 900697 1 FUEL ADAPTOR
23 900700 1 AIR DAM
24 900708 1 SCREW SHC 8-32 X 1/2 (RED)
25 900709 1 FAN ASSEMBLY
26 900726 1 SLIDE SWITCH ASSEMBLY
27 900728 1 DRIVER AND PISTON ASSEMBLY
28 900729 1 COMBUSTION CHAMBER ASSEMBLY
29 900739 1 PCB ASSEMBLY
30 900746 2 SCREW, 1-32 X 7/16
31 900754 1 SHCS
32 901064 4 SCREW SHC 8-32 X 1-3/8
33 901066
5 SCREW TX 8-16 X 3/4
34 901082 1 TRIGGER ASSEMBLY
35 901089 1 DISK FILTER
36 901111 1 MOTOR ASSEMBL Y
37 901119 1 RETAINING RING
38 902041 1 FOLLOWER ASSEMBLY
39 902425 2 PROBE TIP
40 904562 1 FAN MOTOR HARNESS
41 904567 1 SPARK PLUG WIRE ASSEMBLY
42 916206 1 LOWER PROBE
43 916212 1 DOD STUD
44 916218 1 FOLLOWER BODY
45 916222 1 GRILLE
46 916229 1 FRONT CHANNEL
47 916231 1 RETAINING FLANGE
48 916232 1 SLEEVE
49 916236 1 SPARK PLUG
50 916239 1 SPRING, YOKE
51 916241 1 ON-CAN CAP
52 916246 1 ON-CAN CYL INDER HEAD
53 916249 1 INSULATOR
54 916257 2 SHOULDER SCREW
55 916258 1 MSU
56 916285 1 YOKE ASSEMBLY
57 916287 1 SCREW, 18-16 X 3/4 PLASTITE
58 916501 1 RIGHT HANDLE
59 916502 1 LEFT HANDLE
60 916503 1 NOSE
61 916505 1 BINDING CHANNEL
62 916515 1 MAGAZINE
63 916584 1 LATCH COYER ASSEMBLY
64 916585 1 NAME PLATE LABEL
65 916586 1 WARNING LABEL
66 916620 1 BRAD CHANNEL
67 918903 2 FOAM PAD, BATTERY
68 918906 1 BELT HOOK ASSEMBLY
69 918909 1 CAP NUT
70 918910 1 BUTTON-UTILITY HOOK
71 918911 1 BLOCK-UTILITY HOOK
72 918913 1 SPRING-UTILITY HOOK
73 918919 2 PASLODE LOGO
74 918938 1 MOLDED CIRCUIT ASSEMBLY
Part No. 916576 (EU)
Part No. 916575 (UK)
PART LEGEND
03
34
04
68
02
40
59
33
1 1
0
01
REP CODE QUANTITY DESCRIPTION
01 1 FUEL DOOR$66(0%/<
02 401356 1 MOTOR SLEEVE
03 403099 1 PISTON RETAINING RING
04 404702 2 SCREW 6-32 X 3/8
05
SCREW,6(06;7+5($')250,1*
06 9 1
/2&.287%$5
07 9 1
'2:(/3,1
08 9 1
635,1*6$''/(
09 9
&/,3+,*+7(16,21
10 9 1
/2&.2873,1
11 9 1
635,1*
12 9 1
),/7(5
13 9 1
:,5((6832:(5
14 9 1
)8(/%/2&.
15 9 1
$,5'$0
16 9
6&5(:6+&;5('
17 9 1
)$1$66(0%/<
18 9 1
6/,'(6:,7&+$66(0%/<
19 9 1
'5,9(5$1'3,6721$66(0%/<
20 9 1
&20%867,21&+$0%(5$66(0%/<
21 9 1
3&%$66(0%/<
22 9
&5(:;
23 9 1
6+&6
24 9
6&5(:6+&;
25 9
6&5(:7;;
26 9 1
75,**(5$66(0%/<
27
1
02725$66(0%/<
28 9 1
5(7$,1,1*5,1*
29 9 1
)2//2:(5$66(0%/<
30 9
352%(7,3
31 9 1
)$102725+$51(66
32 9
63$5.3/8*:,5($66(0%/<
33 9
/2:(5352%(
34 9 1
'2'678'
35 9 1
)2//2:(5%2'<
36 9 1
*5,//(
37 9 1
)5217&+$11(/
38 9 1
5(7$,1,1*&$3
39
40
41
42
43
44
45
46
47
48
49
916236 1 SPARK PLUG
50
916239 1 SPRING, YOKE
51
9 1 CAP
52
9162 1 CYLINDER HEAD
53
916249 1 INSULATOR
54
55
916258 1 MSU
56
916285 1 YOKE ASSEMBLY
57
916287 1 SCREW, 18-16 X 3/4 PLASTITE
58
916501 1 RIGHT HANDLE
59
916502 1 LEFT HANDLE
60
916503 1 NOSE
61
916505 1 BINDING CHANNEL
62
916515 1 MAGAZINE
63
916584 1 48,&.&/($5ASSEMBLY
64
9165 1 NAME PLATE LABEL
65
9165 1 WARNING LABEL
66
916620 1 BRAD CHANNEL
67
918903
FOAM PAD, BATTERY
918906 1 BELT HOOK ASSEMBLY
918909 1 CAP NUT
1 BUTTON-UTILITY HOOK
1 BLOCK-UTILITY HOOK
918913 1 SPRING-UTILITY HOOK
918919 2 PASLODE LOGO
918938 1 MOLDED CIRCUIT ASSEMBLY
Part No. 86
PART LEGEND
09
03
48
10
19
35
45
18
27
20
55
16
17
74
05 08
01 26
13
32
21
04
54
65
73
51
51
71
70
69
37
72
46
36
47
53
41
02
49
22
31 24
67
52
06
29
09
66
25
23
50
62
30
61
73
56
28
43
38
11
15 14
63
07
12
44
57
42
60
39
64
IM65 F16 LITHIUM
918910 1 BUTTON-UTILITY HOOK
918911 1 BLOCK-UTILITY HOOK
918913 1 SPRING-UTILITY HOOK
918919 2 PASLODE LOGO
918938 1 MOLDED CIRCUIT ASSEMBLY
1
)8(/%$5%
1
1
1
1
)8(/78%(
1
<($53520,6(/$%(/
1
3,927$50
6
6
11
6/((9($66(0%/<
11
6($/5,1*
IM250S-Li2 CORDLESS 16GA
STRAIGHT FINISH NAILER 916500
20
Preparing Tool for Operation - Battery/Charger Problems
SYMPTOM POSSIBLE PROBLEMS SERVICE
Normal Stage of Operation
SYMPTOM POSSIBLE PROBLEMS SERVICE
If tool will not operate after following the above service directions, return the tool to an authorized
Paslode representative for service.
An Illinois Tool Works Company
155 Harlem Avenue
Glenview, IL 60025
www.paslode.com
For technical support call:
1-800-222-6990
or email:
Troubleshooting
Battery does not appear to accept
charge when battery is plugged into the
charger.
Charger gets hot, makes excessively
loud noise, or smokes during charging
cycle. Charger cord or wall plug gets hot.
Inoperative indicator lights on charger, or
defective charger.
Battery damaged or cycle life exhausted.
Damaged charger.
Try battery in tool after a full charge
cycle. If tool’s indicator light is red,
charger is not working properly. Replace
charger, or monitor charging time to
ensure battery has adequate time for
recharging. It is normal for battery to feel
warm after properly charging.
Replace battery.
Discontinue use immediately and unplug
from power source. Replace charger and
tag or dispose of charger to prevent
accidental re-use or connection to
power source.
Fan does not run - tool indicator light is
blinking red or solid red.
Fan does not run, or runs slower than
normal - tool indicator light is solid red.
Probe does not depress fully - tool does
not operate.
Tool will not cycle - fan runs, indicator
light is solid green.
Battery is not charged.
Battery terminals are oily, dirty, or
corroded.
Battery is discharged.
Probe is bent, or build-up of debris in
track resists operation.
Lockout feature is engaged.
Fuel cell empty.
Spark wire out of spark plug.
Spark plug is dirty.
No spark is generated.
Charge battery.
Clean battery terminals with a soft cloth.
Charge battery.
Carefully remove and inspect the Probe.
Clean track. Repair or replace Probe as
required.
Add strip of nails.
Replace fuel cell.
Remove cap and check spark lead, insert
in spark plug and replace cover.
Clean tool cylinder head.
Return tool to authorized Paslode dealer
for service.
18
21
Normal Stage of Operation
SYMPTOM POSSIBLE PROBLEMS SERVICE
Troubleshooting
Still not working? Here are more options:
• Your nailer may qualify for our Cordless 2 Year Service Promise. Visit
paslode.com for more information, or call us at 1-800-222-6990.
• Keep you Cordless Nailer in top form. Visit paslode.com and watch
our Cleaning and Maintenance videos
Tool operates properly, but fasteners do
not drive fully.
Tool operates properly, but fasteners are
sometimes overdriven, and sometimes
underdriven.
Tool operates, but no fastener is driven.
Tool operates erratically or appears to be
losing power - tool indicator light is green.
Tool operated and drove fasteners, but
driver blade did not return to up position.
Combustion chamber does not drop
after tool cycles.
Depth of Drive requires adjustment.
Fuel cell is low.
There may be loss of seal in combustion
chamber.
Depth of Drive is not adjusted properly
for the type of material being fastened.
Tool is Overheated
Wrong fasteners being used.
Follower not properly engaged behind
fastener strip.
Jammed fastener.
Fuel cell is low.
Spark plug wire is loose.
Air filter is dirty, causing tool to overheat.
Tool is dirty.
Built-up dirt and debris on driver blade or
in nose bore.
Tool is dirty.
No Mar Probe is bent, or is dirty.
Adjust Depth of Drive.
Check fuel cell and replace as required.
Press and hold No Mar Probe against
workpiece for one minute. Pull trigger. If
fastener does not drive, there is a leak
that requires service.
Adjust Depth of Drive. Readjust as
required when material density or
thickness of material being fastened
changes.
Set tool aside for 10-15 minutes until cool
Use only fasteners meeting Paslode
specifications. Check Fasteners and
Applications section for fastener types
and sizes recommended for use in this
Paslode Cordless tool.
Position follower behind fastener strip
and engage strip.
Clear jam.
Check fuel cell.
Check spark plug wire.
Remove air filter and clean. Use soap and
water to remove stubborn debris.
Clean tool.
Clean driver blade and nose bore with
Cordless Tool Cleaner.
Clean tool.
Clean track or replace No Mar Probe.
