Thank you for selecting our dehumidifier. Be sure to read this manual carefully before using it.
Any questions, please contact the professional service for help.
HOME PORTABLE
DEHUMIDIFIER
CONETENT
BEFORE YOU BEGIN
FOR YOUR SAFETY
PRODUCT OVERVIEW
INSTALLATION METHODS
OPERATION METHODS
DRAINAGE METHODS
MAINTENANCE METHODS
TROUBLE SHOOTING
01
04
09
11
14
18
21
23
P1
Please read the operating instructions carefully before using
your dehumidifier for the first time
01
BEFORE
YOU BEGIN
ushumilabs@outlook.com
The dehumidifier is used to remove excessive moisture from the air.
The resulting reduction in relative humidity protects buildings and their contents from the adverse
eects of excess humidity.
The environmentally friendly R32 is used as the refrigerant.
R32 has no damaging influence on the ozone
layer (ODP), a negligible greenhouse eect (GWP) and is available worldwide.
Because of its eicient energy properties, R32 is highly suitable as a coolant for this application.
Special precautions must be taken into consideration due to the coolant's high flammability.

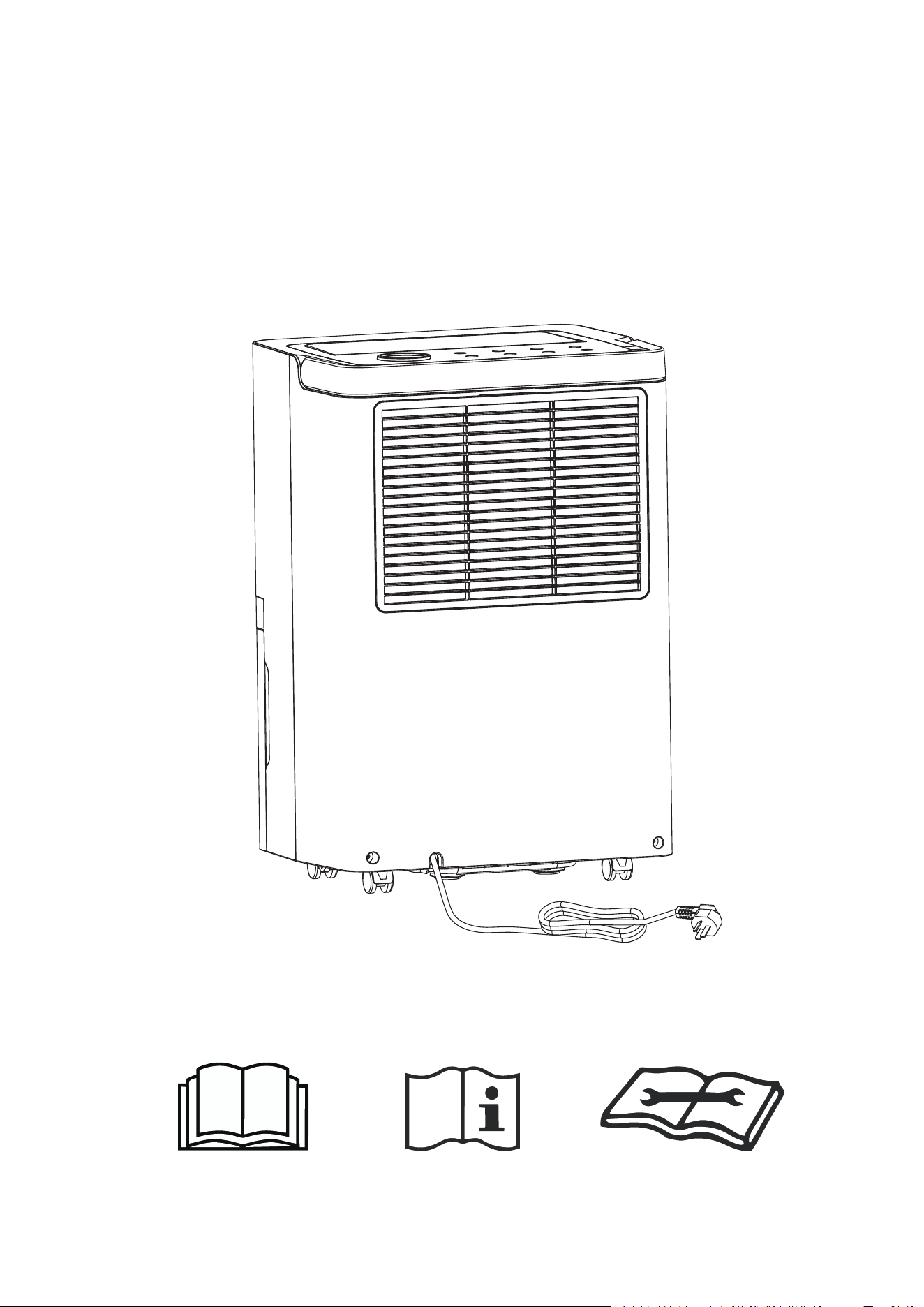

1.1 PRODUCT DESCRIPTION
SYMBOLS FROM THE UNIT AND USER MANUAL
This unit uses a flammable refrigerant.
If refrigerant leaksand comes in contact wit
fireor heating part, it will create harmful gas
and there is risk of fire.
Read the USER MANUAL carefully
before operation.
Further information is available in the
USER MANUAL,SERVICE MANUAL,
and the like.
Service personnel are required to carefully
read the USER MANUAL and SERVICE MANUAL
before operation.
P2
WARNING
1.2 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN
AN EXPLOSION
DEATH INJURY
PROPERTY DAMA
This appliance is intended to be used by expert or trained users in shops, in light industry and
on farms, or for commercial use by lay persons.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
The unit is designed only for use with R-32(propane) gas as the designated refrigerant.
The refrigerant loop is sealed. Only a qualified technician should aempt to service!
Do not discharge the refrigerant into the atmosphere.
R-32 (propane) is flammable and heavier than air.
It collects first in low areas but can be circulated by the fans.
If propane gas is present or even suspected, do not allow untrained personnel to aempt to
find the cause.
The propane gas used in the unit has no odor
The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from the store, ventilate the room and contact
the local fire department to advise them that a propane leak has occurred.
Do not let any persons back into the room until the qualified service technician has arrived and
that technician advises that it is safe to return to the store.
No open flames, cigarees or other possible sources of ignition should be used inside or in the vicinity
of the units.Component parts are designed for propane and non-incentive and non-sparking.
Component parts shall only be replaced with identical repair parts.
P3
ushumilabs@outlook.com
P4
Your safety is the most important thing we concerned!
Please read this manual carefully and fully understand before operating
your dehumidifier.
02
FOR
YOUR SAFETY
To reduce the risk of fire, electric shock or injury to persons or property:
P5
ushumilabs@outlook.com
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The appliance shall be disconnected from its power source during maintenance.
Always operate the unit from a power source of equal voltage, frequency and rating as
indicated on the product identification plate.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the unit.
Do not immerse or expose the unit to rain, moisture or any other liquid.
Do not leave the unit running unaended.
Do not tilt or turn over the unit.
Do not unplug while the unit is operating.
Do not unplug by pulling on the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or showing signs of product malfunction.
Do not clean the appliance with any chemicals.
Ensure the unit is far away from fire, inflammable, or explosive objects.
The unit shall be installed in accordance with national wiring regulations.
Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacture.
The appliance shall be stored in a room without continuously operation sources (for example: open
flames, an operating gas appliance or an operating electric heater).
The appliance shall be stored so as to prevent mechanical damage from occurring.
Do not piece or burn, even after use.
Be aware that refrigerants may not contain an odour.
Pipe-work shall be protected from physical damage and shall not be installed in an unventilated space,
if that space is smaller than 4m² .
Compliance with national gas regulations shall be observed.
Keep any required ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the room size corresponds to the room
area as specified for operation.
2.1 OPERATIONALPRECAUTIONS
WARNING
Prior to beginning work on systems containing flammable refrigerants, safety checks
are necessary to ensure that the risk of ignition is minimized. For repair to the
refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
WARNING
P6
ushumilabs@outlook.com
Any person who is involved with working on or breaking into
a refrigerant circuit should hold a current valid certificate
from an industry-accredited assessment authority, which
authorizes their competence to handle refrigerants safely
in accordance with an industry, recognized assessment
specification.
WARNING
Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring
the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of
flammable refrigerants.
If you don't understand something or need help, please contact the dealer services
2.2 SAFETY PRECAUTIONS ON SERVICING
2.2.1 Checks to the area
Please follow these warnings when to undertake the following when servicing a
dehumidifier with R32.
Prior to beginning work on systems containing flammable refrigerants, safety checks
are necessary to ensure that the risk of ignition is minimized. For repair to the
refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
2.2.2 Work procedure
P7
ushumilabs@outlook.com
All maintenance sta and others working in the local area shall be instructed on the
nature ofwork being carried out. Work in confined spaces shall be avoided. The area
around the workspace shall be sectioned o. Ensure that the conditions within the
area have been made safe by control of flammable material.
2.2.3 General work area
Prior to beginning work on systems containing flammable refrigerants, safety checks
are necessary to ensure that the risk of ignition is minimized. For repair to the
refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
2.2.4 Checking for presence of refrigerant
Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue
during the period that the work is carried out. The ventilation should safely disperse
any released refrigerant and preferably expel it externally into the atmosphere.
2.2.7 Ventilated area
If any hot work is to be conducted on the refrigeration equipment or any associated
parts,appropriate fire extinguishing equipment shall be available to hand. Have a
dry powder orCO2 fire extinguisher adjacent to the charging area.
2.2.5 Presence of fire extinguisher
No person carrying out work in relation to a refrigeration system which involves
exposingany pipe work that contains or has contained flammable refrigerant shall use
any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
All possible ignition sources,including cigaree smoking, should be kept suiciently far
away from the site of installation,repairing, removing and disposal, during which
flammable refrigerant can possibly be released to the surrounding space. Prior to
work taking place, the area around the equipment is to be surveyed to make sure
that there are no flammable hazards or ignition risks. “No Smoking”signs shall be
displayed.
2.2.6 No ignition sources
P8
ushumilabs@outlook.com
Where electrical components are being changed, they shall be fit for the purpose
and to the correct specification. At all times the manufacturer’s maintenance and
service guidelines shall be followed.If in doubt consult the manufacturer’s technical
department for assistance.The following checks shall be applied to installations using
flammable refrigerants:
– The charge size is in accordance with the room size within which the refrigerant
containing parts are installed;
– The ventilation machinery and outlets are operating adequately and are not
obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit shall be checked
for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible shall be corrected;
– refrigeration pipe or components are installed in a position where they are unlikely
to be exposed to any substance which may corrode refrigerant containing
components, unless the components are constructed of materials which are
inherently resistant to being corroded or are suitably protected against being
so corroded.
2.2.8 Checks to the refrigeration equipment
Repair and maintenance to electrical components shall include initial safety checks
and component inspection procedures. If a fault exists that could compromise safety,
then noelectrical supply shall be connected to the circuit until it is satisfactorily dealt
with. If the fault cannot be corrected immediately but it is necessary to continue
operation, an adequatetemporary solution shall be used. This shall be reported to
the owner of the equipment so all parties are advised.Initial safety checks shall include:
-those capacitors are discharged: this shall be done in a safe manner to avoid possibility
of sparking;
-that there no live electrical components and wiring are exposed while charging,
recovering or
purging the system;
-that there is continuity of earth bonding
2.2.9 Checks to electrical devices
3
4
5
Front shell
1
Operational panel
2
1
Air outlet
Water Level mirror
Water tank
8
9
10
Back shell
1
Handle
7
6
Filter frame
Universal wheel
Power cord
P10
ushumilabs@outlook.com

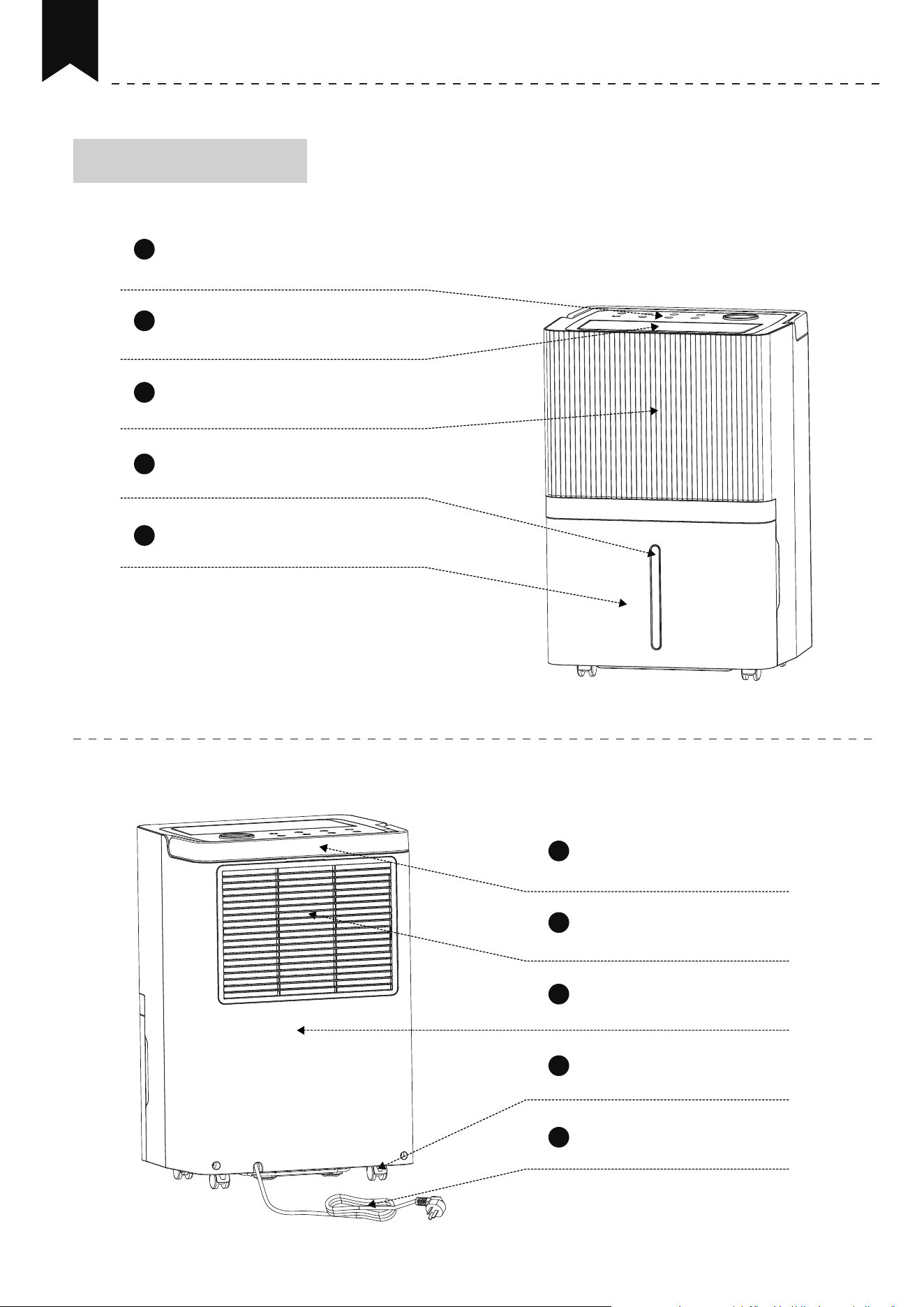

3.1 PRODUCT VIEW
ushumilabs@outlook.com
1. Place the unit on a firm, level surface in an area with at least 11.8 in of free
space around it to allow for proper air circulation.

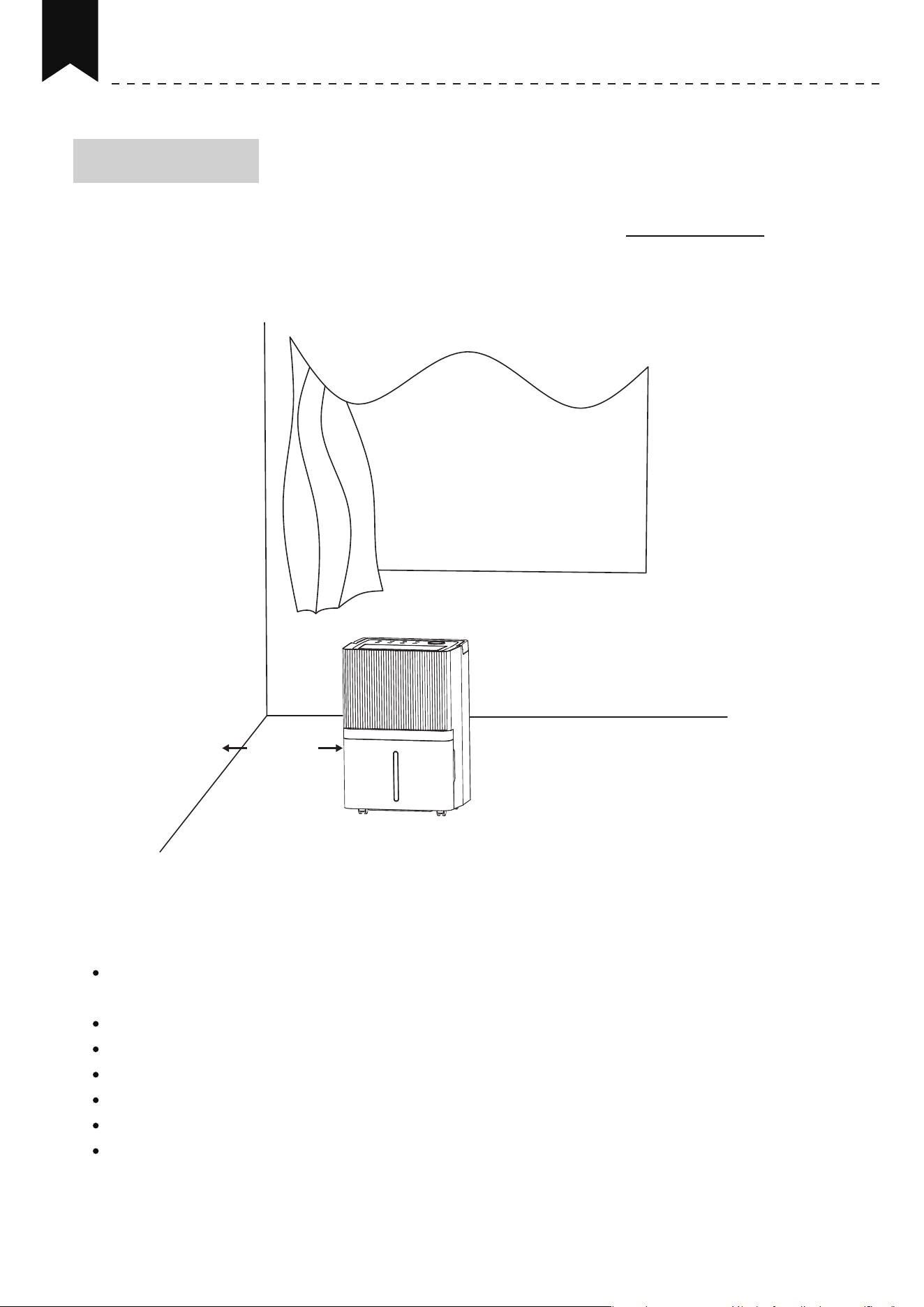

4.1 LOCATION
P12
2. Never install the unit where it could be subject to :
Heat sources such as radiators, heat registers, stoves or other products
that products that produce heat.
In an area where oil or water may be splashed
Direct sunlight
Mechanical vibration or shock
Excessive dust
Lack of ventilation, such as cabinet or bookcase
Uneven surface
11.8 in
ushumilabs@outlook.com
4.2 OPERATING THE DEVICE SAFELY
Check the device after unpacking for any damages or scratches on it.
Operate this unit in an ambient temperature from 41℉ to 95℉.
Do not use in the outdoors. This dehumidifier is intended for indoor residential applications only.
Do not operate in close proximity to walls, curtains, or other objects that may block inlet and outlet.
Keep the air inlet and outlet free of obstacles.
Adjusting the wind deflector in the upward direction prior to start up.
If tipped more than 45°, allow the unit to set upright for at least 24 hours before start up.
Keep doors and windows close for beer energy saving.
Do not operate or store the unit in direct sunlight or rain.
It is normal for air outlet to feel warm to touch after continuous operation on hot days.
Empty the water tank before moving the device.
Make sure the water tank is correctly fied otherwise the unit will not operate properly.
The dehumidifier starts up in the mode selected when the unit was last used.
The dehumidifier starts dehumidifying if the room humidity is 3% higher than the selected humidity.
There is a protective 3-minutes time delay of the compressor. Wait 3 minutes for the dehumidifier to
resume dehumidification.
P13
WARNING
Install the unit in rooms which exceed 43.06 sq. ft.
Do not install the unit in a place where inflammable
gas may leak.
NOTE
The manufacture may provide other suitable example or may
provide additional information about the refrigerant odour.
Please refer to this section for details on how to use the buons.
05
OPERATION
METHODS
P14
Press the mode buon to switch between Drying and Continuously dehumidify mode.
Auto mode: when environmental humidity ≥ set humidity +3%, the fan starts
working and compressor starts working after 3 seconds. When environmental
humidity ≤ set humidity -3%, the compressor stops working and fan stops
working after 30 seconds’ delay.Both fan speed and humidity seing can be
adjusted under Auto mode.
Continuously dehumidify mode: In this mode,The machine will continue
to run in high fan speed , fan speed is adjustable,humidity seing can not be adjusted.
Drying mode: Continuously dehumidify mode cycle, press once to switch the mode
from one to another, the corresponding indicator will light up.icator lights and display
screen will be o or darken.In sleeping mode, when the water tank is full , the machine
will not alarm , but the water tank full indicator light will be on (red color) to remind that
the water tank is full and you need to empty the water tank
ushumilabs@outlook.com

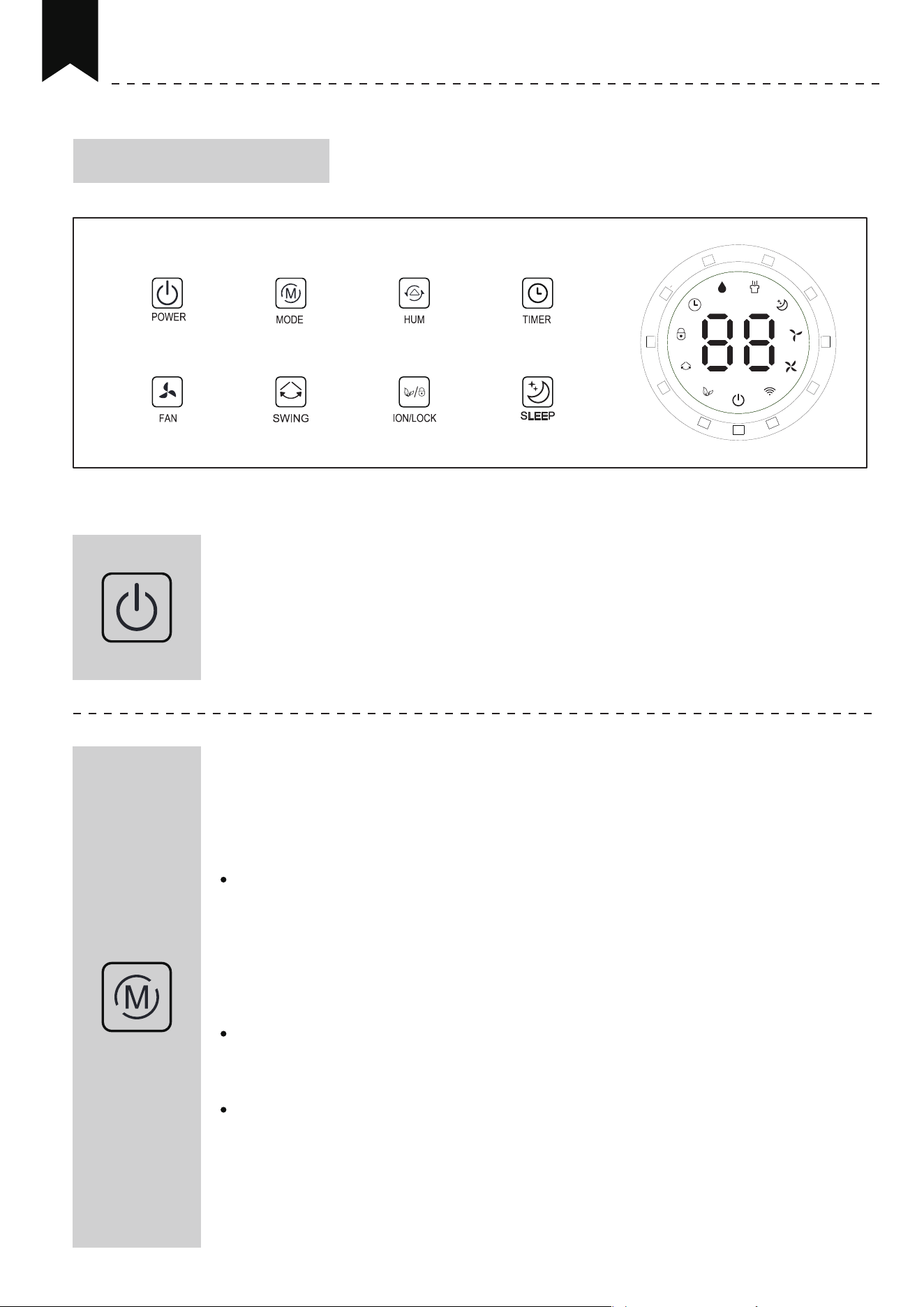

5.1 CONTROL PANEL
P15
Power
Press the STAND-BY buon to turn on the machine, the running indicator lights up and
the default fan speed is high, and the default humidity seing is 50%. When the machine
is running, press the power buon to turn o, the running indicator light goes o and
the compressor and motor will stop.
Mode buon
ushumilabs@outlook.com
P16
Timer buon
Press the timing key to set timing / check timing / cancel timing
a) In the non timing state: press the timing key to enter the timing seing state.
The digital screen flashes to display the timing time. During the flashing period of
the digital screen, press the adjustment key to adjust the timing time (0 ~ 24h).
b) In the timing state: press the timing key, and the digital screen flashes to display
the remaining timing time. Press the timing key again during the flashing period of
the digital screen to cancel the timing.
Fan Speed buon
Press this buon to switch the fan speed between high and low fan speed cycle,
and the corresponding indicator light will be on .
Child-Lock
Press and hold this buon for 3 seconds to open the child lock function ,the indicator
light will be on and you can not operate other buons . Press and hold this buon
for 3 seconds again to turn o the child-lock function ,the indicator light will be o.
ION
Press this buon to turn on or o the ionizer purification function.
Swing Buon
Press the swing buon to turn on or o the swing function,and press again to
fixed wind direction.
Sleep Mode
Touch the sleep buon to turn on/o sleep funtion.In sleep mode ,except
sleeping mode indicator light , other indicator lights and display screen will be o or
darken.In sleeping mode, when the water tank is full , the machine will not alarm ,
but the water tank full indicator light will be on (red color) to remind that the water
tank is full and you need to empty the water tank
Ambient Humidity<45%
The light show Blue
Ambient Humidity 65%
<
The light show Red
45%<Ambient Humidity<65%
The light show Green
36
68
54
ushumilabs@outlook.com
P17
(Displays the ambient humidity: under the startup state, the three-color
light displays the current ambient humidity)
Three-color light
Auto defrost function
When the ambient temperature ≤ 41℉ , the whole machine enters the auto defrost program,
and the corresponding mode indicator flashes during defrosting,compressor stop working while
defrost.
1 2 3

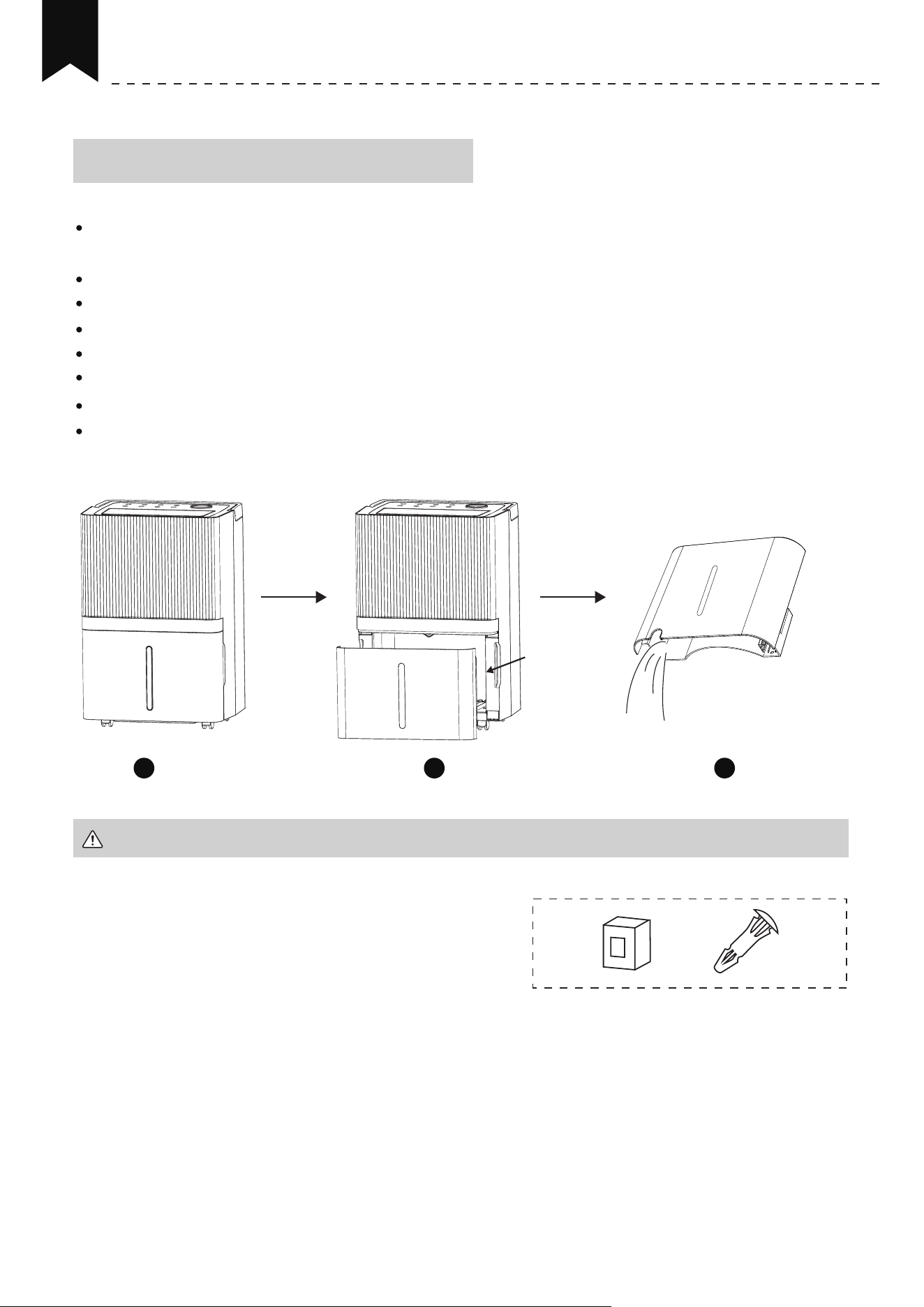

1. Do not discard water tank magnets and plastic rivets.
Otherwise, the machine will not automatically stop
working when the water tank is full, and the condensed
water will overflow and damage the floor of the room.
2. Please be sure to clean the condensed water in the water tank before reseing the working
mode of the machine.
3. If the water tank is dirty, rinse it with clean water. Avoid using detergents, steel balls, chemical
dust removers, diesel oil, benzene, diluents or other solvents. Otherwise, the water tank will be
damaged and leak
4. Replace the empty tank back into the unit. Otherwise, the water full indicator may remain red
and the machine cannot restart.
ushumilabs@outlook.com
P19
WARNING

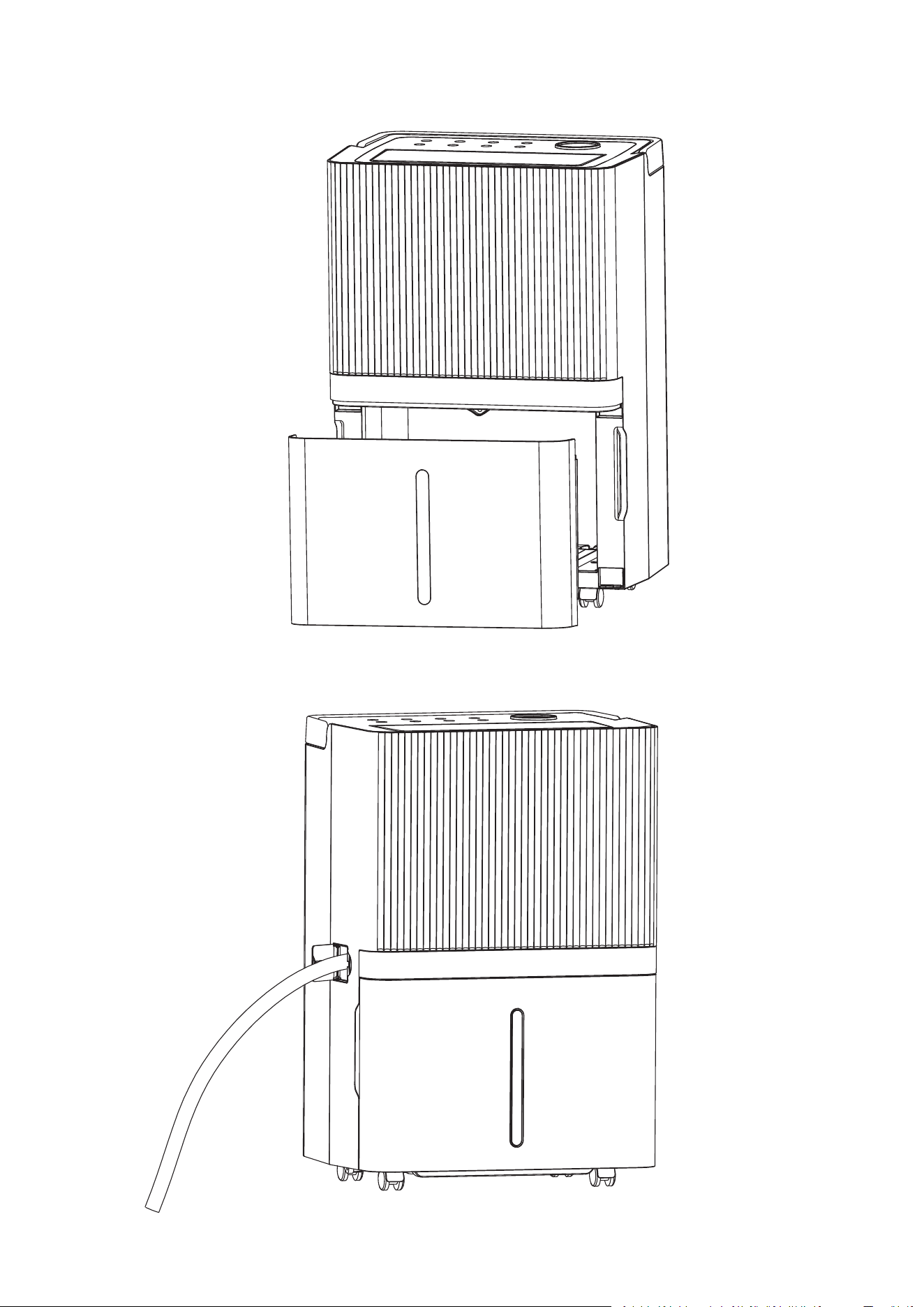

6.1 EMPTYING THE WATER TANK
When the tank is full, The unit will make a buzzing sound, screen will show ”FL” and the Water
Full light will turn on.
Press the POWER buon to turn o the unit.
Pull on the water tank and simply slide out of the body of the dehumidifier.
Empty the water into an area with a drain or outside.
Clean the inside of the tank as well as the outside.
Replace the empty tank back into the unit.
Press the POWER buon to resume operating.
If the Water Full light does not extinguish, check that the float is correctly in place.
2
1
Do not block the drain or drain pipe, if the phenomenon of blocking, condensed
water will flow into the water tank.
Do not bend the drain pipe. The height of the drain pipe should be lower
than the outlet.
ushumilabs@outlook.com
P20
WARNING

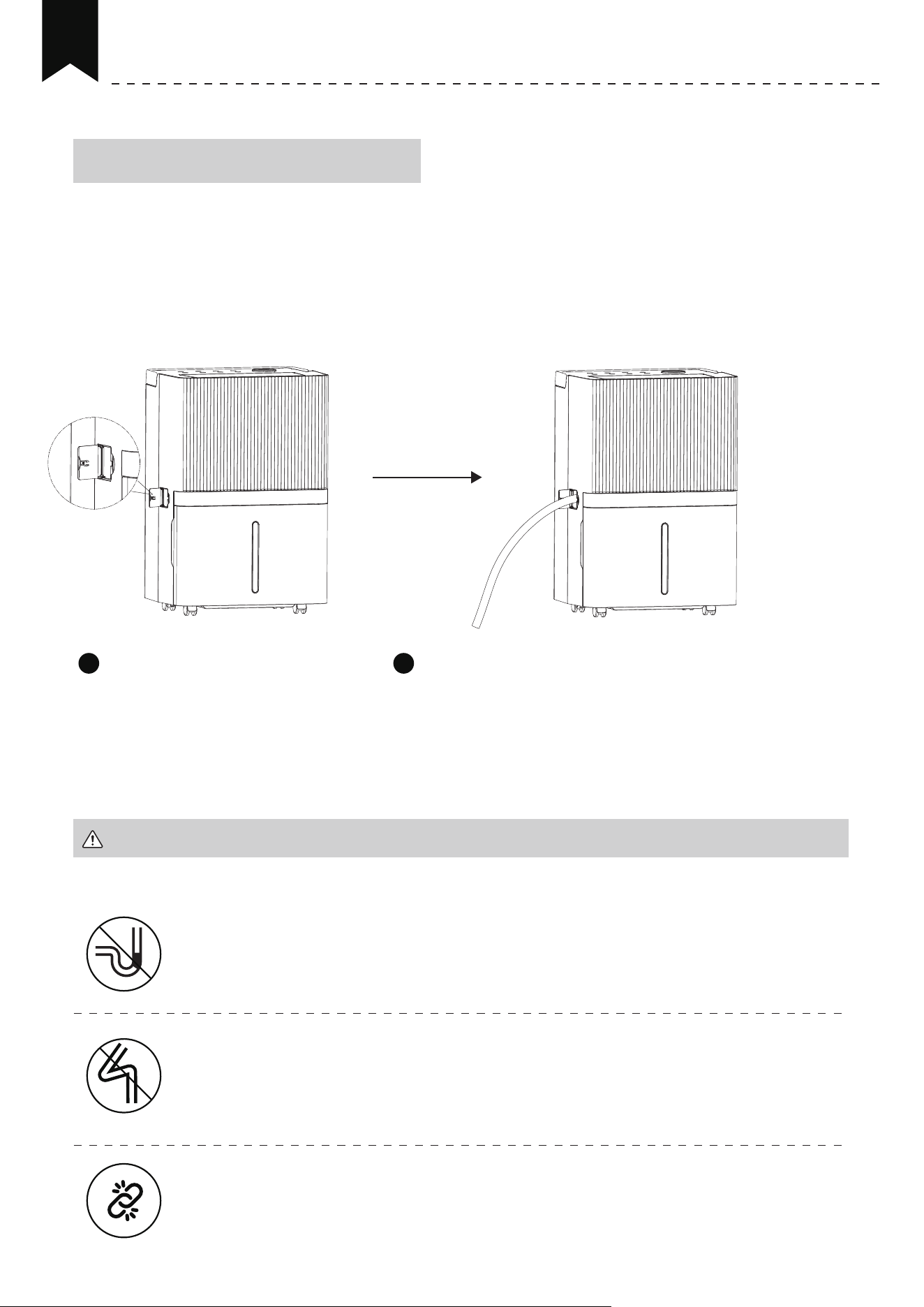

6.2 CONTINUOUS DRAINING
For continuous operation or unaended dehumidification, please connect the
aached drain hose to the unit. Condensate water can be automatically flow
into a bucket or drain by gravity.
Straighten the drainage pipe
Insert one end of the drain into the drain into the cistern
hole and connect the other end to the bathroom, outdoor
or bucket like container, or the prescribed drainage area.
The drain pipe shall be securely connected to the outlet.
Please refer to this section on how to maintain the machine.
07
MAINTENANCE
METHODS
P21
ushumilabs@outlook.com
P22
Before cleaning and maintaining the machine, be sure to turn o the machine
and pull the power plug to prevent electric shock

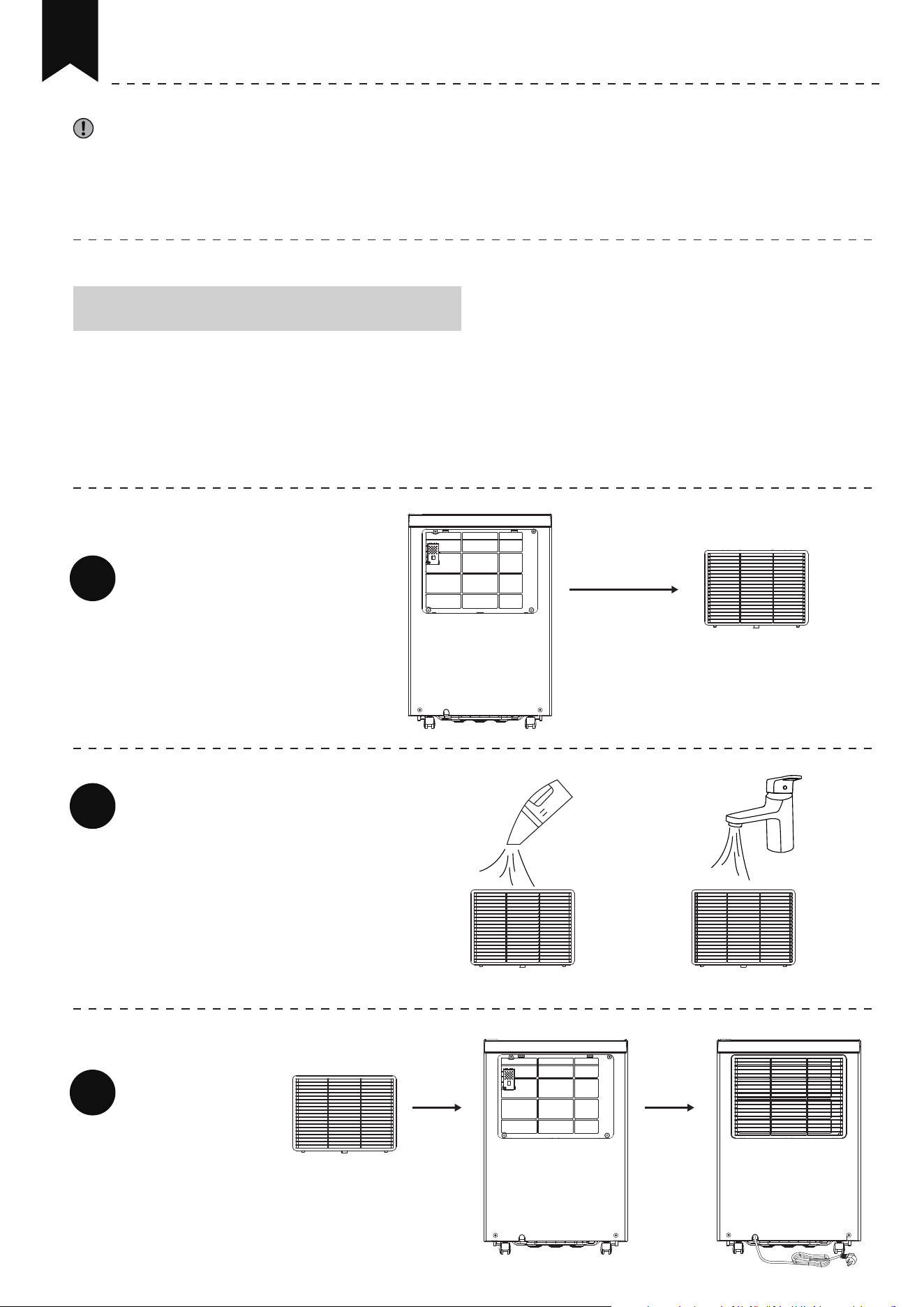

7.1 CLEANING THE AIR FILTER
NOTE
Dust collects on the filter and restricts the airflow. The restricted airflow reduces the eiciency of the
system and if it becomes blocked it can cause damage to the unit.The air filter requires regular cleaning.
The air filter is removable for easy cleaning. Do not operate the unit without an air filter, or the
evaporator may be contaminated.
1
Pull out the filter from the
boom of the rear shell,
2
Use a vacuum cleaner to gently
absorb the dust on the surface.
If the filter is very dirty, wash it with
water and a soft detergent and dry it
thoroughly afterwards.
3
Put the filter back.
Problem
Possible Causes Solution
Not
working
Connect to a functioning outlet and switch on Check the
fuse or the circuit breaker.
Drain water tank and reset it, or re-position the water tank
to right place
No power supply
Water Full Indication Flashes
Is the air filter clogged?
Is the intake duct or
discharge duct obstructed?
Clean the air filter as instructed
Remove the obstruction from the discharge duct
or intake duct.
Loud noise
when
running
Is the machine put in the plat place?
Is the filter clogged?
Put the machine on the plat ground
Wash the filter
No air intake
Is the filter clogged? Wash the filter
E2
Ambient temperature and
humidity sensor problem
Change a sensor
E1
The defrosting sensor is faulty
Change a sensor
FL
Water full protection
Dump the water in the tank in time
EF
Motor damaged
Change a motor
ushumilabs@outlook.com
P24
8.1 FUNCTIONING TEMP
41℉≤ Ambient Temp. ≤ 95℉
When the ambient temp is lower or higher than the functioning temp, the dehumidifier stops.
When 41℉≤ Ambient temp. ≤ 60.8℉, the compressor automatically defrosts at intervals; during
defrosting, the compressor stops and the fan keeps running.
8.2 BEFORE CALLING FOR SERVICE
Before contacting professional service, please review the trouble shooting list that includes common
occurrences that are not the result of a defect in workmanship or materials.ent temp is lower or higher
than the functioning temp, the dehumidifier stops.
Bad
functioning
ECOMMISSIONING
DISPOSAL
Releasing refrigerant into atmosphere
is strictly forbidden!
Long-term storage - If you will not be using the unit for an extended period of time (more than
a few weeks) it is best to clean the unit and dry it out completely. Please store the unit
per thefollowing steps:
STORAGE
P25
ushumilabs@outlook.com
1. Press power buon to switch o and unplug the unit.
2. Drain the remaining water from the unit.
3. Clean the filter and let the filter dry completely in a shaded area.
4. Collect the power cord at the water tank.
5. Re-install the filter at its position.
6. The unit must be kept in upright position when in storage.
7. Preserving the machine in ventilating, dry, non- corrosive gas and safe place indoor.
The evaporator inside the machine has to be dried out before the unit is packed to avoid
component damage and molds. Unplug the unit and place it in a dry open area for days to dry
it out. Another way to dry the unit is to set the humidity point more than 5% higher than the
ambient humidity to force the fan to dry the evaporator for a couple of hours.
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities. Contact your local government for information regarding the
collection systems available. If electrical appliances are disposed of in landfills or
dumps,hazardous substances can leak into the groundwater and get into the food
chain,damaging your health and well-being
ATTENTION:
WARNING!!!
HOME PORTABLE DEHUMIDIFIER
Enjoy the comfortable air of your home
