User Manual
www.AvantcoRefrigeration.com
06/2024
Read this manual in its entirety prior to equipment setup, operation, and maintenance.
#360ADC4N 26" No Glass
#360ADC8N 49" No Glass
#360ADC12N 71" No Glass
#360ADC4NF 26" Flat Glass
#360ADC8NF 49" Flat Glass
#360ADC12NF 71" Flat Glass
#360ADC4NC 26" Curved Glass
#360ADC8NC 49" Curved Glass
#360ADC12NC 71" Curved Glass
Note:
Models:
Ice Cream
Dipping Cabinets
2
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED
SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO – RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO
SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES RÉPARATIONS À
UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR MANUAL/OWNER’S
GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE FOLLOWED.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE EL MANUAL
DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE PRODUCTO. DEBEN CUMPLIR
CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE MANUEL
DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE MESURES DE SÉCURITÉ
DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW HANDLING
INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA REFRIGERANTE;
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE EST PERFORÉE;
SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW HANDLING
INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO. SIGA LAS
INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE LES INSTRUCTIONS
DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION GOUVERNEMENTALE LOCAUX.
Warnings
3
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets Ice Cream Dipping Cabinets
Installation
Before Installation
•
If the unit has recently been transported on its side, let unit stand upright for a minimum of 24 hours before
plugging it in.
•
To prevent compressor or system damage, do not transport the unit on an incline of more than 45 degrees.
•
Do not use the condenser, lid, or hinges as loading or unloading points.
•
Make sure that the unit has reached the desired temperature before loading the unit with products.
This unit is meant for keeping cold products cold, not chilling warm products.
•
Make sure that there is proper ventilation around the unit in the area where it will operate.
•
Make sure all accessories are installed (i.e., shelves, shelf clips, casters) before plugging in the unit.
•
Do not attempt to remove or repair any component of the unit. Consult an authorized service technician for
servicing/repair.
•
Do not sit or stand inside the unit.
•
Please read through the manual in its entirety.
•
The unit should be located away from doors, air ducts, and fans that could disrupt airflow and negatively
impact performance.
This unit is intended for use in a temperature-controlled environment of less than 75°F and 55% relative
humidity. Malfunction due to improper conditions is not covered under warranty.
Cabinet Location Guidelines
•
Install the unit on a strong and level surface.
• If the surface is uneven, the unit may be noisy.
• The unit may malfunction if the surface is uneven.
•
Install the unit in an indoor, well-ventilated area.
• For best performance, please maintain clearance of 6” on the front and back of the unit.
• Do not use outdoors. For indoor use only.
• Avoid direct sunlight.
•
Avoid installation in a high-humidity and/or dusty area.
• Humidity above 55% can cause the unit to rust, collect condensation, and may decrease eciency.
• Dust collected on condenser coil will cause unit to malfunction.
• Malfunction due to temperatures above 75F°, humidity above 55%, or improperly
maintained condenser coil will void the warranty.
•
Select a location away from heat and moisture-generating equipment.
• Ambient temperatures above 75F° may cause the compressor to malfunction.
• Malfunction due to ambient temperatures above 75F° will void warranty.
• Do not install the unit inside a closet or alcove.
4
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets
Cautions
Electrical
Installation
•
Ensure that the required voltage is being supplied at all times.
•
The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current
protection. Refer to the electrical requirements on the unit's nameplate.
•
The unit should have its own dedicated outlet.
•
DO NOT use extension cords.
•
Ensure the unit is not resting on or against the electrical cord.
•
If the unit is not in use for a long period of time, unplug from the outlet.
•
To avoid shock and fire hazards, DO NOT plug in or unplug the unit with wet hands.
•
After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause
damage to the compressor.
•
In the event of damage to the electric wires or plug, please contact the after-sales service. DO NOT attempt
to repair it yourself.
•
If the voltage is unstable, please choose the suitable automatic voltage regulator.
•
Before placing food into the freezer, adjust the temperature control to the lowest point (highest number) and let
it run for several hours. Put the food in, and after 12 hours, adjust the temperature control to the normal point.
•
The temperature control may need to be adjusted based on the amount of food in the freezer and the
ambient room temperature. More food or a higher room temperature may require a lower temperature
setting (higher number).
•
Never put hot food directly in the freezer. Food should be cold or frozen before placing it inside.
•
DO NOT fill the freezer full of product. For best results, large items should be divided into smaller parts, and
you should leave space between items so cold air can properly circulate and maintain safe temperatures.
5
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets Ice Cream Dipping Cabinets
Adjusting the Temperature
Serving Temperature
Operation
•
The temperature in the cabinet can be adjusted with the control knob.
•
Ice cream should be served between 6-10F°.
•
Gelato and sorbet should be served between 10-22F°.
•
Frozen yogurt should be served between 17-19F°.
•
Açaí should be served between 10-14F°.
•
Setting between "4" and "5" is standard for storage and service of ice cream.
•
If a dierent temperature is needed, adjust knob to a lower number (warmer) or a higher number (colder).
If your unit has a numbered control knob:
Loading Product
•
DO NOT block the air vents.
•
Ensure all accessories are sitting level and properly secured before loading products.
•
Non-packaged foods should be packed in plastic bags for proper safety.
•
In order to save energy, limit the number of times the lid is opened and the length of time the lid is open.
•
DO NOT place heavy or hot things on top of the freezer, as this can damage it.
•
Be sure to turn o power to the freezer before cleaning it.
•
DO NOT store flammable and explosive gas or liquids inside the unit.
•
The freezer should not be left unused for a long period of time. If you plan to stop using the freezer, power it o,
then clean the inside and keep the door open for 2-3 days to let it dry.
Please Note
•
The sound of water flowing during operation is normal; this is the refrigerant.
•
When the humidity is high, condensation may form on the surface of the freezer.
•
When the freezer is running, the condenser and compressor will be hot.
6
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets
Operation
Safety Information
•
To minimize shock and fire hazards, do not overload outlet. This unit should be given its own outlet.
•
DO NOT use extension cords.
•
DO NOT put your hands under the unit while it is being moved.
•
When the unit is not in use for a long period of time, unplug the unit from the outlet.
•
After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause
damage to the compressor.
•
To minimize shock and fire hazards, do not plug or unplug the cord with wet hands.
•
Unplug the unit before performing maintenance or cleaning.
•
To minimize shock and fire hazards, make sure that the unit is properly grounded.
•
DO NOT attempt to remove or repair any component unless instructed by the factory.
•
DO NOT allow the unit to rest on or against the electrical cord and/or plug.
•
DO NOT hang on the doors.
•
DO NOT attempt to alter or tamper with the electrical cord.
•
DO NOT use the unit if the power cord is damaged.
Pay close attention to the safety notices in this section. Disregarding these notices may lead to serious injury
and/or damage to the unit.
Defrosting the Unit
1.
To ensure optimal performance, the unit should be defrosted when the thickness of the ice on the cabinet wall
reaches 1/4".
2.
Remove all product from the unit.
3.
Unplug the unit and use a drainage tube to release the water from the melted ice. The drainage tube will need
to be placed in a drain or pump.
4.
Once all ice is melted and water is drained, the manual defrost is complete.
5.
Wipe down the inside of the cabinet with a cloth, and then plug the unit back in and allow it to get back to
optimal serving temperature before inserting product.
7
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets Ice Cream Dipping Cabinets
Interior
Cleaning
•
Use a soft cloth with some moderate detergent and warm water to clean the freezer.
•
DO NOT use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.
•
Use warm water to clean oil or fruit juice stains on the gasket to keep its elasticity. Apply some talcum powder
to it to prolong its life.
•
Periodically remove the accessories from the unit and clean them with mild soap and warm water.
DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.
It is strongly recommended that any servicing of the unit be performed by an authorized service technician.
Troubleshooting
Problem
Possible Cause
Possible Solution
Freezer keeps
unfreezing.
Temperature control is set to the highest point. Adjust the temperature.
The plug is not properly plugged in. Make sure the plug is connected properly.
The fuse is broken o. Replace the fuse.
Compressor does not
shut o.
Temperature control is set to the lowest point. Adjust the temperature.
There is too much product in the freezer. Remove some product from the freezer.
There is ice buildup. Defrost the freezer.
The doors are being opened and shut too often.
Reduce the amount of time the door on the freezer is
opened and shut.
The freezer is too close to a wall. Place the freezer away from the wall (at least 4").
The freezer is located too close to a heat source. Move the freezer away from the heat source.
Loud noises coming
from the unit.
The freezer is on an uneven surface. Relocate the freezer to a level surface.
The refrigeration tubes are touching each other. Make sure the tubes are not touching each other.
Unit is leaking water.
High relative humidity.
This refrigerator is designed to perform in
temperature-controlled environments up to 75°F
and 55% relative humidity.
Drainage tube is clogged. Verify the drainage tube is clear and unobstructed.
Temperature controller failed. Contact a licensed service technician.
8
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets

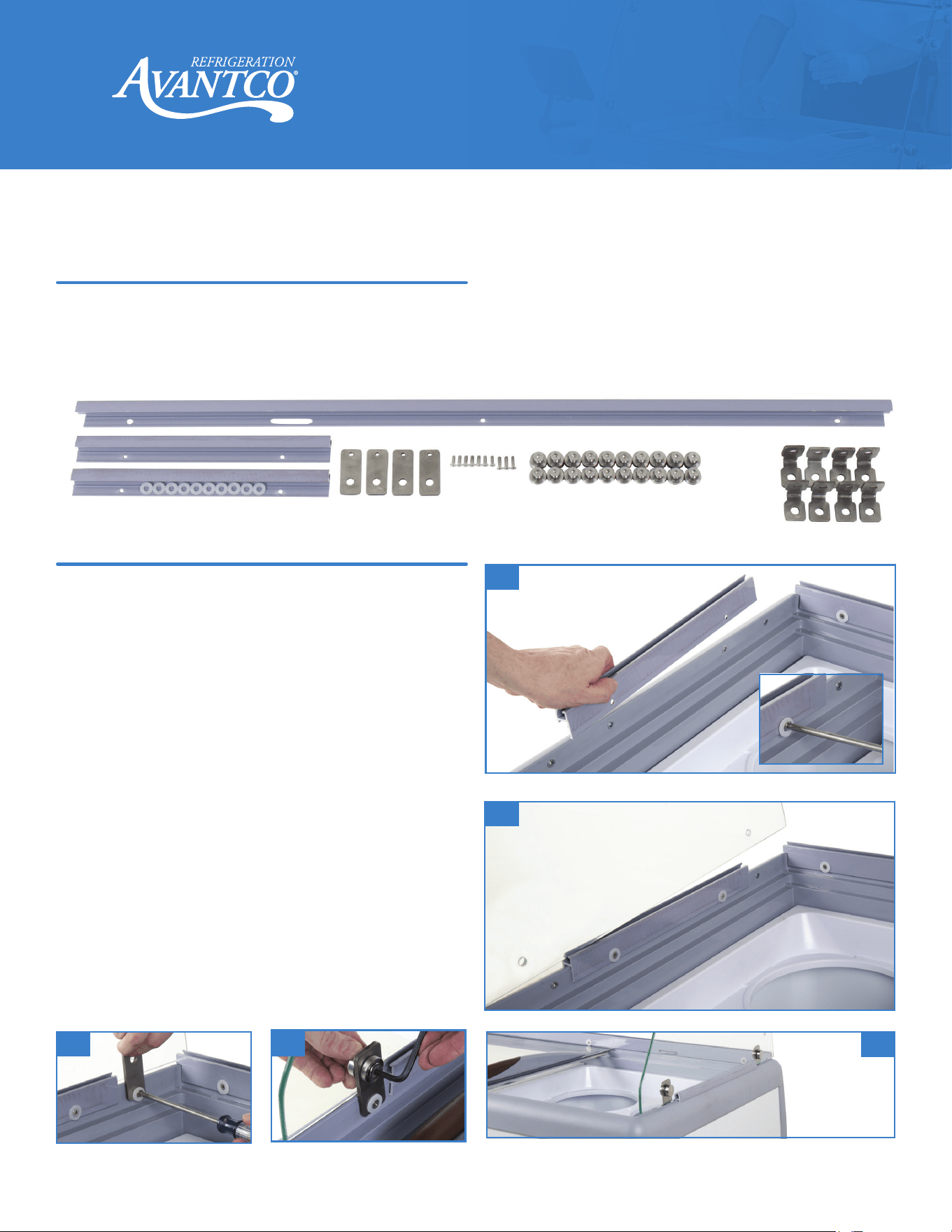

Glass Canopy Assembly
Included Hardware
Assembly Instructions
A 360BARFRNT Front Rail (x1)
B 360BARSIDE Side Rail (x2)
C 360PLATE Metal Plate for Side Rails (x4)
D 360CORNER L-Shaped Bracket (x8)
E 360SCREW Small Screws for Rails (x11)
F 360GLSSCREW Large Screw for Glass Panels (x20)
A
B
C
E
F
D
1.
Install the (3) plastic channels along the sides and
front of the cabinet using the Phillips screws and
white washers.
Note: A short channel should be installed on each
side, and the long channel should be installed on
the front.

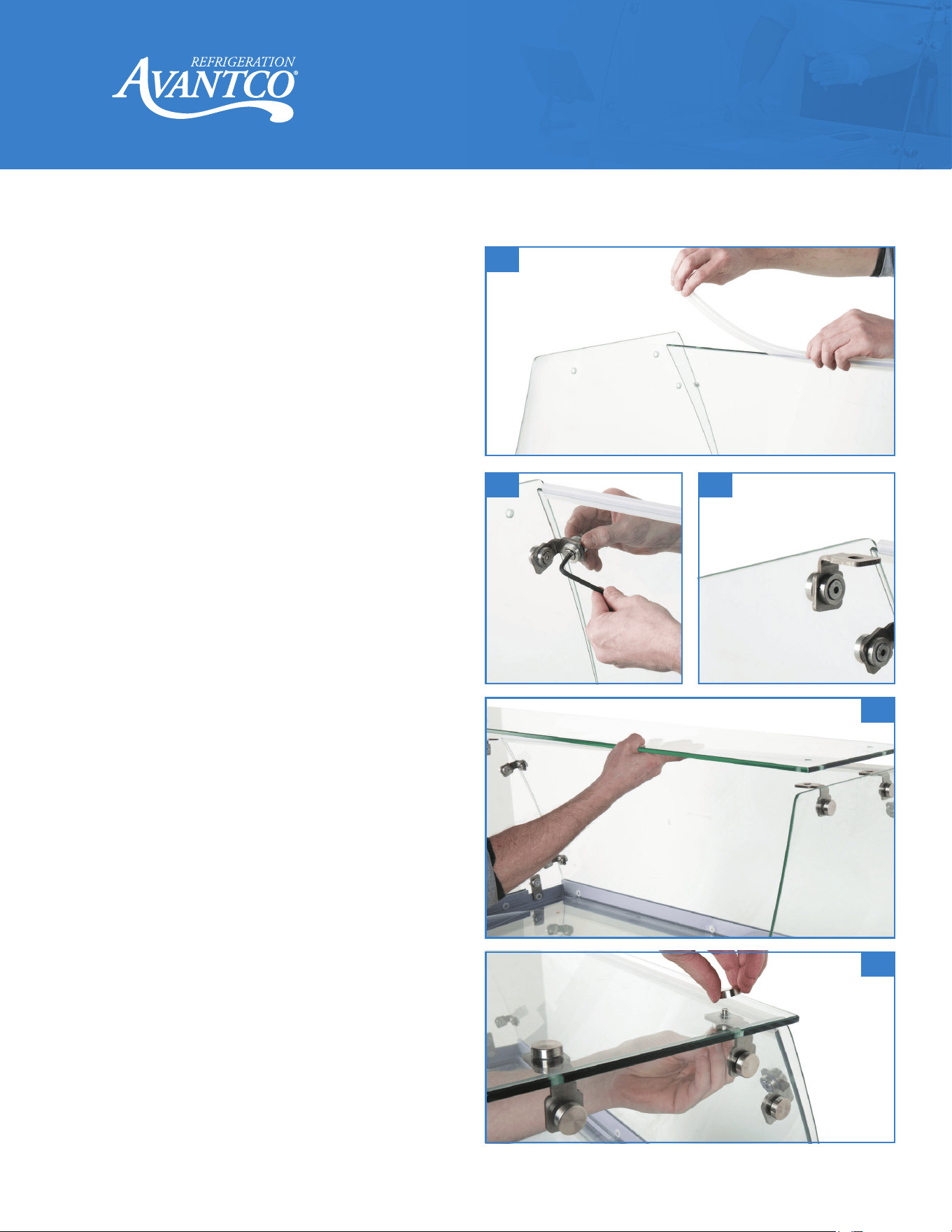

2.
Insert the glass panel into the side channel.
3.
Attach a metal plate to the cabinet at both ends of
the channel, using the Phillips screws and white
washers.
4.
Attach each of the metal plates to the side glass
panel using the socket head screws, white washers,
metal washers, and associated metal fasteners.
5.
Repeat for other side of the cabinet.
1
2
3 4
5
9
User Manual
www.AvantcoRefrigeration.com
Ice Cream Dipping Cabinets Ice Cream Dipping Cabinets
Glass Canopy Assembly
6.
Insert the front glass panel into the front channel.
7.
Install the gasket on the top edge of the front
glass panel.
8.
Use the L-shaped brackets and large screws
to attach the front glass panel to each of the
side panels.
Note: There are two bracket mounting locations on
each side; one at the top and one at the bottom.
9.
Attach L-shaped brackets to the side panels to help
support the top glass panel.
10.
Place top glass panel atop the front and side panels.
11.
Use the L-shaped brackets and large screws to
attach the top glass panel to each of the side
glass panels.
Note: There are two bracket mounting locations on
each side; one at the top and one at the bottom.
7
8 9
10
11
