4x2 Utility Vehicle
Model Series 410
Operator’s Manual
PRINTED IN U.S.A.
FORM NO.
769-01129C.fm
11/14/06
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department.
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

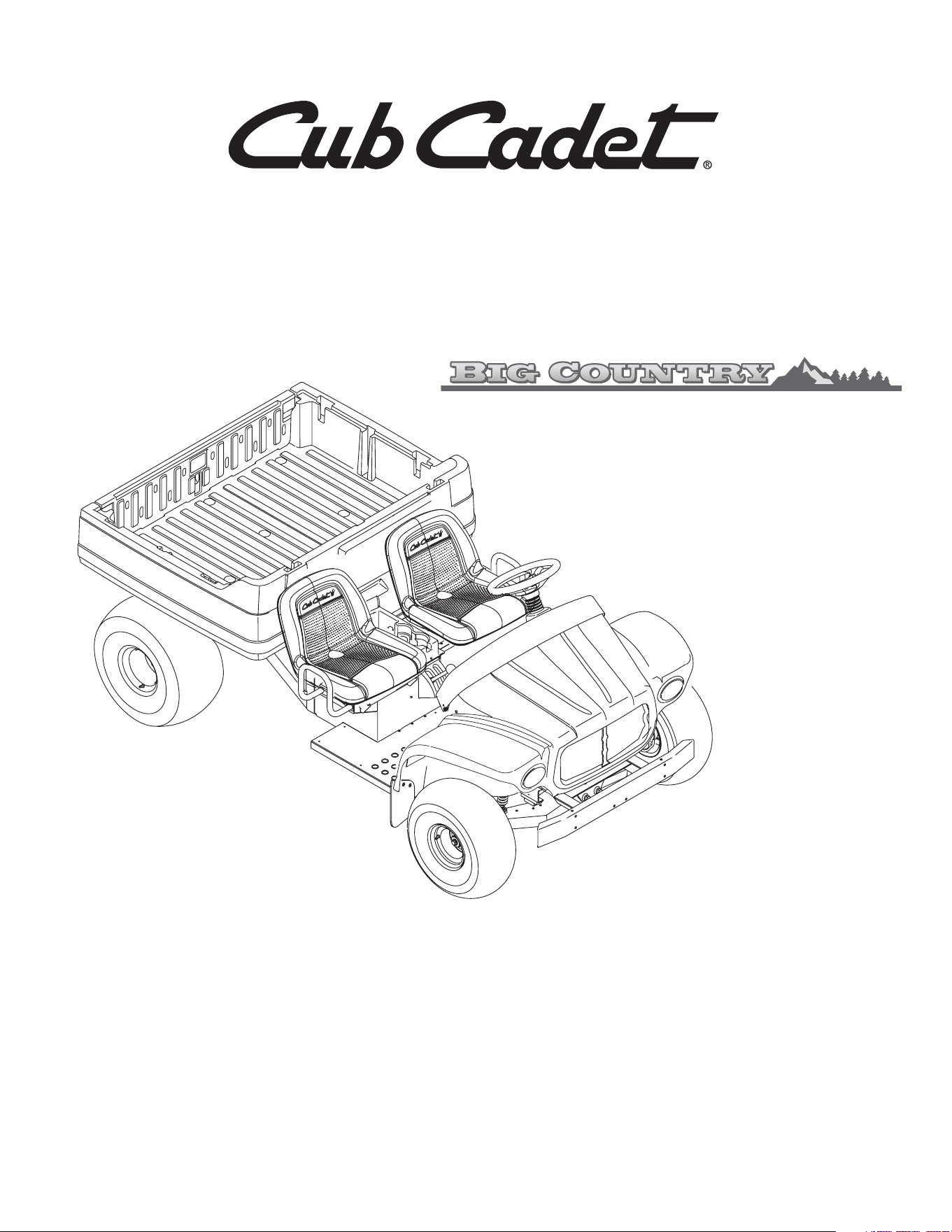

Shown With Poly Bed & Optional Front Bumper
2
TABLE OF CONTENTS
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new utility vehicle. It will help you assemble, prepare
and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the information from it in the space provided below. A sample model plate is
also given below. You can locate the model plate on the vehicle under the operator’s seat. This
information will be necessary to use the manufacturer’s web site and/or help from the Customer
Dealer Referral Line or an authorized service dealer.
CUSTOMER SUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, contact the dealer from which you purchased this vehicle. To find a Cub Cadet
Dealer nearest you choose from the options below:
Visit www.cubcadet.com to search for a service dealer nearest you using your zip code. You
will also find many useful suggestions and tips.
To reach the Customer Dealer Referral Line, please call 1-877-282-8684.
The engine manufacturer is responsible for all engine-related issues with regards to
performance, power-rating, specifications, warranty and service. Please refer to the engine
manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for more
information.
Content Page
Important Safe Operation Practices 3
Know Your Utility Vehicle 7
Operating Your Utility Vehicle 10
Servicing Your Utility Vehicle 12
Service Chart 16
Accessories 17
Specifications 18
Troubleshooting 19
Commercial Warranty 23
Residential Warranty 24
Content Page
Copy the model number here:
Copy the serial number here:
www.cubcadet.com
CUB CADET LLC
P. O. BOX
361131
CLEVELAND, OH 44136
DEALER LOCATOR PHONE NUMBER:
877-282-8684
Engine
Manual
3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
WARNING: This symbol points out important safety instructions which, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in this
manual before attempting to operate or service this vehicle. When you see this symbol - heed its
warning.
WARNING:
Engine exhaust, some of its constituents, and certain vehicle components contain
or emit chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm
.
DANGER: This vehicle is designed to be operated according to the rules for safe operation in
this manual. As with any type of vehicle, carelessness or error on the part of the operator can
result in serious injury. Failure to observe the following safety instructions could result in
serious injury or death.
General Operation
1. Read, understand, and follow all instructions on the
vehicle and in the manual before attempting to
operate or service. Keep this manual in a safe
place for future and regular reference and for
ordering replacement parts.
2. This is an off-road utility vehicle and it should not be
operated on public highways. Know and comply
with all laws and regulations governing the use of
off-highway vehicles in your area.
3. This vehicle handles and maneuvers differently
than a normal passenger car. Sharp high speed
turns and abrupt maneuvers can cause vehicle to
roll over or go out of control. Slow down when
turning and avoid abrupt maneuvers.
4. Handling and maneuvering characteristics of
vehicle change depending upon cargo load. Heavy
loads affect steering, braking, stability, and overall
handling of vehicle.
5. Be familiar with all instructions and controls and
their proper operation before starting vehicle.
6. Never allow adults to operate this vehicle without
proper instruction.
7. Never allow children under 16 years old to operate
this vehicle. Children 16 years old and over should
read and understand the operation instructions and
safety rules in this manual and should be trained
and supervised by a parent.
8. Watch for traffic when operating near or crossing
roadways. This vehicle is not intended for use on
any public roadway.
9. Do not operate this vehicle while under the
influence of alcohol or drugs.
10. Never carry more than one passenger. This vehicle
is designed to carry the driver and one passenger
only. No riders are allowed in cargo box or
anywhere else on vehicle.
11. Keep all body parts (i.e. head, arms, hands, legs,
feet) inside vehicle when vehicle is in motion.
12. Always remain seated and keep both hands on the
steering wheel when driving the vehicle.
13. Sit on the center of the seat and keep both feet
within the foot platform perimeter. Clean foot
platform if dirty and remove any debris from around
foot controls, e.g. brake pedal.
14. Do not misuse the utility vehicle. It is an utility
vehicle, not a recreation vehicle or toy.
Recreational riding can lead to accidents, severe
bodily injury or death.
15. Inspect area around vehicle before moving, espe-
cially in reverse. Back up slowly. Always look down
and behind before and while backing to avoid a
back-over accident. Keep bystanders out of area.
16. Avoid driving through water, since loss of control
may occur. Drive belt may slip if exposed to water
thus reducing vehicle pulling power and stopping
vehicle entirely.
17. Always use vehicle lights while operating in low
light situations.
18. Do not mount or leave vehicle while it is in motion or
in actual operation.
19. Avoid sudden starts, stops, or turns and always use
a level turn-around area.
20. Never leave vehicle unattended with the key in the
ignition. Always turn key to the “Stop” position, set
the parking brake and remove key.
21. Check overhead clearances carefully before driving
under low hanging tree branches, wires, etc.,
where the operator may be struck or pulled from the
unit, which could result in serious injury.
22. Improper use of the vehicle or failure to properly
maintain it could result in decreased vehicle
performance or personal injury.
23. Engine must be stopped when cleaning, servicing,
adjusting, repairing, or installing attachments on
utility vehicle.
24. After striking foreign objects, stop the unit and shut
off the engine. Inspect for damage and repair the
damage before restarting and operating
equipment.
4
25. Do not start or operate vehicle in an inside area,
unless it is adequately ventilated. Engine exhaust
contains carbon monoxide fumes, which are very
poisonous and can be deadly.
26. Do not change engine governor setting or over
speed the engine. The governor is set at the factory
for safe operating speed.
27. Assure safety interlock switch is adjusted correctly
so engine cannot be started unless gearshift is in
the neutral position.
28. Do not touch engine or muffler while engine is
running or soon after it is stopped. They will be hot
and can cause a burn.
29. Always inspect your vehicle each time you use it to
make sure it is in safe operating condition. Always
follow the inspection and maintenance procedures
and schedules described in this manual.
30. If situations occur which are not covered in this
manual, use care and good judgement. Contact
your local service center or call toll free 1-877-282-
8684 for assistance and the name of your nearest
service center.
Slope Operation
Slopes are a major factor related to loss of control and
rollover accidents, which can result in severe injury or
death. If a slope is steeper than a 15° incline, do not
operate this unit on that area. Exercise extreme caution
while operating on slopes.
DO:
1. Travel straight up and down slopes, not across.
Exercise extreme caution when changing direction
on slopes.
2. Travel slowly while on a slope. Always keep the
forward speed limited when going down slopes to
take advantage of the motor braking action.
3. Keep all movement on the slopes slow and gradual.
Avoid starting or stopping on a slope.
4. Avoid slopes with slippery, loose, or bumpy
surfaces as they are especially hazardous.
5. Use extra care while carrying cargo. It may affect
the stability of the vehicle. Spread the load evenly
or tie down.
Do Not:
1. Do not travel near drop-offs, ditches or
embankments. The vehicle could suddenly turn
over if a wheel is over the edge of a cliff, ditch, or if
an edge caves in.
2. Do not stop or start suddenly when going uphill or
downhill. Be especially cautious when changing
direction on slopes.
3. Do not turn sideways to the hill. The vehicle may roll
over. If you must turn, go slow and do so carefully
and gradually.
4. Do not carry cargo on steep slopes or tow loads.
Children
1. Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the vehicle. They do not understand the
dangers. Never assume that children will remain
where you last saw them. Avoid run over accidents.
a. Keep children out of the immediate area of
the vehicle and in watchful care of a
responsible adult other than the operator.
b. Be alert and turn the vehicle off if a child
enters the area.
c. Before and while backing, look behind and
down for small children.
d. Never carry small children, they may fall off
and be seriously injured or interfere with safe
vehicle operation.
e. Use extreme care while approaching blind
corners, doorways, shrubs, trees or other
objects that may block your vision of a child
who may run into the path of the vehicle.
f. Remove key when vehicle is unattended to
prevent unauthorized operation.
2. Never allow children under 16 years old to operate
this vehicle. Children 16 years old and over should
read and understand the operation instructions and
safety rules in this manual and should be trained
and supervised by a parent.
3. Do not let children ride in the cargo box, in the
driver’s or passenger’s lap or anywhere other than
the passenger seat. Never give small children a
ride; not even in the passenger seat. They may fall
off.
Cargo Box Loading/Operation
1. Do not exceed vehicle’s Total Load Capacity rating
of 900 lb. This includes operator, passenger,
accessories, and cargo.
2. Do not exceed 500 lb. load in cargo box.
3. Spread load evenly and secure to prevent
movement.
4. Do not load above height of cargo box front panel.
Load could shift forward and injure driver or
passenger.
5. Avoid loads which exceed the physical dimensions
of cargo box.
6. Go slow. Heavy loads will affect steering, braking,
stability, and overall handling of the vehicle. Limit
loads to those that can be safely controlled.
7. Avoid sudden starts, stops, and turns which could
cause load to shift.

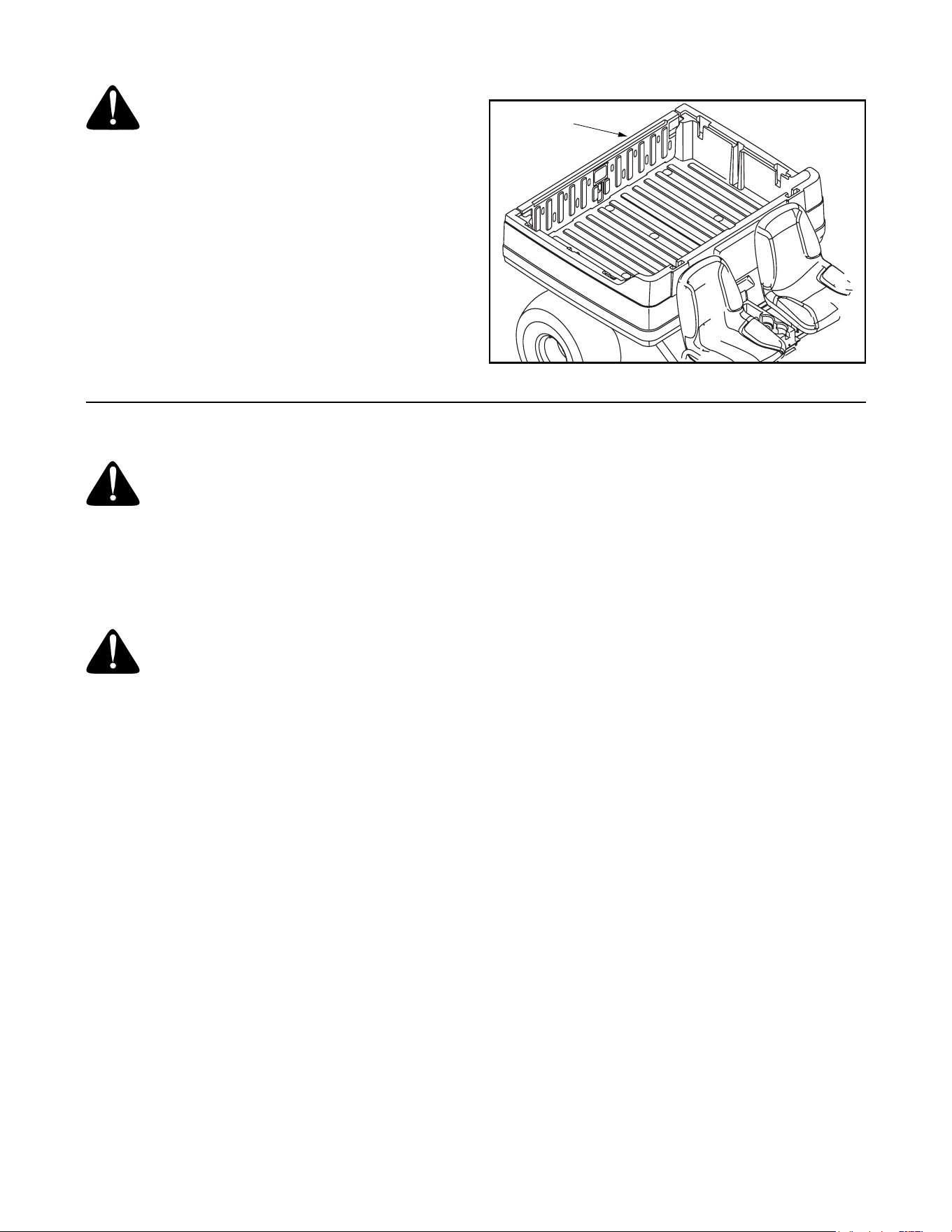

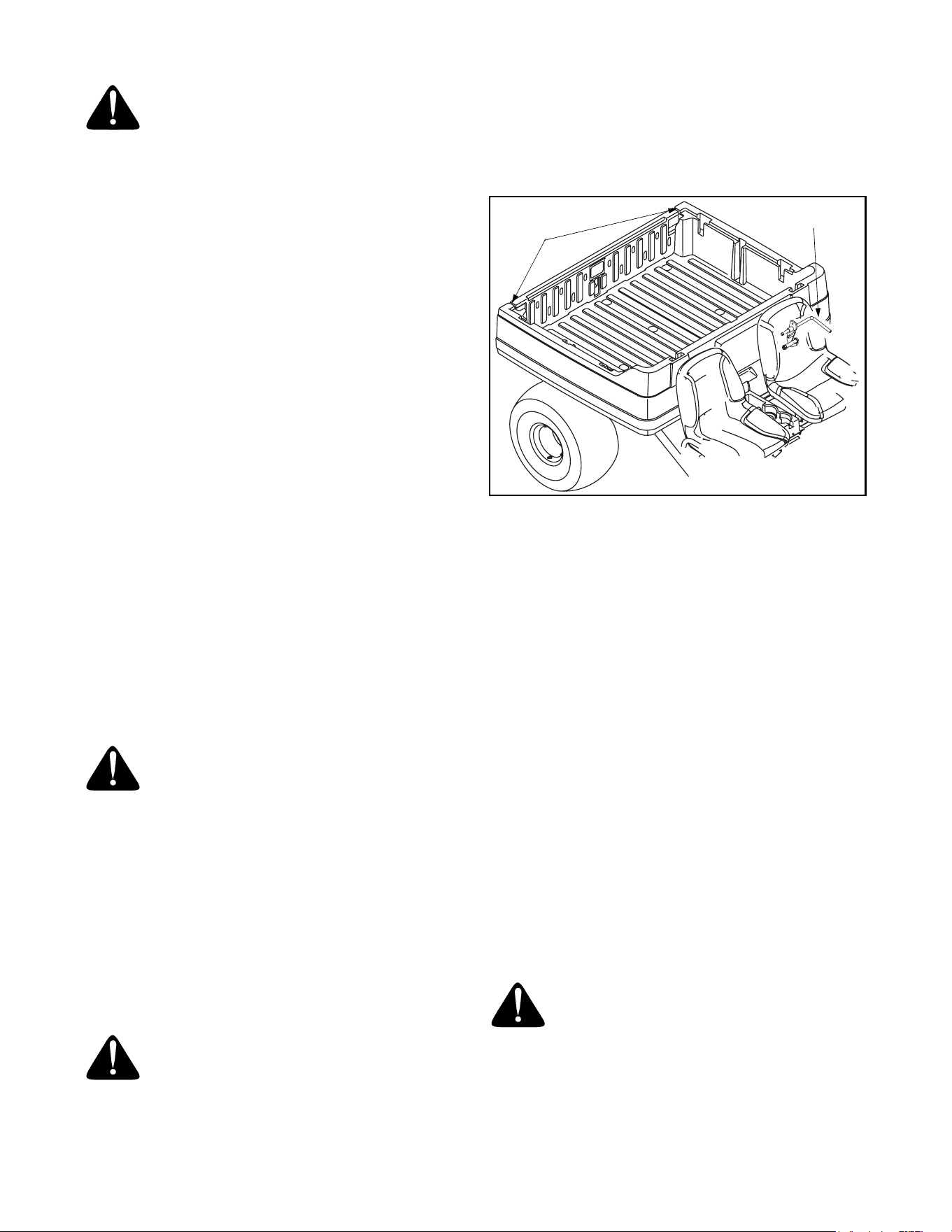

Cargo Box Lift
1. Stop vehicle on level ground and set Parking Brake
before raising cargo box.
2. On manual lift units, unload cargo box before
raising cargo box.
5
3. Do not operate vehicle with cargo box in raised
position.
4. Do not operate vehicle with cargo box latch
unlatched. Always re-latch upon manually lowering
cargo box.
5. When using optional electric lift:
• Stay in driver’s seat.
• Keep body parts away from cargo box and keep all
bystanders away.
• Do not allow rear wheels to hang over the edge of a
drop-off when raising cargo box. Cargo box weight
may shift over center and cause vehicle to tip over
backwards.
Towing
• Always use an approved hitch and hitch point
provided on the utility vehicle.
• Do not tow more than 900 lb. (454 kg) rolling weight
(i.e. trailer plus cargo).
• Never load more than 100 lb. (45.5 kg) tongue
weight on tow bracket provided.
• Go slow and use extra care when towing a trailer.
Allow for increased braking distance. Load trailer
properly.
• Do not tow heavy loads on slopes greater than 5°
incline. When going downhill or turning, the extra
weight tends to push the tow vehicle and may
cause you to loose control (i.e. braking and steering
ability are reduced, towed equipment may jack-
knife and cause utility vehicle to overturn).
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Never fill containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always
place containers on the ground away from
your vehicle before filling.
c. When practical, remove gas-powered
equipment from the truck or trailer and refuel
it on the ground. If this is not possible, then
refuel such equipment on a trailer with a
portable container, rather than from a
gasoline dispenser nozzle.
d. Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times
until fueling is complete. Do not use a nozzle
lock-open device.
e. Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
f. Never fuel machine indoors.
g. Never remove gas cap or add fuel while the
engine is hot or running. Allow engine to cool
at least two minutes before refueling.
h. Never over fill fuel tank. Fill tank to no more
than ½ inch below bottom of filler neck to
allow space for fuel expansion.
i. Replace gasoline cap and tighten securely.
j. If gasoline is spilled, wipe it off the engine
and equipment. Move unit to another area.
Wait 5 minutes before starting the engine.
k. To reduce fire hazards, keep machine free of
grass, leaves, or other debris build-up. Clean
up oil or fuel spillage and remove any fuel
soaked debris.
l. Never store the machine or fuel container
inside where there is an open flame, spark or
pilot light as on a water heater, space heater,
furnace, clothes dryer or other gas
appliances.
WARNING: Your Responsibility: Restrict the
use of this vehicle to persons who read,
understand and follow the warnings and
instructions in this manual and on the unit.
6

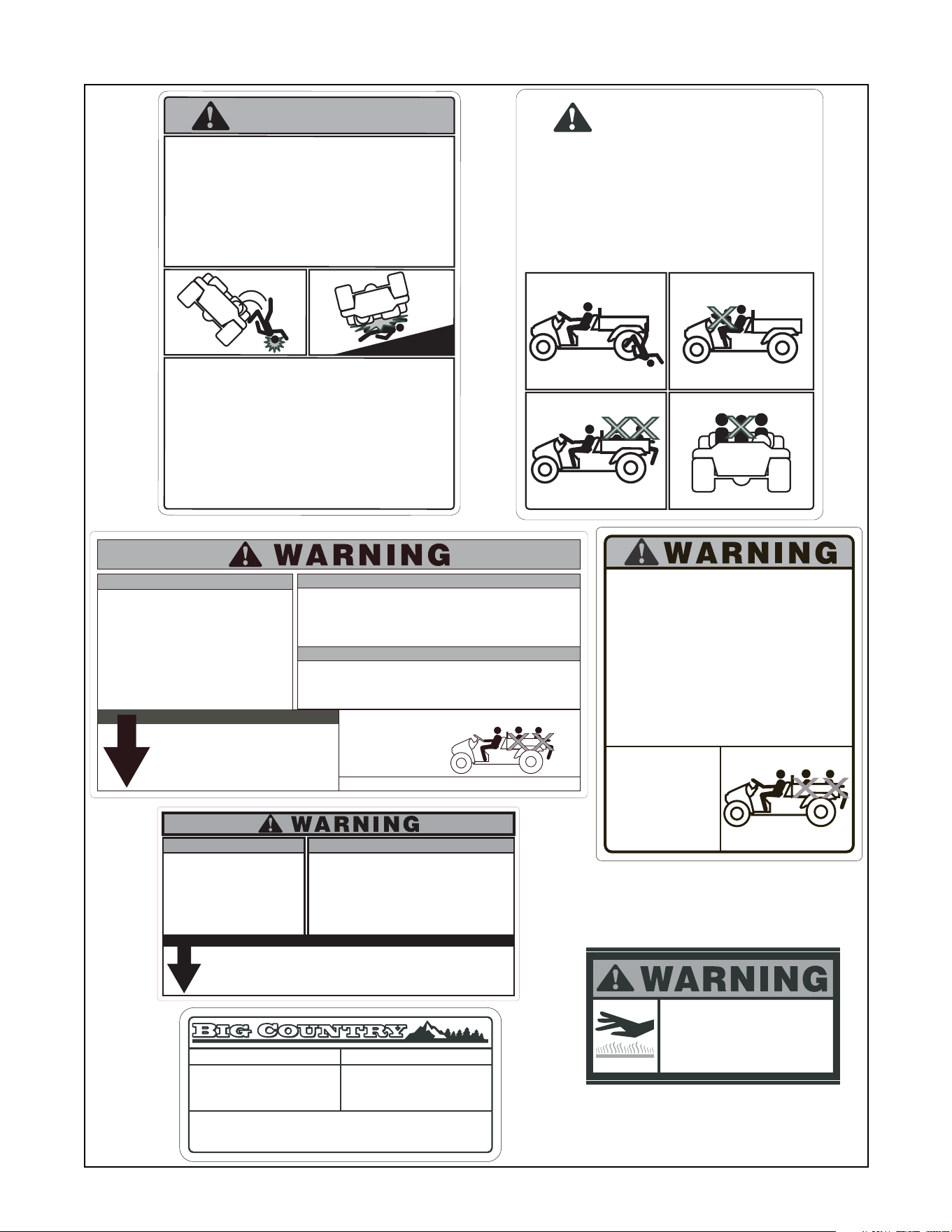

WARNING
MAX 15º
• This is an off-road utility vehicle. Do not operate
on public highways. It handles and maneuvers
differently than a normal passenger car. Sharp,
high speed turns or abrupt maneuvers can
cause vehicle to roll over or go out of control.
• Handling and maneuvering characteristics
of vehicle change depending upon cargo load.
Heavy loads will affect steering, braking,
stability and overall handling of vehicle.
• Read and understand operator's manual
before operating vehicle.
• Only one person in each seat.
• No other riders permitted.
• Keep hands and feet inside vehicle during
operation.
• Do not operate on slopes greater than 15º.
• Drive slowly when turning, on rough ground,
or carrying a cargo load.
• Spread load evenly in cargo box. Do not exceed
load capacity specified on cargo box label.
• Secure load to prevent movement.
FALLING OFF OR ROLLOVER MAY
CAUSE SERIOUS INJURY OR DEATH
S32241 AC
Hot Surface
Do Not Touch
RIDERS CAN FALL OFF AND BE
SERIOUSLY INJURED OR KILLED
Only one person in each seat.
No riders in the cargo box or anywhere
other than seats.
WARNING
DAOL XOB OGRAC
.
bL
0
05 XAM
:
YTICAPAC
d
aol
eruceS
.yln
eve
daol daerpS •
.t
n
e
m
e
vom tneverp ot
dna strat
s
neddus
diovA .wols oG •
.
tfih
s
o
t
d
ao
l
es
u
ac dluoc hcihw spots
si
ht
fo th
g
i
e
h ev
o
ba
da
ol
t
on
oD •
dr
aw
r
of
t
fihs
d
l
u
oc
da
o
L
.le
na
p
.r
egn
ess
ap r
o
r
ev
ir
d g
ni
r
uj
n
i
NI SREDIR ON
XOB OGRAC
EREHWYNA RO
NAHT REHTO
.STAES
CA 49
323
S
.
b
L
0
0
9
.
XAM = yticap
a
C daoL latoT
G
K
19
/
.bL
002
,rotare
po
GK 19
/ .bL 00
2 sedulcnI(
)
.
y
t
i
capac
xob
o
g
ra
c GK 722 / .bL 0
05 dna regnessa
p
GK 944 / .bL 099
yrettaB sedulcnI
.sdiulF dna
G
K
7
5
8
/
.b
L
0
9
8
1
.
t
W gn
i
t
a
r
e
p
O
s
e
d
ul
c
n
I
i
c
a
p
a
C
d
a
o
L
l
a
t
o
T
d
na
.
yt
thgieW elcih
e
V
s
sorGthgi
eW gnitare
p
O
.bL 00
5
XA
M
:
YTICAPAC DAOL X
O
B OGRAC
n
op
u h
ctal
xo
b
og
r
ac
hc
tal-
e
r syawl
A
•
.
x
o
b
o
grac g
n
i
r
ew
o
l
y
ll
a
u
n
a
m
ogr
a
c
htiw
el
c
i
hev
d
ao
l
ro etar
e
p
o ton
oD •
.
d
eh
ct
a
l
n
u
h
ct
a
l xob
t
n
ev
er
p o
t
daol
eruce
S
.y
l
n
e
v
e d
a
o
l
daer
p
S
•
.tnemev
o
m
hci
h
w sp
o
ts
d
n
a strat
s
nedd
u
s diov
A
.
w
ols
o
G
•
.tfihs
o
t d
a
o
l
es
u
ac
d
l
u
oc
da
oL
.l
e
n
a
p siht
f
o thg
i
e
h
ev
o
ba
d
a
o
l ton
o
D •
.r
eg
n
e
ssap ro
revi
r
d
g
niru
j
n
i
dra
w
r
o
f t
f
i
hs
dluoc
e
rehwy
n
a
r
o
x
o
b
o
grac
n
i sre
d
i
r oN
•
.s
ta
es nah
t
reh
t
o
TFIL
XO
B
OG
R
AC
GNISU
N
E
HW
Y
RU
JNI
DI
OVA
X
O
B
O
GRA
C
YRUJNI DNA
T
NED
I
CCA
N
A DIOVA OT
g
ni
d
a
o
l ,
g
n
i
t
fi
l
ro
f
la
u
nam s
'
ro
t
are
p
o d
n
atsre
d
nu dna daeR
•
.
s
no
i
tc
u
r
ts
n
i
gn
i
da
ol
n
u
d
na
.tfil g
n
i
t
are
p
o ero
f
eb e
k
arb
gnikra
p
t
es
d
n
a
dnuorg
l
e
v
el n
o
e
lc
i
hev
pot
S
•
sdn
a
h
pe
e
k dna taes
n
i yats
t
fi
l
ci
r
t
c
el
e
l
a
noitp
o
g
n
isu
n
e
h
W
•
.x
o
b
og
r
ac morf yawa
.)og
r
a
c
s
u
lp
r
e
l
iart
,
.
e
.i(
t
h
g
ie
w g
n
i
l
lo
r
.
bL
0
09
n
ah
t
e
ro
m
wo
t
t
o
n
oD •
.
t
hgi
ew
eug
n
ot
.
bl
0
01
de
ec
x
e reveN
.y
l
n
e
ve dao
l
d
aer
pS
•
.e
c
na
ts
id
g
n
i
ka
r
b d
e
sae
r
cni
rof
wollA
.
gniwot
ne
h
w e
r
ac artx
e
es
u
dn
a
wo
ls
oG
•
5 a revo
sep
o
l
s
n
o
sd
a
ol
y
v
ae
h
wo
t t
on
oD
•
˚
.
e
n
il
c
n
i
S32390 AC
H
C
TA
L DEB
E
TA
RE
PO
OT
.hc
t
a
l
e
saeler ot
nw
od
r
evel llu
P
•
.pu deb tfiL •
erof
e
b dehcta
l
si deb ees ot kcehc syawlA
•
.el
c
i
h
ev
fo
n
o
i
ta
r
epo
r
a
elc sregnif
peek
de
b
gni
r
ewol
n
ehW •
.d
eb
dn
a
h
cta
l
fo
• Always re-latch cargo box
latch upon manually lowering
cargo box.
• Do not operate or load vehicle
with cargo box latch
unlatched.
AVOID INJURY WHEN USING CARGO BOX LIFT
CARGO BOX
• Read and understand operator's manual for
lifting, loading and unloading instructions.
• Stop vehicle on level ground and set parking
brake before operating lift.
• When using optional electric lift stay in seat
and keep hands away from cargo box.
S32390 AC
• Pull lever down to release latch.
• Lift bed up.
• Always check to see bed is latched before operation of vehicle.
• When lowering bed keep fingers clear of latch and bed.
TO OPERATE BED LATCH
7
SECTION 2: KNOW YOUR UTILITY VEHICLE
NOTE: Reference to right or left hand side of the utility vehicle is observed from the operating position.
Figure 1
Read this operator’s manual, safety labels, and
operating instructions on the vehicle before operating.
Compare the illustrations in this manual with your unit
to familiarize yourself with the location of various
controls and adjustments. Reference to the right or left
hand side of unit is observed from the operating
position. Save this manual for future reference.
See Figure 1.
Read the Engine operator’s manual before operating
this vehicle to familiarize yourself with the engine
controls and adjustments.
NOTE: Before operating your vehicle, follow the
starting instructions in the Operating Section and
check tire pressure per the recommendations in the
Maintenance Section.

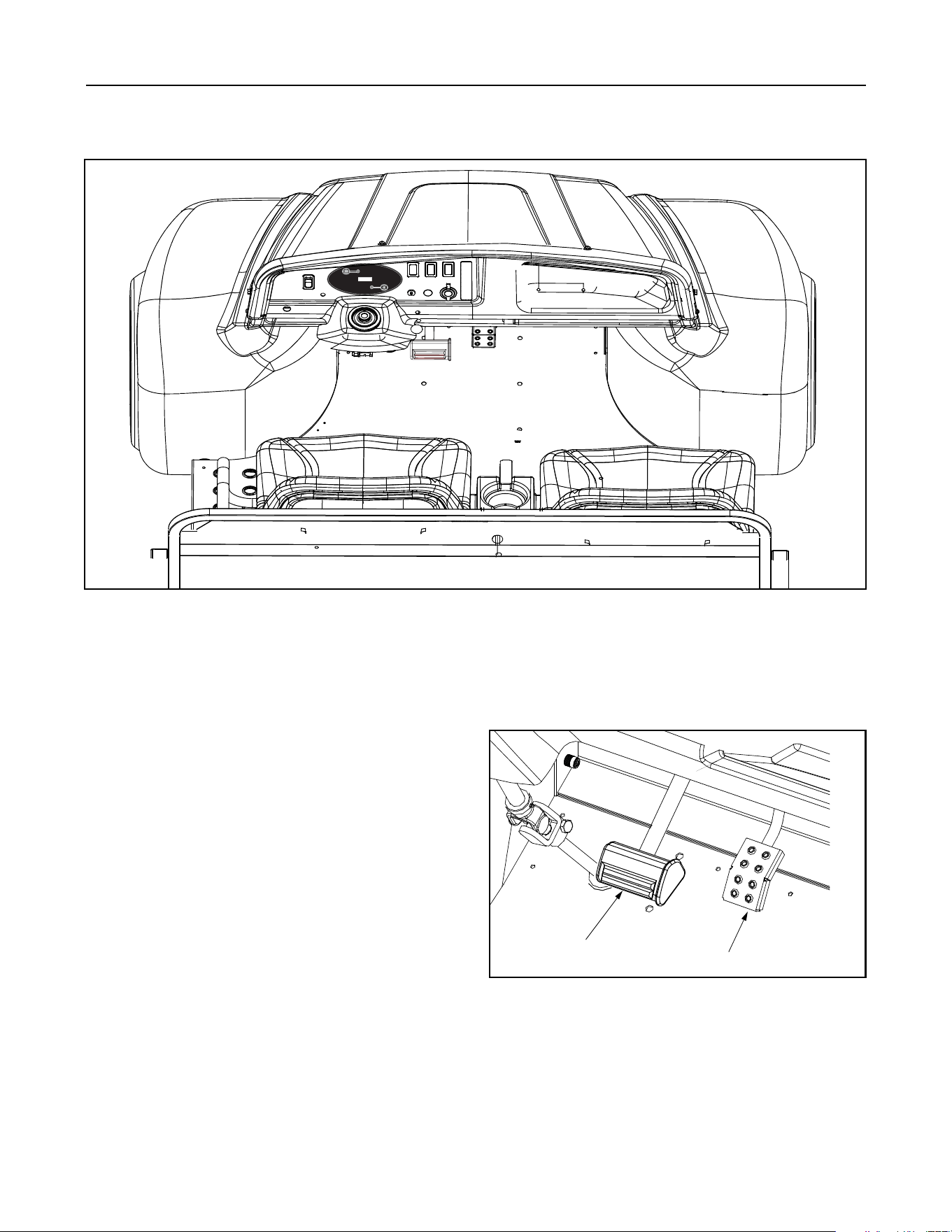

Accelerator Pedal
The accelerator pedal is located on the right side of the
floor beneath the dash panel. Depressing the
accelerator pedal will move the vehicle in the direction
selected on the gearshift. As the pedal is depressed,
speed will increase to the maximum selected range.
Releasing the pedal reduces the speed, but does not
stop the vehicle. The brake must be applied to stop
vehicle. See Figure 2.
Brake Pedal
The brake pedal is located on the left side of the floor
beneath the dash panel. Remove foot from accelerator
pedal apply pressure to the brake pedal evenly until
vehicle slows down and stops. See Figure 2.
Figure 2
Parking Brake Latch
The parking brake latch is located on the dash panel to
the right of the steering wheel. It holds the brake in the
engaged position for parking. See Figure 3.
BATTERY
DIE CUT
PARKING
P
+
HOURS 1/10
0.00
DIE CUT
Brake Pedal
Accelerator Pedal
8
• To engage the parking brake, push brake pedal
down firmly, pull out on the parking brake latch, and
release foot from brake pedal. Brake pedal will stay
down and parking brake light on dash will come on
to indicate parking brake is engaged.
• To release parking brake, push down on brake
pedal and parking brake latch will release.
Figure 3
Ignition Switch
WARNING: Never leave a running machine
unattended. Always set parking brake, stop
engine and remove key to prevent unintended
starting.

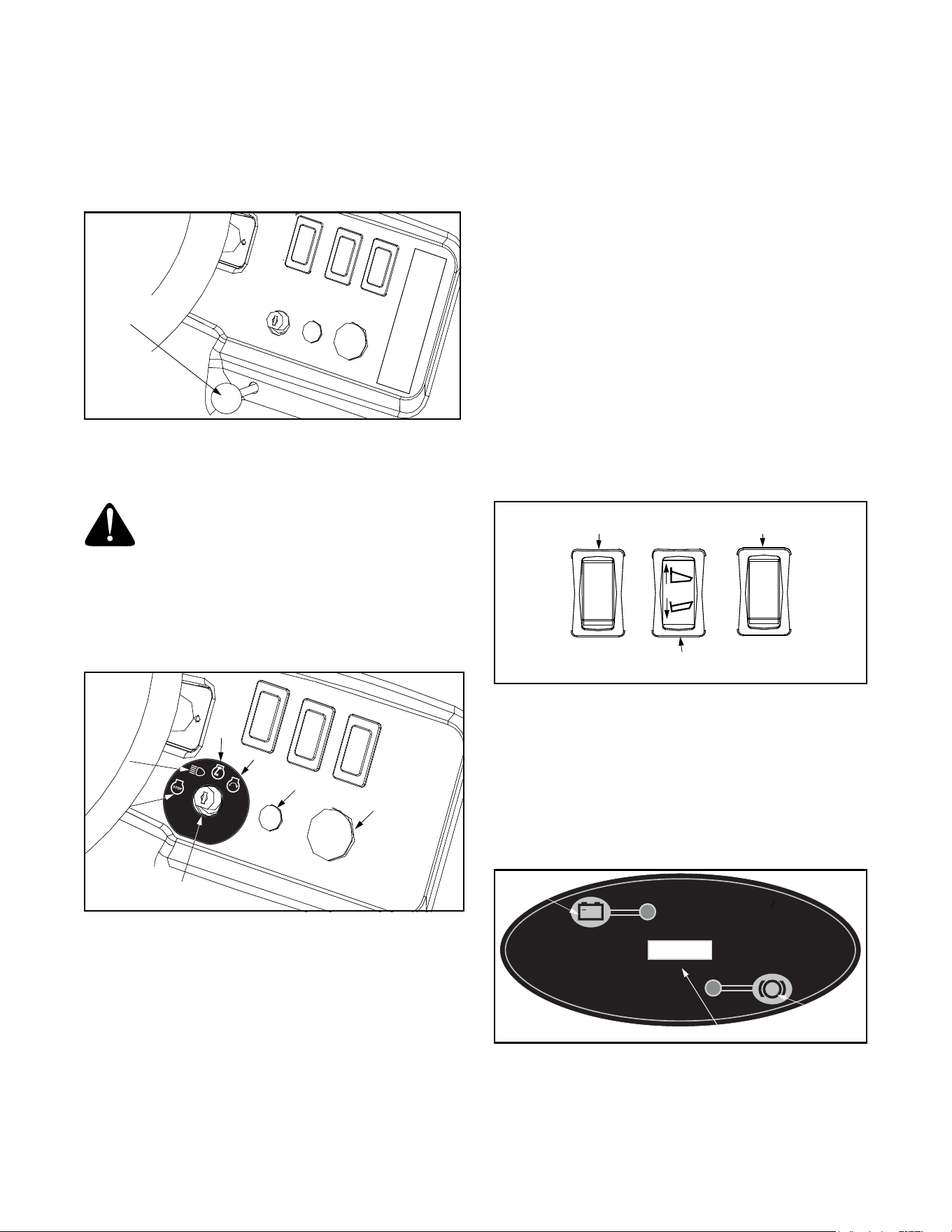

The ignition switch is located on the right side of the
dash panel. To start the engine, insert the key into the
ignition switch and turn clockwise to the START
position. Release the key into the ON or ON/LIGHTS
position once engine has fired. See Figure 4.
Figure 4
Refer to Starting The Engine in the Operation Section of
this manual for detailed starting instructions
The ignition switch is also used to operate the utility
vehicle’s headlights. Refer to Operating The Headlights on
page 11 of this manual for detailed instructions.
Horn Switch (Optional)
The horn switch is located on the right side of the dash
panel. Push button to activate horn. See Figure 4.
12V Power Outlet (Optional)
The 12V power outlet is located on the right side of the
dash panel. It is used for the convenience of plugging in
accessories that require a power source with a
maximum load of 5 amps at 12 volts. See Figure 4.
Accessory Power Switch (Optional)
If equipped, the accessory power switch is located on
the right side of the dash panel. This switch turns power
on or off for optional accessories. See Figure 5.
Cargo Box Electric Lift Switch (Optional)
If equipped, the cargo box electric lift switch is located
on the right side of the dash panel. It activates lift to
raise and lower cargo box. See Figure 5.
Rear Power Outlet (Optional)
If equipped, the rear power outlet is located on the right
side of the dash panel. It turns power on and off for the
rear outlet. See Figure 5.
Figure 5
Warning Light Cluster
The warning light cluster is located in the middle of the
dash panel. There are two warning lights: battery light,
and parking brake light. The parking brake light indi-
cates when parking brake is engaged. The battery light
will indicate that the battery is not charging. See Figure
6.
Figure 6
Hour Meter
The hour meter is located in the center of the warning
light cluster. It reads the elapsed time engine has run.
See Figure 6.
Parking Brake
Latch
Horn Plug
Ignition
Switch
Stop
On/
Lights
On
Start
12V Power
Outlet Plug
Cargo Box Electric
Lift Switch
(Optional)
Rear Power
Outlet
(Optional)
Accessory
Switch
(Optional)
Power
BATTERY
DIE CUT
PARKING
P
+
HOURS 1/10
0.00
DIE CUT
Hour Meter
Battery
Light
Parking
Brake
Light
9
NOTE: The hour meter initially displays the battery
voltage when you first turn it on.
Choke
The choke lever is located on the left side of the dash
panel. The choke is used when starting a cold engine. It
richens the fuel mixture for cold weather starting.
See Figure 7.
Figure 7

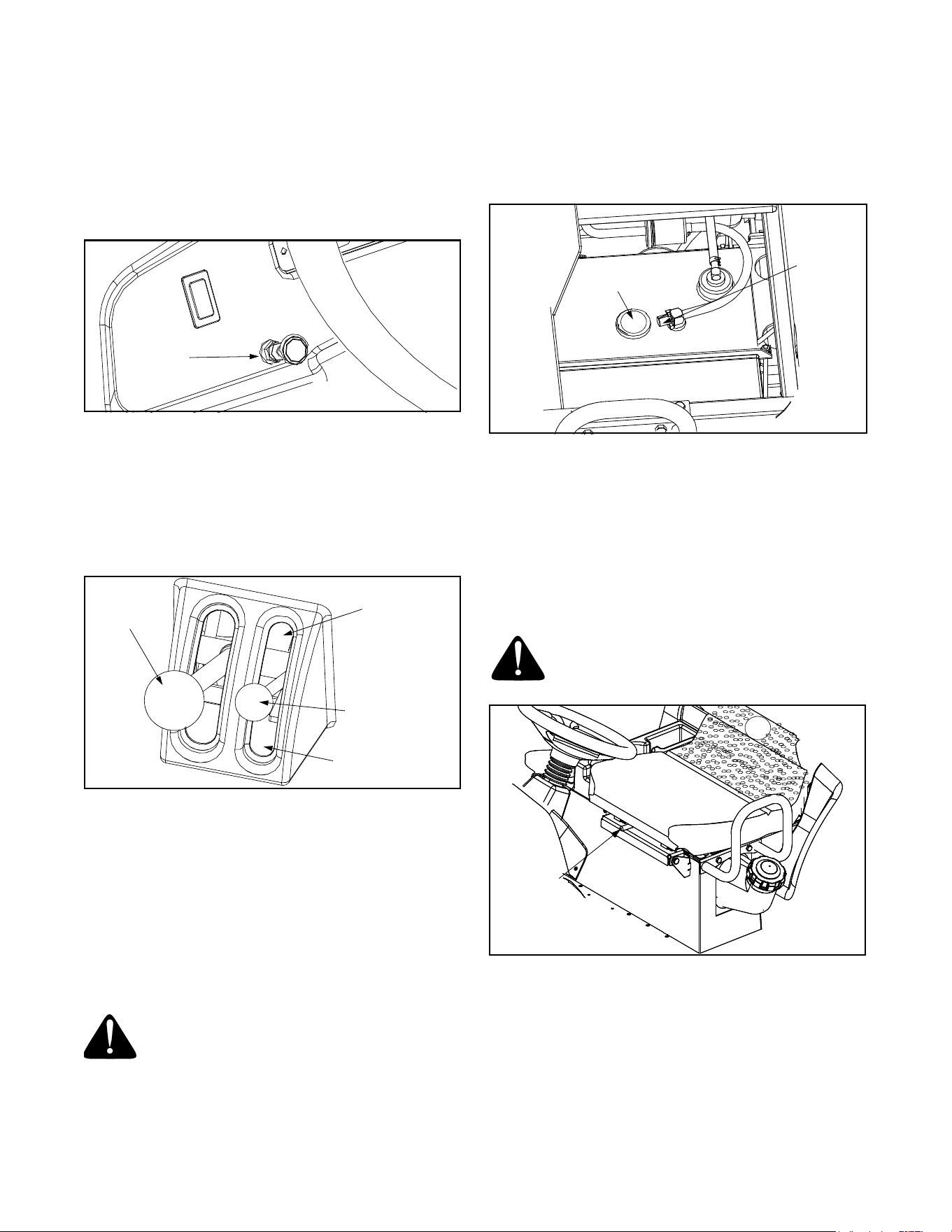

Differential Lock Lever
The differential lock lever is located between the seats.
It has the smaller ball knob and its activates the
differential locking mechanism. The differential lock is
used to lock the differential so both drive wheels will pull
equally when rear wheels start to slip. See Figure 8.
Figure 8
Gearshift Lever
The gearshift is located between the seats. It has the
larger ball knob and it controls neutral, forward, and
reverse of the vehicle. See Figure 8.
Cup Holders
The cup holders are located between the seats. They
are designed for the use of non-alcoholic beverages.
WARNING: Never operate this vehicle while
under the influence of alcohol or drugs. Doing
so can result in serious personal injury or
death.
Fuel Shut Off Valve
The fuel shut off valve is located under the seat and it is
strapped onto the fuel tank. It controls fuel to the
engine. To turn fuel off, turn knob so indicator is down.
To turn fuel on, turn knob to the up position. See Figure
9.
Figure 9
Adjustable Seat Lever
The adjustable seat lever is located beneath the
driver’s seat on the front side and it is used to move the
seat forward and backward. See Figure 10.
• Slide the lever to the left and push the seat forward
or back to the desired position.
• Release the lever so that it locks the seat in place.
WARNING: Make sure seat is in locked
position prior to operation and do not try to
adjust the seat position while operating the
vehicle.
Figure 10
Cargo Box
The cargo box is raised by a gas spring. Manually
remove the contents of the cargo box before lifting the
cargo box. Release the latch and lift up the cargo box.
Once the cargo box is in the raised position, access to
the engine is possible. If equipped with a electrical lift,
the cargo box can be raised to dump cargo. See Figure
11.
Choke
Gearshift
Differential Lock
Lever
Engaged
Disengaged
Lever
Fuel Shut
Off Valve
Fuel Level
Gauge
Seat Lever
10
WARNING: Do not exceed the vehicle’s
Total Load Capacity of 900 lb., which
includes driver, passenger, accessories, and
cargo. Do not exceed 500 lb. in the cargo
box.
Figure 11
SECTION 3: OPERATING YOUR UTILITY VEHICLE
WARNING: This is an off-road utility vehicle
and it should not be operated on public
highways. Know and comply with all laws and
regulations governing the use of off-highway
vehicles in your area.
IMPORTANT:
Before starting the engine read this
manual and the Engine manual thoroughly to
understand all instructions.
WARNING: Do not run an engine in an
enclosed area. Move the vehicle to an
outside area before running the engine.
IMPORTANT:
Tires are shipped over-inflated. Reduce
inflation pressure in all tires to approximately 5 -7 psi.
Check Neutral Safety Switch
• Sit in the operator’s seat and place key switch in
STOP position.
• Lock parking brake and move gearshift lever to the
forward position.
• Move key switch to START position. The engine
should NOT crank.
• Turn key switch to STOP and move gearshift lever
to the reverse position.
• Move key switch to START position. The engine
should NOT crank.
• Turn key switch to STOP.
• Keep engine compartment clean and be sure fan or
flywheel screen remains installed and clean.
Starting Engine
• Sit in the operator’s seat and place key switch in
STOP position
• Lock parking brake and place into neutral.
• Pull out the choke knob if engine is cold.
• Turn key to the START position.
• Release key to the RUN position when engine
starts.
• If engine does not start, wait a few seconds and
repeat procedures.
• After engine starts, gradually push in choke knob.
• Release parking brake.
IMPORTANT:
DO NOT run the starter continuously for
more than 5 seconds, otherwise the battery may
discharge quickly.
NOTE: If engine surges after starting while idling or
driving at a low speed, apply choke as needed until
engine has warmed up.
IMPORTANT:
Do not operate the engine under full load
until engine has warmed up.
Stopping Engine
• To stop utility vehicle, release accelerator pedal
and depress brake pedal until vehicle comes to a
complete stop.
• Put unit back into neutral.
• Lock parking brake and turn key switch to STOP
position.
• Remove the key when not in use.
WARNING: The vehicle will roll if the parking brake is
not engaged and locked.
Driving Utility Vehicle
• Make sure front wheels are turned to the desired
direction.
• Depress brake pedal to release parking brake.
• To avoid damaging transmission, depress brake
pedal fully and make sure vehicle is completely
stopped before shifting into Forward or Reverse.
Cargo Box
11
WARNING: Do not stop or start suddenly
when going uphill or downhill. Be especially
cautious when changing direction on slopes.
Apply brakes when going down slopes to
maintain control of vehicle.
• Release brake pedal and apply pressure to the
accelerator pedal.
• Release accelerator and apply brake pedal evenly
and firmly to slow down or stop.
Operating The Headlights
To turn the utility vehicle’s headlights on:
• Start the engine following the instructions earlier in
this section.
• Turn the key one notch counterclockwise into the
On/Lights position of the ignition switch. Refer to
Figure 4.
To turn the utility vehicle’s headlights off:
• Turn the key either into the On position (to leave the
engine running) or the Stop position (to shut the
engine off). Refer to Figure 4.
NOTE: Never move the key into the Start position while
the engine is running. Doing so may cause damage to
your engine’s electric starter.
Engaging Differential Lock
• Stop or slow vehicle speed and pull up on lever to
lock differential. The differential will remain
engaged as long as lever is held in the up position.
IMPORTANT:
Engage the differential when the left and
right side wheels are turning at slightly different speeds.
Do not attempt to turn when differential lock is engaged.
WARNING: To avoid transaxle damage or
injury, go slow when operating vehicle with
differential lock engaged as steering
response is noticeably reduced.
Disengaging Differential Lock
• To disengage the differential lock, simply release
the lever, allowing it to return to the bottom position.
Torque must be equal on both axles for differential lock
to release. It is best to slow down and drive straight
ahead at a constant speed when disengaging the
differential.
Raising and Lowering Cargo Box
WARNING: To prevent the possibility of
bodily injury from unintentional lowering of
the cargo box, be sure vehicle is on a level
and stable surface and parking brake is
locked before raising cargo box.
Manual Lift
• Park the vehicle safely on level ground and set
parking brake.
• Empty cargo by hand and unhook cargo box latch
located in front of box. See Figure 12.
• Lift cargo box.
Figure 12
• Lower and relatch cargo box before operating unit.
Electric Lift (Optional)
• Park the vehicle safely and turn key to the RUN
position.
• Raise cargo box by pressing and holding top of
electric lift switch. Release switch when box is at
desired dump height or when maximum height is
reached.
NOTE: A ratcheting noise will indicate cargo box is at
full extension. The same noise will also be heard when
cargo box is at the full down position. If lift capacity of
the power lift is exceeded, a ratcheting will also be
heard.
• To lower cargo box, push on bottom of electric lift
switch. Turn ignition switch to the STOP position.
Dumping Load From Cargo Box (W/ Electric Lift)
• Back up the vehicle to the dump site and apply
parking brake.
• Open tailgate latch. See Figure 12.
• Raise cargo box to dump load and lower box when
empty.
WARNING: The center of gravity changes as
a loaded cargo box is raised. Do not allow
rear wheel to hang over the edge of a loading
dock or ravine. The cargo box weight may
shift over center and vehicle could tip over
backwards.
WARNING: Do not drive the vehicle with cargo box in
the raised position.
Cargo Latch
Tailgate
Latch
12
WARNING: A loaded cargo box can be very
heavy. Do not attempt to dump a loaded
cargo box unless vehicle is equipped with an
electric lift option.
IMPORTANT:
When dumping by electric lift, stop
immediately if actuator clutch slippage occurs. Lower
cargo box completely and remove excess load by hand
before dumping.
Loading the Cargo Box
WARNING: The utility vehicle may become
unstable if the cargo box is loaded
incorrectly. Avoid loose and shifting loads or
uneven loading of material.
• Verify cargo box is latched before loading.
• Securely anchor all loads in cargo box and do not
load beyond maximum capacity.
• The maximum box capacity is 500 lbs (362.9 kg).
• When loading objects into vehicle, be sure load is
securely anchored and evenly distributed in cargo
box.
• Do not load above height of cargo box front panel.
Load could shift forward striking driver or
passenger or cause driver to loose control of
vehicle.
• Avoid loads which exceed physical dimensions of
cargo box.
• Avoid concentrated loads at rear or side of cargo
box. Be sure load is distributed evenly.
• Reduce load and ground speed when operating
over rough or hilly terrain. DO NOT overload
vehicle. Limit loads to those that can be safely
controlled.
Towing Loads
WARNING: To help prevent personal injury
due to loss of control or tipping, always tow a
load slowly enough to maintain control.
• Do not tow a load that exceeds 900 lbs.(454.5 kg)
rolling weight (i.e. trailer plus cargo) and never
exceed 100lbs (45.5kg) tongue weight.
• Go slow when towing a heavy load. Allow for
increased braking distance. Tow load at a speed
slow enough to maintain control.
• Do not tow on slopes greater than 5°.
• Be particularly cautious when towing down even a
gradual slope or turning. The extra weight tends to
push the tow vehicle and may cause you to lose
control (braking and steering ability are reduced;
towed equipment may jack-knife).
IMPORTANT:
Extreme angles such as high railroad
crossings can place high bending loads on hitch
connection. If traversing terrain where these conditions
exist, use of a ball or pintle type hitch is recommended.
• Always use approved hitch and hitch point provided
for the utility vehicle. Do not modify the hitch in any
way.
Transporting Vehicle
IMPORTANT:
Never tow the vehicle. Transaxle damage
will occur if vehicle is towed. Haul the vehicle on a
heavy-duty trailer or on a full-size truck.
• Once the utility vehicle is loaded onto the trailer or
truck, leave transaxle gearshift lever in forward or
reverse.
• Apply parking brake and turn fuel shut-off valve to
OFF position during transport.
• Fasten vehicle to trailer or truck with straps, chains,
or cables.
SECTION 4: SERVICING YOUR UTILITY VEHICLE
Lubrication
Front Axle Lubrication
• Lubricate one grease fitting on each axle with 2 or 3
shots of grease every 50 hours.
Engine
Read the engine operator’s manual for any service or
maintenance information pertaining to the engine.
Filling Fuel Tank
• Stop the vehicle on a level surface and apply
parking brake.
• Turn the ignition key to the STOP position and
remove the key.
• Allow engine to cool several minutes before you
add fuel.
• Clean area around fuel cap and remove cap.
See Figure 13.
• Fill tank with fresh, unleaded, regular grade fuel
only to bottom of filler neck. Use a minimum of 87
octane.
• After refueling, make sure tank cap is closed
securely.
13

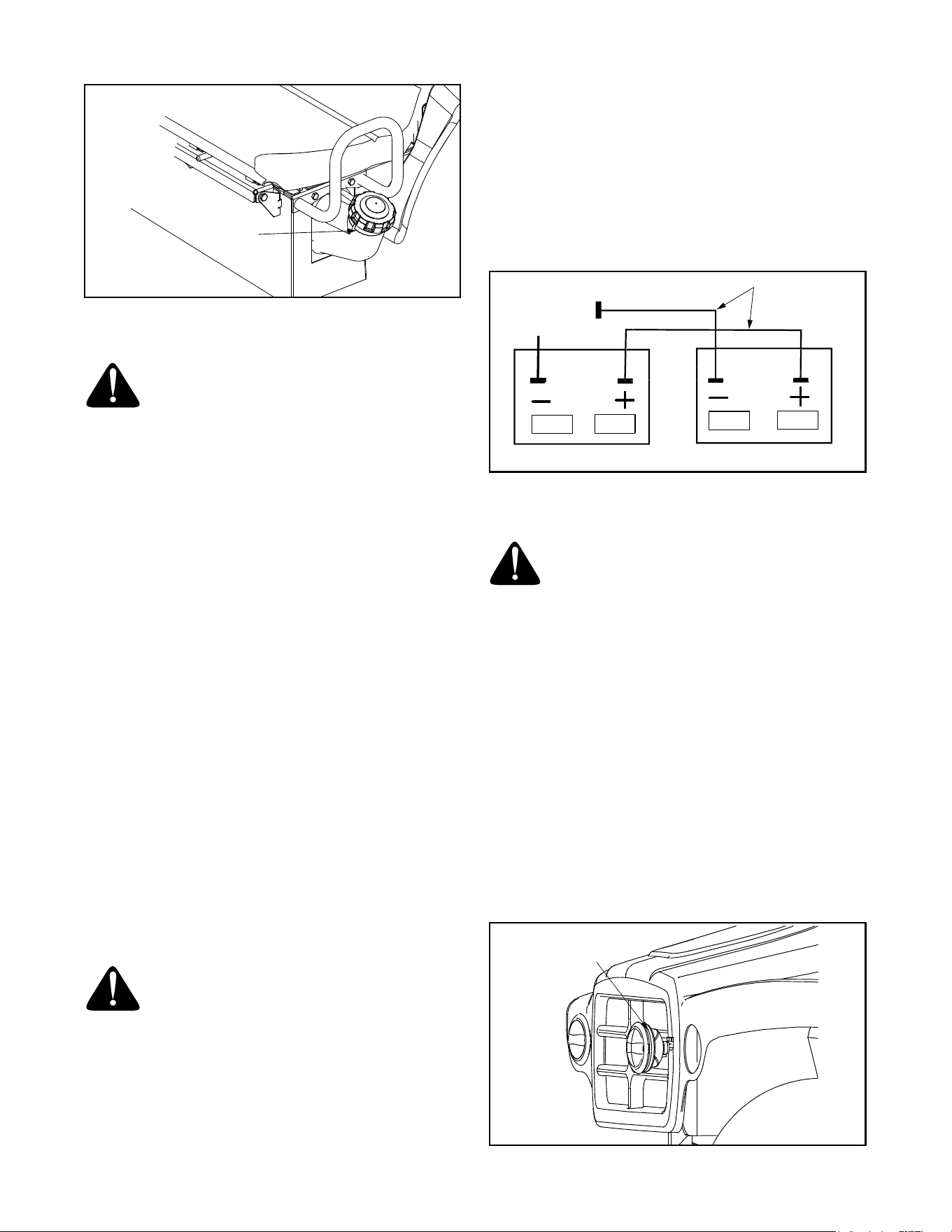

Figure 13
Battery
WARNING: The battery produces a
flammable and explosive gas. Do not smoke
near battery. Wear eye protection and gloves
when handling the battery. Do not allow direct
metal contact across battery posts.
The battery is sealed and is maintenance-
free. Acid levels cannot be checked and fluid
can not be added.
IMPORTANT:
If removing the battery for any reason,
disconnect the NEGATIVE (Black) wire from it’s
terminal first, followed by the POSITIVE (Red) wire.
When re-installing the battery, always connect the
POSITIVE (Red) wire to its terminal first, followed by
the NEGATIVE (Black) wire. Be certain that the wires
are connected to the correct terminals; reversing them
could change the polarity and cause damage to your
engine’s alternating system.
Clean Battery and Terminals
• Remove battery from vehicle. Always remove
negative cable first when disconnecting.
• Wash battery with solution of four tablespoons of
baking soda to one gallon of water.
• Rinse the battery with plain water and dry.
• Clean terminals and battery cable ends with wire
brush until bright.
• Apply petroleum jelly or silicone spray to terminals
to prevent corrosion.
• Install battery. Always install negative cable last
when connecting.
Jumping a Battery
WARNING: Do not attempt to jump start a
frozen battery. Warm to 60 degrees F (16
degrees C). Do not smoke near battery and
wear eye protection and gloves when
handling battery.
• Connect positive (+) jumper cable to booster
battery positive (+) post (A). See Figure 14.
• Connect the other end of positive (+) jumper cable
to the disabled vehicle battery positive (+) post (B).
• Connect negative (-) jumper cable to booster
battery negative (-) post (C).
• Connect the other end (D) of negative (-) jumper
cable to a metal part of the disabled machine frame
away from battery.
• Start the engine of the disabled machine and run
machine for several minutes.
• Carefully disconnect the jumper cables in the exact
reverse order: negative cable first and then the
positive cable.
Figure 14
Charging
WARNING: Charge battery in a well
ventilated area and keep away from an open
flame or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas
appliances.
If the vehicle has not been put into use for an extended
period of time, charge the battery with an automotive
type 12-volt charger for a minimum of one hour at six
amps.
Replacing Headlights
Headlights
The headlights are held in place by a rubber seal
around the perimeter of the headlight which creates a
snug fit onto the fender. See Figure 15.
• Remove the headlight by pulling it out of the fender.
• Disconnect headlight from wire connector.
• Reattach the wire connector to new headlight and
push the headlight into opening in fender.
Figure 15
Fuel Cap
B
CA
D
Disabled Battery
Booster Battery
Jumper Cables
Rubber Seal
14

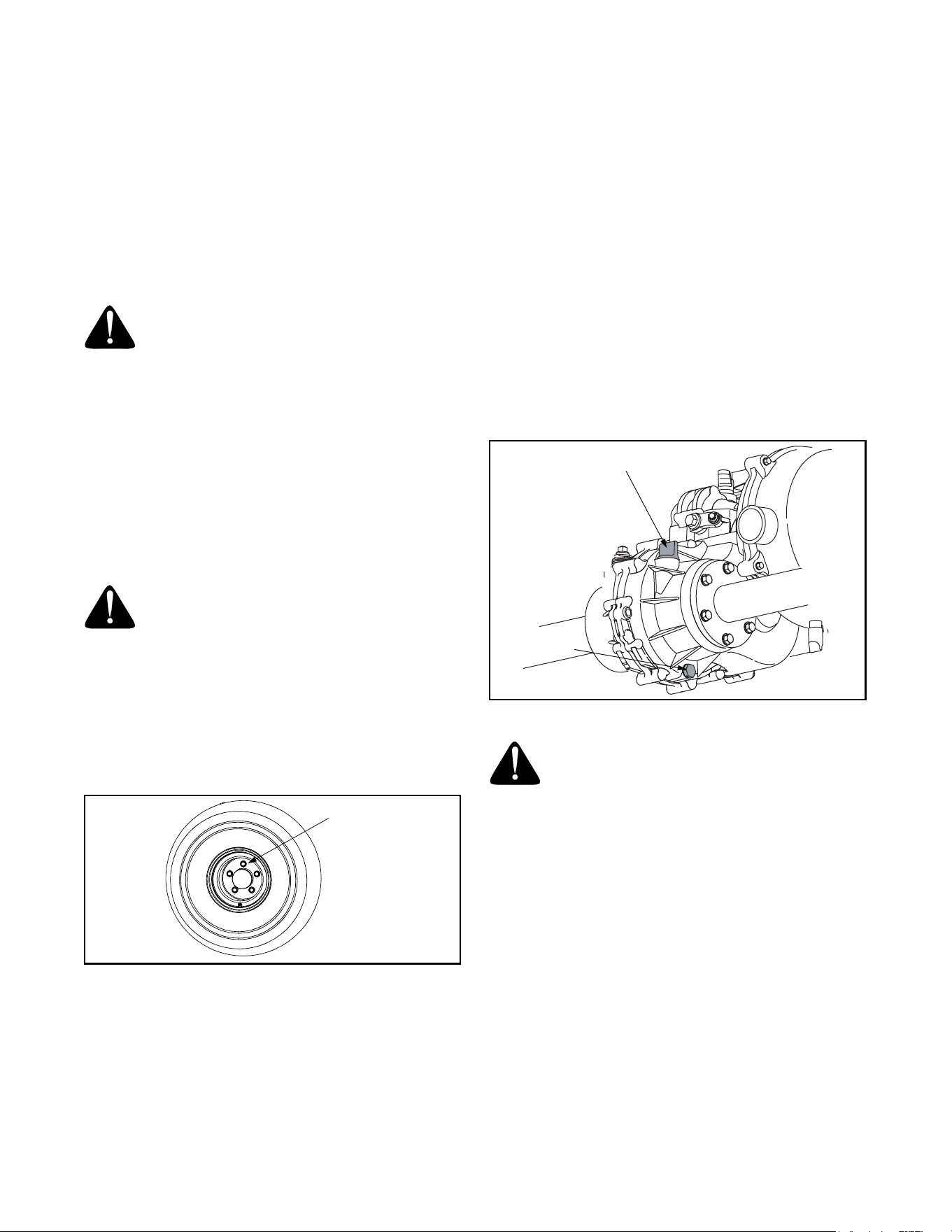

Fuses
• Unlatch and lift hood forward to get access to under
the dash panel.
• Remove the appropriate electrical fuse and replace
with proper amperage fuse. (See schematic under
hood)
• Reattach socket and lower hood. Secure hood to
dash.
Tire Pressure
WARNING: Explosive separation of tire and
rim parts is possible when they are serviced
incorrectly. Do not stand in front or over tire
assembly when inflating.
The recommended operating tire pressure is approxi-
mately 5-7 psi for all tires. Overinflating above
recommended tire pressure can reduce the life of the
tire. Check tire pressure before driving the vehicle.
NOTE: For high loads 8-10 psi is recommended for all
tires. Under any circumstance do not exceed
manufacturer’s recommended psi on the tire sidewall.
Wheel Replacement
WARNING: Using an unstable lifting device
and vehicle support may result in bodily injury.
Use a safe lifting device and supports to work
on raised vehicle.
Rear Wheels
• Stop the vehicle on a level surface and apply
parking brake.
• Turn the ignition key to the STOP position and
remove the key.
• Loosen but do not remove the five lug nuts from the
axle hub. See Figure 16.
Figure 16
• Raise rear of vehicle with a safe lifting device and
place support stands under vehicle.
• Remove the five lug nuts and rear wheel. Place
new wheel on the axle hub and secure with nuts.
• Tighten nuts diagonally until snug.
• Remove support stands and lower vehicle.
• Finish tightening the nuts to 55-60 lb-ft using a
torque wrench.
Front Wheels
• Stop the vehicle on a level surface and apply
parking brake.
• Turn the ignition key to the STOP position and
remove the key.
• Loosen but do not remove the five lug nuts.
• Raise front of vehicle with a safe lifting device and
place support stands under vehicle.
• Remove the five lug nuts and rear wheel. Place
new wheel on the axle hub and tighten nuts
diagonally until snug.
• Remove support stands and lower vehicle.
• Finish tightening the nuts to 55-60 lb-ft using a
torque wrench.
IMPORTANT:
Overtightening front wheel can result in
bearing damage.
Changing Transaxle Oil
Figure 17
WARNING: The fluid for your transmission
has been specially formulated to ensure the
safe and proper operation of your vehicle.
When changing the transmission fluid replace
it with 80-90 Weight Oil. Failure to use 80-90
Weight Oil may result in a failure of the drive
system which could result in property damage
or personal injury. Do not substitute.
• Park vehicle on level surface and apply parking
brake.
• Allow transmission sufficient time to cool before
attempting any maintenance or repairs.
• Raise and secure cargo box, if manual lift.
• Access drain plug through slot on underside of
machine and remove plug. See Figure 17.
• Check O-ring on drain plug and replace if missing
or in poor condition.
• Install and tighten drain plug.
IMPORTANT:
Dirt and debris in oil may cause damage to
transaxle. Clean area around opening before removing
oil cap.
Wheel Nuts
Oil Cap
Drain
Plug
15

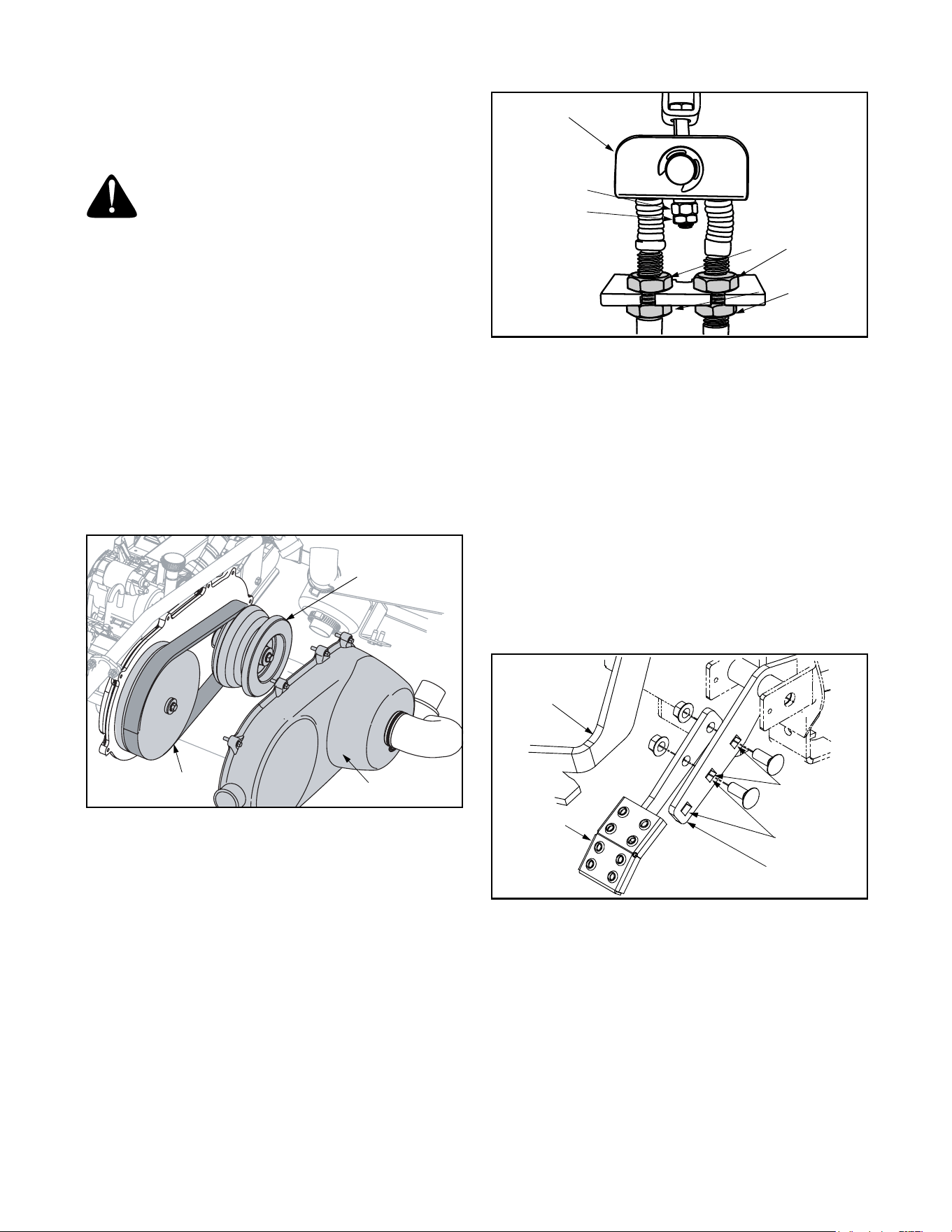

• Remove oil cap and add approximately 67 oz of 80-
90 Weight Oil.
• Install oil cap, and lower and latch cargo box.
Drive Belt
WARNING: Fingers or loose clothing can get
caught in rotating parts. Stop engine and wait
for all moving parts to stop before servicing.
• Park vehicle on level surface and apply parking
brake.
• Raise and secure cargo box, if manual lift.
• Remove the 9 bolts that secure the belt cover.
• Pivot the belt cover out and down, and rotate and
inspect the belt for wear or damage. See Figure 18.
• Measure width of belt on top surface. The width
should be a minimum of 21 mm.
• Replace belt if worn beyond limit.
To replace belt:
• Route belt over and off drive pulley (front pulley).
• Route belt from driven pulley (rear pulley).See
Figure 18.
• Install new belt by routing over and onto drive
pulley (front pulley) and then over the driven pulley
(rear pulley).
Figure 18
• Reattach the belt cover with the 9 bolts.
Adjusting Brake
To adjust the brakes:
• Stop the vehicle on a level surface.
• Turn the ignition key to the STOP position and
remove the key.
• Make sure the parking brake is released and the
vehicle is in neutral.
• Unlatch and move hood forward.
• Check to see if the equalizer bracket is in a
horizontal position. If not, loosen the jam nut and
tighten or loosen brake adjustment nut until
satisfactory brake performance is obtained and
equalizer is level. See Figure 19.
Figure 19
• Tighten jam nut up against brake adjustment nut.
WARNING: Failure to tighten jam nut against brake
adjustment nut may cause complete loss of brakes.
• If this minor adjustment does not achieve
satisfactory brake performance, loosen brake cable
and jam nuts and adjust until desired brake
performance is attained, again making sure to keep
equalizer horizontal. See Figure 19.
Adjusting Throttle Pedal
The throttle pedal assembly can be adjusted for comfort
slightly higher or lower by lining up the holes of the
lower pedal assembly with either the upper two or lower
two holes of the upper pedal assembly. See Figure 20.
Figure 20
Cleaning
The body panels are scratch and impact resistant
automotive quality ABS plastic. The use of standard car
wash soap and non-abrasive car wax is acceptable for
cleaning the body panels. Avoid any abrasive cleaner
or rubbing compounds for these will damage the body
panels. Dry thoroughly to avoid water spots.
Driven Pulley
(Rear)
Drive Pulley
(Front)
Belt Cover
Equalizer Bracket
Brake
Adjustment Nut
Jam Nut
Brake Cable Nuts
Jam Nuts
Lower Pedal
Upper Pedal Assembly
Brake
Pedal Assembly
(Shown for
reference)
Line up here
Line up here
OR
Assembly
16
WARNING: DO NOT use a pressure washer.
Damage may occur if direct hose spray
comes in contact with intake openings, or any
other electrical components, i.e. at instru-
ment cluster or under dash.
Storage
• Stop the vehicle on a level surface and apply
parking brake.
• Allow vehicle to cool.
• Replace all worn, damaged, or missing parts and
tighten loose hardware as needed.
• Wash the vehicle and clean inside the engine
compartment and under the cargo box.
• Run engine for several minutes to dry belts,
pulleys, and other moving parts.
• Clean and polish metal and plastic surfaces.
• Apply light coat of oil to pivot and wear points to
prevent rust.
• Lubricate grease points.
• Replace fuel filter if needed.
• Change engine oil and filter. See engine manual.
• Drain all old fuel from tank.
Prepare fuel system for storage.
If planning to store vehicle with fuel tank empty:
• Add a small quantity of fresh stabilized fuel to tank.
Run engine until it runs out of fuel. This will circulate
fuel mixture through engine.
If planning to store vehicle with fuel in the tank:
• Fill tank completely with fresh stabilized fuel to
prevent condensation build-up. Run engine for
several minutes to circulate fuel mixture through
engine.
• Turn the ignition key to the STOP position and
remove the key.
• Remove and clean battery. See Battery in Service
Section.
• Store battery in a cool, dry place. Fully charge
battery periodically during storage to maintain its
longevity.
• Support vehicle safely on blocks or stands to take
weight off tires. Reduce 1/3 air from tires.
• Cover vehicle with waterproof cover if stored
outside.
SECTION 5: SERVICE CHART
Before
Each
Use
After initial
10 Hours
Every
50 Hours
Every
100 Hours
Every
500 Hrs
or 2 years
Check Transaxle Oil
Change Transaxle Oil #
Tighten Wheel Bolts
Check Drive Belt
Grease Front Steering Spindle
Check Interlock Switch System
Replace Interlock Switch
# Change after initial 50 hours, then again at 500 hours.
17
SECTION 6: ACCESSORIES
NOTE: Availability and model numbers of these accessories are subject to change. Please see your local Cub
Cadet service dealer for the latest information regarding accessories for your utility vehicle.
Description Model Number
Horn 39A-101-100
Rear Electric Outlet 39A-102-100
Front Hitch 39A-103-100
Front Brush Guard (Requires Bumper) 39A-104-100
Floor Mat 39A-105-100
Front Receiver (Requires Hitch) 39A-106-100
Canopy W/ 4 Post Frame 39A-108-100
225 Lb. Spreader (Requires 130 Bracket) 39A-110-100
Cart (20 Cubic Ft.) (Requires 130 Bracket) 39A-112-100
Cab Enclosure (Requires 108 Canopy) 39A-114-100
Windshield 39A-125-100
Electric Bed Lift (Requires 131 Kit) 39A-126-100
Universal Spreader Mounting Bracket 39A-130-100
Electric Bed Lift Mounting Bracket 39A-131-100
18
SECTION 7: SPECIFICATIONS
NOTE: Specifications subject to change without notice.
Engine and Electrical
Make Kawasaki
HP 9.5 HP
Type 4-Cycle Gas
Cylinder(s) 1
Valves Overhead
Displacement 17.5 cu. in. (286cc)
Maximum Torque 13.7 lb-ft @ 2500 rpm
Ignition Transistor Controlled
Lubrication Full Pressure
Oil Filter Replaceable (spin-on)
RPM, idle (no load) 1200 ± 150
RPM, fast (no load) 4,000± 100
Cooling System Air
Air Cleaner Replaceable, Dual Element Type with Remote Intake
Battery 30-amp/hr, 365 cold cranking amps
Alternator 12V-20amp Regulated
Headlights Two 37.5-watt Halogen
Wiring Automotive Style Fused Control System
Dimensions
Overall Length 109.5” (in)
Overall Width 59.5” (in)
Front-Tread Width 50.0” (in)
Rear-Tread Width 49.0” (in)
Overall Height 45.5” (in)
Wheel Base 77.5” (in)
Weight (including fuel/fluids) 990 lbs.
Ground Clearance
Under Transaxle 6.0” (in)
Seating Capacity 2 persons
Seat Type High Back
Turn Clearance Circle 18.5 ft.
Towing Capacity 900 lb. (454.5 kg)
Payload Capacity* 900 lb.
*Includes 200 pound operator, 200 pound passenger, and maximum bed capacity
Fuel System
Capacity 5.7 U.S. gal.
Cargo Box
Material Double Walled Polyethylene (Model 414); 14 Gauge Steel (Model 411)
Capacity
Volume 13.4 cu. ft. (Poly)/ 11.3 cu. ft. (Steel)
Weight 500 lb.
Steering
Rack & Pinion w/ Ackerman-Type Geometry
Suspension
Rear - Semi Independent Leaf Springs w/ Hydraulic Shock Absorbers
Front - Fully Independent w/ Coil Overshocks
Brakes
Mechanical Drum
Parking Brake
Foot Operated w/ Hand Knob
Transmission
Type Continuously Variable (CVT)
Lubricant 80-90 Weight Oil
Capacity 2.0 liters (67 oz.)
Differential Lock Lever Activated
Ground Speed 0-18 mph
Transaxle Fully enclosed, Oil Bath
Gear Selection Forward, Neutral, Reverse
Rear Axle Housing Welded Steel
19
SECTION 8: TROUBLESHOOTING
Trouble Possible Cause(s)
Engine loses power Engine overheating.
Too much oil in engine.
Faulty spark plug.
Fuel supply being restricted.
Fuel filter plugged.
Fuel line pinched or kinked.
Fuel pump output not to
specification.
Improper fuel.
Air cleaner element plugged.
Engine knocks Low engine speed.
Stale or low octane fuel.
Engine overloaded.
Starter does not work Loose or corroded connections.
Low battery output.
Sulfate or worn-out battery.
Faulty starter.
Starter crank slowly Low battery output.
Sulfated or worn-out battery.
Engine oil too heavy.
Loose or corroded connections.
Electrical system
does not work
Blown fuse.
Loose or corroded connections.
Sulfated or worn-out battery.
Dead Battery Shorted starter solenoid.
Key switch not turned to STOP
position.
Sulfated or worn-out battery.
Battery light
comes on when
engine is running
Low engine speed.
Faulty voltage regulator.
Faulty battery.
Faulty alternator.
Grounded wire in circuit.
Indicator lights
do not come on
when key switch
is in START position
Faulty bulb.
Faulty wiring.
Faulty sensor.
Battery will not
take a charge
Dead battery.
Loose or corroded connections.
Sulfated or worn-out battery.
Fluid level low.
Trouble Possible Cause(s)
Engine will not start Battery has low voltage.
Loose or corroded battery connections.
Fuse Is blown.
Spark plug wire is loose or discon-
nected.
Faulty spark plug or coil.
Fuel shut-off valve turned off.
No Fuel or improper fuel.
Plugged fuel filter.
Defective starter solenoid.
Open-circuit in wiring.
Engine is hard to start Engine is cold.
Plugged fuel filter.
Carburetor not adjusted properly or
dirty.
Engine oil viscosity too heavy.
Spark plug is fouled.
Faulty spark plug or wire.
Loose or corroded electrical connec-
tions.
Stale or improper fuel.
Choke not being used or adjusted
incorrectly.
Engine misses
under load
Faulty spark plug.
Stale or dirty fuel.
Plugged fuel filter.
Faulty coil or wire.
Engine vapor locks Poor quality fuel or methanol.
Very hot weather conditions.
Fuel tank vent plugged.
Dirt in fuel filter.
Engine runs unevenly Loose electrical connections.
Choke or throttle cable sticking.
Fuel line or fuel filter plugged.
Stale or dirty fuel.
Improper fuel.
Air cleaner element plugged.
Carburetor not adjusted correctly.
Spark plug is fouled.
Engine overheats Air cleaner element missing or plugged.
Carburetor air intake tube plugged.
Engine oil low.
Engine operated too long at slow
engine speed.
N
OTE: For repairs beyond minor adjustments or corrections, contact your nearest Cub Cadet service dealer or call
1
-877-282-8684. If you would like a Service Manual, please call the Consumer Publications Department
a
t 1-800-800-7310, and order Form# 770-0909G.
20
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and MTD Consumer Group Inc are pleased to explain the evaporative emission
control system warranty on your 2006 utility vehicle. In California, new utility vehicle must be designed, built and
equipped to meet the State’s stringent anti-smog standards. MTD Consumer Group Inc must warrant the EECS on
your utility vehicle for the period of time listed below provided there has been no abuse, neglect or improper
maintenance of your utility vehicle.
Your EECS may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter,
fuel tanks, fuel lines, fuel caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated
emission-related components.
Where a warrantable condition exists, MTD Consumer Group Inc will repair your utility vehicle at no cost to you
including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If any evaporative emission-related part on
your equipment is defective, the part will be repaired or replaced by MTD Consumer Group Inc.
OWNER’S WARRANTY RESPONSIBILITIES:
As the utility vehicle owner, you are responsible for performance of the required maintenance listed in your owner’s
manual. MTD Consumer Group Inc recommends that you retain all receipts covering maintenance on your utility
vehicle, but MTD Consumer Group Inc cannot deny warranty solely for the lack of receipts.
As the utility vehicle owner, you should however be aware that MTD Consumer Group Inc may deny you warranty
coverage if your utility vehicle or a part has failed due to abuse, neglect, or improper maintenance or unapproved
modifications.
You are responsible for presenting your utility vehicle to MTD Consumer Group Inc’s distribution center or service
center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time,
not to exceed 30 days. If you have a question regarding your warranty coverage, you should contact the MTD
Consumer Group Inc Service Department at 1-800-800-7310.
GENERAL EMISSIONS WARRANTY COVERAGE:
MTD Consumer Group Inc warrants to the ultimate purchaser and each subsequent purchaser that the utility
vehicle is: Designed, built and equipped so as to conform with all applicable regulations; and free from defects in
materials and workmanship that cause the failure of a warranted part to be identical in all material respects to that
part as described in MTD Consumer Group Inc’s application for certification.
The warranty period begins on the date the utility vehicle is delivered to an ultimate purchaser or first placed into
service. The warranty period is two years.
Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions
supplied, is warranted for the warranty period stated above. If the part fails during the period of warranty coverage,
the part will be repaired or replaced by MTD Consumer Group Inc according to subsection (4) below. Any such part
repaired or replaced under warranty will be warranted for the remainder of the period.
2. Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted
for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the
remaining warranty period.
21
3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied
is warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the
first scheduled replacement, the part will be repaired or replaced by MTD Consumer Group Inc according to
subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the
period prior to the first scheduled replacement point for the part.
4. Repair or replacement of any warranted part under the warranty provisions herein must be performed at a
warranty station at no charge to the owner.
5. Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution
centers that are franchised to service the subject engines or equipment.
6. The utility vehicle owner will not be charged for diagnostic labor that is directly associated with diagnosis of a
defective, emission-related warranted part, provided that such diagnostic work is performed at a warranty station.
7. MTD Consumer Group Inc is liable for damages to other engine or equipment components proximately caused
by a failure under warranty of any warranted part.
8. Throughout the utility vehicle warranty period stated above, MTD Consumer Group Inc will maintain a supply of
warranted parts sufficient to meet the expected demand for such parts.
9. Any replacement part may be used in the performance of any warranty maintenance or repairs and must be
provided without charge to the owner. Such use will not reduce the warranty obligations of MTD Consumer Group
Inc.
10. Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any
non-exempted add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claims.
MTD Consumer Group Inc will not be liable to warrant failures of warranted parts caused by the use of a non-
exempted add-on or modified part.
WARRANTED PARTS:
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from
such warranty coverage if MTD Consumer Group Inc demonstrates that the utility vehicle has been abused,
neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the direct cause
of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a
factory installed, and properly operating, adjustment limiting device is still eligible for warranty coverage. The
following emission warranty parts list are covered: Fuel Line, Fuel Line Clamps
22
NOTES
23
CUB CADET CORPORATION
MANUFACTURER’S ONE YEAR LIMITED WARRANTY
(COMMERCIAL USE)
The limited warranty set forth below is given by CUB CADET
LLC (“CUB CADET”) with respect to new merchandise
purchased and used in the United States, its possessions and
territories.
CUB CADET warrants this product against defects in material
and workmanship for a period of one
(1) year for commercial
users, commencing on the date of original purchase and will,
at its option, repair or replace
, free of charge, any part found
to be defective in material or workmanship. This limited
warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to
misuse, abuse, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water or damage because of
other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not
approved by Cub Cadet for use with the product(s) covered
by this manual will void your warranty as to any resulting
damage.
Batteries and belts are subject to separate terms as follows:
a. Batteries have a one-year prorated limited warranty
with 100% replacement during the first three
months. After three months, the battery replacement
credit is based on the months remaining in the
twelve (12) month period dating back to the original
date of sale. Any replacement battery will be
warranted only for the remainder of the original
warranty period.
b. All belts are covered by a one (1) year limited
warranty against defects in material and
workmanship.
HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE
, THROUGH YOUR LOCAL
AUTHORIZED CUB CADET DEALER. To locate the dealer in
your area, please check for a listing in the Yellow Pages or
contact Cub Cadet LLC at P.O. Box 361131, Cleveland, Ohio
44136-0019, or call 1-877-282-8684, or log on to our Web site
at www.cubcadet.com.
This limited warranty does not provide coverage in
the following cases:
a. The engine or component parts thereof. These
items may carry a separate manufacturer’s warran-
ty. Refer to applicable manufacturer’s warranty for
terms and conditions.
b. Routine maintenance items such as lubricants,
filters, tune-ups, or adjustments such as brake
adjustments, or clutch adjustments; and normal
deterioration of the exterior finish due to use or
exposure.
c. Normal wear parts or components, including
batteries, belts, seats and tires.
d. CUB CADET does not extend any warranty for
products sold or exported outside of the United
States of America, its possessions and territories,
except those sold through CUB CADET’S
authorized channels of export distribution.
e. Replacement parts that are not genuine Cub Cadet
parts.
f. Service completed by someone other than an
authorized service dealer.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above. No other express warranty or guaranty,
whether written or oral, except as mentioned above,
given by any person or entity, including the dealer, with
respect to any product shall bind CUB CADET. During
the period of the Warranty, the exclusive remedy is repair
or replacement of the product as set forth above. (Some
states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.)
The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sale. CUB
CADET shall not be liable for incidental or
consequential loss or damages including, without
limitation, to any claim for loss of profits, loss of
savings or revenue, loss of the use of the equipment or
any associated equipment, facilities or service,
downtime, the claims or costs of third parties including
customers, and injury to property, and further
including expenses incurred for substitute or
replacement lawn care services, for transportation or
for related expenses, or for rental expenses to
temporarily replace a warranted product. (Some states
do not allow the exclusion or limitation of incidental or
consequential damages, so the above exclusion may not
apply to you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of the safety features of the product shall void this Warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the use or misuse or inability to use the product.
This limited warranty shall not extend to anyone other than
the original purchaser or original lessee.
How State Law Relates to this Warranty: This limited
warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND,OHIO 44136-0019; Phone: 1-877-282-8684
MANUFACTURER’S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by Cub Cadet
LLC with respect to new merchandise purchased and used in
the United States, its possessions and territories.
“Cub Cadet” warrants this product against defects in material
and workmanship for a period of two (2) years commencing
on the date of original purchase and will, at its option, repair or
replace, free of charge, any part found to be defective in
materials or workmanship. This limited warranty shall only
apply if this product has been operated and maintained in
accordance with the Operator’s Manual furnished with the
product, and has not been subject to misuse, abuse,
commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of
other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not
approved by Cub Cadet for use with the product(s) covered by
this manual will void your warranty as to any resulting
damage.
Normal wear parts are warranted to be free from defects in
material and workmanship for a period of thirty (30) days from
the date of purchase. Normal wear parts include, but are not
limited to items such as: batteries, belts, blades, blade
adapters, grass bags, rider deck wheels, seats, snow thrower
skid shoes, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer in your area, check your
Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-877-282-8684, or log
on to our Web site at www.cubcadet.com.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component parts thereof. These items
may carry a separate manufacturer’s warranty. Refer
to applicable manufacturer’s warranty for terms and
conditions.
b. Log splitter pumps, valves, and cylinders have a sepa
rate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
exposure.
d. Cub Cadet does not extend any warranty for products
sold or exported outside of the United States, its
possessions and territories, except those sold through
Cub Cadet’s authorized channels of export
distribution.
e. Replacement parts that are not genuine Cub Cadet
parts.
f. Service completed by someone other than an
authorized service dealer.
g. Transportation charges and service calls.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind Cub Cadet. During the period of the warranty,
the exclusive remedy is repair or replacement of the
product as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale. Cub
Cadet shall not be liable for incidental or consequential
loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services
or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
IMPORTANT:
Owner must present Original Proof of
Purchase to obtain warranty coverage.
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-877-282-8684
(RESIDENTIAL USE)
