2239-20
12V CLAMP METER (AC/DC Clamp)
Apr. 2010

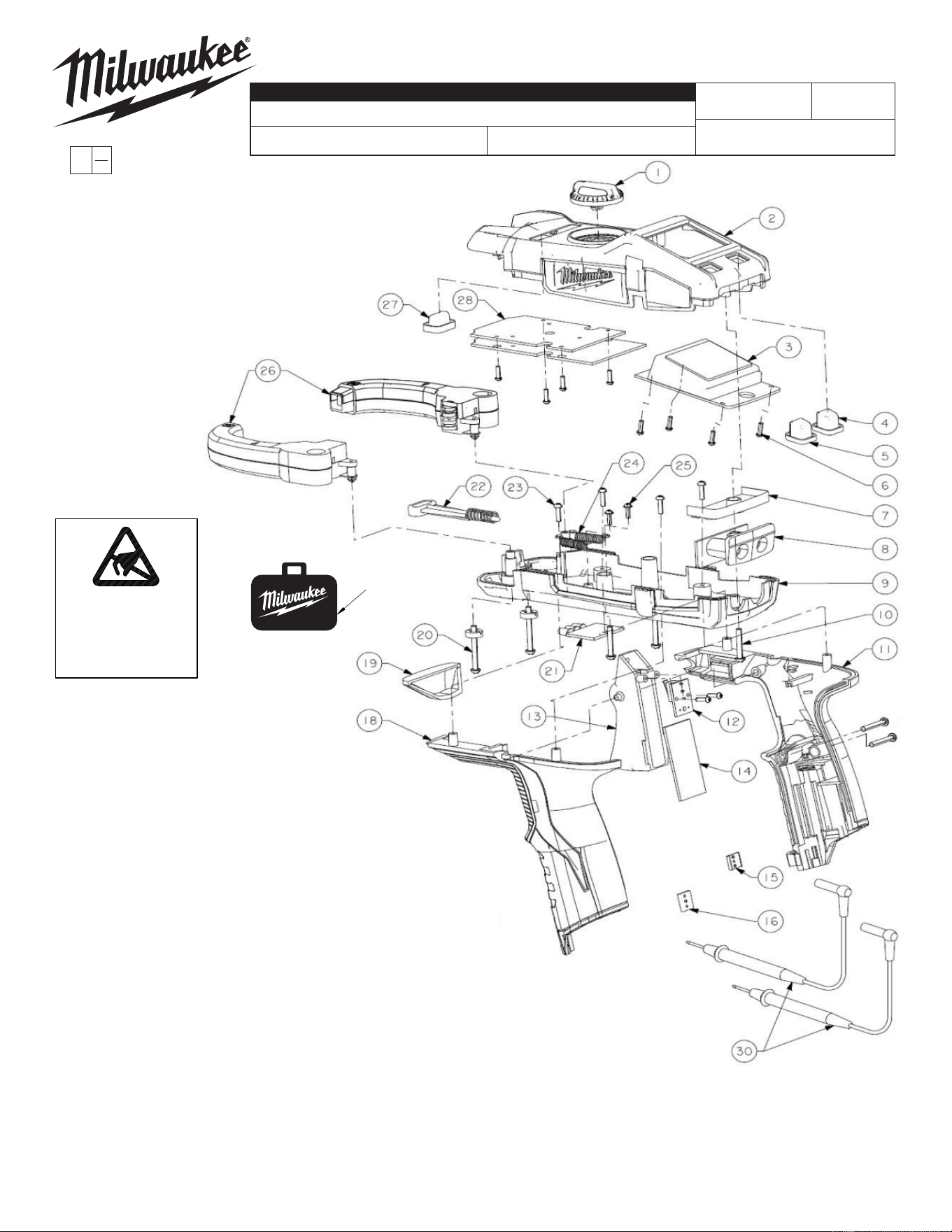

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 23-66-0565 Rotary Switch with Contact (1)
2 31-50-1405 Top Case (1)
3 44-06-0095 LCD Module (1)
4 42-42-0080 Button - 'Max./Min.' (1)
5 42-42-0935 Button - 'Hold' (1)
6 05-81-0325 Screw - LCD Module, Main PCA, Trigger PCA (10)
7 31-86-0165 Insulating Spacer - Connector (1)
8 22-58-0035 Input Post Module (1)
9 31-50-1435 Bottom Case (1)
10 05-81-0335 Screw - Bottom Case & Right Handle (5)
11 31-44-0335 Right Handle (1)
12 23-66-0455 Switch - Trigger (1)
13 31-92-0040 Trigger (1)
14 22-06-0110 PCA - Trigger (1)
15 42-70-0075 Housing Clip - 1 (1)
16 42-70-0055 Housing Clip - 2 (1)
18 31-44-0365 Left Handle (1)
19 44-06-0105 LED Cover (1)
20 06-10-0100 Screw and Nut Assembly - Jaw (2)
21 22-06-0115 PCA - LED (1)
22 44-10-0165 Pole and Spring (1)
23 05-81-0345 Screw - Right and Left Handle (4)
24 40-50-0685 Plug Spring (2)
25 05-81-0355 Screw - Plug Spring (4)
26 30-55-0025 Jaw Assembly (1)
27 42-42-0090 Button - 'Zero' (1)
27a 42-42-0115 Button - 'Inrush' (1)
28 22-06-0135 Main PCA (1)
30 49-77-1001 Test Lead Set (1)
31 42-55-0010 Carrying Case, Optional (1)
54-07-2275
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
C18A
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
31
