English
EN
USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
DH3S802BWCD
DH3S802BWCD*
DH3S802BBCD
DH3S802BBCD*
DH3S802BTCD
DH3S802BTCD*
DH3S802BB3
DH3S802BB3*
DH3S802BW3
DH3S802BW3*
DH3S902BWCB
DH3S902BWCB*
DH3S902BBCB
DH3S902BBCB*
DH3S902BTCB
DH3S902BTCB*
DH3S902BB3
DH3S902BB3*
DH3S802BW3/PL
DH3S902BW3
DH3S902BW3*
HDH3S93B
The following symbols used in the manual have the following meanings:
Information, advice, tip, or recommendation
Warning - general danger
Warning - danger of electric shock
Warning - danger of hot surface
Warning - danger of fire
It is important to read the instructions carefully.
40
39
41
43
44
45
45
49
51
52
53
38
16
16
19
20
22
23
24
25
26
26
27
31
34
Changing the door opening direction
50
When cleaning the filters, the lint should be thrown in the garbage bin and
not washed through the drain in order to avoid spreading microplastics in
the used water system.
Heat exchanger door cover
Rated capacity
Rated Power
Net weight
Charge
8kg
550W
50Hz
140g
Rated Voltage
220-240V~
48
9kg
550W
50Hz
125g
220-240V~
52
45
610
640
670
150
"
#
$
%
&
'
%JNFOTJPONN
*OEFY
45
520
550
580
060
8
9
16
25mm
25mm
50mm
This dryer must be stacked with a washing machine of the same brand using a stacking kit
provided by the manufacturer (see Figure 1).You can contact aftersales for purchase figure a,
and install it according to user manual.
Alternatively, the dryer can be placed next to the washing machine (figure 2).
17
STACKING BRACKET (ACCESSORIES)
Please use original accessories. You can refer to the following recommendations for purchasing
stacking brackets.
Dryer series
3S/5S
Washing machine series
3S/5S
Washing machine depth (D)
510mm/550mm
Matching Stacking Brackets
SKHDSN*（Style1）
Dryer depth (D)
550mm
5 cm
Stacking Brackets
Wall fixed support
3S/5S/7S
640mm
590mm/640mm
WZXX90-BE****（Style2）
3S/5S/7S
Stacking Brackets
Style2
Style1
18
19

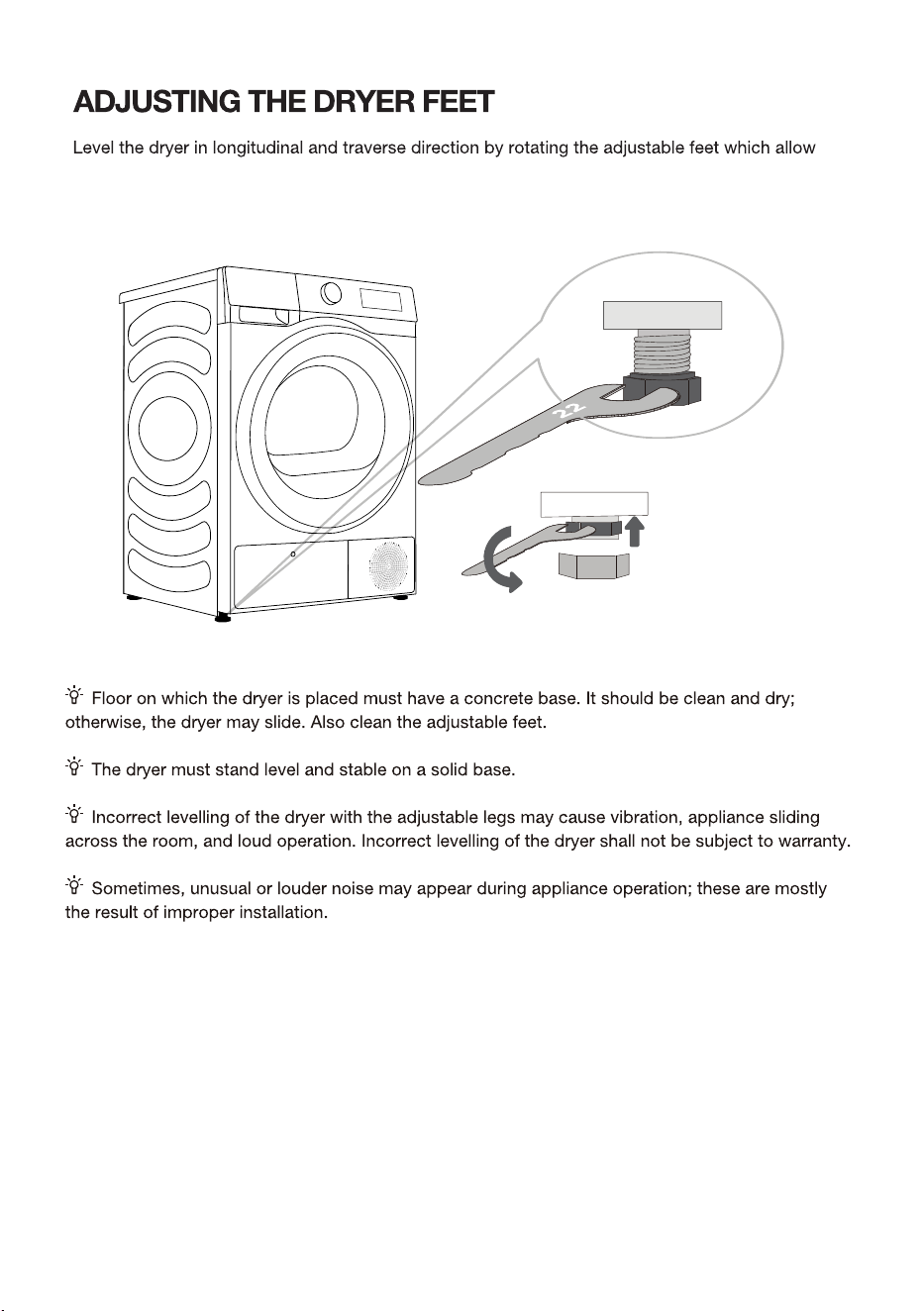

levelling by 1cm. Use a spirit level and spanner No.22.
20

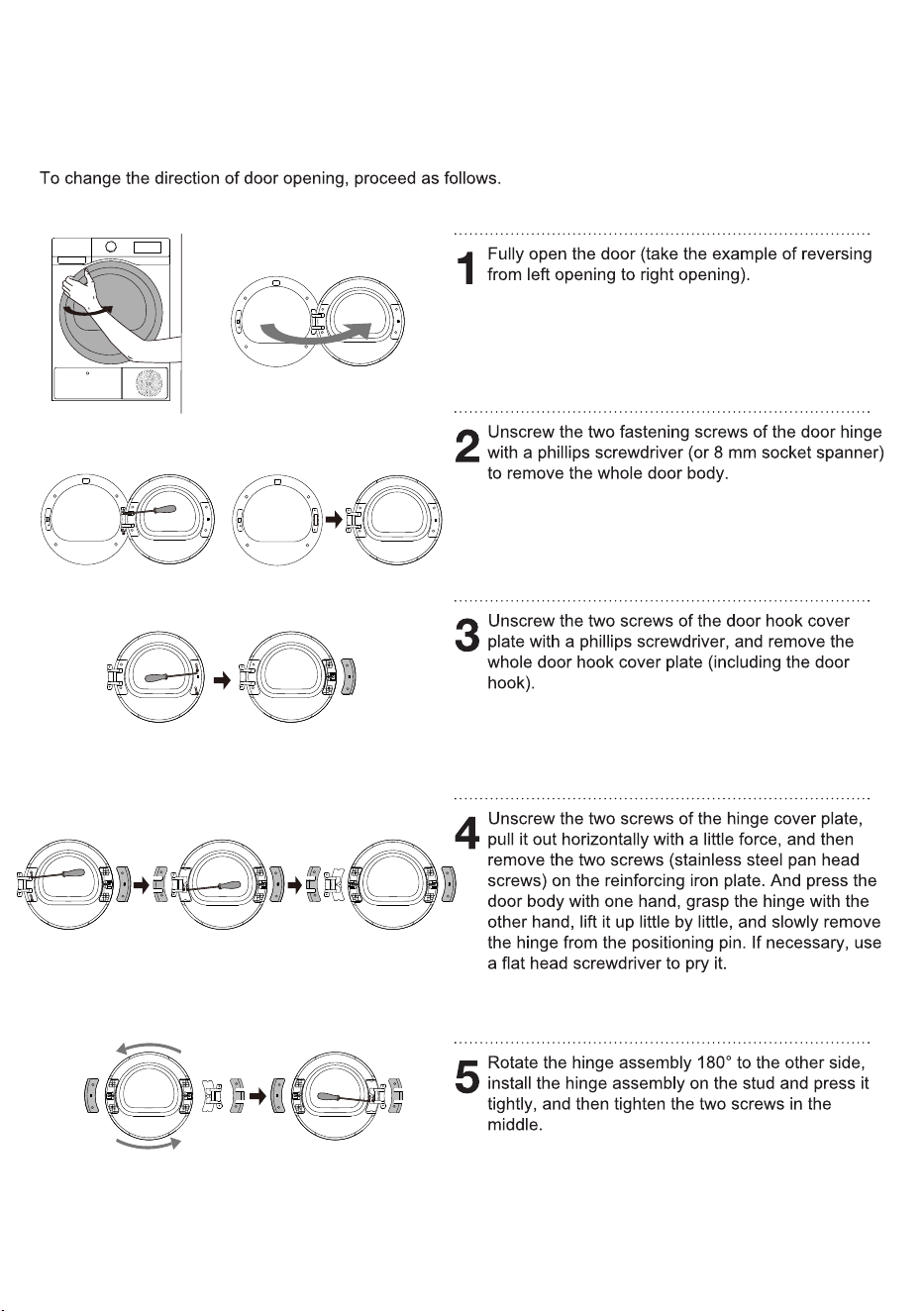

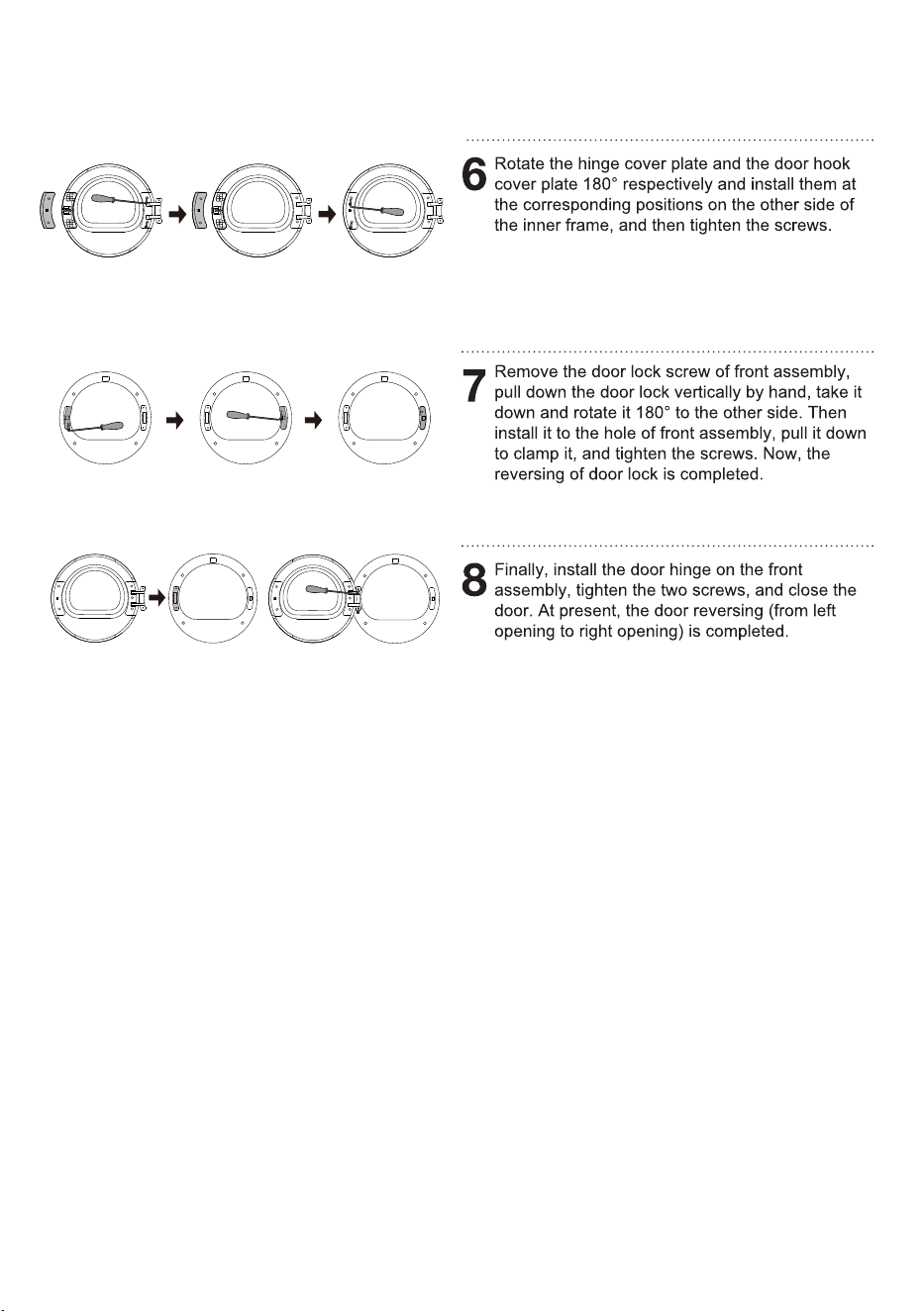

CHANGING THE DOOR OPENING DIRECTION
21
22
23
24
Pack all the packaging material (plastic bags, other plastic parts etc.).
25
26
27
ON
28
29
When the dryer is running, you can directly open the door to add or remove clothes, and press
the Start/Pause button to continue running after closing the door.
Short press to add or subtract
Anti Crease function.
Long press to control dryer
network.
Press to delay the end
Press these two keys at the
same time to switch or
restore the acoustic signals.
30
It is used to display the
Press to select the gentle
dry function.
Press to select the degree of
dryness.
31
or right
Use this programme for thicker non-sensitive cotton laundry
of approximately the same thickness.
Use this program for thicker non-sensitive cotton laundry of
Down
32
down(pillows, down, jackets etc.).
and use
8
Programme
Sensor dry programmes
Type of clothes
Maximum capacity
(kg)
the Time Dry programme if necessary.
0.5
Eco
9
1
4.5
4.5
8
9
8
9
Use this programme for drying of ordinary cotton clothes.
The Eco programme is equivalent to standard cotton programme in regulation (EU) No 932/2012.
Use this programme for drying non-sensitive items（towels
kitchen clothes...）. After drying， the items will be dry and
ready to be stored in the cupboard.
33
Rotate the knob to Remote Control so that user can select programs via the APP.
Programme
Type of clothes
Maximum capacity
(kg)
8
9
clothe
s
made of wool or
silk.
dried
Press briefly: Add "Anti Crease" function, press twice to cancel the function, and
cycle in sequence.
34
Press the “Start/Pause”
p
Pressthe"POWER"buttontopoweron/offtheappliance.
Whentheapplianceispoweredon,itentersstandbymodewiththedisplaylit
up.Inthestandbymodeorafteraprogramhasended,pressandholdthe
"POWER"buttontopoweroffthe appliance.
Ifnooperationisperformedwithina fewminuteswhileinstandbymode,onthe
Endscreen,theappliancewillautomaticallypoweroff.Inthepower-offstate, all
displays and outputs are disabled.
Whentheremotecontrolmodeisenabled,theapplianceentersenergy-saving
mode a few minutesafterbeingpoweredoffandwillautomaticallyshutoffif
thereisnooperationfor7days.
Shirts and Synthetics programs can choose this function before start,
35
Press and hold: Connect the Wi-Fi of the appliance, the control panel symbol " "
flashes, and then conduct the networking operation. See the networking description
for the specific networking method.
The network symbol " " stays on once connected successfully.
This function is only applicable to the manual and special dry programs.
Sensor dry programs cannot be started.
Cupboard,
Extra,
Iron,
Drum light icon. When the dryer is in running (If the
knob is turned or any key is pressed), pause, program
end or just turned on, drum light will illuminate for 1
minute.
appointment button
36
icon goes out.
When the Delay End function is being selected (set), the Clock icon is lit up;
When the Delay End programme is running, the Clock icon always on or flashes
（depends on the model）.
37
Child Lock
This is a safety feature. To activate it, simultaneously press the positions
"Drying Target + Drying Level" until the Child Lock icon light up, and then
Child Lock is set up. Repeat the same operation, the Child Lock will be
released.
When the Child Lock is set, all function buttons will be shielded except the
power button.
After completing program, child lock will automatically unlock.
The Child Lock feature includes a memory function, and the setting will
remain effective unless it is manually activated or deactivated.
Mute
Use this to switch off or restore the acoustic signals.
When the appliance is in the state of holding, pause or operation, press
"Drying Level + Gentle Dry" buttons until the display show mute
function icon. All the buzzing will be turned off except the alarms.
When the appliance is in the mute state, repeat the same operation
until mute function icon light off. All the buzzing will be activated.
The Mute feature also includes a memory function and the setting will
remain effective unless it is manually turned on or off.
After the child lock function is enabled: During running in anti crease
mode, the child lock needs to be released manually, and the anti crease
function ends automatically.
38
Down
GENTLE
TIME DRY
+/-
SETTING
Eco
39
Heat exchanger
door cover
40
net filter.
Close the net filter,
if necesary, clean
the door gasket as well.
41
cover to unlock position.
Install the inner door cover
to the origin positions,lock
the knob and close the heat
exchanger door cover.

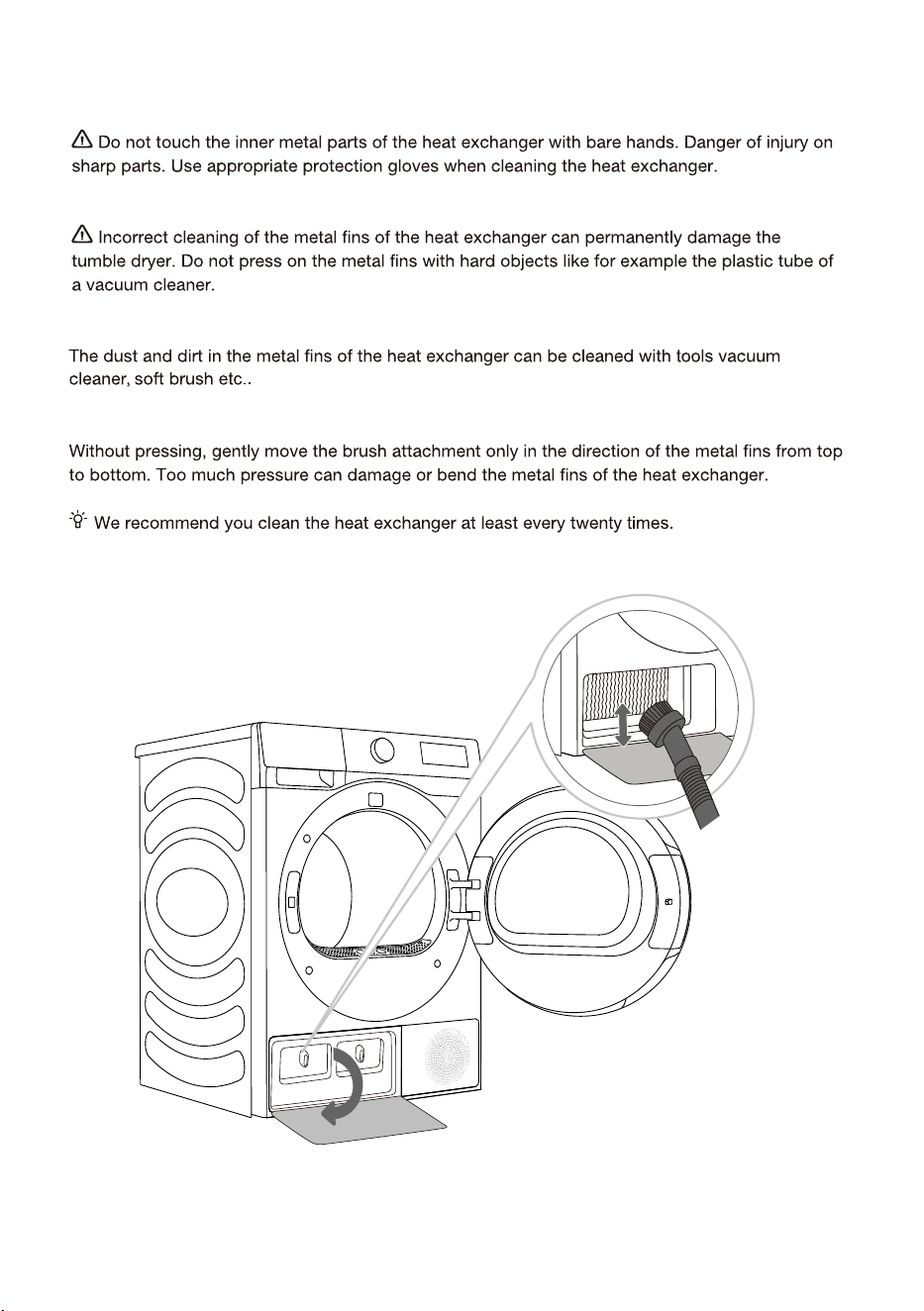

After using for a period of
time, if there is dust on the
heat exchanger, please
remove the dust with tools. Do
not touch the heat exchanger
directly with your hands to
avoid in jury.
42
43
44
45
46

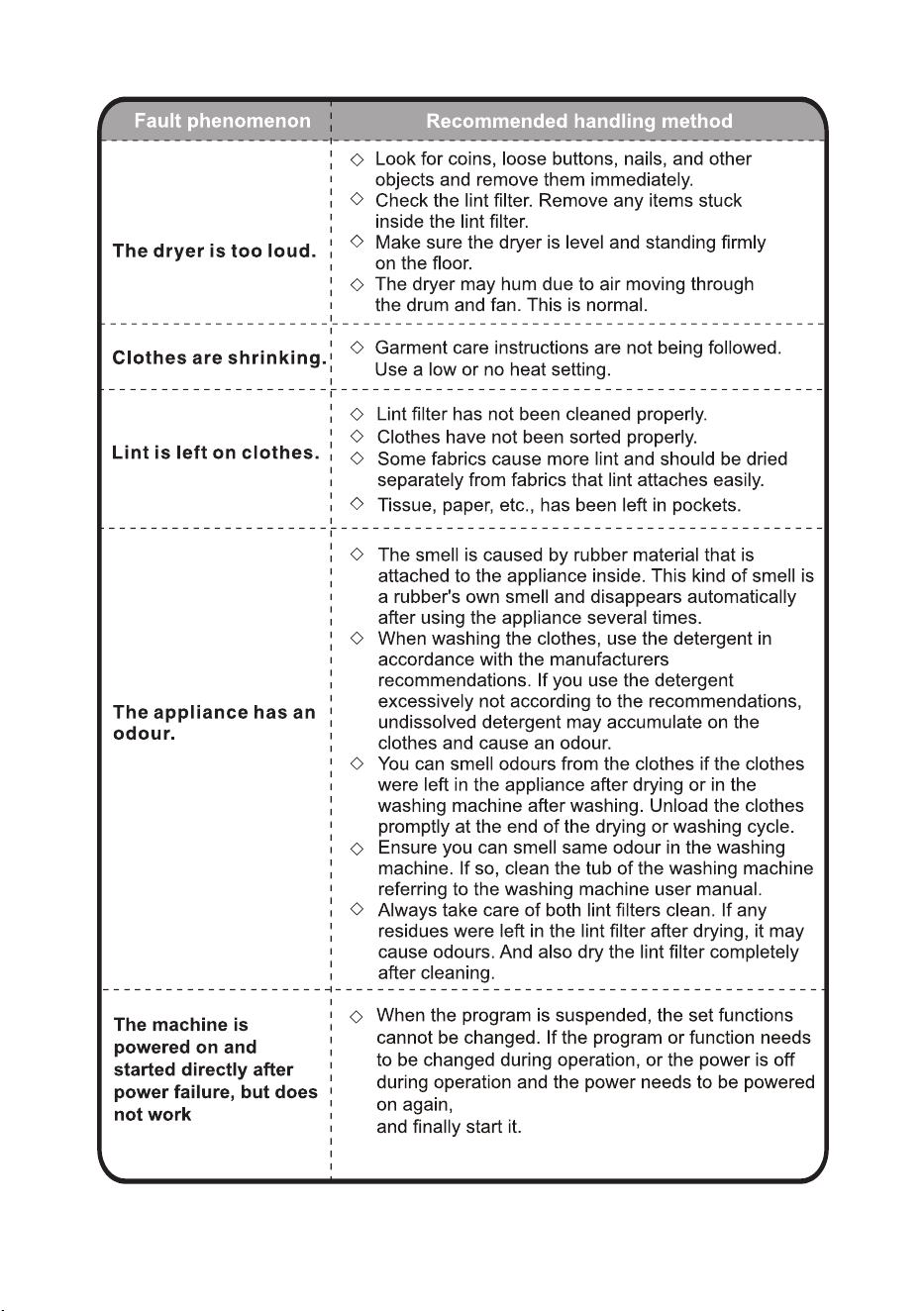

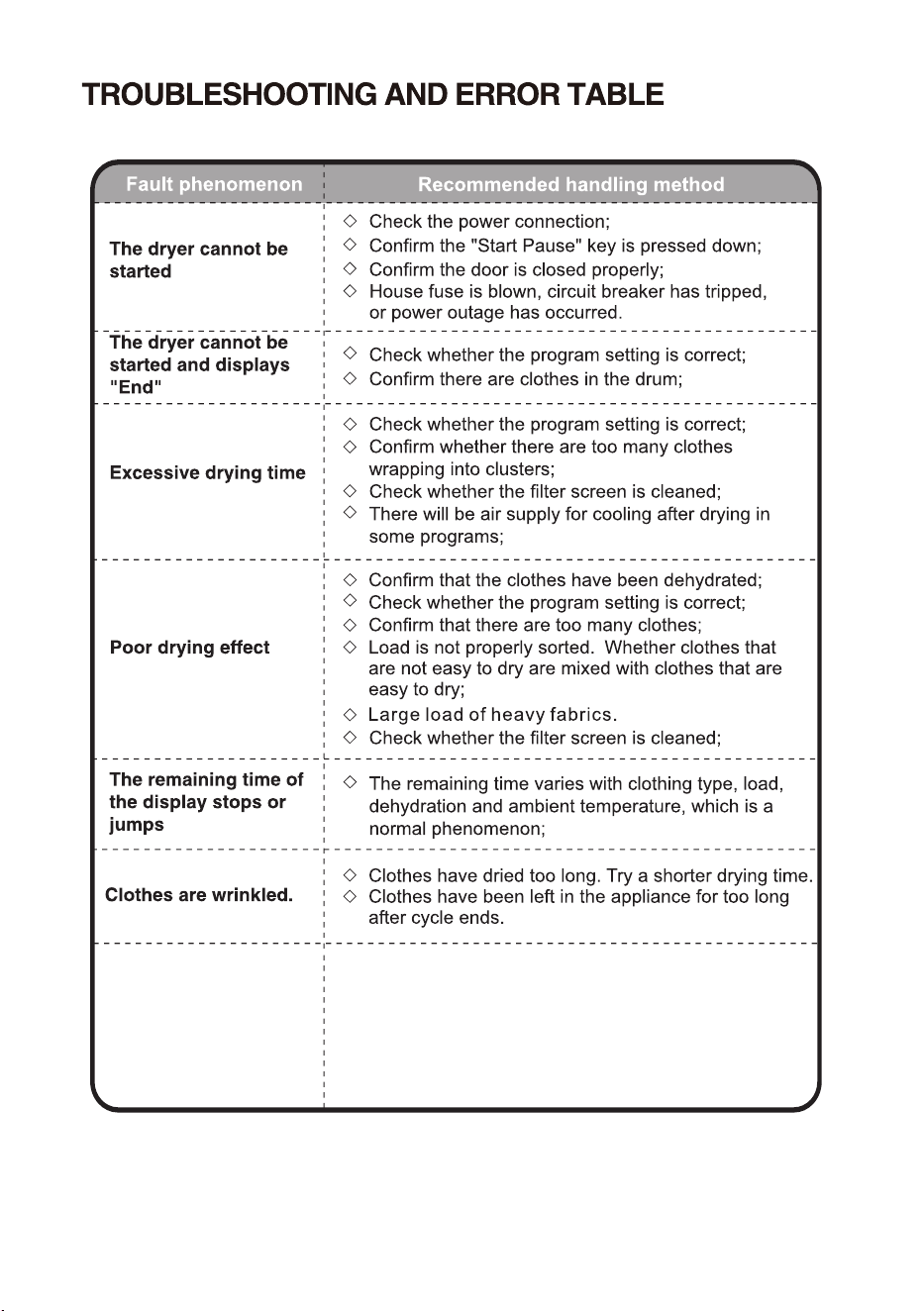

The dryer display
shows running time
different from actual
program duration.
For programs that stop automatically when clothes are
dry, the drying duration displayed is calculated according
to standard environment, initial laundry moisture, load
mass and type. The drying time is automatically adjusted
for any change in conditions. The difference between the
actual time and the display time is normal, which ensures
the best drying effect.
47
select the required program and function,
48
A
49
50
Programme Instructions
The table indicates the power consumption and time values for drying of a test batch of laundry
with various loads and after washing machine spinning .
The following requirements apply to the consumption values speciŲed below.
Inlet air temperature room temperature
Inlet air humidity 50–60%
Drying temperature Normal
Pogram
Consumption
(kWh/cycle)
Pogram
duration
(h:m)
1000
0.60 1:30
1000
0.39 1:00
Program
Spinning
(rpm)
1.86 4:05
1000
1.34 2:59
Wool
Final
Moisture
Content
(%)
Cotton extra
Cotton iron
/
0.5
10
0.5
4
Synthetics extra
Synthetics iron
4
8
4
8
4
1
1000
1000
1000
1.09 2:58
0.77 1:50
0.5
10
10
0.16
0:30
1.0
/
1.72
3:28
Eco
1.5
8
Rated
Capacity
(kg)
4.5
4.5
9
4.5
9
4.5
1
9
8kg
9kg
8kg
9kg
0.53
0.35
1.66
1.20
0.97
0.69
0.16
1.54
8kg
9kg
1:21
0:57
3:31
2:43
2:35
1:40
0:30
3:08
2. Results of Wool program is based on wool load with 5% initial moisture content.
1. The values given for programs other than the Eco program are indicative only;
3. The Eco program is suitable to dry wet cotton laundry, and that this program is used to assess
the compliance with the EU ecodesign legislation.
4. The Eco program is the most efficient program in terms of energy consumption for drying wet cotton
laundry.
5. Loading the household tumble dryer up to the maximum capacity indicated by the manufacturer for
the respective programs will contribute to energy savings.
6.
At full load of Eco program，acoustic airborne noise emission of the drying cycle: 64dB.
7. The product information and QR code are reflected in the energy consumption labelthe product
registration information can be obtained by scanning the QR code.
Due to deviations in terms of type and amount of laundry, spinning, power supply oscillation, and
environment temperature and humidity, the values measured at the user may diŰer from the one stated
in the table.
8. The power consumption of the off-mode is 0.5W.
Time on switching automatically to off-mode：10min.
51
52
53

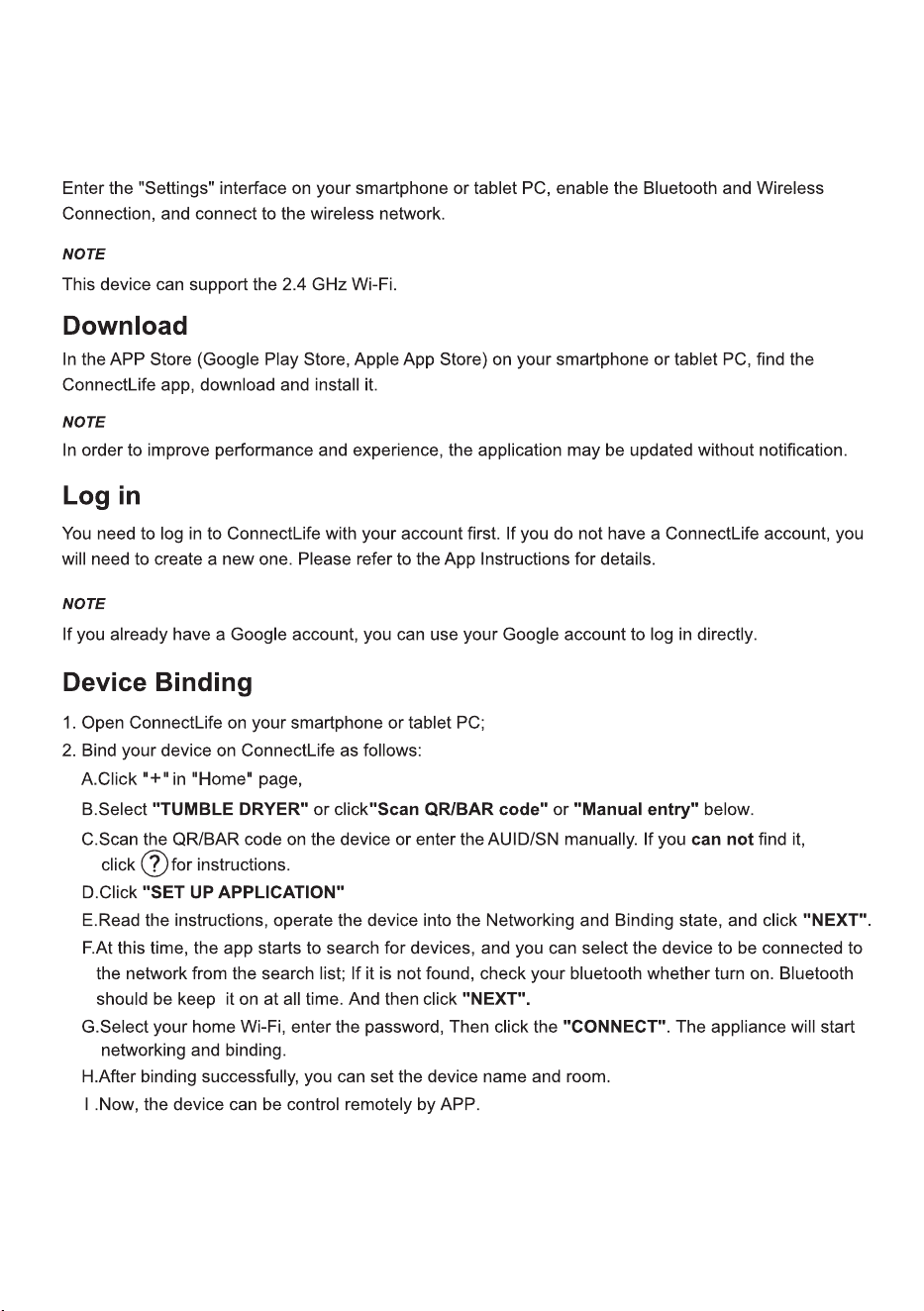

choose "Add device" or "Scan".
Wi-Fi CONNECTION
.
54
After unbinding, the device must be restarted, or the next binding will fail.
When the Remote Control icon " " on the display is not illuminated, you cannot control
the machine remotely via the mobile app. To activate this feature, turn the knob to "Remote
Control" until the icon " "lights up again.
2. Turn the program selector knob to "Remote Control" to enable the remote control feature. When the
Remote Control icon " " is lit, the function is activated, and the door is locked. If the icon is off, the
remote control is disabled.
How to activate the Wi-Fi function?
2. Press and hold the " " button, and you will see "Bon" on the display.
3. After completing the steps above, your appliance is ready to connect to the Internet. Follow the
instructions on your APP .
4. If not successful, turn off the appliance and repeat the steps.
How to activate the Remote Control?
1. Ensure that the Wi-Fi is enabled. If the Wi-Fi is off, press and hold the " " button to turn it on.
1. Press and hold the " " button to connect the appliance to Wi-Fi until the " " begins to flash.
