Cooker Hood
Instruction Manual
BRHCF9BLS
BRHCF9BLB
BRHCF6BLB
Content
Safety instructions
1
Installation
3
Start using your cooker hood
8
Troubleshooting
9
Maintenance and cleaning
10
Environment protection
14
1
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept in
a safe place for future reference.
These instructions shall also be available in an alternative format, e.g. on a website or on
request from the user in a format such as a DVD.

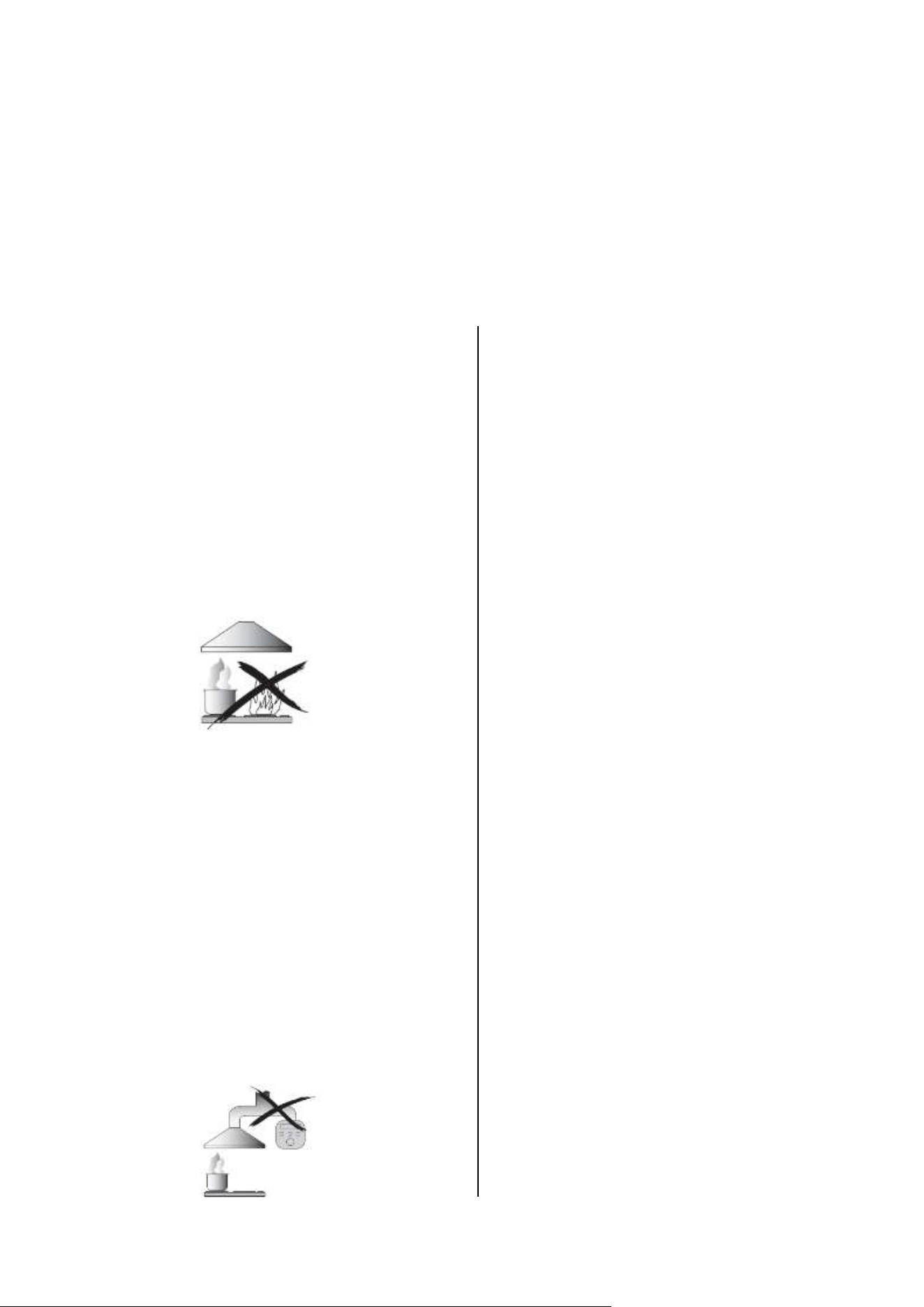

Never to do:
● Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a high
level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may become
hot when used with cooking appliances.
●The minimum distance between the
supporting surface for the cooking vessels
on the hob and the lowest part of the
cooker hood. (When the cooker hood is
located above a gas appliance, this
distance shall be at least 65 cm)
●The air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels.
Always to do:
● Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as light
bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried out by
a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
● Pay attention to the sharp edges inside
the cooker hood especially during
installation and cleaning.
●When the cooker hood is located above a
gas appliance,the minimum distance
between the supporting surface for the
cooking vessels on the hob and the
lowest part of the cooker hood that
distance must be:
Gas cookers: 75 cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker hood.
●Warning: Failure to install the screws or
fixing device in accordance with these
instructions may result in electrical
hazards
2
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
●Always put lids on pots and pans when
cooking on a gas cooker.
●When in extraction mode, air in the room
is being removed by the cooker hood.
Please make sure that proper ventilation
measures are being observed. The cooker
hood removes odours from room but not
steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
●This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
● Caution: The appliance and its accessible
parts can become hot during operation.
Be careful to avoid touching the heating
elements. Children younger than 8 years
old should stay away unless they are
under permanent supervision.
● There shall be adequate ventilation of the
room when the cooker hood is used at
the same time as appliances burning gas
or other fuels.
●There is a fire risk if cleaning is not carried
out in accordance with the instructions
●Regulations concerning the discharge of air
have to be fulfilled.
●Clean your appliance periodically by
following the method given in the chapter
MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the method
and frequency of cleaning, please refer to
maintenance and cleaning section in the
instruction manual.
●Cleaning and user maintenance shall not
be made by children without supervision.
●When the cooker hood and appliances
supplied with energy other than
electricity are simultaneously in operation,
the negative pressure in the room must
not exceed 4 Pa (4 x 10-5 bar).
●WARNING: Danger of fire: do not store
items on the cooking surfaces.
●A steam cleaner is not to be used.
●NEVER try to extinguish a fire with water,
but switch off the appliance and then
cover flame e.g. with a lid or a fire blanket.
3
INSTALLATION (VENT OUTSIDE)

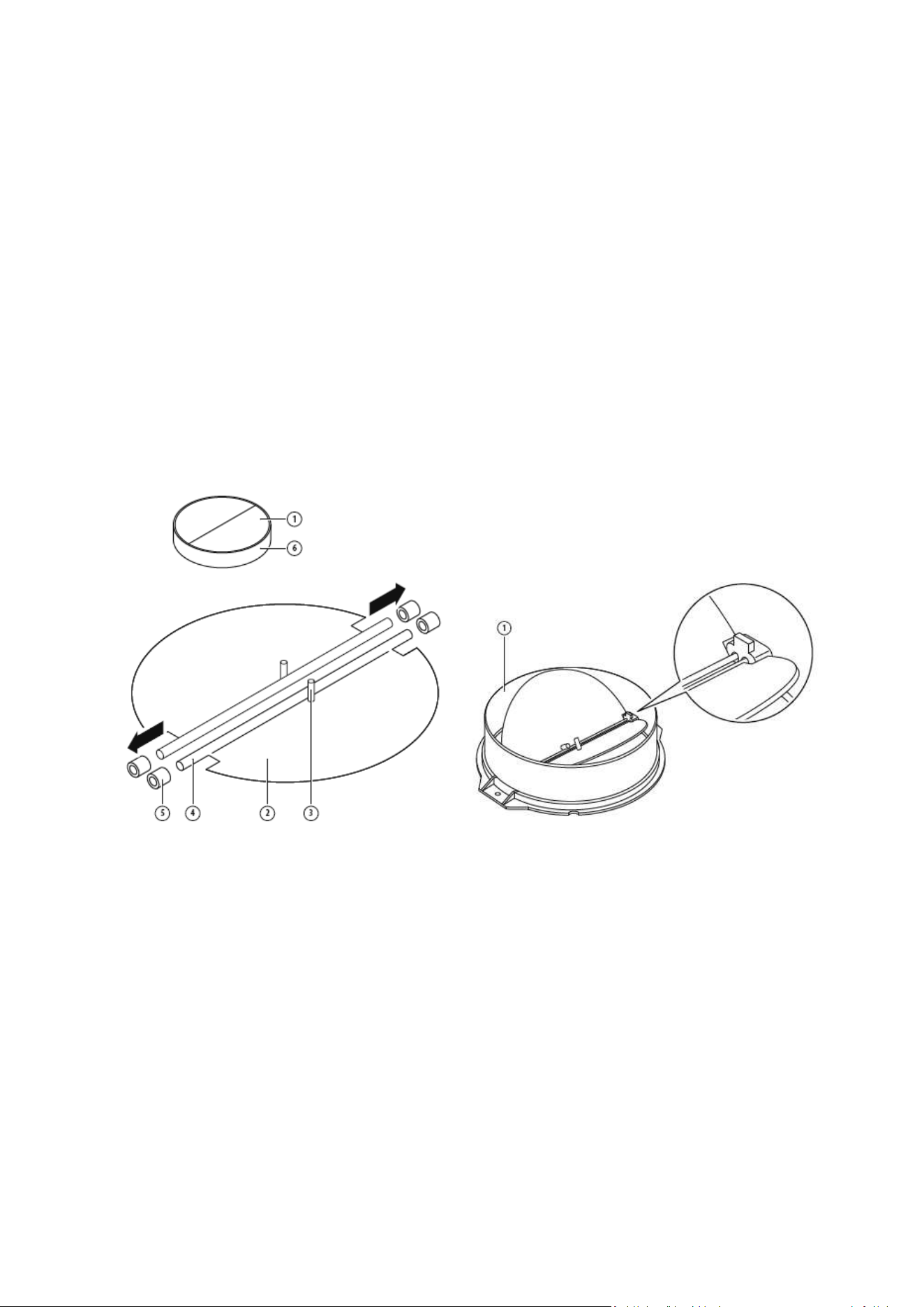

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to
its body.The images only show an example of how to mount the V-flap,the outlet may be
various according to different models and configuration.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below picture by
means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with
an interior diameter of 150mm)
4

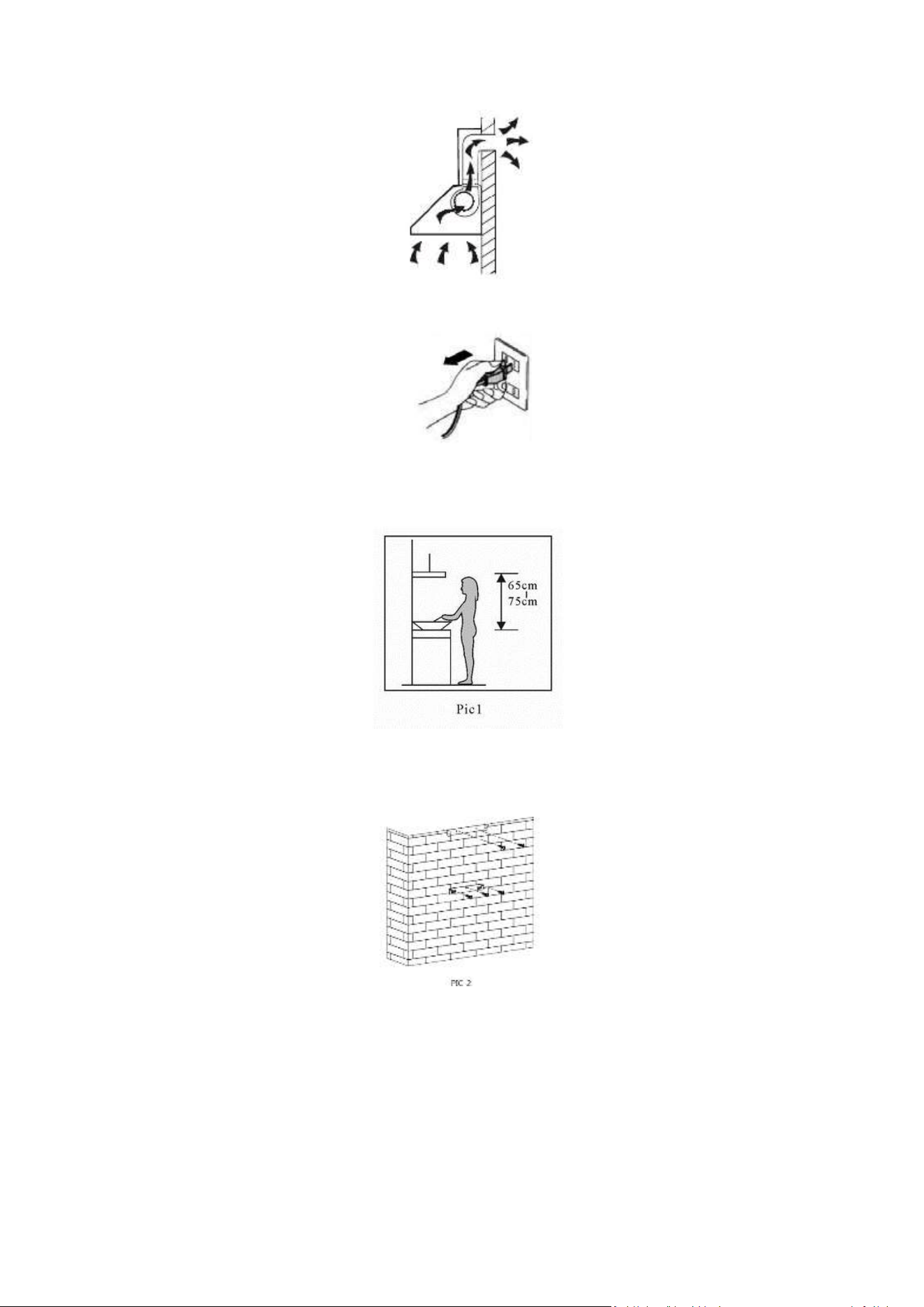

1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking surface for
best effect.
3. Install the hook on a suitable place once the installation height is fixed, and keep it in line.
The fixed position of the inside chimney bracket is the place of chimney. See pic 2.
4. Fasten the outlet with 4 pcs ST4*8mm, fix the expansion pipe and tie it with cable tie. See

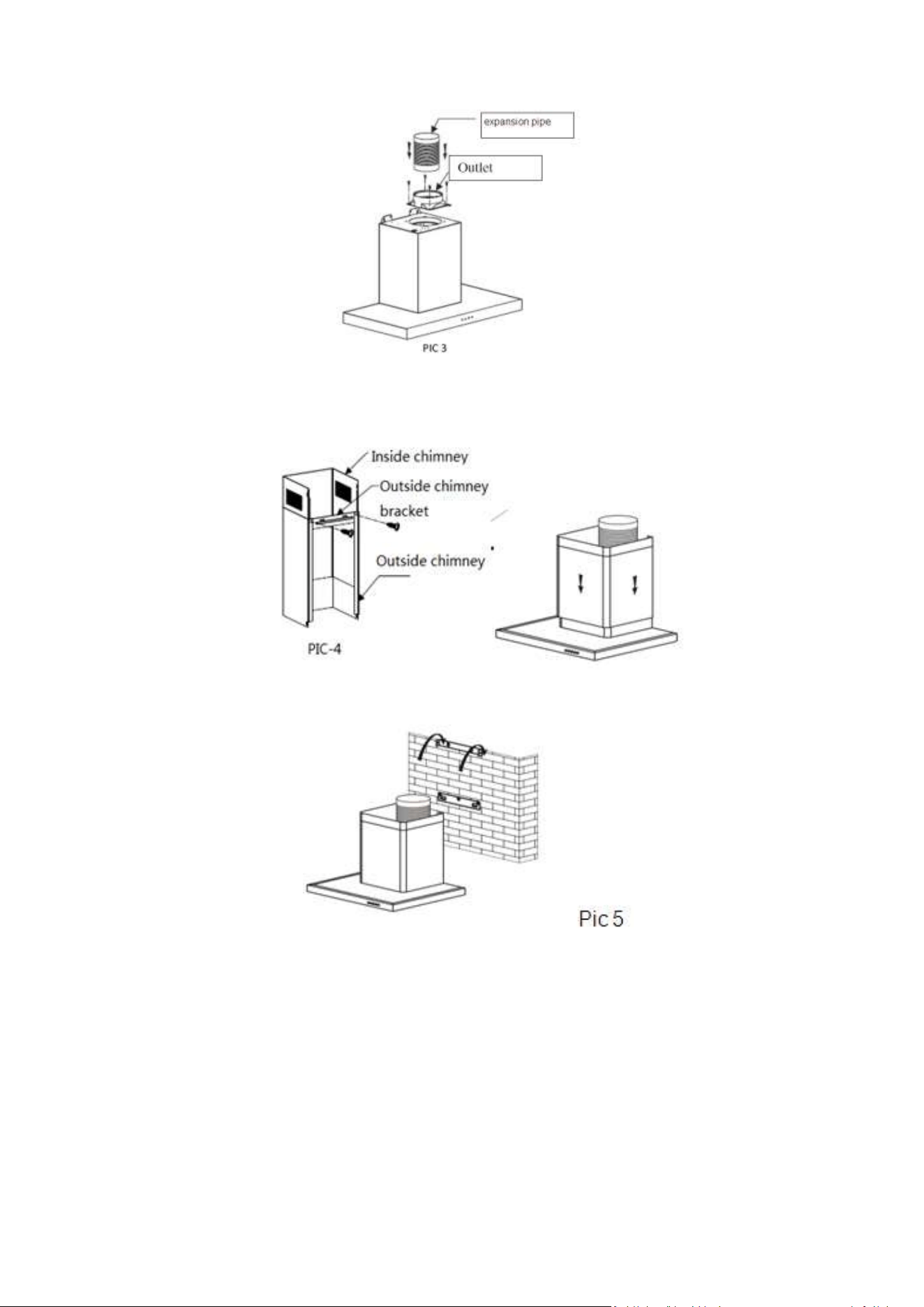

Pic 3.
5
5. Fix the outside chimney bracket on the outside chimney, and be sure that the inside
chimney can be adjusted freely. Afterwards, install the chimney on the cooker hood.See Pic4.
6. Put the cooker hood on the hook. See Pic 5.
5. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix
it with screws, after adjusting the position, fix the body with safety screw. See Pic 6.
6

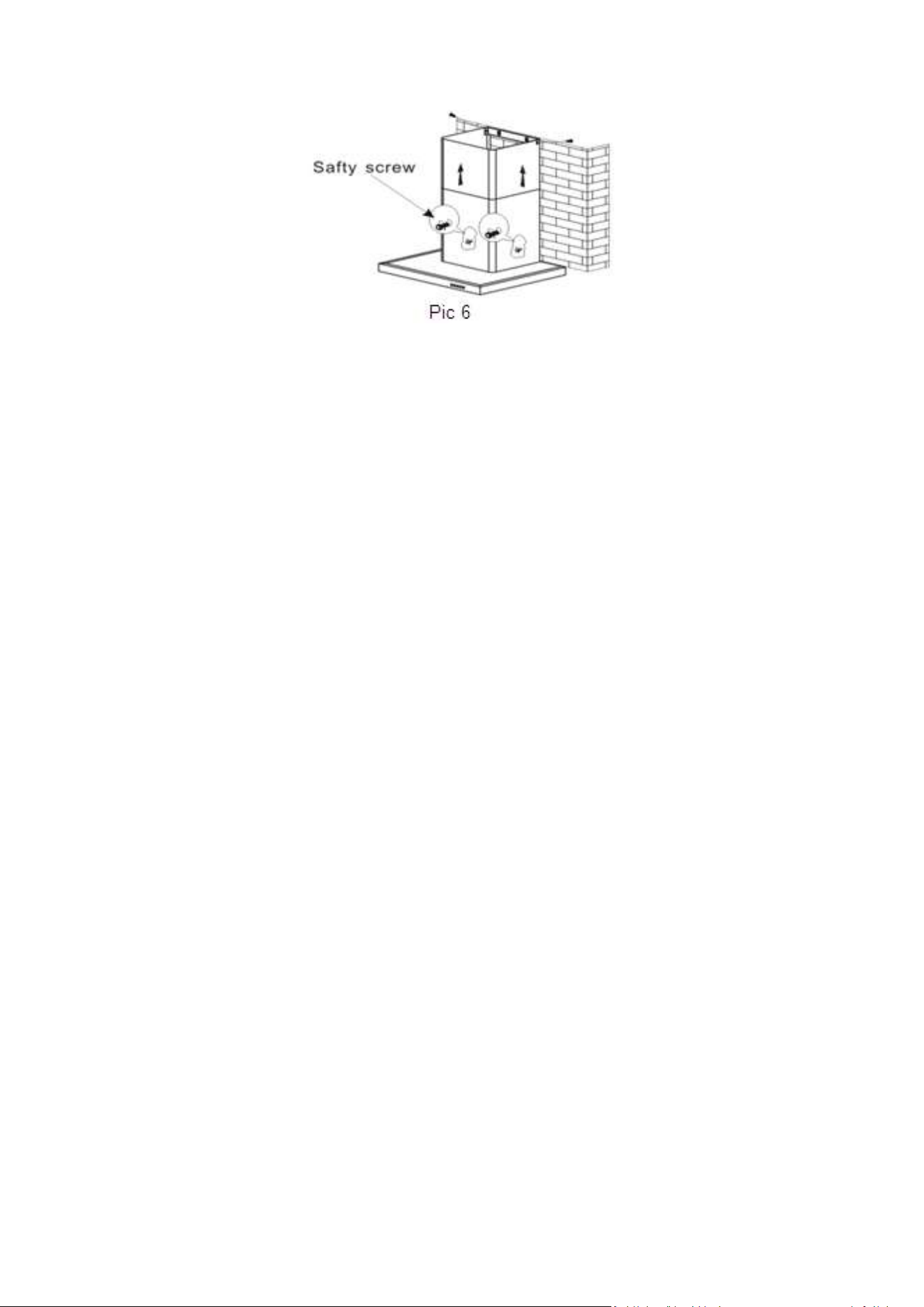

Note: The two safety vents are positioned on the back housing, with diameter of 6mm.
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise
levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
•Do not connect the ducting system of the hood to any existing ventilation system which is
being used for any other appliance ,such as warmer tube, gas tube , hot wind tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must direct
the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should
be led to an outer wall.

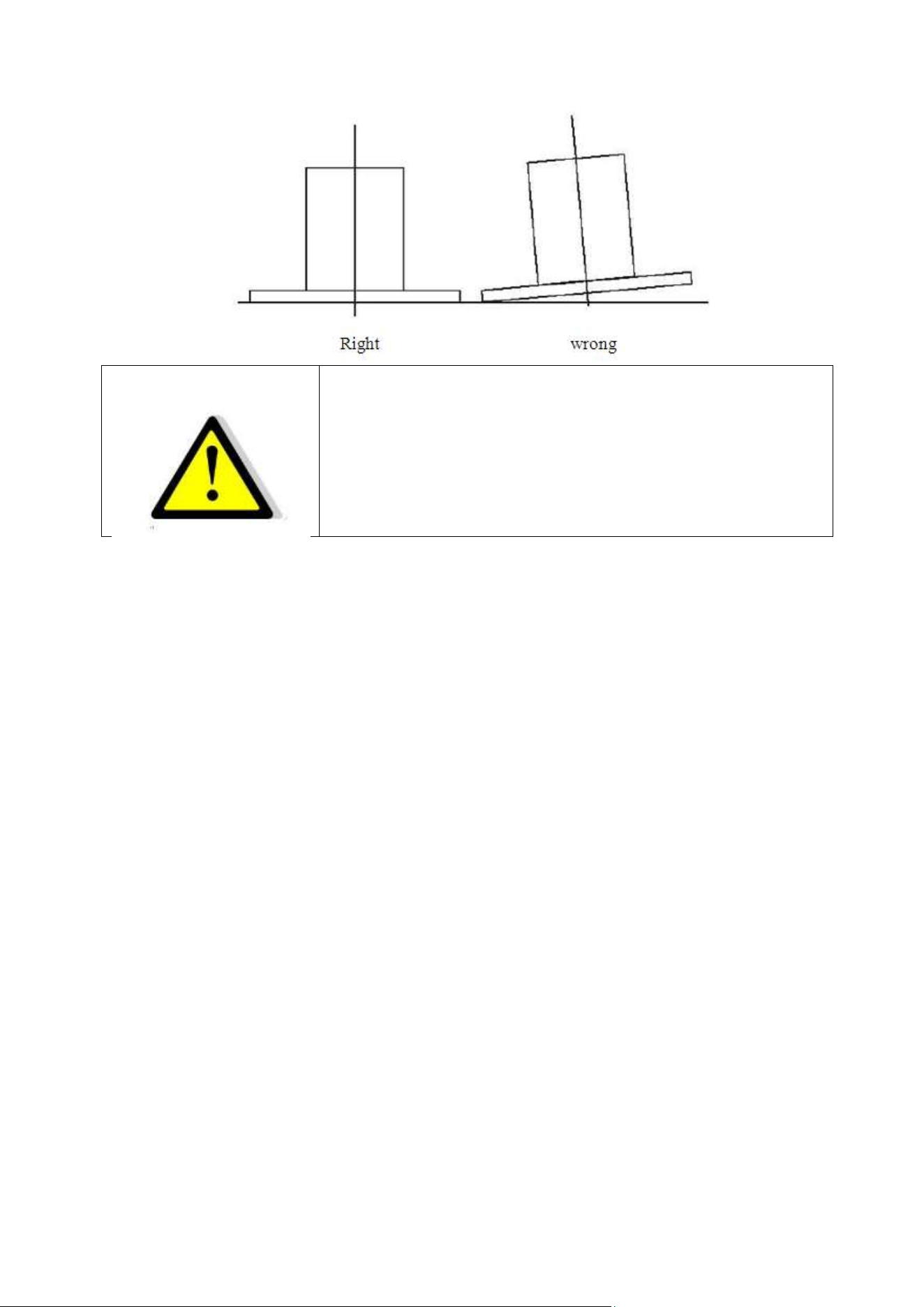

•After the installation ,make sure that the cooker hood is level to avoid grease collection at
one end.
•Ensure the expansion pipe selected for installation complies with relevant standards and is
fire retardant.
7
WARNING:
For safety reason, please use only the same size of fixing or
mounting screw which are recommended in this instruction
manual.
Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
8
Start Using Your Cooker Hood

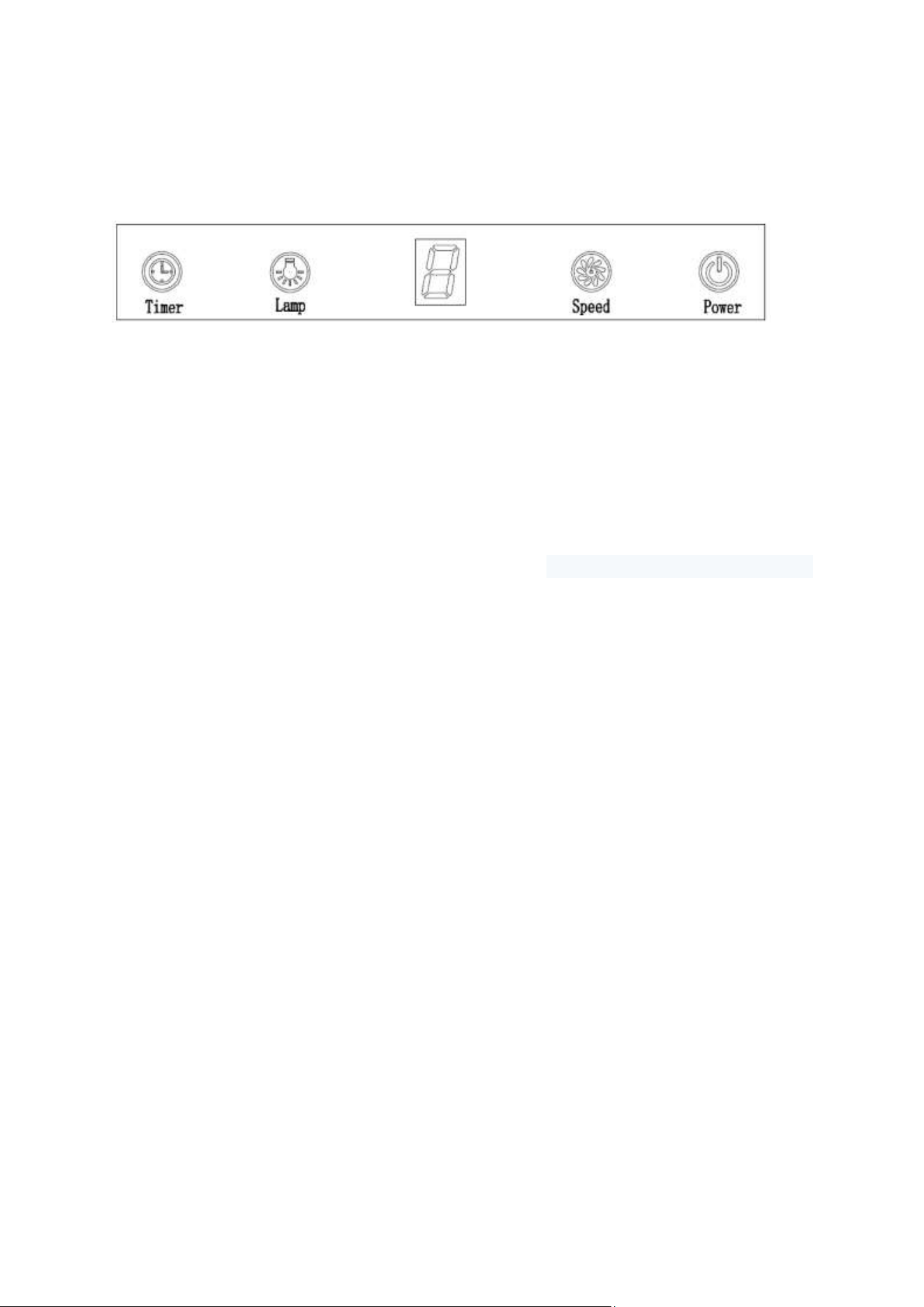

Touch control with LED display
1. Press the “Power” button, the button control the “on” & “off ” of the hood.
2. Keep pressing the button “Speed”, the motor runs as low / mid / high / low / mid…, and
the LED display will indicate as 1-2-3-1-2…
3. Press “Light” button, the light is on, press this button again, the light is off.
4. When the hood is working, press the “Timer” button, the hood will go into the status of
acquiescent working (acquiescent time is 9mins), and then, the LED display will indicate as
“9-8-7…-1-0”, when indicate “0”, the hood wil turn off automatically. If you keep pressing
“Timer” button, the hood will go on or off.
9
TROUBLESHOOTING
Fault
Possible Cause
Solution
Light on, but motor does
not work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact service center.
Motor failed
Contact service center.
Light does not work,
motor does not work
House fuses blown
Reset/Replace fuses.
Power cord loose or disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet are
not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover
Take chimney down and seal.
Lights not working
Broken/Faulty globes
Replace globes as per this
instruction.
Insufficient suction
The distance between the cooker
hood and the gas top is too far
Refit the cooker hood to the
correct distance.
The Cooker hood inclines
The fixing screw not tight enough
Tighten the hanging screw and
make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and federal
laws.Please contact the service centre if in any doubt before undertaking any of the
above.Always disconnect the unit from the power source when opening the unit.
10
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker hood
should be disconnected from the main power supply. Ensure that
the cooker hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning
instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially when
cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry
with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly
crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and
well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after
cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appliance appearance and
potentially remove any printing of artwork on the control panel and will void manufactures
warrantee.
11
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them
for about 3 minute in water with a grease-loosening
detergent then brush it gently with a soft brush.
Please do not apply too much pressure, avoid to
damage it . (Leave to dry naturally out of direct sun
light)
Filters should be washed separately to crockery and
kitchen utensils. it is advisable not to use rinse aid.

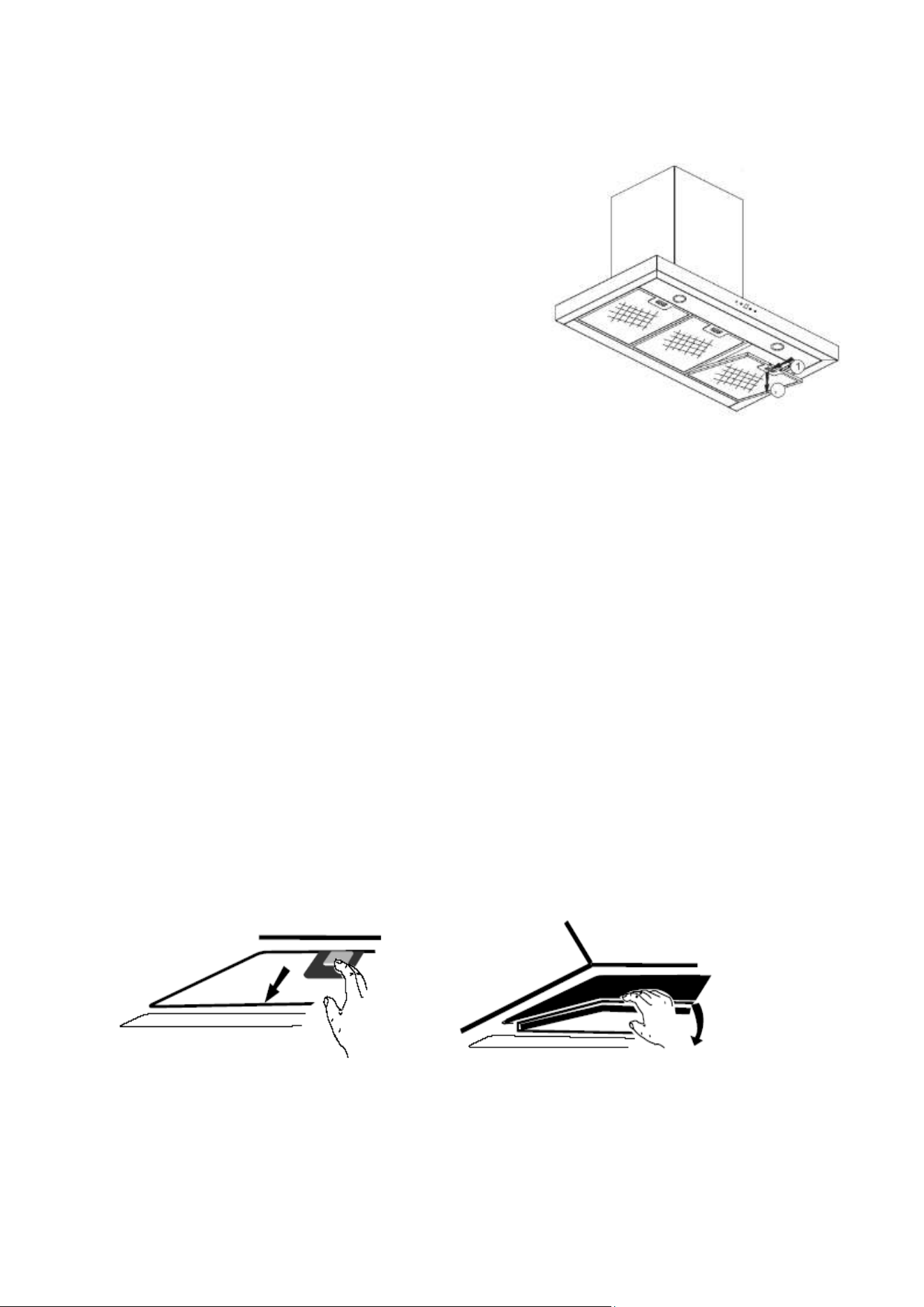

INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER- not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter should
be changed at three or six months according to your cooking habit. The installation procedure
of activated carbon filter is as below.
(1) The aluminum filter should be detached first. Press the lock and pull it downward.
(2) Take out the carbon filter and change it with a new one.
(3) Apply reverse procedure to install the charcoal filter CF260.
(4) Put the aluminum filter back.
12
NOTE:
Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowered.
LAMP REPLACEMENT
1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.
3. Take out the baffle filter and use the screw driver to take out the frame.
4. Replace with same type of bulb (LED 1.5W Max)
Note: Light replacement should carried out by qualified service personnel only.

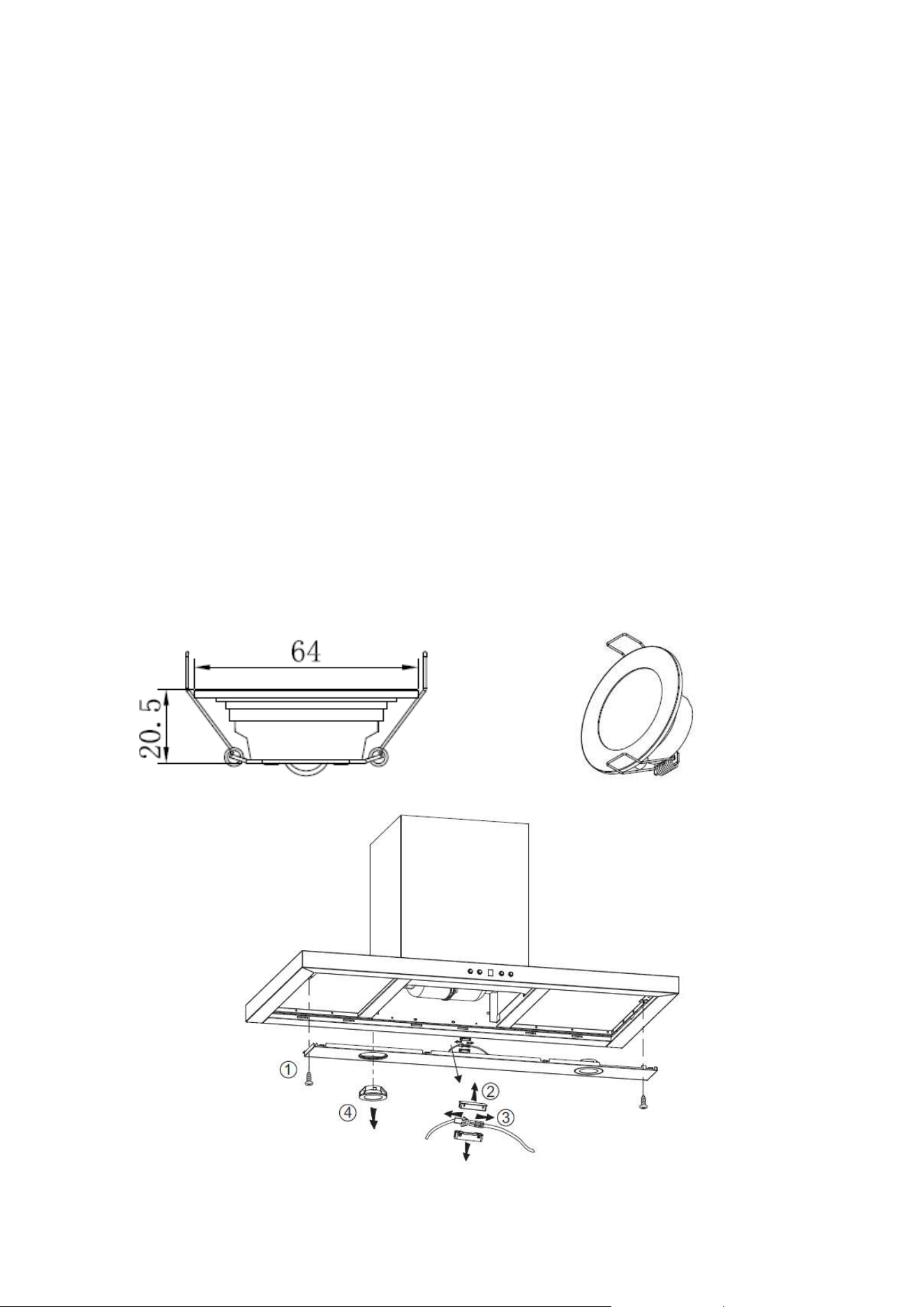

ILCOS D code for this lamp is: DSR-1.5/65-S-64
– LED modules –round lamp
– Max wattage: 1.5 W
– Voltage range: DC 12V
– Dimensions:
13
The bulb must be replaced by the manufacturer, its service agent or similarly qualified
persons.
Always switch off the electricity supply before carrying out any operations on the
appliance. When handling bulb, make sure it is completely cool down before any direct
contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in
contact with the globe as this can reduce the life of the globe.
14
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of waste
electronic equipment. This means that this product must not be disposed of
with household waste.
It should be recycled or dismantled to minimize impacts on the environment,
electrical and electronic products are potentially dangerous for the
environment and human health due to the presence of hazardous
substances.
For more information, please contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
1. Install the cooker hood in a proper place where there is efficient ventilation.
2. Clean the cooker hood regularly so as not to block the airway.
3. Remember to switch off the cooker hood light after cooking.
4. Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance must not be dismantled by user. At the end of life, the appliance should not be
disposed of with household waste. Check with you Local Authority or retainer for recycling
advice.
