1 Safety ............................................ 3
1.1 General information .................... 3
1.2 Intended use ................................ 3
1.3 Restriction on user group .......... 3
1.4 Safe installation ........................... 4
1.5 Safe use ........................................ 6
1.6 Safe cleaning and mainten-
ance ............................................... 8
2 Preventing material damage ...... 9
3 Environmental protection and
saving energy .............................. 9
3.1 Disposing of packaging ............. 9
3.2 Saving energy .............................. 9
3.3 Energy saving mode ................ 10
4 Installation and connection ...... 10
4.1 Unpacking the appliance ........ 10
4.2 Contents of package ................ 10
4.3 Requirements for the installa-
tion location ................................ 10
4.4 Water outlet hose ...................... 11
4.5 Aligning the appliance ............. 13
4.6 Connecting the appliance to
the electricity supply ................. 13
5 Familiarising yourself with
your appliance ........................... 14
5.1 Appliance .................................... 14
5.2 Control panel ............................. 15
6 Display ........................................ 15
7 Buttons ....................................... 17
8 Programmes .............................. 18
8.1 Automatic programmes ........... 18
8.2 Timed programmes .................. 19
9 Accessories ............................... 20
10 Laundry .................................... 21
10.1 Preparing the laundry ............ 21
10.2 Care symbols on the care la-
bels ............................................ 22
11 Basic operation ....................... 22
11.1 Switching on the appliance .. 22
11.2 Setting a programme ............. 22
11.3 Opening the door ................... 22
11.4 Loading laundry ...................... 22
11.5 Starting the programme ........ 22
11.6 Adding laundry ........................ 23
11.7 Cancelling the programme ... 23
11.8 Unloading the laundry ............ 23
11.9 Switching off the appliance ... 23
11.10 Fluff filter ................................. 23
11.11 Condensation container ...... 24
12 Dryness level ........................... 25
12.1 Changing the dryness level .. 25
12.2 Adjusting the dryness level ... 26
13 Childproof lock ........................ 26
13.1 Activating the childproof
lock ............................................ 26
13.2 Deactivating the childproof
lock ............................................ 26
14 Basic settings .......................... 26
14.1 Overview of the basic set-
tings ........................................... 26
14.2 Changing the basic set-
tings ........................................... 27
15 Cleaning and servicing ........... 27
15.1 Base unit .................................. 27
15.2 Moisture sensor ...................... 29
16 Troubleshooting ...................... 30
17 Transportation, storage and
disposal ................................... 33
17.1 Disposing of old appliance ... 33
18 Customer Service ................... 33
2
Safety en
18.1 Product number (E-Nr.) and
production number (FD) ........ 33
19 Consumption values ............... 34
20 Technical data ......................... 35
Safety 1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ for drying and freshening up fabrics that are washed with water
and suitable for dryers.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of 4000 m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
3
en Safety
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
Connect and operate the appliance only in accordance with the
specifications on the rating plate.
Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
When using a residual current circuit breaker, only use a type
with the mark.
Never equip the appliance with an external switching device,
e.g. a timer or remote control.
Never connect the appliance to a circuit that is regularly
switched on and off by the energy supplier.
When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
isolating switch must be integrated into the permanent electrical
installation according to the installation regulations.
When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
Never let the power cord come into contact with hot appliance
parts or heat sources.
Never let the power cord come into contact with sharp points or
edges.
Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
Do not use extension cables or multiple socket strips.
Only use adapters and power cords approved by the manufac-
turer.
If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
4
Safety en
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack,
the installed appliance may fall.
Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer . No other installation
method is permitted.
"Accessories", Page20
Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
Keep packaging material away from children.
Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
Place the appliance on a clean, even, solid surface.
Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
Do not touch the sharp edges on the appliance.
Wear protective gloves when installing and transporting the ap-
pliance.
5
en Safety
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box.
Call customer service.
Page33
An ingress of moisture can cause an electric shock.
Only use the appliance in enclosed spaces.
Never expose the appliance to intense heat or humidity.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
Keep small parts away from children.
Do not let children play with small parts.
WARNING‒Risk of explosion!
If there is coal dust or flour in the air around the appliance, this
may cause an explosion.
Keep the area around the appliance clean during operation.
WARNING‒Risk of poisoning!
Condensation water from this appliance is not suitable for drinking
and may be contaminated with fluff.
Do not drink or reuse the condensation water from the appli-
ance.
6
Safety en
Detergents and care products may result in poisoning if con-
sumed.
If accidentally swallowed, seek medical advice.
Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
If there is any residual material left in the fluff filter, this may ignite
during the drying process.
Clean the fluff filter regularly.
Highly flammable objects such as lighters or matches may ignite
during the drying process.
Remove all highly flammable objects from any pockets in your
laundry before the drying process.
Unwashed laundry that has come into contact with solvents, oil,
wax, wax remover, paint, grease or stain remover may ignite when
drying is in progress.
Do not place laundry in this appliance to be dried if the laundry
has not been washed first.
Rinse the laundry thoroughly with warm water and detergent be-
fore drying it in the machine.
Do not use the appliance if industrial chemicals have been used
to clean the laundry beforehand.
WARNING‒Risk of fire!
If drying is interrupted early, the laundry is not cooled sufficiently
and may ignite.
Do not interrupt the drying programme early.
If drying is interrupted early, remove the laundry immediately
and spread it out.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
Do not sit on or lean against the appliance door.
Do not place any objects on the appliance door.
7
en Safety
Reaching into the drum while it is still turning may cause hand in-
juries.
Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk of burns!
The rear panel of the appliance becomes hot during operation.
Do not touch the rear panel of the appliance when it is hot.
Keep children away from the rear panel of the appliance when it
is hot.
Position the appliance with the rear panel close against a wall.
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
Never make any technical modifications to the appliance or its
features.
Repairs to the appliance should only be carried out by trained
specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
Do not use cleaning agents that contain solvents.
8
Preventing material damage en
Preventing material damage2 Preventing material
damage
ATTENTION
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
Observe the maximum load capa-
city for each programme and do
not exceed it.
"Programmes", Page18
The function of the appliance may be
impaired if the appliance overheats.
Keep the ventilation opening on
the appliance clear during opera-
tion.
Make sure that the area is ad-
equately ventilated.
Light objects such as hair and fluff
may be sucked in from the ventilation
opening on the appliance during op-
eration and impair the function of the
appliance.
Keep the area around the appli-
ance clean during operation.
Keep light objects away from the
appliance.
If you operate the appliance without a
fluff guard (e.g. fluff filter, fluff col-
lector, filter mat, etc., depending on
appliance specifications), or if the
fluff guard is incomplete or defective,
this may result in damage to the ap-
pliance.
Do not operate the appliance
without a fluff guard, or with a fluff
guard that is incomplete or defect-
ive.
Foam and foam rubber may deform
or melt during the drying process.
Do not dry laundry that contains
foam or foam rubber.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
Do not use harsh or abrasive de-
tergents.
Do not use cleaning products with
a high alcohol content.
Do not use hard scouring pads or
cleaning sponges.
Clean the appliance with nothing
but water and a soft, damp cloth.
Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
Environmental protection and saving energy3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
Sort the individual components by
type and dispose of them separ-
ately.
3.2 Saving energy
If you follow these instructions, your
appliance will use less power.
Operate the appliance in a well-
ventilated room and keep the vent-
ilation opening on the appliance
clear.
Spin the laundry in the washing
machine before drying.
For each drying process, use the
maximum load for the programs.
Programmes
Page18
9
en Installation and connection
Do not exceed the programme's
maximum load capacity. Pro-
grammes
Page18
After drying, clean the fluff filter.
"Cleaning the fluff filter",
Page23
Regularly clean the base unit.
"Cleaning the base unit",
Page27
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode.
Energy-saving mode ends when you
use the appliance again.
Installation and connection4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1.
Remove any packaging and pro-
tective covers completely from the
appliance.
"Disposing of packaging",
Page9
2.
Check the appliance for visible
damage.
3.
Open the door.
Page22
4.
Remove any accessories from the
drum.
5.
Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
Do not operate the appliance with
incomplete or defective accessor-
ies.
Replace the accessories in ques-
tion before operating the appli-
ance.
"Accessories", Page20
The delivery consists of the following:
Tumble dryer
Accompanying documents
Water outlet hose with connection
adapter, fixing material and elbow
Page11
4.3 Requirements for the in-
stallation location
Observe the instructions for the in-
stallation location.
ATTENTION
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
Tilt the appliance carefully.
Transport the appliance in an up-
right position.
If residual water in the appliance
freezes, this may cause damage to
the appliance.
Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
10
Installation and connection en
On the floor
Place the appliance on a clean, level
and firm surface.
Align the appliance.
Page13
In a washer-dryer stack
Only use the original connection set
from the dryer manufacturer when
setting up this appliance in a washer-
dryer stack.
Connection kit
Page20
Connection kit with pull-out work-
top
Page20
This appliance must only be stacked
on a washing machine from the
same manufacturer. The depth and
width of this appliance must corres-
pond with the dimensions of the
washing machine.
Do not place the washer-dryer stack
on a platform.

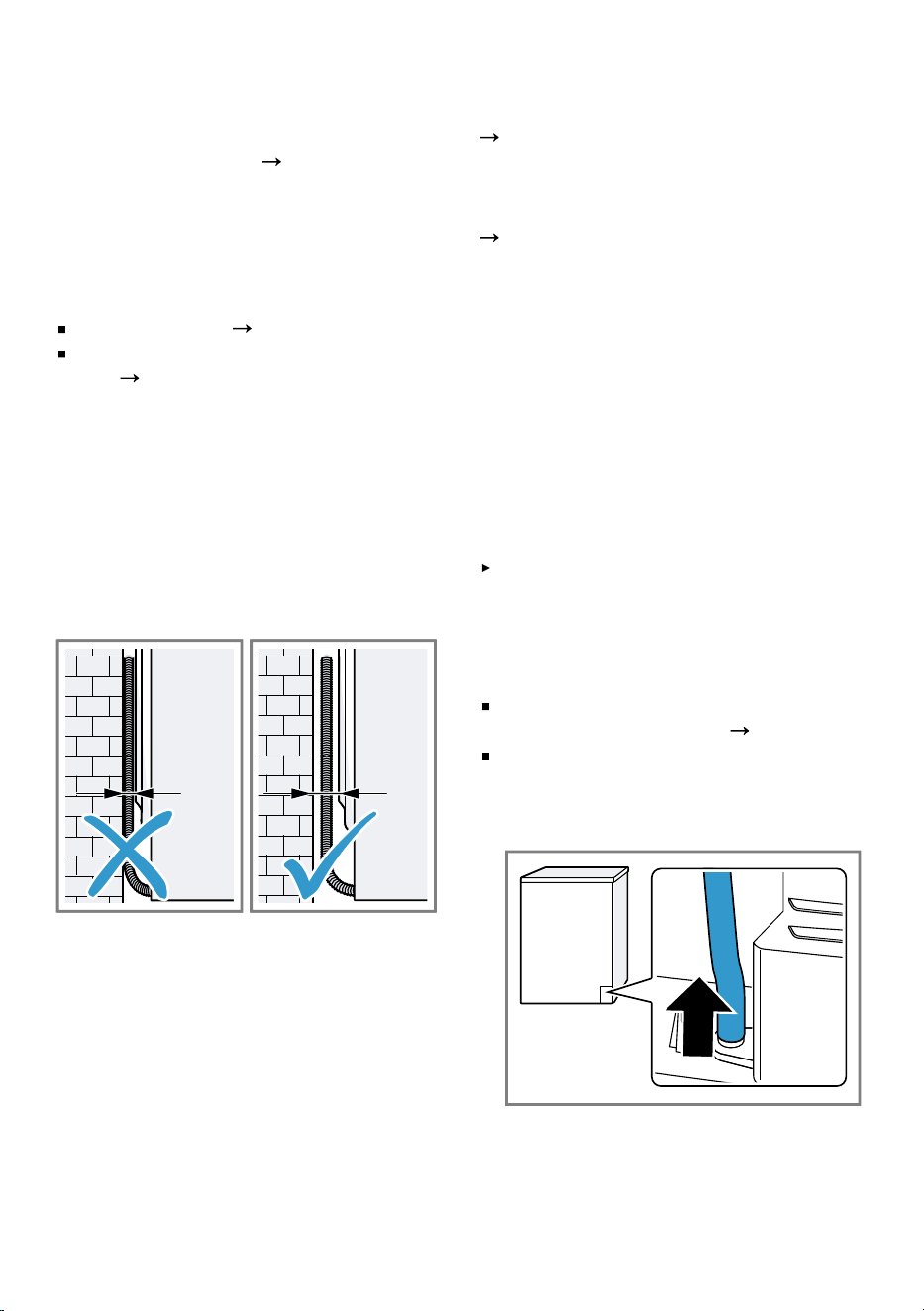

Against a wall
Do not trap the hoses and power
cord between the wall and the appli-
ance.
4.4 Water outlet hose
Condensation that forms in the appli-
ance as it dries the laundry is collec-
ted by default in the condensation
container. Use the water outlet hose
to drain away excess condensation
directly into the waste water system.
Note: Operate this appliance using
the water outlet hose provided.
Page11
If you connect the water outlet hose,
you do not have to regularly empty
the condensation container.
"Emptying the condensation con-
tainer", Page24
Connecting the water outlet hose
If you do not want to regularly empty
the appliance's condensation con-
tainer, connect the water outlet hose.
ATTENTION
When operating the appliance
without the condensation hose or wa-
ter outlet hose being connected
properly, liquid may leak out of the
connecting piece.
Before operating the appliance,
connect the condensation hose or
water outlet hose properly to the
connecting piece.
Requirements
The appliance and the accessory
have been unpacked.
Page10
The appliance is installed at the in-
stallation location.

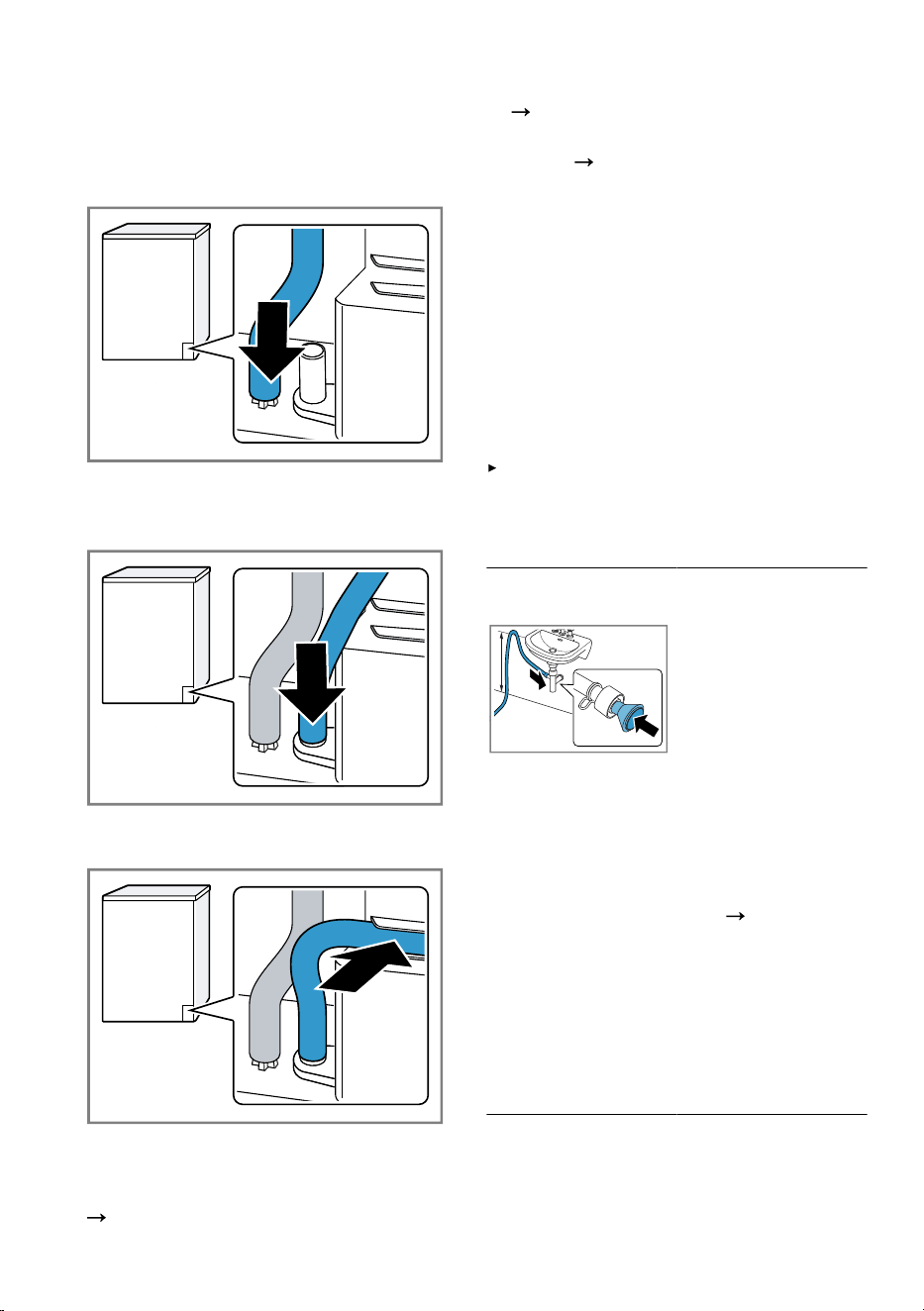

1.
Pull out the condensation hose
from the connecting piece.
The condensation hose is connec-
ted to the connecting piece at the
factory.
11
en Installation and connection
Note: When removing the con-
densation hose, liquid may leak
out of the connecting piece.
2.
Push the condensation hose into
the holder.
3.
Push the water outlet hose as far
as it will go into the connecting
piece.
4.
Insert the water outlet hose into the
hose guide.
Ensure that you do not bend the
water outlet hose.
5.
Empty the condensation container.
Page24
6.
Insert the condensation container.
Page25
7.
Connect the appliance to the water
drain.
Page12
Tip: To collect condensation in the
condensation container again (e.g. if
you change where the appliance is
located), carry out these steps in re-
verse order.
Water outlet connection types
ATTENTION
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.
Drainage into a
siphon.
Secure the con-
nection point with
a (12-22 mm)
hose clamp.
Secure the water
outlet hose with a
hose guide at a
height of at least
80 cm and no
more than 100
cm.
Note: You can
use the Y-distrib-
utor
Page21
to connect the wa-
ter outlet hose of
an additional ap-
pliance, such as a
washing machine,
to the same si-
phon outlet.
Drainage into a
wash basin.
Push the water
outlet hose fully
through the elbow
and secure it us-
ing fixing material.
12
Installation and connection en

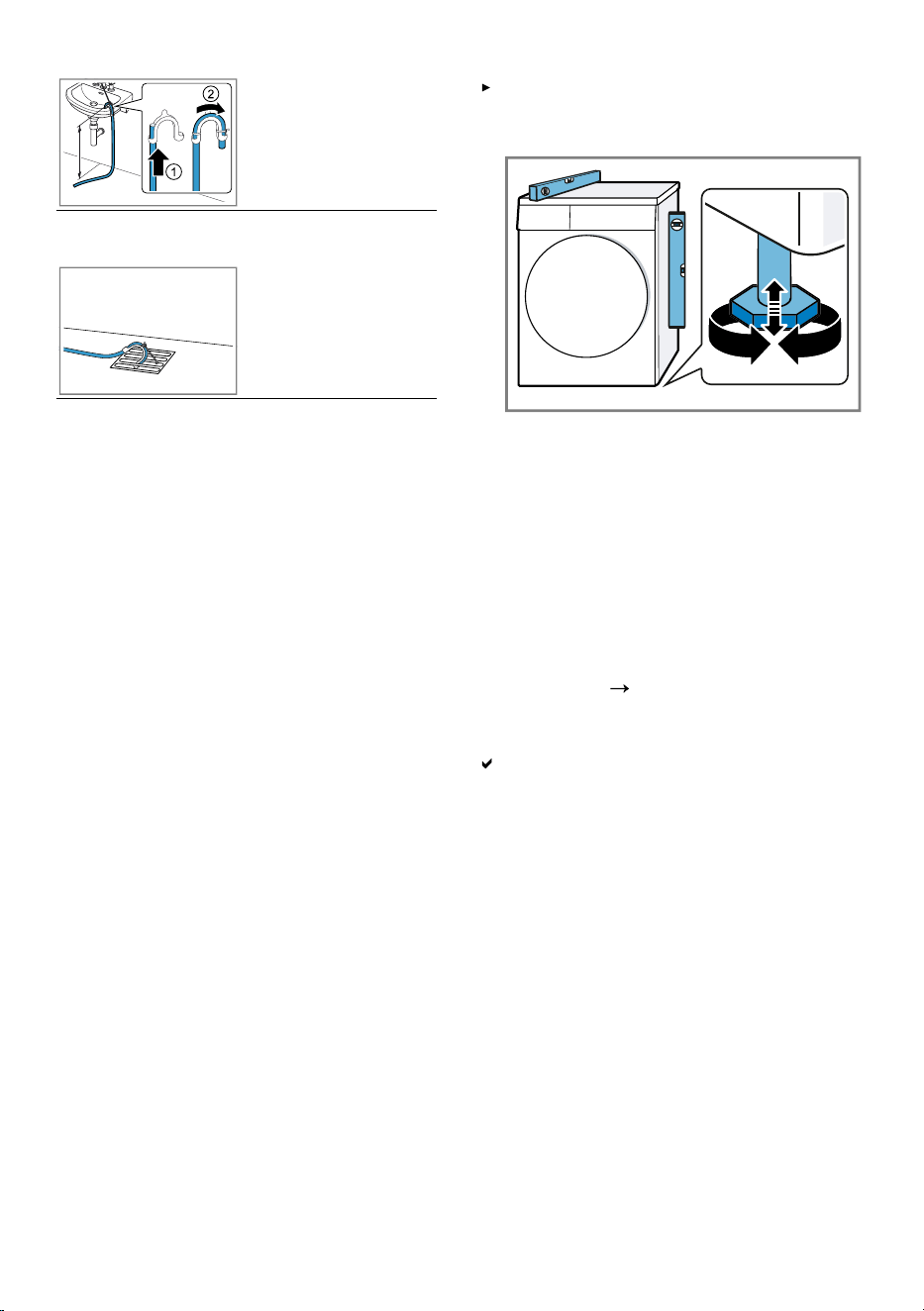

Secure the elbow
at a height of no
more than 100
cm.
Drainage into a
gully.
Push the water
outlet hose fully
through the elbow
and secure it us-
ing fixing material.
Secure the elbow
to the gully.
4.5 Aligning the appliance
In order to reduce vibrations and
noises, align the appliance correctly.
To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
4.6 Connecting the appliance
to the electricity supply
1.
Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data
Page35
.
2.
Check the mains plug is inserted
properly.
The appliance is now ready for
use.
13
en Familiarising yourself with your appliance
Familiarising yourself with your appliance5 Familiarising yourself with your appliance

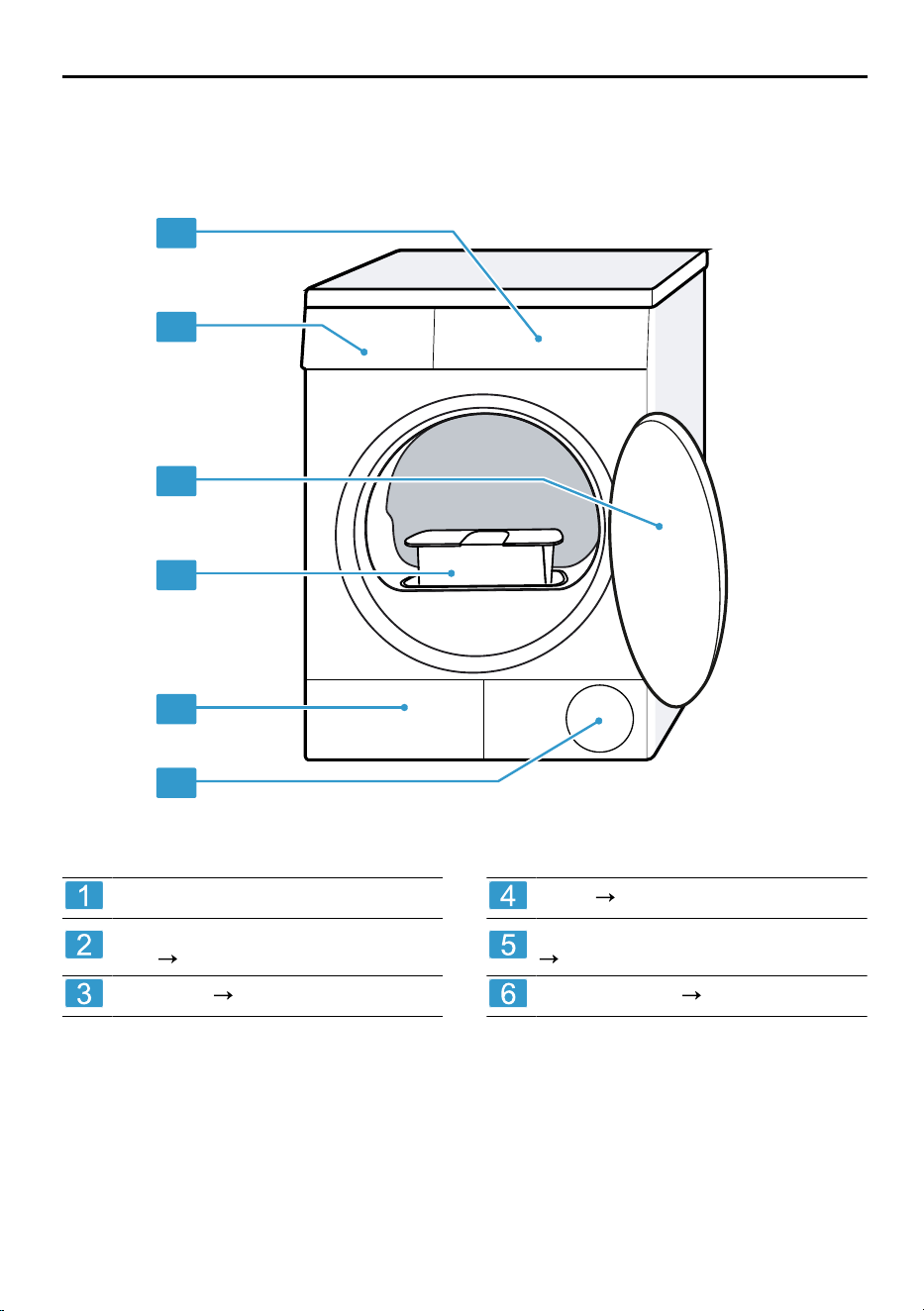

5.1 Appliance
You can find an overview of the parts of your appliance here.
1
2
3
4
5
6
On certain models, specific details such as the colour and shape may differ from those
pictured.
Ventilation opening
Maintenance flap on the base
unit
Page27
Fluff filter
Page23
Door
Page22
Condensation container
Page24
Control panel
Page15
14
Display en
5.2 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2 3
1 1
4
4
Programmes
Page18
Programme selector
Page22
Display
Page15
Buttons
Page17
Display6 Display
The display shows the current settings, options or relevant information.
15
en Display
Depending on the programme status, the display shows some information in
the area, e.g. .
Example: Display
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
1:25 The timed programme is set.
Page19
9.0
1
Recommendation for the maximum load capacity for the
selected program in kg.
0:45
1
Programme end time
Page18
Lights up: The childproof lock is activated.
Flashes: The childproof lock is activated and the appli-
ance has been operated.
Page26
( Start/
Pause)
Start, cancel or pause
Lights up: The programme is running and can be can-
celled or paused.
Flashes: The programme can be started or continued.
( Iron Dry) The dryness level is activated.
Page25
( Cupboard
Dry)
The dryness level is activated.
Page25
( Cupboard
Dry Plus)
The dryness level is activated.
Page25
+1
+2
The adjusted dryness level is activated.
Page25
1
Example
16
Buttons en
Display Description
+3
( Anti Crease) The crease-reduction function is activated.
"Buttons", Page18
( Gentle Dry) Gentle drying is activated for delicate fabrics.
Page18
4.5kg ( Half
Load)
Half load is activated.
Page18
( Mute) Quiet drying with no signal tones is activated.
Page18
Empty and insert the condensation container.
Page24
Clean the fluff filter
Page23
.
Clean the base unit.
Page27
Hot The cooling process cools the laundry independently of
the programme status for a few minutes while the drum is
rotating, in order to avoid damage to the laundry. The
cooling process can be cancelled by opening the door.
Note: Do not change the set programme.
Programme status: Drying
Programme status: Iron dry dryness level
Programme status: Cupboard Dry dryness level
Programme status: Crease-reduction function
( Start/
Pause)
Programme status: Pause
End Programme status: Programme end
Buttons7 Buttons
Button Description
Start/Pause Start, cancel or pause the programme.
3 sec. Activate or deactivate the childproof lock.
Page26
Cupboard Dry
Plus
Selecting Cupboard Dry Plus activates the dryness
level.
Page25
The dryness level can be adjusted by selecting +1+1 ,
+2+2 or +3+3 .
Page26
Cupboard Dry Selecting Cupboard Dry activates the dryness level.
Page25
The dryness level can be adjusted by selecting +1+1 ,
+2+2 or +3+3 .
Page26
Iron Dry Selecting Iron Dry activates the dryness level.
Page25
17
en Programmes
Button Description
The dryness level can be adjusted by selecting +1+1 ,
+2+2 or +3+3 .
Page26
Anti Crease Activate or deactivate the crease-reduction function.
Once the programme has ended, the drum moves the
laundry at regular intervals for 120 minutes to prevent
creasing.
Gentle Dry Activate or deactivate gentle drying.
The temperature is reduced for delicate fabrics, e.g. poly-
acrylic or elastane.
The programme duration is extended.
Ready In Set the programme end time. The programme duration is
already included in the set number of hours. Once the
programme has started, the programme duration is dis-
played.
Set the programme duration for timed programmes.
Page19
Mute Activate or deactivate operating signals and information
signals.
Half Load Dry individual items of laundry or small loads of laundry.
Programmes8 Programmes
You can dry your fabrics using either
an automatic programme or a timed
programme.
Note: The laundry's care labels
provide you with additional informa-
tion about programme selection.
"Care symbols on the care labels",
Page22
8.1 Automatic programmes
Automatic programmes are programmes in which humidity sensors measure
the residual moisture in the laundry during the drying cycle. The programme
only ends once the set dryness level is reached.
Each automatic programme has a dryness level
Page25
. The dryness level
defines how dry or damp the laundry is after the programme ends.
Tip: Select the dryness level according to the type of fabric or the desired dry-
ing result.
Programme Description Max. load
(kg)
Cottons Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
9.0
Cottons Eco Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
Energy-saving programme.
9.0
18
Programmes en
Programme Description Max. load
(kg)
Synthetics Dry items made of synthetic materials or
blended fabrics.
3.5
Mix Load Dry items made of cotton and synthetics. 3.0
Quilt/Blanket Dry clothing, pillows, quilts or bedspreads
filled with synthetic fibres.
Note: Dry large items of laundry, blankets
or pillows individually.
2.5
Delicates Dry delicate items made of satin, synthet-
ics or blended fabrics.
2.0
Hygiene Plus Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
Suitable for increased hygiene require-
ments.
4.0
Sportswear Dry self-drying sportswear made of per-
formance fibres, microfibres and synthet-
ics.
1.5
Shirts 15 min Suitable for shirts and blouses made of
cotton, linen, synthetics or blended fab-
rics.
Note: For optimal drying results, dry a
maximum of 5 shirts or 5 blouses at the
same time.
Once the laundry is dry, iron it or hang it
up. The residual moisture is then distrib-
uted evenly.
1.5
Quick 40 min Dry items made of synthetics and light
cotton.
2.0
Towels Dry hard-wearing, heat-resistant towels
and dressing gowns made of cotton or
linen.
6.0
8.2 Timed programmes
Timed programmes are programmes with a defined or adjustable programme
duration. The programme ends once this time has elapsed, even if the laundry
is still not dry, for example. Timed programmes are suitable for drying individual
items of laundry or thin fabrics.
19
en Accessories
Programme Description Max. load
(kg)
Wool Finish Dry machine-washable items made of
wool or containing wool.
Note: The laundry becomes fluffier but not
dry.
Remove laundry once the programme has
ended and allow it to dry.
0.5
Timed Program Warm Fluff/loosen all fabric types except for
wool and silk.
This programme is suitable for fluffing dry
laundry only.
Also suitable for freshening up or airing
dry clothing that has hardly been worn.
3.0
Timed Progr. Cold Dry all types of fabric except for wool and
silk.
Suitable for pre-dried or slightly damp
laundry and for drying off multi-layered,
thick laundry.
3.0
Accessories9 Accessories
Use original accessories. These have been made especially for your appliance.
Tip: Some accessories are available in other colours. Contact customer ser-
vice.
Page33
Use Order number
Connection kit To save space, stack the
appliance on a suitable
washing machine of the
same width and depth
and that is from the
same manufacturer.
WTZ20410
Connection kit with pull-
out worktop
To save space, stack the
appliance on a suitable
washing machine of the
same width and depth
and that is from the
same manufacturer.
The pull-out worktop
makes it easier to load
and unload the appli-
ance.
WTZ11400
20
Laundry en
Use Order number
Wool basket Dry or air individual wool-
len items, sports shoes
and soft toys.
WMZ20600
Y-distributor Connect the water outlet
hose of an additional ap-
pliance to the same si-
phon outlet.
15000490
Water outlet hose Drain away excess con-
densation directly into
the waste water system,
without having to regu-
larly empty the condens-
ation container.
WTZ1110
Platform Install the appliance at a
raised height so that it
can be easily loaded and
unloaded.
WTZPW20D
Laundry10 Laundry
10.1 Preparing the laundry
WARNING
Risk of explosion!
Fillings made of polyamide, polyes-
ter, polyethylene, polypropylene or
polystyrene can leak out of openings
in items of laundry, melt during the
drying process and cause an explo-
sion in the appliance.
Do not dry items of laundry with
fillings made of polyamide, polyes-
ter, polyethylene, polypropylene or
polystyrene in the appliance.
ATTENTION
Objects remaining in the laundry may
damage the laundry and the drum.
Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are protec-
ted when you prepare your laundry.
Brush off sand and soil
Sort the laundry according to col-
our and textiles and observe the
care labels
Close all zips, hook and loop
fasteners, hooks and eyes
Remove curtain fittings and lead
strips
Load the laundry unfolded into the
drum
Spin the laundry before drying
Dry woollen items, sports shoes
and soft toys in the wool basket
Wool basket
21
en Basic operation
10.2 Care symbols on the care
labels
Drying care symbols
Symbol Fabrics
Items made from cotton
and linen, e.g. towels, bed
linen, underwear
Items made from synthetic,
blended or delicate fab-
rics, e.g. functional gar-
ments, shirts
Do not tumble dry items
made from silk, nylon, air-
impermeable and rubber-
coated fabrics, synthetic
curtains
Basic operation11 Basic operation
11.1 Switching on the appli-
ance
Requirement: The appliance has
been correctly installed and connec-
ted.
Page10
Turn the programme selector to a
programme.
Note: The lighting for the drum goes
out automatically.
11.2 Setting a programme
1.
Turn the programme selector and
set the required programme.
Page18
2.
If required, adjust the programme
settings.
Page17
The programme settings are not
saved permanently for the pro-
gramme.
11.3 Opening the door
1.
Grip under the door handle and
pull on the door.
2.
Open the door.
11.4 Loading laundry
Note: To prevent creasing, note the
maximum load for the programmes.
Page18
Requirements
The laundry is prepared and sor-
ted.
Page21
The drum is empty.
1.
Open the door.
Page22
2.
Place the laundry in the drum.
3.
Close the door.
Ensure that there is no laundry
trapped in the door.
11.5 Starting the programme
Requirements
A programme is set.
Page22
The door is closed.
22
Basic operation en
Press Start/Pause .
The display shows the programme
duration or the programme end
time.
After the programme has ended,
the display shows: "End" .
Note: When "Hot" is shown on the
display, the appliance cools the laun-
dry.
When "Hot" goes out, the laundry
has cooled down.
11.6 Adding laundry
After the programme starts, you can

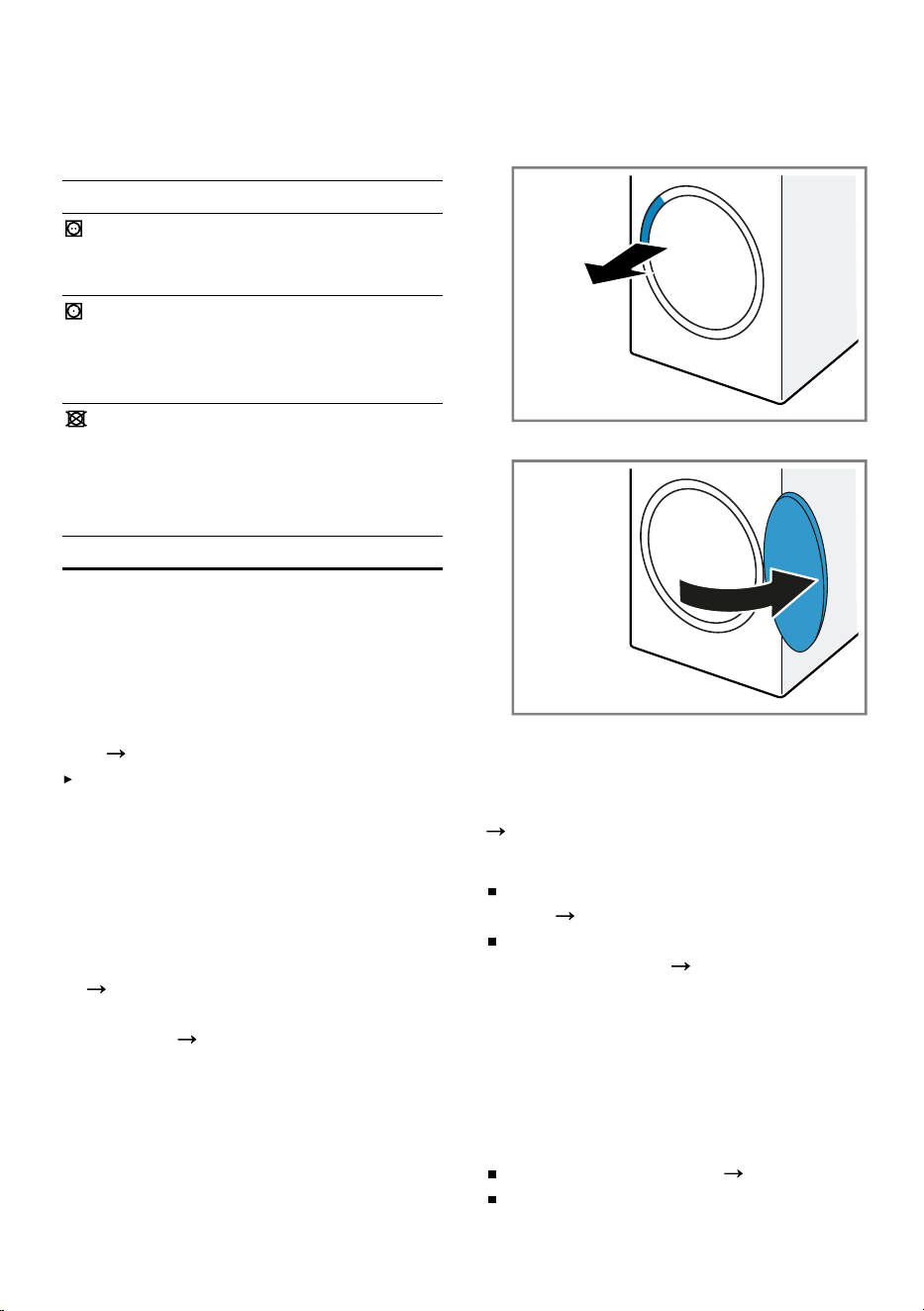

remove or add laundry at any time.
1.
Press Start/Pause .
The cooling process starts auto-
matically after approximately 30
seconds and cools down the laun-
dry while the drum is rotating. If
you want to avoid or cancel the
cooling process, open the door.
Page17
2.
Open the door.
Page22
3.
Add or remove laundry.
4.
Close the door.
5.
Start the programme.
Page22
11.7 Cancelling the pro-
gramme
1.
Press Start/Pause .
2.
Open the door.
Page22
3.
Remove the laundry.
Page23
11.8 Unloading the laundry
1.
Open the door.
Page22
2.
Remove the laundry from the
drum.
11.9 Switching off the appli-
ance
Turn the programme selector to
Off .
11.10 Fluff filter
During drying, fluff from the laundry is
collected in the fluff filter. The fluff fil-
ter protects the appliance from fluff.
Cleaning the fluff filter
If the drying programme has finished
or the display shows a notification
while the appliance is in operation,
clean the fluff filter after the pro-
gramme end.
Note: If you do not clean the appli-
ance as described, the appliance's
functionality may be impaired.
Requirements
The display shows the following
after drying: "End"
or the display shows the following
during operation: .
1.
Open the door.
Page22
2.
Remove the fluff from the inside of
the door.
3.
Remove the fluff filter.
23
en Basic operation
4.
Remove the fluff from the recess.
Ensure that no fluff falls into the air
channel.
5.
Open the fluff filter and remove
the fluff .
Dispose of the fluff with the house-
hold waste in order to prevent the
water from being contaminated
with microplastics.
6.
Clean the fluff filter thoroughly un-
der warm, running water and then
dry it off.
7.
Close the fluff filter.
8.
Insert the fluff filter.
9.
Close the door.
11.11 Condensation container
Condensation that forms in the appli-
ance as it dries the laundry is collec-
ted by default in the condensation
container.
Note: Operate this appliance using
the water outlet hose provided.
Page11
If you connect the water outlet hose,
you do not have to regularly empty
the condensation container.
"Emptying the condensation con-
tainer", Page24
Emptying the condensation con-
tainer
If the drying programme has finished
or the display shows a notification
that the drying programme is paused,
empty the condensation container.
24
Dryness level en
Requirements
The display shows the following
after drying: "End"
or the display shows the following
while operation is paused: .

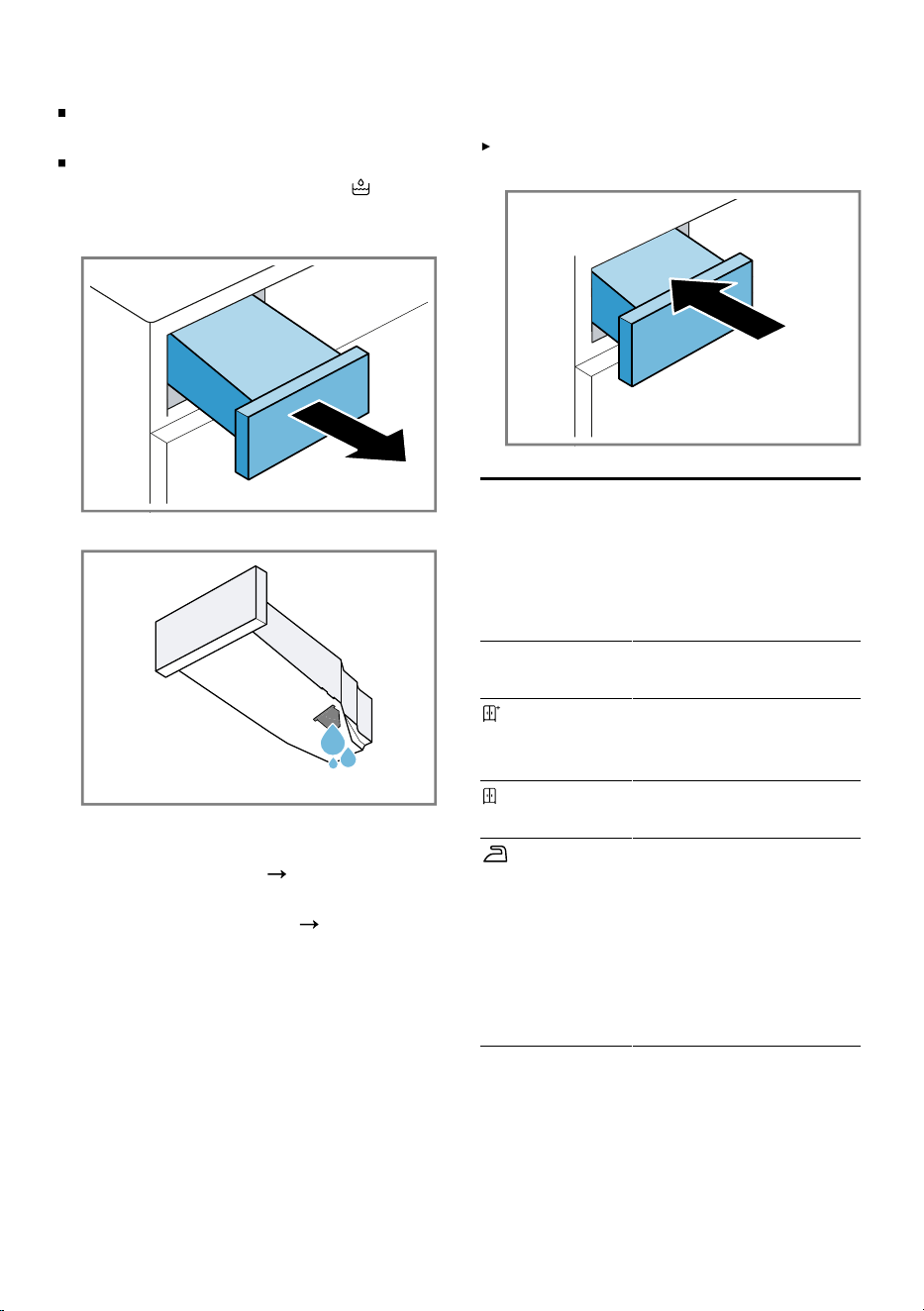

1.
Pull out the condensation con-
tainer, keeping it level.
2.
Empty the condensation container.
Make sure that you insert the con-
densation container before operat-
ing the appliance.
Page25
3.
If the drying programme is paused,
start the programme.
Page22
Inserting the condensation con-
tainer
Push the condensation container
in as far as it will go.
Dryness level12 Dryness level
Each automatic programme has a
specified dryness level. The dryness
level defines how dry or damp your
laundry is after the programme ends.
Dryness
level
Description
Cupboard
Dry Plus
For multi-layered,
thick laundry that
does not dry readily.
Cupboard
Dry
For normal, single-
layered laundry.
Iron Dry For normal, single-
layered laundry.
The laundry is still
slightly damp after the
programme ends. To
prevent creasing after
drying, iron the laun-
dry or hang it up.
12.1 Changing the dryness
level
For some automatic programmes,
you can change the dryness level so
that your laundry will be drier or more
damp.
25
en Childproof lock
1.
Set an automatic programme.
Page18
The display shows the specified
dryness level.
2.
Press Cupboard Dry , Cup-
board Dry Plus or Iron Dry .
The display shows ( Cupboard
Dry), ( Cupboard Dry Plus) or
( Iron Dry).
12.2 Adjusting the dryness
level
If the laundry feels too damp after it
has been dried to a particular dry-
ness level, you can adjust the dry-
ness level.
1.
Set an automatic programme.
Page18
The display shows the specified
dryness level.
2.
Repeatedly press Cupboard
Dry , Cupboard Dry Plus or
Iron Dry to adjust the dryness
level from "+1" (dry) to "+3"
(driest).
Childproof lock13 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
13.1 Activating the childproof
lock
Press on both 3 sec. buttons
for approx. 3seconds.
The display shows .
The control elements are locked.
The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
13.2 Deactivating the child-
proof lock
Requirement: To deactivate the
childproof lock, the appliance must
be switched on.
Press on both 3 sec. buttons
for approx. three seconds.
So that the programme currently
running is not cancelled, the pro-
gramme selector must be set to
the initial programme.
goes out on the display.
Basic settings14 Basic settings
You can configure the basic settings
for your appliance to meet your
needs.
14.1 Overview of the basic set-
tings
1
2
3
4
5
Programme selector with programme po-
sitions
No basic setting.
Set the volume of the signal at
the end of the programme:
0 (off) to 4 (very loud)
26
Cleaning and servicing en
Set the volume of the signal
tone emitted when the buttons
are pressed:
0 (off) to 4 (very loud)
Display the number of started
programmes.
14.2 Changing the basic set-
tings
1.
Set the programme selector to po-
sition 1.
Page26
2.
Press Iron Dry and, at the
same time, turn the programme
selector to position2.
The display shows the current
value.
3.
Use the programme selector to se-
lect the required basic setting.
Page26
4.
To change the value, press
Ready In .
5.
To save the changes, switch off
the appliance.
Cleaning and servicing15 Cleaning and servi-
cing
15.1 Base unit
The base unit is the accessible area
at the bottom of the appliance in
which you will find the heat ex-
changer.
Opening the base unit
Requirements
The appliance has cooled down
for 30 minutes.
The appliance door is closed.

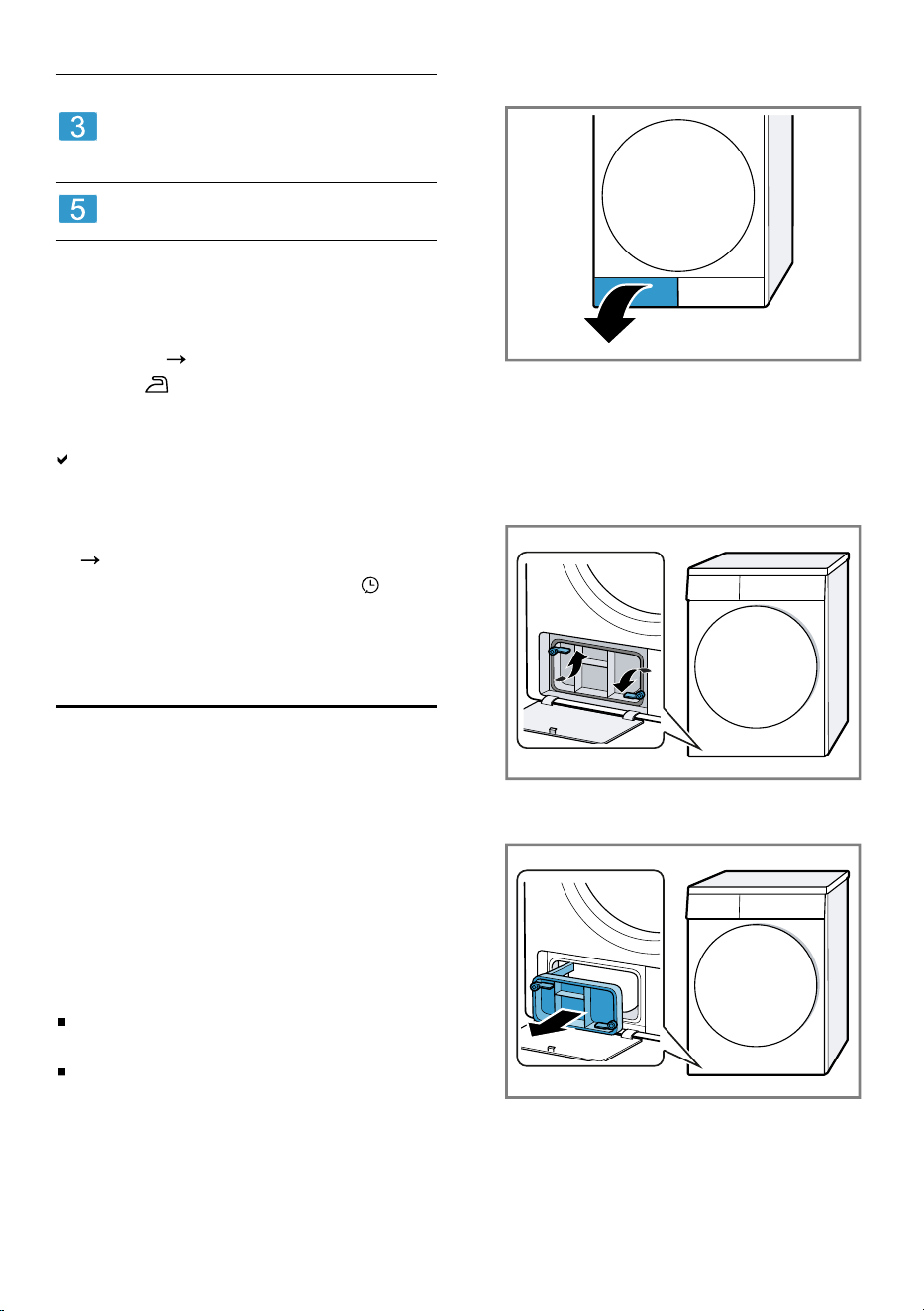

1.
Open the maintenance flap.
If you place a cloth beneath the
maintenance flap, you can collect
the remaining water from the base
unit.

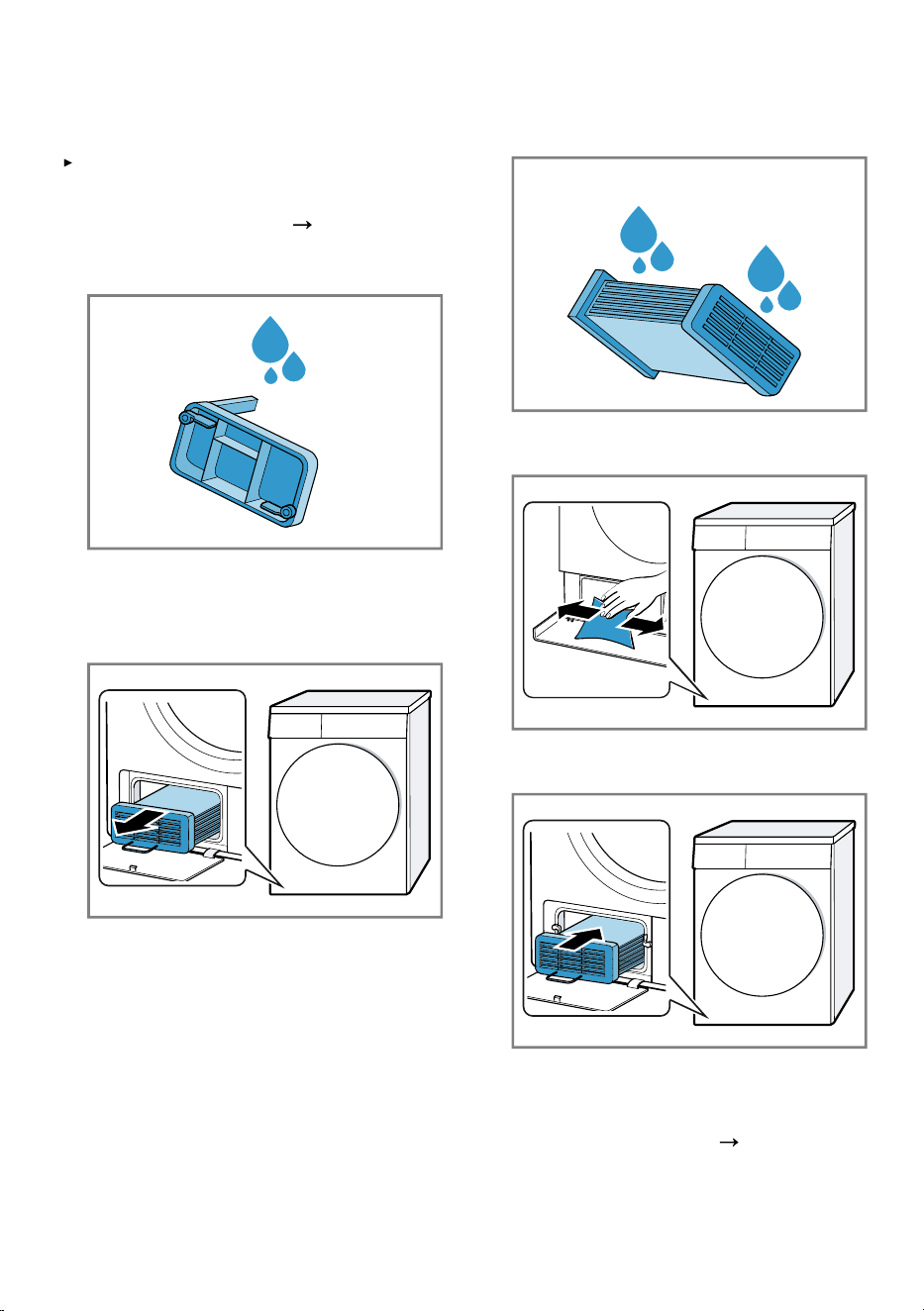

2.
Open the lever for the heat ex-
changer cover.
3.
Pull out the heat exchanger cover
by the handle.
Cleaning the base unit
You can remove any visible dirt in the
base unit.
27
en Cleaning and servicing
ATTENTION
Heavy or sharp objects may damage
the heat exchanger.
Do not use hard, sharp or rough
objects for cleaning.
1.
Open the base unit.
Page27
2.
Clean the heat exchanger cover
under running water and dry it.
Make sure that you remove all dirt
from the seal.
3.
Pull out the heat exchanger hori-
zontally.
4.
Clean the heat exchanger from all
sides under running water and dry
it.
5.
Clean the opening with a soft,
damp cloth.
6.
Slide the heat exchanger in hori-
zontally as far as it will go.
Ensure that the heat exchanger is
inserted with its handle pointing
downwards.
7.
Close the base unit.
Page29
28
Cleaning and servicing en
Closing the base unit
Requirement: The base unit is open.
"Opening the base unit", Page27

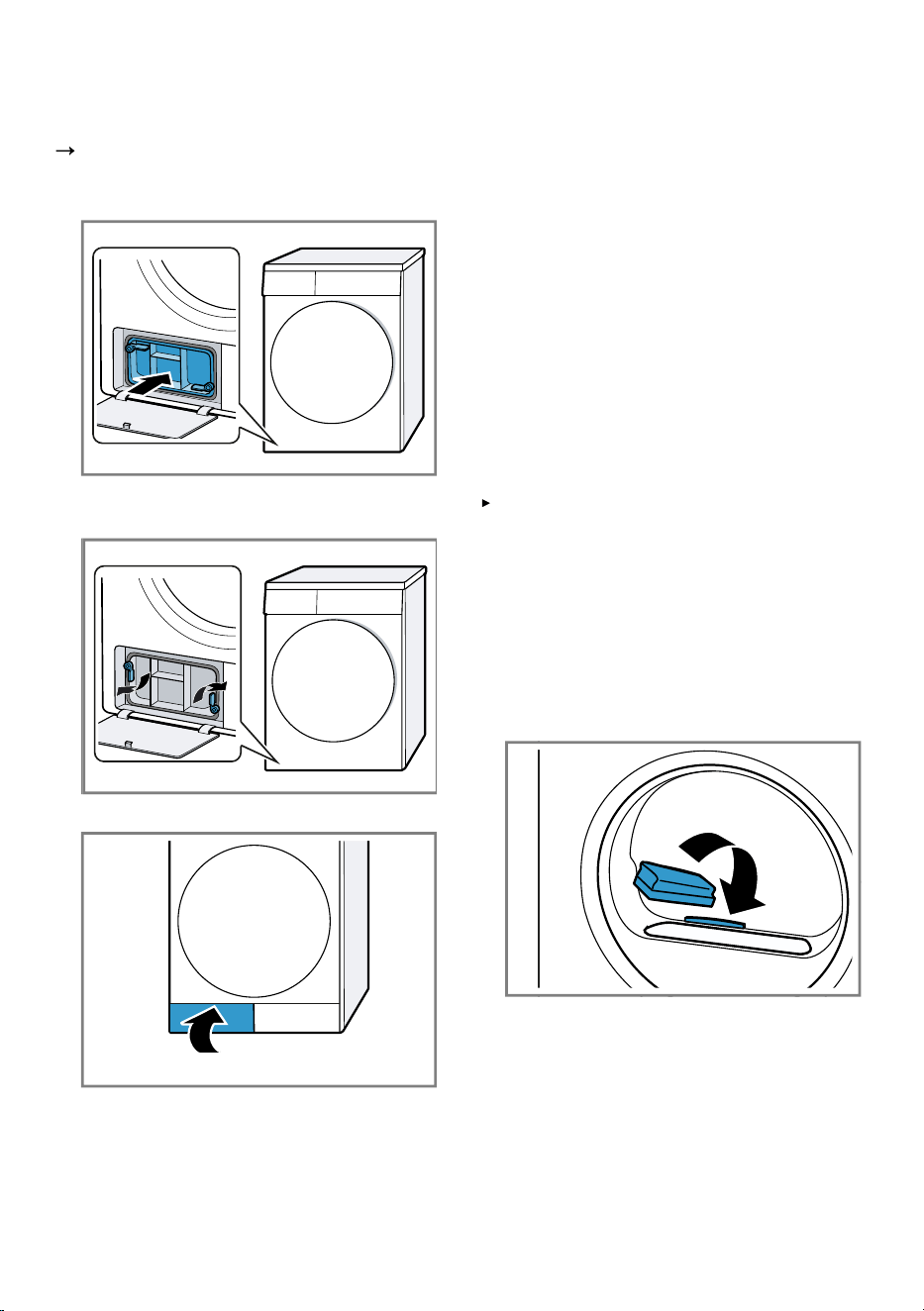

1.
Insert the heat exchanger cover by
the handle.
2.
Close the lever for the heat ex-
changer.
3.
Close the maintenance flap.
15.2 Moisture sensor
The moisture sensor in this appliance
measures how damp the laundry is
during the drying cycle. The appli-
ance changes the duration of the
automatic programme depending on
the residual moisture in the laundry.
Cleaning the moisture sensor
Over time, residue from limescale,
detergents and care products can
build up on the moisture sensor.
Clean the moisture sensor regularly.
ATTENTION
Hard or rough objects may damage
the moisture sensor.
Do not use hard or rough objects,
abrasive cleaning products or steel
wool for cleaning.
Note: If you do not clean the appli-
ance as described, the appliance's
functionality may be impaired.
1.
Open the door.
2.
Clean the moisture sensor with a
sponge.
29
en Troubleshooting
Troubleshooting16 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
Never make any technical modifications to the appliance or its features.
Repairs to the appliance should only be carried out by trained specialist
staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and Start/Pause
flashes.
Energy-saving mode is active
Press Start/Pause .
All other error codes. Malfunction
1.
Restart the appliance.
2.
If the fault occurs again, disconnect the appliance
from the power supply for at least 30 seconds.
Unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
3.
If the fault persists, call customer service.
Page33
Please specify the exact error message when call-
ing. If possible, document the fault with photos and
videos.
"Hot" and the drum
rotates.
Not a fault. The cooling process is active.
No action required.
Note: Do not change the programme during the cool-
ing process. The cooling process takes up to 10
minutes.
and programme
terminated.
The condensation container is full.
Empty the condensation container.
Page24
The water outlet hose is not connected correctly, or is
kinked or trapped.
Check the installation of the water outlet hose.
Page11
30
Troubleshooting en
Fault Cause and troubleshooting
and programme
terminated.
Water outlet hose is blocked.
Rinse the water outlet hose with tap water.
A foreign object is in the base unit.
1.
Open the base unit.
Page27
2.
Remove any foreign objects.
3.
Close the base unit.
Page29
Fluff filter is soiled.
Clean the fluff filter.
Page23
The programme does
not start.
Childproof lock is activated.
Deactivate the childproof lock.
Page26
Ready In is activated.
Check whether Ready In is activated.
Page18
The length of the pro-
gramme changes dur-
ing the drying cycle.
Not a fault. The programme sequence is optimised
electronically.
No action required.
The drying time is too
long.
Fluff filter is soiled.
Clean the fluff filter.
Page23
The ambient temperature is lower than 15 °C or higher
than 30°C.
Ensure that the ambient temperature is between 15
°C and 30 °C.
The air circulation at the appliance's installation loca-
tion is insufficient.
Ventilate the appliance's installation location.
The appliance's ventilation opening is blocked.
Ensure that the ventilation opening of the appliance
is kept clear.
Heat exchanger is soiled.
1.
Open the base unit.
Page27
2.
Clean the heat exchanger.
Page27
3.
Close the base unit.
Page29
Humming, whirring or
pumping noises.
Not a fault. The compressor, compressor ventilation or
condensation pump is active.
No action required.
The laundry is too
damp.
The selected programme is unsuitable for the type of
fabric.
Set a time programme for subsequent drying.
Page19
The load is too large.
Observe the programme's maximum load capacity.
Page18
31
en Troubleshooting
Fault Cause and troubleshooting
The laundry is too
damp.
After the end of the programme, warm laundry feels
damper than it actually is.
1.
Remove the laundry from the drum as soon as the
drying programme has finished.
2.
Spread the items of laundry for cooling.
The selected dryness level is unsuitable.
Change the dryness level.
Page25
The dryness level is not adjusted.
Adjust the dryness level.
Page26
The load is too small.
Set a time programme for subsequent drying.
Page19
The moisture sensor is dirty.
Clean the moisture sensor.
Page29
The appliance has interrupted the drying process due
to the condensation container being full.
Empty the condensation container.
Page24
Creasing. The selected programme is unsuitable for the type of
fabric.
Set a suitable programme.
Page18
The load is unsuitable.
Observe the programme's maximum load capacity.
Page18
Prepare the laundry.
Page21
The laundry lies in the drum for too long after drying.
1.
Remove the laundry from the drum as soon as the
drying programme has finished.
2.
Spread the items of laundry for cooling.
Easy Care fabrics have been dried for too long.
Change or adjust the dryness level.
Page25
The crease-reduction function is not activated.
Activate the crease-reduction function.
Page17
Water is leaking from
the appliance.
Appliance is not correctly aligned.
Align the appliance.
Page13
Water outlet hose is not connected correctly.
Check the installation of the water outlet hose.
Page11
32
Transportation, storage and disposal en
Fault Cause and troubleshooting
Condensation collects
in the condensation
container despite the
water outlet hose be-
ing connected.
Not a fault. The remaining volume of condensation may
remain in the condensation container.
No action required.
Water outlet hose is not connected correctly.
Check the installation of the water outlet hose.
Page11
Transportation, storage and disposal17 Transportation, stor-
age and disposal
17.1 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1.
Unplug the appliance from the
mains.
2.
Cut through the power cord.
3.
Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is labelled
in accordance with
European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines
the framework for the re-
turn and recycling of
used appliances as ap-
plicable throughout the
EU.
Customer Service18 Customer Service
Detailed information about the war-
ranty period and the warranty condi-
tions in your country is available via
the QR code on the enclosed docu-
ment on service contacts and war-
ranty conditions, from our customer
service or on our website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
You can find the contact details for
our customer service via the QR
code on the enclosed document on
service contacts and warranty condi-
tions or on our website.
18.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
33
en Consumption values
Depending on the model, the rating
plate is located:
On the inside of the door.
On the inside of the maintenance
flap.
On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
Consumption values19 Consumption values
The specified values are indicative only and were determined in accordance
with the applicable standard IEC61121.
The actual values may deviate from the indicated values depending on the type
of fabric, composition of laundry to be dried, residual moisture in the fabric, set
degree of dryness, amount of laundry being loaded, environmental conditions
and the activation of additional functions.
The expected programme duration/"Ready in" time that is shown on the appli-
ance display when selecting the programme is based on the spin speed in the
washing machine of 1000rpm when the appliance is delivered.
Programme Final
mois-
ture
level
(%)
Load
(kg)
Spin
speed
(rpm)
Initial
mois-
ture
level
(%)
Pro-
gramm
e dura-
tion
(h:min)
Energy
con-
sump-
tion
(kWh/
cycle)
Cottons + Cup-
board Dry (
Cupboard Dry)
-1.5 9.0 1400 50 2:35 4.78
Cottons + Cup-
board Dry (
Cupboard Dry)
-1.5 9.0 1000 60 2:57 5.55
Cottons + Cup-
board Dry (
Cupboard Dry)
-1.5 9.0 800 70 3:20 6.32
Cottons Eco 0.0 9.0 1400 50 2:29 4.63
Cottons Eco 0.0 9.0 1000 60 2:52 5.40
Cottons Eco 0.0 9.0 800 70 3:15 6.17
Cottons + Iron
Dry ( Iron Dry)
12.0 9.0 1400 50 1:50 3.46
Cottons + Iron
Dry ( Iron Dry)
12.0 9.0 1000 60 2:13 4.25
Cottons + Iron
Dry ( Iron Dry)
12.0 9.0 800 70 2:36 5.03
34
Technical data en
Programme Final
mois-
ture
level
(%)
Load
(kg)
Spin
speed
(rpm)
Initial
mois-
ture
level
(%)
Pro-
gramm
e dura-
tion
(h:min)
Energy
con-
sump-
tion
(kWh/
cycle)
Synthetics + Cup-
board Dry (
Cupboard Dry)
2.0 3.5 800 40 0:44 1.42
Synthetics + Cup-
board Dry (
Cupboard Dry)
2.0 3.5 600 50 0:53 1.74
Technical data20 Technical data
Appliance height 84.2cm
Appliance width 59.8cm
Appliance depth 61.3cm
Appliance depth
with door closed
64.8cm
Appliance depth
with door open
109.6cm
Weight 41.4kg
Maximum load 9.0kg
Mains voltage 220-240V, 50Hz
Minimum in-
stallation protec-
tion
13A
Nominal power 2800W
Ambient temper-
ature
Minimum: 5°C
Maximum:
35°C
Length of the
power cord
145cm
35
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service
directory.
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
*9001929357*
9001929357 (050728)
en
