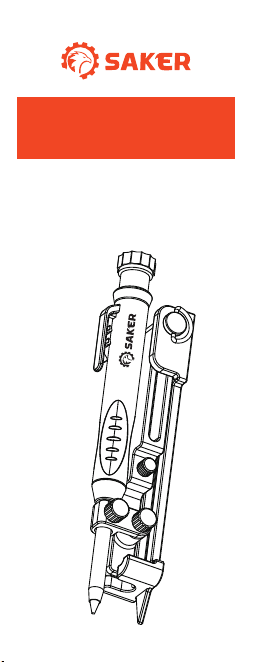

Instruction Manual
MULTI-FUNCTION
SCRIBING TOOL
Deep Hole Pencil
Holding Knob
Pencil Holder Angle
Adjustment Knob
Bracket Holding
Knob
Compass Pins
Deep Hole Pencil Holding Knob
Insert the Removable deep hole pencil
(NO.2) into the Deep hole pencil holder
(NO.1) and turn it clockwise to fix the
pencil, and turn it counterclockwise to
remove the pen from the Deep hole
pencil holder (NO.1).
Pencil Holder Angle Adjustment Knob
After turning it counterclock-
wise, you can manually
adjust the angle of the Deep
hole pencil holder (NO.1).
After adjusting to a suitable
angle, turn it clockwise to
lock the Deep hole pencil
holder (NO.1).
Deep hole pencil
holder(NO.1)
180°
After turning it counterclockwise, you
can manually adjust the horizontal
position of the aluminum alloy bracket
(NO.8) by sliding back and forth or
manually flip the aluminum alloy bracket
(NO.8) to adjust the angular position.
Rotate clockwise to lock the aluminum
alloy bracket (NO.8). ).
Bracket Holding Knob
1
180°
Compass Pins
When the product is
used as a compass
tool, it can be used as
a rotation center axis.
Aluminum alloy
bracket(NO.8)
SHAPE TOOL
The first case: when the shape
taking surface and the clipping
surface are in a vertical state.
1. After loosening the Pencil
Holder Angle Adjustment
Knob by turning it
counterclockwise, turn the
Deep hole pencil holder
(NO.1) to adjust it to the
2. Insert the Removable deep hole
pencil(NO.2) vertically into the Deep
hole pencil holder(NO.1) and rotate the
Deep Hole Pencil Holding Knob
counterclockwise to fix it.
3. After the tip of the product is close to
the shape-taking surface, move the
product horizontally to draw the rough
outline of the current surface on the
cutting surface.
4. Use a jigsaw to cut off the excess
material along the drawn line.
cut plane
shape surface
The second case: when the shape
taking surface and the clipping
surface are in a horizontal state.
level of the Aluminum alloy bracket
(NO.8), and turn the Pencil Holder
Angle Adjustment Knob clockwise to
lock the Deep hole pencil holder(NO.1).
2
COMPASS TOOL
Method 1: Take the sharp corner
of the product head as the center
of the circle
1. Loosen the Bracket Holding Knob by
turning it counterclockwise, turn the
aluminum alloy bracket (NO.8) around
the shaft to a certain angle, and turn it
clockwise to lock it.
1. After loosening the
Pencil Holder Angle
Adjustment Knob by
rotating counterclockwise,
2. Insert the Removable deep hole
pencil (NO.2) vertically into the Deep
hole pencil holder (NO.1) and rotate the
Deep Hole Pencil Holding Knob
counterclockwise to fix the pencil.
3. After the tip of the product is close to
the shape-taking surface, move the
product horizontally to draw the rough
outline of the current surface on the
cutting surface.
4. Use a jigsaw to cut off the excess
material along the drawn line.
Blade Attachment
cut plane
shape surface
rotate the Deep hole pencil holder(NO.1)
to adjust it to be perpendicular to the
aluminum alloy bracket(NO.8), and
rotate the Pencil Holder Angle
Adjustment Knob clockwise to lock the
Deep hole pencil holder(NO.1).
3
Be aware that the tip of the product
is very sharp; careless handling
may result in injury.
2. After loosening the Pencil Holder
Angle Adjustment Knob by turning it
counterclockwise, turn the Deep hole
pencil holder (NO.1) to adjust it to the
level of the Aluminum alloy bracket
(NO.8), and turn the Pencil Holder
Angle Adjustment Knob clockwise to
lock it.
Method 2: Use Compass Pins as
the center of the circle
1. Rotate the Compass Pins
counterclockwise, remove it
from the product, insert it
Round hole
3. Loosen the Bracket Holding Knob by
turning it counterclockwise, move the
aluminum alloy bracket (NO.8) back
and forth in the horizontal direction to
adjust the radius of the circle, or rotate
the aluminum alloy bracket (NO.8)
around the axis by 180° and then move
back and forth in the horizontal
direction. Move to adjust the radius size
of the circle.
2. After loosening the Pencil
Holder Angle Adjustment
Knob by turning it
counterclockwise, turn the
Deep hole pencil holder
(NO.1) to adjust the pen to
touch the plane, and turn it
clockwise to lock it.
into the round hole on the head of the
product, and press the Compass Pins
insertion plane with your fingers.
3. With the sharp corner of the product
head as the center, rotate the product
to draw a circle on the plane.
4
4. Insert the Removable deep hole
pencil (NO.2) into the Deep hole pencil
holder (NO.1) vertically, and use the
pencil to drive the product to rotate
around the Compass Pins for a circle
to draw a circle.
1. Pencils need to use 2.8mm refills.
Removable deep hole pencil
Blade Attachment
Blade Attachment
180°
2. Rotate the end of the
pencil counterclockwise, you
can get a cutting tool, use
the trimming tip of the pencil.
5
Be aware that the tip of the product
is very sharp; careless handling
may result in injury.
Be aware that the tip of the product
is very sharp; careless handling
may result in injury.
