98076240-D (01/25)
High Pressure Cleaner
Cold Water
English 2
Register
your product
www.kaercher.com/welcome
MODELS:
1.575-200.0
HD 4.0/50 Pb Cage
1.575-201.0
HD 4.5/50 Pb Cage
1.575-205.0
HD 3.7/35 Pb Cage
1.575-207.0
HD 4.0/40 Pb Cage
1.107-454.0
HD 4.0/50 PeB Cage K
1.107-455.0
HD 4.5/50 PeB Cage K
CONTENTS
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ____________________________
The model and serial numbers will be found on a decal attached to
the pressure washer. You should record both serial number and date
of purchase and keep in a safe place for future reference.
Introduction & Important Safety Information ................................................2
Component Identication — Single Axle Models .........................................4
Component Identication — Dual Axle Models ...........................................5
Assembly Instructions..................................................................................6

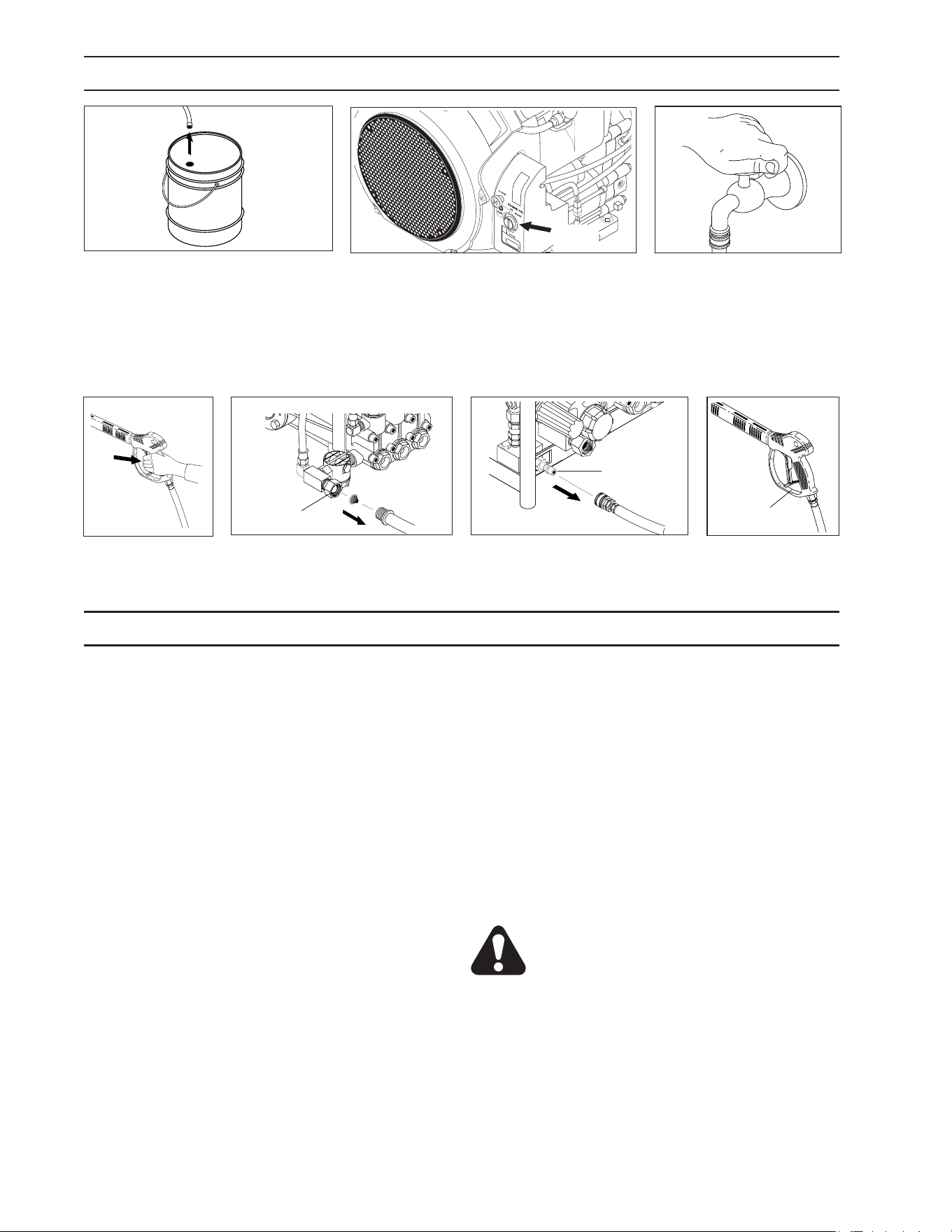

Operating Instructions .................................................................................7
Applying Detergent & General Cleaning Techniques ..................................9
Shutting Down And Clean-Up ......................................................................10
Troubleshooting ...........................................................................................11
Preventative Maintenance ...........................................................................13
Oil Change Record ......................................................................................13
Specications ..............................................................................................14

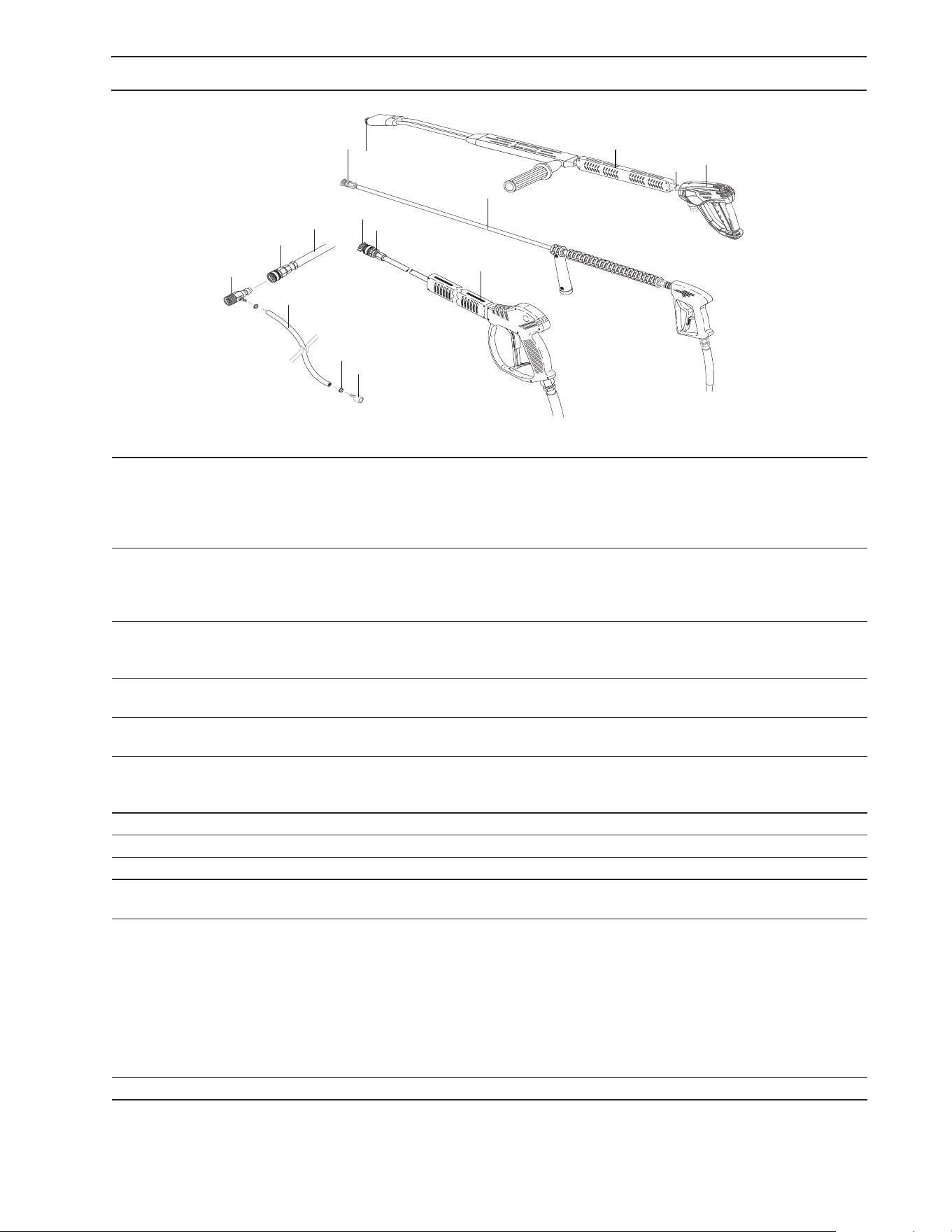

Hose & Spray Gun Assembly and Parts List ...............................................15
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
2
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer. We
reserve the right to make changes at any time without
incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator
is not uent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with
the operator in the operator’s native language by the
purchaser/owner, making sure that the operator com-
prehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent part
of the machine and should remain with it if machine
is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement parts.
This machine is to be used only by trained operators.
IMPORTANT SAFETY
INFORMATION
WARNING
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
OPERATIONS
SAFETY
MAINTENANCE
WARNING: To reduce the risk of
injury, read operating instructions
carefully before using.
1. Read the owner's manual
thoroughly. Failure to follow instruc-
tions could cause malfunction of the
machine and result in death, serious
bodily injury and/or property dam-
age.
2. Know how to stop the machine and bleed pressure
quickly. Be thoroughly familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specic details.
WARNING
RISK OF
ASPHYXIATION.
USE THIS PRODUCT
ONLY IN A WELL
VENTILATED AREA.
WARNING: Risk of asphyxiation.
Use this product only in a well
ventilated area.
5. Avoid installing machines in
small areas or near exhaust fans.
Exhaust contains poisonous carbon
monoxide gas; exposure may cause
loss of consciousness and may lead
to death. It also contains chemicals
known, in certain quantities, to cause cancer, birth
defects or other reproductive harm.
WARNING
RISK OF FIRE.
DO NOT ADD FUEL
WHEN OPERATING
MACHINE.
WARNING: Risk of re. Do not add
fuel when the product is operating.
WARNING: Risk of explosion — do
not spray ammable liquids.
6. Do not place machine near
ammable objects as the engine is
hot.
WARNING: This product contains
chemicals known to the state of
California to cause cancer and birth defects or
other reproductive harm. Operation of this equip-
ment may create sparks that can start res around
dry vegetation. A spark arrestor may be required.
The operator should contact: Local re agencies
for laws or regulations relating to re prevention
requirements.
7. Allow engine to cool for 1-2 minutes before refuel-
ing. If any fuel is spilled, make sure the area is dry
before testing the spark plug or starting the engine.
(Fire and/or explosion may occur if this is not done.)
Gasoline engines on mobile or portable equipment
shall be refueled:
a. outdoors;
b. with the engine on the equipment stopped;
c. with no source of ignition within 10 feet of
the dispensing point; and
d. with an allowance made for expansion of the fuel
should the equipment be exposed to a higher ambi-
ent temperature
In an overlling situation, additional precautions are
necessary to ensure that the situation is handled in a
safe manner.
WARNING: Risk of injury. Disconnect battery
ground terminal before servicing.
8. Transport/repair with fuel tank EMPTY or with fuel
shut-o valve OFF.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
3

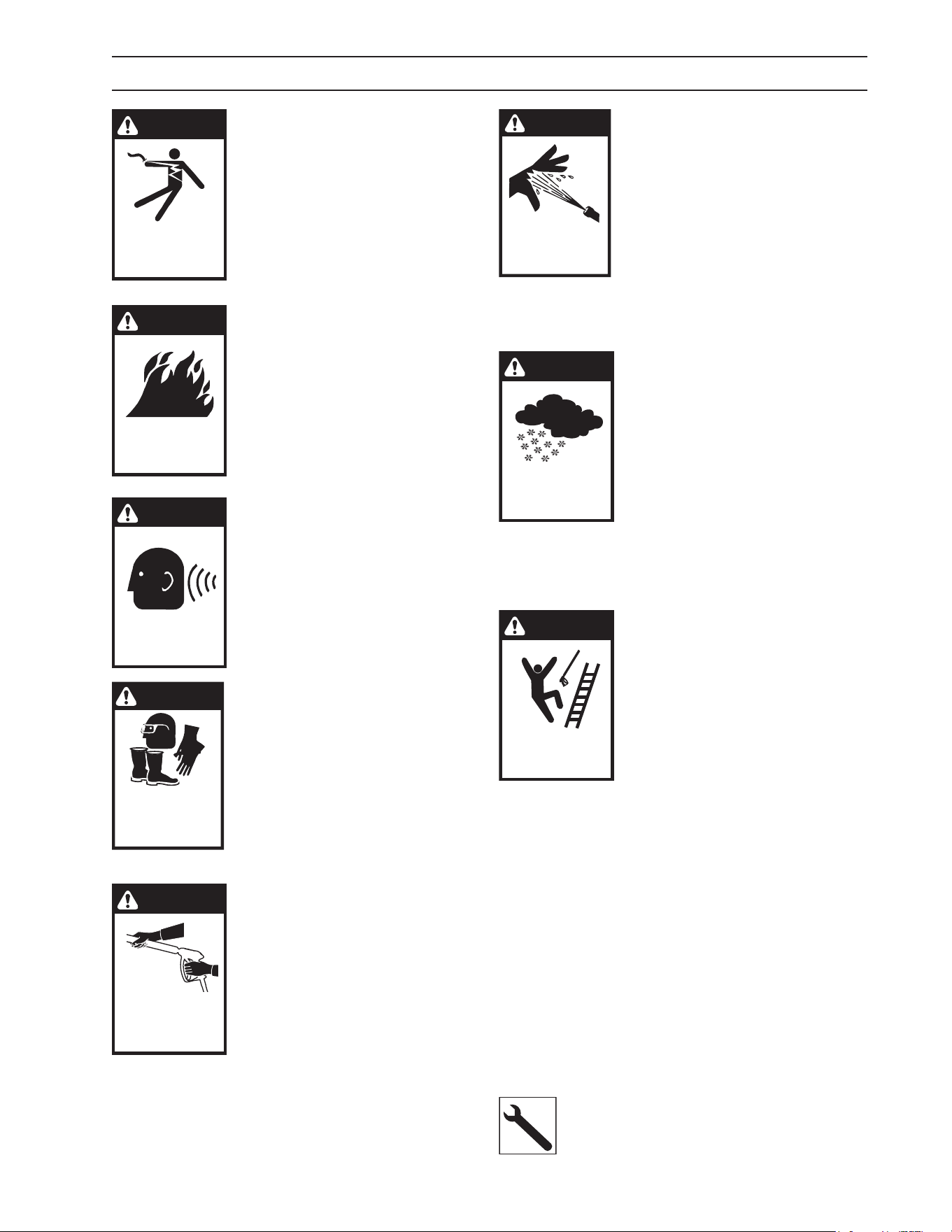

IMPORTANT SAFETY INFORMATION
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
9. Do not spray water on or near
electrical components.
WARNING
RISK OF FIRE.
DO NOT SPRAY
FLAMMABLE LIQUIDS
WARNING: Flammable liquids can
create fumes which can ignite,
causing property damage or se-
vere injury.
WARNING: Risk of explosion — Do
not spray ammable liquids.
10. Keep operating area clear of
all persons.
WARNING
EAR PROTECTION
MUST BE WORN
WARNING: This machine exceeds
85 db appropriate ear protection
must be worn.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne and
y at high speeds. To avoid per-
sonal injury, eye, hand and foot
safety devices must be worn.
11. Eye, hand, and foot protec-
tion must be worn when using this
equipment.
WARNING
TRIGGER GUN KICKS
BACK — HOLD WITH
BOTH HANDS
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
12. To reduce the risk of in-
jury, close supervision is neces-
sary when a machine is used near
children. Do not allow children to operate the pres-
sure washer. This machine must be attended
during operation.
WARNING
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING: High pressure devel-
oped by these machines will cause
personal injury or equipment dam-
age. Keep clear of nozzle. Use
caution when operating. Do not
direct discharge stream at people,
or severe injury or death will result.
13. Never make adjustments on
machine while in operation.
14. Be certain all quick coupler ttings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine from
freezing.
15. To keep machine in best
operating conditions, it is important
you protect machine from freezing.
Failure to protect machine from freez-
ing could cause malfunction of the
machine and result in death, serious
bodily injury, and/or property dam-
age. Follow storage instructions specied in this
manual.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING: Be extremely careful
when using a ladder, scaolding
or any other relatively unstable
location. The cleaning area should
have adequate slopes and drain-
age to reduce the possibility of a
fall due to slippery surfaces.
17. Do not overreach or stand on
unstable support. Keep good footing and balance
at all times.
18. Do not operate this machine when fatigued or under
the inuence of alcohol, prescription medications,
or drugs.
19. Inlet water must be clean fresh water and no hotter
then 90°F.
20. Manufacturer will not be liable for any changes
made to our standard machines or any components
not purchased from us.
21. Do not allow acids, caustic or abrasive uids to
pass through the pump.
22. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
Follow the maintenance instructions
specied in the manual.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
4

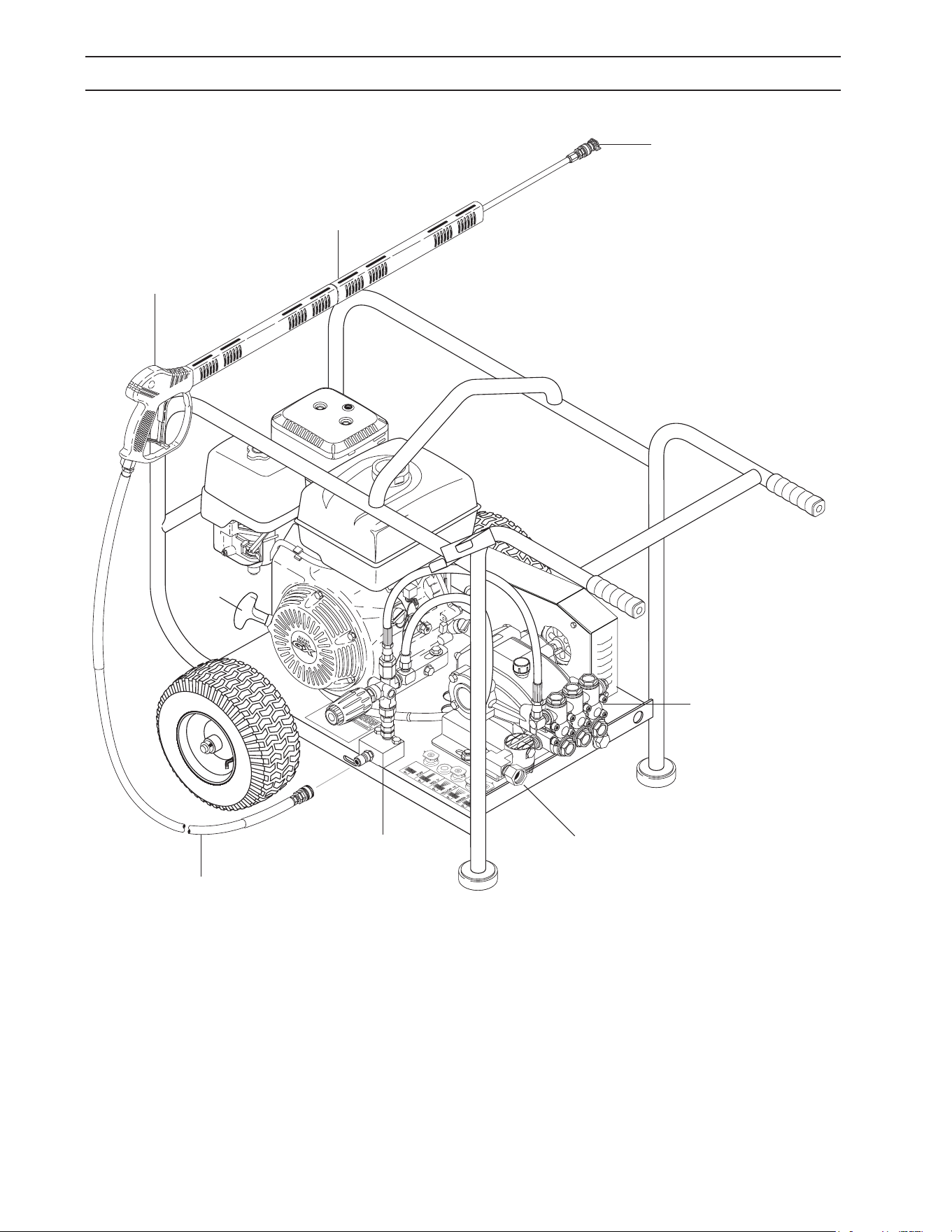

COMPONENT IDENTIFICATION — SINGLE AXLE MODELS
Pump — Develops high pressure.
Starter Grip— Used for starting the engine manually.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents (not shown).
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray gun.
Note: If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto oor.
This system prevents internal pump damage.
Spray Gun
Wand
High Pressure
Hose
Water Inlet
High Pressure
Discharge
Nozzle
Starter
Grip
Pump
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
5

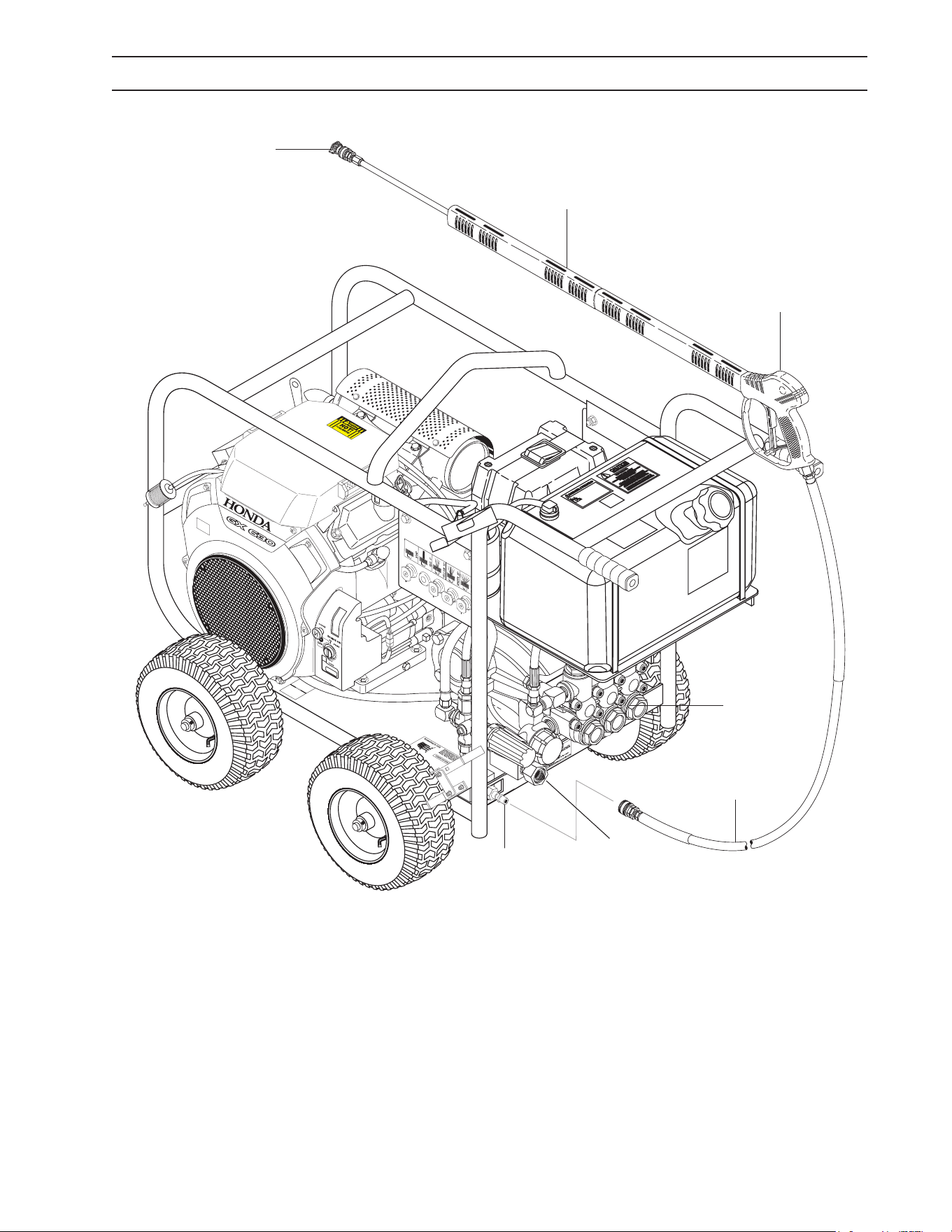

COMPONENT IDENTIFICATION — DUAL AXLE MODELS
Nozzle
Spray Gun
Wand
Water Inlet
High Pressure
Discharge
High Pressure
Hose
Pump
Pump — Develops high pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents (not shown).
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray gun.
Note: If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto
oor. This system prevents internal pump damage.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
6

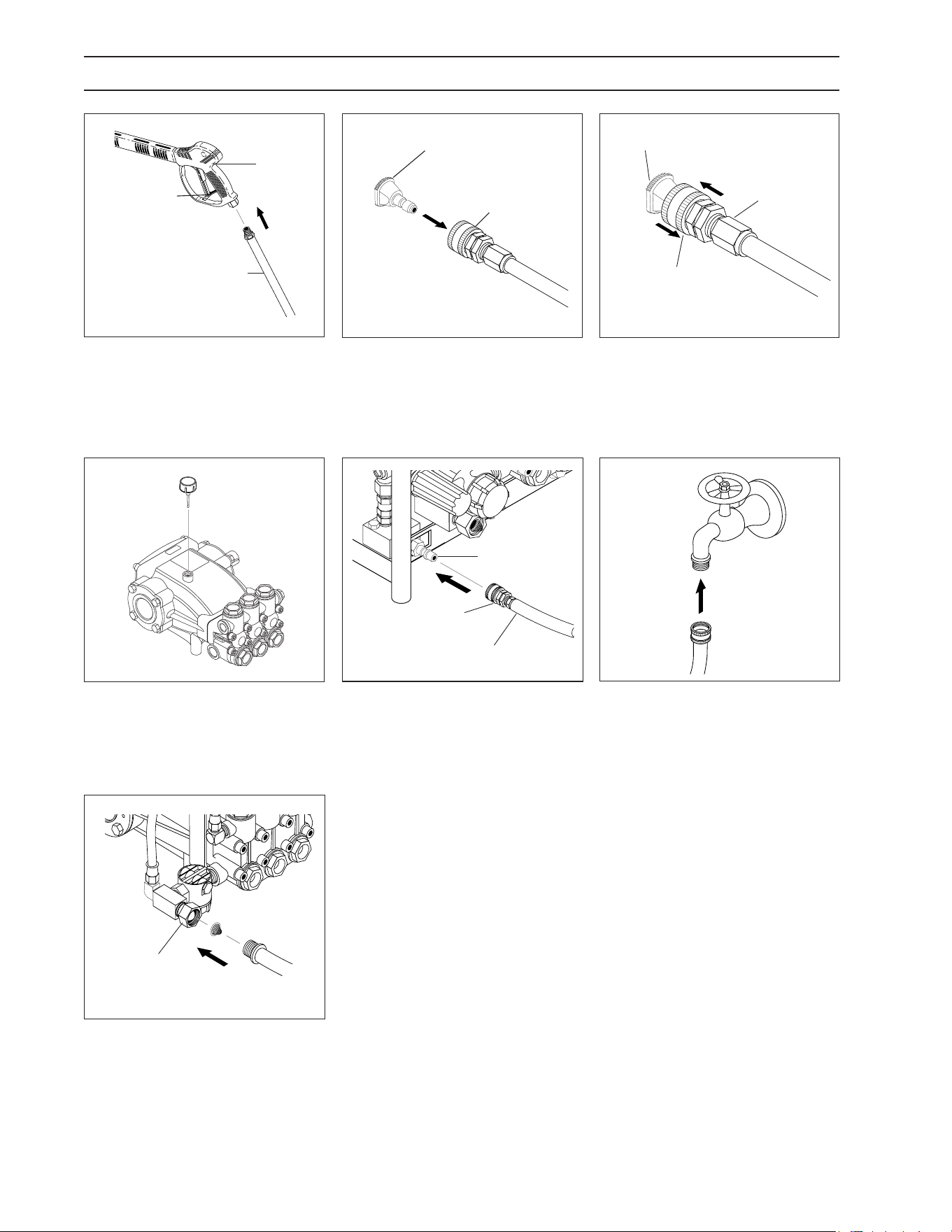

ASSEMBLY INSTRUCTIONS
Safety
Latch
Spray
Gun
High Pressure
Hose
STEP 1: Attach the high pressure
hose to the spray gun using teon
tape on hose threads.
Wand
Coupler
Pressure Nozzle
(Nozzles Brass (Black) sold
Separately)
STEP 2: Pull the spring-loaded col-
lar of the wand coupler back to insert
your choice of pressure nozzle.
Pressure Nozzle
(Nozzles Brass (Black) sold
Separately)
Wand
Coupler
Wand
Collar
STEP 3: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
Dipstick
STEP 4: Remove shipping cap and
install oil dipstick. Check pump oil
level by using dipstick or observe
oil level in oil window (if equipped).
Use 20/40W non detergent oil.
Discharge
Fitting
High Pressure Hose
Coupler Collar
STEP 5: Connect the high pressure
hose to the pump discharge tting.
Push coupler collar forward until
secure.
Cold
Water
Source
Garden
Hose
STEP 6: Connect garden hose to
the cold water source.
Pump
Water Inlet
Garden
Hose
STEP 7: Check inlet lters, remove
debris, then connect garden hose to
pump water inlet.
CAUTION: Do not run the pump
without water or pump damage
will result.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
7

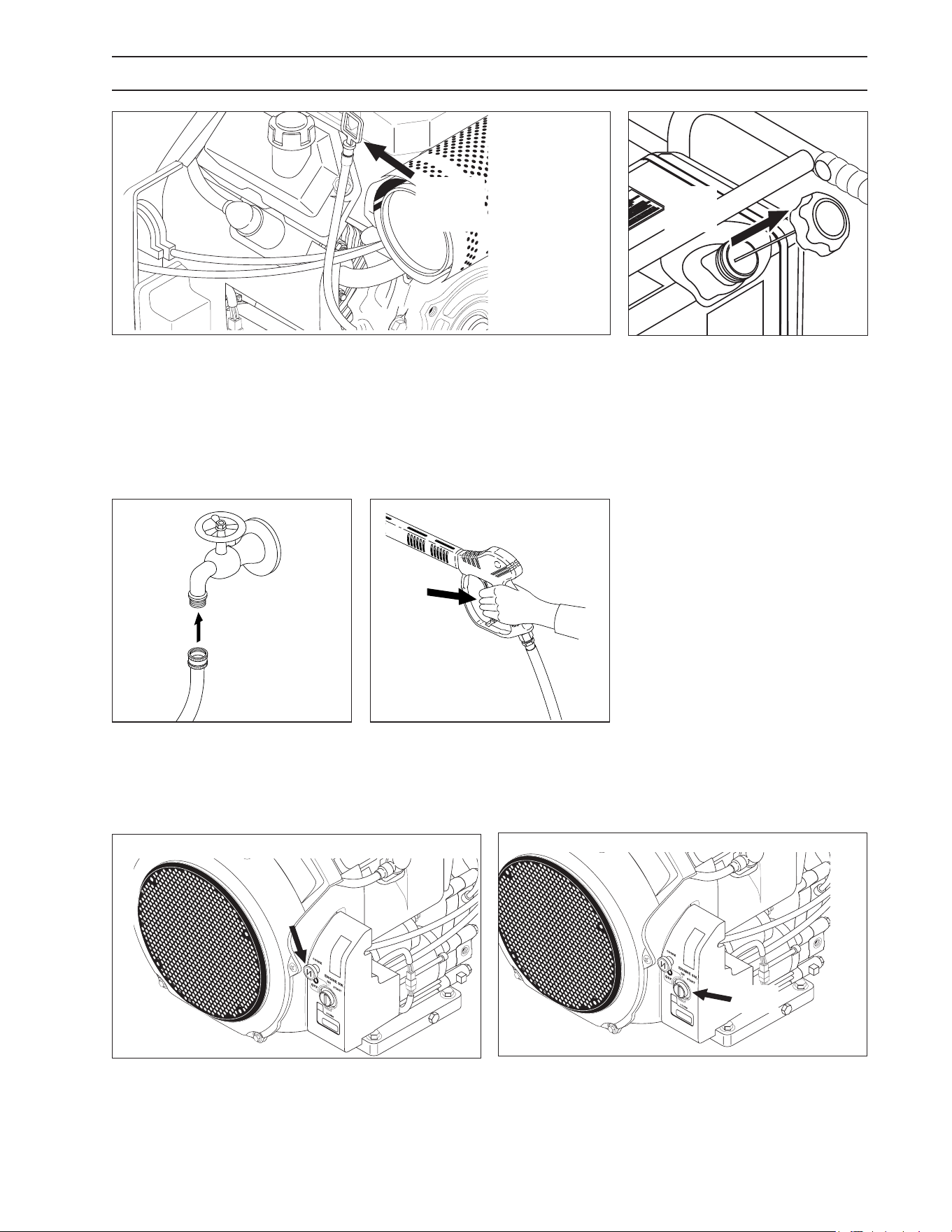

Oil
Dipstick
STEP 1: Check engine oil level. Oil level should be level with the bottom
of the oil ller neck. Be sure the machine is level when checking the oil
level. (Refer to the engine's operating manual included with machine.)
We recommend that the oil be changed after the rst 5 hours of use, then
once every 50 hours. Note: Improper oil levels will cause low oil sensor
to shut o engine. IMPORTANT! Do not run engine with high or low
oil levels as this will cause engine damage.
OPERATING INSTRUCTIONS
Fuel
Tank
STEP 2: Fill the fuel tank with the
appropriate fuel (unleaded gasoline
or diesel as noted on the tank). Do
not use leaded gasoline.
Cold
Water
Source
Garden
Hose
STEP 3: Connect garden hose to
the cold water source and turn water
on completely. Never use hot water.
STEP 4: Trigger the spray gun to
eliminate trapped air then wait for a
steady ow of water to emerge from
the spray nozzle.
Choke
Lever
STEP 5: Pull the choke lever out to the "Choke" position
(on a warm engine, leave the choke lever in, in the run
position). Push the choke lever to the "Closed" position.
To restart a warm engine, leave the choke lever in the
"Open" position.
On-O
Switch
STEP 6: Turn the engine switch to "ON" position.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
8
OPERATING INSTRUCTIONS (CON'T)

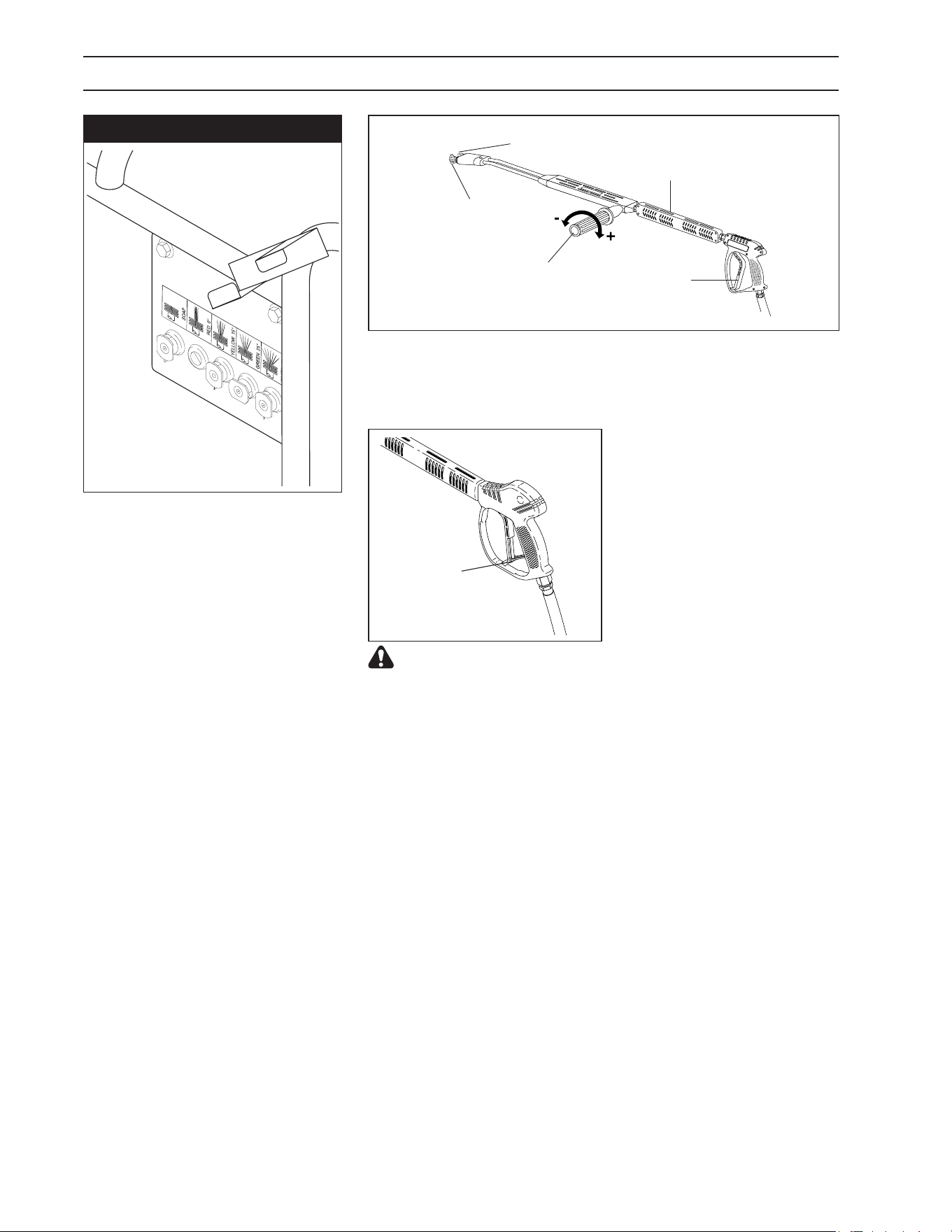

NOZZLES
The four color-coded quick connect
nozzles provide a wide array of spray
widths from 15° to 40° and are easily
accessible when placed in the conve-
nient rubber nozzle holder, which is
provided on the front of the machine.
NOTE: For a more gentle rinse, select
the white 40° or green 25° nozzle. To
scour the surface, select the yellow 15°
nozzle. To apply detergent select the
black nozzle.
*Nozzles Brass (Black) sold
separately.
Variable Pressure
Control Handle
Trigger
Variable Pressure
Wand (VP)
High
Pressure
Nozzle
Brass Soap
Nozzle
Selection of high or low pressure is accompanied by turning the handle.
Note: High pressure nozzle must be inserted at end of wand to obtain
high pressure. To apply soap read operator's manual.
Safety
Latch
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
9

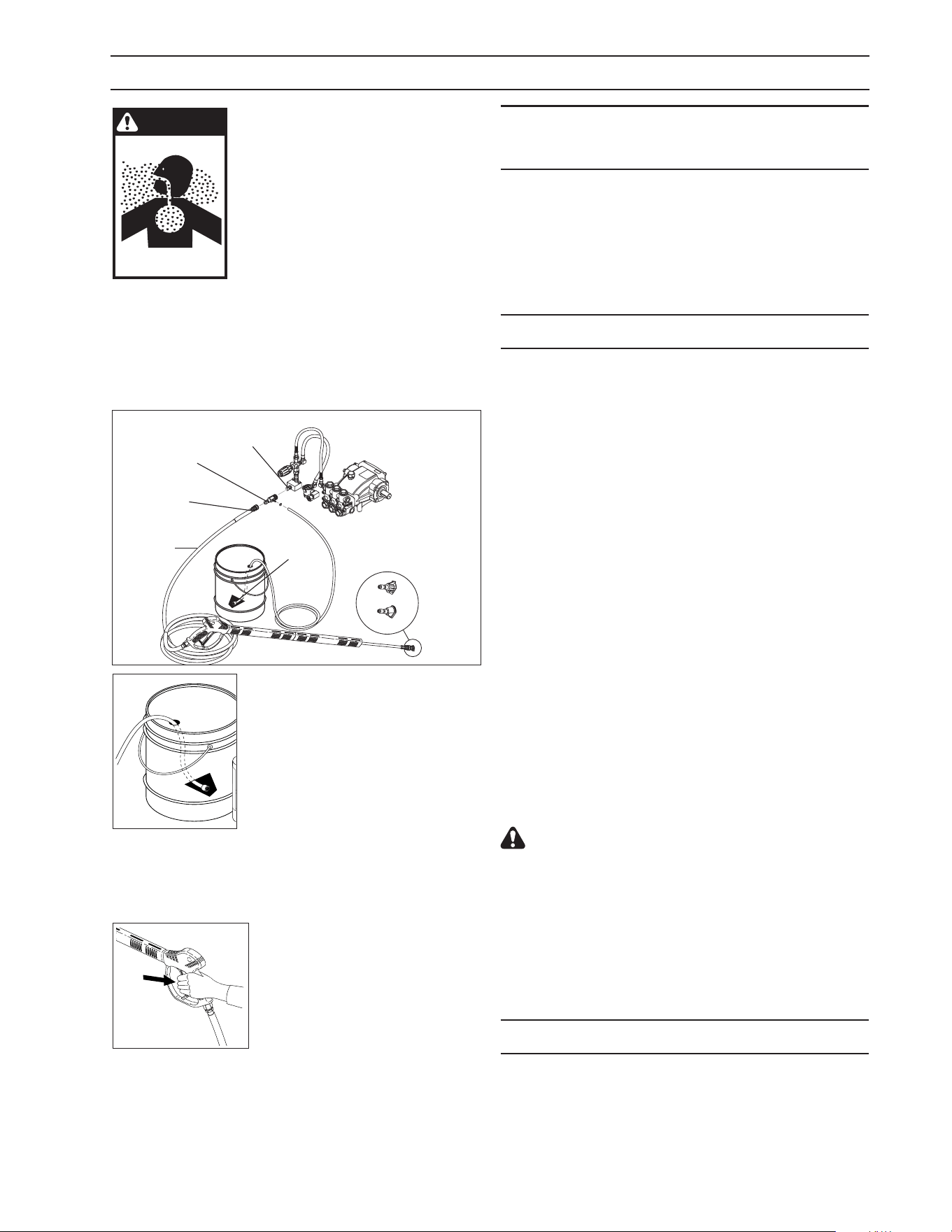

WARNING
WARNING: Some detergents may
be harmful if inhaled or ingested,
causing severe nausea, fainting or
poisoning. The harmful elements
may cause property damage or
severe injury.
STEP 1: Connect detergent injector t discharge nipple
on machine. Connect high pressure hose to injector
with quick coupler. (Check to make sure locking coupler
sleeves are in proper position before applying water
pressure).
*Detergent
Injector
Quick
Coupler
Filter
Discharge
Nipple
High
Pressure
Hose
STEP 2: Use detergent designed
specically for pressure washers.
Household detergents could dam-
age the pump. Prepare detergent
solution as required by the manu-
facturer. Fill a container with pres-
sure washer detergent. Place the
lter end of detergent suction tube
into the detergent container.
STEP 3: With safety latch on spray gun engaged,
secure black detergent nozzle into quick coupler.
NOTE: Detergent cannot be applied using yellow,
green or white nozzles.
STEP 4: With the engine running,
pull trigger to operate machine.
Liquid detergent is drawn into the
machine and mixed with water.
Apply detergent to work area. Do
not allow detergent to dry on
surface.
IMPORTANT: You must ush the detergent injec-
tion system after each use by placing the suction
tubeinto a bucket of clean water, then run the pres-
sure washer in low pressure for 1-2 minutes.
*Kit Injector sold separately.
THERMAL PUMP
PROTECTION
If you run the engine on your pressure washer for 3-5
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach high tempera-
tures. When the water reaches this temperature, the
pump protector engages and cools the pump by dis-
charging the warm water onto the ground. This thermal
device prevents internal damage to the pump.
CLEANING TIPS
Pre-rinse cleaning surface with fresh water. Place de-
tergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6 feet square
and always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not al-
low detergent to dry on surface. If surface appears to
be drying, simply wet down surface with fresh water. If
needed, use brush to remove stubborn dirt. Rinse at
high pressure from top to bottom in an even sweeping
motion keeping the spray nozzle approximately 1 foot
from cleaning surface. Use overlapping strokes as you
clean and rinse any surface. For best surface cleaning
action spray at a slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure washing.
CAUTION - Never use:
• Bleach, chlorine and other corrosive chemicals
• Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the machine and will damage
the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desired high pressure nozzle. NOTE: You can also stop
detergent from owing by simply removing detergent
siphon tube from bottle.
APPLYING DETERGENT & GENERAL CLEANING TECHNIQUES
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
10
SHUTTING DOWN AND CLEAN-UP
STEP 1: Remove detergent suction
tube from container and insert into
one gallon of fresh water. Slide nozzle
forward for low pressure or to connect
black detergent nozzle. Pull trigger
on spray gun and siphon water for
one minute.
CAUTION: Always store your pressure washer in a
location where the temperature will not fall below
32°F (0°C). The pump in this machine is susceptible
to permanent damage if frozen. FREEZE DAMAGE
IS NOT COVERED BY WARRANTY.
1. Stop the pressure washer, squeeze spray gun trig-
ger to release pressure.
2. Detach water supply hose and high pressure hose.
3. Turn on the machine for a few seconds, until re-
maining water exits. Turn engine o immediately.
4. Drain the gas and oil from the engine.
5. Do not allow high pressure hose to become kinked.
6. Store the machine and accessories in a room which
does not reach freezing temperatures.
CAUTION: Failure to follow the above directions will
result in damage to your pressure washer.
When the pressure washer is not being operated or is
being stored for more than one month, follow these
instructions:
1. Replenish engine oil to upper level.
2. Drain gasoline from fuel tank, fuel line, fuel valve
and carburetor.
3. Pour about one teaspoon of engine oil through
the spark plug hole, pull the starter grip several
times and replace the plug. Then pull the starter
grip slowly until you feel increased pressure which
indicates the piston is on its compression stroke and
leave it in that position. This closes both the intake
and exhaust valves to prevent rusting of cylinder.
4. Cover the pressure washer and store in a clean, dry
place that is well ventilated away from open ame
or sparks. NOTE: The use of a fuel additive, such
as STA-BIL
®
, or an equivalent, will minimize the
formulation of fuel deposits during storage. Such
additives may be added to the gasoline in the fuel
tank of the engine, or to the gasoline in a storage
container.
After Extended Storage
CAUTION: Prior to restarting, thaw out any
possible ice from pressure washer hoses,
spray gun or wand.
Engine Maintenance
During the winter months, rare atmospheric conditions
may develop which will cause an icing condition in the
carburetor. If this develops, the engine may run rough,
lose power and may stall. This temporary condition can
be overcome by deecting some of the hot air from the
engine over the carburetor area. NOTE: Refer to the
engine manufacturer's manual for service and mainte-
nance of the engine.
STORAGE
On-O
Switch
STEP 2: Turn engine switch to "OFF"
position.
STEP 3: Turn off water
supply.
STEP 4: Press trig-
ger to release wa-
ter pressure.
Water
Inlet
STEP 5: Disconnect the garden
hose from the water inlet on the
machine.
High Pressure
Outlet
STEP 6: Disconnect the high
pressure hose from high pres-
sure outlet.
Safety
Latch
STEP 7: Engage
the spray gun safe-
ty lock.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
11
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
LOW OPERATING
PRESSURE
Insucient water supply. Closed
faucet. Inlet hose kinked
Use larger garden hose; clean inlet water
screen. Open faucet.
Clogged inlet hose strainer Check plumbing system for leaks. Retape
leaks with teon tape.
Faulty or mis-adjusted unloader
valve
Adjust unloader for proper pressure. Install
repair kit when needed. Contact local dealer.
Worn packing in pump Contact local dealer.
Machine has been stored in
freezing temperatures
Thaw out machine completely, including hose,
spray gun and wand.
Slow engine RPM Contact local dealer.
FLUCTUATING
PRESSURE
Worn or dirty pump valves Contact local dealer.
Nozzle is obstructed Use nozzle wire in accessory kit.
Pump sucking air, inlet hose
leaking
Check all pump lines and connections.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn Replace nozzle.
Unloader valve worn Replace unloader valve.
ENGINE WILL NOT
START OR STOPS
WHILE OPERATING
Low oil shutdown Fill engine with oil.
Out of gas Fill fuel tank.
Water in gasoline Drain gas tank; ll with clean fuel.
ENGINE IS
OVERLOADED
Nozzle partially blocked Clean nozzle.
Excessive pressure from high
engine RPM
Adjust engine throttle to lower RPM.
WATER OR OIL
LEAKING FROM
BOTTOM OF PUMP
A small amount of leaking is
normal
If excessive leaking occurs, contact local
dealer.
PRESENCE OF
WATER
IN PUMP OIL
Water sprayed at machine Change oil. Direct spray away from machine.
High humidity in air Check and change oil twice as often.
Piston packing worn. Oil seal
worn.
Contact local dealer.
ENGINE OPERATES
FOR 15 MIN. THEN
STOPS
Not enough gas or engine oil Fill tank with gas. Check oil level.
Vapor lock developed by heat of
day
Keep gas tank full to avoid vapor locking.
Obstruction in fuel lter Clean or replace fuel lter.
ENGINE LACKS
POWER
Dirty air lter Replace air lter.
ENGINE FALTERS Choke is opened too soon Move choke to halfway position until engine
runs smoothly.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
12
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
WATER DRIPPING
FROM UNDER PUMP
Piston packing worn Contact local dealer.
O-Ring plunger retainer worn Contact local dealer.
Cracked piston Contact local dealer.
OIL DRIPPING Oil seal worn or damaged Contact local dealer.
WATER LEAKING
FROM PUMP
PROTECTOR
Spray gun closed with machine
running 5 minutes or longer
Open spray gun or turn o machine.
Excess water supply pressure Place a pressure regulator at end of 50' gar-
den hose.
NO DETERGENT Detergent suction tube not prop-
erly connected to machine
Check connection.
Detergent is too thick Dilute detergent. For best results, use our
detergent.
Detergent lter valve is at lowest
setting
Set detergent lter valve to a higher setting.
Filter on detergent suction tube is
clogged
Run warm water through lter to remove
debris.
Damaged or clogged detergent
suction tube
Remove obstruction or replace detergent suc-
tion tube.
A high pressure nozzle is at-
tached.
Replace with black detergent nozzle.
Discharge nozzle is obstructed Blow out or remove debris with ne needle
GARDEN HOSE
CONNECTION
LEAKS
Loose ttings Tighten ttings.
Missing/worn rubber washer Insert new washer.
SPRAY WAND
LEAKS
Spray wand not properly attached Slide the spray wand into the gun. Turn the
wand collar clockwise onto the spray gun
threads until tight.
Broken o-ring Contact local dealer to order an o-ring.
PUMP IS NOISY Pump is sucking air Check that hoses and ttings are air tight. Turn
o machine and purge pump by squeezing
trigger gun until a steady ow of water emerg-
es through nozzle.
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
13
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you
as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa-
tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer
for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer.
Perform maintenance more often under severe conditions.
PREVENTATIVE MAINTENANCE
Pump Oil
(Non foaming)
SAE 10W-40
Inspect Daily inspect the oil level
Change After rst 50 hours, then every 500 hours or annually
Replace high pressure nozzle Every 6 months
Replace quick connects Annually
Clean water screen/lter Weekly
Replace HP hose Annually if there is any sign of wear
Grease Motor Every 10,000 hours
OIL CHANGE RECORD
Check pump oil and engine oil level before rst use of your new pressure washer.
NOTE: Read engine manual for any maintenance or service questions.
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
14
SPECIFICATIONS
BD Models
Machine
Description
Bushing
Model
Belt
Part No.
Belt
Desc./Qty.
Pump
Part No.
Unloader
Part No.
Engine
Description
Engine
Part No.
BD-405037E 25mm 8.749-965.0 3BX42 (1) 8.921-659.0 9.802-360.0 GX630 (688cc) 8.752-149.0
BD-455039E 25mm 8.749-965.0 3BX42 (1) 8.921-659.0 9.802-360.0 GX690 (688cc) 8.760-341.0
BD-373539 24mm 9.802-418.0 BX39 (2) 8.751-180.0 8.750-300.0 GX390 (390cc) 8.750-580.0
BD-404029 25mm 9.802-420.0 BX43 (2) 8.920-583.0 8.750-300.0 Vanguard (479cc) 8.715-065.0
BD-405039EK 25mm 8.749-965.0 3BX42 (1) 8.921-659.0 9.802-360.0 Karcher V-Twin (764cc) 8.759-746.0
BD455039EK 25mm 8.749-965.0 3BX42 (1) 8.921-659.0 9.802-360.0 Karcher V-Twin (764cc) 8.759-746.0
HD Models
Machine
Model
Engine
Pulley
Pulley
Description
Engine
Bushing#.
Bushing
Description
Pump
Pulley
Pulley
Description
Pump
Bushing#
HD-4.0/50 Pb Cage 9.802-392.0 3TB34 9.802-404.0 P2 x 1" 9.802-396.0 3BK90H 9.802-402.0
HD-4.5/50 Pb Cage 9.802-392.0 3TB34 9.802-405.0 P2 x 1-1/8" 8.715-618.0 3BK80H 9.802-402.0
HD-3.7/35 Pb Cage 8.715-576.0 2BK32H 9.802-399.0 H x 1" 8.715-593.0 2BK90H 9.802-402.0
HD-4.0/40 Pb Cage 9.802-382.0 2BK34H 9.802-399.0 H x 1" 8.715-593.0 2BK90H 9.802-403.0
HD-4.0/50 Pb Cage K 9.802-392.0 3TB34 9.802-405.0 P2 x 1-1/8" 9.802-396.0 3BK90H 9.802-402.0
HD-4.5/50 Pb Cage K 9.802-392.0 3TB34 9.802-405.0 P2 x 1-1/8" 8.715-618.0 3BK80H 9.802-402.0
BR Models
Machine
Model
Engine
Pulley
Pulley
Description
Engine
Bushing#
Bushing
Description
Pump
Pulley
Pulley
Description
Pump
Bushing#
BR-405037E 9.802-392.0 3TB34 9.802-404.0 P2 x 1" 9.802-396.0 3BK90H 9.802-402.0
BR-455037E 9.802-392.0 3TB34 9.802-405.0 P2 x 1-1/8" 8.715-618.0 3BK80H 9.802-402.0
BR-373537 8.715-576.0 2BK32H 9.802-399.0 H x 1" 8.715-593.0 2BK90H 9.802-402.0
BR-404027 9.802-382.0 2BK34H 9.802-399.0 H x 1" 8.715-593.0 2BK90H 9.802-403.0
MP Models
Machine
Description
Bushing
Model
Belt
Part No.
Belt
Desc./Qty.
Pump
Part No.
Unloader
Part No.
Engine
Description
Engine
Part No.
MP-455034E 25mm 8.749-965.0 3BX42 (1) 8.921-655.0 9.802-360.0 GX690 (688cc) 8.760-341.0
MP-373534 24mm 9.802-418.0 BX39 (2) 8.904-869.0 8.750-300.0 GX390 (390cc) 8.750-580.0
MP-455034EK 25mm 8.749-965.0 3BX42 (1) 8.921-655.0 9.802-360.0 Karcher V-Twin (764cc) 8.759-746.0
8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. D
15
1
1
10
2
2
1
9
3
8
4
6
7
5
9
9
BD Versions
MP, BR, HD
Versions
HOSE & SPRAY GUN ASSEMBLY AND PARTS LIST
5000 PSI
Models
Detergent Injector
Assembly
ITEM PART NO. DESCRIPTION QTY
1 9.802-222.0 Wand, VP W/Coupler & Nozzle X-Series (BR and HD Models) 1
8.711-293.0 Wand, VP Lance, AL344 w/Coupler & Soap Nozzle (MP Models) 1
8.904-425.0 Wand, Side Grip, 47.5" w/Couplers (BD Models) 1
8.725-388.0 Wand, Single, 48", Insulated W/ Side Grip 1
9.802-164.0 Coupler, 1/4" Female Brass (BD models) 1
8.710-384.0 Gun, St-1500, 5000 PSI, 10.4 Gpm (BR and HD Models) 1
4.775-054.0 EASY!Force Advanced KNA 1
8.904-490.0 Spray Gun Assembly with Nipple, Hotsy 1
8.751-235.0 Gun, Hotsy, H1050, 5000 PSI, 10.4 GPM 1
2 9.802-228.0 Spray Gun Assy w/ Wand & Coupler (5000 PSI Models) 1
9.802-227.0 Spray Gun Wand 5000 PSI, 52" (5000 PSI Models) 1
8.756-030.0 Coupler, 1/4"Socket, Male, Brass 1
3 8.925-130.0 Hose, 3/8" X 50', R1, SO X SW, CPL (BR, MP, BD and HD Models to 4000 PSI) 1
8.925-132.0 Hose, 3/8" X 50', R2, SO X SW, CPL (BR, MP, BD and HD Models to 5000 PSI) 1
4 9.802-217.0 Inector Assembly, 3-5 GPM, 0.083 (Models to 4000 PSI) 1
9.802-216.0 Injector Chem Non Adj. 3-5 GPM. 0.083 1
9.802-217.0 Injector Assembly, 5500 PSI (5000 PSI Models) 1
9.802-167.0 Coupler, 3/8" Female, 11,000 PSI 1
9.802-168.0 Nipple, 3/8" Fem, 11,000 PSI 1
5 8.707-057.0 Strainer, Plastic, 1/4" Hose Barb 1
6 9.802-251.0 Tube, 1/4" X 1/2", Clear Viny 6 ft.
7 6.390-126.0 Clamp, Hose, .46-.54 ST 2
8 9.802-167.0 Coupler, 3/8" Female, 11,000 PSI Snap-Tite (5000 PSI Models) 1
9.802-166.0 Coupler,3/8" Female 1
9 9.802-296.0 Nozzle SAQCMEG, 1504, Yellow (All Except 4 GPM/5000 PSI Models) 1
9.802-297.0 Nozzle SAQCMEG, 2504, Green (All Except 4 GPM/5000 PSI Models) 1
9.802-298.0 Nozzle SAQCMEG, 4004, White (All Except 4 GPM/5000 PSI Models) 1
8.708-713.0 pNozzle Kit, Size 04, 4-Pack (All Except 4 GPM/5000 PSI Models) 1
9.802-292.0 Nozzle SAQCMEG, 1503.5, Yellow (4 GPM/5000 PSI Models) 1
9.802-293.0 Nozzle SAQCMEG, 2503.5, Green (4 GPM/5000 PSI Models) 1
9.802-294.0 Nozzle SAQCMEG, 4003.5, White (4 GPM/5000 PSI Models) 1
8.708-712.0 pNozzle, Kit, Size 03.5, 4-Pack (4 GPM/5000 Models) 1
9.802-311.0 Nozzle, COMPL, QCHEM-6540, Brass 1
10 8.705-356.0 Adaptor, Steel 1/4'Mx1/4'F ZI (MP-373534, MP-343084E) 1
pNot Shown
advantages.
vielen Vorteilen.
avantages.
Registre su producto y aproveche de muchas ventajas.
Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung.
Rate your product and tell us your opinion.
Évaluer votre produit et dites-nous votre opinion.
Reseñe su producto y díganos su opinión.
www.kaercher.com/welcome
www.kaercher.com/dealersearch
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
DANKE!
THANK YOU!
MERCI!
GRACIAS!
!
