6" SELF-VACUUMING
RANDOM ORBITAL SANDER
58719
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 23e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup
table of contents
Safety .................................................2
Specifications .....................................7
Setup ..................................................8
Operation ........................................... 11
Maintenance ......................................13

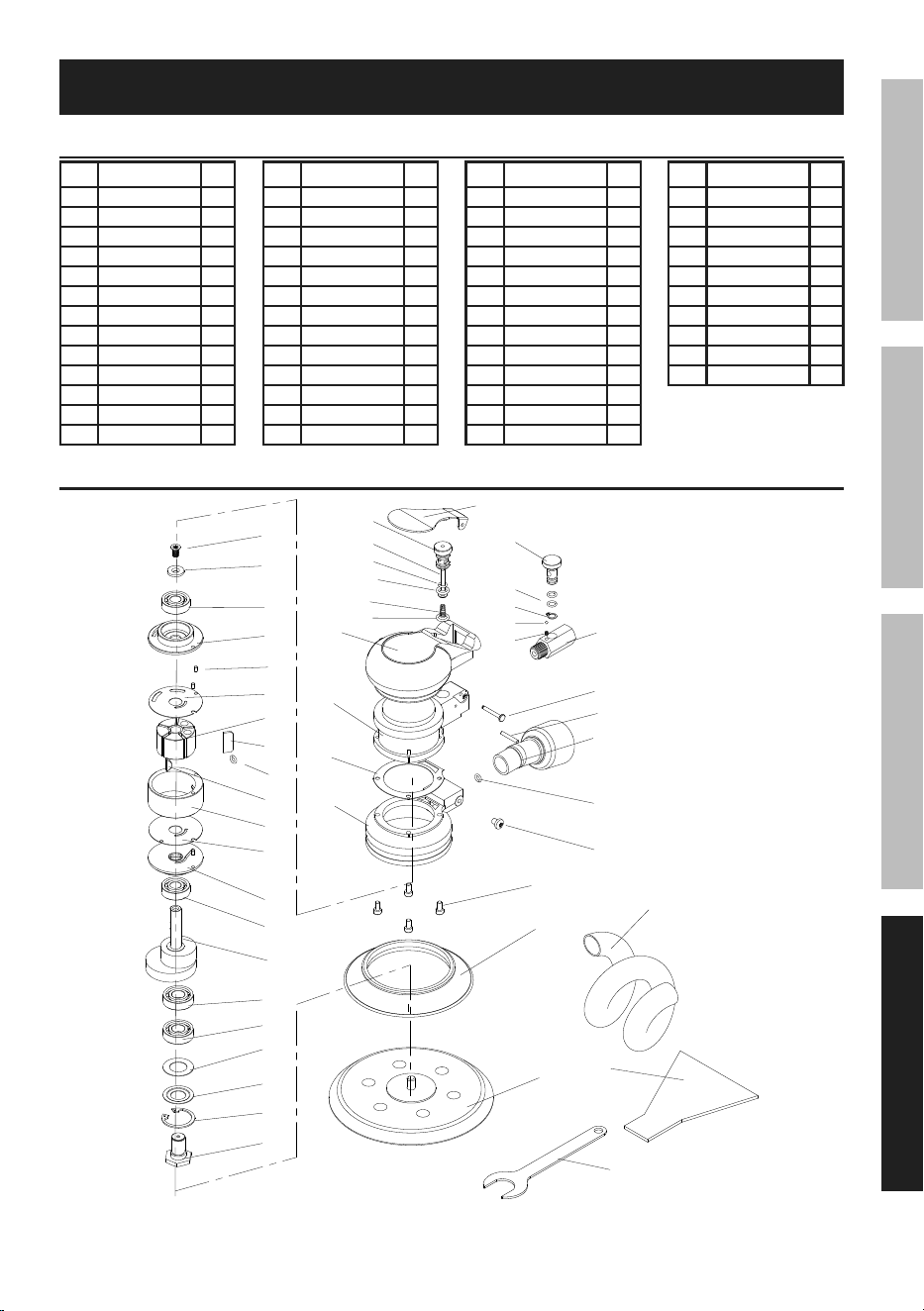

Parts List and Diagram ......................15
Warranty ............................................16
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inStructiOnS
inStructiOnS pertaininG tO a riSK OF Fire,
eLectric SHOcK, Or inJury tO perSOnS
WarninG – When using tools, basic precautions should always be followed, including the following:
General
to reduce the risks of electric shock,
fire, and injury to persons, read all the
instructions before using the tool.
Work area
1. Keep the work area clean and well lighted.
Cluttered benches and dark areas
increase the risks of electric shock,
fire, and injury to persons.
2. Do not operate the tool in explosive
atmospheres, such as in the presence
of flammable liquids, gases, or dust.
The tool is able to create sparks resulting
in the ignition of the dust or fumes.
3. Keep bystanders, children, and
visitors away while operating the tool.
Distractions are able to result in
the loss of control of the tool.
Page 3For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup
personal Safety
1. Stay alert. Watch what you are doing
and use common sense when operating
the tool. Do not use the tool while
tired or under the influence of drugs,
alcohol, or medication. A moment
of inattention while operating the tool
increases the risk of injury to persons.
2. Dress properly. Do not wear loose
clothing or jewelry. contain long
hair. Keep hair, clothing, and gloves
away from moving parts. Loose
clothes, jewelry, or long hair increases
the risk of injury to persons as a result
of being caught in moving parts.
3. avoid unintentional starting. Be sure
the switch is off before connecting to
the air supply. Do not carry the tool with
your finger on the switch or connect the
tool to the air supply with the switch on.
4. remove adjusting keys and wrenches
before turning the tool on. A wrench or a
key that is left attached to a rotating part of
the tool increases the risk of personal injury.
5. Do not overreach.
Keep proper footing and balance at
all times. Proper footing and balance
enables better control of the tool
in unexpected situations.
6. use safety equipment.
A dust mask, non‑skid safety
shoes and a hard hat must be
used for the applicable conditions.
7. always wear eye protection.
Wear ANSI‑
approved safety goggles.
8. always wear hearing protection
when using the tool.
Prolonged exposure to high
intensity noise is able to cause
hearing loss.
9. risk of electric Shock. this tool is not
provided with an insulated gripping
surface. Contact with a ″live″ wire will
also make exposed metal parts of the
tool ″live″ and shock the operator.
10. avoid body contact with
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric
shock if your body is grounded.
11. explore the workpiece to avoid contact
with hidden wiring. Thoroughly investigate
the workpiece for possible hidden wiring
before performing work. Contact with
live wiring will shock the operator.
tool use and care
1. Use clamps or another practical way
to secure and support the workpiece
to a stable platform. Holding the work
by hand or against the body is unstable
and is able to lead to loss of control.
2. Do not force the tool. Use the correct
tool for the application. The correct tool
will do the job better and safer at the
rate for which the tool is designed.
3. Do not use the tool if the switch does
not turn the tool on or off. Any tool
that cannot be controlled with the switch
is dangerous and must be repaired.
4. Disconnect the tool from the air source
before making any adjustments,
changing accessories, or storing the tool.
Such preventive safety measures reduce
the risk of starting the tool unintentionally.
Turn off and detach the air supply, safely
discharge any residual air pressure, and
release the throttle and/or turn the switch to
its off position before leaving the work area.
5. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the
hands of untrained users.
Page 4 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup
6. check for misalignment or binding
of moving parts, breakage of parts,
and any other condition that affects
the tool’s operation. If damaged,
have the tool serviced before using.
Many accidents are caused by poorly
maintained tools. There is a risk of
bursting if the tool is damaged.
7. use only accessories that are identified
by the manufacturer for the specific
tool model. Use of an accessory not
intended for use with the specific tool model,
increases the risk of injury to persons.
Service
1. Tool service must be performed only
by qualified repair personnel.
2. When servicing a tool, use only
identical replacement parts.
use only authorized parts.
3. use only lubricants supplied with the
tool or specified by the manufacturer.
air Source
1. never connect to an air source
that is capable of exceeding
200 psi. Over pressurizing
the tool may cause bursting,
abnormal operation, breakage
of the tool or serious injury to persons. Use
only clean, dry, regulated compressed air
at the rated pressure or within the rated
pressure range as marked on the tool.
Always verify prior to using the tool
that the air source has been adjusted
to the rated air pressure or within
the rated air‑pressure range.
2. Never use oxygen, carbon dioxide,
combustible gases or any bottled
gas as an air source for the tool.
Such gases are capable of explosion
and serious injury to persons.
SaVe tHeSe inStructiOnS.
Symbol Definitions
Symbol property or Statement
n
o
No‑load speed
.../min
Revolutions or reciprocation
per minute
pSi
Pounds per square
inch of pressure
ft-lb
Foot‑pounds of torque
BpM
Blows per minute
cFM
Cubic Feet per Minute flow
ScFM
Cubic Feet per Minute flow
at standard conditions
npt
National pipe thread, tapered
npS
National pipe thread, straight
Symbol property or Statement
WARNING marking
concerning Risk of Eye Injury.
Wear ANSI‑approved
eye protection.
WARNING marking concerning
Risk of Hearing Loss. Wear
hearing protection.
WARNING marking concerning
Risk of Respiratory Injury.
Wear NIOSH‑approved
dust mask/respirator.
WARNING marking concerning
Risk of Explosion.
Page 5For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup
Specific Safety instructions
1. this air tool is intended to function as
a sander. read all safety warnings,
instructions, illustrations and
specifications provided with this air
tool. Failure to follow all instructions
listed below may result in electric
shock, fire and/or serious injury.
2. Operations such as grinding,
wire brushing, polishing, or cutting-off
are not recommended to be performed
with this air tool. Operations for which
the air tool was not designed may create
a hazard and cause personal injury.
3. Do not use accessories which are not
specifically designed and recommended
by the tool manufacturer. Just because
the accessory can be attached to your
air tool, it does not assure safe operation.
4. the rated speed of the accessory must
be at least equal to the maximum speed
marked on the air tool. Accessories
running faster than their RATED
SPEED can break and fly apart.
5. the outside diameter and the thickness
of your accessory must be within
the capacity rating of your air tool.
Incorrectly sized accessories cannot be
adequately guarded or controlled.
6. the arbor size of wheels, flanges, backing
pads or any other accessory must
properly fit the spindle of the air tool.
Accessories with arbor holes that do not
match the mounting hardware of the air tool
will run out of balance, vibrate excessively
and may cause loss of control.
7. Do not use a damaged accessory.
Before each use inspect the accessory
for tears and the backing pad for cracks,
tears or excess wear. if air tool or
accessory is dropped, inspect for damage
or install an undamaged accessory.
8. Wear personal protective equipment.
Depending on application, use face
shield, safety goggles or safety glasses.
as appropriate, wear dust mask, hearing
protectors, gloves and workshop apron
capable of stopping small abrasive or
workpiece fragments. the eye protection
must be capable of stopping flying debris
generated by various operations. The eye
protection must be capable of stopping flying
debris generated by various operations. The
dust mask or respirator must be capable
of filtering out particles generated by your
operation. Prolonged exposure to high
intensity noise may cause hearing loss.
9. Keep bystanders a safe distance away
from work area. anyone entering the
work area must wear personal protective
equipment. Fragments of workpiece or of
a broken accessory may fly away and cause
injury beyond immediate area of operation.
10. Hold power tool by insulated gripping
surfaces only, when performing an
operation where the accessory may
contact hidden wiring. An accessory
contacting a ″live″ wire may make
exposed metal parts of the power
tool ″live″ and shock the operator.
11. Do not lay the air tool down until the
accessory has come to a complete stop.
The spinning accessory may grab the surface
and pull the air tool out of your control.
12. Do not run the air tool while carrying it
at your side. Accidental contact with the
spinning accessory could snag your clothing,
pulling the accessory into your body.
13. Do not operate the air tool near
flammable materials. Sparks
could ignite these materials.
14. Attach all accessories properly to
the tool before connecting the air
supply. A loose accessory may
detach or break during operation.
15. Obey the manual for the air compressor
used to power this tool.
Page 6 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup
16. Install an in‑line shutoff valve to allow
immediate control over the air supply in an
emergency, even if a hose is ruptured.
17. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
18. Avoid unintentional starting.
Prepare to begin work before
turning on the tool.
19. This product is not a toy.
Keep it out of reach of children.
20. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Vibration precautions
This tool vibrates during use. Repeated or
long‑term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration‑related injury:
1. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check‑ups to ensure medical problems
are not being caused or worsened from
use. Pregnant women or people who have
impaired blood circulation to the hand, past
hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should
not use this tool. If you feel any symptoms
related to vibration (such as tingling,
numbness, and white or blue fingers), seek
medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration‑free periods
each day of work.
6. Grip tool as lightly as possible
(while still keeping safe control of
it). Let the tool do the work.
7. To reduce vibration, maintain
tool as explained in this manual.
If abnormal vibration occurs, stop immediately.
SaVe tHeSe inStructiOnS.
Page 7For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup
Functional Description
Specifications
Maximum Air Pressure 90 PSI
Air Inlet 1/4" NPT
Maximum Speed* 10,000 RPM
Maximum Air Consumption (No Load) 20 SCFM (3.0 CFM @90 PSI)
Air Consumption At Load 18 SCFM (2.8 CFM @90 PSI)
Disc Diameter 6"
* Maximum speed at stated maximum air pressure.
Excess air pressure is hazardous and may cause
the tool to exceed stated maximum speed.

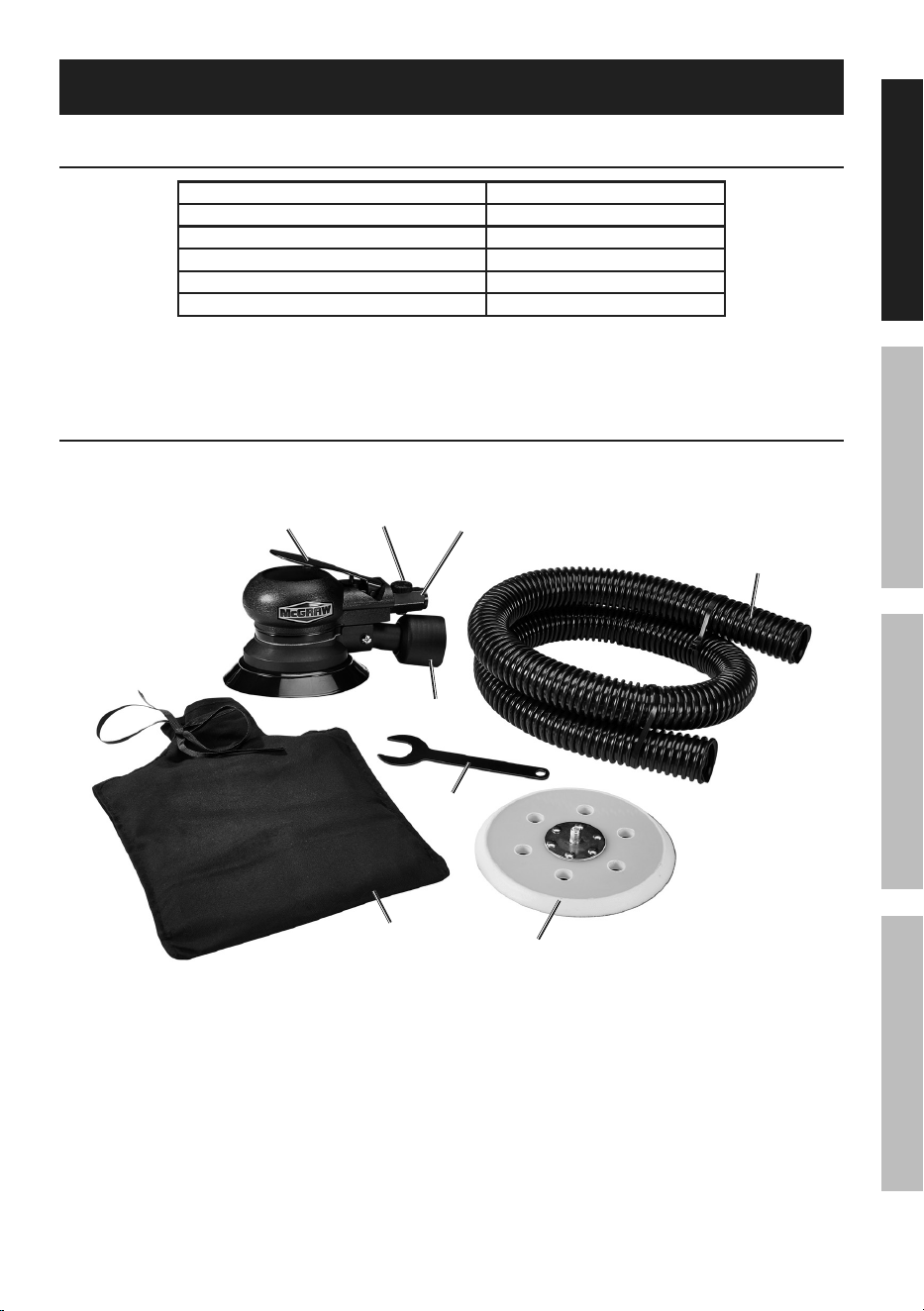

FunctiOnaL DeScriptiOn
air inlet
regulator
Hose
throttle
6" Backing
pad
Dust port
Dust
Bag
Wrench
Page 8 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup
initial tool Set up/assembly
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of
this manual including all text under subheadings therein before set up or use of
this product.
note: For additional information regarding the parts listed in the following
pages, refer to the Assembly Diagram near the end of this manual.
note: This air tool may be shipped with a protective plug covering
the air inlet. Remove this plug before set up.
air Supply
tO preVent SeriOuS inJury FrOM eXpLOSiOn:
use only clean, dry, regulated, compressed air to power this tool. Do not use
oxygen, carbon dioxide, combustible gases, or any other bottled gas as a power
source for this tool.
1. Incorporate a filter, regulator with pressure
gauge, in‑line shutoff valve, and quick
coupler for best service, as shown in
Figure A on page 9 and Figure B
on page 10. an in-line shutoff ball
valve is an important safety device
because it controls the air supply
even if the air hose is ruptured. the
shutoff valve should be a ball valve
because it can be closed quickly.
note: If an automatic oiler system is not used,
add a few drops of Pneumatic Tool Oil to the
airline connection before operation. Add a few
more drops after each hour of continual use.
2. Attach an air hose to the
compressor’s air outlet. Connect the
air hose to the air inlet of the tool.
Other components, such as a coupler plug
and quick coupler, will make operation
more efficient, but are not required.
WarninG! tO preVent SeriOuS
inJury FrOM acciDentaL OperatiOn:
Do not install a female quick coupler
on the tool. Such a coupler contains
an air valve that will allow the air tool to
retain pressure and operate accidentally
after the air supply is disconnected.
note: Air flow, and therefore tool performance,
can be hindered by undersized air supply
components. The air hose must be long enough
to reach the work area with enough extra
length to allow free movement while working.
3. Turn the tool’s throttle or switch to
the off position; refer to Operation
section for description of controls.
4. Close the in‑line shutoff valve between
the compressor and the tool.
5. Turn on the air compressor according to
the manufacturer’s directions and allow
it to build up pressure until it cycles off.
6. Adjust the air compressor’s output
regulator so that the air output is enough
to properly power the tool, but the output
will not exceed the tool’s maximum air
pressure at any time. Adjust the pressure
gradually, while checking the air output
gauge to set the right pressure range.
7. Inspect the air connections for leaks.
Repair any leaks found.
8. If the tool will not be used at this time,
turn off and detach the air supply, safely
discharge and release the throttle and/
or turn the switch to its off position to
prevent any accidental operation.
9. Residual air pressure should not be present
after the tool is disconnected from the air
supply. However, it is a good safety measure
to attempt to discharge the tool in a safe
fashion after disconnecting to ensure that
the tool is disconnected and unpowered.
Page 9For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup

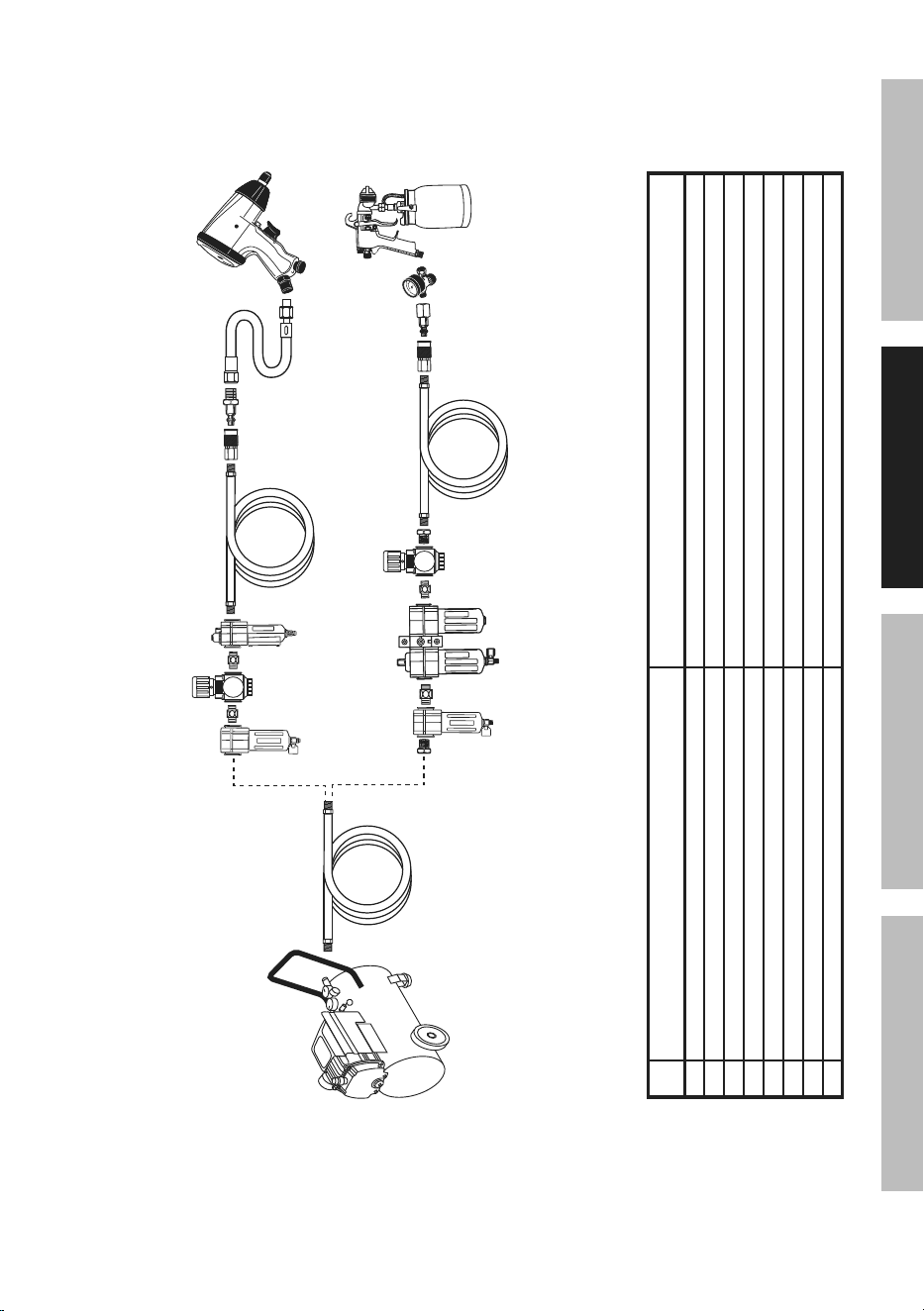

Figure a: portable air Supply Setup
G
A
E
E
H
F
B
Non-lubricated
Tools
Lubricated
Tools
A
B
C
C
D
A
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
C Regulator Adjusts air pressure to tool
D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
H Air Adjusting Valve (optional) For fine tuning airflow at tool
Page 10 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup

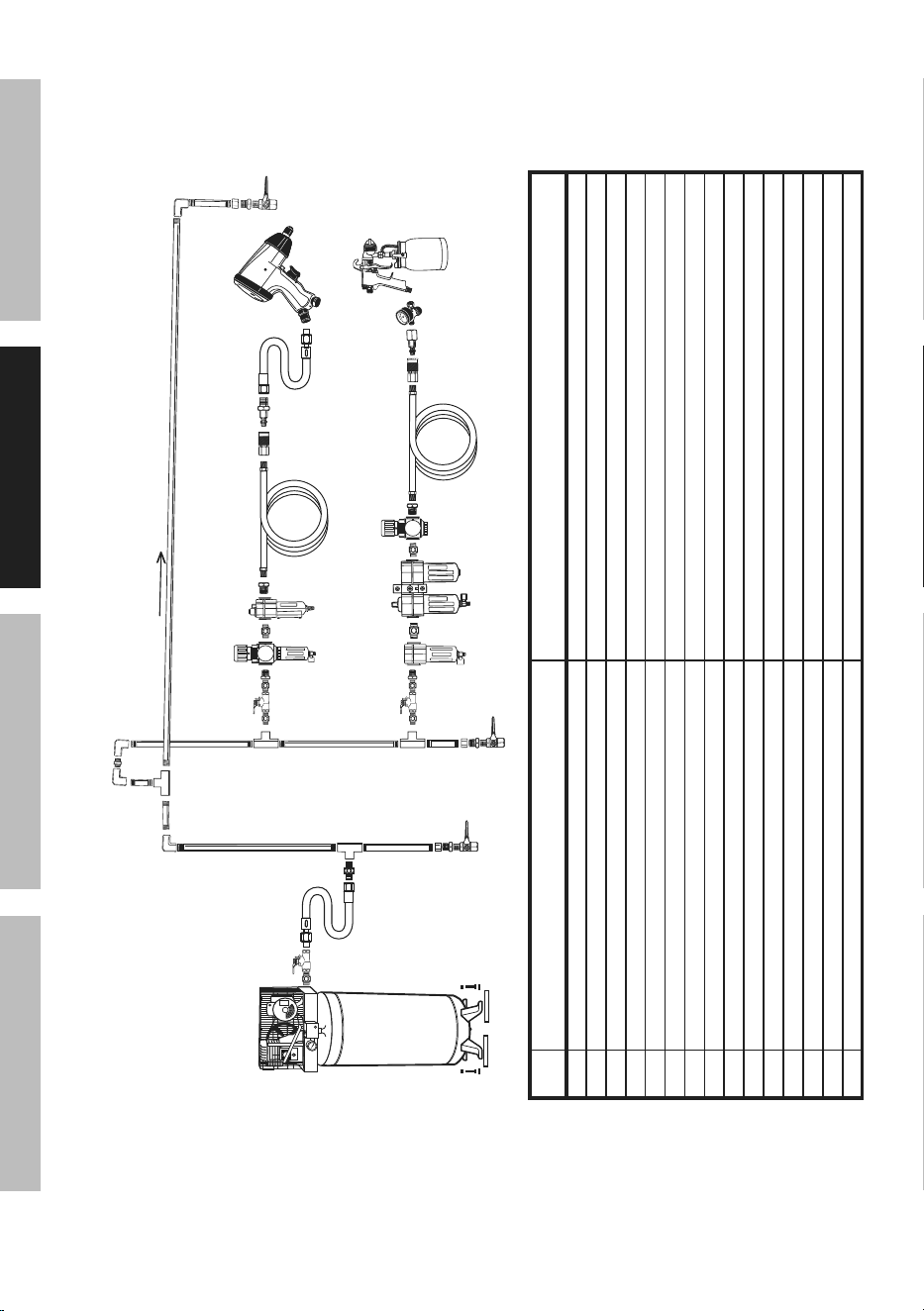

Figure B: Stationary air Supply Setup
N
L
L O
M
C
C
Non-lubricated Tools
Lubricated
Tools
H
I
I
J
J
K
H
F
G
E
Slope
F
F
B
B
A
A
C
D
Description Function
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
E Main Air Line ‑ 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line ‑1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or workpiece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at tool
Page 11For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup
Operating instructions
read the entire iMpOrtant SaFety inFOrMatiOn section
at the beginning of this manual including all text under subheadings therein
before set up or use of this product.
inspect tool before use, looking for damaged, loose, and missing parts.
if any problems are found, do not use tool until repaired.
tool assembly
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
turn off the tool, detach the air supply, safely discharge any residual air pressure
in the tool, and release the throttle and/or turn the switch to its off position
before performing any inspection, maintenance, or cleaning procedures.
tO preVent SeriOuS inJury:
Do not adjust or tamper with any control or component in a way not specifically explained
within this manual. improper adjustment can result in tool failure or other serious hazards.

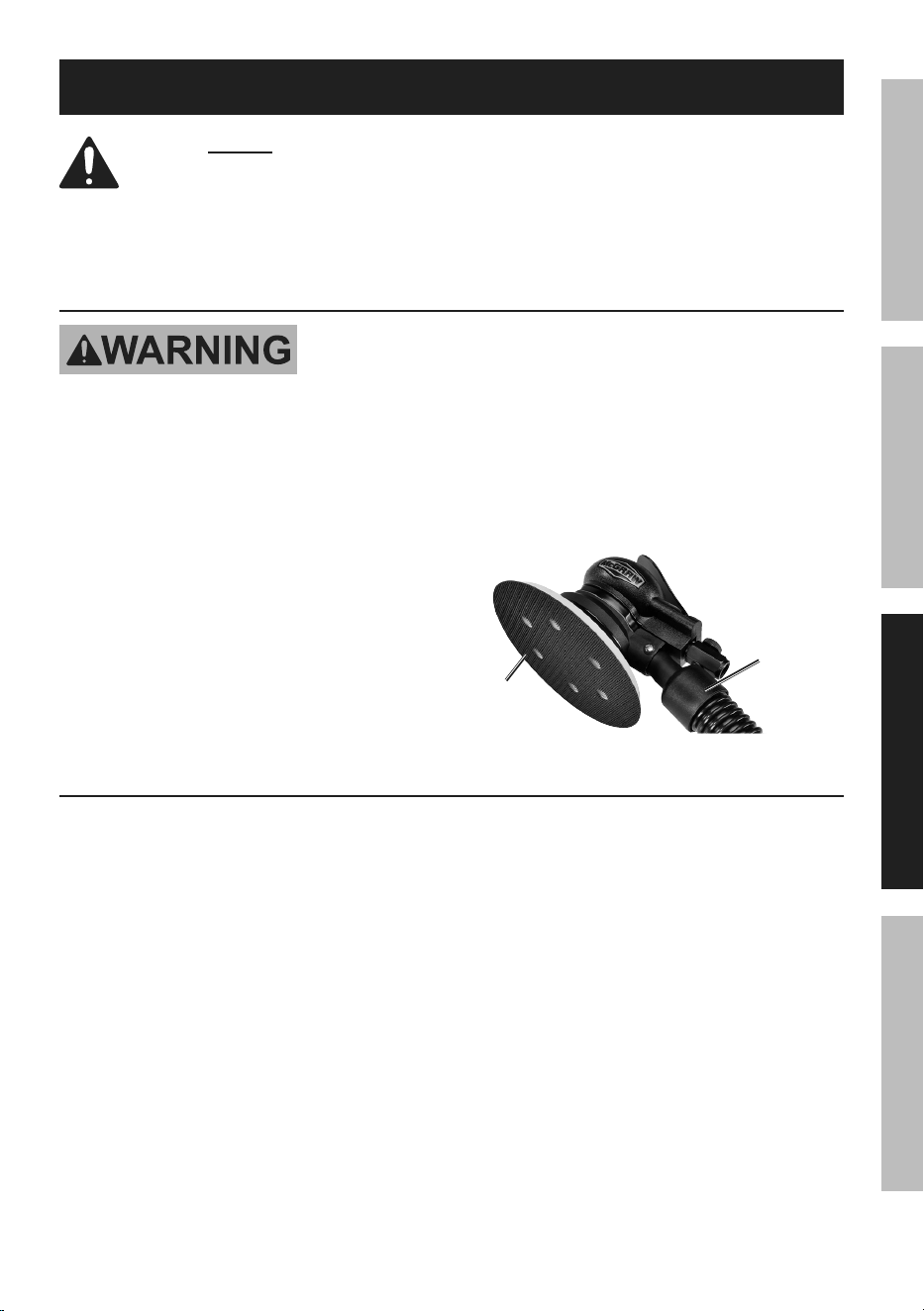

1. Thread Hose in Dust Port. Attach
Bag to other end of Hose.
2. 6″ sandpaper discs (sold separately)
attach to the Backing Pad using a hook
& loop system. Line up the six holes in
the sanding disc with the six holes in the
Backing Pad and press them together.
Dust
port
Backing
pad
Workpiece and Work area Set up
1. Designate a work area that is clean
and well‑lit. The work area must not
allow access by children or pets to
prevent distraction and injury.
2. Route the air hose along a safe
path to reach the work area without
creating a tripping hazard or exposing
the air hose to possible damage.
The air hose must be long enough
to reach the work area with
enough extra length to allow free
movement while working.
3. Secure loose workpieces using a
vise or clamps (not included) to
prevent movement while working.
4. There must not be hazardous
objects (such as utility lines or
foreign objects) nearby that will
present a hazard while working.
Page 12 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup
General Operating instructions
1. If an automatic oiler is not used, add a few
drops of Pneumatic Tool Oil to the airline
connection before use. Add a few drops
more after each hour of continual use.
2. Wipe the workpiece clean of all dirt and
debris, especially that of previous coarser
sanding sessions, which will scratch the
surface of a finer grit sanding session.
3. Attach the desired grit sanding disc
onto the Backing Pad.
4. Attach the air supply.
5. Grip the Sander loosely, without touching
Throttle. Place sanding disc flat on the
working surface, then press down on
the Throttle with the palm of the hand
to begin the sanding operation.
cautiOn! Always start and stop the Sander
while it is held firmly against the workpiece.
Applying the Sander to the workpiece while
running with the sanding disc tilted will sand
a groove into the workpiece and may cause
the Sander to move in the direction of rotation,
resulting in loss of control of the tool.
6. The speed of the Sander may be
varied by adjusting Regulator.
nOtice: Do not allow free, no‑load
rotating at high speed to avoid possible
injury or damage to the tool.
7. Keep heavy pressure off of the
Sander when operating. Allow the
sanding disc to do the work.
8. Move the Sander in a uniform pattern up and
down or side to side to ensure even sanding.
9. Periodically, stop the Sander and check
for possible disc wear. Replace used or
worn sanding discs when necessary.
10. If the tool requires more force to
accomplish the task, verify that the
tool receives sufficient, unobstructed
airflow (CFM) and increase the pressure
(PSI) output of the regulator up to the
maximum air pressure rating of this tool.
WarninG! SanDinG DuSt FrOM SurFace
cOatinGS can SeLF-iGnite. To prevent
serious injury and death from fire, empty bag
frequently (at least every 10 minutes) during use
and immediately after use. Put dust in a metal
can with an airtight lid, and remove dust from
premises daily. Keep a fully charged class ABC
fire extinguisher in the vicinity of the work area.
cautiOn! tO preVent inJury FrOM
tOOL Or acceSSOry FaiLure:
Do not exceed the tool’s
maximum air pressure rating.
If the tool still does not have sufficient force
at maximum pressure and sufficient airflow,
then a larger tool may be required.
11. To prevent accidents, after use, release
the Throttle, detach the air supply and then
safely discharge any residual air pressure
in the tool. Clean external surfaces of the
tool with a clean, dry cloth. Then store the
tool indoors out of children’s reach.
Page 13For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup
user-Maintenance
procedures not specifically explained in this manual
must be performed only by a qualified technician.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
turn off the tool, detach the air supply, safely discharge any residual
air pressure in the tool, and release the throttle before performing
any inspection, maintenance, or cleaning procedures.
tO preVent SeriOuS inJury FrOM tOOL FaiLure:
Do not use damaged equipment. if abnormal noise, vibration, or
leaking air occurs, have the problem corrected before further use.
tO preVent SerOuS inJury FrOM eXpLOSiOn:
Lubricate the tool only with specified lubricants. Lubricate the air inlet using only
pneumatic tool oil. Other lubricants may damage the mechanism and may be
highly flammable, causing an explosion.
cleaning, Maintenance, and Lubrication
note: These procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the air‑operated tool.
1. BeFOre eacH uSe, inspect the general
condition of the tool. Check for:
• loose hardware or housing
• misalignment or binding of moving parts
• cracked or broken parts
• any other condition that may
affect its safe operation.
2. Daily - air Supply Maintenance:
Every day, maintain the air supply according
to the component manufacturers’ instructions.
Maintain the lubricator’s oil level.
Drain the moisture filter regularly.
Performing routine air supply maintenance
will allow the tool to operate more safely
and will also reduce wear on the tool.
3. Weekly - tool Maintenance:
Drop some pneumatic tool oil into the air
inlet of the tool and run the tool slowly
for a minute before beginning work.
Check the inner dust collection port
for sawdust buildup that would reduce
the dust collection efficiency:
a. Remove the Backing Pad as described
in Replacing the Backing Pad below.
b. Inside the tool is the inner dust
collection port where sawdust may
accumulate. Keep this port opening
clear using a toothpick and clean
up with an old toothbrush.
c. Replace and secure the Backing Pad.
4. Quarterly (every 3 months) –
tool Disassembly, cleaning,
and inspection:
Have the internal mechanism
cleaned, inspected, and lubricated
by a qualified technician.
If the vanes need replacement,
replace them all as a set.
replacing the Backing pad
1. Disconnect from air source.
2. Slide the Wrench between the Backing Pad
and the Dust Cover and engage the
Shaft. Holding Wrench firmly, grasp
Backing Pad and unscrew from Sander.
3. Engage Shaft with Wrench and firmly
screw new Backing Pad into Shaft Set.
Page 14 For technical questions, please call 1-888-866-5797. 58719
SaFety OperatiOn MaintenanceSetup
troubleshooting
problem possible causes Likely Solutions
Decreased
output
1. Not enough air pressure and/
or air flow.
2. Obstructed Throttle.
3. Incorrect lubrication or
not enough lubrication.
4. Blocked air inlet screen
(if equipped).
5. Air leaking from loose housing.
6. Mechanism contaminated.
7. Vane wear or damage.
1. Check for loose connections and make
sure that air supply is providing enough
air flow (CFM) at required pressure
(PSI) to the tool’s air inlet. Do not
exceed maximum air pressure.
2. Clean around Throttle to
ensure free movement.
3. Lubricate using air tool oil
according to directions.
4. Clean air inlet screen of buildup.
5. Make sure housing is properly
assembled and tight.
6. Have qualified technician
clean and lubricate mechanism. Install
in‑line filter in air supply as stated
in Air Supply Setup on page 7.
7. Replace all vanes as set.
Severe air
leakage.
(Slight air
leakage
is normal,
especially on
older tools.)
1. Cross‑threaded housing
components.
2. Loose housing.
3. Damaged valve or housing.
4. Dirty, worn or damaged valve.
1. Check for incorrect alignment
and uneven gaps. If cross‑
threaded, disassemble and replace
damaged parts before use.
2. Tighten housing assembly. If
housing cannot tighten properly,
internal parts may be misaligned.
3. Replace damaged components.
4. Clean or replace valve assembly.
Housing
heats during
use.
1. Incorrect lubrication or
not enough lubrication.
2. Worn parts.
1. Lubricate using air tool oil
according to directions.
2. Have qualified technician inspect internal
mechanism and replace parts as needed.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175445247 when ordering parts.
Page 15For technical questions, please call 1-888-866-5797.58719
SaFetyOperatiOnMaintenance Setup
parts List and Diagram
parts List
part Description Qty
1 Throttle 1
2 Pin 1
3 Outer Housing 1
4 Casting Body 1
5 Valve Core 1
6 O‑Ring 1
7 O‑Ring 1
8 O‑Ring 1
9 Valve Needle 1
10 Spring 1
11 Throttle Bolt 1
12 Air Inlet 1
13 Screw 2
part Description Qty
14 Washer 1
15 Bearing 6000 1
16 Rear Plate 1
17 Rear Washer 1
18 Cylinder 1
19 Rotor 1
20 Vane 5
21 Pin 2
22 O‑Ring 1
23 Front Plate 1
24 Bearing 6000 1
25 Front Washer 1
26 Main Shaft 1
part Description Qty
27 Key 1
28 Pad Shaft 1
29 Bearing 6001 1
30 Bearing 6001 1
31 Soft Washer 1
32 Dust Plate 1
33 Clip 1
34 Washer 1
35 Cover 1
36 Dust Cover 1
37 Screw 1
38 Wrench 1
39 Screw 4
part Description Qty
40 Backing Pad 1
41 Regulator 1
42 O‑Ring 1
43 Hose 1
44 Dust Bag 1
45 Dust Port 1
46 Spring 1
47 Ball Bearing 1
48 Clip 1
49 O‑Ring 2
assembly Diagram
1
5
9
8
7
41
49
48
12
11
3
4
34
35
45
37
39
36
40
13
14
15
16
21
17
22
20
19
18
27
25
23
24
26
29
31
32
33
28
47
46
10
2
43
44
38
30
42
6
26677 agoura road • calabasas, ca 91302 • 1-888-866-5797
pLeaSe reaD tHe FOLLOWinG careFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
