INTRODUCTION
SAFETY
Read This Manual Thoroughly
The manufacturer cannot possibly anticipate every possible circumstance that might involve a hazard. The
warnings in this manual and the tags and decals affixed to the unit are therefore not all-inclusive. If you use a
procedure, work method or operating technique that the manufacturer does not specifically recommend you
must satisfy yourself that it is safe for you and others. You must also make sure that the procedure work
method or operating technique that you choose does not render the generator unsafe.
If any section of this manual is not understood,
contact customer Service at 855-888-3598, or
www.a-ipower.com for starting, operating and
servicing procedures. The owner is responsible for
proper maintenance and safe use of the unit.
SAVE THESE INSTRUCTIONS for future reference.
This manual contains important instructions that
must be followed during placement, operation and
maintenance of the unit and its components. Always
supply this manual to any individual that will use this
unit.
The information in this manual is accurate based on
products produced at the time of publication. The
manufacturer reserves the right to make technical
updates, corrections and product revisions at any
time without notice.
Page 01
DEFINITIONS AND SYMBOLS
DANGER
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
WARNING
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
NOTICE
Indicates information
considered important,
but not hazard-related
(e.g.,messages relating
to property damage).
CAUTION
Indicates a hazard
which, if not avoided,
could result in minor
or moderate injury.
WARNING
Read and understand manual completely
before using product. Failure to
completely understand manual and
product couldresult in death or serious
injury.
The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important
information. Make sure that the meanings of this safety information is known to all who operate, perform
maintenance on, or are nearthe generator.
This safety alert symbol appears with most safety statements. It means attention,become alert, your
safety is involved! Please read and abide by the messagethat follows the safety alerts symbol.
Engine exhaust contains carbon
monoxide, a poisonous gas that could
kill you in minutes. You CANNOT smell
it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be
exposed to carbon monoxide gas.
Asphyxiation
Hazard
Fire
Hazard
Hot Surface.
Do Not Touch the Surface.
Burn Hazard
Page 02
Kickback
Electric Shock
Hazard
Explosion
Hazard
Moving Parts
Hazard
Operator’s Manual
GENERAL SAFETY PRECAUTIONS
POISONOUS GAS HAZARD
DANGER

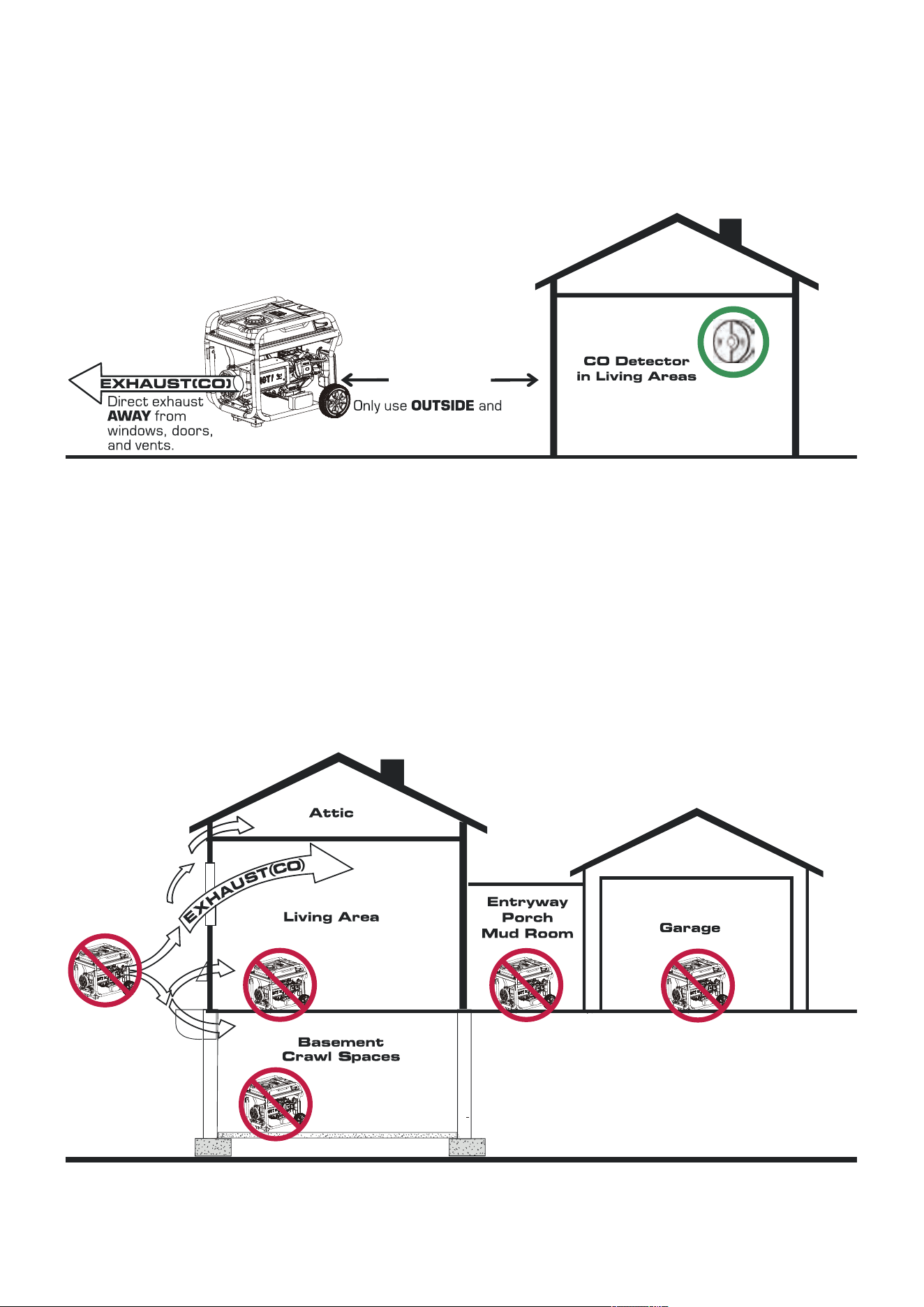

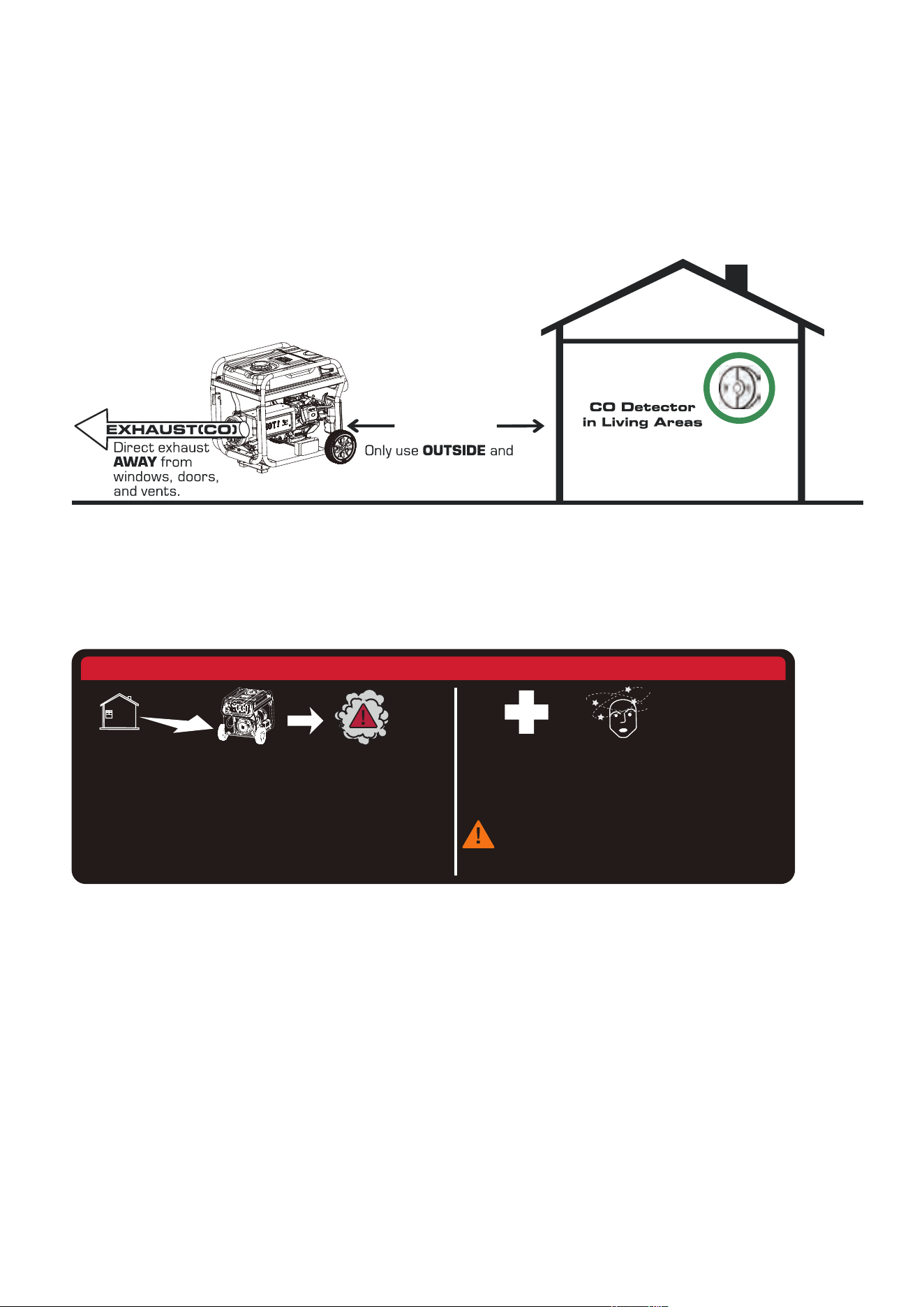

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a poison you cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Avoid other generator hazards. READ MANUAL BEFORE USE.
Only use OUTSIDE and far away
from windows, doors and vents.
The exhaust system must be properly
maintained. Do not alter or modify the
exhaust system as to render it unsafe or
make it noncompliant with local codes
and/or standards. Failure to do so will
result in death or serious injury.
DANGER
Always, install battery operated carbon
monoxide alarm indoors and installed
according to the manufacturer’s
instruction.
• Operate this product ONLY outside and at least
20 feet away from windows, doors and vents to
reduce the risk of carbon monoxide gas from
accumulating and potentially being drawn towards
occupied spaces.
DO NOT run this product inside homes, garages,
basements, crawl spaces, sheds, or other
partially-enclosed spaces even if using fans or
opening doors and windows for ventilation. Carbon
monoxide can quickly build up in these spaces and
can linger for hours, even after this product has
shut off.
• ALWAYS place this product downwind and point
the engine exhaust away from occupied spaces. If
you start to feel sick, dizzy, or weak while using
this product, shut it off and get to fresh air RIGHT
AWAY. See a doctor. You may have carbon
monoxide poisoning.
WARNING
If you start to feel sick, dizzy or weak while using
the portable generator, you may have carbon
monoxide poisoning. Get out side to fresh air
immediately and call 911 for emergency medical
attention. Very high levels of CO can rapidly cause
victims to lose consciousness before they can
rescue themselves. DO NOT attempt to shut off the
generator before moving to fresh air. Entering an
enclosed space where a generator is or has been
running may put you at greater risk of CO
poisoning.
WARNING
"#:-!5T
d!?7-$#%-!:-(-$#%8$&!8+%&3,-!#(,!#%!*-#&%!Q5!W--%!#I#=!W$8N!#(=!&%$+)%+$-!I3%0!-Z0#+&%!783(%-,!#I#=!W$8N!,88$&!
!!!#(,!I3(,8I&.
?7!!3?&%@89=3
56?7!!3?&%@89=3
3G#JK-"%-.H#D(.+%D.%/"$,H"%/()R%.Q%H#/I.+%J.+.G($"%K.().+(+0
d!V-#$!#(=!,88$[!I3(,8I!8$!R-(%
d!D#$#:-
d!L#&-N-(%
d!A$#I*!67#)-
d!93R3(:!<$-#
d!<%%3)
d!>(%$=!1#=
d!"8$)0
d!P+,!F88N
2.%+.D%.K"/#D"%(+%#+1%.Q%D'"%Q.--.N(+0%-.H#D(.+)S
!"#$%!&"#'(#)%%"#!*!+#),-.#
*/01-*&2#1--,&#!01#3%0"&#
!""# %&$'"%(&
)*$+""& %,%-
Page 04
• When starting engine, pull cord slowly until
resistance is felt and then pull rapidly to avoid
kickback.
• NEVER start or stop engine with electrical devices
plugged in and turned on.
Starter cord kickback (rapid retraction)
will pull hand and arm toward engine
faster than you can let go which could
cause broken bones, fractures, bruises,
or sprains resulting in serious injury.
WARNING
DANGER

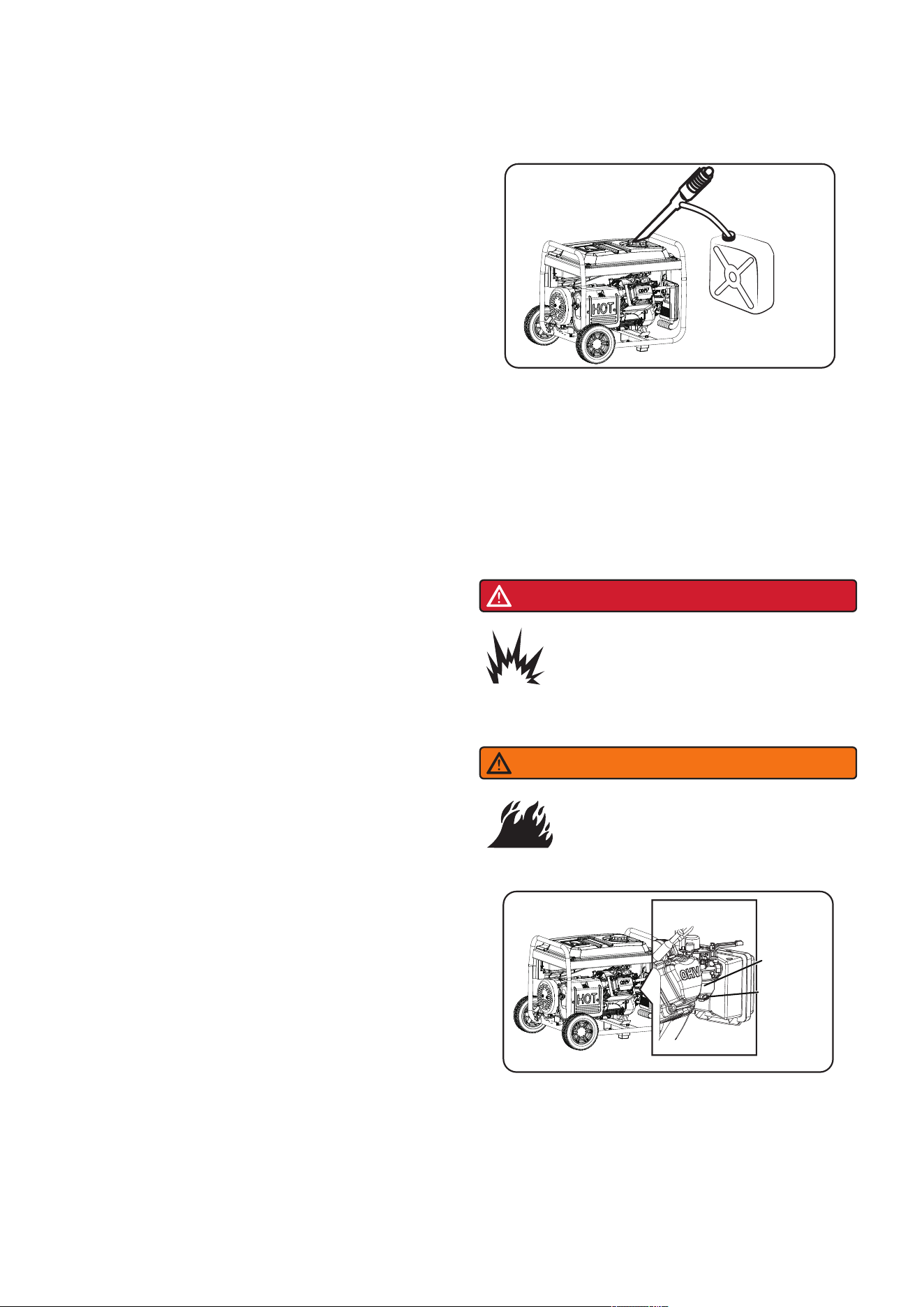

WHEN ADDING OR DRAINING FUEL
• Turn generator engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap
slowly to relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel
expansion.
• If fuel spills, wait until it evaporates before starting
engine.
• Keep fuel away from sparks, open flames, pilot
lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently
for cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air
cleaner are in place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT operate this product inside any building,
carport, porch, mobile equipment, marine
applications, or enclosure.
• DO NOT tip engine or equipment at angle which
causes fuel to spill.
• DO NOT stop engine by moving choke control to
“Start” position.
Fuel and its vapor are extremely flammable and
explosive. Add fuel in a well ventilated area. Keep
sparks, open flames and other ignition sources away.
Failure to do so will result in death and serious injury.
DANGER
DANGER
Do not overfill tank. Allow space for fuel expansion. If
fuel spills wait until it evaporates before starting
engine. Failure to do so will result in death and
serious injury.
WHEN TRANSPORTING, MOVING OR REPAIRING
EQUIPMENT
• Transport/move/repair with fuel tank EMPTY or
with fuel shutoff valve OFF.
• DO NOT tip engine or equipment at angle which
causes fuel to spill.
• Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL
IN TANK
• Store away from furnaces, stoves, water heaters,
clothes dryers, or other appliances that have pilot
light or other ignition source because they could
ignite fuel vapors.
Generator voltage could cause electrical
shock or burn will result in death or
serious injury.
DANGER
Never use generator in wet or damp
locations. Never expose generator to
rain, snow, water spray while in use.
Protect generator from all hazardous
weather conditions. Moisture, or ice
can cause a short circuit or other
malfunction in the electric circuit. Water
contact with a power source if not
avoided, will result in death or serious
injury.
WARNING
WARNING
WARNING
When operating machine, do not touch
hot surfaces. Keep machine away from
combustibles during use. Hot surfaces
could result in severe burns or fire.
WARNING
• Use a ground fault circuit interrupter (GFCI) in any
damp or highly conductive area, such as metal
decking or steel work.
• DO NOT use generator with electrical cords which
are worn, frayed, bare or otherwise damaged.
• DO NOT allow unqualified persons or children to
operate or service generator.
DANGER
Contact with terminals, bare wires and
electrical connections when generator
is running will result in death or serious
injury.
DANGER
WHEN ADJUSTING OR MAKING REPAIRS TO
YOUR GENERATOR
• Disconnect the spark plug wire from the spark plug
and place the wire where it cannot contact spark
plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
Exhaust heat/gases could ignite combustibles,
structures or damage fuel tank causing a fire,
resulting in death or serious injury.
Contact with muffler area could cause burns
resulting in serious injury.
• It is a violation of California Public Resource Code,
Section 4442, to use or operate the engine on any
forest-covered, brush-covered, or grass-covered
land unless the exhaust system is equipped with a
spark arrester, as defined in Section 4442,
maintained in effective working order. Other states
or federal jurisdictions may have similar laws.
Contact the original equipment manufacturer,
retailer, or dealer to obtain a spark arrester
designed for the exhaust system installed on this
engine.
• Allow equipment to cool before touching.
• Replacement parts must be the same and installed
in the same position as the original parts.
• DO NOT wear loose clothing, jewelry or anything
that could be caught in the starter or other rotating
parts.
Starter and other rotating parts could
entangle hands, hair, clothing, or
accessories. Keep away from rotating
parts, failure to do so could result in
death or serious injury.
Unintentional sparking could cause fire or electric
shock resulting in death or serious injury.
Fire and electrocution hazard. Do not connect to a
building's electrical system unless the generator and
transfer switch have been properly installed and the
electrical output has been verified by a qualified
electrician. The connection must isolate the
generator power from utility power and must comply
with all applicable laws and electrical codes.
Excessively high operating speeds could result in
minor injury. Excessively low operating speeds
impose a heavy load.
CAUTION
Page 05
Page 06
• DO NOT tamper with governor spring, links or other
parts to increase engine speed. Generator supplies
correct rated frequency and voltage when running
at governed speed.
• DO NOT modify generator in any way.
Exceeding generators wattage/amperage capacity
could damage generator and/or electrical devices
connected to it.
• DO NOT exceed the generator’s wattage amperage
capacity.
• Start generator and let engine stabilize before
connecting electrical loads.
• Connect electrical loads in OFF position, then turn
ON for operation.
• Turn electrical loads OFF and disconnect from
generator before stopping generator.
NOTICE
NOTICE
Improper treatment of generator could damage it and
shorten its life.
• Use generator only for intended uses.
• If you have questions about intended use, ask
dealer or contact local service center.
• Operate generator only on level surfaces.
• DO NOT expose generator to excessive moisture,
dust, dirt, or corrosive vapors.
• DO NOT insert any objects through cooling slots.
• If connected devices overheat, turn them off and
disconnect them from generator.
• Shut off generator if:
-Electrical output is lost.
-Equipment sparks, smokes, or emits flames.
-Unit vibrates excessively.
Medical and Life Support Uses.
• In case of emergency, call 911 immediately.
• NEVER use this product to power life support
devices or life support appliances.
• NEVER use this product to power medical devices
or medical appliances.
• Inform your electricity provider immediately if you
or anyone in your household depends on electrical
equipment to live.
• Inform your electrical provider immediately if a loss
of power would cause you or anyone in your
household to experience a medical emergency.
WARNING
M/--"P3J"*P'M+--$)U'(+S$-U
ZB?4E4N
B03&!&=NX8*!N-#(&h
56=38&576%B9C9!2S%B03&!7$8,+)%!)8(%#3(&!#!!X+%%8(!)-**!8$!)83(!X#%%-$=.!!
V%56=38&576%B9C9!2S%B03&!7$8,+)%!)8(%#3(&!
!!!#!X+%%8(!)-**!8$!)83(!X#%%-$=.
V%239&B!8$!&-$38+&!3(_+$=!)#(!8))+$!3W!3(:-&%-,.
d!<!&I#**8I-,!X+%%8(!)-**!8$!)83(!X#%%-$=!)#(!)#+&-!
%%%5+D"/+#-%?'"J(H#-%;,/+)!3(!#&!*3%%*-!#&!W%'.,/).
d!E33A!(-I!#(,!+&-,!X#%%-$3-&!7@&%74%!39?B%74%?B5<2!36
d!8""R%(JJ"$(#D"%J"$(H#-%#DD"+D(.+!3W!#!X#%%-$=!3&!&+&7-)%-,!
!!!%8!X-!&I#**8I-,!8$!3(&-$%-,!3(&3,-!#(=!7#$%!8W!%0-!X8,=.!!!
4. F-N8R-!#(,!3NN-,3#%-*=!$-)=)*-!8$!,3&78&-!8W!+&-,!X#%%-$3-&!#))8$,3(:!%8!*8)#*!$-:+*#%38(&!#(,!S--7!#I#=!
W$8N!)03*,$-(.!G8!V?B!,3&78&-!8W!X#%%-$3-&!3(!08+&-08*,!%$#&0!8$!3()3(-$#%-.
Q. >R-(!+&-,!X#%%-$3-&!N#=!)#+&-!&-R-$-!3(_+$=!8$!,-#%0.
T. A#**!#!*8)#*!783&8(!)8(%$8*!)-(%-$!W8$!%$-#%N-(%!3(W8$N#%38(.
H. V8(C$-)0#$:-#X*-!X#%%-$3-&!#$-!(8%!%8!X-!$-)0#$:-,.
^. G8!(8%!W8$)-!,3&)0#$:-[!$-)0#$:-[!,3&#&&-NX*-[!0-#%!#X8R-!4H5i!J#0$-(0-3%!8$!3()3(-$#%-.!G83(:!&8!N#=!
$-&+*%!3(!3(_+$=!,+-!%8!R-(%3(:[!*-#S#:-!8$!-Z7*8&38(!$-&+*%3(:!3(!)0-N3)#*!X+$(&.
@. L#%%-$=!&7-)!3(!A?!&-(&8$h!AFQ5TQ!c!TU
"#:-!5K

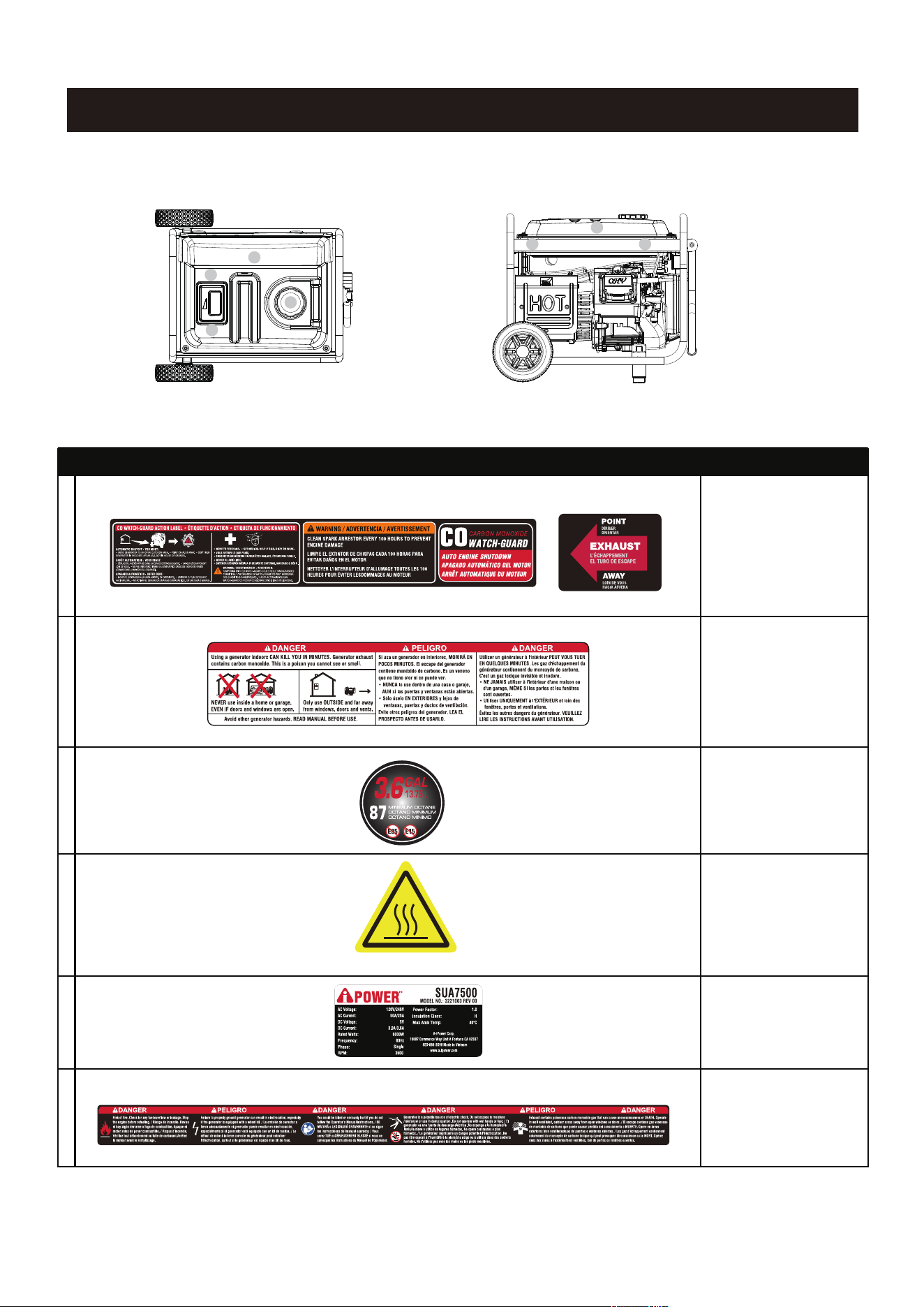

(BH@C['B4,',BCB.GBC@'GBM@G(
LABEL DESCRIPTION
A
B
Carbon Monoxide
C
Fuel
Hot Surface
F
E
D
Nameplate
B87
B0-&-!*#X-*&!I#$(!=8+!8W!78%-(%3#*!0#Y#$,&!%0#%!)#(!)#+&-!&-$38+&!3(_+$=.!F-#,!%0-N!)#$-W+**=.
'W!#!*#X-*!)8N-&!8WW!8$!X-)8N-&!0#$,!%8!$-#,[!)8(%#)%!B-)0(3)#*!6+778$%!B-#N!W8$!78&&3X*-!$-7*#)-N-(%.
Safety Symbols
CO‐Watch Guard action
automatic shutoff
*See CO
Watch Guard
action
section
"#:-!5O
?
9
3
63,-
;
2 4
9
"#:-!5/

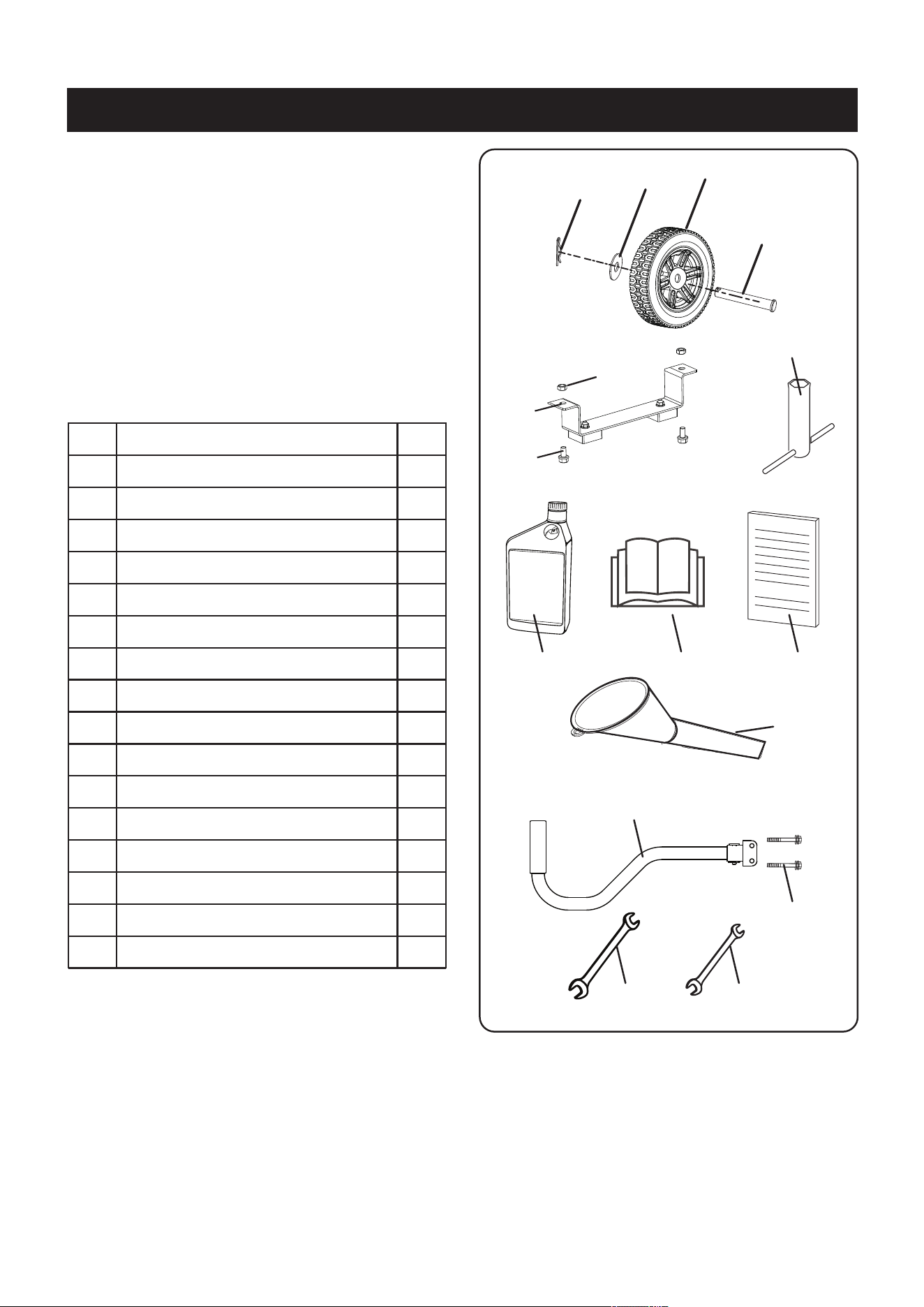

F4.BJ\E4N'CD@'N@4@?BCI?
A#/D)%5+H-,$"$
]8+$!:#&8*3(-!78I-$-,!:-(-$#%8$!&037&!I3%0!%0-!
W8**8I3(:!7#$%&h
d ?7-(!)#$%8(!)8N7*-%*=.!F-N8R-!#(,!R-$3W=!)#$%8(
)8(%-(%!7$38$!%8!#&&-NX*=.!]8+$!:-(-$#%8$!&037&
I3%0!W8**8I3(:!3%-N&.
d A#**!8+$!)+&%8N-$!&-$R3)-!#%!O^^COOOCT^/O!I3%0
%0-!+(3%!N8,-*!#(,!&-$3#*!(+NX-$!W8$!#(=!N3&&3(:
3%-N.
d F-)8$,!N8,-*[!&-$3#*!(+NX-$[!#(,!,#%-!8W!7+$)0#&-
8(!W$8(%!)8R-$!8W!%03&!N+(#*!W8$!=8+$!8I(!$-)8$,.
V?.
4
Q
T
H
^
@
K
O
/
45
44
4Q
4T
4H
4^
4@
j%=
Q
Q
Q
Q
H
H
Q
4
4
4
4
4
4
Q
4
4
'%-N!G-&)$37%38(
10--*&
<Z*-!"3(
J*#%!1#&0-$
A8%%-$!"3(
J*#(:-!L8*%!POk4@
J*#(:-!98)S!V+%!PO
6+778$%!9-:!I3%0!U3X$#38(!P8+(%&
67#$S!"*+:!1$-()0
?3*!L8%%*-!`/55N*a
?I(-$g&!P#(+#*
j+3)S!6%#$%!D+3,-
?3*!W+((-*
;#(,*-!#&&=
L8*%!POkQ5
G8+X*-!?7-(!I$-()0!`4TNNC4^NNa
G8+X*-!?7-(!I$-()0!`ONNC45NNa
/ 45
O
44
4
4Q
4T
4H
4^ 4@
K
^
@
Q
T
H
"#:-!45
B((@!MG[
]8+$!:-(-$#%8$!$-\+3$-&!&8N-!#&&-NX*=!7$38$!%8!
+&#:-.
5+)D#--%D'"%>'""-%E(D
<&&-NX*=!%0-!:-(-$#%8$!I3**!$-\+3$-!*3W%3(:!%0-!+(3%.!
<*I#=&!0#R-!#&&3&%#()-!I0-(!*3W%3(:!%0-!:-(-$#8%8$.
?9@&576
G8!(8%!7*+:!3(!8$!%+$(!8(!%0-!:-(-$#%8$!+(%3*!3%!3&!W+**=!
#&&-NX*-,!#))8$,3(:!%8!%0-!3(&%$+)%38(&.!J#3*+$-!%8!
)8N7*-%-*=!+(,-$&%#(,!N#(+#*!#(,!7$8,+)%!)8+*,!
$-&+*%!3(!,-#%0!8$!&-$3+&!3(_+$=.
A#**!8+$!)+&%8N-$!&-$R3)-!#%!O^^COOOCT^/O!W8$!#(=!
#&&-NX*=!3&&+-&!8$!)8()-$(&.!"*-#&-!0#R-!N8,-*!
#(,!&-$3#*!(+NX-$!#R#3*#X*-.
!"#$%
B0-!I0--*&!#$-!(8%!3(%-(,-,!W8$!8R-$C%0-C$8#,!+&-.
5*A7!&96&S!L-W8$-!87-$#%3(:!%0-!:-(-$#%8$!%0-!
&08)SC#X&8$X3(:!&-#%!`2a!N+&%!X-!#,_+&%-,!W8$!
)*-#$#()-.!988&-(!%0-!*8)S!(+%!`9a!#(,!#,_+&%!%0-!
&08)S!#X&8$X3(:!&-#%!`2a!&8!%0-$-!3&!#X8+%!TCHNN!
:#7!X-%I--(!%0-!%87!8W!%0-!&-#%!!#(,!%0-!X8%%7N!8W!
%0-!#*%-$(#%8$!X$#)S-%!`Pa.!F-C%3:0%-(!%0-!*8)S!(+%!
#W%-$!#,_+&%N-(%.

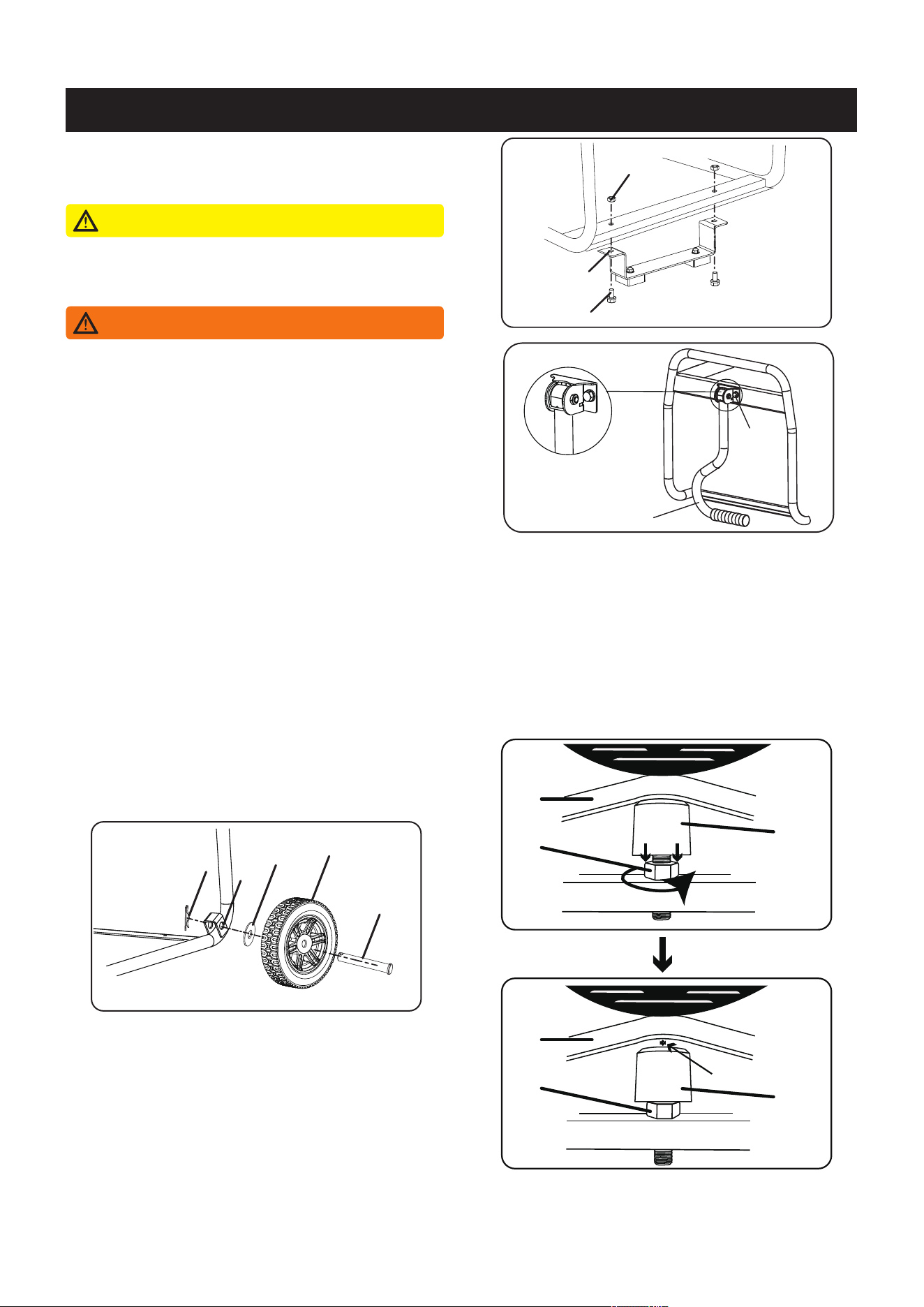

TCHNN
4!C!7*#)-!:-(-$#%8$!8(!#!W*#%!&+$W#)-.
Q!C!B37!%0-!:-(-$#%8$!8(!#!73-)-!8W!)#$,X8#$,!8$!
!!!!!8%0-$!&8W%!N#%-$3#*!%8!7$8%-)%!%0-!W$#N-!7#3(%!#(,!
!!!!!7$-R-(%!%0-!:-(-$#%8$!W$8N!&*3,3(:.
T!C!6*3,-!#Z*-!73(!`<a!%0$8+:0!%0-!I0--*!`La[!W*#%!
!!!!!I#&0-$!`Aa!#(,!:-(-$#%8$!W$#N-!#Z*-&!08*-!`Ga.
H!C!6-)+$-!-R-$=%03(:!I3%0!)8%%-$!73(!`>a.!F-7-#%!8(!
!!!!!8778&3%-!&3,-.
5+)D#--%D'"%8,KK./D%<"0
^!C!'(&-$%!X8*%&!`Ja!`POk4@a!%0$8+:0%!%0-!&+778$%!*-:!
`Da #(,!08*-&!8(!%0-!:-(-$#%8$!W$#N-!#&!&08I(.
@!C!B3:0%-(!X8*%&!`Ja!#(,!(+%&!`;a`POa!%8!%0-!W$#N-.
5+)D#--%D'"%B#+$-"%#))1
K!C!'(&%#**!%0-!0#(,*-`'a!%8!%0-!W$#N-!I3%0!X8*%&`la!
!!!!!`POmQ5a.
P
2
9
P
2
9
>9!656=
'
l
!
"
#
<
L
A
G
>
Page 11

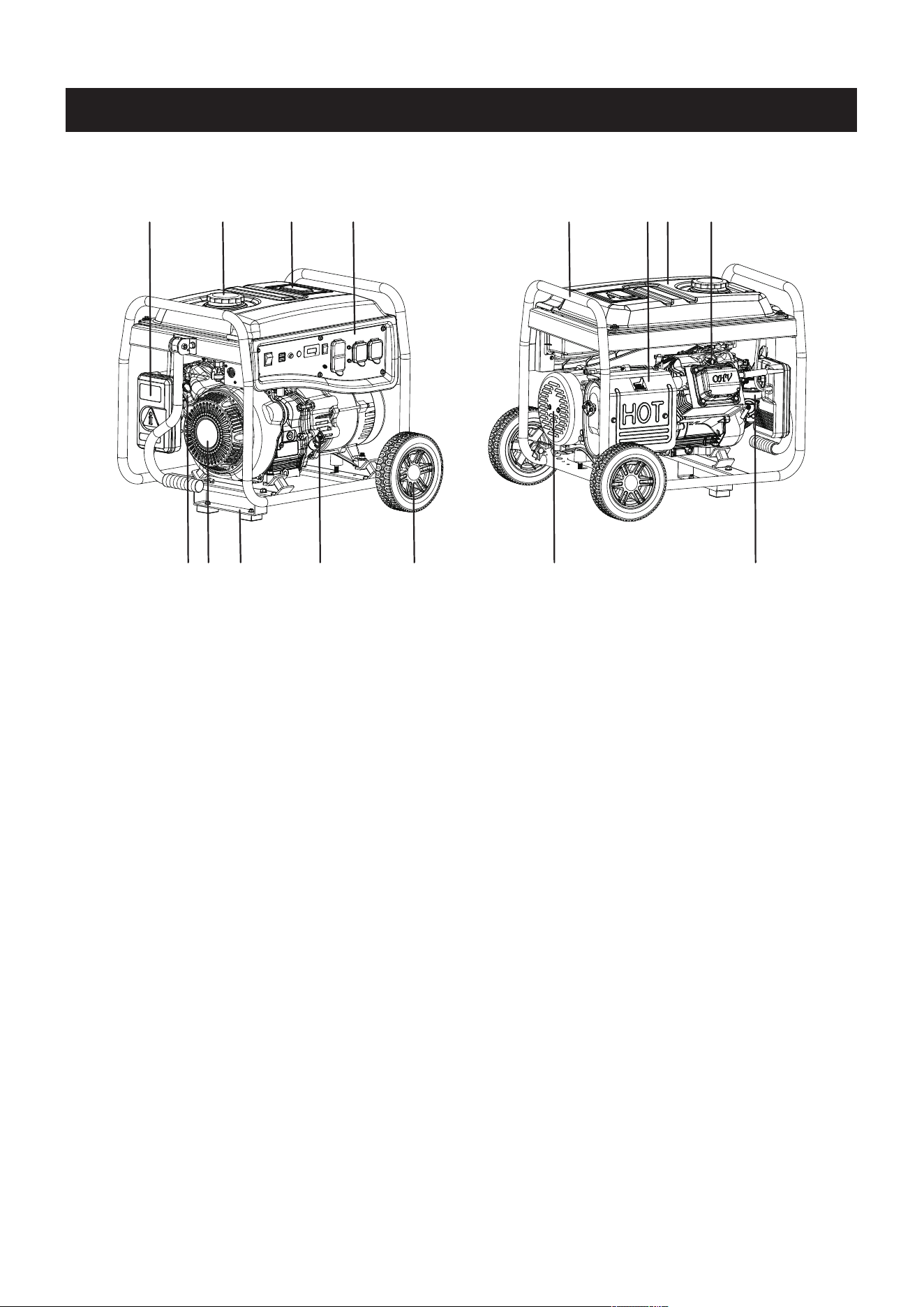

CONTROLS AND FEATURES
1 - Air Filter
2 - Fuel Cap
3 - Fuel Gauge
4 - Control Panel
5 - Frame
6 - Muffler/Spark Arrester
7 - Fuel Tank
8 - Spark Plug
9 - Recoil Starter
10 - Engine
11 - Support Leg
12 - Oil Filler Cap/Dipstick
13 - Wheel
14 - Alternator Cover
15 - Carburator
YYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYY
3 4
10
119 1312
21 5 6 87
14
15
Page 12

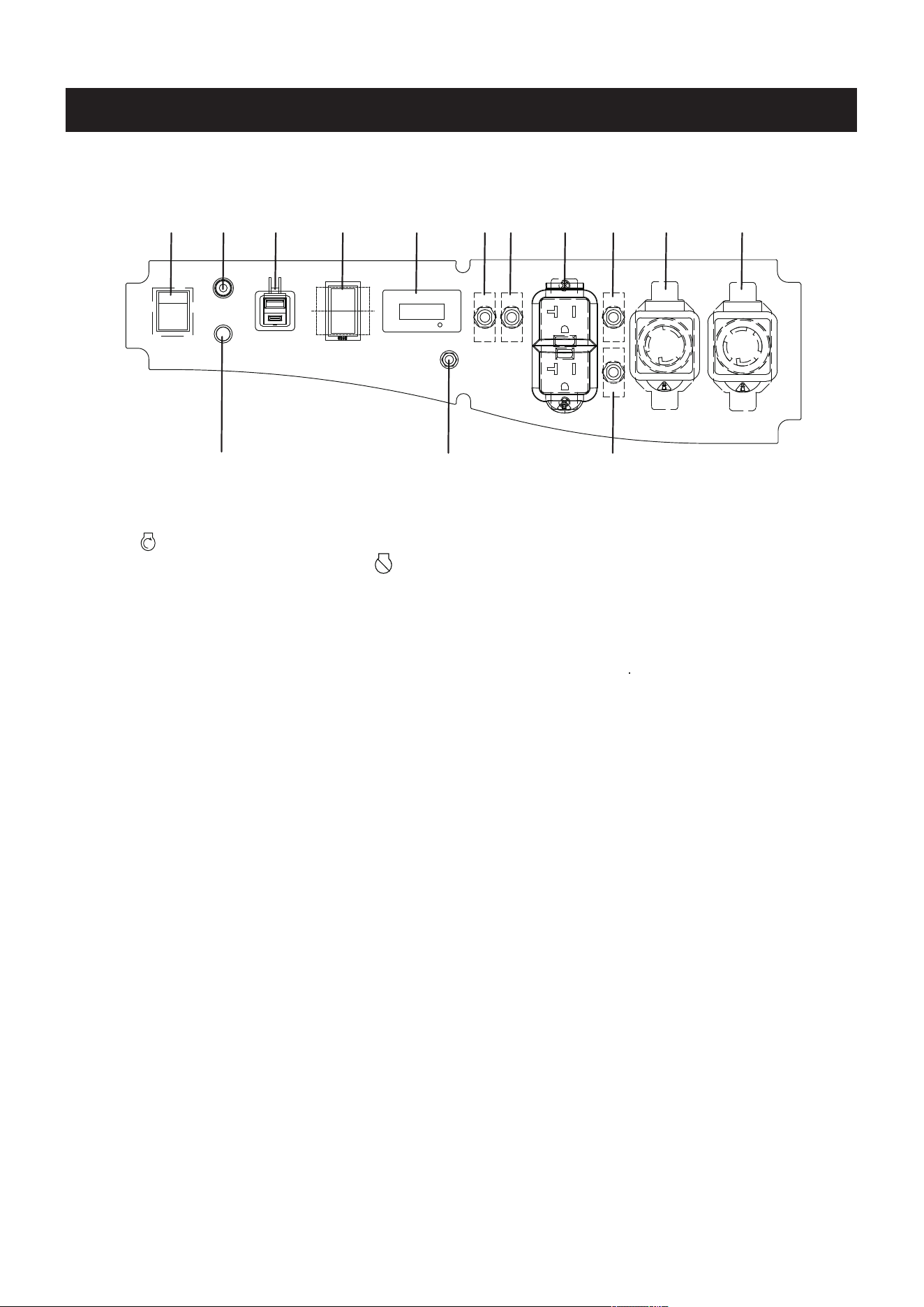

CONTROL PANEL FEATURES
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
CONTROL PANEL FEATURES
1 2 3 4 5 6 6 7 6 8 9
61011
6. Circuit Breaker(AC): Protects the generator
against electrical overloads.
7. 120V AC, 20A Duplex, GFCI, Single Phase,
60 Hz Outlets (5-20R): Each outlet is capable of
carrying a maximum of 20 amps on a single
outlet or a combination of both outlets.
8. 120V AC, 30A Twist Lock outlet, single
phase,60 Hz Outlet (NEMA L5-30R): This
receptacle can provide120 volt output up to 30
amps.
9. 120/240V AC, 30A Twist Lock, Single
Phase, 60Hz Outlet (NEMA L14-30R): supply
either 120 Volt or 240 Volt output up to 30
amps.
10. Ground Terminal: The ground terminal is
used to ground the generator.
11. Low Oil Indicator: The Light will be
illuminated when the engine oil level is low. Add
oil.
1. Engine Control Switch: Flip the switch to the
“ON (l)” position and pull the recoil starter to
start the generator. Turn to the “OFF (O)”
position to turn off the generator.
2. CO (Carbon Monoxide) WATCH-GUARD
Indicator Light (Red for Shut off and Yellow for
Service): The CO(Carbon Monoxide)
WATCH-GUARD monitors for the
accumulation of poisonous CO gas around the
generator produced by engine exhaust when the
generator is running. If the CO WATCH-GUARD
detects increasing levels of CO gas, it
automatically shuts off the engine. See CO
WATCH-GUARD section for more information.
3. 5V DC USB Outlets: Supply 3.6A USB-A type
and 3.0A USB-C type for different applications.
4. Voltage Selector Switch: To select 120 Volt
or 240 Volt. Turn generator off before switching
voltages.
5. Data Center: Push the SELECT button to
display the voltage (V), frequency (Hz) and total
run time(Hour).
Page 13
SPECIFICATIONS
Starting Watts
Running Watts
Rated AC Voltage
Rated DC Voltage
Rated Frequency
Phase
Grounding System (AC)
Engine Type
Engine Displacement
Starting System
Low Oil Shutdown
Oil Type
Oil Capacity
Spark Plug OEM Type
Spark Plug Replacement Type
Spark Plug Gap
Valve Intake Clearance
Valve Exhaust Clearance
Voltage Regulation System
Alternator Excitement System
Total Harmonic Distortion (THD)
Fuel Tank Capacity
Fuel Type
Maximun Ambient Temperature
Battery Spec
Certifications
SUA7500
7500W
6000W
120/240V
5V
60HZ
Single
Single Cylinder, 4-Stroke OHV Air Cooled
322cc
Recoil
Yes
10W-30
27.1 fl.oz (800ml)
F7RTC
NGK BPR7ES or Champion RN9YC
0.028~0.031inch (0.7~0.8mm)
0.004~0.006inch (0.1~0.15mm)
0.006~0.008inch (0.15~0.2mm)
AVR
Brushed
Standard
3.6 Gal (13.75 L)
Gasoline
104°F (40°C)
NO
EPA-PGMA Compliant
Model Number
3221003
Neutral Bonded to Frame
NOTICE
This product is designed and rated for continuous operation at ambient temperatures up to 104°F(40°C). If
needed, this product can be operated at temperatures ranging from 5°F(-15°C) - 122°F(50°C) for short periods.
If the product is exposed to temperatures outside of this range during storage, it should be brought back within
this range before operation. This product must always be operated outdoors in awell-ventilated area and at
least 20 feet away from doors, windows, and other vents.
Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient
temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above
sea level, and will also decrease about 1% for each 10°F(6°C) above 60°F( 16°C) ambient temperature.
"#:-!4H
?7%>9&?BY=@9!2
?#/I.+%*.+.G($"%c?7d%2"D"HD(.+%#+$%9,D.%8',D.QQ%81)D"J
]8+$!D-(-$#%8$!3&!-\+377-,!I3%0!A#$X8(!P8(8Z3,-!`A?a!1<BA;CDE<FG!,-%-)%!&=&%-N!W8$!=8+$!7$8%-)%38(!#(,!
&#W-%=.!B03&!,-%-)%3(:!#(,!&0+%8WW!&=&%-N!N8(3%8$&!W8$!%0-!#))+N+*#%38(!8W!783&8(8+&!A?!:#&!#$8+(,!%0-!
:-(-$#%8$!7$8,+)-,!X=!-(:3(-!-Z0#+&%!I0-(!%0-!:-(-$#%8$!3&!$+((3(:.!'W!%0-!A?!&-(&8$!,-%-)%&!3()$-#&3(:!*-R-*&!
8W!A?!:#&[!3%!#+%8N#%3)#**=!&0+%&!8WW!%0-!-(:3(-.
;8I-R-$[!3W!%0-!:-(-$#%8$!N3&+&-,!#(,!87-$#%-,!3(!#!*8)#%38(!%0#%!$-&+*%&!3(!%0-!#))+N+*#%38(!8W!A?!3(&3,-!#(!
-()*8&-,!8$!7#$%3#**=!-()*8&-, &7#)-[!A?!1<BA;C!DE<FG!#+%8N#%3)#**=!&0+%&!8WW!%0-!-(:3(-!#(,!(8%3W3-&!%0-!
+&-$!8W!I0#%!0#&!0#77-(-,!#(,!,3$-)%&!%0-!+&-$!%8!$-#,!%0-!3(&%$+)%38(!8W!A?!1<BA;CDE<FG!<)%38(!9#X-*!W8$!
&%-7&!%8!%#S-.
9@&7*9&5?%8B@&744%Y%:7@%*@8&S
d!P?U>!D>V>F<B?F!B?!<V!?">V[!?EBG??F!<F><.!d!"?'VB!>m;<E6B!<1<].!!d!G?VMB!FEV!
D>V>F<B?F!'V!>VA9?6>G!<F><<!`>.D.!V?B!'V!;?E6>!?F!D<F<D>a.
?7%>9&?BY=@9!2%9?&576%<9;3<%V%f&5T@3&&3%2g9?&576%V%3&5T@3&9%23%4@6?5769*536&7
9!!h&%9@&7*9&5T@3%Y%L7@8%23L3CS
d!Gq"9<A>F!9<!DqVqF<BF'A>!G<V6!EV!>6"<A>!>mBqF'>EF!?EU>FB.!!d!G'F'D>F!9MqA;<"">P>VB!
9?'V!G>!U?E6.!!d!V>!"<6!J<'F>!J?VAB'?VV>F!9<!DqVqF<BF'A>!G<V6!G>6!>VGF?'B6!J>FPq6!
`A?PP>!G<V6!9<!P<'6?V!?E!9>!D<F<D>a.
V%*7L3%&7%4!38B%95!F%%V%=3&%*325?9<%B3<A%54%85?EM%25CC:%7!%>39EF
>9!656=S%^%92L3!&5883*36&S%^%92L3!&36?59S%
B<P">F'VD!1'B;!A?!1<BA;CDE<FG!A?E9G!F>6E9B!'V!;<n<FG?E6!
A?VG'B'?V.!c!9M<9BqF<B'?V!G>!1<BA;CDE<FG!A?!">EB!>VBF<rV>F!
G>6!A?VG'B'?V6!G<VD>F>E6>6.!c!;<A>F!<9B>F<A'?V>6!A?V!
1<BA;CDE<FG!A?!"?GFs<!?A<6'?V<F!A?VG'A'?V>6!">9'DF?6<6.
V%L7@8%!3&5!3!%i%<g95!%4!958F
V%?768@<&3!%@6%*f23?56%85%L7@8%h&38%*9<923M%f&7@!25%7@%495;<3F
V%*7L3!%9<%95!3%<5;!3F
V%7;&363!%9&36?5j6%*f25?9%85%83%8536&3%3643!*7M%*9!3927%7%2f;5<F
9A9=927%9@&7*k&5?7%Y%@8&32%23;3S
d!P?U>F!>9!D>V>F<G?F!<!EV!tF><!<L'>FB<[!>V!>mB>F'?F>6.!!d!?F'>VB<F!>9!BEL?!G>!>6A<">!
;<A'<!<JE>F<.!!d!V?!<AB'U<F!>9!D>V>F<G?F!>V!tF><6!A>FF<G<6!`".>l.h!>V!EV<!A<6<!?!D<F<l>a.
67&545?9&5768S%;<56E56=%!32%962%:3<<7>%<5B=&
B0-$-!3&!#!A?!3(,3)#%8$!*3:0%!8(!%0-!)8(%$8*!7#(-*!I3%0!%I8!78&&3X3*3%3-&h
XY;-(+R(+0%!"$%<(0'D!7$8R3,-&!(8%3W3)#%38(!%0#%!%0-!:-(-$#%8$!I#&!&0+%8WW!,+-!%8!#(!#))+N+*#%3(:!A?!*-R-*!
#$8+(,!%0-!:-(-$#%8$.!B0-!$-,!*3:0%!I3**!X*3(S!W8$!#%!*-#&%!W3R-!N3(+%-&!#W%-$!#!A?!&0+%!8WW.!<+%8N#%3)!&0+%8WW!3&!#(!
3(,3)#%38(!:-(-$#%8$!I#&!3N7$87-$*=!*8)#%-,.!P8R-!%0-!:-(-$#%8$!%8!#(!87-([!8+%,88$!#$-#!W#$!W$8N!8))+73-,!
&7#)-&!I3%0!-Z0#+&%!783(%-,!#I#=.!?()-!$-*8)#%-,!%8!#!&#W-!#$-#[!%0-!:-(-$#%8$!)#(!X-!$-&%#$%-,.!B0-!$-,!*3:0%!
I3**!&%87!X*3(S3(:!#+%8N#%3)#**=!#W%-$!QC^!&-)8(,&!+78(!-(:3(-!$-C&%#$%.
'W!=8+!&%#$%!%8!W--*!&3)S[!,3YY=[!I-#S[!8$!=8+$!08N-&!)#$X8(!N8(8Z3,-!#*#$N!&8+(,&!I03*-!+&3(:!%0-!:-(-$#%8$[!
:-%!%8!W$-&0!#3$!$3:0%!#I#=.!A#**!-N-$:-()=!&-$R3)-&.!]8+!N#=!0#R-!)#$X8(!N8(8Z3,-!783&8(3(:.
!"#$%!&"#'(#)%%"#!*!+#),-.#
*/01-*&2#1--,&#!01#3%0"&#
!""# %& '"%(&
)* +""& %,%-
D-(-$#%8$&!#$-!3(%-(,-,!%8!X-!+&-,!8+%,88$&!#(,!#%!*-#&%!Q5!W--%!#I#=!W$8N!8))+73-,!X+3*,3(:&[!I3(,8I&[
,88$&!#(,!-Z0#+&%!783(%-,!#I#=!W$8N!%0-N.
2-Blinking Yellow Light provides notification that a CO WATCH-GUARD fault has occurred and no longer
provides protection. The generator is shutoff automatically and the yellow light will blink for at least five minutes
after shutoff. Call A-iPower Customer Service 855-888-3598 for repair. Do not use the generator until the
sensor is working properly. The CO WATCH-GUARD must only be serviced by qualified technician to restore it
to original settings.
DO NOT modify or tamper with the Carbon Monoxide Detecting System (CO WATCH-GUARD). Not following
these instructions could result in death or serious injury due to Carbon Monoxide detecting system malfunction.
CO WATCH-GUARD will detect the accumulation of carbon monoxide from other fuel burning sources such as
engine powered tools used in the area of operation. If another generator is used and the exhaust is pointed at a
CO WATCH-GUARD equipped generator, the CO WATCH-GUARD may initiate a shutoff due to rising carbon
monoxide levels. This is not a fault. Hazardous carbon monoxide has been detected. You must take action to
move and direct the equipment to better dissipate carbon monoxide far away from people or buildings.
CO WATCH-GUARD only monitors when the generator is running.
CO WATCH-GUARD DOES NOT replace carbon monoxide alarms.
Tempering with the CO WATCH-GUARD will void your warranty.
WARNING
Tampering with CO WATCH-GUARD could result in a hazardous condition. Removing the CO WATCH-GUARD
module will not allow the generator to start.
WARNING
Page 15
120V AC, 20A Duplex GFCI
Your generator is equipped with ground fault circuit interrupter (GFCI) receptacles. In the event of a ground fault,
a GFCI trips automatically to stop the flow of electricity and prevent serious injury. The LED Indicator Light on
the receptacle will be turn off. Press the “RESET” button located on the front of the receptacle to restore flow of
electricity. GFCI does NOT protect against circuit overloads. To ensure proper operation of the GFCI duplex,
perform this test monthly:
1. With the generator running, plug a test lamp into the GFCI receptacle. Turn the lamp on.
2. Press the “TEST” button located on the front of the receptacle to trip the device. This should immediately stop
the flow of electricity and shut off the lamp. If the electricity is not stopped, do not use this receptacle until it has
been serviced or replaced.
3. Press the “RESET” button located on the front of the receptacle to restore the flow of electricity. If the LED
Indicator Light does not come back or GFCI cannot be reset, then it must be replaced.
Receptacle
LED Indicator Light
Outlet
Reset Button
Test Button
Outlet
TEST MONTHLY
RESET
TEST
FOLLOW DIRECTIONS
<
L
G8!(8%!#%%-N7%!%8!)$#(S!8$!&%#$%!%0-!-(:3(-!X-W8$-
3%!0#&!X--(!7$87-$*=!W3**-,!I3%0!%0-!$-)8NN-(,-,
%=7-!#(,!#N8+(%!8W!83*.!G#N#:-!,+-!%8!87-$#%38(
I3%0!(8!83*!I3**!R83,!=8+$!I#$$#(%=.
1-!)8(&3,-$!%0-!W3$&%!^!08+$&!8W!$+(!%3N-!%8!X-!%0-!
X$-#SC3(!7-$38,!W8$!%0-!+(3%.!G+$3(:!%0-!X$-#S!3(!
7-$38,!&%#=!#%!8$!X-*8I!^5p!8W!%0-!$+((3(:!I#%%!
$#%3(:!#(,!R#$=!%0-!*8#,!8))#&38(#**=!%8!#**8I!&%#%8$!
I3(,3(:&!%8!0-#%!#(,!)88*.!<,_+&%3(:!%0-!*8#,!I3**!
#*&8!)#+&-!-(:3(-!&7--,!%8!R#$=!#(,!0-*7!&-#%!73&%8(!
$3(:&.
9$$%3+0(+"%7(-
1-!$-)8NN-(,!+&3(:!6<>!451CT5!<"'6l!83*!W8$!
X-&%!7-$W8$N#()-.!?%0-$!03:0C\+#*3%=!,-%-$:-(%!83*&!
`<"'6l!8$!03:0-$a!#$-!#))-7%#X*-.!G8!(8%!+&-!&7-)3#*!
#,,3%3R-&.!<NX3-(%!%-N7-$#%+$-!,-%-$N3(-&!%0-!
7$87-$!83*!R3&)8&3%=!W8$!%0-!-(:3(-.!E&-!%0-!)0#$%!%8!
&-*-)%!%0-!7$87-$!83*!W8$!%0-!8+%,88$!%-N7-$#%+$-!
$#(:-!-Z7-)%-,.
<.N%7(-%8',D$.N+
B0-!+(3%!3&!-\+377-,!I3%0!#!*8I!83*!&0+%,8I(.!'W!%0-!
83*!*-R-*!X-)8N-&!*8I-$!%0#(!$-\+3$-,[!%0-!&-(&8$!I3**!
#)%3R#%-!#!I#$(3(:!,-R3)-!8$!&%87!%0-!-(:3(-.
'W!:-(-$#%8$!&0+%&!8WW!#(,!%0-!83*!*-R-*!3&!I3%03(
&7-)3W3)#%38(&[!)0-)S!%8!&--!3W!:-(-$#%8$!3&!&3%%3(:!#%!
#(!#(:*-!%0#%!W8$)-&!83*!%8!&03W%.!"*#)-!8(!#(!-R-(!
&+$W#)-!%8!)8$$-)%!%03&.!'W!-(:3(-!W#3*&!%8!&%#$%[!%0-!83*!
*-R-*!N#=!(8%!X-!&+WW3)3-(%!%8!,-#)%3R#%-!*8I!83*!*-R-*!
&I3%)0.!P#S-!&+$-!%0-!&+N7!3&!)8N7*-%-*=!W+**!8W!83*.
9$$%4,"-
J+-*!N+&%!N--%!%0-&-!$-\+3$-N-(%&h
d A*-#([!W$-&0[!+(*-#,-,!:#&8*3(-.
d E&-!$-:+*#$!EV9><G>G!:#&8*3(-!I3%0!%0-!:-(-$#%8$
!!!-(:3(-!I3%0!#!N3(3N+N!OK!8)%#(-!c!OK!<2'!`/4!
!!!F?Va.!G8!(8%!+&-!>O^!8$!>4^.
!!!J8$!03:0!#*%3%+,-!+&-[!&--!u?7-$#%38(!#%!;3:0
!!!<*%3%+,-u.
B0-!-(:3(-!3&!-\+377-,!I3%0!#!*8I!83*!&0+%C8WW!#(,
I3**!&%87!I0-(!%0-!83*!*-R-*!3(!%0-!)$#(S)#&-!W#**&
X-*8I!%0-!%0$-&08*,!*-R-*.
4. "*#)-!:-(-$#%8$!8(!#!W*#%[!*-R-*!&+$W#)-.
Q. A*-#(!#$-#!#$8+(,!83*!W3**!#(,!$-N8R-!=-**8I!83*!W3**
)#7c,37&%3)S!`<a.
T. 137-!,37&%3)S!)*-#(.
H. E&3(:!83*!W+((-*[!&*8I*=!78+$!)8(%-(%&!8W!7$8R3,-,
83*!X8%%*-!3(%8!83*!W3**-$!(-)S!`La!%8!%0-!u;u!N#$S!8(
,37&%3)S.!L-!)#$-W+*!,8!(8%!8R-$W3**.!?R-$W3**3(:!I3%0
83*!)8+*,!)#+&-!%0-!-(:3(-!%8!(8%!&%#$%!8$!0#$,
&%#$%3(:.
^. F-7*#)-!83*!W3**!)#7c,37&%3)S!`<a!#(,!W+**=!%3:0%-(.
@. ?3*!*-R-*!&08+*,!X-!)0-)S-,!7$38$!%8!-#)0!+&-!8$!#%
!!!!*-#&%!-R-$=!O!08+$&!8W!87-$#%38(.!2--7!83*!*-R-*!
!!!!N#3(%#3(-,.
CQ5 5 Q5 H5 @5
<NX3-(%!%-N7-$#%+$-
F-)8NN-(,-,!>(:3(-!?3*!B=7-
O5 455 4Q5
CQO./
°F
°C
451CT5
^1CT5!J+**!6=(%0-%3)
451CH5^1CT5
#
$
67&5?3
67&5?3
296=3!
J+-*!#(,!3%&!R#78$!#$-!-Z%$-N-*=!W*#NN#X*-!#(,!
-Z7*8&3R-.!<,,!W+-*!3(!#!I-**!R-(%3*#%-,!#$-#.!2--7!
&7#$S&[!87-(!W*#N-&!#(,!8%0-$!3:(3%38(!&8+$)-&!#I#=.!
J#3*+$-!%8!,8!&8!I3**!$-&+*%!3(!,-#%0!#(,!&-$38+&!3(_+$=.
296=3!
G8!(8%!8R-$W3**!%#(S.!<**8I!&7#)-!W8$!W+-*!-Z7#(&38(.!'W!
W+-*!&73**&!I#3%!+(%3*!3%!-R#78$#%-&!X-W8$-!&%#$%3(:!
-(:3(-.!J#3*+$-!%8!,8!&8!I3**!$-&+*%!3(!,-#%0!#(,!
&-$38+&!3(_+$=.
"#:-!4@
Page 17
• DO NOT mix oil in gasoline.
• DO NOT modify engine to run on alternate fuels.
WHEN ADDING FUEL
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel
expansion. If the tank is overfilled, fuel can overflow
onto a hot engine and cause fire or explosion.
• If fuel spills, wait until it evaporates before starting
engine.
• Keep fuel away from sparks, open flames, pilot
lights, heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently
for cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke when filling the
fuel tank.
Operation using an alternative main jet at elevations
lower than the recommended minimum altitude can
damage the engine. For operation at lower elevations,
the standard main jet supplied must be used.
Operating the engine with the wrong main jet may
increase exhaust emissions, fuel consumption and
reduce performance.
It is important to prevent gum deposits from forming
in fuel system parts such as the carburetor, fuel hose
or tank during storage. Alcohol-blended fuels (called
gasohol, ethanol or methanol) can attract moisture,
which leads to separation and formation of acids
during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid
engine problems, the fuel system should be emptied
before storage of 30 days or longer. See the "Long
Term Storage" section. Never use engine or
carburetor cleaner products in the fuel tank as
permanent damage may occur.
Operation at High Altitude
At altitudes over 5,000 feet(1524 meters), a
minimum 85 octane gasoline is acceptable. Engine
power and generator output will be reduced
approximately 3.5% for every 1000 feet (305 m) of
elevation above sea level. High altitude may cause
hard starting, increased fuel consumption and spark
plug fouling. To operate at high altitudes A-iPower
can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can
be obtained by contacting Customer Support.
Grounding
The national electrical requires your generator must
be connected properly to an appropriate ground to
help prevent electric shock.
The generator has a system ground that connects the
generator frame components to the ground terminals
on the AC output receptacles. There may be Federal
or State regulations, local codes, or ordinances that
apply to the intended use of the generator. Consult a
qualified electrician, electrical inspector, or the local
agency having jurisdiction. This generator is not
intended to be used at a construction site or similar
activity as defined by NFPA 70-2020 (NEC) section
590.6.
Connecting to a Building's Electrical System
Connections to your home’s electrical system must
use a listed transfer switch installed by a licensed
electrician. The connection must isolate the generator
power from the utility power and comply with all
applicable laws and electrical codes.

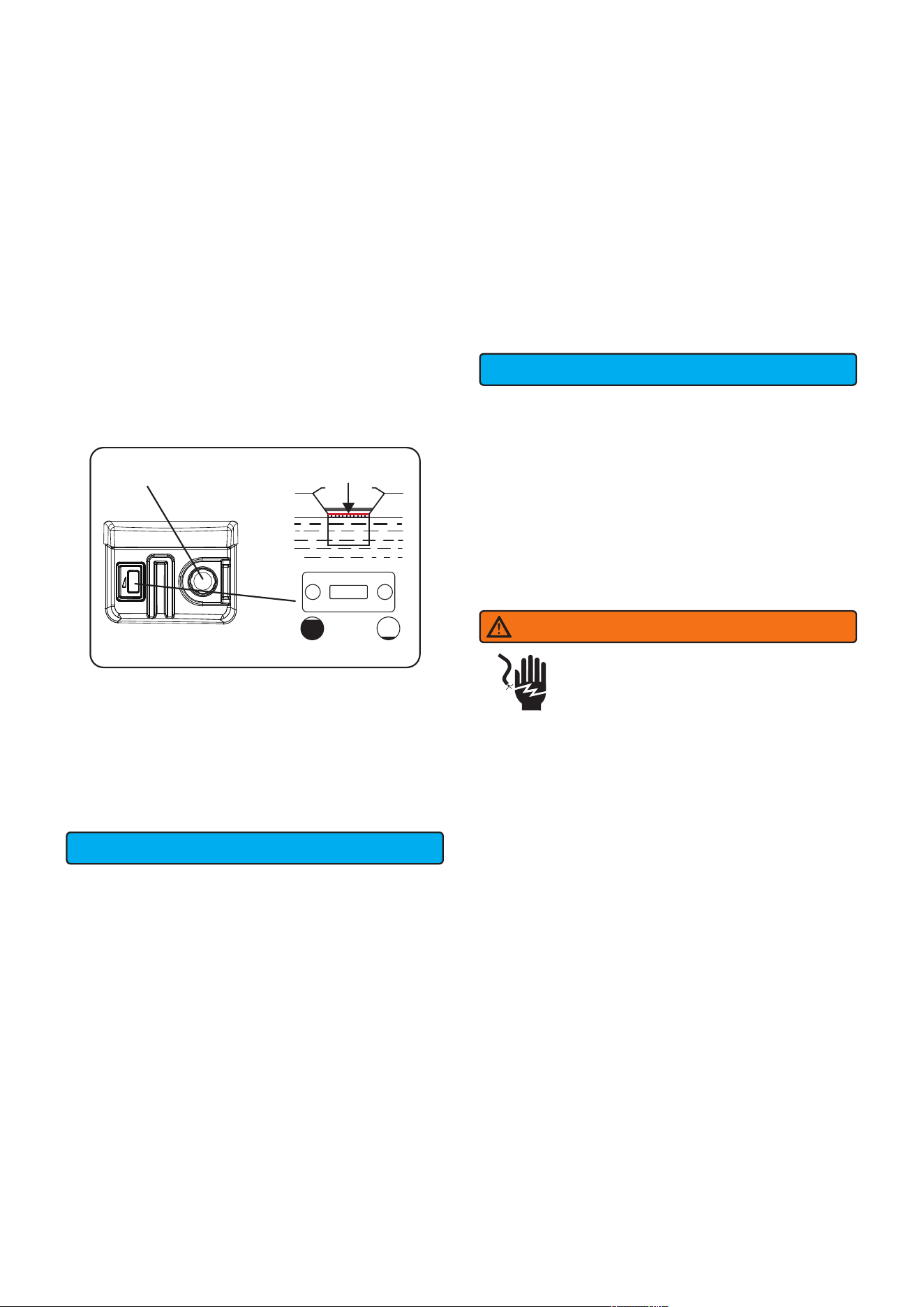

1. Remove the fuel cap (A) slowly.
2. Slowly add unleaded fuel to fuel tank. Be careful
not to fill above the red fuel level indicator (B).
This allows adequate space for fuel expansion.
3. Install fuel cap and let any spilled fuel evaporate
before starting engine .
NOTICE
NOTICE
WARNING
Shock hazard. Failure to properly ground
the generator can result in electric shock.
B
A
OPERATION
Generator Location
Surge Protection
Starting the Generator
Make sure you review each warning in order to
prevent fire hazard.
• Keep area clear of inflammables or other
hazardous materials.
• Select a site that is dry, well ventilated and
protected from the weather.
• Keep exhaust pipe clear of foreign objects.
• Keep generator away from open flame.
• Keep generator on a stable and level surface.
• Do not block generator air vents with paper or
other material.
Electronic devices, including computers and many
programmable appliances use components that are
designed to operate within a narrow voltage range
and may be affected by momentary voltage
fluctuations. While there is no way to prevent voltage
fluctuations, you can take steps to protect sensitive
electronic equipment.
Install UL1449, CSA-listed, plug-in surge
suppressors on the outlets feeding your sensitive
equipment.
Surge suppressors come in single- or multi-outlet
styles. They’re designed to protect against virtually
all short-duration voltage fluctuations.
3. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
1. Before starting the generator, check for loose or
missing parts and for any damage which may
have occurred during shipment.
2. Check oil level and fuel.
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a poison you cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Avoid other generator hazards. READ MANUAL BEFORE USE.
Only use OUTSIDE and far away
from windows, doors and vents.
WARNING
DANGER
Never use generator in wet or damp
locations. Never expose generator to
rain, snow, water spray or standing
water while in use. Protect generator
from all hazardous weather conditions.
Moisture, or ice can cause a short
circuit or other malfunction in the
electric circuit. Water contact with a
power source if not avoided, will result
in death or serious injury.
Page 18
For Cold Weather Starting
• While you must run your generator outside, you
may keep the generator in a covered area to
protect the generator and its battery from cold
weather.
• Use proper oil for the temperature expected.
Lighter weight oil (less viscosity) such as
synthetic 5W-30 is recommended for cold
weather applications.
• Disengage all possible external loads.
• Use fresh winter grade fuel. Winter grade fuel has
higher volatility to improve starting.
• Dual fuel and tri-fuel models: It would be easier to
start the engine with gasoline compared to propane
(or natural gas) in cold weather. It is recommended
to start your engine on gasoline and then switch to
propane (or natural gas), if it is hard to start your
dual fuel (or tri-fuel) generator with propane
(or natural gas).

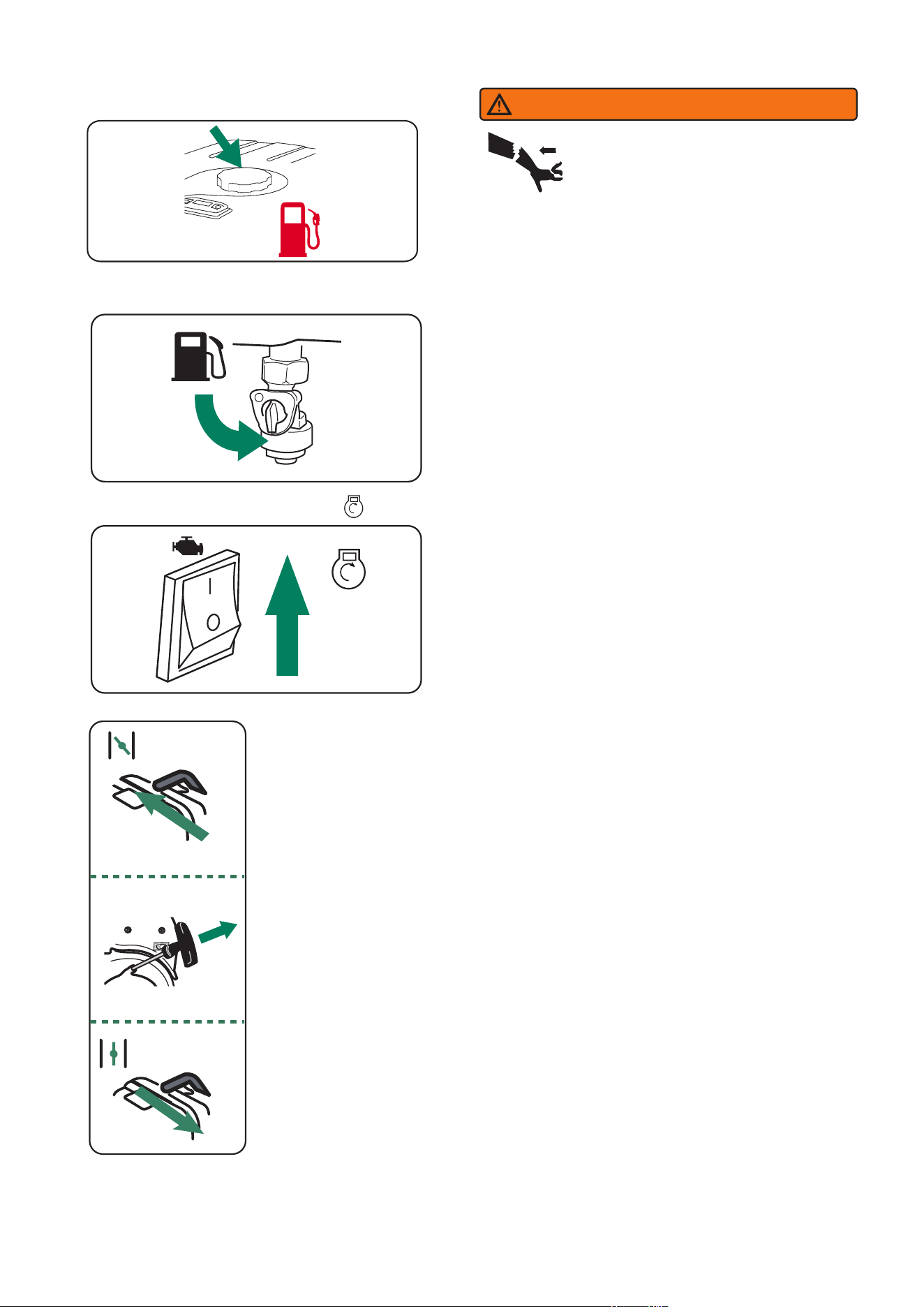

5. Turn the fuel valve to the “ON” position.
6. Flip the engine switch to the “ON”(l) position.
ON
Connecting Electrical Loads
This unit has been pretested and adjusted to handle
its full capacity. Before starting the generator,
disconnect all loads. Apply load only after generator
is running. Voltage is regulated via the engine speed
adjusted at the factory for correct output.
Re-adjusting will void warranty.
NOTE:
Keep choke lever in “START” position for only 1 pull
of the recoil starter. After first pull, move choke lever
to the “RUN” position for up to the next 3 pulls of the
recoil starter. Too much choke leads to sparkplug
fouling/engine flooding due to the lack of incoming
air. This will cause the engine not to start.
If engine starts after 3 pulls but fails to run. Or if unit
shuts down during operation, make sure unit is on a
level surface and check for proper oil level in
crankcase. This unit may be equipped with a low oil
protection device. If so, oil must be at proper level
for engine to start.
NOTE:
When applying a load, do not exceed the maximum
wattage rating of the generator when using one or
more receptacles. Also, do not exceed the amperage
rating of any one receptacle.
Do not apply heavy electrical load during break-in
period (the first five hours of operations).
1. Let engine stabilize and warm up for a few minutes
after starting.
2. Ensure circuit breaker on control panel is in on
position.
3. Plug in and turn on the desired 120 or 240 Volt
AC, single phase, 60Hz electrical loads. It is better
to attach the item with largest load first.
When starting engine, pull cord slowly until
resistance is felt and then pull rapidly to avoid
kickback.
Starter cord kickback (rapid retraction)
will pull hand and arm toward engine
faster than you can let go which could
cause broken bones, fractures, bruises,
or sprains resulting in serious injury.
WARNING
4. Add gasoline to the fuel tank.
7. Start
Move the choke lever to
the “START” position.
Move the choke lever
to the “RUN” position.
Pull recoil starter slowly
until resistance is felt,
then pull rapidly.
Page 19
Page 20
Stopping the Engine

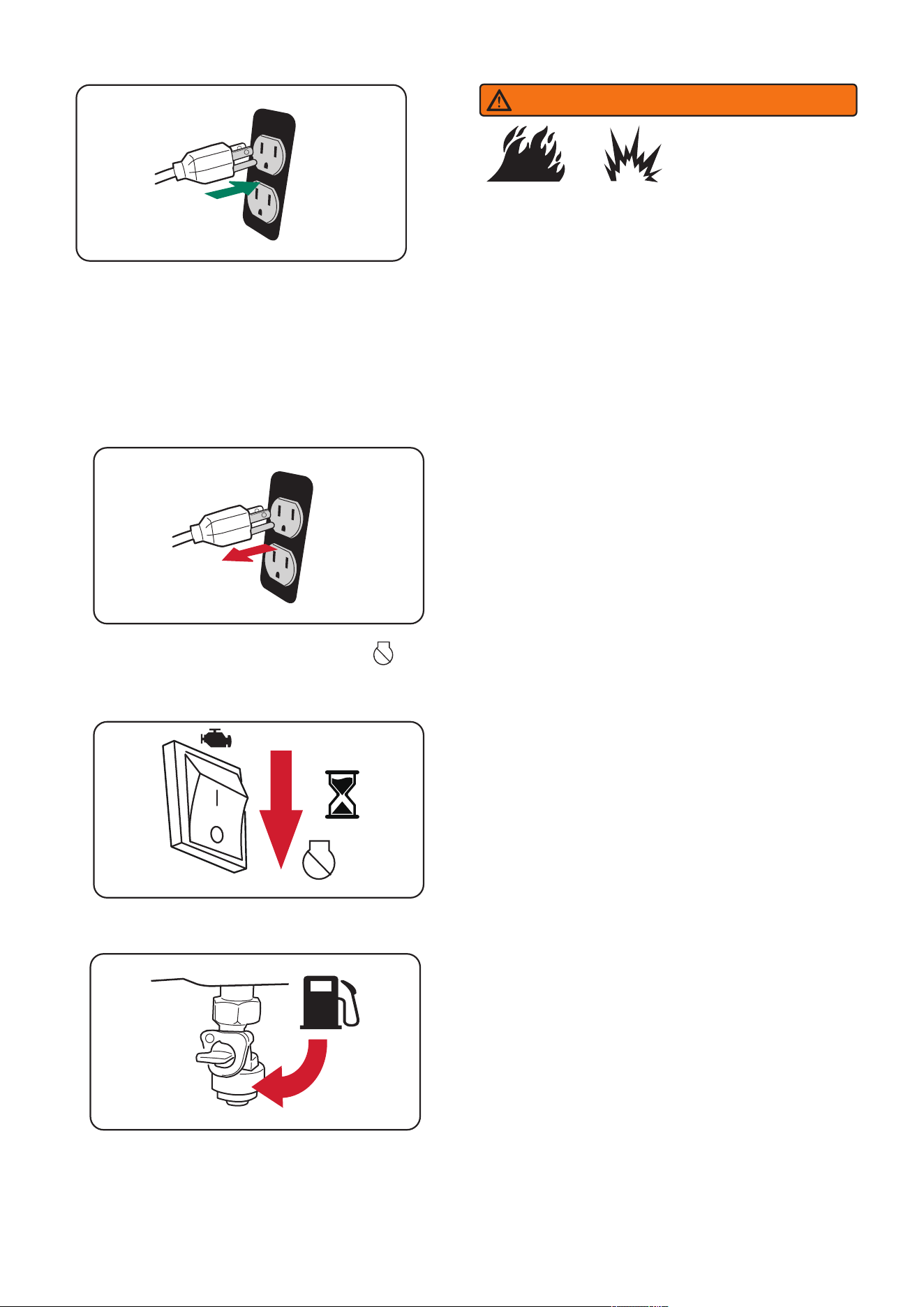

1. Turn off and remove entire electrical loads.
Never start or stop the generator with electrical
devices plugged in or turned on.
Let the generator run at no-load for two minutes to
stabilize internal temperatures of the engine and
generator.
Do Not Overload Generator
Overloading a generator in excess of its rated wattage
capacity can result in damage to the generator and to
connected electrical devices.
To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to
stabilize.
3. Plug in and turn on the first item. It is best to
attach the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
OFF
Low Oil Shutdown
If the engine oil drops below a preset level, an oil
switch will stop the engine. Check oil level with
dipstick.
If oil level is between LOW and HIGH mark on
dipstick:
1. DO NOT try to restart the engine.
2. Contact an Authorized Service Dealer.
3. DO NOT operate engine until oil level is corrected.
If oil level is below LOW mark on dipstick:
1. Add oil to bring level to HIGH mark.
2. Restart engine and if the engine stops again a low
oil condition may still exist. DO NOT try to restart
the engine.
3. Contact Customer Service.
4. DO NOT operate engine until oil level is corrected.
NOTE:
Always ensure that the fuel valve is in the “OFF”
position when the engine is not in use.
If the engine will not be used for a period of two
weeks or longer, please see the Storage section for
proper engine and fuel storage.
2. Press the engine switch to the “OFF”(O)
position. Do not leave the generator until it has
completely stopped.
2min
3. Turn the fuel valve to the “OFF”(O) position.
Fuel and its vapors are extremely flammable and
explosive which could cause burns, fire or explosion
resulting in death or serious injury.
DO NOT stop engine by moving choke control to
“START” position.
WARNING
Page 21
MAINTENANCE AND STORAGE
MAINTENANCE SCHEDULE
Regular Maintenance will improve the performance
and extend the life of your generator. Follow
maintenance schedule intervals whichever occurs
first according to use.
Walk-Around Inspection
Before Each Use
Before starting the engine perform a visual inspection
of the unit. Look for:
• Proper engine oil level
• Proper fuel level
• Fluid leaks
• Loose clamps and bolts
• Cracked fuel line
• Loose or frayed wiring
• Built up debris
* To be performed by authorized service center
Check engine oil level
Walk-around inspection
First 5 Hours (Break-In)
Change engine oil
First 25 Hours or First Month
Change engine oil
NOTE: Adverse conditions will require more frequent
services.
General Recommendations
NOTE:
Maintenance should be performed more frequently
when generator is used in dusty areas.
When generator has exceeded the maximum figures
specified in the table, maintenance should still be
cycled according tothe intervals of time or hours
stated herein.
NOTE:
Change oil every month when operating under heavy
load or high temperatures. Clean the air filter more
often under dirty or dusty operating conditions.
Replace air filter if they cannot be adequately
cleaned.
Regular maintenance will improve the performance
and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, the operator
must maintain the generator as instructed in this
manual.
Some adjustments will need to be made periodically
to properly maintain your generator. All service and
adjustments should be made at least once each
season. Follow the requirements in the Maintenanc
Shedule chart above.
ENGINE MAINTENANCE
CAUTION
To prevent accidental starting, remove and ground
spark plug wire before performing any service.

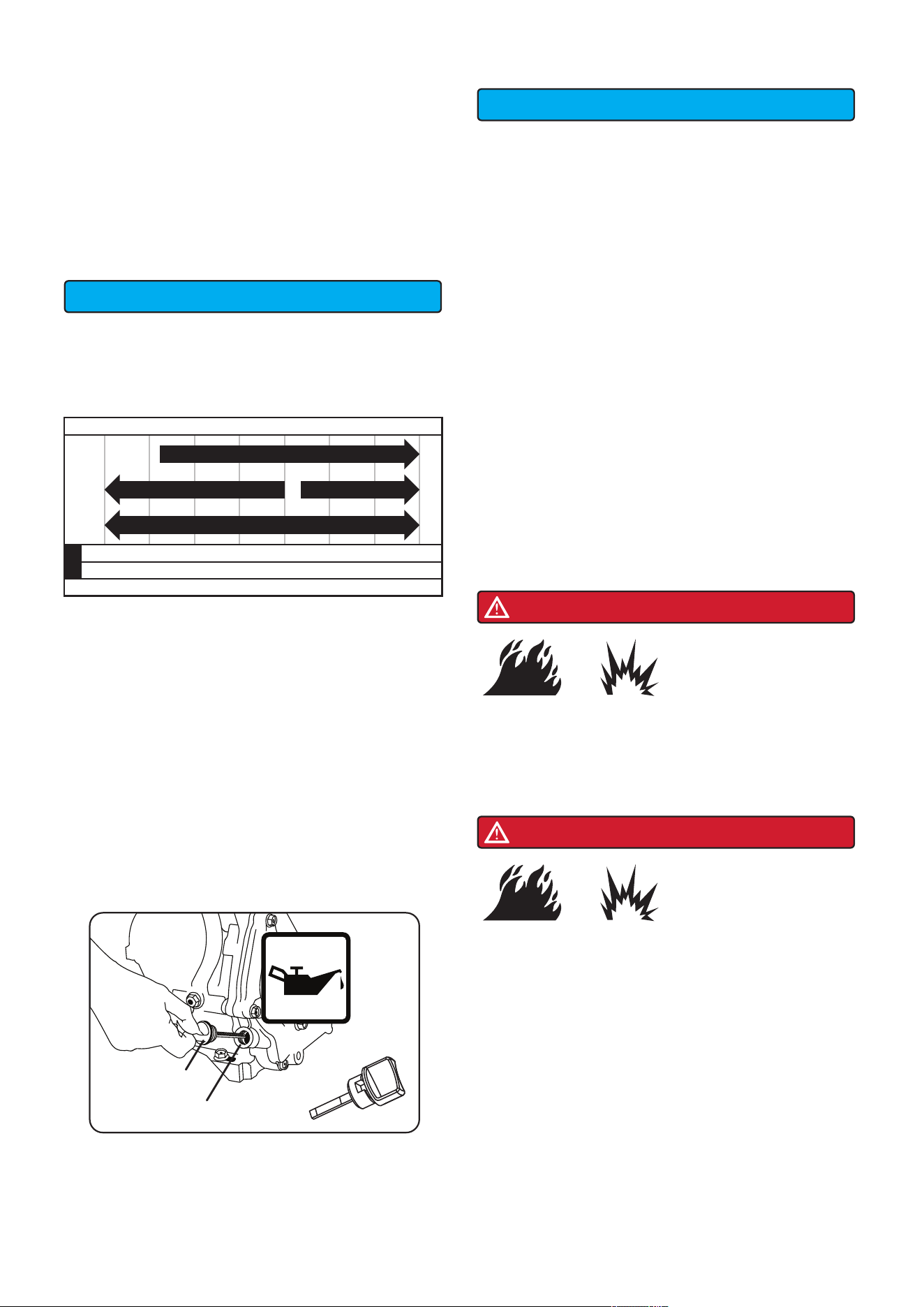

Engine Oil Level Check
Avoid skin contact with engine oil. Wear protective
clothing and equipment. Wash all exposed skin with
soap and water.
Every 100 Hours or 6 Months
Change engine oil
Clean Air Filter
Inspect/Adjust/Replace Spark plug
Inspect/Clean/Replace Spark Arrester
Every 200 Hours or 12 Months
Replace Air filter
Replace Spark Plug
Inspect/Adjust Valve Clearance*
Always use the specified engine oil. Failure to use the
specified engine oil can cause accelerated wear
and/or shorten the life of the engine.
When using the generator under extreme, dirty, dusty
conditions or in extremely hot weather, change the
oil more frequently.
Ambient air temperature will affect engine oil
performance. Change the type of engine oil used
based on weather conditions.
NOTICE

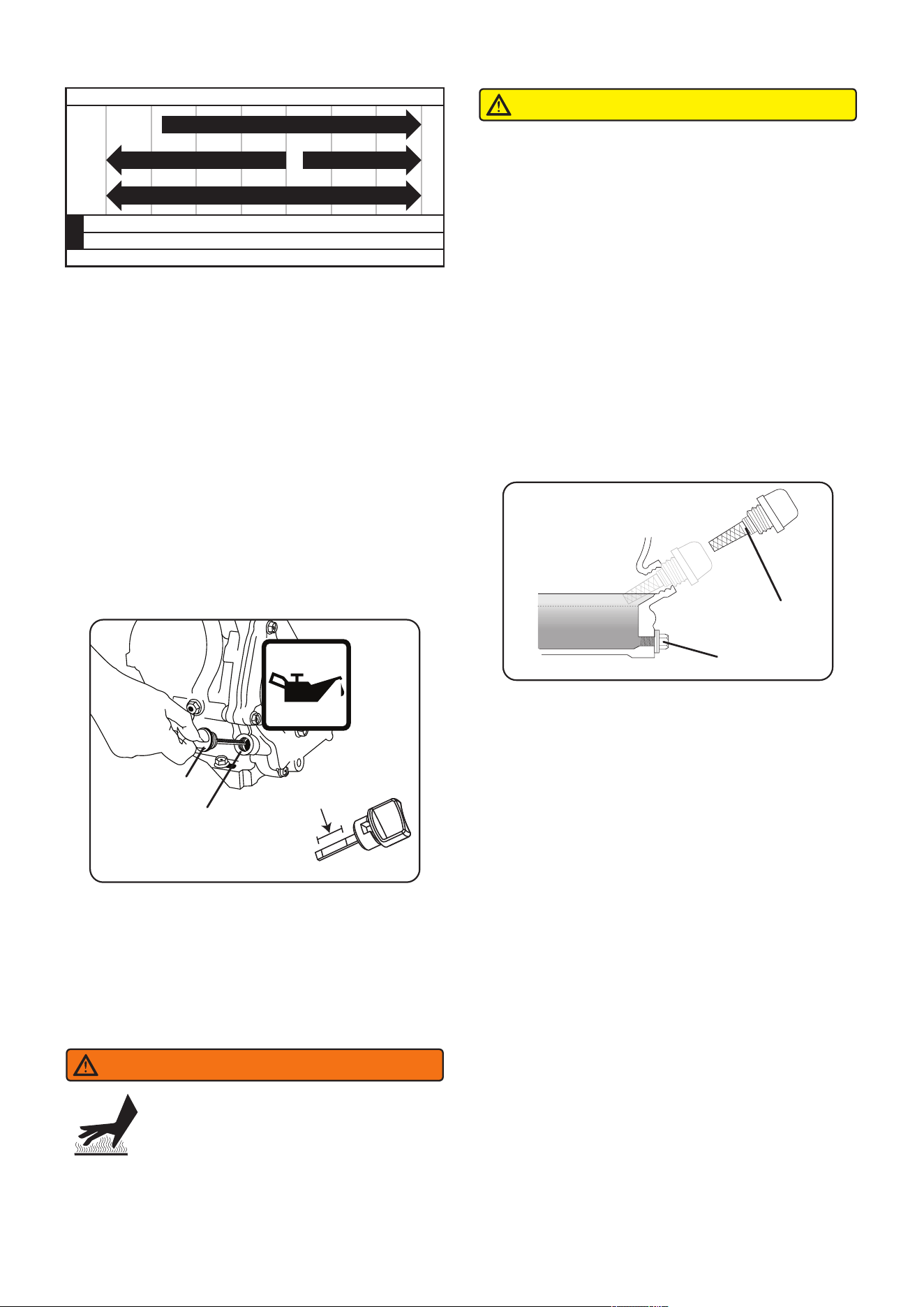

"#:-!QQ
CQ5 5 Q5 H5 @5
<NX3-(%!%-N7-$#%+$-
F-)8NN-(,-,!>(:3(-!?3*!B=7-
O5 455 4Q5
CQO./
°F
°C
451CT5
^1CT5!J+**!6=(%0-%3)
451CH5^1CT5
<
L
#
%&'()*+(,&-./0
1&/0(
$
?'#+0"%3+0(+"%7(-
A0#(:-!-(:3(-!83*!7-$!N#3(%-(#()-!&)0-,+*-.
'W!=8+!#$-!+&3(:!=8+$!:-(-$#%8$!+(,-$!-Z%$-N-*=!,3$%=!
8$!,+&%=!)8(,3%38(&[!8$!3(!-Z%$-N-*=!08%!I-#%0-$[!
)0#(:-!%0-!83*!N8$-!8W%-(.
?9@&576
<R83,!7$8*8(:-,!8$!$-7-#%-,!&S3(!)8(%#)%!I3%0!+&-,!
N8%8$!83*.
F3&S!8W!X+$(&.!<**8I!-(:3(-!%8!)88*!
X-W8$-!,$#3(3(:!83*!8$!)88*#(%.!J#3*+$-!%8!
,8!&8!)8+*,!$-&+*%!3(!,-#%0!8W!&-$38+&!
3(_+$=.
>9!656=
!"#$%
G$#3(!%0-!*+X$3)#(%!I03*-!%0-!-(:3(-!3&!&%3**!I#$N!X+%
(8%!08%.!1#$N!*+X$3)#(%!I3**!,$#3(!\+3)S*=!#(,!N8$-
)8N7*-%-*=.
4. F-N8R-!%0-!83*!)#7!`<a!#(,!I37-!,37&%3)S!)*-#(.
Q. "*#)-!#!)8(%#3(-$!+(,-$(-#%0!%0-!83*!,$#3(!7*+:!%8
!!!!)8**-)%!+&-,!*+X$3)#(%!#&!3%!,$#3(&.
T. E(&)$-I!%0-!83*!,$#3(!7*+:!`Aa!#(,!$-N8R-.
H. <**8I!*+X$3)#(%!%8!,$#3(!)8N7*-%-*=.
^. F-3(&%#**!%0-!83*!,$#3(!7*+:!`Aa!#(,!%3:0%-(!&-)+$-*=.
@. J3**!%0-!-(:3(-!I3%0!83*!+(%3*!3%!$-#)0-&!%0-!;'D;`;a
*-R-*!8(!%0-!83*!W3**-$!)#7.
K. F-3(&%#**!%0-!83*!)#7.
4. F-N8R-!%0-!&7#$S!7*+:!)#7!`La.
Q. A*-#(!#(=!,3$%!W$8N!#$8+(,!X#&-!8W!&7#$S!7*+:.
T. F-N8R-!&7#$S!7*+:!`<a!+&3(:!7$8R3,-,!I$-()0.
H. '(&7-)%!&7#$S!7*+:!W8$!,#N#:-[!#(,!)*-#(!I3%0!#
I3$-!X$+&0!X-W8$-!$-3(&%#**3(:.!'W!3(&+*#%8$!3&
)$#)S-,!8$!)0377-,[!&7#$S!7*+:!&08+*,!X-!$-7*#)-,.
^. P-#&+$-!7*+:!:#7.!B0-!)8$$-)%!:#7!3&!5.5QOC5.5T4
3(.!`5.KC5.O!NNa.!B8!I3,-(!:#7[!3W!(-)-&&#$=[
)#$-W+**=!X-(,!%0-!:$8+(,!`%87a!-*-)%$8,-.!B8
*-&&-(!:#7[!:-(%*=!%#7!:$8+(,!-*-)%$8,-!8(!#!0#$,
&+$W#)-.
@. 6-#%!&7#$S!7*+:!3(!78&3%38(v!%0$-#,!3(!X=!0#(,!%8
7$-R-(%!)$8&&C%0$-#,3(:.
'W!)8(%#N3(#%-,!8$!,-%-$38$#%-,!83*!3&!+&-,!8$!%0-!
\+#(%3%=!8W!%0-!-(:3(-!83*!3&!(8%!&+WW3)3-(%[!-(:3(-!
,#N#:-!I3**!$-&+*%!#(,!3%&!*3W-!I3**!X-!:$-#%*=!
&08$%-(-,.
P#Z3N+N!83*!)#7#)3%=h!QK.4!W*.8Y!`
8K#/R%A-,0%*#(+D"+#+H"
B0-!&7#$S!7*+:!N+&%!X-!7$87-$*=!:#77-,!#(,!W$--!8W!
,-78&3%&!3(!8$,-$!%8!-(&+$-!7$87-$!-(:3(-!87-$#%38(.!
B8!)0-)Sh
<
A
#
$
A0-)S!%0-!-(:3(-!83*!*-R-*!X-W8$-!-#)0!+&-!8$!-R-$=!O!
08+$&!8W!87-$#%38(.
4. "*#)-!%0-!:-(-$#%8$!8(!#!*-R-*!&+$W#)-!#(,!#**8I
%0-!-(:3(-!%8!)88*!W8$!&-R-$#*!N3(+%-&.
Q. 13%0!#!,#N7!$#:[!)*-#(!#$8+(,!%0-!83*!,37&%3)S.
T. F-N8R-!%0-!83*!,37&%3)S!`<a.
H. 137-!%0-!,37&%3)S!)*-#([!%0-(!&)$-I!,37&%3)S!3(%8
W3**-$!(-)S!`La.!F-N8R-!%0-!,37&%3)S!#(,!R-$3W=!%0#%
%0-!83*!*-R-*!3&!I3%03(!&#W-!87-$#%3(:!$#(:-.
^. 'W!*8I[!#,,!$-)8NN-(,-,!-(:3(-!83*!3()$-N-(%#**=
#(,!$-)0-)S!+(%3*!%0-!*-R-*!3&!X-%I--(!%0-!9!#(,!;
N#$S&!8(!%0-!,37&%3)S.!G?!V?B!8R-$W3**.!'W!8R-$!%0-
W+**!N#$S!8(!%0-!,37&%3)S[!,$#3(!%0-!83*!%8!$-,+)-!%0-
83*!*-R-*!%8!%0-!W+**!N#$S.
@. F-7*#)-!%0-!83*!,37&%3)S!#(,!0#(,C%3:0%-(.
O55N*a
"#:-!QT!

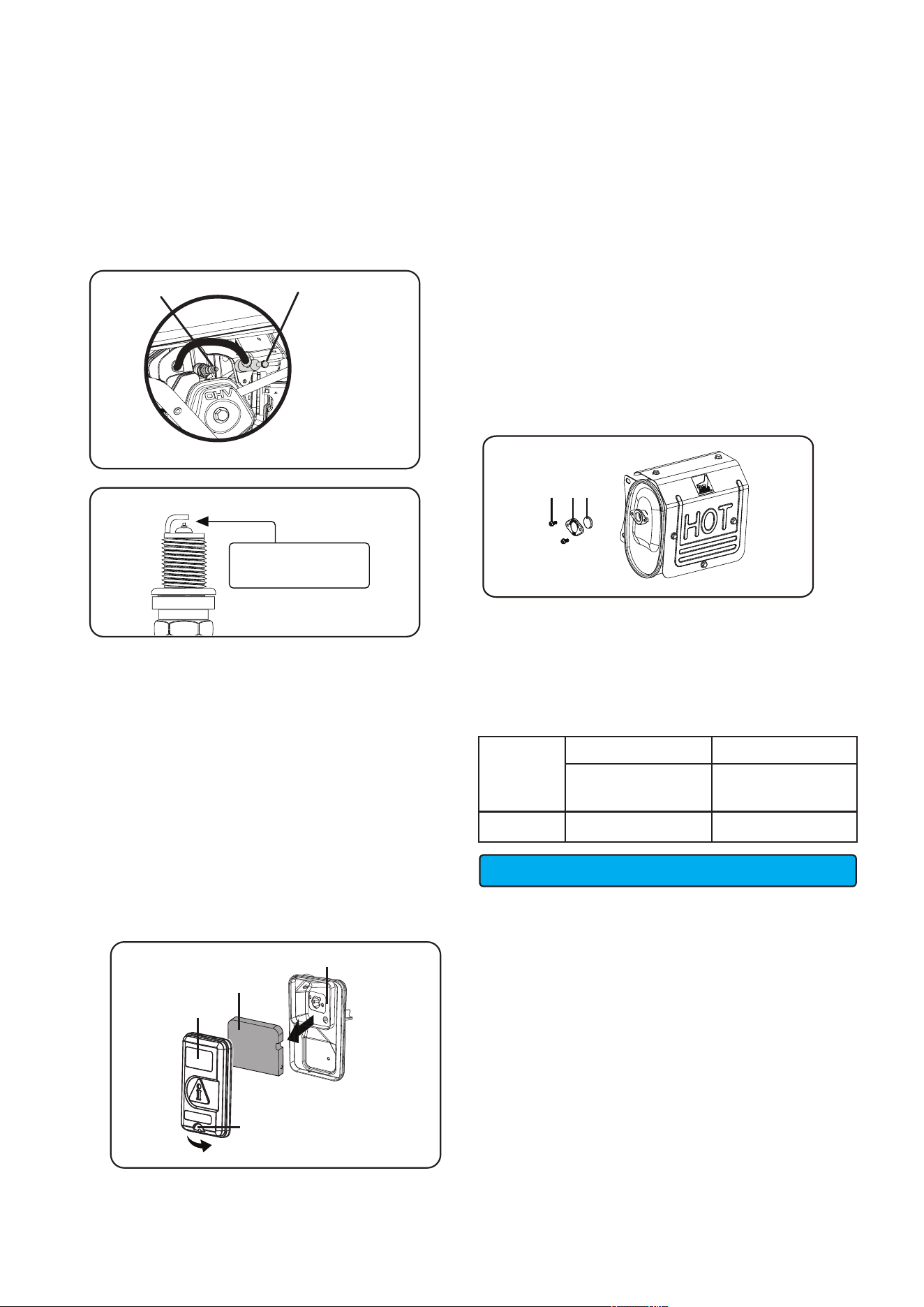

K. B3:0%-(!I3%0!I$-()0!%8!)8N7$-&&!I#&0-$.!'W!&7#$S
7*+:!3&!(-I[!+&-!4cQ!%+$(!%8!)8N7$-&&!I#&0-$
#77$87$3#%-!#N8+(%.!'W!$-+&3(:!8*,!&7#$S!7*+:[!+&-
4cO!%8!4cH!%+$(!W8$!7$87-$!I#&0-$!)8N7$-&&38(.
!"#$%
<(!3N7$87-$*=!%3:0%-(-,!&7#$S!7*+:!I3**!X-)8N-
R-$=!08%!#(,!)8+*,!,#N#:-!%0-!-(:3(-.
O. F-3(&%#**!%0-!&7#$S!7*+:!)#7!`La.
!"#"$%&'("%)*+
,"#"$%&'("%)*+"-&%
<
L
!"# % !"& ''
!"!(& % !"!)* +,"
A0-)S3(:!#(,!#,_+&%3(:!R#*R-!)*-#$#()-!N+&%!X-!
,8(-!I0-(!%0-!-(:3(-!3&!)8*,.
67&5?3
5.55Ho5.55@!3()0
5.4o5.4^!NN
[email protected]!3()0
5.4^o5.Q!NN
45C4Q!VwP 45C4Q!VwP
5+D#R"%L#-O" 3G'#,)D%L#-O"
L#-O"%?-"#/#+H"
L#-O"
?-"#/#+H"
&./e,"
5JK./D#+DS!"*-#&-!)8(%#)%!<+%08$3Y-,!6-$R3)-!A-(%-$!
W8$!&-$R3)-!#&&3&%#()-.!"$87-$!R#*R-!)*-#$#()-!3&!
-&&-(%3#*!W8$!7$8*8(:3(:!%0-!*3W-!8W!%0-!-(:3(-.!A0-)S!
R#*R-!)*-#$#()-!7-$!N#3(%-(#()-!&)0-,+*-.
?-"#+(+0%D'"%8K#/R%9//")D./
!"#$%
B03&!7$8,+)%!3&!-\+377-,!I3%0!#!&7#$S!#$$-&%8$!%0#%!
0#&!X--(!-R#*+#%-,!X=!%0-!E6G<!J8$-&%!6-$R3)-v!
08I-R-$[!7$8,+)%!+&-$&!N+&%!)8N7*=!I3%0!J-,-$#*[!
6%#%-[!#(,!*8)#*!W3$-!7$-R-(%38(!$-:+*#%38(&.!A0-)S!
I3%0!#77$87$3#%-!#+%08$3%3-&.!A8(%#)%!)+&%8N-$!
&-$R3)-!8$!#!\+#*3W3-,!&-$R3)-!)-(%-$!%8!7+$)0#&-!#!
$-7*#)-N-(%!&7#$S!#$$-&%8$.
=363!9&7!%*956&3696?3
P#S-!)-$%#3(!%0#%!%0-!:-(-$#%8$!3&!S-7%!)*-#(!#(,!
&%8$-,!7$87-$*=.!?(*=!87-$#%-!%0-!+(3%!8(!#!W*#%[!*-R-*!
&+$W#)-!3(!#!)*-#([!,$=!87-$#%3(:!-(R3$8(N-(%.!
27%67&!-Z78&-!%0-!+(3%!%8!-Z%$-N-!)8(,3%38(&[!
-Z)-&&3R-!,+&%[!,3$%[!N83&%+$-!8$!)8$$8&3R-!R#78+$&.
< L A
4.!<**8I!%0-!-(:3(-!%8!)88*!,8I(!)8N7*-%-*=.
Q.!988&-(!&)$-I!`<a!%8!$-N8R-!&7#$S!#$$-&%8$
!!!!W*#(:-!`La!#(,!&7#$S!#$$-&%8$!&)$--(!`Aa.
T.!E&-!#!I3$-!X$+&0!%8!)#$-W+**=!$-N8R-!%0-!)#$X8(
!!!!,-78&3%&!8(!%0-!&)$--(.
9(/%4(-D"/%*#(+D"+#+H"
J8$!7$87-$!7-$W8$N#()-!#(,!*8(:!*3W-[!S--7!#3$!W3*%-$!
)*-#(.
4.!B+$(!%0-!S(8X!`<a!8(!%0-!X8%%8N!8W!#3$!%0-!W3*%-$!
!!!!)8R-$!%8!$-*-#&-.!F-N8R-!)8R-$!`La!#(,!&-%!#&3,-.
Q.!F-N8R-!%0-!W3*%-$!-*-N-(%!`Aa.
T.!'W!%0-!W3*%-$!-*-N-(%!3&!,3$%=[!)*-#(!I3%0!I#$N[!
!!!!&8#7=!I#%-$.!F3(&-!#(,!*-%!,$=.
H.!<77*=!#!*3:0%!)8#%!8W!-(:3(-!*+X$3)#(%!%8!%0-!
!!!!-*-N-(%[!%0-(!&\+--Y-!3%!8+%.
^.!F-7*#)-!%0-!-*-N-(%!`Aa!3(!%0-!#3$!W3*%-$!+(3%`Ga.
@.!F-7*#)-!%0-!#3$!W3*%-$!)8R-$!`La!#(,!W#&%-(!S(8X!`<a.
!"#"./01
,"#"!2'"32)45'"-065'
7"#"82)45'"5)595/4
:"#"!2'"32)45'"*/24
2
3
4
5
Page 24
6 - Pull starter recoil several times to distribute oil in
cylinder.
7 - Install spark plug.
8 - Pull recoil slowly until resistance is felt. This
close valves so moisture cannot enter engine
cylinder. Gently release recoil.
9 - Clean the generator and store in a cool, dry and
well ventilated area out of direct sunlight.
Long Term Storage (over one year)
For long term storage, the gasoline tank and
carburetor must be drained of gasoline.
1 - After engine cools down, remove all gasoline
from the fuel tank using non-conductive siphon.
2 - To remove the remaining gasoline in fuel system:
a-Keep the fuel valve open and run the engine
until it stops from lack of fuel.
Or
b-Keep the fuel valve open and drain carburetor
float bowl.
3 - Change the engine oil.
4 - Remove the spark plug.
5 - Pour tablespoon( 5-10cc) of clean engine oil into
cylinder.
DRAINING THE FLOAT BOWL
1. Turn the fuel tank valve to the OFF position.
2. Locate the drain screw on the bottom of the
carburetor float bowl.
3. Place an appropriate gasoline container under the
drain screw to catch the drained fuel.
4. Loosen the float bowl drain screw and allow the
fuel to drain. Tighten the float bowl drain screw.
DANGER
Explosion and Fire. Fuel and vapors are
extremely flammable and explosive.
Store fuel in a well ventilated area. Keep
fire and spark away. Failure to do so will
result in death or serious injury.
WARNING
Risk of Fire. Verify machine has properly
cooled before installing cover and
storing machine. Hot surfaces could
result in fire.
NOTE:
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
Use a damp cloth to clean exterior surfaces of the
generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor 25 PSI (172 kPa) to clear dirt
and debris from the generator.
Inspect all air vents and cooling slots to ensure that
they are clean and unobstructed.
STORAGE
It is recommended to start and run the generator for
30 minutes, every 30 days. If this is not possible,
refer to below short term and long term storage.
Short Term Storage
Fill the tank with fresh gasoline and add gasoline
stabilizer. Drain the carburetor float bowl.
1 - Add a properly formulated FUEL STABILIZER to
the tank if it is not already added.
2 - Run the engine for 10-15 minutes to circulate
stabilizer throughout fuel system.
3 - Allow the generator to cool a minimum of 30
minutes and then drain the carburetor float bowl.
4 - Clean the generator and store in a cool, dry and
well ventilated area out of direct sunlight.
Drain screw
Float bowl
Page 25
PROBLEM
Engine is running,
but no AC output is
available.
1. AC Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord set.
4. Connected device is bad.
5. GFCI outlet is open (if equipped)
1. Check AC load and reset circuit breaker.
2. Contact customer service or authorized service center.
3. Check and repair.
4. Connect another device that is in good condition.
5.
Correct ground fault and press reset button on GFCI outlet.
Engine runs well at
no-load, but "bogs
down" when loads is
connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
5. Clogged or dirty fuel filter.
6. Connected device is bad.
1. Disconnect shorted electrical load.
2. Contact customer service or authorized service center.
3. Reduce load.
4. Contact customer service or authorized service center.
5. Clean or replace fuel filter.
6. Connect another device that is in good condition.
Engine will not start;
starts and runs rough
or shuts down when
running.
1. Engine switch set to OFF (O) position.
2. Fuel valve is in OFF (O) position.
3. Low oil level.
4. Dirty air filter.
5. Out of fuel.
6. Stale fuel.
7.
Spark plug wire not connected to spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Flooded.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or closed.
13. Engine has lost compression.
14. Clogged or dirty fuel filter.
15. Clogged or dirty spark arrester screen.
1. Set engine switch to ON (l) position.
2. Move fuel valve to ON (l) position.
3. Fill crankcase to proper level or place generator on
level surface.
4. Clean or replace air cleaner.
5. Fill fuel tank.
6. Drain fuel tank and carburetor; fill with fresh fuel.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain gas tank and carburetor; fill with fresh fuel.
10. Wait 5 minutes and re-crank engine.
11. Contact customer service or authorized service center.
12. Contact customer service or authorized service center.
13. Contact customer service or authorized service center.
14. Replace fuel filter.
15. Clean or replace spark arrester screen.
NOITULOSESUAC ELBISSOP
TROUBLE SHOOTING
Engine lacks power. 1. Load is too high.
2. Dirty air filter.
3. Clogged or dirty fuel filter.
4. Clogged or dirty spark arrester screen.
5. Engine needs to be serviced.
6. Bad fuel.
1. Reduce load.
2. Replace air filter.
3. Clean or replace fuel filter.
4. Clean or replace spark arrester screen.
5. Contact customer service or authorized service center .
6. Drain gas tank and carburetor; fill with fresh fuel.
Engine“hunts”or falters. 1. Carburetor is running too rich or too lean.
2. Clogged or dirty fuel filter.
3. Choke is opened too soon.
1. Contact customer service or authorized service center .
2. Replace fuel filter.
3. Set choke to halfway position until engine runs smootly.
Engine shuts down
when running.
1. Out of fuel.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or place generator on
level surface.

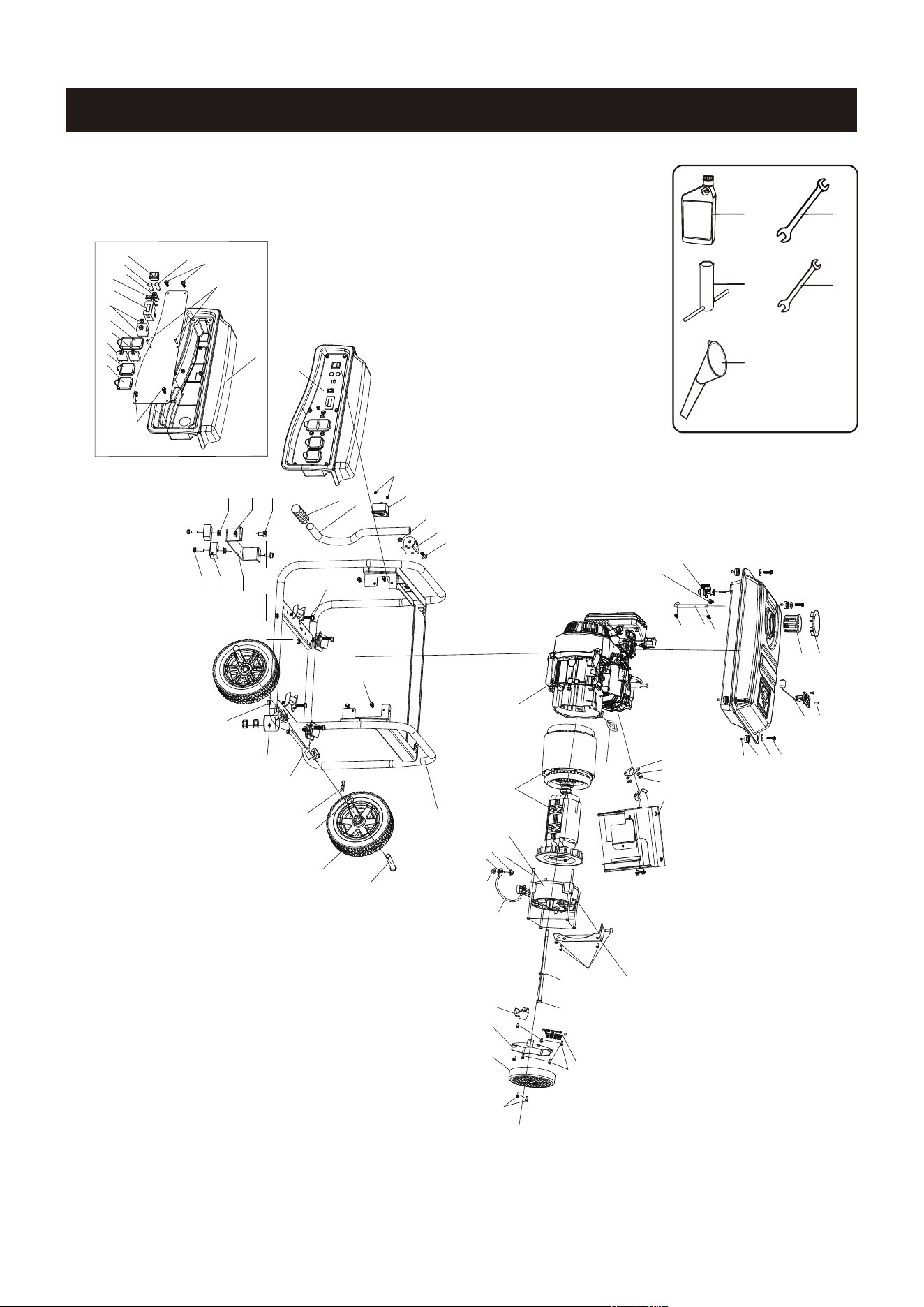

PARTS DIAGRAM(GENERATOR)
PARTS DIAGRAM AND PARTS LIST SUA7500
Page 26
71
7475
7273
55
56
41
40
39
38
36
35
37
60
61
62
63
64
65
66
67
68
69
70
32
59
32
57
58
24
25
27
28
29
30
31
32
32
33
34
7
31
17
26
16
15
14
13
10
11
12
9
8
17
18
4
7
5
6
1
2
23
22
21
20
19
3
49
48
47
46
44
45
42
43
50
51
52
53
54
Page 27
Parts List
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Qty.
1
1
1
4
1
1
3
1
1
1
1
3
5
1
1
1
6
1
1
2
2
1
2
1
2
2
2
2
4
1
6
6
2
1
1
1
2
1
Part Number
20260-11176-00
20029-20041-00
33085-00058-00
30101-00081-00
30101-00339-00
33301-00010-00
30125-00019-00
20196-00122-00
/
20044-00029-00
33082-00162-00
30101-00326-00
30101-00329-00
/
30101-00538-00
30136-00016-00
30101-00355-00
33004-00017-00
20202-01524-00
30121-00007-00
30139-00036-00
33048-00571-00
33138-00017-00
20090-02843-00
34031-00040-00
20134-00098-00
30136-00165-00
34006-00020-00
34030-00040-00
34030-00009-00
30125-00023-00
30101-00405-00
34030-00079-00
20014-00063-00
33015-00008-00
20135-00408-00
30112-00032-00
20115-00094-02
Description
Engine assembly
Alternator assembly
Structure bracket
Screw(M6*155)
Screw(M6*12)
Spring washer
Nut(M6)
Wire harness
Carbon brush assembly
AVR
End cover
Screw(M5*12)
Screw(M5*16)
Terminal
Screw(M10*235)
Flat washer
Screw(M8*16)
Bracket
Muffler assembly
Nut(M8)
Spring washer
Muffler gasket
Guard
Frame assembly
Wheel axle
Wheel(8")
Flat washer
Clip
Shock-absorbing seat
Shock-absorbing seat(Rubber)
Nut(M8)
Screw(M6*20)
Shock-absorbing seat(Rubber)
Supporting leg
Handle rubber sleeve
Handle assembly
Self-tapping screw
CO sensor assembly
NO.
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
Qty.
1
1
1
1
1
2
1
4
4
4
4
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
Part Number
30128-00004-00
20172-00050-00
30101-00373-00
20131-00073-00
34037-00033-00
30116-00053-00
70010-03730-00
30101-00407-00
30136-00074-00
34030-00326-00
34032-00025-00
34024-00025-00
34023-00205-00
34024-00032-00
20133-00002-00
34024-00002-00
30125-00026-00
20114-09151-01
33369-00034-00
33368-00945-03
20270-00015-01
31026-00324-00
20270-00003-00
31034-00356-00
31026-00465-00
31008-00048-02
31038-00035-00
31034-00140-00
31038-00052-00
31038-00053-00
31034-00024-03
31034-00187-00
60005-00033-04
70009-00998-00
70003-00917-00
70003-00908-00
70003-00909-00
Description
Nut(M8)
Nut(M8)
Screw(M8*45)
Fuel cap assembly
Fuel filter
screw
Fuel guage
Screw(M6*25)
Flat washer
Shock-absorbing seat
Sleeve
Clamp(B9.5)
Ventilation pipe
Clamp(B10.5)
Fuel tank switch
Clamp(B8)
Nut(M10)
Control panel assembly
Panel seat
Panel body
Light
engine stop
Light
USB Type-A/Type-C
Voltage conversion switch
V/Hz/H
Circuit breaker(AC)
120V AC/20A duplex outlet GFCI (5-20R)
Circuit breaker(AC)
Circuit breaker(AC)
120V AC/30A twist lock outlet(L5-30R)
120/240V AC/30A twist lock outlet(L14-30R)
Oil bottle
Spark plug wrench
Oil funnel
Double open wrench(13-15mm)
Double open wrench(8-10mm)
33
18
19
35
58
51
52
23
24
25
53
55
56
54
35
57
36
37
47
46
49
48
71
72
73
38
39
40
41
42
43
44
45
28
29
30
31
32
29
34
16
17
20
21
22
14
15
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
59
60
61
62
63
64
65
67
69
66
68
70
75
76
74
50

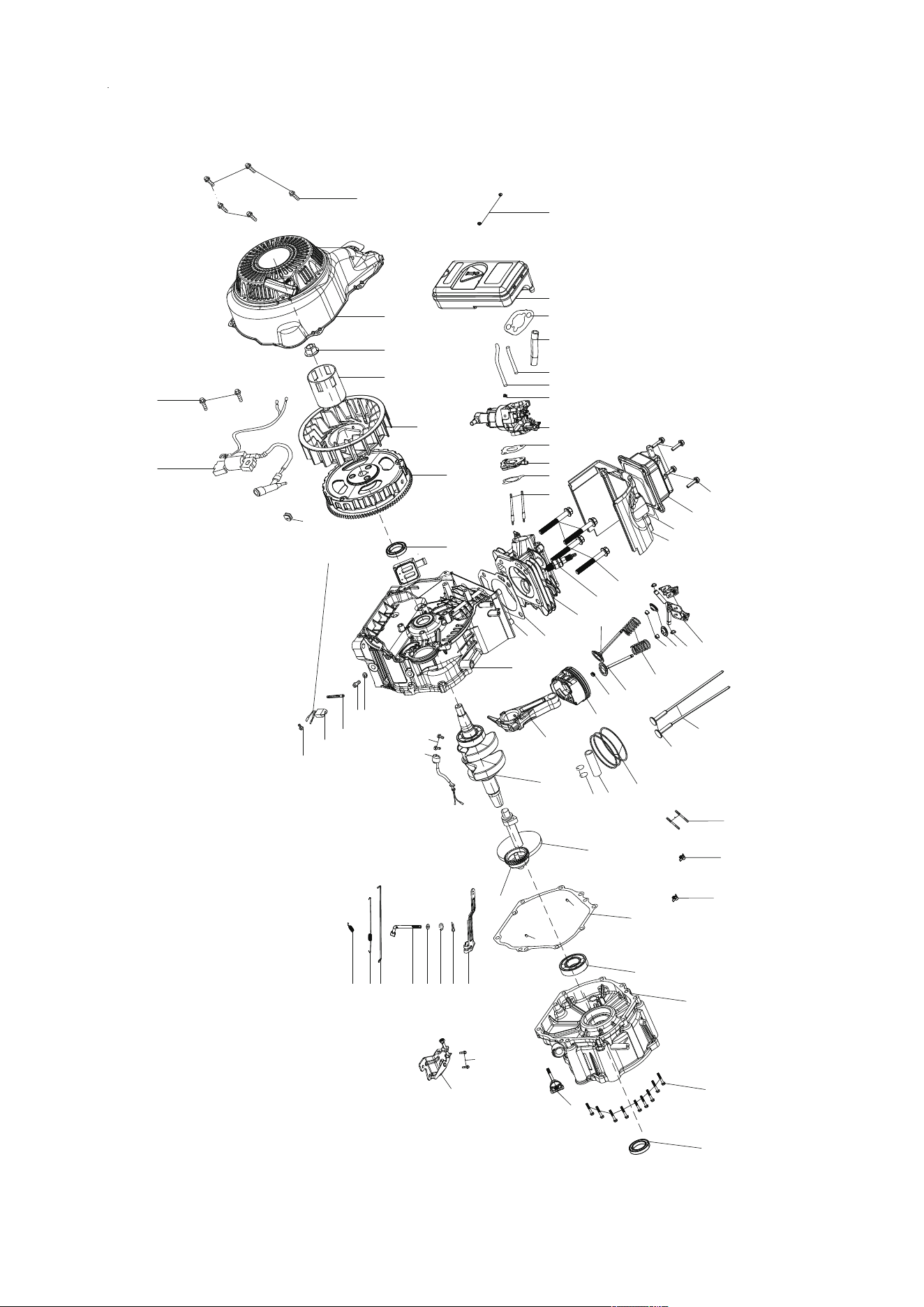

PARTS DIAGRAM (ENGINE)
Page 28
Page 29
Parts List
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Qty.
4
1
1
1
4
1
1
2
2
2
4
2
1
1
1
1
1
2
2
1
1
2
1
2
1
1
1
1
2
1
1
1
1
9
1
1
2
1
Part Number
30101-00408-00
20021-00074-00
33048-00511-00
34021-00329-01
30101-00506-00
20027-00010-00
20023-00229-01
34019-00054-00
30134-00026-00
34016-00105-00
34016-00106-00
34015-00111-00
34013-00125-00
34013-00187-00
34018-00005-00
34004-00194-00
20008-00013-00
34020-00041-00
34008-00020-00
20084-00213-00
34006-00319-00
30150-00048-00
33048-00510-00
34006-00007-00
34011-00647-00
20011-00500-00
20012-00127-00
20013-00004-00
34006-00001-00
33048-00972-00
30141-00121-00
33129-00383-00
20026-00067-00
30101-00539-00
34007-00028-00
20022-00018-00
30101-00070-00
34025-00035-00
Description
Hexagonal flange bolt
Cylinder head assy
Cylinder head gasket
Air guide plate
Hexagonal flange bolt
Spark plug
Cylinder head assy
Valve rocker arm assy
Rocker arm shaft
Valve spring seat
Valve collet
Valve spring
Exhaust valve
Intake valve
Oil seal
Piston
Connecting rod assy
Valve push rod
Valve stem
Piston ring
Piston pin
Piston pin circlip
Cylinder head gasket
Positioning pin
Crank case
Crankshaft assy
Camshaft assy
Speed control gear assy
Positioning pin
Sealing gasket for crankcase cover
Deep groove ball bearing
Crankcase cover
Oil dipstick
Hexagonal flange bolt
Oil seal
Speed controller assy
Hexagonal flange bolt
Speed control arm
NO.
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
Qty.
1
1
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
1
5
2
1
1
1
1
1
0.4
1
1
1
1
2
1
1
1
2
1
1
Part Number
34006-00017-00
30136-00095-00
34007-00002-00
34026-00065-00
34026-00018-00
34015-00050-00
34015-00173-00
33247-00027-00
30101-00342-00
30101-00514-00
30136-00080-00
33036-00044-00
20028-00217-00
30101-00408-00
33099-00102-00
33155-00058-00
34022-00022-00
30125-00064-00
20010-00552-00
30101-00070-00
30110-00018-00
33048-00512-00
34012-00062-00
33048-00513-00
20024-00742-00
34024-00002-00
34023-00004-00
33015-00102-00
34023-00081-00
33048-00047-00
20025-00318-00
30125-00002-00
34024-00004-00
33246-00003-00
30101-00070-00
30110-00027-00
34024-00008-00
34024-00009-00
Description
Positioning pin locking clip
Swing rod gasket
Hexagonal flange bolt
Speed control swing rod
Speed control rod
Fine tuned spring
Reset spring
Engine oil sensor
Hexagonal flange bolt
Hexagonal flange bolt
Aluminum gasket
Silicone block
Ignition coil assy
Hexagonal flange bolt
Flywheel
Fan
Start cup
Hexagon flange nuts
Recoil starter assy
Hexagonal flange bolt
Air intake double head bolt
Air inlet sealing gasket
Carburetor connection block
Carburetor gasket
Carburetor assy
Clamp(B8)
Fuel hose
Protective jackket
Breather hose
Air filter sealing gasket
Air filter assy
Air filter nut
Bole
Oil alarm
Hexagonal flange bolt
Exhaust double head bolt
Clip fuel hose
Clip fuel hose

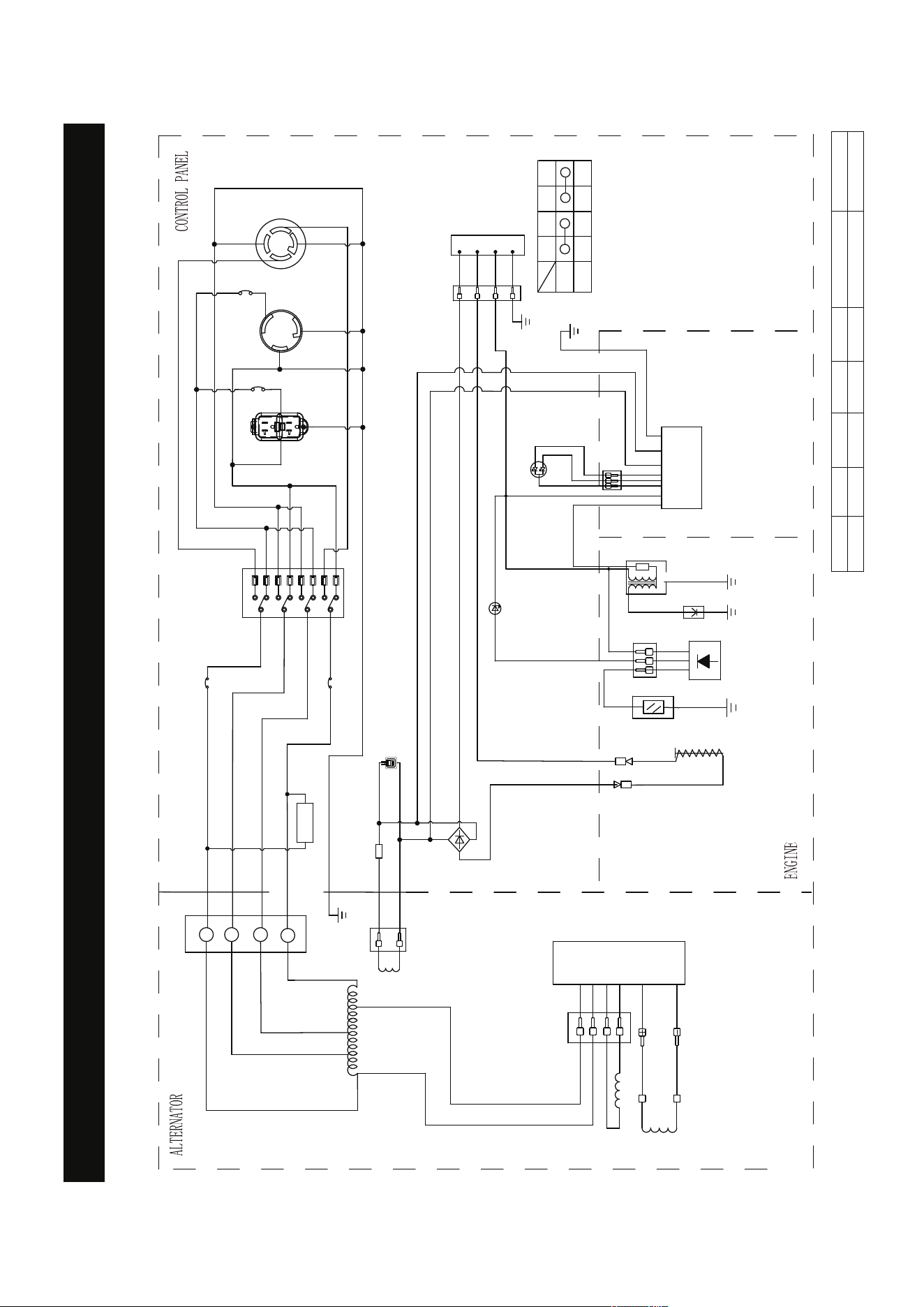

Circuit Diagram
Grounding system(AC): Neutral Bonded To Frame
CIRCUIT DIAGRAM
Model: SUA7500
Grounding system(DC): System Floating
B:BLACK
Br:BROWN
G:GREEN
Gy:GRAY
L:BLUE
O:ORANGE
R:RED
W:WHITE
Y:YELLOW
P:PINK
B/W:BLACK/WHITE
Y/G:YELLOW/GREEN
R/W:RED/WHITE
Page 30
30A
L14-30R
20A
5-20R
+
-
Engine switch
30A
L5-30R
ON
OFF
E
IG
FS
G
E
IG
FS
G
+
USB
Main coil
Main coil
G
W
G
Y
X
W
30A
20A
2
1
3
5
4
6
7
9
8
10
12
11
Br
L
A
V
R
Br
L
Y
L
Y
Y
Field coil
Sub coil
Oil alarm
Spark
plug
Ignition
coil
Oil
sensor
Br
Br
Y/G
CO sensor module
Gy
Y R
CO indicator light
L
L
O O
B
W
8A
KBPC2510
DC coil
Oil warning
indicator LED
B
Y
R
Fuel cut
solenoid
V.HZ.H
L1/B
L2/W
R1/R
R2/L
25A
120/240V
120V
B
B
W
W
W
B
L
W
25A
Page 31
LIMITED WARRANTY
WARRANTY
Warranty Term
WARRANTY
KEEP YOUR RECEIPT. Proof of purchase will be
required to substantiate any warranty claim.
WHAT IS COVERED: A-iPower Corp. warrants to the
original retail purchaser in the United States of
America, or Canada that this product is free of
defects in material and workmanship and agrees, at
A-iPower Corp’s direction, to either repair, provide
replacement parts for, or replace (without charge for
parts or labor) any product or component with a
material defect for a period of 3 years from the date
of purchase, except as limited below. Warranty
service and replacement parts are warranted only for
the duration of the warranty on the original product.
All replaced parts or products become a property of
A-iPower Corp.
This product is also covered by an Emissions Control
System Warranty which is separate from and in
addition to the warranty.
A-iPower Limited Warranty – 3 Years Residential and
1 Year Commercial
3 year Residential warranty applies as follow: 1st
year Parts & Labor / 2nd & 3rd year Parts ONLY
A-iPower will provide warranty for any of its products
purchased through any authorized AiPower dealer in
North America to the original purchaser and will be
warranted against defects in material or workmanship
for a period of three (3) years for Consumer use from
date of purchase, subject to exclusions noted herein.
Commercial and Rental applications are warranted for
a period of one (1) year from date of purchase.
How to Obtain Warranty Service
DO NOT RETURN THE PRODUCT TO THE PLACE
OF PURCHASE
Please call our Customer Service Dept.
855-888-3598
or e-mail to [email protected]
Please have necessary information available - Model
Number, Serial Number, Proof of Purchase
Warranty Exclusions
This warranty does not cover the following:
Regular wear and maintenance - this warranty will
not cover repair when normal use has exhausted the
lifetime of a part(s) or engine.
Installation and Maintenance - this warranty does not
cover improper or unauthorized assembly, alteration,
modification or any other damage resulting from
misuse or neglect.
Normal maintenance parts - this warranty does not
cover spark plugs, air filters, adjustments, or other
related service due to obstructions and other build
ups resulting from improper maintenance.
Additional exclusions - this warranty does not cover
wearable parts such as filers, spark plugs, o-rings,
batteries etc. It does not cover any cosmetic defects
such as scratches to paint, decals etc. It does not
cover any damage resulting from use of non-original
manufacturer’s parts, use of aftermarket parts. It
does not cover any failures due to acts of God and
A-iPower Customer Service Dept will assist with all
product related questions and will help troubleshoot
issues and will send any replacement parts as
necessary while product is within the warranty period
at no charge. If the issue cannot be resolved then
A-iPower Customer Service Dept at its discretion
determine and authorize diagnosis and repair through
one of its authorized Service Centers. A-iPower Corp
at its discretion may choose to provide replace of
part, component, or product.
Service or replacement of parts at any unauthorized
repair facility without prior authorization will not be
covered by this warranty.
“Consumer Use” - residential household use by a
retail consumer
“Commercial Use” - all other use - commercial ,
business, industrial, or rental purpose
Thank you for choosing A-iPower products. To
ensure proper registration of your product warranty,
please submit your warranty registration along with
proof of purchase within 10 days of the date of
purchase, this can be done by
a) Completing the Warranty Registration form at the
back of this manual and mailing to:
A-IPOWER CORP
10887 COMMERCE WAY UNIT A
FONTANA CA 92337 USA
b) Visit us at www.a-ipower.com and click the
product registration icon
WARRANTY
Page 32
other force majeure events beyond the control of the
manufacturer.
Warranty limits and Implications and
Consequential Damages
A-iPower is not obligated to cover any loss of time,
use of product, freight cost, or any other incidental
or consequential claim from the use of this product.
This warranty is in Lieu of all other warranties,
express or implied.
This warranty gives you specific legal rights which
vary from state to state.
MERCHANDISE RETURN GUIDELINES
• All products must be returned in original or
equivalent packaging. Improperly packaged returns
will not be accepted.
• Must have adequate packing for transportation.
• Federal Law requires that all machines that utilize
gasoline, oil, or other flammable liquids must be
drained Completely & Thoroughly prior to shipment.
• Gas caps and oil plugs must be left off for 24
hours prior to shipping. Please note: liability for this
violation of the law resides with the sender of the
shipment.
• Return to address provided in return authorization,
using the parcel service required. Units returned
without authorization will not be honored.
• Please Note: Refunds will not be granted for items
that have been modified or damaged by abuse or
usage not in accordance with product instructions.
%&$'($()*+,*-!../*01,
23&$45*67786668.7-6
9:;;&<'=(8#;&>4<?@&"
>>>?(8#;&>4<?@&"
!"#$%&'()&!((!*+,)('-./+(!+.%*)0%(1
A4B#9'4<*C&:<*;<&D:@'*EC*4"(#F#$B*'3#9*G&<"*'&*9:;;&<'=(8#;&>4<?@&"*&<*<4B#9'4<*&$8F#$4*('5*
>>>?(8#;&>4<?@&"?
A4B#9'4<#$B*C&:<*;<&D:@'*#9*#";&<'($'*)*#'*;<&H#D49*'34*G&FF&>#$B*;<&'4@'#&$95
I? J&:*3(H4*<4@&<D*&G*;<&D:@'*;:<@3(94D
!? +:9'&"4<*14<H#@4*@($*K4''4<*94<H4*C&:*G&<*L(<<($'C*<4F('4D*#99:49
.?
I?MNO*2APQ0+M L,1*20A+N,1OQ*%PA5* ,? *A49#D4$'#(F*@F4($#$B
K? P'34<* RRRRRRRRRRRRRRRRRRRR
!?MNS1*2APQ0+M*S1 ,5*T94F4@'*&$4U
,? %#<9'*'#"4*;:<@3(94 K? A4;F(@4"4$'
.?NPL*QSQ JP0*%SA1M*VO,AW*P% MNS1*2APQ0+M5*T94F4@'*&$4U
F#(X'@4<#Q?Y&#D(A?,
<&E3B#4WZ4H#'(F4AZD$4#<%"&<%?NC(F;9#Q4<&'1?K
'4$<4'$S?S<&'@(<'$&+?+
RRRRRRRRRRRRRRRRRRRR<43'P?[>&314D(<M?Q
FF('('&WCF'4F;"&+ONMOM,AO1,OV2?\
%PVVPLSWY5
7 \ . ! I
2<&D:@'*](F:4*G&<*2<#@4*2(#D*
24<G&<"($@4**
%4(':<49**
2<&D:@' ,;;4(<($@4**
L(<<($'C**
O(94*&G*X(#$'4$($@4**
W^*V4H4F*
7*?*NPL*VS^OVJ ,AO JP0 MP*AO+PXXOWQ ,8#2PLOA MP*%,XSVJ*PA*%ASOWQ1_
O`'<4"4FC W&' V#a4FC
V#a4FC (' (FF
7 \ .* ! I
2<#H(@C*1'('4"4$'5*,8#;&>4<*#9*@&""#''4D*'&*<49;4@'#$B*C&:<*;<#H(@C*($D*'&*@&";FC#$B*>#'3*
'34*<4B:F('#&$9*<4B(<D#$B*'34*;<&'4@'#&$*&G*;4<9&$(F*D('(? M34*9:<H4C*D('(*>4*@&FF4@'*#9*G&<*
'34*;:<;&949*&G*"(<a4'#$B*&<*;<&D:@'*9:;;&<'*($D*D4"&B<(;3#@*#$G&<"('#&$*(E&:'*'34*4$'#<4*
(:D#4$@4*<4B#9'4<#$B*'34#<*;<&D:@'9?
-./01'23$4,513'60+1,7
W("45** RRRRRRRRRRRRRRRRRRRRRRRRR
23&$45* RRRRRRRRRRRRRRRRRRRRRRRRR
O8"(#F5* RRRRRRRRRRRRRRRRRRRRRRRRR
,DD<4995* RRRRRRRRRRRRRRRRRRRRRRR
+#'C)*1'('45* RRRRRRRRRRRRRRRRRRRRRR
b#;*@&D45* RRRRRRRRRRRRRRRRRRRRRRR
2:<@3(94*Q('45* RRRRRRRRRRRRRRRRRR
8319.:0$4,513'60+1,7
14<#(F*c
X&D4F*c
M34*94<#(F*W&?*@($*E4*G&:$D*&$*'34*4$B#$4?*
2VO,1O*WPMO5 J&:<*;<&D:@'*@($$&'*E4*
<4B#9'4<4D*>#'3&:'*"&D4F*d*94<#(F*$:"E4<9?
%&$'($()*+,*-!../*01,
23&$45*67786668.7-6
9:;;&<'=(8#;&>4<?@&"
>>>?(8#;&>4<?@&"
