DIGITAL MULTIFUNCTIONAL
SYSTEM MX-B467F
User's Guide
November 2020
Machine type(s):
7017
Models:
679 and its equivalent models
Contents
Safety information........................................................................................ 6
Conventions.......................................................................................................................................................... 6
Product statements............................................................................................................................................. 6
Learning about the printer...........................................................................9
Selecting a location for the printer..................................................................................................................9
Printer configurations........................................................................................................................................10
Attaching cables.................................................................................................................................................. 11
Using the control panel.....................................................................................................................................13
Understanding the status of the power button and indicator light....................................................... 13
Using the home screen.....................................................................................................................................14
Printing the Menu Settings Page....................................................................................................................14
Printing the Network Setup Page...................................................................................................................15
Setting up and using the home screen applications..............................16
Customizing the home screen........................................................................................................................16
Setting up Card Copy........................................................................................................................................16
Using Shortcut Center.......................................................................................................................................16
Using Display Customization...........................................................................................................................17
Setting up Scan Center.....................................................................................................................................17
Managing contacts.............................................................................................................................................18
Loading paper and specialty media.........................................................20
Setting the paper size and type.................................................................................................................... 20
Configuring Universal paper settings.......................................................................................................... 20
Loading trays......................................................................................................................................................20
Loading the multipurpose feeder................................................................................................................. 22
Linking trays........................................................................................................................................................23
Supported paper.........................................................................................24
Supported paper sizes.....................................................................................................................................24
Supported paper types....................................................................................................................................26
Supported paper weights................................................................................................................................27
Contents 2
Printing.........................................................................................................28
Printing from a computer.................................................................................................................................28
Printing from a mobile device........................................................................................................................ 28
Printing from a flash drive............................................................................................................................... 29
Supported flash drives and file types.......................................................................................................... 30
Configuring confidential jobs.......................................................................................................................... 31
Printing confidential and other held jobs..................................................................................................... 31
Printing a font sample list................................................................................................................................ 32
Canceling a print job........................................................................................................................................ 32
Copying........................................................................................................33
Making copies.................................................................................................................................................... 33
Copying photos..................................................................................................................................................33
Copying on letterhead..................................................................................................................................... 33
Copying on both sides of the paper (two‑sided).......................................................................................33
Reducing or enlarging copies........................................................................................................................ 34
Collating copies................................................................................................................................................. 34
Placing separator sheets between copies................................................................................................. 34
Copying multiple pages onto a single sheet..............................................................................................34
Creating a copy shortcut................................................................................................................................. 34
E-mailing...................................................................................................... 35
Configuring the e‑mail server settings........................................................................................................ 35
Sending an e-mail..............................................................................................................................................35
Creating an e-mail shortcut............................................................................................................................ 36
Faxing........................................................................................................... 37
Setting up the printer to fax............................................................................................................................ 37
Sending a fax......................................................................................................................................................43
Scheduling a fax................................................................................................................................................ 44
Creating a fax destination shortcut...............................................................................................................44
Changing the fax resolution........................................................................................................................... 44
Adjusting the fax darkness............................................................................................................................. 44
Printing a fax log................................................................................................................................................45
Blocking junk faxes...........................................................................................................................................45
Holding faxes......................................................................................................................................................45
Contents 3
Forwarding a fax................................................................................................................................................45
Scanning...................................................................................................... 46
Scanning to a computer.................................................................................................................................. 46
Creating an FTP shortcut.................................................................................................................................46
Scanning to an FTP server.............................................................................................................................. 47
Scanning to a flash drive................................................................................................................................. 47
Understanding the printer menus............................................................49
Menu map............................................................................................................................................................49
Device.................................................................................................................................................................. 50
Print.......................................................................................................................................................................62
Paper.....................................................................................................................................................................70
Copy......................................................................................................................................................................73
Fax......................................................................................................................................................................... 76
E-mail....................................................................................................................................................................80
FTP........................................................................................................................................................................ 86
Network/Ports.................................................................................................................................................... 90
USB Drive...........................................................................................................................................................102
Security...............................................................................................................................................................108
Reports.................................................................................................................................................................116
Help.......................................................................................................................................................................117
Troubleshooting.................................................................................................................................................117
Securing the printer...................................................................................119
Locating the security slot................................................................................................................................119
Erasing printer memory...................................................................................................................................119
Erasing printer hard disk memory................................................................................................................ 119
Encrypting the printer hard disk.................................................................................................................. 120
Restoring factory default settings................................................................................................................120
Statement of Volatility.....................................................................................................................................120
Maintaining the printer.............................................................................122
Adjusting the speaker volume..................................................................................................................... 122
Networking........................................................................................................................................................122
Cleaning printer parts..................................................................................................................................... 124
Ordering parts and supplies......................................................................................................................... 128
Contents 4
Replacing parts and supplies....................................................................................................................... 129
Moving the printer........................................................................................................................................... 139
Saving energy and paper.............................................................................................................................. 140
Clearing jams.............................................................................................142
Avoiding jams....................................................................................................................................................142
Identifying jam locations................................................................................................................................ 143
Paper jam in door A.........................................................................................................................................144
Paper jam in the rear door.............................................................................................................................148
Paper jam in the standard bin.......................................................................................................................149
Paper jam in the duplex unit......................................................................................................................... 149
Paper jam in trays............................................................................................................................................ 150
Paper jam in the multipurpose feeder.........................................................................................................151
Paper jam in the automatic document feeder..........................................................................................152
Troubleshooting........................................................................................ 154
Network connection problems.....................................................................................................................154
Issues with supplies........................................................................................................................................ 156
Paper feed problems...................................................................................................................................... 156
Printing problems.............................................................................................................................................159
Faxing problems.............................................................................................................................................. 180
Scanning problems..........................................................................................................................................183
Contacting your dealer...................................................................................................................................187
Upgrading and migrating.........................................................................188
Hardware............................................................................................................................................................188
Software............................................................................................................................................................200
Firmware............................................................................................................................................................ 201
Notices.......................................................................................................203
Index........................................................................................................... 214
Contents 5
Safety information
Conventions
Note: A note identifies information that could help you.
Warning: A warning identifies something that could damage the product hardware or software.
CAUTION: A caution indicates a potentially hazardous situation that could injure you.
Dierent types of caution statements include:
CAUTION—POTENTIAL INJURY: Indicates a risk of injury.
CAUTION—SHOCK HAZARD: Indicates a risk of electrical shock.
CAUTION—HOT SURFACE: Indicates a risk of burn if touched.
CAUTION—TIPPING HAZARD: Indicates a crush hazard.
CAUTION—PINCH HAZARD: Indicates a risk of being caught between moving parts.
Product statements
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord to
an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, use only the power cord
provided with this product or the manufacturer's authorized replacement.
CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips,
multioutlet extenders, or UPS devices. The power capacity of these types of accessories can be easily
overloaded by a laser printer and may result in a risk of fire, property damage, or poor printer
performance.
CAUTION—POTENTIAL INJURY: Do not use this product with an inline surge protector. The use of a
surge protection device may result in a risk of fire, property damage, or poor printer performance.
CAUTION—POTENTIAL INJURY: To reduce the risk of fire, use only a 26 AWG or larger
telecommunications (RJ-11) cord when connecting this product to the public switched telephone
network. For users in Australia, the cord must be approved by the Australian Communications and Media
Authority.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not place or use this product near
water or wet locations.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not set up this product or make
any electrical or cabling connections, such as the power cord, fax feature, or telephone, during a
lightning storm.
Safety information 6
CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power
cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects
such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect
the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet
before inspecting it.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, make sure that all external
connections (such as Ethernet and telephone system connections) are properly installed in their marked
plug-in ports.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, if you are accessing the controller
board or installing optional hardware or memory devices sometime after setting up the printer, then turn
the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any
other devices attached to the printer, then turn them o as well, and unplug any cables going into the
printer.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not use the fax feature during a
lightning storm.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the
printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before
proceeding.
CAUTION—POTENTIAL INJURY: If the printer weight is greater than 20 kg (44 lb), then it may require
two or more people to lift it safely.
CAUTION—POTENTIAL INJURY: When moving the printer, follow these guidelines to avoid personal
injury or printer damage:
• Make sure that all doors and trays are closed.
• Turn o the printer, and then unplug the power cord from the electrical outlet.
• Disconnect all cords and cables from the printer.
• If the printer has separate floor-standing optional trays or output options attached to it, then disconnect
them before moving the printer.
• If the printer has a caster base, then carefully roll it to the new location. Use caution when passing over
thresholds and breaks in
flooring.
• If the printer does not have a caster base but is configured with optional trays or output options, then remove
the output options and lift the printer
o
the trays. Do not try to lift the printer and any options at the same
time.
• Always use the handholds on the printer to lift it.
• Any cart used to move the printer must have a surface able to support the full footprint of the printer.
• Any cart used to move the hardware options must have a surface able to support the dimensions of the
options.
• Keep the printer in an upright position.
• Avoid severe jarring movements.
• Make sure that your fingers are not under the printer when you set it down.
• Make sure that there is adequate clearance around the printer.
CAUTION—TIPPING HAZARD: Installing one or more options on your printer or MFP may require a
caster base, furniture, or other feature to prevent instability causing possible injury. For more information
on supported configurations, contact the place where you purchased the printer.
Safety information 7
CAUTION—TIPPING HAZARD: To reduce the risk of equipment instability, load each tray separately.
Keep all other trays closed until needed.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
CAUTION—PINCH HAZARD: To avoid the risk of a pinch injury, use caution in areas marked with this
label. Pinch injuries may occur around moving parts, such as gears, doors, trays, and covers.
CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or
performance of procedures other than those specified in the User’s Guide may result in hazardous
radiation exposure.
CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced.
There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble,
or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions
and local regulations.
This product is designed, tested, and approved to meet strict global safety standards with the use of specific
manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer
is not responsible for the use of other replacement parts.
Refer service or repairs, other than those described in the user documentation, to a service representative.
This product uses a printing process that heats the print media, and the heat may cause the media to release
emissions. You must understand the section in your operating instructions that discusses the guidelines for
selecting print media to avoid the possibility of harmful emissions.
This product may produce small amounts of ozone during normal operation, and may be equipped with a filter
designed to limit ozone concentrations to levels well below the recommended exposure limits. To avoid high
ozone concentration levels during extensive usage, install this product in a well-ventilated area and replace
the ozone and exhaust filters if instructed to do so in the product maintenance instructions. If there are no
references to filters in the product maintenance instructions, then there are no filters requiring replacement for
this product.
SAVE THESE INSTRUCTIONS.
Safety information 8
Learning about the printer
Selecting a location for the printer
• Leave enough room to open trays, covers, and doors and to install hardware options.
• Set up the printer near an electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of
fire
or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not place or use this product
near water or wet locations.
• Make sure that airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical
Committee 156 standard.
• Provide a
flat,
sturdy, and stable surface.
• Keep the printer:
– Clean, dry, and free of dust
– Away from stray staples and paper clips
– Away from the direct airflow of air conditioners, heaters, or ventilators
– Free from direct sunlight and humidity extremes
• Observe the recommended temperatures and avoid fluctuations.
Ambient temperature 10 to 32°C (50 to 90°F)
Storage temperature 0 to 40°C (32 to 104°F)
• Allow the following recommended amount of space around the printer for proper ventilation:
Learning about the printer 9

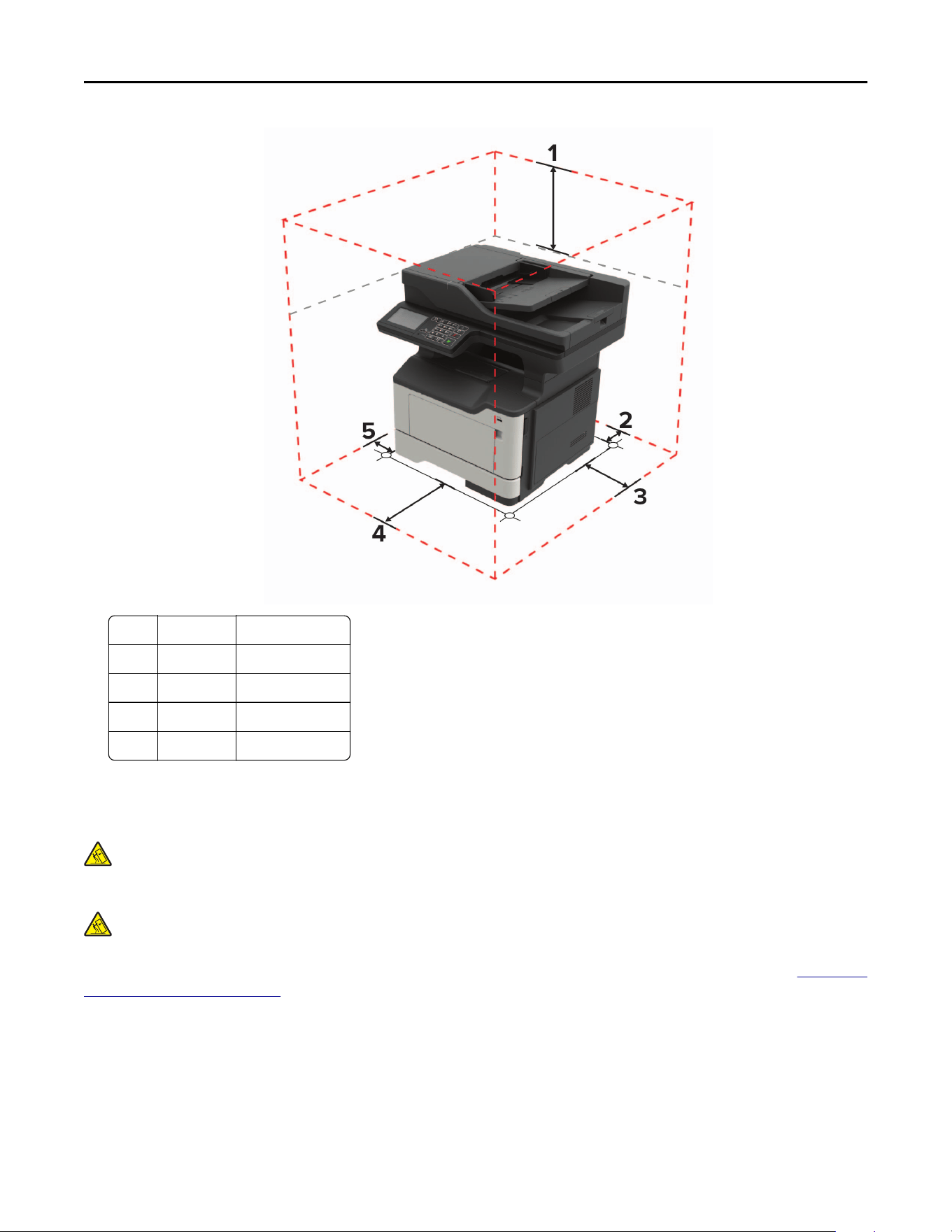

1 Top 73 7 m m (2 9 i n.)
2 Rear 203 mm (8 in.)
3 Right side 305 mm (12 in.)
4 Front 510 mm (20 in.)
5 Left side 203 mm (8 in.)
Printer configurations
CAUTION—TIPPING HAZARD: Installing one or more options on your printer or MFP may require a
caster base, furniture, or other feature to prevent instability causing possible injury. For more information
on supported configurations, contact the place where you purchased the printer.
CAUTION—TIPPING HAZARD: To reduce the risk of equipment instability, load each tray separately.
Keep all other trays closed until needed.
You can configure your printer by adding optional 250‑ or 550‑sheet trays. For more information, see
“Installing
optional trays” on page 199.
Learning about the printer 10

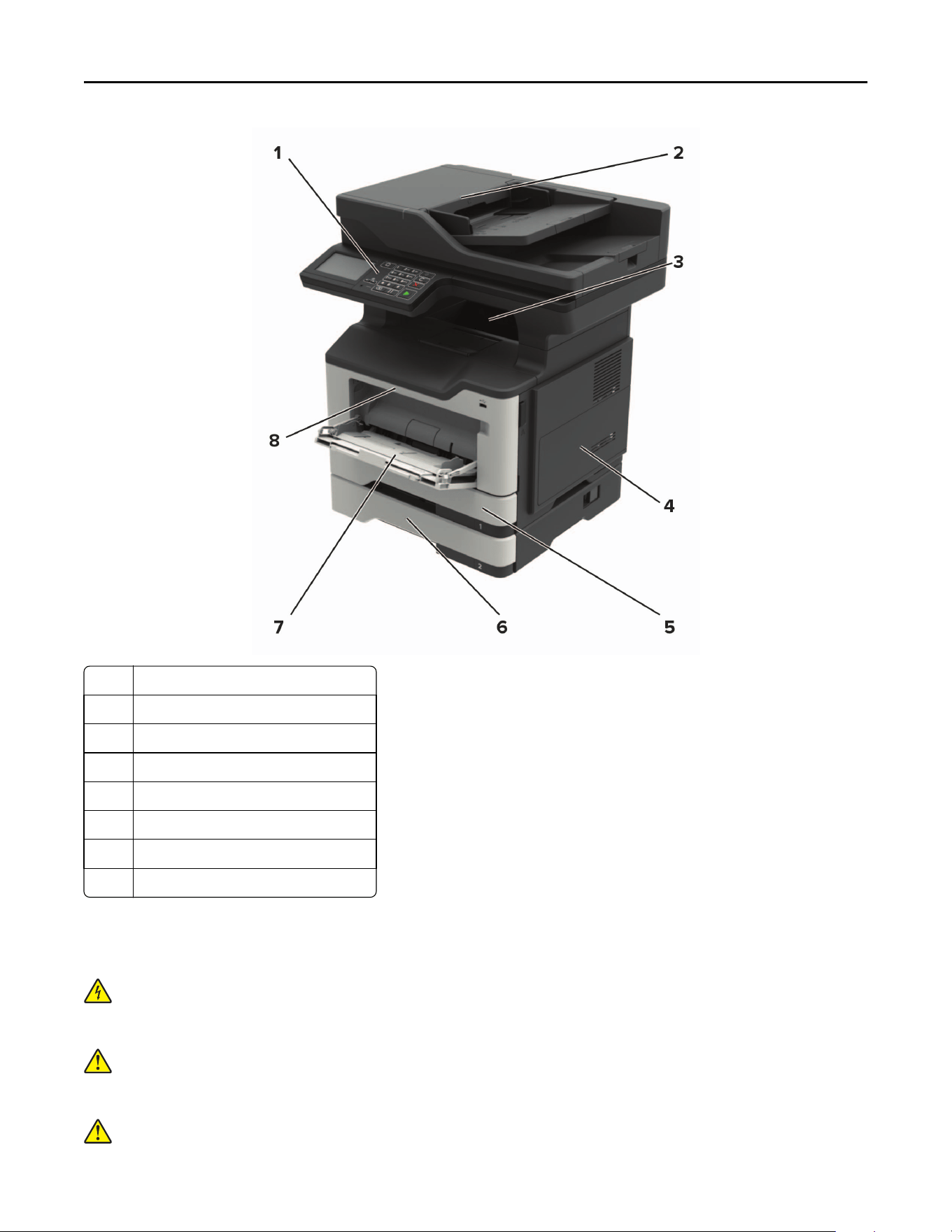

1 Control panel
2 Automatic document feeder (ADF)
3 Standard bin
4 Controller board access cover
5 Standard 250‑sheet tray
6 Optional 250‑ or 550‑sheet tray
7 Multipurpose feeder
8 Door A

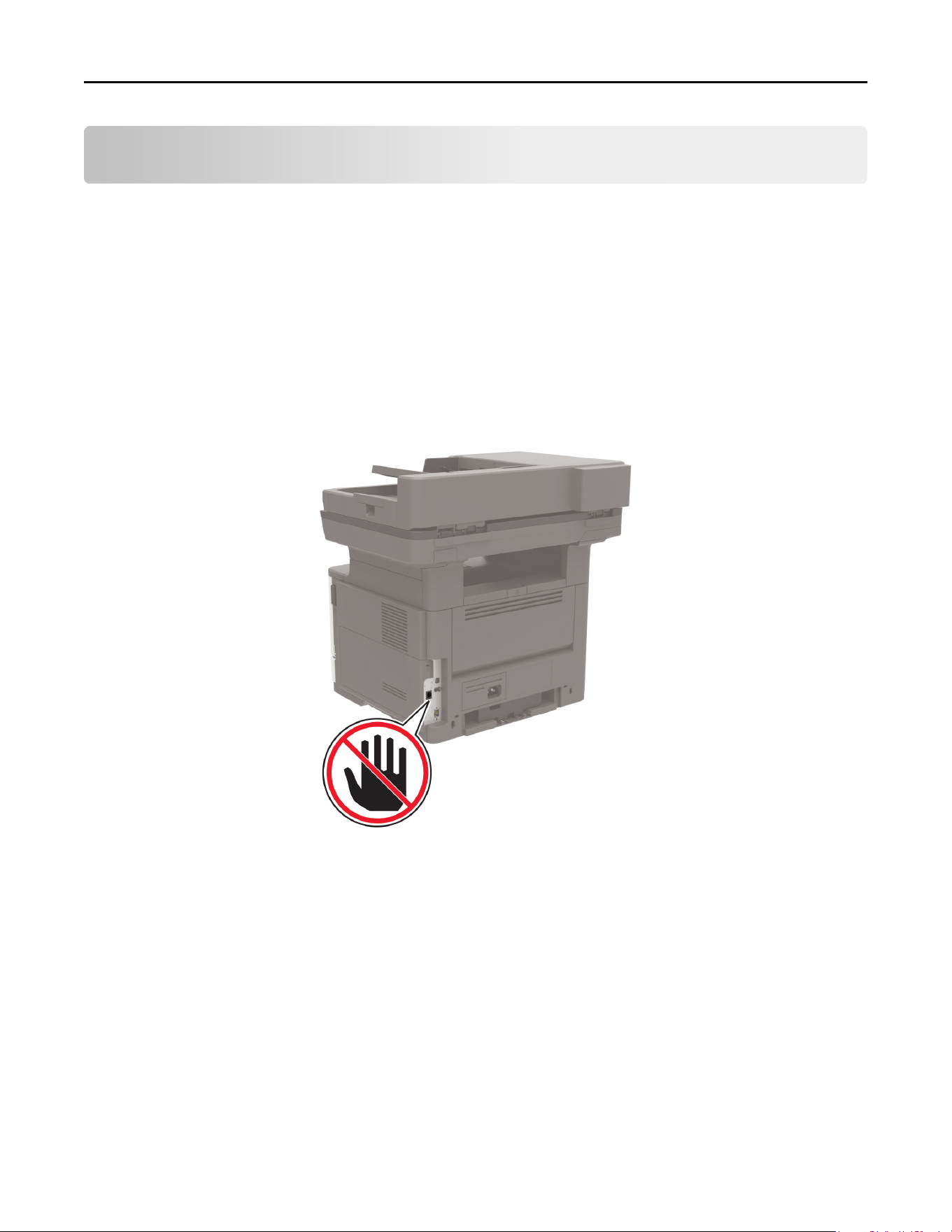

Attaching cables
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not set up this product or make
any electrical or cabling connections, such as the power cord, fax feature, or telephone, during a
lightning storm.
CAUTION—POTENTIAL INJURY: To avoid the risk of
fire
or electrical shock, connect the power cord to
an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, use only the power cord
provided with this product or the manufacturer's authorized replacement.
Learning about the printer 11
CAUTION—POTENTIAL INJURY: To reduce the risk of fire, use only a 26 AWG or larger
telecommunications (RJ-11) cord when connecting this product to the public switched telephone
network. For users in Australia, the cord must be approved by the Australian Communications and Media
Authority.
Warning—Potential Damage: To avoid loss of data or printer malfunction, do not touch the USB cable, any
wireless network adapter, or the printer in the areas shown while actively printing.

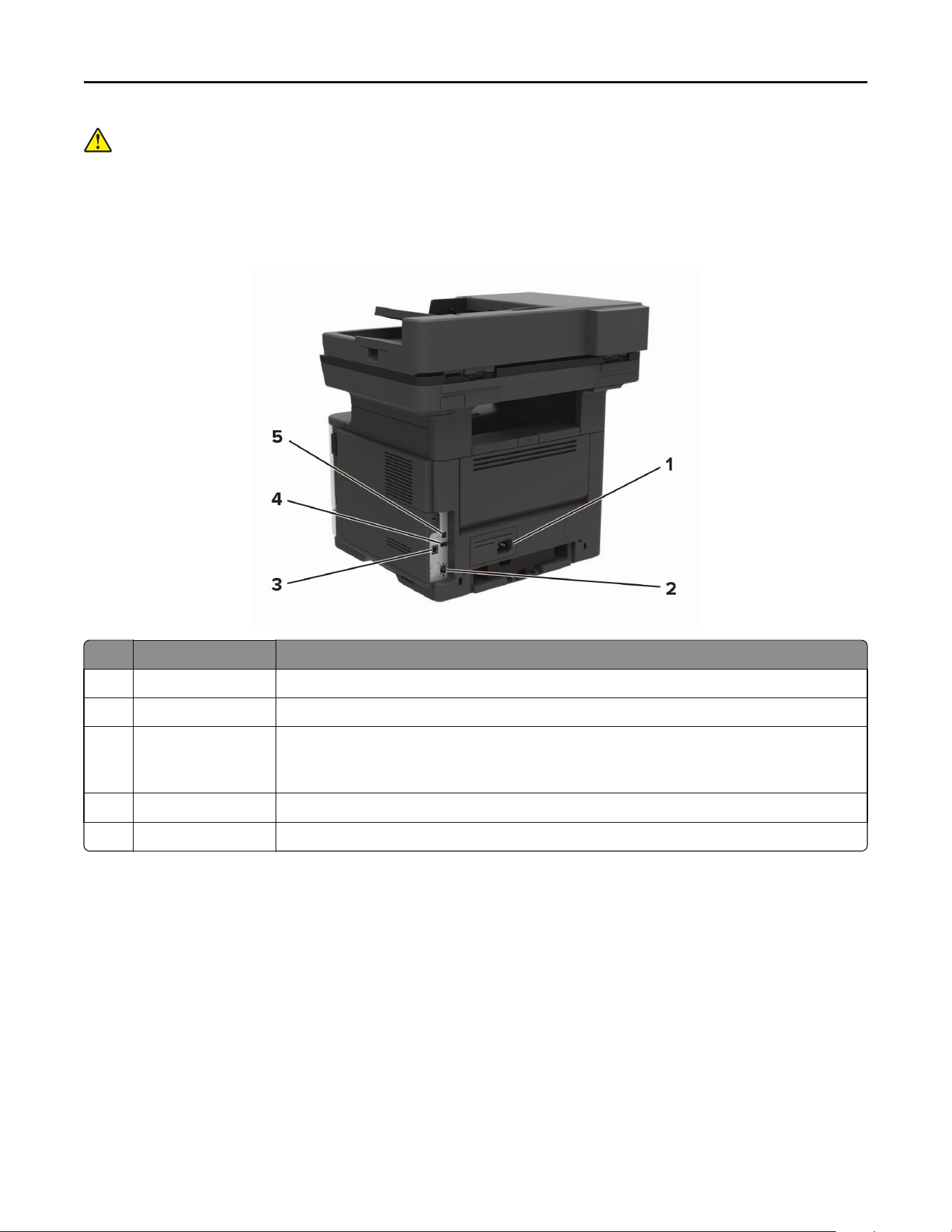

Use the To
1 Power cord socket Connect the printer to an electrical outlet.
2 Ethernet port Connect the printer to an Ethernet network.
3 LINE port Connect the printer to an active telephone line through a standard wall jack (RJ‑11), DSL
filter, or VoIP adapter, or any other adapter that allows you to access the telephone line
to send and receive faxes.
4 USB port (678 only) Attach a keyboard or any compatible option.
5 USB printer port Connect the printer to a computer.
Learning about the printer 12
Using the control panel

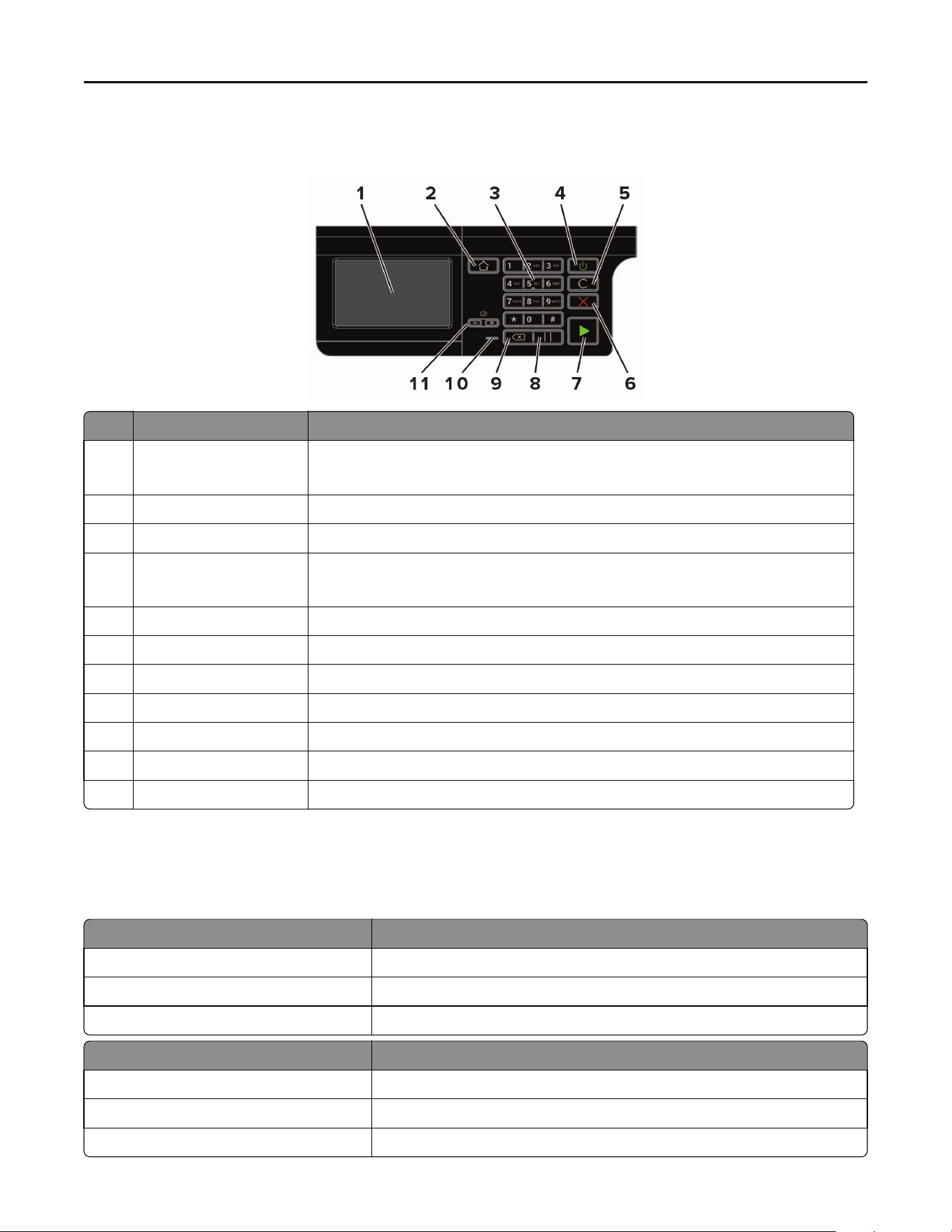

Use the To
1 Display
• View the printer messages and supply status.
• Set up and operate the printer.
2 Home button Go to the home screen.
3 Numeric keypad Enter numbers or symbols in an input field.
4 Power button Turn on or turn o the printer.
Note: To tu r n
o
the printer, press and hold the power button for
five
seconds.
5 Clear all or Reset button Reset the default settings of a function such as copying, faxing, or scanning.
6 Stop or Cancel button Stop the current printer task.
7 Start button Start a printer task, depending on which mode is selected.
8 Pause button Place a dial pause in a fax number.
9 Backspace button Move the cursor backward and delete a character in an input field.
10 Indicator light Check the printer status.
11 Volume buttons Adjust the speaker volume.
Understanding the status of the power button and
indicator light
Indicator light Printer status
O The printer is o or in Hibernate mode.
Blue The printer is ready or processing data.
Red The printer requires user intervention.
Power button light Printer status
O The printer is o, ready, or processing data.
Solid amber The printer is in sleep mode.
Blinking amber The printer is in hibernate mode.
Learning about the printer 13

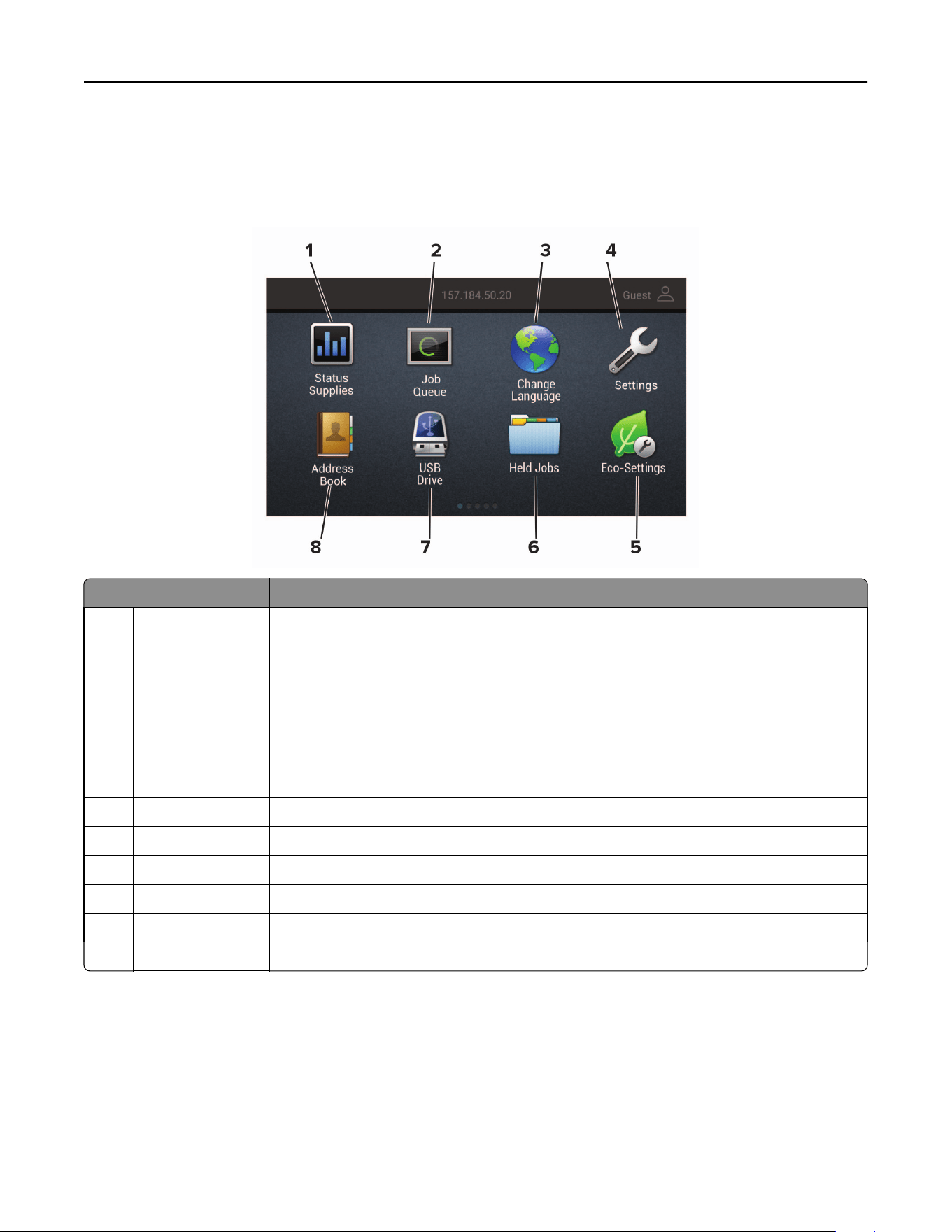

Using the home screen
Note: Your home screen may vary depending on your home screen customization settings, administrative
setup, and active embedded solutions.
Touch To
1 Status/Supplies
• Show a warning or error message whenever the printer requires intervention to
continue processing.
• View more information on the printer warning or message, and on how to clear it.
Note: You can also access this setting by touching the top section of the home
screen.
2 Job Queue Show all the current print jobs.
Note: You can also access this setting by touching the top section of the home
screen.
3 Change Language Change the language on the display.
4 Settings Access the printer menus.
5 Eco‑Settings Manage energy consumption, noise, toner, and paper usage settings.
6 Held Jobs Show the print jobs that are held in the printer memory.
7 USB Drive Print photos and documents from a flash drive.
8 Address Book Manage a contact list that other applications on the printer can access.
Printing the Menu Settings Page
From the home screen, touch Settings > Reports > Menu Settings Page.
Learning about the printer 14
Printing the Network Setup Page
From the home screen, touch Settings > Reports > Network > Network Setup Page.
Learning about the printer 15
Setting up and using the home screen
applications
Customizing the home screen
1 From the control panel, touch Settings > Device > Visible Home Screen Icons.
2 Select the icons that you want to appear on the home screen.
3 Apply the changes.
Setting up Card Copy
1 Open a web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Apps > Card Copy > Configure.
Notes:
• Make sure that Display Icon is enabled.
• Make sure that E‑mail Settings and Network Share Settings are configured.
• When scanning a card, make sure that the scan resolution does not exceed 200 dpi for color and
400 dpi for black and white.
• When scanning multiple cards, make sure that the scan resolution does not exceed 150 dpi for color
and 300 dpi for black and white.
3 Apply the changes.
Note: You need a printer hard disk to scan multiple cards.
Using Shortcut Center
1 From the home screen, touch Shortcut Center, and then select a printer function.
2 To uc h Create Shortcut, and then
configure
the settings.
3 Tou ch Save, and then type a unique shortcut name.
4 Apply the changes.
Setting up and using the home screen applications 16
Using Display Customization
Before using the application, make sure to do the following:
• From the Embedded Web Server, click Apps > Display Customization >
Configure
.
• Enable and
configure
the screen saver, slideshow, and wallpaper settings.
Managing screen saver and slide show images
1 From the Screen Saver and Slideshow Images section, add, edit, or delete an image.
Notes:
• You can add up to 10 images.
• When enabled, the status icons appear on the screen saver only when there are errors, warnings, or
cloud‑based notifications.
2 Apply the changes.
Changing the wallpaper image
1 From the home screen, touch Change Wallpaper.
2 Select an image to use.
3 Apply the changes.
Running a slide show from a flash drive

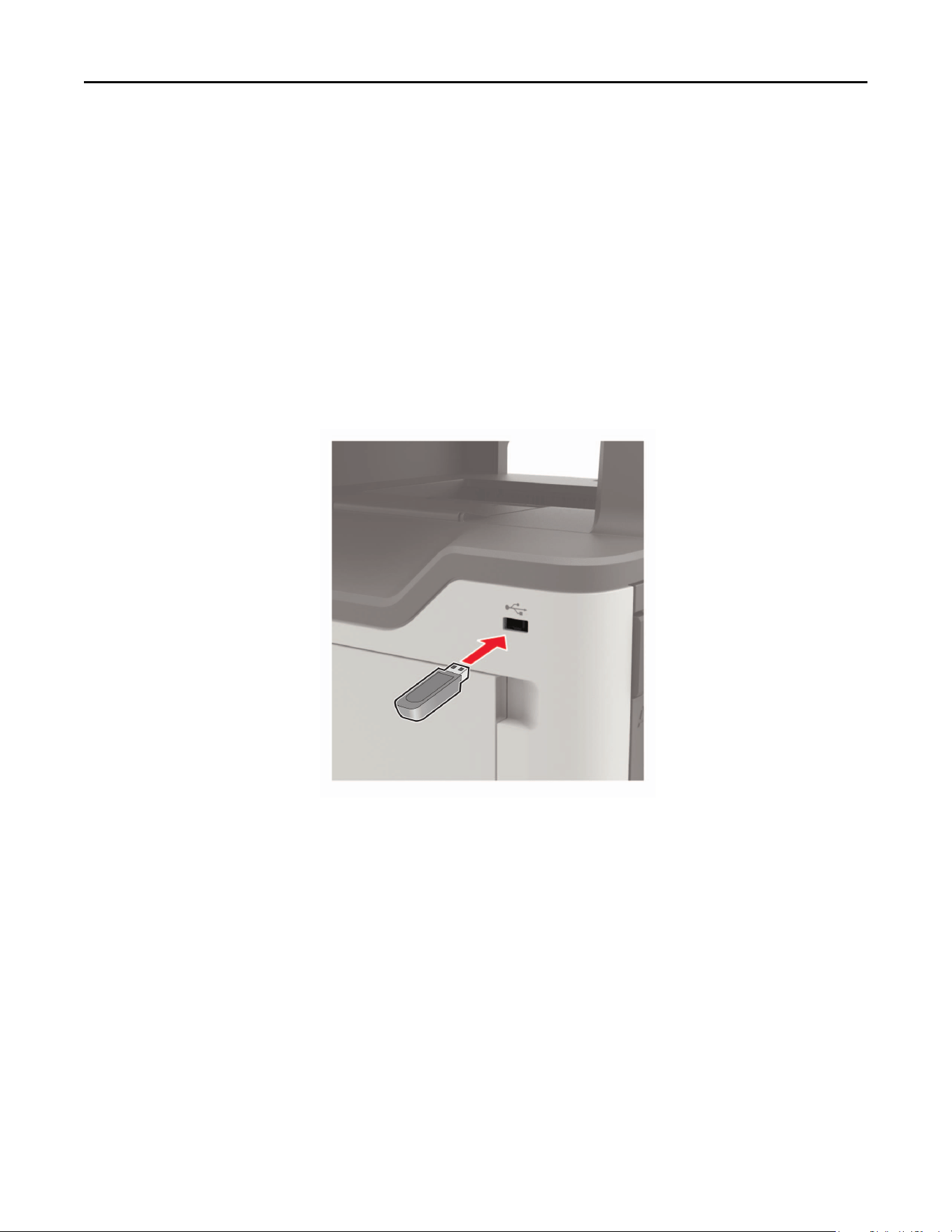

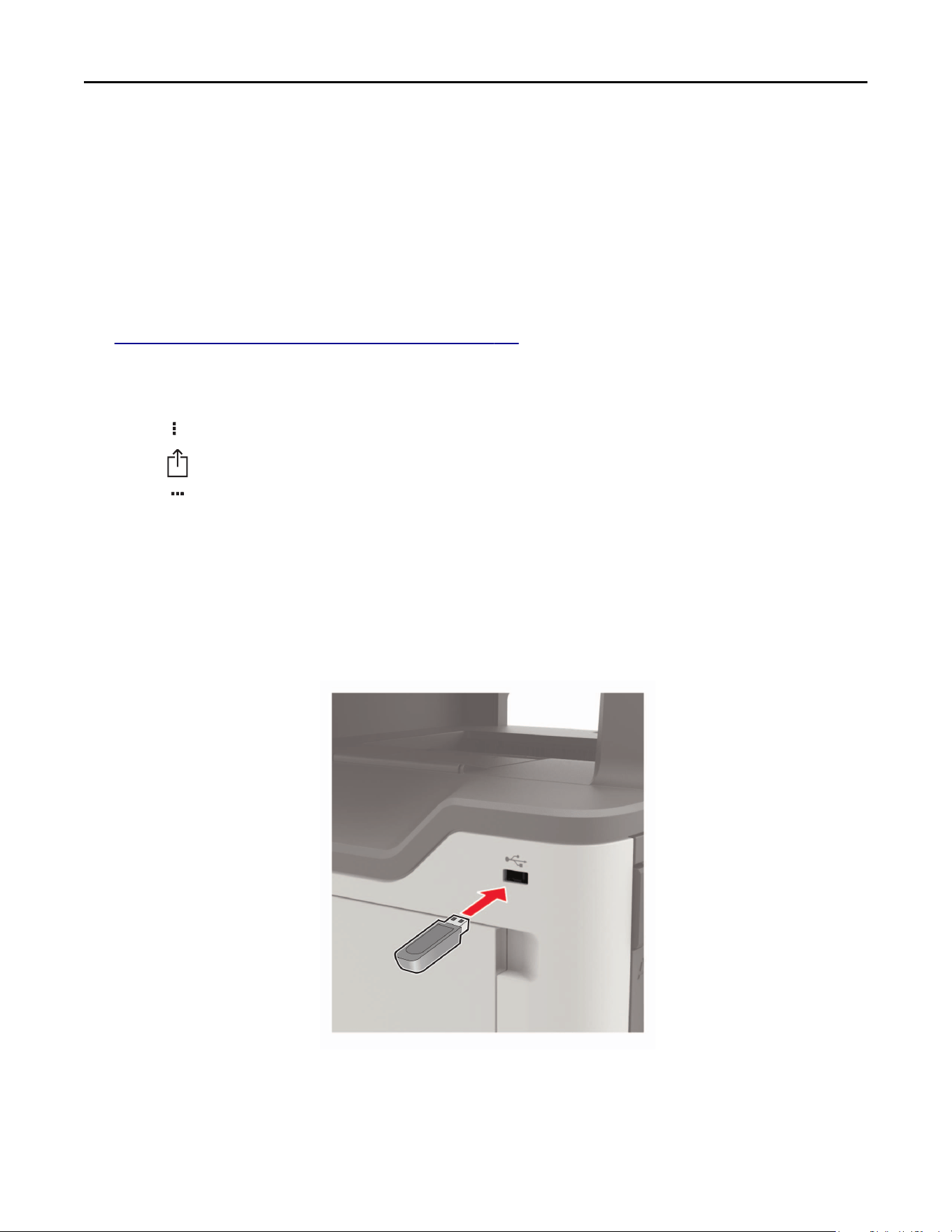

1 Insert a flash drive into the USB port.
2 From the home screen, touch Slideshow.
Images appear in alphabetical order.

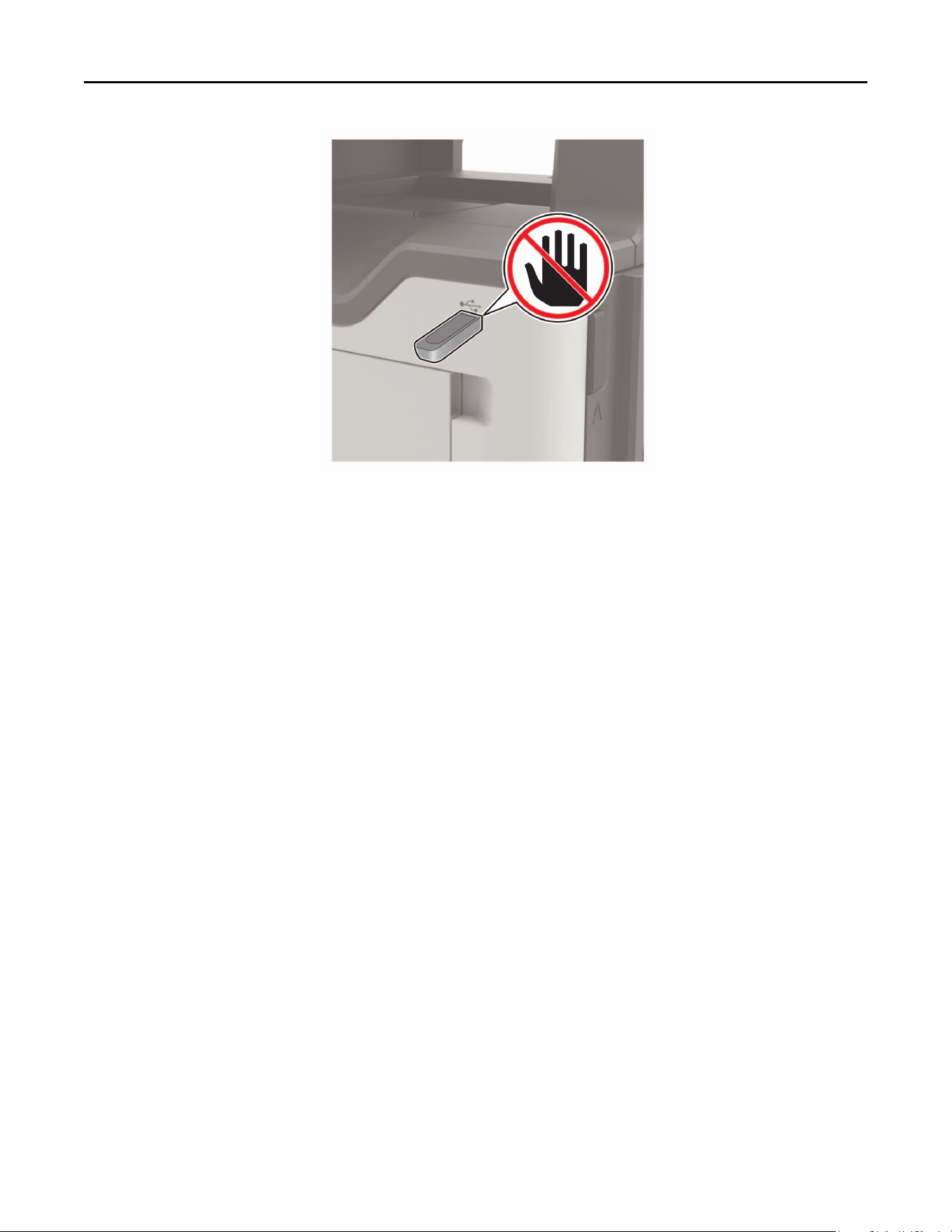

Note: Yo u c a n r e m o v e t h e
flash
drive after the slide show starts, but the images are not stored in the
printer. If the slide show stops, then insert the flash drive again to view the images.
Setting up Scan Center
1 From the home screen, touch Scan Center.
2 Select and create a destination, and then configure the settings.
Notes:
• When creating a network destination, make sure to validate and adjust the settings until no errors
occur.
• Only destinations created from the Embedded Web Server are saved. For more information, see the
documentation that came with the solution.
3 Apply the changes.
Setting up and using the home screen applications 17
Managing contacts
Adding contacts
1 Open a web browser, and then type the printer IP address in the address
field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Address Book.
3 From the Contacts section, add a contact.
Note: You can assign the contact to one or more groups.
4 If necessary, specify a login method to allow application access.
5 Apply the changes.
Adding groups
1 Open a web browser, and then type the printer IP address in the address
field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Address Book.
3 From the Contact Groups section, add a group name.
Note: You can assign one or more contacts to the group.
4 Apply the changes.
Editing contacts or groups
1 Open a web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Address Book.
Setting up and using the home screen applications 18
3 Do either of the following:
• From the Contacts section, click a contact name, and then edit the information.
• From the Contact Groups section, click a group name, and then edit the information.
4 Apply the changes.
Deleting contacts or groups
1 Open a web browser, and then type the printer IP address in the address
field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Address Book.
3 Do either of the following:
• From the Contacts section, select a contact that you want to delete.
• From the Contact Groups section, select a group name that you want to delete.
Setting up and using the home screen applications 19
Loading paper and specialty media
Setting the paper size and type
1 From the home screen, navigate to:
Settings > Paper > Tray
Configuration
> Paper Size/Type > select a paper source
2 Set the paper size and type.
Configuring Universal paper settings
1 From the home screen, touch Settings > Paper > Media Configuration > Universal Setup.
2 Configure the settings.
Loading trays
CAUTION—TIPPING HAZARD: To reduce the risk of equipment instability, load each tray separately.
Keep all other trays closed until needed.

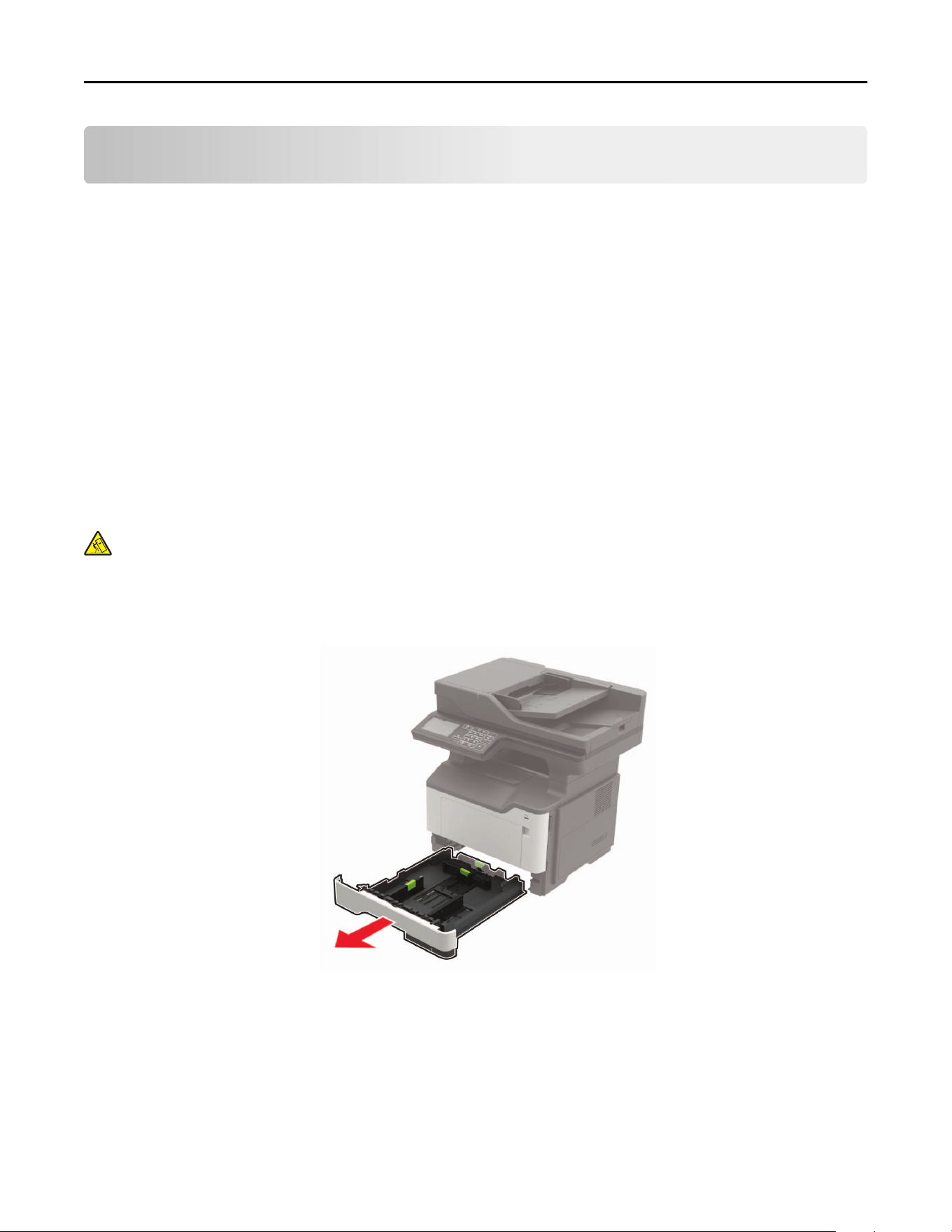

1 Remove the tray.
Note: To avoid paper jams, do not remove trays while the printer is busy.
Loading paper and specialty media 20

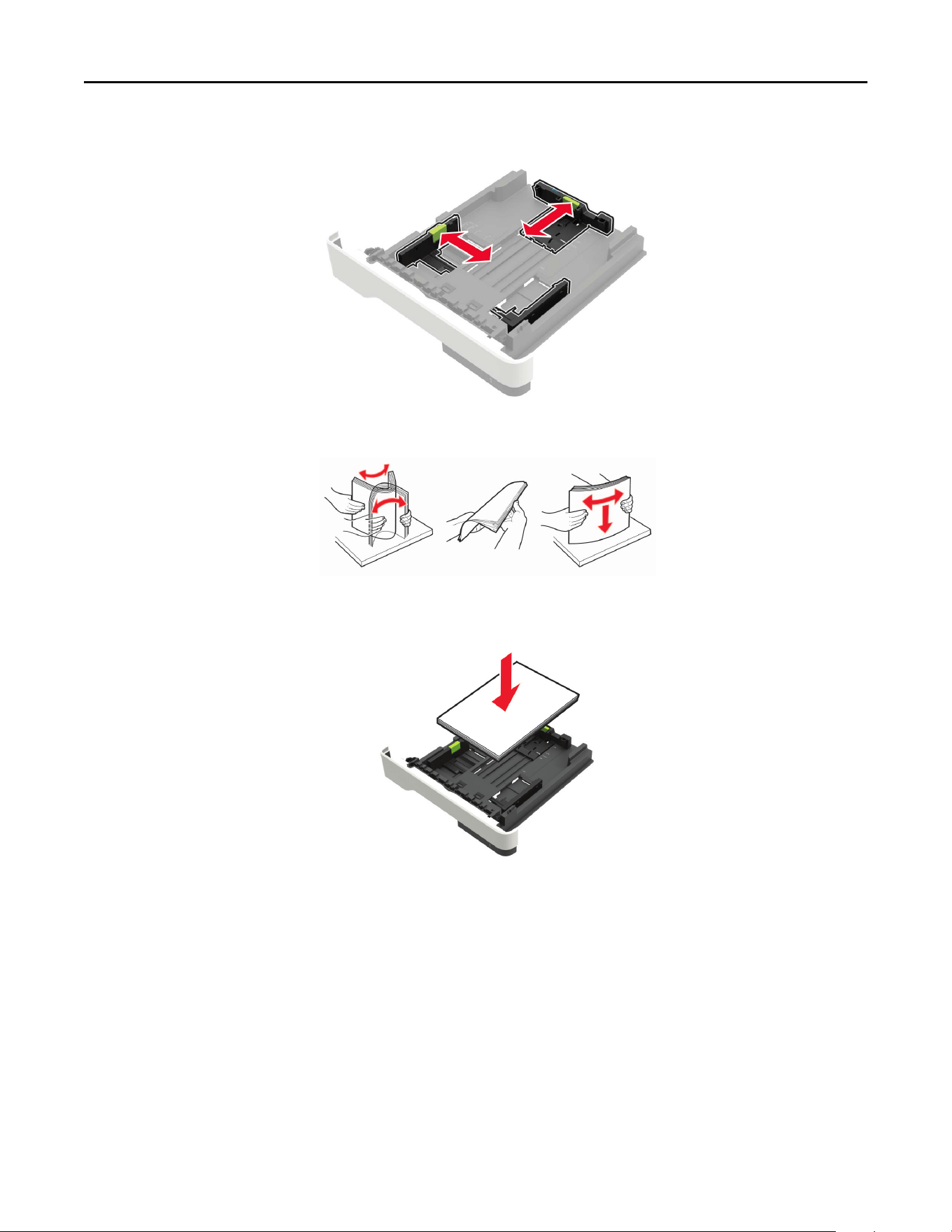

2 Adjust the paper guides to match the size of the paper that you are loading.
3 Flex, fan, and align the paper edges before loading.
4 Load the paper stack with the printable side facedown, and then make sure that the side guides fit snugly
against the paper.
Notes:
• Load letterhead facedown with the top edge of the sheet toward the front of the tray for one‑sided
printing.
• Load letterhead faceup with the bottom edge of the sheet toward the front of the tray for two‑sided
printing.
• Do not slide paper into the tray.
• To avoid paper jams, make sure that the stack height is below the maximum paper fill indicator.
5 Insert the tray.
If necessary, set the paper size and paper type from the control panel to match the paper loaded.
Loading paper and specialty media 21
Loading the multipurpose feeder

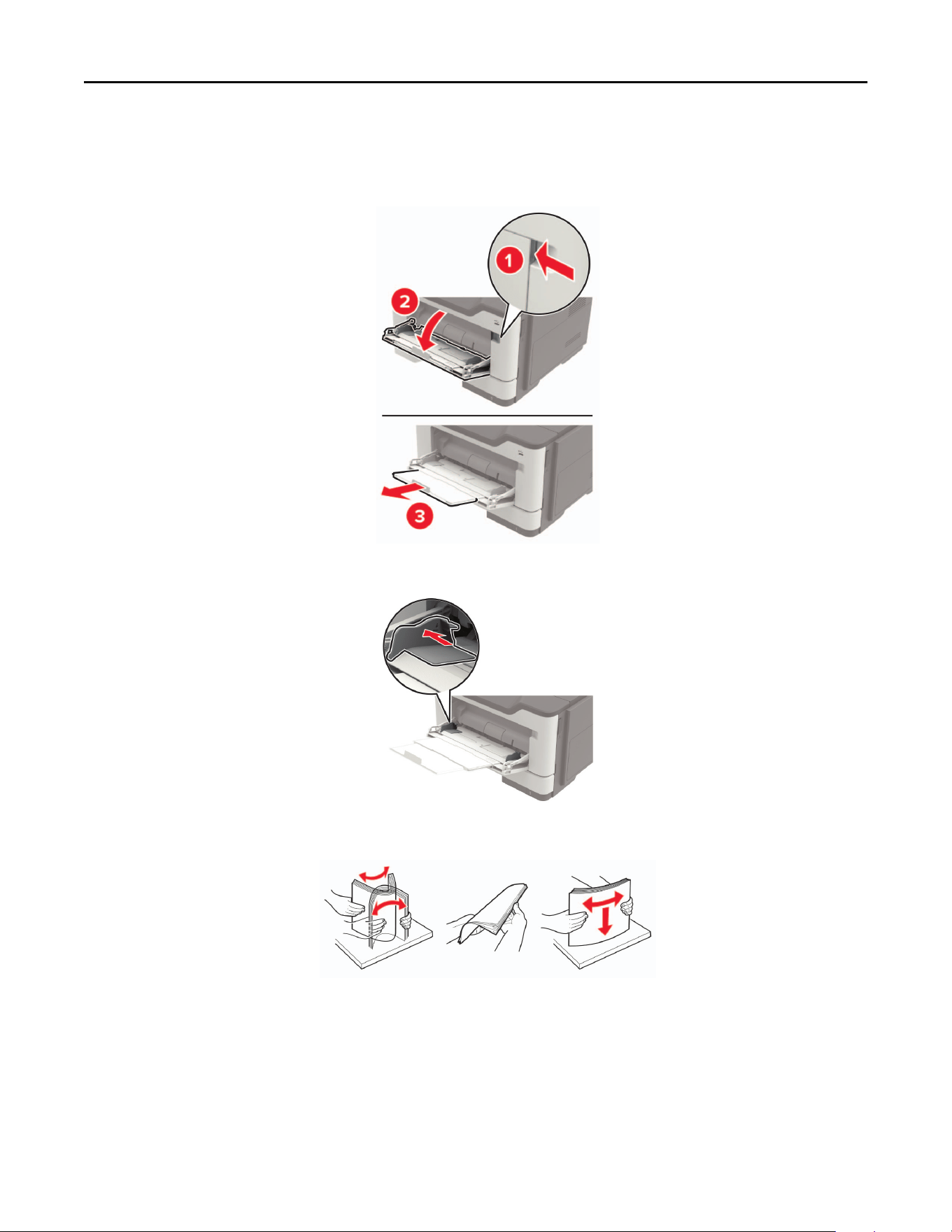

1 Open the multipurpose feeder.
2 Adjust the guide to match the size of the paper that you are loading.
3 Flex, fan, and align the paper edges before loading.
4 Load paper with the printable side faceup.
Notes:
• Load letterhead faceup with the top edge of the sheet toward the front of the tray for one‑sided
printing.
• Load letterhead facedown with the bottom edge of the sheet toward the front of the tray for
two‑sided printing.
Loading paper and specialty media 22
• Load envelopes with the flap facedown on the left side.
• Load European envelopes with the flap facedown and entering the printer first.
Warning—Potential Damage: Do not use envelopes with stamps, clasps, snaps, windows, coated linings,
or self‑stick adhesives.
5 From the control panel, set the paper size and paper type to match the paper loaded.
Linking trays
1 Open a web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Settings > Paper > Tray Configuration.
3 Set the same paper size and paper type for the trays that you are linking.
4 Save the settings.
Note: You can also change the settings from the printer control panel.
To unlink trays, make sure that no trays have the same paper size and paper type settings.
Warning—Potential Damage: The temperature of the fuser varies according to the
specified
paper type. To
avoid printing issues, match the paper type setting in the printer with the paper loaded in the tray.
Loading paper and specialty media 23
Supported paper
Supported paper sizes
Paper size Tray Multipurpose
feeder
Two‑sided
printing
ADF Scanner glass
A4
210 x 297 mm
(8.3 x 11.7 in.)
A5
210 x 148 mm
(5.8 x 8.3 in.)
X
A5 LEF*
148 x 210 mm
(5.8 x 8.3 in.)
X
A6*
105 x 148 mm
(4.1 x 5.8 in.)
X
JIS B5
182 x 257 mm
(7.2 x 10.1 in.)
X
Oficio (Mexico)
216 x 340 mm
(8.5 x 13.4 in.)
Hagaki
100 x 148 mm
(3.9 x 5.8 in.)
X XX
Business card
50.8 x 88.9 mm
(2 x 3.5 in.)
XXXX
Statement
140 x 216 mm
(5.5 x 8.5 in.)
X
Executive
184 x 267 mm
(7.3 x 10.5 in.)
X
Letter
216 x 279 mm
(8.5 x 11 in.)
* This paper size is not supported in the optional tray.
Supported paper 24
Paper size Tray Multipurpose
feeder
Two‑sided
printing
ADF Scanner glass
Legal
216 x 356 mm
(8.5 x 14 in.)
Folio
216 x 330 mm
(8.5 x 13 in.)
Universal*
76.2 x 127 mm to
216 x 356 mm
(3 x 5 in. to 8.5 x 14 in.)
X
XX
Universal*
105 x 148 mm to
216 x 356 mm
(4.13 x 5.83 in. to
8.5 x 14 in.)
XX
Universal
148 x 210 mm to
216 x 356 mm
(5.83 x 8.27 in. to
8.5 x 14 in.)
XXX
7 3/4 Envelope
(Monarch)
98 x 191 mm
(3.9 x 7.5 in.)
X
XX
9 Envelope
98 x 225 mm
(3.9 x 8.9 in.)
X XX
10 Envelope
105 x 241 mm
(4.1 x 9.5 in.)
X XX
DL Envelope
110 x 220 mm
(4.3 x 8.7 in.)
X
XX
C5 Envelope
162 x 229 mm
(6.4 x 9 in.)
X
XX
B5 Envelope
176 x 250 mm
(6.9 x 9.8 in.)
X XX
* This paper size is not supported in the optional tray.
Supported paper 25
Paper size Tray Multipurpose
feeder
Two‑sided
printing
ADF Scanner glass
Other Envelope
76.2 x 127 mm to
216 x 356 mm
( 3 x 5 in. to 8.5 x 14 in.)
X
XX
* This paper size is not supported in the optional tray.
Supported paper types
Paper type Tray Multipurpose
feeder
Two‑sided
printing
ADF Scanner glass
Plain paper
Card stock X XX
Transparency XX
Recycled
Paper labels
1
XX
Bond
2
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
2
Rough/Cotton
Envelope X XX
Rough envelope X XX
1
One‑sided paper labels designed for laser printers are supported for occasional use. It is recommended to print
20 or fewer pages of paper labels per month. Vinyl, pharmacy, and two‑sided labels are not supported.
2
Bond and Heavy Paper are supported in two‑sided printing up to 90‑g/m
2
(24‑lb) paper weight.
Supported paper 26
Supported paper weights
Tray Multipurpose feeder Two‑sided printing ADF
Paper weight
60–120 g/m
2
(16–32 lb)
60–216 g/m
2
(16–58 lb)
60–90 g/m
2
(16–24 lb)
52–120 g/m
2
(14–32 lb)
Supported paper 27
Printing
Printing from a computer
Note: For labels, card stock, and envelopes, set the paper size and paper type in the printer before printing
the document.
1 From the document that you are trying to print, open the Print dialog.
2 If necessary, adjust the settings.
3 Print the document.
Note: For details of the function of the printer driver, refer to the Help of the printer driver.
Printing from a mobile device
Printing from a mobile device using Google Cloud Print
Google Cloud Print
TM
is a printing service that allows you to print to any Google Cloud Print‑ready printer.
Before you begin, make sure that:
• The printer is registered to the Google Cloud Print server.
• The Cloud Print plugin is downloaded from the Google Play
TM
store and is enabled in the mobile device.
1 From your Android
TM
mobile device, open a document or select a document from your file manager.
2 Tap > Print.
3 Select a printer, and then tap .
Printing from a mobile device using AirPrint
The AirPrint software feature is a mobile printing solution that allows you to print directly from Apple devices
to an AirPrint‑certified printer.
Notes:
• Make sure that the Apple device and the printer are connected to the same network. If the network has
multiple wireless hubs, then make sure that both devices are connected to the same subnet.
• This application is supported only in some Apple devices.
1 From your mobile device, select a document from your file manager or launch a compatible application.
2 Tap the share icon, and then tap Print.
Printing 28
3 Select a printer.
If necessary, adjust the settings.
4 Print the document.
Printing from a mobile device using Wi‑Fi Direct®
Wi‑Fi Direct
®
is a printing service that lets you print to any Wi‑Fi Direct‑ready printer.
Note: Make sure that the mobile device is connected to the printer wireless network. For more information,
see
“Connecting a mobile device to the printer” on page 123.
1 From your mobile device, launch a compatible application or select a document from your file manager.
2 Depending on your mobile device, do one of the following:
• Tap > Print.
• Tap > Print.
• Tap > Print.
3 Select a printer, and then adjust the settings, if necessary.
4 Print the document.
Printing from a flash drive
1 Insert the flash drive.
Notes:
• If you insert the flash drive when an error message appears, then the printer ignores the flash drive.
• If you insert the flash drive while the printer is processing other print jobs, then Busy appears on the
display.
Printing 29
2 From the display, touch the document that you want to print.
If necessary, configure other print settings.
3 Send the print job.
To print another document, touch USB Drive.

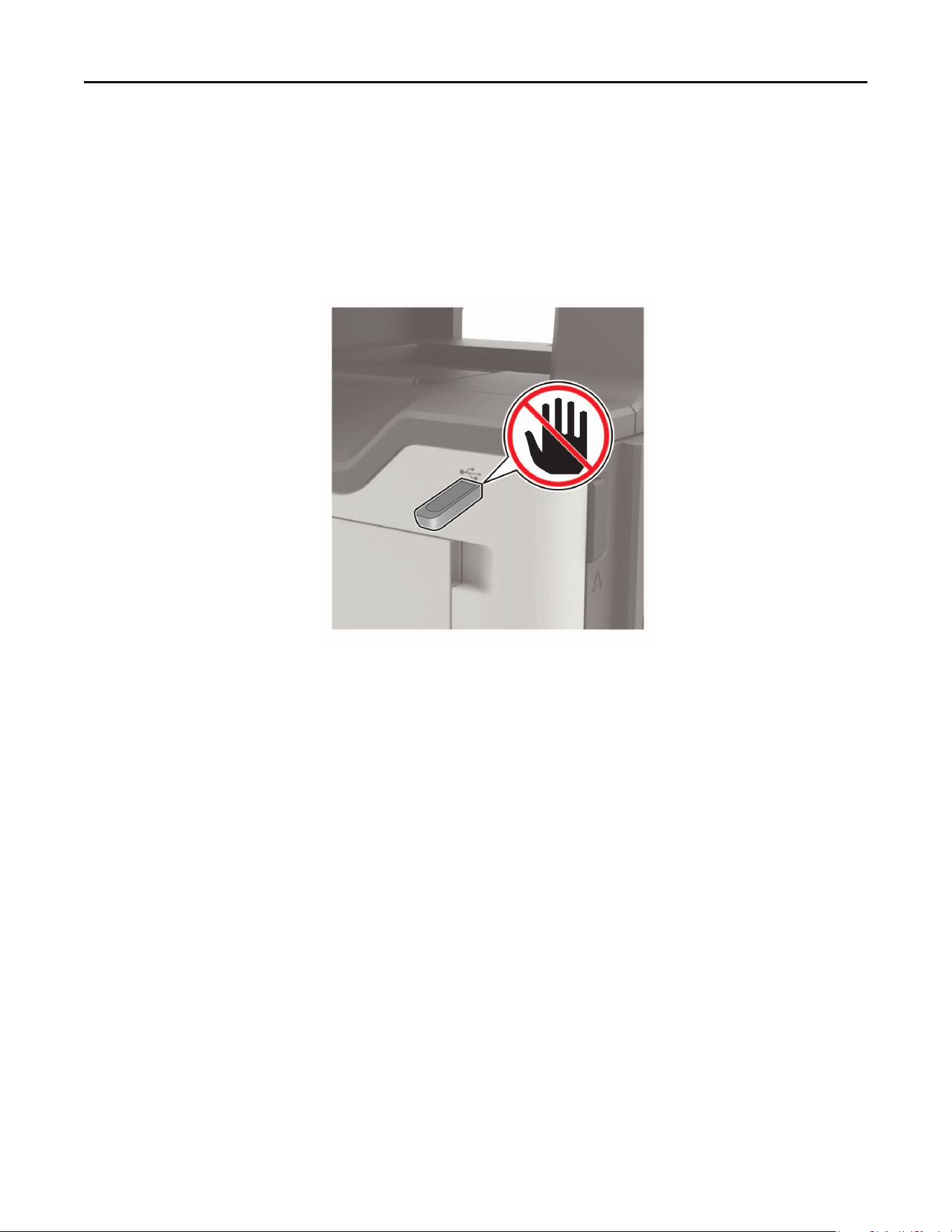

Warning—Potential Damage: To avoid loss of data or printer malfunction, do not touch the flash drive or
the printer in the area shown while actively printing, reading, or writing from the memory device.
Supported flash drives and file types
Flash drives
Notes:
– The printer supports high‑speed USB flash drives with full‑speed standard.
– USB flash drives must support the File Allocation Table (FAT) system.
Many flash drives are tested and approved for use with the printer. For more information, contact the place
where you purchased the printer.
File types
Documents:
• .doc or .docx
• .xls or .xlsx
• .ppt or .pptx
• .pdf
• .xps
Printing 30
Images:
• .dcx
• .gif
• .jpeg or .jpg
• .bmp
• .pcx
• .ti or .tif
• .png
Configuring confidential jobs
1 From the control panel, navigate to:
Settings > Security > Confidential Print Setup
2 Configure the settings.
Use To
Max Invalid PIN Set the number of times an invalid PIN can be entered.
Note: When the limit is reached, the print jobs for that user name are deleted.
Confidential Job
Expiration
Set the expiration time for confidential print jobs.
Note:
Confidential
held jobs are stored in the printer until they are released or
deleted manually.
Repeat Job Expiration Set the expiration time for a repeat print job.
Note: Repeat held jobs are stored in the printer memory for reprinting.
Verify Job Expiration Set the expiration time that the printer prints a copy before printing the remaining
copies.
Note: Verify jobs print one copy to check if it is satisfactory before printing the
remaining copies.
Reserve Job Expiration Set the expiration time that the printer stores print jobs.
Note: Reserve held jobs are automatically deleted after printing.
Require All Jobs to be
Held
Set the printer to hold all print jobs.
Keep duplicate
documents
Set the printer to print all documents with the same file name.
Printing confidential and other held jobs
For Windows users
1 With a document open, click File > Print.
2 Click Properties, Preferences, Options, or Setup.
3 Click Print and Hold.
Printing 31
4 Select Use Print and Hold, and then assign a user name.
5 Select the print job type (Confidential, Repeat, Reserve, or Verify).
If the print job is confidential, then enter a four‑digit PIN.
6 Click OK or Print.
7 From the printer home screen, release the print job.
• For confidential print jobs, touch Held jobs > select your user name > Confidential > enter the PIN >
select the print job > configure the settings > Print.
• For other print jobs, touch Held jobs > select your user name > select the print job > configure the settings
> Print.
For Macintosh users
1 With a document open, choose File > Print.
2 From the Preview or Media & Quality menu, choose PIN Printing.
3 Enable Print with PIN, and then enter a four‑digit PIN.
4 Click Print.
5 From the printer home screen, release the print job. Touch Held jobs > select your computer name >
Confidential
> enter the PIN > select the print job > Print.
Printing a font sample list
1 From the home screen, touch Settings > Reports > Print > Print Fonts.
2 To uc h PCL Fonts or PostScript Fonts.
Canceling a print job
From the printer control panel
1 From the home screen, touch Job Queue.
Note: You can also access this setting by touching the top section of the home screen.
2 Select the job to cancel.
From the computer
1 Depending on the operating system, do either of the following:
• Open the printers folder, and then select your printer.
• From the System Preferences in the Apple menu, navigate to your printer.
2 Select the job to cancel.
Printing 32
Copying
Making copies
1 Load an original document into the ADF tray or on the scanner glass.
Note: To avoid a cropped image, make sure that the original document and output have the same paper
size.
2 From the home screen, touch Copy, and then specify the number of copies.
If necessary, adjust the copy settings.
3 Copy the document.
Note: To make a quick copy, from the control panel, press
.
Copying photos
1 Place a photo on the scanner glass.
2 From the control panel, navigate to:
Copy > Settings > Content > Content Type > Photo
3 From the Content Source menu, select the setting that best matches the original photo.
4 Copy the document.
Copying on letterhead
1 Load an original document into the ADF tray or on the scanner glass.
2 From the home screen, touch Copy > Copy From > select the size of the original document.
3 Tou ch Copy To, and then select the paper source that contains the letterhead.
If you loaded the letterhead into the multipurpose feeder, then navigate to:
Copy To > Multipurpose Feeder > select a paper size > Letterhead
4 Copy the document.
Copying on both sides of the paper (two‑sided)
1 Load an original document into the ADF tray or on the scanner glass.
2 From the home screen, touch Copy > Settings > Paper Setup.
3 Adjust the settings.
4 Copy the document.
Copying 33
Reducing or enlarging copies
1 Load an original document into the ADF tray or on the scanner glass.
2 From the control panel, navigate to:
Copy > Settings > Scale > specify a scale value
Note: Changing the size of the original document or output after setting Scale restores the scale value to
Auto.
3 Copy the document.
Collating copies
1 Load an original document into the ADF tray or on the scanner glass.
2 From the control panel, navigate to:
Copy > Settings > Collate > On [1,2,1,2,1,2]
3 Copy the document.
Placing separator sheets between copies
1 Load an original document into the ADF tray or on the scanner glass.
2 From the control panel, navigate to:
Copy > Settings > Separator Sheets > adjust the settings
3 Copy the document.
Copying multiple pages onto a single sheet
1 Load an original document into the ADF tray or on the scanner glass.
2 From the control panel, navigate to:
Copy > Settings > Pages per Side > adjust the settings
3 Copy the document.
Creating a copy shortcut
1 From the home screen, touch Copy.
2 Adjust the settings, and then touch .
3 Enter a shortcut name.
4 Apply the changes.
Copying 34
E-mailing
Configuring the e‑mail server settings
You can send scanned documents through e-mail after setting up the SMTP server. For more information on
SMTP settings, contact your e‑mail provider.
Using the control panel
1 From the home screen, touch Settings > E‑mail > E‑mail Setup.
2 Configure the settings.
Using the Embedded Web Server
1 Open a web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Settings > E‑mail.
3 From the E‑mail Setup section, configure the settings.
4 Click Save.
Sending an e-mail
Using the control panel
1 Load an original document into the ADF tray or on the scanner glass.
2 From the home screen, touch E-mail, and then enter the needed information.
Note: You can also enter the recipient using the address book or shortcut number.
3 If necessary, configure the output file type settings.
4 Send the e-mail.
Using the shortcut number
1 From the control panel, press #, and then enter the shortcut number using the keypad.
2 Send the e‑mail.
E-mailing 35
Creating an e-mail shortcut
Note: You may need administrative rights to create a shortcut.
1 Open a web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address on the home screen. The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Shortcuts > Add Shortcut.
3 From the Shortcut Type menu, select E‑mail, and then
configure
the settings.
4 Apply the changes.
E-mailing 36
Faxing
Setting up the printer to fax
Notes:
• The following connection methods are applicable only in some countries or regions.
• During the initial printer setup, clear the fax function check box and any other function you plan to set up
later, and then select Continue.
• If the fax function is enabled and not fully set up, then the indicator light may blink red.
Warning—Potential Damage: To avoid loss of data or printer malfunction, do not touch cables or the printer
in the area shown while actively sending or receiving a fax.
Configuring
the SMTP server for fax
From the control panel
1
From the control panel, touch Settings > Fax > Fax Server Setup > Fax Server E‑mail Settings.
2 Configure the settings.
Note: To use the SMTP server setting for e‑mail, enable Use E‑mail SMTP Server.
From the Embedded Web Server
1
Open a web browser, and then type the printer IP address in the address
field.
Faxing 37
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Settings > Fax > Fax Server Setup.
3 From the Fax Server E‑mail Settings section,
configure
the settings.
Note: To use the SMTP server setting for e‑mail, enable Use E‑mail SMTP Server.
4 Click Save.
Setting up fax using a standard telephone line
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not set up this product or make
any electrical or cabling connections, such as the power cord, fax feature, or telephone, during a
lightning storm.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not use the fax feature during a
lightning storm.
CAUTION—POTENTIAL INJURY: To reduce the risk of fire, use only a 26 AWG or larger
telecommunications (RJ-11) cord when connecting this product to the public switched telephone
network. For users in Australia, the cord must be approved by the Australian Communications and Media
Authority.
Faxing 38
Setup 1: Printer is connected to a dedicated fax line
1 Connect one end of the telephone cable to the line port of the printer.
2 Connect the other end of the cable to an active analog wall jack.
Notes:
• You can set the printer to receive faxes automatically (Auto Answer On) or manually (Auto Answer O).
• If you want to receive faxes automatically, then set the printer to pick up on a specified number of rings.
Setup 2: Printer is sharing the line with an answering machine
Note: If you subscribe to a distinctive ring service, then make sure that you set the correct ring pattern for
the printer. Otherwise, the printer does not receive faxes even if you have set it to receive faxes
automatically.
Faxing 39

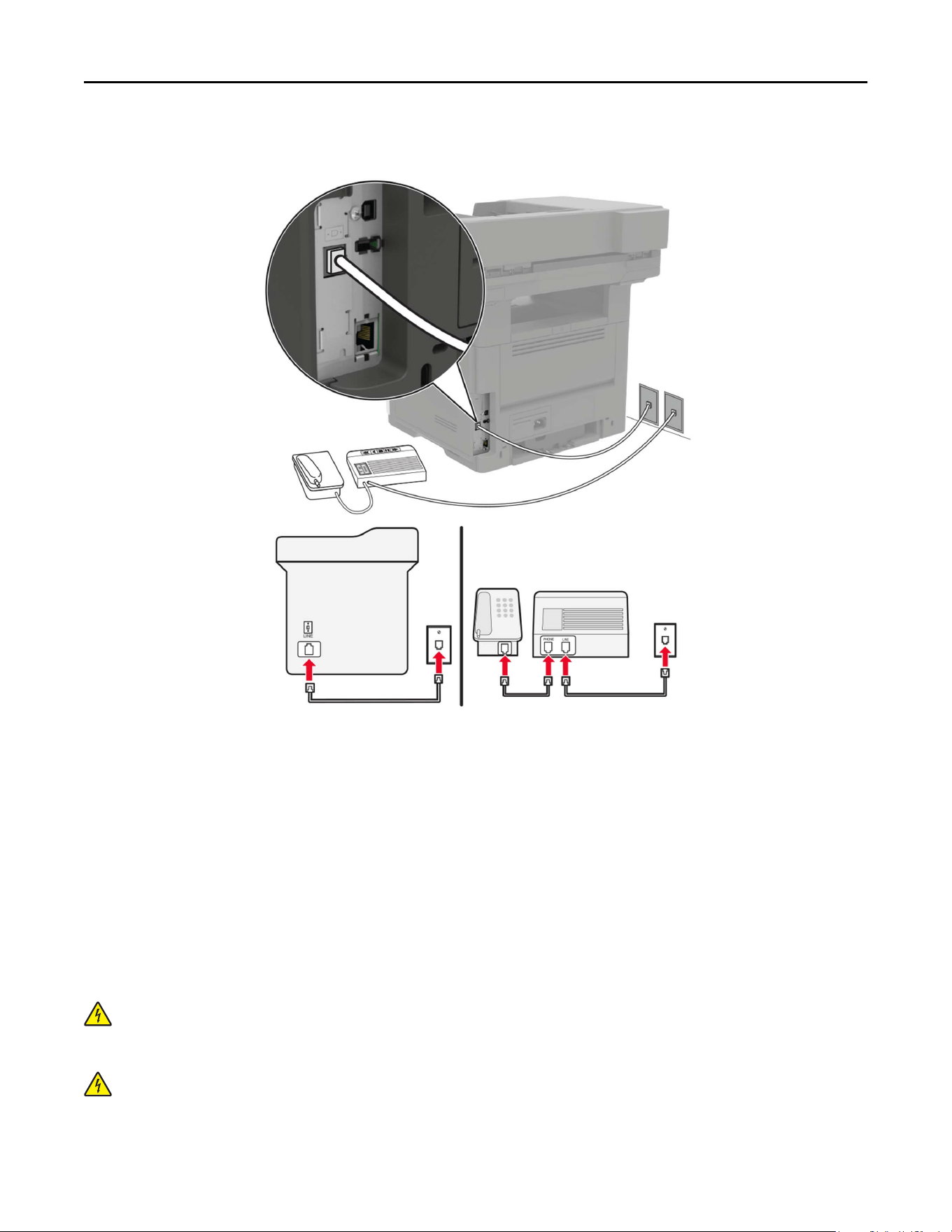

Connected to dierent wall jacks
1 Connect one end of the telephone cable to the line port of the printer.
2 Connect the other end of the cable to an active analog wall jack.
Notes:
• If you have only one telephone number on your line, then set the printer to receive faxes automatically.
• Set the printer to pick up calls two rings after the answering machine. For example, if the answering
machine picks up calls after four rings, then set the printer Rings to Answer setting to six.
Setting up fax in countries or regions with
dierent
telephone wall jacks
and plugs
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not set up this product or make
any electrical or cabling connections, such as the power cord, fax feature, or telephone, during a
lightning storm.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not use the fax feature during a
lightning storm.
Faxing 40
CAUTION—POTENTIAL INJURY: To reduce the risk of fire, use only a 26 AWG or larger
telecommunications (RJ-11) cord when connecting this product to the public switched telephone
network. For users in Australia, the cord must be approved by the Australian Communications and Media
Authority.

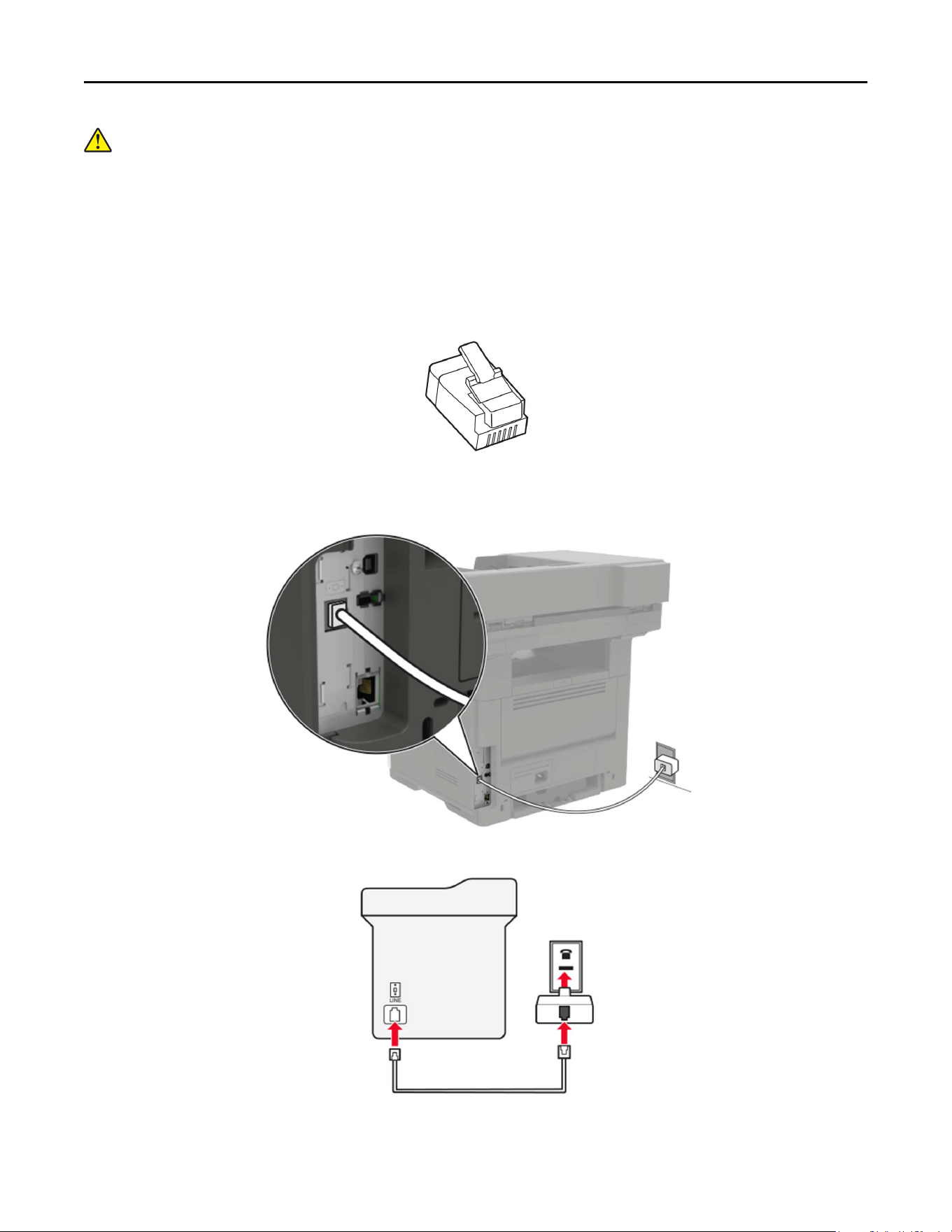

The standard wall jack adopted by most countries or regions is RJ11. If the wall jack or equipment in your facility
is not compatible with this type of connection, then use a telephone adapter. An adapter for your country or
region may not come with your printer, and you may need to purchase it separately.
There may be an adapter plug installed in the telephone port of the printer. Do not remove the adapter plug
from the telephone port of the printer if you are connecting to a serial or cascaded telephone system.
Connecting the printer to a non‑RJ11 wall jack
Faxing 41
1 Connect one end of the telephone cable to the line port of the printer.
2 Connect the other end of the cable to the RJ11 adapter, and then connect the adapter to the wall jack.
3 If you want to connect another device with a non‑RJ11 connector to the same wall jack, then connect it
directly to the telephone adapter.

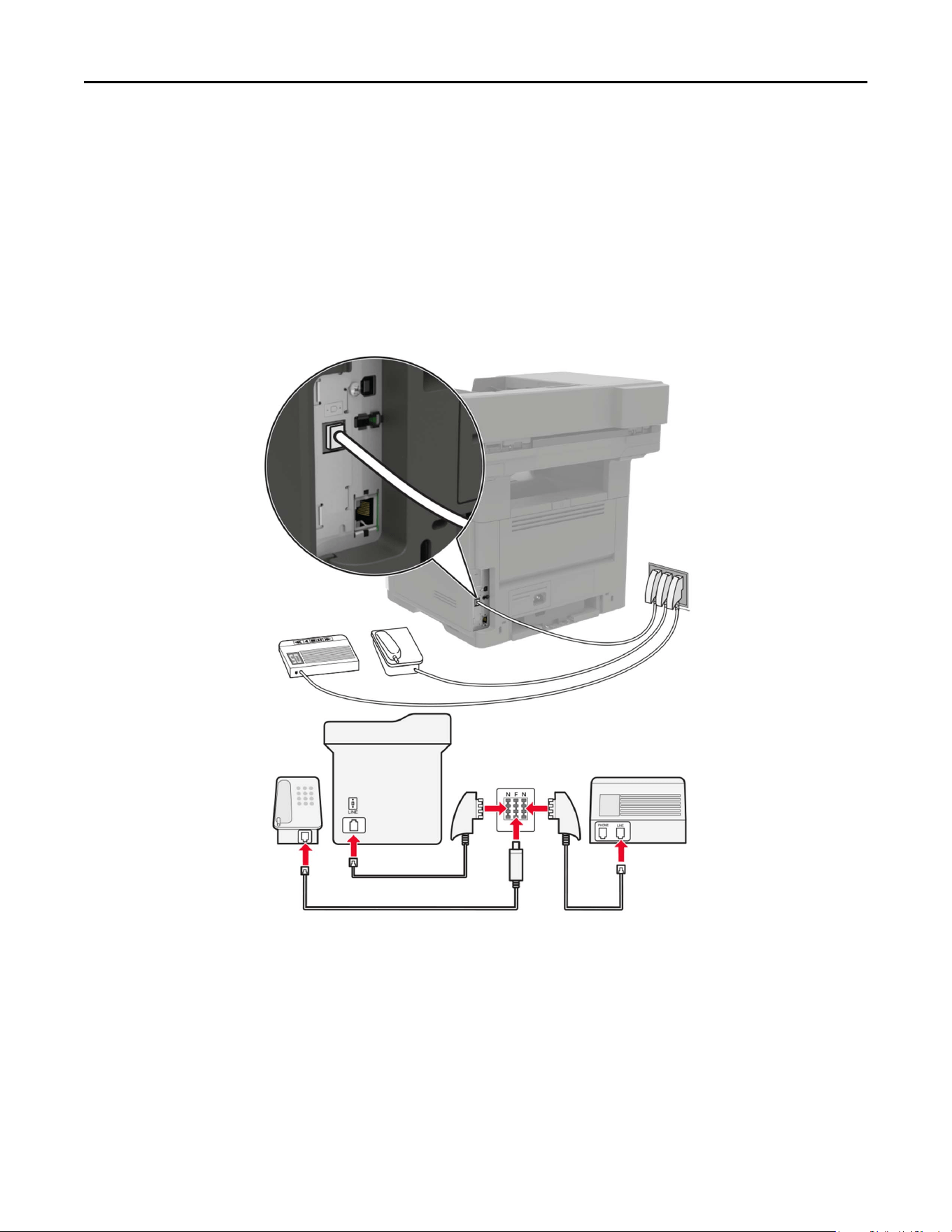

Connecting the printer to a wall jack in Germany
The German wall jack has two kinds of ports. The N ports are for fax machines, modems, and answering
machines. The F port is for telephones. Connect the printer to any of the N ports.
1 Connect one end of the telephone cable to the line port of the printer.
2 Connect the other end of the cable to the RJ11 adapter, and then connect the adapter to an N port.
3 If you want to connect a telephone and answering machine to the same wall jack, then connect the devices
as shown.
Faxing 42
Connecting to a distinctive ring service
A distinctive ring service lets you have multiple telephone numbers on one telephone line. Each telephone
number is assigned a dierent ring pattern.
1 From the home screen, touch Settings > Fax > Fax Setup > Fax Receive Settings > Admin Controls >
Answer On.
2 Select a ring pattern.
Setting the fax date and time
1 From the home screen, touch Settings > Device > Preferences > Date and Time > Configure.
2 Configure the settings.
Configuring daylight saving time
1 From the home screen, touch Settings > Device > Preferences > Date and Time > Configure.
2 In the Time Zone menu, select Custom.
3 Configure the settings.
Sending a fax
Using the control panel
1 Load the original document into the ADF tray or on the scanner glass.
2 From the home screen, touch Fax, and then enter the needed information.
3 If necessary, configure other fax settings.
4 Send the fax job.
Using the computer
Note: Make sure that the Universal Fax driver is installed.
For Windows users
1
With a document open, click File > Print.
2 Select the printer, and then click Properties, Preferences, Options, or Setup.
3 Click Fax > Enable fax, and then enter the recipient number.
4 If necessary,
configure
other fax settings.
5 Send the fax job.
Faxing 43
For Macintosh users
1
With a document open, choose File > Print.
2 Select the printer and enter the recipient number.
3 If necessary, configure other fax settings.
4 Send the fax job.
Scheduling a fax
1 Load the original document into the ADF tray or on the scanner glass.
2 From the home screen, navigate to:
Fax > To > enter the fax number > Done
3 Tou ch Send Time,
configure
the settings, and then touch Done.
4 Send the fax.
Creating a fax destination shortcut
1 From the home screen, touch Fax > To.
2 Enter the recipient number, and then touch Done.
3 Tou ch .
4 Create a shortcut.
Changing the fax resolution
1 Load an original document into the ADF tray or on the scanner glass.
2 From the home screen, touch Fax, and then enter the needed information.
3 Adjust the Resolution setting.
4 Send the fax job.
Adjusting the fax darkness
1 Load an original document into the ADF tray or on the scanner glass.
2 From the home screen, touch Fax, and then enter the needed information.
3 Adjust the Darkness setting.
4 Send the fax job.
Faxing 44
Printing a fax log
1 From the home screen, touch Settings > Reports > Fax.
2 To uc h Fax Job Log or Fax Call Log.
Blocking junk faxes
1 From the home screen, touch Settings > Fax > Fax Setup > Fax Receive Settings > Admin Controls.
2 Set Block No Name Fax to On.
Holding faxes
1 From the home screen, touch Settings > Fax > Fax Setup > Fax Receive Settings > Holding Faxes.
2 Select a mode.
Forwarding a fax
1 From the home screen, touch Settings > Fax > Fax Setup > Fax Receive Settings > Admin Controls.
2 To uc h Fax Forwarding > Forward.
3 Configure the Forward to and Confirmation E‑mail settings.
Faxing 45
Scanning
Scanning to a computer
Before you begin, make sure that the computer and the printer are connected to the same network.
For Windows users
Note: Make sure that the printer is added to the computer.
1 Load an original document into the automatic document feeder or on the scanner glass.
2 From the computer, open Windows Fax and Scan.
3 From the Source menu, select a scanner source.
4 If necessary, change the scan settings.
5 Scan the document.
For Macintosh users
1 Load an original document into the automatic document feeder or on the scanner glass.
2 From a computer, open Printers & Scanners.
3 Select a printer.
If no printer is available, then add a printer.
Note: For the printer software setting, use either AirPrint or Secure AirPrint.
4 Click Scan > Open Scanner.
5 From the Scanner window, do one or more of the following:
• Select where you want to save the scanned document.
• Select the size of the original document.
• To scan from the ADF, enable Use Document Feeder.
• Click Show Details, and then
configure
the scan settings.
6 Click Scan.
Creating an FTP shortcut
1 From the home screen, touch FTP.
2 Enter the FTP server address, and then touch .
3 Create a shortcut.
Scanning 46
Scanning to an FTP server
1 Load the original document into the ADF tray or on the scanner glass.
2 From the home screen, touch FTP, and then enter the needed information.
3 If necessary, configure other FTP settings.
4 Send the FTP job.
Scanning to a flash drive
1 Load an original document into the ADF tray or on the scanner glass.
2 Insert the
flash
drive.
3 Tou ch Scan to USB and adjust the settings if necessary.
Note: If the USB Drive screen does not appear, then touch USB Drive on the home screen.
4 Scan the document.
Warning—Potential Damage: To avoid loss of data or printer malfunction, do not touch the flash drive or
the printer in the area shown while actively printing, reading, or writing from the memory device.
Scanning 47
Scanning 48
Understanding the printer menus
Menu map
Device
• Preferences
• Eco‑Mode
• Remote Operator Panel
• Notifications
• Power Management
• Accessibility
• Restore Factory Defaults
• Maintenance
• Visible Home Screen Icons
• About This Printer
Print
• Layout
• Setup
• Quality
• Job Accounting
• XPS
• PDF
• PostScript
• PCL
• HTML
• Image
Paper
• Tray Configuration • Media Configuration
Copy
Copy Defaults
Fax
• Fax Mode
• Fax Setup
• Fax Server Setup
E‑mail
• E‑mail Setup
• E‑mail Defaults
• Web Link Setup
FTP
FTP Defaults
USB Drive
• Flash Drive Scan • Flash Drive Print
Network/Ports
• Network Overview
• Wireless
• Ethernet
• TCP/IP
• SNMP
• IPSec
• 802.1x
• LPD Configuration
• HTTP/FTP Settings
• ThinPrint
• USB
• Restrict external network access
• Google Cloud Print
• Wi‑Fi Direct
Security
• Login Methods
• Schedule USB Devices
• Security Audit Log
• Login Restrictions
• Confidential Print Setup
• Disk Encryption
• Erase Temporary Data Files
• Solutions LDAP Settings
• Mobile Services Management
• Miscellaneous
Reports
• Menu Settings Page
• Device
• Print
• Shortcuts
• Fax
• Network
Understanding the printer menus 49
Help
• Print All Guides
• Connection Guide
• Copy Guide
• E‑mail Guide
• Fax Guide
• FTP Guide
• Information Guide
• Media Guide
• Mono Quality Guide
• Moving Guide
• Print Quality Guide
• Scan Guide
• Supplies Guide
Troubleshooting Print Quality Test Pages Cleaning the scanner
Device
Preferences
Menu item Description
Display Language
[List of languages]
Set the language of the text that appears on the display.
Country/Region
[List of countries or regions]
Identify the country or region where the printer is configured
to operate.
Run initial setup
On
O*
Run the setup wizard.
Keyboard
Keyboard Type
[List of languages]
Select a language as a keyboard type.
Notes:
• All the Keyboard Type values may not appear or may
require special hardware to appear.
• This menu item appears only in some printer models.
Displayed information
Display Text 1 [IP Address*]
Display Text 2 [Date/Time*]
Custom Text 1
Custom Text 2
Specify the information to appear on the home screen.
Note: Custom Text 1 and Custom Text 2 appear only in some
printer models.
Date and Time
Configure
Current Date and Time
Manually Set Date and Time
Date Format [MM‑DD‑YYYY*]
Time Format [12 hour A.M./P.M.*]
Time Zone [GMT*]
Configure the printer date and time.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 50
Menu item Description
Date and Time
Network Time Protocol
Enable NTP [On*]
NTP Server
Enable Authentication
Configure the settings for Network Time Protocol (NTP).
Notes:
• Enable Authentication appears only in some printer
models.
• When Enable Authentication is set to MD5 key, Key ID
and Password appear.
Paper Sizes
U.S.*
Metric
Specify the unit of measurement for paper sizes.
Note: The country or region selected in the initial setup
wizard determines the initial paper size setting.
Screen Brightness
20–100% (100*)
Adjust the brightness of the display.
Note: This menu item appears only in some printer models.
Flash Drive Access
Enabled*
Disabled
Enable access to the flash drive.
Allow Background Removal
On*
O
Specify whether background removal is allowed.
Allow Custom Job scans
On*
O
Scan multiple jobs to one file.
Note: This menu setting appears only when a hard disk is
installed.
One Page Flatbed Scanning
On
O*
Set copies from the scanner glass to only one page at a time.
Audio Feedback
Button Feedback
On*
O
Enable audio feedback for button presses, panel interactions,
paper loaded prompts, and error notifications.
Note: This menu item appears only in some printer models.
Audio Feedback
Volume
1–10 (5*)
Adjust the volume of the printer speakers.
Notes:
• Changes to the volume are applied after the current user
session ends.
• This menu item appears only in some printer models.
Screen Timeout
10–300 (60*)
Set the idle time in seconds before the display shows the home
screen, or before the printer logs o a user account
automatically.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 51
Eco-Mode
Menu item Description
Print
Sides
1‑Sided*
2‑Sided
Specify whether to print on one side or two sides of the paper.
Print
Pages per Side
O*
2 pages per side
3 pages per side
4 pages per side
6 pages per side
9 pages per side
12 pages per side
16 pages per side
Print multiple page images on one side of a sheet of paper.
Print
Toner Darkness
1–10 (8*)
Determine the lightness or darkness of text images.
Copy
Sides
1 sided to 1 sided*
1 sided to 2 sided
2 sided to 1 sided
2 sided to 2 sided
Specify the scanning behavior based on the original
document.
Copy
Pages per Side
O*
2 Portrait pages
4 Portrait pages
2 Landscape pages
4 Landscape pages
Specify the scanning behavior based on the original
document.
Copy
Darkness
1–9 (5*)
Determine the darkness of the scanned text images.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 52
Remote Operator Panel
Menu item Description
External VNC Connection
Don’t Allow*
Allow
Connect an external Virtual Network Computing (VNC) client
to the remote control panel.
Authentication Type
None*
Standard Authentication
Set the authentication type when accessing the VNC client
server.
VNC Password Specify the password to connect to the VNC client server.
Note: This menu item appears only if Authentication Type is
set to Standard Authentication.
Note: An asterisk (*) next to a value indicates the factory default setting.
Notifications
Menu item Description
ADF Loaded Beep
O
On*
Enable a sound when loading paper into the ADF.
Alarm Control
O
Single*
Continuous
Set the number of times that the alarm sounds when the printer
requires user intervention.
Supplies
Show Supply Estimates
Show estimates*
Do not show estimates
Show the estimated status of the supplies.
Supplies
Display Estimates
Pages*
Percent
Determine the unit that the printer uses to estimate supply
usage and trigger custom notifications when user intervention
is required.
Note: This menu item appears only in the Embedded Web
Server.
Supplies
Cartridge Alarm
O
Single*
Continuous
Set the number of times that the alarm sounds when the toner
cartridge is low.
Supplies
Custom Supply Estimates
Show Estimates
Do Not Show Estimates*
Configure notification settings when the printer requires user
intervention.
Note: This menu item appears only in the Embedded Web
Server.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 53
Menu item Description
E‑mail Alerts Setup
E‑mail Setup
Primary SMTP Gateway
Primary SMTP Gateway Port (25*)
Secondary SMTP Gateway
Secondary SMTP Gateway Port (25*)
SMTP Timeout (30 seconds*)
Reply Address
Always use SMTP default Reply
Address(O*)
Use SSL/TLS(Disabled*)
Require Trusted Certificate(On*)
SMTP Server Authentication
(No authentication required*)
Device‑Initiated E‑mail(None*)
User‑Initiated E‑mail(None*)
Use Active Directory Device
Credentials(O*)
Device Userid
Device Password
Kerberos 5 REALM
NTLM Domain
Disable “SMTP server not set up” error(O*)
Configure the e‑mail settings of the printer.
E‑mail Alerts Setup
Setup E-mail Lists and Alerts
E‑mail List 1
E‑mail List 2
E-mail Events
Specify the e‑mail addresses and enable the e‑mail alert
events.
Note: This menu item appears only in the Embedded Web
Server.
Error Prevention
Jam Assist
O
On*
Set the printer to flush blank pages or pages with partial prints
automatically after a jammed page has been cleared.
Error Prevention
Auto Continue
O
On* (5 seconds)
Let the printer continue processing or printing a job
automatically after clearing certain printer conditions that
require user intervention.
Error Prevention
Auto Reboot
Auto Reboot
Reboot when idle
Reboot always*
Reboot never
Set the printer to restart when an error occurs.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 54
Menu item Description
Error Prevention
Auto Reboot
Max Auto Reboots
1–20 (2*)
Set the number of automatic reboots that the printer can
perform.
Error Prevention
Auto Reboot
Auto Reboot Window
1–525600 seconds (720*)
Set the time before the printer performs an automatic reboot.
Error Prevention
Auto Reboot
Auto Reboot Counter
Show a read‑only information of the reboot counter.
Error Prevention
Auto Reboot
Reset Auto Reboot Counter
Cancel
Continue
Reset Auto Reboot Counter.
Error Prevention
Display Short Paper Error
On
Auto‑clear*
Set the printer to show a message when a short paper error
occurs.
Note: Short paper refers to the size of the paper loaded.
Error Prevention
Page Protect
O*
On
Set the printer to process the entire page into the memory
before printing it.
Jam Content Recovery
Jam Recovery
O
On
Auto*
Set the printer to reprint jammed pages.
Jam Content Recovery
Scanner Jam Recovery
Job level
Page level*
Specify how to restart a scan job after resolving a paper jam.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 55
Power Management
Menu item Description
Sleep Mode Profile
Print from Sleep Mode
Stay awake after printing
Enter Sleep Mode after printing*
Set the printer to stay in Ready mode or return to Sleep mode
after printing.
Timeouts
Sleep Mode
1–120 minutes (15*)
Set the idle time before the printer begins operating in Sleep
mode.
Timeouts
Hibernate Timeout
Disabled
1 hour
2 hours
3 hours
6 hours
1 day
2 days
3 days*
1 week
2 weeks
1 month
Set the time before the printer turns o.
Timeouts
Hibernate Timeout on Connection
Hibernate
Do Not Hibernate*
Set Hibernate Timeout to turn o the printer while an active
Ethernet connection exists.
Schedule Power Modes
Schedules
Add New Schedule
Schedule the printer when to enter Sleep or Hibernate mode.
Note: An asterisk (*) next to a value indicates the factory default setting.
Accessibility
Menu item Description
Duplicate Key Strike Interval
0–5 seconds (0*)
Set the interval during which the printer ignores duplicate key presses on an
attached keyboard.
Key Repeat Initial Delay
0.25–5 seconds (1*)
Set the initial length of delay before a repeating key starts repeating.
Note: Appears only when a keyboard is attached to the printer.
Key Repeat Rate
0.5–30 (30*)
Set the number of presses per second for a repeating key.
Note: Appears only when a keyboard is attached to the printer.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 56
Menu item Description
Prolong Screen Timeout
O*
On
Let the user remain in the same location and reset the Screen Timeout timer when
it expires instead of returning to the home screen.
Note: An asterisk (*) next to a value indicates the factory default setting.
Restore Factory Defaults
Menu item Description
Restore Settings
Restore all settings
Restore printer settings
Restore network settings
Restore fax settings
Restore app settings
Restore the printer factory default settings.
Note: The default value is the value selected during the initial setup.
Maintenance
Configuration Menu
Menu item Description
USB Configuration
USB PnP
1*
2
Change the USB driver mode of the printer to improve its
compatibility with a personal computer.
USB Configuration
USB Scan to Local
On*
O
Set whether the USB device driver enumerates as a USB
Simple device (single interface) or as a USB Composite device
(multiple interfaces).
USB Configuration
USB Speed
Full
Auto*
Set the USB port to run at full speed and disable its high‑speed
capabilities.
Tray Configuration
Tray Linking
Automatic*
O
Set the printer to link the trays that have the same paper type
and paper size settings.
Tray Configuration
Show Tray Insert Message
O
Only for unknown sizes*
Always
Show the Tray Insert message.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 57
Menu item Description
Tray Configuration
A5 Loading
Short Edge*
Long Edge
Specify the page orientation when loading A5 paper size.
Tray Configuration
Paper Prompts
Auto*
Multipurpose Feeder
Manual Paper
Set the paper source that the user fills when a prompt to load
paper appears.
Tray Configuration
Envelope Prompts
Auto*
Multipurpose Feeder
Manual Envelope
Set the paper source that the user fills when a prompt to load
envelope appears.
Tray Configuration
Action for Prompts
Prompt user
Continue*
Use current
Set the printer to resolve paper- or envelope-related change
prompts.
Reports
Menu Settings Page
Event Log
Event Log Summary
HealthCheck Statistics
Print reports about printer menu settings, status, and event
logs.
Supply Usage And Counters
Clear Supply Usage History
Reset Black Cartridge Counter
Reset Maintenance Counter
Reset the supply page counter or view the total printed pages.
Printer Emulations
PPDS Emulation
O*
On
Set the printer to recognize and use the PPDS data stream.
Printer Emulations
PS Emulation
O
On*
Set the printer to recognize and use the PS data stream.
Printer Emulations
Emulator Security
Page Timeout
0–60 (60*)
Set the page timeout during emulation.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 58
Menu item Description
Printer Emulations
Emulator Security
Reset Emulator After Job
O*
On
Reset the emulator after a print job.
Printer Emulations
Emulator Security
Disable Printer Message Access
On*
O
Disable access to the printer message during emulation.
Fax Configuration
Fax Low Power Support
Disable Sleep
Permit Sleep
Auto*
Set fax to enter Sleep mode whenever the printer determines
that it should.
Print Configuration
Font Sharpening
0–150 (24*)
Set a text point-size value below which the high‑frequency
screens are used when printing font data.
Print Configuration
Print Density
Disabled*
1–5
Copy Density
Disabled*
1–5
Adjust the toner density when printing or copying documents.
Device Operations
Quiet Mode
O*
On
Set the printer to reduce the amount of noise that it makes
when printing.
Note: Enabling this setting slows down the overall
performance of the printer.
Device Operations
Panel Menus
Enable*
Disable
Set the printer to show the menus on the control panel.
Note: This menu item appears only in the Embedded Web
Server.
Device Operations
Safe Mode
O*
On
Set the printer to operate in a special mode, in which it attempts
to continue oering as much functionality as possible, despite
known issues.
For example, when set to On, and the duplex motor is
nonfunctional, the printer performs one‑sided printing of the
documents even if the job is two‑sided printing.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 59
Menu item Description
Device Operations
Minimum Copy Memory
80 MB*
100 MB
Set the minimum memory allocation for storing copy jobs.
Device Operations
Clear Custom Status
Erase all custom messages.
Device Operations
Clear all remotely-installed messages
Erase all remotely‑installed messages.
Device Operations
Automatically Display Error Screens
On*
O
Show existing error messages on the display after the printer
remains inactive on the home screen for a length of time equal
to the Screen Timeout setting.
Device Operations
Honor orientation on fast path copy
On
O*
Enable the printer to use the orientation setting under the Copy
menu when sending quick copy jobs.
Scanner Configuration
Scanner Manual Registration
Print Quick Test
Print a Quick Test target page.
Note: Make sure that the margin spacing on the target page
is uniform all the way around the target. If it is not, then the
printer margins must be reset.
Scanner Configuration
Scanner Manual Registration
Front ADF Registration
Rear ADF Registration
Flatbed Registration
Manually register the flatbed and ADF after replacing the ADF,
scanner glass, or controller board.
Scanner Configuration
Edge Erase
Flatbed Edge Erase
0–6 (3*)
ADF Edge Erase
0–6 (3*)
Set the size, in millimeters, of the no‑print area around an ADF
or flatbed scan job.
Scanner Configuration
ADF Deskew
ADF Mechanical Deskew
O
On
Auto*
Set the printer to perform ADF mechanical skew adjustment.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 60
Menu item Description
Scanner Configuration
Disable Scanner
Enabled*
Disabled
ADF Disabled
Disable the scanner if it is not working properly.
Scanner Configuration
Ti
Byte Order
CPU Endianness*
Little Endian
Big Endian
Set the byte order of a TIFF‑formatted scan output.
Scanner Configuration
Exact Ti Rows Per Strip
On*
O
Set the RowsPerStrip tag value of a TIFF‑formatted scan output.
Note: An asterisk (*) next to a value indicates the factory default setting.
Out of Service Erase
Menu item Description
Out of Service Erase
Memory Last Sanitized
Hard Disk Last Sanitized
Show information on when the printer memory or
hard disk was last sanitized.
Note: Hard Disk Last Sanitized appears only when a
hard disk is installed.
Out of Service Erase
Sanitize all information on nonvolatile memory
Erase all printer and network settings
Erase all apps and app settings
Erase all shortcuts and shortcut settings
Sanitize all information on hard disk
Erase downloads (Erase all macros, fonts, PPOs, etc.)
Erase
buered
jobs
Erase Held jobs
Clear all information on non‑volatile memory and
information on the hard disk.
Note: Sanitize all information on hard disk appears
only when a hard disk is installed.
Understanding the printer menus 61
Visible Home Screen Icons
Menu Description
Visible Home Screen Icons
Copy
E‑mail
Fax
Status/Supplies
Job Queue
Change Language
Shortcut Center
Address Book
Bookmarks
Held Jobs
USB
FTP
Scan Profiles
App Profiles
Scan Center
Specify which icons to show on the home screen.
About this Printer
Menu item Description
Asset Tag
1
Describe the printer. The maximum length is 32 characters.
Printer’s Location
1
Identify the printer location. The maximum length is 63 characters.
Contact
1
Personalize the printer name. The maximum length is 63 characters.
Export Configuration File to USB
2
Export configuration files to a flash drive.
Export Compressed Logs to USB
2
Export compressed log files to a flash drive.
1
In some printer models, this menu item can be configured only from the Embedded Web Server.
2
This menu item appears only in some printer models.
Print
Layout
Menu item Description
Sides
1‑Sided*
2‑Sided
Specify whether to print on one side or both sides of the paper.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 62
Menu item Description
Flip Style
Long Edge*
Short Edge
Determine which side of the paper is bound when performing two‑sided printing.
Blank Pages
Print
Do Not Print*
Print blank pages that are included in a print job.
Collate
O (1,1,1,2,2,2)
On (1,2,1,2,1,2)*
Keep the pages of a print job stacked in sequence, particularly when printing multiple
copies of the job.
Separator Sheets
None*
Between Copies
Between Jobs
Between Pages
Insert blank separator sheets when printing.
Separator Sheet Source
Tray [x] (1*)
Multipurpose Feeder
Specify the paper source for the separator sheet.
Pages per Side
O*
2 pages per side
3 pages per side
4 pages per side
6 pages per side
9 pages per side
12 pages per side
16 pages per side
Print multiple page images on one side of a sheet of paper.
Pages per Side Ordering
Horizontal*
Reverse Horizontal
Vertical
Reverse Vertical
Specify the positioning of multiple page images when using the Pages per Side menu.
Pages per Side Orientation
Auto*
Landscape
Portrait
Specify the orientation of multiple page images when using the Pages per Side menu.
Pages per Side Border
None*
Solid
Print a border around each page image when using the Pages per Side menu.
Copies
1–9999 (1*)
Specify the number of copies for each print job.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 63
Menu item Description
Print Area
Normal*
Fit to page
Whole Page
Set the printable area on a sheet of paper.
Note: An asterisk (*) next to a value indicates the factory default setting.
Setup
Menu item Description
Printer Language
PCL Emulation*
PS Emulation
Set the printer language.
Note: Setting a printer language default does not prevent a software
program from sending print jobs that use another printer language.
Resource Save
O*
On
Determine what the printer does with downloaded resources, such as
fonts and macros, when it receives a job that requires more than the
available memory.
Notes:
• When set to O, the printer retains downloaded resources only until
memory is needed. Resources associated with the inactive printer
language are deleted.
• When set to On, the printer preserves all the permanent
downloaded resources across all language switches. When
necessary, the printer shows memory full messages instead of
deleting permanent resources.
Print All Order
Alphabetical*
Newest First
Oldest First
Specify the order when you choose to print all held and confidential jobs.
Note: An asterisk (*) next to a value indicates the factory default setting.
Quality
Menu item Description
Print Resolution
300 dpi
600 dpi*
1200 dpi
1200 Image Q
2400 Image Q
Set the resolution for the text and images on the printed output.
Note: Resolution is determined in dots per inch or image quality.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 64
Menu item Description
Pixel Boost
O*
Fonts
Horizontally
Vertically
Both directions
Isolated
Enable more pixels to print in clusters for clarity, in order to enhance text and
images.
Toner Darkness
1–10 (8*)
Determine the lightness or darkness of text images.
Halftone
Normal*
Detail
Enhance the printed output to have smoother lines with sharper edges.
Brightness
‑6 to 6 (0*)
Adjust the brightness of the printed output.
Contrast
0 to 5 (0*)
Adjust the contrast of the printed output.
Gray Correction
Auto*
O
Adjust the contrast enhancement applied to images.
Note: An asterisk (*) next to a value indicates the factory default setting.
Job Accounting
Menu item Description
Job Accounting
O*
On
Set the printer to create a log of the print jobs that it receives.
Note: This menu item appears only when a
flash
memory or hard disk is
installed.
Accounting Log Frequency
Daily
Weekly
Monthly*
Specify how often the printer creates a log file.
Log Action at End of Frequency
None*
E‑mail Current Log
E‑mail & Delete Current Log
Post Current Log
Post & Delete Current Log
Specify how the printer responds when the frequency threshold expires.
Note: The value defined in Accounting Log Frequency determines when this
action is triggered.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 65
Menu item Description
Log Action at Near Full
None*
E‑mail Current Log
E‑mail & Delete Current Log
E‑mail & Delete Oldest Log
Post Current Log
Post & Delete Current Log
Post & Delete Oldest Log
Delete Current Log
Delete Oldest Log
Delete All But Current
Delete All Logs
Specify how the printer responds when the hard disk is nearly full.
Log Action at Full
None*
E‑mail & Delete Current Log
E‑mail & Delete Oldest Log
Post & Delete Current Log
Post & Delete Oldest Log
Delete Current Log
Delete Oldest Log
Delete All But Current
Delete All Logs
Specify how the printer responds when hard disk usage reaches the maximum
limit (100MB).
URL to Post Log Specify where the printer posts job accounting logs.
E‑mail Address to Send Logs Specify the e‑mail address to which the printer sends job accounting logs.
Log File Prefix Specify the prefix for the log files.
Note: The current host name
defined
in the TCP/IP menu is used as the
default log file prefix.
Note: An asterisk (*) next to a value indicates the factory default setting.
XPS
Menu item Description
Print Error Pages
O*
On
Print a test page that contains information on errors, including XML markup
errors.
Minimum Line Width
1–30 (2*)
Set the minimum stroke width.
Notes:
• Jobs printed in 1200 dpi use the value directly.
• Jobs printed in 4800 CQ use half the value.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 66
PDF
Menu item Description
Scale To Fit
Ye s
No*
Scale the page content to fit the selected paper size.
Annotations
Print
Do Not Print*
Specify whether to print annotations in the PDF.
Print PDF Error
O
On*
Enable the printing of PDF error.
Note: An asterisk (*) next to a value indicates the factory default setting.
PostScript
Menu item Description
Print PS Error
On
O*
Print a test page that contains the PostScript error.
Minimum Line Width
1–30 (2*)
Set the minimum stroke width of any job printed in 1200 dpi.
Lock PS Startup Mode
On
O*
Disable the SysStart file.
Font Priority
Resident*
Flash/Disk
Establish the font search order.
Notes:
• Resident sets the printer to search its memory for the requested font
before searching the
flash
memory.
• Flash/Disk sets the printer to search the flash memory for the
requested font before searching the printer memory.
• This menu item appears only when a
flash
memory is installed.
Wait Timeout
Disabled
15–65535 (40*)
Set the printer to wait for additional data before canceling a print job.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 67
PCL
Menu item Description
Font Source
Resident*
All
Choose the source which contains the default font selection.
Font Name
[List of available fonts]
Select a font from the specified font source.
Symbol Set
[List of available symbol set]
Specify the symbol set for each font name.
Note: A symbol set is a set of alphabetic and numeric characters,
punctuation, and special symbols. Symbol sets support the
dierent
languages or specific programs such as math symbols for scientific text.
Pitch
0.08–100 (10*)
Specify the font pitch for scalable monospaced fonts.
Note: Pitch refers to the number of
fixed
‑space characters in a horizontal
inch of type.
Orientation
Portrait*
Landscape
Specify the orientation of text and graphics on the page.
Lines per Page
1–255
Specify the number of lines of text for each page printed through the PCL®
datastream.
Notes:
• This menu item activates vertical escapement that causes the
selected number of requested lines to print between the default
margins of the page.
• 60 is the U.S. factory default setting. 64 is the international factory
default setting.
PCL5 Minimum Line Width
1–30 (2*)
Set the initial minimum stroke width.
Notes:
• Jobs printed in 1200 dpi use the value directly.
• Jobs printed in 4800CQ use half the value.
PCLXL Minimum Line Width
1–30 (2*)
A4 Width
198 mm*
203 mm
Set the width of the logical page on A4‑size paper.
Note: Logical page is the space on the physical page where data is
printed.
Auto CR after LF
On
O*
Set the printer to perform a carriage return after a line feed control
command.
Note: Carriage return is a mechanism that commands the printer to move
the position of the cursor to the first position on the same line.
Auto LF after CR
On
O*
Set the printer to perform a line feed after a carriage return control
command.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 68
Menu item Description
Tray Renumber
Assign MP Feeder
O*
None
0–201
Assign Tray [x]
O*
None
0–201
Assign Manual Paper
O*
None
0–201
Assign Manual Envelope
O*
None
0–201
Configure the printer to work with print drivers or applications that use
dierent source assignments for the paper source.
Tray Renumber
View Factory Defaults
Show the factory default setting assigned for each paper source.
Tray Renumber
Restore Defaults
Return all tray assignments to factory default values.
Print Timeout
Disabled
1–255 (90*)
Set the printer to end a print job after it has been idle for the specified
amount of time in seconds.
Note: An asterisk (*) next to a value indicates the factory default setting.
HTML
Menu item Description
Font Name
[List of fonts] (Times*)
Set the font to use for HTML documents.
Font Size
1–255 (12*)
Set the font size to use for HTML documents.
Scale
1–400% (100*)
Scale HTML documents.
Orientation
Portrait*
Landscape
Set the page orientation for HTML documents.
Margin Size
8–255 mm (19*)
Set the page margin for HTML documents.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 69
Menu item Description
Backgrounds
Do Not Print
Print*
Print background information or graphics for HTML documents.
Note: An asterisk (*) next to a value indicates the factory default setting.
Menu item Description
Auto Fit
On
O*
Select the best available paper size and orientation setting for an image.
Note: When set to On, this menu item overrides the scaling and orientation
settings for the image.
Invert
O*
On
Invert bitonal monochrome images.
Note: This menu item does not apply to GIF or JPEG image formats.
Scaling
Anchor Top Left
Best Fit*
Anchor Center
Fit Height/Width
Fit Height
Fit Width
Adjust the image to fit the printable area.
Note: When Auto Fit is set to On, Scaling is automatically set to Best Fit.
Orientation
Portrait*
Landscape
Reverse Portrait
Reverse Landscape
Specify the orientation of text and graphics on the page.
Note: An asterisk (*) next to a value indicates the factory default setting.
Paper
Tray
Configuration
Menu item Description
Default Source
Tray [x] (1*)
Multipurpose Feeder
Manual Paper
Manual Envelope
Set the paper source for all print jobs.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 70
Menu item Description
Paper Size/Type
Tray [x]
Multipurpose Feeder
Manual Paper
Manual Envelope
Specify the paper size or paper type loaded in each paper source.
Substitute Size
O
Statement/A5
Letter/A4
All Listed*
Set the printer to substitute a specified paper size if the requested size is not
loaded in any paper source.
Notes:
•
O
prompts the user to load the required paper size.
• Statement/A5 prints A5‑size document on statement when loading
statement and statement‑size jobs on A5 paper size when loading A5.
• Letter/A4 prints A4‑size document on letter when loading letter and
letter‑size jobs on A4 paper size when loading letter.
• All Listed substitutes Letter/A4.
Configure MP
Cassette*
Manual
First
Determine the behavior of the multipurpose feeder.
Notes:
• Cassette configures the multipurpose feeder as the automatic paper
source.
• Manual sets the multipurpose feeder only for manual-feed print jobs.
• First configures the multipurpose feeder as the primary paper source.
Note: An asterisk (*) next to a value indicates the factory default setting.
Media
Configuration
menu
Universal Setup
Menu item Description
Units of Measure
Inches
Millimeters
Specify the unit of measurement for the universal paper.
Note: Inches is the U.S. factory default setting. Millimeters is the
international factory default setting.
Portrait Width
3–52 inches (8.50*)
76–1321 mm (216*)
Set the portrait width of the universal paper.
Portrait Height
3–52 inches (14*)
76–1321 mm (356*)
Set the portrait height of the universal paper.
Feed Direction
Short Edge*
Long Edge
Set the printer to pick paper from the short edge or long edge
direction.
Note: Long Edge appears only when the longest edge is shorter
than the maximum width supported.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 71
Custom Scan Sizes
Menu item Description
Custom Scan Size [x]
Scan Size Name
Width
1–8.50 inches (8.50*)
25–216 mm (216*)
Height
1–14 inches (14*)
25–356 mm (297*)
Orientation
Portrait*
Landscape
2 scans per side
O*
On
Assign a scan size name and configure the scan settings.
Media Types
Menu item Description
Plain
Card Stock
Transparency
Recycled
Labels
Bond
Envelope
Rough Envelope
Letterhead
Preprinted
Colored Paper
Light
Heavy
Rough/Cotton
Custom Type [x]
Specify the texture and weight of the paper loaded.
Select from the following options:
Paper Texture
Smooth
Normal*
Rough
Paper Weight
Light
Normal*
Heavy
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 72
Copy
Copy Defaults
Menu item Description
Content Type
Te xt
Te xt /P ho to*
Graphics
Improve the output result based on the content of the original document.
Content Source
Black and White Laser*
Color Laser
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Improve the output result based on the source of the original document.
Sides
1 sided to 1 sided*
1 sided to 2 sided
2 sided to 1 sided
2 sided to 2 sided
Specify the scanning behavior based on the original document.
Separator Sheets
None*
Between Copies
Between Jobs
Between Pages
Specify whether to insert blank separator sheets when printing.
Separator Sheet Source
Tray [x] (1*)
Multipurpose Feeder
Specify the paper source for the separator sheet.
Pages per Side
O*
2 Portrait pages
4 Portrait pages
2 Landscape pages
4 Landscape pages
Specify the number of page images to print on one side of a sheet of paper.
Print Page Borders
O*
On
Place a border around each image when printing multiple pages on a single
page.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 73
Menu item Description
Collate
O [1,1,1,2,2,2]
On [1,2,1,2,1,2]*
Print multiple copies in sequence.
“Copy from” Size Set the paper size of the original document.
Note: Letter is the U.S. factory default setting. A4 is the international factory
default setting.
“Copy to” Source
Tray [x] (1*)
Multipurpose Feeder
Auto Size Match
Specify the paper source for the copy job.
Darkness
1 to 9 (5*)
Adjust the darkness of the scanned image.
Number of Copies
1–9999 (1*)
Specify the number of copies.
Header/Footer
Left Header
Middle Header
Right Header
Left Footer
Middle Footer
Right Footer
Specify the header or footer information on the scanned image.
Overlay
Confidential
Copy
Draft
Urgent
Custom
O*
Specify the overlay text to print on each copy.
Custom overlay Type the text for the Custom choice in Overlay menu.
Note: An asterisk (*) next to a value indicates the factory default setting.
Advanced Imaging
Menu item Description
Color Dropout
Color Dropout (None*)
Default Red Threshold (128*)
Default Green Threshold (128*)
Default Blue Threshold (128*)
Specify which color to drop during scanning, and adjust the dropout
setting for that color.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 74
Menu item Description
Contrast
Best for content*
0–5
Specify the contrast for the scanned image.
Background Removal
Background Detection (Content‑based*)
Level (0*)
Remove the background color or image noise from the original
document.
Notes:
• Content-based removes the background color from the original
document .
• Fixed removes image noise from a photo.
Auto Center
O*
On
Align the content at the center of the page.
Mirror Image
O*
On
Create a mirror image of the original document.
Negative Image
O*
On
Create a negative image of the original document.
Shadow Detail
‑4 to 4 (0*)
Adjust the shadow detail in the original document.
Scan Edge to Edge
O*
On
Scan the original document from edge to edge.
Sharpness
1–5 (3*)
Adjust the sharpness of the scanned image.
Note: An asterisk (*) next to a value indicates the factory default setting.
Admin Controls
Menu item Description
Transparency Separators
O
On*
Insert a blank sheet between transparencies.
Allow Priority Copies
O
On*
Interrupt a print job to make copies.
Custom Job Scanning
O*
On
Set the printer to scan the first set of original documents using the specified
settings, and then scan the next set with the same or dierent settings.
Note: This menu item appears only when a hard disk is installed.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 75
Menu item Description
Allow Save as Shortcut
O
On*
Save copy settings as a shortcut.
Sample copy Print a sample copy to check the quality before printing the remaining copies.
Note: An asterisk (*) next to a value indicates the factory default setting.
Fax
Fax Mode
Menu item Description
Fax Mode
Fax*
Fax Server
Disabled
Select a fax mode.
Note: An asterisk (*) next to a value indicates the factory default setting.
Fax Setup
Menu item Description
General Fax Settings
Fax Name
Fax Number
Fax ID (Fax Number*)
Enable Manual Fax
(O*)
Memory Use (Equal*)
Cancel Faxes (Allow*)
Fax Number Masking
(O*)
Digits to Mask
Enable Line Connected Detection (On*)
Enable Line In Wrong Jack Detection (On*)
Enable Extension In Use Support (On*)
Optimize Fax Compatibility
Fax Transport (Analog*)
Configure the general fax settings.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 76
Menu item Description
Fax Send Settings
Resolution (Standard*)
Original Size (Mixed Sizes*)
Orientation (Portrait*)
Sides (O*)
Content Type (Text*)
Content Source (Color Laser*)
Darkness (5*)
Behind a PABX
(O*)
Dial Mode (Tone*)
Advanced Imaging
Color Balance
Color Dropout
Contrast (Best for Content*)
Background Removal
Background Detection (Content‑based*)
Level (0*)
Mirror Image (O*)
Negative Image (O*)
Shadow Detail (0*)
Scan Edge to Edge (O*)
Sharpness (3*)
Temperature (0*)
Admin Controls
Automatic Redial (5*)
Redial Frequency (3 minutes*)
Enable ECM (On*)
Enable Fax Scans (On*)
Driver to Fax (O*)
Allow Save as Shortcut (On*)
Max Speed (33600*)
Custom Job Scanning (O*)
Scan Preview (O*)
Enable Color Fax Scans (O by Default*)
Auto Convert Color Faxes to Mono Faxes
(On*)
Confirm Fax Number (O*)
Dial Prefix
Dialing Prefix Rules
Configure the fax send settings.
Note: Custom Job Scanning and Scan Preview appear only
when a hard disk is installed.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 77
Menu item Description
Fax Receive Settings
Rings to Answer (3*)
Auto Reduction
(O*)
Paper Source (Auto*)
Sides (O*)
Separator Sheets (None*)
Separator Sheet Source(Tray 1*)
Output Bin(Standard Bin*)
Fax Footer
(O*)
Fax Footer Time Stamp (Receive*)
Holding Faxes
Held Fax Mode
(O*)
Admin Controls
Enable Fax Receive (On*)
Enable Color Fax Receive (On*)
Enable Caller ID (On*)
Block No Name Fax
(O*)
Banned Fax List
Answer On (All Rings*)
Auto Answer (On*)
Manual Answer Code (*9*)
Fax Forwarding (Print*)
Forward to
Confirmation E‑mail
Max Speed (33600*)
Configure the fax receive settings.
Fax Cover Page
Fax Cover Page (O by Default*)
Include To
field
(O*)
Include From field (O*)
Include Message field (O*)
Include Logo
(O*)
Include Footer [x]
Configure the fax cover page settings.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 78
Menu item Description
Fax Log Settings
Transmission Log Frequency (Always*)
Transmission Log Action
Print (On*)
E‑mail (O*)
Receive Error Log (Print Never*)
Auto Print Logs (On*)
Log Paper Source (Tray 1*)
Logs Display (Remote Fax Name*)
Enable Job Log (On*)
Enable Call Log (On*)
Log Output Bin (Standard Bin*)
Configure the fax log settings.
Speaker Settings
Speaker Mode (Always
O*)
Speaker Volume (Low*)
Ringer Volume (O*)
Set the speaker mode and volume for incoming or outgoing
fax.
Note: An asterisk (*) next to a value indicates the factory default setting.
Fax Server Setup
Menu item Description
General Fax Settings
To F orma t
Reply Address
Subject:
Message:
Enable analog receive (O*)
Configure the general fax settings.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 79
Menu item Description
Fax Server E‑mail Settings
Use E‑mail SMTP Server (O*)
Primary SMTP Gateway
Primary SMTP Gateway Port
Secondary SMTP Gateway
Secondary SMTP Gateway Port
SMTP Timeout (30 seconds*)
Reply Address
Use SSL/TLS (Disabled*)
Required Trusted Certificate (On*)
SMTP Server Authentication (No authentication
required*)
Device‑Initiated E‑mail (None*)
User‑Initiated E‑mail (None*)
Use Active Directory Device Credentials
(O*)
Device Userid
Device Password
Kerberos 5 REALM
NTLM Domain
Disable “SMTP server not set up” error
(O*)
Configure the fax server e‑mail settings.
Fax Server Scan Settings
Image Format (PDF (.pdf)*)
Content Type (Text*)
Content Source (Color Laser*)
Fax Resolution (Standard*)
Sides (O*)
Darkness (5*)
Orientation (Portrait*)
Original Size (Mixed Sizes*)
Use Multi‑Page TIFF (On*)
Configure the fax server scan settings.
Note: An asterisk (*) next to a value indicates the factory default setting.
E-mail
E‑mail Setup
Menu item Description
Primary SMTP Gateway Type the IP address or host name of the primary SMTP server for
sending e-mail.
Primary SMTP Gateway Port
1–65535 (25*)
Enter the port number of the primary SMTP server.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 80
Menu item Description
Secondary SMTP Gateway Type the server IP address or host name of your secondary or
backup SMTP server.
Secondary SMTP Gateway Port
1–65535 (25*)
Enter the server port number of your secondary or backup SMTP
server.
SMTP Timeout
5–30 seconds (30*)
Set the time before the printer times out if the SMTP server does
not respond.
Reply Address Specify a reply address in the e‑mail.
Always use SMTP default Reply Address
On
O*
Always use the default reply address in the SMTP server.
Use SSL/TLS
Disabled*
Negotiate
Required
Specify whether to send e‑mail using an encrypted link.
Require Trusted Certificate
O
On*
Require a trusted certificate when accessing the SMTP server.
SMTP Server Authentication
No authentication required*
Login / Plain
NTLM
CRAM‑MD5
Digest‑MD5
Kerberos 5
Set the authentication type for the SMTP server.
Device‑Initiated E‑mail
None*
Use Device SMTP Credentials
Specify whether credentials are required for device‑initiated e‑mail.
User‑Initiated E‑mail
None*
Use Device SMTP Credentials
Use Session User ID and Password
Use Session E‑mail address and Password
Prompt user
Specify whether credentials are required for user‑initiated e‑mail.
Use Active Directory Device Credentials
O*
On
Specify whether credentials are required for user‑initiated e‑mail.
Device Userid Specify the user ID and password to connect to the SMTP server.
Device Password
Kerberos 5 REALM Specify the realm for the Kerberos 5 authentication protocol.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 81
Menu item Description
NTLM Domain Specify the domain name for the NTLM security protocol.
Note: An asterisk (*) next to a value indicates the factory default setting.
E‑mail Defaults
Menu item Description
Subject: Specify the e‑mail subject and message.
Message:
File Name Specify the filename for the scanned document.
Format
JPEG (.jpg)
PDF (.pdf)*
TIFF (.tif)
XPS (.xps)
Specify the file format of the scanned document.
PDF Settings
PDF Version (1.5*)
Archival Version (A‑1a*)
Highly Compressed (O*)
Secure
(O*)
Archival (PDF/A)
(O*)
Configure the PDF settings of the scanned document.
Notes:
• Archival Version and Archival (PDF/A) are supported only when PDF Version is
set to 1.4.
• Highly Compressed appears only when a hard disk is installed.
Content Type
Te xt
Te xt /P ho to*
Graphics
Improve the output result based on the content type of the original document.
Content Source
Black and White Laser
Color Laser*
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Improve the output result based on the content source of the original document.
Color
Black and White
Gray
Color*
Auto
Set the printer to capture file content in color or in mono.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 82
Menu item Description
Resolution
75 dpi
150 dpi*
200 dpi
300 dpi
400 dpi
600 dpi
Set the resolution of the scanned image.
Darkness
1–9 (5*)
Adjust the darkness of the scanned image.
Orientation
Portrait*
Landscape
Specify the orientation of the original document.
Original Size
Mixed Sizes*
Set the paper size of the original document.
Sides
O*
Short Edge
Long Edge
Specify the orientation of the original document when scanning on both sides of the
document.
Note: An asterisk (*) next to a value indicates the factory default setting.
Advanced Imaging
Menu item Description
Color Balance
Cyan (0*)
Magenta (0*)
Ye l l o w ( 0 * )
Adjust the color intensity for cyan, magenta, and yellow.
Color Dropout
Color Dropout (None*)
Default Red Threshold (128*)
Default Green Threshold (128*)
Default Blue Threshold (128*)
Specify which color to drop during scanning, and adjust the dropout
setting for that color.
Auto Color Detect
Color Sensitivity (5*)
Area Sensitivity (5*)
E‑mail Bit Depth (1 bit*)
Configure the auto color detection setting.
JPEG Quality
Best for content*
5–95
Set the JPEG quality of the scanned image.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 83
Menu item Description
Contrast
Best for content*
0–5
Specify the contrast for the scanned image.
Background Removal
Background Detection (Content‑based*)
Level (0*)
Remove the background color or image noise from the original
document.
Notes:
• Content-based removes the background color from the original
document.
• Fixed removes image noise from a photo.
Mirror Image
O*
On
Create a mirror image of the original document.
Negative Image
O*
On
Create a negative image of the original document.
Shadow Detail
‑4 to 4 (0*)
Adjust the shadow detail in the scanned image.
Scan Edge to Edge
O*
On
Scan the original document from edge to edge.
Sharpness
1–5 (3*)
Adjust the sharpness in the scanned image.
Temperat ure
‑4 to 4 (0*)
Generate a bluer or redder output of the original document.
Blank Pages
Blank Page Removal (Remove*)
Blank Page Sensitivity (5*)
Set the sensitivity of scans in relation to blank pages in the original
document.
Note: An asterisk (*) next to a value indicates the factory default setting.
Admin Controls
Menu item Description
Max E‑mail Size
0–65535 (0*)
Set the allowable file size for each e‑mail.
Size Error Message Specify an error message that the printer sends when an e‑mail exceeds
its allowable file size.
Note: You can type up to 1024 characters.
Limit Destinations Limit sending of e‑mail only to the specified list of domain name.
Note: Use a comma to separate each domain.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 84
Menu item Description
Send Me a Copy
Never appears*
On by Default
O by Default
Always On
Send a copy of the e‑mail to yourself.
Allow self e‑mails only
O*
On
Set the printer to send e‑mails to yourself only.
Use cc:/bcc:
O*
On
Enable carbon copy and blind carbon copy in e‑mail.
Use Multi‑Page TIFF
O
On*
Enable scanning of multiple TIFF images in one TIFF file.
TIFF Compression
JPEG
LZW*
Specify the compression type for TIFF files.
Text Default
5–95 (75*)
Set the text quality in the content being scanned.
Text/Pho to Def ault
5–95 (75*)
Set the text and photo quality in the content being scanned.
Photo Default
5–95 (50*)
Set the photo quality of the content being scanned.
Transmission Log
Print log
Do Not Print Log*
Print Only For Error
Print a transmission log for e‑mail scans.
Log Paper Source
Tray [x] (1*)
Multipurpose Feeder
Specify the paper source for printing e‑mail logs.
Custom Job Scanning
O*
On
Set the printer to scan the first set of original documents using the
specified settings, and then scan the next set with the same or dierent
settings.
Note: This menu item appears only when a hard disk is installed.
Scan Preview
O
On*
Show a scan preview of the original document.
Note: This menu item appears only when a hard disk is installed.
Allow Save as Shortcut
O
On*
Save an e‑mail address as a shortcut.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 85
Menu item Description
E‑mail Images Sent As
Attachment*
Web Link
Specify how to send the images that are included in the e‑mail.
Reset E-mail Information After Sending
O
On*
Reset the To, Subject, Message, and Filename fields to their default
values after sending an e‑mail.
Note: An asterisk (*) next to a value indicates the factory default setting.
Web Link Setup
Menu item Description
Server Set the printer to send e‑mail as a web link.
Login
Password
Path
File Name
Web Link
FTP
FTP Defaults
Menu item Description
Format
PDF (.pdf)*
TIFF (.tif)
JPEG (.jpg)
XPS (.xps)
Specify the file format for the scanned image.
PDF Settings
PDF Version (1.5*)
Archival Version (A‑1a*)
Secure (O*)
Archival (PDF/A) (O*)
Configure the PDF settings for the scanned image.
Note: Archival Version and Archival (PDF/A) are supported only when PDF Version is
set to 1.4.
Content Type
Te xt
Te xt /P ho to*
Graphics
Improve the output result based on the content type of the original document.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 86
Menu item Description
Content Source
Black and White Laser
Color Laser*
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Improve the output result based on the source of the original document.
Color
Black and White
Gray
Color*
Auto
Set the printer to capture file content in color or in mono.
Resolution
75 dpi
150 dpi*
200 dpi
300 dpi
400 dpi
600 dpi
Set the resolution of the scanned image.
Darkness
1–9 (5*)
Adjust the darkness of the scanned image.
Orientation
Portrait*
Landscape
Specify the orientation of the original document.
Original Size
Mixed Sizes*
Set the paper size of the original document.
Sides
O*
Long Edge
Short Edge
Specify the orientation when scanning on both sides of the document.
File Name Specify the file name of the scanned image.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 87
Advanced Imaging
Menu item Description
Color Balance
Cyan ‑ Red (0*)
Magenta ‑ Green (0*)
Ye l l o w ‑ Blue (0*)
Adjust the color intensity for cyan, magenta, and yellow.
Color Dropout
Color Dropout
None*
Red
Green
Blue
Default Red Threshold
0–255 (128*)
Default Green Threshold
0–255 (128*)
Default Blue Threshold
0–255 (128*)
Specify which color to drop during scanning, and adjust the dropout setting for that
color.
Auto Color Detect
Color Sensitivity
1–9 (5*)
Area Sensitivity
1–9 (5*)
Set the amount of color that the printer detects from the original document.
Note: This menu item appears only when Color is set to Auto.
JPEG Quality
Best for content*
5–95
Set the quality of a JPEG‑format image.
Notes:
• 5 reduces the file size, but lessens the image quality.
• 90 provides the best image quality, but produces a large
file
size.
Contrast
Best for content*
0
1
2
3
4
5
Specify the contrast for the scanned image.
Background Removal
Level (0*)
Remove the background color or image noise from the original document.
Mirror Image
O*
On
Create a mirror image of the original document.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 88
Menu item Description
Negative Image
O*
On
Create a negative image of the original document.
Shadow Detail
‑4 to 4 (0*)
Adjust the amount of shadow detail visible on a scanned image.
Scan Edge to Edge
O*
On
Allow edge‑to‑edge scanning of the original document.
Sharpness
1–5 (3*)
Adjust the sharpness of a scanned image.
Temperat ure
‑4 to 4 (0*)
Specify whether to generate a cooler or warmer output.
Blank Pages
Blank Page Removal
Blank Page Sensitivity
Specify whether to include blank pages.
Note: An asterisk (*) next to a value indicates the factory default setting.
Admin Controls
Menu item Description
Text Default
5–95 (75*)
Set the quality of text on the scanned image.
Text/Pho to Def ault
5–95 (75*)
Set the quality of text and photo on the scanned image.
Photo Default
5–95 (50*)
Set the quality of photo on the scanned image.
Use Multi‑Page TIFF
On*
O
Choose between single- and multiple‑page TIFF files.
TIFF Compression
LZW*
JPEG
Set a compression option for TIFF files.
Transmission Log
Print Log
Do Not Print Log*
Print Only For Error
Print a transmission log for FTP scans.
Log Paper Source
Tray [x] (1*)
Multipurpose Feeder
Specify the paper source for printing FTP logs.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 89
Menu item Description
FTP Bit Depth
1 bit
8 bit*
Enable the Text/Photo mode to have smaller file sizes by using 1‑bit image.
Note: This menu item appears only when Color is set to Gray.
Custom Job Scanning
O*
On
Turn on scanning of custom jobs by default.
Note: This menu item appears only when a hard disk is installed.
Scan Preview
O
On*
Show a preview of the scan on the display.
Note: This menu item appears only when a hard disk is installed.
Allow Save as Shortcut
O
On*
Save custom FTP settings as shortcuts.
Note: An asterisk (*) next to a value indicates the factory default setting.
Network/Ports
Network Overview
Menu item Description
Active Adapter
Auto*
Standard Network
Wireless
Specify the type of the network connection.
Note: Wireless is available only in printers connected to a wireless network.
Network Status Show the connectivity status of the printer network.
Display Network Status on
Printer
O
On*
Show the network status on the display.
Speed, Duplex Show the speed of the currently active network card.
IPv4 Show the IPv4 address.
All IPv6 Addresses Show all IPv6 addresses.
Reset Print Server Reset all active network connections to the printer.
Note: This setting removes all network configuration settings.
Network Job Timeout
O
On* (90 seconds)
Set the time before the printer cancels a network print job.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 90
Menu item Description
Banner Page
O*
On
Print a banner page.
Scan to PC Port Range Specify a valid port range for printers that are behind a port blocking firewall.
Enable Network Connections
O
On*
Enable the printer to connect to a network.
Enable LLDP
O*
On
Enable Link Layer Discovery Protocol (LLDP) in the printer.
Note: An asterisk (*) next to a value indicates the factory default setting.
Wireless
Note: This menu is available only in printers connected to a wireless network.
Menu item Description
Setup On Printer Panel
Choose Network
Add Wi-Fi Network
Network Name
Network Mode
Infrastructure*
Ad hoc
Wireless Security Mode
Disabled*
WEP
WPA2/WPA - Personal
WPA2 - Personal
Configure the wireless connection using the control panel.
Wi‑Fi Protected Setup
Start Push Button Method
Start PIN Method
Establish a wireless network and enable network security.
Notes:
• Start Push-Button Method connects the printer to a wireless
network when buttons on both the printer and the access point
(wireless router) are pressed within a given period of time.
• Start PIN Method connects the printer to a wireless network
when a PIN on the printer is entered into the wireless settings
of the access point.
Understanding the printer menus 91
Menu item Description
Network Mode
BSS Type
Infrastructure*
Ad hoc
Preferred Channel Number
Auto*
1–11
Specify the network mode.
Note: Preferred Channel Number only appears if BSS Type is set to
Ad hoc.
Enable Wi‑Fi Direct
On
O*
Set the printer to connect directly to Wi-Fi devices.
Compatibility
802.11b/g/n (2.4GHz)*
802.11a/b/g/n/ac (2.4GHz/5GHz)
802.11a/n/ac (5GHz)
Specify the wireless standard for the wireless network.
Note: 802.11a/b/g/n and 802.11a/n are selectable only if the Enable
Wi‑Fi Direct setting is disabled.
Wireless Security Mode
Disabled*
WEP
WPA2/WPA - Personal
WPA2 - Personal
802.1x - RADIUS
Set the type of security for connecting the printer to wireless devices.
WEP Authentication Mode
Auto*
Open
Shared
Set the type of Wireless Encryption Protocol (WEP) used by the
printer.
Note: This menu item appears only if Wireless Security Mode is set
to WEP.
Set WEP Key Specify a WEP password for secure wireless connection.
WPA2/WPA - Personal
AES
Enable wireless security through Wi-Fi Protected Access (WPA).
Note: This menu item appears only if the Wireless Security Mode is
set to WPA2/WPA-Personal or WPA2-Personal.
Set Pre‑Shared Key Set the password for secure wireless connection.
WPA2 - Personal
AES
Enable wireless security through WPA2.
Note: This menu item appears only if the Wireless Security Mode is
set to WPA2/WPA-Personal or WPA2-Personal.
802.1x Encryption Mode
WPA+
WPA2*
Enable wireless security through 802.1x standard.
Note: This menu item appears only if the Wireless Security Mode is
set to 802.1x - Radius.
Understanding the printer menus 92
Menu item Description
IPv4
Enable DHCP
On*
O
Set Static IP Address
IP Address
Netmask
Gateway
Enable and configure IPv4 settings in the printer.
IPv6
Enable IPv6
On*
O
Enable DHCPv6
On
O*
Stateless Address Autoconfiguration
On*
O
DNS Server Address
Manually Assigned IPv6 Address
Manually Assigned IPv6 Router
Address Prefix
All IPv6 Addresses
All IPv6 Router Addresses
Enable and configure IPv6 settings in the printer.
Network Address
UAA
LAA
View the network addresses.
PCL Smartswitch
On*
O*
Set the printer to switch automatically to PCL emulation when a print
job requires it, regardless of the default printer language.
Note: If PCL SmartSwitch is o, then the printer does not examine
incoming data and uses the default printer language specified in
the Setup menu.
PS Smartswitch
On*
O*
Set the printer to switch automatically to PS emulation when a print
job requires it, regardless of the default printer language.
Note: If PS SmartSwitch is
o,
then the printer does not examine
incoming data and uses the default printer language specified in
the Setup menu.
Job Buering
On
O*
Temporarily store print jobs in the printer hard disk before printing.
Note: This menu item appears only when a hard disk is installed.
Mac Binary PS
Auto*
On
Set the printer to process Macintosh binary PostScript print jobs.
Note: On processes raw binary PostScript print jobs.
Understanding the printer menus 93
Ethernet
Menu item Description
Network Speed Show the speed of the active network adapter.
IPv4
Enable DHCP (On*)
Set Static IP Address
Configure the IPv4 settings.
IPv6
Enable IPv6 (On*)
Enable DHCPv6
(O*)
Stateless Address Autoconfiguration (On*)
DNS Server Address
Manually Assigned IPv6 Address
Manually Assigned IPv6 Router
Address
Prefix
(64*)
All IPv6 Addresses
All IPv6 Router Addresses
Configure the IPv6 settings.
Network Address
UAA
LAA
Specify the network address.
PCL SmartSwitch
O
On*
Set the printer to switch automatically to PCL emulation when a print
job requires it, regardless of the default printer language.
Note: When this setting is disabled, the printer does not examine
incoming data and uses the default printer language specified in
the Setup menu.
PS SmartSwitch
O
On*
Set the printer to switch automatically to PostScript emulation when
a print job requires it, regardless of the default printer language.
Note: When this setting is disabled, the printer does not examine
incoming data and uses the default printer language specified in
the Setup menu.
Job Buering
O*
On
Temporarily store jobs on the hard disk before printing.
Note: This menu item appears only when a hard disk is installed.
Mac Binary PS
Auto*
On
O
Set the printer to process Macintosh binary PostScript print jobs.
Notes:
• Auto processes print jobs from computers using either
Windows or Macintosh operating systems.
•
O
filters
PostScript print jobs using the standard protocol.
Energy Ecient Ethernet
On
O
Auto*
Reduce power consumption when the printer does not receive data
from the Ethernet network.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 94
TCP/IP
Note: This menu appears only in network printers or printers attached to print servers.
Menu item Description
Set Hostname Set the current TCP/IP host name.
Domain Name Set the domain name.
Allow DHCP/BOOTP to update
NTP server
On*
O
Allow the DHCP and BOOTP clients to update the NTP settings of the printer.
Zero Configuration Name Specify a service name for the zero configuration network.
Enable Auto IP
O*
On
Assign an IP address automatically.
DNS Server Address Specify the current Domain Name System (DNS) server address.
Backup DNS Address Specify the backup DNS server addresses.
Backup DNS Address 2
Backup DNS Address 3
Domain Search Order Specify a list of domain names to locate the printer and its resources that reside
in dierent domains on the network.
Enable DDNS
O*
On
Update the Dynamic DNS settings.
DDNS TTL Specify the current DDNS settings.
Default TTL
DDNS Refresh Time
Enable mDNS
O
On*
Update the multicast DNS settings.
WINS Server Address Specify a server address for Windows Internet Name Service (WINS).
Enable BOOTP
O*
On
Allow the BOOTP to assign a printer IP address.
Restricted Server List Specify the IP addresses that are allowed to communicate with the printer over
TCP/IP.
Notes:
• Use a comma to separate each IP address.
• You can add up to 50 IP addresses.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 95
Menu item Description
Restricted Server List Options
Block All Ports*
Block Printing Only
Block Printing and HTTP Only
Specify the access option for IP addresses that are not in the list.
MTU
256–1500 Ethernet (1500*)
Specify a maximum transmission unit (MTU) parameter for the TCP connections.
Raw Print Port
1–65535 (9100*)
Specify a raw port number for printers connected on a network.
Outbound Trac Maximum
Speed
O*
On
Set the maximum transfer rate of the printer.
Note: When enabled, the option for this setting is 100–1000000
Kilobits/second.
Enable TLSv1.0
O
On*
Enable the TLSv1.0 protocol.
Enable TLSv1.1
O
On*
Enable the TLSv1.1 protocol.
SSL Cipher List Specify the cipher algorithms to use for the SSL or the TLS connections.
Note: An asterisk (*) next to a value indicates the factory default setting.
SNMP
Note: This menu appears only in network printers or printers that are attached to print servers.
Menu item Description
SNMP Versions 1 and 2c
Enabled
O
On*
Allow SNMP Set
O
On*
Enable PPM MIB
O
On*
SNMP Community
Configure Simple Network Management Protocol (SNMP) versions 1
and 2c to install print drivers and applications.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 96
Menu item Description
SNMP Version 3
Enabled
O
On*
Set Read/Write Credentials
User Name
Password
Set Read‑only Credentials
User Name
Password
Authentication Hash
MD5
SHA1*
Minimum Authentication Level
No Authentication, No Privacy
Authentication, No Privacy
Authentication, Privacy*
Privacy Algorithm
DES
AES‑128*
Configure SNMP version 3 to install and update the printer security.
Note: An asterisk (*) next to a value indicates the factory default setting.
IPSec
Note: This menu appears only in network printers or printers that are attached to print servers.
Menu item Description
Enable IPSec
O*
On
Enable Internet Protocol Security (IPSec).
Base Configuration
Default*
Compatibility
Secure
Set the IPSec base configuration.
Note: This menu item appears only when Enable IPSec is set to
On.
IPSec Device Certificate Specify an IPSec certificate.
Note: This menu item appears only when Base
Configuration
is set
to Compatibility.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 97
Menu item Description
Pre‑Shared Key Authenticated
Connections
Host [x]
Address
Key
Configure the authenticated connections of the printer.
Note: These menu items appear only when Enable IPSec is set to
On.
Certificate Authenticated Connections
Host [x] Address[/subnet]
Address[/subnet]
Note: An asterisk (*) next to a value indicates the factory default setting.
802.1x
Note: This menu appears only in network printers or printers that are attached to print servers.
Menu item Description
Active
O*
On
Let the printer join networks that require authentication before
allowing access.
Note: To configure the settings of this menu item, access the
Embedded Web Server.
Note: An asterisk (*) next to a value indicates the factory default setting.
LPD Configuration
Note: This menu appears only in network printers or printers that are attached to print servers.
Menu item Description
LPD Timeout
0–65535 seconds (90*)
Set the time‑out value to stop the Line Printer Daemon (LPD) server
from waiting indefinitely for hung or invalid print jobs.
LPD Banner Page
O*
On
Print a banner page for all LPD print jobs.
Note: A banner page is the first page of a print job used as a
separator of print jobs and to identify the originator of the print job
request.
LPD Trailer Page
O*
On
Print a trailer page for all LPD print jobs.
Note: A trailer page is the last page of a print job.
LPD Carriage Return Conversion
O*
On
Enable carriage return conversion.
Note: Carriage return is a mechanism that commands the printer to
move the position of the cursor to the first position on the same
line.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 98
HTTP/FTP Settings
Menu item Description
Enable HTTP Server
O
On*
Access the Embedded Web Server to monitor and manage the printer.
Enable HTTPS
O
On*
Configure the Hypertext Transfer Protocol Secure (HTTPS) settings.
Force HTTPS Connections
On
O*
Force the printer to use the HTTPS connections.
Enable FTP/TFTP
O
On*
Send files using FTP.
Local Domains Specify domain names for HTTP and FTP servers.
Note: This menu item appears only in the Embedded Web Server.
HTTP Proxy IP Address Configure the HTTP and FTP server settings.
Note: HTTP Proxy IP Address and FTP Proxy IP Address appear only in the
Embedded Web Server.
FTP Proxy IP Address
HTTP Default IP Port
1–65535 (80*)
HTTPS Device Certificate
FTP Default IP Port
1–65535 (21*)
Timeout for HTTP/FTP
Requests
1–299 (30*)
Specify the amount of time before the server connection stops.
Retries for HTTP/FTP Requests
1–299 (3*)
Set the number of retries to connect to the HTTP/FTP server.
Note: An asterisk (*) next to a value indicates the factory default setting.
ThinPrint
Menu item Description
Enable ThinPrint
O
On*
Print using ThinPrint.
Port Number
4000–4999 (4000*)
Set the port number for the ThinPrint server.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 99
Menu item Description
Bandwidth (bits/sec)
0*
100–1000000
Set the speed to transmit data in a ThinPrint environment.
Packet Size (kbytes)
0–64000 (0*)
Set the packet size for data transmission.
Note: An asterisk (*) next to a value indicates the factory default setting.
USB
Menu item Description
PCL SmartSwitch
On*
O
Set the printer to switch to PCL emulation when a print job received through a
USB port requires it, regardless of the default printer language.
Note: If PCL SmartSwitch is
o,
then the printer does not examine incoming
data and uses the default printer language specified in the Setup menu.
PS SmartSwitch
On*
O
Set the printer to switch to PS emulation when a print job received through a
USB port requires it, regardless of the default printer language.
Note: If PS SmartSwitch is
o,
then the printer does not examine incoming
data and uses the default printer language specified in the Setup menu.
Mac Binary PS
Auto*
On
O
Set the printer to process Macintosh binary PostScript print jobs.
Notes:
• On processes raw binary PostScript print jobs.
•
O
filters
print jobs using the standard protocol.
Enable USB Port
Enable*
Disable
Enable the standard USB port.
Note: An asterisk (*) next to a value indicates the factory default setting.
Restrict external network access
Menu item Description
Restrict external network
access
O*
On
Restrict access to network sites.
External network address Specify the network addresses with restricted access.
E‑mail address for notification Specify an e‑mail address to send a notification of logged events.
Ping frequency
1–300 (10*)
Specify the network query interval in seconds.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 100
Menu item Description
Subject Specify the subject and message of the notification e‑mail.
Message
Note: An asterisk (*) next to a value indicates the factory default setting.
Google Cloud Print
Menu item Description
Registration
Register
Register the printer to the Google Cloud Print server.
Options
Enable Google Cloud Print
O
On*
Print directly from your Google account.
Options
Enable Local Discovery
O
On*
Allow the registered user and other users on the same subnet to
send jobs to the printer locally.
Options
Enable SSL Peer
Verification
O
On*
Verify authenticity of the peer certificate to connect to your Google
account.
Options
Always Print As Image
O*
On
Enable the Always Print As Image feature.
Note: An asterisk (*) next to a value indicates the factory default setting.
Wi‑Fi Direct
Note: This menu appears only when a direct Wi‑Fi network is the active network.
Menu item Description
SSID Specify the service set identifier (SSID) of the Wi‑Fi network.
Preferred Channel Number
Auto
1–11 (6*)
Show the PSK on the Network Setup Page.
Set PSK Set the preshared key (PSK) to authenticate and validate users on a Wi‑Fi
connection.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 101
Menu item Description
Show PSK on Setup Page
O
On*
Show the PSK on the Network Setup Page.
Group Owner IP Address Specify the IP address of the group owner.
Auto‑Accept Push Button
Requests
O*
On
Accept requests to connect to the network automatically.
Note: Accepting clients automatically is not secure.
Note: An asterisk (*) next to a value indicates the factory default setting.
USB Drive
Flash Drive Scan
Menu item Description
Format
PDF (.pdf)*
TIFF (.tif)
JPEG (.jpg)
XPS (.xps)
Specify the file format for the scanned image.
Note: The settings may vary depending on your printer model.
Global OCR Settings
Recognized Languages
Auto Rotate
Despeckle
Auto Contrast Enhance
Configure the settings for optical character recognition (OCR).
Note: This menu appears only if you have purchased and installed an OCR
solution.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 102
Menu item Description
PDF Settings
PDF Version
1.3
1.4
1.5*
1.6
1.7
Archival Version
A‑1a*
A‑1b
Secure
O*
On
Archival (PDF/A)
O*
On
Set the PDF format for the scanned image.
Content Type
Te xt
Te xt /P ho to*
Graphics
Improve the output result based on the content of the original document.
Content Source
Black and White Laser
Color Laser*
Inkjet
Photo/Film
Magazine
Newspaper
Press
Other
Improve the output result based on the source of the original document.
Color
Black and White
Gray
Color*
Auto
Specify the color when scanning an image.
Resolution
75 dpi
150 dpi*
200 dpi
300 dpi
400 dpi
600 dpi
Set the resolution of the scanned image.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 103
Menu item Description
Darkness
1–9 (5*)
Adjust the darkness of the scanned image.
Orientation
Portrait*
Landscape
Specify the orientation of text and graphics on the page.
Original Size
[List of paper sizes]
Set the paper size of the original document.
Notes:
• Letter is the U.S. factory default setting. A4 is the international factory
default setting.
• This menu item may vary depending on your printer model.
Sides
O*
Long edge
Short edge
Specify the page orientation of text and graphics when scanning a two‑sided
document.
File Name Specify the file name of the scanned image.
Note: An asterisk (*) next to a value indicates the factory default setting.
Advanced Imaging
Menu item Description
Color Balance Adjust the amount of toner used for each color.
Color Dropout
Color Dropout
None*
Red
Green
Blue
Default Red Threshold
0–255 (128*)
Default Green Threshold
0–255 (128*)
Default Blue Threshold
0–255 (128*)
Specify which color to drop during scanning, and adjust the dropout setting for
that color.
Auto Color Detect
Color Sensitivity
1–9 (5*)
Area Sensitivity
1–9 (5*)
Set the amount of color that the printer detects from the original document.
Note: This menu item appears only when Color is set to Auto.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 104
Menu item Description
JPEG Quality
Best for content*
5–95
Set the quality of a JPEG‑format image.
Notes:
• 5 reduces the file size, but lessens the image quality.
• 90 provides the best image quality, but produces a large file size.
Contrast
Best for content*
0
1
2
3
4
5
Specify the contrast of the output.
Background Removal
Background Detection
Content‑based*
Fixed
Level
‑4 to 4 (0*)
Adjust the amount of background visible on a scanned image.
Note: If you want to remove the background color from the original
document, then set Background Detection to Content-based. If you want to
remove image noise from a photo, then set Background Detection to Fixed.
Mirror Image
O*
On
Create a mirror image of the original document.
Negative Image
O*
On
Create a negative image of the original document.
Shadow Detail
‑4 to 4 (0*)
Adjust the amount of shadow detail visible on a scanned image.
Scan Edge to Edge
O*
On
Allow edge‑to‑edge scanning of the original document.
Sharpness
1–5 (3*)
Adjust the sharpness of a scanned image.
Temperat ure
‑4 to 4 (0*)
Specify whether to generate a cooler or warmer output.
Blank Pages
Blank Page Removal
Blank Page Sensitivity
Specify whether to include blank pages.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 105
Admin Controls
Menu item Description
Text Default
5–95 (75*)
Set the quality of text on a scanned image.
Text/Pho to Def ault
5–95 (75*)
Set the quality of text or photo on a scanned image.
Photo Default
5–95 (75*)
Set the quality of a photo on a scanned image.
Use Multi‑Page TIFF
On*
O
Choose between single- and multiple‑page TIFF files.
TIFF Compression
LZW*
JPEG
Set the compression for TIFF files.
Scan Bit Depth
1 bit
8 bit*
Enable the Text/Photo mode to have smaller file sizes by using 1‑bit image.
Note: This menu item appears only when Color is set to Gray.
Custom Job Scanning
O*
On
Turn on scanning of custom jobs by default.
Note: This menu item appears only when a hard disk is installed.
Scan Preview
O
On*
Show a preview of the scan on the display.
Note: This menu item appears only when a hard disk is installed.
Note: An asterisk (*) next to a value indicates the factory default setting.
Flash Drive Print
Menu item Description
Number of Copies
1–9999 (1*)
Set the number of copies.
Paper Source
Tray [x] (1*)
Multipurpose Feeder
Manual Paper
Manual Envelope
Set the paper source for the print job.
Note: The multipurpose feeder is available only in some printer models.
Collate
(1,1,1) (2,2,2)
(1,2,3) (1,2,3)*
Print multiple copies in sequence.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 106
Menu item Description
Sides
1‑Sided*
2‑Sided
Specify whether to print on one side or two sides of the paper.
Flip Style
Long Edge*
Short Edge
Determine which side of the paper (long edge or short edge) is bound when
performing two‑sided printing.
Note: Depending on the option selected, the printer automatically
osets
each
printed information of the page to bind the job correctly.
Pages per Side
O*
2 pages per side
3 pages per side
4 pages per side
6 pages per side
9 pages per side
12 pages per side
16 pages per side
Print multiple page images on one side of a sheet of paper.
Pages per Side Ordering
Horizontal*
Reverse Horizontal
Reverse Vertical
Vertical
Specify the positioning of multiple page images when using Pages per Side.
Note: The positioning depends on the number of page images and their page
orientation.
Pages per Side Orientation
Auto*
Landscape
Portrait
Specify the orientation of a multiple‑page document when using Pages per Side.
Pages per Side Border
None*
Solid
Print a border around each page image when using Pages per Side.
Separator Sheets
O*
Between Copies
Between Jobs
Between Pages
Specify whether to insert blank separator sheets when printing.
Separator Sheet Source
Tray [x] (1*)
Multipurpose Feeder
Specify the paper source for the separator sheet.
Note: The multipurpose feeder is available only in some printer models.
Blank Pages
Do Not Print*
Print
Specify whether to print blank pages in a print job.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 107
Security
Login Methods
Manage Permissions
Menu item Description
Function Access
Access Address Book in Apps
Modify Address Book
Manage Shortcuts
Create Profiles
Manage Bookmarks
Flash Drive Print
Flash Drive Scan
Copy Function
Color Dropout
E‑mail Function
Fax Function
FTP Function
Release Held Faxes
Held Jobs Access
User Profiles
Cancel Jobs at the Device
Change Language
Internet Printing Protocol (IPP)
Initiate Scans Remotely
B/W Print
Network Folder ‑ Scan
Control access to the printer functions.
Administrative Menus
Security Menu
Network/Ports Menu
Paper Menu
Reports Menu
Function Configuration Menus
Supplies Menu
Option Card Menu
SE Menu
Device Menu
Control access to the printer menu settings.
Understanding the printer menus 108
Menu item Description
Device Management
Remote Management
Firmware Updates
Apps Configuration
Operator Panel Lock
Import/Export All Settings
Out of Service Erase
Embedded Web Server Access
Control access to the printer management options.
Apps
New Apps
Scan Center
Scan Center Custom 1
Scan Center Custom 2
Scan Center Custom 3
Scan Center Custom 4
Scan Center Custom 5
Scan Center Custom 6
Scan Center Custom 7
Scan Center Custom 8
Scan Center Custom 9
Scan Center Custom 10
Control access to printer applications.
Local Accounts
Menu item Description
Manage Groups/Permissions
Add Group
Import Access Controls
Function Access
Administrative Menus
Device Management
Apps
All Users
Import Access Controls
Function Access
Administrative Menus
Device Management
Apps
Admin
Control group or user access to the printer functions, applications, and security
settings.
Understanding the printer menus 109
Menu item Description
Add User
User Name/Password
User Name
Password
PIN
Create local accounts to manage access to the printer functions.
User Name/Password Accounts
Add User
User Name Accounts
Add User
Password Accounts
Add User
PIN Accounts
Add User
Schedule USB Devices
Menu item Description
Schedules
Add New Schedule
Schedule access to the USB ports.
Security Audit Log
Menu item Description
Enable Audit
O*
On
Record the events in the secure audit log and remote syslog.
Enable Remote Syslog
O*
On
Send audit logs to a remote server.
Remote Syslog Server Specify the remote syslog server.
Remote Syslog Port
1–65535 (514*)
Specify the remote syslog port.
Remote Syslog Method
Normal UDP*
Stunnel
Specify a syslog method to transmit logged events to a remote server.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 110
Menu item Description
Remote Syslog Facility
0 ‑ Kernel Messages
1 ‑ User‑Level Messages
2 ‑ Mail System
3 ‑ System Daemons
4 ‑ Security/Authorization
Messages*
5 ‑ Messages Generated
Internally by Syslogs
6 ‑ Line Printer Subsystem
7 ‑ Network News Subsystem
8 ‑ UUCP Subsystem
9 ‑ Clock Daemon
10 ‑ Security/Authorization
Messages
11 ‑ FTP Daemon
12 ‑ NTP Subsystem
13 ‑ Log Audit
14 ‑ Log Alert
15 ‑ Clock Daemon
16 ‑ Local Use 0 (local0)
17‑ Local Use 1 (local1)
18 ‑ Local Use 2 (local2)
19 ‑ Local Use 3 (local3)
20 ‑ Local Use 4 (local4)
21 ‑ Local Use 5 (local5)
22 ‑ Local Use 6 (local6)
23 ‑ Local Use 7 (local7)
Specify a facility code that the printer uses when sending log events to a remote
server.
Severity of Events to Log
0 ‑ Emergency
1 ‑ Alert
2 ‑ Critical
3 ‑ Error
4 ‑ Warning*
5 ‑ Notice
6 ‑ Informational
7 ‑ Debug
Specify the priority level cuto for logging messages and events.
Remote Syslog Non‑Logged
Events
O*
On
Send all events, regardless of severity level, to the remote server.
Admin’s E‑mail Address Send e‑mail notification of logged events to the administrator.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 111
Menu item Description
E‑mail Log Cleared Alert
O*
On
Send e‑mail notification to the administrator when a log entry is deleted.
E‑mail Log Wrapped Alert
O*
On
Send e‑mail notification to the administrator when the log becomes full and
begins to overwrite the oldest entries.
Log Full Behavior
Wrap Over Older Entries*
E‑mail Log Then Delete All
Entries
Resolve log storage issues when the log fills its allotted memory.
E‑mail % Full Alert
O*
On
Send e‑mail notification to the administrator when the log fills its allotted
memory.
% Full Alert Level
1–99 (90*)
E‑mail Log Exported Alert
O*
On
Send e‑mail notification to the administrator when a log is exported.
E‑mail Log Settings Changed
Alert
O*
On
Send e‑mail notification to the administrator when Enable Audit is set.
Log Line Endings
LF (\n)*
CR (\r)
CRLF (\r\n)
Specify how the log file terminates the end of each line.
Digitally Sign Exports
O*
On
Add a digital signature to each exported log file.
Clear Log Delete all audit logs.
Export Log
Syslog (RFC 5424)
Syslog (RFC 3164)
CSV
Export a security log to a flash drive.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 112
Login Restrictions
Menu item Description
Login failures
1–10 (3*)
Specify the number of failed login attempts before the user gets locked out.
Failure time frame
1–60 minutes (5*)
Specify the time frame between failed login attempts before the user gets locked out.
Lockout time
1–60 minutes (5*)
Specify the lockout duration.
Web Login Timeout
1–120 minutes (10*)
Specify the delay for a remote login before the user is logged o automatically.
Note: An asterisk (*) next to a value indicates the factory default setting.
Confidential Print Setup
Menu item Description
Max Invalid PIN
2–10
Set the number of times an invalid PIN can be entered.
Notes:
• A value of zero turns o this setting.
• When the limit is reached, the print jobs for that user name and PIN are
deleted.
• This menu item appears only when a hard disk is installed.
Confidential Job Expiration
O*
1 Hour
4 Hours
24 Hours
1 Week
Set the expiration time for confidential print jobs.
Notes:
• If this menu item is changed while confidential print jobs reside in the printer
memory or hard disk, then the expiration time for those print jobs does not
change to the new default value.
• If the printer is turned o, then all confidential jobs held in the printer memory
are deleted.
Repeat Job Expiration
O*
1 Hour
4 Hours
24 Hours
1 Week
Set the expiration time for a print job that you want to repeat.
Verify Job Expiration
O*
1 Hour
4 Hours
24 Hours
1 Week
Set the expiration time that the printer prints a copy for the user to examine its quality,
before printing the remaining copies.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 113
Menu item Description
Reserve Job Expiration
O*
1 Hour
4 Hours
24 Hours
1 Week
Set the expiration time that the printer stores print jobs for printing later.
Require All Jobs to be Held
O*
On
Set the printer to hold all print jobs.
Keep duplicate documents
O*
On
Set the printer to print other documents with the same file name without overwriting
any of the print jobs.
Note: An asterisk (*) next to a value indicates the factory default setting.
Disk Encryption
Note: This menu appears only when a printer hard disk is installed.
Menu item Description
Status
Enabled
Disabled
Determine whether Disk Encryption is enabled.
Start encryption Prevent the loss of sensitive data in case the printer or its hard disk is stolen.
Note: Enabling disk encryption erases all contents in the hard disk. If necessary, back up
important data from the printer before starting the encryption.
Erase Temporary Data Files
Menu item Description
Stored in onboard memory
O*
On
Delete all files stored on the printer memory.
Stored on hard disk
1 Pass Erase*
3 Pass Erase
7 Pass Erase
Delete all files stored on the printer hard disk.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 114
Solutions LDAP Settings
Use To
Follow LDAP Referrals
O*
On
Search the dierent servers in the domain for the logged-in user account.
LDAP Certificate Verification
No*
Ye s
Enable verification of LDAP certificates.
Mobile Services Management
Use To
AirPrint
Print
Scan
Fax
Enable functions in the AirPrint software feature.
Miscellaneous
Menu item Description
Protected Features
Show*
Hide
Show all the features that Function Access Control (FAC) protects regardless
of the security permission that the user has.
Note: FAC manages access to specific menus and functions or disables them
entirely.
Print Permission
O*
On
Let the user log in before printing.
Default Print Permission Login Set the default login for Print Permission.
Security Reset Jumper
Enable “Guest” access*
No
Eect
Specify the eect of using the security reset jumper.
Notes:
• The jumper is located beside a lock icon on the controller board.
• Enable “Guest” access provides full access control to users who are not
logged in.
• No Eect means that the reset has no eect on the printer security
configuration.
Minimum Password Length
0–32 (0*)
Specify the minimum characters that are allowed for a password.
Note: An asterisk (*) next to a value indicates the factory default setting.
Understanding the printer menus 115
Reports
Menu Settings Page
Menu item Description
Menu Settings Page Print a report that contains the printer menus.
Device
Menu item Description
Device Information Print a report that contains information about the printer.
Device Statistics Print a report about printer usage and supply status.
Profile List Print a list of profiles that are stored in the printer.
Asset Report Print a report that contains the printer serial number and model name.
Print
Menu item Description
Print Fonts
PCL Fonts
PS Fonts
Print samples and information about the fonts that are available in each printer
language.
Print Demo Print sample pages.
Print Directory Print the resources that are stored in the flash drive or hard disk.
Note: This menu item appears only when a flash drive or hard disk is
installed.
Shortcuts
Menu item Description
All Shortcuts Print a report that lists the shortcuts that are stored in the printer.
Fax Shortcuts
Copy Shortcuts
E‑mail Shortcuts
FTP Shortcuts
Network Folder Shortcuts
Understanding the printer menus 116
Fax
Menu item Description
Fax Job Log Print a report about the last 200 completed fax jobs.
Note: This menu item appears only when Enable Job Log is set to On.
Fax Call Log Print a report about the last 100 attempted, received, and blocked calls.
Note: This menu item appears only when Enable Job Log is set to On.
Network
Menu item Description
Network Setup Page Print a page that shows the configured network and wireless settings on the
printer.
Note: This menu item appears only in network printers or printers connected
to print servers.
Help
Menu item Description
Print All Guides Prints all the guides
Connection Guide Provides information about connecting the printer locally (USB) or to a
network
Copy Guide Provides information about making copies and configuring the settings
E‑mail Guide Provides information about sending e‑mails and configuring the settings
Fax Guide Provides information about sending faxes and configuring the settings
FTP Guide Provides information about scanning documents and configuring the settings
Information Guide Provides more information sources about the printer
Media Guide Provides information about loading paper and specialty media
Mono Quality Guide Provides information about mono print quality settings
Moving Guide Provides information about moving, locating, or shipping the printer
Print Quality Guide Provides information about solving print quality issues
Supplies Guide Provides information about ordering supplies
Troubleshooting
Troubleshooting
Menu item Description
Print Quality Test Pages Print sample pages to identify and correct print quality defects.
Understanding the printer menus 117
Menu item Description
Cleaning the Scanner Print instructions on how to clean the scanner.
Understanding the printer menus 118
Securing the printer

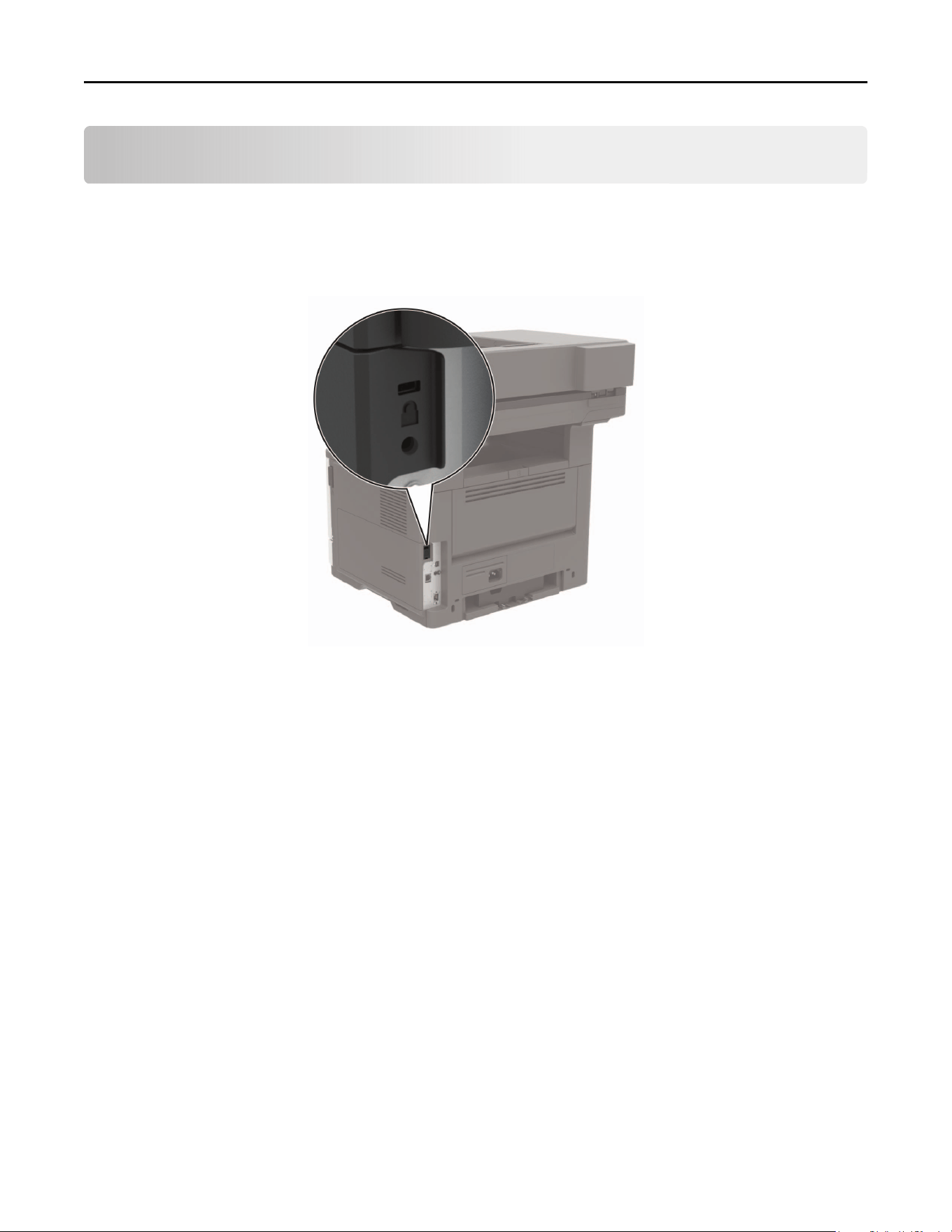

Locating the security slot
The printer is equipped with a security lock feature. Attach a security lock compatible with most laptop
computers in the location shown to secure the printer in place.
Erasing printer memory
To erase volatile memory or buered data in your printer, turn o the printer.
To er a s e non ‑volatile memory or individual settings, device and network settings, security settings, and
embedded solutions, do the following:
1 From the home screen, touch Settings > Device > Maintenance > Out of Service Erase.
2 Select the Sanitize all information on nonvolatile memory check box, and then touch ERASE.
3 Follow the instructions on the display.
Erasing printer hard disk memory
1 From the home screen, touch Settings > Device > Maintenance > Out of Service Erase.
2 Select the Sanitize all information on hard disk check box, and then touch ERASE.
3 Follow the instructions on the display.
Note: This process can take from several minutes to more than an hour, making the printer unavailable
for other tasks.
Securing the printer 119
Encrypting the printer hard disk
This process erases all contents in the hard disk. If necessary, back up important data from the printer before
starting the encryption.
1 From the home screen, touch Settings > Security > Disk Encryption > Start encryption.
2 Follow the instructions on the display.
Notes:
• To avoid loss of data, do not turn o the printer during the encryption process.
• This process can take from several minutes to more than an hour, making the printer unavailable for
other tasks.
• After encryption, the printer automatically restarts.
Restoring factory default settings
From the home screen, touch Settings > Device > Restore Factory Defaults > Restore Settings > Restore all
settings > RESTORE > Start.
For more information, see
“Erasing printer memory” on page 119.
Statement of Volatility
Type of memory Description
Volatile memory The printer uses standard random access memory (RAM)
to buer temporarily user data during simple print and
copy jobs.
Non-volatile memory The printer may use two forms of non-volatile memory:
EEPROM and NAND (flash memory). Both types are used
to store the operating system, printer settings, network
information, scanner and bookmark settings, and
embedded solutions.
Hard disk memory Some printers may have a hard disk drive installed. The
printer hard disk is designed for printer-specific
functionality. The hard disk lets the printer retain buered
user data from complex print jobs, form data, and font
data.
Erase the content of any installed printer memory in the following circumstances:
• The printer is decommissioned.
• The printer hard disk is replaced.
• The printer is moved to a dierent department or location.
• The printer is serviced by someone from outside your organization.
• The printer is removed from your premises for service.
• The printer is sold to another organization.
Securing the printer 120
Disposing of a printer hard disk
• Degaussing—Flushes the hard disk with a magnetic field that erases stored data
• Crushing—Physically compresses the hard disk to break component parts and render them unreadable
• Milling—Physically shreds the hard disk into small metal bits
Note: To guarantee that all data are completely erased, destroy physically each hard disk where data is
stored.
Securing the printer 121
Maintaining the printer
Warning—Potential Damage: Failure to maintain optimum printer performance, or to replace parts and
supplies, may cause damage to your printer.
Adjusting the speaker volume
Adjusting the default internal speaker volume
The speaker volume will reset to default value after the session is logged out, when the printer wakes from
Sleep or Hibernate mode, or after a power‑on reset.
1 From the control panel, navigate to:
Settings > Device > Preferences > Audio Feedback
2 Select the volume.
Note: If Quiet Mode is enabled, then audible alerts are turned
o.
Configuring
the fax speaker settings
1 From the home screen, touch Settings > Fax > Fax Setup > Speaker Settings.
2 Do the following:
• Set the Speaker Mode to Always On.
• Set the Speaker Volume to High.
• Activate the Ringer Volume.
Networking
Note: For information on installing the wireless network adapter, see the setup sheet that came with the
adapter.
Connecting the printer to a Wi‑Fi network
Make sure that Active Adapter is set to Auto. From the home screen, touch Settings > Network/Ports > Network
Overview > Active Adapter.
1 From the home screen, touch Settings > Network/Ports > Wireless > Setup On Printer Panel > Choose
Network.
2 Select a Wi‑Fi network, and then type the network password.
Note: For Wi‑Fi‑network‑ready printer models, a prompt for Wi‑Fi network setup appears during initial
setup.
Maintaining the printer 122
Connecting the printer to a wireless network using Wi‑Fi Protected Setup
(WPS)
Before you begin, make sure that:
• The access point (wireless router) is WPS‑
certified
or WPS‑compatible. For more information, see the
documentation that came with your access point.
• A wireless network adapter is installed in your printer. For more information, see the instructions that came
with the adapter.
• Active Adapter is set to Auto. From the home screen, touch Settings > Network/Ports > Network Overview
> Active Adapter.
Using the Push Button method
1
From the home screen, touch Settings > Network/Ports > Wireless > Wi‑Fi Protected Setup > Start Push
Button Method.
2 Follow the instructions on the display.
Using the personal identification number (PIN) method
1
From the home screen, touch Settings > Network/Ports > Wireless > Wi‑Fi Protected Setup > Start PIN
Method.
2 Copy the eight‑digit WPS PIN.
3 Open a web browser, and then type the IP address of your access point in the address
field.
Notes:
• To know the IP address, see the documentation that came with your access point.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
4 Access the WPS settings. For more information, see the documentation that came with your access point.
5 Enter the eight‑digit PIN, and then save the changes.
Connecting a mobile device to the printer
Before connecting your mobile device, make sure to do the following:
• Enable Wi‑Fi Direct in the printer. From the control panel, navigate to: Settings > Network/Ports > Wireless
> Enable Wi‑Fi Direct.
• Show the preshared key (PSK) on the Network Setup Page. From the control panel, navigate to: Settings >
Network/Ports > Wi‑Fi Direct > Show PSK on Setup Page.
• Print the Network Setup Page. From the control panel, navigate to: Settings > Reports > Network > Network
Setup Page.
Connecting using Wi‑Fi Direct
1
From the mobile device, go to the settings menu.
2 Enable Wi‑Fi, and then tap Wi‑Fi Direct.
3 Select the printer SSID.
4
Confirm
the connection on the printer control panel.
Maintaining the printer 123
Connecting using Wi‑Fi
1
From the mobile device, go to the settings menu.
2 Tap Wi‑Fi, and then select the printer SSID.
Note: The string DIRECT-xy (where x and y are two random characters) is added before the SSID.
3 Enter the PSK.
Note: The PSK is the password.
Notes:
• You can change the SSID on the control panel. Navigate to: Settings > Network/Ports > Wi‑Fi Direct >
SSID.
• You can also change the PSK on the control panel. Navigate to: Settings > Network/Ports > Wi‑Fi Direct
> Set PSK.
Deactivating the Wi‑Fi network
1 From the printer control panel, navigate to:
Settings > Network/Ports > Network Overview > Active Adapter > Standard Network
For non-touch-screen printer models, press
to navigate through the settings.
2 Follow the instructions on the display.
Cleaning printer parts
Cleaning the printer
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the
printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before
proceeding.
Notes:
• Perform this task after every few months.
• Damage to the printer caused by improper handling is not covered by the printer warranty.
1 Turn o the printer, and then unplug the power cord from the electrical outlet.
2 Remove paper from the standard bin and multipurpose feeder.
3 Remove any dust, lint, and pieces of paper around the printer using a soft brush or vacuum.
4 Wipe the outside of the printer with a damp, soft, lint‑free cloth.
Notes:
• Do not use household cleaners or detergents, as they may damage the
finish
of the printer.
Maintaining the printer 124
• Make sure that all areas of the printer are dry after cleaning.
5 Connect the power cord to the electrical outlet, and then turn on the printer.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.

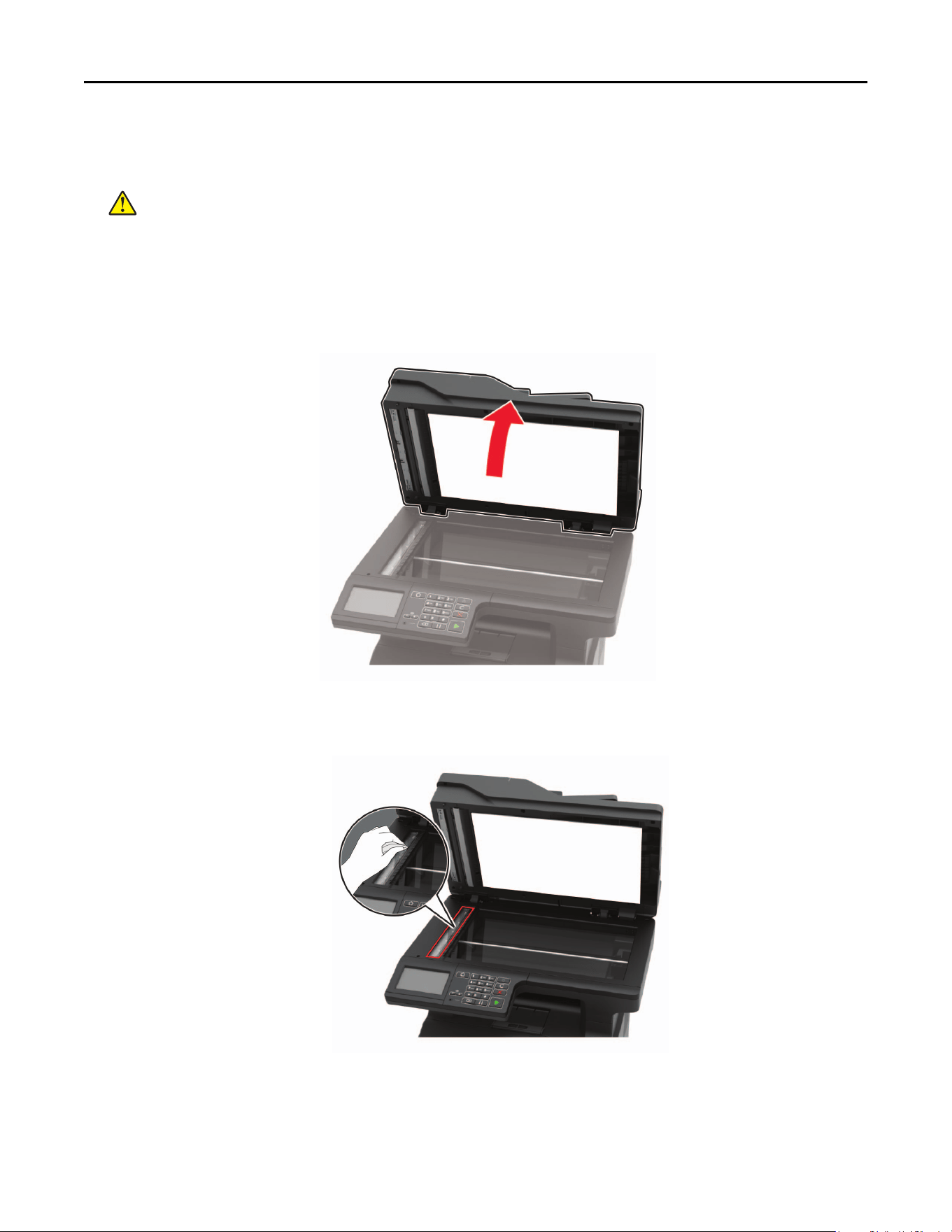

Cleaning the scanner
1 Open the scanner cover.
2 Using a damp, soft, lint-free cloth, wipe the following areas:
• ADF glass
Maintaining the printer 125

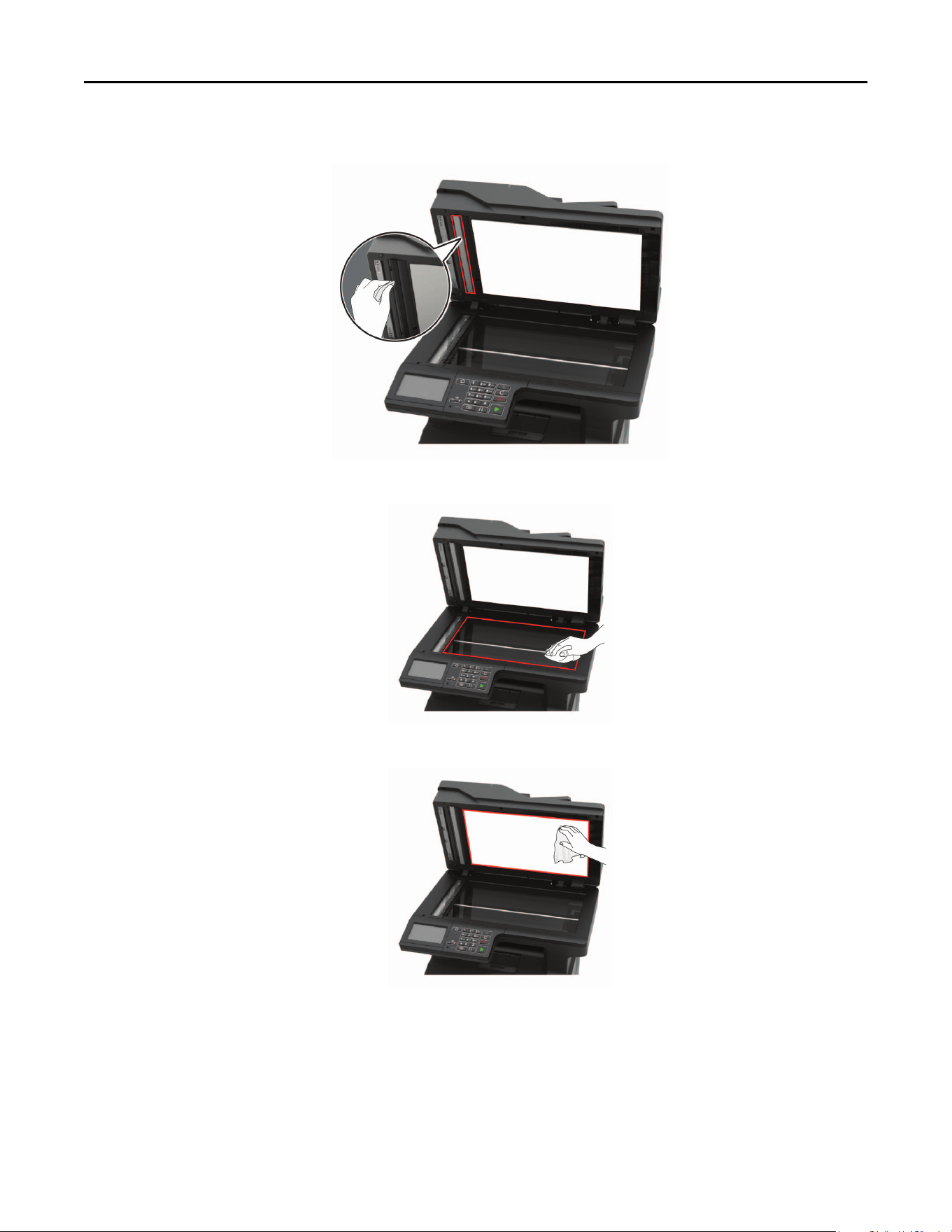

• ADF glass pad
• Scanner glass
• Scanner glass pad
3 Close the scanner cover.
Maintaining the printer 126

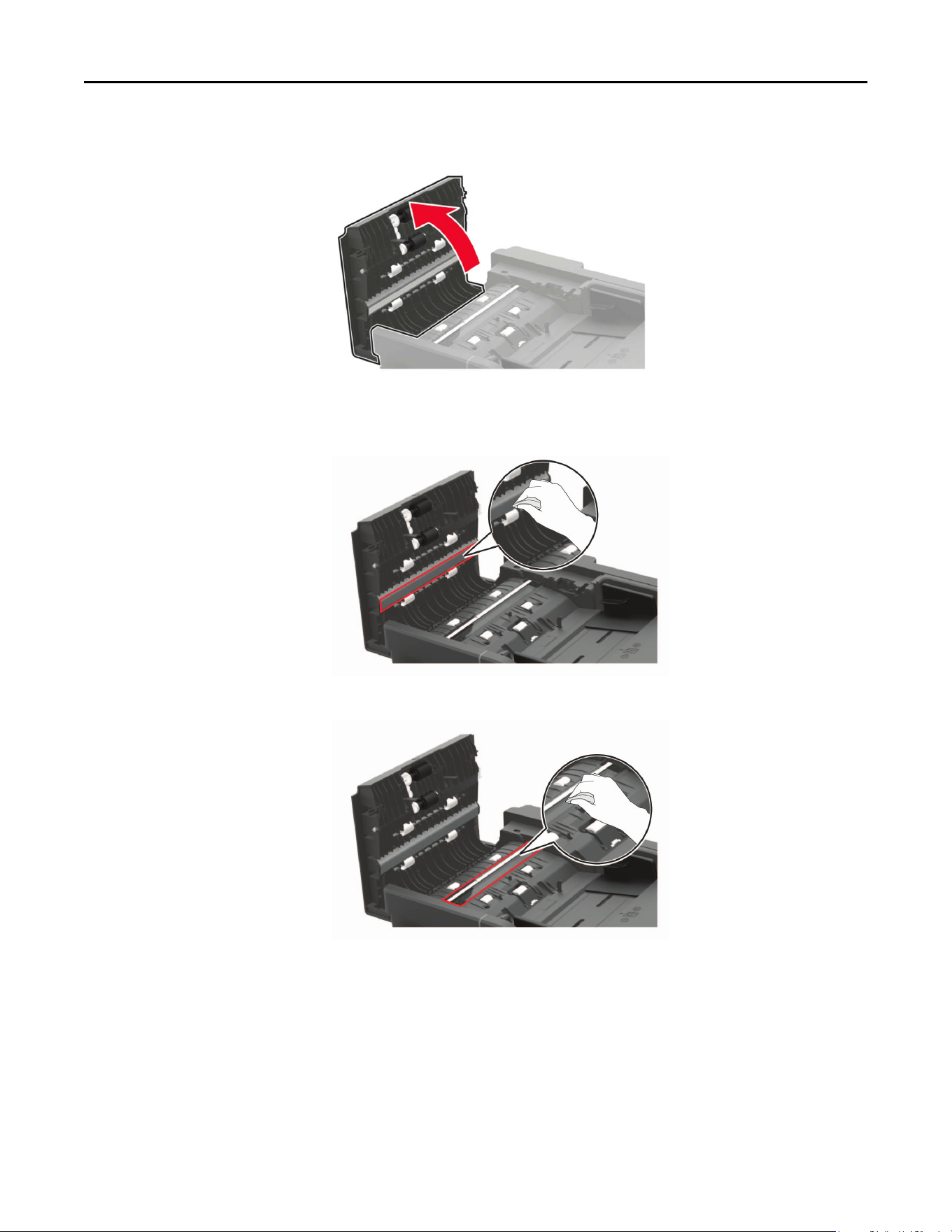

4 Open the ADF cover.
5 Using a damp, soft, lint-free cloth, wipe the following areas:
• ADF glass pad in the ADF cover
• ADF glass in the ADF cover
6 Close the ADF cover.
Maintaining the printer 127
Ordering parts and supplies
Note: All life estimates for printer supplies assume printing on letter‑ or A4‑size plain paper.
Checking the status of parts and supplies
1 From the home screen, touch Status/Supplies.
2 Select the parts or supplies that you want to check.
Note: You can also access this setting by touching the top section of the home screen.
Ordering a toner cartridge
Notes:
• The estimated cartridge yield is based on the ISO/IEC 19752 standard.
• Extremely low print coverage for extended periods of time may negatively aect actual yield.
To order a toner cartridge, contact the place where you purchased the printer.
Ordering an imaging unit
To order an imaging unit, contact the place where you purchased the printer.
Configuring
supply
notifications
1 Open a web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Settings > Device > Notifications.
3 From the Supplies menu, click Custom Supply Notifications.
4 Select a notification for each supply item.
5 Apply the changes.
Maintaining the printer 128
Replacing parts and supplies
Replacing the toner cartridge

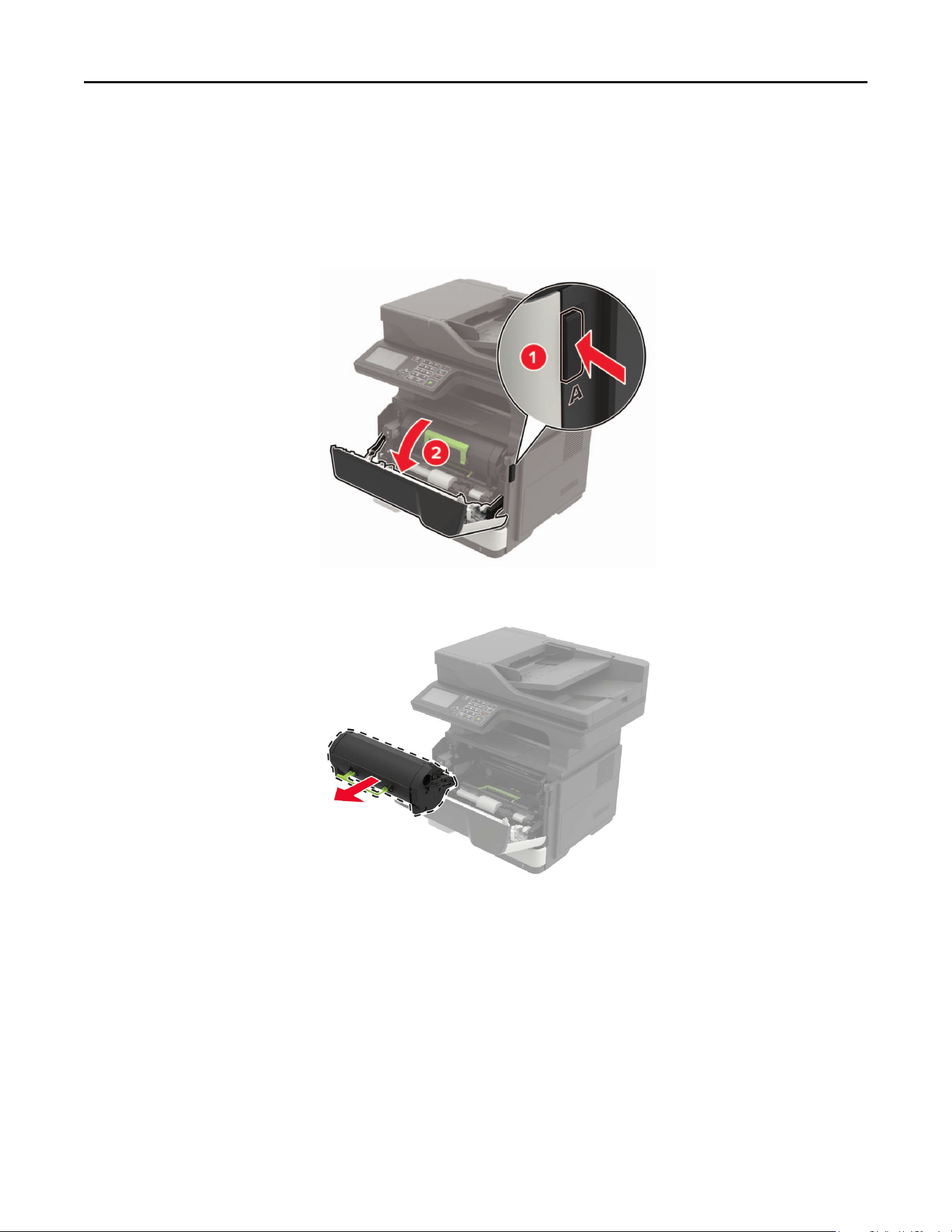

1 Open door A.
2 Remove the used toner cartridge.
Maintaining the printer 129

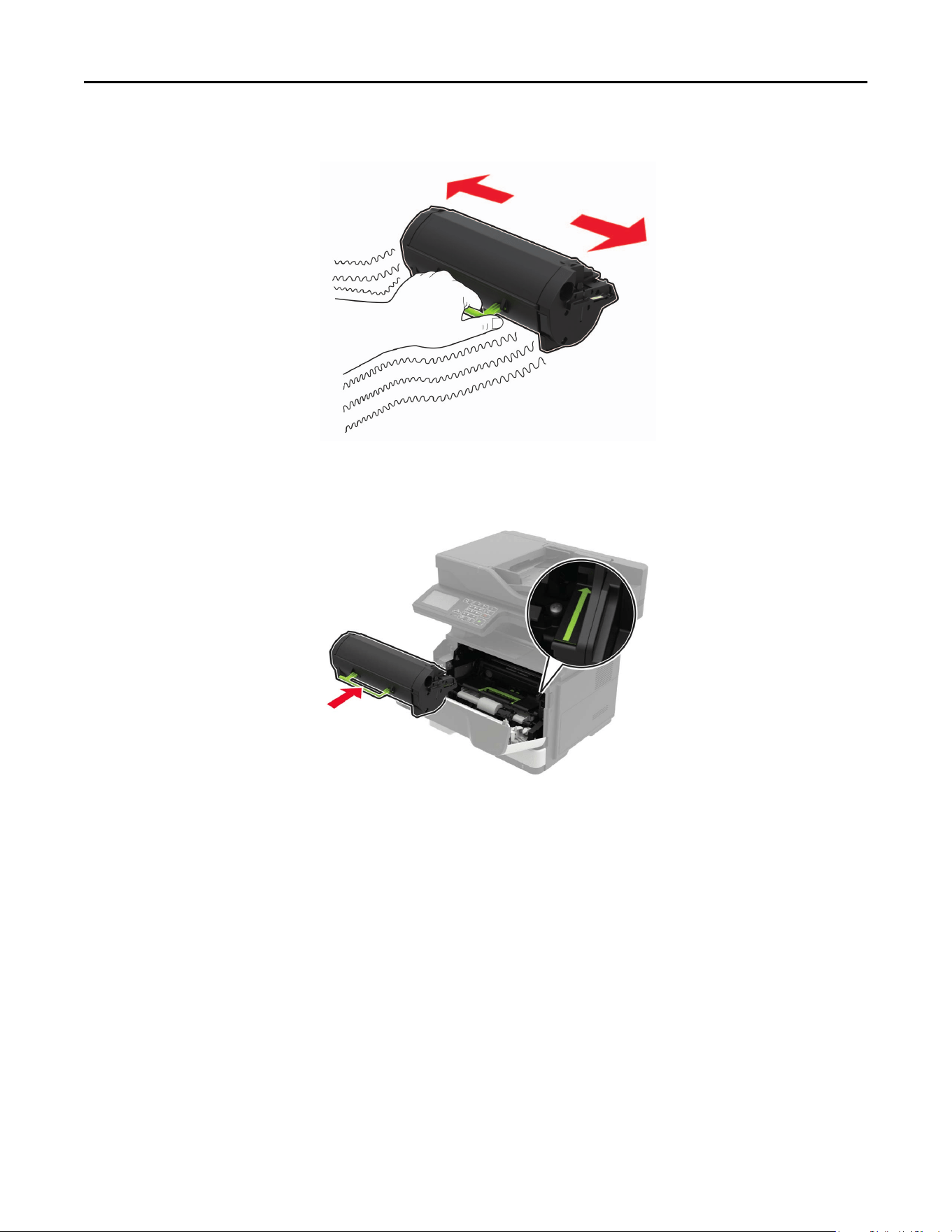

3 Unpack the new toner cartridge, and then shake it three times to redistribute the toner.
4 Insert the new toner cartridge.
Note: Use the arrows inside the printer as guides.
5 Close door A.
Maintaining the printer 130

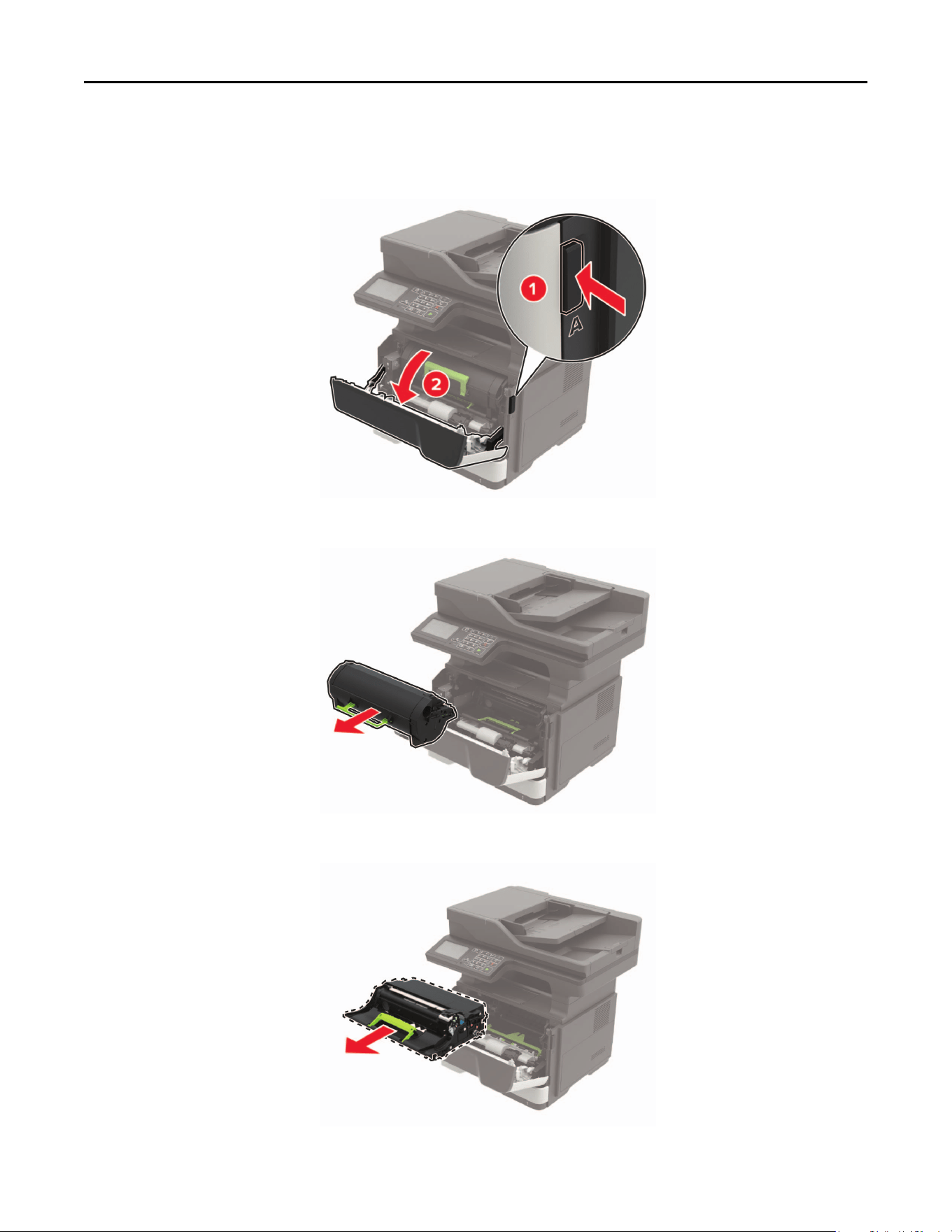

Replacing the imaging unit
1 Open door A.
2 Remove the toner cartridge.
3 Remove the used imaging unit.
Maintaining the printer 131

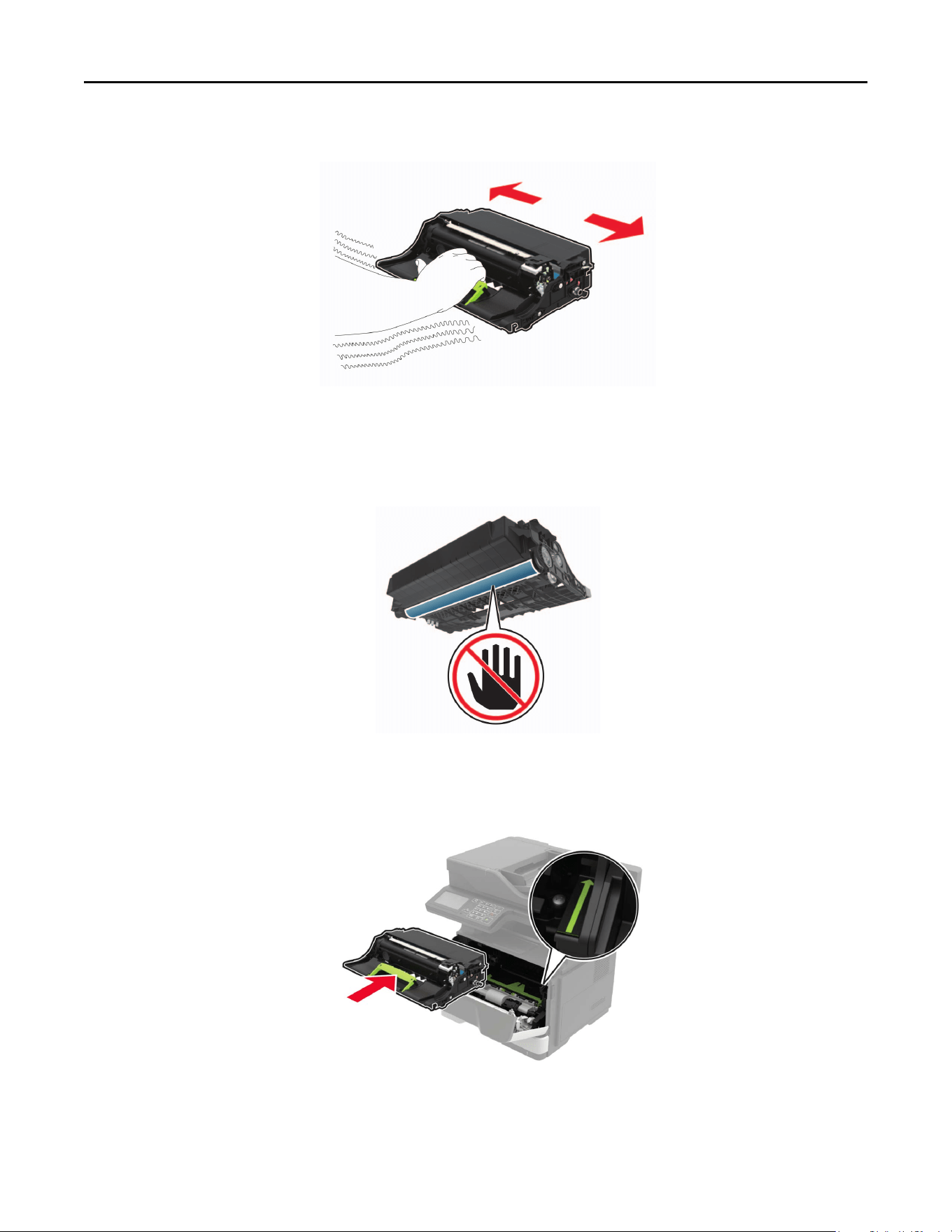

4 Unpack the new imaging unit, and then shake it three times to redistribute the toner.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may aect the quality of
future print jobs.
5 Insert the new imaging unit.
Note: Use the arrows inside the printer as guides.

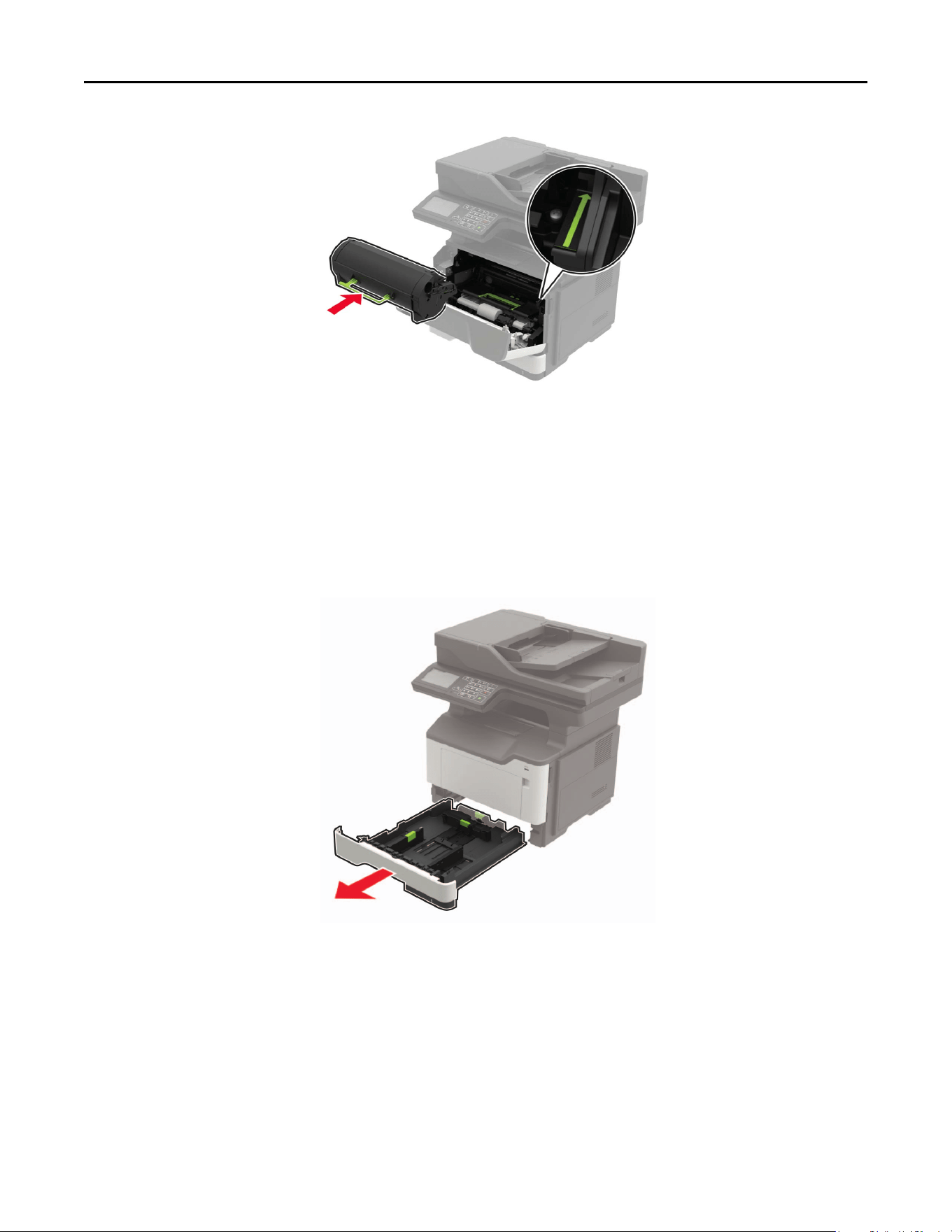

6 Insert the toner cartridge.
Note: Use the arrows inside the printer as guides.
Maintaining the printer 132
7 Close door A.
Replacing the pick tires
1 Turn o the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Remove the tray.
Maintaining the printer 133

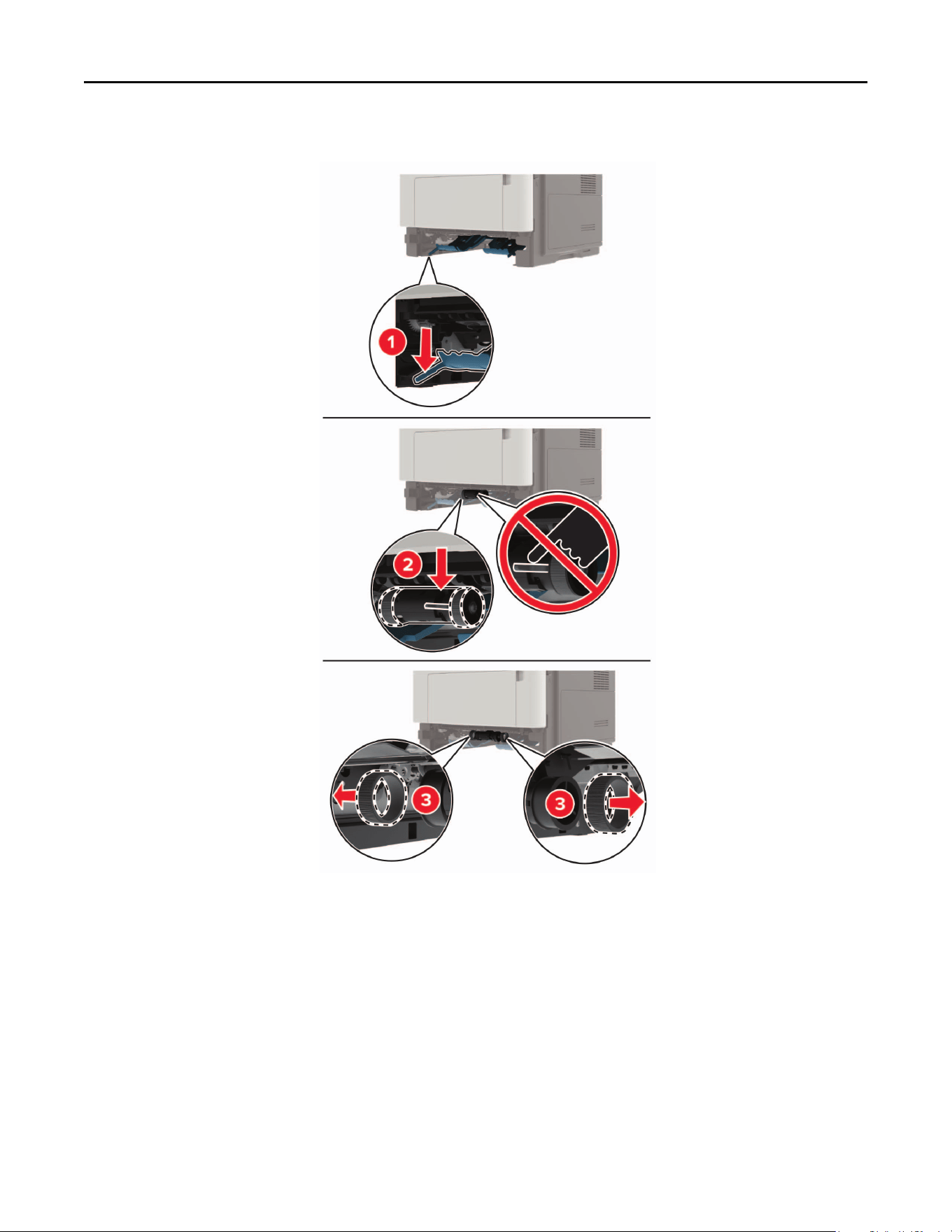

4 Remove the used pick tires one after the other.
5 Unpack the new pick tires.
Maintaining the printer 134

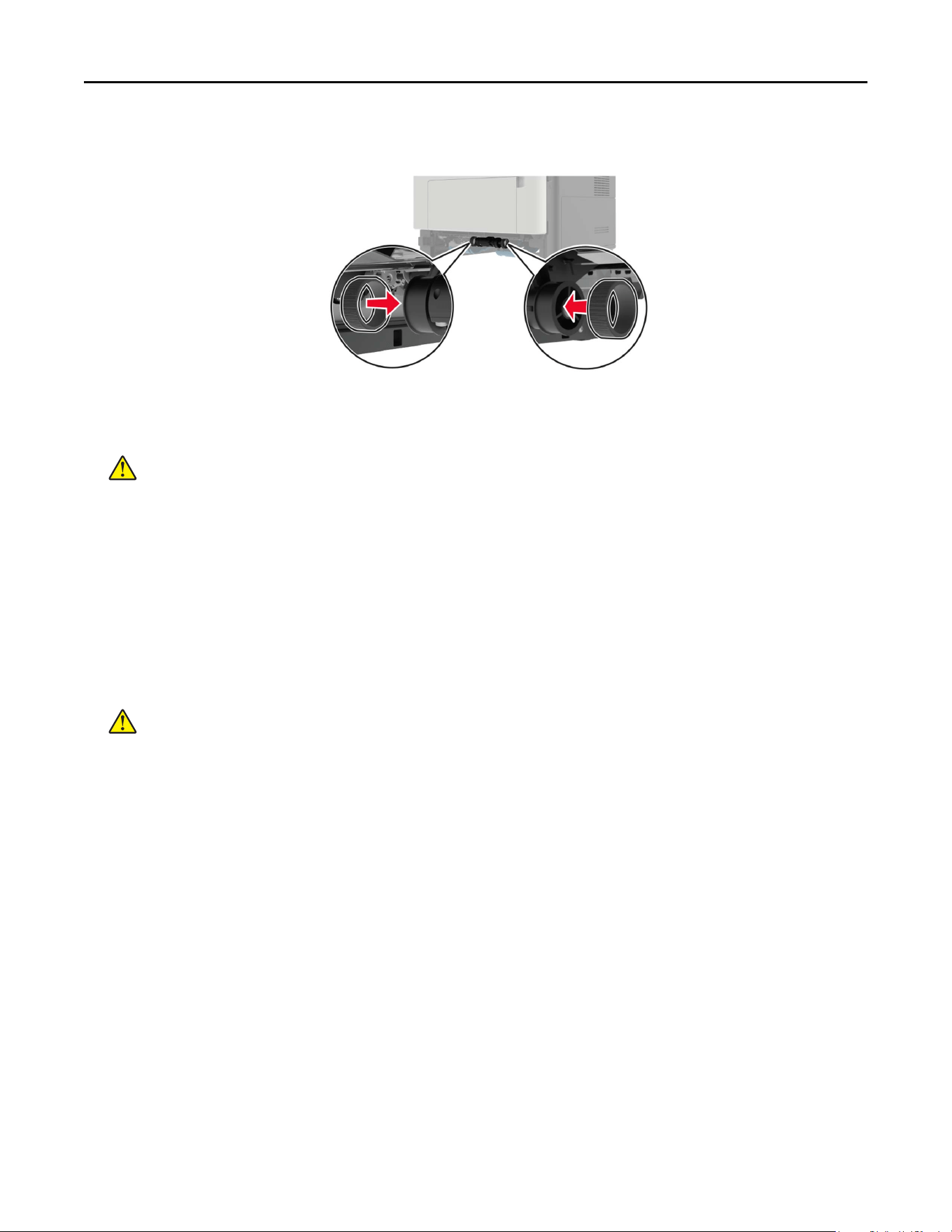

6 Insert the new pick tires.
7 Insert the tray.
8 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of
fire
or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
9 Turn on the printer.
Replacing the pick roller assembly
1 Turn o the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.

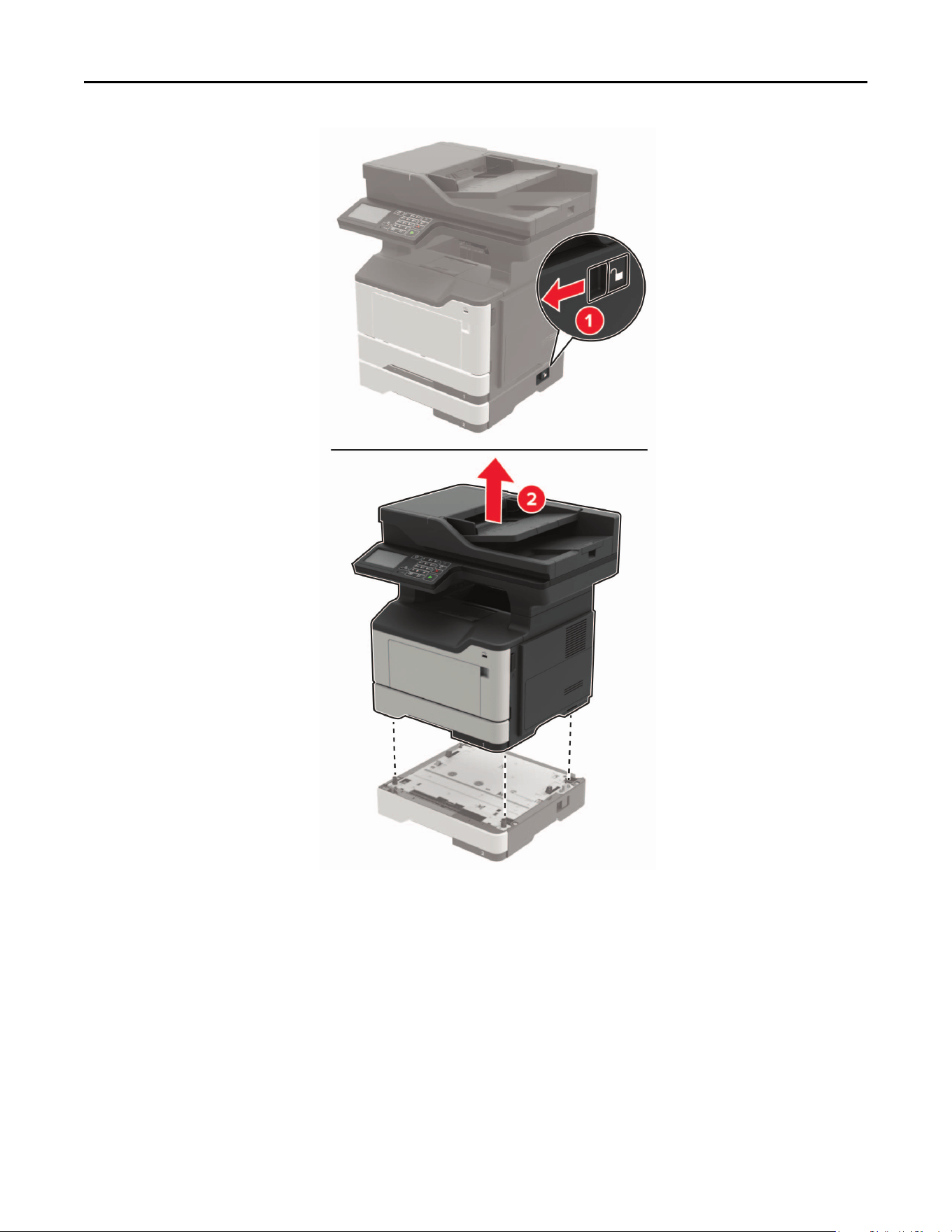

3 Remove the optional tray.
CAUTION—POTENTIAL INJURY: If the printer weight is greater than 20 kg (44 lb), then it may
require two or more people to lift it safely.
Maintaining the printer 135
Maintaining the printer 136

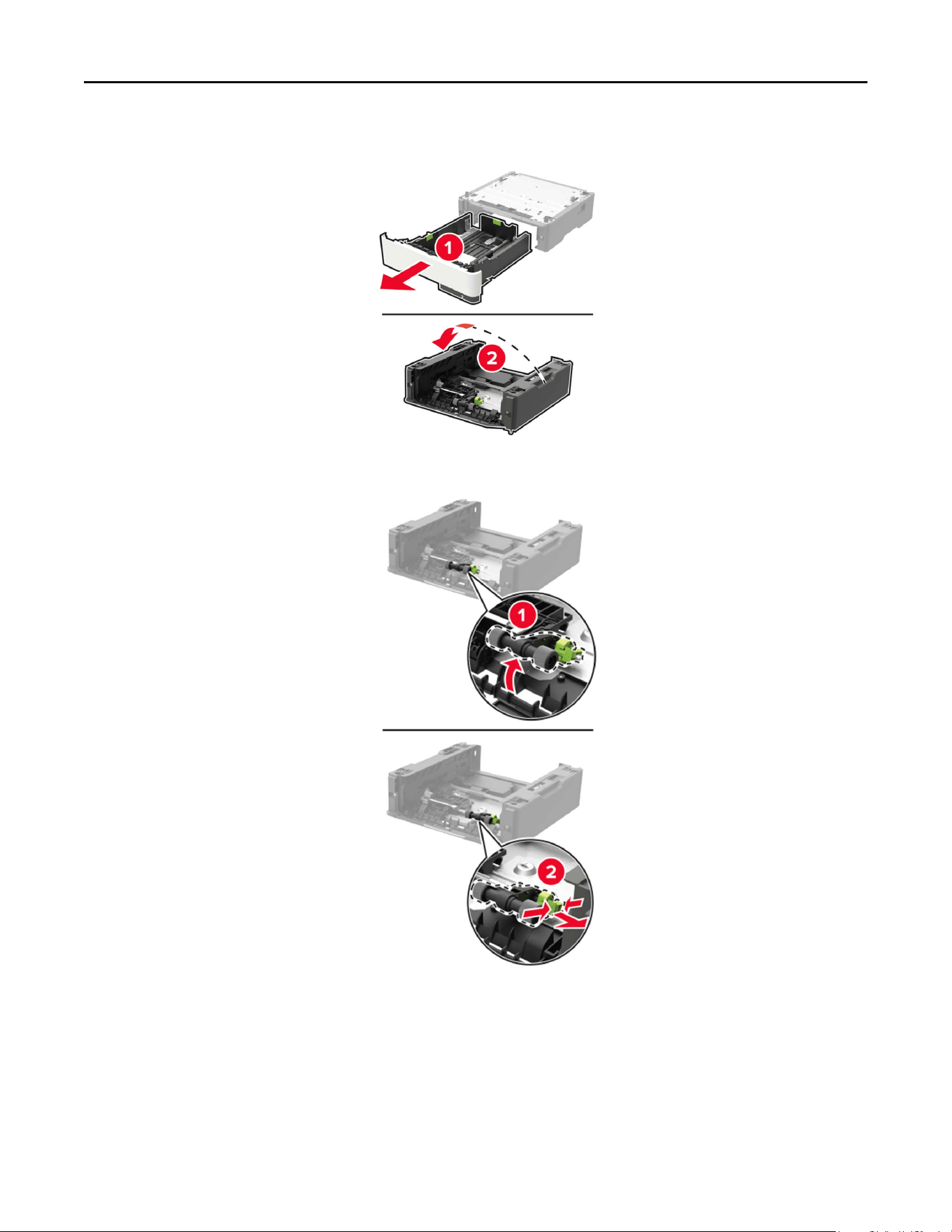

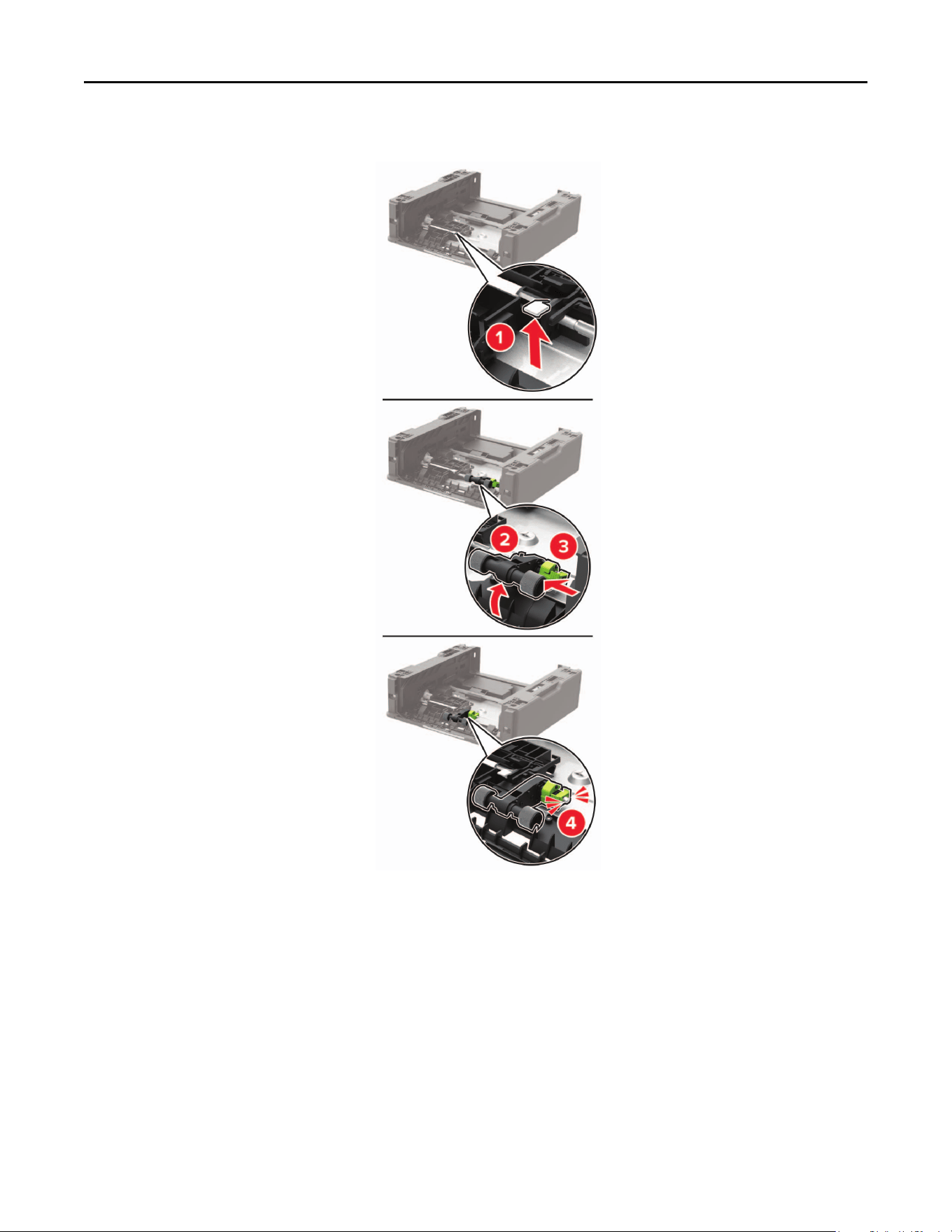

4 Remove the tray insert, and then flip the tray base.
5 Remove the used pick roller assembly.
6 Unpack the new pick roller assembly.
Maintaining the printer 137
7 Insert the new pick roller assembly.
8 Flip the tray base, and then insert the tray insert.
Maintaining the printer 138

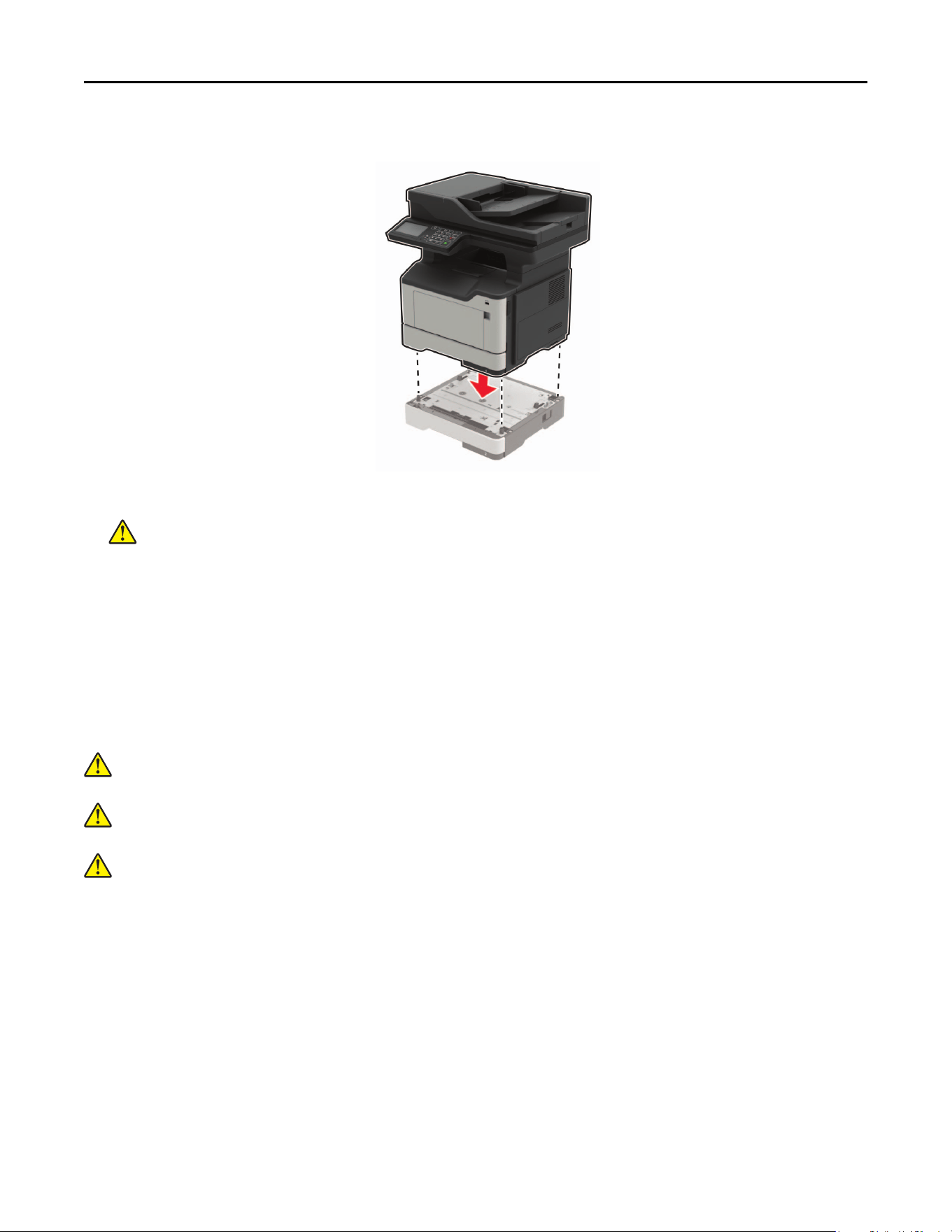

9 Align the printer with the optional tray, and then lower the printer until it clicks into place.
10 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
11 Turn on the printer.
Moving the printer
Moving the printer to another location
CAUTION—POTENTIAL INJURY: If the printer weight is greater than 20 kg (44 lb), then it requires two
or more trained personnel to lift it safely.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, use only the power cord
provided with this product or the manufacturer's authorized replacement.
CAUTION—POTENTIAL INJURY: When moving the printer, follow these guidelines to avoid personal
injury or printer damage:
• Make sure that all doors and trays are closed.
• Turn o the printer, and then unplug the power cord from the electrical outlet.
• Disconnect all cords and cables from the printer.
• If the printer has separate floor-standing optional trays or output options attached to it, then disconnect
them before moving the printer.
• If the printer has a caster base, then carefully roll it to the new location. Use caution when passing over
thresholds and breaks in flooring.
• If the printer does not have a caster base but is configured with optional trays or output options, then remove
the output options and lift the printer o the trays. Do not try to lift the printer and any options at the same
time.
• Always use the handholds on the printer to lift it.
Maintaining the printer 139
• Any cart used to move the printer must have a surface able to support the full footprint of the printer.
• Any cart used to move the hardware options must have a surface able to support the dimensions of the
options.
• Keep the printer in an upright position.
• Avoid severe jarring movements.
• Make sure that your fingers are not under the printer when you set it down.
• Make sure that there is adequate clearance around the printer.
Note: Damage to the printer caused by improper moving is not covered by the printer warranty.
Shipping the printer
When shipping the printer, use the original packaging or contact the place where you purchased the printer.
Saving energy and paper
Configuring
the power save mode settings
Sleep mode
1
From the control panel, navigate to:
Settings > Device > Power Management > Timeouts > Sleep Mode
For non-touch-screen printer models, press
to navigate through the settings.
2 Specify the amount of time that the printer stays idle before it enters Sleep Mode.
Hibernate mode
1
From the control panel, navigate to:
Settings > Device > Power Management > Timeouts > Hibernate Timeout
For non-touch-screen printer models, press
to navigate through the settings.
2 Select the amount of time that the printer stays idle before it enters Hibernate mode.
Notes:
• For Hibernate Timeout to work, set Hibernate Timeout on Connection to Hibernate.
• The Embedded Web Server is disabled when the printer is in Hibernate mode.
Adjusting the brightness of the printer display
1 From the home screen, touch Settings > Device > Preferences > Screen Brightness.
2 Adjust the setting.
Maintaining the printer 140
Conserving supplies
• Print on both sides of the paper.
Note: Two-sided printing is the default setting in the print driver.
• Print multiple pages on a single sheet of paper.
• Use the preview feature to see how the document looks like before printing it.
• Print one copy of the document to check its content and format for accuracy.
Maintaining the printer 141
Clearing jams
Avoiding jams

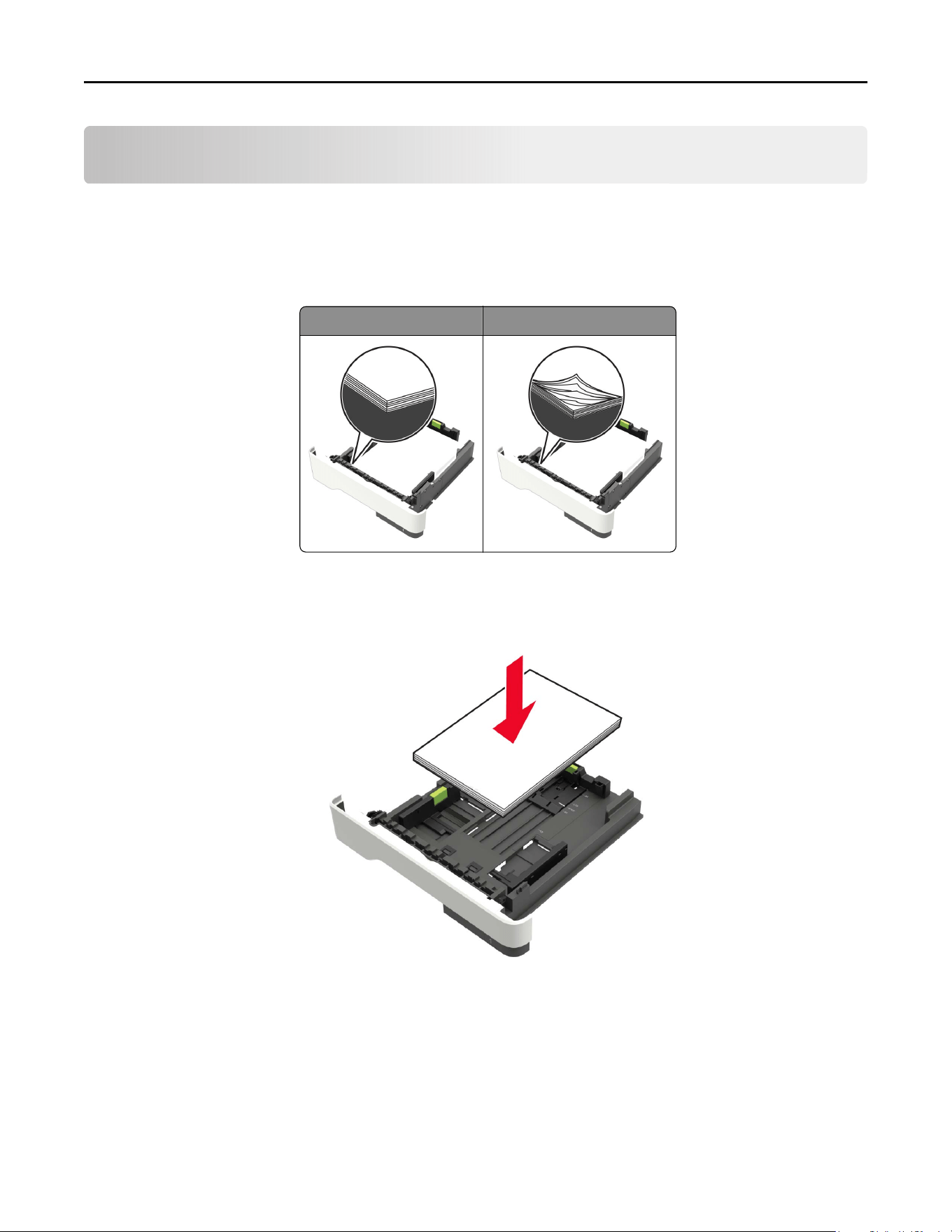

Load paper properly
• Make sure that the paper lies flat in the tray.
Correct loading of paper Incorrect loading of paper
• Do not load or remove a tray while the printer is printing.
• Do not load too much paper. Make sure that the stack height is below the maximum paper
fill
indicator.
• Do not slide paper into the tray. Load paper as shown in the illustration.
• Make sure that the paper guides are positioned correctly and are not pressing tightly against the paper or
envelopes.
• Push the tray
firmly
into the printer after loading paper.
Use recommended paper
• Use only recommended paper or specialty media.
• Do not load paper that is wrinkled, creased, damp, bent, or curled.
Clearing jams 142

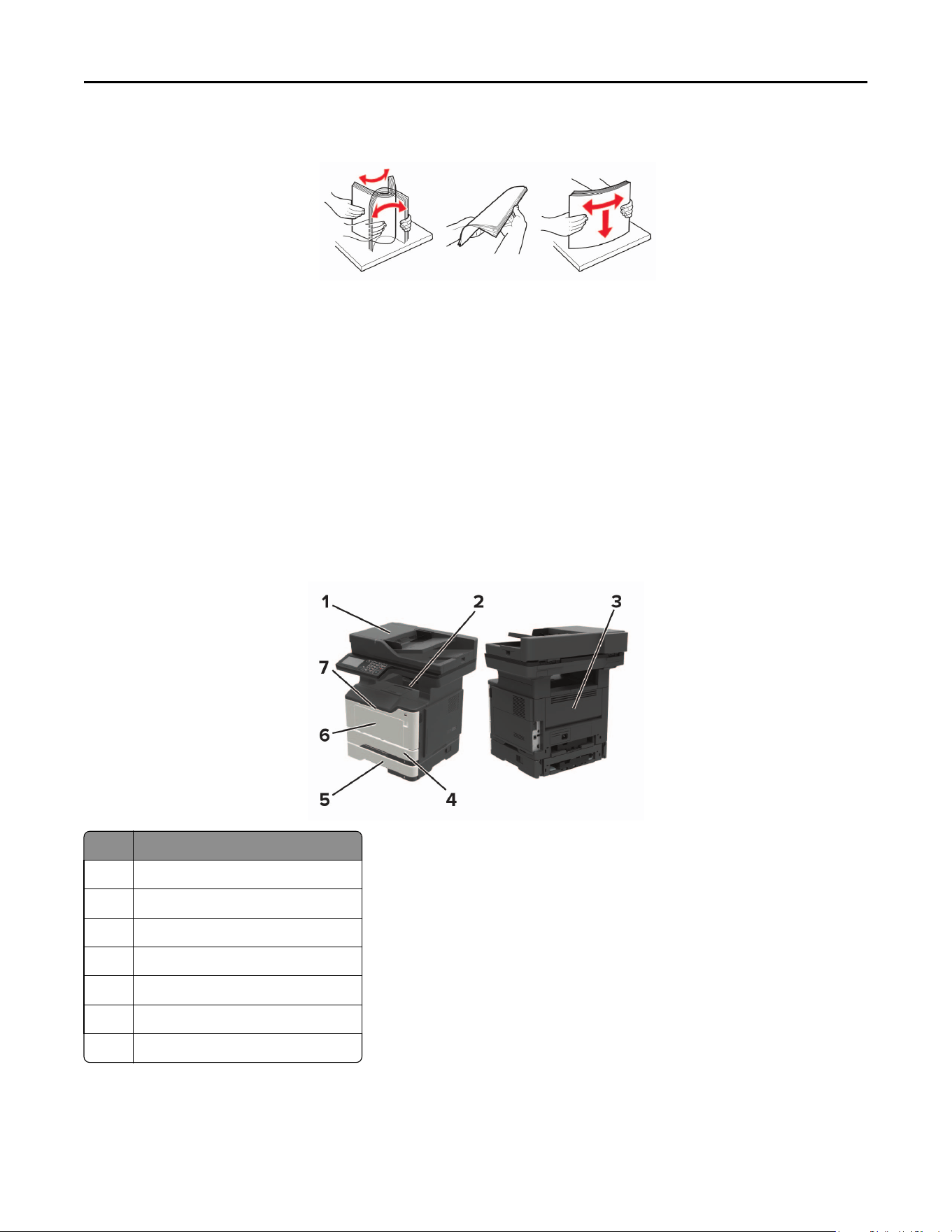

• Flex, fan, and align the paper edges before loading.
• Do not use paper that has been cut or trimmed by hand.
• Do not mix paper sizes, weights, or types in the same tray.
• Make sure that the paper size and type are set correctly on the computer or printer control panel.
• Store paper according to manufacturer recommendations.
Identifying jam locations
Notes:
• When Jam Assist is set to On, the printer automatically
flushes
blank pages or partially printed pages
with after a jammed page is cleared. Check your printed output for blank pages.
• When Jam Recovery is set to On or Auto, the printer reprints jammed pages.
Jam location
1 Automatic document feeder
2 Standard bin
3 Rear door
4 Standard 250‑sheet tray
5 Optional 250‑ or 550‑sheet tray
6 Multipurpose feeder
7 Door A
Clearing jams 143

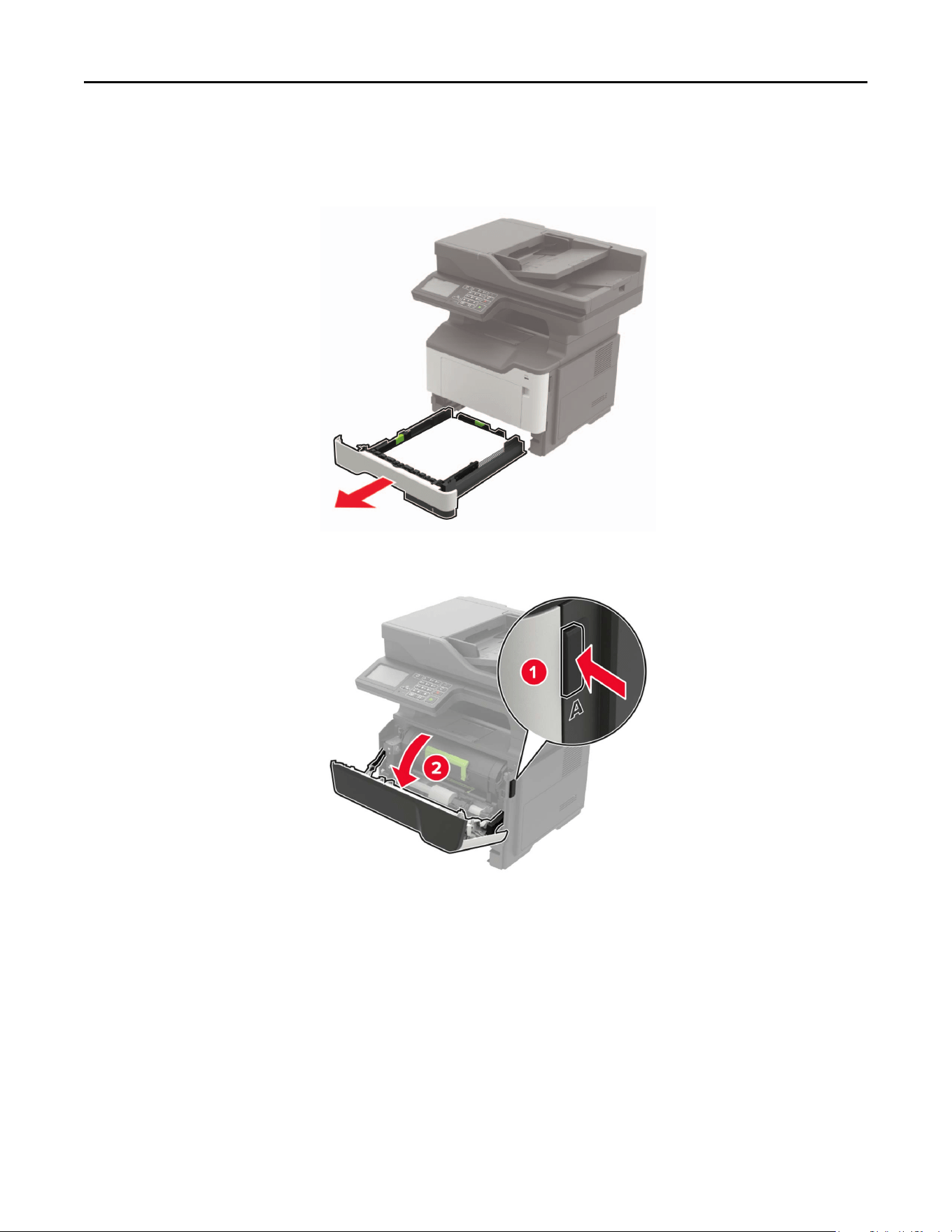

Paper jam in door A
1 Remove the tray.
2 Open door A.
Clearing jams 144

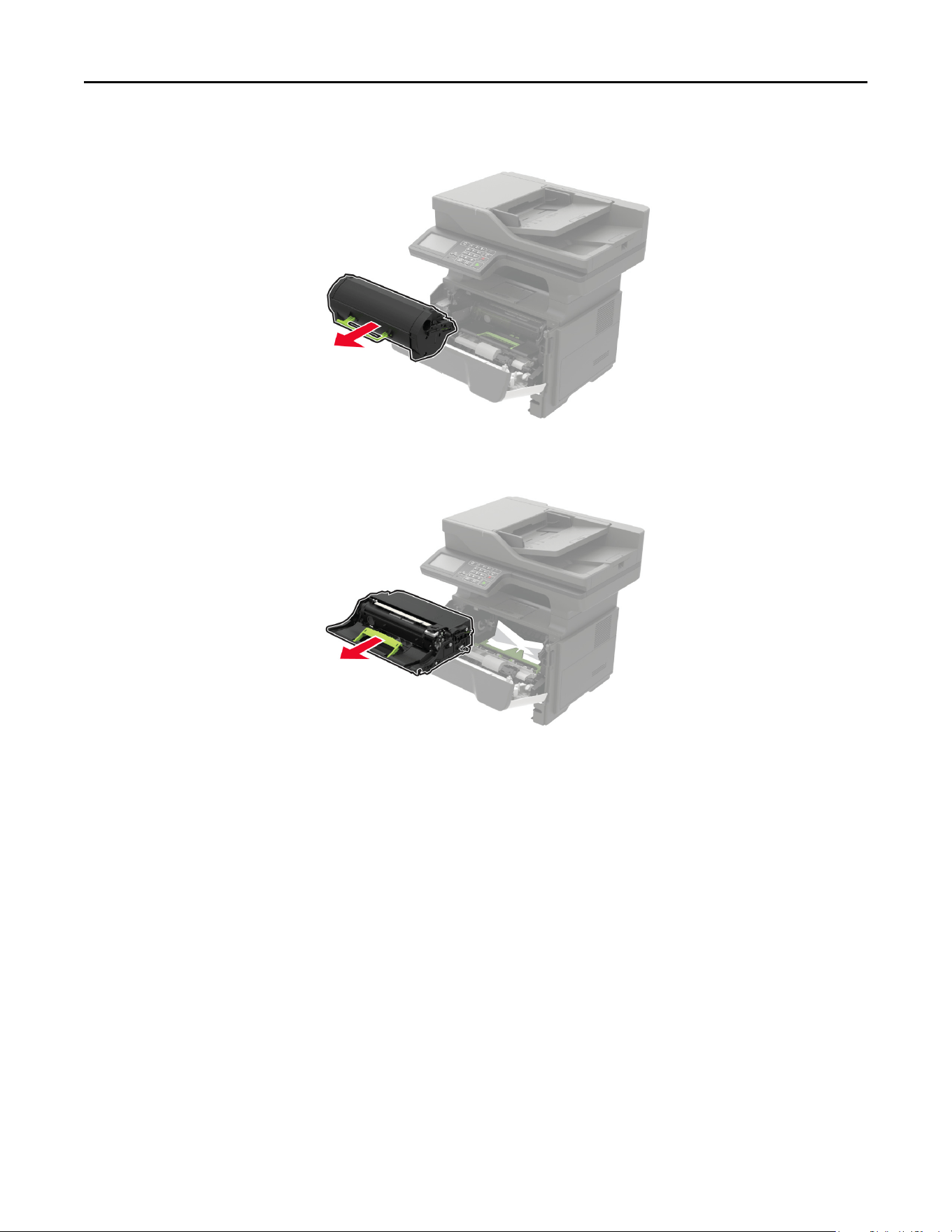

3 Remove the toner cartridge.
4 Remove the imaging unit.

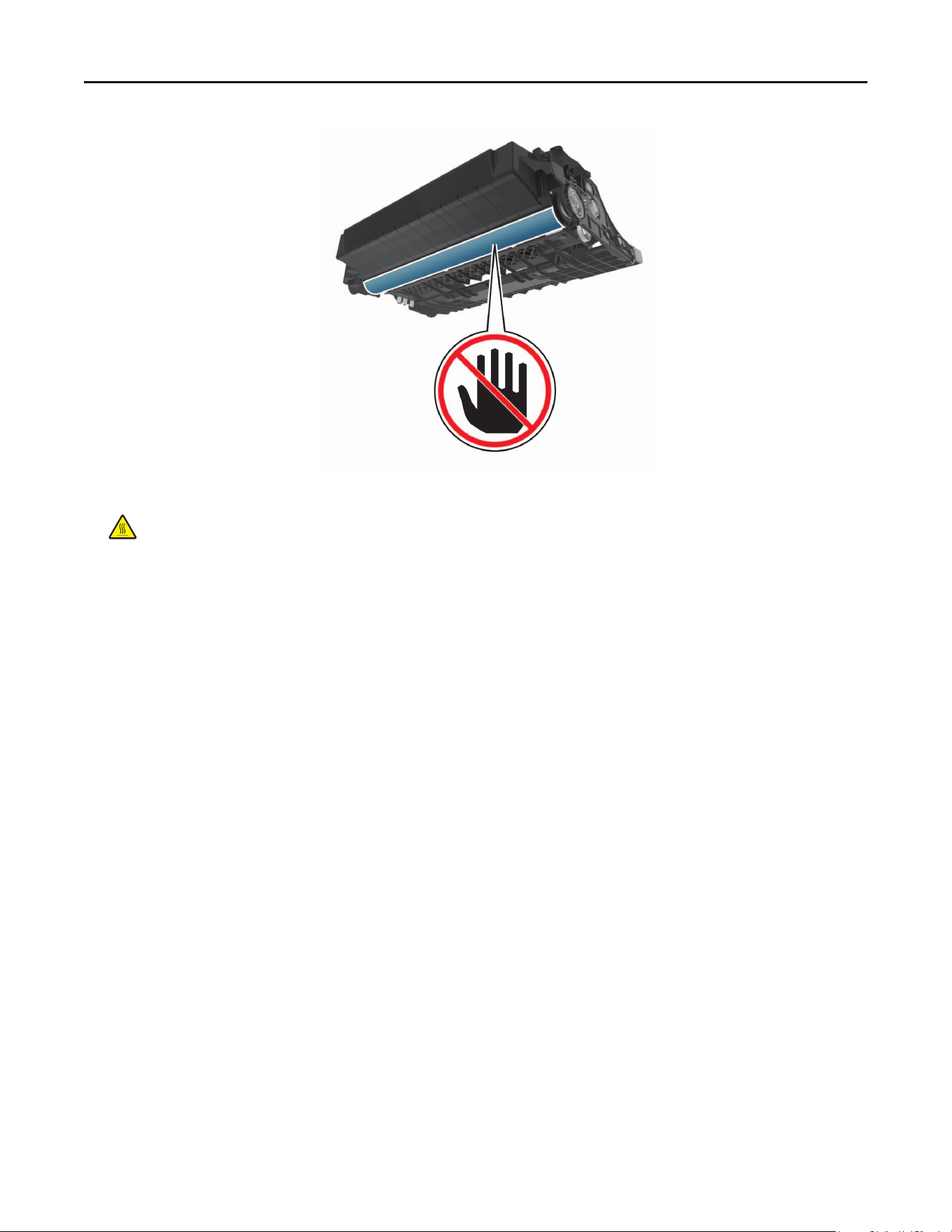

Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may
aect
the quality of
future print jobs.
Clearing jams 145

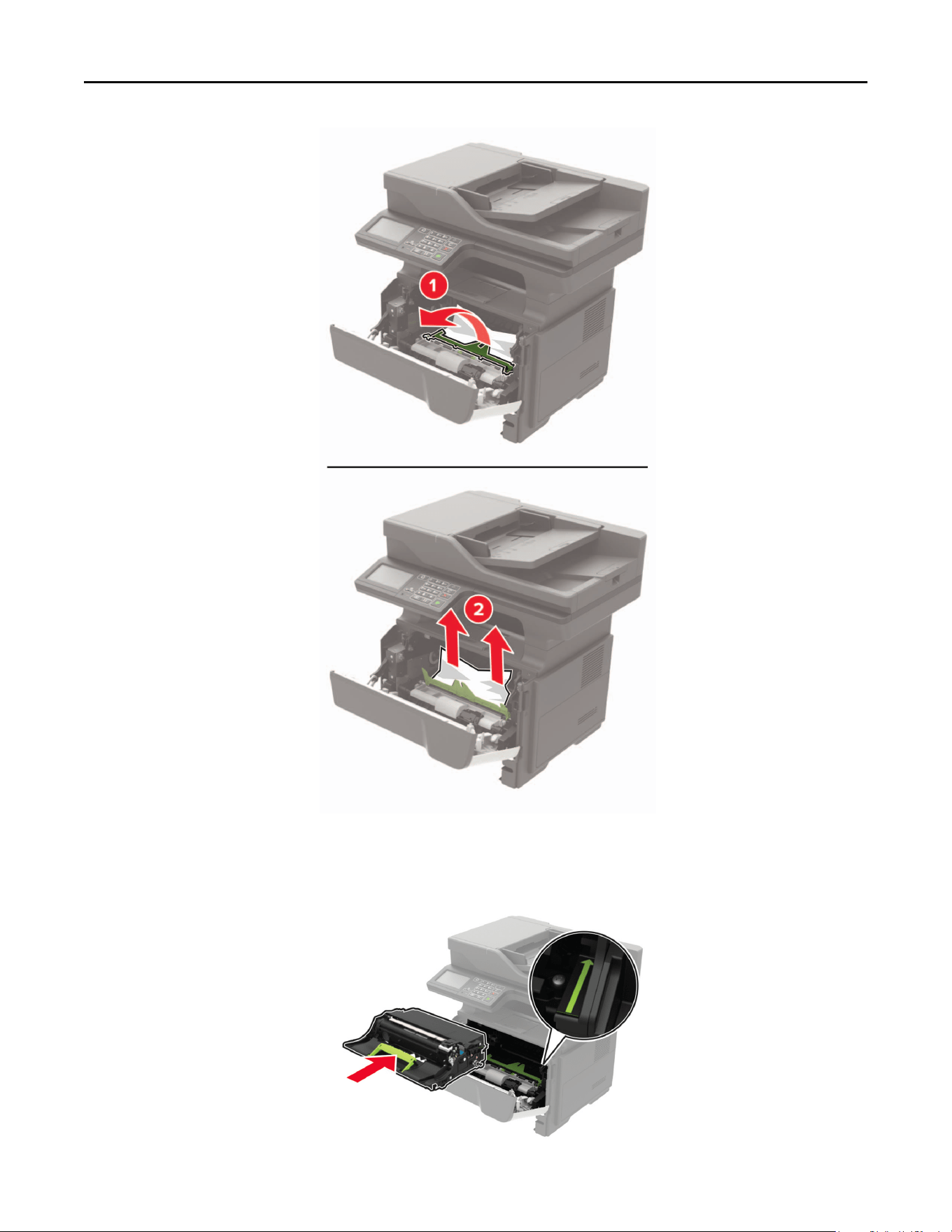

5 Remove the jammed paper.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a
hot component, allow the surface to cool before touching it.
Note: Make sure that all paper fragments are removed.
Clearing jams 146
6 Insert the imaging unit.
Note: Use the arrows inside the printer as guides.
Clearing jams 147

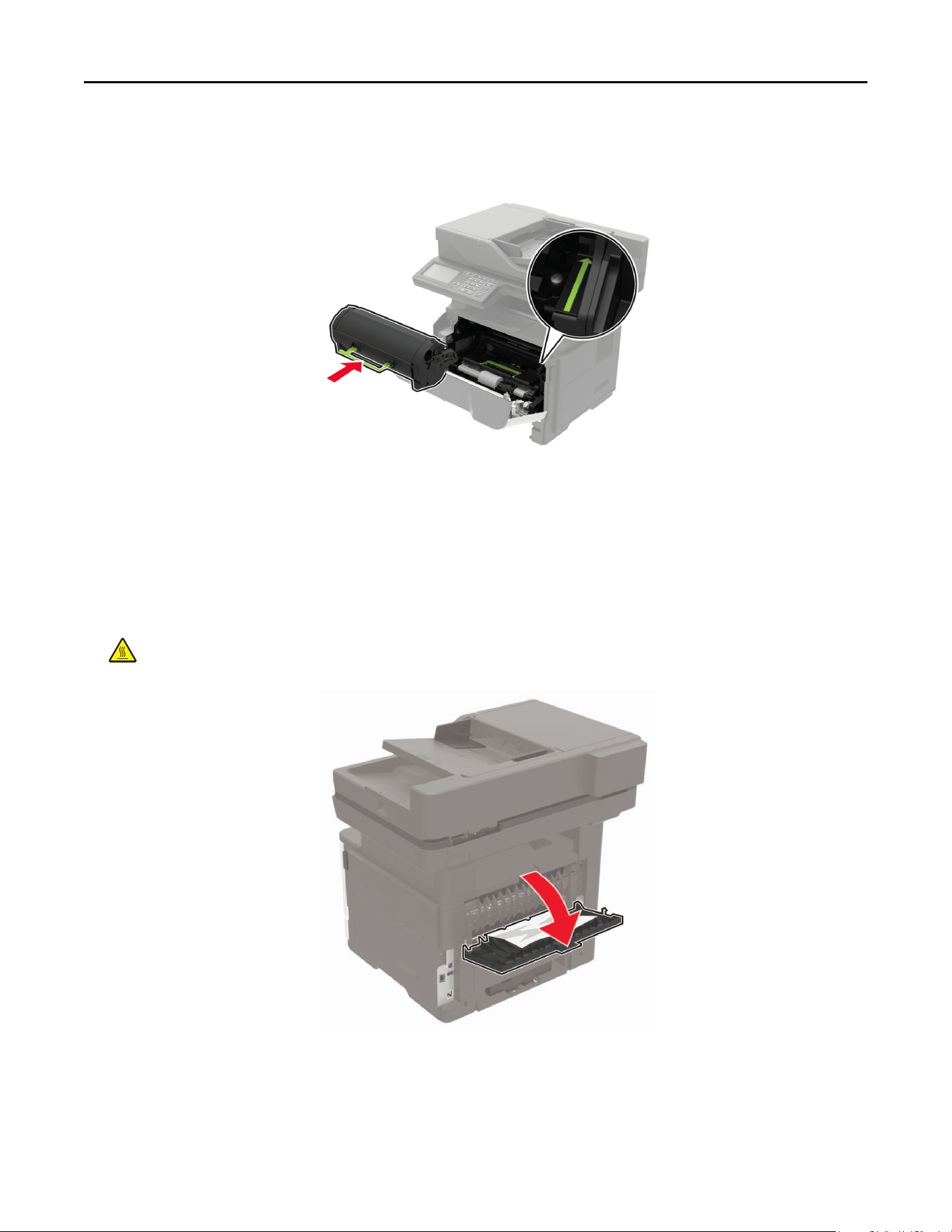

7 Insert the toner cartridge.
Note: Use the arrows inside the printer as guides.
8 Close door A.
9 Insert the tray.
Paper jam in the rear door
1 Open the rear door.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a
hot component, allow the surface to cool before touching it.

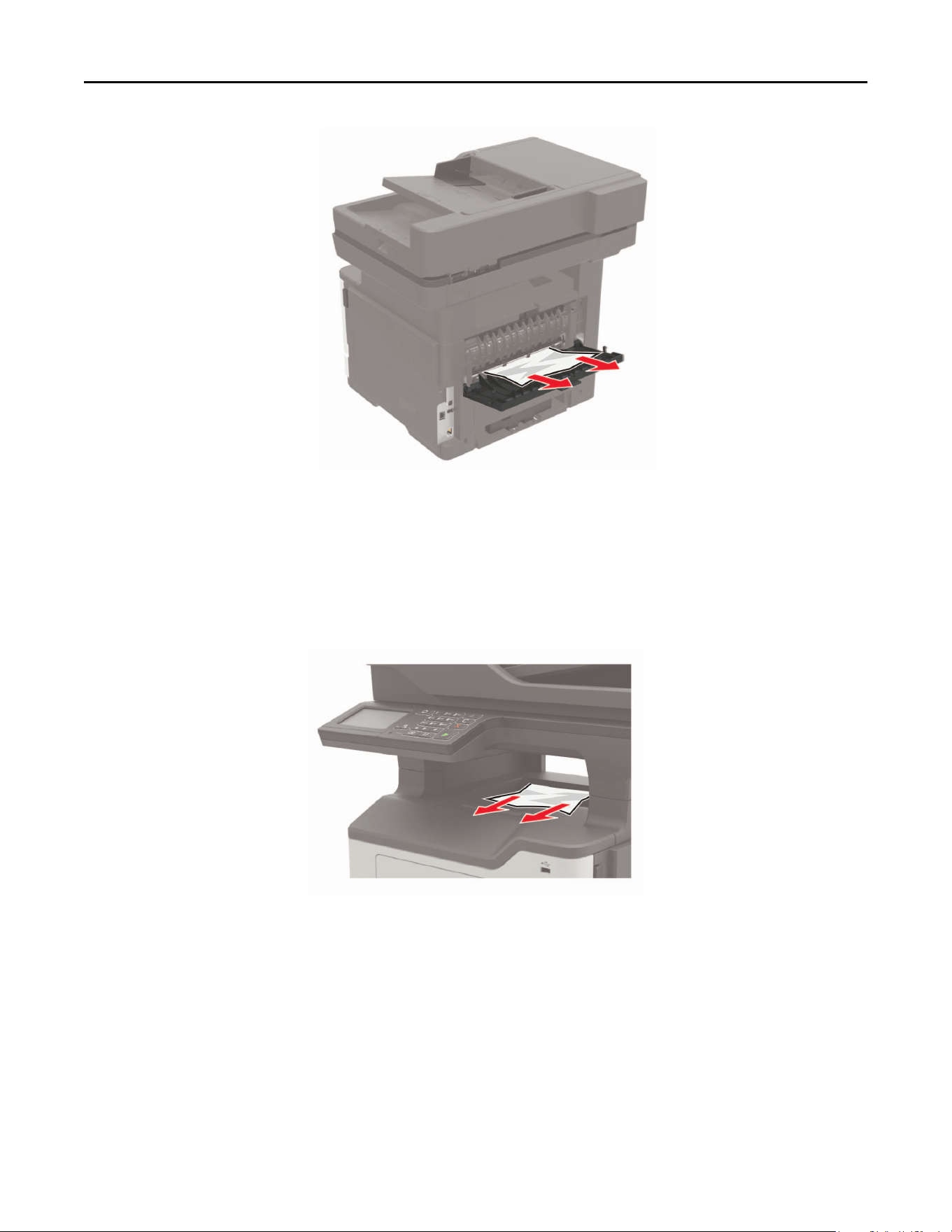

2 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
Clearing jams 148
3 Close the rear door.
Paper jam in the standard bin
Remove the jammed paper.
Note: Make sure that all paper fragments are removed.

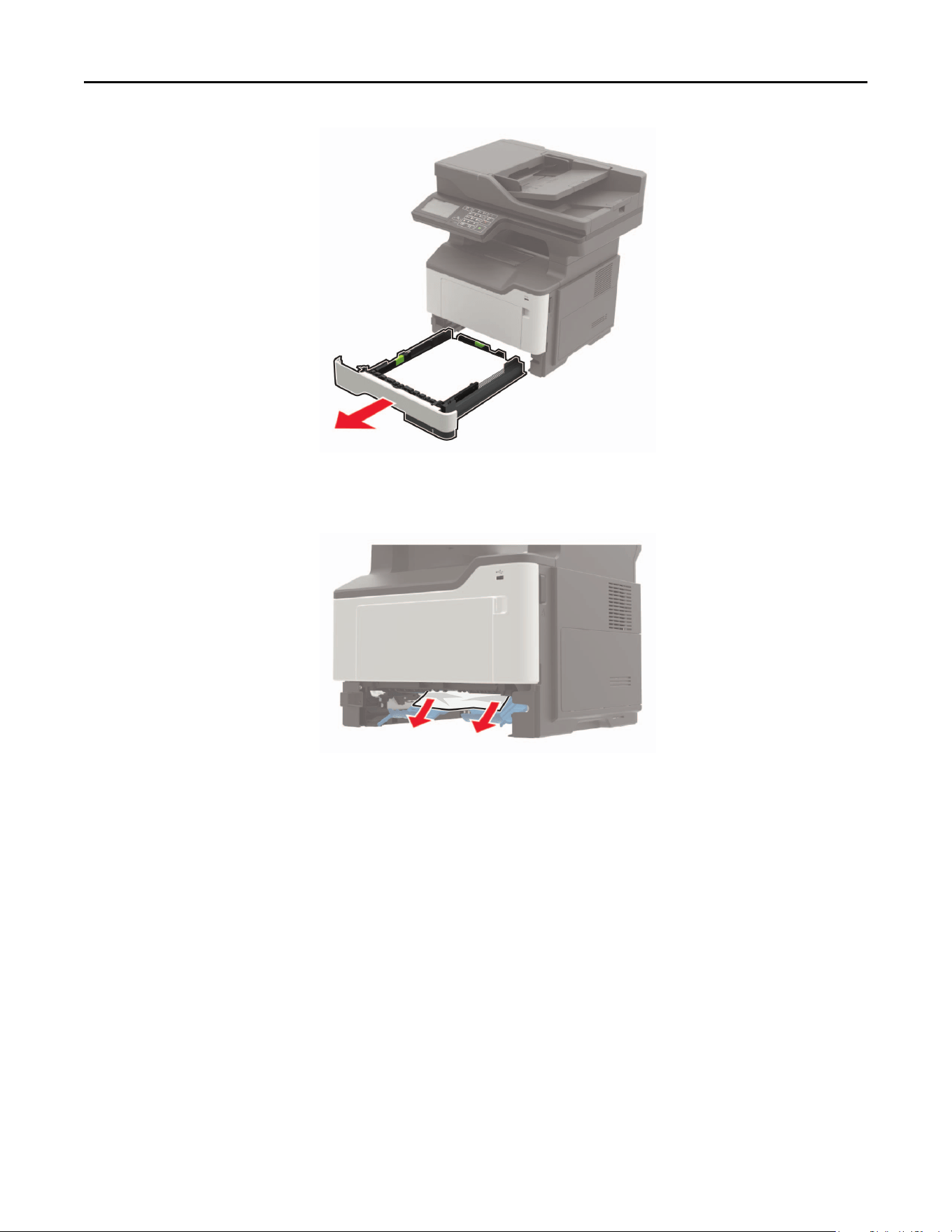

Paper jam in the duplex unit
1 Remove the tray.
Warning—Potential Damage: To prevent damage from electrostatic discharge, touch the metal plate at
the back of the printer where the cables plug in before accessing or touching interior areas of the printer.
Clearing jams 149
2 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
3 Insert the tray.
Paper jam in trays
1 Remove the tray.
Warning—Potential Damage: To prevent damage from electrostatic discharge, touch the metal plate at
the back of the printer where the cables plug in before accessing or touching interior areas of the printer.
Clearing jams 150
2 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
3 Insert the tray.
Paper jam in the multipurpose feeder
1 Remove paper from the multipurpose feeder.

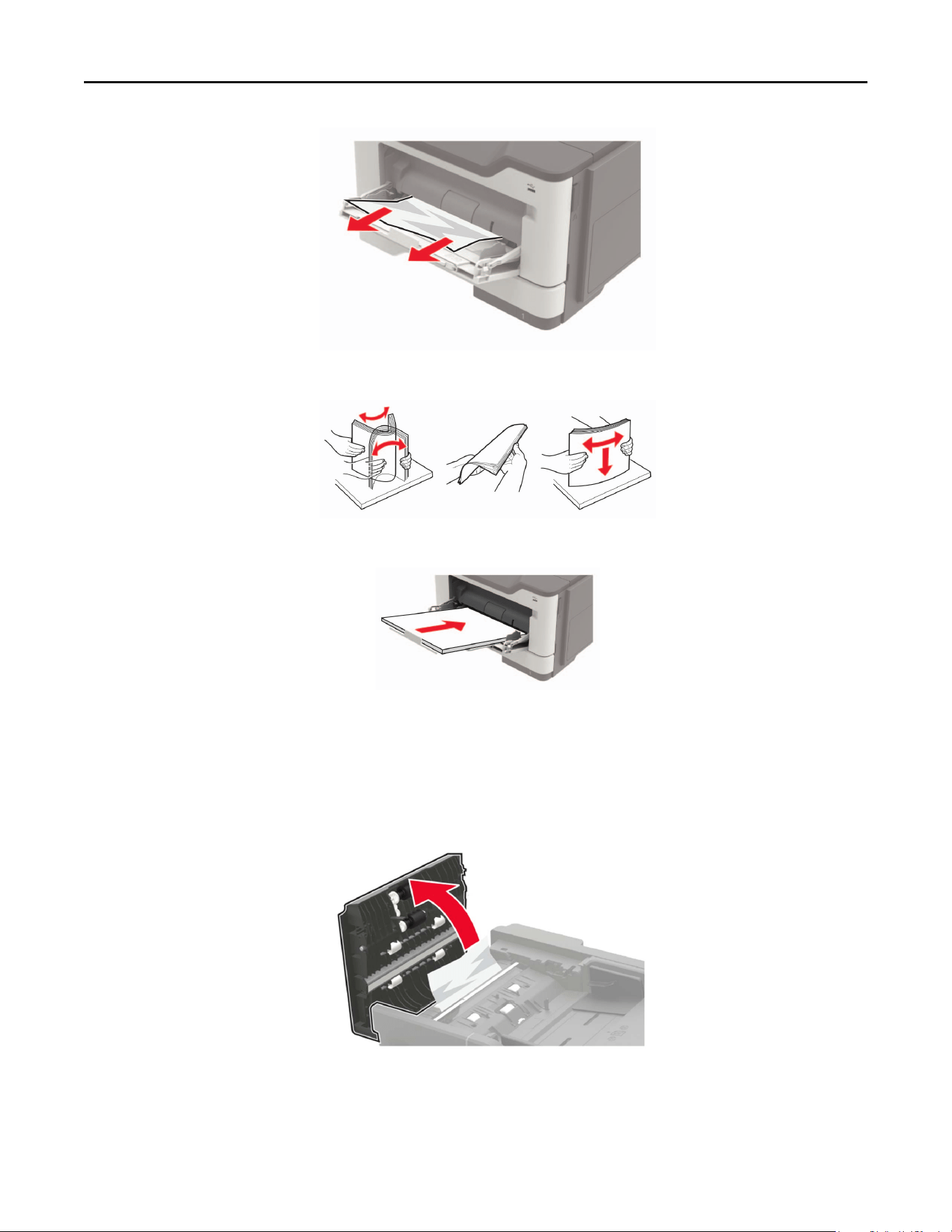

2 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
Clearing jams 151
3 Flex, fan, and align the paper edges before loading.
4 Reload paper, and then adjust the paper guide.
Paper jam in the automatic document feeder
1 Remove all original documents from the ADF tray.
2 Open the ADF cover.

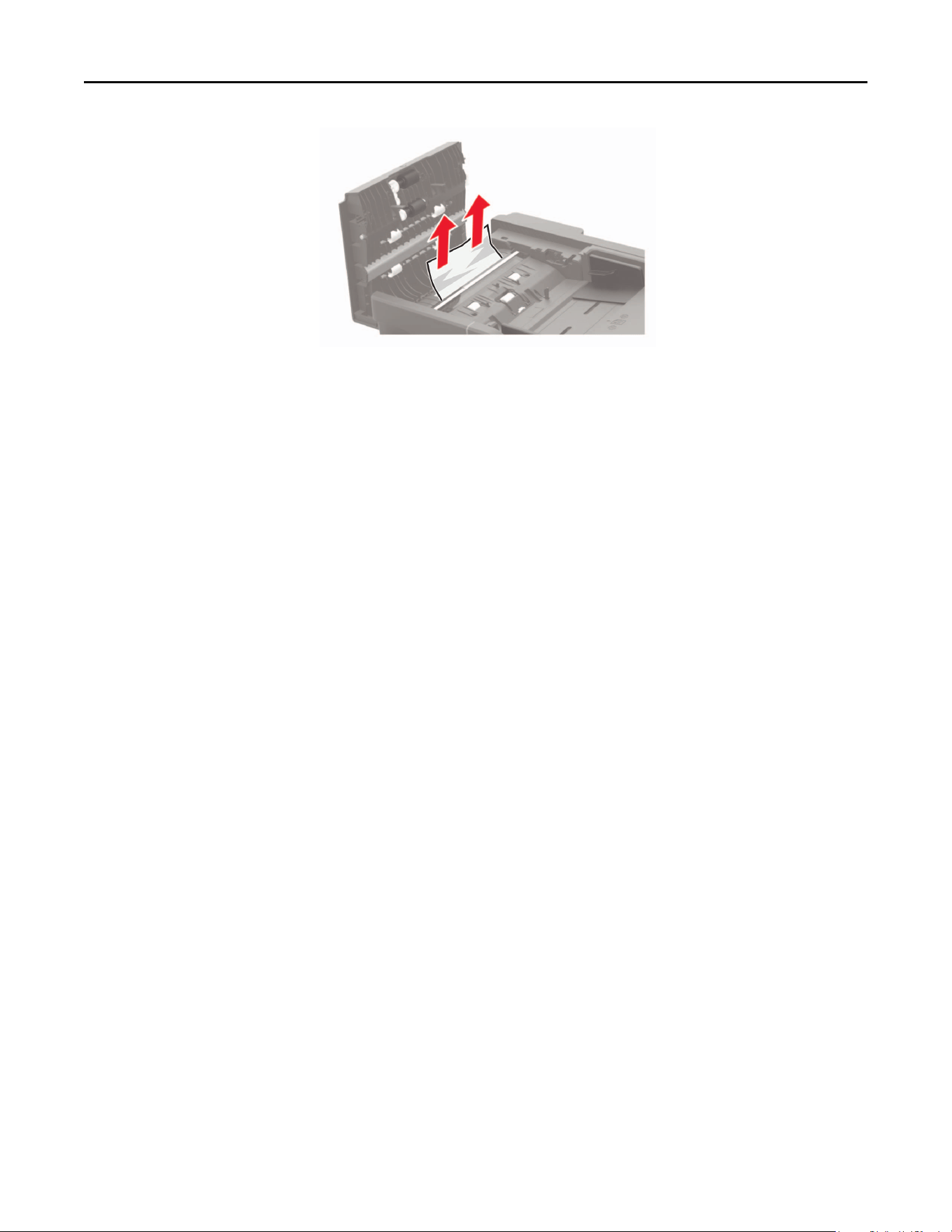

3 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
Clearing jams 152
4 Close the ADF cover.
Clearing jams 153
Troubleshooting
Network connection problems
Cannot open Embedded Web Server
Action Yes No
Step 1
Check if the printer is on.
Is the printer on?
Go to step 2. Turn on the printer.
Step 2
Make sure that the printer IP address is correct.
Notes:
• View the IP address on the home screen.
• An IP address appears as four sets of numbers separated by
periods, such as 123.123.123.123.
Is the printer IP address correct?
Go to step 3. Type the correct
printer IP address in
the address field.
Step 3
Check if you are using a supported browser:
• Internet Explorer version 11 or later
• Microsoft Edge
• Safari version 6 or later
• Google Chrome
TM
version 32 or later
• Mozilla Firefox version 24 or later
Is your browser supported?
Go to step 4. Install a supported
browser.
Step 4
Check if the network connection is working.
Is the network connection working?
Go to step 5. Contact your
administrator.
Step 5
Make sure that the cable connections to the printer and print server
are secure. For more information, see the documentation that
came with the printer.
Are the cable connections secure?
Go to step 6. Secure the cable
connections.
Step 6
Check if the web proxy servers are disabled.
Are the web proxy servers disabled?
Go to step 7. Contact your
administrator.
Troubleshooting 154
Action Yes No
Step 7
Access the Embedded Web Server.
Did the Embedded Web Server open?
The problem is
solved.
Contact your
dealer.
Unable to read
flash
drive
Action Yes No
Step 1
Check if the printer is not busy processing another job.
Is the printer ready?
Go to step 2. Wait for the printer to
finish processing the
other job.
Step 2
Check if the flash drive is inserted into the front USB port.
Note: The flash drive does not work when it is inserted into the
rear USB port.
Is the
flash
drive inserted into the correct port?
Go to step 3. Insert the flash drive
into the correct port.
Step 3
Check if the flash drive is supported. For more information, see
“Supported flash drives and file types” on page 30.
Is the
flash
drive supported?
Go to step 4. Insert a supported
flash drive.
Step 4
a Check if the USB port is enabled. For more information, see
“Enabling the USB port” on page 155.
b Remove, and then insert the flash drive.
Does the printer recognize the flash drive?
The problem is
solved.
Contact your dealer.
Enabling the USB port
From the home screen, touch Settings > Network/Ports > USB > Enable USB Port.
Checking the printer connectivity
1 From the home screen, touch Settings > Reports > Network > Network Setup Page.
2 Check the first section of the network setup page, and confirm that the status is connected.
If the status is not connected, then the LAN drop may be inactive, or the network cable may be
malfunctioning. Contact your administrator for assistance.
Troubleshooting 155
Issues with supplies
Replace cartridge, printer region mismatch
Install the correct toner cartridge.
Non‑Printer Manufacturer supply
The printer has detected an unrecognized supply or part installed in the printer.
Your printer is designed to function best with genuine supplies and parts made by the printer manufacturer.
Use of third-party supplies or parts may aect the performance, reliability, or life of the printer and its imaging
components.
All life indicators are designed to function with supplies and parts from the printer manufacturer and may
deliver unpredictable results if third-party supplies or parts are used. Imaging component usage beyond
the intended life may damage your printer or associated components.
Warning—Potential Damage: Use of third-party supplies or parts can
aect
warranty coverage.
Damage caused by the use of third-party supplies or parts may not be covered by the warranty.
To accept any and all of these risks and to proceed with the use of non-genuine supplies or parts in your
printer, from the control panel, press and hold X and # simultaneously for 15 seconds.
If you do not want to accept these risks, then remove the third-party supply or part from your printer and
install a genuine supply or part from the printer manufacturer.
Scanner maintenance required, use ADF Kit
The printer is scheduled for maintenance. Contact customer support or your service representative, and
then report the message.
Paper feed problems
Envelope seals when printing
Action Yes No
Step 1
a Use an envelope that has been stored in a dry environment.
Note: Printing on envelopes with high moisture content can
seal the flaps.
b Send the print job.
Does the envelope seal when printing?
Go to step 2. The problem is
solved.
Troubleshooting 156
Action Yes No
Step 2
a Make sure that the paper type is set to Envelope.
From the control panel, touch Settings > Paper > Tray
Configuration > Paper Size/Type > select a paper source
b Send the print job.
Does the envelope seal when printing?
Contact your
dealer. The problem is
solved.
Collated printing does not work
Action Yes No
Step 1
a From the control panel, touch Settings > Print > Layout >
Collate > On [1,2,1,2,1,2].
b Print the document.
Are the pages collated correctly?
The problem is
solved.
Go to step 2.
Step 2
a From the document that you are trying to print, open the Print
dialog, and then select Collate.
b Print the document.
Are the pages collated correctly?
The problem is
solved.
Go to step 3.
Step 3
a Reduce the number of pages to print.
b Print the document.
Are the pages collated correctly?
The problem is
solved.
Contact your
dealer.
Tray linking does not work
Action Yes No
Step 1
a Check if the trays contain the same paper size and paper type.
b Check if the paper guides are positioned correctly.
c Print the document.
Do the trays link correctly?
The problem is
solved.
Go to step 2.
Troubleshooting 157
Action Yes No
Step 2
a From the home screen, touch Settings > Paper > Tray
Configuration > Paper Size/Type.
b Set the paper size and paper type to match the paper loaded
in the linked trays.
c Print the document.
Do the trays link correctly?
The problem is
solved.
Go to step 3.
Step 3
a Make sure that Tray Linking is set to Automatic. For more
information, see
“Linking trays” on page 23.
b Print the document.
Do the trays link correctly?
The problem is
solved.
Contact your
dealer.
Paper frequently jams
Action Yes No
Step 1
a Pull out the tray.
b Check if paper is loaded correctly.
Notes:
• Make sure that the paper guides are positioned correctly.
• Make sure that the stack height is below the maximum
paper
fill
indicator.
• Make sure to print on recommended paper size and type.
c Insert the tray.
d Print the document.
Do paper jams occur frequently?
Go to step 2. The problem is
solved.
Step 2
a From the home screen, touch Settings > Paper > Tray
Configuration > Paper Size/Type.
b Set the correct paper size and type.
c Print the document.
Do paper jams occur frequently?
Go to step 3. The problem is
solved.
Troubleshooting 158
Action Yes No
Step 3
a Load paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store
paper in its original wrapper until you are ready to use it.
b Print the document.
Do paper jams occur frequently?
Contact your
dealer. The problem is
solved.
Jammed pages are not reprinted
Action Yes No
a From the home screen, touch Settings > Device > Notifications
> Jam Content Recovery.
b In the Jam Recovery menu, select On or Auto.
c Print the document.
Are the jammed pages reprinted?
The problem is
solved.
Contact your
dealer.
Printing problems
Confidential and other held documents do not print
Action Yes No
Step 1
a From the control panel, check if the documents appear in the
Held Jobs list.
Note: If the documents are not listed, then print the
documents using the Print and Hold options.
b Print the documents.
Are the documents printed?
The problem is
solved.
Go to step 2.
Step 2
The print job may contain a formatting error or invalid data. Delete
the print job, and then send it again.
Are the documents printed?
The problem is
solved.
Go to step 3.
Troubleshooting 159
Action Yes No
Step 3
If you are printing from the Internet, then the printer may be reading
the multiple job titles as duplicates.
For Windows users
a Open the Printing Preferences dialog.
b From the Print and Hold tab, click Use Print and Hold, and then
click Keep duplicate documents.
c Enter a PIN, and then save the changes.
d Send the print job.
For Macintosh users
a Save and name each job dierently.
b Send the job individually.
Are the documents printed?
The problem is
solved.
Go to step 4.
Step 4
a Delete some held jobs to free up printer memory.
b Print the documents.
Are the documents printed?
The problem is
solved.
Contact your
dealer.
Slow printing
Action Yes No
Step 1
a Connect the printer cable securely to the printer and the
computer, print server, option, or other network device.
b Print the document.
Is the printer printing slow?
Go to step 2. The problem is
solved.
Step 2
a Make sure that the printer is not in Quiet Mode.
From the home screen, touch Settings > Device > Maintenance
> Configuration Menu > Device Operations > Quiet Mode.
b Print the document.
Is the printer printing slow?
Go to step 3. The problem is
solved.
Troubleshooting 160
Action Yes No
Step 3
a Depending on your operating system, specify the paper type
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded in
the tray.
• You can also change the setting from the printer control
panel. From the home screen, touch Settings > Paper >
Tray Configuration > Paper Size/Type.
b Print the document.
Is the printer printing slow?
Go to step 4. The problem is
solved.
Step 4
a Reduce the number of pages to print.
b Print the document.
Is the printer printing slow?
Go to step 5. The problem is
solved.
Step 5
a From the home screen, touch Settings > Print > Quality > Print
Resolution.
b Set the resolution to 600 dpi.
c Print the document.
Is the printer still printing slow?
Go to step 6. The problem is
solved.
Step 6
a Make sure that the printer is not overheating.
Notes:
• Allow the printer to cool down after a long print job.
• Observe the recommended ambient temperature for the
printer. For more information, see
“Selecting a location
for the printer” on page 9.
b Print the document.
Is the printer still printing slow?
Contact your
dealer. The problem is
solved.
Troubleshooting 161
Print jobs do not print
Action Yes No
Step 1
a From the document you are trying to print, open the Print
dialog, and then check if you have selected the correct printer.
b Print the document.
Is the document printed?
The problem is
solved.
Go to step 2.
Step 2
a Check if the printer is on.
b Resolve any error messages that appear on the display.
c Print the document.
Is the document printed?
The problem is
solved.
Go to step 3.
Step 3
a Check if the ports are working and if the cables are securely
connected to the computer and the printer.
For more information, see the setup documentation that came
with the printer.
b Print the document.
Is the document printed?
The problem is
solved.
Go to step 4.
Step 4
a Turn o the printer, wait for about 10 seconds, and then turn on
the printer.
b Print the document.
Is the document printed?
The problem is
solved.
Go to step 5.
Step 5
a Remove, and then reinstall the print driver.
b Print the document.
Is the document printed?
The problem is
solved.
Contact your
dealer.
Troubleshooting 162
Print quality is poor
Blank or white pages
Contact your dealer.
Dark print
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Is the print dark?
Go to step 2. The problem is
solved.
Step 2
a Turn o the printer, wait for about 10 seconds, and then turn on
the printer.
b Reduce toner darkness. From the control panel, navigate to:
Settings > Print > Quality
c Print the document.
Is the print dark?
Go to step 3. The problem is
solved.
Troubleshooting 163
Action Yes No
Step 3
a Depending on your operating system, specify the paper type
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded.
• You can also change the setting on the printer control
panel. From the control panel, navigate to Settings >
Paper > Tray Configuration > Paper Size/Type.
b Print the document.
Is the print dark?
Go to step 4. The problem is
solved.
Step 4
Check if the paper has texture or rough finishes.
Are you printing on textured or rough paper?
Go to step 5. Go to step 6.
Step 5
a Replace textured paper with plain paper.
b Print the document.
Is the print dark?
Go to step 6. The problem is
solved.
Step 6
a Load paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store
paper in its original wrapper until you are ready to use it.
b Print the document.
Is the print dark?
Go to step 7. The problem is
solved.
Step 7
a Remove, and then insert the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit
to direct light for more than 10 minutes. Extended exposure
to light may cause print quality problems.
Warning—Potential Damage: Do not touch the
photoconductor drum under the imaging unit. Doing so may
aect the quality of future print jobs.
b Print the document.
Is the print dark?
Contact your
dealer. The problem is
solved.
Troubleshooting 164

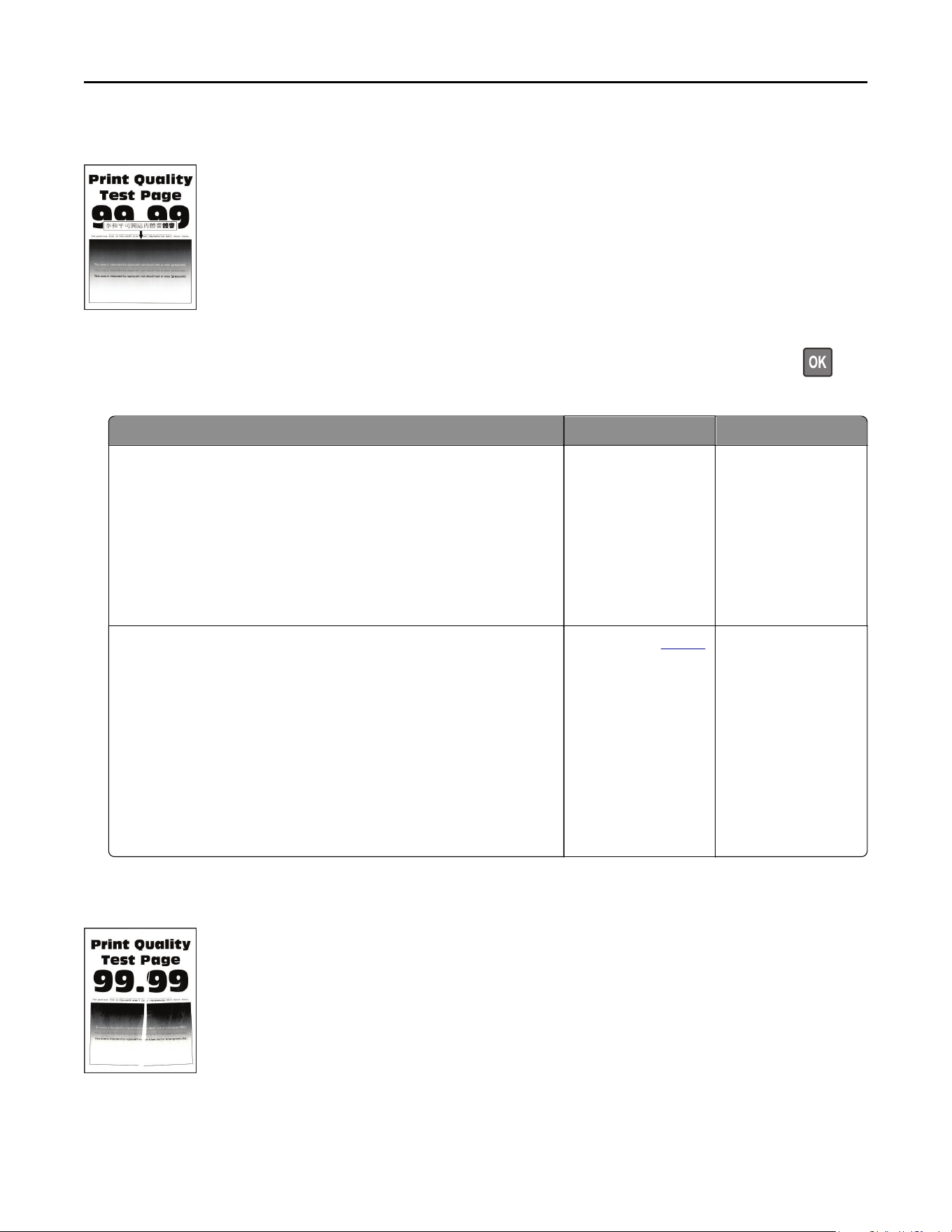

Fine lines are not printed correctly
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Are fine lines not printed correctly?
Go to step 2. The problem is
solved.
Step 2
a Adjust the print quality settings.
1 From the control panel, navigate to:
Settings > Print > Quality > Pixel Boost > Fonts
2 Adjust Toner Darkness to 7. From the control panel, navigate
to:
Settings > Print > Quality
b Print the document.
Are fine lines not printed correctly?
Contact your
dealer. The problem is
solved.
Folded or wrinkled paper
Troubleshooting 165
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Is the paper folded or wrinkled?
Go to step 2. The problem is
solved.
Step 2
a Load paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store
paper in its original wrapper until you are ready to use it.
b Print the document.
Is the paper folded or wrinkled?
Go to step 3. The problem is
solved.
Step 3
a Depending on your operating system, specify the paper type
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded.
• You can also change the setting on the printer control
panel. Navigate to Settings > Paper > Tray Configuration
> Paper Size/Type.
b Print the document.
Is the paper folded or wrinkled?
Contact your
dealer. The problem is
solved.

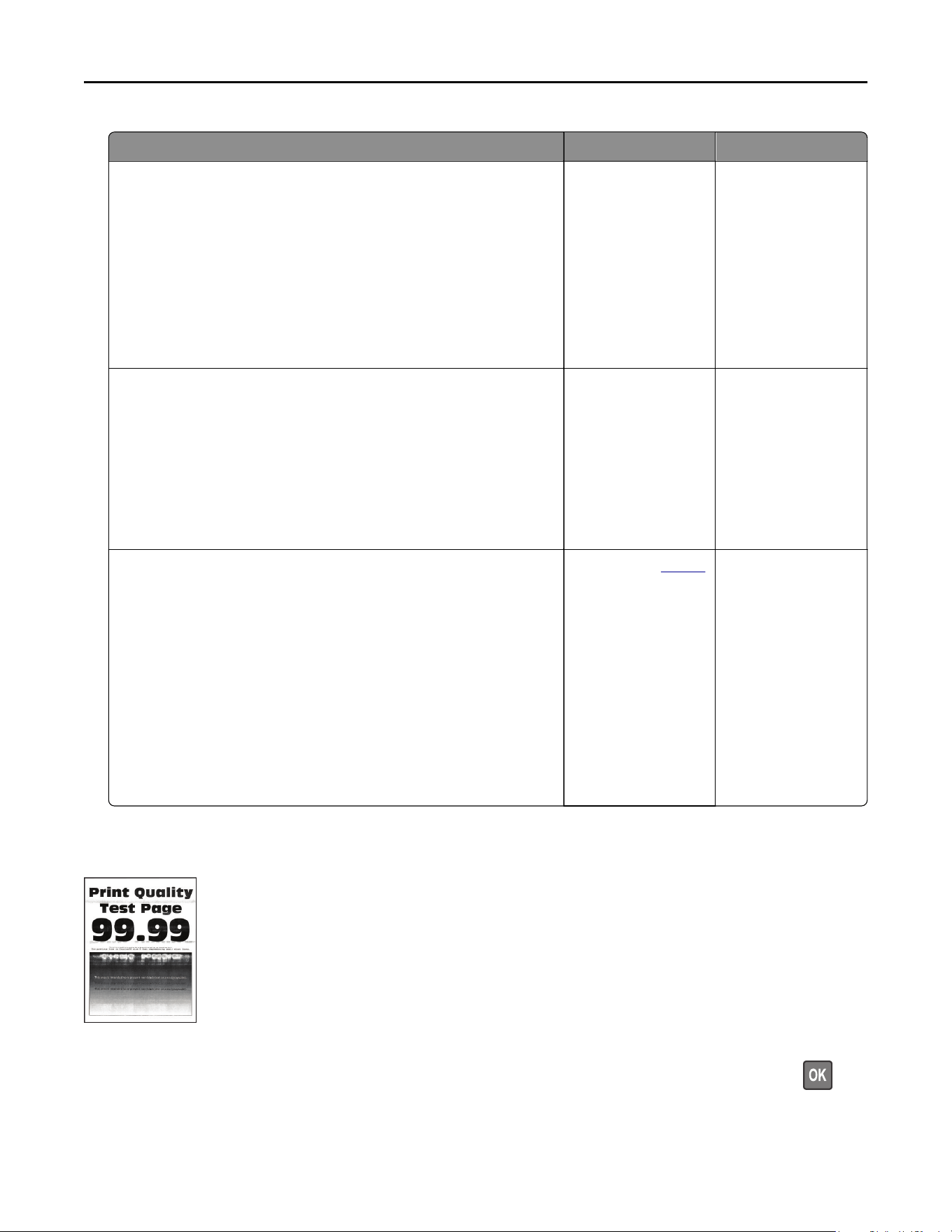

Gray background
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Troubleshooting 166
Action Yes No
Step 1
a Turn o the printer, wait for 10 seconds, and then turn on the
printer.
b Decrease toner darkness.
From the control panel, navigate to:
Settings > Print > Quality > Toner Darkness
c Print the document.
Does gray background appear on prints?
Go to step 2. The problem is
solved.
Step 2
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the toner cartridge is not supported, then install a
supported one.
b Print the document.
Does gray background appear on prints?
Go to step 3. The problem is
solved.
Step 3
a Depending on your operating system, specify the paper type
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded.
• You can also change the setting on the printer control
panel. Navigate to Settings > Paper > Tray Configuration
> Paper Size/Type.
b Print the document.
Does gray background appear on prints?
Contact your
dealer. The problem is
solved.
Horizontal light bands
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Troubleshooting 167
Action Yes No
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Do horizontal light bands appear on prints?
Contact your
dealer. The problem is
solved.

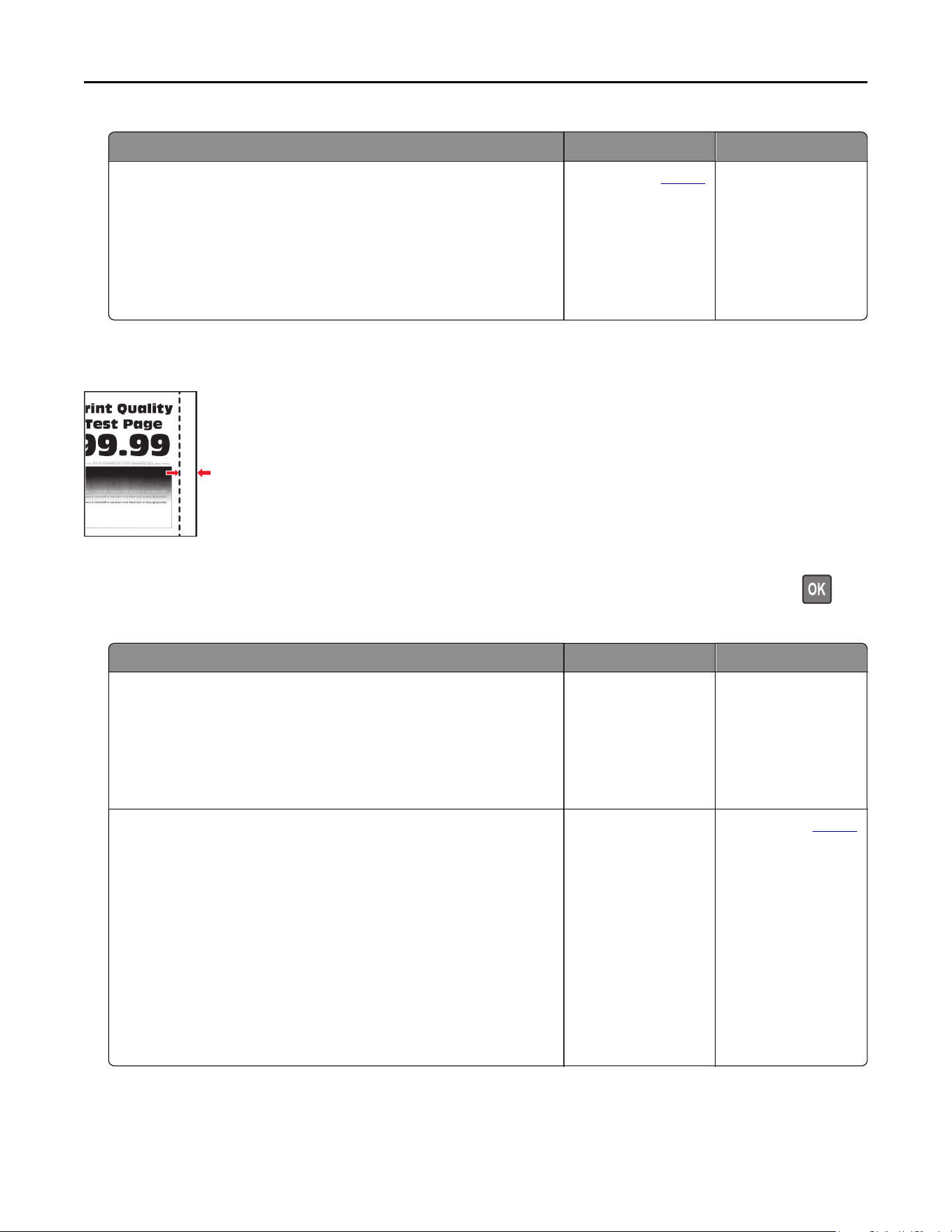

Incorrect margins
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non-touch-screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Adjust the paper guides to the correct position for the paper
loaded.
b Print the document.
Are the margins correct?
The problem is
solved.
Go to step 2.
Step 2
a Depending on your operating system, specify the paper size
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded.
• You can also change the setting from the printer control
panel. Navigate to Settings > Paper > Tray Configuration
> Paper Size/Type.
b Print the document.
Are the margins correct?
The problem is
solved.
Contact your
dealer.
Troubleshooting 168

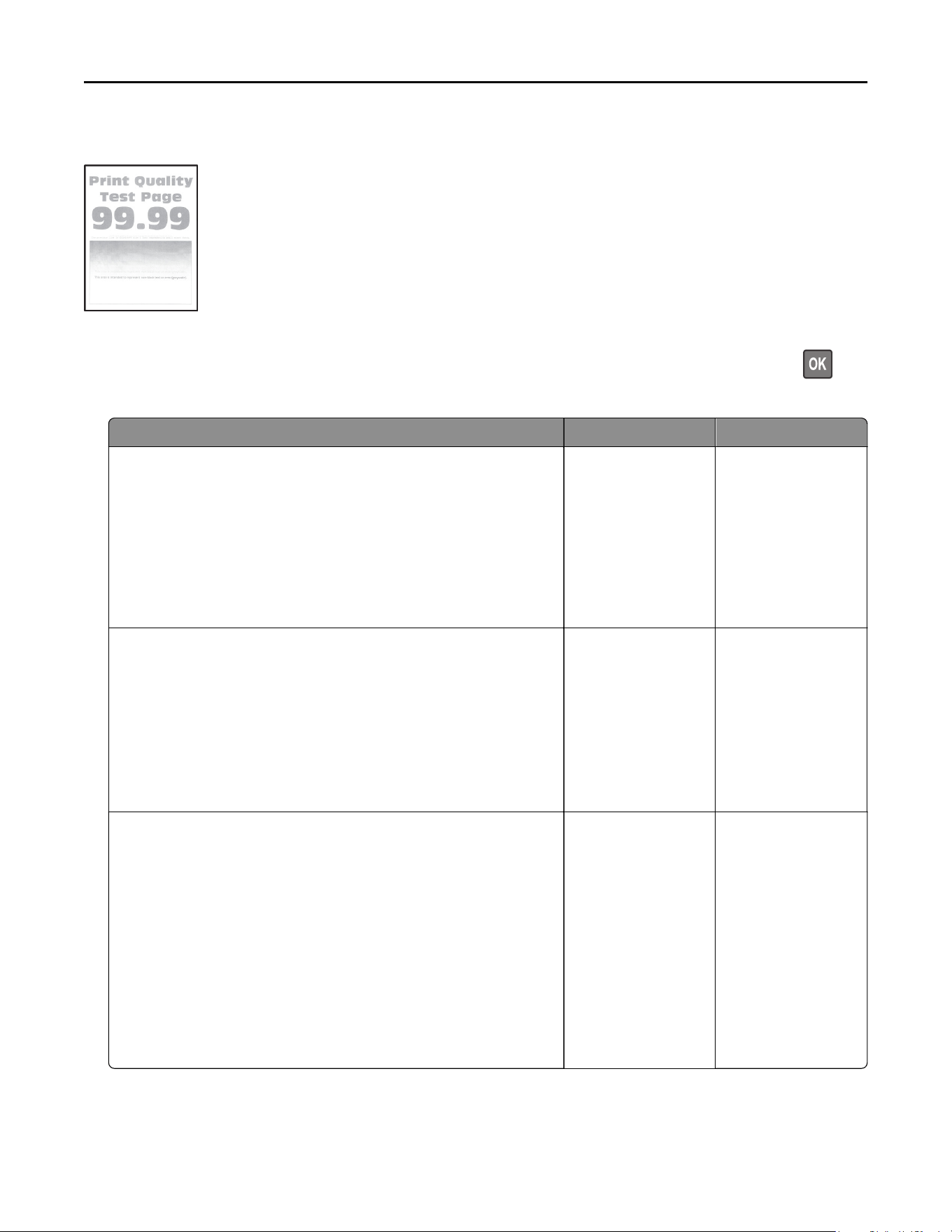

Light print
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Is the print light?
Go to step 2. The problem is
solved.
Step 2
a Turn o the printer, wait for about 10 seconds, and then turn on
the printer.
b Increase toner darkness. From the control panel, navigate to:
Settings > Print > Quality > Toner Darkness
c Print the document.
Is the print light?
Go to step 3. The problem is
solved.
Step 3
a Depending on your operating system, specify the paper type
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded.
• You can also change the setting on the printer control
panel. Navigate to Settings > Paper > Tray Configuration
> Paper Size/Type
b Print the document.
Is the print light?
Go to step 4. The problem is
solved.
Troubleshooting 169
Action Yes No
Step 4
Check if the print resolution is set to 600 dpi.
a From the control panel, navigate to:
Settings > Print > Quality > Print Resolution
b Print the document.
Is the print light?
Go to step 5. The problem is
solved.
Step 5
Check the status of the toner cartridge, and replace if necessary.
a From the control panel, navigate to:
Status/Supplies > Supplies
b Print the document.
Is the print light?
Contact your
dealer. The problem is
solved.

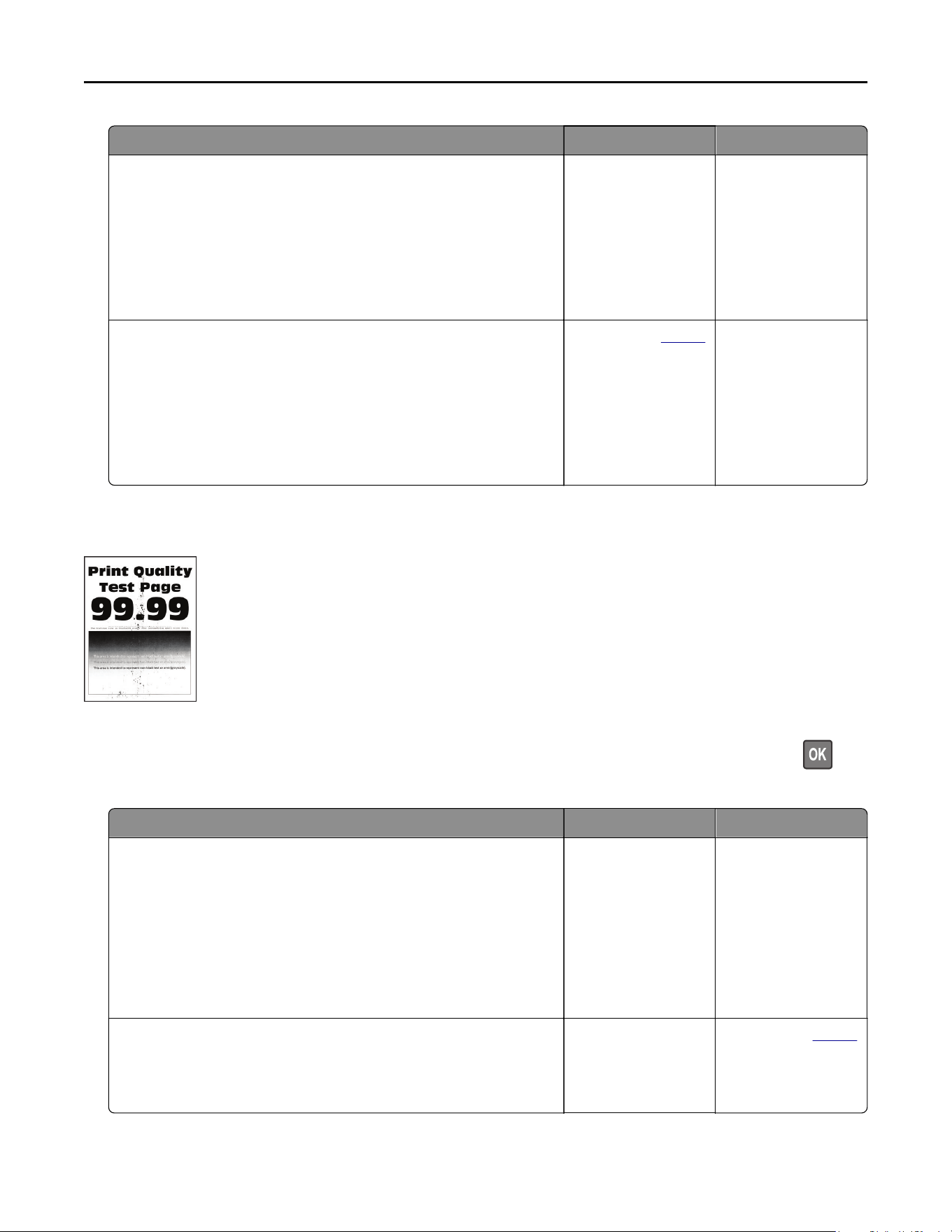

Mottled print and dots
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Is the print mottled?
Go to step 2. The problem is
solved.
Step 2
Check the printer for leaked toner contamination.
Is the printer free of leaked toner?
Go to step 3. Contact your
dealer.
Troubleshooting 170
Action Yes No
Step 3
a Check the status of the imaging unit.
From the control panel, navigate to:
Settings > Reports > Device > Device Statistics
b From the Supply Information section of the pages printed,
check the status of the imaging unit.
Is the imaging unit near end of life?
Go to step 4. Contact your
dealer.
Step 4
a Replace the imaging unit.
b Print the document.
Is the print mottled?
Contact your
dealer. The problem is
solved.

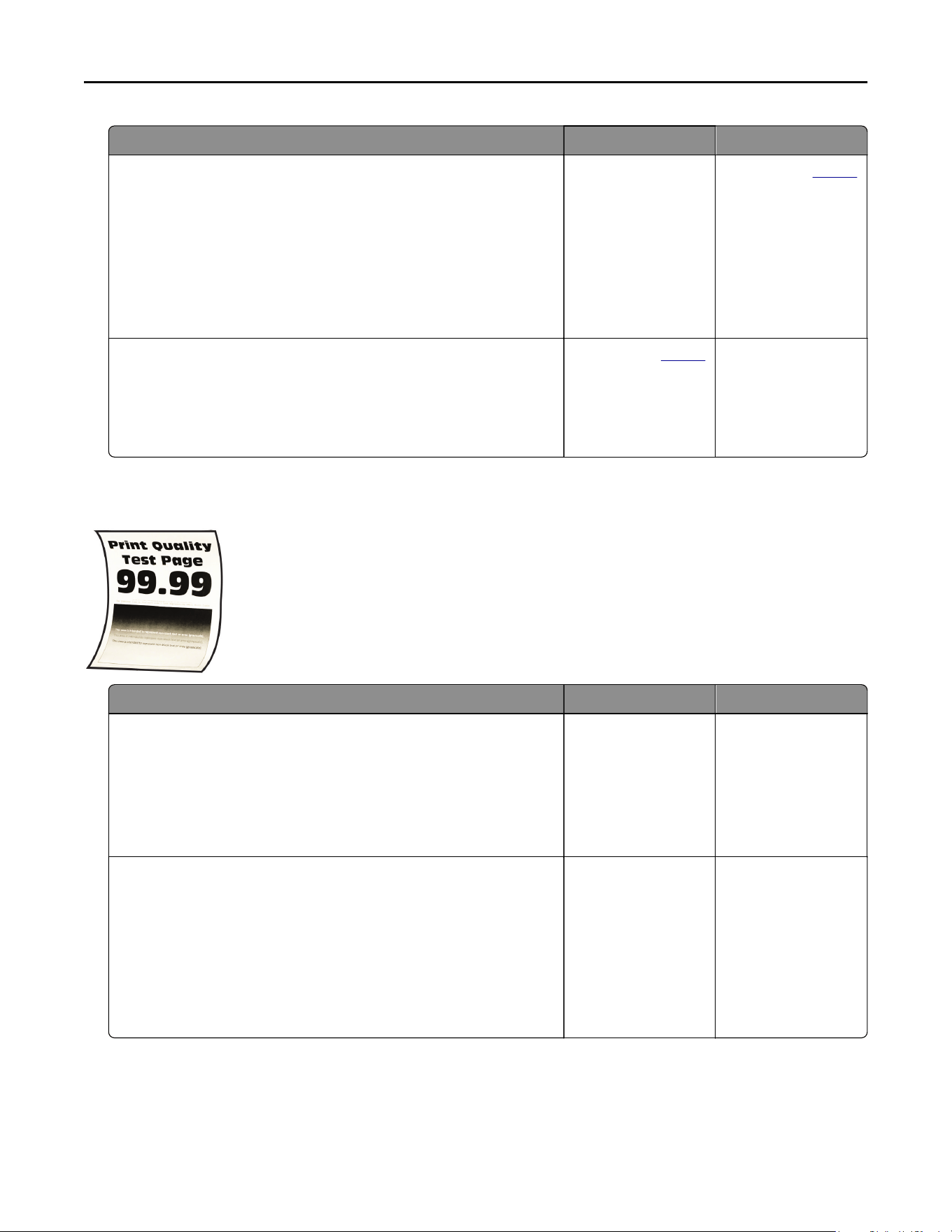

Paper curl
Action Yes No
Step 1
a Check if the paper loaded is supported.
Note: If paper is not supported, then load a supported paper.
b Print the document.
Is the paper curled?
Go to step 2. The problem is
solved.
Step 2
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Is the paper curled?
Go to step 3. The problem is
solved.
Troubleshooting 171
Action Yes No
Step 3
a Adjust the guides in the tray to the correct position for the paper
loaded.
b Print the document.
Is the paper curled?
Go to step 4. The problem is
solved.
Step 4
a Depending on your operating system, specify the paper size
and paper type from the Printing Preferences or Print dialog.
Notes:
• Make sure that the settings match the paper loaded.
• You can also change the settings on the printer control
panel. Navigate to Settings > Paper > Tray Configuration
> Paper Size/Type. For non‑touch‑screen printer models,
press
to navigate through the settings.
b Print the document.
Is the paper curled?
Go to step 5. The problem is
solved.
Step 5
a Remove paper, flip it over, and then reload paper.
b Print the document.
Is the paper curled?
Go to step 6. The problem is
solved.
Step 6
a Load paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store
paper in its original wrapper until you are ready to use it.
b Print the document.
Is the paper curled?
Contact your
dealer. The problem is
solved.

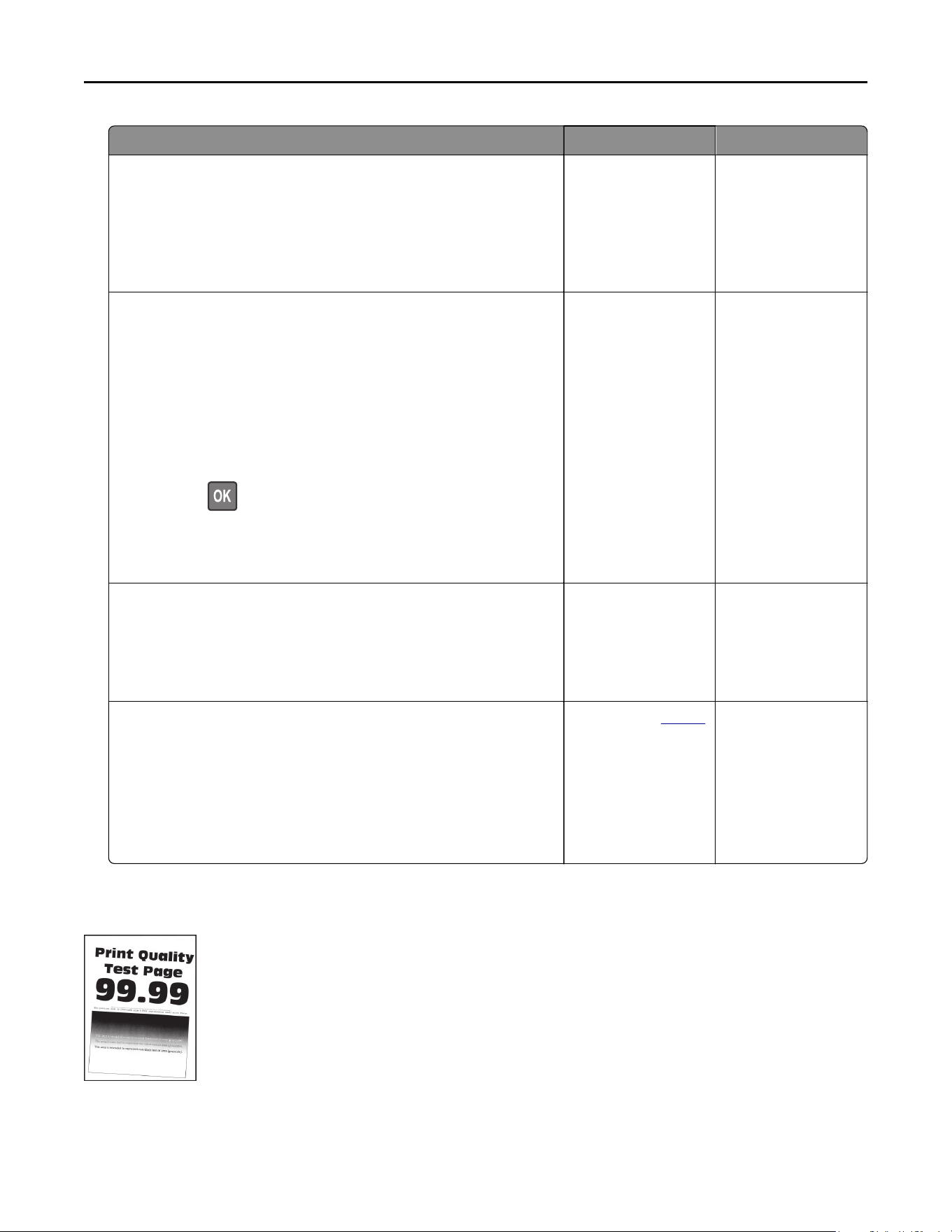

Print crooked or skewed
Troubleshooting 172
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non-touch-screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Adjust the paper guides in the tray to the correct position for
the paper loaded.
b Print the document.
Is the print crooked or skewed?
Go to step 2. The problem is
solved.
Step 2
a Load paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store
paper in its original wrapper until you are ready to use it.
b Print the document.
Is the print crooked or skewed?
Go to step 3. The problem is
solved.
Step 3
a Check if the paper loaded is supported.
Note: If paper is not supported, then load a supported paper.
b Print the document.
Is the print crooked or skewed?
Contact your
dealer. The problem is
solved.
Repeating defects
)
)
)
Contact your dealer.
Troubleshooting 173

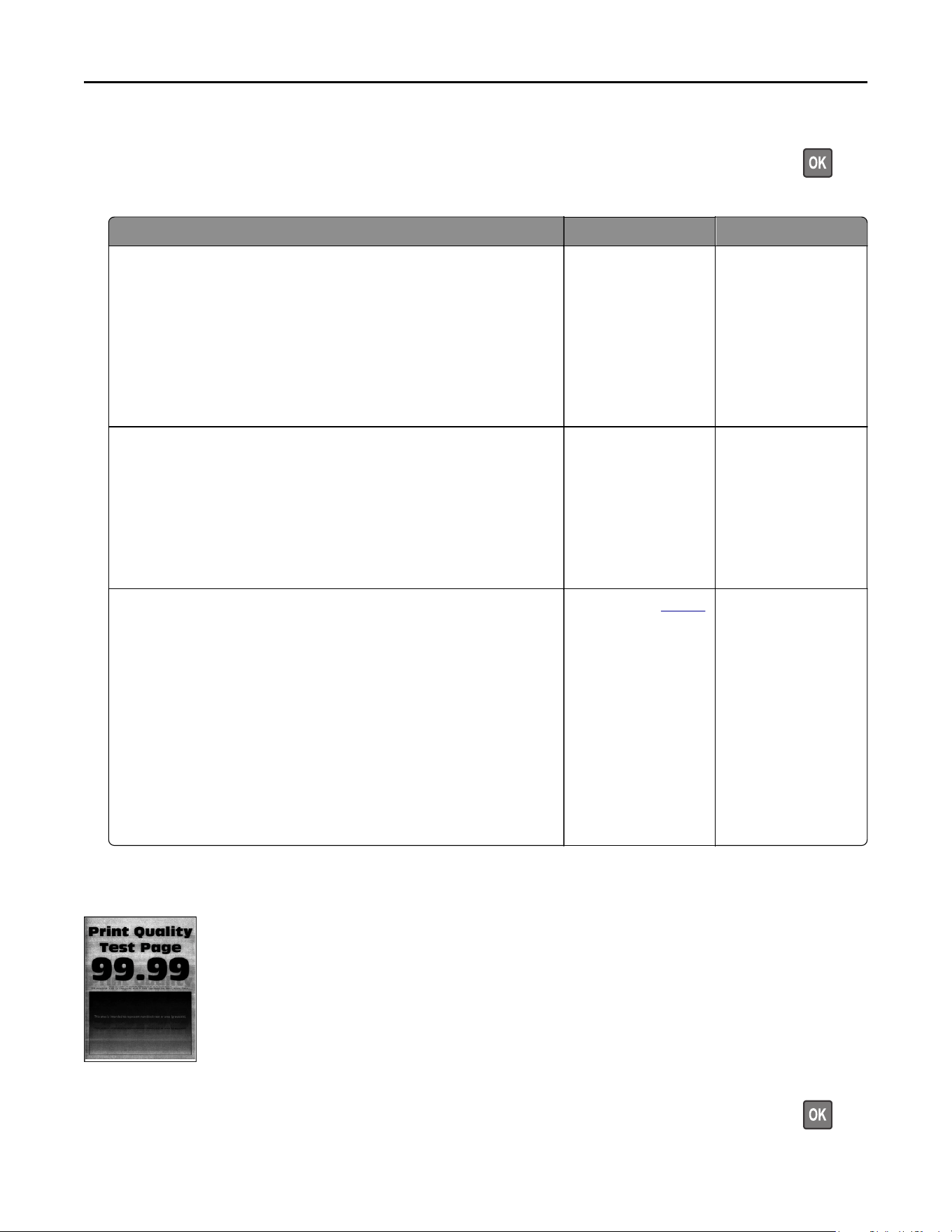

Solid black pages
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the toner cartridge is not supported, then install a
supported one.
b Print the document.
Is the printer printing solid black pages?
Contact your
dealer. The problem is
solved.
Text or images cut o
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the toner cartridge is not supported, then install a
supported one.
b Print the document.
Are text or images cut
o?
Contact your
dealer. The problem is
solved.
Troubleshooting 174

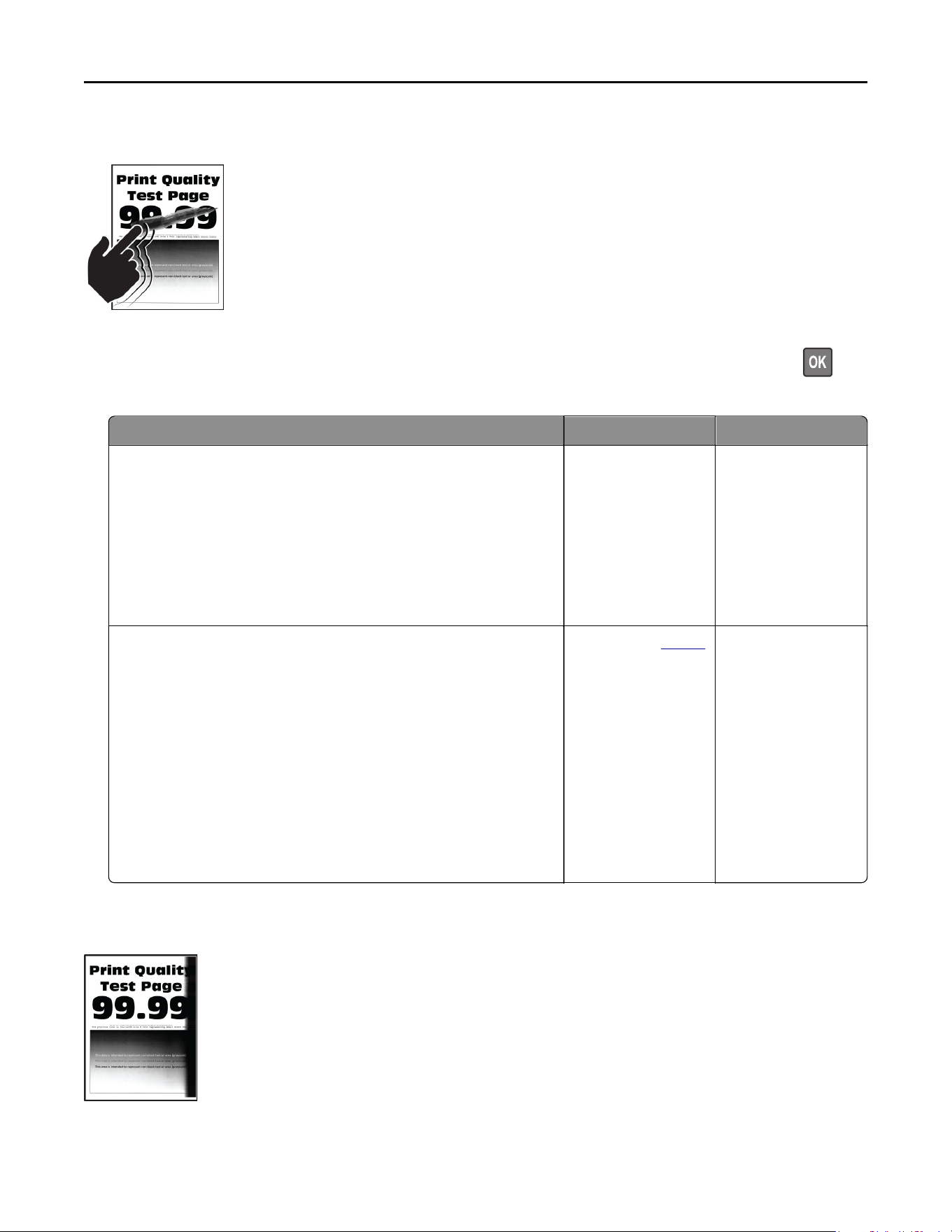

Toner easily rubs o
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Does toner easily rub o?
Go to step 2. The problem is
solved.
Step 2
a Depending on your operating system, specify the paper type
from the Printing Preferences or Print dialog.
Notes:
• Make sure that the setting matches the paper loaded.
• You can also change the setting on the printer control
panel. Navigate to Settings > Paper > Tray Configuration
> Paper Size/Type.
b Print the document.
Does toner easily rub o?
Contact your
dealer. The problem is
solved.
Vertical dark bands
Troubleshooting 175
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the toner cartridge is not supported, then install a
supported one.
b Print the document.
Do vertical dark bands appear on prints?
Contact your
dealer. The problem is
solved.

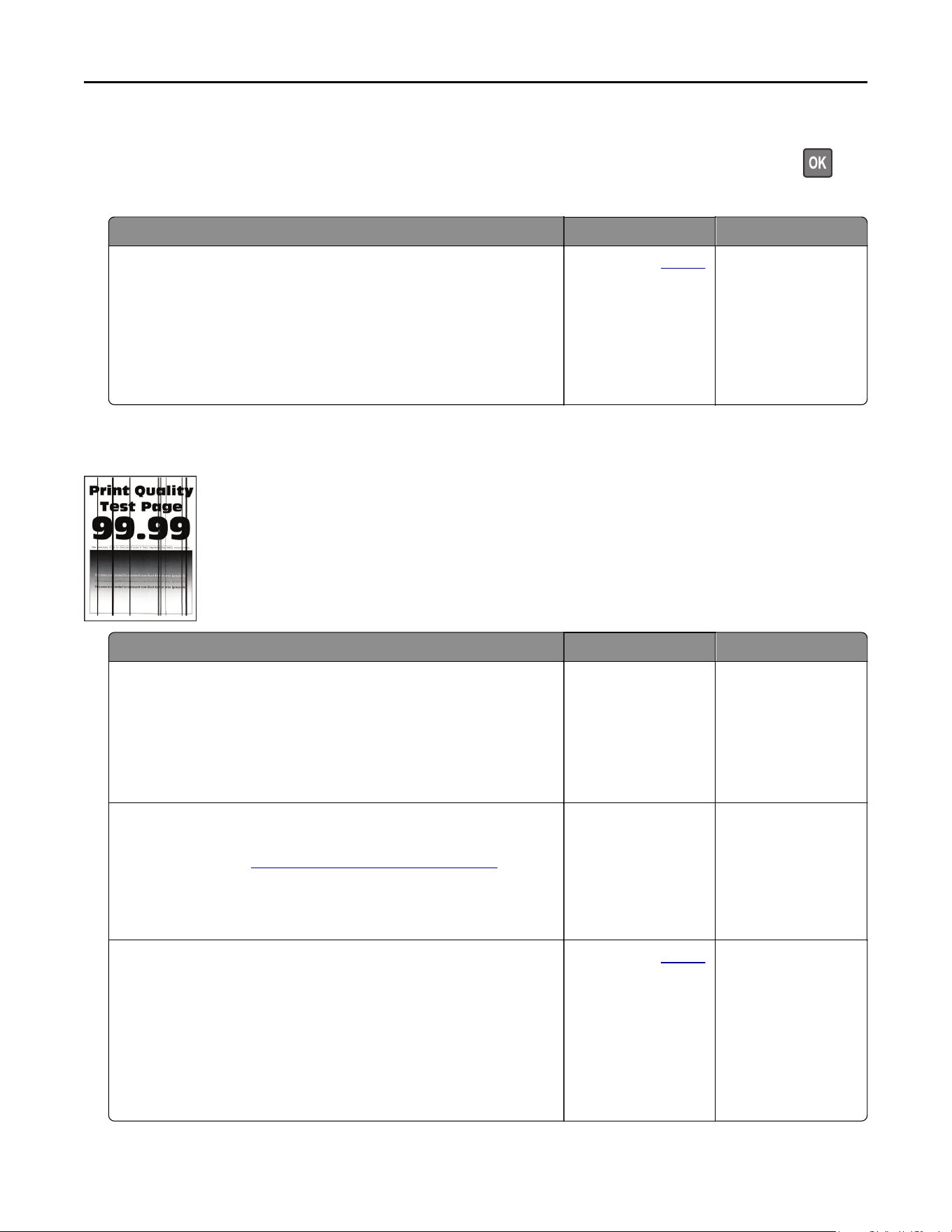

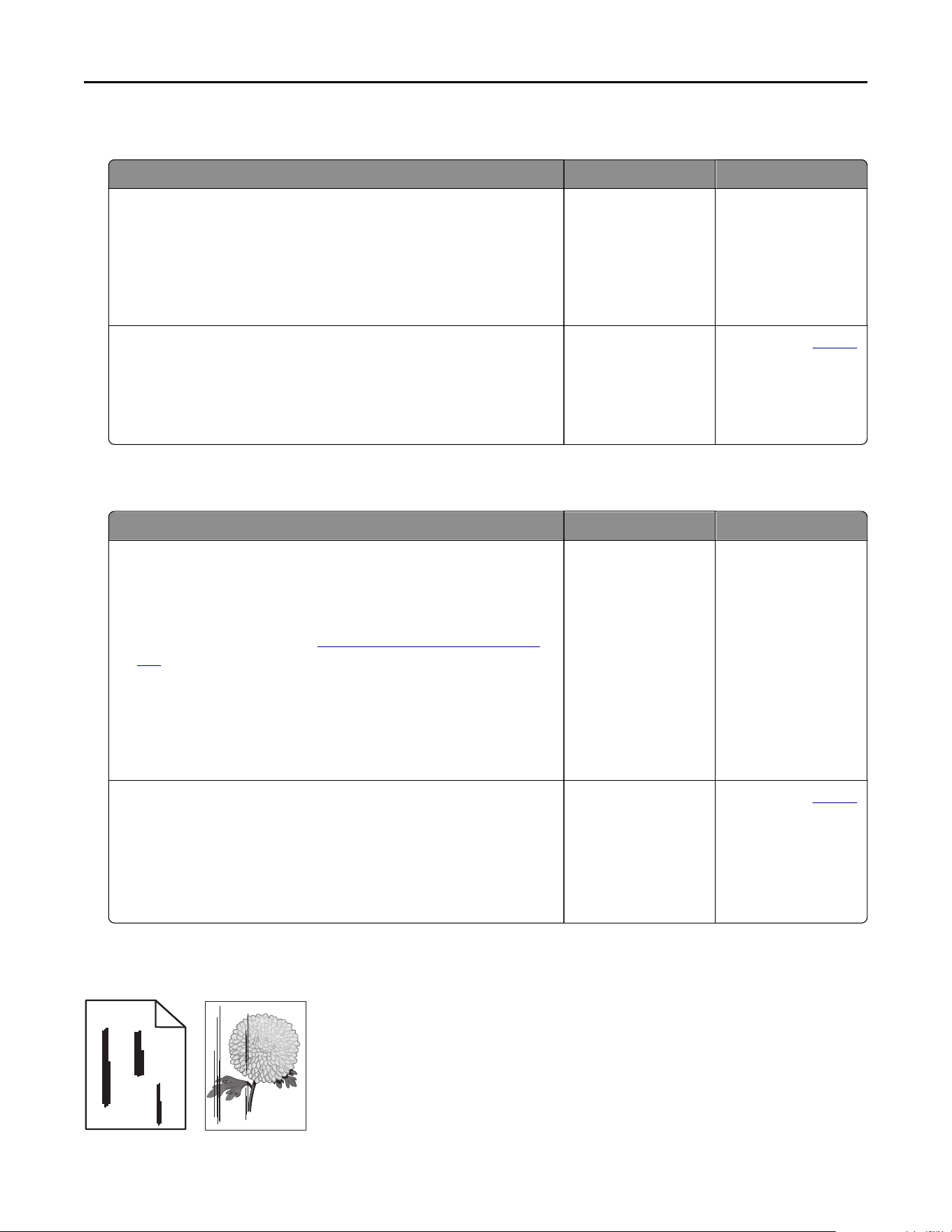

Vertical dark lines or streaks
Action Yes No
Step 1
a From the control panel, navigate to:
Settings > Troubleshooting > Cleaning the scanner
b Print the document.
Do vertical dark lines or streaks appear on prints?
Go to step 2. The problem is
solved.
Step 2
a Using a damp, soft, lint-free cloth, clean the scanner. For more
information, see
“Cleaning the scanner” on page 125.
b Copy the document using the ADF.
Do vertical dark lines or streaks appear on prints?
Go to step 3. The problem is
solved.
Step 3
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the toner cartridge is not supported, then install a
supported one.
b Print the document.
Do vertical dark lines or streaks appear on prints?
Contact your
dealer. The problem is
solved.
Troubleshooting 176

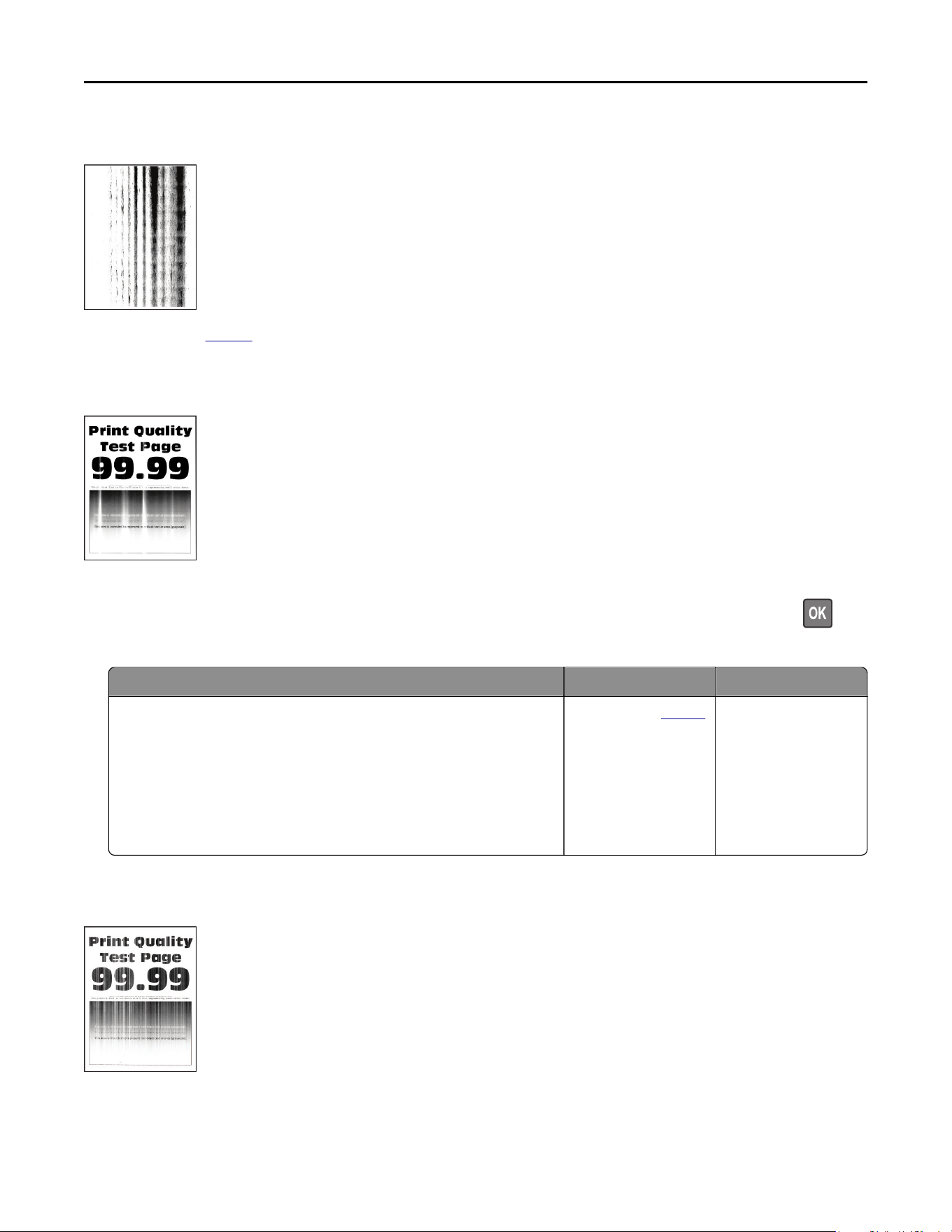

Vertical dark streaks with print missing
Contact your dealer.
Vertical light bands
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Do vertical light bands appear on prints?
Contact your
dealer. The problem is
solved.
Vertical white lines
Troubleshooting 177
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Do vertical white lines appear on prints?
Go to step 2. The problem is
solved.
Step 2
Fix slow printing problems. For more information, see
“Slow
printing” on page 160.
Do vertical white lines appear on prints?
Contact your
dealer. The problem is
solved.
The printer is not responding
Action Yes No
Step 1
Check if the power cord is connected to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or
electrical shock, connect the power cord to an appropriately
rated and properly grounded electrical outlet that is near the
product and easily accessible.
Is the printer responding?
The problem is
solved.
Go to step 2.
Step 2
Check if the electrical outlet is turned o by a switch or breaker.
Is the electrical outlet turned o by a switch or breaker?
Turn on the switch or
reset the breaker.
Go to step 3.
Step 3
Check if the printer is on.
Is the printer on?
Go to step 4. Turn on the printer.
Step 4
Check if the printer is in Sleep or Hibernate mode.
Is the printer in Sleep or Hibernate mode?
Press the power
button to wake the
printer.
Go to step 5.
Troubleshooting 178
Action Yes No
Step 5
Check if the cables connecting the printer and the computer are
inserted to the correct ports.
Are the cables inserted to the correct ports?
Go to step 6. Insert the cables to
the correct ports.
Step 6
Install the correct print driver.
Is the printer responding?
The problem is
solved.
Go to step 7.
Step 7
Turn o the printer, wait for about 10 seconds, and then turn on the
printer.
Is the printer responding?
The problem is
solved.
Contact your
dealer.
Adjusting toner darkness
1 From the home screen, touch Settings > Print > Quality.
2 Adjust the toner darkness.
3 Apply the changes.
Job prints from the wrong tray or on the wrong paper
Action Yes No
Step 1
a Check if you are printing on the correct paper.
b Print the document.
Is the document printed on the correct paper?
Go to step 2. Load the correct
paper size and paper
type.
Step 2
a Depending on your operating system, specify the paper size
and paper type from the Printing Preferences or Print dialog.
Note: You can also change the settings on the printer control
panel. From the home screen, touch Settings > Paper > Tray
Configuration > Paper Size/Type.
b Make sure that the settings match the paper loaded.
c Print the document.
Is the document printed on the correct paper?
The problem is
solved.
Go to step 3.
Troubleshooting 179
Action Yes No
Step 3
a Check if the trays are linked.
For more information, see
“Linking trays” on page 23.
b Print the document.
Is the document printed from the correct tray?
The problem is
solved.
Contact your
dealer.
Faxing problems
Cannot send or receive faxes
Action Yes No
Step 1
Resolve any error messages that appear on the display.
Can you send or receive a fax?
The problem is
solved.
Go to step 2.
Step 2
Make sure that the cable connections for the following equipment
are secure:
• Telephone
• Handset
• Answering machine
Can you send or receive a fax?
The problem is
solved.
Go to step 3.
Step 3
Check for a dial tone.
• Call the fax number to check if it is working properly.
• If you are using the On Hook Dial feature, then turn up the
volume to check if you hear a dial tone.
Can you hear a dial tone?
Go to step 5. Go to step 4.
Step 4
Check the telephone wall jack.
a Connect the analog telephone directly to the wall jack.
b Listen for a dial tone.
c If you do not hear a dial tone, then use a
dierent
telephone
cable.
d If you still do not hear a dial tone, then connect the analog
telephone to a
dierent
wall jack.
e If you hear a dial tone, then connect the printer to that wall jack.
Can you send or receive a fax?
The problem is
solved.
Go to step 5.
Troubleshooting 180
Action Yes No
Step 5
Check if the printer is connected to an analog phone service or to
the correct digital connector.
• If you are using an Integrated Services for Digital Network
(ISDN) telephone service, then connect to an analog telephone
port of an ISDN terminal adapter. For more information, contact
your ISDN provider.
• If you are using DSL, then connect to a DSL filter or router that
supports analog use. For more information, contact your DSL
provider.
• If you are using a private branch exchange (PBX) telephone
service, then make sure that you are connecting to an analog
connection on the PBX. If none exists, then consider installing
an analog telephone line for the fax machine.
Can you send or receive a fax?
The problem is
solved.
Go to step 6.
Step 6
Temporarily disconnect other equipment and disable other
telephone services.
a Disconnect other equipment (such as answering machines,
computers, modems, or telephone line splitters) between the
printer and the telephone line.
b Disable call waiting and voice mail. For more information,
contact your telephone company.
Can you send or receive a fax?
The problem is
solved.
Go to step 7.
Step 7
Scan the original document one page at a time.
a Dial the fax number.
b Scan the document.
Can you send or receive a fax?
The problem is
solved.
Contact your dealer.
Troubleshooting 181
Can receive but not send faxes
Action Yes No
Step 1
Load the original document properly into the ADF tray or on the
scanner glass.
Can you send faxes?
The problem is
solved.
Go to step 2.
Step 2
Set up the shortcut number properly.
• Check if the shortcut number is set for the telephone number
that you want to dial.
• Dial the telephone number manually.
Can you send faxes?
The problem is
solved.
Contact your
dealer.
Can send but not receive faxes
Action Yes No
Step 1
Make sure that the paper source is not empty.
Can you receive faxes?
The problem is
solved.
Go to step 2.
Step 2
Check the ring count delay settings.
From the home screen, touch Settings > Fax > Fax Setup > Fax
Receive Settings > Rings to Answer.
Can you receive faxes?
The problem is
solved.
Go to step 3.
Step 3
If the printer is printing blank pages, then see
“Blank or white
pages” on page 163.
Can you receive faxes?
The problem is
solved.
Contact your
dealer.
Poor fax print quality
Action Yes No
Step 1
Enhance the print quality.
a From the home screen, touch Settings > Print > Quality.
b Adjust the settings.
Is the fax print quality satisfactory?
The problem is
solved.
Go to step 2.
Troubleshooting 182
Action Yes No
Step 2
Decrease the incoming fax transmission speed.
a From the home screen, touch Settings > Fax > Fax Setup > Fax
Receive Settings > Admin Controls > Max Speed.
b Select a lower transmission speed.
Is the fax print quality satisfactory?
The problem is
solved.
Go to step 3.
Step 3
Replace the toner cartridge.
For more information, see the instruction sheet that came with the
supply item.
Is the fax print quality satisfactory?
The problem is
solved.
Contact your
dealer.
Scanning problems
Cannot scan from a computer
Action Yes No
Step 1
a Turn o the printer, wait for about 10 seconds, and then turn it
back on.
b Resend the scan job.
Can you send the scan job?
The problem is
solved.
Go to step 2.
Step 2
a Make sure that the cables between the printer and the print
server are secure.
For more information, see the setup documentation that came
with the printer.
b Resend the scan job.
Can you send the scan job?
The problem is
solved.
Contact your
dealer.
Troubleshooting 183
Partial copies of document or photo
Action Yes No
Step 1
a Make sure that the document or photo is loaded facedown on
the upper left corner of the scanner glass.
b Copy the document or photo.
Is the document or photo copied correctly?
The problem is
solved.
Go to step 2.
Step 2
a Match the paper size setting and the paper loaded in the tray.
b Copy the document or photo.
Is the document or photo copied correctly?
The problem is
solved.
Contact your
dealer.
Poor copy quality
Action Yes No
Step 1
a Clean the scanner glass and the ADF glass with a damp, soft,
lint‑free cloth. If your printer has a second ADF glass inside the
ADF, then also clean that glass.
For more information, see
“Cleaning the scanner” on page
125.
b Make sure that the document or photo is loaded facedown on
the upper left corner of the scanner glass.
c Copy the document or photo.
Is the copy quality satisfactory?
The problem is
solved.
Go to step 2.
Step 2
a Check the quality of the original document or photo.
b Adjust the scan quality settings.
c Copy the document or photo.
Is the copy quality satisfactory?
The problem is
solved.
Contact your
dealer.
Vertical dark streaks on output when scanning from the ADF
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Troubleshooting 184
Action Yes No
Step 1
a Open the scanner cover.
b Using a damp, soft, lint‑free cloth, wipe the ADF glass and the
white underside of the ADF cover.
c Close the scanner cover.
Do vertical streaks still appear on scanned documents?
Go to step 2. The problem is
solved.
Step 2
a Open door C.
b Using a damp, soft, lint‑free cloth, wipe the ADF glass and the
white underside of the ADF cover.
c Close the door.
Do vertical streaks still appear on scanned documents?
Contact your
dealer. The problem is
solved.
Scan job was not successful
Action Yes No
Step 1
Check the cable connections.
a Make sure that th e Ethernet or USB cable i s securel y connected
to the computer and the printer.
b Resend the scan job.
Is the scan job successful?
The problem is
solved.
Go to step 2.
Step 2
Check the file that you want to scan.
a Make sure that the file name is not already used in the
destination folder.
b Make sure that the document or photo you want to scan is not
open in another application.
c Resend the scan job.
Is the scan job successful?
The problem is
solved.
Go to step 3.
Step 3
a Make sure that the Append time stamp or the Overwrite
existing file check box is selected in the destination
configuration settings.
b Resend the scan job.
Is the scan job successful?
The problem is
solved.
Troubleshooting 185
Scanner does not close
Action Yes No
Remove obstructions that keep the scanner unit open.
Did the scanner unit close correctly?
The problem is
solved.
Contact your
dealer.
Scanning takes too long or freezes the computer
Action Yes No
Close all applications that are interfering with the scan.
Does scanning take too long or freeze the computer?
Contact your
dealer. The problem is
solved.
Scanner does not respond
Action Yes No
Step 1
a Check if the power cord is connected properly to the printer
and the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire
or electrical shock, connect the power cord to an
appropriately rated and properly grounded electrical outlet
that is near the product and easily accessible.
b Copy or scan the document.
Is the scanner responding?
The problem is
solved.
Go to step 2.
Step 2
a Check if the printer is turned on.
b Resolve any error messages that appear on the display.
c Copy or scan the document.
Is the scanner responding?
The problem is
solved.
Go to step 3.
Step 3
a Turn o the printer, wait for about 10 seconds, and then turn the
printer on.
b Copy or scan the document.
Is the scanner responding?
The problem is
solved.
Contact your
dealer.
Troubleshooting 186
Adjusting scanner registration
1 From the home screen, touch Settings > Device > Maintenance >
Configuration
Menu > Scanner
Configuration > Scanner Manual Registration.
2 In the Print Quick Test menu, touch Start.
3 Place the Print Quick Test page on the scanner glass, and then touch Flatbed Registration.
4 In the Copy Quick Test menu, touch Start.
5 Compare the Copy Quick Test page with the original document.
Note: If the margins of the test page are
dierent
from the original document, then adjust Left Margin and
Top Margin.
6 Repeat step 4 and step 5 until the margins of the Copy Quick Test page closely match the original document.
Adjusting ADF registration
1 From the home screen, touch Settings > Device > Maintenance > Configuration Menu > Scanner
Configuration > Scanner Manual Registration.
2 In the Print Quick Test menu, touch Start.
3 Place the Print Quick Test page on the ADF tray.
4 Tou ch Front ADF Registration or Rear ADF Registration.
Notes:
• To align Front ADF Registration, place the test page faceup, short edge first into the ADF.
• To align Rear ADF Registration, place the test page facedown, short edge first into the ADF.
5 In the Copy Quick Test menu, touch Start.
6 Compare the Copy Quick Test page with the original document.
Note: If the margins of the test page are
dierent
from the original document, then adjust Horizontal
Adjust and Top Margin.
7 Repeat step 5 and step 6 until the margins of the Copy Quick Test page closely match the original document.
Contacting your dealer
Before contacting your dealer, make sure to have the following information:
• Printer problem
• Error message
• Printer model type and serial number
Visit the place where you purchased your printer.
Troubleshooting 187
Upgrading and migrating
Hardware
Available internal options
• Flash memory
• Font cards
• Firmware cards
– Bar Code
– IPDS
Accessing the controller board
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, if you are accessing the controller
board or installing optional hardware or memory devices sometime after setting up the printer, then turn
the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any
other devices attached to the printer, then turn them o as well, and unplug any cables going into the
printer.
1 Turn
o
the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Using a flat-head screwdriver, open the controller board access cover.
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch a metal surface on the printer before touching any controller board components or
connectors.
Upgrading and migrating 188
4 Close the access cover.
5 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of
fire
or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
6 Turn on the printer.
Upgrading and migrating 189
Installing an optional card
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, if you are accessing the controller
board or installing optional hardware or memory devices sometime after setting up the printer, then turn
the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any
other devices attached to the printer, then turn them o as well, and unplug any cables going into the
printer.
1 Turn o the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Open the controller board access cover.
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch a metal surface on the printer before touching any components or connectors.
4 Unpack the optional card.
Warning—Potential Damage: Do not touch the connection points along the edge of the card.
Upgrading and migrating 190
5 Push the card firmly into place.
Note: The entire length of the connector on the card must touch and be
flush
against the controller
board.
Warning—Potential Damage: Improper installation of the card may cause damage to the card and the
controller board.
6 Close the access cover.
7 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
8 Turn on the printer.
Installing a printer hard disk
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, if you are accessing the controller
board or installing optional hardware or memory devices sometime after setting up the printer, then turn
the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any
other devices attached to the printer, then turn them o as well, and unplug any cables going into the
printer.
1 Turn
o
the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Open the controller board access cover.
Upgrading and migrating 191
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch a metal surface on the printer before touching any controller board components or
connectors.
4 Unpack the hard disk.
5 Attach the hard disk to the controller board.
Warning—Potential Damage: Do not touch or press the center of the hard disk.
Upgrading and migrating 192
6 Attach the hard disk interface cable to the controller board.
7 Close the access cover.
8 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
9 Turn on the printer.
Installing an internal solutions port
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, if you are accessing the controller
board or installing optional hardware or memory devices sometime after setting up the printer, then turn
the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any
other devices attached to the printer, then turn them o as well, and unplug any cables going into the
printer.
1 Turn
o
the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Unpack the internal solutions port (ISP) kit.
Note: Remove the preinstalled interface cable from the ISP.
Upgrading and migrating 193
1 ISP
2 Mounting bracket
3 Thumbscrews
4 Housing
5 Interface cable
4 Install the ISP into its housing.
5 Secure the ISP in place and attach the ISP extended cable.
Upgrading and migrating 194
6 Open, and then remove the controller board access cover.
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch a metal surface on the printer before touching any controller board electronic
components or connectors.
7 Attach the ISP kit to the printer.
Upgrading and migrating 195
If a printer hard disk is installed, then remove the hard disk before installing the ISP.
a Unplug the hard disk interface cable from the controller board.
Upgrading and migrating 196
b Connect the ISP extended cable to the ISP connector.
Upgrading and migrating 197
c Install the hard disk.
Upgrading and migrating 198
8 Close the access cover.
9 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
10 Turn on the printer.
Installing optional trays
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, if you are accessing the controller
board or installing optional hardware or memory devices sometime after setting up the printer, then turn
the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any
other devices attached to the printer, then turn them o as well, and unplug any cables going into the
printer.
1 Turn
o
the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Unpack the optional tray, and then remove all packing material.
Note: If optional trays are already installed, then unlock them from the printer before lifting the printer. Do
not try to lift the printer and trays at the same time.
4 Align the printer with the optional tray, and then lower the printer until it clicks into place.
CAUTION—POTENTIAL INJURY: If the printer weight is greater than 20 kg (44 lb), then it may
require two or more people to lift it safely.
5 Connect the power cord to the printer, and then to the electrical outlet.
CAUTION—POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord
to an appropriately rated and properly grounded electrical outlet that is near the product and easily
accessible.
6 Turn on the printer.
Upgrading and migrating 199
Add the tray in the print driver to make it available for print jobs. For more information, see “Adding available
options in the print driver” on page 201.
Software
Supported operating systems
Using the software CD, you can install the printer software on the following operating systems:
• Windows 10
• Windows 8.1
• Windows Server 2012 R2
• Windows Server 2012
• Windows 7 SP1
• Windows Server 2008 R2 SP1
• Windows Server 2008 SP2
• Windows Vista SP2
• Mac OS X version 10.7 or later
• Red Hat Enterprise Linux WS
• openSUSE Linux
• SUSE Linux Enterprise Server
• Debian GNU/Linux
• Ubuntu
• Fedora
• IBM AIX
• Oracle Solaris SPARC
• Oracle Solaris x86
Notes:
• For Windows operating systems, the print drivers and utilities are supported in both 32‑ and 64‑bit
versions.
• For drivers and utilities that are compatible with Mac OS X version 10.6 or earlier and for specific
supported Linux or UNIX operating system versions, go to our website.
• For more information on software compatibility with all other operating systems, contact customer
support.
Installing the printer software
1 Obtain a copy of the software installer package.
• From our website.
• From the place where you purchased the printer.
2 Run the installer, and then follow the instructions.
Upgrading and migrating 200
3 For Macintosh users, add the printer.
Note: For Macintosh computers with macOS version 10.7 or later, you do not need to install the driver to
print on an
AirPrint-certified
printer.
Adding available options in the print driver
For Windows users
1 Open the printers folder.
2 Select the printer you want to update, and then do either of the following:
• For Windows 7 or later, select Printer properties.
• For earlier versions, select Properties.
3 Navigate to the Configuration tab, and then select Update Now ‑ Ask Printer.
4 Apply the changes.
For Macintosh users
1 From System Preferences in the Apple menu, navigate to your printer, and then select Options & Supplies.
2 Navigate to the list of hardware options, and then add any installed options.
3 Apply the changes.
Firmware
Exporting or importing a
configuration
file
You can export the configuration settings of your printer into a text file, and then import the file to apply the
settings to other printers.
1 Open a web browser, and then type the printer IP address in the address
field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Export or import a
configuration
file
for one or multiple applications.
For one application
a
From the Embedded Web Server, click Apps > the application that you want >
Configure
.
b Click Export or Import.
For multiple applications
a
From the Embedded Web Server, click Export Configuration or Import Configuration.
b Follow the instructions on the screen.
Upgrading and migrating 201
Updating firmware
Some applications require a minimum device firmware level to operate correctly.
For more information on updating the device firmware, contact your sales representative.
1 From the Embedded Web Server, click Settings > Device > Update Firmware.
2 Browse to locate the required flash file.
3 Apply the changes.
Upgrading and migrating 202
Notices
Product information
Product name:
DIGITAL MULTIFUNCTIONAL SYSTEM MX-B467F
Machine type:
7017
Model(s):
679 and its equivalent models
Edition notice
November 2020
The following paragraph does not apply to any country where such provisions are inconsistent with local
law: THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain
transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in later editions. Improvements or changes in the
products or the programs described may be made at any time.
GOVERNMENT END USERS
The Software Program and any related documentation are "Commercial Items," as that term is
defined
in 48
C.F.R. 2.101, "Computer Software" and "Commercial Computer Software Documentation," as such terms are
used in 48 C.F.R. 12.212 or 48 C.F.R. 227.7202, as applicable. Consistent with 48 C.F.R. 12.212 or 48 C.F.R.
227.7202-1 through 227.7207-4, as applicable, the Commercial Computer Software and Commercial Software
Documentation are licensed to the U.S. Government end users (a) only as Commercial Items and (b) with only
those rights as are granted to all other end users pursuant to the terms and conditions herein.
Supplies
Standard supplies for this product that can be replaced by the user include toner cartridges.
Be sure to use only SHARP-specified products for the toner cartridges.
Notices 203
GENUINE SUPPLIES
For best copying results, be sure to use only Sharp Genuine Supplies which are designed,
engineered, and tested to maximize the life and performance of Sharp products. Look for the
Genuine Supplies label on the toner package.
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO
9296.
Note: Some modes may not apply to your product.
1-meter average sound pressure, dBA
Printing One-sided: 56
Two-sided: 55
Scanning 51
Copying 57
Ready 14
Waste from Electrical and Electronic Equipment (WEEE) directive
The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the
European Union. We encourage the recycling of our products. If you have further questions about recycling
options, contact your local sales oce.
India E-Waste notice
Notices 204
This product complies with the India E-Waste (Management and Handling) Rules, 2011, which prohibit use of
lead, mercury, hexavalent chromium, polybrominated biphenyls, or polybrominated diphenyl ethers in
concentrations exceeding 0.1％ by weight and 0.01% by weight for cadmium, except for the exemption set in
Schedule II of the Rules.
Product disposal
Do not dispose of the printer or supplies in the same manner as normal household waste. Consult your local
authorities for disposal and recycling options.
Static sensitivity notice
This symbol identifies static-sensitive parts. Do not touch the areas near these symbols without first touching
a metal surface in an area away from the symbol.
ENERGY STAR
Any product bearing the ENERGY STAR
®
emblem on the product or on a start-up screen is
certified
to comply
with Environmental Protection Agency (EPA) ENERGY STAR requirements as of the date of manufacture.
Temperature information
Ambient operating temperature 10 to 32°C (50 to 90°F)
Shipping temperature -20 to 40°C (-4 to 104°F)
Storage temperature and relative humidity 0 to 40°C (32 to 104°F)
8 to 80% RH
Laser notice
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, Chapter I, Subchapter J for
Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements
of IEC 60825-1: 2014.
Notices 205
Class I laser products are not considered to be hazardous. The laser system and printer are designed so there
is never any human access to laser radiation above a Class I level during normal operation, user maintenance,
or prescribed service conditions. The printer has a non-serviceable printhead assembly that contains a laser
with the following specifications:
Class: IIIb (3b) AlGaInP
Nominal output power (milliwatts): 15
Wavelength (nanometers): 650–670
Power consumption
Product power consumption
The following table documents the power consumption characteristics of the product.
Note: Some modes may not apply to your product.
Mode Description Power consumption
(Watts)
Printing The product is generating hard‑copy output from electronic inputs. One-sided: 620
Two-sided: 385
Copy The product is generating hard‑copy output from hard‑copy original
documents.
630
Scan The product is scanning hard‑copy documents. 20
Ready The product is waiting for a print job. 14.5
Sleep Mode The product is in a high‑level energy‑saving mode. 1.41
Hibernate The product is in a low‑level energy‑saving mode. 0.1
O The product is plugged into an electrical outlet, but the power switch is
turned o.
0.1
The power consumption levels listed in the previous table represent time-averaged measurements.
Instantaneous power draws may be substantially higher than the average.
Sleep Mode
This product is designed with an energy-saving mode called Sleep Mode. The Sleep Mode saves energy by
lowering power consumption during extended periods of inactivity. The Sleep Mode is automatically engaged
after this product is not used for a
specified
period of time, called the Sleep Mode Timeout.
Factory default Sleep Mode Timeout for this product (in minutes): 15
By using the configuration menus, the Sleep Mode Timeout can be modified between 1 minute and 120 minutes.
If the print speed is less than or equal to 30 pages per minute, then you can set the timeout only up to 60
minutes. Setting the Sleep Mode Timeout to a low value reduces energy consumption, but may increase the
response time of the product. Setting the Sleep Mode Timeout to a high value maintains a fast response, but
uses more energy.
Notices 206
Hibernate Mode
This product is designed with an ultra‑low power operating mode called Hibernate mode. When operating in
Hibernate Mode, all other systems and devices are powered down safely.
The Hibernate mode can be entered in any of the following methods:
• Using the Hibernate Timeout
• Using the Schedule Power modes
Factory default Hibernate Timeout for this product in all countries or regions 3 days
The amount of time the printer waits after a job is printed before it enters Hibernate mode can be modified
between one hour and one month.
O
mode
If this product has an o mode which still consumes a small amount of power, then to completely stop product
power consumption, disconnect the power supply cord from the electrical outlet.
Total energy usage
It is sometimes helpful to estimate the total product energy usage. Since power consumption claims are
provided in power units of Watts, the power consumption should be multiplied by the time the product spends
in each mode in order to calculate energy usage. The total product energy usage is the sum of each mode's
energy usage.
Environmental information
Please read this part carefully. It will help you to reduce your impact on the environment and help you to
reduce your costs at the same time.
Saving paper
1 The automated duplex printing function is for printing both sides of paper automatically without turning over
the paper manually. If the machine is equipped with the automated duplex printing function, set up your
print settings on your computer to automatically print double-sided. Please use the automatic duplex printing
function of this machine wherever possible.
2 By printing on recycled paper and thin 64 g/m
2
paper that meet the standard EN12281:2002 and similar
quality standards, you can reduce the impact on the environment.
Saving energy
The ENERGY STAR® program is a voluntary scheme to promote the development and purchase of energy
ecient models, which help to minimize environmental impact. Products which meet the stringent requirements
of the ENERGY STAR program for both environmental
benefits
and the amount of energy consumption may
carry the ENERGY STAR logo in case they have been registered with an ENERGY STAR program.
Regulatory notices for telecommunication terminal equipment
This section contains regulatory information pertaining to products that contain the analog facsimile card:
Notices 207
Regulatory Type/Model Number:
LEX-M14-002
Notice to users of the US telephone network: FCC requirements
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the Administrative
Council for Terminal Attachments (ACTA). On the back of this equipment is a label that contains, among other
information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided
to your telephone company.
This equipment uses the RJ-11C Universal Service Order Code (USOC) jack.
A plug and jack used to connect this equipment to the premises’ wiring and telephone network must comply
with the applicable FCC Part 68 rules and requirements adopted by the ACTA. Use a compliant telephone cord
(RJ-11) that is 26 AWG or larger when connecting this product to the public switched telephone network. See
your setup documentation for more information.
The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected to
a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an
incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number
of devices that may be connected to a line, as determined by the total RENs, contact your local telephone
company. For products approved after July 23, 2001, the REN for this product is part of the product
identifier
that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point
(for example, 03 is a REN of 0.3). For earlier products, the REN is shown separately on the label.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. If advance notice is not practical, the telephone company
will notify the customer as soon as possible. You will also be advised of your right to
file
a complaint with the
FCC.
The telephone company may make changes in its facilities, equipment, operations or procedures that could
aect the operation of this equipment. If this happens, the telephone company will provide advance notice in
order for you to make necessary
modifications
to maintain uninterrupted service.
If you experience trouble with this equipment, for repair or warranty information, contact your point of purchase.
If the equipment is causing harm to the telephone network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
This equipment contains no user serviceable parts. For repair and warranty information, contact your point of
purchase.
Connection to party line service is subject to state taris. Contact the state public utility commission, public
service commission, or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of
this equipment does not disable your alarm equipment. If you have questions about what will disable alarm
equipment, consult your telephone company or a
qualified
installer.
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device, including fax machines, to send any message unless said message clearly contains in a
margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time
it is sent and an
identification
of the business or other entity, or other individual sending the message, and the
telephone number of the sending machine or such business, other entity, or individual. (The telephone number
provided may not be a 900 number or any other number for which charges exceed local or long-distance
transmission charges.)
Notices 208
See your user documentation in order to program this information into your fax machine.
Notice to users of the Canadian telephone network
This product meets the applicable Industry Canada technical
specifications.
The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to
a telephone interface. The termination of an interface may consist of any combination of devices subject only
to the requirement that the sum of the RENs of all the devices not exceed five. The REN is located on the product
label.
This equipment uses CA11A telephone jacks.
Avis réservé aux utilisateurs du réseau téléphonique du Canada
Ce produit est conforme aux spécifications techniques d’Industrie Canada.
Le numéro REN (ringer equivalence number : numéro d’équivalence de sonnerie) indique le nombre maximum
d'appareils pouvant être connectés à l’interface téléphonique. En bout de ligne, le nombre d’appareils qui
peuvent être connectés n’est pas directement limité, mais la somme des REN de ces appareils ne doit pas
dépasser cinq. Le numéro REN est indiqué sur l'étiquette produit.
Cet équipement utilise des prises de téléphone CA11A.
Notice to users of the New Zealand telephone network
The following are special conditions for the Facsimile User Instructions. The grant of a telepermit for any item
of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions
for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any
sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another
item of telepermitted equipment of a dierent make or model, nor does it imply that any product is compatible
with all of Telecom's network services.
This equipment shall not be set up to make automatic calls to the Telecom “111” Emergency Service.
This equipment may not provide for the eective hand-over of a call to another device connected to the same
line.
This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom
customers.
This equipment is not capable, under all operating conditions, of correct operation at the higher speeds for
which it is designed. Telecom will accept no responsibility should diculties arise in such circumstances.
The decadic (or pulse) dialing on this device is unsuitable for use on the Telecom network in New Zealand.
For correct operation, the total of all the Ringer Equivalence Numbers (RENs) of all parallel devices connected
to the same telephone line may not exceed 5. The REN of this device is located on the label.
This device uses an RJ-11C modular connector. Contact your point of purchase if a BT adapter is required. The
part number is 80D1873.
Notices 209
Some parameters required for compliance with Telecom's telepermit requirements are dependent on the
equipment associated with this device. The associated equipment shall be set to operate within the following
limits for compliance to Telecom's specifications:
• There shall be no more than 10 call attempts to the same number within any 30 minute period for any single
manual call initiation, and
• The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt
and the beginning of the next call attempt.
• The equipment shall be set to ensure that automatic calls to
dierent
numbers are spaced such that there
is not less than 5 seconds between the end of one call attempt and the beginning of another.
Japanese telecom notice
The installed optional modem is in compliance with Japanese Telecommunication Law and has been Certified
by JATE, with the following Certification Number:
A11-0160001JP
Lexmark International, Inc.
LEX-M14-002
A11-0160001JP
Using this product in Switzerland
This product requires a Swiss billing tone filter to be installed on any line which receives metering pulses in
Switzerland.
Utilisation de ce produit en Suisse
Cet appareil nécessite l’utilisation d’un filtre de tonalité de facturation suisse devant être installé sur toute ligne
recevant des impulsions de comptage en Suisse.
Verwendung dieses Produkts in der Schweiz
Für dieses Produkt muss ein schweizerischer Billing Tone Filter zur Zählzeichenübertragung für jede Leitung
installiert werden, über die in der Schweiz Zeitsteuertakte übertragen werden.
Uso del prodotto in Svizzera
Questo prodotto richiede un filtro toni Billing svizzero, a installare su tutte le linee che ricevono impulsi remoti
in Svizzera.
Notices 210
Regulatory notices for wireless products
This section contains regulatory information that applies only to wireless models.
If in doubt as to whether your model is a wireless model, go to our website.
Modular component notice
Wireless models contain one of the following modular components:
Regulatory Type/Model Number LEX-M07-001; FCC ID:IYLLEXM07001; IC:2376A-LEXM07001
Regulatory Type/Model Number LEX-M08-001; FCC ID:IYLLEXM08001; IC:2376A-LEXM08001
To determine which modular components are installed in your particular product, refer to the labeling on your
actual product.
Exposure to radio frequency radiation
The radiated output power of this device is far below the radio frequency exposure limits of the FCC and other
regulatory agencies. A minimum separation of 20 cm (8 inches) must be maintained between the antenna and
any persons for this device to satisfy the RF exposure requirements of the FCC and other regulatory agencies.
Industry Canada (Canada)
This device complies with Industry Canada license-exempt RSS standards. Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Industrie Canada (Canada)
Cet appareil est conforme aux normes RSS exemptes de licence d'Industrie Canada. Son fonctionnement est
soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférences et (2) il doit accepter
toutes les interférences, y compris les celles qui peuvent entraîner un fonctionnement indésirable.
European Community (EC) directives conformity
This product is in conformity with the protection requirements of EC Council directive 2014/53/EU on the
approximation and harmonization of the laws of the Member States relating to radio equipment.
A declaration of conformity to the requirements of the Directives may be obtained at
www.lexmark.com/en_us/about/regulatory-compliance/european-union-declaration-of-conformity.html.
Compliance is indicated by the CE marking:
Notices 211
Restrictions
This radio equipment is restricted to indoor use only. Outdoor use is prohibited. This restriction applies to all
the countries listed in the table below:
AT BE BG CH CY CZ DE DK EE
EL ES FI FR HR HU IE IS IT
LI LT LU LV MT NL NO PL PT
RO SE SI SK TR UK
EU and other countries statement of radio transmitter operational frequency bands and
maximum RF power
This radio product transmits in either the 2.4GHz (2.412–2.472 GHz in the EU) or 5GHz (5.15–5.35, 5.47–5.725
in the EU) bands. The maximum transmitter EIRP power output, including antenna gain, is ≤ 20dBm for both
bands.
Federal Communications Commission (FCC) compliance information
statement
This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
The FCC Class A limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his own expense.
The manufacturer is not responsible for any radio or television interference caused by using other than
recommended cables or by unauthorized changes or
modifications
to this equipment. Unauthorized changes
or modifications could void the user's authority to operate this equipment.
Note: To assure compliance with FCC regulations on electromagnetic interference for a Class A computing
device, use a properly shielded and grounded cable such as Lexmark part number 1021231 for parallel attach
or 1021294 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a
violation of FCC regulations.
Notices 212
Any questions regarding this compliance information statement should be directed to:
Director of Lexmark Technology & Services
Lexmark International, Inc.
740 West New Circle Road
Lexington, KY 40550
Telephone: (859) 232–2000
E-mail: [email protected]
Industry Canada compliance statement
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Standard ICES-003.
Avis de conformité aux normes de l’industrie du Canada
Cet appareil numérique de classe A est conforme aux exigences de la norme canadienne relative aux
équipements pouvant causer des interférences NMB-003.
Notice to users of Class A products in Brazil
Este produto não é apropriado para uso em ambientes domésticos, pois poderá causar interferências
eletromagnéticas que obrigam o usuário a tomar medidas necessárias para minimizar estas interferências.
European Community (EC) directives conformity
This product is in conformity with the protection requirements of EC Council directives 2014/30/EU, 2014/35/EU,
and 2011/65/EU as amended by (EU) 2015/863 on the approximation and harmonization of the laws of the
Member States relating to electromagnetic compatibility, safety of electrical equipment designed for use within
certain voltage limits, and on the restrictions of use of certain hazardous substances in electrical and electronic
equipment.
A declaration of conformity to the requirements of the Directives may be obtained at
www.lexmark.com/en_us/about/regulatory-compliance/european-union-declaration-of-conformity.html.
This product
satisfies
the Class A limits of EN 55022 and EN55032 and safety requirements of EN 60950‑1 or
EN 62368-1.
Radio interference notice
Warning
This is a product that complies with the emission requirements of EN55022 and EN55032 Class A limits and
immunity requirements of EN55024. This product is not intended to be used in residential/domestic
environments.
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case
the user may be required to take adequate measures.
Notices 213
Index
A
accessing the controller
board 188
adapter plug 40
adding contacts 18
adding groups 18
adding hardware options
print driver 201
adding internal options
print driver 201
adding shortcut
fax destination 44
FTP address 46
ADF registration
adjusting 187
adjusting
scanner registration 187
adjusting ADF registration 187
adjusting the brightness
printer display 140
adjusting the brightness of the
printer display 140
adjusting the default speaker
volume 122
adjusting toner darkness 179
AirPrint
using 28
Android device
printing from 28
answering machine
setting up 38
assigning printer to a ring
pattern 43
attaching cables 11
avoiding paper jams 142
B
blocking junk faxes 45
C
can send but not receive
faxes 182
canceling a print job
from the computer 32
from the printer control
panel 32
cannot open Embedded Web
Server 154
cannot scan from a
computer 183
cannot send faxes 182
cannot send or receive faxes 180
Card Copy
setting up 16
changing the wallpaper 17
checking the status of parts and
supplies 128
cleaning
exterior of the printer 124
interior of the printer 124
cleaning the printer 124
cleaning the scanner 117, 125
clearing jam
in door A 144
in the duplex unit 149
in trays 150
collated printing does not
work 157
collating copies
copying 34
computer
scanning to 46
confidential
documents do not
print 159
confidential print jobs 31
printing 31
configuring
daylight saving
time 43
configuring supply
notifications 128
configuring
the settings
fax speaker 122
configuring the SMTP server 35
configuring
the SMTP server for
fax 37
connecting a mobile device
to the printer wireless
network 123
connecting printer to distinctive
ring service 43
connecting the printer
to a wireless network 122
connecting to a wireless network
using PIN method 123
using Push Button method 123
conserving supplies 141
contacting your dealer 187
contacts
adding 18
deleting 19
editing 18
control panel
using 13
controller board
accessing 188
copy troubleshooting
partial copies of documents or
photos 184
poor copy quality 184
scanner does not respond 186
scanner unit does not close 186
copying
creating shortcuts 34
multiple pages onto a single
sheet 34
on both sides of the paper 33
on letterhead 33
photos 33
separator sheets between
copies 34
copying
dierent
paper sizes 33
copying from
selected tray 33
creating a shortcut
e‑mail 36
creating an e‑mail shortcut 36
creating shortcut
fax destination 44
FTP address 46
crooked print 172
customizing the display 17
D
date and time
fax settings 43
daylight saving time,
configuring 43
deactivating the Wi‑Fi
network 124
dealer
contacting 187
Index 214
default speaker volume
adjusting 122
deleting contacts 19
deleting groups 19
dierent paper sizes, copying 33
Display Customization
using 17
distinctive ring service, fax
enabling 43
dots on print 170
E
editing contacts 18
editing groups 18
emission notices 204, 211, 213
enabling the USB port 155
enabling Wi‑Fi Direct 123
encrypting
printer hard disk 120
enlarging a copy size 34
envelope seals when
printing 156
environmental setting
Hibernate mode 140
sleep mode 140
erasing printer hard disk
memory 119
erasing printer memory 120
Ethernet port 11
exporting a configuration file
using the Embedded Web
Server 201
e‑mail
creating a shortcut 36
e‑mail function
setting up 35
e‑mailing
using a shortcut number 35
using the address book 35
using the printer 35
F
fax
configuring
the SMTP server 37
forwarding 45
holding 45
setting the schedule to send 44
fax destination shortcut
creating 44
fax log
viewing 45
fax resolution
changing 44
fax setup
country‑ or region‑specific 40
standard telephone line
connection 38
fax speaker
configuring the settings 122
fax troubleshooting
cannot receive faxes 182
cannot send faxes 182
cannot send or receive
faxes 180
received fax has poor print
quality 182
faxing
adjusting darkness 44
changing resolution 44
setting the date and time 43
FCC notices 211
fine lines are not printed
correctly 165
firmware
update 202
flash drive
printing from 29
scanning to 47
folder paper 165
font sample list
printing 32
FTP address
creating shortcut 46
FTP server, scanning to
using the control panel 47
G
Google Cloud Print
using 28
groups
adding 18
deleting 19
editing 18
H
hardware options
trays 199
hardware options, adding
print driver 201
held documents do not print 159
held jobs 31
printing 31
Help menu 117
Hibernate mode
configuring 140
holding faxes 45
home screen
customizing 16
using 14
home screen icons 14
displaying 16
I
icons on the home screen
showing 16
identifying jam locations 143
imaging unit
ordering 128
replacing 131
importing a configuration file
using the Embedded Web
Server 201
indicator light
printer status 13
installing a printer hard disk 191
installing an internal solutions
port 193
installing an optional card 190
installing options
printer hard disk 191
installing the printer
software 200
internal options
firmware card 188
installing 190
memory card 188
printer hard disk 191
internal options, adding
print driver 201
internal solutions port
installing 193
J
jammed pages are not
reprinted 159
jams
avoiding 142
jams, clearing
in the automatic document
feeder 152
in the multipurpose feeder 151
in the standard bin 149
Index 215
job prints from the wrong
tray 179
job prints on the wrong
paper 179
junk faxes
blocking 45
L
letterhead
copying on 33
LINE port 11
linking trays 23
loading
multipurpose feeder 22
loading envelopes
in the multipurpose feeder 22
loading trays 20
locating paper jams 143
locating the security slot 119
M
making copies 33
managing screen saver 17
Media Types menu 72
menu
802.1x 98
About this Printer 62
Accessibility 56
Confidential
Print Setup 113
Configuration Menu 57
Copy Defaults 73
Custom Scan Sizes 72
Device 116
Eco‑Mode 52
Erase Temporary Data Files 114
Ethernet 94
E‑mail Defaults 82
E‑mail Setup 80
Fax 117
Fax Mode 76
Fax Server Setup 79
Fax Setup 76
Flash Drive Print 106
Flash Drive Scan 102
FTP Defaults 86
Google Cloud Print 101
HTML 69
HTTP/FTP Settings 99
Image 70
IPSec 97
Job Accounting 65
Layout 62
Local Accounts 109
Login Restrictions 113
LPD Configuration 98
Manage Permissions 108
Media Types 72
Menu Settings Page 116
Miscellaneous 115
Mobile Services
Management 115
Network 117
Network Overview 90
Notifications 53
Out of Service Erase 61
PCL 68
PDF 67
PostScript 67
Power Management 56
Preferences 50
Print 116
Quality 64
Remote Operator Panel 53
Restrict external network
access 100
Security Audit Log 110
Setup 64
Shortcuts 116
SNMP 96
Solutions LDAP Settings 115
TCP/IP 95
ThinPrint 99
Tray Configuration 70
Troubleshooting 117
Universal Setup 71
USB 100
Visible Home Screen Icons 62
Web Link Setup 86
Wi‑Fi Direct 101
XPS 66
Menu Settings Page
printing 14
menus
Disk Encryption 114
Restore Factory Defaults 57
Schedule USB Devices 110
Wireless 91
mobile device
printing from 28, 29
mottled print 170
moving the printer 9, 139
multiple pages onto a single
sheet
copying 34
multipurpose feeder
loading 22
N
Network Setup Page
printing 15
network setup page
printing 155
noise emission levels 204
Non‑Printer Manufacturer
supply 156
non‑volatile memory 120
erasing 119
notices 204, 205, 206, 207, 211,
213
O
operating systems
supported 200
optional card
installing 190
options
internal solutions port 193
ordering
imaging unit 128
toner cartridge 128
P
paper
Universal size setting 20
paper curl 171
paper jam in door A 144
paper jam in the automatic
document feeder 152
paper jam in the duplex unit 149
paper jam in the multipurpose
feeder 151
paper jam in the rear door 148
paper jam in trays 150
paper jam, clearing
in the automatic document
feeder 152
in the multipurpose feeder 151
in the rear door 148
paper jams
avoiding 142
paper jams, clearing
in the standard bin 149
Index 216
paper sizes
supported 24
partial copies of documents or
photos 184
parts status
checking 128
personal identification number
method 123
photos
copying 33
pick roller assembly
replacing 135
pick tires
replacing 133
placing separator sheets
between copies 34
poor copy quality 184
poor fax print quality 182
power button light
printer status 13
power cord socket 11
print driver
hardware options, adding 201
print job
canceling from the
computer 32
canceling from the printer
control panel 32
print jobs not printed 162
print quality troubleshooting
blank pages 163
crooked print 172
dark print 163
fine lines are not printed
correctly 165
folded or wrinkled paper 165
gray background on prints 166
horizontal light bands 167
light print 169
mottled print and dots 170
paper curl 171
repeating print defects 173
skewed print 172
solid black pages 174
text or images cut o 174
toner easily rubs o 175
vertical dark bands 175
vertical dark lines or
streaks 176
vertical dark streaks with print
missing 177
vertical light bands 177
vertical white lines 177
white pages 163
print troubleshooting
collated printing does not
work 157
confidential and other held
documents do not print 159
envelope seals when
printing 156
incorrect margins 168
jammed pages are not
reprinted 159
job prints from the wrong
tray 179
job prints on the wrong
paper 179
paper frequently jams 158
print jobs do not print 162
slow printing 160
tray linking does not work 157
unable to read flash drive 155
printer
minimum clearances 9
selecting a location 9
shipping 140
printer configurations 10
printer display
adjusting the brightness 140
printer hard disk
encrypting 120
printer hard disk memory 120
erasing 119
printer is not responding 178
printer menus 49
printer messages
Non‑Printer Manufacturer
supply 156
Replace cartridge, printer region
mismatch 156
Scanner maintenance required,
use ADF Kit 156
printer ports 11
printer settings
restoring to factory defaults 120
printer software
installing 200
printer wireless network
connecting a mobile device
to 123
printing
confidential print jobs 31
font sample list 32
from a computer 28
from a flash drive 29
from a mobile device 28, 29
from an Android device 28
held jobs 31
Menu Settings Page 14
Network Setup Page 15
network setup page 155
quality test pages 117
using Google Cloud Print 28
using Wi‑Fi Direct 29
printing a font sample list 32
printing a network setup
page 155
printing from a computer 28
printing from a flash drive 29
Push Button method 123
Q
Quality menu 64
R
received fax
forwarding 45
received faxes
holding 45
reducing a copy size 34
removing jam
in the duplex unit 149
removing paper jam
in door A 144
in trays 150
repeat print jobs 31
repeating print defects 173
Replace cartridge, printer region
mismatch 156
replacing supplies
imaging unit 131
toner cartridge 129
replacing the pick roller
assembly 135
replacing the pick tires 133
restoring factory default
settings 120
RJ11 adapter 40
running a slideshow 17
S
safety information 7, 8
saving paper 34
Index 217
Scan Center
setting up 17
scan job not successful 185
scan troubleshooting
cannot scan from a
computer 183
partial copies of documents or
photos 184
poor copy quality 184
scanner does not respond 186
scanning freezes the
computer 186
scanning takes too long 186
vertical dark streaks on output
when scanning from the
ADF 184
scanner
cleaning 125
Scanner maintenance required,
use ADF Kit 156
scanner unit does not close 186
scanning
to a computer 46
to an FTP server 47
scanning quality problem 184
scanning to a flash drive 47
scanning to an FTP server
using the control panel 47
scheduling a fax 44
securing printer memory 120
security slot
locating 119
selecting a location for the
printer 9
sending a fax
using the computer 43
using the control panel 43
sending an e‑mail 35
setting the paper size 20
setting the paper type 20
setting the Universal paper
size 20
setting up fax
country‑ or region‑specific 40
standard telephone line
connection 38
shipping the printer 140
Shortcut Center
using 16
shortcut, creating
fax destination 44
FTP address 46
shortcuts, creating
copy screen 34
skewed print 172
sleep mode
configuring 140
slow printing 160
SMTP server
configuring 35
SMTP server for fax
configuring 37
speaker
default volume 122
statement of volatility 120
storing print jobs 31
supplies
conserving 141
supplies status
checking 128
supplies, ordering
imaging unit 128
supply notifications
configuring 128
supported file types 30
supported flash drives 30
supported operating
systems 200
supported paper sizes 24
supported paper types 26
supported paper weights 27
T
toner cartridge
ordering 128
replacing 129
toner darkness
adjusting 179
tray linking does not work 157
trays
installing 199
linking 23
loading 20
unlinking 23
troubleshooting
cannot open Embedded Web
Server 154
printer is not responding 178
troubleshooting, copy
partial copies of documents or
photos 184
poor copy quality 184
scanner does not respond 186
troubleshooting, fax
received fax has poor print
quality 182
troubleshooting, print
collated printing does not
work 157
confidential and other held
documents do not print 159
envelope seals when
printing 156
incorrect margins 168
jammed pages are not
reprinted 159
job prints from the wrong
tray 179
job prints on the wrong
paper 179
paper frequently jams 158
print jobs do not print 162
slow printing 160
troubleshooting, print quality
blank pages 163
crooked print 172
dark print 163
fine lines are not printed
correctly 165
folded or wrinkled paper 165
gray background on prints 166
horizontal light bands 167
light print 169
mottled print and dots 170
paper curl 171
repeating print defects 173
skewed print 172
solid black pages 174
text or images cut o 174
toner easily rubs o 175
vertical dark bands 175
vertical dark lines or
streaks 176
vertical dark streaks with print
missing 177
vertical light bands 177
vertical white lines 177
white pages 163
troubleshooting, scan
partial copies of documents or
photos 184
poor copy quality 184
scan job not successful 185
scanner does not respond 186
scanner unit does not close 186
Index 218
vertical dark streaks on output
when scanning from the
ADF 184
two‑sided copying 33
U
unable to read flash drive
troubleshooting, print 155
understanding the status of the
power button and indicator
light 13
Universal paper size
setting 20
unlinking trays 23
updating firmware
flash file 202
USB port 11
enabling 155
USB printer port 11
using Display Customization 17
using the ADF
copying 33
using the control panel 13
using the home screen 14
using the scanner glass
copying 33
V
verify print jobs 31
vertical dark lines on prints 176
vertical dark streaks on output
when scanning from the ADF 184
vertical streaks on prints 176
viewing a fax log 45
volatile memory 120
erasing 119
W
white lines 177
Wireless menu 91
wireless network
connecting the printer to 122
Wi‑Fi Protected Setup 123
wireless networking 122
Wi‑Fi Direct 123
printing from a mobile
device 29
Wi‑Fi network
deactivating 124
Wi‑Fi Protected Setup
wireless network 123
wrinkled paper 165
Index 219
