DRAWER SLIDES
MODEL:30201B
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and dose not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:30201B
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
DRAWER SLIDES
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
WARNING:
1. Please assemble the product in strict accordance with the instructions.
Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assembly.
3. Do not try to assemble the product when feeling tired or when under the
influence of alcohol, drugs, or medication.
4. Load-bearing capacity and other product parameters are applied to the
properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop when
needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
Save the instructions.
Model
30201B.381
-6
30201B.457
-6
30201B.533
-6
30201B.533
-10
Applicable
Drawer
Length (inch)
15
18
21
21
Sliding Length
(mm)
333
408
483
483
Max. Dynamic
Load (kg/lbs)
80 / 36.3
Max. Static
Load (kg/lbs)
100 / 45.4
- 3 -

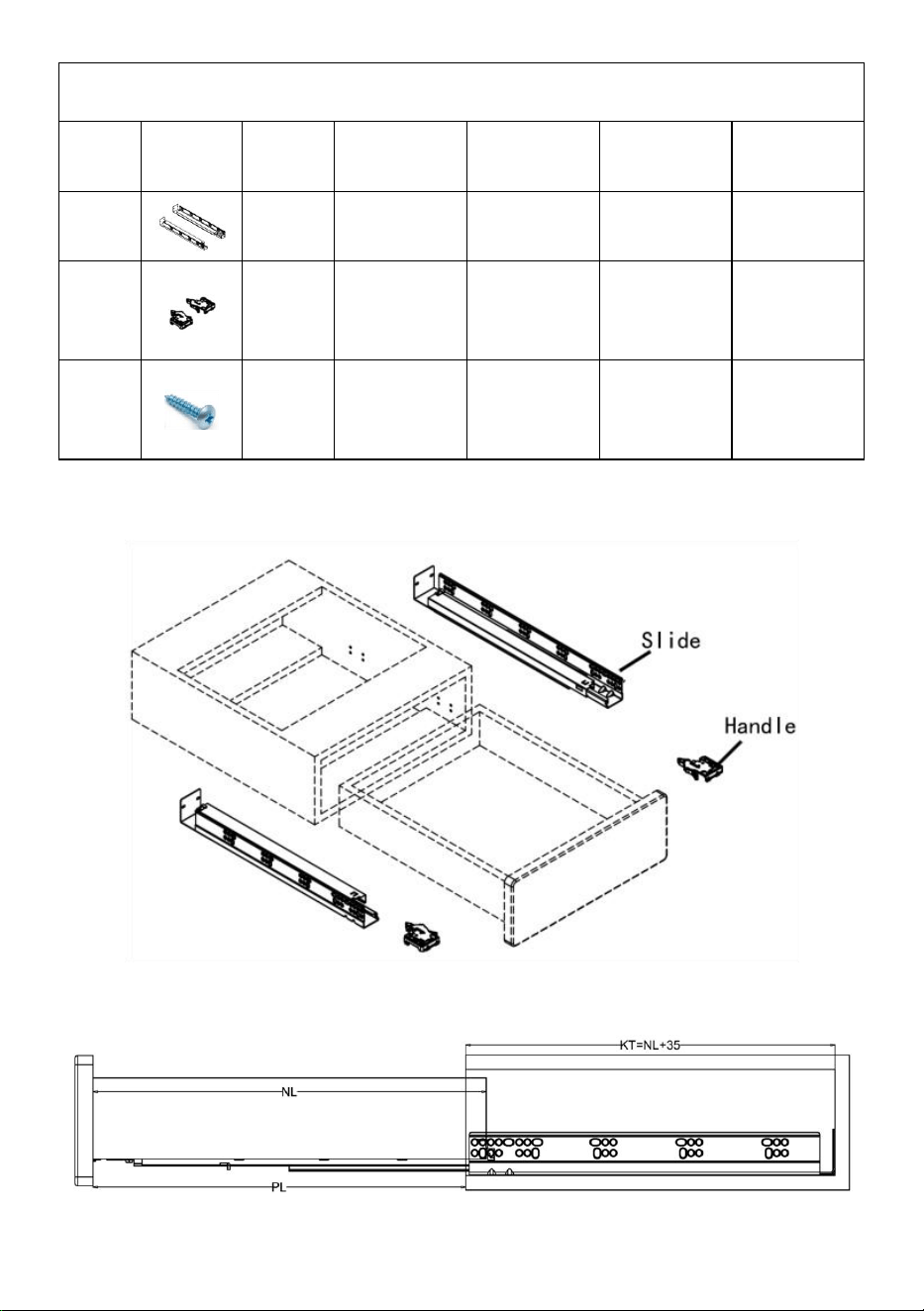

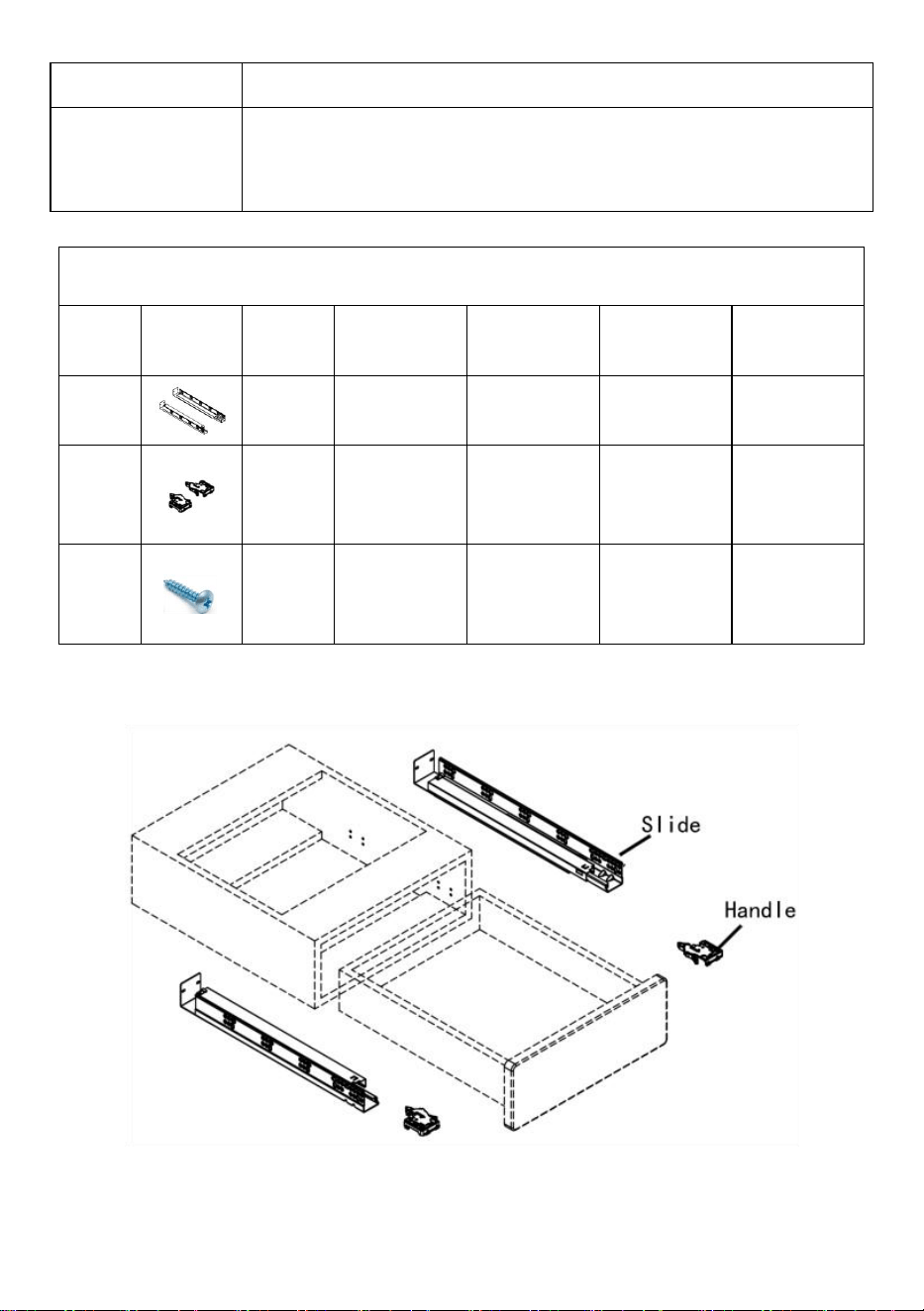

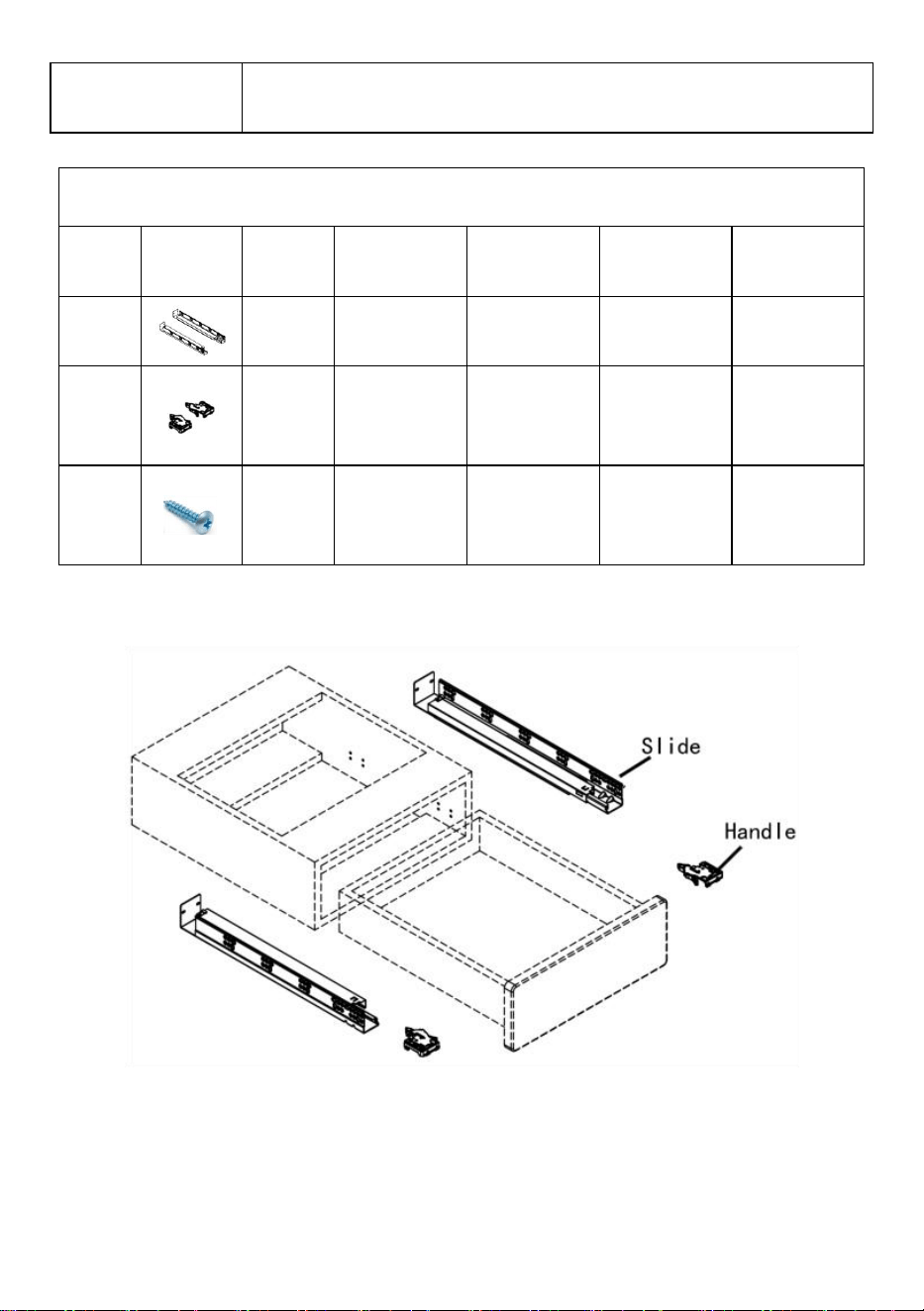

Part List
Code
Name
30201B.3
81-6
30201B.4
57-6
30201B.5
33-6
30201B.5
33-10
1
Slide
6
6
6
10
2
Handl
e
6
6
6
10
3
Screw
s
72
72
72
120

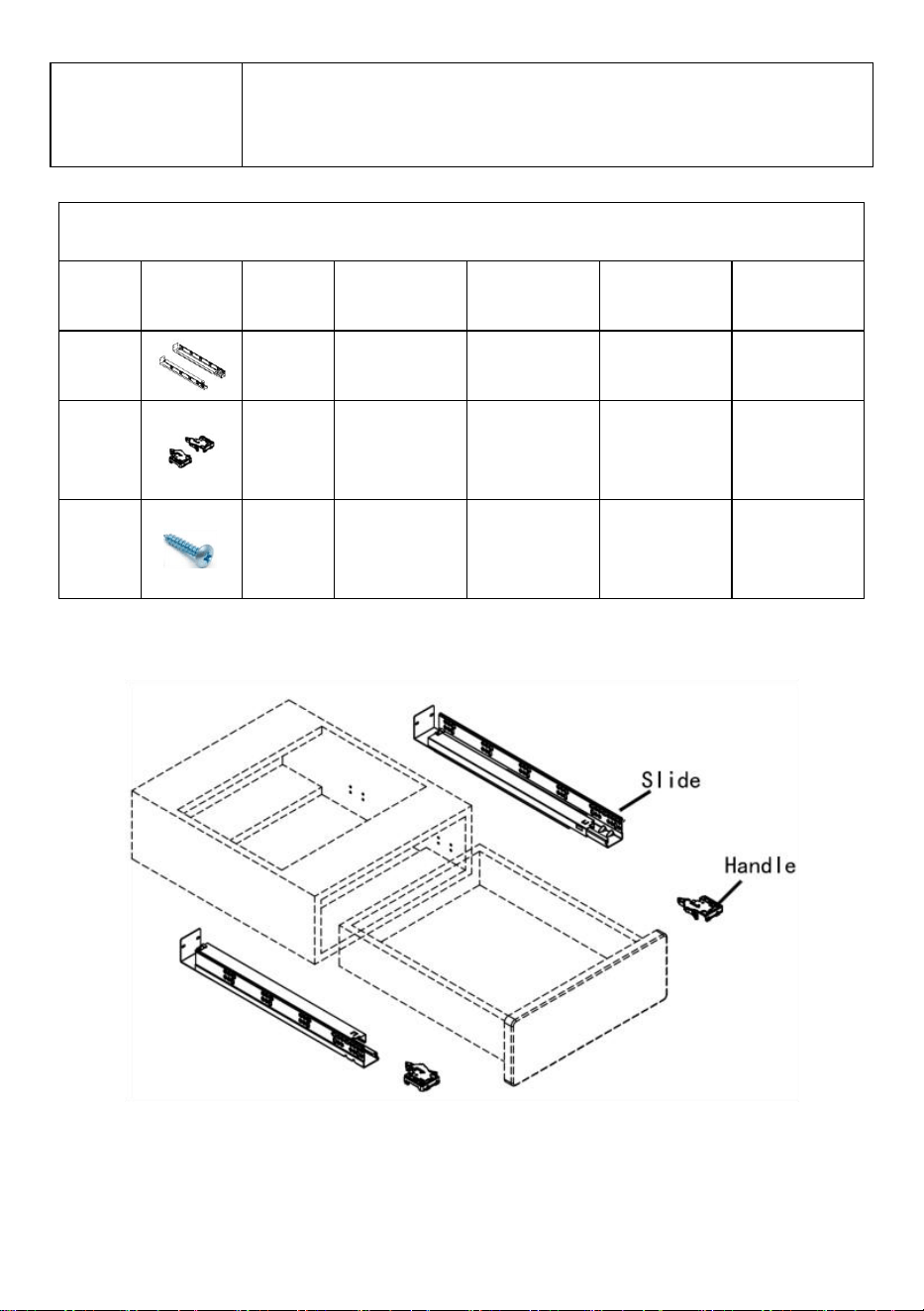

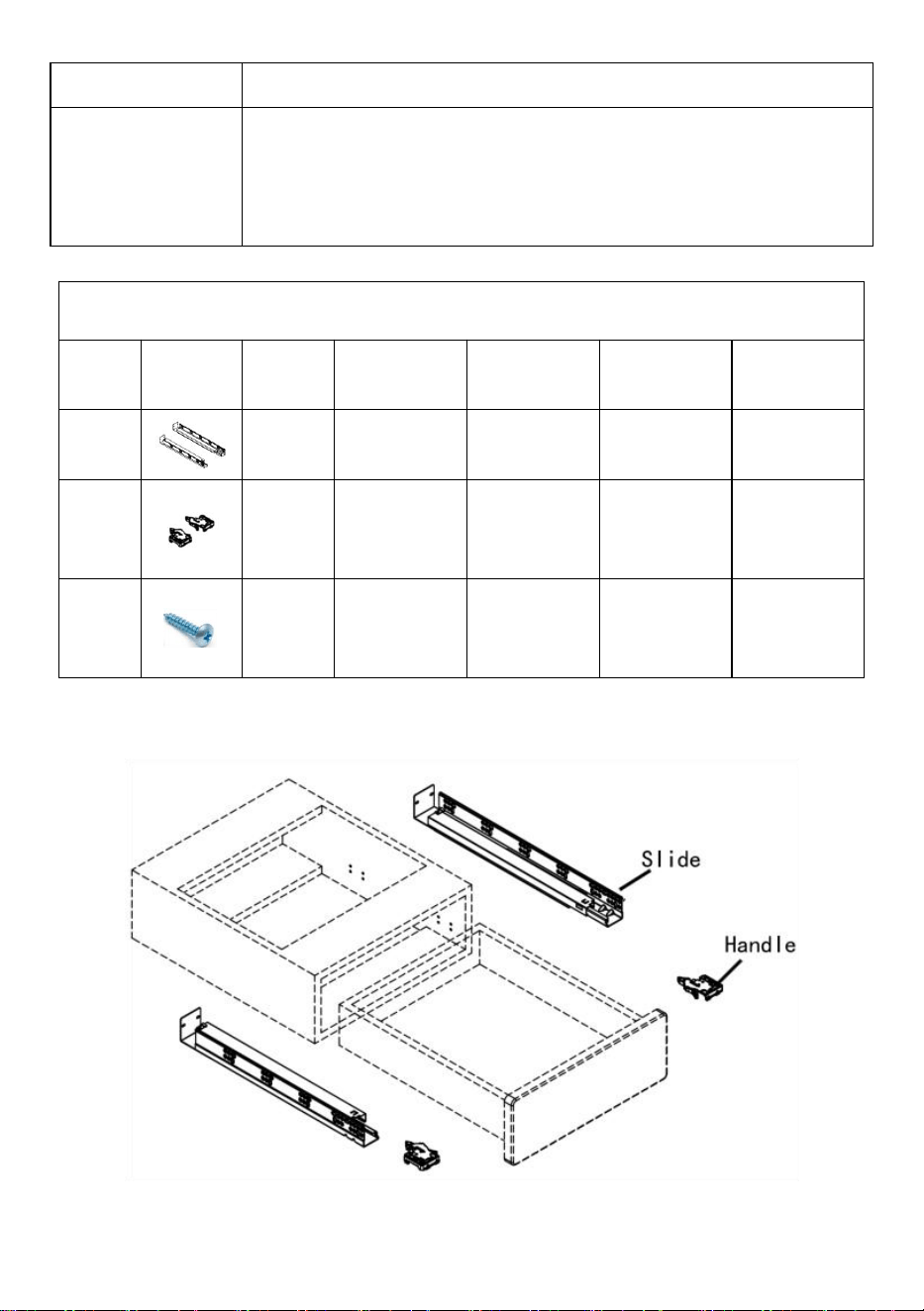

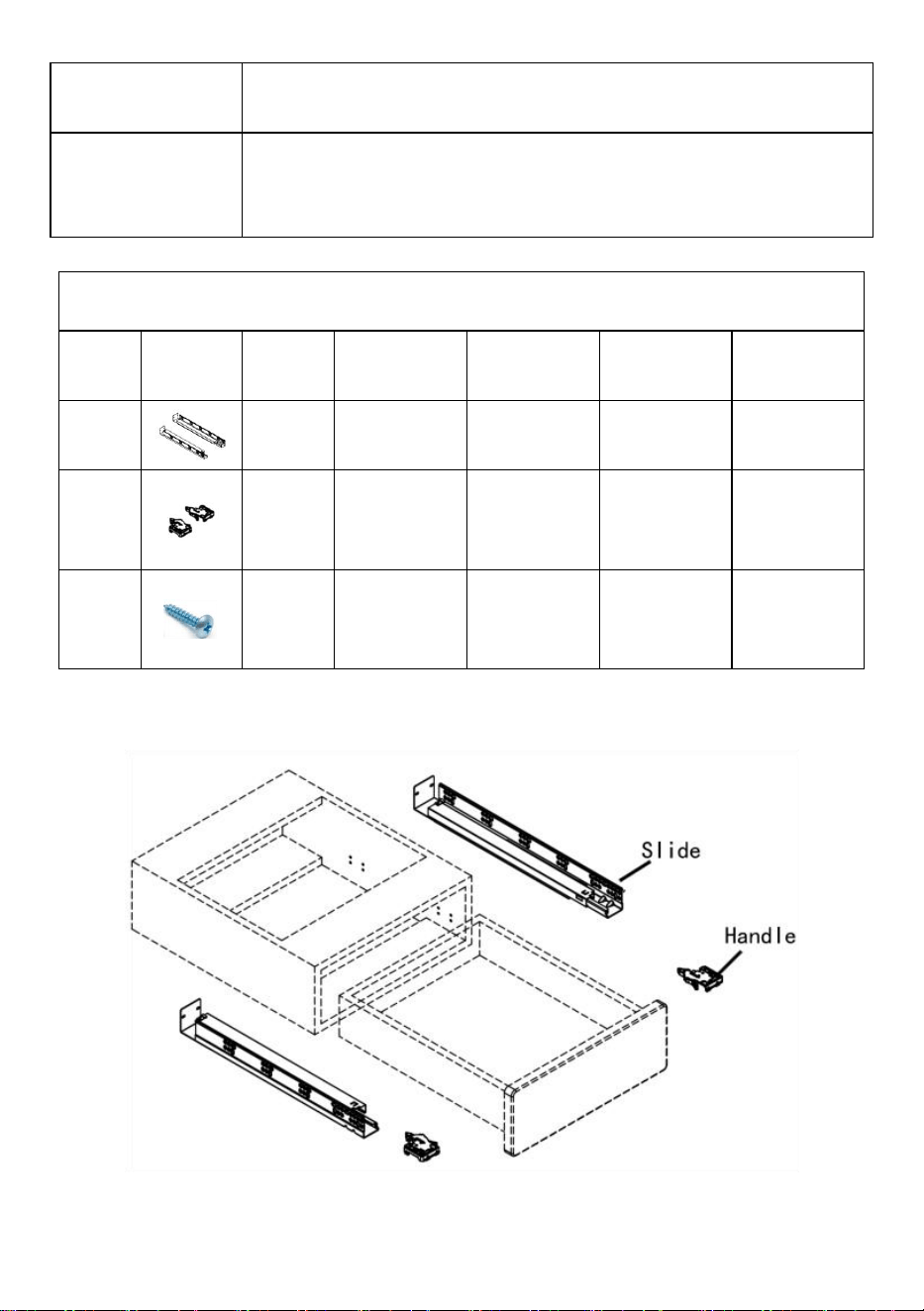

Product Introduction

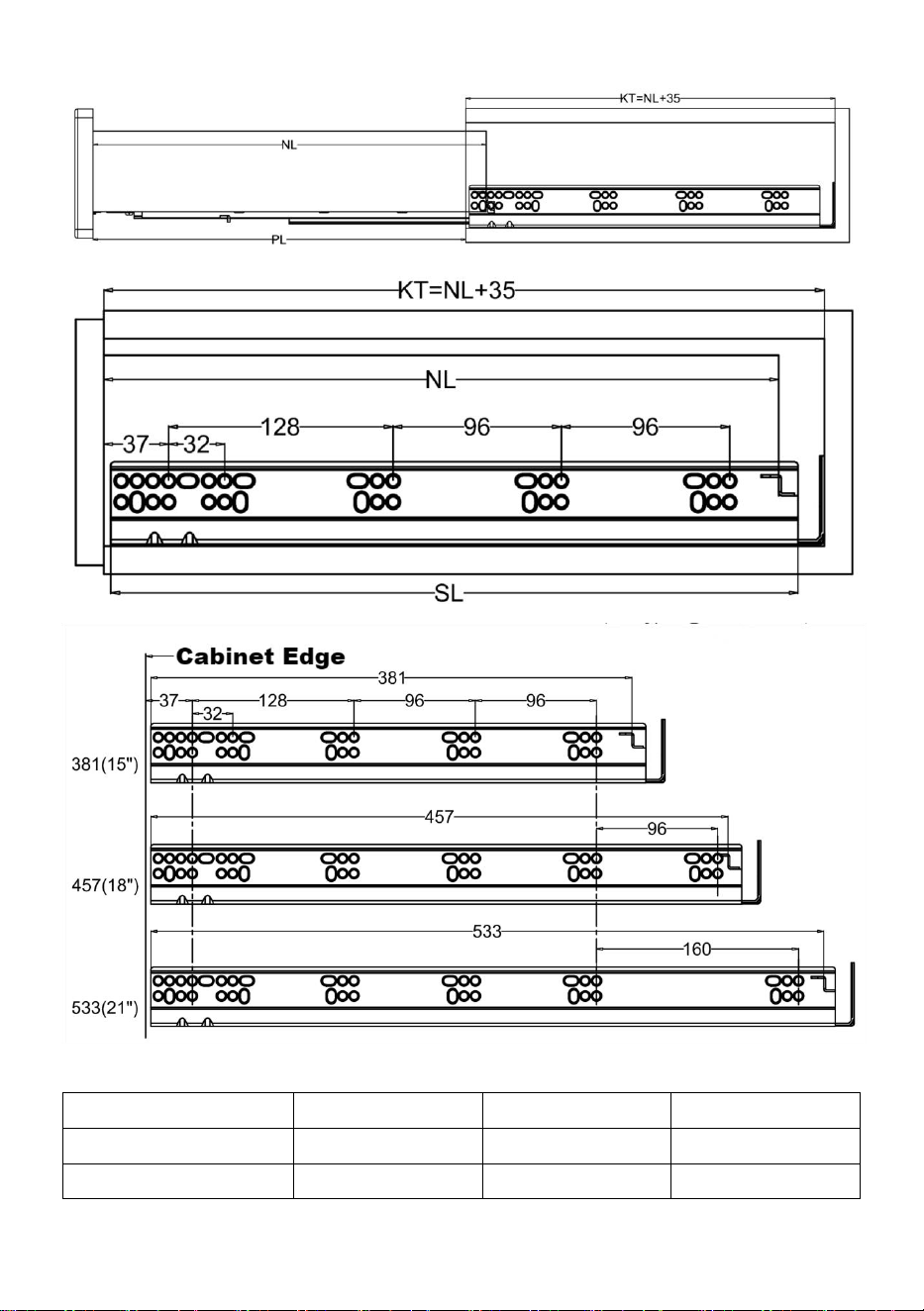

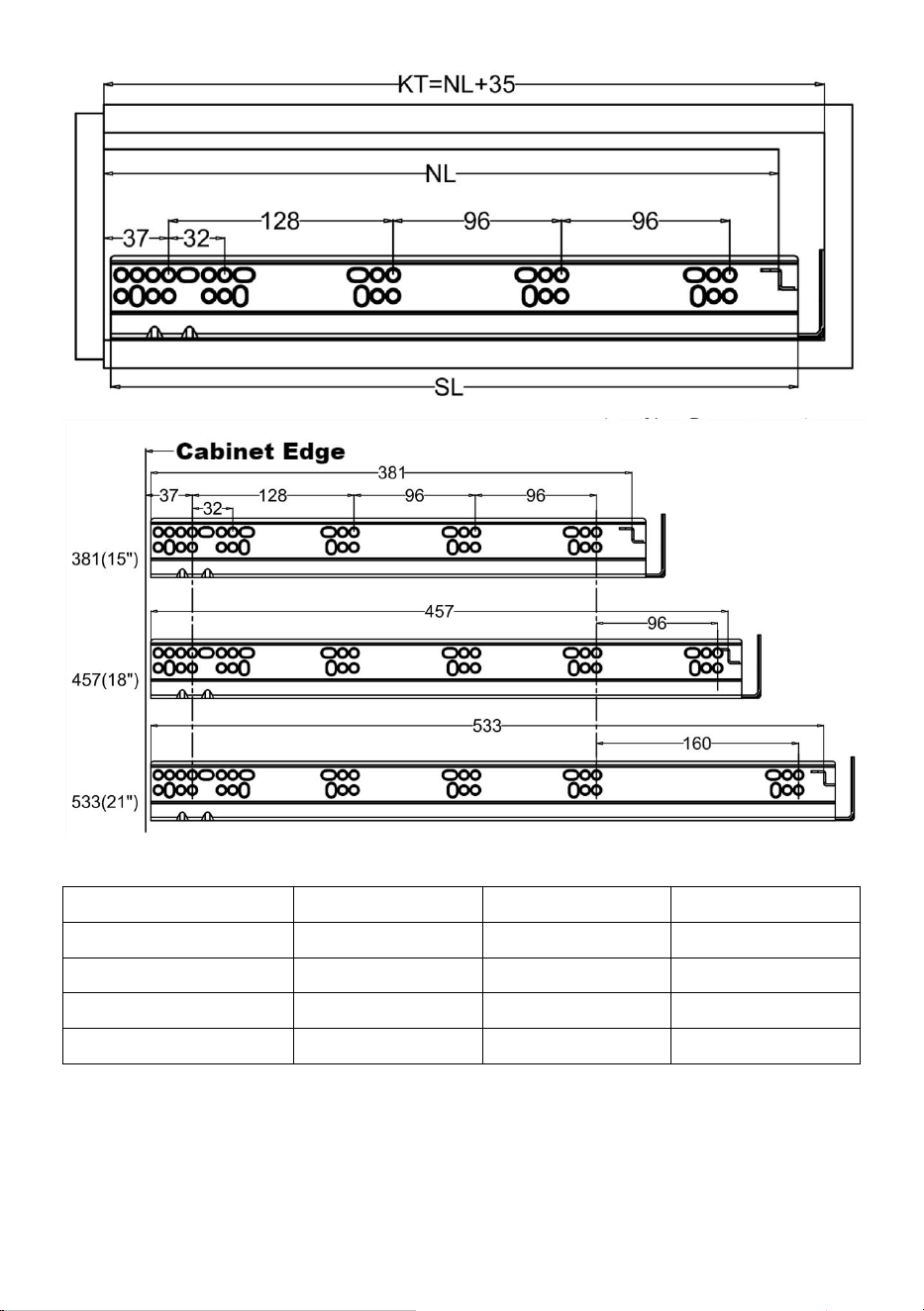

Installation Dimensions (mm)
- 4 -
Model
SL(mm)
NL(mm)
KT(mm)
30201B.381-6
392
381
416
30201B.457-6
468
457
492
30201B.533-6
544
533
568
30201B.533-10
544
533
568
SL=Slide Length NL=Nominal Slide Length
KT=Min Depth Of Cabinet PL=Pull Out The Length
- 5 -

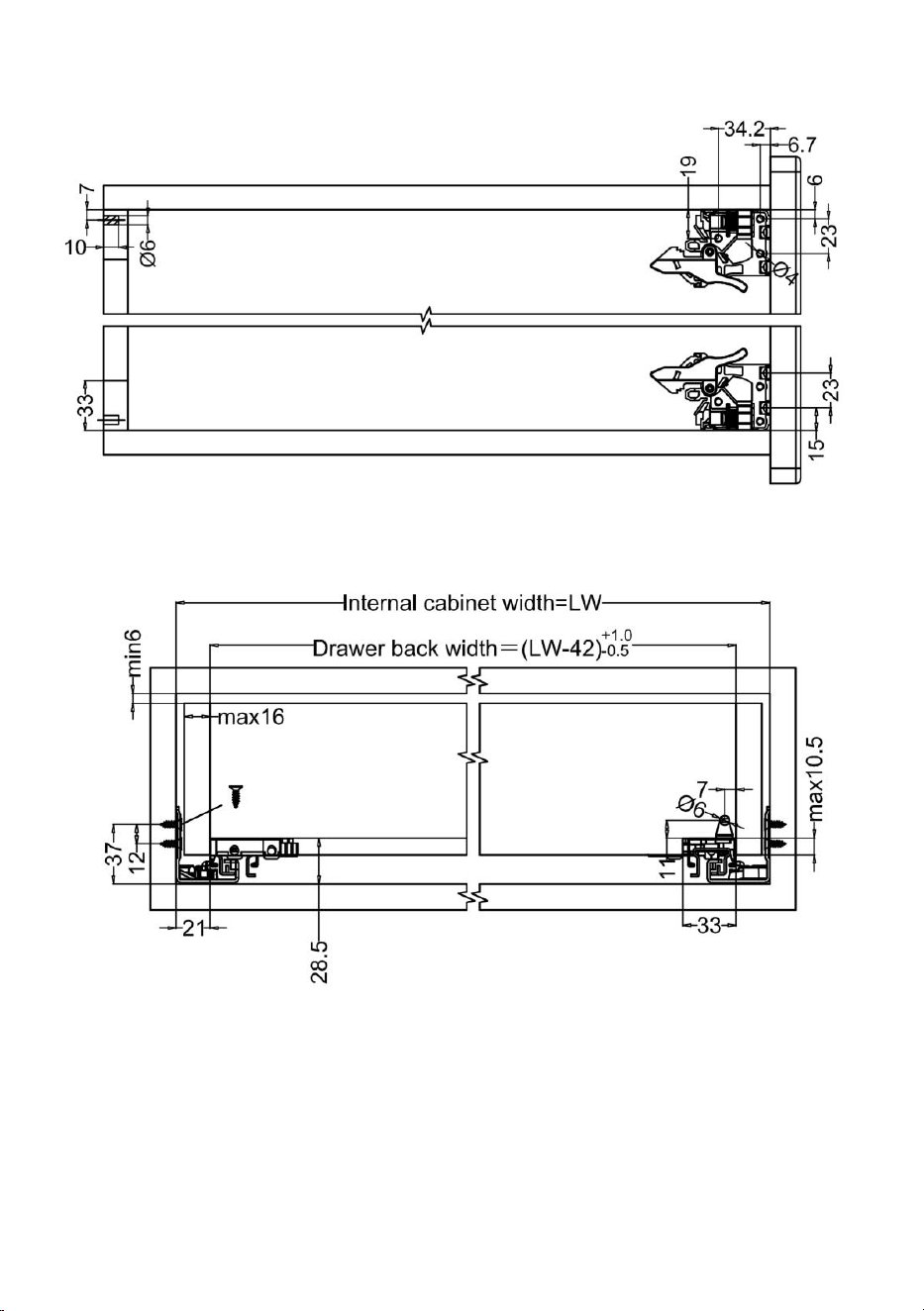

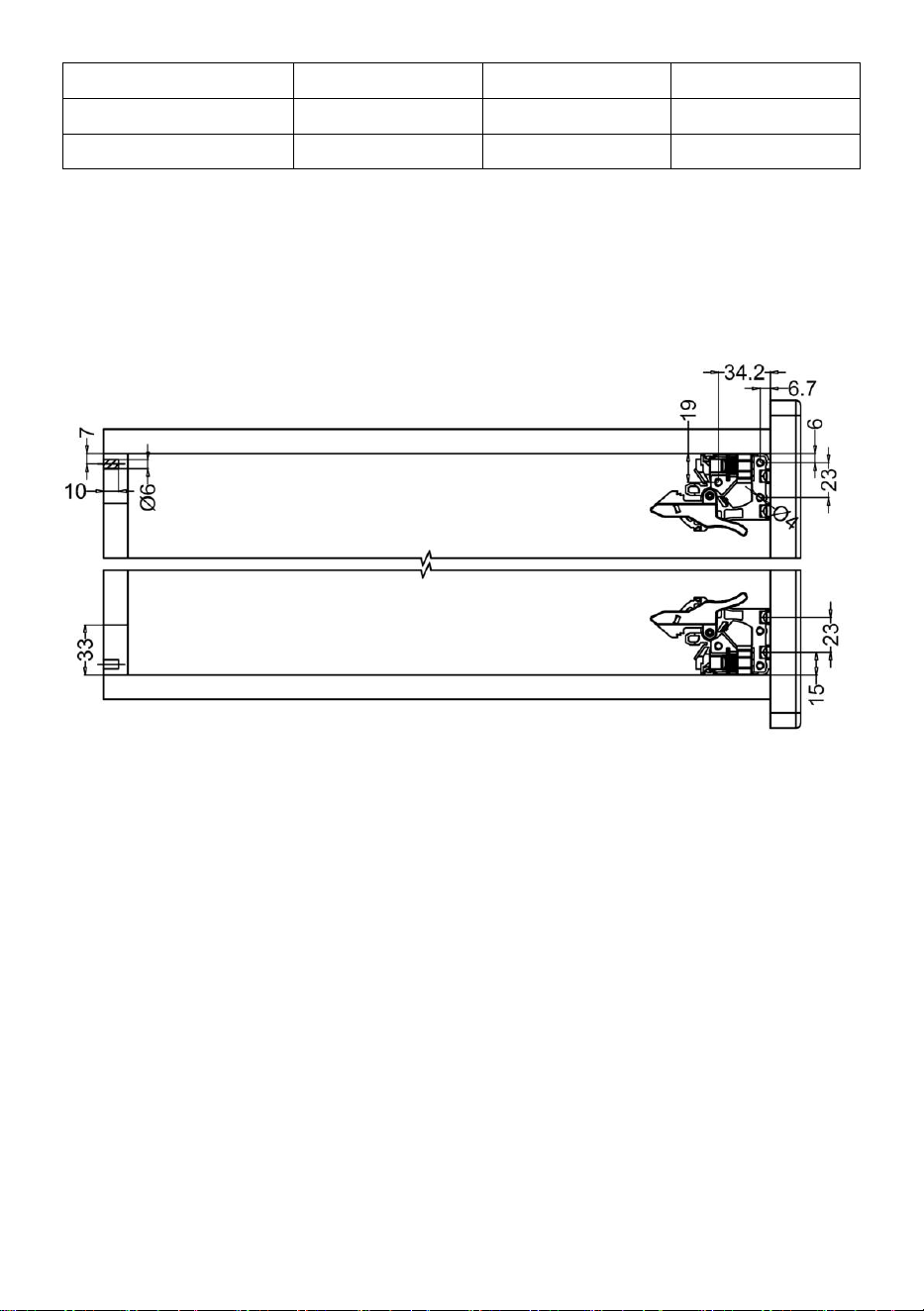

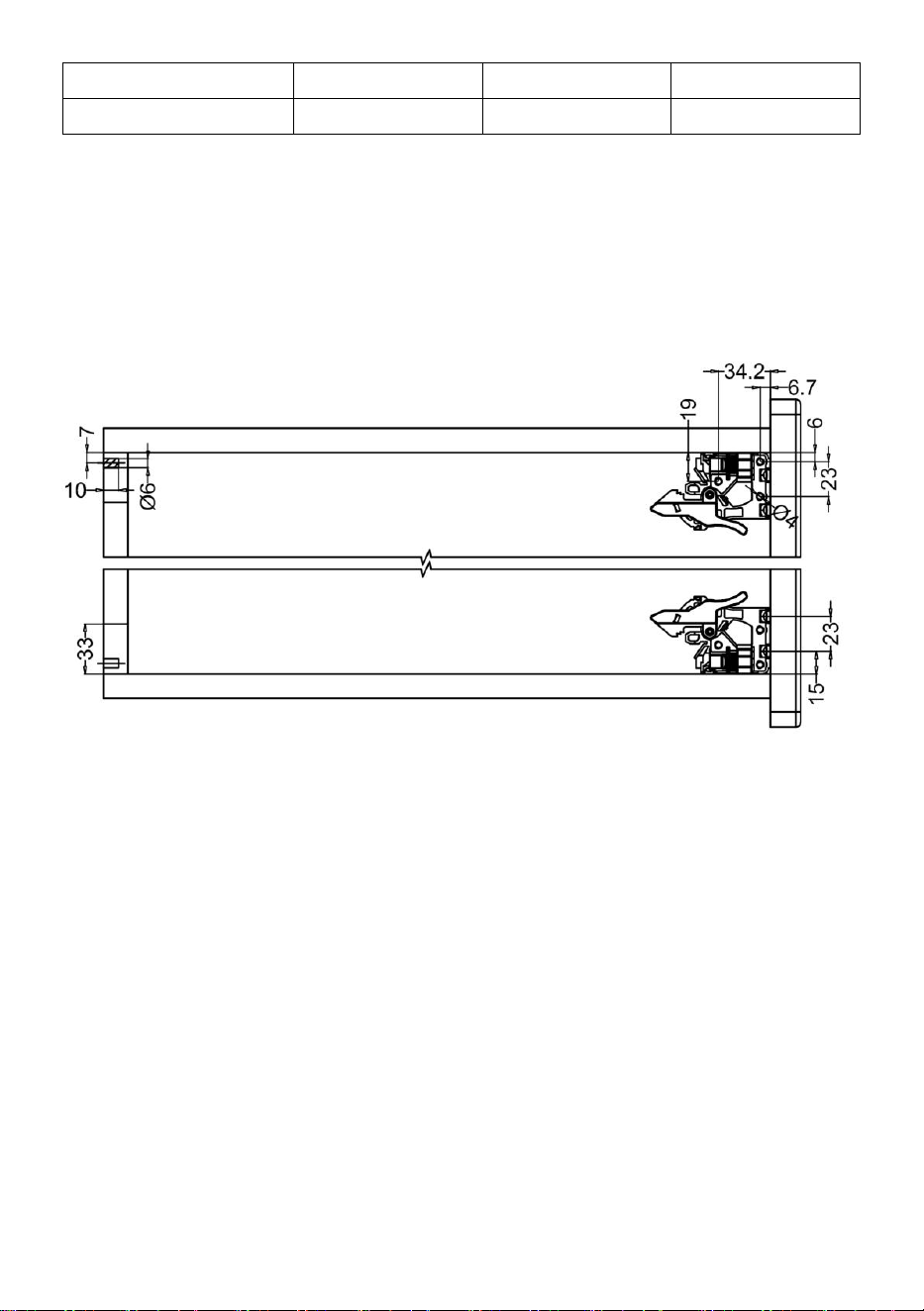

Locking Size & The End Of Slide Size (mm)

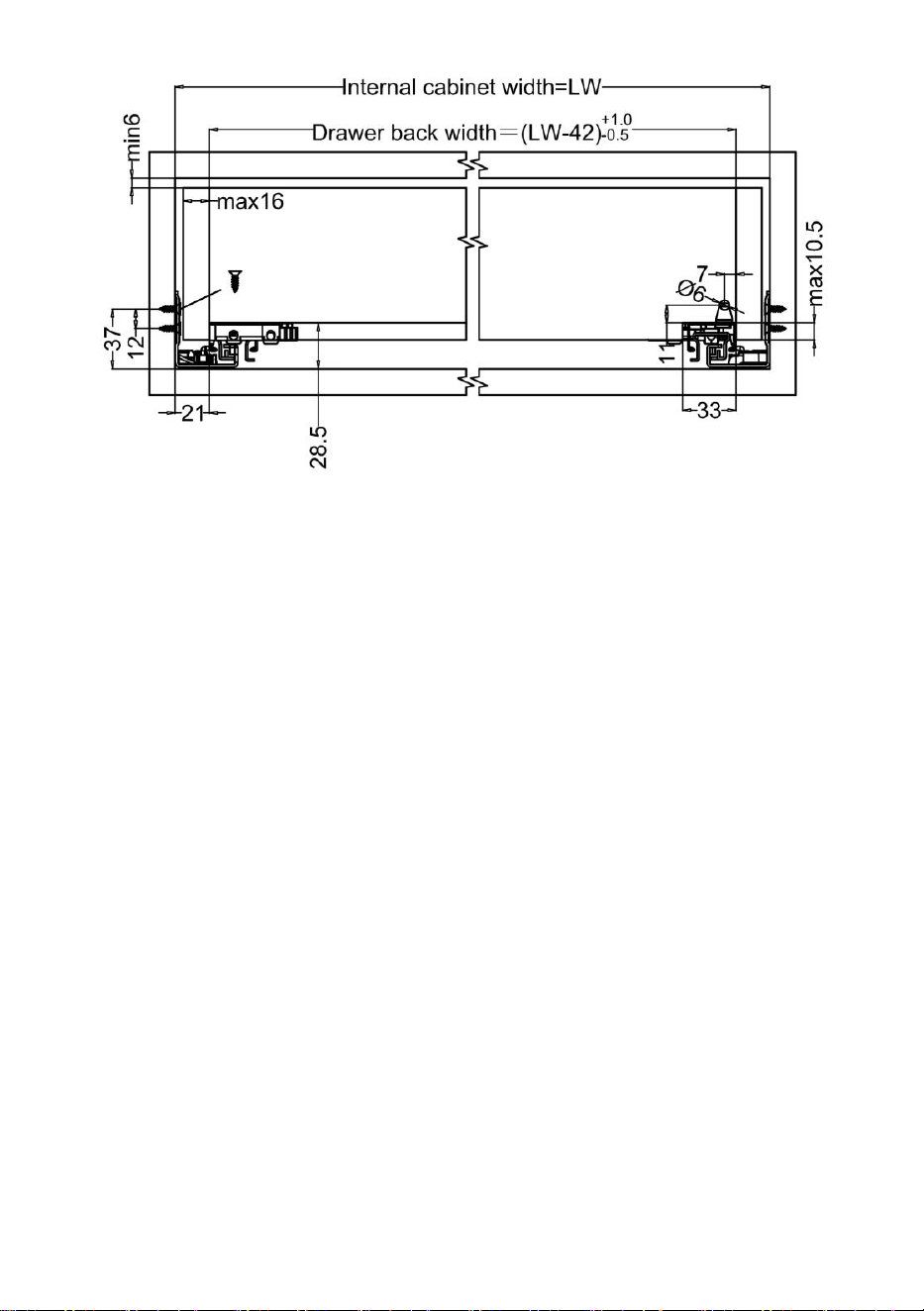

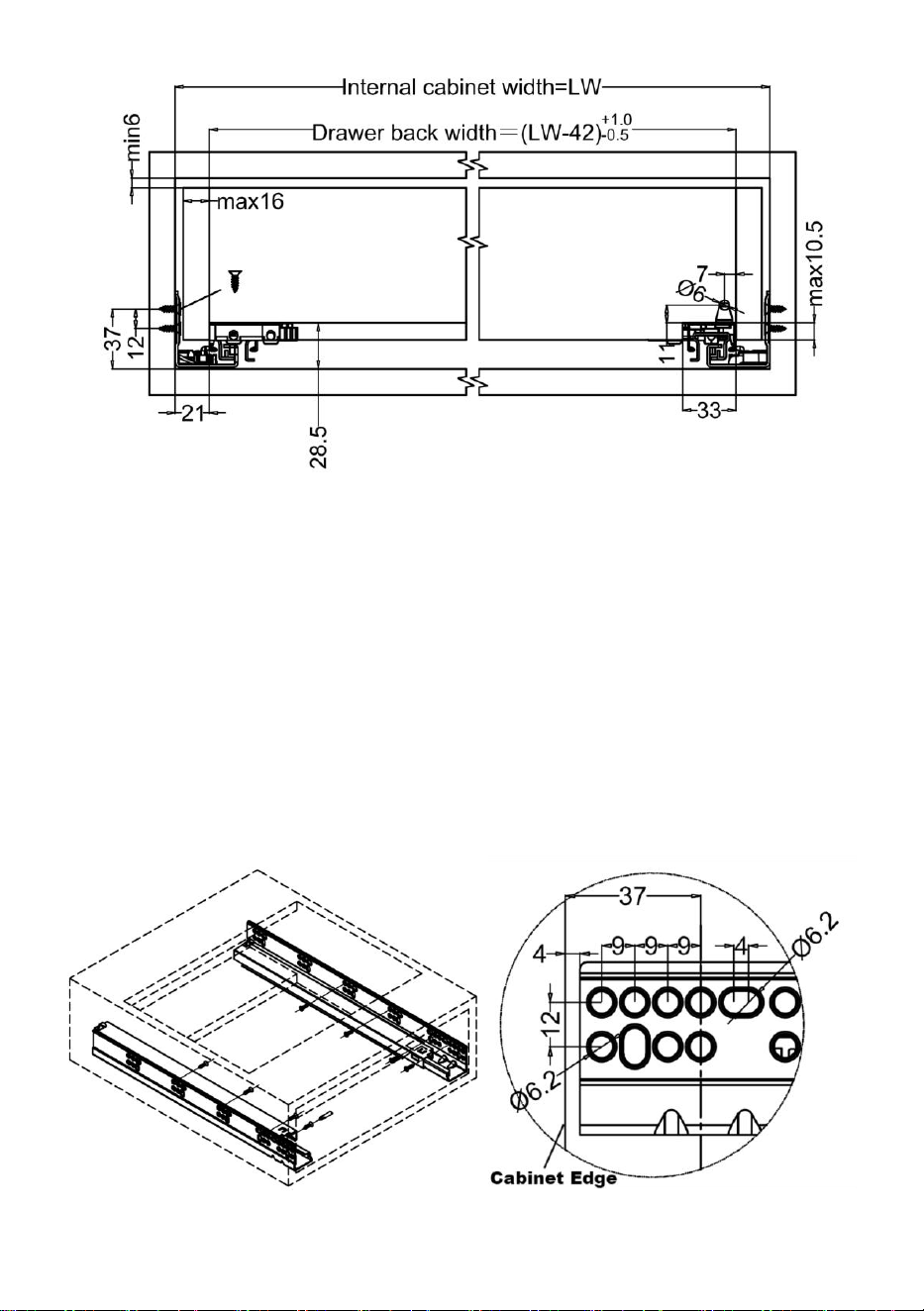

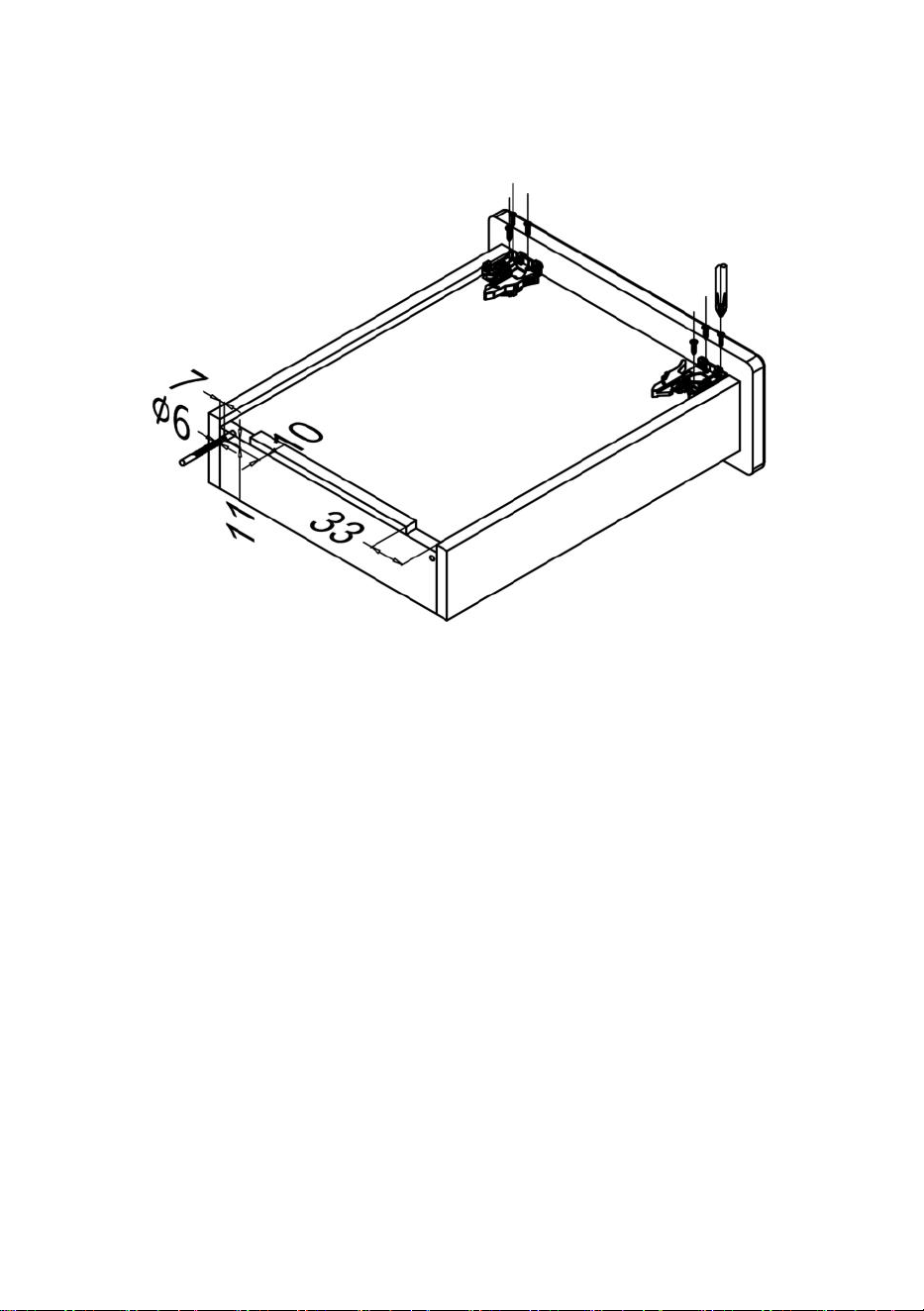

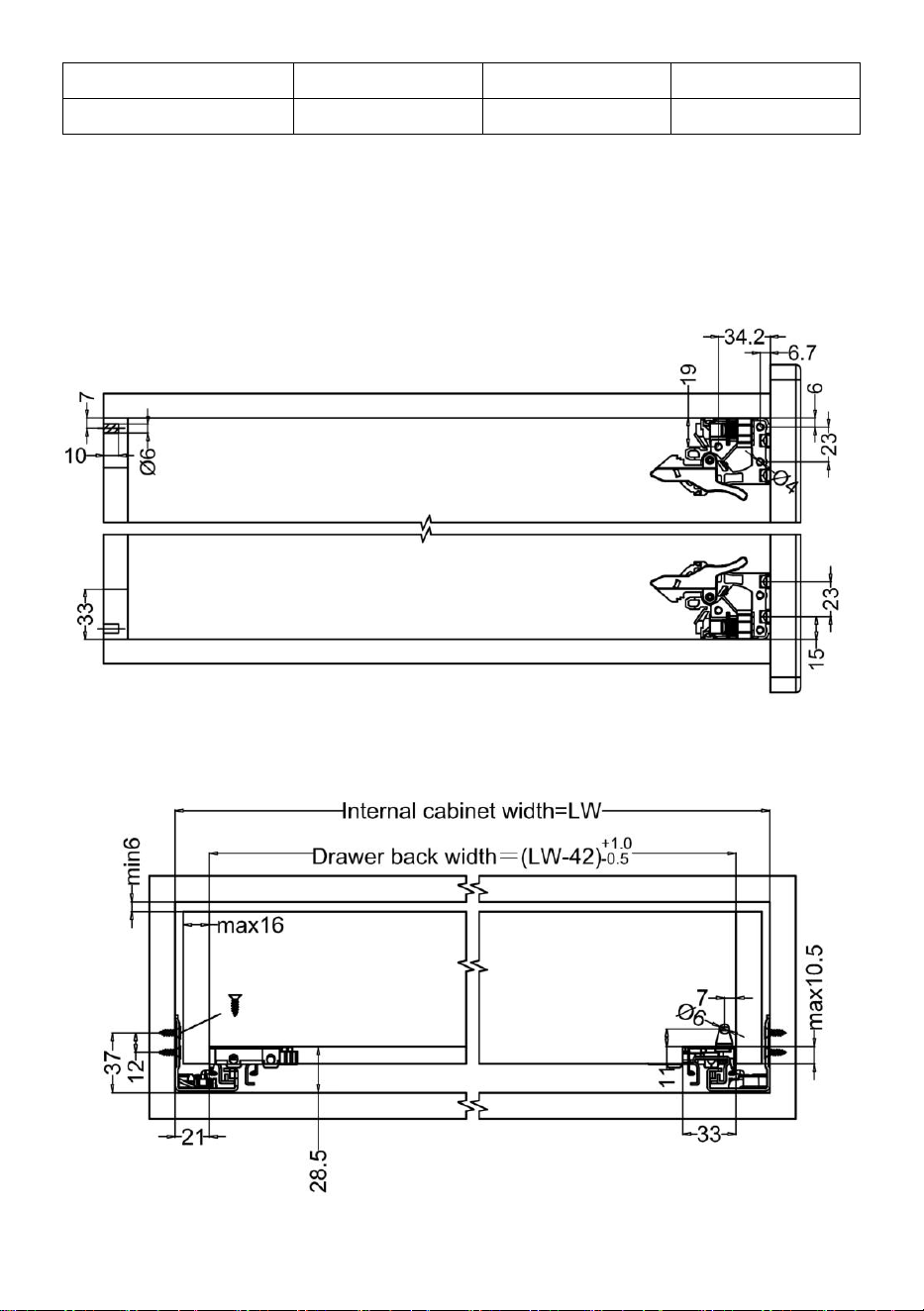

Drawer Installation Dimensions (mm)
LW=Internal Cabinet Width NL=Nominal Slide Length
- 6 -

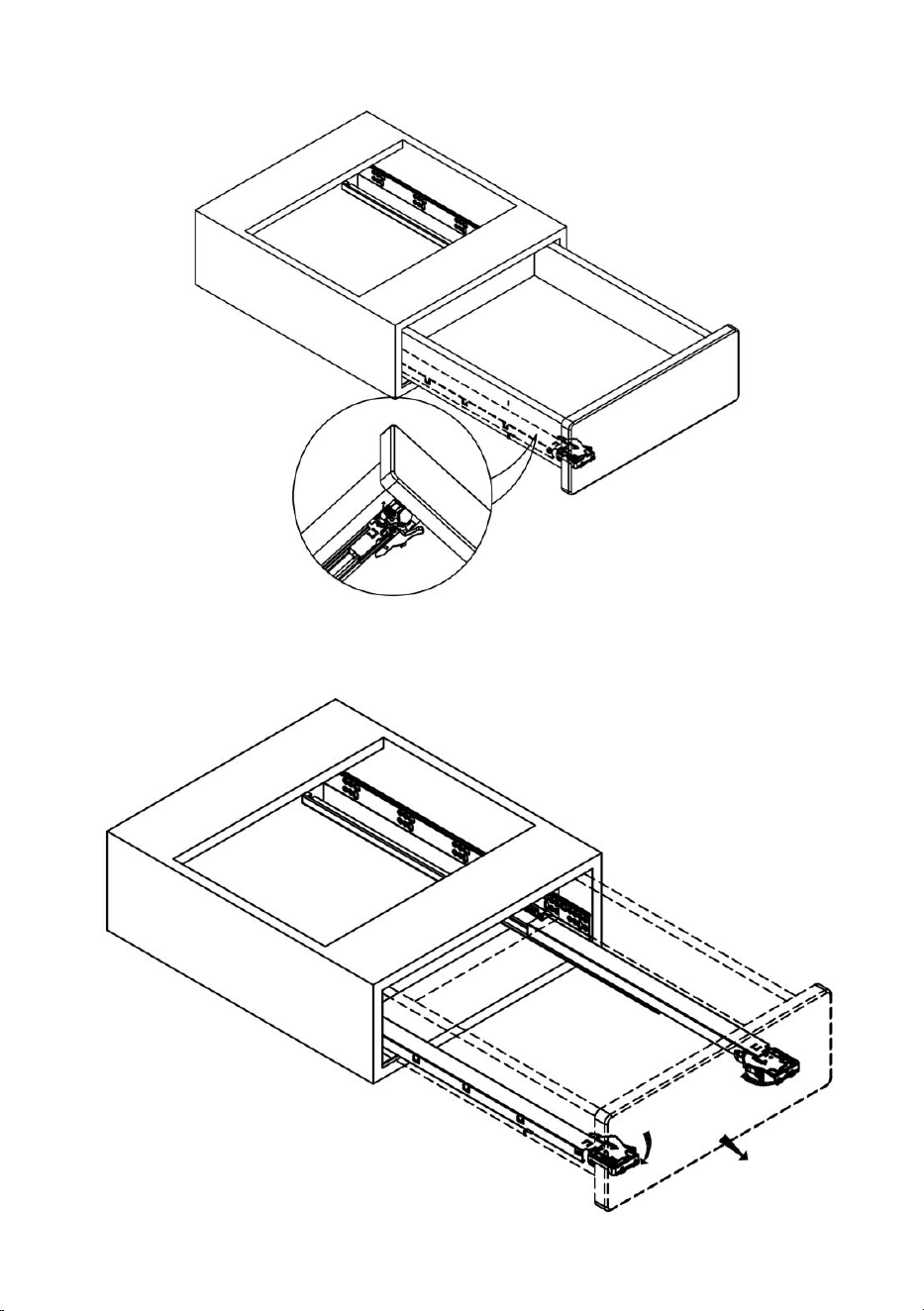

Installation Procedure

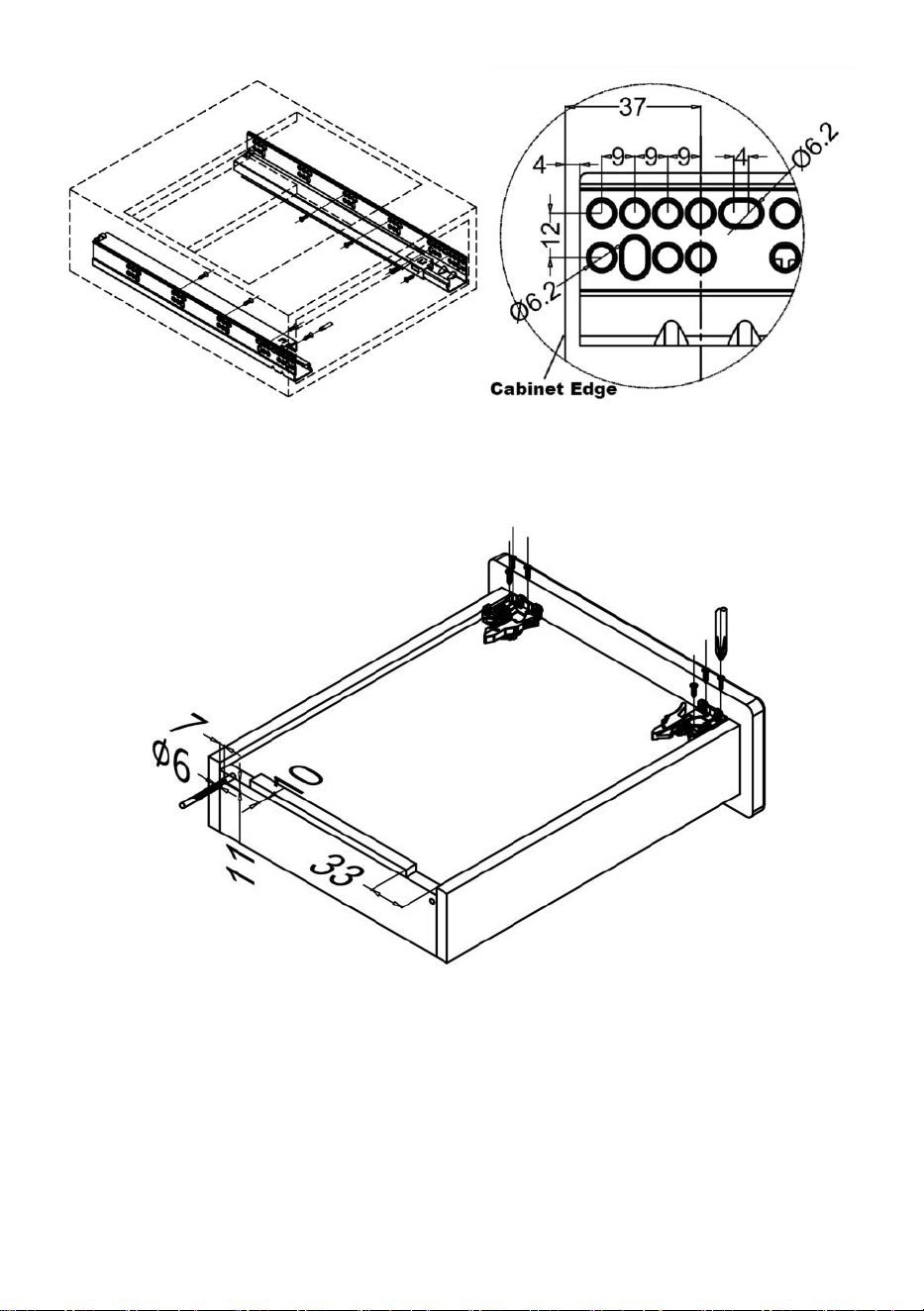

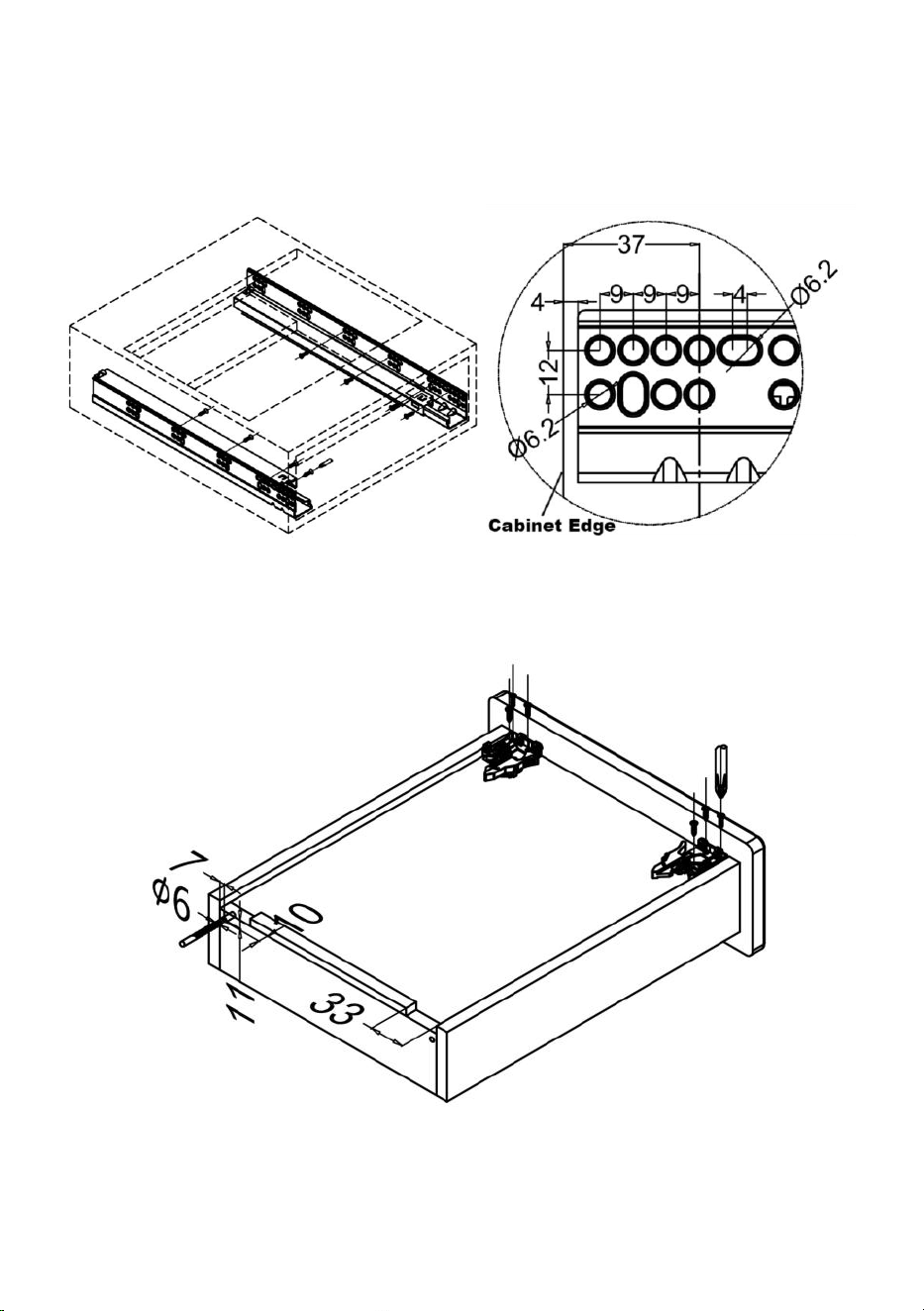

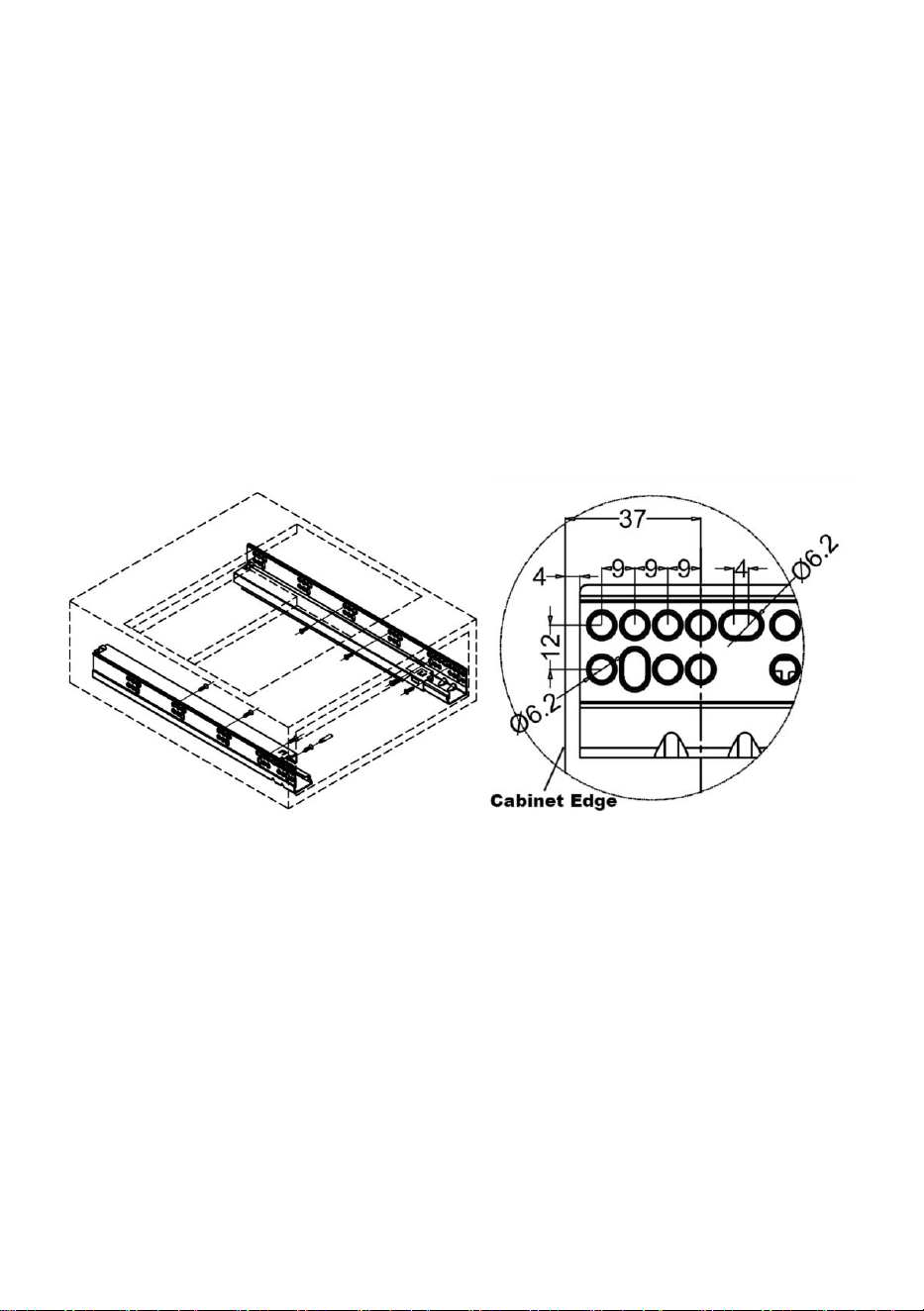

Step1:Slide To Cabinet (mm)

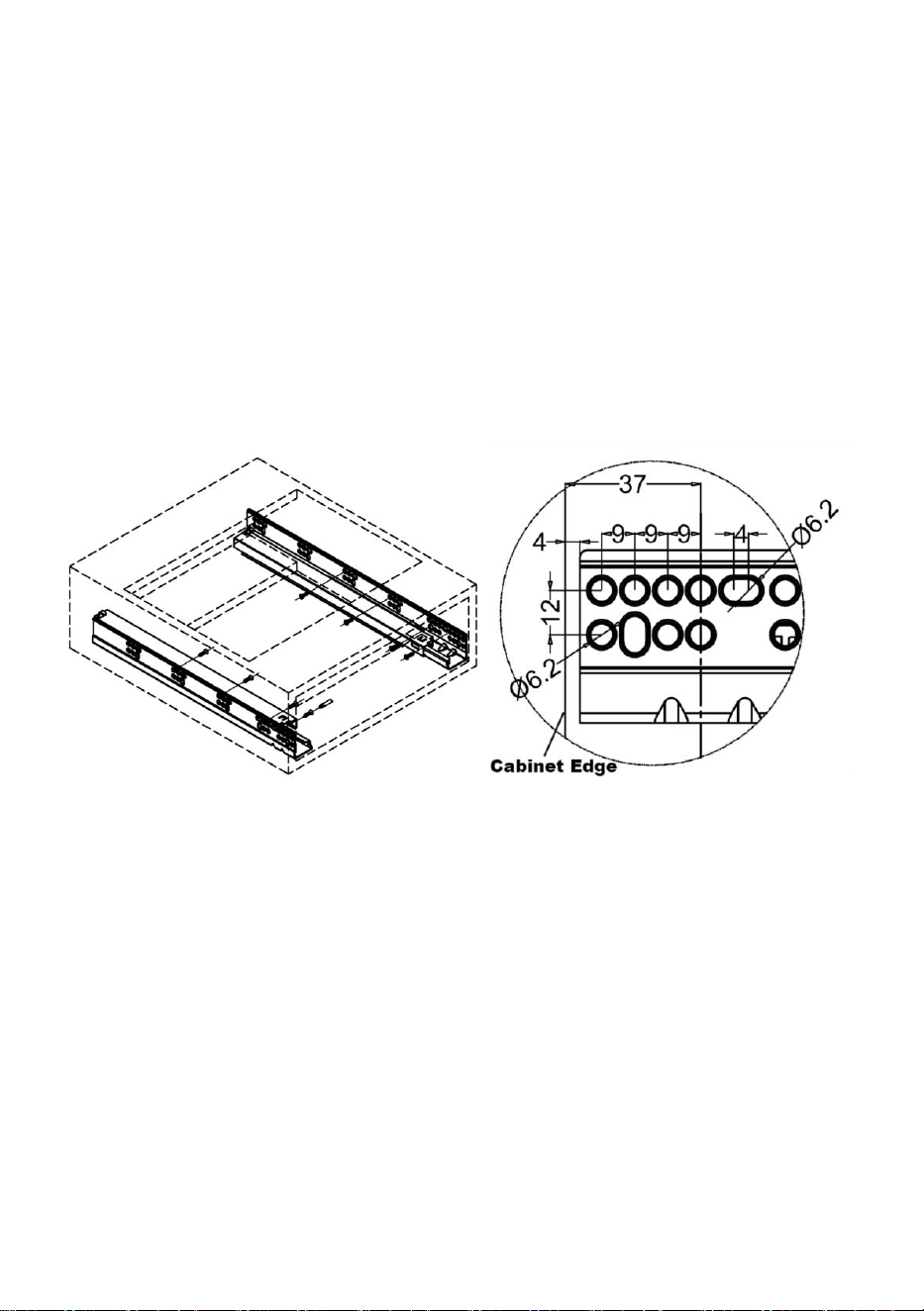

Step2:Locking To Cabinet
- 7 -

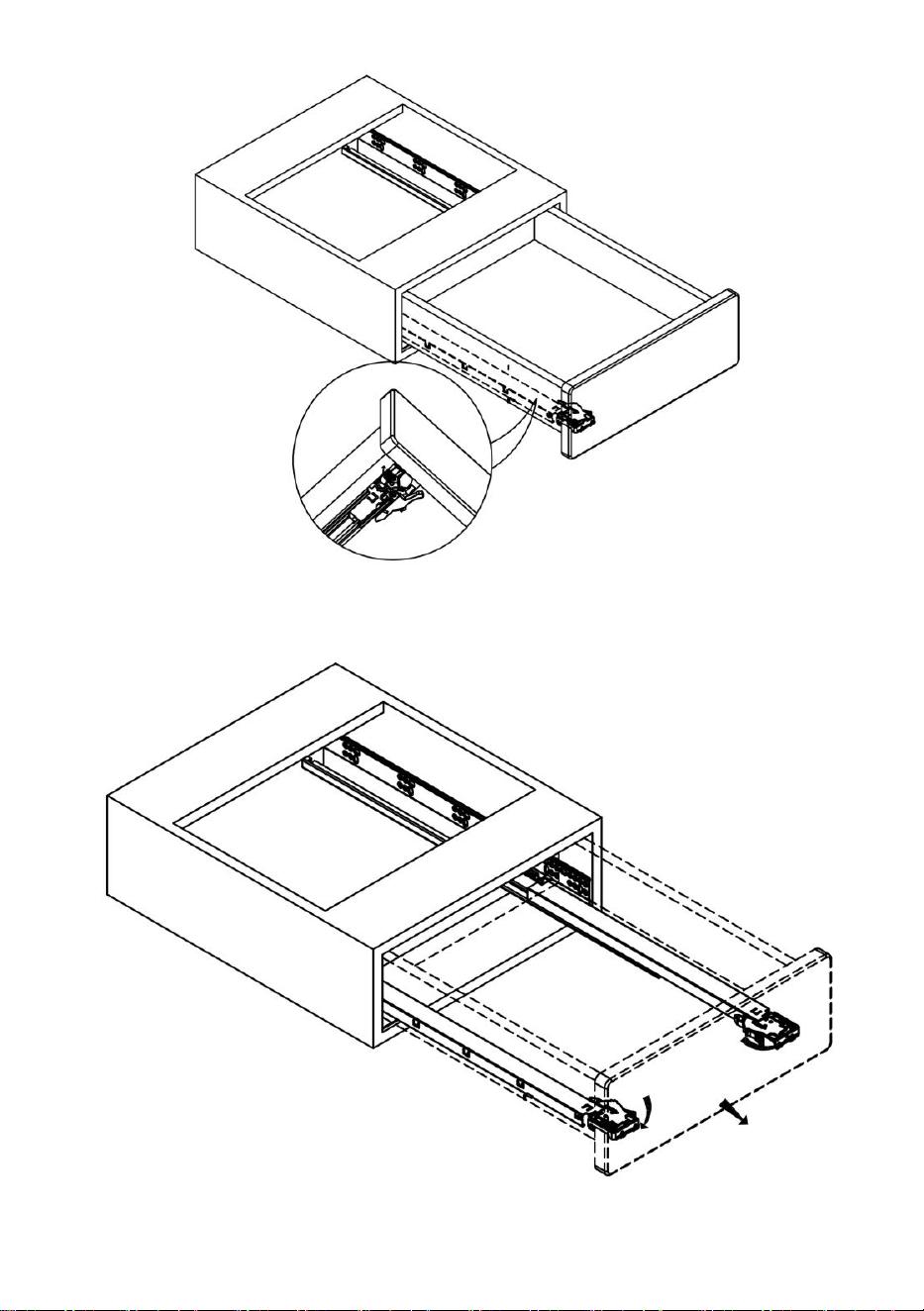

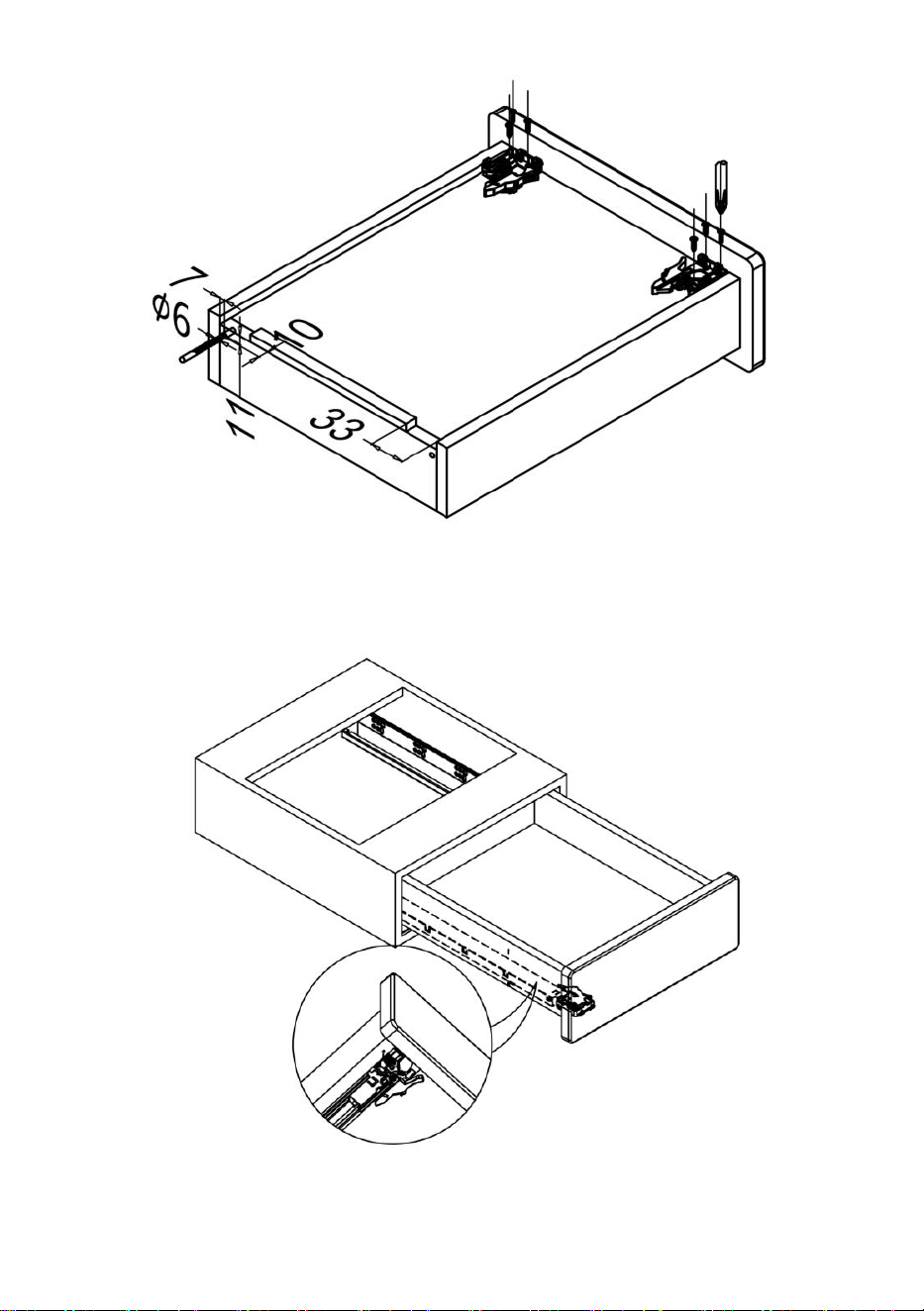

Step3:Adjust Cabinet

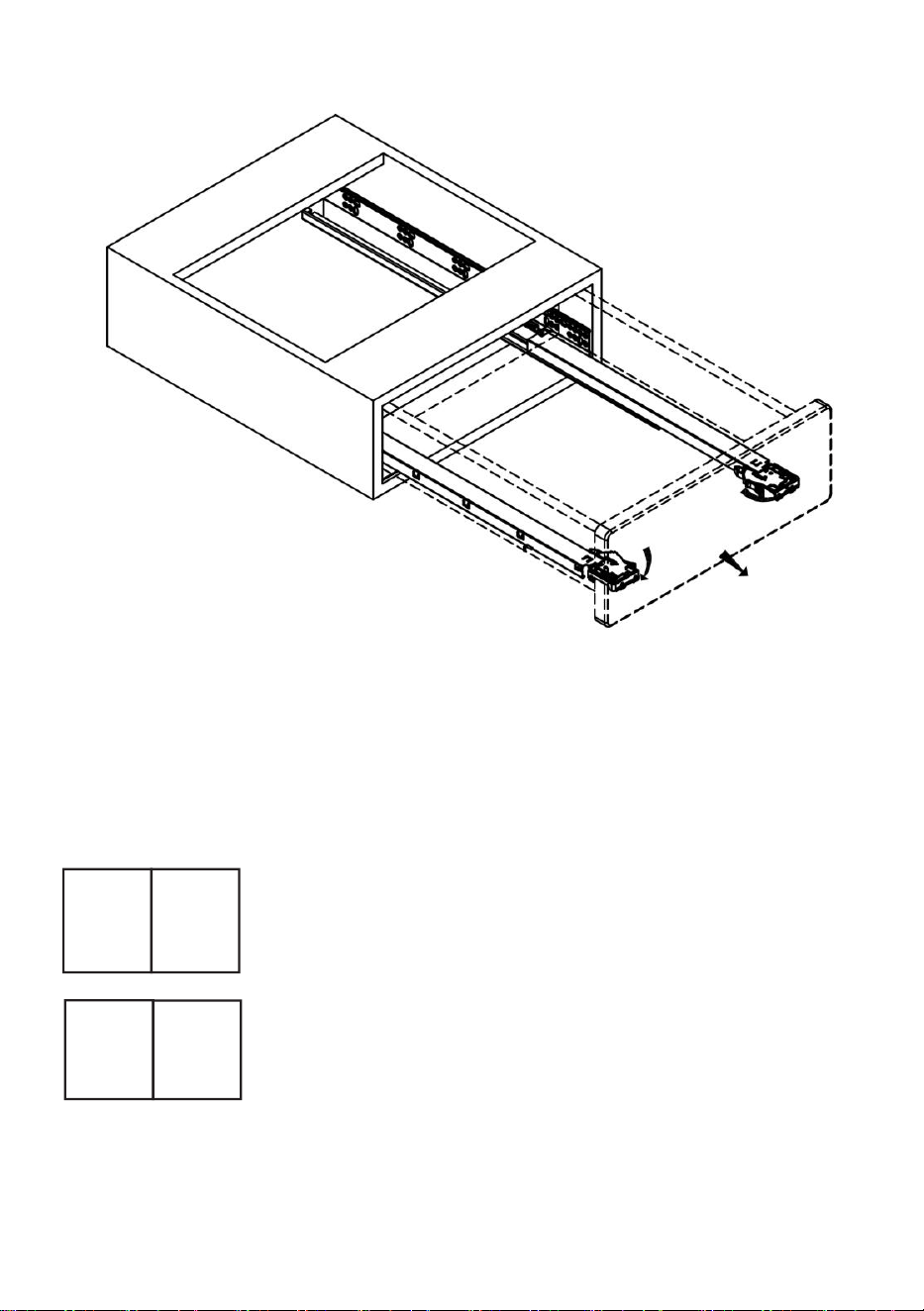

Step4:Disassembly Cabinet
- 8 -
