5 Series Freestanding Electric & Induction Range
VER5301(2)/CVER5301(2)
VIR5301(2) / CVIR5301(2)
VIR5362 / CVIR5362
VIR5483 / CVIR5483
User Guide
2
Viking Range | 5 Series Electric & Induction Range
Congratulations and welcome an elite world of ownership. We hope you will enjoy and appreciate the care and attention we have put into every
detail of your new, state-of-the-art self-cleaning range.
Your range is designed to o er years of reliable service. This Use and Care Manual will provide you with the information you need to become
familiar with your product’s care and operation.
Your complete satisfaction is our ultimate goal. If you have any questions or comments about this product, please contact the dealer from
whom you purchased it, or contact our Consumer Support Center at 1-888-845-4641.
We appreciate your choice of our range and hope that you will again select our products for your other major appliance needs.
For more information about the complete and growing selection of products, visit us online at www.vikingrange.com
Congratulations
Table of Contents
Getting Started
Warnings and Important Safety Instructions _____________________________________________________________ 3
Before Using Range _________________________________________________________________________________ 7
Surface Operation
Cookware _________________________________________________________________________________________ 8
Electric Range ______________________________________________________________________________________ 9
Induction Range ___________________________________________________________________________________ 10
Surface Cooking Tips _______________________________________________________________________________ 12
Surface Heat Settings _______________________________________________________________________________ 12
Oven Functions and Settings _________________________________________________________________________________ 13
Oven Features _____________________________________________________________________________________________ 13
Rack Positions _____________________________________________________________________________________________ 13
Using the Oven
Preheat __________________________________________________________________________________________ 14
BAKE (Two-Element Bake) ___________________________________________________________________________ 14
CONV BAKE (Convection Bake) _______________________________________________________________________ 16
TRU CONV (TruConvec™) ____________________________________________________________________________ 16
CONV ROAST (Convection Roast) _____________________________________________________________________ 19
CONV BROIL (Convection Broil) _______________________________________________________________________ 20
HI BROIL _________________________________________________________________________________________ 20
MED BROIL _______________________________________________________________________________________ 20
LOW BROIL _______________________________________________________________________________________ 20
Convection Dehydrate ______________________________________________________________________________ 22
Convection Defrost ________________________________________________________________________________ 23
Cleaning and Maintenance __________________________________________________________________________________ 23
Replacing Oven Lights ______________________________________________________________________________ 25
Self-Clean Cycle ____________________________________________________________________________________ 25
Door Removal _____________________________________________________________________________________ 26
Door Replacement _________________________________________________________________________________ 26
Troubleshooting ___________________________________________________________________________________________ 27
Service Information ________________________________________________________________________________________ 27
3
Viking Range | 5 Series Electric & Induction Range
Warnings
Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.
Always contact the manufacturer about problems or conditions you do not understand.
Recognize Safety Symbols, Words, Labels
WARNING
DANGER
Hazards or unsafe practices which WILL result in death
or severe personal injury
WARNING
Hazards or unsafe practices which COULD result in
death or severe personal injury
CAUTION
Hazards or unsafe practices which COULD result in
minor personal injury or property damage.
All safety messages will identify the hazard, tell you
how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
TIPPING HAZARD.
To reduce the risk of the appliance tipping,
it must be secured by a properly installed
anti-tip bracket(s). To make sure the bracket
has been installed properly, look behind the
range with a ashlight to verify proper installation.
• This range can tip.
• Injuries to persons can result.
• Install anti-tip device packed with range.
• See installation instructions.
Re-engage anti-tip devices if range is moved.
CAUTION
This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
CAUTION
BURN HAZARD
To avoid risk of injury, DO NOT touch the glass top or
the oven door during use or immediately after use.
These surfaces can get hot.
WARNING
To avoid risk of property damage, personal injury
or death; follow information in this manual exactly
to prevent a re or explosion, DO NOT store or use
gasoline or other ammable vapors and liquids in the
vicinity of this or any appliance.
CAUTION
Persons with a pacemaker or similar medical device should exercise
caution when standing near an induction cooktop while it is in
use. Consult your doctor or the manufacturer of the pacemaker or
similar medical device for additional information about its e ects
with electromagnetic elds from an induction cooktop.
CAUTION
FALLING HAZARD
DO NOT store items of interest to children over the unit.
Children climbing to reach items could be seriously injured.
4
Viking Range | 5 Series Electric & Induction Range
WARNING
ELECTRICAL SHOCK HAZARD
To avoid risk of injury or death, DO NOT touch a hot oven
light bulb with a damp cloth as the bulb could break.
Should the bulb break, disconnect power to the appliance
before removing bulb to avoid electrical shock.
WARNING
BURN OR ELECTRICAL SHOCK
HAZARD
To avoid risk of injury or death, Make sure all
controls are OFF and oven is COOL before
cleaning. Failure to do so can result in burns
or electrical shock.
CAUTION
To avoid sickness and food waste, DO NOT allow defrosted food to
remain in the oven for more than two hours.
CAUTION
You must carefully check the food during the dehydration
process to ensure that it does not catch re.
NOTICE
DO NOT turn the temperature control on during defrosting.
Turning the convection fan on will accelerate the natural defrosting
of the food without the heat.
WARNING
BURN HAZARD
To avoid risk of injury, DO NOT touch the glass. The oven
door, especially the glass, can get hot during usage.
CAUTION
To avoid risk of property damage, DO NOT use cast iron
cookware. Cast iron retains heat and may result in damaging the
rangetop.
WARNING
This range features a self-cleaning cycle. During this cycle, the
oven reaches elevated temperatures in order to burn o soil and
deposits.
A powder ash residue is left in the bottom of the oven after
completion of the self-clean cycle.
NOTE: DO NOT use commercial oven cleaners inside the oven. Use
of these cleaners can produce hazardous fumes or can damage the
porcelain nishes. DO NOT line the oven with aluminum foil or other
materials. These items can melt or burn during a self-clean cycle,
causing permanent damage to the oven.
CAUTION
DO NOT touch the exterior portions of the oven
after self-cleaning cycle has begun, since some parts
become extremely hot to the touch!
During the rst few times the self-cleaning feature is
used, there may be some odor and smoking from the
“curing” of the binder in the high-density insulation
used in the oven. When the insulation is thoroughly cured, this odor
will disappear. During subsequent self-cleaning cycles, you may
sense an odor characteristic of high temperatures.
KEEP THE KITCHEN WELL-VENTED DURING THE SELF-
CLEAN CYCLE.
WARNING
BURN HAZARD
When self-cleaning, surfaces may get hotter than usual,
therefore, children should be kept away.
Warnings
WARNING
NEVER use this appliance as a space heater to heat or warm the
room. Doing so may result in carbon monoxide poisoning and
overheating of the oven. DO NOT use the oven as a storage area for
food or cooking utensils.
CAUTION
To avoid risk of property damage, DO NOT use cast iron
cookware. Cast iron retains heat and may result in damaging
the cooktop.
5
Viking Range | 5 Series Electric & Induction Range
Warnings
To Prevent Fire or Smoke Damage
•Be sure all packing materials are removed from the appliance before operating it.
•Keep area around appliance clear and free from combustible materials, gasoline, and other ammable vapors and materials.
•If appliance is installed near a window, proper precautions should be taken to prevent curtains from blowing over burners.
• NEVER leave any items on the rangetop. The hot air from the vent may ignite ammable items and may increase pressure in closed containers
which may cause them to burst.
• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly ammable. Avoid their use or storage near an appliance.
• Many plastics are vulnerable to heat. Keep plastics away from parts of the appliance that may become warm or hot. DO NOT leave plastic items
on the rangetop as they may melt or soften if left too close to the vent or a surface element.
• Combustible items (paper, plastic, etc.) may ignite and metallic items may become hot and cause burns. DO NOT pour spirits over hot foods. DO
NOT leave oven unsupervised when drying herbs, breads, mushrooms, etc; re hazard.
In Case of Fire
Turn o appliance and ventilating hood to avoid spreading the ame. Extinguish ame then turn on hood to remove smoke and odor.
• Cooking Surface: Smother re or ame in a pan with a lid or cookie sheet.
• NEVER pick up or move a aming pan.
•Oven: Smother re or ame by closing the oven door.
DO NOT use water on grease res. Use baking soda, a dry chemical or foam-type extinguisher to smother re or ame.
Child Safety
• To eliminate the hazard of reaching over hot surface elements, cabinet storage should not be provided directly above a unit. If storage is
provided, it should be limited to items which are used infrequently and which are safely stored in an area subjected to heat from an appliance.
Temperatures may be unsafe for some items, such as volatile liquids, cleaners or aerosol sprays.
•NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot.
•NEVER allow children to sit or stand on any part of the appliance as they could be injured or burned.
•DO NOT store items of interest to children over the unit. Children climbing to reach items could be seriously injured.
• Children must be taught that the appliance and utensils in it can be hot. Let hot utensils cool in a safe place, out of reach of small children.
Children should be taught that an appliance is not a toy. Children should not be allowed to play with controls or other parts of the appliance.
Cooking Safety
• ALWAYS place a pan on a surface element before turning it on. Be sure you know which knob controls which surface element. Make sure the
correct element is turned on. When cooking is completed, turn element o before removing pan.
• NEVER leave a surface cooking operation unattended especially when using a high heat setting or when deep fat frying. Boilovers cause
smoking and greasy spillovers may ignite. Clean up greasy spills as soon as possible. DO NOT use high heat for extended cooking operations.
• NEVER heat an unopened container on the surface element or in the oven. Pressure build-up may cause container to burst resulting in serious
personal injury or damage to the appliance.
• Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam. Dishtowels or other substitutes should NEVER be used as
potholders because they can trail across hot surface elements and ignite or get caught on appliance parts.
•ALWAYS let quantities of hot fat used for deep fat frying cool before attempting to move or handle.
• DO NOT let cooking grease or other ammable materials accumulate in or near the appliance, hood or vent fan. Clean hood frequently to
prevent grease from accumulating on hood or lter. When aming foods under the hood turn the fan o .
• NEVER wear garments made of ammable material or loose tting or long-sleeved apparel while cooking. Clothing may ignite or catch utensil
handles.
• ALWAYS place oven racks in the desired positions while oven is cool. Slide oven rack out to add or remove food, using dry, sturdy potholders.
ALWAYS avoid reaching into the oven to add or remove food. If a rack must be moved while hot, use a dry potholder.
•ALWAYS turn the oven o at the end of cooking.
•Use care when opening the oven door. Let hot air or steam escape before moving or replacing food.
• NEVER use aluminum foil to cover oven racks or oven bottom. This could result in risk of electric shock, re, or damage to the appliance. Use foil
only as directed in this guide.
• PREPARED FOOD WARNING: Follow food manufacturer’s instructions. If a plastic frozen food container and/or its cover distorts, warps, or is
otherwise damaged during cooking, immediately discard the food and its container. The food could be contaminated.
• If you are “ aming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft could cause the ames to spread out of control.
6
Viking Range | 5 Series Electric & Induction Range
Utensil Safety
• Use pans with at bottoms and handles that are easily grasped and stay cool. Avoid using unstable, warped, easily tipped or loose-handled
pans. Also avoid using pans, especially small pans, with heavy handles as they could be unstable and easily tip. Pans that are heavy to move
when lled with food may also be hazardous.
• Be sure utensil is large enough to properly contain food and avoid boilovers. Pan size is particularly important in deep fat frying. Be sure pan will
accommodate the volume of food that is to be added as well as the bubble action of fat.
• To minimize burns, ignition of ammable materials and spillage due to unintentional contact with the utensil, DO NOT extend handles over
adjacent burners. ALWAYS turn pan handles toward the side or back of the appliance, not out into the room where they are easily hit or reached
by small children.
•NEVER let a pan boil dry as this could damage the utensil and the appliance.
•Follow the manufacturer's directions when using oven cooking bags.
• Only certain types of glass, glass/ceramic, ceramic or glazed utensils are suitable for rangetop surface or oven usage without breaking due to
the sudden change in temperature. Follow manufacturer's instructions when using glass.
• This appliance has been tested for safe performance using conventional cookware. DO NOT use any devices or accessories that are not
speci cally recommended in this guide. DO NOT use eyelid covers for the surface units, stovetop grills, or add-on oven convection systems.
The use of devices or accessories that are not expressly recommended in this manual can create serious safety hazards, result in performance
problems, and reduce the life of the components of the appliance.
Heating Elements and Glass Ceramic Cooking Surfaces
•Surface areas on or adjacent to the unit may be hot enough to cause burns.
•NEVER touch oven heating elements, areas near elements, or interior surfaces of oven.
• Heating elements may be hot even though they are dark in color. Areas near elements and interior surfaces of an oven may become hot enough
to cause burns.
• During and after use, DO NOT touch or let clothing or other ammable material contact surface of unit or areas near unit, heating elements, or
interior surfaces of oven until they have had su cient time to cool.
• DO NOT COOK ON BROKEN COOKING SURFACE – If cooking surface should break, cleaning solutions and spillovers may penetrate the broken
cooking surface and create a risk of electric shock. Contact a quali ed technician immediately.
Cleaning Safety
• Turn o all controls and wait for appliance parts to cool before touching or cleaning them. DO NOT touch the surface elements or surrounding
areas until they have had su cient time to cool.
• Clean appliance with caution. Use care to avoid steam burns if a wet sponge or cloth is used to wipe spills on a hot surface. Some cleaners can
produce noxious fumes if applied to a hot surface.
Self-Clean Oven
• Clean only parts listed in this guide. DO NOT clean door gasket. The door gasket is essential for a good seal. Care should be taken not to rub,
damage, or move the gasket. DO NOT use oven cleaners of any kind in or around any part of the self-clean oven.
• Before self-cleaning the oven, remove broiler pan, oven racks and other utensils and wipe up excessive spillovers to prevent excessive smoke,
are-ups or aming.
• This range features a cooling fan which operates automatically during a clean cycle. If the fan does not turn on, cancel the clean operation and
contact an authorized servicer.
• It is normal for the rangetop cooking surface of the range to become hot during a self-clean cycle. Therefore, touching the rangetop cooking
surface during a clean cycle should be avoided.
•NEVER leave your residence when the self-clean function is operating.
Important notice regarding pet birds:
NEVER keep pet birds in the kitchen or in rooms where the fumes from the kitchen could reach. Birds have a very sensitive respiratory system.
Fumes released during an oven self-cleaning cycle may be harmful or fatal to birds. Fumes released due to overheated cooking oil, fat, margarine
and overheated non-stick cookware may be equally harmful.
Warnings
Radio Interference
This unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit o and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the distance between the unit and receiver
• Connect the unit into an outlet on a circuit di erent from that to which the receiver is connected.
NOTE: It is the user’s responsibility to correct any interference.
7
Viking Range | 5 Series Electric & Induction Range
About Your Appliance
• For proper oven performance and operation, DO NOT block or obstruct any of the vents located on the island trim (air grille).
• Avoid touching oven vent area while oven is on and for several minutes after oven is turned o . When the oven is in use, the vent and
surrounding area become hot enough to cause burns. After oven is turned o , DO NOT touch the oven vent or surrounding areas until they
have had su cient time to cool.
• Other potentially hot surfaces include rangetop, areas facing the rangetop, oven vent, surfaces near the vent opening, oven door, areas around
the oven door and oven window.
• The misuse of oven doors (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the
manufacturing process. Before starting to cook, clean the range with a damp soapy sponge being careful to not squeeze excess amounts water
into openings around control panel or rear trim. There may be some burn o and odors on rst use of the appliance–this is normal.
Glass Rangetop
Clean your glass top before the rst time you use it. A thorough cleaning with a glass top cleaner is recommended.
Oven
IMPORTANT! Before rst use, wipe interior with soapy water and dry thoroughly. Then set the oven selector to bake, the thermostat to 450°F, and
operate for an hour.
All models include:
•A broad range of baking and broiling modes—up to eight cooking modes in all—to make even your most challenging baking projects a success
•Strong, wear-resistant glass ceramic surface for excellent cleanability
•Split baking and broiling elements—which reduces preheating time and provides greater control and more even heating
• A reversing fan which is two times larger than most on the market—this allows you to cook foods more thoroughly and evenly—even when
baking large quantities
•Four convection modes o ering greater air circulation to shorten cooking times and cook foods more evenly
•Three broiling modes including a new low-broil mode for delicate broiling and top-browning
•A pro led, concealed bake element for easier cleaning
Before Using Your Range
8
Viking Range | 5 Series Electric & Induction Range
Cooking Vessels
Each cook has his or her own preference for the particular cooking vessels that are most appropriate for the type of cooking being done.
Most cooking vessels are suitable for use on the electric range and it is not necessary to replace your present domestic vessels with commercial
cookware. This a matter of personal choice. As with any cookware, yours should be in good condition and free from excessive dents on the
bottom to provide maximum performance and convenience. For the induction range, cookware needs to be induction compatible and
completely magnetic on the bottom. Partial magnetic bottoms will not perform properly.
Note: When using big pots, it is recommended to use the front elements. There is more room in the front and potential cleanup of rear of
appliance due to staining or discoloration will be minimized.
Surface Operation

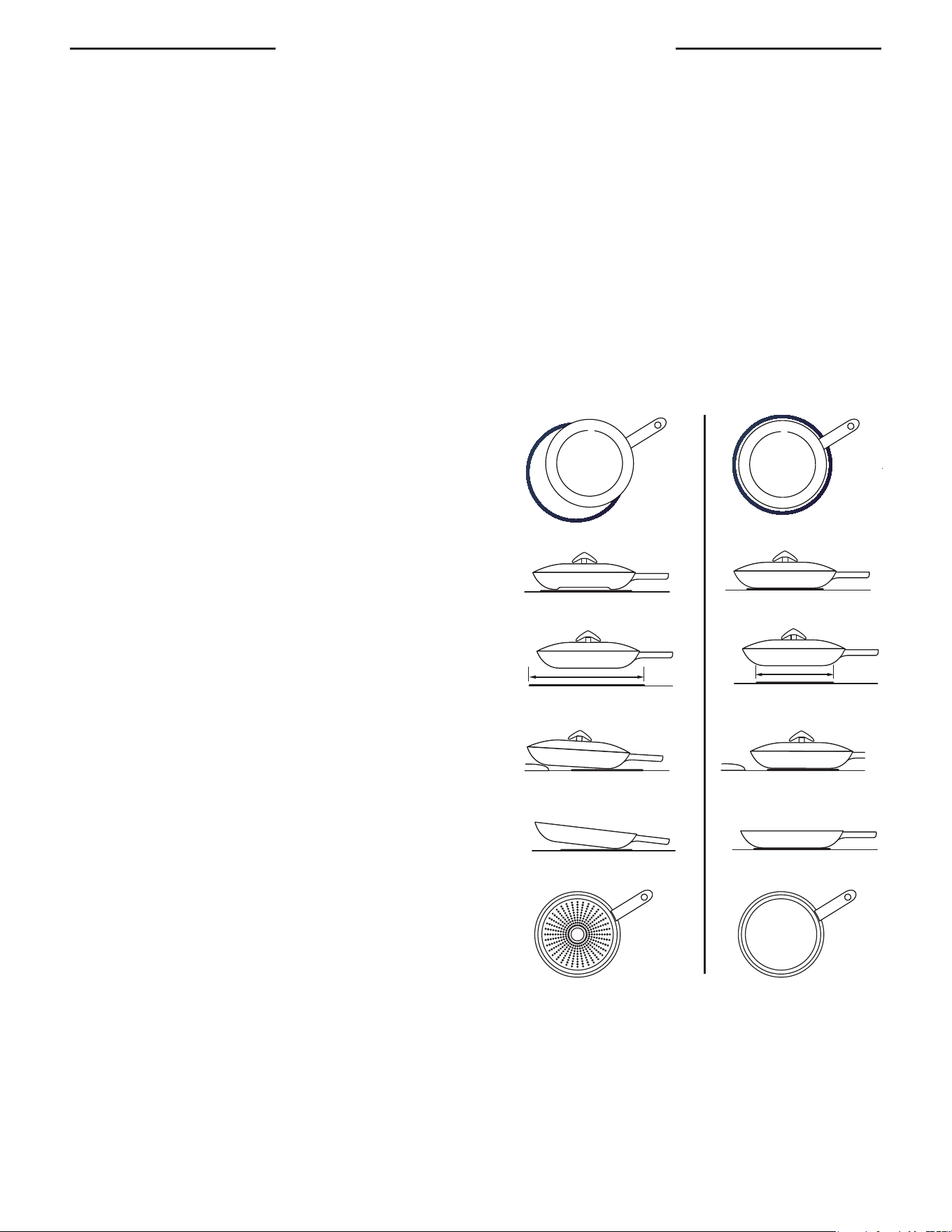

Choosing the Correct Cookware
INCORRECT
CORRECT
Cookware must be centered and fully contact the
surface of the cooking element.
Use at-bottomed pans
Pans should meet or exceed the recommended
minimum size for the cooking element used.
Make sure pans sit completely on the cooktop surface
and not on the cooktop trim.
Cookware should be properly balanced. Pans with
heavy handles will tilt.
For induction ranges, cookware needs to be completely
magnetic on the bottom. Partial magnetic bottoms will
not perform properly.
9
Viking Range | 5 Series Electric & Induction Range
Electric Range Features
Electric Ranges
Single Front or Rear Center Element
Push in and turn the control knob counterclockwise to the desired setting. The element will cycle on and o to maintain
the desired heat setting. When nished, turn all controls to “OFF.”
Double Rear Element
Dual elements are controlled by a dual rotary control which will activate just the inner element for smaller pots or both
the inner and outer element for larger pots. Push in and turn the left rear control knob clockwise to the desire setting.
Both the center and outer double element on left rear will cycle on and o to maintain the desired heat setting. When
nished, turn all controls to “OFF”.
Front and Bridge Element
On a bridging element, the dual rotary control will turn on just the element for use with a single pot or the element and the bridge for use with
a large rectangular pot or griddle application. Push in and turn the either the right rear control knob counterclockwise to the desired setting to
operate the single rear element. Push and turn the right rear element clockwise. The rear element and the bridge element will cycle on and o
to maintain the desired heat setting. When nished, turn all controls “OFF.”
CAUTION
Metallic objects such as knives, forks, spoons, and lids should
not be placed on the induction surface since they can get hot.
DO NOT heat empty cookware or let cookware boil dry. The
cookware can absorb an excessive amount of heat very
quickly, resulting in possible damage to the cookware and
ceramic glass.
CAUTION
6 7 8 9 10 11 12 13
1
18
17
2
3
4
5
14
15
15
16

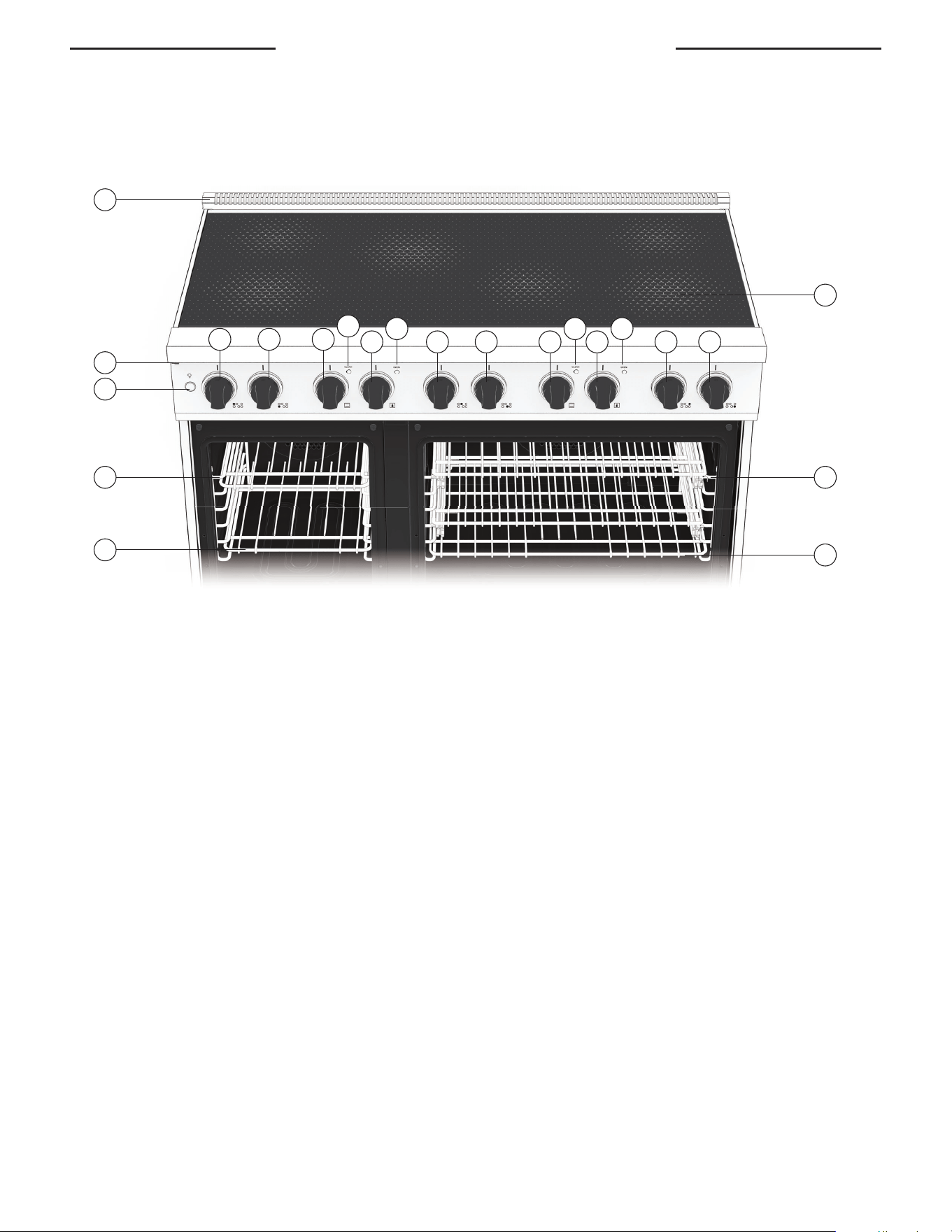

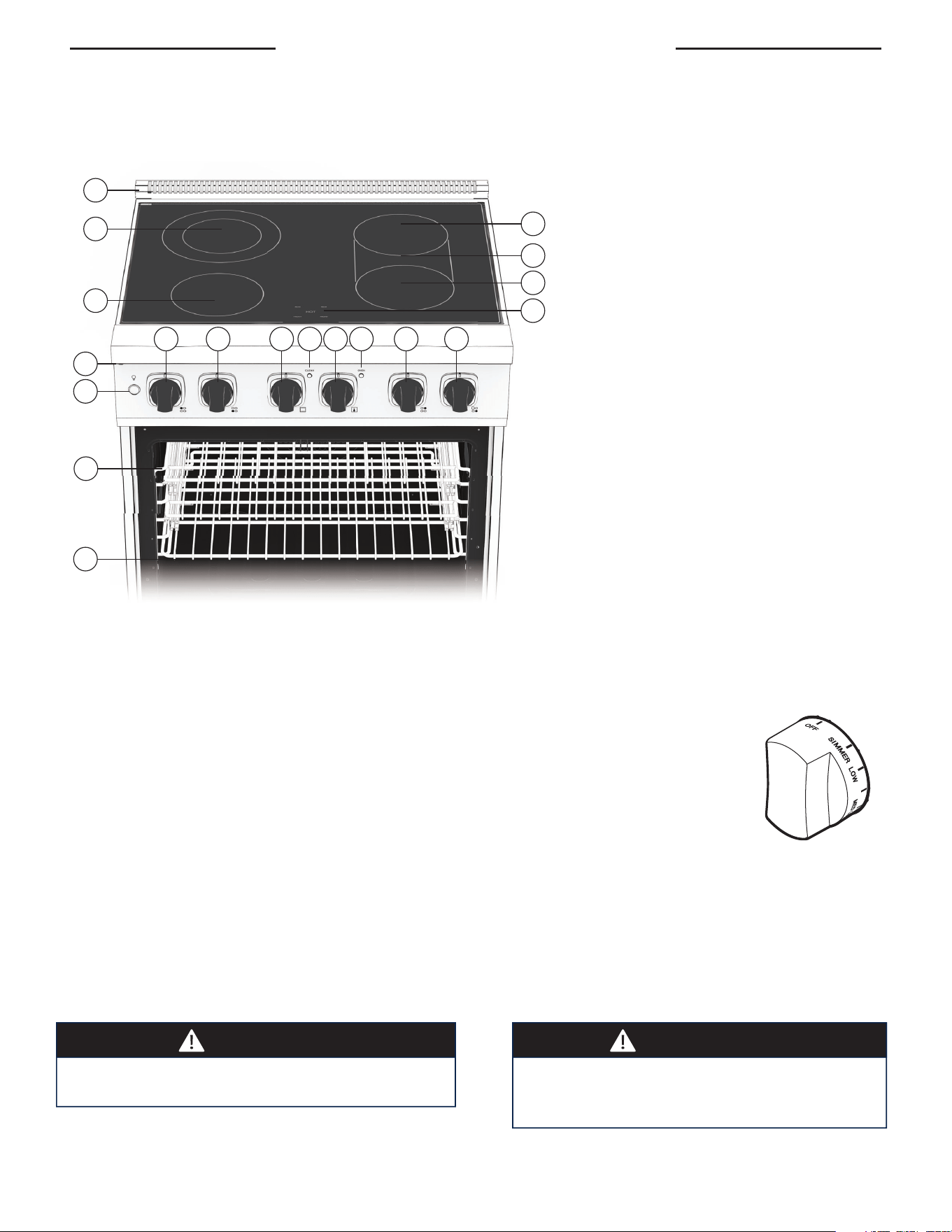

1. Island Trim (Air Grille)
2. Control Panel Down Light Switch
3. Oven Light Switch
4. 6 Position Rack Supports
5. 3 Anti-Tilt Racks
6. Left Rear Element Knob
7. Left Front Element Knob
8. Oven Mode Selector Knob
9. Oven Clean Light
10. Oven Temp. Selector Knob
11. Oven Cycle Light
12. Rear Right & Bridge Element Knob
13. Front Right Element Knob
14. Surface Element Indicator Lights
15. Two 7” 1800W Elements
16. 800W Bridge Element
17. One 6.5” 1500W Element
18. Dual element 6” 1400W / 9” 3000W
10
Viking Range | 5 Series Electric & Induction Range

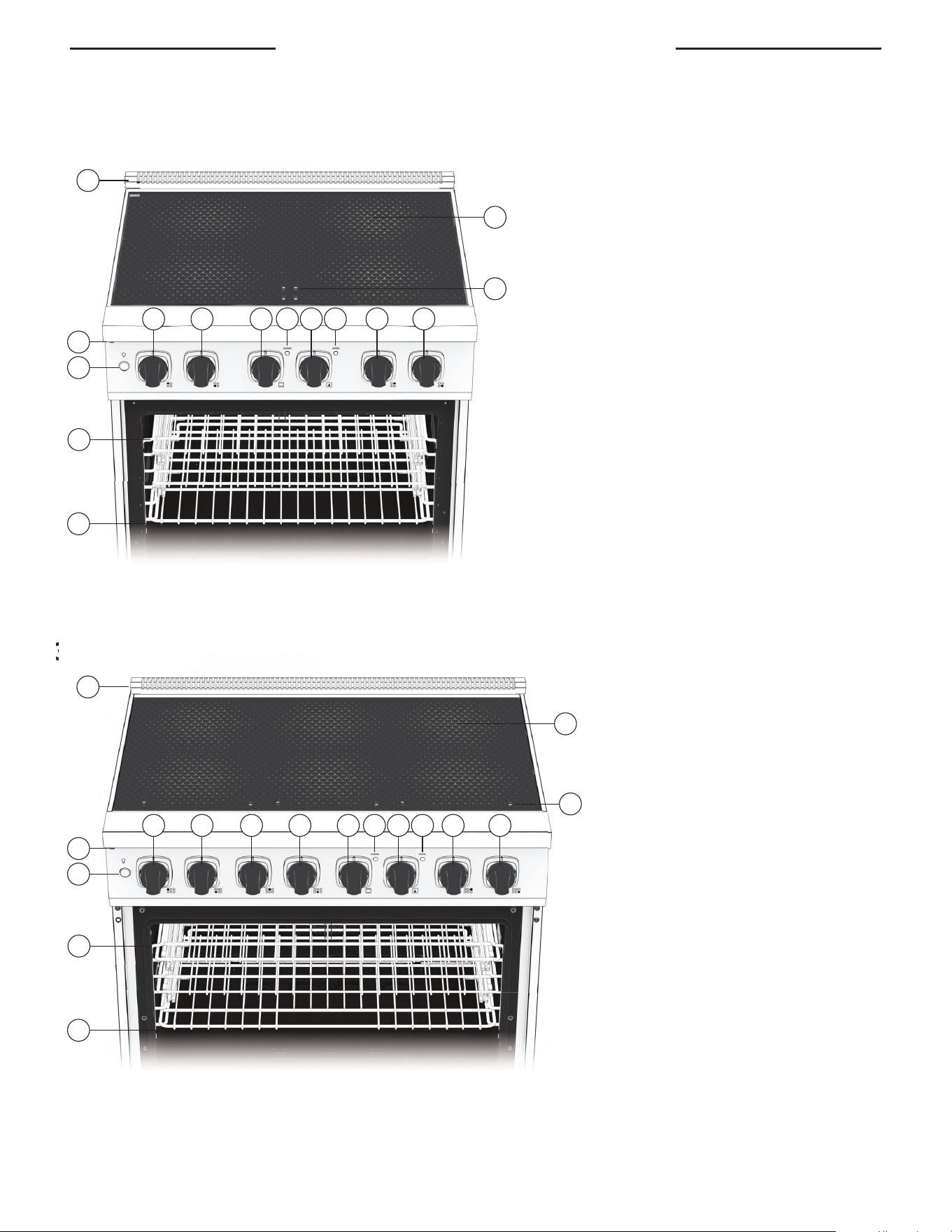

Induction Range Features
30” W.
3
6”W.
36
W
W
.
W
W
6 7 8 9 10 11 12 13
1
2
3
4
5
14
15
1. Island Trim (Air Grille)
2. Control Panel Down Light Switch
3. Oven Light Switch
4. 6 Position Rack Supports
5. 2 Anti-Tilt Racks
6. Left Rear Element Knob
7. Left Front Element Knob
8. Oven Mode Selector Knob
9. Oven Clean Light
10. Oven Temp. Selector Knob
11. Oven Cycle Light
12. Rear Center Element Knob
13. Front Center Element Knob
14. Surface Element Indicator Lights
15. Four 9” MangeQuick Elements 2300W/3700W
6 7 8 9 10 11 12 13 14 15
1
2
3
4
5
16
17
1. Island Trim (Air Grille)
2. Control Panel Down Light Switch
3. Oven Light Switch
4. 6 Position Rack Supports
5. 2 Anti-Tilt Racks
6. Left Rear Element Knob
7. Left Front Element Knob
8. Center Rear Element Knob
9. Center Front Element Knob
10. Oven Mode Selector Knob
11. Oven Clean Light
12. Oven Temp. Selector Knob
13. Oven Cycle Light
14. Rear Center Element Knob
15. Front Center Element Knob
16. Surface Element Indicator Lights
17. Six 9” MangeQuick Elements
2300W/3700W
36” W.
11
Viking Range | 5 Series Electric & Induction Range
Induction Range Features
48” W.
1
2
3
4
5
20
22
21
6 7 8
9
10 12 13 18 19
11
14
15
16
17
1. Island Trim (Air Grille)
2. Control Panel Down Light Switch
3. Oven Light Switch
4. 6 Position Rack Supports
5. 2 Anti-Tilt Racks
6. Left Rear Element Knob & Lighted Bezel
7. Left Front Element Knob & Lighted Bezel
8. 18” Oven Mode Selector Knob & Lighted Bezel
9. 18“ Oven Clean Light
10. 18” Oven Temp. Selector Knob & Lighted Bezel
11. 18“ Oven Cycle Light
12. Rear Center Element Knob & Lighted Bezel
13. Front Center Element Knob & Lighted Bezel
14. 30” Oven Model Selector Knob & Lighted Bezel
15. 30” Oven Clean Light
16. 30” Oven Temp Selector Knob & Lighted Bezel
17. 30” Oven Cycle Light
18. Right Rear Element Knob & Lighted Bezel
19. Right Front Element Knob * Lighted Bezel
20. 6 Position Rack Support
21. 3 Anti-Tip Racks
22. Six 9” MangeQuick Elements 2300W/3700W
12

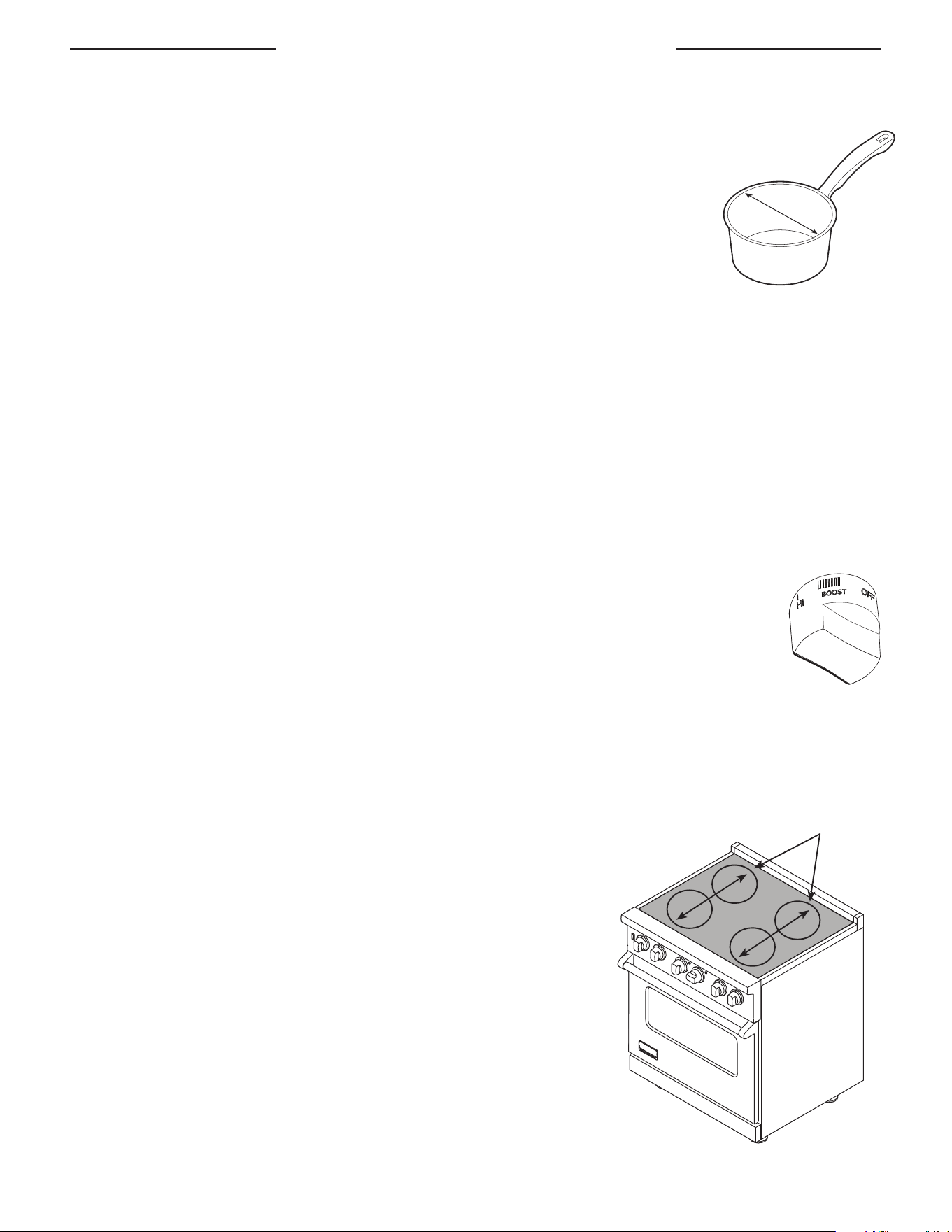

Viking Range | 5 Series Electric & Induction Range
Hot Surface Indicator Lights VIR530 / VIR536 models only
The range has hot surface indicator lights. They are located to the bottom left of each burner. When the corresponding element is turned to
SIMMER, LOW, MED, or HI, the indicator light will ash blue if there is no pot or will remain solid blue while cooking. When the corresponding
element is turned to BOOST, the indicator light will ash white if there is no pot and will remain solid white while cooking.
After turning the element o , the indicator light will continue to ash alternating between blue and white until the surface has cooled.
Hot Surface Indicator Lights VIR548 models only
The range has surface indicator lights located in the knob bezel that correspond to each element. When the corresponding element is turned to
SIMMER,LOW,MED or HI, the bezel light will ash white if there is no pot detected and will remain solid while cooking. When the corresponding
elements BOOST function is activated, the bezel light will ash blue if there is no pot detected and will remain solid white while cooking.
After turning the element o , the bezel light will continue to ash alternating between blue and white until the surface has cooled.
Operating Single Elements
All burners have variable controls. Push in and turn the knob clockwise one click to achieve the lowest setting. Continue
turning clockwise to the desired SIMMER, LOW, MED, or HI Settings.
The nal setting once you have turned the knob clockwise to its max is the BOOST setting. Boost mode can be activated by
over-rotating the knob and holding until the indicator light turns white indicating that boost mode is active. On the VIR548
models only, the indicator light will ash blue during use of BOOST mode and will be white when using settings SIMMER,
LOW, MED, or HI.
Boost mode temporarily increases the power to the element allowing for faster heat up times. It is recommended to use this function for boiling
water or other liquids. You can only boost one element per zone at the same time. (Refer to Power Sharing for zones.) Boost only operates for 10
minutes then automatically reduces to the high setting indicated by the indicator light turning blue. (Turns white on the VIR548 models)
If you boost an element while using an element within the same power zone, the element not in boost (indicated by blue indicator light) will
have the power reduced automatically.
Surface Operation
12”
(30.5 cm) max.
5”
(12.7 cm) min.
Induction Cooking Power
The induction range has 2 or 3 cooking zones consisting of 2 elements each. If using more
than one cooking element on high power in the same zone, the maximum cooking power
may be reduced. For best performance results, start cooking on only one element per shared
zone Once it has reached cooking temperature, start cooking on the second cooking zone.
Power sharing tips: Remember to select the power setting last for the cooking element you
want to maintain at a full setting heat. To maintain full setting for two items, place items in
non-shared zones.
Shared Cooking Zones
Induction Ranges
Induction Cookware
Induction cooking utilizes magnetic power which reacts with iron in the base of cookware, instantly transforming
the pot or pan into the heat source. The heat stops when the cookware is removed. Your cookware should be
induction compatible and MUST have a magnetic layer of steel for your induction cooktop to operate properly.
The cookware should have a at, heavy magnetic bottom and straight sides with a diameter of 5” (13 cm) to 12” (31
cm). The induction cookware should be in good condition and free from excessive dents on the bottom to provide
maximum performance and convenience.
All Viking cookware is induction friendly, as are most other high-end brands of stainless steel and enamel
cookware. Most induction cookware will be suitable for your induction cooktop if a magnet adheres to the bottom surface. Cookware that
is NOT suitable for your induction cooktop includes pottery, glass, aluminum, copper, bronze, and any type of cookware with a footed base.
30” W. Model shown
13
Viking Range | 5 Series Electric & Induction Range
Surface Operation
Cooking Guide - Suggested Heat Setting
Food Start at Setting Complete at Setting
Rice Hi - cover, bring water to a boil Lo - cover, nish timing according to directions
Chocolate Lo - until melted
Candy Lo - cook
Pudding, pie lling Lo - cook according to directions
Eggs - in shell
fried
poached
Hi - cover, bring to boil
Hi - until pan is hot
Hi - bring water to boil
OFF - let set to desired doneness
Lo - Med, cook to desired doneness
Lo - nish cooking
Sauces Hi - melt fat Lo-Med, nish cooking
Soups, stews Hi - heat up liquid Lo-Med, nish cooking
Vegetables Hi - preheat skillet Lo-Med, nish cooking until desired tenderness is
reached
Breads - french toast, pancakes Med-Hi, preheat skillet Lo - cook to desired browness
Cooked cereals, grits, oatmeal Hi - cover, bring water to a boil Lo-Med, add cereal and cook according to directions
Bacon, sausages Hi - preheat skillet Med - cook to desired doneness
Swiss steaks Hi - melt fat,
Med-Hi - to brown meat
Lo - add liquid, cover, simmer until tender
Chicken, fried Hi - melt fat
Med-Hi - to brown crust
Lo - cook until tender
Hamburgers, pork chops Hi - preheat skillet Med - to brown meat and cook to desired brownness
Pasta Hi - bring salted water to a boil, add
pasta slowly
Med - maintain boil until tender
Remember that induction cooking is instantaneous and boiling time is decreased when using the proper induction cookware.
Heat Setting Use
Simmer Melting small quantities
Steaming rice
Simmering sauces
Low Melting large quantities
Med Low Low-temperature frying (eggs, etc.)
Simmering large quantities
Heating milk, cream sauces, gravies,and puddings
Med Sauteing and browning, braising, and
pan-frying
Maintaining slow boil on large quantities
Med High High-temperature frying
Pan broiling
Maintaining fast boil on large quantities
High Boiling water quickly
Deep-fat frying in large utensil
Surface Cooking Tips
- The minimum pot or pan (vessel) diameter recommended is 5” (13 cm).
- Remember to use the proper size cookware for the size element chosen. Smaller cookware should be used for smaller elements and larger
cookware should be used for larger elements.
Note: If ALL elements are turned to HI for a long period of time, the internal temperature inside the cooktop may rise, causing the cooktop to
turn o . Prior to shutting o , the indicator lights will ash faster and the power will be backed down on the element that is overheating.
Surface Heat Settings
14
Viking Range | 5 Series Electric & Induction Range
Oven Features

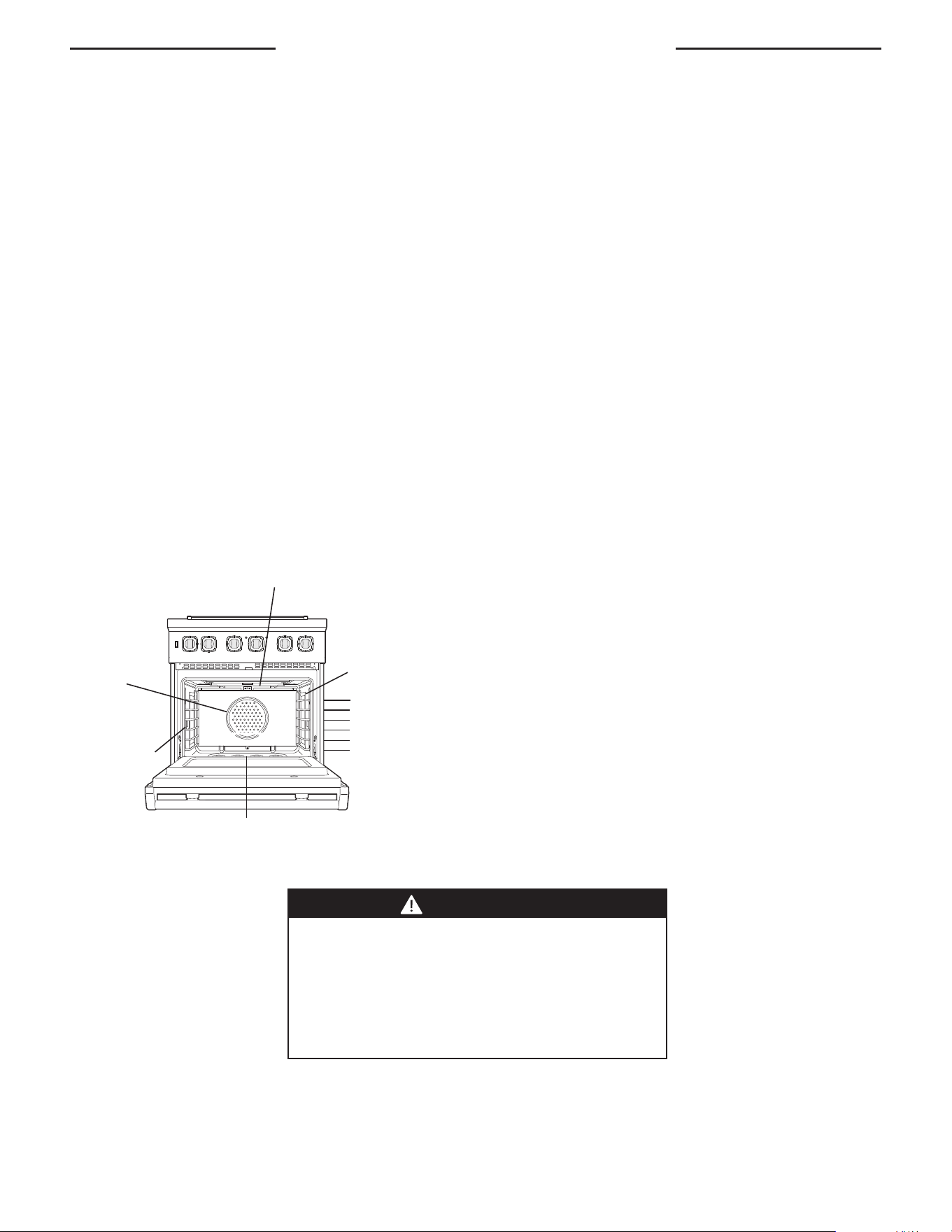

Rack Positions
Each oven is equipped with three racks. All ovens have six rack positions.
Position 6 is the farthest from the oven bottom. Position 1 is the closest to
the oven bottom. The racks can be easily removed and arranged at various
levels. For best results with conventional baking, DO NOT use more than
one rack at a time. It is also recommended, when using two racks, to bake
with the racks in positions 2 and 4 or positions 3 and 5.
Broil element
Oven light
6
5
4
3
2
1
T
ruConvec™ element
(behind bae)
Concealed bake element
(beneath oven bottom)
Oven light
Rack
Positions
Oven Functions and Settings
BAKE (Two-Element Bake) - Use this setting for baking, roasting, and casseroles.
CONV BAKE (Convection Bake) - Use this setting to bake and roast foods at the same time with minimal taste transfer.
TRU CONV (TruConvec™) - Use this bake setting for multi-rack baking of breads, cakes, and cookies.
(up to six racks of cookies at once)
CONV ROAST (Convection Roast) - Use this setting for roasting whole turkeys, whole chickens, hams, etc.
CONV BROIL (Convection Broil) - Use this setting to broil thick cuts of meat.
HI BROIL - Use this setting for broiling dark meats at 1” thickness or less when rare or medium doneness is desired.
MED BROIL - Use this setting for broiling white meats such as chicken or meats greater than 1” thick that would be over-browned in high
broil.
LOW BROIL - Use this setting for delicate broiling such as meringue.
SELF CLEAN - Use this function to clean oven.
Convection Dehydration (TRU CONV) - Use this function to dehydrate fruits and vegetables.
Convection Defrost (TRU CONV) - Use this function to defrost foods.
Note: For more information on oven functions see “Operation” section.
WARNING
NEVER cover any slots, holes or passages in the oven bottom or
cover an entire rack with materials such as aluminum foil. Doing
so blocks air ow through the oven and may cause carbon
monoxide poisoning. Do not cook directly on the oven bottom.
Always use oven racks when cooking in the oven. Aluminum foil
linings or cooking on the oven bottom may trap heat, causing
damage to the oven bottom or a re hazard.
15
Viking Range | 5 Series Electric & Induction Range

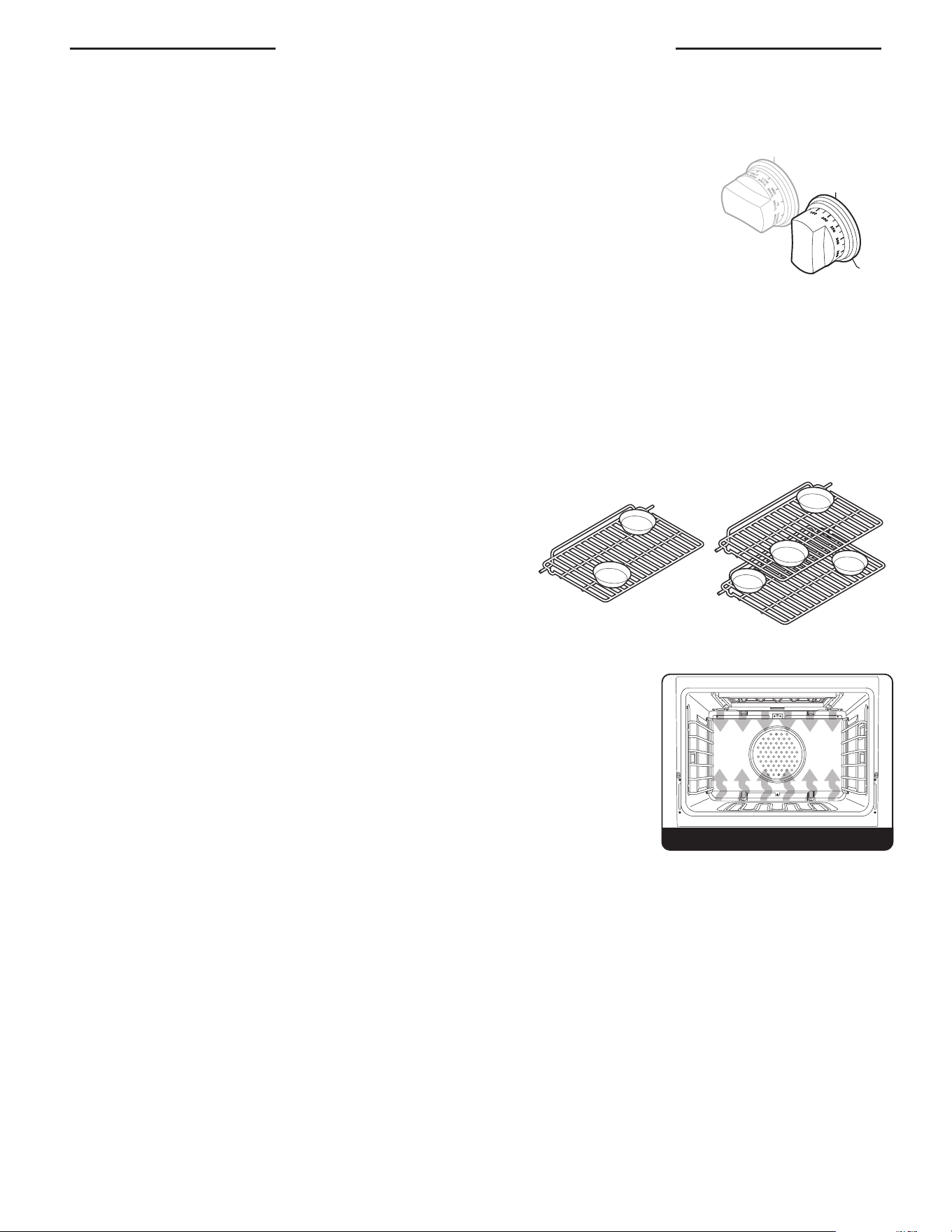

Two element Baking
Because of variations in food density, surface texture and consistency, some foods may be prepared
more successfully using the conventional bake setting. For this reason, conventional baking is
recommended when preparing baked goods such as custard. Full power heat is radiated from the bake
element in the bottom of the oven cavity and supplemental heat is radiated from the broil element.
The user may nd other foods that are also prepared more consistently in conventional bake. It is
recommended to use this function for single-rack baking.
Baking Tips
• Make sure the oven racks are in the desired position before you turn on the oven.
• DO NOT open the door frequently during baking. If you must open the door, the best time is during
the last quarter of the baking time.
• Bake to the shortest time suggested and check for doneness before adding more time. For baked goods, a stainless steel knife placed in the
center of the item should come out clean when done.
• Use the pan size and type recommended by the recipe to ensure best results. Cakes, quick breads, mu ns, and cookies should be baked in shiny,
re ective pans for light, golden crusts. Avoid the use of old, darkened pans. Warped, dented, stainless steel and tin-coated pans heat unevenly and
will not give uniform baking results.
• If baking with a large sheet pan, it is important to note that the large width of the sheet pan has the tendency to restrict the air ow in the oven
cavity. It is recommended to use Convection Bake to help better circulate the heat in the oven cavity when baking with a large sheet pan.
Using the Oven
two-element bake
To use BAKE function
1. Arrange the oven rack in the desired position before turning oven on.
2. Set the oven selector knob to the BAKE function and set the oven temperature control knob to the desired temperature.
3. Close the door. Allow oven to preheat.
4. Once preheated, carefully place prepared item(s) on rack.
5. Close the door. Bake to desired cooking time and/or doneness.
Pan Placement Tips
• When using large (15” x 13”) at pans or trays that cover most of the rack, rack
positions 2 or 3 produce the best results.
• When baking on more than one rack, it is recommended to use one of the
convection modes and the 2nd and 4th positions or the 3rd and 5th positions
for more even baking. When baking on three racks, use any combination of
positions 2, 3, 4, and 5 for more consistent results.
• Stagger pans in opposite directions when two racks and several pans are used
in conventional bake. If possible, no pan should be directly above another.
• Allow 1 to 2 inches of air space around all sides of each pan for even air
circulation.
Single Rack Pan
Placement
Multiple Rack Pan
Placement
Preheat
For best results, it is extremely important that you preheat your oven to the desired cooking temperature before
placing food items in the oven to begin cooking. In many cooking modes, partial power from the broiler is used
to bring the oven to the preheat temperature. Therefore, placing food items in the oven during the preheat mode
is not recommended. The Viking Rapid Ready™ Preheat System is engineered so that the oven is brought to the
desired set temperature in a manner which will provide the optimum cooking environment based on the selected
cooking mode in the shortest possible time.
For instance, the preheat mode for TruConvec™ is designed to be brought up to the set point temperature in a di erent manner than the preheat
mode for conventional bake. This is because TruConvec is designed for multi-rack baking. So it is extremely critical that all rack positions have
reached the desired cooking temperature. As a result, it is normal for oven to take slightly longer for the oven to preheat to 350°F in TruConvec
mode when compared to the amount of time it takes to preheat the oven cavity to 350°F in conventional bake mode. Also, preheat time can
vary based on some external factors such as room temperature and power supply. A signi cantly colder room temperature or a power supply
less than 240 VAC can lengthen the time it takes for the oven to reach the desired set temperature. Rapid Ready Preheat provides one of the
fastest preheat times - so your oven is ready to begin cooking when you are.
OVEN
FUNCTION
OVEN
TEMPERATURE
On the VIR548 models, when running 2 ovens at the same time, they will go into a reduced amp draw mode. This will increase the preheat times
on functions that use preheat. Self-Clean will not be a ected. When using self clean, the other oven will not be functional.
16
Viking Range | 5 Series Electric & Induction Range
Using the Oven
CONVENTIONAL BAKING CHART
Food Pan Size Single Rack
Position
(Lg Oven)
Single Rack
Position
(Sm Oven)
Temperature Time
(min.)
BREADS
Biscuits
Yeast loaf
Yeast rolls
Nut bread
Cornbread
Gingerbread
Mu ns
Corn Mu n
Cookie sheet
Loaf pan
Cookie sheet
Loaf pan
8” x 8”
8” x 8”
Mu n tin
Mu n tin
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
2
2
2
2
2
2
2
2
400˚F (204˚C)
375˚F (191˚C)
400˚F (204˚C)
375˚F (191˚C)
400˚F (204˚C)
350˚F (177˚C)
375˚F (191˚C)
375˚F (191˚C)
10 - 12
30 - 35
12 - 15
30 - 35
25 - 30
35 - 40
15 - 20
15 - 20
CAKES
Angel food
Bundt
Cupcakes
Layer, sheet
Layer, two
Pound
Tube pan
Tube pan
Mu n pan
13” x 9”
9” round
Loaf pan
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
2
2
2
2
2
2
375˚F (191˚C)
350˚F (177˚C)
350˚F (177˚C)
350˚F (177˚C)
350˚F (177˚C)
350˚F (177˚C)
35 - 45
45 - 55
16 - 20
40 - 50
30 - 35
60 - 65
COOKIES
Brownies
Chocolate Chip
Sugar
13” x 9”
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
2
2
2
350˚F (177˚C)
375˚F (191˚C)
375˚F (191˚C)
25 - 30
12 - 15
10 - 12
PASTRY
Cream pu s Cookie sheet 3 or 4 2 400˚F (204˚C) 30 - 35
PIES
Crust, un lled
Crust, lled
Lemon meringue
Pumpkin
Custard
9” round
9” round
9” round
9” round
6-4 oz. cups
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
2
2
2
2
2
400˚F (204˚C)
350˚F (177˚C
350˚F (177˚C
350˚F (177˚C
350˚F (177˚C
10 - 12
55 - 60
12 - 15
35 - 40
35 - 40
ENTREES
Egg rolls
Fish sticks
Lasagna, frozen
Pot pie
Green peppers,stu ed
Quiche
Pizza, 12”
Mac & cheese, frz
Cookie sheet
Cookie sheet
Cookie sheet
Cookie sheet
13” x 9”
9” round
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
2
2
2
2
2
2
2
2
400˚F (204˚C)
425˚F (218˚C)
375˚F (191˚C)
400˚F (204˚C)
375˚F (191˚C)
400˚F (204˚C)
400˚F (204˚C)
375˚F (191˚C)
25 - 30
10 - 15
55 - 60
35 - 40
60 -70
25 - 30
15 - 20
35 - 40
VEGETABLES
Baked potato
Spinach sou e
Squash
French fries
On rack
1 quart
casserole
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
2
2
2
2
375˚F (191˚C)
350˚F (177˚C)
375˚F (191˚C)
425˚F (218˚C)
60 - 65
45 - 50
50 -55
20 - 25
17
Viking Range | 5 Series Electric & Induction Range
Using the Oven

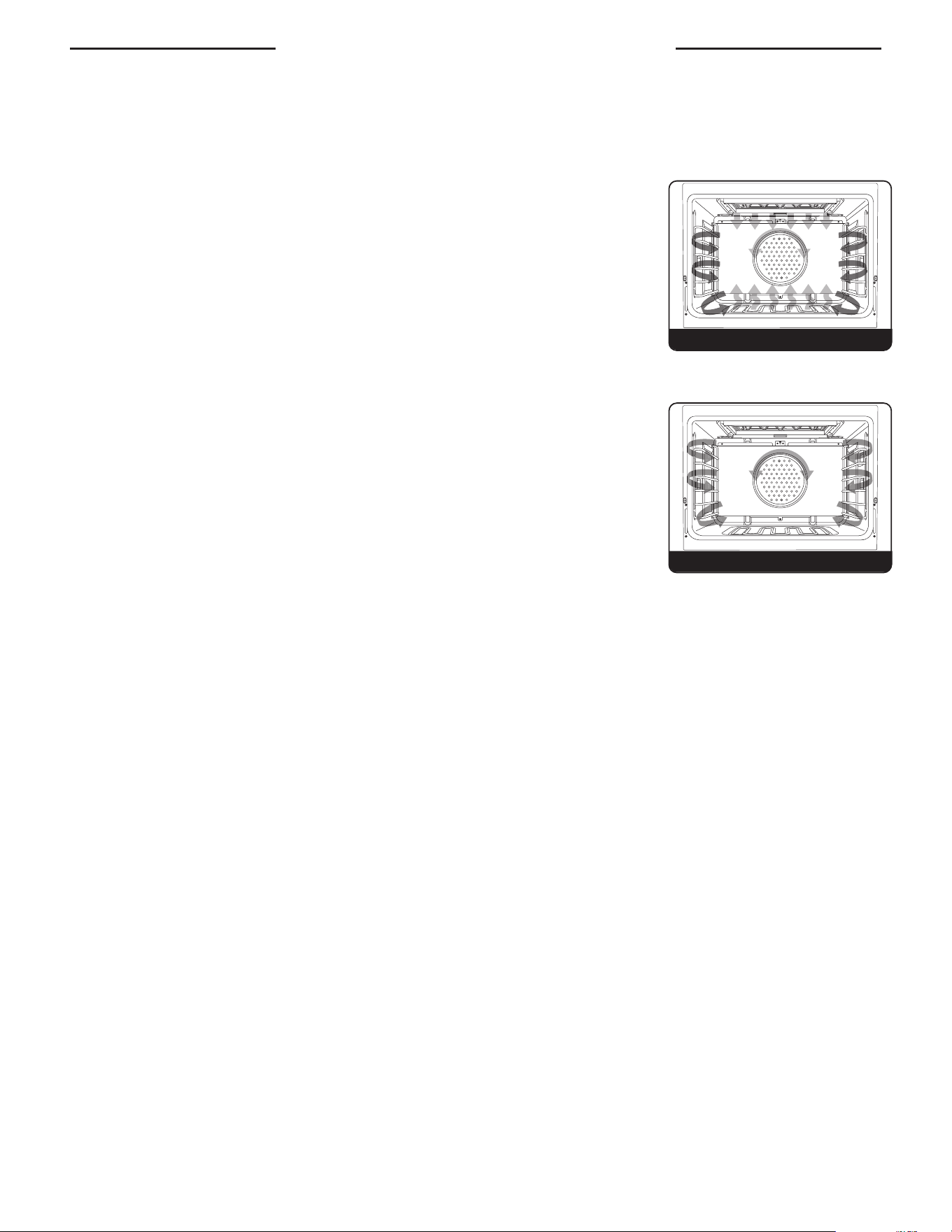

CONV BAKE (Convection Bake)
The bottom element operates at full power, and the top broil element operates at supplemental power.
The heated air is circulated by the motorized fan in the rear of the oven providing a more even heat
distribution. This even circulation of air equalizes the temperature throughout the oven cavity and
eliminates the hot and cold spots found in conventional ovens. A major bene t of convection baking is
the ability to prepare food in quantity using multiple racks—a feature not possible in a standard oven.
When roasting using this setting, cool air is quickly replaced, searing meats on the outside and retaining
more juices and natural avor on the inside with less shrinkage. With this heating method, foods can be
baked and roasted at the same time with minimal taste transfer, even when di erent dishes are involved,
such as cakes, sh or meat. The hot air system is especially economical when thawing frozen food. Use
this setting for baking and roasting.
TRU CONV (TruConvec™)
The rear element only operates at full power. There is no direct heat from the bottom or top elements. The
motorized fan in the rear of the oven circulates air in the oven cavity for even heating. Use this setting for
foods that require gentle cooking such as pastries, sou es, yeast breads, quick breads and cakes. Breads,
cookies, and other baked goods come out evenly textured with golden crusts. No special bakeware
is required. Use this function for single rack baking, multiple rack baking, roasting, and preparation of
complete meals. This setting is also recommended when baking large quantities of baked goods at one
time.
convection bake
TruConvec™
Convection Cooking Tips
• As a general rule, to convert conventional recipes to convection recipes, reduce the temperature by 25°F (10°C) when using a convection
cooking function.
• Cooking times for standard baking and convection baking will be the same. However, if using convection to cook a single item or smaller load,
then it is possible to have 10-15% reduction in cooking time. (Remember convection cooking is designed
for multi-rack baking or cooking large
loads.)
• If cooking items which require longer than 45 minutes, then it is possible to see a 10-15% reduction in cooking time.
• A major bene t of convection cooking is the ability to prepare foods in quantity. The uniform air circulation makes this possible. Foods that can
be prepared on two or three racks at the same time include: pizza, cakes, cookies, biscuits, mu ns, rolls, and frozen convenience foods.
• Items cooked in a convection function can be easily over-baked. This being the case, it is usually a good idea to pull items out of the oven just
before they seem to be done. Items will continue to cook right after they are set out of the oven.
To use CONVECTION BAKE or TruConv function
1. Arrange the oven rack in the desired position before turning oven on.
2. Set the oven selector knob to the convection bake or TruConv function, and set the oven temperature control knob to desired temperature.
3. Close the door. Allow oven to preheat.
4. Once preheated, carefully place prepared item(s) on rack.
5. Close the door. Bake to desired cooking time and/or doneness.
18
Viking Range | 5 Series Electric & Induction Range
CONVECTION BAKING CHART
Food Pan Size Single Rack
Position
(Lg Oven)
Temperature Time
(min.)
BREADS
Biscuits
Yeast loaf
Yeast rolls
Nut bread
Cornbread
Gingerbread
Mu ns
Corn Mu n
Cookie sheet
Loaf pan
Cookie sheet
Loaf pan
8” x 8”
8” x 8”
Mu n tin
Mu n tin
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
375˚F (191˚C)
375˚F (191˚C)
375˚F (191˚C)
350˚F (177˚C)
375˚F (191˚C)
325˚F (163˚C)
350˚F (177˚C)
350˚F (177˚C)
7 - 9
25 - 30
11 - 13
25 - 30
20 - 25
30 - 35
12 - 15
10 - 12
CAKES
Angel food
Bundt
Cupcakes
Layer, sheet
Layer, two
Pound
Tube pan
Tube pan
Mu n pan
13” x 9”
9” round
Loaf pan
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
350˚F (177˚C)
325˚F (163˚C)
325˚F (163˚C)
325˚F (163˚C)
325˚F (163˚C)
325˚F (163˚C)
35 - 45
45 - 55
16 - 20
40 - 50
30 - 35
60 - 65
COOKIES
Brownies
Chocolate Chip
Sugar
13” x 9”
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
325˚F (163˚C)
350˚F (177˚C)
350˚F (177˚C)
20 - 25
7 - 10
7 - 10
PASTRY
Cream pu s Cookie sheet 3 or 4 400˚F (204˚C) 30 - 35
PIES
Crust, un lled
Crust, lled
Lemon meringue
Pumpkin
Custard
9” round
9” round
9” round
9” round
6-4 oz. cups
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
375˚F (191˚C)
325˚F (163˚C)
325˚F (163˚C)
325˚F (163˚C)
7 - 9
50 - 55
10 - 12
45 - 55
ENTREES
Egg rolls
Fish sticks
Lasagna, frozen
Pot pie
Green peppers,stu ed
Quiche
Pizza, 12”
Mac & cheese, frz
Cookie sheet
Cookie sheet
Cookie sheet
Cookie sheet
13” x 9”
Not recommended
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
375˚F (191˚C)
400˚F (204˚C)
350˚F (177˚C)
350˚F (177˚C)
350˚F (177˚C)
375˚F (191˚C)
350˚F (177˚C)
15 - 20
8 - 10
45 - 50
35 - 40
45 - 50
15 - 20
25 - 35
VEGETABLES
Baked potato
Spinach sou e
Squash
French fries
On rack
1 quart casserole
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
350˚F (177˚C)
325˚F (163˚C)
350˚F (177˚C)
400˚F (204˚C)
50 - 55
35 - 40
40 - 45
15 - 20
Using the Oven
19
Viking Range | 5 Series Electric & Induction Range
Solving Baking Problems
Baking problems can occur for many reasons. Check the chart below for the causes and remedies for the most common problems. It is
important to remember that the temperature setting and cooking times you are accustomed to using with your previous oven may vary slightly
from those required with this oven. If you nd this to be true, it is necessary for you to adjust your recipes and cooking times accordingly.
COMMON BAKING PROBLEMS/REMEDIES
Problems Cause Remedy
Cakes burned on the sides
or not done in center
1. Oven was too hot
2. Wrong size pan
3. Too many pans
1. Reduce temperature
2. Use recommended pan size
3. Reduce number of pans
Cakes crack on top 1. Batter too thick
2. Oven too hot
3. Wrong pan size
1. Follow recipe, add liquid
2. Reduce temperature
3. Use recommended pan size
Cakes are not level 1. Batter uneven
2. Oven or rack not level
3. Pan was warped
1. Distribute batter evenly
2. Level oven or rack
3. Use proper pan
Food too brown on
bottom
1. Oven door opened too often
2. Dark pans being used
3. Incorrect rack positions
4. Wrong bake setting
5. Pan too large
1. Use door window to check food
2. Use shiny pans
3. Use recommended rack position
4. Adjust to conventional or convection setting as needed.
5. Use proper pan
Food too brown on top 1. Rack position too high
2. Oven not preheated
3. Sides of pan too high
1. Use recommended rack position
2. Allow oven to preheat
3. Use proper pans
Cookies too at 1. Hot cookie sheet 1. Allow sheet to cool between batches
Pies burned around edges 1. Oven too hot
2. Too many pans used
3. Oven not preheated
1. Reduce temperature
2. Reduce number of pans
3. Allow oven to preheat
Pies too light on top 1. Oven not hot enough
2. Too many pans used
3. Oven not preheated
1. Increase temperature
2. Reduce number of pans
3. Allow oven to preheat
Using the Oven
20
Viking Range | 5 Series Electric & Induction Range
CONV ROAST* (Convection Roast)
The convection element runs in conjunction with the inner and outer broil elements. The reversible convection fan runs at a higher speed in
each direction. This transfer of heat (mainly from the convection element) seals moisture inside of large roasts. A time savings is gained over
existing, single fan convection roast modes. Use this setting for whole turkeys, whole chickens, hams, etc. *Note: This function uses a high-speed
convection fan for optimum cooking performance. Some noise may be noticed from this high fan speed. This is normal. You can also roast foods
using bake settings. See the “Baking” section for additional information.
Roasting Tips
ALWAYS use a broiler pan and grid. The hot air must be allowed to circulate around the item being roasted. Do not cover what is being roasted.
Convection roasting seals in juices quickly for a moist, tender product. Poultry will have a light, crispy skin and meats will be browned, not dry or
burned. Cook meats and poultry directly from the refrigerator. There is no need for meat or poultry to stand at room temperature.
• As a general rule, to convert conventional recipes to convection recipes, reduce the temperature by 25˚ F (-3.9˚ C) and the cooking time by
approximately 10 to 15%.
• ALWAYS roast meats fat side up in a shallow pan using a roasting rack. No basting is required when the fat side is up. DO NOT add water to the
pan as this will cause a steamed e ect. Roasting is a dry heat process.
• Poultry should be placed breast side up on a rack in a shallow pan. Brush poultry with melted butter, margarine, or oil before and during
roasting.
• For convection roasting, DO NOT use pans with tall sides as this will interfere with the circulation of heated air over the food.
• If using a cooking bag, foil tent, or other cover, use the conventional bake setting rather than either convection setting.
• When using a meat thermometer, insert the probe halfway into the center of the thickest portion of the meat. (For poultry insert the
thermometer probe between the body and leg into the thickest part of the inner thigh.) The tip of the probe should not touch bone, fat,
or gristle to ensure an accurate reading. Check the meat temperature halfway through the recommended roasting time. After reading the
thermometer once, insert it 1⁄2 inch (1.3 cm) further into the meat, then take a second reading. If the second temperature registers below the
rst, continue cooking the meat.
• Roasting times always vary according to the size, shape and quality of meats and poultry. Less tender cuts of meat are best prepared in the
conventional bake setting and may require moist cooking techniques. Remove roasted meats from the oven when the thermometer registers 5˚
F (-15˚ C) to 10˚ F (-12˚ C) lower than the desired doneness. The meat will continue to cook after removal from the oven. Allow roasts to stand 15
to 20 minutes after roasting in order to make carving easier.
Using the Oven
CONVECTION ROASTING CHART
Food Weight Time (min/lb) Temperature
BEEF
Rib Roast
Rare
Medium
Well Done
Rump Roast
Medium
Well Done
Tip Roast
Medium
Well Done
4-6 lbs
4-6 lbs
4-6 lbs
4-6 lbs
4-6 lbs
3-4 lbs
3-4 lbs
25
24
30
20
24
30
35
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
LAMB
Lamb Leg 3-5 lbs 30 325˚ F (163˚ C)
PORK
Pork Loin
Pork Chops (1” thick)
Ham (fully cooked)
3-5 lbs
1 lb
5 lbs
30
45-50 total time
15
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
POULTRY
Chicken, whole
Turkey, unstu ed
Turkey
Turkey, stu ed
Turkey, stu ed
Turkey breast
3-4 lbs
12-16 lbs
20-24 lbs
12-16 lbs
20-24 lbs
4-6 lbs
25
11
11
9-10
9-10
20
350˚F (177˚C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
325˚ F (163˚ C)
21
Viking Range | 5 Series Electric & Induction Range
Using the Oven

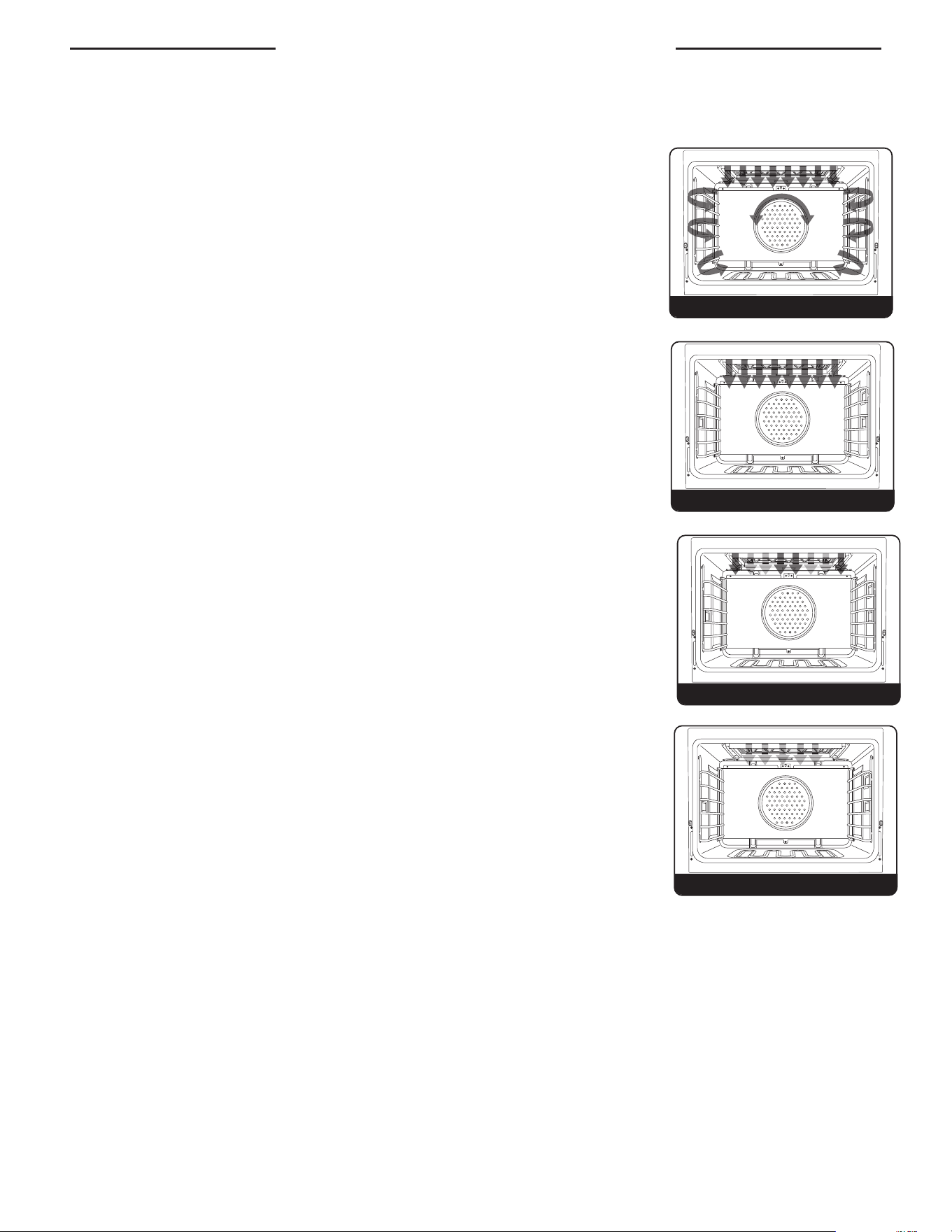

CONV BROIL* (Convection Broil)
The top element operates at full power. This function is exactly the same as regular broiling with the
additional bene t of air circulation by the motorized fan in the rear of the oven. Smoke is reduced since
the air ow also reduces peak temperatures on the food. Use this setting for broiling thick cuts of meats.
*Note: This function uses a high-speed convection fan for optimum cooking performance. Some noise
may be noticed from this high fan speed. This is normal.
HI BROIL
Heat radiates from both broil elements, located in the top of the oven cavity, at full power. The distance
between the foods and the broil elements determines broiling speed. For fast broiling, food may be
as close as 2 inches (5 cm) to the broil element. Fast broiling is best for meats where rare to medium
doneness is desired. Use this setting for broiling small and average cuts of meat.
MED BROIL
Inner and outer broil elements pulse on and o to produce less heat for slow broiling. Allow about 4 inches
(10 cm) between the top surface of the food and the broil element. Slow broiling is best for chicken and
ham in order to broil food without over-browning it. Use this setting for broiling small and average cuts of
meat.
LOW BROIL
This mode uses only a fraction of the available power to the inner broil element for delicate top-browning.
The inner broil element is on for only part of the time. Use this setting to gently brown meringue on racks
3 or 4 in 3-4 minutes.
convection broil
High Broil
Medium Broil
Low Broil
Broiling Instructions
Broiling is a dry-heat cooking method using direct or radiant heat. It is used for small, individualized cuts such as steaks, chops, and patties.
Broiling speed is determined by the distance between the food and the broil element. Choose the rack position based on desired results.
Conventional broiling (LOW, MED or HI BROIL) is most successful for cuts of meat 1-2 inches thick and is also more suitable for at pieces of meat.
Convection broiling has the advantage of broiling food slightly quicker than conventional. Convection broiling of meats produces better results,
especially for thick cuts. The meat sears on the outside and retains more juices and natural avor inside with less shrinkage.
NOTE: On the VIR548 models, there is not a detent to hold the door in the open broil stop position. When the door is opened, the broil
element will shut o .
1. Arrange the oven rack in the desired position before turning broiler on.
2. Center the food on cold broiler pan and grid. Place broiler pan in oven.
3. Set the oven function selector to desired broiling function and the temperature control knob to “Broil”.
4. Close the door. There is not a detent to hold the door in the open broil stop position. The broil element on the 30” and 36” models does not
cycle on and o . With closed door broiling the broil element might cycle on and o if an extended broiling time is required. A built-in smoke
“eliminator” in the top of the oven helps reduce smoke and odors during closed door broiling.
22
Viking Range | 5 Series Electric & Induction Range
Using the Oven
BROILING CHART
Type and Cut of Meat Weight Setting Rack Time (min.)
BEEF
Sirloin, 1”
Rare
Medium
Well done
T-Bone, 3/4”
Rare
Medium
Well done
Hamburger, 1/2”
Medium
Well done
12 oz.
12 oz.
12 oz.
10 oz.
10 oz.
10 oz.
1/4 lb.
1/4 lb.
Broil
Broil
Broil
Broil
Broil
Broil
Broil
Broil
3
3
3
3
3
3
3
3
4
5
6
4
6
8
6
8
CHICKEN
Boneless breast, 1”
Boneless breast, 1”
Bone-in breast
Bone-in breast
Chicken pieces
Chicken pieces
1/2 lb.
1/2 lb.
2 - 3 lbs. total
2 - 3 lbs. total
2 - 3 lbs. total
2 - 3 lbs. total
Broil
Convection Broil
Broil
Convection Broil
Broil
Convection Broil
3
3
1
1
3
3
15
15
22
20
22
20
HAM
Ham slice, 1”
1 lb. Broil 3 10
LAMB
Rib chops 12 oz. Convection Broil 2 8
PORK
Loin chops, 3/4”
Bacon
1 lb. Convection Broil
Broil
2
2
10
3
FISH
Salmon steak
Fillets
1 lb.
1 lb.
Broil
Broil
2
2
8
8
Broiling Tips
• ALWAYS use a broiler pan and grid for broiling. They are designed to provide drainage of excess liquid and fat away from the cooking surface to
help prevent splatter, smoke, and re.
• To keep meat from curling, slit fatty edge.
• Brush chicken and sh with butter several times as they broil to prevent drying out. To prevent sticking, lightly grease broiler tray.
• Broil on rst side for slightly more than half the recommended time, season, and turn. Season second side just before removing.
• ALWAYS pull rack out to stop position before turning or removing food.
• Use tongs or a spatula to turn meats. Never pierce meat with a fork, as this allows the juices to escape.
• Remove the broiler pan from the oven when you remove the food. Drippings will bake onto the pan if it is left in the heated oven after broiling.
While pan is hot, place damp paper towel over grid. Drizzle with liquid dishwashing detergent and pour water over grid. This will make cleaning
of the pan easier, or the broiler pan can be lined with aluminum foil to make cleaning easier. Be sure the foil extends up the side of the pan.
Although it is not recommended, the grid can also be covered with foil. Be sure to slit openings to conform with the openings in the grid so
melted fat can drain through to prevent spattering, smoking, or the possibility of grease re.

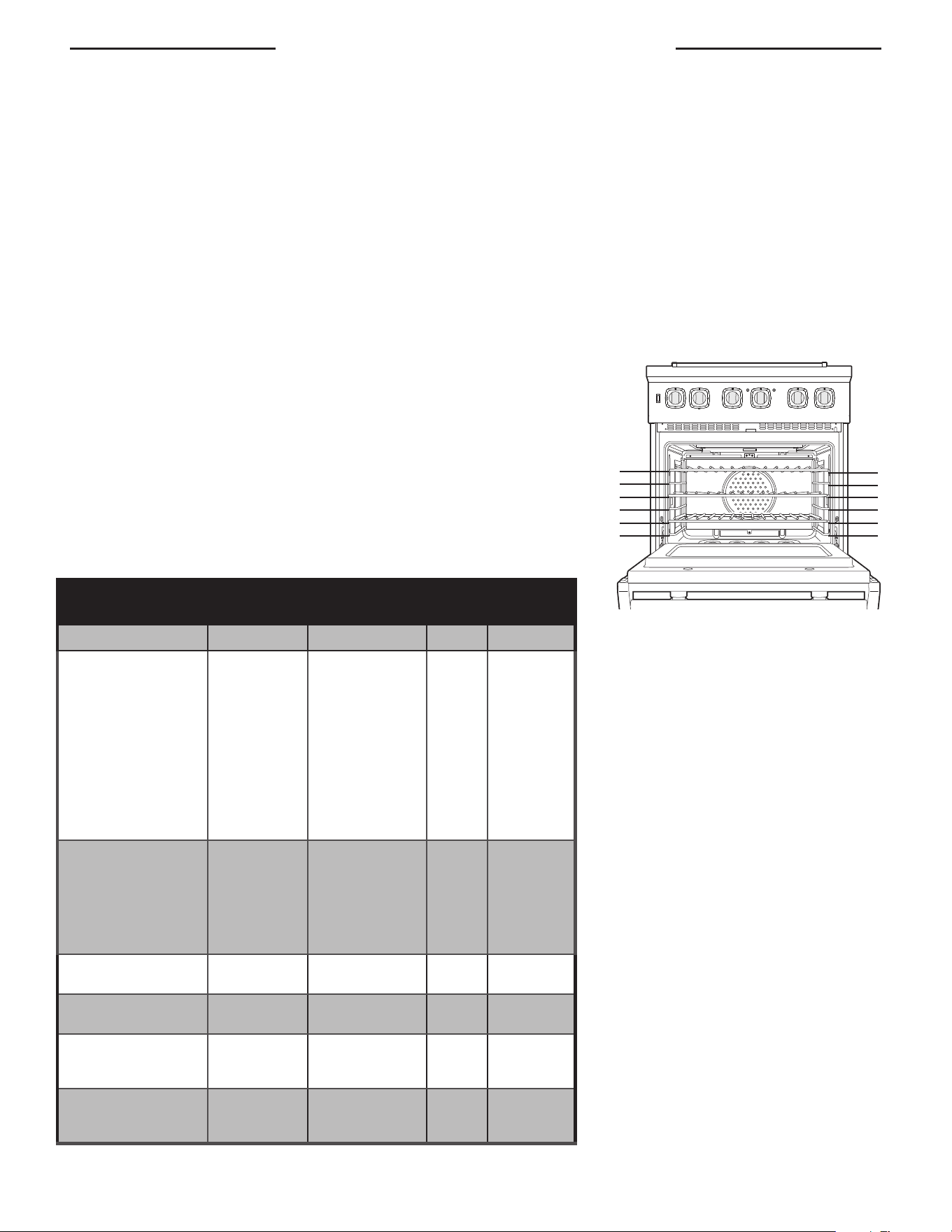

Rack Positions for Broiling
The broiler uses heat rays to help cook the food. Because these rays travel only in
straight lines, the e ective cooking area of the broiler is reduced when using the
higher rack position. At high-rack positions, the rays cannot reach all corners of the
broiler grid, so larger pieces of meat might not broil su ciently at the outer edges.
The e ective cooking areas on the broiler grid for each rack position is shown
Note: Position 6 is the closest to the broiler and position 1 is the closest to the oven
bottom.
25%
35%
50%
65%
80%
95%
6
5
4
3
2
1
23
Viking Range | 5 Series Electric & Induction Range
Any piece of equipment works better and lasts longer when maintained properly and kept clean. Cooking equipment is no exception. Your range
must be kept clean and maintained properly. Before cleaning, make sure all controls are in the “OFF” position. Disconnect power if you are going
to clean thoroughly with water.
WARNING
BURN OR ELECTRICAL SHOCK HAZARD
Make sure all controls are OFF and oven is COOL
before cleaning. Failure to do so can result in burns or
electrical shock
Cleaning and Maintenance
Glass Ceramic Top
Cleaning of glass ceramic tops is di erent from cleaning a standard porcelain nish. To maintain and protect the surface of your new glass
ceramic top, follow these basic steps:
For normal light soil:
Rub a few drops of a glass ceramic cream to the cool soiled area using a damp paper towel. Wipe until all soil and cream are removed. Frequent
cleaning leaves a protective coating which is essential in preventing scratches and abrasions.
For heavy, burned soil:
1. Apply a few drops of glass ceramic cleaning cream to the cool soiled area.
2. Using a damp paper towel, rub cream into burned on area.
3. Carefully scrape remaining soil with a razor scraper. Hold the scraper at a 30° angle against the ceramic surface.
4. If any soil remains, repeat the steps listed above. For additional protection, after all soil has been removed, polish the entire surface with the
cleaning cream.
5. Bu with a dry paper towel. As the cleaning cream cleans, it leaves a protective coating on the glass surface. This coating helps to prevent
build-up of mineral deposits (water spots) and will make future cleaning easier. Dishwashing detergents remove this protective coating and
therefore make the glass ceramic top more susceptible to staining.
Convection Dehydrate
This oven is designed not only to cook, but also to dehydrate fruits and
vegetables.
1. Prepare the food as recommended.
2. Arrange the food on drying racks (not included with the oven; contact a
local store handling specialty cooking utensils).
3. Set the appropriate low temperature and turn the selector to “TruConv”.
Convection Defrost
1. Place the frozen food on a baking sheet.
2. Set the temperature control to “OFF”.
3. Turn the selector to “TRU CONV”.
CAUTION
You must carefully check the food during the dehydration
process to ensure that it does not catch re.
CAUTION
DO NOT turn the temperature control on during defrosting.
Turning the convection fan on will accelerate the natural
defrosting of the food without the heat. To avoid sickness and
food waste, DO NOT allow defrosted food to remain in the oven
for more than two hours.
Using the Oven
24
Viking Range | 5 Series Electric & Induction Range
Cleaning Problems on Glass Tops
Problem Cause To Prevent To Remove
Brown streaks and
specks
Cleaning with sponge or cloth
containing soil laden detergent
water.
Use cleaning cream with clean
damp paper towel.
Use a light application of cleaning cream with
a clean damp paper towel.
Blackened burned on
spots
Spatters or spillovers onto a hot
cooking area or accidental melting
of a plastic lm, such as a bread
bag.
Wipe all spillovers as soon as it
is safe and DO NOT put plastic
items on a warm cooking area.
Clean area with cleaning cream and a damp
paper towel, non-abrasive nylon pad or
scouring brush. If burn-on is not removed,
cool cooktop, and carefully scrape area with a
single- edged razor blade held at a 30° angle.
Fine brown/gray lines,
ne scratches, or
abrasions which have
collected soil
Coarse particles (salt, sugar) can
get caught on the bottom of
cookware and become embedded
into top.
Use of abrasive cleaning materials.
Wipe the bottom of cookware
before cooking. Clean top daily
with cleaning cream. DO NOT
use abrasive cleaning materials
Fine scratches are not removable but can be
minimized by daily use of cleaning cream.
Smearing or streaking Use of too much cleaning cream
or use of a soiled dishcloth.
Use a small amount of cream.
Rinse thoroughly before
drying. Use only paper towels
or nylon scrub pad or brush.
Dampen paper towel with a mixture of
vinegar and water and wipe surface.
Wipe area with damp paper towel or lint free
cloth.
Hard water spots Condensation from cooking may
cause minerals found in water
and acids to drip on glasstop and
cause gray deposits. The spots are
often so thin they appear to be in
or the glasstop.
Make sure the bottom of
utensils are dry before cooking.
Daily use of cleaning cream will
help keep top free from hard
water mineral deposits and
food discoloration.
Mix cleaning cream with water and apply a
thick paste to stained area. Scrub vigorously.
If stain is not removed, reapply cleaner and
repeat process. Also try cleaning procedure
for smearing and streaking.
Cleaning and Maintenance
Control Panel
DO NOT use any cleaners containing ammonia or abrasives. They could remove the graphics from the control panel. Use hot, soapy water and
a soft clean cloth.
Oven Surfaces
Several di erent nishes have been used in your electric oven. Cleaning instructions for each surface are given below. The oven features a
self-clean cycle for the oven interior. See the “Self-Clean Cycle” section for complete instructions. NEVER USE AMMONIA, STEEL WOOL PADS OR
ABRASIVE CLOTHS, CLEANSERS, OVEN CLEANERS, OR ABRASIVE POWDERS. THEY CAN PERMANENTLY DAMAGE YOUR OVEN.
Control Knobs
MAKE SURE ALL CONTROL KNOBS POINT TO THE “OFF” POSITION BEFORE REMOVING. Pull the knobs straight o . Wash in detergent and warm
water. Dry completely and replace by pushing rmly onto stem.
Stainless Steel Parts
All stainless steel body parts should be wiped regularly with hot soapy water at the end of each cooling period and with a liquid cleaner
designed for that material when soapy water will not do the job. DO NOT use steel wool, abrasive cloths, cleansers, or powders. If necessary,
scrape stainless steel to remove encrusted materials, soak the area with hot towels to loosen the material, then use a wooden or nylon spatula or
scraper. DO NOT use a metal knife, spatula, or any other metal tool to scrape stainless steel. DO NOT permit citrus or tomato juice to remain
on stainless steel surface, as citric acid will permanently discolor stainless steel. Wipe up any spills immediately.
Oven Racks
Clean with detergent and hot water. Stubborn spots can be scoured with a soap- lled steel wool pad. DO NOT CLEAN THE OVEN RACKS USING
THE SELF-CLEAN CYCLE. They could sustain damage due to the extreme heat of the self-clean cycle.
25
Viking Range | 5 Series Electric & Induction Range
Cleaning and Maintenance
This oven features an automatic pyrolytic self-cleaning cycle. During this cycle, the oven reaches elevated temperatures in order to burn o soil
and deposits. An integral smoke eliminator helps reduce odors associated with the soil burn-o . A powder ash residue is left in the bottom of
the oven after completion of the self-clean cycle. The door latch is automatically activated after selecting the self-clean setting. The latch ensures
that the door cannot be opened while the oven interior is at clean temperatures.
Before starting the Self-Clean cycle:
1. Remove the oven racks, and any other items/utensils from the oven. The high heat generated during the cleaning cycle can discolor, warp,
and damage these items. DO NOT use foil or liners in the oven. During the self-clean cycle foil can burn or melt and damage the oven surface.
2. Wipe o any large spills from the oven bottom and sides. NEVER use oven cleaners inside a self-cleaning oven or on raised portions of the
door.
3. Some areas of the oven must be cleaned by hand before the cycle begins. Soils in these areas will be baked on and very di cult to clean if
not removed rst. Clean the door up to the gasket, the door frame, and up to 2 inches inside the frame with detergent and hot water. Rinse
thoroughly and dry.
Self-Clean Cycle
WARNING
This range features a self-cleaning cycle. During this cycle, the
oven reaches elevated temperatures in order to burn o soil and
deposits.
A powder ash residue is left in the bottom of the oven after
completion of the self-clean cycle.
NOTE: DO NOT use commercial oven cleaners inside the oven. Use
of these cleaners can produce hazardous fumes or can damage the
porcelain nishes. DO NOT line the oven with aluminum foil or other
materials. These items can melt or burn during a self-clean cycle,
causing permanent damage to the oven.
CAUTION
DO NOT touch the exterior portions of the oven
after self-cleaning cycle has begun, since some parts
become extremely hot to the touch!
During the rst few times the self-cleaning feature is
used, there may be some odor and smoking from the
“curing” of the binder in the high-density insulation
used in the oven. When the insulation is thoroughly cured, this odor
will disappear. During subsequent self-cleaning cycles, you may
sense an odor characteristic of high temperatures.
KEEP THE KITCHEN WELL-VENTED DURING THE SELF-
CLEAN CYCLE.

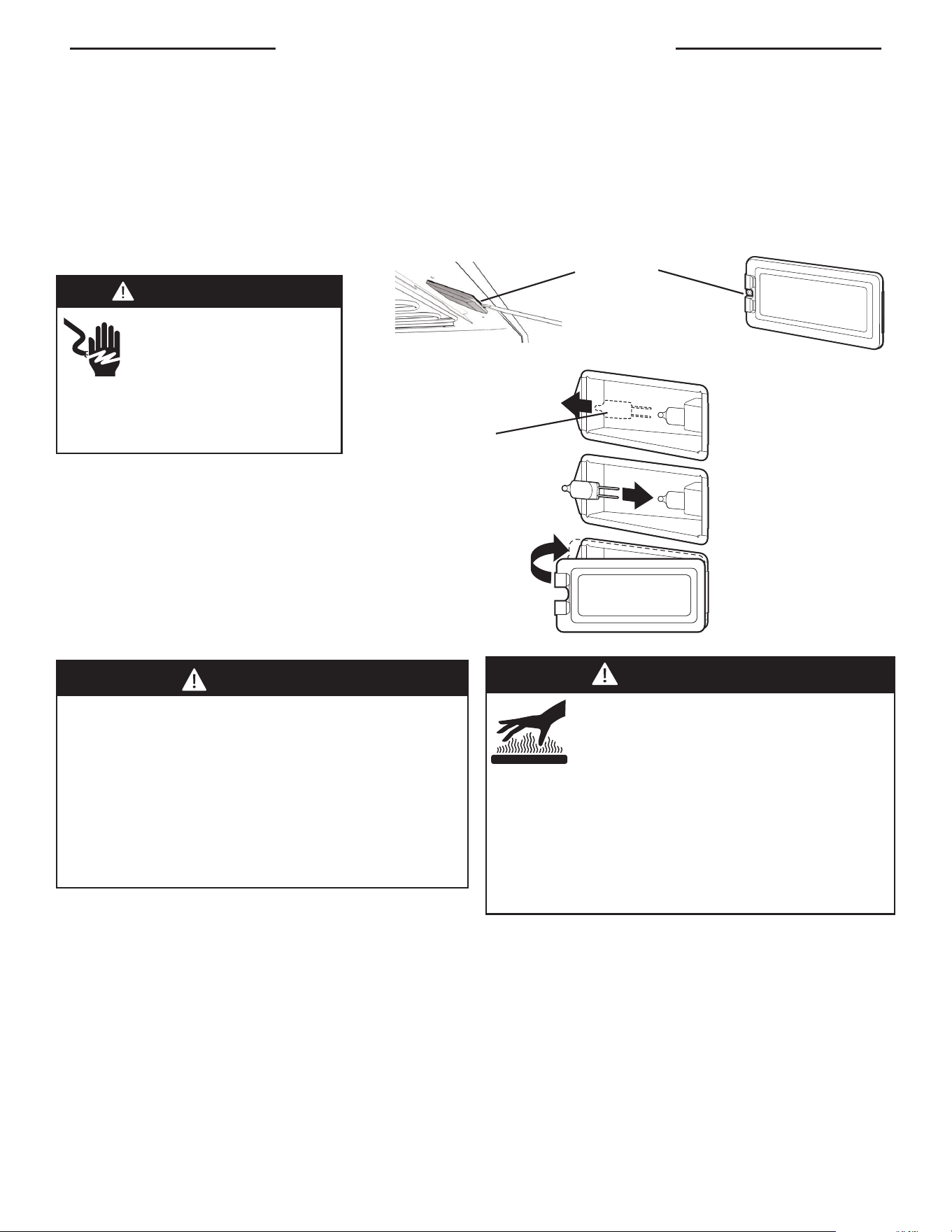

1. Unsnap glass light cover using a screwdriver in
the access groove.
2. Firmly grasp light bulb and pull out.
3. Replace with 120V/25W halogen bulb.
4. Replace the light cover by snapping glass cover
onto metal box.
5. Reconnect power at the main fuse or circuit
breaker.
Replacing the Oven Lights
access groove
light bulb
ELECTRICAL SHOCK HAZARD
Disconnect the electric power at the
main fuse or circuit breaker before
replacing the bulb.
To avoid risk of personal injury, DO NOT touch
the light bulb with bare hands. Clean o any
signs of oil from the bulb and handle with a soft
cloth.
Power Failure
No attempt should be made to operate the appliance during a power failure. Make sure the oven control is in the “OFF” position. Momentary
power failure can occur unnoticed. The range is a ected only when the power is interrupted. When it comes back on, the range will function
properly without any adjustments. A “brown-out” may or may not a ect range operation, depending on how severe the power loss is. If the
range is in the self-clean cycle when the power failure occurs, wait until power is restored and allow door to unlock automatically. Turn all
controls o and restart self-clean cycle again, according to instructions.
WARNING
Upper Light Cover
Side Light Cover
26
Viking Range | 5 Series Electric & Induction Range

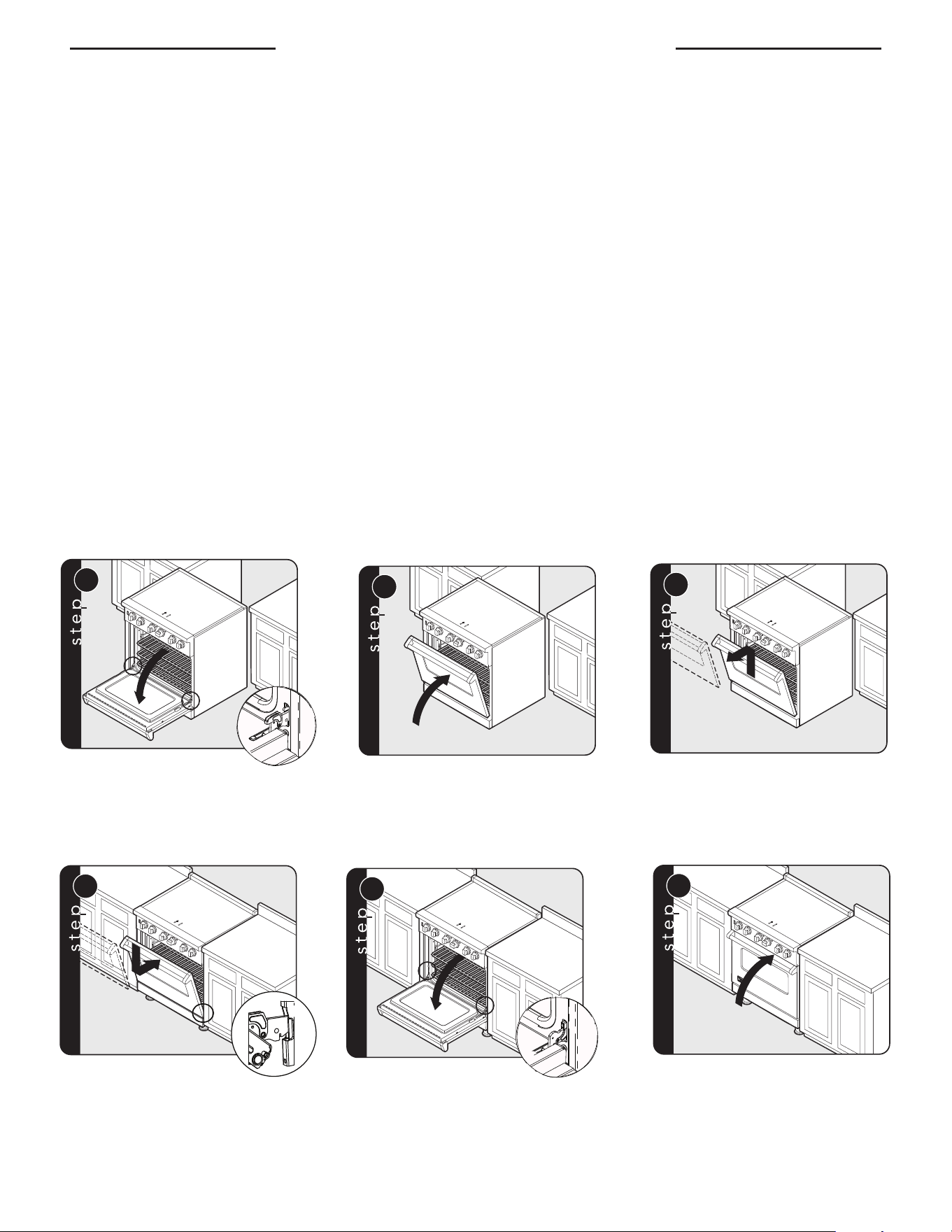

Door Removal
Open oven door completely.
Fold latches backward until locked in place
Slowly close until latches stop door
Lift door up and out.
1
2
3
Door Replacement
Carefully realign door on hinges.
Slide in and down.
Open oven door completely.
Fold latches forward until locked in place
Close door.
1
2
1
2
3
To start the Self-Clean cycle:
1. Close the door completely.
2. Turn the oven selector knob clockwise to the “SELF CLEAN” mode.
3. Turn the temperature control knob to “SELF CLEAN”. At this time, the clean indicator light will come on indicating that the door lock
procedure has begun. Once the lock is fully engaged, the cycle light will illuminate indicating the Self Clean cycle has started. Once the self
clean temperature is reached, the cycle light will turn on and o as heat is applied.
4. The oven indicator light will remain on until the self-clean is completed or interrupted and the oven temperature drops to a safe temperature.
A complete cycle is approximately 3-1/2 hours with an additional 30 minutes needed for the oven to cool down enough for the door latch to
disengage. Note: A fan noise will be heard during the self-clean cycle and will continue to run for the 3-1/2 hour duration of the self-clean
cycle.
5. When the cycle is completed, turn both the oven selector and temperature control knob to the “OFF” position. When the oven has completely
cooled, open door and remove any ash from the oven surfaces with a damp cloth.
To stop the Self-Clean cycle:
To cancel or interrupt the self-cleaning cycle, turn both the temperature control knob and the oven function selector knob to “OFF”. When the
oven temperature drops to a safe temperature, the automatic door latch will release and the oven door can be opened. When the oven has
completely cooled, remove any ash from the oven surfaces with a damp sponge or cloth.
Cleaning and Maintenance
27
Viking Range | 5 Series Electric & Induction Range
Service Information
If service is required, call your authorized service agency.
Have the following information readily available:
• Model number
• Serial number
• Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to
have service problems, contact 1-888-845-4641, or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930
Record the information indicated below. You will need it if service is ever required.

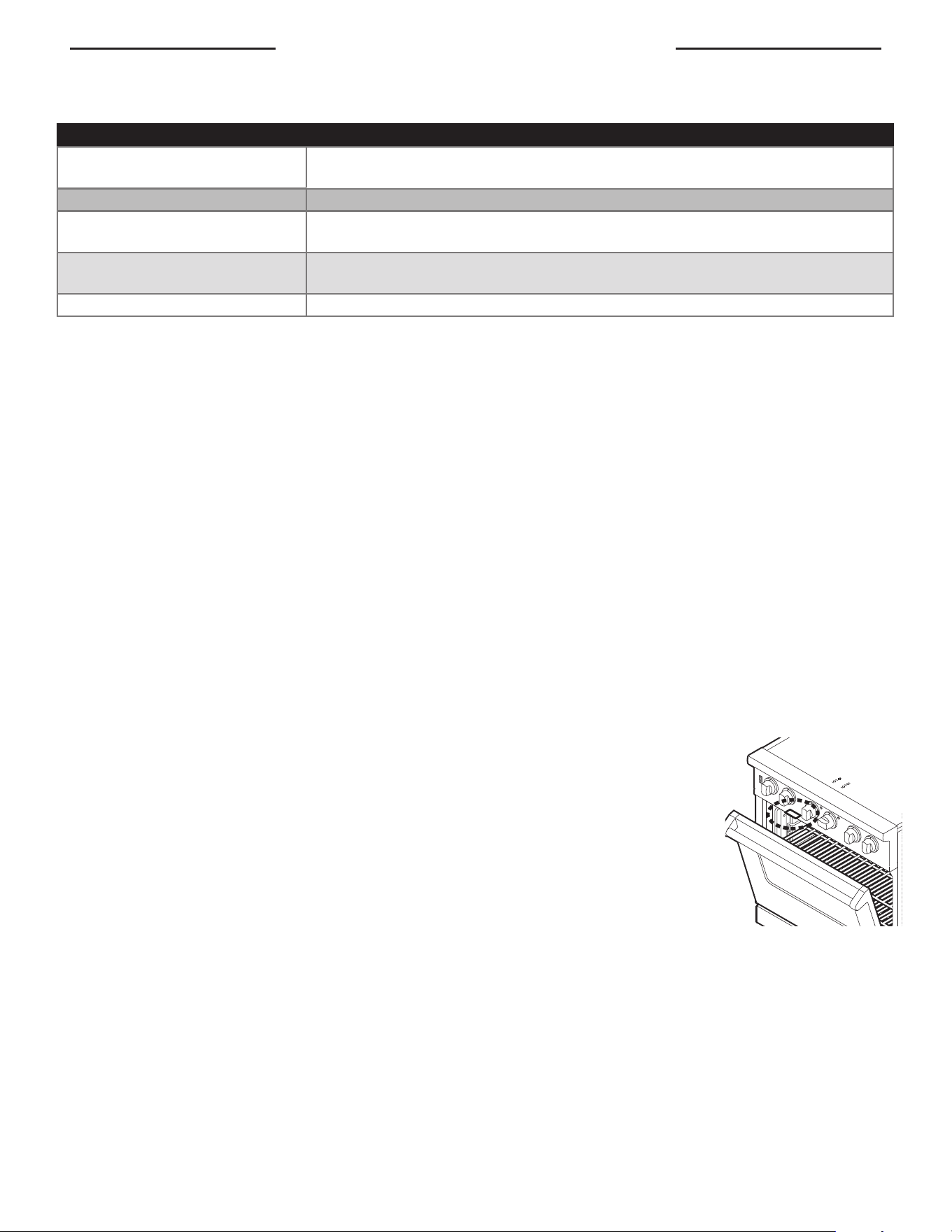

The model and serial number for your range can be found by opening door and looking under the control panel.
Record the following information indicated below. You will need it if service is ever required.
Model no. _____________________ _______________ Serial no. __________________________________________
Date of purchase ______________________________ Date installed ______________________________________
Dealer’s name _______________________________________________________________________________________________
Address ____________________________________________________________________________________________________
___________________________________________________________________________________________________________
If service requires installation of parts, use only authorized parts to insure protection under the warranty.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
Problem Possible Cause and/or Remedy
Range will not function. Range is not connected to electrical power: Have electrician check power circuit breaker, wiring,
and fuses.
Broil does not work. Temperature control knob is rotated too far past broil position.
Oven light will not work. Light bulb is burned out.
Range is not connected to power.
Door will not open after self-clean cycle Oven is still in self-clean mode. If oven is hot, door latch will release when safe temperature is
reached.
Oven does not operate in self-clean Door is not shut tight enough for automatic door latch to lock.
Troubleshooting
Material Compatibility Detector - Induction Ranges
If the pan’s material or its dimensions are not suitable, the pan indicator will ash and the unit will not cycle on.
Small Object Detector - Induction ranges
The induction range will not recognize any object or utensil smaller than 2 inches in diameter. For best results, use pans that are between 5” (13
cm) and 12” (31 cm) in diameter.
Viking Range | 5 Series Electric & Induction Range
VIKING RANGE, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662)455-1200
For more product information , call 1-888-845-4641,
or visit our web site www.vikingrange.com
073520-000E EN
(021525)
