Hot Water Dispensers
Precision Water Systems
For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
46819.0002 C 12/24 © 2014 - 2024 Bunn-O-Matic Corporation
INSTALLATION & OPERATING GUIDE
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
www.bunn.com
H5E, H5M, H5-PC, H5X
®
, H10X
®
, HW2, H3 Element
®
,
H5 Element
®
, H5X with Ambient Side Dispense
2
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All coffee and tea dispensers/servers, MCR/MCP/MCA single cup brewers, and BUNNlink
®
electronic circuit and/or
control boards – 1 year parts and 1 year labor.
2) Product-specific warranties for Premia
™
,Crescendo
®
, Fast Cup
®
, Sure Immersion
®
, Sure Tamp
®
and others – 1 year
parts and 1 year labor. Please visit commercial.bunn.com/support/warranty-lookup for further details.
3) All other equipment – 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards – parts and labor for 3 years.
b) Compressors on refrigeration equipment – 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment for 4 years or 40,000 pounds of coffee, whichever comes first.
4) For customers subscribed to BUNNlink
®
, BUNN reserves the right to periodically auto-push critical software
updates that will enhance functionality or performance of the BUNN equipment, unless the customer requests
advance notice of such software updates from BUNN in writing.
These warranty periods run from the date of installation. BUNN warrants that the equipment manufactured by it will
be commercially free of defects in material and workmanship existing at the time of manufacture and appearing
within the applicable warranty period. This warranty does not apply to any equipment, component or part that was
not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper
installation or operation, improper maintenance or repair, non periodic cleaning and descaling, equipment failures
related to poor water quality, damage or casualty. In addition, the warranty does not apply to replacement of items
subject to normal wear with use including but not limited to user replaceable parts such as seals and gaskets. This
warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by
telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested
by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN.
Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be
relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE
SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT
BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss
of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment,
facilities or services, or any other special, incidental or consequential damages.
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
3
CONTENTS
NORTH AMERICAN REQUIREMENTS ....................................................................................................................4
CE REQUIREMENTS ................................................................................................................................................4
INTRODUCTION .......................................................................................................................................................5
USER NOTICES ........................................................................................................................................................ 6
ELECTRICAL REQUIREMENTS ...............................................................................................................................7
ELECTRICAL HOOK-UP ........................................................................................................................................... 7
PLUMBING REQUIREMENTS .................................................................................................................................. 8
Plumbing Hook-Up .................................................................................................................................................8
INITIAL SETUP .........................................................................................................................................................8
H5E, H5X, H5-PC, H10X, H3/5 Element ................................................................................................................8
H5X with Side Ambient Dispenser .........................................................................................................................9
H5M ........................................................................................................................................................................9
HW2 .......................................................................................................................................................................9
OHW.....................................................................................................................................................................10
Normal Use ..........................................................................................................................................................10
OPERATING CONTROLS ....................................................................................................................................... 11
H5 Portion Control Only .......................................................................................................................................11
ADJUSTING DISPENSE VOLUMES ................................................................................................................ 11
PROGRAMMING .................................................................................................................................................... 12
H5-E, H5-PC, H5X, H10X ....................................................................................................................................12
Level 1 Programming ...........................................................................................................................................12
Level 2 Programming ...........................................................................................................................................13
H1 - DISPENSE TEMPERATURE LOCKOUT..................................................................................................13
H2 - F° OR C° SELECTION .............................................................................................................................. 13
H3 - RESTORING FACTORY DEFAULTS ....................................................................................................... 13
H5 ELEMENT .......................................................................................................................................................14
Level 2 Programming ...........................................................................................................................................16
H2 - F° OR C° SELECTION .............................................................................................................................. 16
H3 - RESTORING FACTORY DEFAULTS ....................................................................................................... 16
H3E ELEMENT ....................................................................................................................................................17
Level 2 Programming ...........................................................................................................................................19
H1 - DISPENSE LOCKOUT ..............................................................................................................................19
H2 - C° OR F° SELECTION .............................................................................................................................. 19
H3 - RESTORING FACTORY DEFAULTS ....................................................................................................... 19
DRAINING THE DISPENSER .................................................................................................................................22
OHW.....................................................................................................................................................................22
ALL 2, 3 & 5 GALLON MODELS ..........................................................................................................................22
10 GALLON MODELS..........................................................................................................................................22
CLEANING ..............................................................................................................................................................23
WALL MOUNTED INSTALLATION - 5 GALLON MODELS ONLY ......................................................................23
SUPPORT FOR LARGE RECEPTACLES ...........................................................................................................23
4
CE REQUIREMENTS
• This appliance must be installed in locations where it can be overseen by trained personnel.
• For proper operation, this appliance must be installed where the temperature is between
5°C to 35°C.
• Appliance shall not be tilted more than 10° for safe operation.
• An electrician must provide electrical service as specified in conformance with all local and national
codes.
• This appliance must not be cleaned by water jet.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given instructions
concerning use of this appliance by a person responsible for its safety.
• Children should be supervised to ensure they do not play with the appliance.
• If the power cord is ever damaged, it must be replaced by the manufacturer or authorized service
personnel with a special cord available from the manufacturer or its authorized service personnel in
order to avoid a hazard.
• Machine must not be immersed for cleaning.
• Machine rated IX P1.
NORTH AMERICAN REQUIREMENTS
• This appliance must be installed in locations where it can be overseen by trained personnel.
• For proper operation, this appliance must be installed where the temperature is between 41°F to 95°F
(5°C to 35°C).
• Appliance shall not be tilted more than 10° for safe operation.
• An electrician must provide electrical service as specified in conformance with all local and national codes.
• This appliance must not be cleaned by pressure washer.
• This appliance can be used by persons if they have been given supervision or instruction concerning use
of the appliance in a safe way and if they understand the hazards involved.
• Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• If the power cord is ever damaged, it must be replaced by the manufacturer or authorized.
• Service personnel with a special cord available from the manufacturer or its authorized service personnel
in order to avoid a hazard.
• Machine must not be immersed for cleaning.
• This appliance is intended for commercial use in applications such as:
– staff kitchen areas in shops, offices and other working environments
– by clients in hotel and motel lobbies and other similar types of environments
• Access to the service areas permitted by Authorized Service personnel only.
5
INTRODUCTION
This equipment heats and dispenses water on demand for beverages and cooking purposes. It has a
panel above the faucet that indicates the status of the dispenser. This equipment is for indoor use,
either wall-mounted (H5E / X / PC) or on a sturdy counter or shelf.
Brew water temperature is factory set at 200° F (93.3°C)
Areas of high altitude will require lowering this temperature
to prevent boiling. This chart should be used as a guide
when readjusting the brew water temperature.
Altitude
(Feet)
101.0
100.5
100.0
99.5
99.0
98.5
98.0
97.4
96.9
96.4
95.9
95.4
94.9
94.4
93.9
93.4
92.9
92.4
91.9
91.4
90.8
90.3
89.8
200
200
200
200
200
200
200
200
199
198
197
196
195
195
194
193
192
191
190
189
188
187
186
93.3
93.3
93.3
93.3
93.3
93.3
93.3
93.3
92.8
92.2
91.7
91.1
90.6
90.6
90.0
89.4
88.9
88.3
87.8
87.2
86.7
86.1
85.6
213.8
212.9
212.0
211.1
210.2
209.3
208.4
207.4
206.5
205.6
204.7
203.8
202.9
201.9
201.0
200.1
199.2
198.3
197.4
196.5
195.5
194.6
193.7
-1000
-500
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8500
9000
9500
10000
Boiling point
of water
°F °C
Recommended
water temperature
°F °C
NOTICE
6
USER NOTICES
The notices on this dispenser should be kept in good condition. Replace unreadable or damaged labels.
00656.0001
As directed in the International Plumbing Code of the
International Code Council and the Food Code
Manual of the Food and Drug Administration (FDA),
this equipment must be installed with adequate
backflow prevention to comply with federal, state
and local codes. For models installed outside the
U.S.A., you must comply with the applicable Plumb-
ing /Sanitation Code for your area.
NOTICE
ALL COMPONENTS ARE
200 TO 240 VOLT A.C.
Replace only with
components listed in the
accompaning literature
rated for the same
voltage
12537.0000
37881.0000
To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.
WARNING
00831.0000
Fill water tank before turning - on -
thermostat or connecting appliance
to power source.
Use only on a properly protected
circuit capable of the rated load.
Electrically ground the chassis.
Follow national/local electrical codes.
Do not use near combustibles.
Do not deform plug or cord.
FAILURE TO COMPLY RISKS EQUIPMENT
DAMAGE, FIRE, OR SHOCK HAZARD
READ THE ENTIRE OPERATING MANUAL
BEFORE BUYING OR USING THIS PRODUCT
THIS APPLIANCE IS HEATED WHENEVER
CONNECTED TO A POWER SOURCE
00831.0000M 11/14 ©1998 BUNN-O-MATIC CORPORATION
WARNING
00657.0000
WARNING
To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.
37881.0002
Hot Water
Use With Care
WARNING
12593.0000
00833.0000
120V
120/208-240V
34056.0000
Optional Field Wiring
120 V, 15.4 A, 1850 W
1PH, 2-Wire + GND, 60HZ
29710.0017
Optional Field Wiring
120/208-240 V, 16.9 A, 4050 W
1PH, 3-Wire + GND, 60HZ
29710.0018
44025.0003 H5 Element (shown)
44025.0005 H3 Element
TEMP
READY
ENERGY SAVER MODE
HOT WATER
WARNING
HOT WATER
00824.0002
00824.0001
7
ELECTRICAL REQUIREMENTS
208 & 240 volt
AC models
220-240 volt
AC (A) models
120 volt
AC models

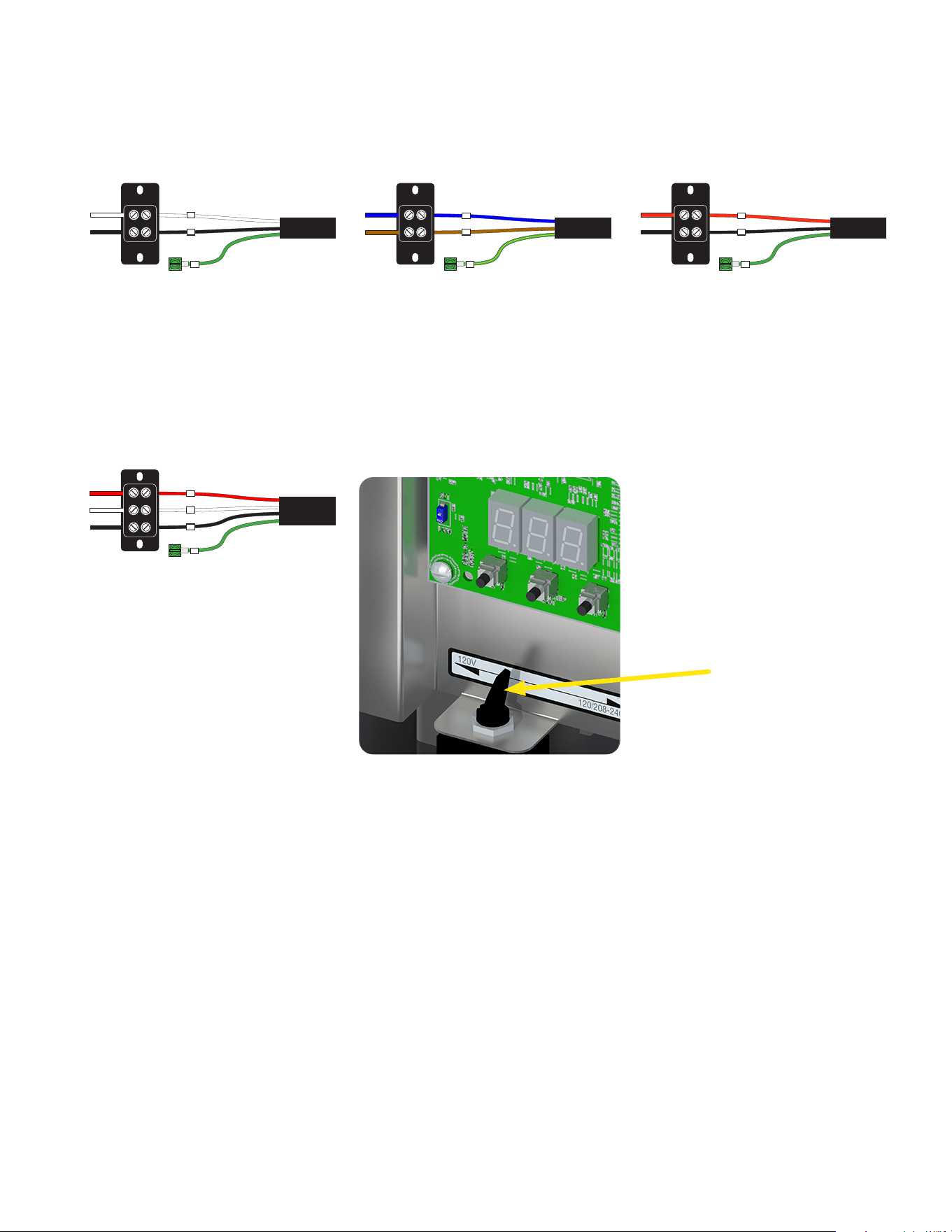

ELECTRICAL HOOK-UP
CAUTION – Improper electrical installation will damage electronic components.
WHITE
NEUTRAL
L1 BLACK
N
L1
G
POWER CORD
GREEN
WHITENEUTRAL
L1 BLACK
L2 RED L2 RED
L2
L1 BLACK
L1
G
POWER CORD
GREEN
L1 BLACK
N BLUE NEUTRAL BLUE
N
L1 BROWN
L1
G
POWER CORD
GREEN/YELLOW
L1 BROWN
NOTE: This electrical service
consists of 3 current carrying
conductors (Neutral, L1 and L2)
and a separate conductor for
earth ground.
N
L1
G
L2 RED L2 RED
POWER CORD
WHITE NEUTRAL WHITE
GREEN
NEUTRAL
L1 BLACK L1 BLACK
L2
DUAL VOLT
TOGGLE SWITCH
NOTE: This electrical service
consists of 2 current carrying
conductors (L1 and Neutral) and
a separate conductor for earth
ground.
NOTE: This electrical service
consists of 2 current carrying
conductors (L1 and Neutral) and
a separate conductor for earth
ground.
NOTE: This electrical service
consists of 2 current carrying
conductors (L1 and L2) and a
separate conductor for earth
ground.
120/208 & 120/240 volt
AC single phase models
1. An electrician must provide electrical service as specified.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
3. Turn off master switch (if equipped).
4. Remove the upper and lower rear panels.
5. Install the proper electrical wiring to the terminal block.
6. Connect the dispenser to the power source and verify the voltage at the terminal block before
proceeding. Reinstall both rear panels.
7. If plumbing is to be hooked-up later be sure the dispenser is disconnected from the power source.
If Plumbing has been hooked-up, the dispenser is ready for Initial Setup.
Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit
requirements.
WARNING - The dispenser must be disconnected from the power source until specified in
Initial Setup.
8
CAUTION - The dispenser must be disconnected from the power source throughout the initial setup,
except when specified in the instructions.
1. Connect dispenser to the power source and turn on water supply.
2. Place Master ON/OFF switch in the ON position (if equipped).
NOTE: (Digital models with display) When power is applied to the dispenser,
the display will show the software version for 5 seconds, and then it will show
the temperature.
3. Water will automatically flow into the tank to the proper level and shut-off.
When filled, the water heater will turn on automatically.
4. The tank will heat to the (set) temperature.
5. Refer to Programming to set the Tank Temperature and the Ready Temperature.
NOTE: On H3 Element only, a small amount of expansion water on back of drip tray is normal during
initial and/or back to back heating cycles.
Plumbing Hook-Up

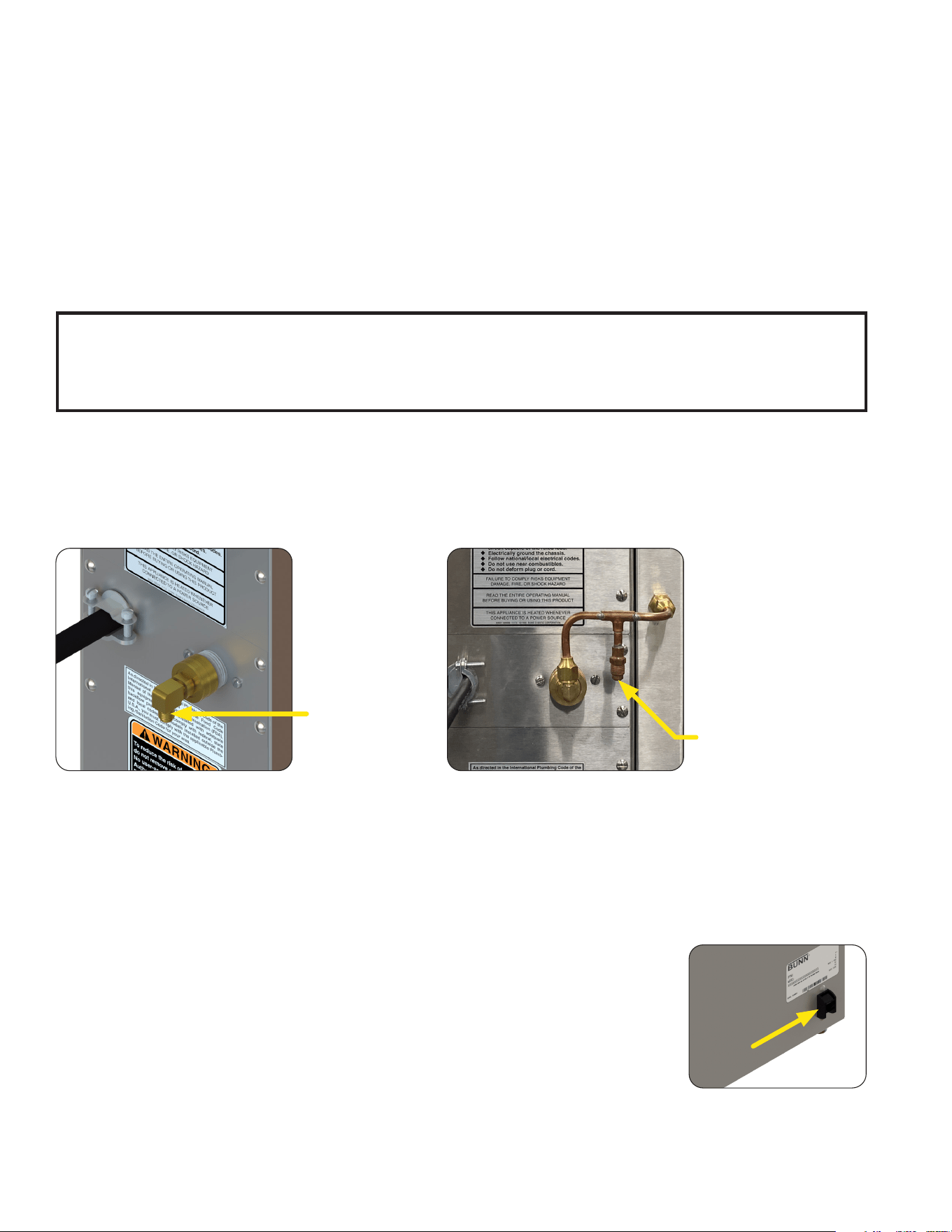

1. Remove the shipping cap from the fitting on the rear of the dispenser, and attach the flare elbow fitting
(supplied separately with the dispenser) to the fitting (CE/UK inlet 3/4˝ BSP on H3EA Element only).
2. Flush the water line and securely attach it to the flare fitting.
These dispenser must be connected to a COLD WATER system with operating pressure between 20 and
90 psi (0.138 and 0.620 mPa)from a ½˝ or larger supply line. A shut-off valve should be installed in the line
before the dispenser. Install a regulator in the line when pressure is greater than 90 psi (0.620 mPa) to reduce
it to 50 psi (0.345 mPa). The water inlet fitting is ¼˝ flare (CE/UK inlet 3/4˝ BSP on H3EA Element only).
NOTE: Bunn-O-Matic recommends ¼˝ tubing for installations of less than 25 feet and
3
⁄8˝ for more than 25
feet from the ½˝ water supply line. At least 18 inches of an FDA approved flexible beverage tubing, such
as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the
counter top. Bunn-O-Matic does not recommend the use of a saddle valve to install the dispenser. The size
and shape of the hole made in the supply line by this type of device may restrict water flow.
As directed in the International Plumbing Code of the International Code Council and the Food Code
Manual of the Food and Drug Administration (FDA), this equipment must be installed with adequate
backflow prevention to comply with federal, state and local codes. For models installed outside the
U.S.A., you must comply with the applicable Plumbing /Sanitation Code for your area.
Plumbing
Hook-Up
PLUMBING REQUIREMENTS
- ALL EXCEPT OHW -
H5E, H5X, H5-PC, H10X, H3/5 Element
INITIAL SETUP
continued >
Plumbing Hook-Up
for
H5X with Ambient
Side Dispense Only
Master
ON/OFF
switch
9
H5M
HW2
INITIAL SETUP
H5M
CAUTION - The dispenser must be disconnected from the power source
throughout the initial setup, except when specified in the instructions.
1. Remove the upper rear panel and rotate the control thermostat knob fully
counterclockwise to the “OFF” position and replace the panel.
2. Connect the dispenser to the power source and turn-on the water supply.
3. Water will automatically flow into the tank to the proper level and shut-off.
This will take approximately 10 minutes.
4. Disconnect the dispenser from the power source, remove the upper rear
panel and place the control thermostat knob fully clockwise to the “ON”
position, and replace the panel.
5. Connect the dispenser to the power source and wait approximately twenty
minutes for the water in the tank to heat.
6. On models with ready indicator, the indicator will light up when the proper
water temperature is achieved.
HW2
CAUTION-The dispenser must be disconnected from the power source
throughout the initial setup, except when specified in the instructions.
1. Remove the center rear panel and rotate the control thermostat knob fully
counterclockwise to the “OFF” position and replace the panel.
2. Plug-in the dispenser.
3. Water will automatically flow into the tank to the proper level and shut-off.
4. Unplug the dispenser, remove the center rear panel and rotate the control
thermostat knob fully clockwise to the “ON” position, and replace the panel.
5. Plug-in the dispenser and wait approximately twenty minutes for the water in
the tank to heat. The dispenser is ready for use.
continued >

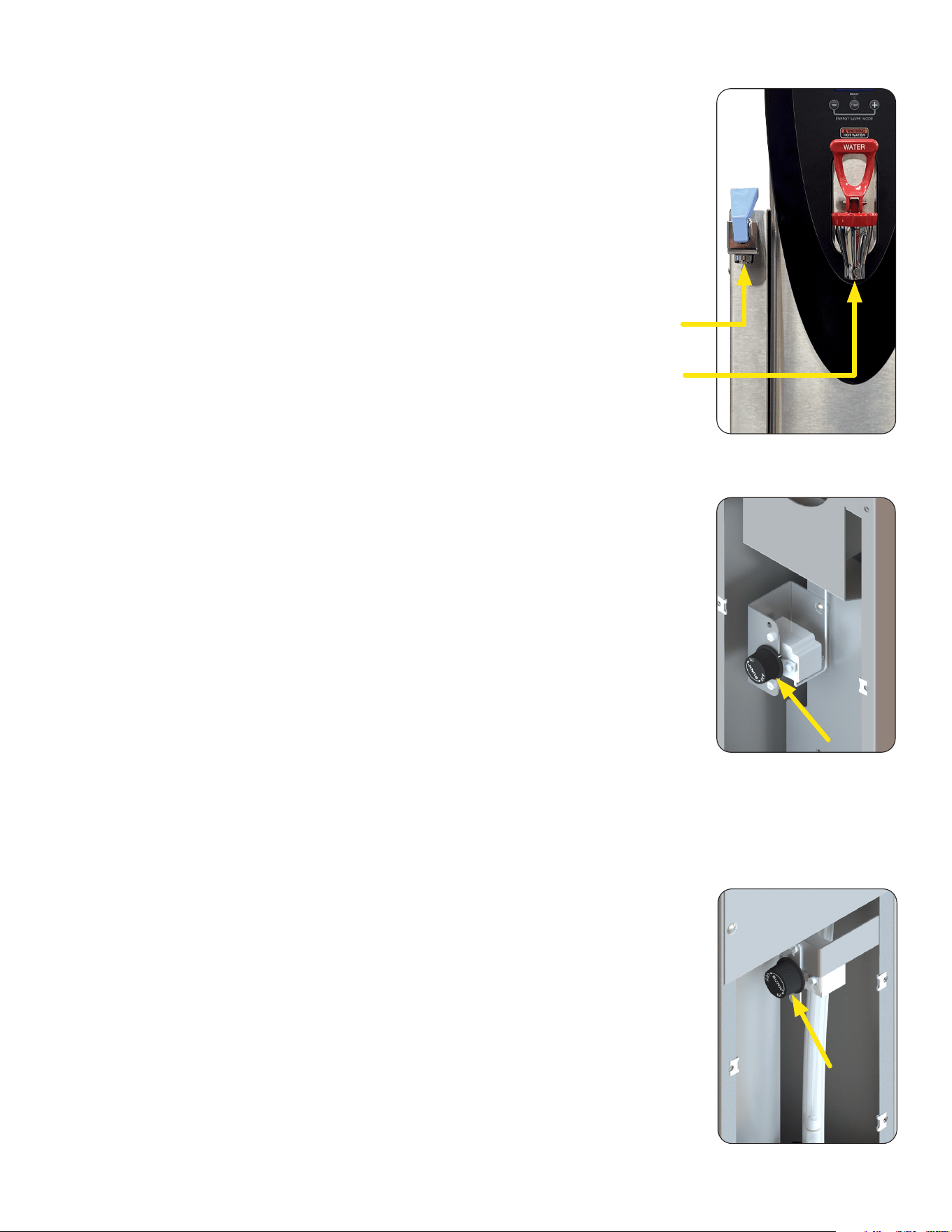

H5X with Side Ambient Dispenser
This unit has two faucets:
1. The Blue handle dispenses unheated water that depends on the Ambient
temperature of the water source.
2. The Red handle dispenses water heated in a tank to a set temperature.
continued from previous page
Ambient Temperature
Water heated to a set
Temperature
10
Normal Use
INITIAL SETUP
CAUTION - Water dispensed from this faucet is extremely hot. (Above 200° F.)
1. Hold open the faucet whenever a cup of hot water is desired.
2. Pour another full pitcher into the top whenever water is no longer available at the faucet. No wait is
needed, the faucet is ready to dispense another cup of hot water.
NOTE - Due to the tank capacity and heater size, this product should be used only for dispensing a few
cups of hot water at a time. (Larger capacity Bunn-O-Matic hot water dispensers are available.)
continued from previous page

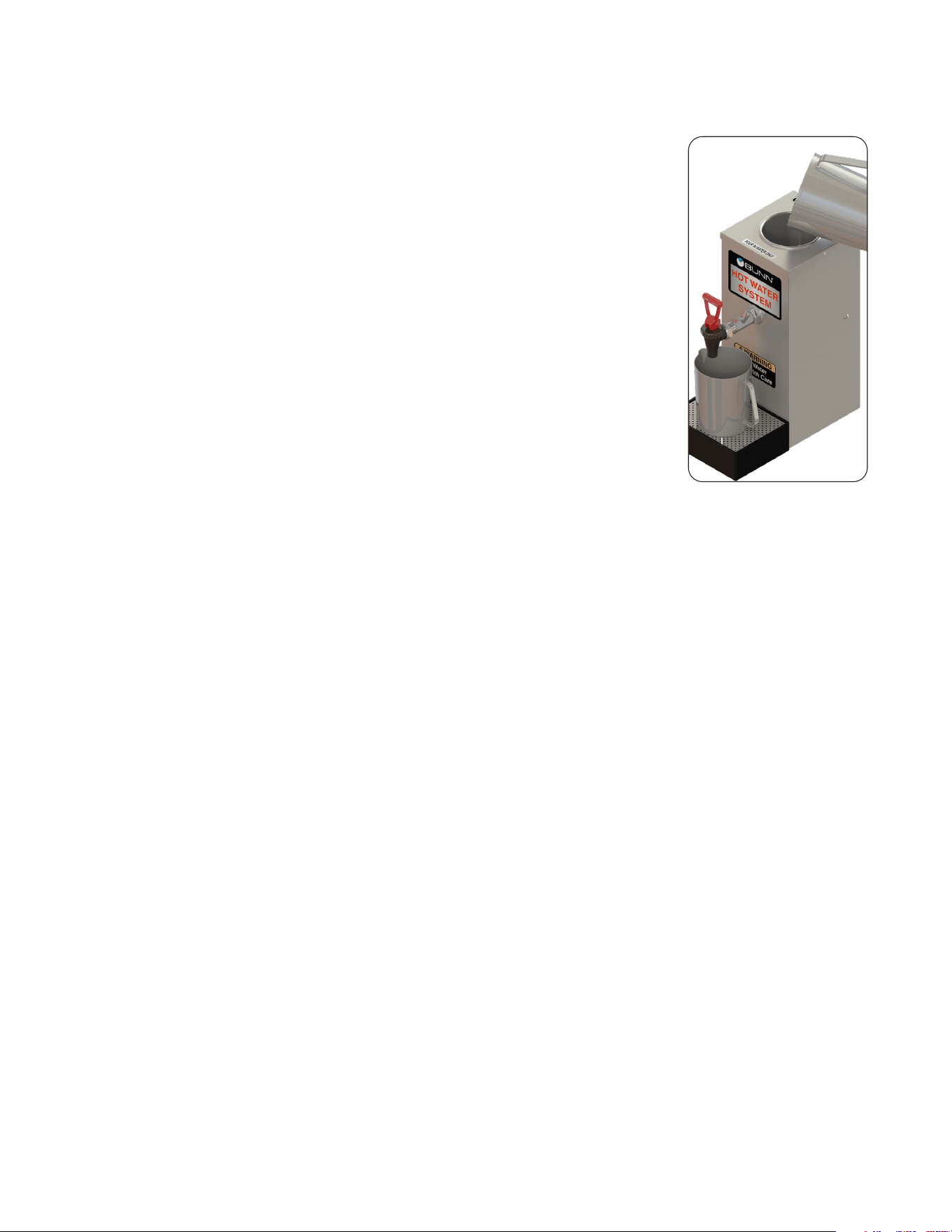

OHW
OHW
CAUTION - The dispenser must be unplugged throughout the initial setup,
except when specified in the instructions.
1. Place an empty vessel under the faucet, lift the pour-in lid, and pour a full
pitcher (64 oz) of tap water into the top of the dispenser. Hold open the faucet
handle to allow air to escape from the tank while it is filling.
2. Pour another full pitcher into the top. Close the faucet when water starts
flowing from the faucet.
3. Fill the top basin with additional water until it is approximately one inch from
the top lid.
4. Plug-in the dispenser and wait approximately 15 minutes for the water to heat
to the proper temperature.
5. The dispenser is now ready for use. (Refer to the section on normal use.)
11

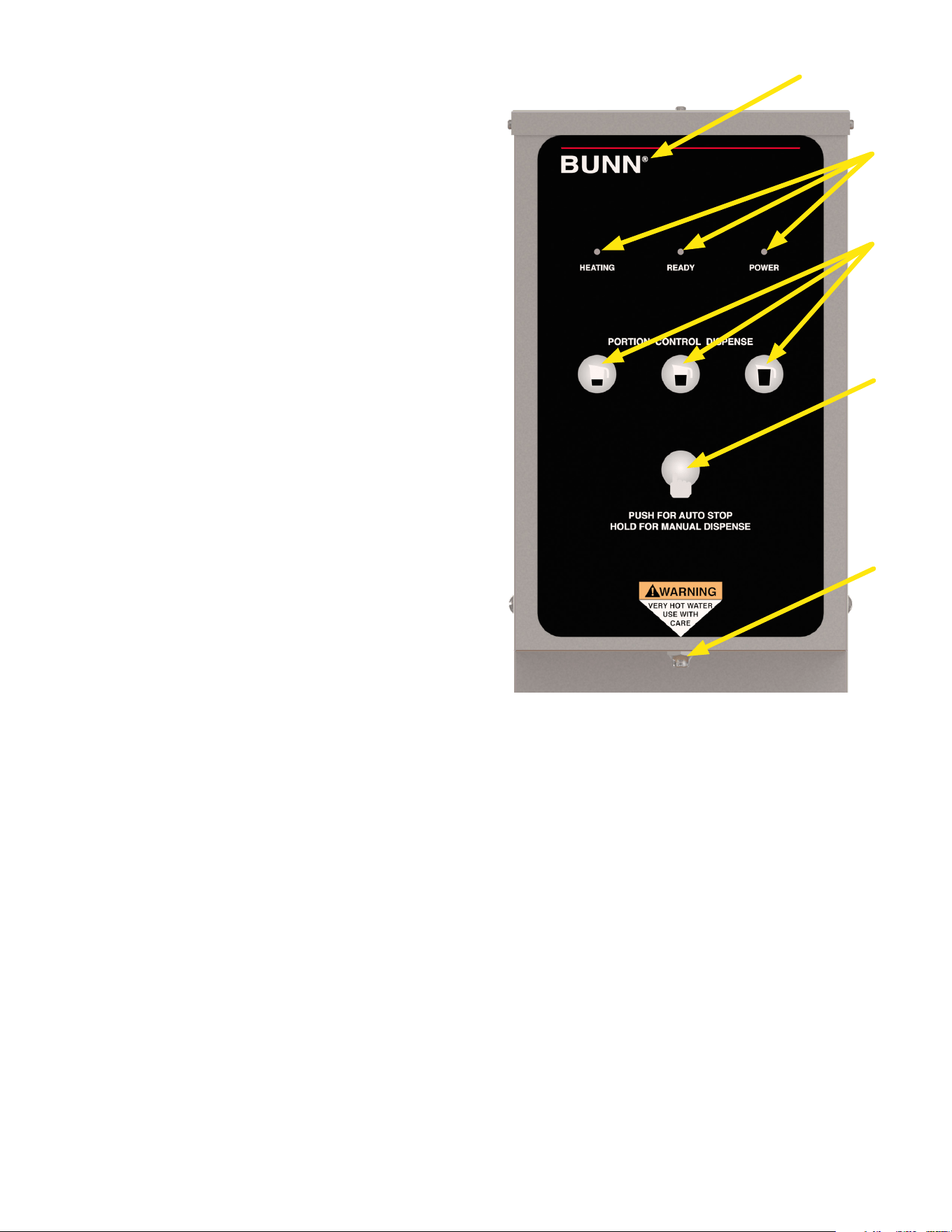

OPERATING CONTROLS
(a) VOLUME SELECTOR BUTTONS
Press and release the button corresponding
to the Small, Medium, or Large volume, to
select the desired amount of water to be
dispensed. Pressing a different button after a
cycle has been initiated does not change the
volume in progress.
(b) AUTO STOP/MANUAL DISPENSE BUTTON
Press and release button to stop a dispense
cycle. Press and hold button to dispense
manually.

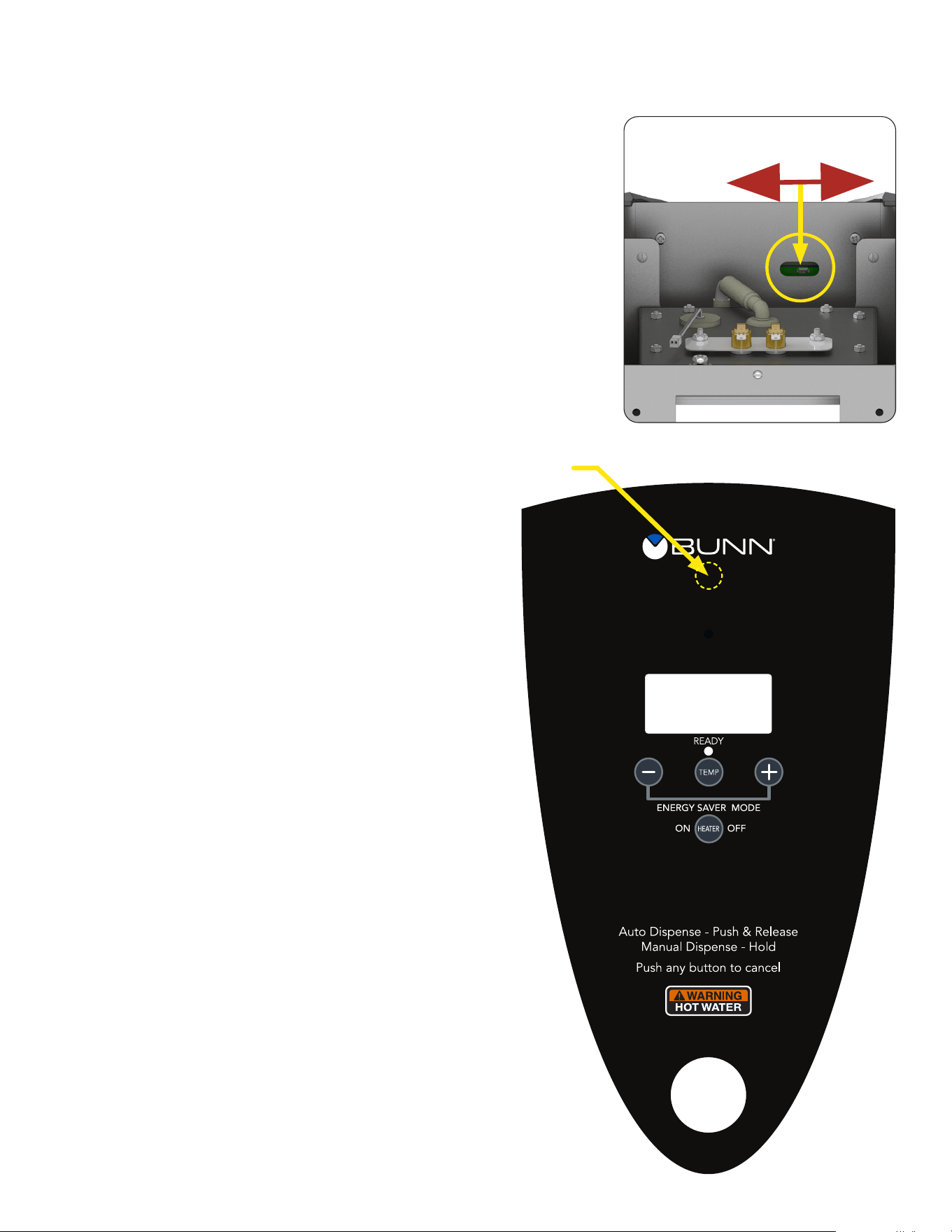

(c) HIDDEN PROGRAMMING BUTTON
(d) LED INDICATORS
(e) DISPENSE NOZZLE
e.
b.
c
.
d.
ADJUSTING DISPENSE VOLUMES
NOTE: The dispenser should be at operating temperature before setting dispense volumes.
1. Press and hold the hidden programming button (c) located under the ® next to the BUNN logo on the
front of the dispenser until the 3 LED's begin flashing from the left to the right. Release the button.
2. Place an empty graduated container under the dispense nozzle (e).
3. Press and release the batch size to be set (a). The LED's will stop flashing, and the LED over the button
just pressed will come on steady. Water will begin to dispense into the container.
4. When the desired amount of water is dispensed, press and release the same button (a). The water will
stop dispensing and the batch size is now set.
5. The LED's will begin flashing from left to right again. Repeat steps 2 thru 4 to set up the other batch sizes.
6. To exit the programming set up at any time, press and release the hidden button once (c).
The dispenser is now ready for use.
H5 Portion Control Only
a.
12
H5-E, H5-PC, H5X, H10X

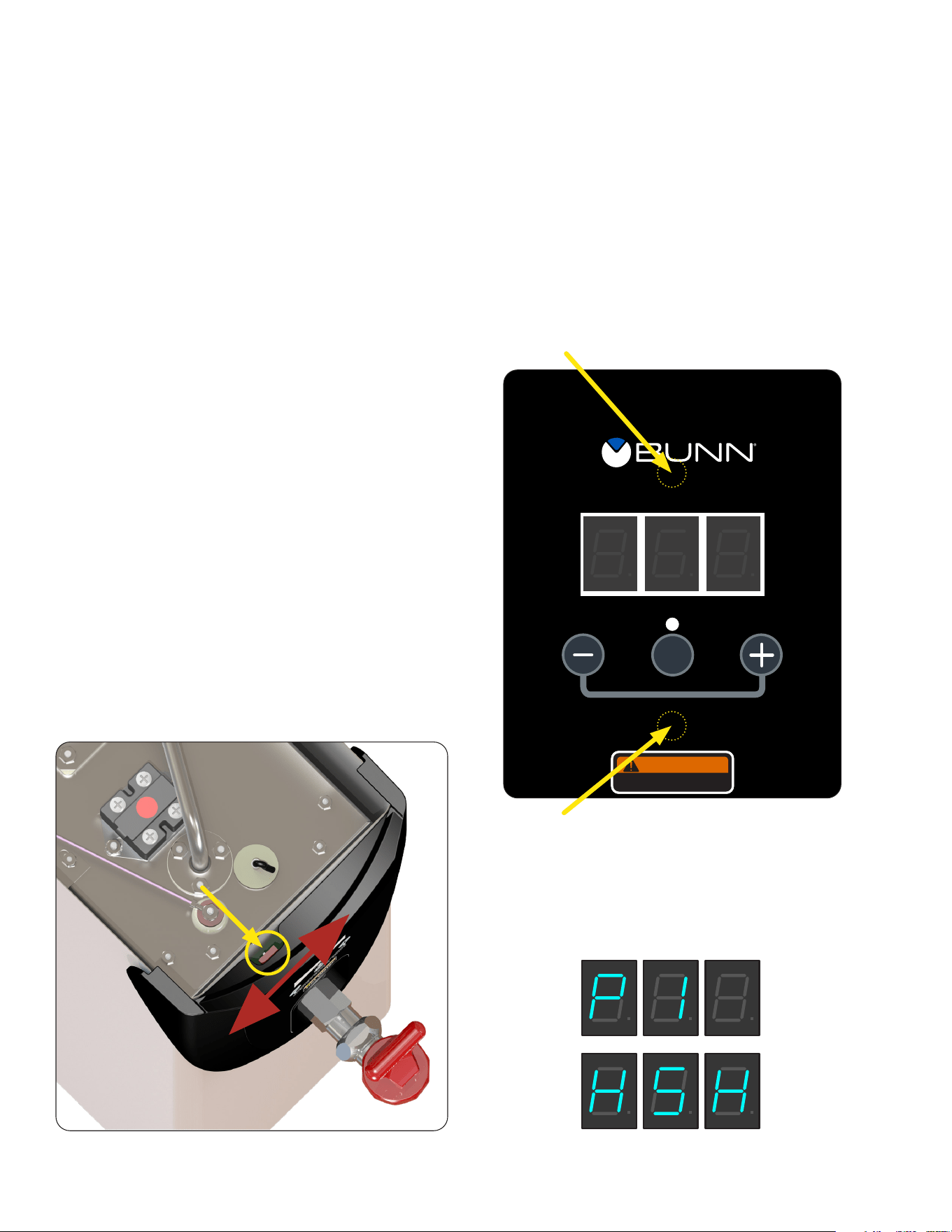

When power is applied to the dispenser, the display located on the bottom of the main circuit board will
show the software version for 5 seconds, and then it will show the model number (see chart below) it will
then go to (-). While the tank is filling, the display will read (FIL). When the tank is full the display will show
the model number and then go to (-).
LEFT
BUTTON
CENTER
BUTTON
RIGHT
BUTTON
MODEL DISPLAYS (P1)
(H5H) 5 Gallon High Voltage Unit (200-240V)
(H5L) 5 Gallon Low Voltage Unit (100-120V)
(HPC) 5 Gallon Portion Control Unit (all)
(H10) 10X (all)

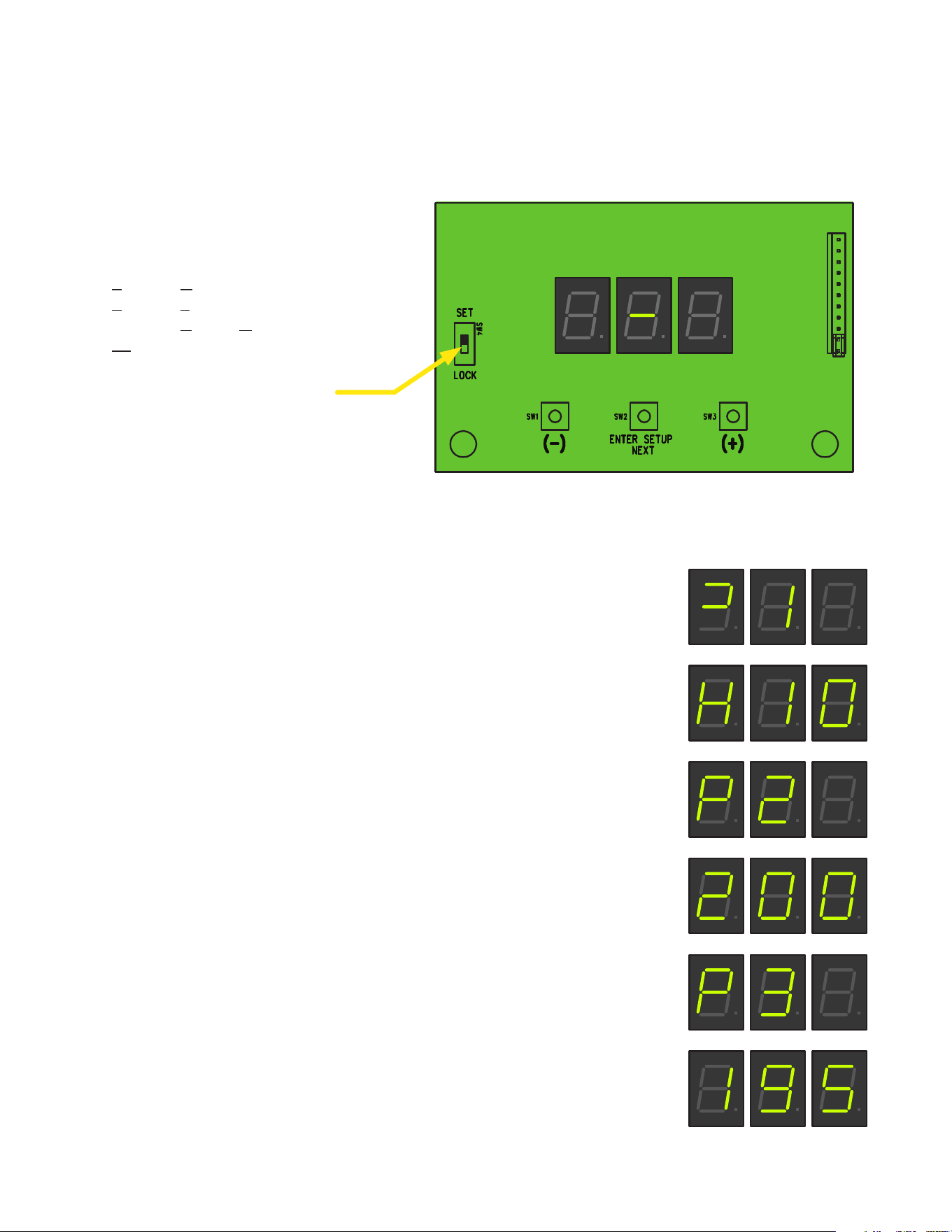

1. Before programming any settings into the Control Board, confirm the correct
model number is entered.
2. Do this by pressing and holding down on the center button until P1 appears
on the display. Release the center button. The display will now show the
model number (ex: H5H). Now scroll with the (+/-) buttons through the models
listed above until the display matches the model you are working with.
3. Press and release the center button once more. The display will show P2.
Display will now show the tank temperature (ex: 200). Press the (+) button to
increase the temperature set point, or the (-) button to decrease the set point.
NOTE: If the unit is a H5X or H10X, set the Tank Temperature to 212°F.
4. After the Tank Temperature is entered, press and release the center button
once more. The display will read P3, then show the ready temperature set
point. Factory default is 195° F for most dispensers, and 85° F for some.
5. Press the (+) button to increase the set point, or the (-) button to decrease the
set point.
6. To exit Level 1 Program press and release the center button once more.
The display will show Software version, then model number, then (-).
Switch must be in “SET” position for
access into programming modes.
PROGRAMMING
Level 1 Programming
continued >
13

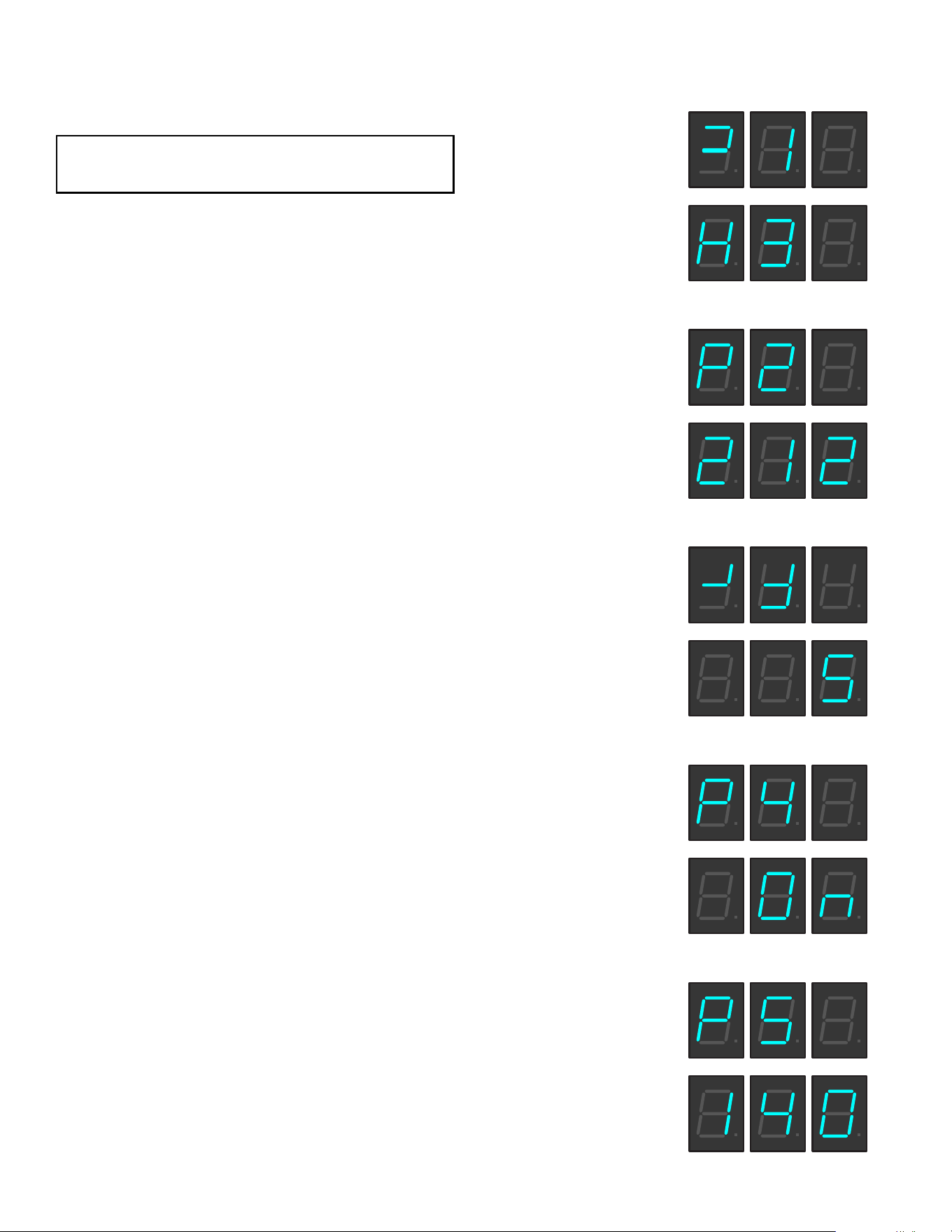

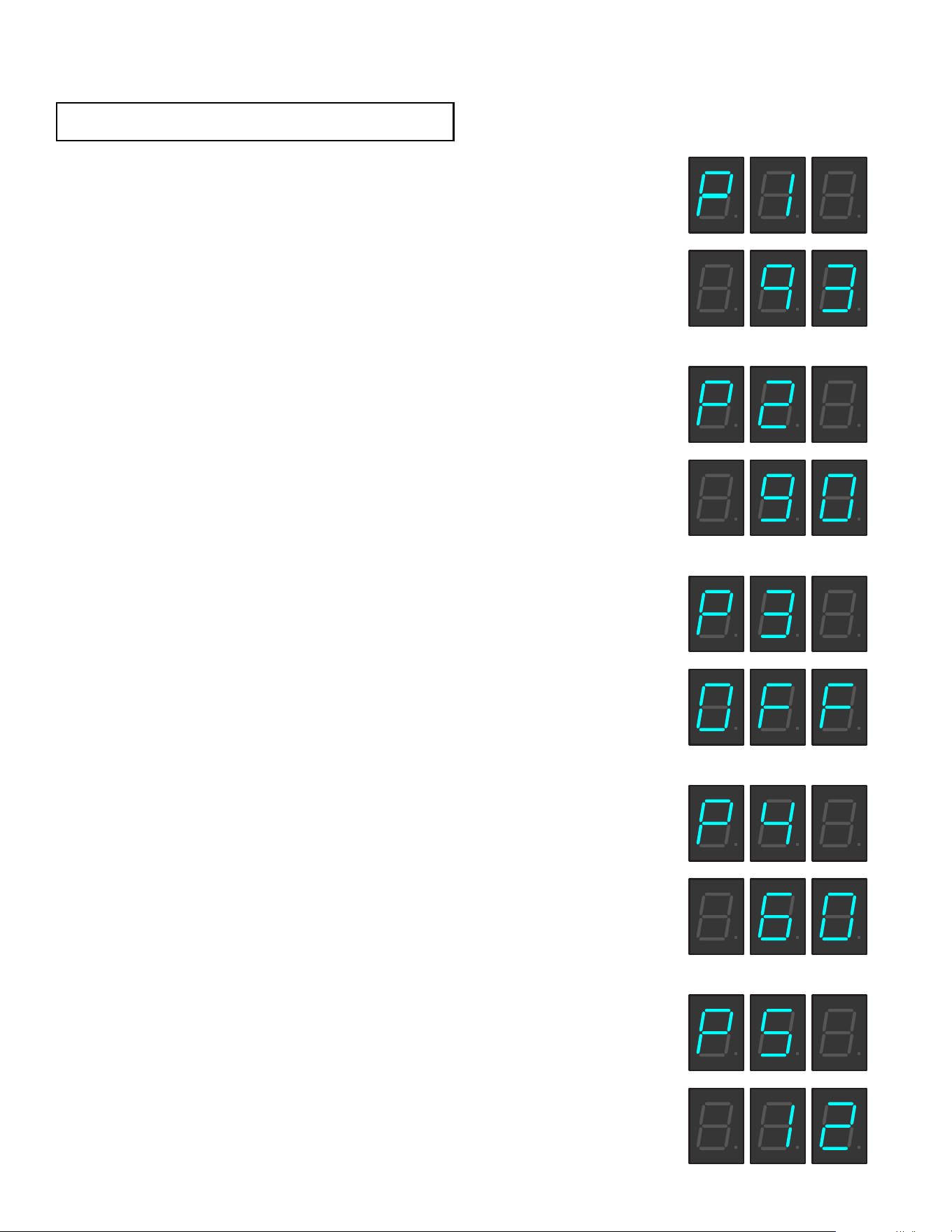

Level 2 Programming
PROGRAMMING
continued from previous page

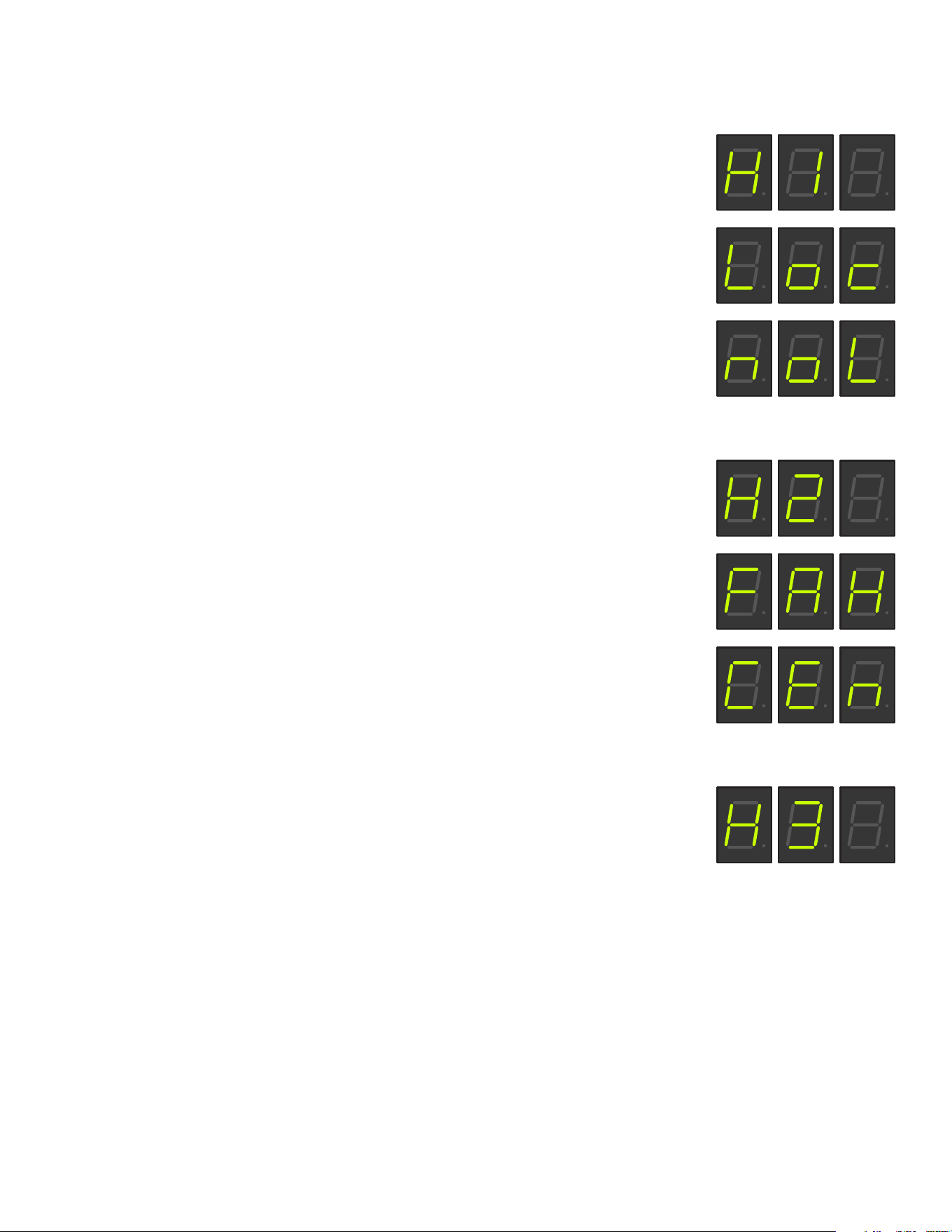

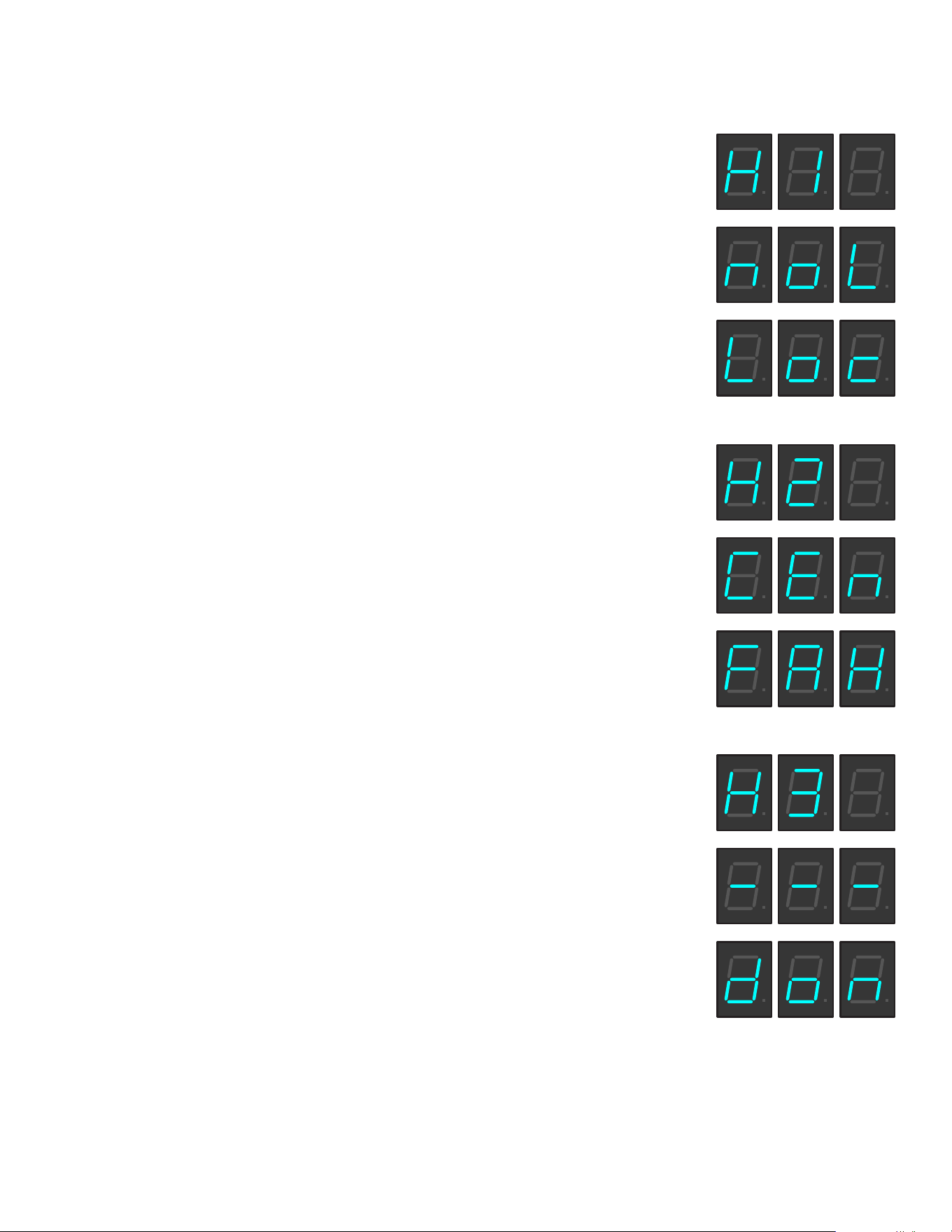

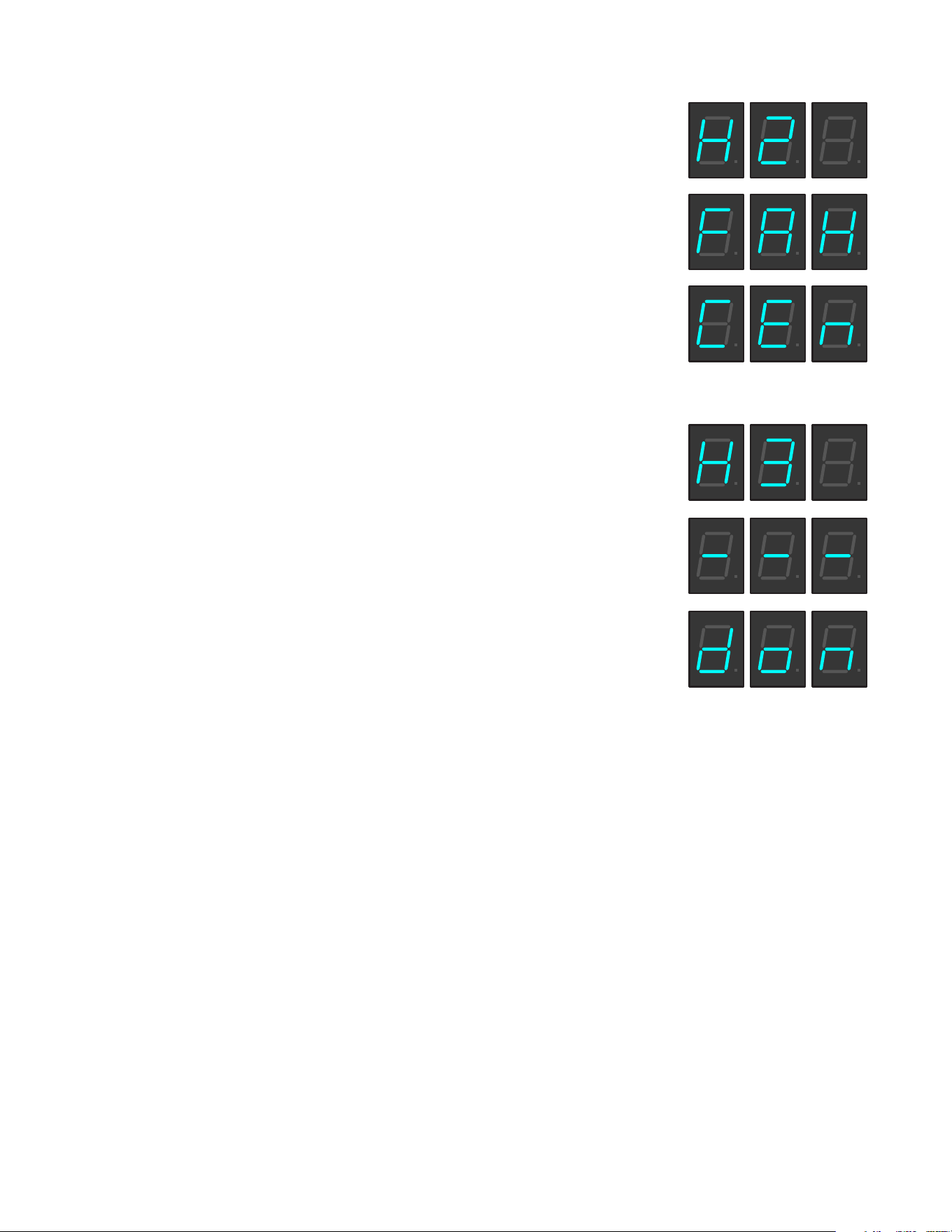

H3 - RESTORING FACTORY DEFAULTS
1. To restore Factory Defaults (This clears all settings that were previously
entered), press and release the center button until H2 appears on the display
(approximately 6 seconds). Release the Center Button, then press and re-
lease the Center Button once more. The display will read H3, then show (- - -).
2. Press and hold both (+) and (-) buttons to initiate the resetting of the factory
default settings. The display (- - -) will flash on and off during this time (about
5 to 7 seconds).
3. When the factory default numbers are loaded in, the display will stop flashing,
then read don (DONE). You can now release the two buttons.
NOTE: If you release the two buttons at any time before the display reads
don, the Factory Default numbers will not be entered. The old numbers will
remain in the memory.
4. To exit Level 2 Programming press and release the center button once more.
The display will show the Software version, then model number, then (-).
H2 - F° OR C° SELECTION
NOTE: Skip step 1 if going from H1 to H2.
1. To enter Level 2 Programming, press and hold the center button until H2
appears on the display (approximately 6 seconds). Release the center button,
The display will show either FAH (Degrees in Fahrenheit) or CEn (Degrees in
Centigrade).
2. Press and release the (+) or (-) buttons to alternate between FAH and CEn.
3. After setting FAH or CEn, to exit Level 2 Programming, press and release the
center button twice. Display will show, software version, then model number,
then (-).
1. To enter Level 2 Programming, press and hold the center button until H1
appears on the display (approximately 6 seconds) then release button.
The display will either read noL (LOCKOUT DISABLED) or Loc (LOCKOUT
ENABLED). When (ENABLED), unit will not dispense if the Tank Temperature
is below the (READY) temperature setting.
2. Use the (+) or (-) buttons to alternate between Loc and noL.
3. Press and release the center button once more to advance to H2.
4. Or to exit Level 2, press and release the center button 3 times. Display will
show, software version, then model number, then (-).
Portion Control Only (Will Not Display ON Other Models)
H1 - DISPENSE TEMPERATURE LOCKOUT
continued >
14
Program Lockout Switch:
The switch must be in the “SET” position in order to
access the program modes.
1. Disconnect the dispenser from the power
source.
2. Remove the 4-40 screws and the top cover.
3. Use a small screwdriver to move switch to set
position.
4. Install top cover, connect dispenser to power
source.
Manual Energy Saver Mode:
The energy save mode will allow the tank temperature
to drop down to 140°F (60°C).
1. Simultaneously press and release the (+) and (-)
to “manually” activate energy save mode.
2. The display will alternately flash between 140
and the current temperature to indicate it is in
the energy save mode.
3. Repeat procedure to exit energy save mode.
TEMP
READY
ENERGY SAVER MODE
HOT WATER
WARNING
HOT WATER
Programming the dispenser:
1. Press and hold upper hidden button (bottom
center of “BUNN” logo) until “P1” is displayed.
Adjusting Temperature:
The switch must be in the “SET” position in order to
access the program modes.
1. Press and hold “TEMP” button until display
flashes.
2. While display is flashing, press and release the
(+) to increase or (-) to decrease temperature.
NOTE: (Starting with software version 0.07)
3. If unit is “E” model, temp will stop at 211°F
(99°C). If unit is “X” model, temp display will
jump from 211°F (96°C) to 212°F (100°C).
Refer to chart on page 3 and adjust
temperature requirements according
to altitude.
Step Forward
Step Backward
H5 ELEMENT
PROGRAMMING
continued from previous page
LOCK SET
continued >
15
1. The display will now show the model number.
(H5H) 5 Gallon High Voltage Unit (200-240V)
(H5L) 5 Gallon Low Voltage Unit (100-120V)
Now scroll with the
(+/-) buttons
through the models listed above until the
display matches the model you are working with.
2. Press and release the upper hidden button once more. The display will show
P2. Display will now show the “SET” temperature (ex: 200).
Press the (+)
button to increase the temperature set point, or the (-) button to decrease the
set point.
3. Range: 60°F (15°C) to 211°F (99°C) NOTE: Temp will go to 212°F (100°C) on H5X.
4. After the Tank Temperature is entered, press and release the
upper hidden
button once more. The display will read P3, then show the ready temperature
set point.
5. Range: 2° to 20° below the “SET” temperature.
6. Press the (+) button to increase, or the (-) button to decrease the set point.
7. Press and release the
upper hidden
button once more. The display will read
P4. This screen will allow you to turn the “Auto” energy save mode ON/OFF.
NOTE: Turning off this function will disable “P5” and “P6”.
8. Press and release the
upper hidden
button once more. The display will read P5.
9. This will toggle the energy save mode from 140°F (60°C) or tank heater “OFF”.
10. Press and release the
upper hidden
button once more. The display will read P6.
11. This is the time delay from the last refill to the activation of energy save mode.
12. Range: 4 hours to 24 hours.
PROGRAMMING
continued from previous page
continued >
16
H2 - F° OR C° SELECTION
1. To enter Level 2 Programming, press and hold the
upper hidden
button until
H2 appears on the display. Release the
upper hidden
button. The display will
show either FAH (Degrees in Fahrenheit) or CEn (Degrees in Centigrade).
2. Press and release the (+) or (-) buttons to alternate between FAH and CEn.
3. After setting FAH or CEn, to exit Level 2 Programming, press and release the
upper hidden
button twice. Display will show, software version, then
main screen.
PROGRAMMING
continued from previous page
Level 2 Programming
H3 - RESTORING FACTORY DEFAULTS
1. To restore Factory Defaults (This clears all settings that were previously
entered), press and release the upper hidden button until H2 appears on the
display (approximately 6 seconds). Release the upper hidden Button, then
press and release the upper hidden Button once more. The display will read
H3, then show (- - -).
2. Press and hold both (+) and (-) buttons to initiate the resetting of the factory
default settings. The display (- - -) will flash on and off during this time.
3. When the factory default numbers are loaded in, the display will stop flashing,
then read don (DONE). You can now release the two buttons.
NOTE: If you release the two buttons at any time before the display reads
don, the Factory Default numbers will not be entered. The old numbers will
remain in the memory.
continued >
17
READY
HEATER
HEATER
TEMP
Programming
Button
1. Program lockout switch:
2. The switch must be in the “SET” position in order to access the
program modes.
3. Disconnect the dispenser from the power source.
4. Remove the 4-40 screws and the top cover.
5. Looking from back to front, use a small screwdriver (or similar
item) through slot in front housing to move switch to set position.
6. Install top cover, connect dispenser to power source.
PROGRAMMING
H3E ELEMENT
LOCK SET
continued >
18
1. Press and release the hidden button. The display will show P1. Display will now
show the “SET” temperature.
Press the (+) button to increase the temperature
set point, or the (-) button to decrease the set point.
Range: 15°C (60°F) to 96°C (205°F).
Default: 93°C.
PROGRAMMING
continued from previous page
For H3E software versions prior to 2.17
6. Press and release the
upper hidden
button once more. The display will
read P5. This is the time delay from the last refill to th/e activation of
energy save mode.
Range: 4 hours to 24 hours.
5. Press and release the
hidden
button once more. The display will read P4.
This will toggle the energy save mode from 60°C (140°F) or tank
heater “OFF”.
6. Press and release the
hidden
button once more. The display will read P3.
This screen will allow you to turn the “Auto” energy save mode ON/OFF.
Default: OFF.
NOTE: Turning off this function will disable “P4” and “P5”.
2. After the Tank Temperature is entered, press and release the
hidden
button
once more. The display will read P2, then show the ready temperature
set point.
Range: 2°C to 10°C below the “SET” temperature. Default: 90°C.
3. Press the (+) button to increase, or the (-) button to decrease the set point.
continued >
19
H1 - DISPENSE LOCKOUT
1. To enter Level 2 Programming, press and hold the hidden button until H1
appears on the display. Release the hidden button. The display will show
“noL” (no lockout) or Loc (dispense lockout).
2. Press and release the (+) or (-) buttons to alternate between noL and Loc.
PROGRAMMING
continued from previous page
Level 2 Programming
H3 - RESTORING FACTORY DEFAULTS
1. To restore Factory Defaults (This clears all settings that were previously
entered), press and release the hidden button until H1 appears on the display.
Press and release the hidden button, then press and release the hidden button
once more. The display will read H3, then show (- - -).
2. Press and hold both (+) and (-) buttons to initiate the resetting of the factory
default settings. The display (- - -) will flash on and off during this time.
3. When the factory default numbers are loaded in, the display will stop flashing,
then read don (DONE). You can now release the two buttons.
H2 - C° OR F° SELECTION
1. To enter Level 2 Programming, press and hold the hidden button until H1
appears on the display. Press and release the hidden button. The display
will show CEn (Degrees in Centigrade) or FAH (Degrees in Fahrenheit)
2. Press and release the (+) or (-) buttons to alternate between FAH and CEn.
NOTE: If you release the two buttons at any time before the display reads
don, the Factory Default numbers will not be entered. The old numbers will
remain in the memory.
continued >
20
For H3E models - S.W. 2.17 and above
For H3X models - S.W. 5.11 and above
PROGRAMMING
H3E/X ELEMENT
continued from previous page
P1: Model selection. H5H, H5L, H3 toggle through model numbers with +/-.
NOTE: Not used on H3E models.
P2: Press and release the hidden button. The display will show P2. Display will
now show the “SET” temperature. Press the (+) button to increase the temperature
set point, or the (-) button to decrease the set point.
Range: 15°C (60°F) to 96°C (205°F). Default: 93°C (200°F)
P3: After the Tank Temperature is entered, press and release the hidden button
once more. The display will read P3, then show the ready temperature set point.
Range: 2°C (2°F) to 10°C (20°F) below the “SET” temperature. Default: 5°F.
Press the (+) button to increase, or the (-) button to decrease the set point.
P4: Press and release the hidden button once more. The display will read P4.
This screen will allow you to turn the “Auto” energy save mode ON/OFF.
Default: OFF.
NOTE: Turning off this function will disable “P5” - “P6”.
P5: Press and release the hidden button once more. The display will read P5.
This will toggle the energy save mode from 60°C (140°F) or tank heater “OFF”.
continued >
21
P6: Press and release the upper hidden button once more. The display will
read P6.
This is the time delay from the last refill to the activation of energy save mode
Range: 4 hours to 24 hours.
PROGRAMMING
continued from previous page
During exit of program mode, software version will be displayed.
NOTE: Refer to page 17 for H1 - H3 modes.
P7: Press and release the upper hidden button once more. The display will
read P7.
This sets the dispense time for “Portion Control”. Default is “0” (Push & Hold).
22
OHW
DRAINING THE DISPENSER
CAUTION - The dispenser must be disconnected from the power source
throughout these steps.
1. Disconnect the dispenser from the power source and allow dispenser to cool.
2. Tilt dispenser forward over sink.
3. Open faucet.
4. Continue tilting dispenser forward over sink until water stops flowing.
NOTE - The dispenser must be full using the INITIAL SETUP steps before reconnecting to the
power source.
1. Disconnect the dispenser from the power source and allow dispenser to cool.
2. Remove upper rear access cover(s).
3. Close the white shutoff clamp on the long hose between tank and inlet solenoid.
4. Disconnect the hose clamp and hose from inlet solenoid or check valve.
5. Place the end of the drain hose in a container that has a minimum capacity of 2.0 gallons (7.5 L) HW2,
6. 5 Gal/18.9L for H5E,M,X, & Element.
7. Release the white clamp to drain water from the tank.
When tank is empty, replace the hose onto solenoid (or flow control) and tighten the black clamp.
NOTE: Do not tighten white clamp!
8. Replace the access cover.
ALL 2, 3 & 5 GALLON MODELS
10 GALLON MODELS
1. Disconnect the dispenser from the power source and allow dispenser to cool.
2. Remove left side access cover.
3. Close the white shutoff clamp on the long hose that is teed between tank and inlet solenoid.
4. Disconnect the hose clamp and plug from loose end of long hose.
5. Place the end of the drain hose in a container that has a minimum capacity of 10Gal/37.8L.
6. Release the white clamp to drain water from the tank.
7. When tank is empty, replace the clamp and plug and tighten the black clamp.
8. Replace the access cover.
Alternate method:
ALL 2, 5 & 10 GALLON MODELS
CAUTION - The dispenser must be disconnected from the power source throughout these steps.
1. Disconnect the dispenser from the power source.
2. Shut-off and disconnect the incoming water supply and allow dispenser to cool.
3. Remove the 4-40 screws and the top cover.
4. Gently remove one of the grommets from the tank lid.
5. Insert a tube to the bottom of the tank and syphon ALL of the water out.
23
The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all
surfaces on Bunn-O-Matic equipment.
WALL MOUNTED INSTALLATION - 5 GALLON MODELS ONLY
If the dispenser is wall mounted, the bottom of the dispenser should be at the same height as a counter
or table top. Use B.O.M. part #12542.0000 for side mounted Wall Bracket Kit or # 13125.0001 for front
mounted Wall Bracket Kit.
CLEANING
SUPPORT FOR LARGE RECEPTACLES
CAUTION – If the dispenser is to be used with larger receptacles such as pitchers or pots, those receptacles
must be adequately supported during dispensing of hot water to avoid spillage of very hot water.
This support may be provided by a table or counter top, or use B.O.M. part #12599.0000 Shelf Kit.
24
