OPERATOR'S MANUAL
MODEL #200913
4250W WIRELESS REMOTE START OPEN
FRAME INVERTER
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2015 (Safety and Performance of
Portable Generators).
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
RE V 20210114

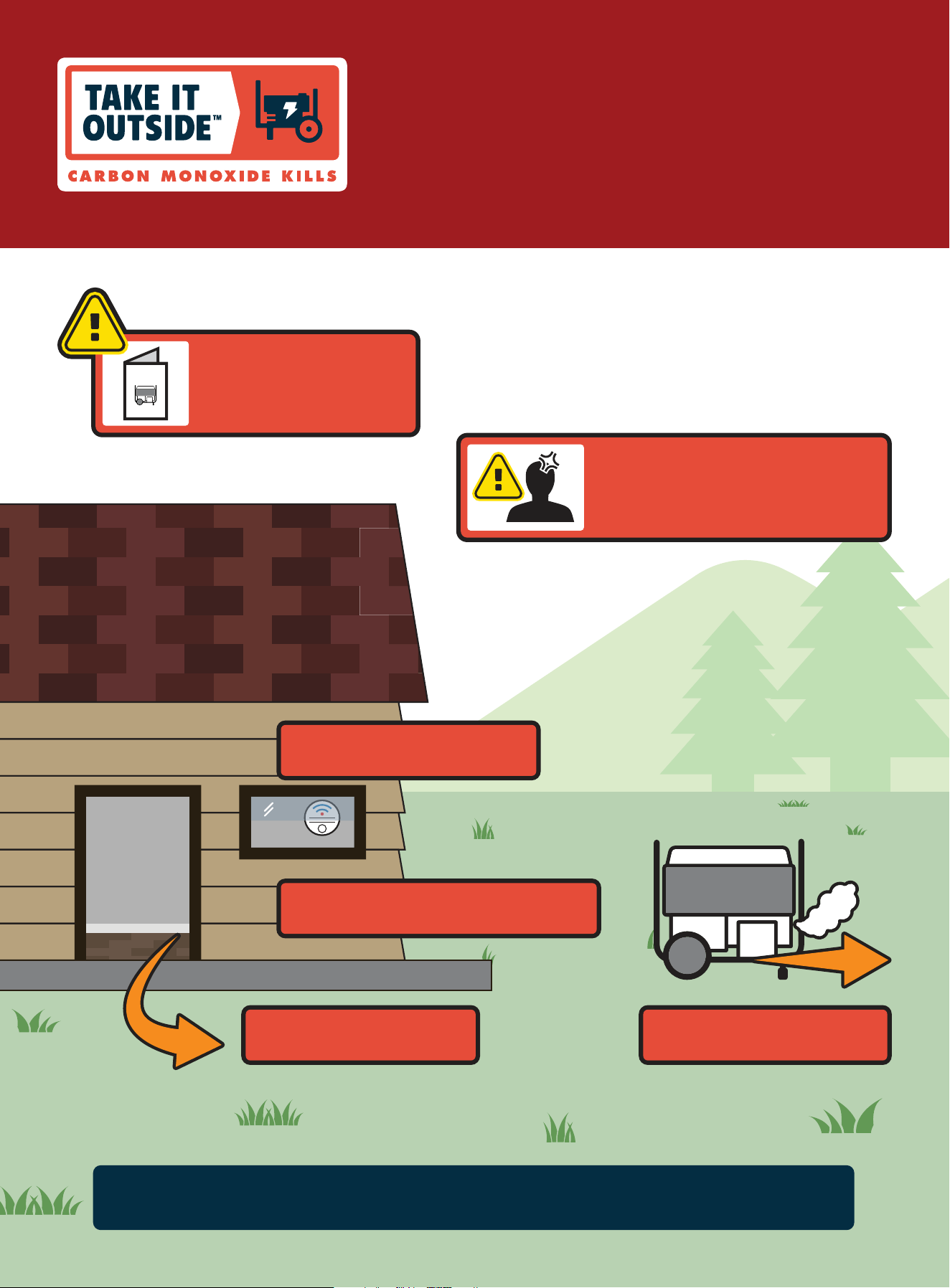

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.
CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction
................................................... 4
Safety Definitions
..........................................4
Important Safety Instructions
.......................5
Fuel Safety ........................................................ 7
Safety and Dataplate Labels ...................................... 8
Safety Symbols .................................................... 9
Operation Symbols ............................................... 10
Quick Start Label Symbols....................................... 11
Controls and Features ................................. 12
Generator ......................................................... 12
Control Panel ..................................................... 13
Intelligauge ....................................................... 14
Wireless Remote Control ......................................... 15
FCC Statement for Remote Control Device...................... 15
Parts Included .................................................... 16
Tools Needed ..................................................... 16
Assembly ..................................................... 17
Unpacking ........................................................ 17
Remove Shipping Support Spacers .............................. 17
Install the Wheel Kit .............................................. 17
Connect the Battery .............................................. 18
Add Engine Oil .................................................... 18
Add Fuel .......................................................... 19
Grounding ........................................................ 20
Operation .....................................................21
Generator Location ............................................... 21
Surge Protection ................................................. 21
Wireless Set Button .............................................. 21
Starting the Engine ............................................... 22
Battery ............................................................ 24
Connecting Electrical Loads ..................................... 24
Do Not Overload Generator ...................................... 25
Eco (Economy) Mode .............................................25
Parallel Operation ................................................25
Stopping the Engine .............................................. 25
Moving the Generator ............................................ 26
Operation at High Altitude ....................................... 27
Maintenance ................................................27
Cleaning the Generator .......................................... 27
Changing the Engine Oil ......................................... 28
Cleaning and Adjusting the Spark Plug ..........................28
Cleaning the Air Filter ............................................ 28
Cleaning the Spark Arrestor ..................................... 29
Adjusting the Governor ........................................... 29
Generator Battery ................................................ 29
Remote Control Battery .......................................... 30
Maintenance Schedule ...........................................30
Storage ........................................................30
Short Term Storage (up to 30 days) .............................30
Mid Term Storage (30 days – 1 year) ........................... 31
Long Term Storage (over 1 year) ................................ 31
Removing from Storage .......................................... 31
Specifications .............................................. 33
Generator Specifications ......................................... 33
Engine Specifications ............................................33
Oil Specifications .................................................33
Fuel Specifications ...............................................33
Battery Specifications............................................33
Temperature Specifications ......................................33
Troubleshooting ........................................... 34
Warranty*
....................................................36
Warranty Qualifications .......................................... 36
Repair/Replacement Warranty ................................... 36
Do Not Return The Unit To The Place Of Purchase ............. 36
Warranty Exclusions ............................................. 36
Other Exclusions .................................................36
Limits of Implied Warranty and Consequential Damage ........ 36
Contact Information .............................................. 36
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
200913
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER

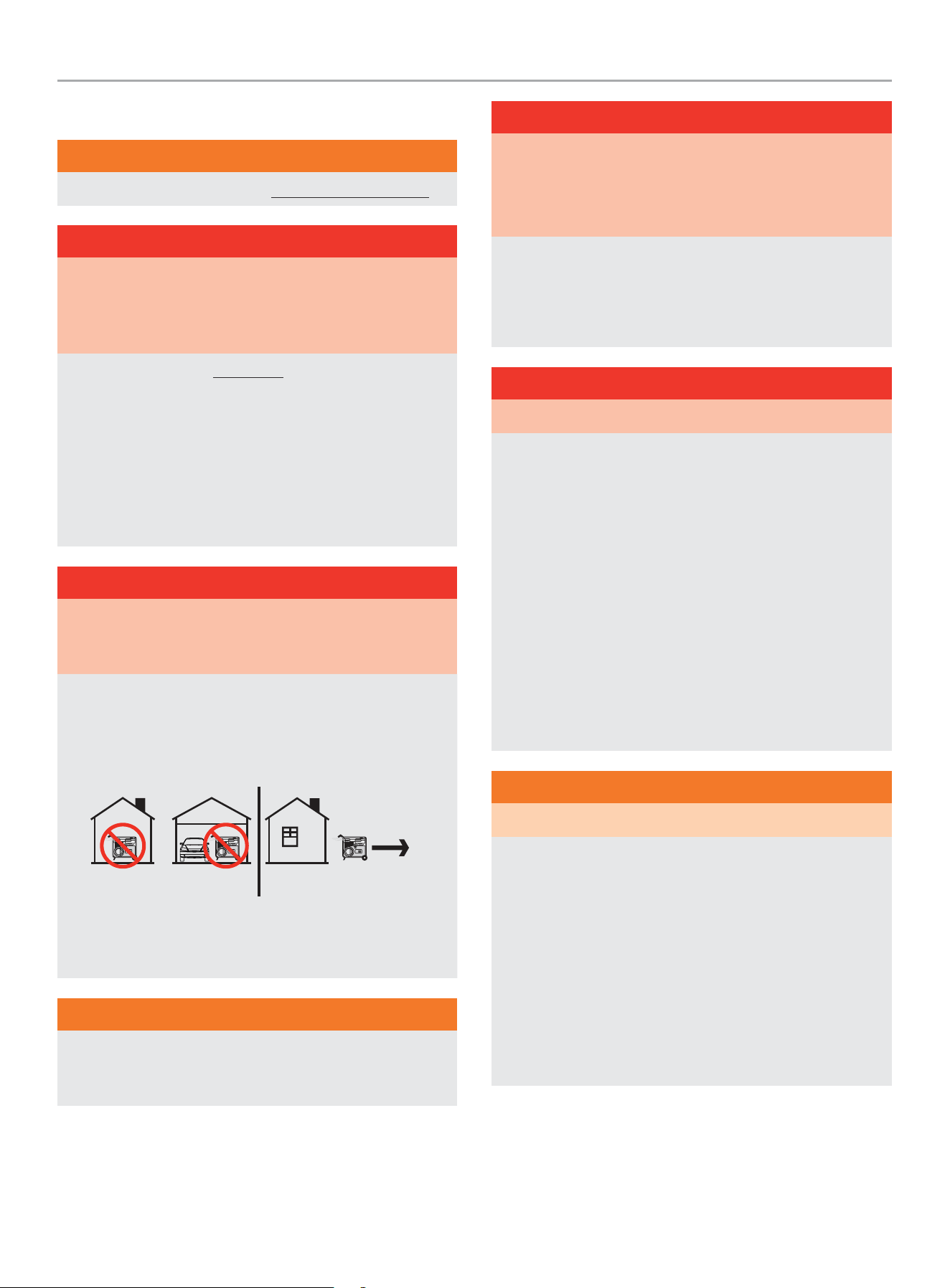

IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
WARNING
This product contains a button battery. If swallowed, it could
cause severe injury or death in just 2 hours. Seek medical
attention immediately.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
– Gasoline is highly flammable and explosive.
– Gasoline can cause a fire or explosion if ignited.
– Gasoline is a liquid fuel but it’s vapors can ignite.
– Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
– Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
– Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
– In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the generator off and let cool for at least two minutes before
removing the gasoline cap. Always loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved container to transfer the fuel to
the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel lines
and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before attempting
to start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
For LPG compatible models, check that the LPG cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or have
automatic ignitions.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
IMPORTANT SAFETY INSTRUCTIONS
8

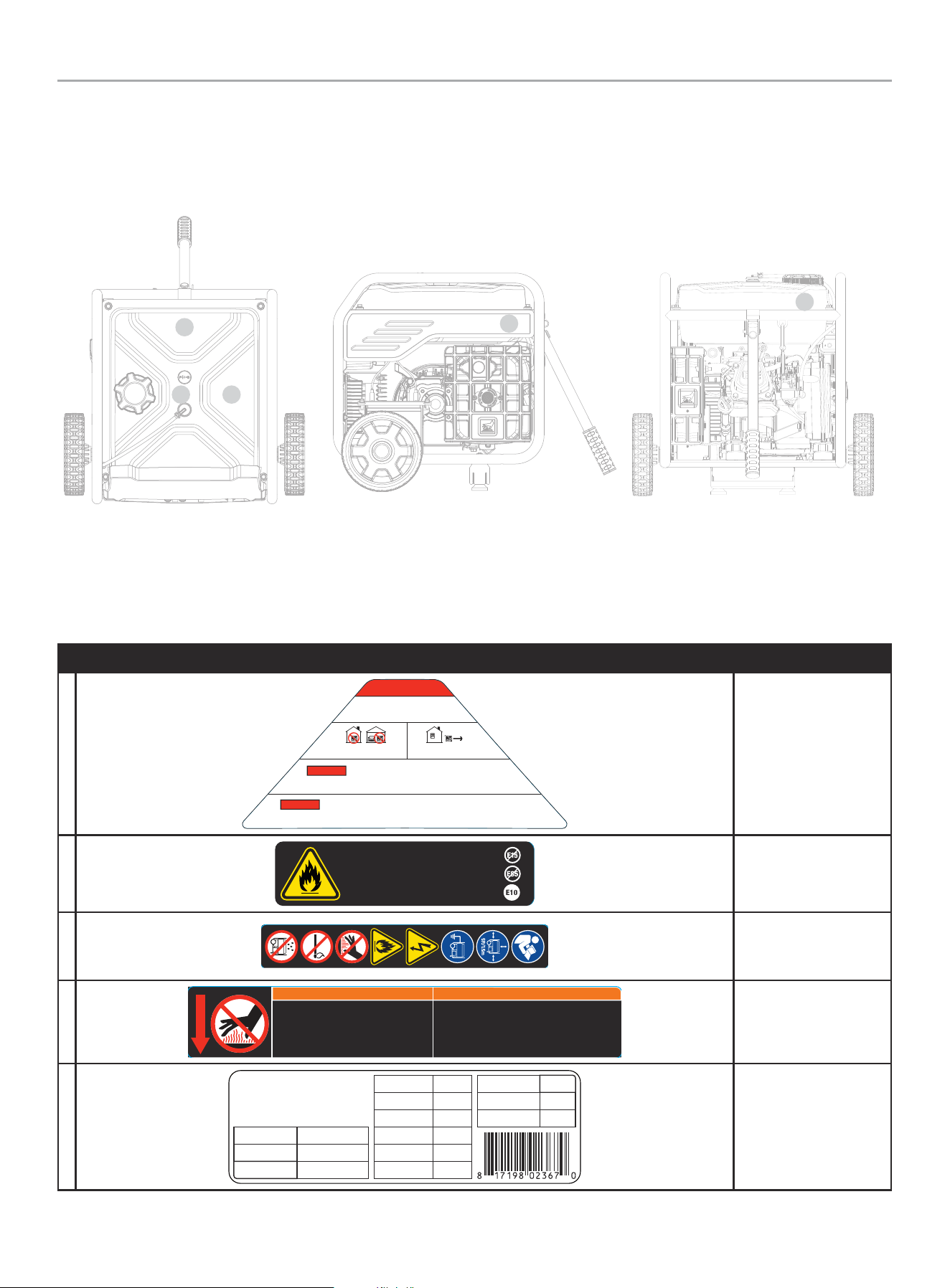

Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
El uso de un generador en interiores PUEDE MATARLO EN MINUTOS. El
escape del generador contiene monóxido de carbono. Éste es un veneno
que no se puede ver ni oler.
NUNCA lo use dentro del hogar ni el garaje, INCLUSO SI las puertas y
ventanas están abiertas. Úselo SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon
monoxide. This is a poison you cannot see or smell.
PELIGRO
ONLY use OUTSIDE and far away
from windows, doors, and vents.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Utiliser un générateur à l’intérieur PEUT VOUS TUER EN QUELQUES MINUTES. L’échappement du
générateur contient du monoxyde de carbone. Il s’agit d’un poison que vous ne pouvez ni voir ni sentir.
Ne l’utilisez JAMAIS dans la maison ou le garage MÊME SI les portes et les fenêtres sont ouvertes.
Utilisez-le UNIQUEMENT À
L’EX TÉR IE UR , loin des fenêtres, portes et trappes de ventilation.
DANGER
DANGER
2159-L-SF
CO Danger
B
UNLEADED FUEL ONLY. Minimum octane rating
of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT. Indice
d’octane minimal de 87. Maximum 10 % d'éthanol.
1032-L-OP-B
Fuel
C
1843-L-SF-A
Safety Symbols
D
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrestor may be required.
The operator should contact local fire
agencies for laws and regulations relating to
fire prevention requirements. If installed,
clean every 100 hours or every season.
1953-L-SF-A
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
componentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas
que pueden provocar incendios alrededor de la
vegetación seca. Un supresor de chispas puede que
sea necesario. El operadaor debe comunicarse con
las agencias locales de bomberos para las leyes y
reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100
horas o cada temporada.
Hot Surface
E
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
2471-L-PR-A
GASOLINE WATTS
WATTS D'ESSENCE
200913
29.2
60
3600
1
1.0
120
F
3500
104°F
40°C
XXXXXXXXXXXX
XXXX
Dataplate
Top Side Back
E
D
C
B A
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
IMPORTANT SAFETY INSTRUCTIONS
9

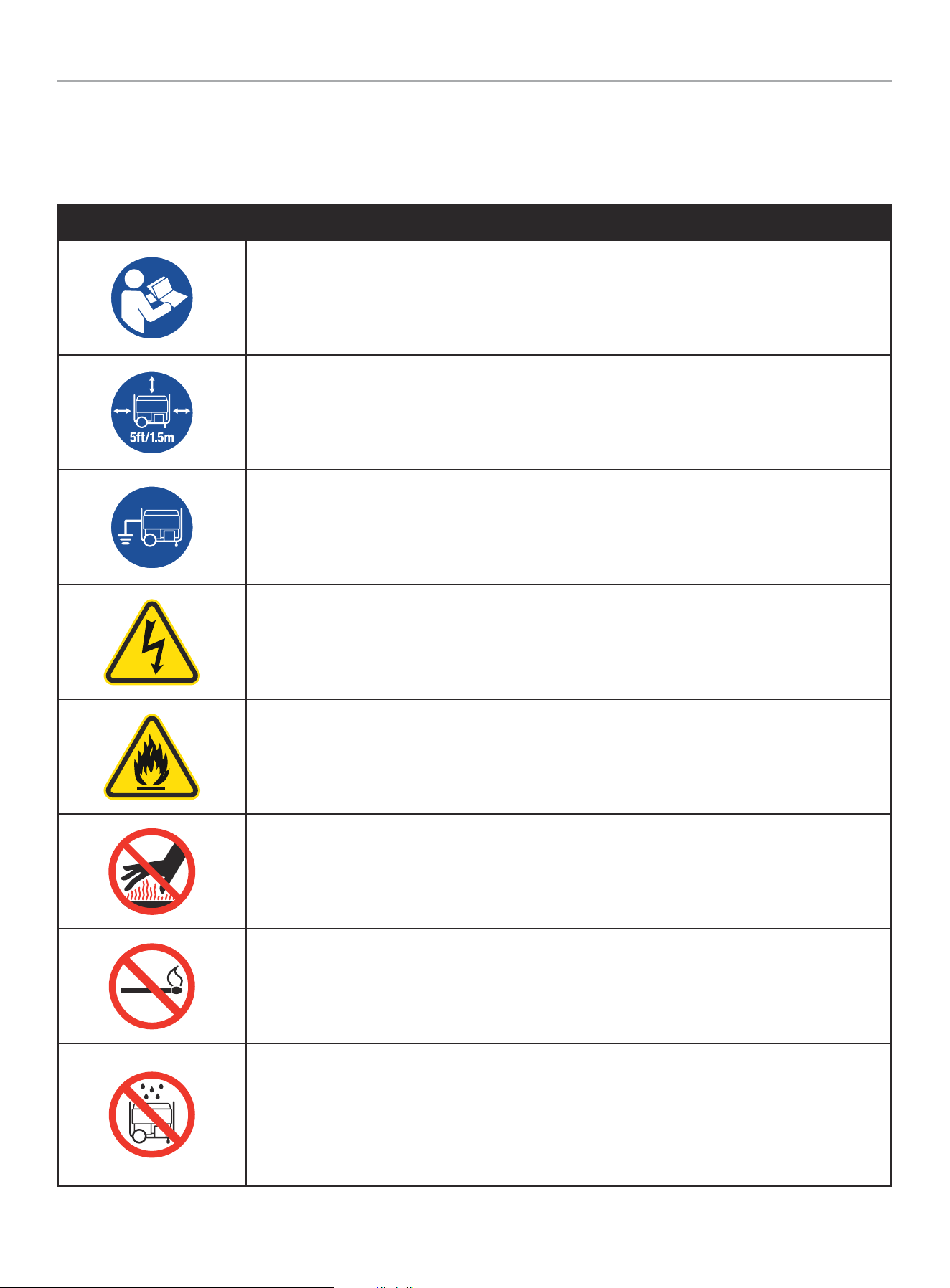

Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations except as follows:
If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical
components.
Use of a safety canopy that is fire retardant and will provide proper air ventilation for the engines exhaust
stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times.
Heat from the muffler surface and exhaust stream can ignite combustible materials.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
IMPORTANT SAFETY INSTRUCTIONS
10
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Start
Stop/Standby
Wireless Pair button
Overload Reset button
Low Oil
ECO
Economy Mode Button
Choke Button
Choke
Run
USB Connection Port
5V 2.1A Direct Current
RV Ready Receptacle
SYMBOL MEANING
Circuit Breaker Reset:
Push
Parallel Connection(s)
Neutral Floating.
Neutral circuit IS NOT
electrically connected to
the frame/ground of the
generator.
Fuel/Gasoline Valve
On/Off
Gasoline Tank: Full
Gasoline Tank: Empty
Hertz
Volts
Run time
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
IMPORTANT SAFETY INSTRUCTIONS
11
Quick Start Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine

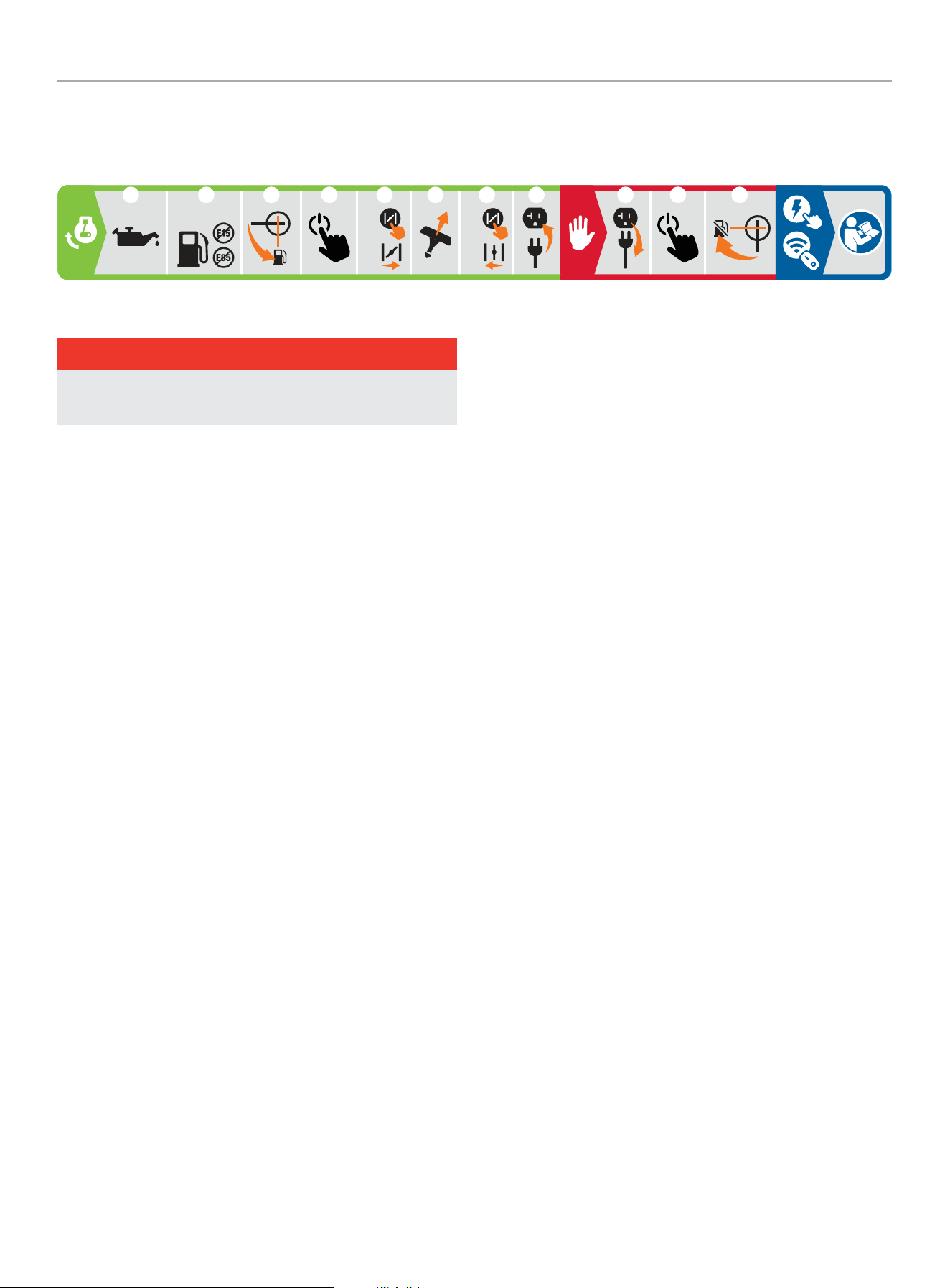

DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.

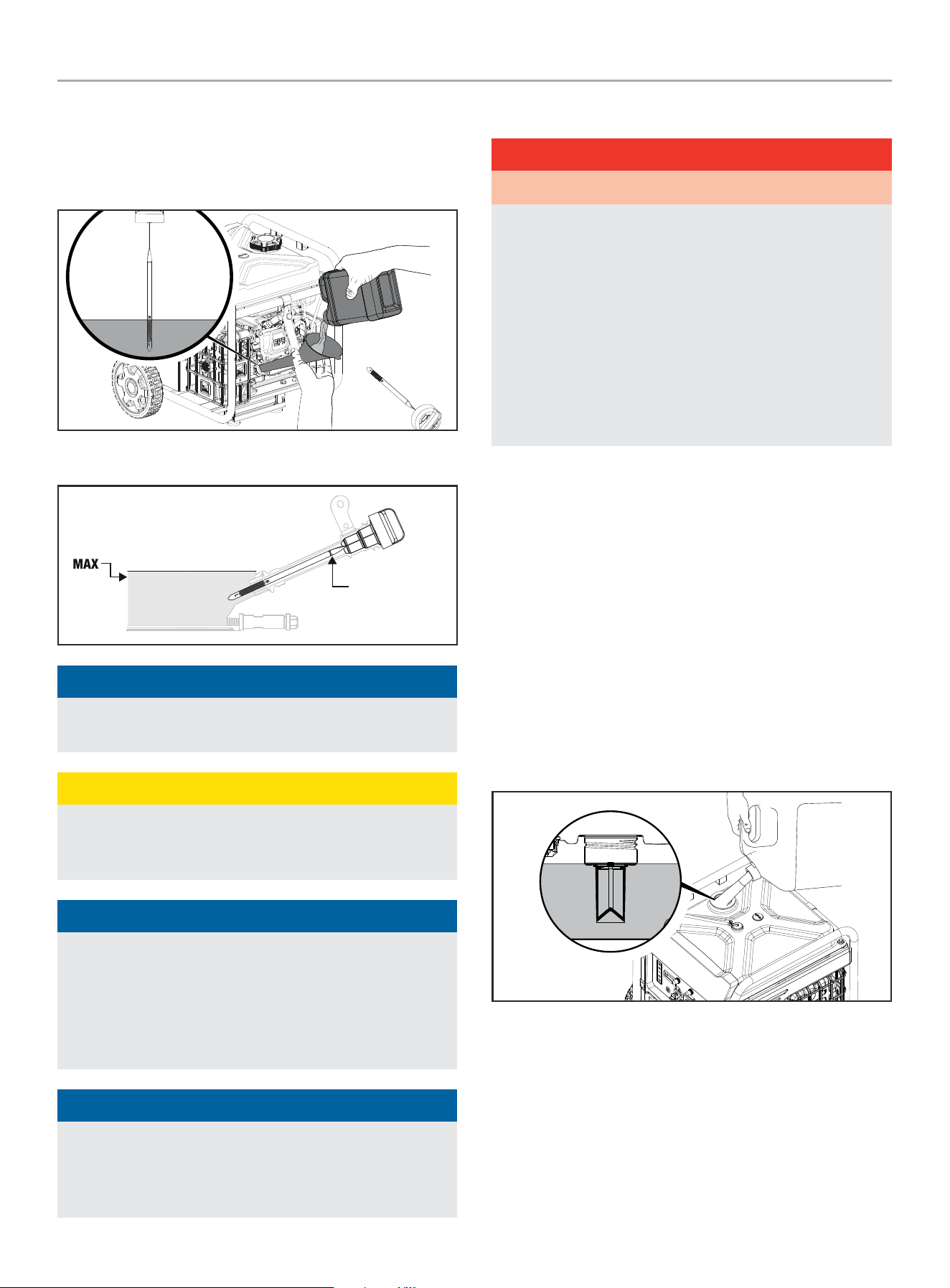

1. Check oil level.
Recommended oil is 10W-30.

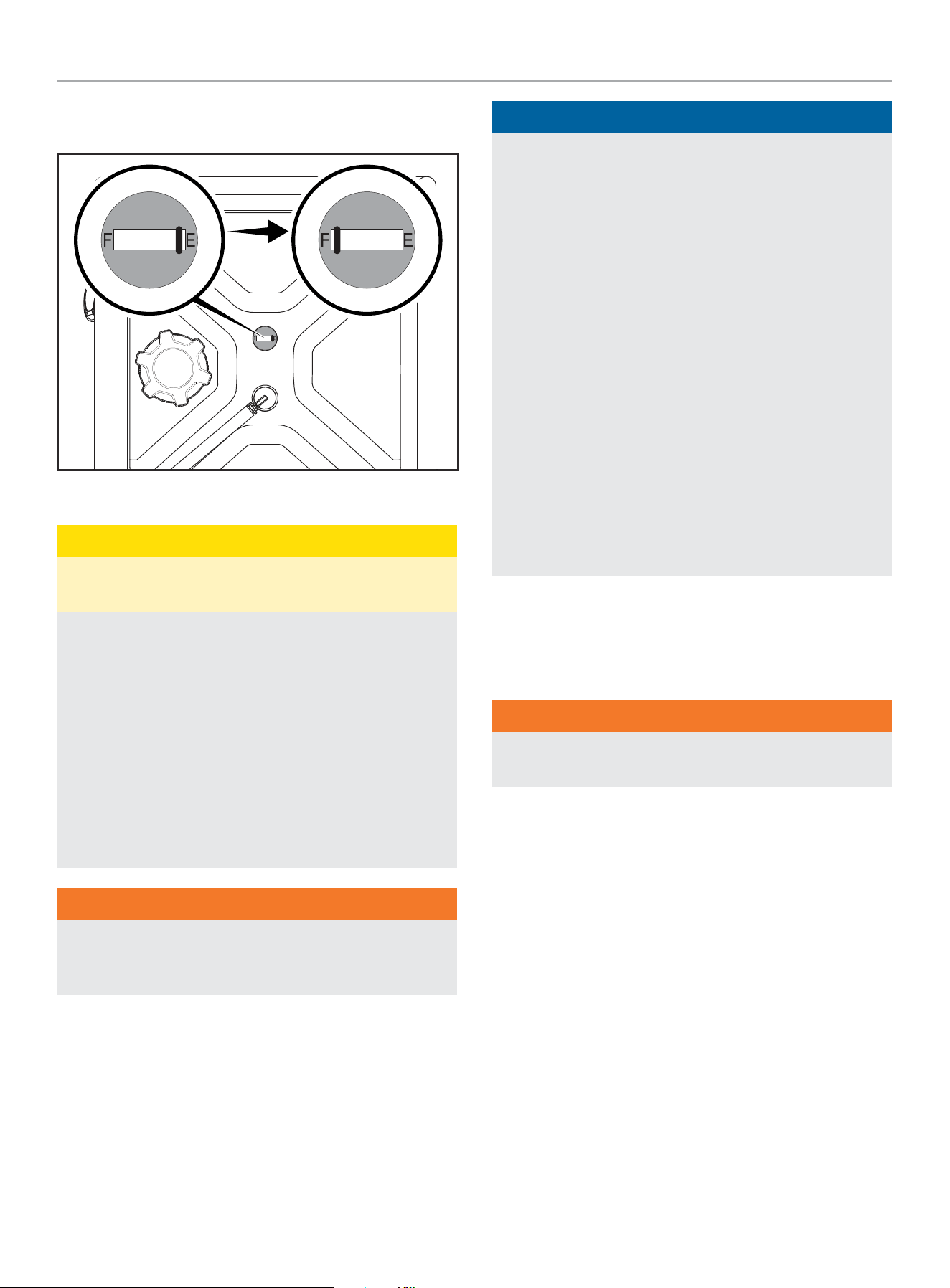

2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
3. Turn the fuel valve to “ON” position.
4. Press the START/STOP button once.
5. Choke engine
5a. Press the choke button, or
5b. Move choke lever to “CHOKE” position.
6. Pull the recoil cord.
7. Run engine
7a. Press the choke button, or
7b. Move the choke lever to “RUN” position.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Press the START/STOP button once.
3. Turn the fuel valve to “OFF” position.
Wireless and Electric Start
See page 22 in “Operation” section.
10W-30
1
2 3
35
5B
6 7 18
2
1X
4
1X
5A
7B
7A
2418-L-OP-A
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
CONTROLS AND FEATURES
12
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.

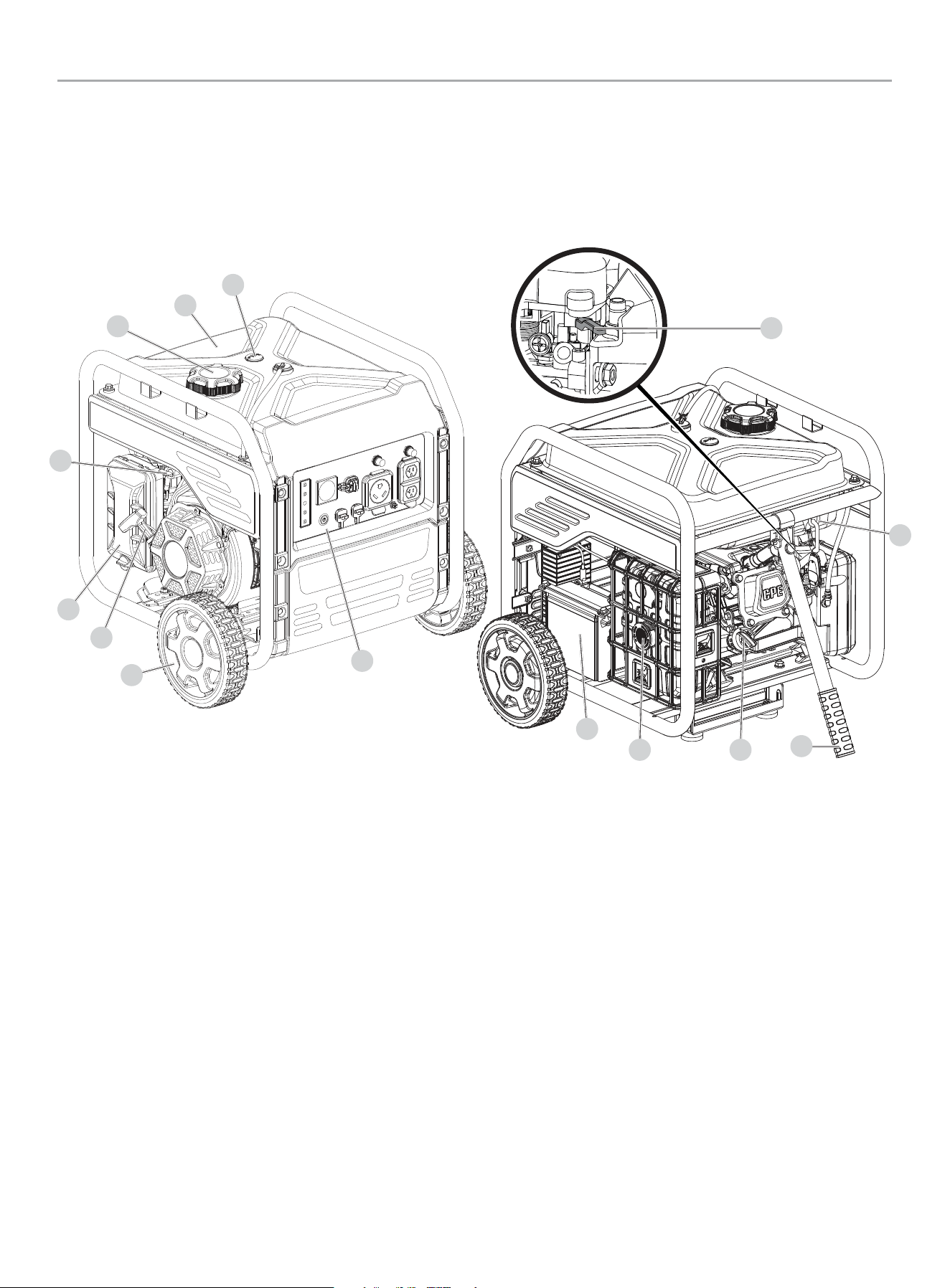

Generator
1. Gasoline Gauge
2. Gasoline Tank – 4 gal. (15.2 L)
3. Fuel Cap – Remove to add fuel.
4. Fuel Valve – Used to turn fuel supply on and off to engine.
5. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
6. Recoil Starter – Used to manually start the engine.
7. Never Flat Wheels – 8 in. (20.3 cm)
8. Control Panel – See Control Panel section.
9. Battery - Provides 12V DC power to the starting system
10. Muffler
11. Oil Fill Cap/Dipstick – Used to check and fill oil level.
12. Folding Handle – Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
13. Remote Key Fob Storage
14. Choke – Used to start a cold engine.
9
10 11
12
14
13
1
2
4
5
6
7
8
3
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
CONTROLS AND FEATURES
13

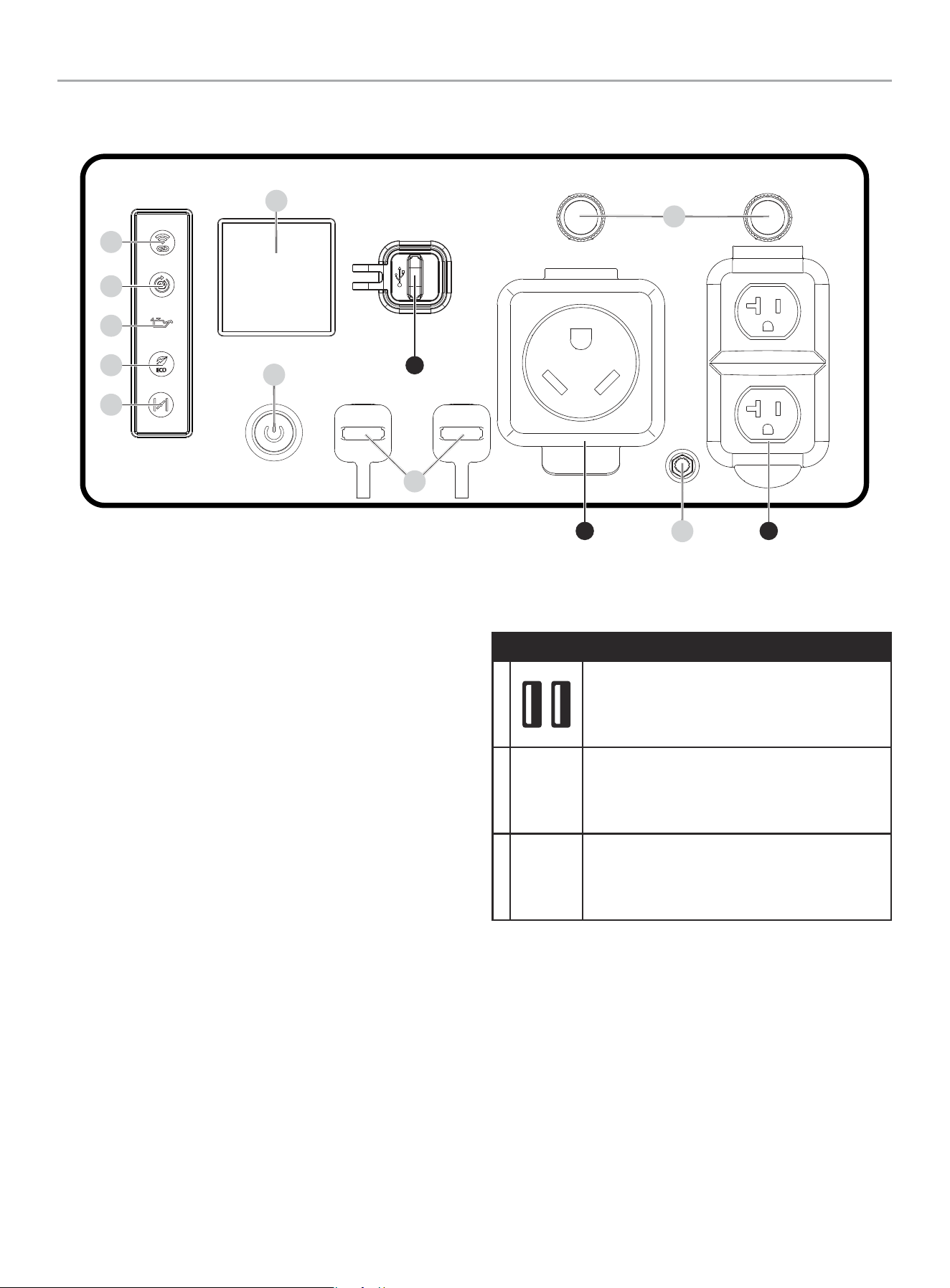

Control Panel
1
6
10
7
2
8
3
4
5
B
A
C
9

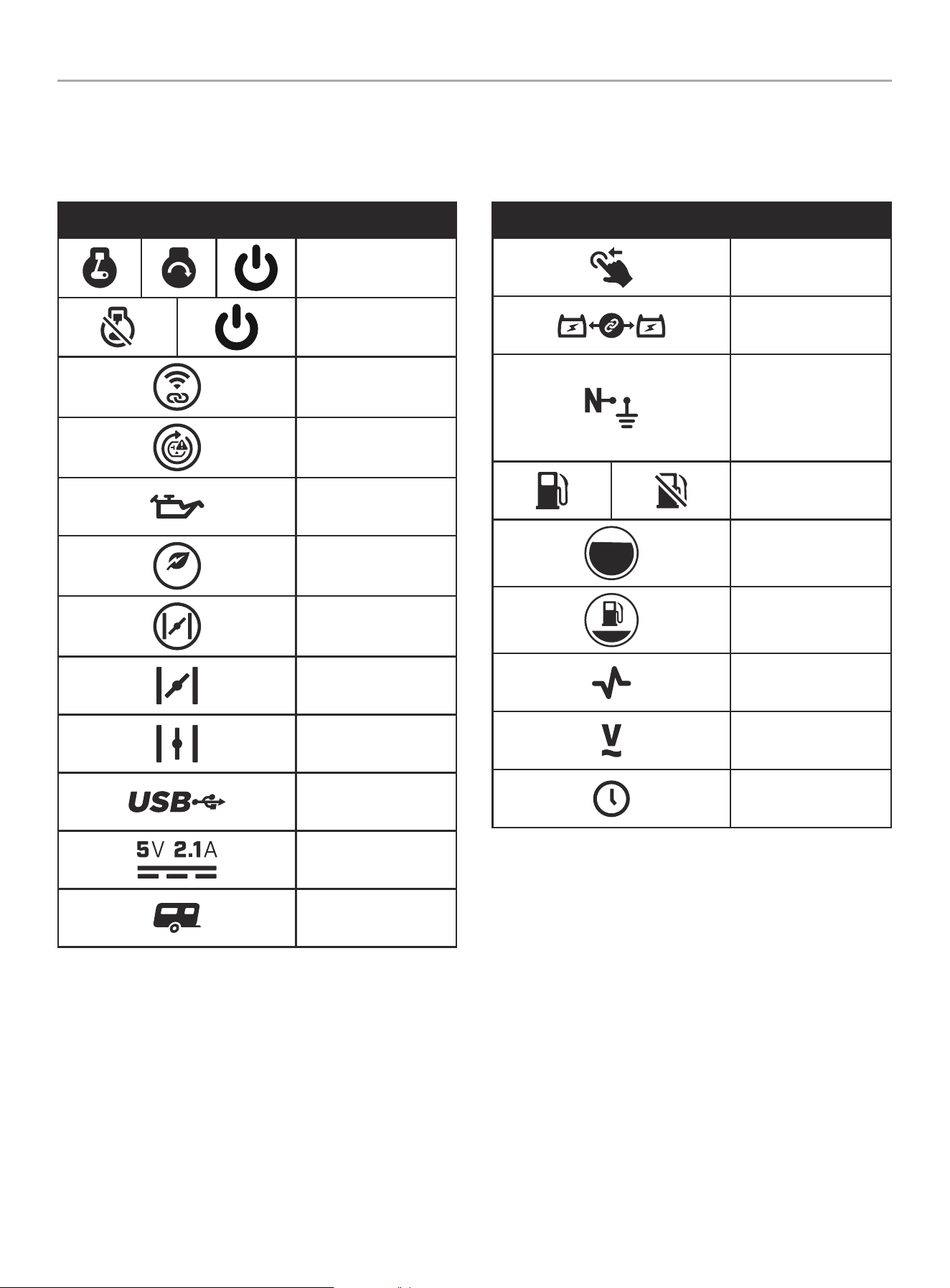

1. Wireless Reset – Used to reset or pair remote control(s).
2. AC Overload Reset Button – Used to re-energize
receptacles after overload fault.
3. Low Oil Warning Indicator Light – When ON, engine will
shut down and not run. Check oil level.
4. Economy Mode Button – Enables/disables automatic idle
control.
5. Choke – Used to start a cold engine.
6. Intelligauge – Three mode digital meter for displaying
voltage, frequency (hertz) and total run time.
7. Start-Stop Push Button
8. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
9. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
10. Ground Terminal – Consult an electrician for local grounding
regulations.
RECEPTACLES
A
(2×) 5V DC, 2.1A (USB Type-A)
Each port may be used to supply a maximum of
5V, 2.1A to power cellphones, laptops, tablets,
and similar devices.
B
t
120V AC, 30A RV (NEMA TT-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single phase,
60 Hz electrical loads.
C
A
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
CONTROLS AND FEATURES
14

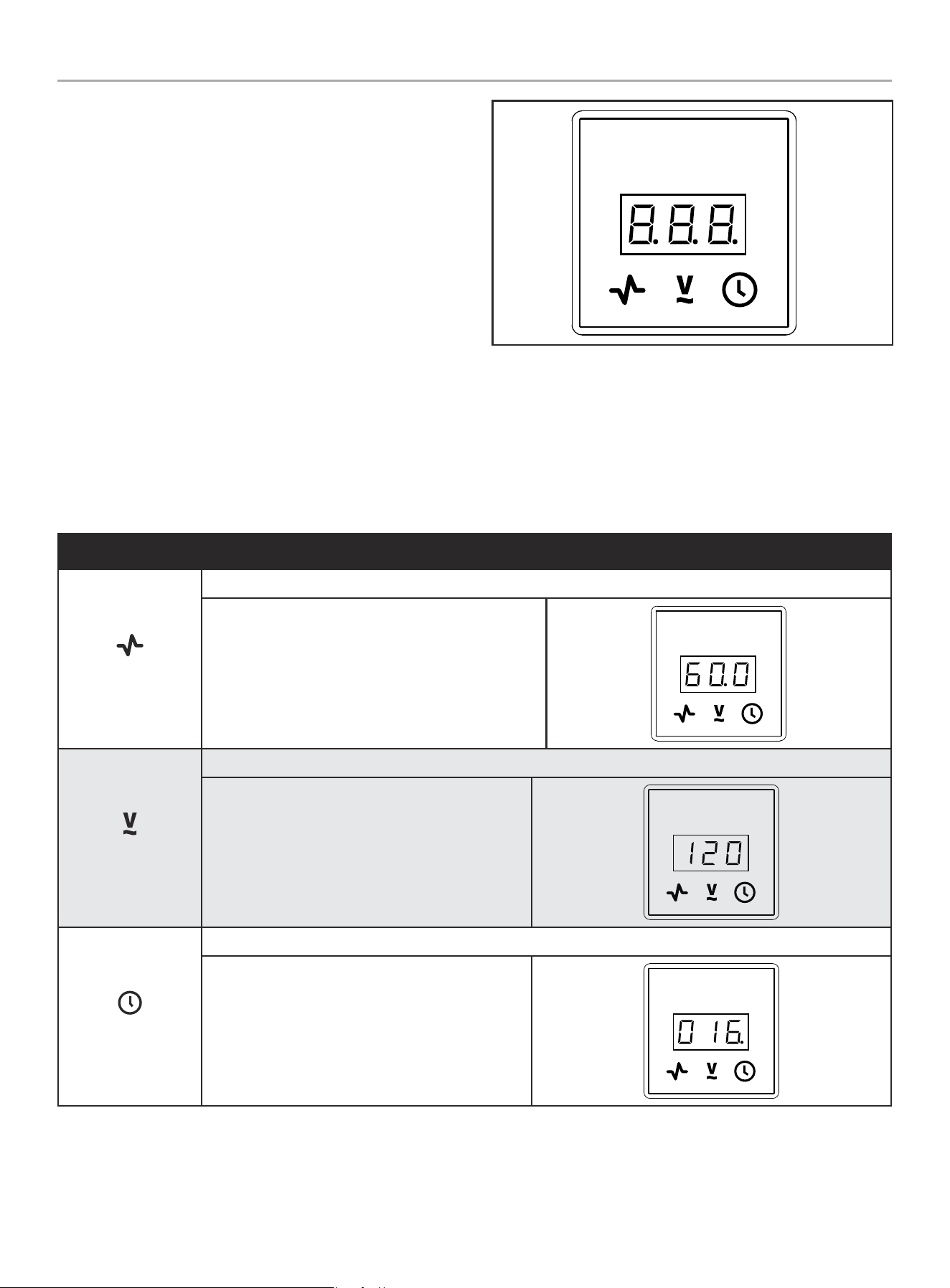

Intelligauge
Three mode digital meter for displaying frequency (hertz), voltage,
and total run time.
The LCD displays each mode for several seconds and then
automatically cycles through.
MODE DESCRIPTION
Frequency (Hz)
Output frequency in hertz.
Example: 60.0 hertz
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Total Run Time (Hrs)
Total run time of the generator since first operation
Example: 16 hours
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
CONTROLS AND FEATURES
15

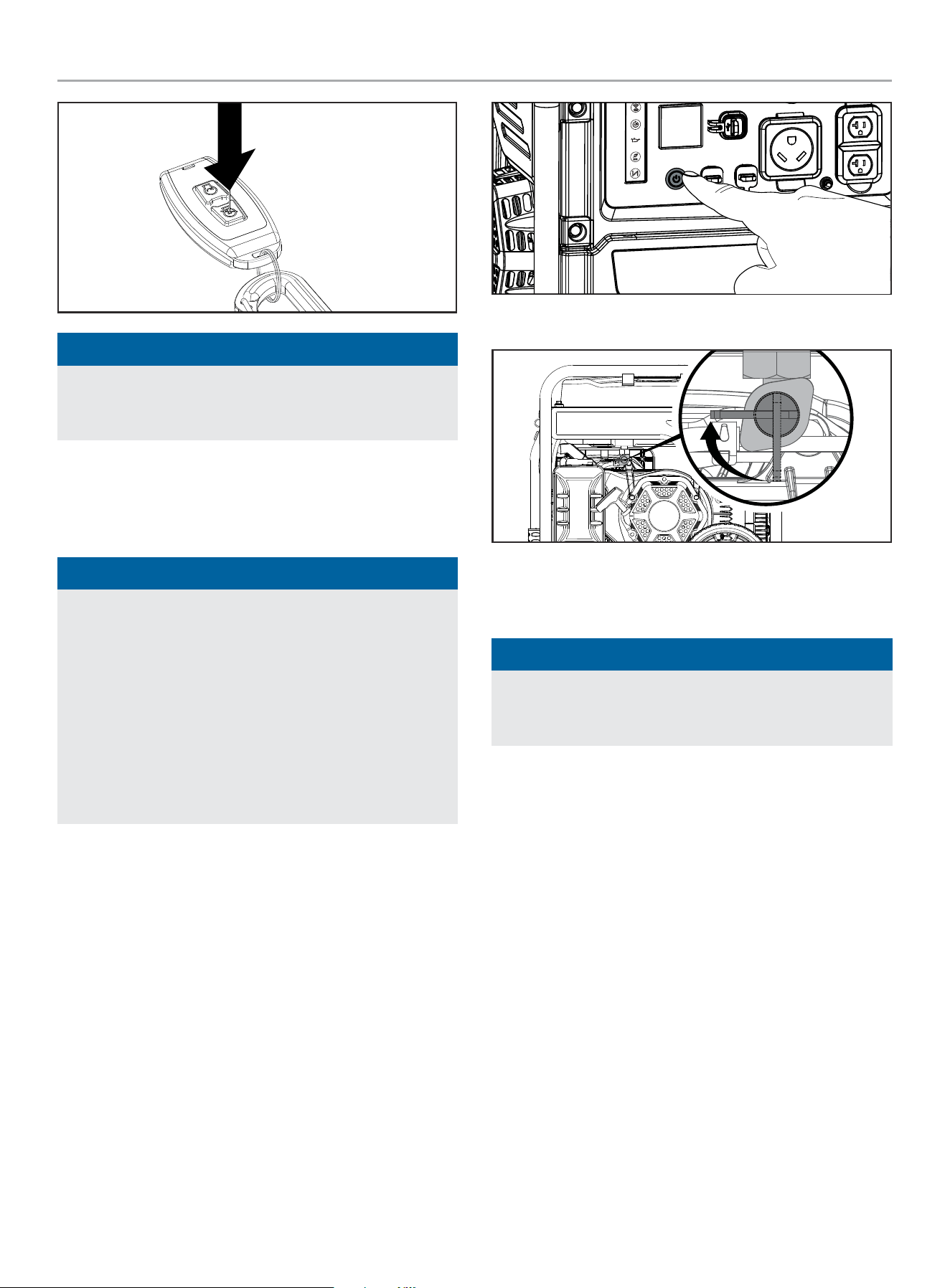

Wireless Remote Control
This generator is equipped with a wireless remote control system
for starting and stopping. The system consists of (4) main
components:
1. Receiver Control Module (RCM)
2. Remote Control
3. Start/Stop button
4. Auto-Choke
The Remote Control functions are enabled when:
1. The START/STOP button is in “STANDBY” mode and flashes
green once per second.
The Remote Control functions are disabled when the above
condition is not met.

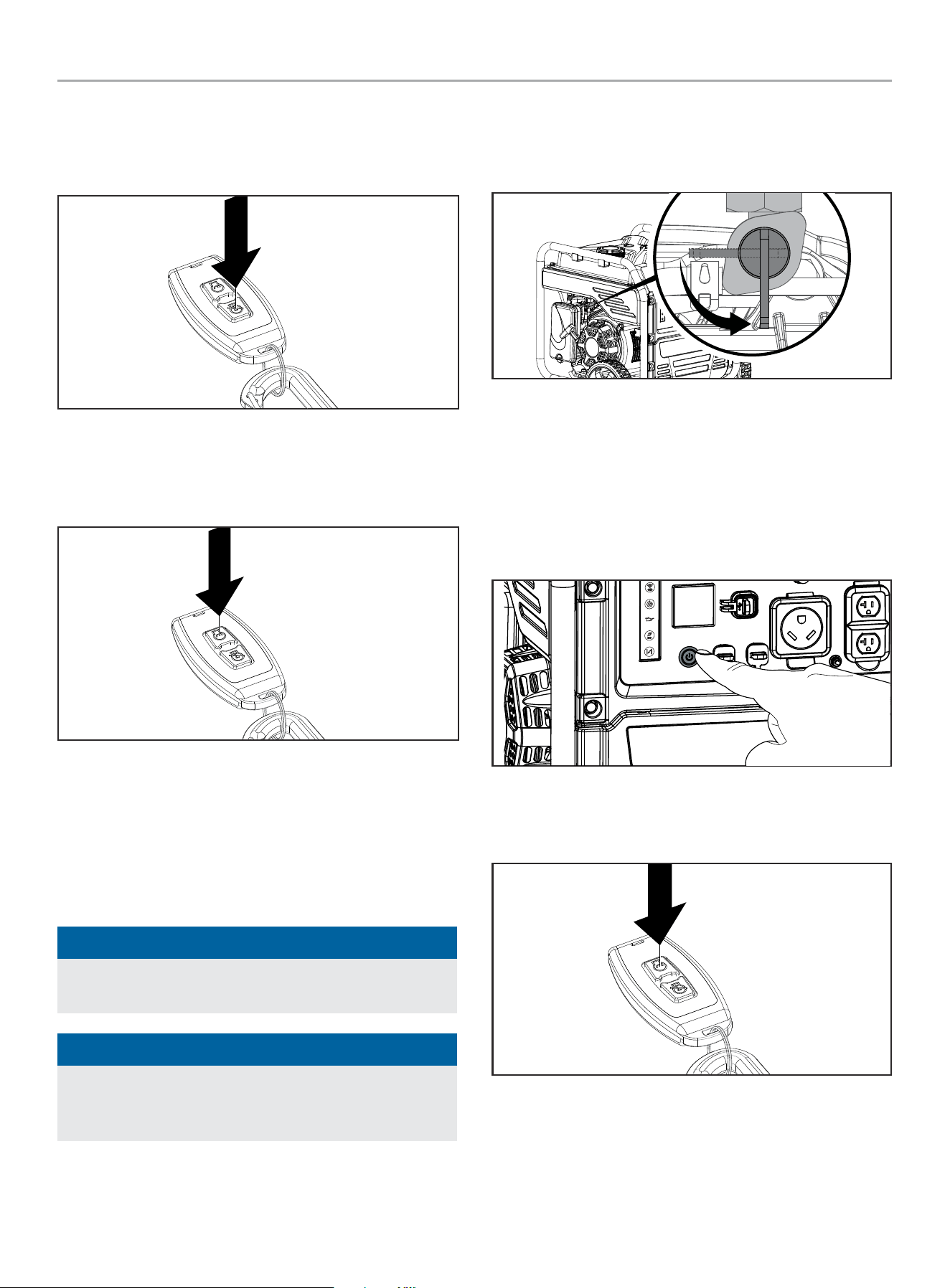

To start the generator wirelessly, press the “START”
a
button on
the Remote Control one time to enter standby mode, indicated by
the START/STOP button on control panel flashing green once per
second. Press the “START” button on the Remote Control again
to start the engine. The engine will attempt to start (6) times. The
RCM controls the Auto-Choke during each attempt to start. If the
generator does not start, call Champion Customer Care team for
assistance at 1-877-338-0999.
To stop the generator wirelessly, press the “STOP”
$
button on
the Remote Control one time.
Remote Control Power Consumption
While the START/STOP button is in “STANDBY” mode and flashing
green once per second, the RCM is active and waiting for a remote
signal. This standby function requires a small amount of electrical
current from the battery and will shut off automatically after 12
hours.
Pushing and holding the “STOP”
$
button on the remote control
for 5 seconds or pushing and holding the START/STOP button
on the control panel for 5 seconds disables the standby function
manually and the RCM will no longer consume any battery power
or wait for remote signal. This is indicated by the START/STOP
button no longer flashing.
FCC Statement for Remote Control Device
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
CONTROLS AND FEATURES
16

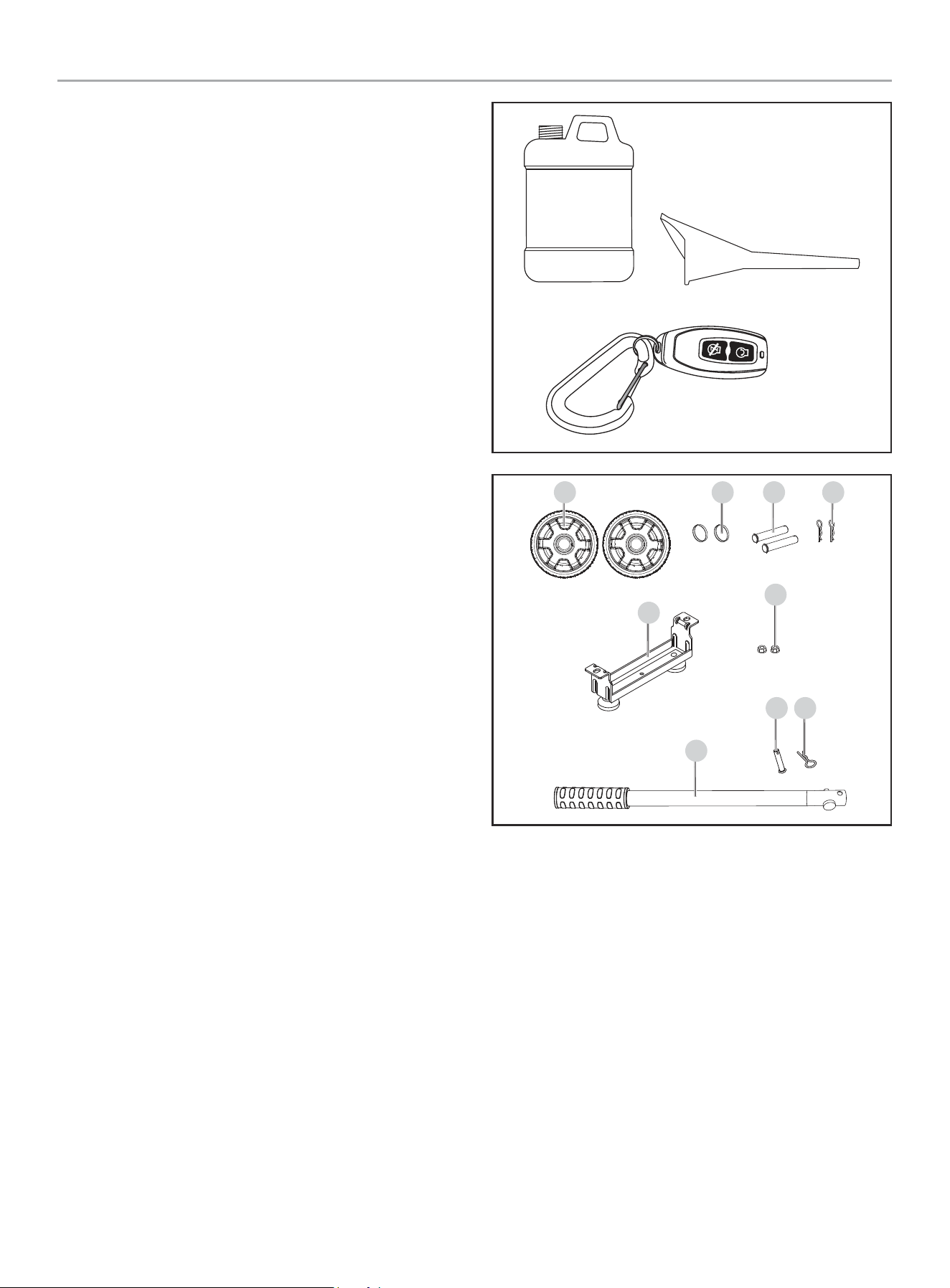

Parts Included
Accessories
Remote Key Fob
....................................................1
Engine Oil ...................................... 20.3 fl. oz. (600 ml)
Oil Funnel ...........................................................1
Assembly Parts
Wheels
8 in. (20.3 cm) Never Flat Wheel (A) ...........................2
Wheel hub caps (B) .............................................2
Roll Pin (C) ......................................................2
Large R-clip (D) .................................................2
Engine Vibration Mounts
Support Leg with Vibration Mounts (E) ........................1
Flange Lock Nut (M8) (F) .......................................2
Folding Handle
Handle (G) .......................................................1
Short Pin (H) ....................................................1
Small R-clip (I) ..................................................1
Tools Needed
– Wrench/Socket set (metric)
A
E
G
H I
F
B
C
D
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
ASSEMBLY
17
ASSEMBLY
Your generator requires some assembly. This unit ships from our
factory without oil. It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom. Fold
each side flat on the ground to provide a surface area to work
with the generator.

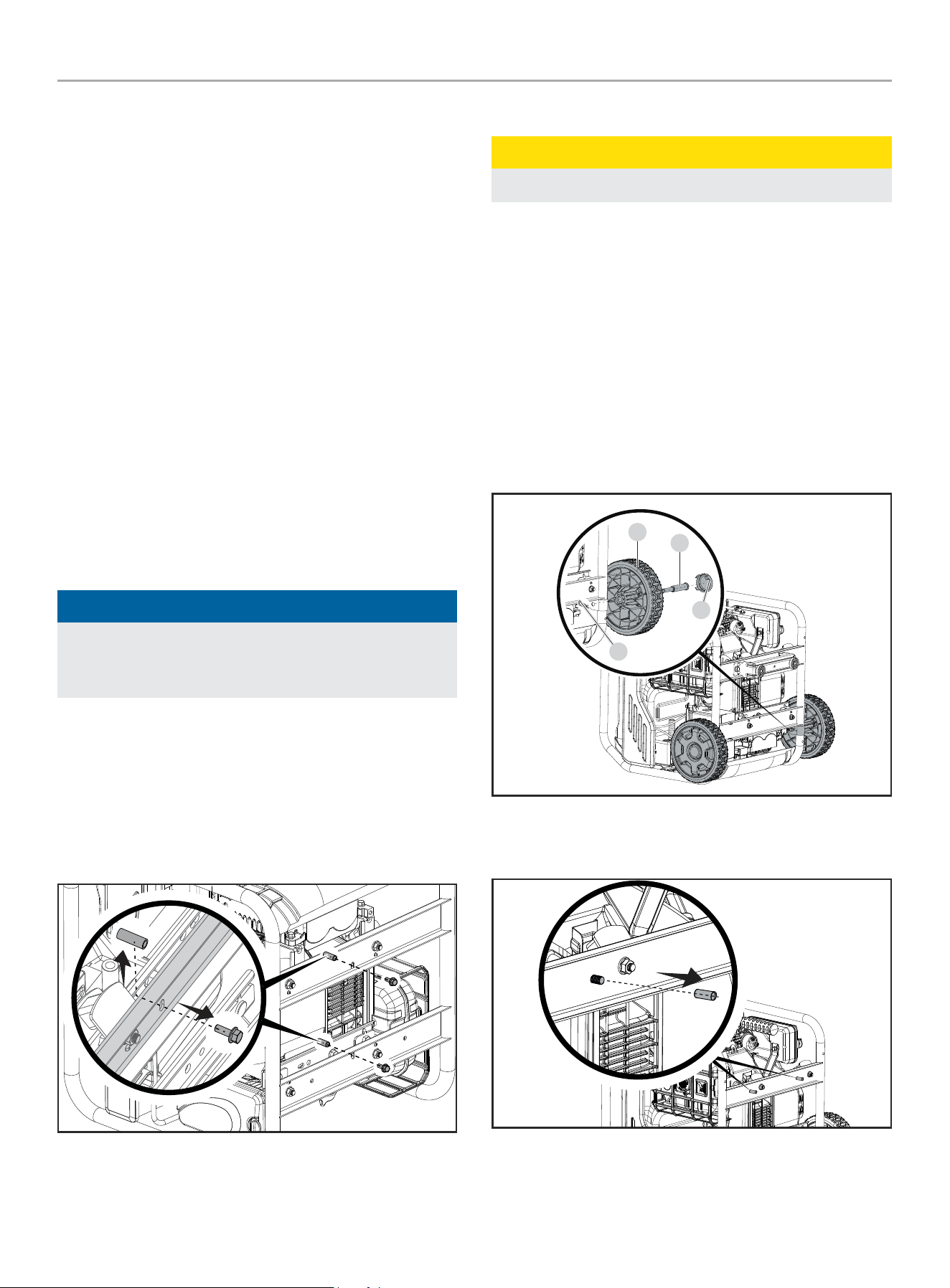

Remove Shipping Support Spacers
To protect the generator during shipping, support spacers have
been installed between the engine and frame. These spacers
MUST BE REMOVED BEFORE adding oil or gasoline to the
generator.
NOTICE
DO NOT attempt to run generator without first removing the
shipping support spacers. Damage to the generator as a result of
not removing the spacers will void the warranty.

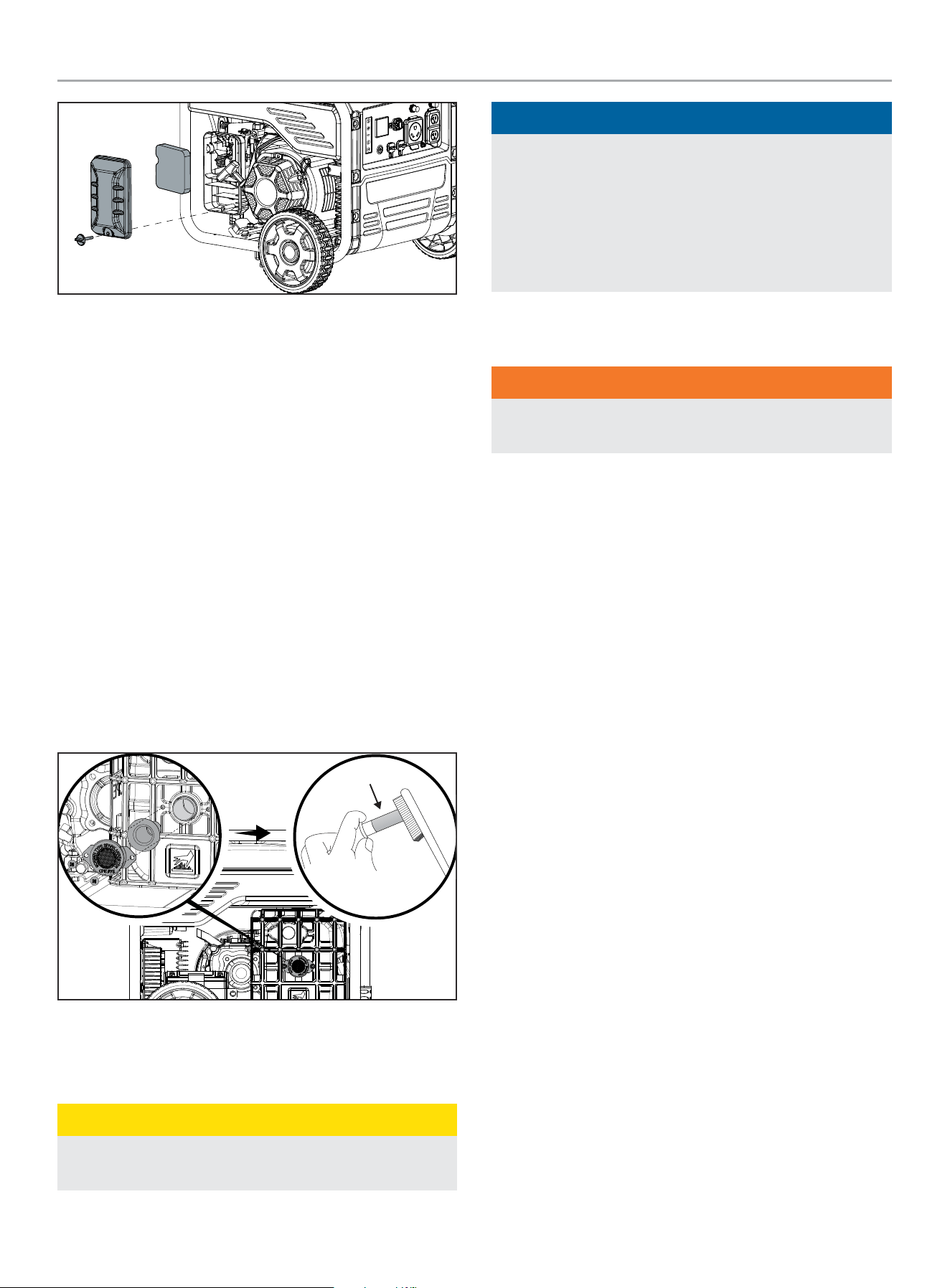

1. BEFORE filling the engine with oil or gasoline, tip the
generator onto its side as shown. Tip onto the flattened
cardboard box the generator came in or other protective
surface so as to not scratch the frame.
2. Remove the bolts from the orange support spacers and
remove the spacers while lightly lifting the engine. Bolts and
spacers can be discarded.
3. Tip the generator upright.
Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, carefully tip the generator onto the
control panel side.
2. Remove wheel hub cap (B) from wheel by inserting a small
screwdriver into the slot provided and pry upward.
3. Slide the roll pin (C) through the wheel (A) from the outside.
4. Slide the roll pin through the mount point on the frame.
5. Insert r-clip (D) into hole at end of roll pin.
6. Re-install hub cap on wheel.
7. Repeat to attach the second wheel.
B
C
A
D
Install the Support Leg
1. Remove the rubber sheaths from the welded bolts.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
ASSEMBLY
18

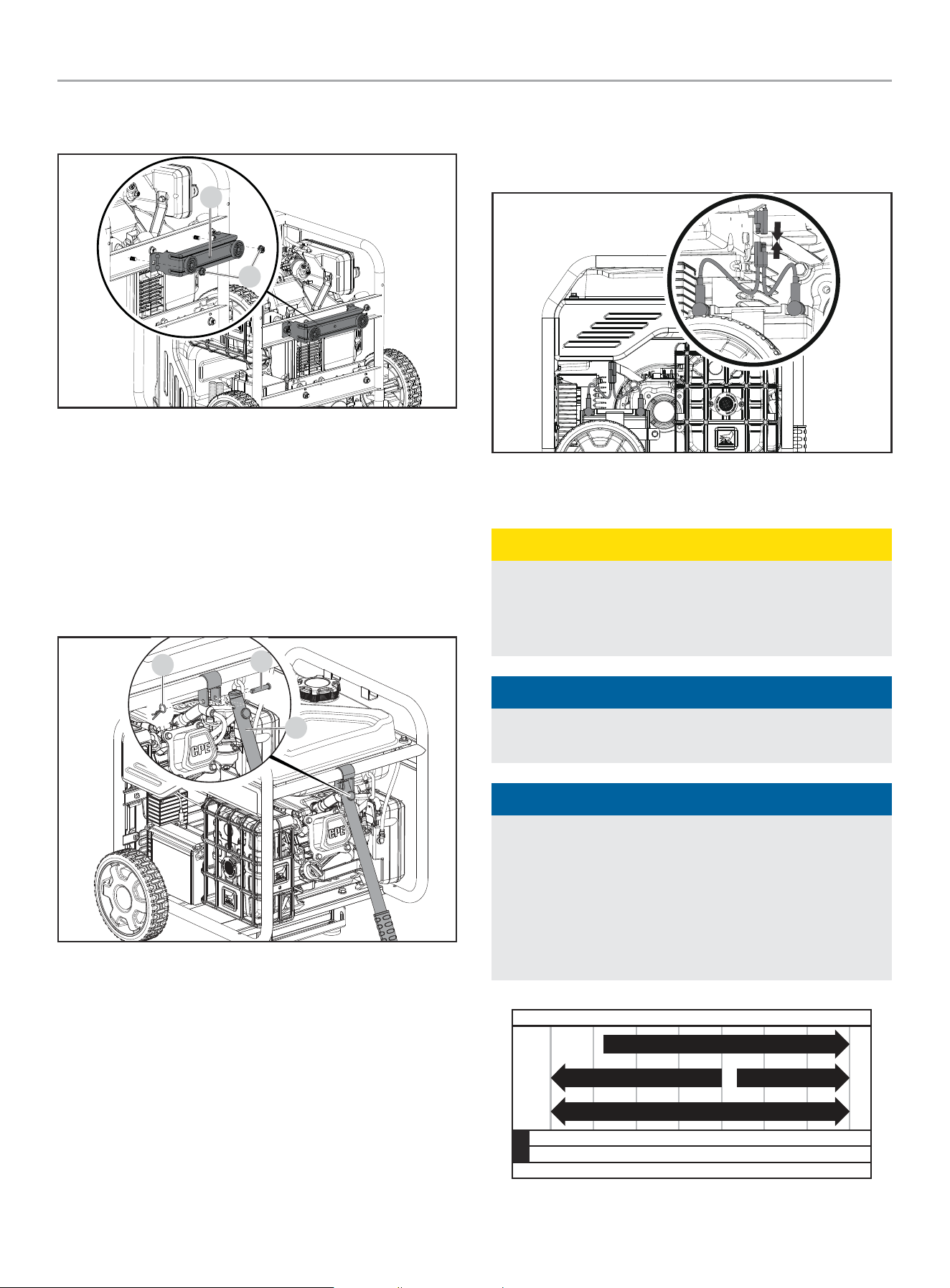

2. Attach the support leg (E) to the generator frame with flange
lock nuts (F).
E
F
3. Slowly tip the generator back down so that it rests on the
wheels and support leg.
Install the Handle
1. Place the handle (G) inside the mounting channel on the
frame.
2. Secure the handle to the frame using an short pin (H).
3. Place an r-clip (I) on the end of the short pin and fasten
securely.
H
I
G
Connect the Battery
1. Cut cable tie on each side of battery connector.
2. Push two halves of battery connector together tightly.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-in
run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
ASSEMBLY
19
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 18.6 fl. oz. (550 ml) of oil (included)
and replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
OIL DIP STICK
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended. Gasoline
can be forced out of the tank as a result of expansion if
overfilled, and can affect the stable running condition of the
generator. The approximate fuel level is shown on the fuel
gauge on top of the fuel tank.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
ASSEMBLY
20
3. The approximate fuel level is shown on the fuel gauge on top
of the fuel tank.
Empty Full
4. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved fuel container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
– Ethanol-gasoline blends can absorb more water than
gasoline alone.
– These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn into
the carburetor and cause damage to the engine and/or
create potential hazards.
– If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
– Any damages or hazards caused by using ethanol blended
gasoline higher than 10% by volume, improperly stored
gasoline, and/or improperly formulated stabilizers, are not
covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the panel of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
– Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
– The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
– Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
OPERATION
21
Neutral Bonded to Frame*
– Neutral circuit IS electrically connected to the frame/ground of
the generator.
– The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
Generator Location
WARNING
NEVER operate the generator inside any building, garage,
basement, crawlspace, shed, enclosure or compartment,
including a generator compartment of a recreational vehicle.
NEVER operate or start the generator in the back of an
SUV, camper, trailer, truck bed (regular sides, flat or other
configuration), under staircases, stairwells, next to walls
or buildings or in any other location that will not allow for
adequate cooling of the generator or for the proper exit of the
exhaust flow from the muffler system.
DO NOT operate or store the generator in wet weather
conditions such as rain or snow. Using a generator in wet
conditions could result in serious injury or death due to
electrocution.
In some state’s generators may be required to be registered
with the local utility company when used at construction sites
and may be subject to additional rules and regulations, consult
your local municipal authority.
Generators should always be operated on a flat, level surface
at all times (even when not in operation).
Generators must have a minimum of 5 feet (1.5 m) of
clearance from all combustible material.
Generators must also have a minimum of 3 feet (91.4 cm)
of air flow clearance on all sides to allow for adequate
performance cooling, maintenance and servicing.
Always place the generator in a well-ventilated area. NEVER
place the generator near air intake vents or where exhaust
fumes could be drawn into occupied or confined spaces.
Always carefully consider wind and air currents when
positioning generator.
Always allow generators to properly cool before transport or
for storage purposes.
Failure to follow proper safety precautions may result in
personal injury, damage to the generator and void the
manufacturer’s warranty.
WARNING
During operation the muffler and exhaust fumes will become
hot. If adequate cooling and breathing space are not supplied,
or if the generator is blocked or enclosed, temperatures can
become extremely heated and may lead to fire.
Surge Protection
Electronic devices, including computers and many programmable
appliances use components that are designed to operate within a
narrow voltage range and may be affected by momentary voltage
fluctuations. While there is no way to prevent voltage fluctuations,
you can take steps to protect sensitive electronic equipment.
– Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-duration
voltage fluctuations.

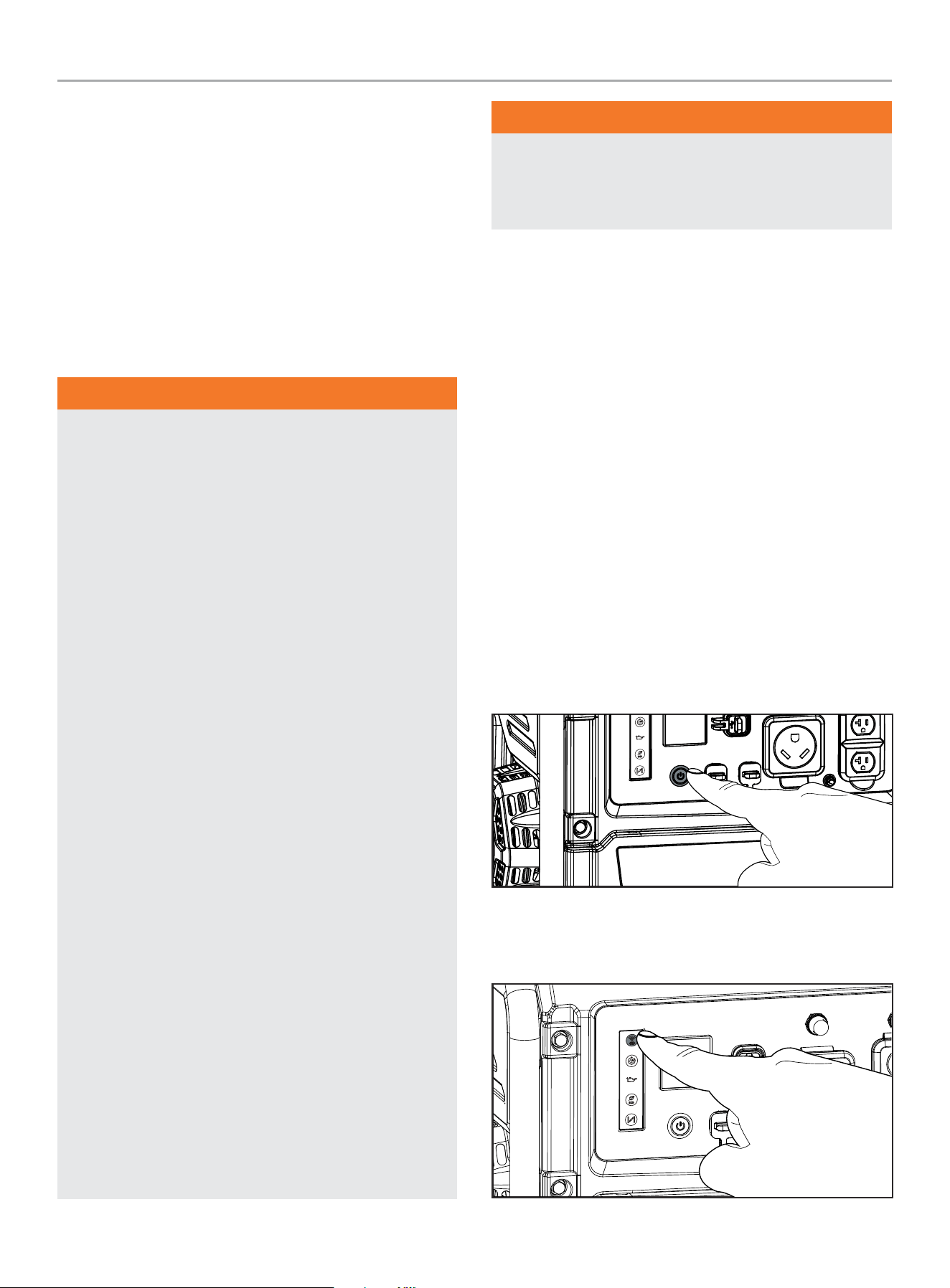

Wireless Set Button
The wireless set button is a feature that lets the user synchronize
the remote key fob to the generator. Up to two remote key fobs
can be synchronized to the generator at a time. Follow the
proceeding steps to reset a remote or synchronize two remotes:
1. Press the START/STOP button once on the front panel of the
generator. The button will flash green once per second.
2. Push and hold the wireless set button for approximately three
(3) seconds. The wireless set button will illuminate blue and
the START/STOP button will stop flashing.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
OPERATION
22
3. Push and release the STOP
$
button on the remote key
fob. The START/STOP button will flash green once and the
wireless set button will flash blue once to indicate the remote
program has been erased.
4. Push and release the START
a
button on the remote.
The START/STOP button will flash green once and the
wireless set button will flash blue once and again illumniate
blue to indicate the remote has been programmed.
5. Push and hold the wireless set button for approximately three
(3) seconds until the blue light of the wireless set button goes
out, and the green light of the START/STOP button flashes
once per second indicating it is in “STANDBY” mode.
6. Press the START button on the remote to start the engine and
follow the remote STOP instructions to verify the remote(s)
are working properly.
NOTICE
Two remote key fobs can be synchronized to the generator at
one time.
NOTICE
Changing a remote key fob battery may not require the user to
reset the remote. If remote does not function after changing
the battery, proceed with Wireless Set Button instructions.
Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Turn the gasoline fuel valve to the “ON” position.
Wireless Remote Start
Wireless remote starting is only possible within 80 feet of the
generator.
DO NOT attempt to adjust the choke. The remote system will
automatically close and open the choke.
1. Press the START/STOP button once. The button will flash
green.
2. Press and release the “START” button on the remote control.
DO NOT hold the button down, only press the button once.
The engine will attempt to start six times.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
OPERATION
23

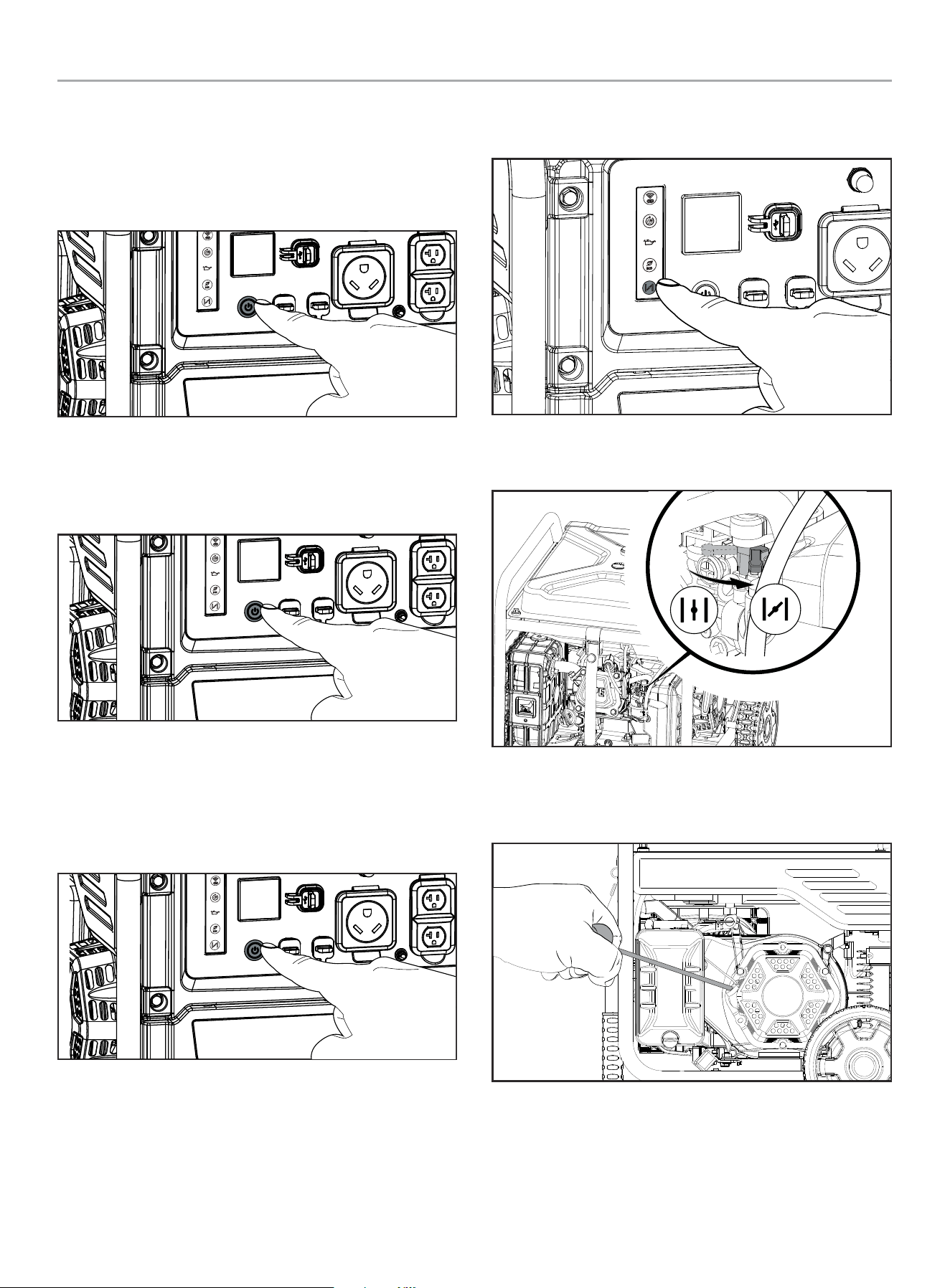

Electric Start
DO NOT attempt to adjust the choke. The remote system will
automatically close and open the choke.
1. Press the START/STOP button once. The button will flash
green but the generator will not attempt to start.
2. Press the START/STOP button a second time. The button will
now flash green once per half second and the generator will
attempt to start. There will be (6) starting attempts. After
generator starts, the button will turn solid green.
Manual Start
1. Disconnect all electrical loads from the generator. Never start
or stop the generator with electrical devices turned on.
2. Press the START/STOP button once. The button will flash
green.
3. Move the choke to the “CHOKE” position O or press the
choke button until illuminated green.
3a. For restarting a warm engine, move the choke to 75% of
the “CHOKE” position.
4. Pull the recoil cord slowly until resistance is felt and then pull
rapidly. If several pulls are required or starting in cold ambient
temperature < 59°F (15°C), see notices below.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
OPERATION
24

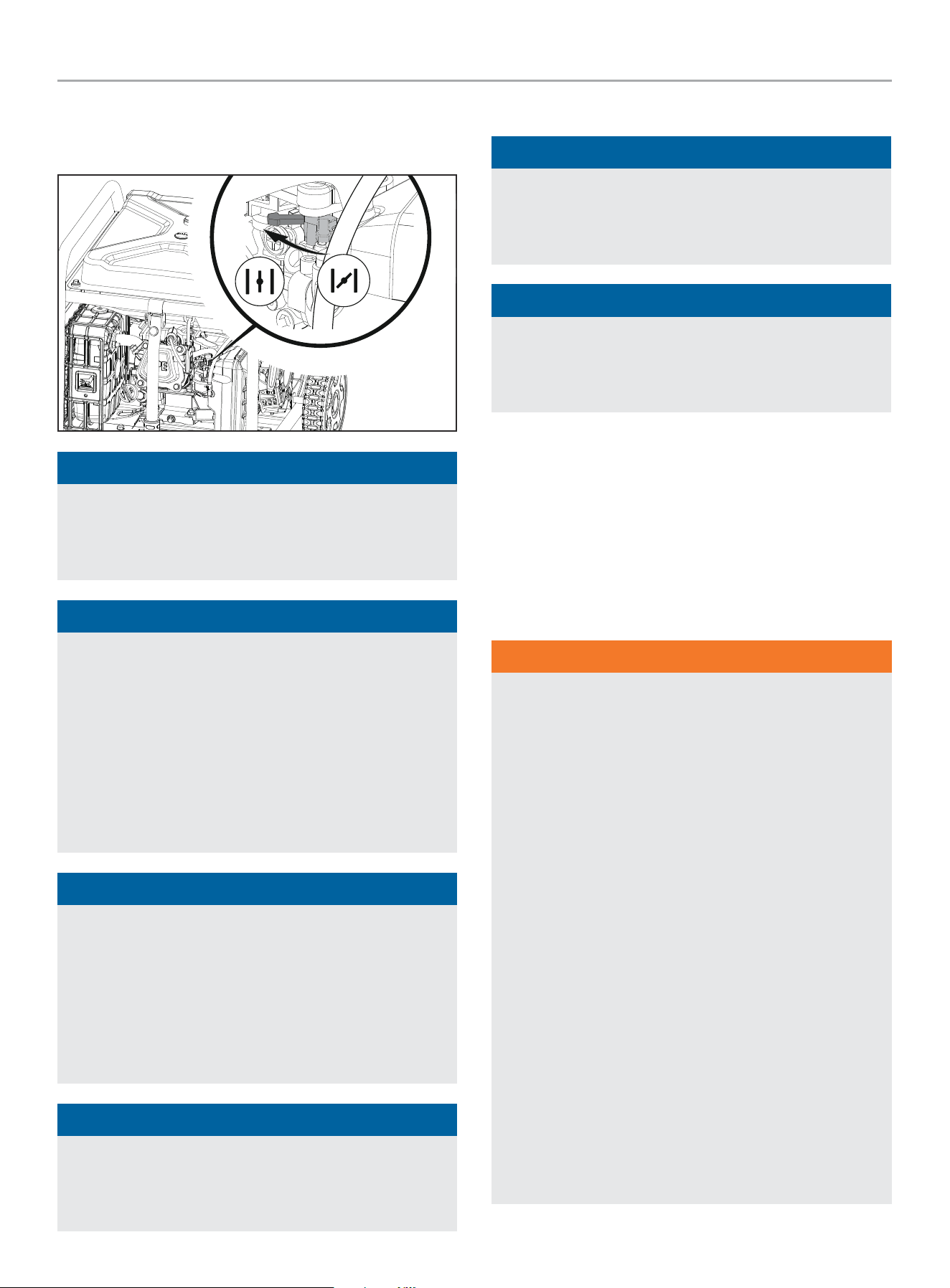

5. Once engine starts, move choke lever to the “RUN”
position P or press the choke button until no longer
illuminated green.
NOTICE
For gasoline starting in cold ambient temperature < 59°F
(15°C), the choke must be in 100% “CHOKE” position. Do
not over-choke. As soon as engine starts, gradually move the
choke lever to the “RUN” position over a 2-5 second duration.
NOTICE
For gasoline restarts with hot engine in hot ambient
temperature > 86°F (30°C), keep the choke in 75% of the
“CHOKE” position for only 1 pull of the recoil cord. After first
pull, move choke to the “RUN” position for 3 more pulls of the
recoil cord. If still no start, repeat the sequence starting with
choke in 75% of the “CHOKE” position and check that fuel
valve is turned to “ON” position or see troubleshooting section.
Too much choke leads to spark plug fouling/engine flooding
due to lack of incoming air. This will cause the engine not to
start.
NOTICE
Keep choke in “CHOKE” position for only 1 pull of the recoil
cord. After first pull, move choke to “RUN” position for up to
3 pulls of the recoil cord. If still no start, repeat the sequence
starting with choke in “CHOKE” position and check that fuel
valve is turned to “ON” position or see troubleshooting section.
Too much choke leads to spark plug fouling/engine flooding
due to lack of incoming air. This will cause the engine not to
start.
NOTICE
If the engine starts but does not continue to run make certain
that the generator is on a flat, level surface. This engine is
equipped with a low oil sensor that will prevent the engine
from running when the oil level falls below a critical threshold.
Battery
NOTICE
When the START/STOP button is pushed to “STANDBY” mode,
the button will flash green if the battery is sending out a
charge. If the button does not flash green while in “STANDBY”
mode, check that the battery connection is still good.
NOTICE
The supplied 12V battery does re-charge while the engine is
running, but it is also recommended that the battery be fully
charged at least once per month or maintained with a trickle
charger or battery maintainer (not included).
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after
starting.
Plug in and turn on the desired 120 or 240 (if applicable) Volt AC
single phase, 60 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT overload the generator.
WARNING
Always remember to plug your appliances directly into the
generator and do not plug the generator power cord into any
electrical outlet or connect to the circuit breaker panel in your
home. Connecting a generator to your home’s electric utility
company’s power lines, or to another power source, called
‘backfeeding’ is a dangerous practice that is illegal in many
states and municipalities.
This action if done incorrectly could damage your generator,
appliances and could cause serious injury or death to you
or a utility worker when attempting to restore power during
an outage occurrence in the neighborhood who may then
unexpectedly encounter high voltage on the utility line and
suffer a fatal shock.
Whether injuries occur or not, if installed incorrectly and not to
applicable laws and codes, you may be subject to fines or the
utility company may disconnect your home power should this
practice be found in your home.
If the generator will be connected to a building electrical
system, those connections must isolate the generator power
from the utility power. You are responsible for ensuring your
generator’s electricity does not backfeed into the electric
utility power lines. These connections must comply with all
applicable laws and codes – Consult your local utility company
or a qualified electrician to properly install this connection.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
OPERATION
25
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and starting
watts necessary for your purposes:
1. Select the electrical devices you plan on running at the same
time.
2. Total the running watts of these items. This is the amount of
power you need to keep your items running.
3. Identify the highest starting wattage of all devices identified
in step 1. Add this number to the number calculated in step 2.
Starting wattage is the surge of power needed to start some
electric driven equipment. Following the steps listed under
“Power Management” will guarantee that only one device will
be starting at a time.

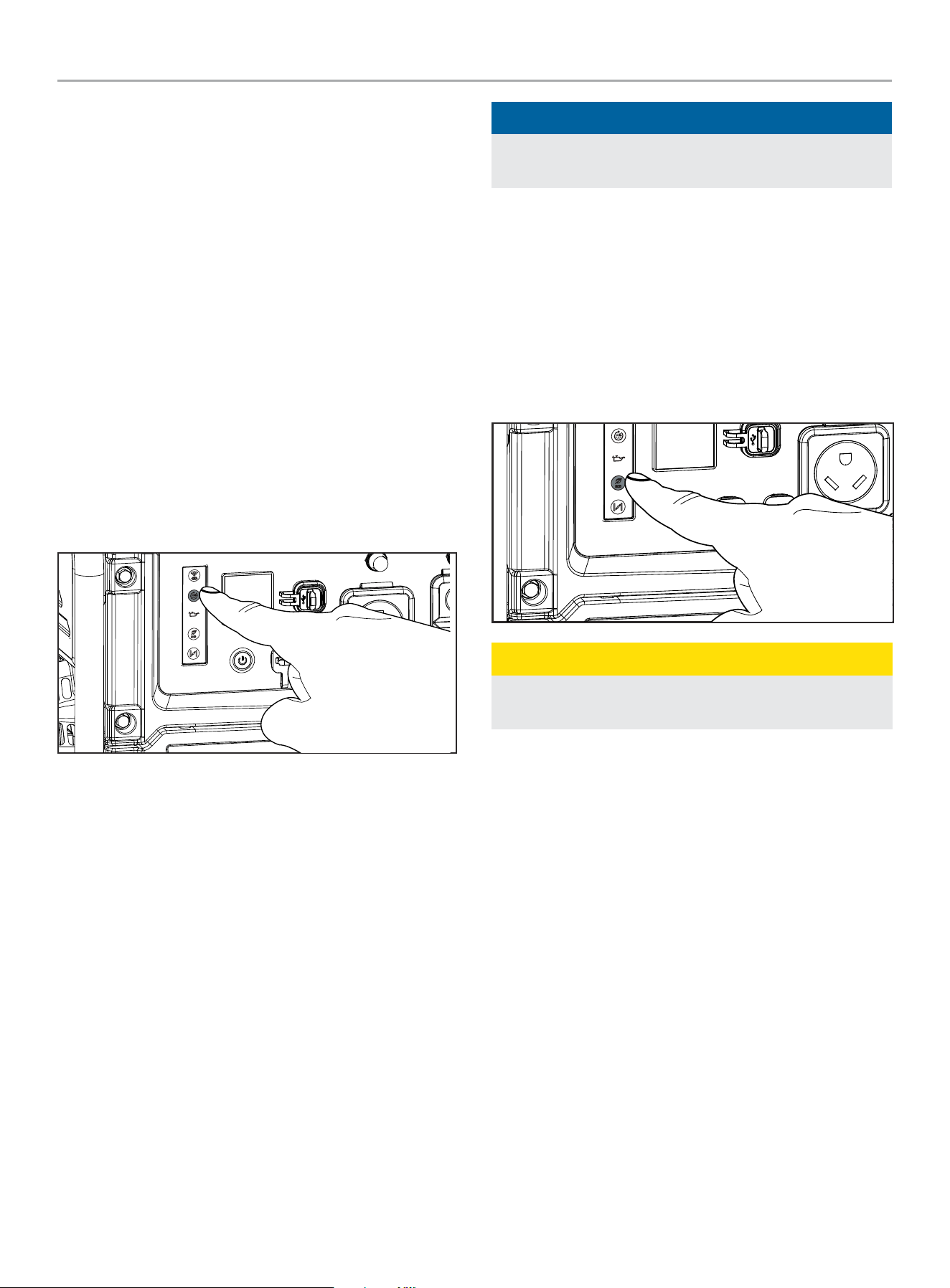

4. If the generator power output is cut off due to an overload
condition indicated by the AC overload blinking light, lower
the load by unplugging one or more items, then press the
AC overload reset button before restarting the generator for
continued normal operation.
Power Management
Use the following formula to convert voltage and amperage to
watts:
Volts × Amps = Watts
To prolong the life of your generator and attached devices, follow
these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to get up to
temperature.
3. Plug in and turn on the first item. It is best to attach the item
with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
NOTICE
Never exceed the specified capacity when adding loads to the
generator.
Eco (Economy) Mode
The Eco Mode button can be activated to turn on economy control
in order to minimize fuel consumption and noise while operating
the unit during times of reduced electrical output. Eco Mode
allows the engine speed to idle during periods of non-use.
The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at
normal speed continuously.
CAUTION
For periods of high electrical load or momentary fluctuations,
the Eco Mode should be off.
Parallel Operation
The Champion model 200913 is parallel ready and can be
operated in parallel with another Champion unit to increase the
total available electrical power. A Champion model 100333 parallel
kit (sold separately) is required for parallel operation. For a list of
compatible models or to order a parallel kit, please call customer
service at 1-877-338-0999 or visit
www.championpowerequipment.com.
Detailed instructions for parallel kit installation and operation of
the connected generators are provided in the parallel kit operator’s
manual.
Stopping the Engine
Remote Stop
1. Turn off all electrical connected loads. Never start or stop the
generator with electrical devices turned on.
2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.
3. Press the “STOP” button on the remote.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
OPERATION
26
NOTICE
Engine will shut off but the START/STOP button will remain in
“STANDBY” mode for 12 hours and fuel valve will remain in the
“ON” position waiting for the next start instruction.
To completely shut down the generator, make sure the START/
STOP button is in “OFF” mode and no longer flashing green and
fuel valve is turned to “OFF” position when the generator will not
be used for an extended period of time.
NOTICE
Battery power is drawn while the generator is in standby mode
(START/STOP button flashing green).
The generator will stay in standby mode for 12 hours if shut
down using the Remote Control.
To turn standby mode off manually, push and hold the “STOP”
button on the remote control for 5 seconds or push and hold
the START/STOP button on the control panel for 5 seconds.
The RCM will no longer consume any battery power or wait for
remote signal. This is indicated by the START/STOP button no
longer flashing.
Manual Stop
1. Turn off and unplug all electrical connected loads. Never start
or stop the generator with electrical devices turned on.
2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.
3. Press the START/STOP button.
4. Turn the fuel valve to the “OFF” position.
Important: Always ensure that the START/STOP button is “OFF”
and not illuminated and fuel valve is in the “OFF” position when
the generator will not be used for an extended period of time.
NOTICE
If the engine will not be used for a period of two (2) weeks or
longer, please see the Storage section for proper engine and
fuel storage.
Moving the Generator
– NEVER lift or carry the generator using the folding handle.
– ALWAYS place the generator on its wheels in the upright
position.
– ALWAYS turn the generator off and ensure the fuel valve is
closed.
– ALWAYS make sure engine and muffler are cooled down
before the generator can be handled safely (typically 15-30
minutes).
1. Begin by raising the folding handle, found on opposite side of
wheels.
2. Using the handle, tilt the end of the generator slightly off the
ground until balanced on the wheels.
3. While maintaining balance, roll the generator to the desired
location.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
MAINTENANCE
27

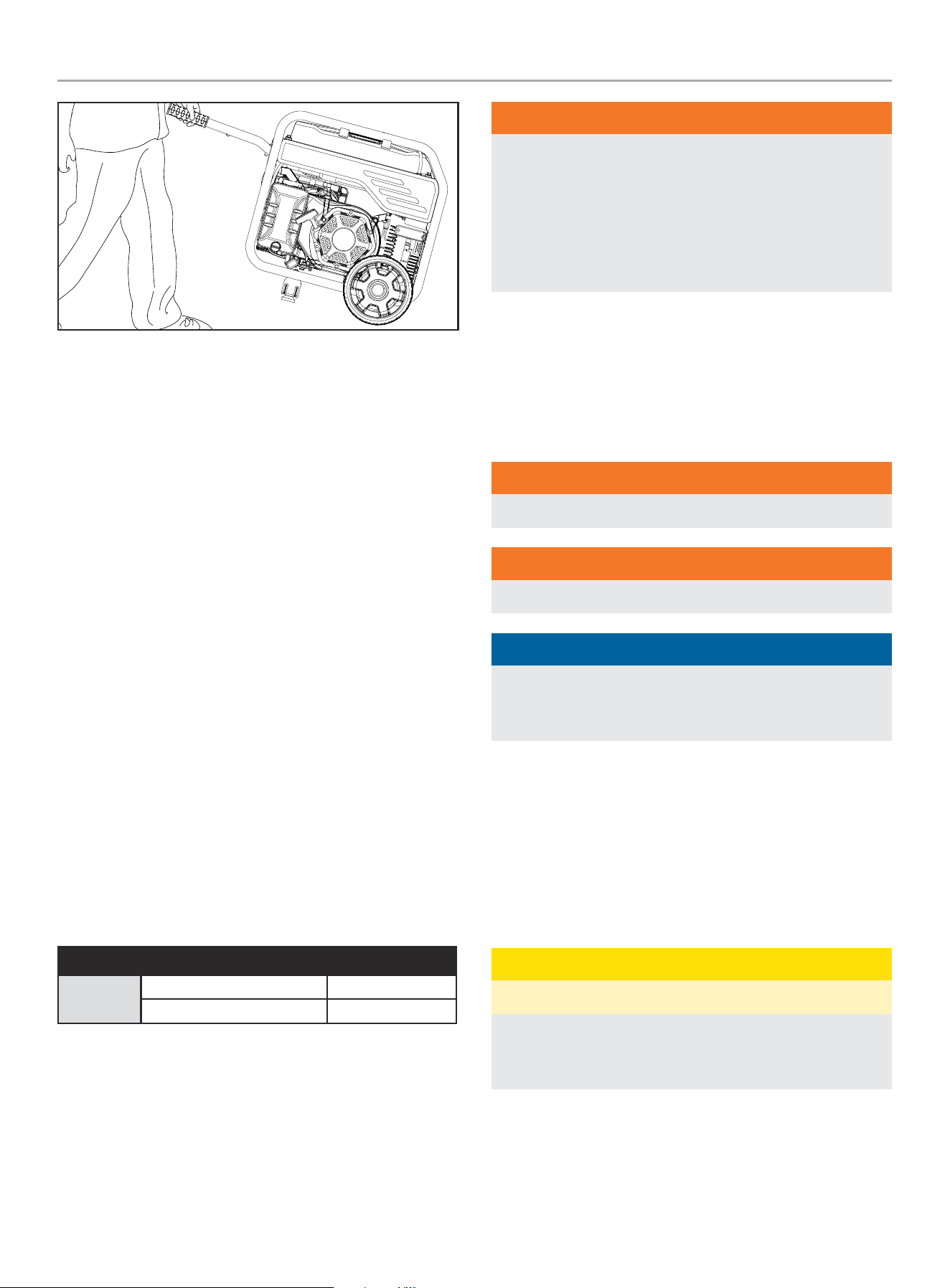

– NEVER tilt sideways while moving the generator.
– Failure to follow these instructions could result in personal
injury or damage to the generator.
Operation at High Altitude
The density of air at high altitudes is lower than at sea level.
Engine power is reduced as the air mass and air-fuel ratio
decrease. Engine power and generator output will be reduced
approximately 3½% for every 1000 ft. of elevation above sea level.
At high altitudes increased exhaust emissions can also result due
to the increased enrichment of the air fuel ratio. Other high altitude
issues can include hard starting, increased fuel consumption and
spark plug fouling.
To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can be obtained
by contacting our Technical Support Team. Installation instructions
are also available in the Technical Bulletin area of the CPE website.
The part number and recommended altitude range for the
application of the high altitude carburetor main jet is listed in the
following table.
In order to select the correct high altitude main jet it is necessary
to identify the carburetor model. For this purpose, a code is
stamped on the side of the carburetor. Select the correct high
altitude jet part number corresponding to the carburetor code
found on your particular carburetor.
Carb. Code High Alt. Jet Part Number Altitude Range
19716
100005757 3281 ft. (1000 m)
100005766 6562 ft. (2000 m)
WARNING
Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given altitude
may increase its emissions and decrease fuel efficiency and
performance.
MAINTENANCE
Make certain that the generator is kept clean and stored properly.
Only operate the unit on a flat, level surface in a clean, dry
operating environment. DO NOT expose the unit to extreme
conditions, excessive dust, dirt, moisture or corrosive vapors.
WARNING
Never operate a damaged or defective generator.
WARNING
Improper maintenance will void your warranty.
NOTICE
For Emission control devices and systems, read and
understand your responsibilities for service as stated in the
Emission Control Warranty Statement of this manual.
The owner/operator is responsible for all periodic maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
For service or parts assistance, contact our
Technical Support Team at 1-877-338-0999.
Cleaning the Generator
CAUTION
DO NOT spray generator directly with water.
Water can enter the generator through the cooling slots and
damage the generator windings. It can also contaminate the
fuel system.
1. Use a damp cloth to clean exterior surfaces of the generator.
2. Use a soft bristle brush to remove dirt and oil.
3. Use an air compressor (25 PSI) to clear dirt and debris from
the generator.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
MAINTENANCE
28
4. Inspect all air vents and cooling slots to ensure that they are
clean and unobstructed.
To prevent accidental starting, remove and ground the spark plug
wire before performing any service.

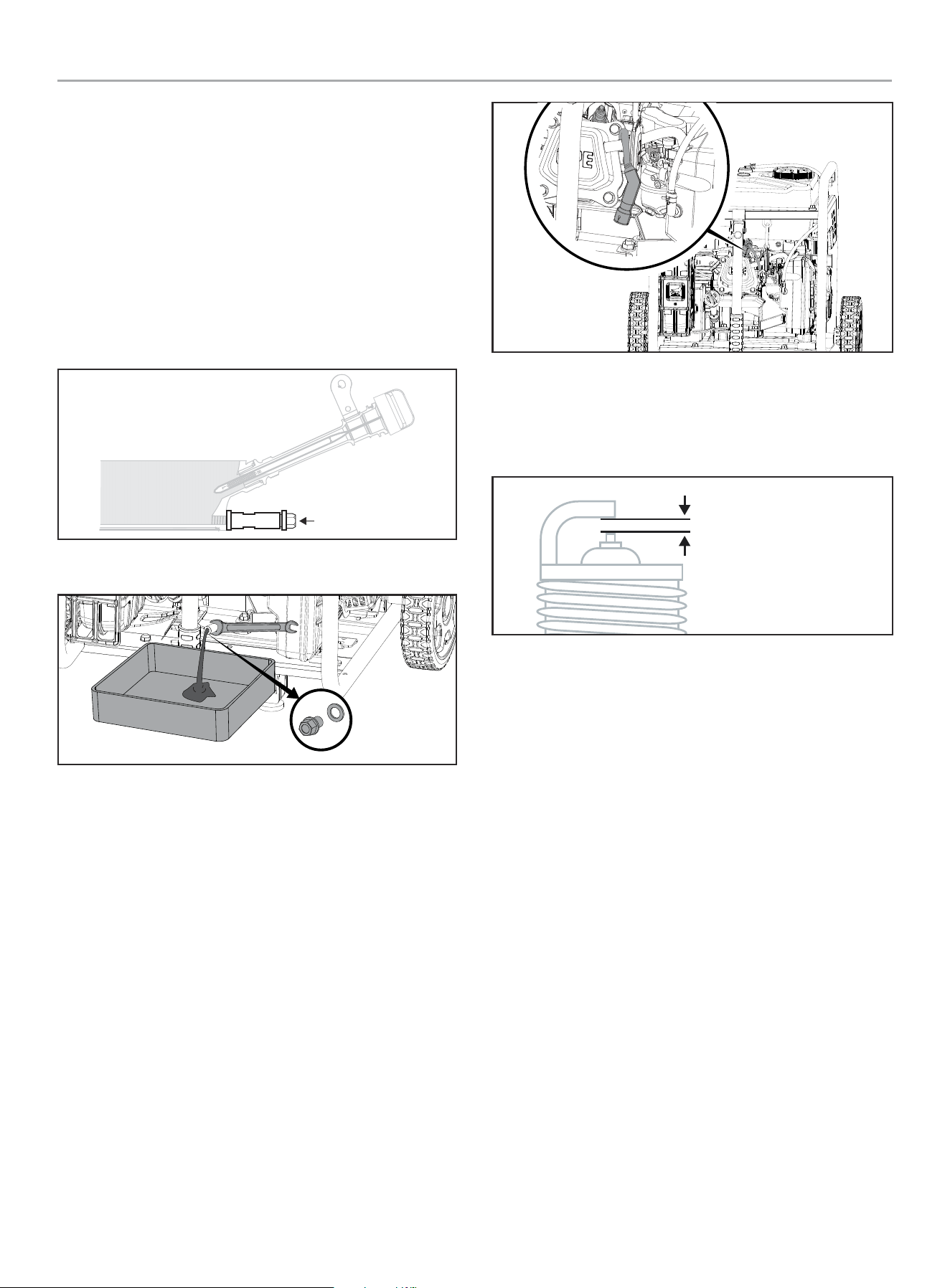

Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil specification
to select the proper grade for your operating environment.
1. While holding the flat part of the drain tube with pliers or
wrench, remove the oil drain bolt with a 10 mm socket
(not included) or wrench.
DRAIN BOLT
2. Allow the oil to drain completely into an appropriate container.
3. Replace the oil drain bolt.
4. Add oil according to Add Engine Oil in Assembly section.
DO NOT OVERFILL. Oil not included for routine maintenance.
5. Dispose of used oil at an approved waste management
facility.
Cleaning and Adjusting the Spark Plug
1. Remove the spark plug cable from the spark plug.
2. Use a spark plug socket tool (not included), or a
13/16 in. (21 mm) socket (not included) to remove the plug.
3. Inspect the electrode on the plug. It must be clean and not
worn to produce the spark required for ignition.
4. Make certain the spark plug gap is
0.024-0.031 in. (0.6-0.8 mm).
SPARK PLUG GAP
5. Refer to the spark plug types in Specifications when replacing
the plug.
6. Firmly re-install the plug.
7. Attach the spark plug cable to the spark plug.
Cleaning the Air Filter
1. Unscrew the cover holding the air filter to the assembly by
turning the fastener counterclockwise.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
MAINTENANCE
29
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze thoroughly dry in
a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and tighten the fastener by
turning clockwise.
Cleaning the Spark Arrestor
1. Allow the engine to cool completely before servicing the spark
arrestor.
2. Remove the two screws holding the cover plate which retains
the spark arrestor to the muffler.
3. Remove the spark arrestor screen.
4. Carefully remove the carbon deposits from the spark arrestor
screen with a wire brush.
5. Replace the spark arrestor if it is damaged.
6. Position the spark arrestor and cover plate on the muffler and
attach with the screws removed in step 2.
CAUTION
Failure to clean the spark arrestor will result in poor engine
performance.
NOTICE
Federal and local laws and administrative requirements
indicate when and where spark arrestors are required. When
ordered, spark arrestors are required for operation of this
generator in National Forest lands. In California, this generator
must not be used on any forest-covered land, brush-covered
land, or grass-covered land unless the engine is equipped with
a spark arrestor.
Adjusting the Governor
WARNING
Tampering with the factory set governor will void your
warranty.
The air-fuel mixture is not adjustable. Tampering with the governor
can damage your generator and your electrical devices and
will void your warranty. Contact our Technical Support Team at
1-877-338-0999 for all other service and/or adjustment needs.
Generator Battery
Your generator is equipped with an automatic battery charging
circuit that charges the battery while the engine is running.
The battery will maintain a proper charge if the unit is used on
a regular basis (about once every two weeks). If it is used less
frequently, the battery should be connected to a trickle charger
or battery maintainer (not included) to keep the battery properly
charged.
Maximum charging rate should not exceed 1.5 amps. Follow
the instructions included with the battery charger. The battery
should be fully charged at least once per month. If the battery is
not able to start the engine, it can be started by manually pulling
the engine recoil cord. If the battery voltage is extremely low, the
charging circuit may not be able to re-charge the battery. In this
case, the battery must be connected to a standard automotive
style battery charger for re-charging before it can be used.
Disconnect the Battery
1. Pull two halves of battery connector apart.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
STORAGE
30

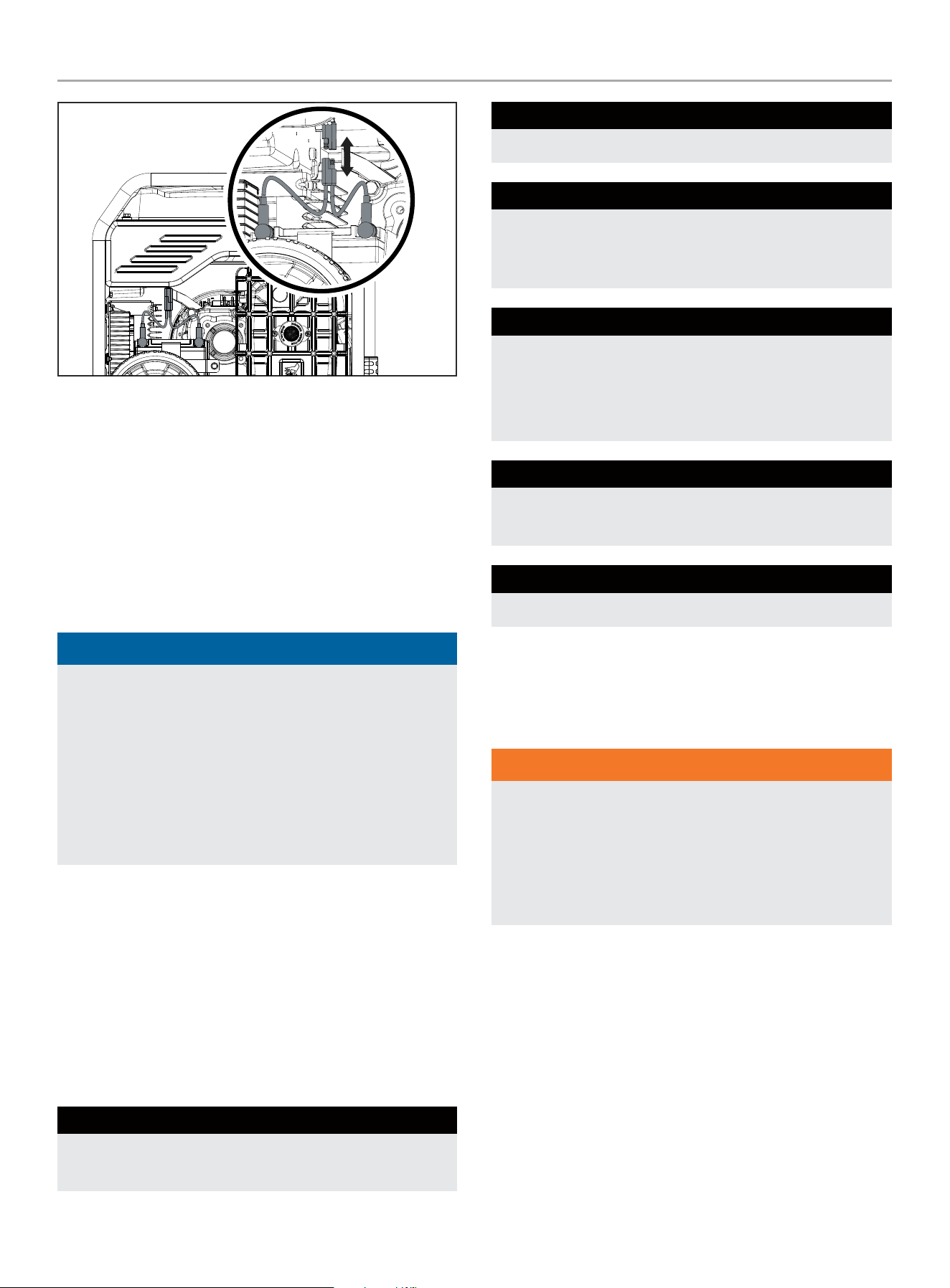

Charge the Battery
For a generator equipped with batteries for electric starting,
proper battery maintenance and storage should be followed.
A trickle charger or battery maintainer should be used to charge
the battery while the generator is in storage. Maximum charging
rate should not exceed 1.5 amps. Follow the instructions included
with the trickle charger or battery maintainer. The battery should
be fully charged at least once per month.
Remote Control Battery
NOTICE
– Always purchase the correct size and grade of battery
most suitable for the intended use.
– Clean the battery contacts and also those of the device
prior to battery installation.
– Remove batteries from equipment which is not to be used
for an extended period of time.
– Remove batteries if consumed or if product is to be left
unused for a long time.
Maintenance Schedule
Follow the service intervals indicated in the following maintenance
schedule.
Service your generator more frequently when operating in adverse
conditions.
Contact our Technical Support Team at 1-877-338-0999 to locate
the nearest CPE certified service dealer for your generator or
engine maintenance needs.
EVERY 8 HOURS OR PRIOR TO EACH USE
Check oil level
Clean around air intake and muffler
FIRST 5 HOURS (BREAK IN)
Change oil
EVERY 50 HOURS OR ANNUALLY
Clean air filter
Change oil if operating under heavy load or in hot
environments
EVERY 100 HOURS OR ANNUALLY
Change oil
Clean/adjust spark plug
Clean spark arrestor
Clean fuel valve filter*
EVERY 250 HOURS
Clean combustion chamber*
Check/adjust valve clearance*
EVERY 3 YEARS
Replace fuel line*
* To be performed by knowledgeable, experienced owners or CPE certified service
centers.
STORAGE
WARNING
To avoid accidental or unintended ignition of your generator
during periods of storage, the following precautions should be
followed:
– When storing the generator make sure the START/STOP
button is “OFF” and not illuminated and fuel valve is set to
the “OFF” position.
Short Term Storage (up to 30 days)
Ethanol blended gasoline may gum up and clog the carburetor if
the generator is not run or carburetor drained within 4 weeks.
1. Be sure all appliances are disconnected from the generator.
2. Start the generator as instructed in Starting the Engine
section.
3. Turn the fuel valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped the
engine. This usually takes a few minutes.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
STORAGE
31
5. If started using remote, press START/STOP button one more
time to ensure the generator is “OFF” and not in “STANDBY”
mode and blinking green.
Mid Term Storage (30 days – 1 year)
Ethanol blended gasoline in the tank has a maximum shelf life
of up to 1 year with the addition of a properly formulated fuel
stabilizer and stored in a cool, dry place.
1. Be sure all appliances are disconnected from the generator.
2. Add a properly formulated fuel stabilizer to the gasoline tank.
3. Turn the fuel valve to the “ON” position.
4. Start and run the generator for 10 minutes so the treated
gasoline cycles through the fuel system.

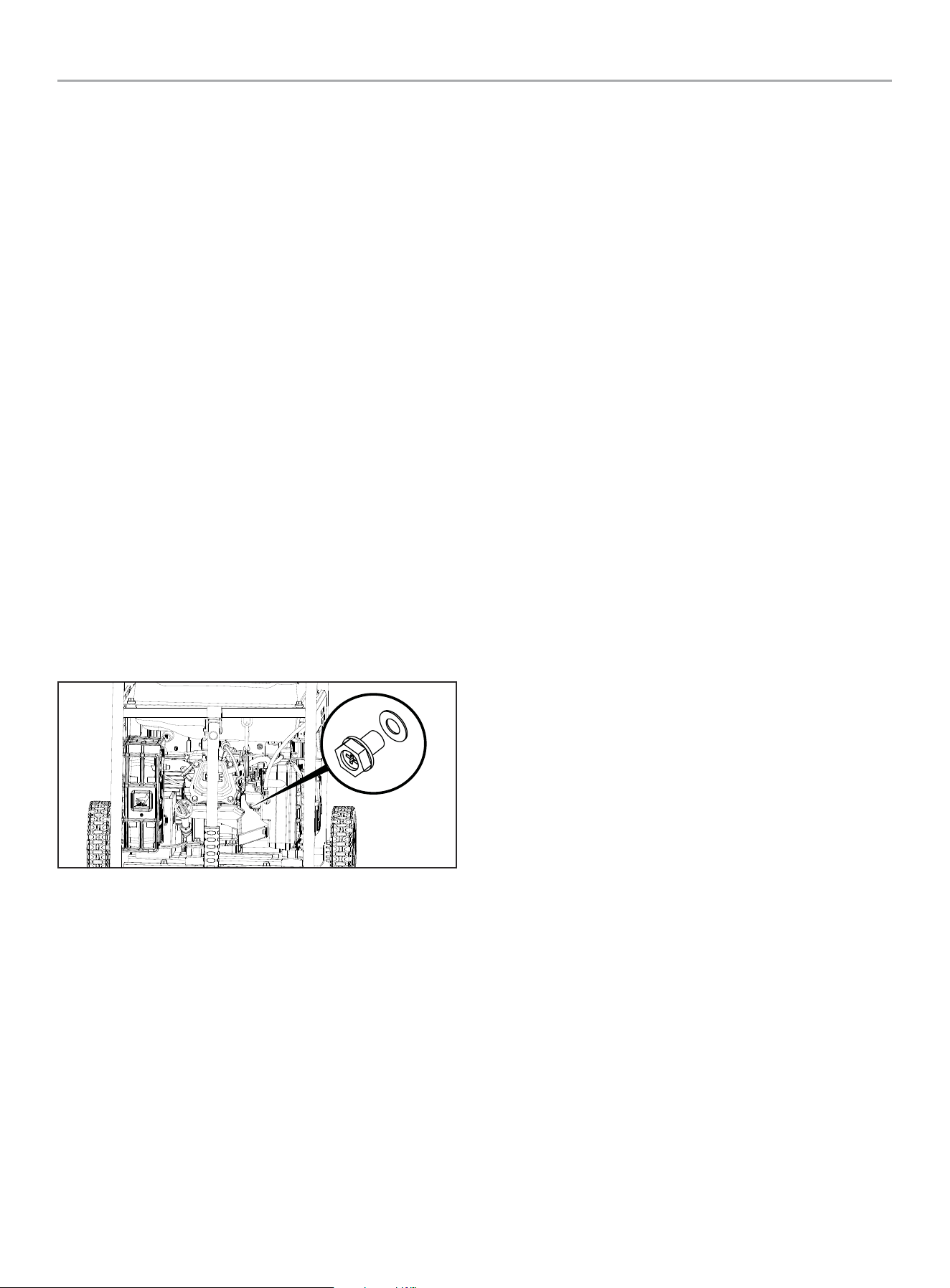

5. Option 1: Drain Gasoline from Carburetor
5a. Turn off the generator by pushing the START/STOP
button. If started using remote, press START/STOP button
one more time to ensure the generator is “OFF” and not
in “STANDBY” mode and blinking green.
5b. Turn the fuel valve to the “OFF” position.
5c. Use the drain bolt on the carburetor to empty any
excess gasoline from the carburetor into an appropriate
container. Use a funnel (and appropriate hose if
necessary) under the carburetor drain bolt to avoid
spillage.
5d. When gasoline stops flowing from the carburetor, replace
and tighten the carburetor drain bolt and be sure to
properly dispose of the drained gasoline according to
local regulations or guidelines.
6. Option 2: Run Dry
6a. With the generator running, turn the fuel valve to the
“OFF” position and allow the generator to run until the
engine stops from complete fuel starvation. This may
take a few minutes.
6b. If started using remote, press START/STOP button one
more time to ensure the generator is “OFF” and not in
“STANDBY” mode and blinking green.
7. Remove the spark plug cap and spark plug and pour about a
tablespoon of oil into the cylinder.
8. Pull the recoil cord slowly to crank the engine to distribute the
oil and lubricate the cylinder.
9. Install the spark plug and spark plug cap.
10. Clean the generator according to Cleaning the Generator.
11. Store the generator in a cool, dry place out of direct sunlight.
Long Term Storage (over 1 year)
For storage over 1 year, the gasoline tank and carburetor must be
completely drained of gasoline.
1. The generator is to be OFF and all appliances disconnected.
Make sure the START/STOP button is not blinking green and
in “STANDBY” mode.
2. Turn the fuel valve to the “ON” position.
3. Use the drain bolt on the carburetor to empty any excess
gasoline from the gasoline tank and carburetor into an
appropriate container. Use a funnel (and appropriate hose if
necessary) under the carburetor drain bolt to avoid spillage.
4. When gasoline stops flowing from the carburetor, replace
and tighten the carburetor drain bolt and be sure to properly
dispose of the drained gasoline according to local regulations
or guidelines.
5. Turn the fuel valve to the “OFF” position.
6. Follow steps 7-11 according to Mid Term Storage.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
STORAGE
32
Removing from Storage
NOTICE
If the generator has been improperly stored for a period
longer than 30 days with ethanol blended gasoline in the
gasoline tank and/or carburetor, all fuel must be drained
and the carburetor must be thoroughly cleaned of ethanol
build up. This process involves technically advanced tasks.
For assistance please call our Technical Support Team at
1-877-338-0999.
If the gasoline tank and carburetor were properly emptied of all
ethanol blended gasoline prior to the generator being stored,
follow the below steps when removing from storage.
1. Add gasoline to the generator according to Add Fuel.
2. Turn the fuel valve to the “ON” position.
3. After 5 minutes check the carburetor and air filter areas for
any leaking gasoline. If any leaks are found, the carburetor
will need to be disassembled and cleaned or replaced. If no
gasoline leaks are found, turn the fuel valve to the “OFF”
position.
4. Check engine oil level and add clean, fresh oil if needed. See
Oil Specifications for proper oil type.
5. Check and clear air filter of any obstructions such as bugs or
cobwebs. If necessary, clean air filter according to Cleaning
the Air Filter.
6. Start the generator according to Starting the Engine.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
SPECIFICATIONS
33
SPECIFICATIONS
Generator Specifications
Generator Model
........................................... 200913
Start Type ...............................Wireless, Electric, Manual
Watts (Starting/Running) .............................. 4250/3500
Volts AC .......................................................... 120
AC Amps @ 120V .............................................. 29.2
Volts DC ............................................................5
DC Amps ..........................................................2.1
Frequency .....................................................60 Hz
Phase ......................................................... Single
Grounding Type .....................................Neutral Floating
Weight .................................................90 lb. (41 kg)
Length ............................................27.9 in. (70.8 cm)
Width ............................................ 23.4 in. (59.5 cm)
Height ............................................... 21.7 in. (55 cm)
Engine Specifications
Model ...................................................... GB225-2
Displacement .................................................224 cc
Type ................................................... 4-Stroke OHV
Spark Plug
OEM Type ............................................ TORCH F6RTC
Replacement Type ...................... NGK BPR6ES or equivalent
Gap ................................. 0.024-0.031 in. (0.6-0.8 mm)
Valve
Intake Clearance .................0.004-0.006 in. (0.10-0.15 mm)
Exhaust Clearance .............. 0.006-0.008 in. (0.15-0.20 mm)
NOTICE
A technical bulletin regarding valve adjustment procedures is
available at www.championpowerequipment.com.
Oil Specifications
DO NOT OVERFILL.
Type ............................................*See following chart
Capacity ....................................... 18.6 fl. oz. (550 ml)
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C
-17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
NOTICE
Temperature will affect engine oil and engine performance.
Change the type of engine oil used based on temperature
shown in the “Recommended Engine Oil Type” table.
Fuel Specifications
Use unleaded gasoline with a minimum octane rating of 87 and
an ethanol content of 10% or less by volume. DO NOT USE E15 or
E85. DO NOT OVERFILL.
Gasoline Capacity ....................................4 gal. (15.2 L)
Battery Specifications
Type ....................... Rechargeable, Non-Spillable Lead Acid
Volts DC .......................................................... 12
Capacity ........................................................ 9 Ah
Temperature Specifications
Starting Temperature Range (°F/°C) ........... 5 to 104/-15 to 40
Remote Starting Temperature
Range (°F/°C) ................................... 5 to 104/-15 to 40
NOTICE
An important message about temperature: Your product
is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). When needed, it may be
operated at temperatures ranging from 5°F (-15°C) to 122°F
(50°C) for short periods of time. If exposed to temperatures
outside this range during storage, it should be brought back
within this range before operation. In any event, the product
must always be operated outdoors, in a well-ventilated area
and away from doors, windows and vents.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
TROUBLESHOOTING
34
TROUBLESHOOTING
Problem Cause Solution
Engine will not start.
No fuel. Add fuel.
Faulty spark plug. Clean and adjust spark plug or replace.
Low oil level.
Fill crankcase to the proper level.
Place generator on a flat, level surface.
Spark plug wire loose. Attach wire to spark plug.
Fuel valve is closed. Open fuel valve.
START/STOP button in “OFF” mode.
Press START/STOP button to “STANDBY” mode
then again to “Start” or see manual start section.
Old fuel or water in fuel. Drain fuel and replace with fresh fuel.
Flooded with fuel. Let unit stand for 10 mins.
Engine starts but runs roughly.
Choke in the wrong position.
Move choke until it stops under RUN position or
push choke button if illuminated green.
Dirty air filter. Clean or replace air filter.
Dirty fuel valve. Clean the fuel valve.
Clogged spark arrestor. Clean spark arrestor.
Engine will not start wirelessly.
Remote control battery is dead. Replace remote control battery.
Generator battery is dead. Recharge generator battery.
START/STOP button in “OFF” mode.
Press START/STOP button to “STANDBY” mode
then press “START” one time on remote.
Generator out of range of remote signal. Remote must be with 80 feet of generator.
Obstructions in between generator and
remote.
Clear line of site between generator and remote.
Engine will not start electrically.
Generator battery is dead. Recharge generator battery.
START/STOP button in “OFF” mode.
Press START/STOP button to “STANDBY” mode
then again to “START”.
Engine shuts down during operation.
Out of fuel. Fill fuel tank.
Low oil level.
Fill crankcase to the proper level. Place generator
on a flat, level surface.
Clogged spark arrestor. Clean spark arrestor.
Generator cannot supply enough power
or overheating.
Generator is overloaded.
Review load and adjust. See “Connecting
Electrical Loads.”
Dirty air filter. Clean or replace air filter.
Choke in wrong position.
Move choke until it stops under RUN position or
push choke button if illuminated green.
Engine is running but no AC output.
Poor cord connection. Check all connections.
Circuit breaker is open. Reset circuit breaker.
Faulty inverter module. Call Technical Support Team.
Loose wiring. Inspect and tighten wiring connections.
AC Overload: Button illuminated red
Reduce AC load and press Overload Reset Button
until illuminated green.
Other. Contact the help line.
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
TROUBLESHOOTING
35
Problem Cause Solution
Engine hunts or falters.
Engine governor defective. Contact the help line.
Dirty fuel valve. Clean the fuel valve.
Carburetor is dirty and running lean. Contact the help line.
Choke in wrong position.
Move choke until it stops under RUN position or
push choke button if illuminated green.
Repeated circuit breaker tripping.
Overload.
Review load and adjust. See “Connecting
Electrical Loads.”
Faulty power cords or device.
Check for damaged, bare or frayed wires. Replace
defective device.
Circuit breaker still too hot. Let unit sit for 5 mins.
For other issues and technical support:
Technical Support Team
Toll Free 1-877-338-0999
support@championpowerequipment.com
200913 - 4250W WIRELESS REMOTE START OPEN FRAME INVERTER
36
WARRANTY
WARRANTY*
CHAMPION POWER EQUIPMENT
3 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of three years (parts and labor) from
the original date of purchase and 270 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage
covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
When applicable, this warranty does not apply to products used
for prime power in place of a utility.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product.
THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB
EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE)
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
www.championpowerequipment.com
Customer Service
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
EMERGENCY 24 HOUR SUPPORT: 1-562-204-1188
*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S. Environment Protection Agency
(EPA) and/or California Air Resources Board (CARB). Whichever warranty applies for the longer period, either this 3 year limited warranty or the applicable Emission Control System Warranty,
shall supersede the other.
CHAMPION POWER EQUIPMENT, INC. (CPE),
THE UNITED STATES ENVIRONMENTAL PROTECTION AGENCY (U.S. EPA)
AND THE CALIFORNIA AIR RESOURCES BOARD (CARB) EMISSION CONTROL SYSTEM WARRANTY
Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board
(CARB) Exhaust and Evaporative emissions regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Exhaust and Evaporative Emission
Control Systems Warranty on your 2021 small off-road engine (SORE) and engine powered equipment. In California, new equipment that
use small off-road engines (SORE) must be designed, built and equipped to meet the State’s stringent anti-smog standards.
CPE must warrant the exhaust and evaporative emission control system on your small off-road engine (SORE) for the period listed below,
provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your equipment leading to the failure of
the exhaust and evaporative emission control systems.
Your evaporative emission control system may include parts such as: carburetors, fuel tanks, fuel lines, (for liquid fuel and fuel vapors),
fuel caps, valves, canisters, filters, clamps, connectors, and other associated components. Also included for your exhaust emission control
system may be the fuel-injection system, the ignition system, catalytic converter and other exhaust emission related assemblies. Where a
warrantable condition exits, CPE will repair your small off-road engine (SORE) at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This exhaust and evaporative emission control system is warranted for two years. If any exhaust and evaporative, emission related part on
your engine or equipment is defective in, the part will be repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine (SORE) owner, you are responsible for the performance of the required maintenance listed in your Owner’s
Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-road engine (SORE), but CPE cannot
deny warranty coverage solely for the lack of receipts.
As the small off-road engine (SORE) owner, you should be aware that CPE may deny you warranty coverage if your small off-road engine
(SORE) or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE distribution center, service center or alternate service
outlet as described in (3)(f) below or CPE dealer or CPE, Santa Fe Springs, Ca. as soon as the problem exists. The warranty repairs shall be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty coverage, you should contact:
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
tech@championpowerequipment.com
EXHAUST AND EVAPORATIVE EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Exhaust and Evaporative Emission Control System (ECS) Warranty
Coverage.
1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (SORE) (for other states,
1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its
original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that each of its
small off-road engines (SORE) is:
2a. Designed, built and equipped to conform to U.S. EPA emissions standards for spark-ignited engines at or below 19 kilowatts and
all applicable regulations adopted by the California Air Resources Board and
2b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects
to the part as described in the engine manufacturer’s application for certification for a period of two years.
3. THE WARRANTY ON EXHAUST AND EVAPORATIVE EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
3a. Any warranted part that is not scheduled for replacement as required maintenance in the Owner’s Manual shall be warranted for
the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by CPE according
to Subsection “d” below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the
ECS Warranty Period.
3b. Any warranted, exhaust and evaporative emissions-related part which is scheduled only for regular inspection as specified in the
Owner’s Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair
or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty
shall be warranted for the remainder of the ECS Warranty Period.
3c. Any warranted, exhaust and evaporative emissions-related part which is scheduled for replacement as required maintenance in
the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that part. If the part
fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE according to Subsection “d” below.
Any such exhaust and evaporative emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the
remainder of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.
3d. Repair or replacement of any warranted, exhaust and evaporative emissions-related part under this ECS Warranty shall be
performed at no charge to the owner at a CPE Authorized Service Outlet.
3e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS Warranty is in
fact defective, provided that such diagnostic work is performed at a CPE Authorized Service Outlet.
3f. CPE shall pay for covered exhaust and evaporative emissions warranty repairs at non-authorized service outlets under the
following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S. Census 2000 without a CPE
Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile limitation does not apply in the
following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska, Nevada, New Mexico, Oregon, Texas, Utah and
Wyoming.
3g. CPE shall be liable for damages to other original engine components or approved modifications proximately caused by a failure
under warranty of an emission-related part covered by the ECS Warranty.
3h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted exhaust and evaporative emission-related parts
sufficient to meet the expected demand for such exhaust and evaporative emission-related parts.
3i. Any CPE Authorized and approved exhaust and evaporative emission-related replacement part may be used in the performance
of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce CPE’s
warranty obligation.
3j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids this ECS Warranty and
shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable hereunder for failures of any warranted
parts of a CPE engine caused by the use of such an unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the
engine)
Systems covered by this
warranty
Parts Description
Fuel Metering System Carburetor and internal parts (and/or pressure regulator or fuel injection system), Air/fuel ratio
feedback and control system, Cold start enrichment system.
Air Induction System Controlled hot air intake system, Intake manifold, Air filter.
Ignition System Spark plug, Magneto or electronic ignition system, Spark advance/retard system.
Exhaust Gas Recirculation (EGR)
System
EGR valve body, and carburetor spacer if applicable, EGR rate feedback and control system.
Air Injection System Air pump or pulse valve, Valves affecting distribution of flow, Distribution manifold.
Catalyst or Thermal Reactor
System
Catalytic Converter, Thermal Reactor, Exhaust Manifold.
Particulate Controls Traps, Filters, Precipitators, and any other device used to capture particulate emissions.
Miscellaneous items used in
Above Systems
Vacuum, Temperature, and time sensitive valves and switches, Electronic Controls, Hoses, Belts,
Connectors, and Assemblies.
Evaporative Controls Fuel Tank, Fuel Cap, Fuel Lines (for liquid fuel and fuel vapors), Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls, Vacuum Control Diaphragms,
Control Cables, Control Linkages, Purge Valves, Gaskets, Liquid/Vapor Separator, Carbon Canister,
Canister Mounting Brackets, Carburetor Purge Port Connector.
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original
purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to
sell and service that CPE product during his normal business hours. Alternate service locations defined in Section (3)(f) above must be
approved by CPE prior to service. Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not
be denied because the engine was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty service, please write or call
Customer Service at Champion Power Equipment, Inc.
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
Attn.: Customer Service
tech@championpowerequipment.com
