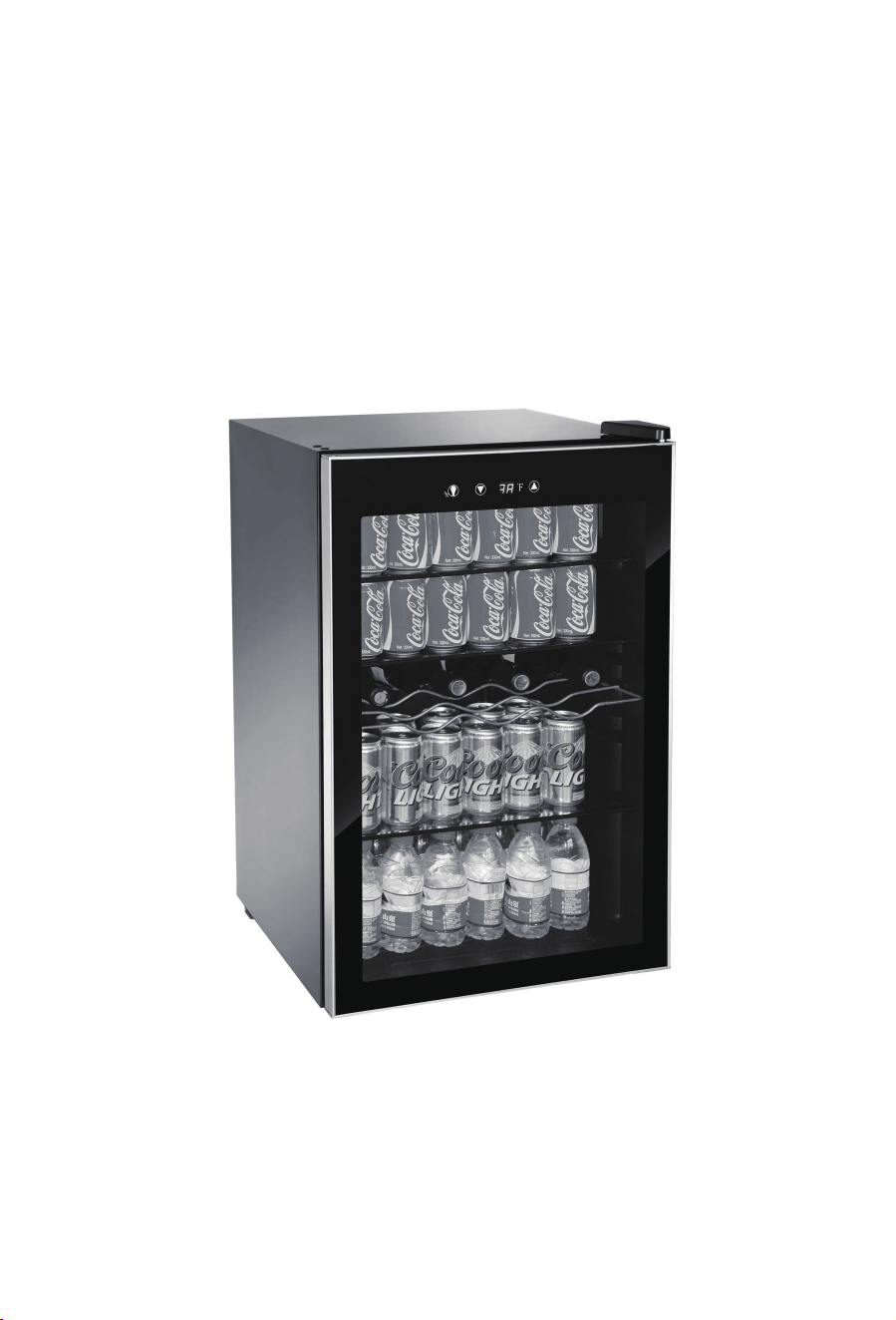

User Manual
WINE COOLER&BEVERAGE CENTER
JC-128VEX-F
Thank you for purchasing this product! Please read the instr
uctions carefully before using
your product. If you have any questions about the product, please contact us via customer
service number: 213-4467172 or 661-4358826
.
1
Staple your receipt to your manual.
You will need it to obtain warranty service.
English
GENERAL SAFETY RULES
Before you use your refrigerator, please read this owner’s manual carefully.
Use this appliance only for its intended purpose as described in this owner’s manual.
DANGER : Risk of child entrapment. Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
The appliance must be correctly installed and connected to the power supply in accordance with the
installation instructions before it is used.. (See: “Installing Your Beverage And Wine Center”).
The main power supply must be properly grounded.
This refrigerator must be positioned so that the plug is accessible. Never unplug you unit often by
pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
Do not use an extension cord as this can negatively affect the performance of the unit.
When transporting the refrigerator, keep the unit in the upright position. Do not tilt the appliance
beyond 45° or place the unit in upside down position. Do not tip over.
Do not touch the cooled surfaces while the appliance operates, especially not with wet hands,
because the skin may stick to the cold surfaces.
It is recommended that the refrigerator is positioned away from any combustible sources such as
gas, petrol, alcohol, lacquer and banana oil, etc. The aforementioned objects should not be stored
in the refrigerator under any circumstances.
If the unit fails to cool properly, dispose of spoiled food as needed.
Unplug your unit before cleaning or before making any repairs. NOTE: If for any reason this
product requires service, we strongly recommend that a certified technician perform the service.
Repairs made by non-qualified personnel will void the warranty.
Do not defrost the appliance with other electric devices (hair dryer etc.) and never scrape the ice or
frost layer with sharp tools. Warning: Do not damage the refrigerant circuit.
The rating plate is inside the appliance or outside on the rear or side wall.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervi-
sion or instruction concerning use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the appliance.
Do not run cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away
from traffic areas, and do not submerge in water. If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the
connector end.
Do not operate your refrigerator in the presence of explosive fumes.
WARNING--Do not use the flame or catch the fire near the unit.
DANGER-Risk of fire or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained
Service Personnel. Do Not Puncture Refrigerant Tubing.
Caution--Risk of fire or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must be
Followed.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable Refrigerant Used.
2
English
1. Interior Light
2. Glass Shelves (3)
3. Chrome Wire Shelf (1)
4. Adjustable Leveling Legs
5.
Glass Touch Control Panel
6.
Tinted Double Pane Glass Door
7.
Drip Tray in Back (not shown)
Parts and Features
1
2
3
4
6
5
F
3
English
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the beverage and wine center accessories
inside and outside.
2. Inspect and remove any remaining packing, tape or printed
materials before powering on the beverage and wine center.
• Your beverage and wine center
has two leveling legs which are
located in the front corners. After properly placing your beverage
and wine center in its final position, you can level your beverage
and wine center.
• Leveling legs can be adjusted by turning them clockwise to lower your
beverage and wine center or by turning them counterclockwise to
raise your beverage and wine center. The beverage and wine center
door will close more easily when the two front leveling legs are
extended slightly.
• To ensure that your beverage and wine center works at the
maximum efficiency it was designed for, you should install it in a
location where there is proper air circulation and electrical connections.
• The following are recommended clearances around the beverage
center:
Sides……………2" (50mm)
Top....................2" (50mm)
Back..................2" (50mm)
• Do not over fill your beverage and wine center for proper cooling.
Note: If your beverage and wine center has been tilted for any reason,
wait 24 hours before plugging it in.
• Ensure the drip tray in the rear of the unit is in the proper position.
Installing Your Beverage And
Wine Center
Unpacking Your Beverage And Wine Center
Proper Air Circulation
Leveling Your Beverage And Wine Center
Drip Tray
WARNING:
Before plugging in your Beverage and Wine Center, allow it at
least 4 hours to stand upright for the refrigerant fluid to settle.
4
English
Electrical Requirement
• Make sure there is a suitable power outlet (115 volts, 15 amps
outlet) with proper grounding to power the
beverage and wine center.
•
Avoid the use of three prong adapters or cutting off the
third
grounding
prong in order to accommodate a two prong outlet. This
is
a
dangerous practice since it provides no effective grounding for
the
beverage and wine center
and may result in shock hazard.
•
Do not install your beverage and wine center in any location
not
properly insulated
or heated (e.g., garage etc.). Your
beverage and
wine center
was not designed to operate in ambient
temperature
settings below 55˚ Fahrenheit.
•
Select a suitable location for the beverage and wine center on
a
hard even surface away from direct sunlight or heat source (e.g.,
radiators, baseboard
heaters, cooking appliances, etc.). Any
floor
unevenness should be corrected with the leveling legs located on the
front
and rear bottom corners of the beverage and wine center.
•
Your beverage and wine center is designed for
freestanding
installation
only. It is not designed for built-in application.
Note: This unit is for indoor use only.
•
Avoid the use of an extension cord because of potential
safety
hazards
under certain conditions. If it is necessary to use an
extension
cord,
use only a 3-wire extension cord that has
a 3-blade
grounding
plug
and a 3-slot outlet that will accept the plug. The marked
rating
of
the extension cord must be equal to or greater than the
electrical
rating
of the appliance.
Installation Limitations
Use of Extension Cord
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
Initial Setup
1. Plug the unit into an electrical outlet. You will hear a beep, which is normal.
The display will revert to the actual internal temperature.
erofeb sserp tsum uoY .evitca eb lliw lenap lortnoc ehT .2
accessing any of the control pads.
5
English
Beverage And Wine Center
Features and Use
Control Panel (Fig. 2)
Control Panel Settings
The adjust temperature range of the beverage and wine center is 32ºF to 61ºF.
The LED display shows the actual internal temperature. Your beverage and
wine center when it is first turned on, will have a factory setting of 43ºF.
Note: lamron gnirud ylthgils yrav ot erutarepmet lautca eht rof lamron si tI
operation.
Control Panel Auto-Lock
Your beverage and wine center has an automatic control panel lock. You
may manually activate or deactivate the control panel lock by pressing
the control pad . To operate any of the functions on the control panel,
press the control pad before making a selection. The control panel lock
will automatically activate if the control panel is not touched for 30 seconds.
F
6
English
Manual Temperature Setting
The adjust temperature range of your beverage and wine center is between
32ºF and 61ºF . The adjust temperature may be set anywhere within this range by
pressing the and pads. The display is in Fahrenheit only.
1.
Press the control
pad
.
2.
After the beep, press the
or
pad to increase or decrease the
temperature in increments of one degree. The LED readout will reflect
each change to the temperature setting.
3.
Once the desired setting has been reached, press the control
panel
pad.
Interior Light
(see Fig. 2)
•
To complement the look of your beverage and wine center ,
a
soft
light has been built into the beverage and wine center.
Simply push the pad and the light comes on, push again to
turn off. For maximum energy efficiency, leave the light off when not
viewing
your collection.
Please Note:
The light will not activate “ON” if the lock button is
“ON”.
7
English
Shelving
(See Fig. #2)
To remove or replace a full-width slide-out shelf:
1.
Gently tilt the shelf up and slide forward until the shelf has been
completely
removed.
2.
To replace the shelf, gently slide the shelf
back.
Fig. #2
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant
circulating through the cooling
coils.
•
Compressor makes operational sounds when cycling on and off.
8
English
Cleaning and Maintenance
Warning: va oT oid electric shock, always unplug your beverage
and wine center before cleaning. Ignoring this warning
may result in death or njury.
Caution: Before using cleaning products, always read and follow
manufacturer’s instructions and warnings to avoid personal injury
or product damage.
General: • Prepare a cleaning solution of 3-4 tablespoons of baking sod
a
mixe
d with warm water. Use sponge or soft cloth, dampene
d
wit
h the cleaning solution, to wipe down
your beverage center.
• Rinse with clean warm water and dry with a soft cloth.
• n oD ot use harsh chemicals, abrasives, ammonia, chlorine bleach
,
concentrated detergents, solvents or metal scouring pads
. Som
e
of these ch
emicals may dissolve, damage and/or discolor you
r
beverage and wine center.
Door Gaskets: • Clean door gaskets every three months according to general
instructions. Gaskets must be kept clean and pliable to assure a
proper seal.
• Petroleum jelly applied lightly on the hing
e side of gaskets will
keep the
gasket pliable and ensure a good seal.
Defrosting Your Beverage And Wine Center
Your beverage and wine center is designed with a manual defrost system. The
beverage and wine center surfaces will defrost, when the unit is unplug. Water
from the unit is disposed of automatically, by means of being channeled onto a
drip tray located on the compressor. Heat transfer from the compressor causes this
water to evaporate.
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms or other
causes. Remove the po
wer cord from AC outlet when a power outage occurs.
When power has been restored, replug power cord to AC outlet.
• The unit will revert to the factory setting of 43ºF after any power outage. Reset you
r
tem
perature selection.
Vacation and Moving Care
• For long vacations or absences, empty contents from beverage and wine center,
unplug the unit and clean the beverage and wine center and door gasket
s
accor
ding to “General cleaning” section. Prop doors open, so air can circulate inside
.
When
moving, always move the beverage and wine center verti
cally. Do not move
with the unit lying down. Possible damage to the sealed system could occur.
Proper Beverage And Wine Center
Care & Cleaning
9
English
Control Panel does not respond
• Check if control panel is on
Beverage And Wine Center Does Not Operate
• Check if beverage and wine center is plugged in.
• Check if there is power at the ac outlet, by checking the circuit breaker.
• Check if power pad is on.
Temperature appears too warm
• Frequent door openings.
• Allow time for recently added beverages to reach proper temperature.
• Check gaskets for proper seal.
• Adjust temperature control to cooler setting.
Temperature is too cold
• If temperature control setting is too cold, adjust to a warmer setting and allow
several hours for temperature to adjust.
Beverage And Wine Center runs too frequently
• This may be normal to maintain constant temperature during high temperature
and
humid days.
• Doors may have been opened frequently or for an extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior of the beverage
center
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Beverage And Wine Center door does not shut properly
• Level the beverage and wine center.
• Check for blockages.
Troubleshooting
Thank you for purchasing this product! If you have any questions about
the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via customer service
number:
.
Please call our customer service department for any consulting:
- P T
appeler le service la pour toutes questions au:
- P T
hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
- P T
V2
Address: ROWAN ELECTRIC APPLIANCE LLC
750S. Valley View Avenue, San Bernardino, CA
92408 Phone: 213-4467172 or 661-4358826
