RZT50/RZT SERIES /Mfg Date J015 & After -1- SECTION Z6
Model Number
RZT 50
Parts Manual
RZT SERIES
Model Year 2006
Mfg. Code 1J015 and after
RZT50/RZT SERIES /Mfg Date J015 & After -2- SECTION Z6
DESCRIPTION PAGE
Frame and Drive Idler Assembly ..................................... 3
Electrical .......................................................................... 4
Operator’s Platform ......................................................... 6
Controls and Deck Lift ..................................................... 8
Rear Drive and Wheels ................................................... 10

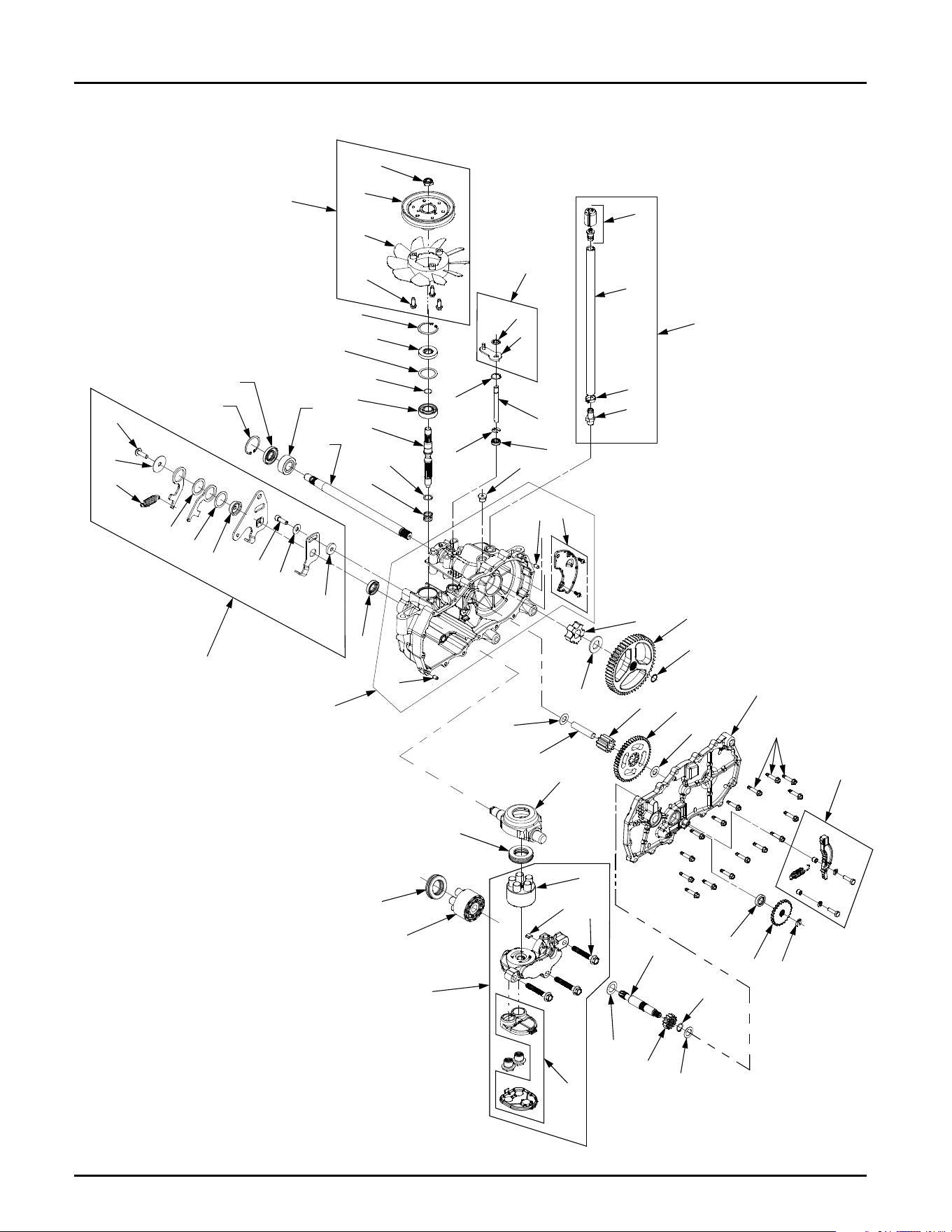

RH Transmission ............................................................. 12
LH Transmission ............................................................. 14

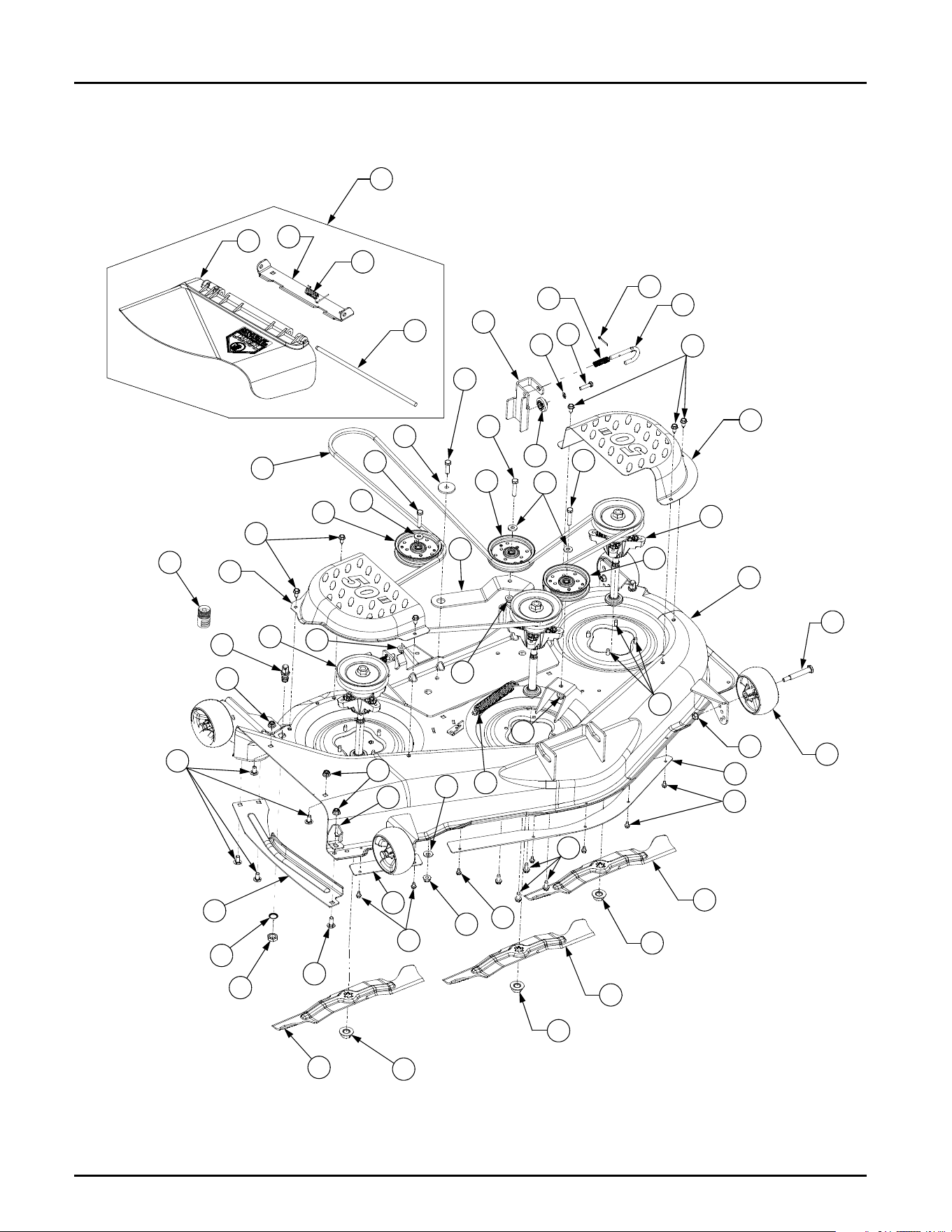

50" Mower Deck .............................................................. 16
Engine Connections ........................................................ 18
Front Axle ........................................................................ 20
Seat Adjustment .............................................................. 21
Engine .............................................................................

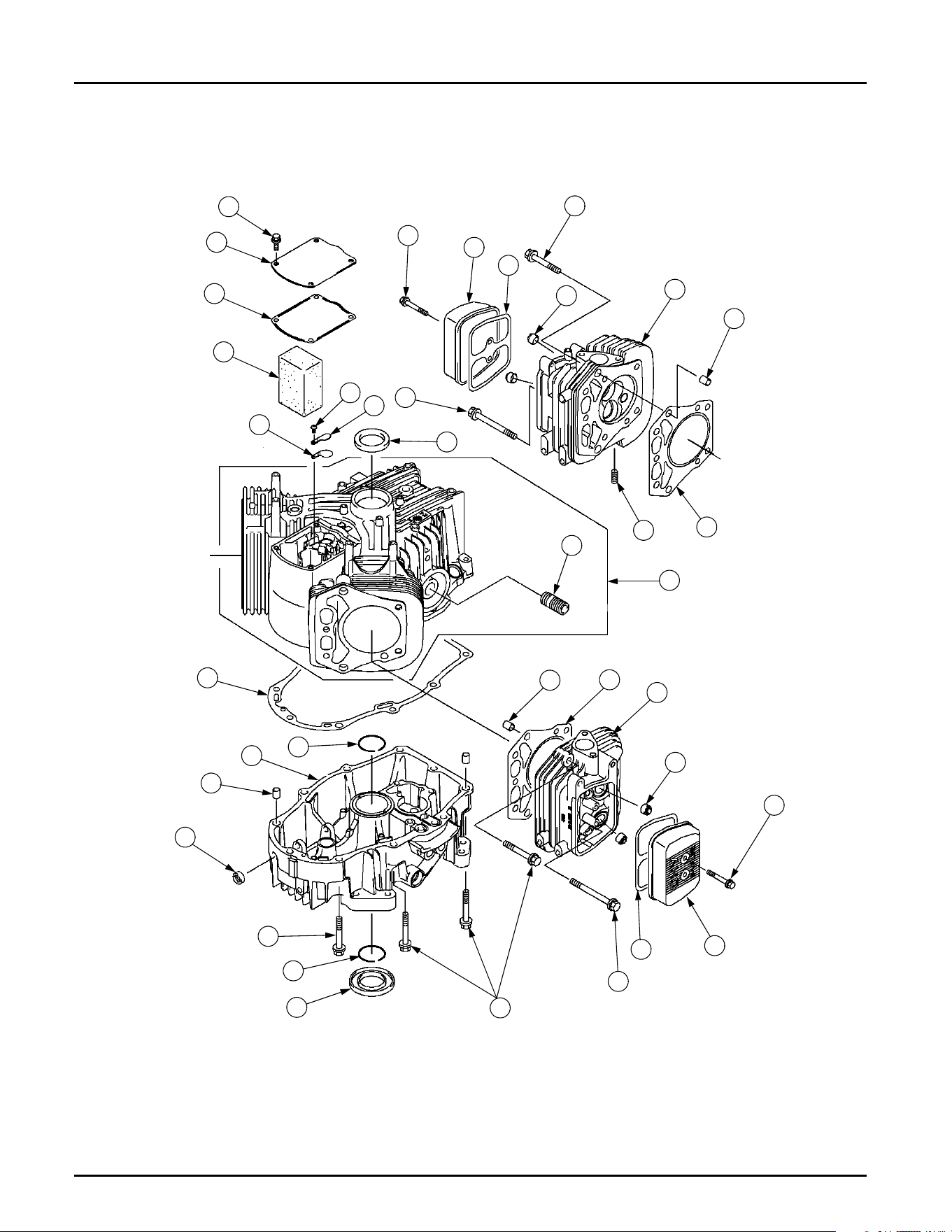

Cylinder/Crankcase.......................................................
Pistons and Crankshaft ................................................

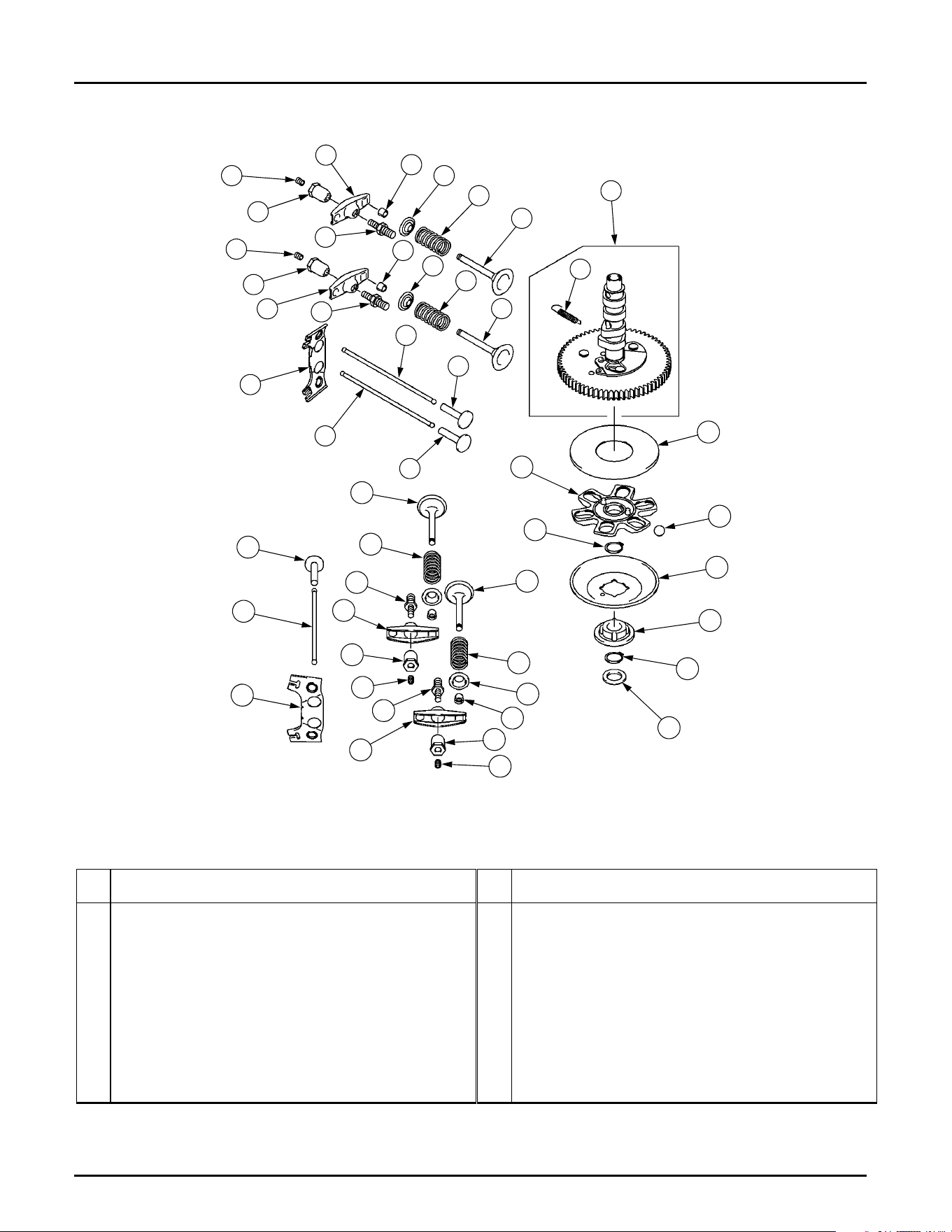

Camshaft and Valves ...................................................
Lubrication ....................................................................
Cooling .........................................................................
Flywheel / Electrical ......................................................
Engine Control ..............................................................
Carburetor ....................................................................
Air Filter ........................................................................
Fuel Filter/Pump ...........................................................

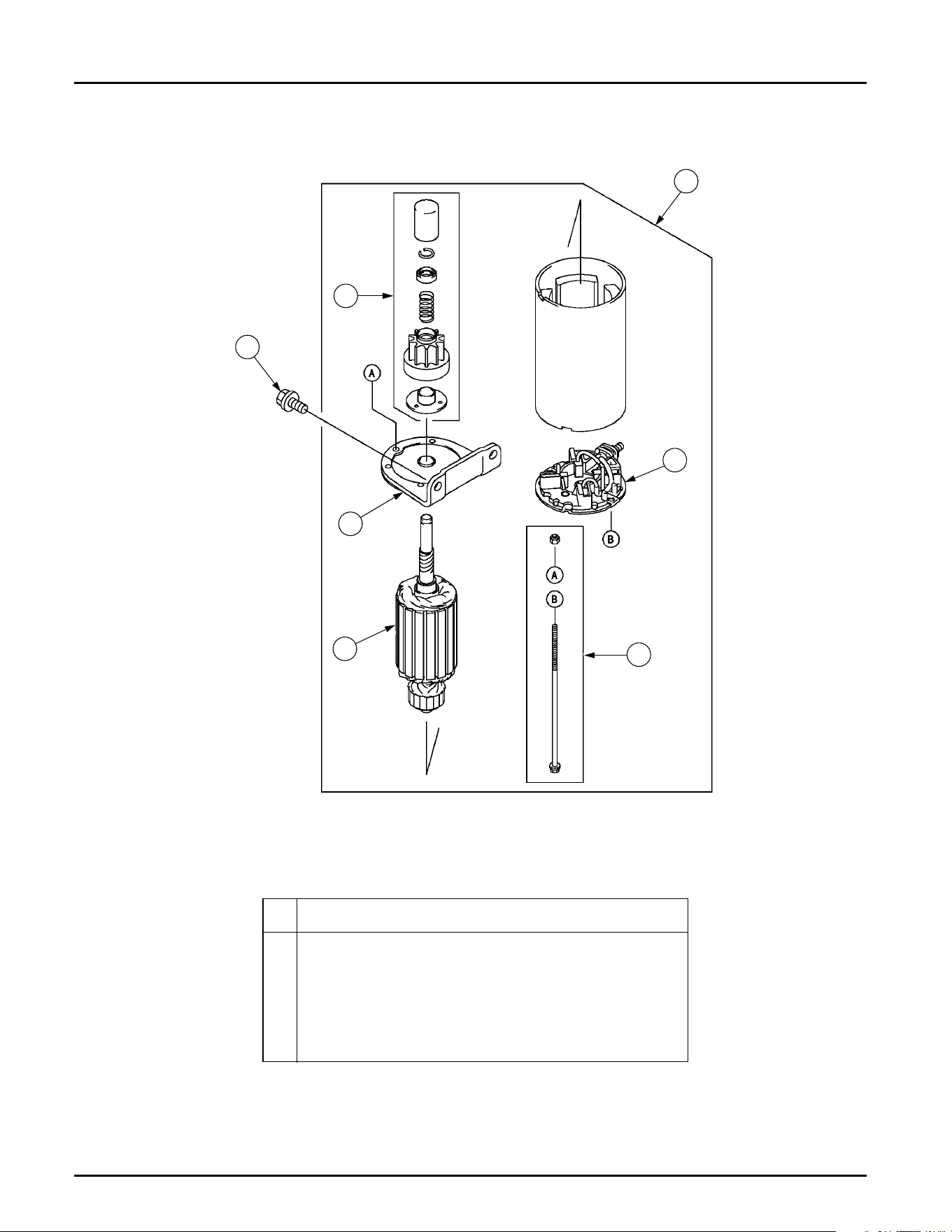

Starter ...........................................................................
22
24
25
26
27
28
29
30
32
33
34
TABLE OF CONTENTS
MODEL RZT 50
NOTE: For painted parts, please refer to the
list of color codes below. Please add the appli-
cable color code, wherever needed, to the
part number to order a replacement part.
For instance, if a part, numbered 700-xxxx, is
painted Cub Yellow, the part number to order
would be 700-xxxx-0716.
Cub Yellow: 0716
Cub Beige: 0499
Powder Black: 0637
RZT50/RZT SERIES /Mfg Date J015 & After -3- SECTION Z6
1
2
3
5
5
6
9
4
8
3
7
5

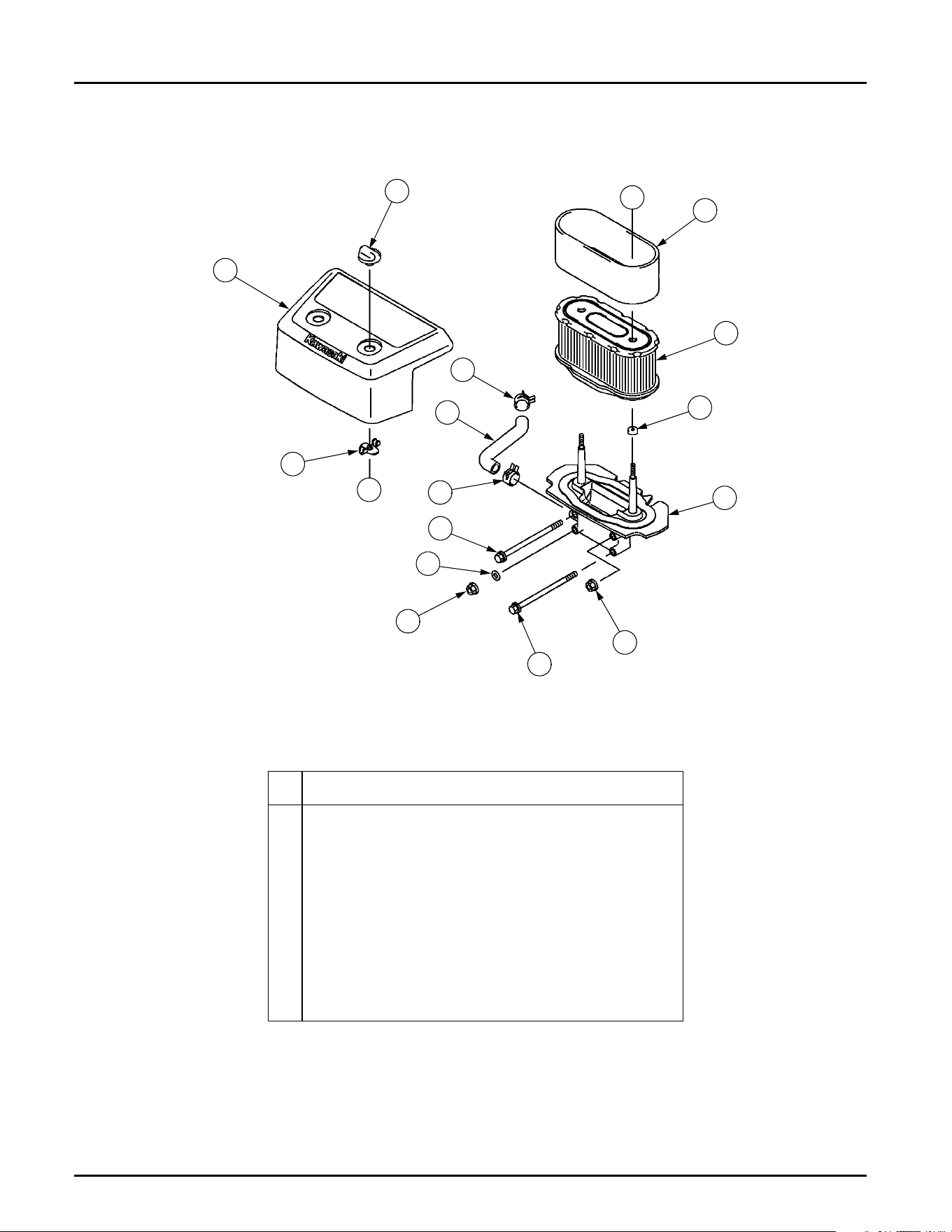

REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-04303B
777D09506
777I22489
Frame Assembly ...............................
Graphic, Cub Cadet .......................
Graphic, Release Lever .................
1
1
2
2 703-05829 Idler Arm, Drive ................................. 1
3 710-0520 Screw, Hex Cap, 3/8-16 x 1.5 GR5 3
4 710-3005 Screw, Hex Cap, 3/8-16 x 1.25 GR5 1
5 712-04065 Nut, Hx Insert Flange Lck, 3/-16 GRF 4
6 732-0626 Spring, Extension, .75 x 5.06 ............ 1
7 738-04058 Spacer, Shoulder, .39 x 1.0 x .7 ........ 2
8 738-04162A Screw, Shoulder, .884 x .19 ............. 1
9 756-04129 Pulley, Idler, 4.25 Dia. ....................... 1

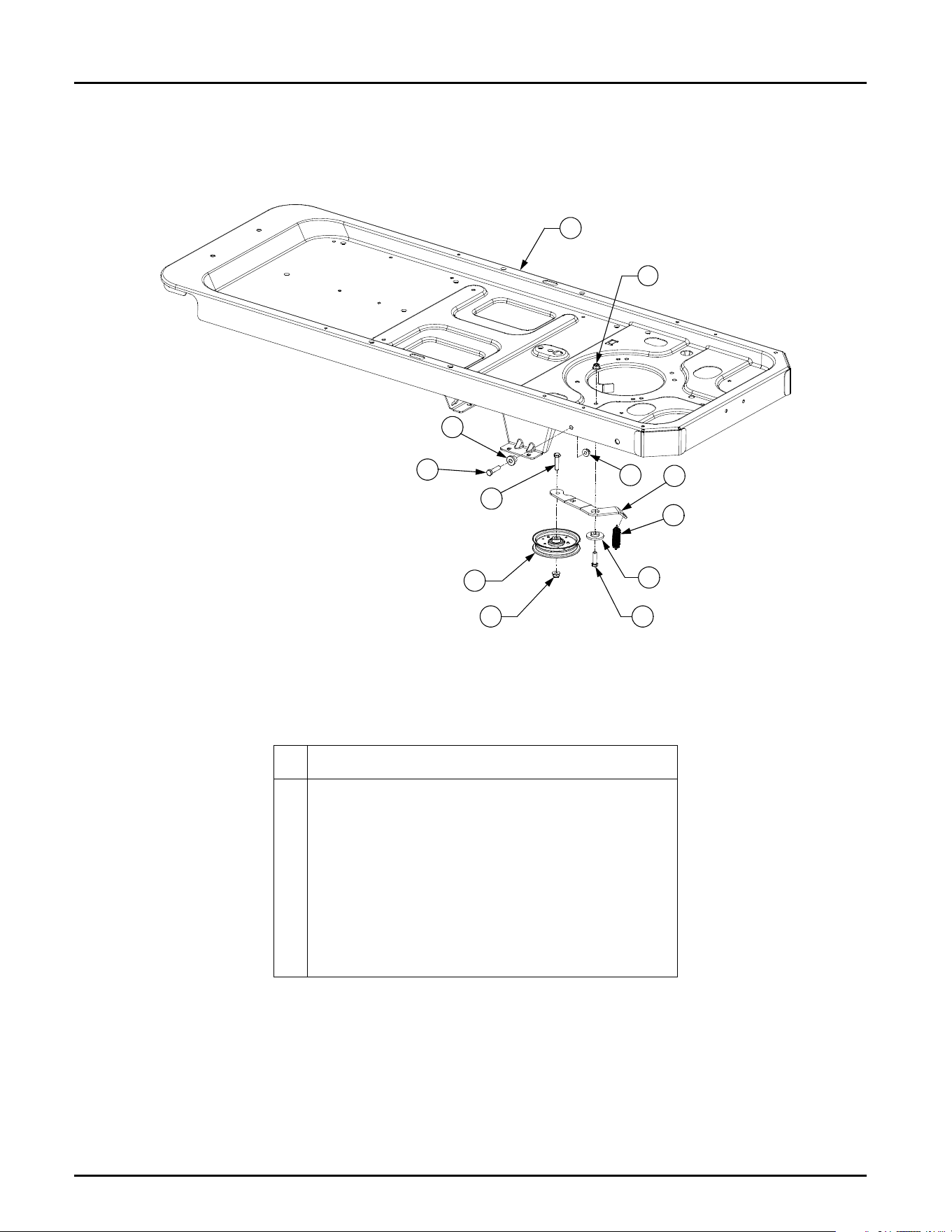

FRAME AND DRIVE IDLER ASSEMBLY
RZT50/RZT SERIES /Mfg Date J015 & After -4- SECTION Z6

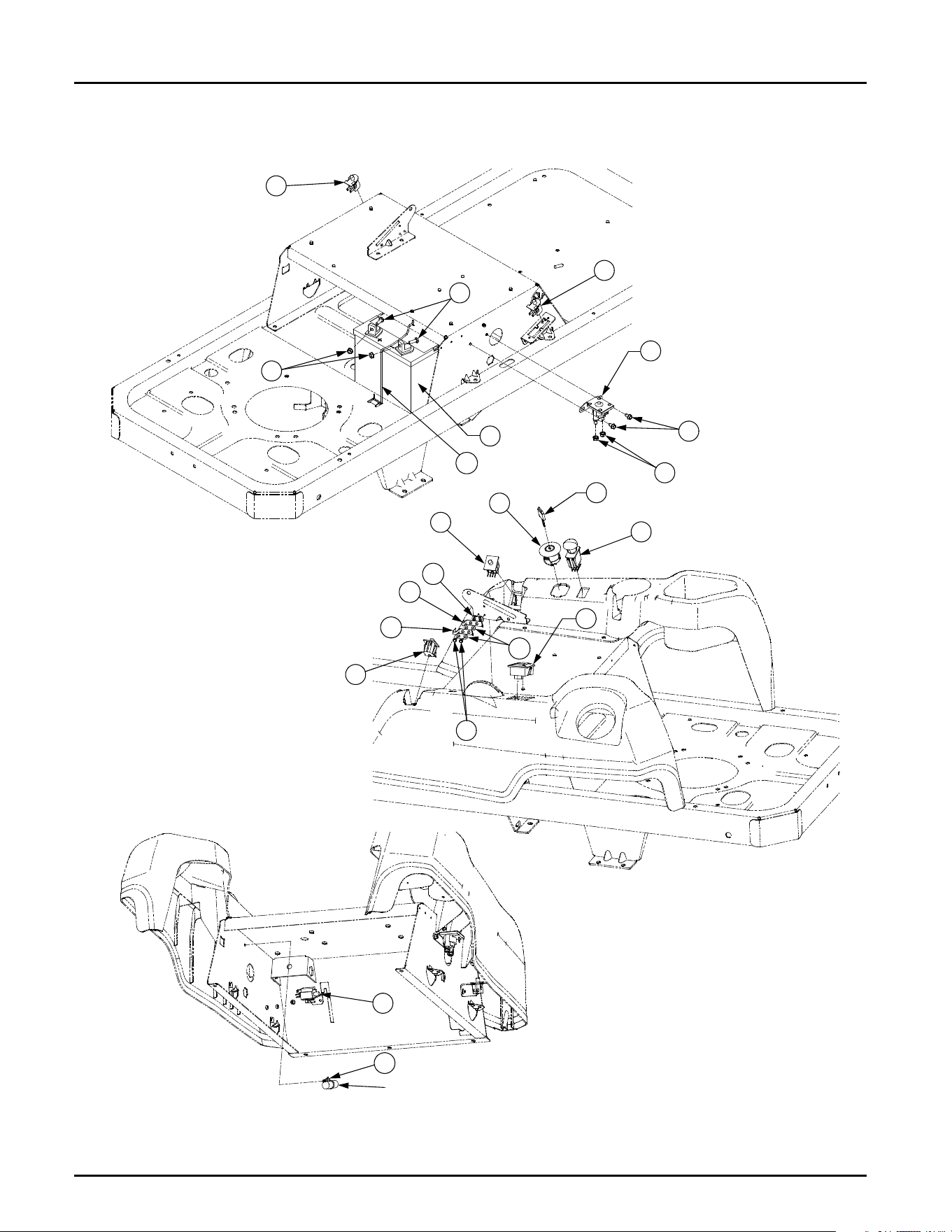

ELECTRICAL
2
3
4
19
8
7
6
11
14
7
15
9
15
4
13
6
17
10
12
16
1
18
Section of Main Wire Harness
(Reference Only)
RZT50/RZT SERIES /Mfg Date J015 & After -5- SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0227 Screw, Hex Wash. Hd. Tapp ............
#8-18 x .5
2
2 710-0599 Screw, Hex Wash. Hd. Tapp, ...........
1/4-20 x .5
2
3 710-3015 Screw, Hex Cap, 1/4-20 x .75 GR5 .. 2
4 712-0271 Nut, Hex Sems, 1/4-20 ..................... 4
5 725-04022A Meter, Hour ....................................... 1
6 725-04165 Switch, Dbl. Pole - Neutral ................ 2
7 725-04174 Switch, PTO ...................................... 1
8 725-04228 Switch, Ignition ................................. 1
9 725-04232 Switch, 3-Pole, (NC-NO-NO) - Brake 1
10 725-1303 Switch, Outer Seat Spring ................ 1
11 725-1426A Solenoid ............................................ 1
12 725-1439 Switch, Inner Seat Spring ................. 1
13 925-1745 Key ................................................... 1
14 725-1707D Battery, 235 CCA .............................. 1
15 725-3166 Switch, Snap Mount (N.C.) - Reverse 2
16 726-0278 Plate, Insulator Boss ......................... 1
17 726-0279 Plate, Insulator .................................. 2
18 726-0470 Tie, Cable ......................................... 2
19 747-04425 Rod, Battery Holddown ..................... 1
† 725-04297 Harness Assembly, Wire .................. 1
† 725-04188 Cable Wire, Black - to Ground .......... 1
ELECTRICAL
† NOT SHOWN
RZT50/RZT SERIES /Mfg Date J015 & After -6- SECTION Z6

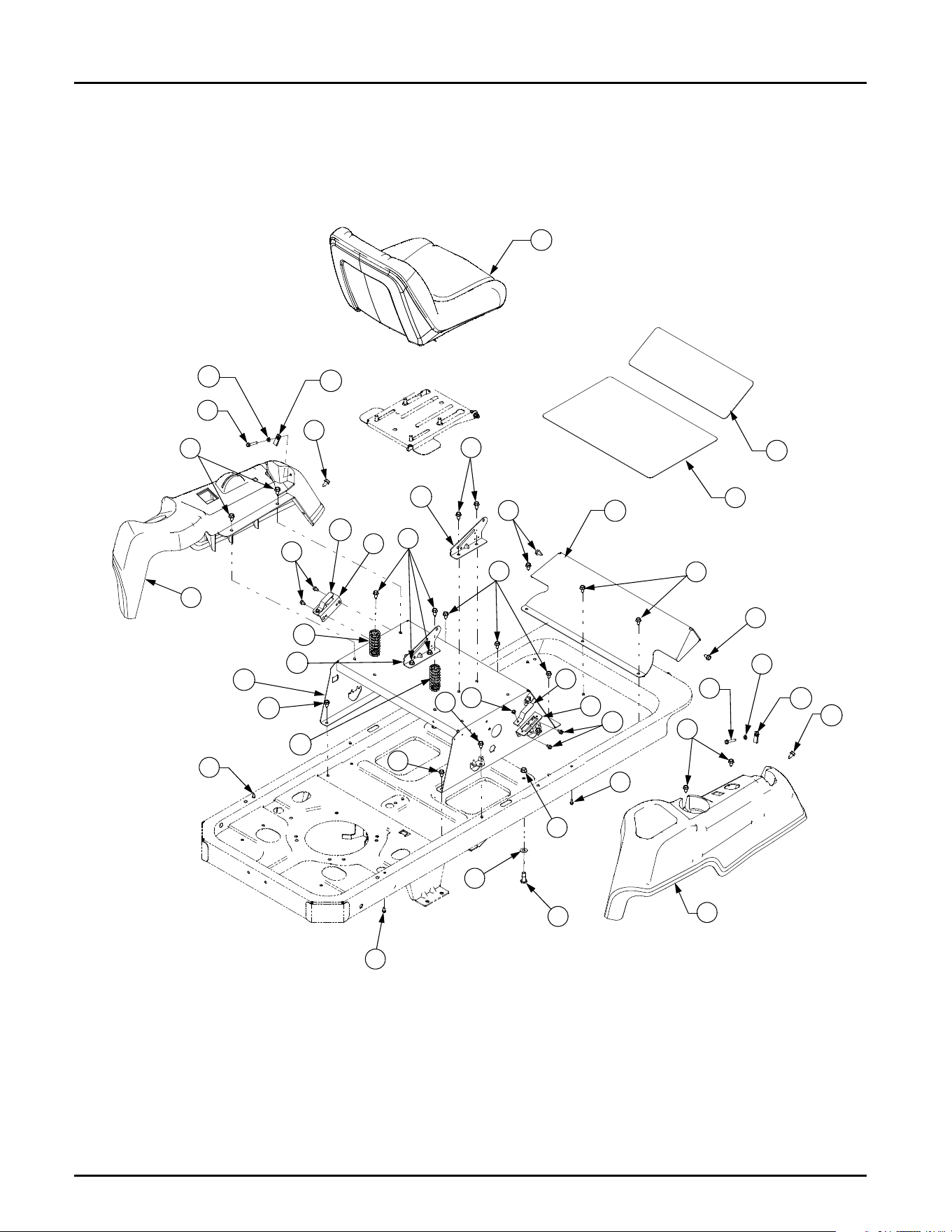

OPERATOR’S PLATFORM
1
2
3
8
9
10
11
13
14
15
16
18
17
22
21
3
4
4
4
6
6
5
6
6
6
7
8
18
6
6
5
6
11
12
19
20
10
6
7
6
6
22
17
RZT50/RZT SERIES /Mfg Date J015 & After -7- SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-04326
777I22600
777S32354
777I22275
Frame, Seat Box ...............................
Graphic, Park Brake .......................
Graphic, Warning ...........................
Graphic, Deck Height .....................
1
1
1
1
2 703-05373A
777D09506
Bracket, Foot Rest ............................
Graphic, Cub Cadet .......................
1
1
3 703-05467 Bracket, Switch Mounting .................. 2
4 710-04261 Screw, Hex Wash. Hd Tapp ..............
#12-16 x .50
4
5 710-0599 Screw, Hex Wash. Hd. Tapp. ............
1/4-20 x .5
4
6 710-0604A Screw, Hex Wash. Hd. Tapp .............
5/16-18 x .625
20
7 710-0726 Screw, Hex Wash. Hd. Tapp .............
5/16-12 x .75
6
8 710-0778 Screw, Hex Wash. Hd. Tapp. ............
1/4-20 x 1.5
2
9 710-1268 Screw, Hex Wash. Hd Tapp ..............
#10-16 x .375
2
10 712-0298 Nut, Hex Jam, 1/4-20 GR2 ................ 2
11 712-04092 Nut, U Type Speed, 1/4-20 ............... 2
12 712-0431 Nut, Hex Flange Lock, 3/8-16 GRF 2
13 723-04020 Pad, Abrasive Foot Plate .................. 1
14 723-04021 Pad, Abrasive Toe Plate ................... 1
15 731-04662B
777I22602
777D09709
777I22280
Console, LH ......................................
Graphic, Instruction ........................
Graphic, Cub Cadet .......................
Graphic, Throttle Control ................
1
1
1
1
16 731-04663A
777I22601
777D09710
Console, RH ......................................
Graphic, Instruction ........................
Graphic, Cub Cadet .......................
1
1
1
17 732-04035 Spring, Compression, 1.28 x 3.125 2
18 732-04200 Spring, Switch Actuator ..................... 2
19 736-0300 Washer, Flat, .406 x .875 x .059 ....... 2
20 738-0430 Screw, Shoulder, .50 x .685:3/8-16 ... 2
21 757-04041
777D09646
Seat ...................................................
Graphic, Cub Cadet/USA ...............
1
1
22 783-1489B Bracket, Seat Pivot ............................ 2
OPERATOR’S PLATFORM
RZT50/RZT SERIES /Mfg Date J015 & After -8- SECTION Z6

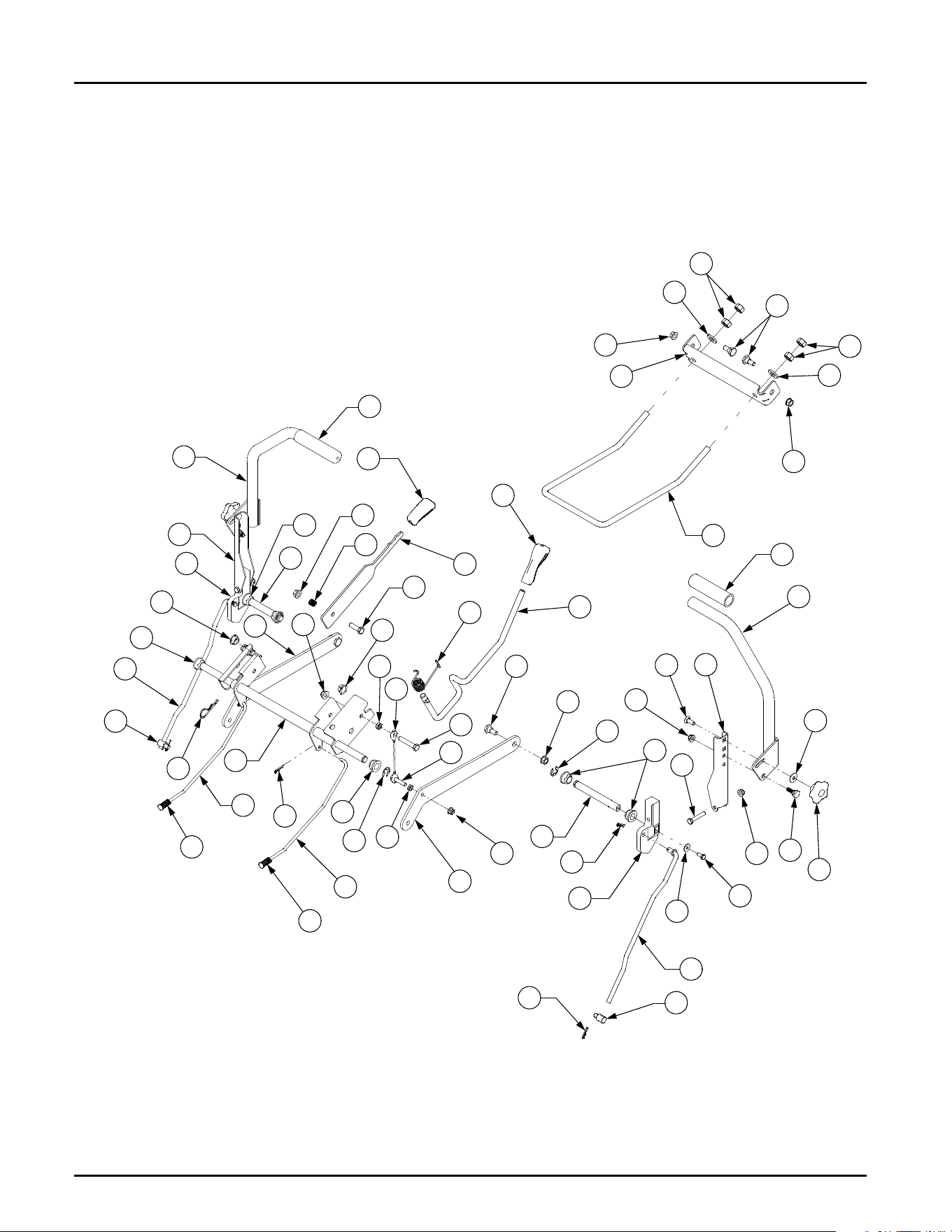

CONTROLS AND DECK LIFT
3
1
42
2
4
5
7
6
35
13
14
15
18
16
23
25
24
27
28
29
33
31
32
34
36
38
43
39
40
41
4
7
8
14
15
16
18
18
18
21
21
21
23
19
33
34
36
36
43
40
41
44
44
22
37
36
11
16
26
12
24
10
37
17
9
20
30
30
RZT50/RZT SERIES /Mfg Date J015 & After -9- SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-04160A Shaft Assembly, Deck Lift ................... 1
2 603-04322 Lever, Lapbar, RH ............................... 1
3 603-04324 Lever, Lapbar, LH ............................... 1
4 703-05387A Bracket, Lapbar Pivot .......................... 2
5 703-05396 Handle, Brake ..................................... 1
6 703-05414A Bracket, Front Deck Hanger ................ 1
7 703-05793 Arm, Deck Lift ...................................... 2
8 710-0433 Screw, Hex Lock, 1/4-20 x .62 GR5 .... 2
9 710-0805 Screw, Hex Cap, 5/16-18 x 1.5 GR5 ... 2
10 710-3005 Screw, Hex Cap, 3/8-16 x 1.25 GR5 ... 1
11 710-3105 Bolt, Carriage, 5/16-18 x .875 ............. 2
12 710-3144 Screw, Hex Cap, 3/8-16 x 2.0 GR5 ..... 2
13 710-3180 Screw, Hex Cap, 5/16-18 x 1.75 GR5 2
14 711-0832 Ferrule, 3/8-24 x .375 .......................... 2
15 712-0206 Nut, Hex, 1/2-13 GR5 .......................... 4
16 712-04063 Nut, Hx Flange Insert Lck, 5/16-18 GrF 6
17 712-04065 Nut, Hx Flange Insert Lck, 3/8-16GrF 2
18 712-0431 Nut, Hex Flange Lock, 3/8-16 GRF 5
19 712-3007 Nut, Hex Jam, 5/16-18 GR5 ................ 2
20 712-3008 Nut, Hex Jam, 3/8-16 GR5 .................. 2
21 714-0104 Pin, Internal Cotter .............................. 6
22 714-3020 Pin, Internal Cotter .............................. 1
23 716-0106 E-Ring , .625 Dia. Shaft ...................... 4
24 720-0274 Grip, Hand ........................................... 2
25 720-0311 Grip, Handle ........................................ 1
26 720-04052 Knob, Nut, 5/16-18 .............................. 2
27 731-04735 Grip, Handle ........................................ 1
28 732-0334 Spring, Compression ........................... 1
29 732-0874 Spring, Torsion .................................... 1
30 732-04350 Spring, Compression ........................... 2
31 736-0270 Washer, Bell, .265 x .75 x .062 ........... 2
32 736-0425 Washer, Bell, .325 x .93 x .045 ........... 2
33 736-3019 Washer, Flat, .531 x 1.062 x .134 HT .. 2
34 738-0143 Screw, Shoulder, .498 x .340:3/8-16 4
35 738-0296 Screw, Shoulder, .437 x .268:5/16-18 2
36 741-0225 Bearing, Hex Flange ........................... 6
37 741-3074 Bearing, Flange, .626 x .938 x .344 .... 2
38 746-0970 Cable, Deck Lift, 5.05 Long ................. 2
39 747-04224 Rod, Deck Lift Handle ......................... 1
40 747-04225A Rod, Lapbar Control ............................ 2
41 747-04226 Shaft, Control ...................................... 2
42 747-04401 Rod, Deck Front Hanger ..................... 1
43 747-04491 Rod, Brake .......................................... 2
44 748-04052 Hub, Control ........................................ 2
CONTROLS AND DECK LIFT
RZT50/RZT SERIES /Mfg Date J015 & After -10 - SECTION Z6

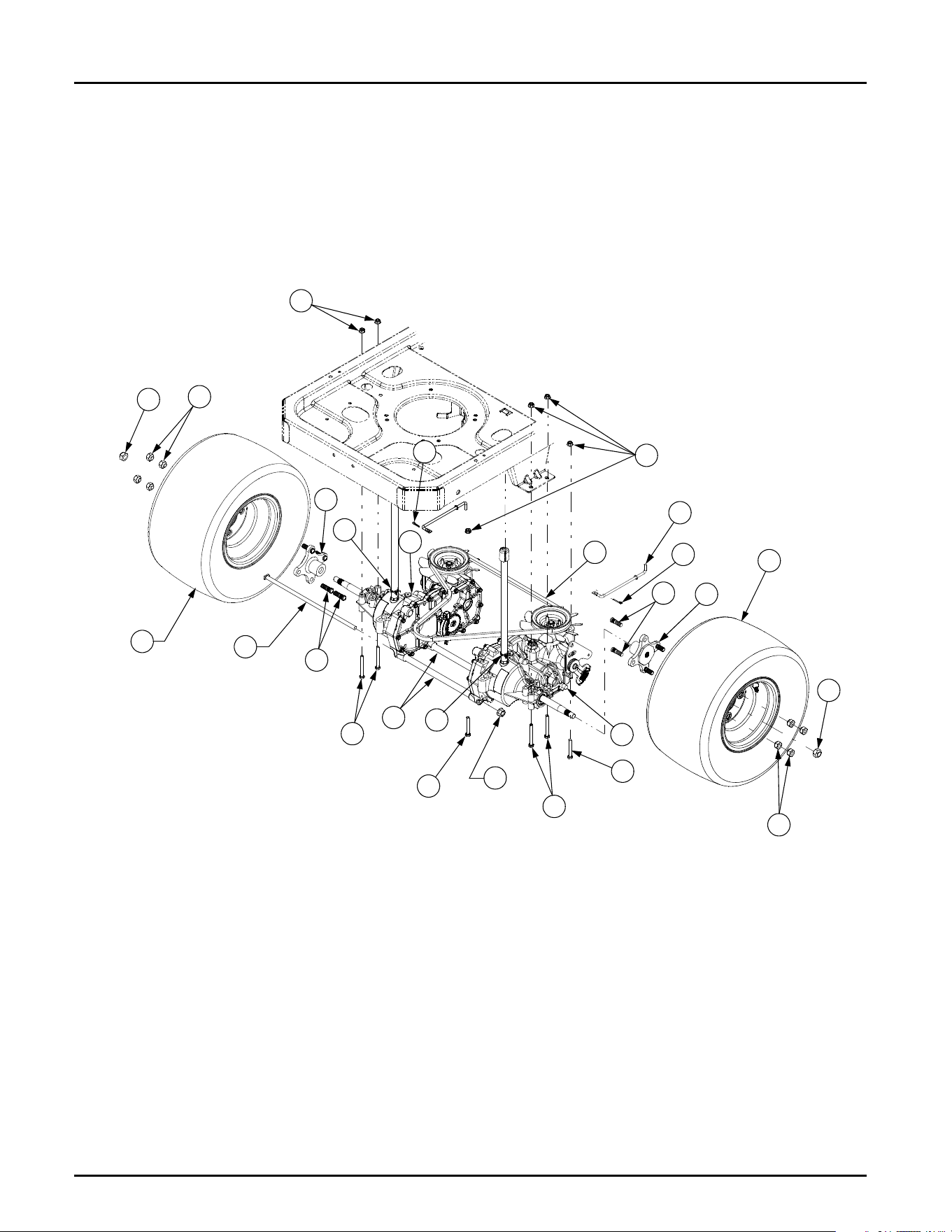

REAR DRIVE AND WHEELS
1
2
4
13
6
16
8
10
15
14
3
3
4
6
8
10
5
15
5
11
12
7
12
17
7
9
12
RZT50/RZT SERIES /Mfg Date J015 & After -11 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 618-04326 Transmission Assembly, RH ................. 1
2 618-04327 Transmission Assembly, LH ................. 1
3 634-04128
734-1729
734-0255
Wheel Assembly, 18 x 9.5 x 8 ..............
Tire, 18 x 9.5 x 8 ................................
Valve Assembly .................................
2
2
2
4 710-0176 Screw, Hex Cap, 5/16-18 x 2.75 GR5 4
5 710-0395 Screw, Hex Cap, 5/16-18 x 2.25 GR5 2
6 710-0852 Stud, Rib Neck, 7/16-14 x 1.6 ............... 8
7 712-04063 Nut, Hx Insert Flange Lck, 5/16-18 GrF 6
8 712-04088 Nut, Hex Lock, 9/16-18 GRC ................ 2
9 712-0459 Nut, Hex Flange Lock, 7/16-20 GrB ...... 2
10 712-3050 Nut, Lug, 7/16-14 .................................. 8
11 714-0507 Pin, Cotter, 3/32 x .75 .......................... 2
12 726-04059 Clamp, Hose ......................................... 2
13 738-04192 Rod, .405 x 14.0 ................................... 2
14 747-04217B Rod, Bypass ......................................... 2
15 748-04055 Hub, Wheel ........................................... 2
16 750-04561 Tube, .45 x .69 x 10.2 ........................... 2
17 754-04043 V-Belt, Type A Sec x 57.7 ..................... 1
REAR DRIVE AND WHEELS
RZT50/RZT SERIES /Mfg Date J015 & After -12 - SECTION Z6
47
2
3
6
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
48
49
50
51
52
53
54
55
56
57
58
61
62
63
64
65
66
4
8
13
29
30
36
63
68
67
60
59
1

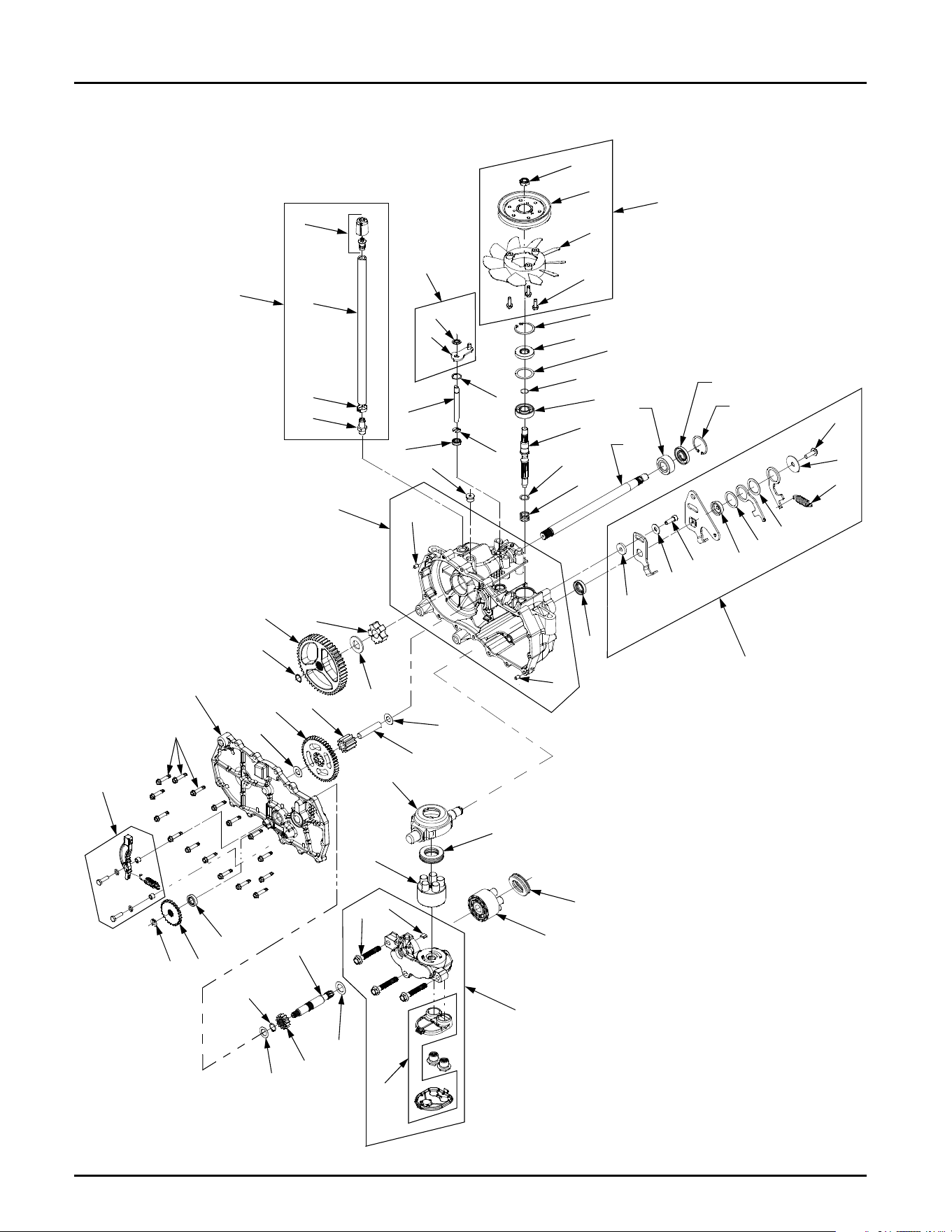

RH TRANSMISSION
RZT50/RZT SERIES /Mfg Date J015 & After -13 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 HG-70862R Housing Assembly, Main RH 1
2 HG-70863R Side Assembly, RH ............... 1
3 HG-51448 Plate, Bypass ........................ 1
4 HG-70723 Pump Block Assembly .......... 1
5 HG-51949 Spacer, .32 x 1.005 ............... 1
6 HG-70331 Motor Block Assembly .......... 1
7 HG-9005110-5600 Plug, SAE #6 ........................ 1
8 HG-9004800-2506 Pin, Stainless ........................ 2
9 HG-51190 Screw, Hex Self Tapping, .....
1/4-20 x 1.25
16
10 HG-70719 Seal, Brake ........................... 1
11 HG-50016 Bolt, Hex Flange, 3/8-24 x 2.5 3
12 HG-51626 Seal, Lip, .375 x .75 x .25 ..... 1
13 HG-51628 Ring, Retaining, .375 Ext. ..... 2
14 HG-51625 Rod, Bypass ......................... 1
15 HG-51627 Ring, Retaining, .75 Int. ........ 1
16 HG-52370 Arm, Bypass ......................... 1
17 HG-51630 Ring, Retaining, .375 Push ... 1
18 HG-51048 Swashplate, Trunnion ........... 1
19 HG-51140 Seal, Lip, 18 x 32 x 7 ............ 1
20 HG-44130 Washer, Flat, 11/32 x 7/8 x 1/16 1
21 HG-51812 Screw, 5/16-24 x 1.0 ............. 1
22 HG-2003014 Spring, Compression ............ 1
23 HG-2003017 Washer, .591 x .787 x .04 ..... 1
24 HG-51062 Shaft, Input ........................... 1
25 HG-50315 Bearing, Ball, 17mm x 40 x 12 1
26 HG-2000022 Ring, Wire Retaining, .561 .... 1
27 HG-50951 Spacer .................................. 1
28 HG-51161 Seal, Lip, 17 x 40 x 7 ............ 1
29 HG-50329 Ring, Retaining ..................... 2
30 HG-50551 Bearing, Thrust, 30 x 52 x 13 2
31 HG-44371 Washer, Flat, 5/8 x 1.0 x .05 1
32 HG-44145 Ring, Retaining ..................... 1
33 HG-51130 Gear, Pinion, 13T .................. 1
34 HG-51632 Shaft, Motor .......................... 1
35 HG-51069 Washer, .71 x 1.16 x .04 ....... 1
36 HG-50132 Washer, HT, .5 x 1.0 x .032 .. 2
37 HG-51129 Gear, 10T/48T ....................... 1
38 HG-51043 Gear, Jackshaft, 10T ............. 1
39 HG-51083 Pin, Jackshaft ........................ 1
40 HG-44871 Ring, Spiral Retaining ........... 1
41 HG-51633 Gear, Bull, 52T ...................... 1
42 HG-44875 Washer, 3/4 x 1.5 x .13 ......... 1
43 HG-51088 Bearing, Sleeve ..................... 1
44 HG-51954 Axle ....................................... 1
45 HG-51089 Bushing, .752 x 1.571 x .625 1
46 HG-51066 Seal, Lip, .75 x 1.577 x .25 ... 1
47 HG-70868R Kit, Expansion Plate, RH ....... 1
48 HG-71333 Kit, Fan-Pulley ....................... 1
49 HG-71365 Kit, Brake Arm ....................... 1
50 HG-71143 Kit, Center Section-Filter RH 1
51 HG-71006 Kit, Bypass Arm .................... 1
52 HG-70911 Kit, Filter ................................ 1
53 HG-51635 Disc, Brake Cog .................... 1
54 HG-52315 Fan, 7” 10 Blade ................... 1
55 HG-50302 Pulley, 4.5 ............................. 1
56 HG-51244 Nut, Hex Insert Lock, 1/2-20 1
57 HG-50752 Screw, Hex Wash. Hd. Tapp
1/4-20
3
58 HG-70921 Cap, Vent Assembly ............ 1
59 HG-50591 Fitting, Sraight, 9/6-18 ........... 1
60 HG-50590 Clamp, Pinch ......................... 1
61 HG-51616 Screw, Hx Patch, 5/16-24 x 1.0 1
62 HG-51947 Bushing, Pilot, 1.125 ............. 1
63 HG-51948 Washer, Plastic ..................... 2
64 HG-51950 Washer, 1.5 x .34 x .062 ....... 1
65 HG-51399 Spring, Extension .................. 1
66 HG-71095 Kit, Return Assembly RH ...... 1
67 HG-51731 Hose, .5 x 15.0 ...................... 1
68 HG-71308 Kit, Breather Assembly ......... 1
HG-70853 Kit, Seal ................................. 1
HG-50928 Sealant Tube, 10.3 oz ........... 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
RH TRANSMISSION
RZT50/RZT SERIES /Mfg Date J015 & After -14 - SECTION Z6
1
2
3
6
5
7
8
9
10
11
12
13
14
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
48
49
50
51
52
53
54
55
56
57
58
61
62
63
64
65
66
4
8
13
29
30
36
63
68
67
60
59
LH TRANSMISSION
RZT50/RZT SERIES /Mfg Date J015 & After -15 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 HG-70862L Housing Assembly, Main LH . 1
2 HG-70863L Side Assembly, LH ............... 1
3 HG-51448 Plate, Bypass ........................ 1
4 HG-70723 Pump Block Assembly .......... 1
5 HG-51949 Spacer, .32 x 1.005 ............... 1
6 HG-70331 Motor Block Assembly .......... 1
7 HG-9005110-5600 Plug, SAE #6 ........................ 1
8 HG-9004800-2506 Pin, Stainless ........................ 2
9 HG-51190 Screw, Hex Self Tapping, .....
1/4-20 x 1.25
16
10 HG-9008000-0125 Seal, Lip, .5 x .88 x .25 ......... 1
11 HG-50016 Bolt, Hex Flange, 3/8-24 x 2.5 3
12 HG-51626 Seal, Lip, .375 x .75 x .25 ..... 1
13 HG-51628 Ring, Retaining, .375 Ext. ..... 2
14 HG-51625 Rod, Bypass ......................... 1
15 HG-51627 Ring, Retaining, .75 Int. ........ 1
16 HG-51910 Arm, Bypass ......................... 1
17 HG-51630 Ring, Retaining, .375 Push ... 1
18 HG-51048 Swashplate, Trunnion ........... 1
19 HG-51140 Seal, Lip, 18 x 32 x 7 ............ 1
20 HG-44130 Washer, Flat, 11/32 x 7/8 x 1/16 1
21 HG-51812 Screw, 5/16-24 x 1.0 ............. 1
22 HG-2003014 Spring, Compression ............ 1
23 HG-2003017 Washer, .591 x .787 x .04 ..... 1
24 HG-51062 Shaft, Input ........................... 1
25 HG-50315 Bearing, Ball, 17mm x 40 x 12 1
26 HG-2000022 Ring, Wire Retaining, .561 .... 1
27 HG-50951 Spacer .................................. 1
28 HG-51161 Seal, Lip, 17 x 40 x 7 ............ 1
29 HG-50329 Ring, Retaining ..................... 2
30 HG-50551 Bearing, Thrust, 30 x 52 x 13 2
31 HG-44371 Washer, Flat, 5/8 x 1.0 x .05 1
32 HG-44145 Ring, Retaining ..................... 1
33 HG-51130 Gear, Pinion, 13T .................. 1
34 HG-51845 Shaft, Motor .......................... 1
35 HG-51069 Washer, .71 x 1.16 x .04 ....... 1
36 HG-50132 Washer, HT, .5 x 1.0 x .032 .. 2
37 HG-51129 Gear, 10T/48T ....................... 1
38 HG-51043 Gear, Jackshaft, 10T ............. 1
39 HG-51083 Pin, Jackshaft ........................ 1
40 HG-44871 Ring, Spiral Retaining ........... 1
41 HG-51633 Gear, Bull, 52T ...................... 1
42 HG-44875 Washer, 3/4 x 1.5 x .13 ......... 1
43 HG-51088 Bearing, Sleeve ..................... 1
44 HG-51954 Axle ....................................... 1
45 HG-51089 Bushing, .752 x 1.571 x .625 1
46 HG-51066 Seal, Lip, .75 x 1.577 x .25 ... 1
47 HG-70868l Kit, Expansion Plate, LH ....... 1
48 HG-71333 Kit, Fan-Pulley ....................... 1
49 HG-71356 Kit, Brake Arm ....................... 1
50 HG-71142 Kit, Center Section-Filter LH 1
51 HG-71006 Kit, Bypass Arm .................... 1
52 HG-70911 Kit, Filter ................................ 1
53 HG-51635 Disc, Brake Cog .................... 1
54 HG-52315 Fan, 7” 10 Blade ................... 1
55 HG-50302 Pulley, 4.5 ............................. 1
56 HG-51244 Nut, Hex Insert Lock, 1/2-20 1
57 HG-50752 Screw, Hex Wash. Hd. Tapp
1/4-20
3
58 HG-70921 Cap, Vent Assembly ............ 1
59 HG-50591 Fitting, Sraight, 9/6-18 ........... 1
60 HG-50590 Clamp, Pinch ......................... 1
61 HG-51616 Screw, Hx Patch, 5/16-24 x 1.0 1
62 HG-51947 Bushing, Pilot, 1.125 ............. 1
63 HG-51948 Washer, Plastic ..................... 2
64 HG-51950 Washer, 1.5 x .34 x .062 ....... 1
65 HG-51399 Spring, Extension .................. 1
66 HG-71095 Kit, Return Assembly RH ...... 1
67 HG-51731 Hose, .5 x 15.0 ...................... 1
68 HG-71308 Kit, Breather Assembly ......... 1
HG-70853 Kit, Seal ................................. 1
HG-50928 Sealant Tube, 10.3 oz ........... 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
LH TRANSMISSION
RZT50/RZT SERIES /Mfg Date J015 & After -16 - SECTION Z6
50" MOWER DECK
5
1
3
2
4
6
8
12
14
11
9
16
17
16
20
21
23
24
25
29
27
26
13
32
31
34
35
36
36
37
39
38
40
41
42
43
44
2
8
8
10
10
10
11
15
18
16
16
17
17
29
33
33
33
36
12
50" MOWER DECK
19
22
28
30
7
16
16
RZT50/RZT SERIES /Mfg Date J015 & After -17 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-04328
777S32598
777S30503
777I22282
Housing, Deck .....................................
Graphic, Danger ...............................
Graphic, Danger ...............................
Graphic, Instruction ..........................
1
1
1
1
2 618-04126
756-1171
737-3000
Spindle Assembly ................................
Pulley, 5.39 Dia ................................
Fitting, Lube, 3/16 Drive ...................
3
3
3
3 631-04070
777S30284
Chute Assembly, Discharge ................
Graphic, Danger ...............................
1
1
4 683-0254 Bracket, Deck Hanger ......................... 1
5 703-05825 Arm, Idler ............................................. 1
6 703-3279 Bracket, Stop ....................................... 1
7 703-3511 Guard, Finger ...................................... 1
8 710-0347 Screw, Hex Cap, 3/8-16 x 1.75 GR5 ... 3
9 710-0528 Screw, Hex Cap, 5/16-18 x 1.25 GR5 . 1
10 710-0599 Screw, Hex Wash. Hd. Tapp ...............
1/4-20 x .5
7
11 710-0726 Screw, Hex Wash. Hd. Tapp ...............
5/16-12 x .75
6
12 710-1260A Screw, Hex Wash. Hd. Tapp ...............
5/16-18 x .75
12
13 810-3005 Screw, Hex Cap, 3/8-16 x 1.25 GR5 1
14 710-3168 Screw, Carriage, 3/8-16 x 1.0 .............. 1
15 710-3178 Screw, Carriage, 3/8-16 x .75 .............. 4
16 712-04065 Nut, Hx Insert Flange Lck, 3/6-16 GrF 9
17 712-0417A Nut, Hex Flange, 5/8-18 ...................... 3
18 712-0431 Nut, Hex Flange Lock, 3/8-16 GRF ..... 4
19 712-0641 Nut, Hex, M16-1.5 ............................... 2
20 714-0470 Pin, Cotter, 1/8 x 1.25 .......................... 2
21 717-1553B Gear, Deck Adjustment ....................... 1
22 721-04041 Adapter, Water Nozzle ........................ 1
23 732-0306A Spring, Compression ........................... 2
24 732-0459 Spring, Extension, .94 Dia. x 6.74 ....... 1
25 734-04155 Wheel, Deck Ball, 5.0 .......................... 4
26 736-0119 Washer, Lock, 5/16 .............................. 1
27 736-0407 Washer, Bell, .45 x 1.0 x .062 .............. 1
28 736-0760 Washer, Lock ....................................... 2
29 736-3072 Washer, Flat, .38 x .93 x .110 HT ........ 3
30 737-04003C Nozzle, Deck Water ............................. 2
31 738-04162A Spacer, Shoulder, .884 x .190 ............. 1
32 738-3056 Screw, Shoulder, .5 x 2.5:3/8-16 ......... 4
33 742-04053A Blade, 2 in 1, 17.9 Lg ........................... 3
34 747-1116 Rod, Deck Hanger ............................... 2
35 754-04044 Belt V, Type A Sec x 134 ..................... 1
36 756-04129 Pulley, Idler, 4.25 Dia .......................... 3
37 783-04399 Cover, Belt LH ..................................... 1
38 783-04400 Cover, Belt RH ..................................... 1
39 783-04414 Skirt, Center ......................................... 1
40 783-04415 Skirt, RH .............................................. 1
41 731-3131A Chute, Deflector ................................... 1
42 783-04470 Bracket, Chute Mounting ..................... 1
43 732-3070 Spring, Torsion .................................... 1
44 711-1762 Pin, Hinge ............................................ 1
50" MOWER DECK
RZT50/RZT SERIES /Mfg Date J015 & After -18 - SECTION Z6

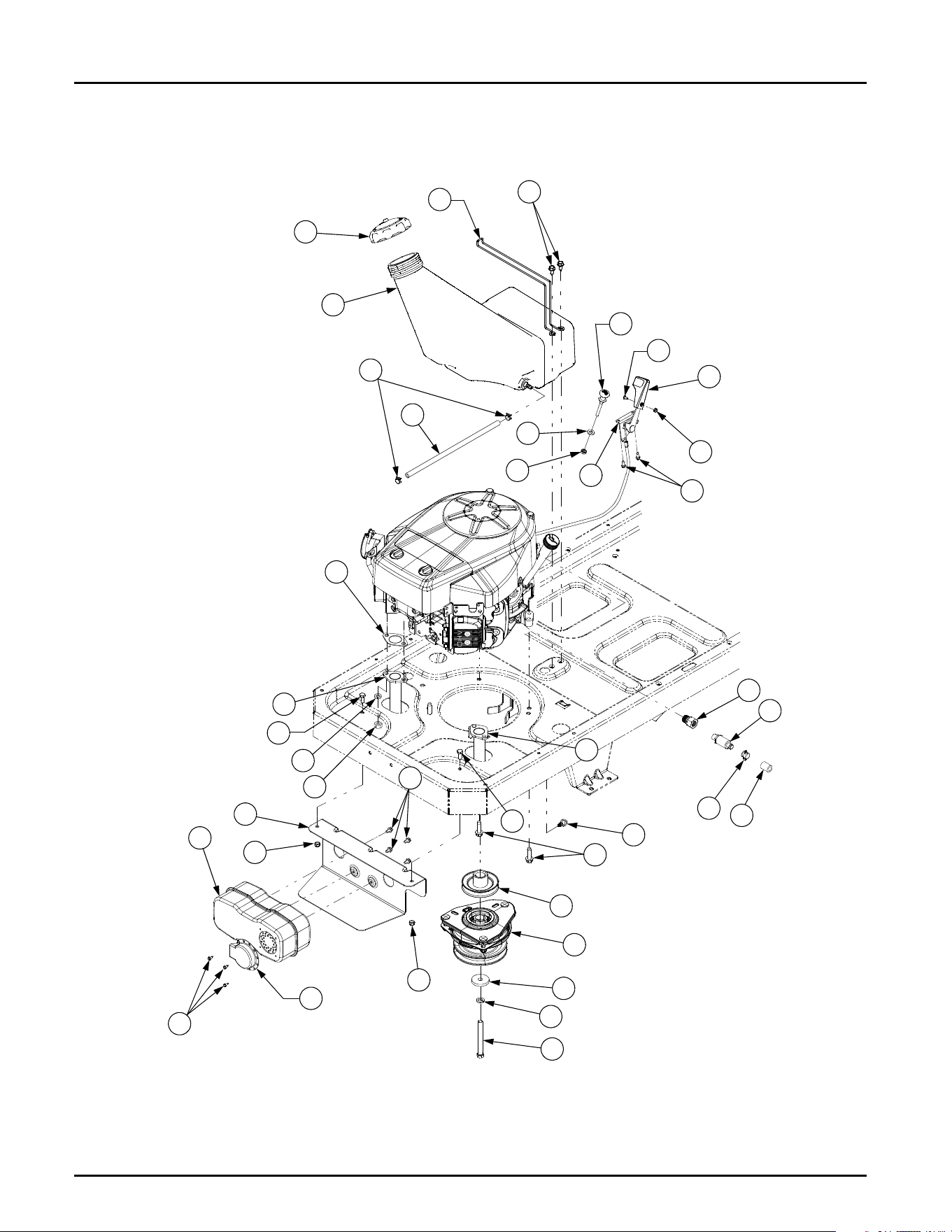

ENGINE CONNECTIONS
2
3
6
4
9
10
13
16
17
19
22
21
23
24
25
26
27
29
34
14
12
30
31
15
18
1
5
7
8
9
11
11
28
35
36
37
20
32
33
RZT50/RZT SERIES /Mfg Date J015 & After -19 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 703-05441A Bracket, Muffler Mounting ................ 1
2 710-0227 Screw, Hex Wash. Hd. Tapp ............
#8-18 x .5
3
3 710-04248 Screw, Hex Cap, 7/16-20 x 4.0 GR5 1
4 710-04261 Screw, Hex Wash. Hd. Tapp ............
#12-16 x .5
2
5 710-0599 Screw, Hex Wash. Hd. Tapp ............
1/4-20 x .5
4
6 710-0726 Screw, Hex Wash. Hd. Tapp ............
5/16-12 x .75
2
7 710-1315 Screw, Hex Wash. Hd. Tapp ............
3/8-16 x 1.25
4
8 710-3008 Screw, Hex Cap, 5/16-18 x .75 GR5 2
9 710-3217 Screw, Truss Hd. Mach. #8-32 x .375 1
10 712-0142 Nut, Hex, #8-32 ................................ 1
11 712-0429 Nut, Hex Insert Lock, 5/16-18 GR5 .. 2
12 712-3005 Nut, Hex Jam, 3/8-16 GR2 ............... 1
13 717-04183 Clutch Assembly, Electric PTO ........ 1
14 726-0205 Clamp, Hose .................................... 2
15 726-3055 Clip, Cable Retainer ......................... 1
16 731-04914 Knob, Throttle Control ...................... 1
17 736-0171 Washer, Lock, 7/16 .......................... 1
18 736-0300 Washer, Flat, .406 x .875 x .059 ...... 1
19 736-04131 Washer, Flat, .438 x 1.75 x .25 ........ 1
20 737-04138 Fitting, Hex ....................................... 1
21 746-04066 Cable, Throttle, 34.25 Lg .................. 1
22 746-04214 Cable, Choke, 61Lg .......................... 1
23 747-04228A Wire, Tank Mounting ........................ 1
24 751-0535-12 Hose, Fuel Line ................................ 10in
25 751-0564A Deflector, Muffler .............................. 1
26 751-0616A Muffler .............................................. 1
27 751-10057C Tank, Fuel, 3.0 Gal. .......................... 1
28 751-10355 Pipe, Exhaust RH ............................ 1
29 751-10356 Pipe, Exhaust LH .............................. 1
30 751-3124B Cap, Fuel .......................................... 1
31 751-3140 Drain, Oil .......................................... 1
32 751-3141 Hose, Oil Drain Extension ................ 1
33 751-3142 Cap,.Oil Drain ................................... 1
34 756-0978A Pulley, Drive ..................................... 1
35 KM-11060-7016 Gasket, Muffler ................................. 2
36 KM-317R0800 Nut, Hex ........................................... 4
37 KM-461F0800 Washer, Lock ................................... 4
ENGINE CONNECTIONS
RZT50/RZT SERIES /Mfg Date J015 & After -20 - SECTION Z6
2
1
3
4
13
5
6
7
8
9
10
11
12
14
15
2
3
4
7
13
8
8
11
12
8
8
12
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-04148A Axle, Front Pivot ................................ 1
2 603-04308 Bracket, Castor Wheel ...................... 2
3 634-04212 Wheel Assembly, 11.0 x 4.0 x 5.0 ..... 2
4 710-04186 Screw, Hex Lock, 1/2-13 x 1.25 GR5 2
5 710-0514 Screw, Hex Cap, 3/8-16 x 1.0 GR5 ... 2
6 711-04228 Shaft, Axle ......................................... 1
7 712-3022 Nut, Hex Lock, 1/2-13 GRB ..............
8 731-05500 Bearing, Flange, 1.0 x 1.246 ............. 6
9 736-0169 Washer, Lock, 3/8 ............................. 2
10 736-0227 Washer, Flat, .39 x 1.5 x .134 ........... 2
11 736-0250 Washer, Flat, 1.0 x 1.75 x .107 ......... 2
12 737-3000 Fitting, Lube, 3/16 Drive .................... 3
13 738-04182 Screw, Shoulder, .75 x 4.75:7/16-14 2
14 741-0516B Bearing, Flange, .76 x 1.0 x 1.2 ........ 2
15 741-0990B Bearing, Flange, .76 ID w/Lube Ftg. 2

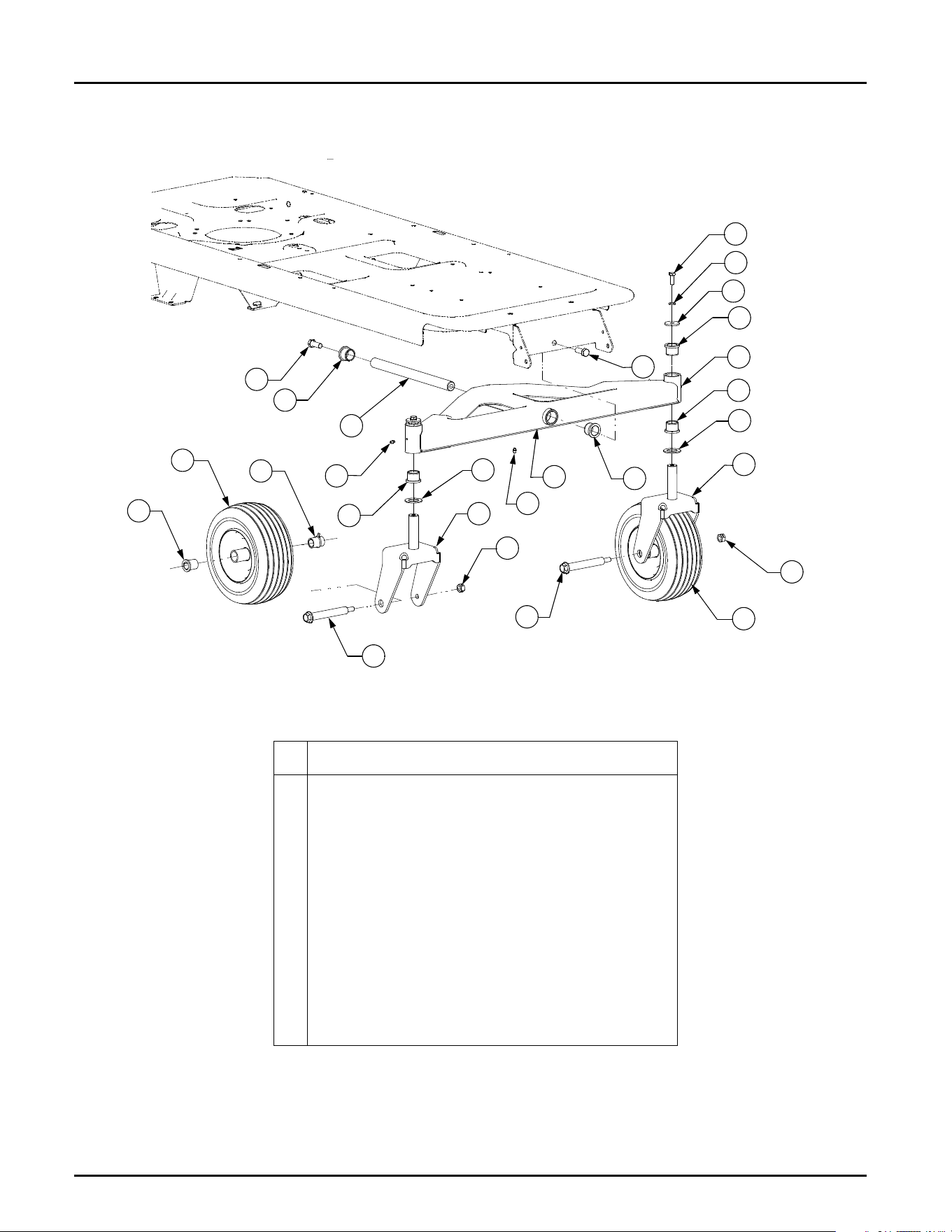

FRONT AXLE
RZT50/RZT SERIES /Mfg Date J015 & After -21 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-1268 Screw, Hx. Wash. Hd. Tapp ............
#10-16 x .375
2
2 712-04063 Nut, Hx Insert Flange Lck, ..............
5/16-18 GrF
2
3 712-04064 Nut, Hx Insert Flnge Lck, 1/4-20 GrF 1
4 720-0309A Grip, Seat Adjustment ..................... 1
5 726-0201 Nut, Speed, .3125 ........................... 2
6 731-04074 Spacer, Seat Adjustment ................ 4
7 732-0499 Spring, Compression, .41 x 1.5 ....... 1
8 732-1184 Spring, Extension, .84 Dia. x 4.6 ..... 1
9 736-0275 Washer, Flat, .344 x .688 x .065 ..... 3
10 736-3019 Washer, Flat, .531 x 1.062 x .134 HT 2
11 738-0137A Screw, Shoulder, .34 x .285:1/4-20 1
12 738-0296 Screw, Shoulder, .437 x .268:5/16-18 2
13 738-0966A Screw, Shoulder, .5 x .925:3/8-16 ... 4
14 783-0209D Bracket, Seat Lift ............................. 1
15 783-0611 Stop, Seat Adjustment .................... 1
16 783-0738C Bracket, Seat Pivot ......................... 1
17 783-0739A Lever, Seat Adjustment ................... 1
18 783-0753 Index Bracket, Seat Adjustment ...... 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

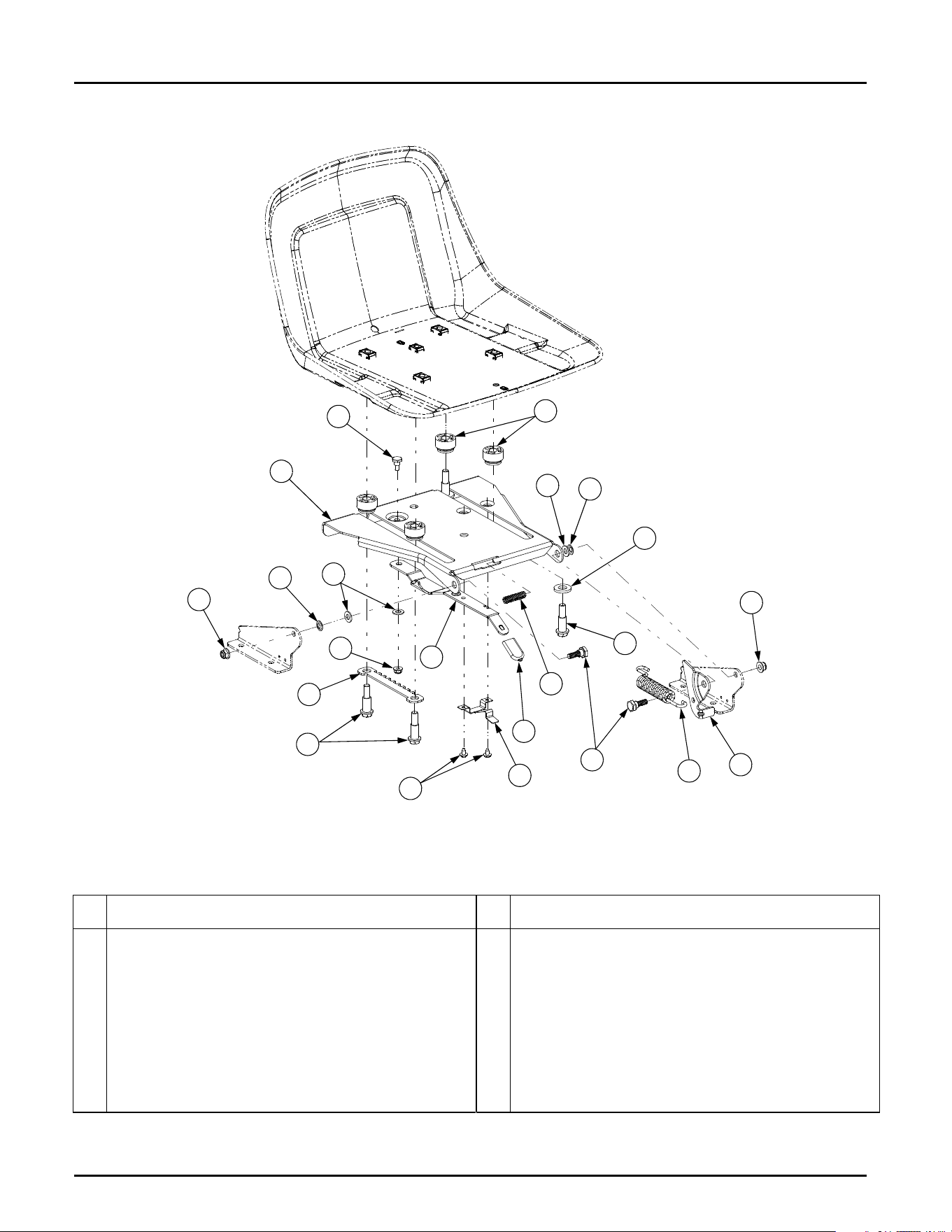

SEAT ADJUSTMENT
5
9
11
3
4
6
7
8
1
2
2
5
9
10
12
13
14
15
16
17
18
13
RZT50/RZT SERIES /Mfg Date J015 & After -22 - SECTION Z6
7
CYLINDER/CRANKCASE
1
2
3
4
5
6
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
25
26
24
A
A
1
4
6
15
16
16
16
17
22
23
23
24
RZT50/RZT SERIES /Mfg Date J015 & After -23 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-11004-7006 Gasket, Head ................................... 2
2 KM-11008-7012 Head, Complete- Cylinder #2 ........... 1
3 KM-11008-7013 Head, Complete- Cylinder #1 ........... 1
4 KM-11022-7002 Case, Rocker .................................... 2
5 KM-11060-7012 Gasket, Crankcase Cover ................ 1
6 KM-11060-7013 Gasket, Rocker Case ....................... 2
7 KM-11060-7014 Gasket, Breather .............................. 1
8 KM-13271-7006 Plate ................................................. 1
9 KM-14091-7004 Cover ................................................ 1
10 KM-16126-7001 Valve ................................................ 1
11 KM-49015-7039 Cover, Crankcase ............................. 1
12 KM-49109-7003 Element, Breather ............................ 1
13 KM-49120-7037 Crankcase - Complete ...................... 1
14 KM-59071-2079 Joint .................................................. 1
15 KM-92033-7004 Ring, Snap ........................................ 2
16 KM-92043-7001 Pin .................................................... 6
17 KM-92049-7001 Seal, Oil, RVC2, 6 x 11 x 10.2 .......... 4
18 KM-92049-7005 Seal, Oil, SO 8 x 14 x 5 HS .............. 1
19 KM-92049-7011 Seal, OIl, SD 35 x 62 x 8 L HS ......... 1
20 KM-92049-7014 Seal, Oil, SD 35 x 52 x 7 R HS ......... 1
21 KM-130B0612 Bolt, Flanged .................................... 4
22 KM-130B0640 Bolt, Flanged .................................... 4
23 KM-130T0850 Bolt, Flanged .................................... 18
24 KM-130T0875 Bolt, Flanged .................................... 2
25 KM-172G0818 Bolt, Stud .......................................... 4
26 KM-214B0408 Screw, Pan ....................................... 1
CYLINDER/CRANKCASE
RZT50/RZT SERIES /Mfg Date J015 & After -24 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-13001-7007
KM-13029-7003
Piston, Engine ...................................
Piston, Engine, L 0.50 .......................
2
AR
2 KM-13002-7001 Pin, Piston ......................................... 2
3 KM-13008-6058
KM-13025-7002
Ring Set, Piston ................................
Ring Set, Piston, L 0.50 ....................
2
AR
4 KM-13031-7048 Crankshaft ........................................ 1
5 KM-13251-7005 Rod, Connecting ............................... 2
6 KM-92022-1982 Washer, 12.5 x 32 x 3.2 .................... 1
7 KM-92033-7005 Lock Ring, Piston Pin ........................ 4
8 KM-92038-2101 Key, Flywheel ................................... 1
9 KM-92151-7010 Bolt, 7/16-20UNF .............................. 1
10 KM-92151-7017 Bolt, 6 x 35 ........................................ 4
1
2
4
5
6
7
8
9
10
3

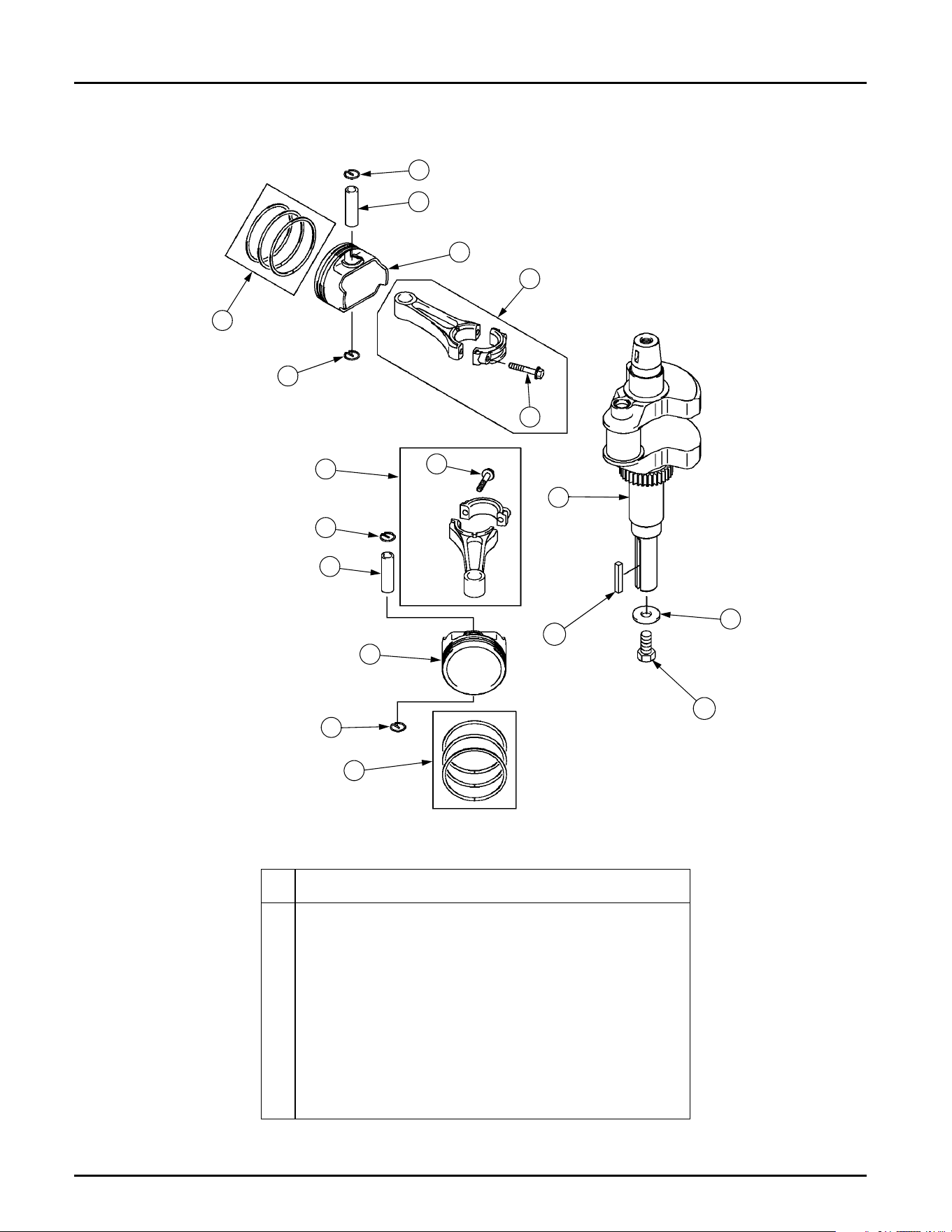

PISTONS AND CRANKSHAFT
1
2
3
5
7
7
7
10
RZT50/RZT SERIES /Mfg Date J015 & After -25 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-12004-7002 Valve, Intake .............................. 2
2 KM-12005-7004 Valve, Exhaust ........................... 2
3 KM-12009-7001 Retainer, Valve Spring ............... 4
4 KM-12011-2056 Collet .......................................... 8
5 KM-12016-7006 Arm, Rocket ............................... 4
6 KM-12032-7001 Tappet ........................................ 4
7 KM-13070-7004 Guide .......................................... 1
8 KM-13070-7007 Guide .......................................... 2
9 KM-13116-7002 Rod, Push .................................. 4
10 KM-13271-7007 Plate ........................................... 1
11 KM-13271-7021 Plate, Governor .......................... 1
12 KM-42036-7009 Sleeve ........................................ 1
13 KM-49078-7002 Spring, Valve .............................. 4
14 KM-49118-7007 Camshaft, Complete .................. 1
15 KM-92009-2341 Screw ......................................... 4
16 KM-92015-2253 Nut ............................................. 4
17 KM-92033-7001 Ring, Snap ................................. 2
18 KM-92140-7002 Ball ............................................. 6
19 KM-92145-7001 Spring ......................................... 1
20 KM-92153-7019 Bolt ............................................. 4
21 KM-92200-7001 Washer ....................................... 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
CAMSHAFT AND VALVES
2
3
1
7
8
9
10
11
12
13
14
16
17
18
19
20
21
1
2
3
3
4
4
4
5
5
5
5
6
6
6
8
9
9
13
13
13
15
15
15
15
16
16
16
17
20
20
20
RZT50/RZT SERIES /Mfg Date J015 & After -26 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-13107-7009 Shaft ................................................. 1
2 KM-13271-7005 Plate ................................................. 1
3 KM-14075-7008 Dipstick Assembly ............................ 1
4 KM-16154-7007 Rotor, Pump, (In) .............................. 1
5 KM-16154-7008 Rotor, Pump, (Out) ........................... 1
6 KM-49065-2078 Filter, Oil ........................................... 1
7 KM-49065-7003 Filter, Oil ........................................... 1
8 KM-59051-7011 Gear, Spur ........................................ 1
9 KM-59231-7006 Tube, Dipstick/Oil Fill ........................ 1
10 KM-92043-7003 Pin .................................................... 2
11 KM-92066-7003 Plug .................................................. 2
12 KM-92140-7003 Ball ................................................... 1
13 KM-92145-7002 Spring ............................................... 1
14 KM-130B0612 Bolt, Flanged .................................... 3
15 KM-670D2016 O-Ring, 16mm .................................. 3

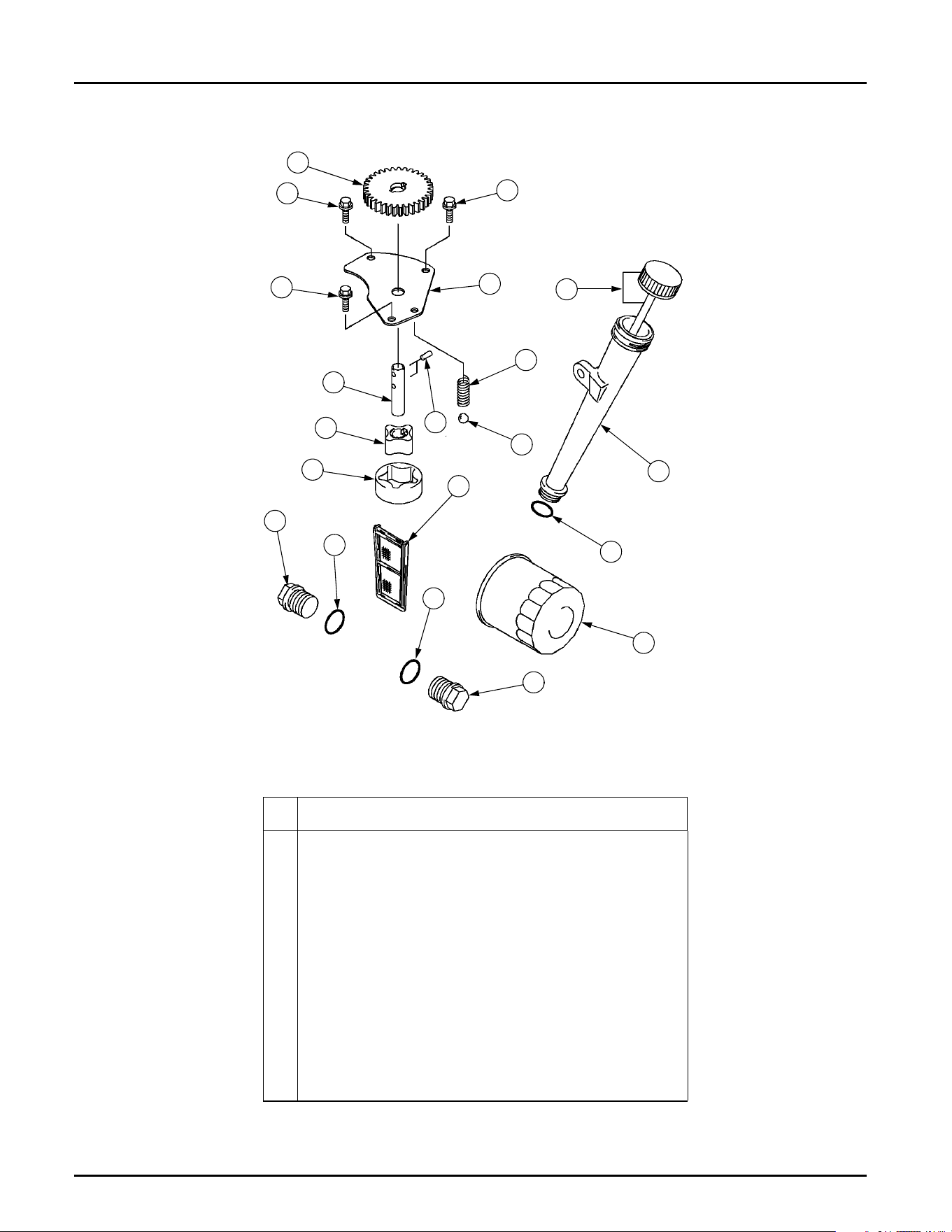

LUBRICATION
1
5
6
7
8
9
10
11
12
13
14
2
3
4
11
14
14
15
15
15
RZT50/RZT SERIES /Mfg Date J015 & After -27 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-13270-7007 Plate ...................................... 1
2
KM-14037-70089H
Screen ................................... 1
3 KM-14091-7002 Cover ..................................... 1
4 KM-23062-7005 Bracket .................................. 1
5 KM-49089-7004 Shroud, Engine ...................... 1
6 KM-49089-7005 Shroud, Engine ...................... 1
7 KM-49089-7040 Shroud, Engine ...................... 1
8 KM-59066-7004
KM-56033-7002
KM-56070-7001
Housing, Fan .........................
Label, Maintenance ............
Label, Warnint ....................
1
1
1
9 KM-55020-7007 Guard ..................................... 1
10 KM-59041-7003 Fan ......................................... 1
11 KM-92004-7006 Stud ....................................... 2
12 KM-92026-7007 Spacer ................................... AR
13 KM-92153-7007 Bolt ......................................... 3
14 KM-92153-7008 Bolt ......................................... 1
15 KM-92210-0003 Nut .........................................‘ 4
16 KM-130B0612 Bolt, Flanged .......................... 9
17 KM-130B0816 Bolt, Flanged .......................... 1
18 KM-311B0600 Nut, Hex ................................. 2
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

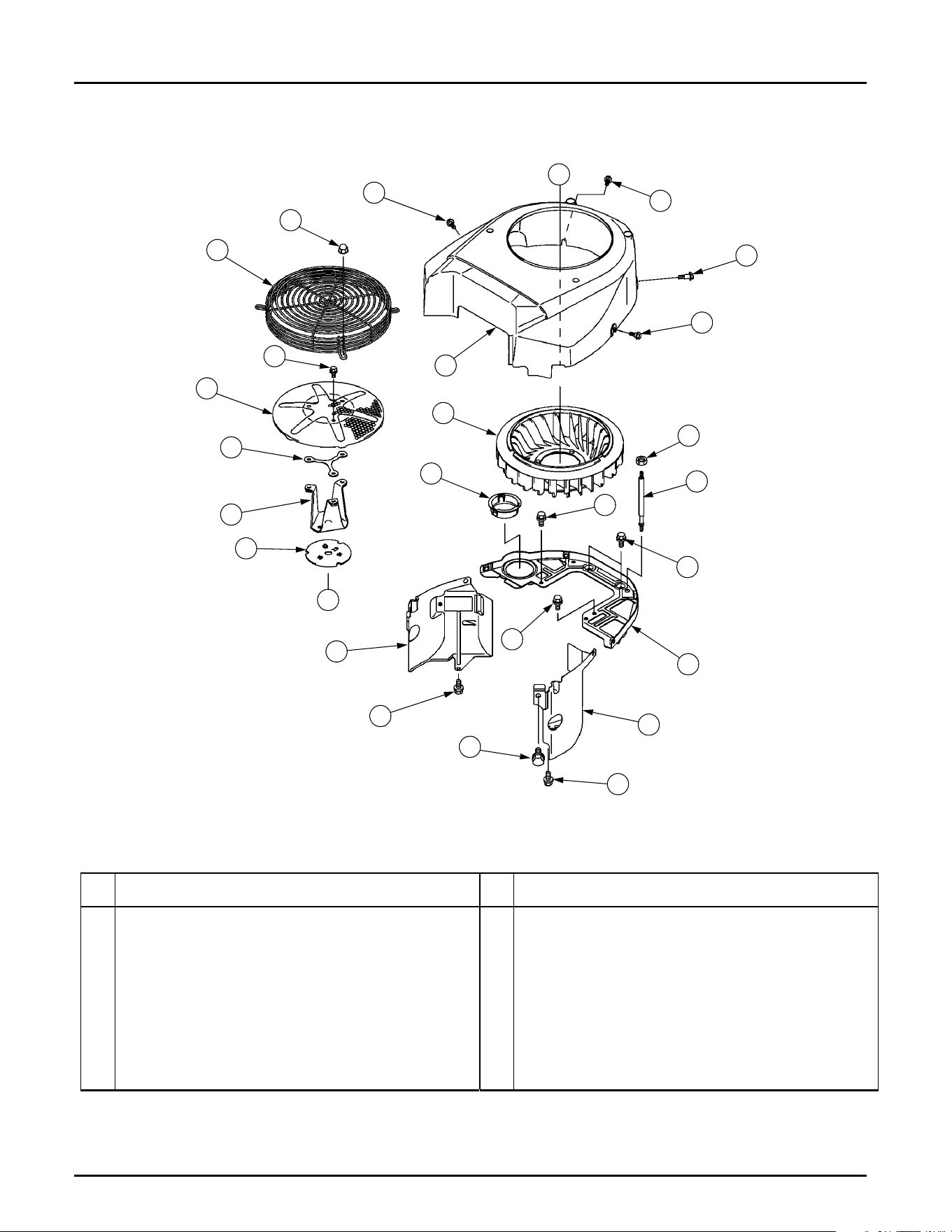

COOLING
1
5
6
7
8
9
10
11
12
2
4
14
15
3
A
A
13
13
13
17
18
16
16
16
16
16
16
RZT50/RZT SERIES /Mfg Date J015 & After -28 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-21066-7011 Regulator, Voltage ............................ 1
2 KM-21171-7013 Coil, Ignition ...................................... 2
3 KM-21193-7019 Flywheel ............................................ 1
4 KM-26030-7002 Harness ............................................. 1
5 KM-26031-7003 Harness ............................................. 1
6 KM-59031-7001 Coil, Charging ................................... 1
7 KM-92004-7009 Stud ................................................... 2
8 KM-92009-2308 Screw ................................................ 1
9 KM-92066-7002 Plug ................................................... 1
10 KM-BPR4ES Plug, Spark, (NGK), Solid 2
11 KM-92072-7003 Band .................................................. 2
12 KM-92151-2097 Bolt, 12 x 30 ...................................... 1
13 KM-92200-7002 Washer .............................................. 1
14 KM-130B0620 Bolt, Flanged ..................................... 2
15 KM-224B0520 Screw, Pan Hd. ................................. 4
16 KM-311B0600 Nut, Hex ............................................ 2
17 KM-510A5100 Key, Woodruff ................................... 1
18 KM-27010-7002 Switch, Oil Pressure .......................... 1

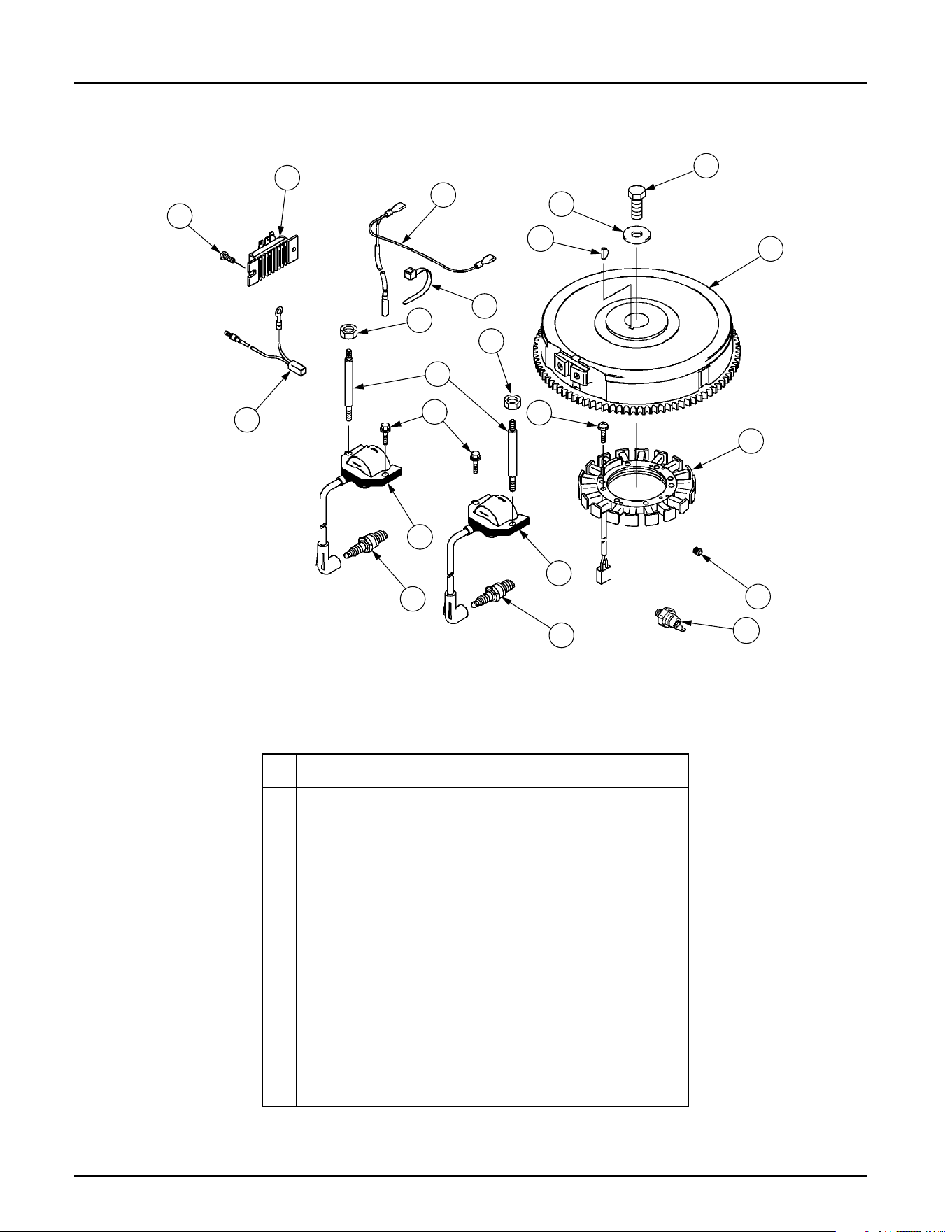

FLYWHEEL / ELECTRICAL
1
2
3
4
5
6
8
9
10
11
12
14
15
16
17
13
2
7
10
16
18
RZT50/RZT SERIES /Mfg Date J015 & After -29 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-13107-7013 Shaft ............................................. 1
2 KM-13271-7018 Plate ............................................. 1
3 KM-16169-7006 Link, Choke ................................... 1
4 KM-16171-7004 Link ............................................... 1
5 KM-39129-7004 Spring, Governor .......................... 1
6 KM-49103-7004 Arm, Governor .............................. 1
7 KM-49113-7017 Panel, Control ............................... 1
8 KM-92145-7004 Spring ........................................... 1
9 KM-92145-7005 Spring ........................................... 1
10 KM-92145-7034 Spring ........................................... 1
11 KM-92150-2182 Bolt, 5 x 18 .................................... 2
12 KM-92151-7014 Bolt, 5 x 30 .................................... 1
13 KM-92153-7005 Bolt, 6 x 35 .................................... 1
14 KM-92170-7001 Clamp ........................................... 2
15 KM-130B0612 Bolt, Flanged ................................ 2
16 KM-214B0408 Screw, Pan Hd. ............................. 2
17 KM-214B0412 Screw, Pan Hd. ............................. 1
18 KM-311B0600 Nut, Hex ........................................ 1
19 KM-411B0600 Washer, Plain ............................... 1

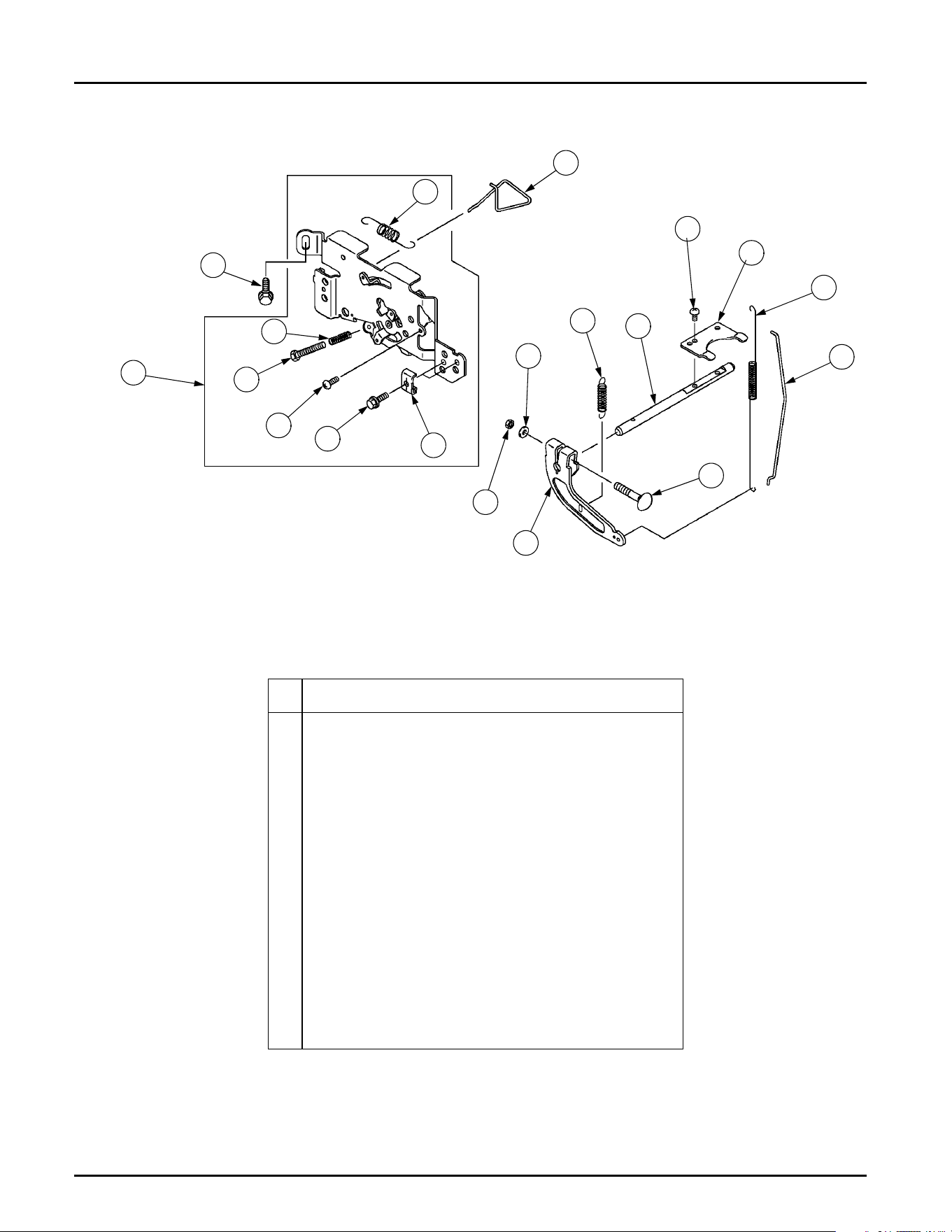

ENGINE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
RZT50/RZT SERIES /Mfg Date J015 & After -30 - SECTION Z6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

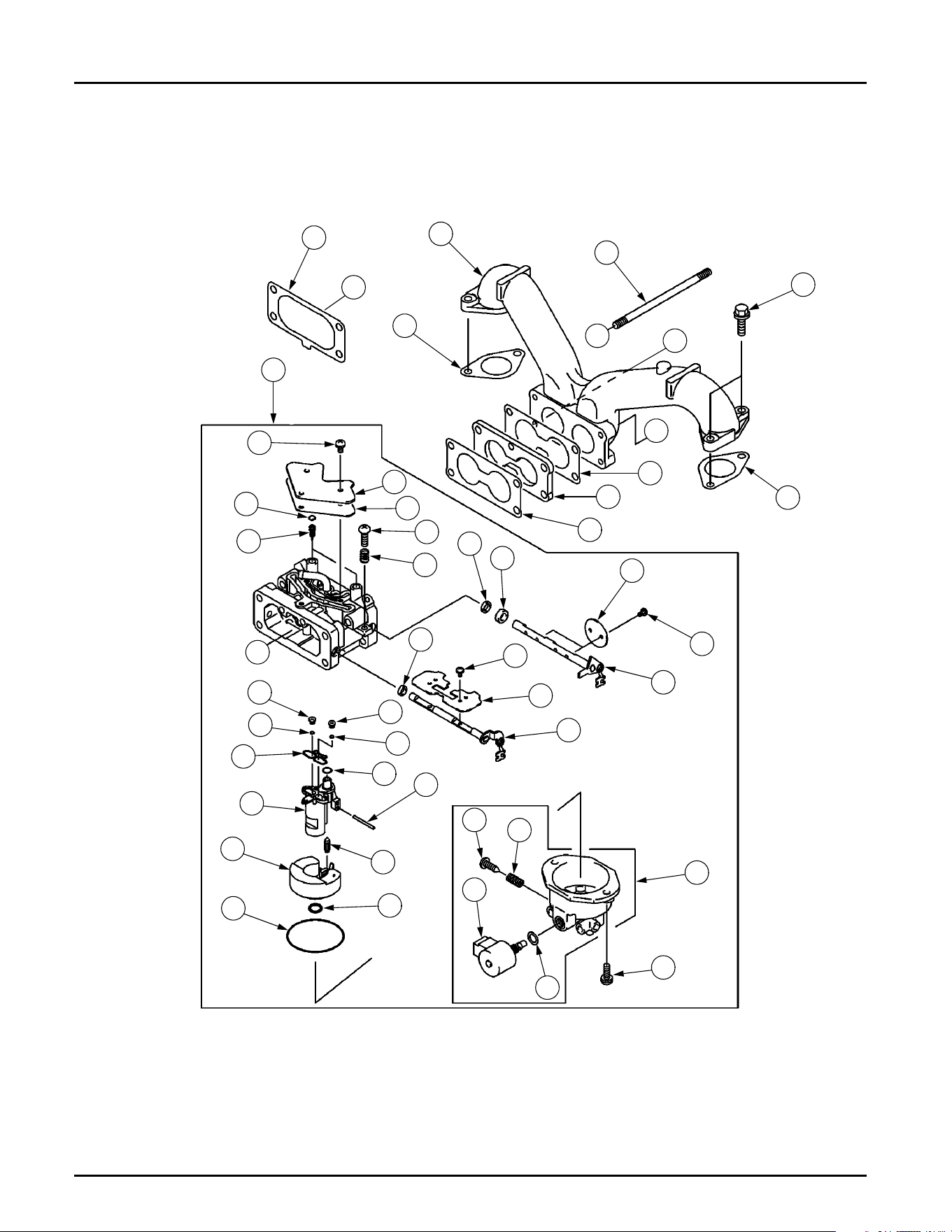

CARBURETOR
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
3
4
21
27
40
B
B
B
A
A
RZT50/RZT SERIES /Mfg Date J015 & After -31 - SECTION Z6
CARBURETOR
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-11009-2056 Gasket .............................................. 1
2 KM-11060-7009 Gasket, Air Filter ............................... 1
3 KM-11060-7011 Gasket, Manifold ............................... 2
4 KM-11060-7024 Gasket, Carburetor ............................ 2
5 KM-11061-7037 Gasket ............................................... 1
6 KM-11061-7038 Gasket ............................................... 1
7 KM-11061-7039 Gasket ............................................... 1
8 KM-14091-7031 Cover ................................................. 1
9 KM-15003-7096 Carburetor Assembly ........................ 1
10 KM-16025-7003 Valve, Throttle ................................... 2
11 KM-16030-7004 Valve, Float ....................................... 1
12 KM-16031-7003 Float .................................................. 1
13 KM-16041-7021 Shaft, Carburetor ............................... 1
14 KM-16041-7023 Shaft, Carburetor ............................... 1
15 KM-16073-7005 Insulator ............................................ 1
16 KM-16126-7015 Valve, Choke ..................................... 1
17 KM-16184-7017 Chamber, Float ................................. 1
18 KM-16187-7002 Needle, Jet ........................................ 2
19 KM-21188-7003 Solenoid ............................................ 1
20 KM-59076-7002 Manifold, Intake ................................. 1
21 KM-92009-7003 Screw ................................................ 6
22 KM-92009-7004 Screw ................................................ 1
23 KM-92009-7006 Screw, Drain ...................................... 1
24 KM-92026-7010 Spacer ............................................... 1
25 KM-92043-7014 Pin ..................................................... 1
26 KM-92055-7012 O-Ring ............................................... 1
27 KM-92055-7013 O-Ring ............................................... 2
28 KM-92055-7014 O-Ring ............................................... 1
29 KM-92063-7051 Jet, Main, #104 .................................. 1
30 KM-92063-7056 Jet, Main, #102 .................................. 1
31 KM-92066-7009 Plug, Expansion ................................ 2
32 KM-92093-7001 Seal, D = 5.9 ..................................... 1
33 KM-92093-7002 Seal, D = 6.9 ..................................... 1
34 KM-92145-7010 Spring ................................................ 1
35 KM-92145-7011 Spring ................................................ 1
36 KM-92152-7005 Collar ................................................. 1
37 KM-92172-7005 Screw ................................................ 2
38 KM-92172-7006 Screw ................................................ 3
39 KM-130B0620 Bolt, Flanged ..................................... 4
40 KM-172G06105 Bolt, Stud ........................................... 2
RZT50/RZT SERIES /Mfg Date J015 & After -32 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-11011-7003 Case, Air Filter .............................. 1
2 KM-11013-7009 Element, Air Filter ......................... 1
3 KM-11013-7027 Element, Air Filter ......................... 1
4 KM-16060-7014 Pipe, Intake ................................... 1
5 KM-92015-1193 Nut ................................................ 2
6 KM-92037-2079 Clamp ........................................... 2
7 KM-92055-7005 O-Ring .......................................... 2
8 KM-92191-7006 Tube ............................................. 1
9 KM-92210-7004 Nut ................................................ 2
10 KM-92210-7015 Nut ................................................ 2
11 KM-130B06105 Bolt, Flanged ................................ 3
12 KM-411B0600 Washer, Plain ............................... 1
1
2
3
4
5
9
10
11
12
6
7
8
AIR FILTER
5
6
11
A
A
RZT50/RZT SERIES /Mfg Date J015 & After -33 - SECTION Z6

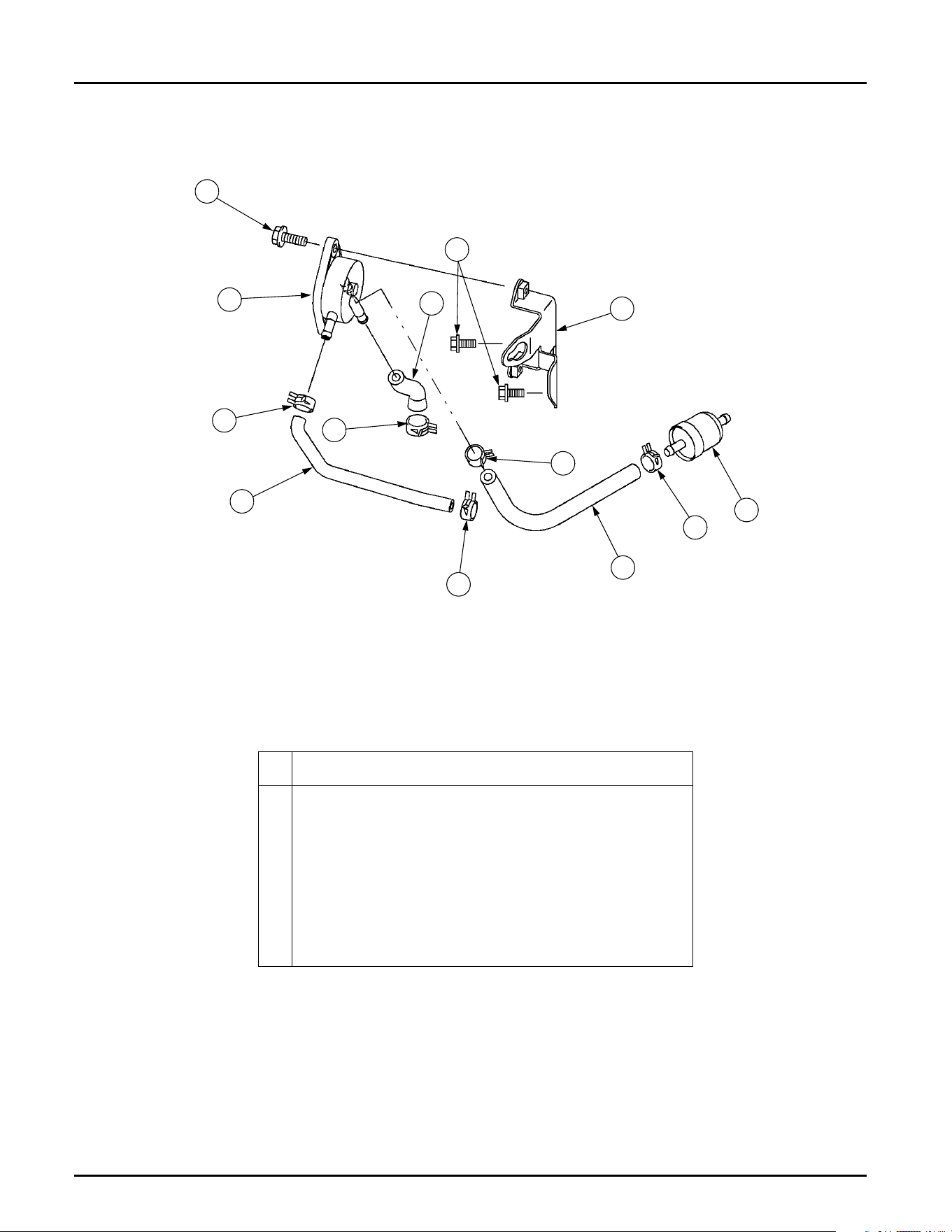

REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-23062-70049H Bracket ......................................... 1
2 KM-49019-7001 Filter, Fuel .................................... 1
3 KM-49040-7001 Pump, Fuel ................................... 1
4 KM-92170-2088 Clamp ........................................... 4
5 KM-92170-7003 Clamp ........................................... 1
6 KM-92191-7003 Tube. 6.35 x 12.7 x 160 ............... 1
7 KM-92191-7017 Tube ............................................. 1
8 KM-92191-7027 Tube ............................................. 1
9 KM-130B0616 Bolt, Flanged ................................ 2
12 KM-130B0620 Bolt, Flanged ................................ 2
1
2
3
4
5
9
10
6
7
8
FUEL FILTER/PUMP
4
4
4
RZT50/RZT SERIES /Mfg Date J015 & After -34 - SECTION Z6
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-13101-7003 Gear Assembly ............................. 1
2 KM-21039-7004 Brush ............................................ 1
3 KM-21080-7001 Armature ....................................... 1
4 KM-21163-7010 Starter Assembly .......................... 1
5 KM-39184-7004 Bracket ......................................... 1
6 KM-92151-7013 Bolt ............................................... 1
7 KM-130B0816 Bolt, Flanged ................................ 2
1
2
3
4
5
6
7
STARTER
