HS360S
4
Quick Start Guide
V 1.0
+1(855)888-6699
[email protected] (USA)
[email protected] (EU)
www.holystone.com
... downlode the
HS FLY App
... watch the
Tutorial Video
... view the Instru-
ctions For Use
Scan the QR-code to...
DIAGRAM OF THE DRONE
Camera
1
Propeller
2
Motor
3
Camera Cover
4
5
Drone Status Indicator
6
Optical Flow Module
Drone Battery
7
8
Snap
9 10
11
Power Switch
1 2
3
4
5
6
7
8
9
10
11
Charging Port (Type-C) Battery Level Indicators
DIAGRAM OF THE TRANSMITTER
Front：
Top：
Cellphone Holder
1
Left Joystick
2
Take Photo
5
LCD Screen
6
Connection Cable
7
Right Joystick
8
Return to Home
10
Record Video
11
Zoom Dial
12
Connection Port
13
Camera Adjustment Dial
14
Cellphone Slot
15
Charging Port (Type-C）
16
Storage Slots for Joysticks
17
4
Check Battery Level : Short Press
Power Switch: Short press, then hold
9
Takeoff/Landing: Short Press
Emergency Stop: Long Press
Speed Switch: Short Press
GPS Switch on/off: Long Press
3
1
Bottom：
2
3
5
8
7
9
4
6
10
14
13
11
12
15
16
17
1

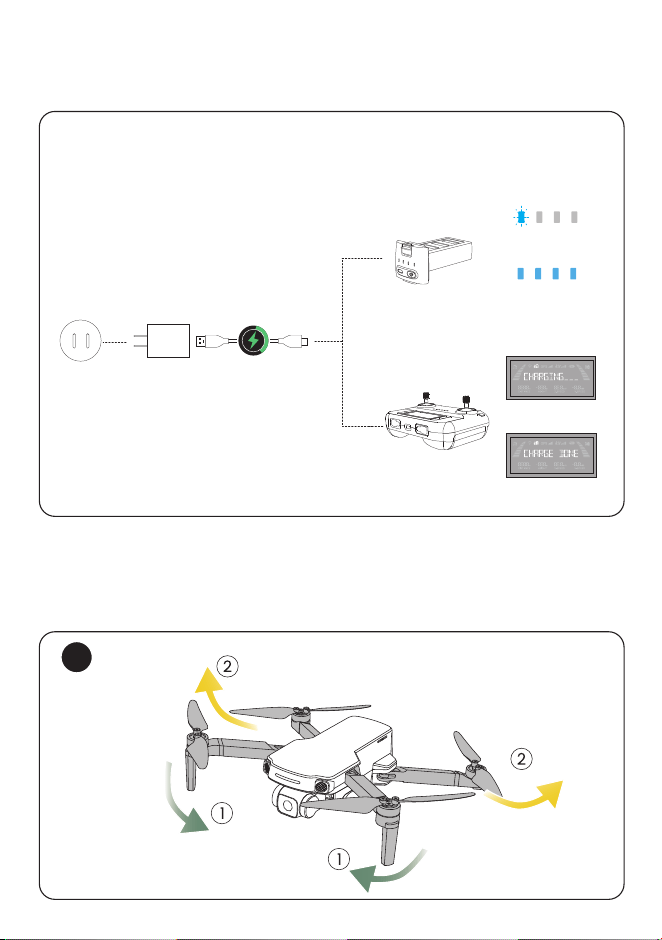

1 CHARGING

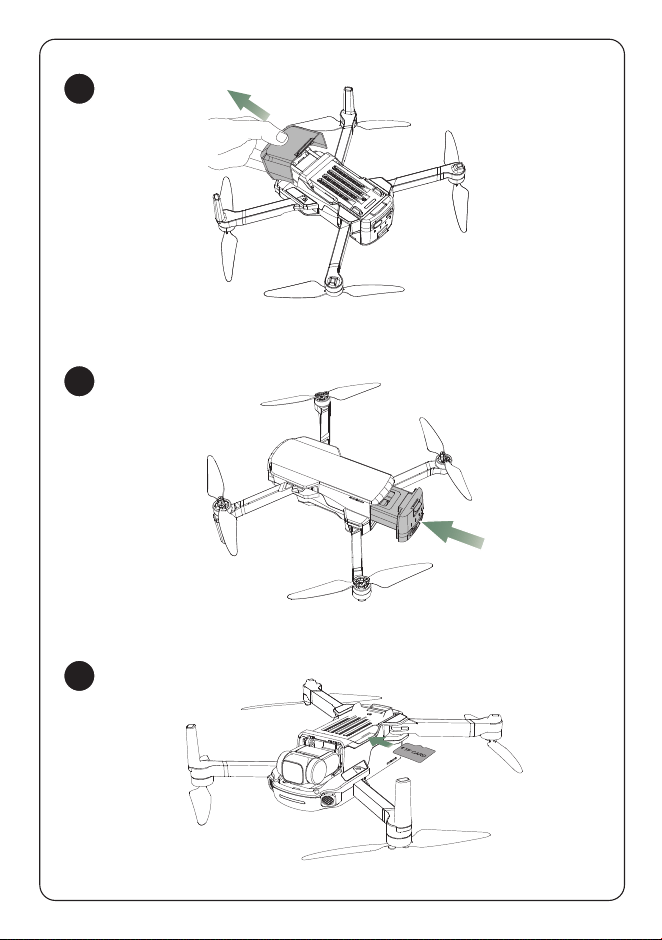

2 GET THE DRONE READY
Attach the USB charging cable to a USB Adapter (5V/2A), then
link it with the charging port of the drone battery or transmitter.
5V/2A
(Not included）
Fully charged
Charging
Charging
Fully charged
2
3
4
(Not included)
1
2
3

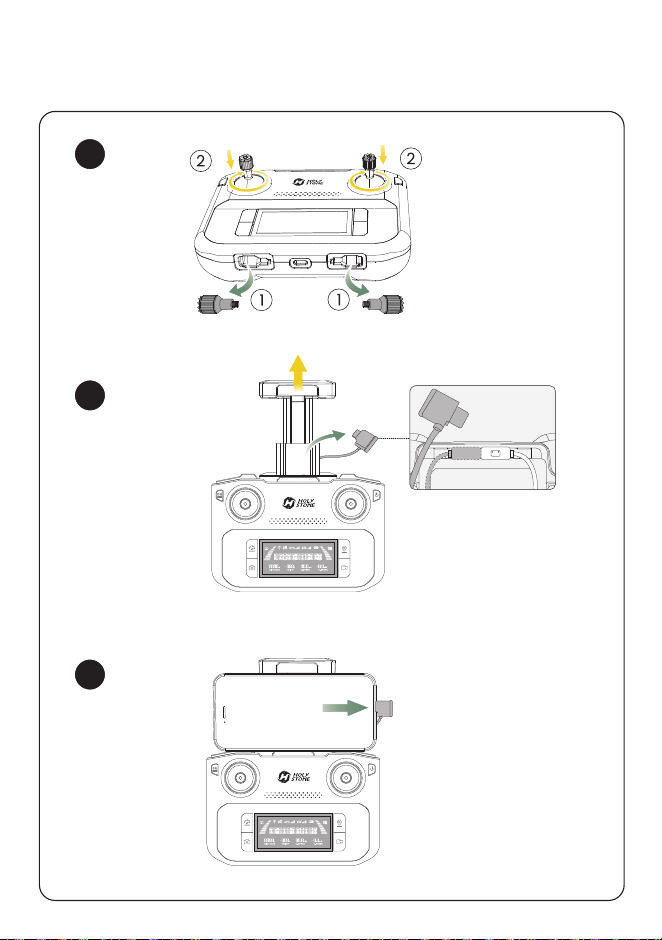

3 GET THE TRANSMITTER READY

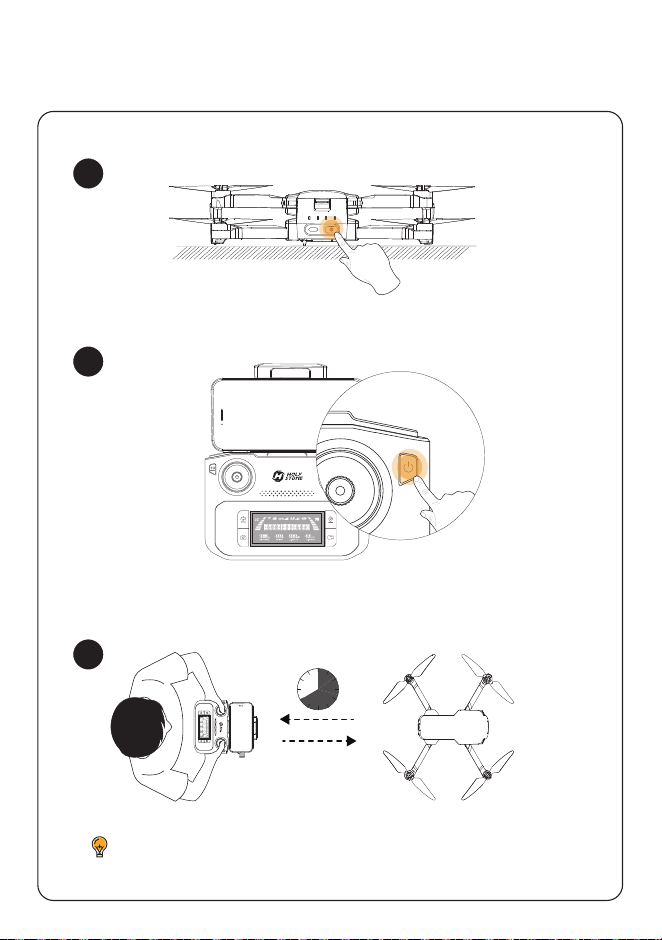

4 PAIRING
Short press, then hold
40S
1
2
3
The transmitter sends out a long beep, and the drone
status indicator turns solid when the pairing is done.
2S
auto-pairing
Head

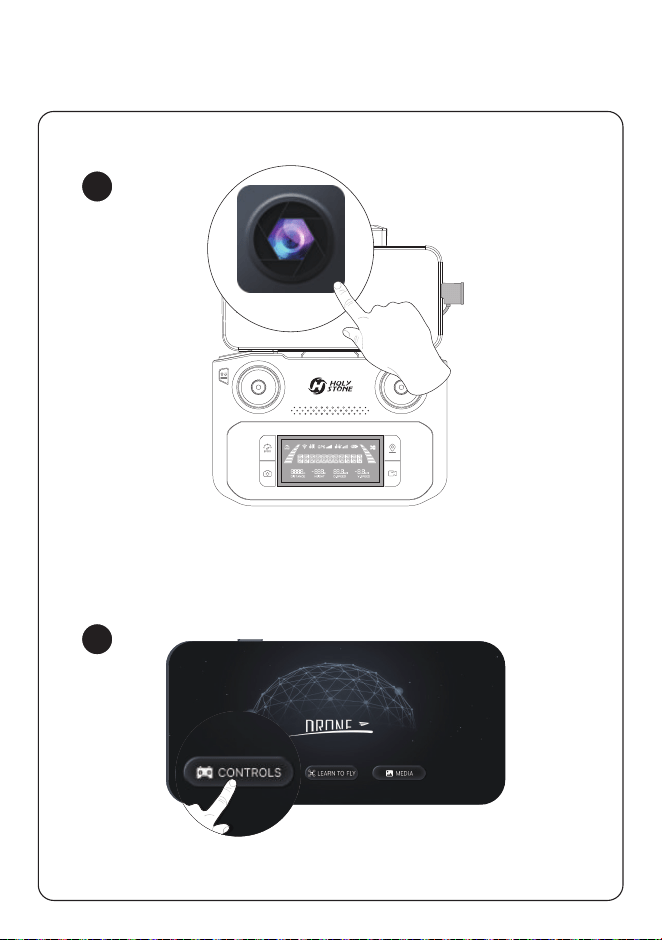

5 RUN HS FLY APP
1
2
HS FLY
1
2
3

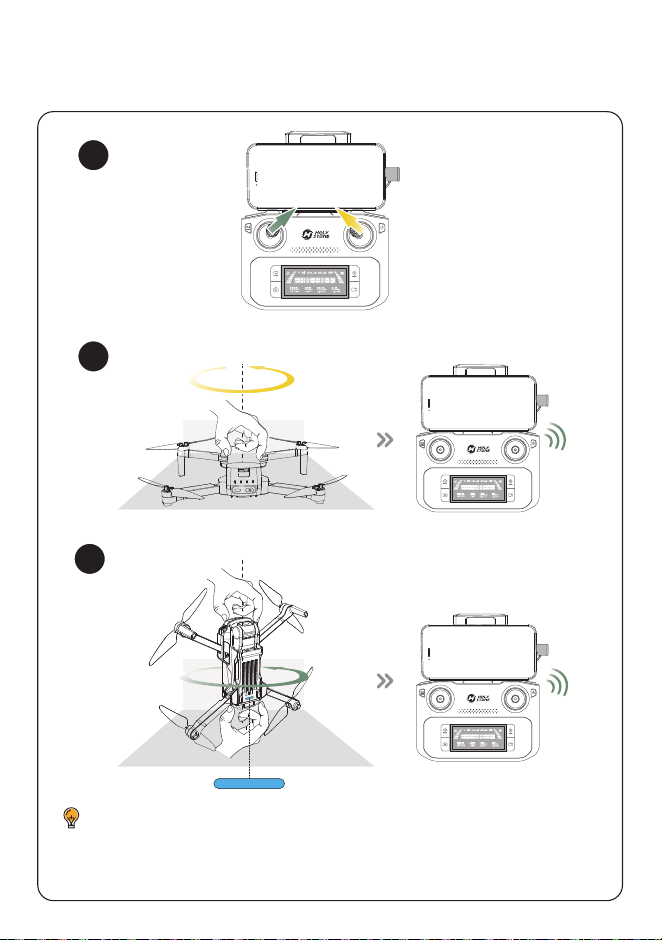

6 CALIBRATE THE COMPASS
DO NOT calibrate the compass in locations with strong magnetic
interference, such as near magnets, parking lots, or construction sites
with underground reinforced concrete structures.
~Di~
~Di~

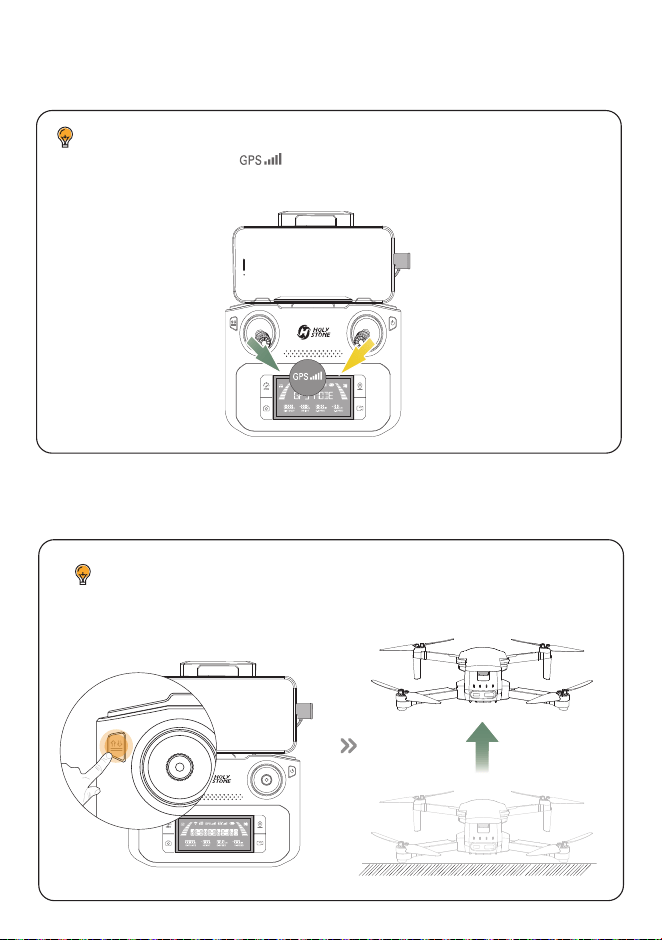

7
UNLOCK THE MOTORS
8
TAKE-OFF
Please make sure that you only unlock and control the drone when
the GPS signal icon ( ) lights up.(that is, the GPS signal is good).
Please fly the drone in an open outdoor area free of surrounding
obstructions.

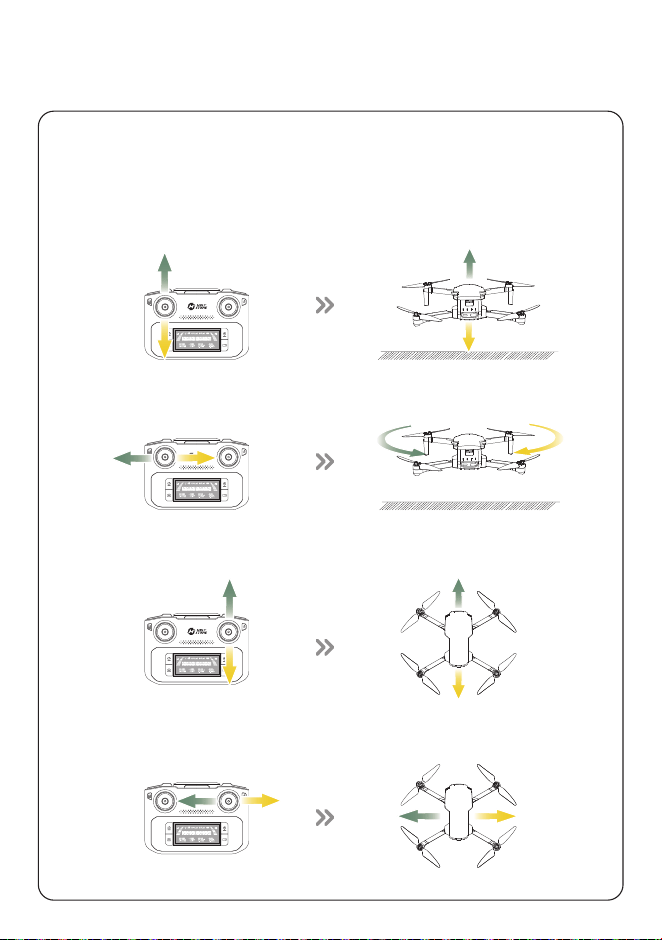

9 FLIGHT DIRECTION CONTROL
The left joystick is responsible for controlling the drone's height
and orientation in flight, whereas the right joystick dictates the
movements in forward, backward, and lateral directions.

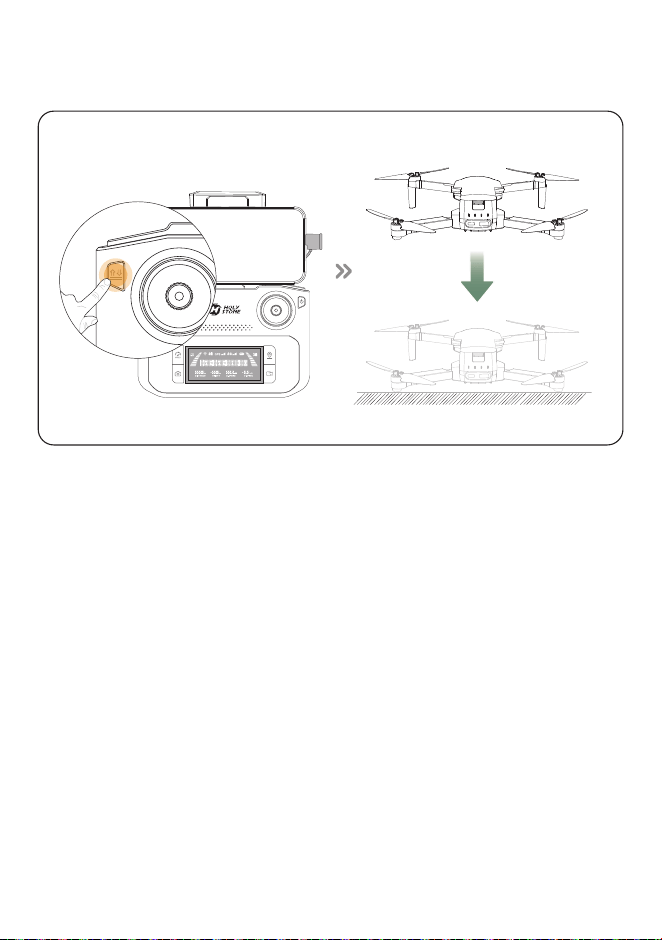

10 LANDING
