SOCKET LIST (PIN ARRANGEMENT)
Please read this manual thoroughly, and retain it for future reference.
GENERAL SPECIFICATIONS
Features
•
Flexible Stereo/Mono Switching Inputs
• Ultra-low Noise Design with High Headroom
• Built-in USB Sound Card, for Computer Playing & Recording
• Input level Control for Each Channel
• DC 5V Power Supply, or PC Power Supply
• Rugged Metal Chassis and Compact Size
Bluetooth Connectivity:
•
Instantly Receives Wireless Music Streaming Audio
• Works with All of Your Favorite Devices
(iPhone, Android, Smartphones, iPad, Tablet, MP3 Player, etc.)
• Bluetooth Version: 5.0
• Bluetooth Network Name: 'KAM-8T'
• Bluetooth Wireless Range: 50' Feet
What's in the Box:
•
Mixer
• (2 Flat Plug) Power Adapter
• USB Cable
Technical Specs:
•
Power Input: DC 5V, 1A
• Voltage: 100-240V
• USB Sound Card: 2.0 Type-C
• Frequency Response: 20Hz-20KHz
• Total Harmonic Distortion: <0.5%@+4dBu

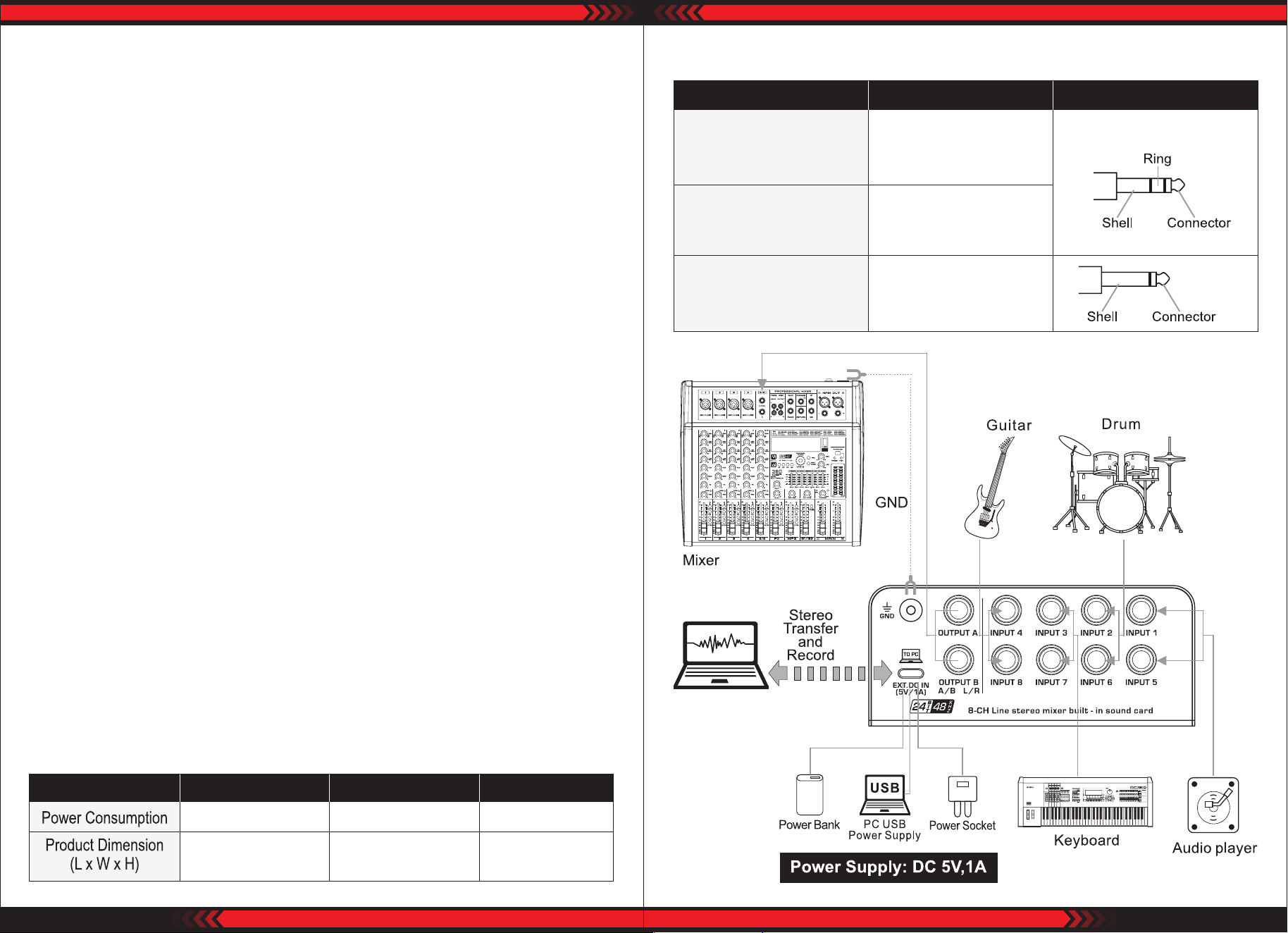

Input and output jacks
INPUT
Polarity Structure
OUTPUT
INPUT (MONO)
Connector: L
Ring: R
Shell: Ground
Connector: L
Ring: R
Shell: Ground
Connector: Signal
Shell: Ground
TRS plug
TS plug
MODEL PMAX6PMAX4 PMAX8
3W2W 4W
5.9’’ x 3.3’’ x 1.8’’ -in.4.4’’ x 3.3’’ x 1.8’’ -in. 4.6’’ x 5’’ x 2.4’’ in.
www.PyleUSA.com
4
www.PyleUSA.com
5

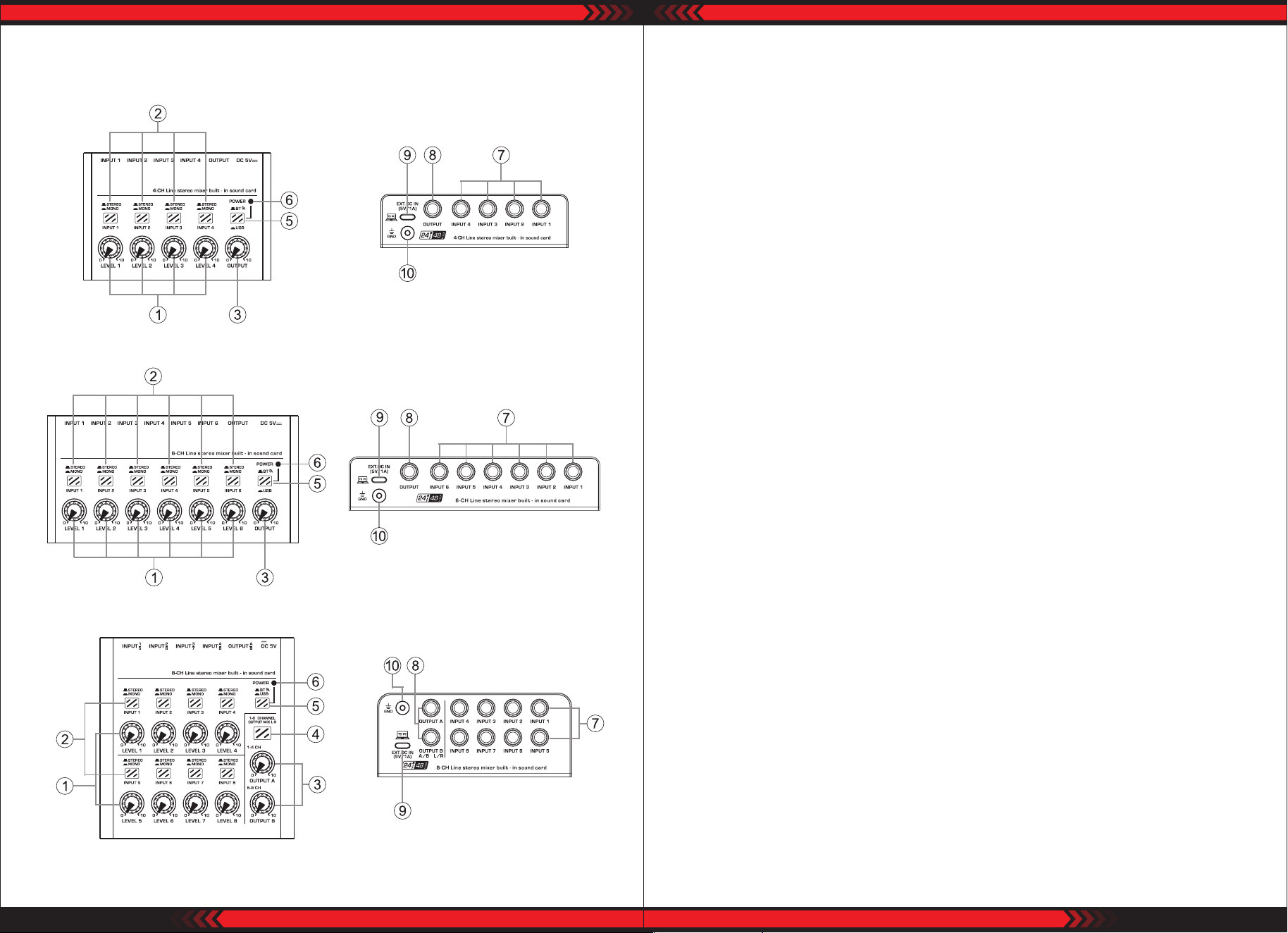

CONTROLS & FUNCTIONS CONTROLS & FUNCTIONS
1. [LEVEL] Controller: Control the input level of each channel, adjust to balance
the volume.
2. [STEREO/MONO] Converting switch for 6.35 input signals:
Press down for MONO, bounce up for STEREO.
3. [OUTPUT] Controller: Adjust the volume of main out.
Note: Excessive high volume output may damage the output operation
equipment (such as speakers, headphones, etc.).
Please turn the output controller to zero or an appropriate volume position
before turning ON the device.
4. [1-8 CHANNEL OUTPUT MIX L-R] Button: Press it to mix the audio output of
1-8 inputs, at this point A/B output audio synchronization.
Note: Please turn the A/B output knob to the minimum output volume before
pressing this mixing button.
5. [BT/USB] Converting switch: When it is bounced up, the input signal is from
BIuetooth. Press it down, the input signal is from USB.
6. Power and BIuetooth indicator: It will light up when the mixer's power is ON.
It will ash when connecting Bluetooth. After the Bluetooth is connected, the
ashing speed will slow down.
7. 6.35 Input jack: Connect signal sources with line level to this mono or two-
channel input. If the volume of the signal source is adjusted too high, the input
end of the corresponding channel may be distorted.
8. 6.35 Output jack: For transmitting output signal.
9. Type-C terminal: For data transferring, recording and power supply.
When connected to a computer, it supplies power to the mixer, and audio data
can be sent between mixer and computer. Supports stereo play and record with
24 Bit, 48kHz sampling rate. When using as a power socket or power bank for
power supply, it must meet the following requirements:
Output voltage: 4.8V to 5.2V
Output current: 1A or even more
10. [GND] Connection: When connecting multiple devices, please connect the
ground wire of each device shell to each other, which can reduce the bottom
interference noise and increase the safety of use.
