Note:
Modular Ice Machines
User Manual
03/2024
Models:
2
www.AvantcoIce.com
User Manual
Modular Ice Machines
Contents
Warnings ........................................................................................................................................................ 3
Installation ..................................................................................................................................................... 4
Startup and Operation ................................................................................................................................ 9
Operating Instructions ...............................................................................................................................10
Control Panel ................................................................................................................................................11
Other Special Protection - Shutdown .....................................................................................................12
Cleaners / Sanitizers ................................................................................................................................... 15
Maintenance ................................................................................................................................................. 16
Cleaning Instructions ................................................................................................................................. 17
Service Call ...................................................................................................................................................21
Troubleshooting .........................................................................................................................................22
Hotel Ice Dispenser User's Manual ........................................................................................................ 23
General Information ................................................................................................................................... 24
Dimensioned Illustration ...........................................................................................................................25
Product Description ................................................................................................................................... 27
Unpacking ....................................................................................................................................................28
Installation ...................................................................................................................................................29
General Care and Cleaning ..................................................................................................................... 33
Maintenance ................................................................................................................................................35
Adjustments ................................................................................................................................................36
Troubleshooting ......................................................................................................................................... 37
NEMA 5-15P
3
www.AvantcoIce.com
User Manual
Modular Ice Machines
Warnings
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY
BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO – RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO.
CONSULTE EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR
SERVICIO A ESTE PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER
LE MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES
LE MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE
EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.
4
www.AvantcoIce.com
User Manual
Modular Ice Machines
Installation
This product cannot be used in outdoor environments. Not intended for use by children or persons with
reduced physical, sensory, or mental capabilities, or lack of experience and knowledge.
•
The installation, repair, or maintenance of this ice machine must be carried out by professional and qualified
personnel. Electric shock, fire, or personal injury may result from incorrect operation.
•
After the ice machine is delivered, keep the machine upright for at least 24 hours to have the refrigerant be
fully precipitated before startup. Otherwise, the compressor may be damaged.
•
When handling, keep the cabinet upright with the inclination not exceeding 45°F. Do not invert the machine or
lay it horizontally. This ice machine should not be placed in wet or easily splashed areas.
•
The grounding of this ice machine cannot be connected to a gas pipe, water pipe, telephone line or lightning
rods, etc.
•
There are rotating components in this ice machine. Do not insert slim objects into ventilation or exhaust ports,
or serious mechanical damage and injury may occur.
•
Do not store volatile or flammable substances in this ice machine or it may result in an explosion or fire.
•
Do not store any sundries or freeze any food in the storage bin. Keep the ice scoop clean.
•
The ice machine must be placed on a floor sucient enough to support its weight. An insucient base may
cause the equipment to fall over and cause injury.
•
There should be sucient ventilation space around the ice machine. See page 7 for clearance requirements.
•
Only the power supply specified on the machine nameplate can be used with this ice machine.
•
This ice machine cannot be connected to hot water.
•
The outlet for this ice maker must be reliably grounded with leakage protection.
•
The ice machine must be disconnected from power before manual cleaning, repairing, and maintenance.
•
Before cleaning, repairing, and maintenance, the remaining ice in the ice bin should be removed from the ice
machine to avoid contamination to ice.
•
Do not splash water directly onto the surface of the ice machine during the cleaning process; otherwise, it
may cause a short circuit, leakage, or other faults.
•
Flammable foaming agent is used during the foaming process. The ice maker should be disposed of and
recycled by qualified personnel and institutions.
•
The ice machine should be properly managed to ensure that children will not play with the machine.
•
When the ice machine malfunctions, turn o the power and contact professional personnel to be repaired.
5
www.AvantcoIce.com
User Manual
Modular Ice Machines
This ice machine is fully automatic. With proper installation and connection to potable water and power
source, the ice making will start properly. When the ice cubes fill up the storage bin, the machine will
automatically stop. The ice machine is generally used in the following and similar occasions:
•
Indoor, ambient controlled environments only.
•
The kitchen area of a store/restaurant, oce or other workplace, hotel or restaurant, catering, and similar
non-retail occasions.
•
This ice machine is not intended for residential use.
C Pure creates specialty water filters to be used with common restaurant equipment, ensuring that the water
utilized by the equipment is both clean and clear. These filters are easily installed into water lines, and their
cartridges can be quickly swapped out for fast, easy, and ecient replacements. The water filters below
are approved for use with Avantco Ice Machines. Failure to use and maintain an appropriate water filter will
void warranty coverage on your Avantco Ice Machine. For installation instructions, refer to the C Pure water
filtration manual or contact a C Pure water filtration dealer.
Modular Ice Machines
Item Number
Ice Shape
Ice Production Per
24 Hours
Filtration System
Replacement
Cartridge
194MCF322A Full Dice 344 lb. 790OCLOKITM 790OCLOCARTM
194MCH322A Half Dice 350 lb. 790OCLOKITM 790OCLOCARTM
194MCF422A Full Dice 399 lb. 790OCLOKITM 790OCLOCARTM
194MCH422A Half Dice 420 lb. 790OCLOKITM 790OCLOCARTM
194MCF430A Full Dice 397 lb. 790OCLOKITM 790OCLOCARTM
194MCH430A Half Dice 400 lb. 790OCLOKITM 790OCLOCARTM
194MCF530A Full Dice 497 lb. 790OCLOKITM 790OCLOCARTM
194MCH530A Half Dice 500 lb. 790OCLOKITM 790OCLOCARTM
6
www.AvantcoIce.com
User Manual
Modular Ice Machines
Modular Ice Machines with Bin
Modular Ice Machines with Hotel Dispenser
Item Number
Ice Shape
Ice Production Per
24 Hrs.
Filtration System
Replacement
Cartridge
194KMCF322BA Full Dice 344 lb. 790OCLOKITM 790OCLOCARTM
194KMCH322BA Half Dice 350 lb. 790OCLOKITM 790OCLOCARTM
194KMCF422BA Full Dice 399 lb. 790OCLOKITM 790OCLOCARTM
194KMCH422BA Half Dice 420 lb. 790OCLOKITM 790OCLOCARTM
194KMCF430BA Full Dice 397 lb. 790OCLOKITM 790OCLOCARTM
194KMCH430BA Half Dice 400 lb. 790OCLOKITM 790OCLOCARTM
194KMCF530BA Full Dice 497 lb. 790OCLOKITM 790OCLOCARTM
194KMCH530BA Half Dice 500 lb. 790OCLOKITM 790OCLOCARTM
194KMCF322LA Full Dice 344 lb. 790OCLOKITM 790OCLOCARTM
194KMCH322LA Half Dice 350 lb. 790OCLOKITM 790OCLOCARTM
194KMCF422LA Full Dice 399 lb. 790OCLOKITM 790OCLOCARTM
194KMCH422LA Half Dice 420 lb. 790OCLOKITM 790OCLOCARTM
194KMCF430LA Full Dice 400 lb. 790OCLOKITM 790OCLOCARTM
194KMCH430LA Half Dice 397 lb. 790OCLOKITM 790OCLOCARTM
194KMCF530LA Full Dice 497 lb. 790OCLOKITM 790OCLOCARTM
194KMCH530LA Half Dice 500 lb. 790OCLOKITM 790OCLOCARTM
Item Number
Ice Shape
Ice Production Per
24 Hrs.
Replacement
Cartridge
Replacement
Cartridge
194KMCF322HA Full Dice 344 lb. 790OCLOKITM 790OCLOCARTM
194KMCH322HA Half Dice 350 lb. 790OCLOKITM 790OCLOCARTM
194KMCF422HA Full Dice 399 lb. 790OCLOKITM 790OCLOCARTM
194KMCH422HA Half Dice 420 lb. 790OCLOKITM 790OCLOCARTM
194KMCF430HA Full Dice 397 lb. 790OCLOKITM 790OCLOCARTM
194KMCH430HA Half Dice 400 lb. 790OCLOKITM 790OCLOCARTM
194KMCF530HA Full Dice 497 lb. 790OCLOKITM 790OCLOCARTM
194KMCH530HA Half Dice 500 lb. 790OCLOKITM 790OCLOCARTM
7
www.AvantcoIce.com
User Manual
Modular Ice Machines
Installation

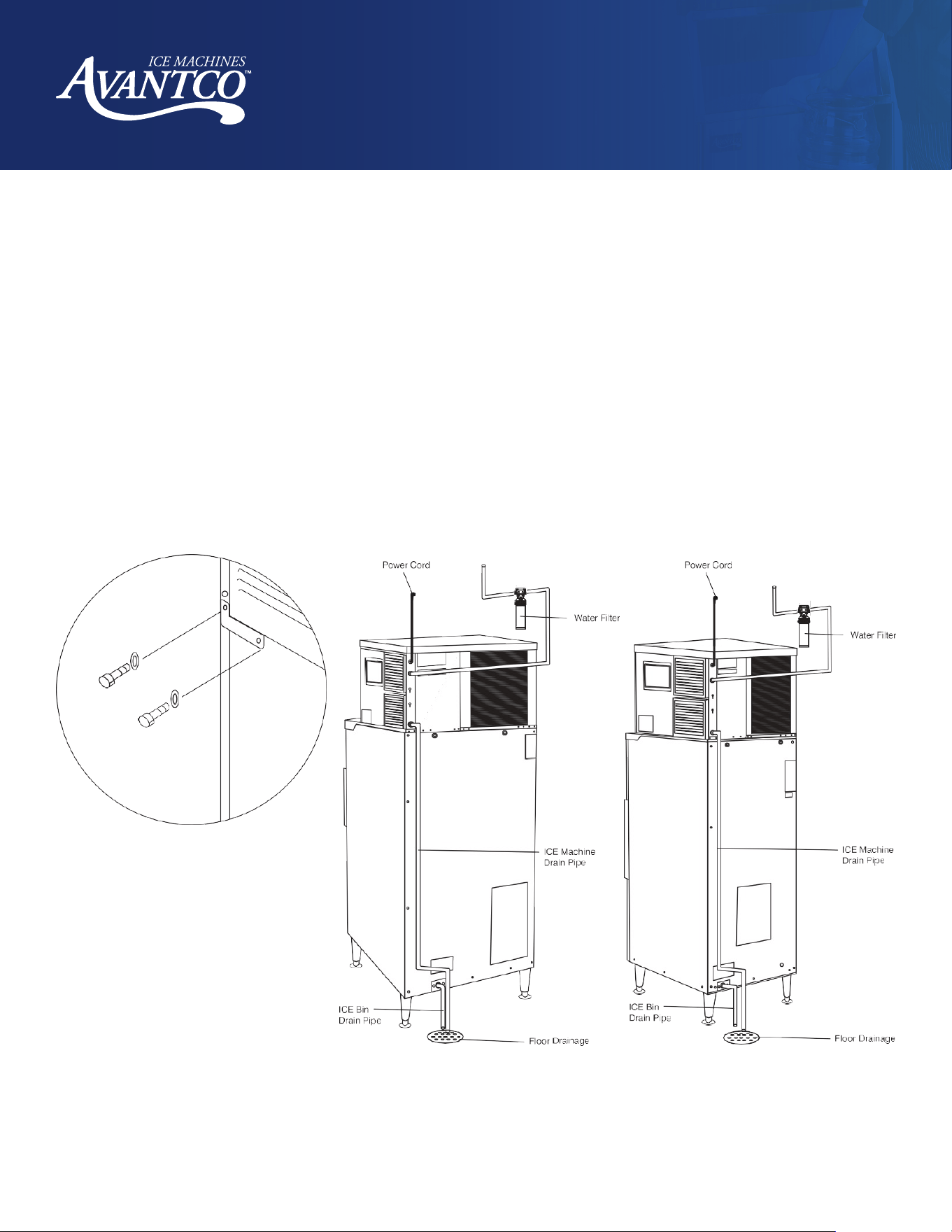

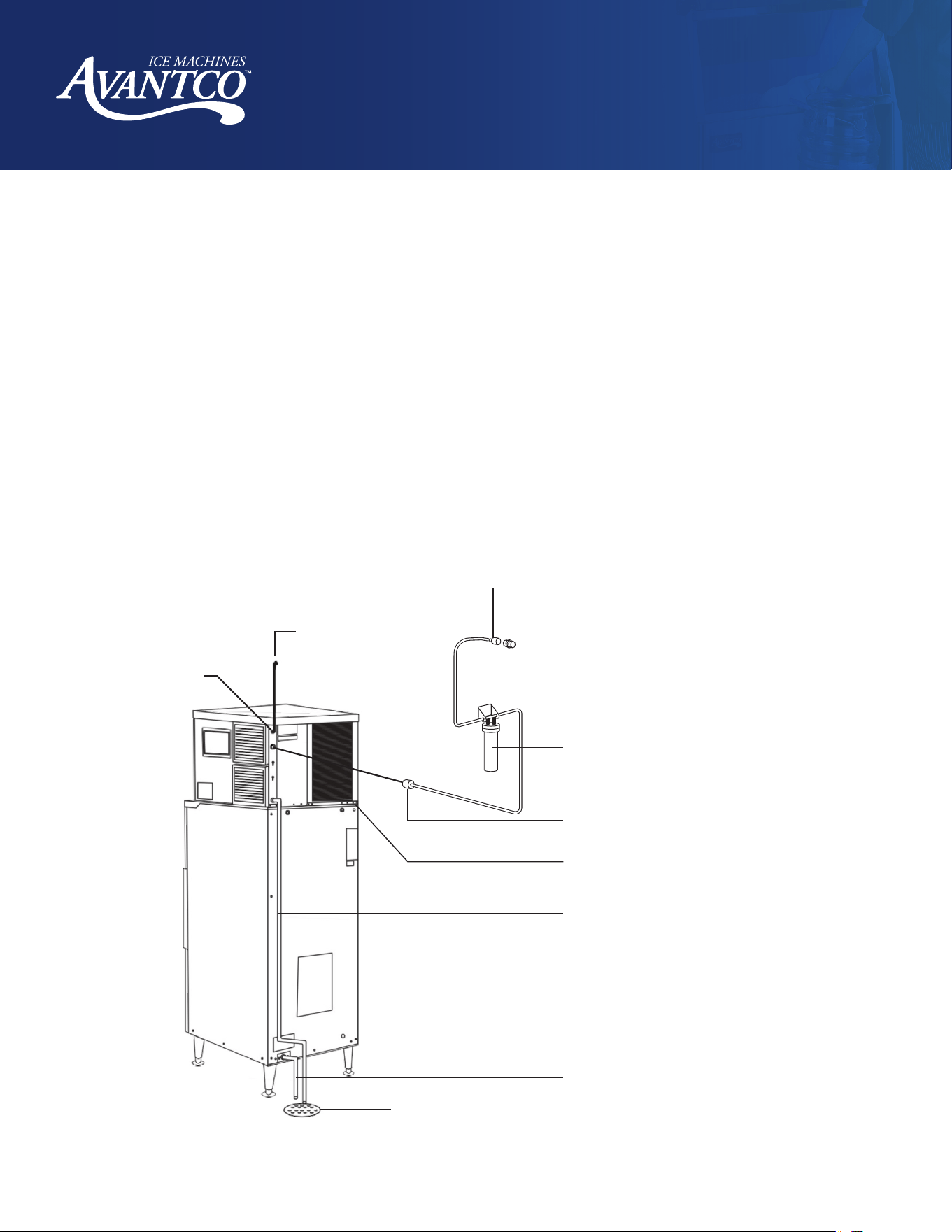

Schematic Diagram
The ice machine should be installed in a proper location meeting the following conditions:
•
Power supply: The rated voltage indicated on the machine nameplate ±6%.
•
Water source: Potable water, with water pressure from 18.75 PSI to 80 PSI; water temperature: 90°F.
•
The ice machine should be kept away from heat sources, should be prohibited to use in an extremely high or
low temperature environment, and should avoid direct sunlight.
•
There should be sucient ventilation space around the ice machine; the distance from the ice maker to the
wall should be no less than 12" for the front, 6" for the sides, and 8" for the rear.
•
The ice machine must be placed on a floor sucient to support its weight.
•
The socket for the ice maker must be reliably grounded and have leakage protection.
•
Proper floor drainage must be provided near the installation location of the ice machine.
1/2" Joint Inner Thread
1/2" Joint External Thread
Power Cord
Water Filter
Floor Drainage
Ice Making Drain Pipe
Ice Bin Drain Pipe
3/4" Joint Inner Thread
Mounting Hole for Water Filter
Ice Making Water Inlet
8
www.AvantcoIce.com
User Manual
Modular Ice Machines
Installation Steps
1.
Check to see if the ice machine is in good condition and the accessories are all present; check the machine
model and the machine nameplate.
2.
Clean the ice storage bin and the food area inside with a sponge soaked in warm water and soap. Then rinse
with potable water and dry.
3.
Place the ice machine in the operation area; ensure that the machine is placed on a leveled floor so the water
flows evenly into the evaporator.
4.
The compressor chamber is located below the front of the ice bin where the compressor and condenser are
installed. It requires good ventilation, so the ice maker must have ventilation space of more than 8" in the rear,
6" on the sides, and 12" in the front.
5.
The bottom of the ice machine is equipped with adjustable legs for level adjustment and clearance for floor
cleaning.
6.
Connect the machine's inlet water filter and water line referring to the installation instructions of your water
filter brand; if the installation site is already equipped with a drinking water system, the water filter may not be
needed.
7.
Connect the machine to the water supply using the 3/4" inlet fitting supplied with the machine. It is
recommended to install a water ball valve (not supplied with this machine) on the water supply line.
8.
Connect the drain line to the drain connector. To achieve a proper draining, it is recommended that the drain
pipe should have a dierence in level of more than 1" per 3'. Confirm that the drain line is not blocked. It is
recommended that the drain line be connected to an open drainage port.
9.
Any joint in the drain line must not be higher than the machine drainage port; any joint in the drain line cannot
be higher than the previous joint.
10.
Confirm the power requirements stated in the machine's nameplate; ensure that the power supply meets the
requirements.
11.
A circuit breaker or switch with leakage protector and reliable grounding is required.
12.
Turn o the switch on the power line and connect the machine to the power source.
NOTE: The filter flow direction should be correctly installed as per the direction marker on the filter head cover
or the filter body. The filter cartridge should be replaced every 3 to 6 months.
Installing an Adapter
Item Number
Adapter
Bin Options
194MCF322A 194ADAP2230
194BIN27530,
194BIN54030
194MCH322A 194ADAP2230
194BIN27530,
194BIN54030
194MCF422A 194ADAP2230
194BIN27530,
194BIN54030
194MCH422A 194ADAP2230
194BIN27530,
194BIN54030
9
www.AvantcoIce.com
User Manual
Modular Ice Machines
Startup and Operation
1.
Before you start up the machine, check and confirm:
• The packaging tape inside the ice machine has been removed.
• The accessories or items in the ice bin have been taken out.
• The ice machine has been adjusted to a leveled state.
• The water line has been connected and the water valve is open.
• The plug has been connected to the power supply and the power switch is o.
• The ambient temperature, water temperature, and pressure of the water supply meet the above
requirements.
2. Startup: Turn on the power switch. After powering on, the machine begins to make ice automatically.
3. For normal operation, confirm:
• There is water in the water trough and no overflow occurs.
• The pump is working properly and water is flowing evenly in the evaporator.
• The compressor is running normally, and the temperature of the evaporator and the ice-making water is
gradually decreasing.
• For air cooled machines, make sure the fan is running normally, and there is stable airflow in the inlet and
outlet of the ice machine.
• The ice machine has no abnormal noise.
• The ice machine has no abnormal vibration.
• It takes about 10 to 20 minutes to make one batch of ice, depending on the ambient temperature and the
temperature of the water. The higher the temperature is, the longer the ice making will take.
• Ice cubes can be properly harvested from the machine.
How to Use 194ADAP2230:
1.
Place 194ADAP2230 on top of your 30" ice bin.
2.
Once the adapter is on the ice bin, place your 22" ice machine on top of the adapter.
3.
Nothing else is required for set-up. If preferred, you can seal the adapter to the ice machine with a gasket.
10
www.AvantcoIce.com
User Manual
Modular Ice Machines
Operating Instructions
•
Startup: After proper installation, connect the water source and turn on the power supply to turn on the
machine. Confirm that the machine is operating normally when you turn it on for the first time.
•
Self-check: With power on for the first time, the ice maker will do a self-check and pump out any remaining
water.
•
Preparing: After the ice machine has finished the self-check, the inlet valve opens and the inlet water will flow
in until it reaches the set level; then the ice maker will defrost one time.
•
Ice making: After pre-cooling for 30 seconds, the water pump starts, the water flows through the evaporator
smoothly and evenly, and the ice cubes are gradually formed in the ice cube tray.
•
Ice harvest (drop): After the ice making process finishes and the water pump is turned o, the defrosting
valve is turned on. After the hot gas enters into the evaporator, for about 1-2 minutes the ice cubes slide from
the evaporator into the storage bin.
Warning: Do not put your hand into the ice storage bin during the ice-falling process to prevent the ice
from hitting your hand!
•
Shutdown: The ice maker will stop working when you push the “on/o” button on the control panel during the
running process.
•
Bin full stop: Once the ice storage bin is filled to a certain height, the ice making process will stop after 40
seconds. There is a sensor at the top of the bin which will trigger this stop in production. In order to maximize
the bin space, make sure to spread around the ice that piles up in front of the sensor.
•
Repeat ice making: When the ice cubes triggering this sensor are moved or taken away, the ice maker will go
back to the ice-making process within seconds.
11
www.AvantcoIce.com
User Manual
Modular Ice Machines

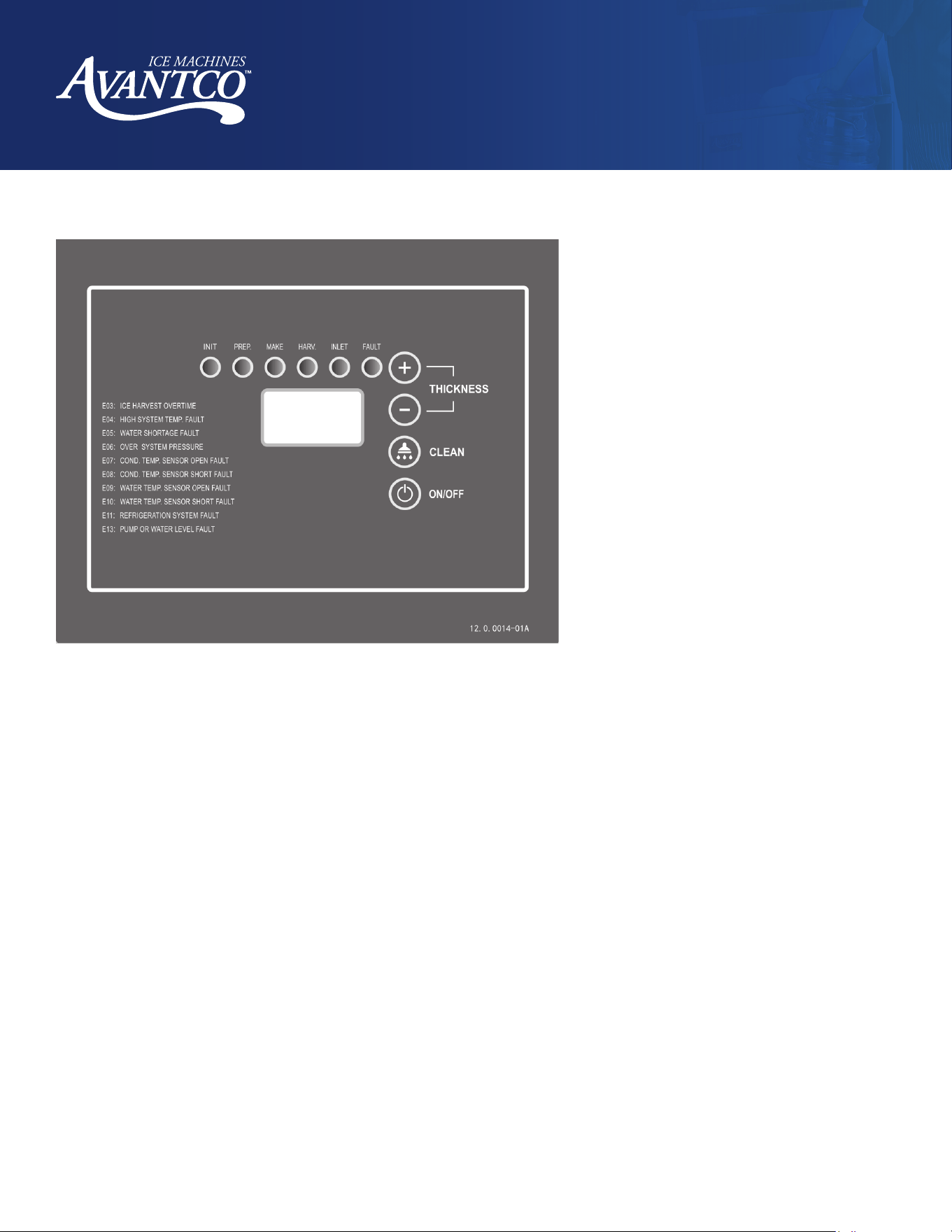

Control Panel
1. LED Display:
• INIT or Self-check: Displays "ini" code.
• PREP. or Preparing: Counts (in seconds) forwards.
• MAKE or Ice making: Counts (in seconds) forwards prior to the water reaching 32°F. Counts seconds
backwards to 0 seconds afterwards.
• HARV. or Ice harvest: Counts (in seconds) forwards.
• CLEAN: Displays "CLE" during cleaning and descaling; display "STL" during sanitizing; display "RIN"
during rinsing.
2. LED lamps: Turns lights on/o.
3. Ice cube thickness adjustment: During the ice-making process, if you are not satisfied with the ice thickness,
press the ice cube "-" button for 3 seconds, then click the button "+" or "-" on the panel to adjust the thickness
of ice cube.
Note: By clicking the "+" or "-" button one time, the ice-making time is extended or shortened by 1.5
minutes.
4. Cleaning: During the normal operation, hold the cleaning button for 3 seconds to enter the cleaning process.
During the cleaning process, cleaning agents and disinfectants need to be put into the water trough. When
the cleaning process is finished, the ice maker will go to the ice-making process.
Note: All cleaning and sanitizing chemicals used must be nickel-safe.
5. ON/OFF: Press this button to switch the machine ON/OFF.
6. Open and close the storage bin door gently. Do not slam the door. Keep door closed when not removing ice.
7. If the ice maker is not in use for a long time, it should be energized and run for 2 to 4 hours every 2 months.
12
www.AvantcoIce.com
User Manual
Modular Ice Machines
Other Special Protection - Shutdown
•
If the ice machine has not detected ice harvest in three cycles, it will shut down for safety and protection.
The ice maker needs to be checked.
•
If the ice machine detects that the ambient temperature is too high, it will stop for safety and protection.
•
The fault codes and corresponding actions are displayed as follows:
Code
Cause
How to Fix Machine Action
E00 / E11
Refrigeration System
Fault
1. There is no water flowing over the evaporator. The water pump may be
faulty. Replace the water pump.
2. If there is water flowing over the evaporator yet not freezing, there
may be an issue with the compressor or a refrigerant leak. Replace the
compressor.
Protective shutdown
E01
Ice Water Curtain or
Ice Full Switch Fault
1. Check to see if there is ice stuck between the water curtain and
evaporator. Remove.
2. The water curtain may be deformed. Check to see if the magnet on the
water curtain (lower right when installed) lines up with the ice full switch.
If not, replace the water curtain.
3. The water curtain is not installed. Install water curtain.
4. If there is still an E01 code, replace the ice full switch.
Protective shutdown
E02 Ice-Making Overtime
1. The ice is becoming too thick on the evaporator due to a faulty water
level sensor. If so, replace the water level/temperature sensor.
2. Verify compressor operation.
3. Verify hot gas valve operation.
4. Verify water inlet valve is not leaking by constantly filling reservoir with
water.
Protective shutdown
13
www.AvantcoIce.com
User Manual
Modular Ice Machines
Code
Cause
How to Fix Machine Action
E03 Ice Harvest Overtime
If the unit can make ice after restarting the machine:
1. There is scale buildup in the evaporator. Clean the evaporator.
2. Ice being made is too thin or too thick. Adjust the ice thickness setting.
3. When a new batch of ice drops from the evaporator, does the timer on
the display panel reset to counting from 0? If not, and the timer keeps
counting up, this means that the ice full sensor is not sensing the batch of
ice falling. Replace the ice full sensor.
4. Verify LED lights on control board cycle ON/OFF when water curtain
is opened and closed by hand. If LEDs do not cycle ON/OFF, verify
proximity switch function.
If the unit cannot make ice after restarting the machine:
1. If there is water in the water tank and the water flowing over the
evaporator is not freezing, there may be a refrigerant leakage. Find the
leak point, weld it, and re-inject gas.
2. If there is no water in the tank, check the water inlet valve function. Use
a multimeter to check if the PCB supplies power to the water inlet valve.
If it does, there is a problem with the inlet valve. If it does not, there is a
problem with the PCB.
3. Use a multimeter to check if the PCB supplies power to the drain valve. If
it does, there is an issue with the drain valve.
Protective shutdown
E04
High System Temp.
Fault
1. The cooling fan is not functioning. Check to see if the fan blade is stuck.
Replace fan if necessary.
2. Air filter net or condenser is dirty. Clean air filter net or condenser.
Protective shutdown
E05 Water Shortage Fault
1. No or low-pressure water supply. You may need to replace your water
filter cartridge. Otherwise, there is an issue with your incoming water line.
2. If the water pressure is normal but there is water overflowing the water
tank, the water level sensor may be faulty. Replace the water level
sensor.
3. Water inlet valve may be faulty.
For new machines, check if the water inlet light flashes when restarting the
machine. If it does not, and there is no water in the water tank, replace the
water level sensor. If it flashes, but there is no/little water in the water tank,
check the water source; there may be no water supply or the water filter is
blocked.
Protective shutdown
E06 Over System Pressure
1. Cooling fan does not work, causing poor heat dissipation.
2. If the cooling fan is working normally there may be a problem with the
high-pressure switch. Use a multimeter to measure the on/o status of
the high-pressure switch.
Protective shutdown
14
www.AvantcoIce.com
User Manual
Modular Ice Machines
Code
Cause
How to Fix Machine Action
E07
Cond. Temp. Sensor
Open Fault
Verify probe wires have a good connection in the controller by disconnecting
probe leads from controller and reconnecting leads to controller.
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32°F ice water. Value should be within 10% of 2.704 kohms.
Does not shutdown.
Error LED light on
every 5 seconds
E08
Cond. Temp. Sensor
Short Fault
Verify probe wires have a good connection in the controller by disconnecting
probe leads from controller and reconnectiong leads to controller.
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32°F ice water. Value should be within 10% of 2.704 kohms.
Does not shutdown.
Error LED light on
every 5 seconds
E09
Water Temp. Sensor
Open Fault
Verify probe wires have a good connection in the controller by disconnecting
probe leads from controller and reconnectiong leads to controller.
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32°F ice water. Value should be within 10% of 2.678 kohms.
Note: Green and yellow wires are the temperature probe leads on the harness.
Protective shutdown
E10
Water Temp. Sensor
Short Fault
Verify probe wires have a good connection in the controller by disconnecting
probe leads from controller and reconnectiong leads to controller.
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32°F ice water. Value should be within 10% of 2.678 kohms.
Note: Green and yellow wires are the temperature probe leads on the harness.
Protective shutdown
E11 / E00
Refrigeration System
Fault
1. There is no water flowing over the evaporator. The water pump may be
faulty. Replace the water pump.
2. If there is water flowing over the evaporator but not freezing, there may
be an issue with the compressor or a refrigerant leak. Please replace the
compressor.
E12
Water Level Control
Fault
Water pump may be faulty. To check, restart the machine. There will be a 140
second countdown. After 60 seconds, the water pump should start. If it does
not start, replace the water pump.
Protective shutdown
E13
Pump or Water Level
Fault
Whichever step in the following process fails is the cause of this error code.
Restart the machine.
1. The water tank should fill to a level specified by the water level sensor. If
the tank overflows, there is an issue with the water level sensor.
2. 60 seconds after the restart, the water pump should turn on. If it does not
turn on, replace the water pump.
3. After the ice batch is harvested, the drain valve will open to drain the
water in the tank. Test the drain valve functionality.
Protective shutdown
15
www.AvantcoIce.com
User Manual
Modular Ice Machines
Item No.
Size
Type
147ARCTIC 16 oz. Concentrate
147ARCTICRPT 16 oz. Ready to use
147ARCTICR1G 1 Gallon Ready to use
Item No.
Size
Type
147QKSANICE 12 Pack/16 oz. Bottles Concentrate
999QKSANICE 16 oz. Concentrate
Noble Chemical oers a full line of products to clean and sanitize your commercial ice machine. These chemicals
are approved for use with Avantco Ice Machines. Failure to regularly clean and sanitize your Avantco Ice Machine
will void warranty coverage. For information and instructions, contact a Noble Chemical dealer. The ice machine
needs to be cleaned every other month, or once a month for high yeast environments.
Cleaners
Sanitizers
16
www.AvantcoIce.com
User Manual
Modular Ice Machines
Maintenance
NOTE: Maintenance must be done by a qualified technician.
WARNING: Before maintenance or manual cleaning, be sure to shut o the water source and power supply.
Exterior Cleaning
•
Frequently clean the environment around the ice machine to keep it clean. Do not block the vents.
•
The outer enclosure should be cleaned with a mild detergent and then wiped clean. If necessary, use
commercial stainless steel cleaners and polishes.
NOTE: Stainless steel may rust without proper maintenance.
Inlet Water Filter
•
The water filter should be inspected regularly. It is recommended to replace the filter cartridge every 3 to 6
months.
Interior Cleaning
•
The inside of the ice storage bin can be washed with water and cleaner solution. Rinse thoroughly with water.
Repeat this process with a water and sanitizer solution.
Note: Check and confirm the water pressure is lower than the maximum allowed pressure.
•
Do not flush the part above the water pump or the evaporator directly for water protection.
Condenser
•
For the air-cooled ice maker, the condenser should be cleaned every three weeks. Use a soft brush or a
vacuum cleaner with a brush to brush it up and down along the fin direction to avoid damage to the fins and
further aecting the cooling eect.
•
The condenser filter should be cleaned every 2 weeks.
NOTE: Use caution when cleaning the condenser as the edges of the fins are sharp.
Water Line
•
In order to ensure food safety, the water line of the ice machine should be cleaned regularly.
Winterizing
•
Turn o the water and power supply, drain the residual water from the water trough inlet pipe, and drain pipe.
NOTE: The maintenance of the ice machine is not covered by the manufacturer’s warranty!
17
www.AvantcoIce.com
User Manual
Modular Ice Machines
Monthly Cleaning Process
4-6 Month Manual Cleaning & Sanitizing
NOTE: Empty the bin of ice in advance.
NOTE: Clean and sanitize the bin and do a complete rinsing.
NOTE: Clean and sanitize the ice sliding board, water distribution line, water supply line, and water pump,
then do a complete rinsing.
•
Turn on the ice maker; push "clean" button for 3 seconds. The ice maker will begin the cleaning process. Put
in the proper amount of cleaning solution manually into the water trough until it reaches the normal operating
water level.
•
Push the "clean" button. The ice maker will do auto-clean for about 15 minutes. Spray the evaporator with
the cleaning solution in the meantime to ensure a complete clean. When finished, the LED display will flash
"Clean" slowly again.
•
Put in the proper amount of sanitizing solution manually into the water trough followed by the clean and
sanitizing process instruction. Push the "clean" button again. The ice maker will auto-sanitize for about 15
minutes. Spray the evaporator with the sanitizing solution in the meantime to ensure complete sanitization.
When finished, the ice maker will go into the rinsing process, which will take about 5 minutes, and do 5 rinsing
cycles. Refer to your cleaner and sanitizer for proper mixing and code instructions.
•
The ice maker will go back to making ice as soon as the cleaning process ends.
•
Throw away the next batch of ice in case of residual cleaner.
See our step-by-step video on how to clean your Avantco Ice Machine.

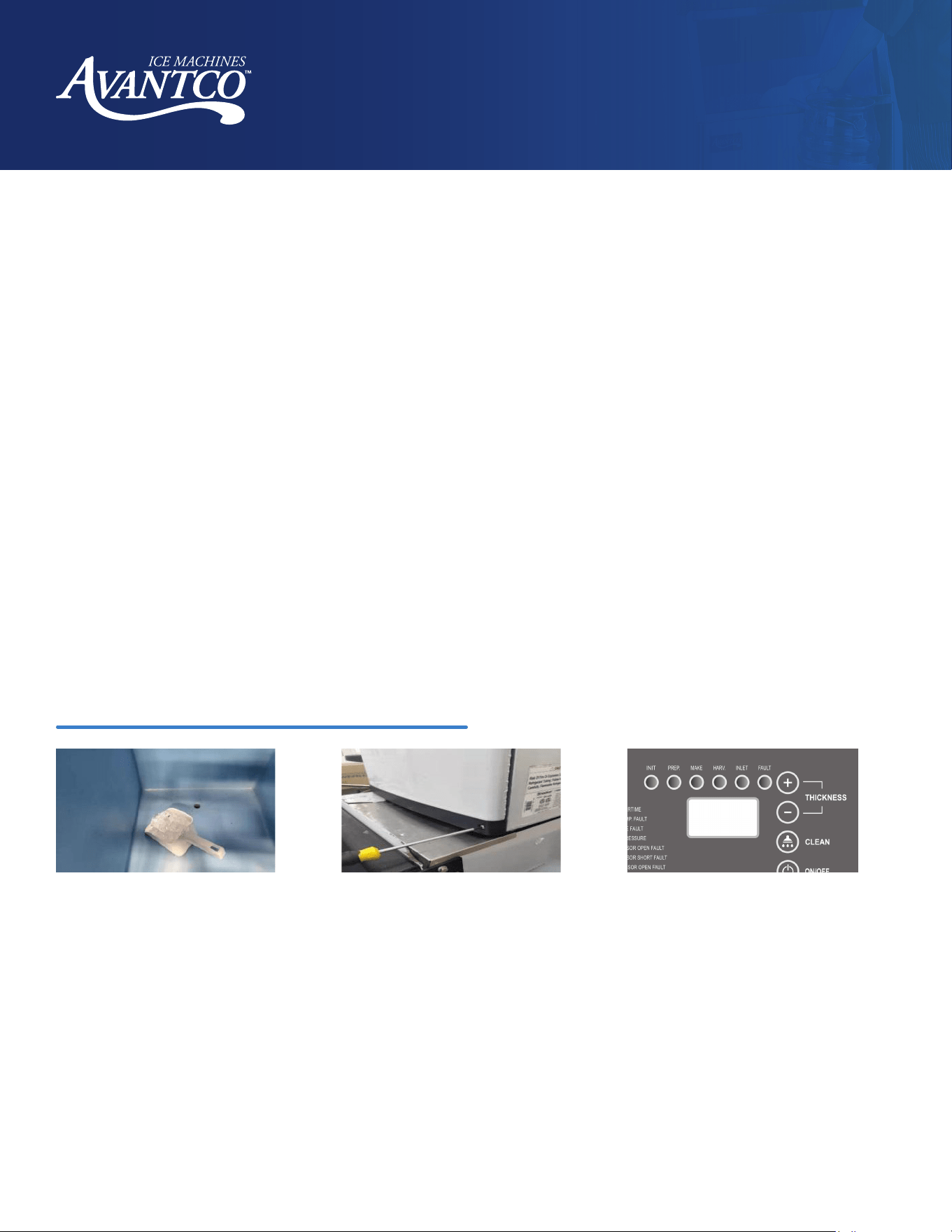

Cleaning Instructions
1. Remove all ice from the ice bin
to avoid contamination.

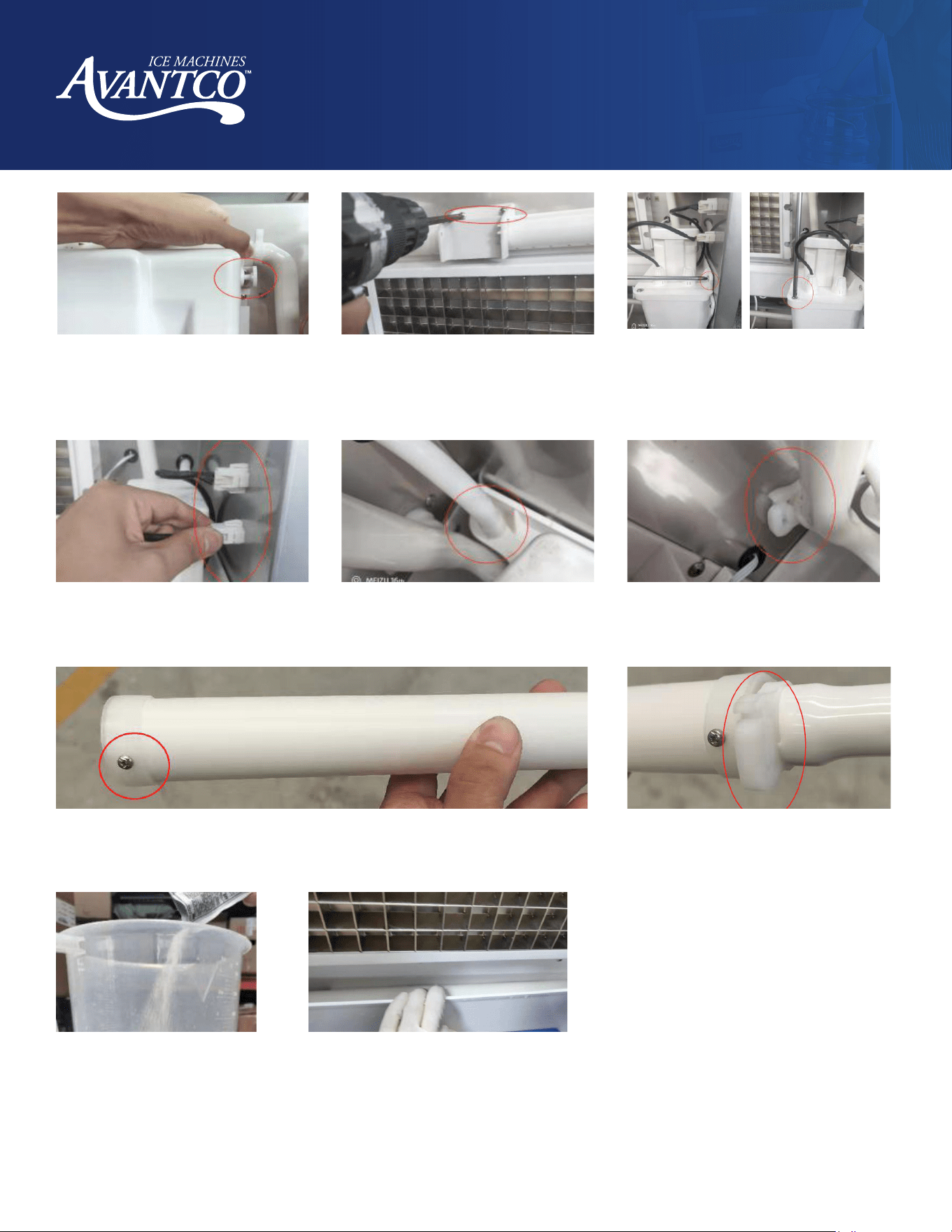

2. Remove the 4 screws from
the top and bottom of the ice
machine's front panel and
remove the front panel.
3. To empty the water from the
tank while the machine is
running, press and hold the
"CLEAN" button for 3 seconds
and enter the cleaning mode
to display CLE. In the cleaning
mode, press the "-" button for 3
seconds to drain.
18
www.AvantcoIce.com
User Manual
Modular Ice Machines
4. Make sure the power supply is
cut o.
5. Remove the water curtain.
6. Remove the 2 screws that
secure the spray pipe. Remove
the spray pipe.
7. Remove the 2 screws that
secure the water pump.
8. Pull out inlet water pipe.
9. Pull out the hose hoop of the
upper water pipe.
10. Disassemble fixed screws which are in the spray pipe. Dismantle the spray pipe.
11. Mix a solution of cleaner and water according to your ice machine cleaner instructions. Ensure the cleaning
agent dissolves completely. Soak the water pipe, inner and outer spray pipe, head, spray pipe fixing seat
and screws in the cleaning solution for 5 minutes (or 15 minutes for heavily scaled components). Rinse all
components thoroughly with clean water.
19
www.AvantcoIce.com
User Manual
Modular Ice Machines

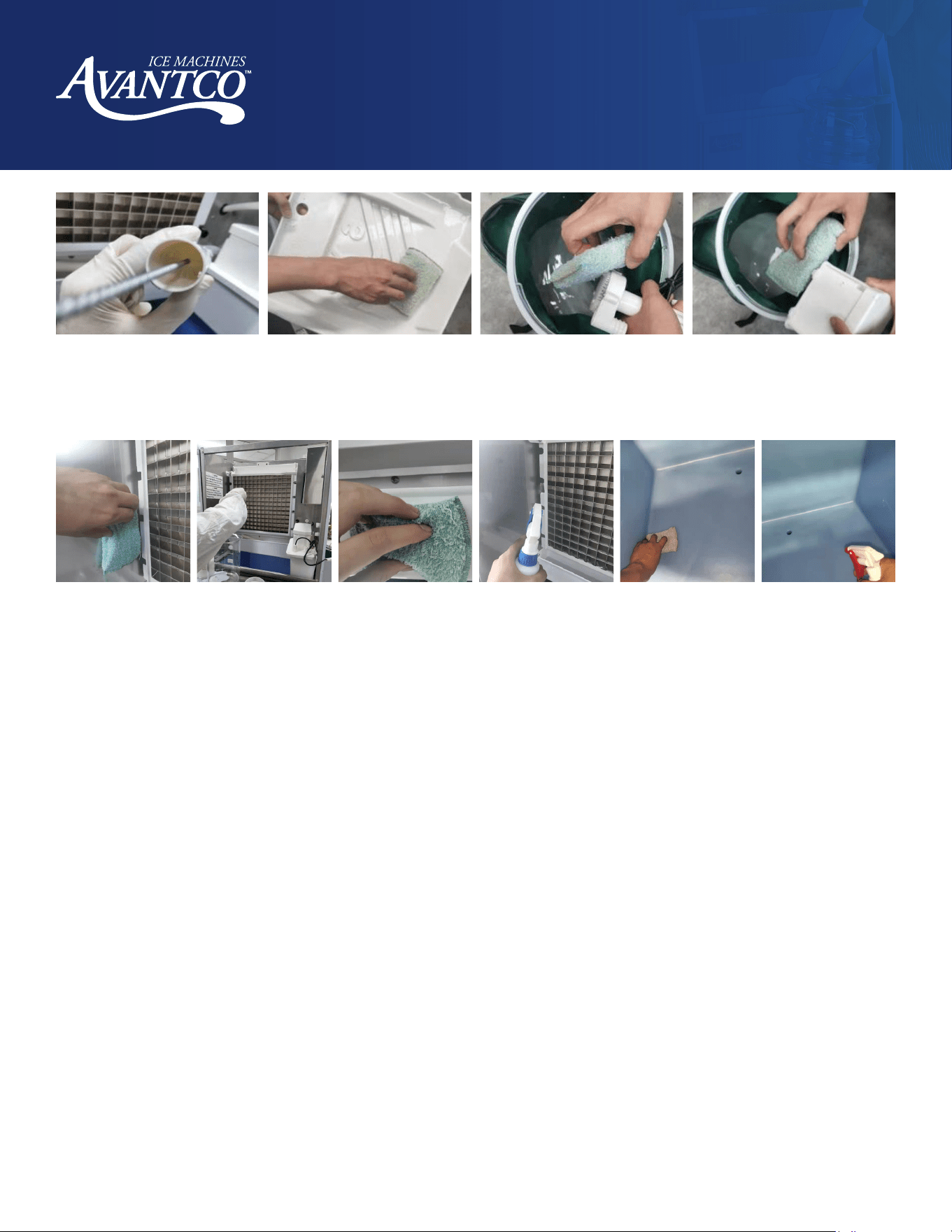

12. After soaking, scrub the spray pipe, water curtain, and pump base bracket with cleaning solution and rinse with
clean water.
13. Spray the cleaning solution into the evaporator and wipe clean. Repeatedly wipe the water tank, ice plate
and its plastic parts, side plates, ice buckets, and other sanitary areas with cleaning solution. Rinse all areas
thoroughly with clean water.
20
www.AvantcoIce.com
User Manual
Modular Ice Machines

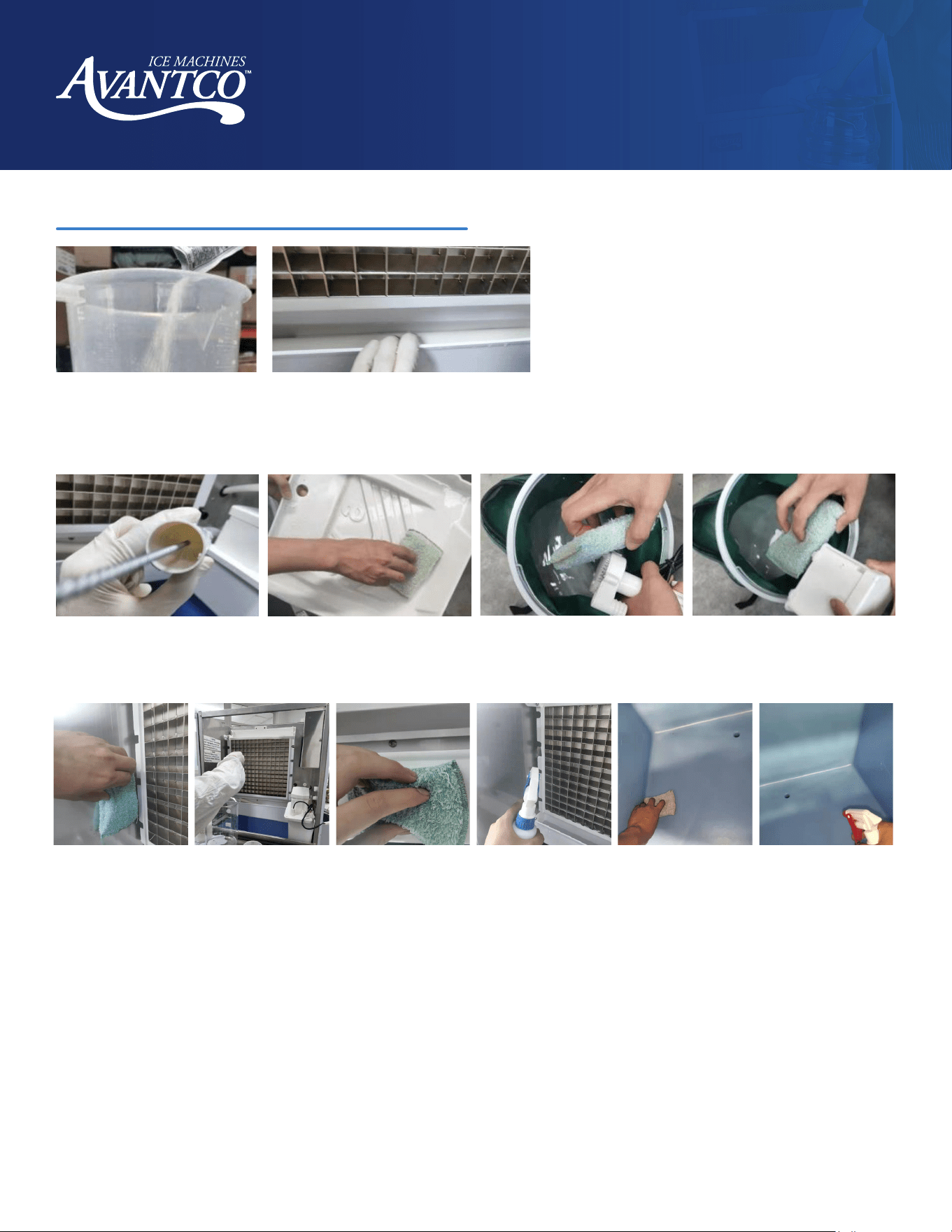

Sanitizing Instructions
1. Mix a solution of sanitizer and water according to your ice machine sanitizer instructions. Ensure the sanitizer
dissolves completely. Soak the water pipe, inner and outer spray pipe, head spray pipe fixing seat and screws
in the solution for 5 minutes. If using a no-rinse sanitizer, there is no need to rinse.
2. Spray the spray pipe, water curtain, and pump base bracket with the sanitizer solution. If using a no-rinse
sanitizer, there is no need to rinse.
3. Spray the sanitizer solution into the ice evaporator with a spray bottle. Spray the water tank, ice plate and its
plastic parts, side plates, ice bin, and other sanitary areas with sanitizer solution. If using a no-rinse sanitizer,
there is no need to rinse.
4. Allow the dismantled spray pipe, water pump, water pipe, and water curtain to dry. Reinstall in original
positions.
21
www.AvantcoIce.com
User Manual
Modular Ice Machines
Service Call
If the ice machine works abnormally, confirm below before making a service call:
1.
Check the water supply. Check:
• That there is water in the water trough.
• That the water pressure is 18.75 PSI to 80 PSI; the water temperature is 40-90°F.
• That the water valve is open.
• That there is no water leakage.
2. Check the power. Check:
• That the indicator on the display panel is ON.
• That the panel display does not display the OFF standby state.
• If the LED on the display panel is not ON, check whether the plug and socket are normal, and whether the
power supply switch is ON.
3. Check nameplate and serial number.
• Check the nameplate located on the side or back of the ice machine and record the model and series
number of the ice machine.
Note: If the machine fails due to the user’s faults (rather than the ice maker's fault) such as failure to use and
maintain a water filter, no supply of water, or electricity or environmental factors, the door-to-door service will
be charged.
22
www.AvantcoIce.com
User Manual
Modular Ice Machines
Troubleshooting
Symptom
Probable Cause
Possible Fix
Ice machine not working. Power switch not turned on. Turn on the power switch.
Indicator is OFF. Plug is loose. Check plug and socket.
Shutdown every 3 minutes after startup. The ambient temperature is too high. Normal working temperature range of 41-95°F.
The display shows E04 high temperature. Condenser is dirty. Clean the condenser.
The display shows E06 high pressure
protection.
Fan does not start. Check and correct high pressure switch wires.
Ice defrost abnormal.
Ambient temperature too low. Normal working temperature range of 41-95°F.
Defrost valve does not start normally. Check and correct the defrosting valve.
Ice thickness too thin or too thick. Check and correct ice thickness setting.
Poor transparency of ice cubes; ice cubes
too thin or incomplete.
Ice thickness is too thin. Check and correct ice thickness setting.
Water pressure is too low.
Check that the water supply pressure is 1.3 bar
to 5.5 bar.
Inlet water valve is dirty and blocked. Normal working temperature range of 41-95°F.
Inlet water filter has not been replaced
for a long time.
Check and correct the inlet water valve.
Inlet water valve is dirty and blocked. Check whether water leaks and correct.
Water leaking.
Check and correct the inlet water filter and
water connection.
Inlet water filter has not been replaced
for a long time.
Too slow in ice making.
The condenser or air filter is dirty. Clean the condenser and filter screen.
High ambient temperature. Normal working temperature range of 41-95°F.
Poor ventilation. Check the environment around the ice machine.
Water temperature is too high. Check the water supply temperature of 41-95°F.
Too much noise. The ice machine is not level. Level the ice machine.
23
www.AvantcoIce.com
User Manual

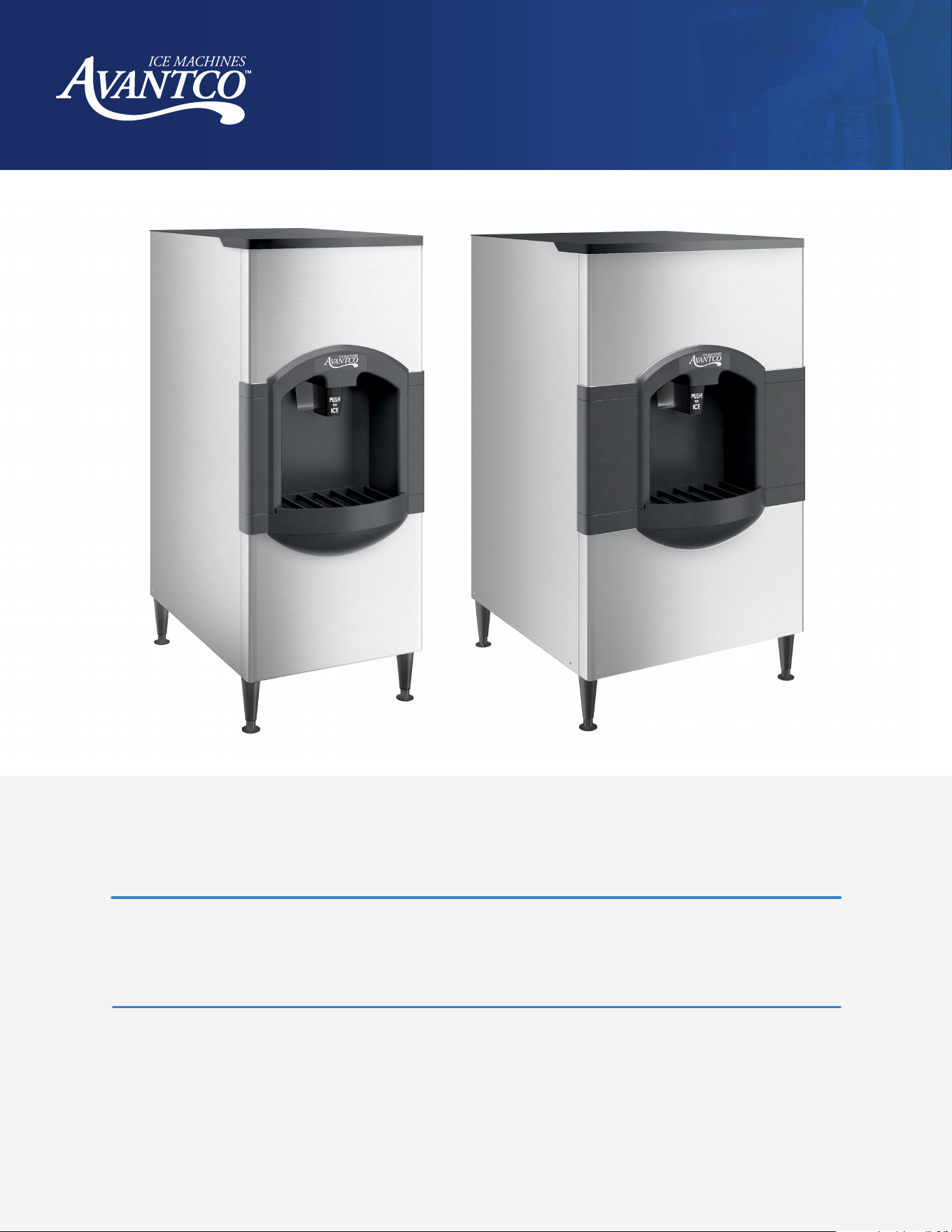

Hotel Ice Dispenser
www.AvantcoIce.com
Read this manual in its entirety prior to equipment setup, operation, and maintenance.
#194HBN12022
#194HBN18030
Note:
Hotel Ice Dispenser
24
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
General Information
Ice Dispenser 194HBN12022 is 22" wide and designed for use with Avantco ice cube machines
194MCF322A/194MCH332A or 194MCF422A/194MCH422A for ice production.
Ice Dispenser 194HBN18030 is 30" wide and designed for use with Avantco Ice cube machines
194MCH530A/194MCF530A for ice production.
Ice from the cuber falls into the insulated hopper, where it is stored until needed. When a user pushes the
dispense chute, a rotating wheel scoops the ice up to the top front of the hopper where there is an outlet to
the ice chute.
Cuber Model
Fits Dispenser
Safety Adapter
194MCF322A/194MCH322A 194HBN12022 N/A
194MCF422A/194MCH422A 194HBN12022 N/A
194MCF430A/194MCH430A 194HBN18030 194BKTHBN
194MCH530A/194MCF530A 194HBN18030 194BKTHBN
Minimum
Maximum
Air Temp 50°F 100°F
Voltage 60 Hz 104 126
Specifications & Limitations
This ice dispenser is designed to be installed and operated indoors in a controlled environment. Follow the
installation instructions in the Ice Machine Manual to ensure the ice machine has been installed properly.
Check the nameplate located on the back of the cabinet for specific information.
Avantco Ice Machines assumes no liability or responsibility of any kind for products that have been altered in any
way, including the use of any parts and/or other components not specifically approved by Avantco Ice Machines.
*Although not required for operation, the safety adapters provide additional safety measures when the unit is
placed in a public setting.
Model
Dimensions
W" x H" x D" with 6" leg
Basic Electrical
volts/hertz/phase
Model Description Bin Storage Capacity
194HBN12022 22 x 53 x 33 ½ 115/60/1 Basic 22" model 120 lb.
194HBN18030 30 x 53 x 33 ½ 115/60/1 Basic 30" model 180 lb.
Basic Specifications
25
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser

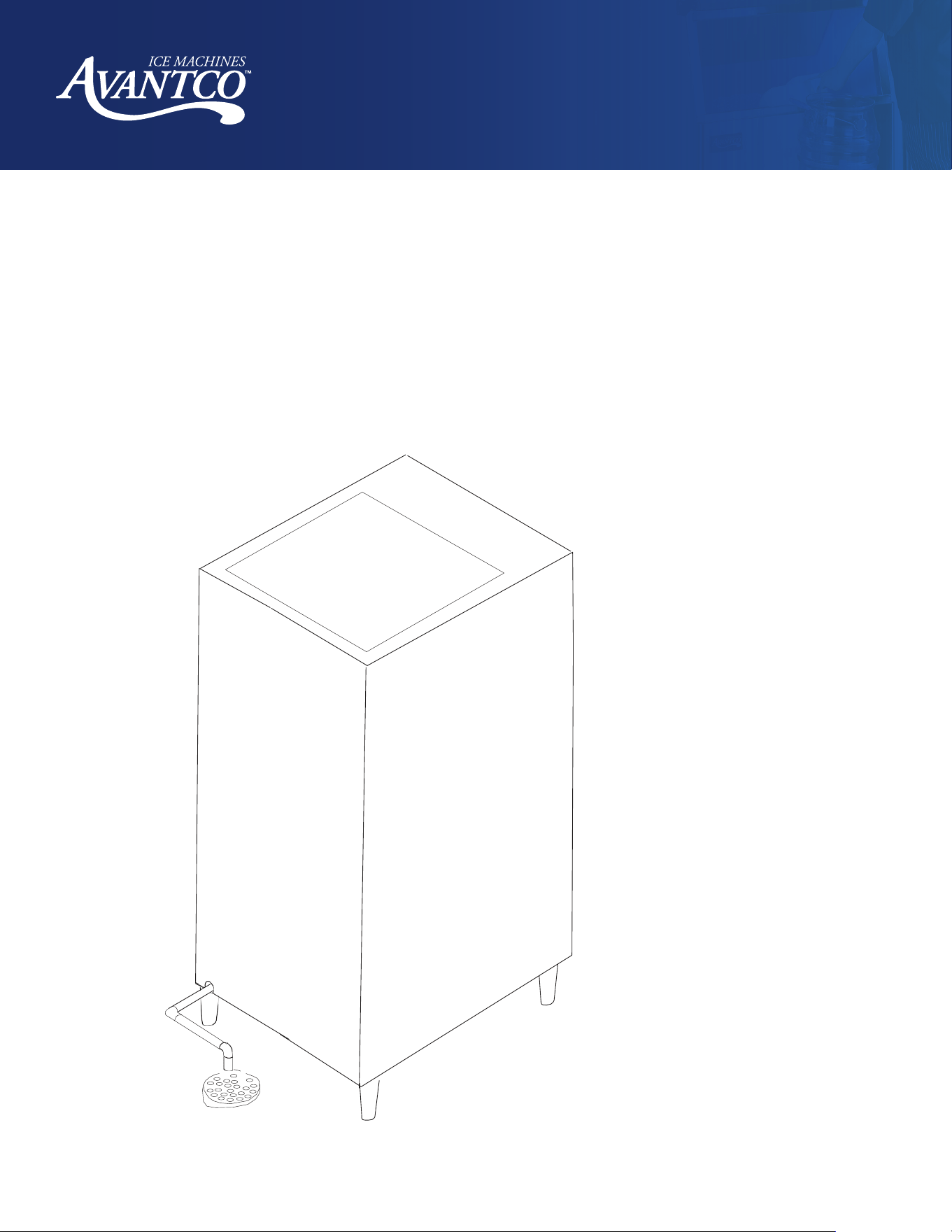

194HBN18030

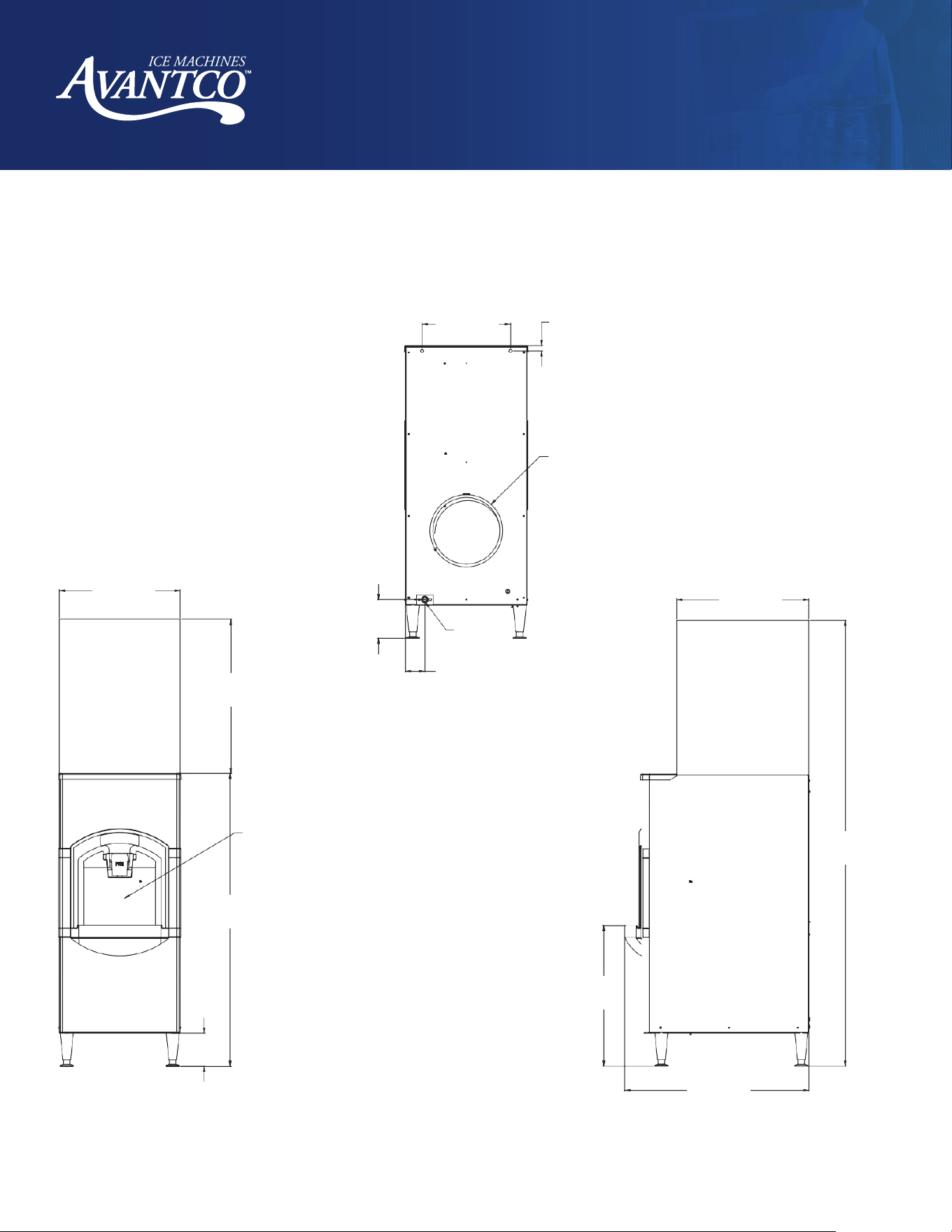

Dimensioned Illustration
762.4
30"
Back
Front
609.6
24"
849.4
33 ½"
711.2
28"
2062.5
81 ¼"
650.5
25 ⅝"
1351.3
53 ¼"
152.4
6"
Ice Fill
Station
8 ¾ [221.5]
Height
13 ½ [342.9]
Width
8 ½ [215.9]
Depth
Note: Ice fill station depth is curved to
match large ice buckets. Listed number is
the maximum depth.
451.1
17 ¾"
189.4
7 ½"
189.7
7 ½"
¾ FPT
Drain
Power
Cord
444.4
17 ½"
Water Inlet
⅜ Flare
(Water
Filler Only)
24.1
451.1
17 ¾"
Ice Head Ice Head
Right Side
1"
26
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
194HBN12022

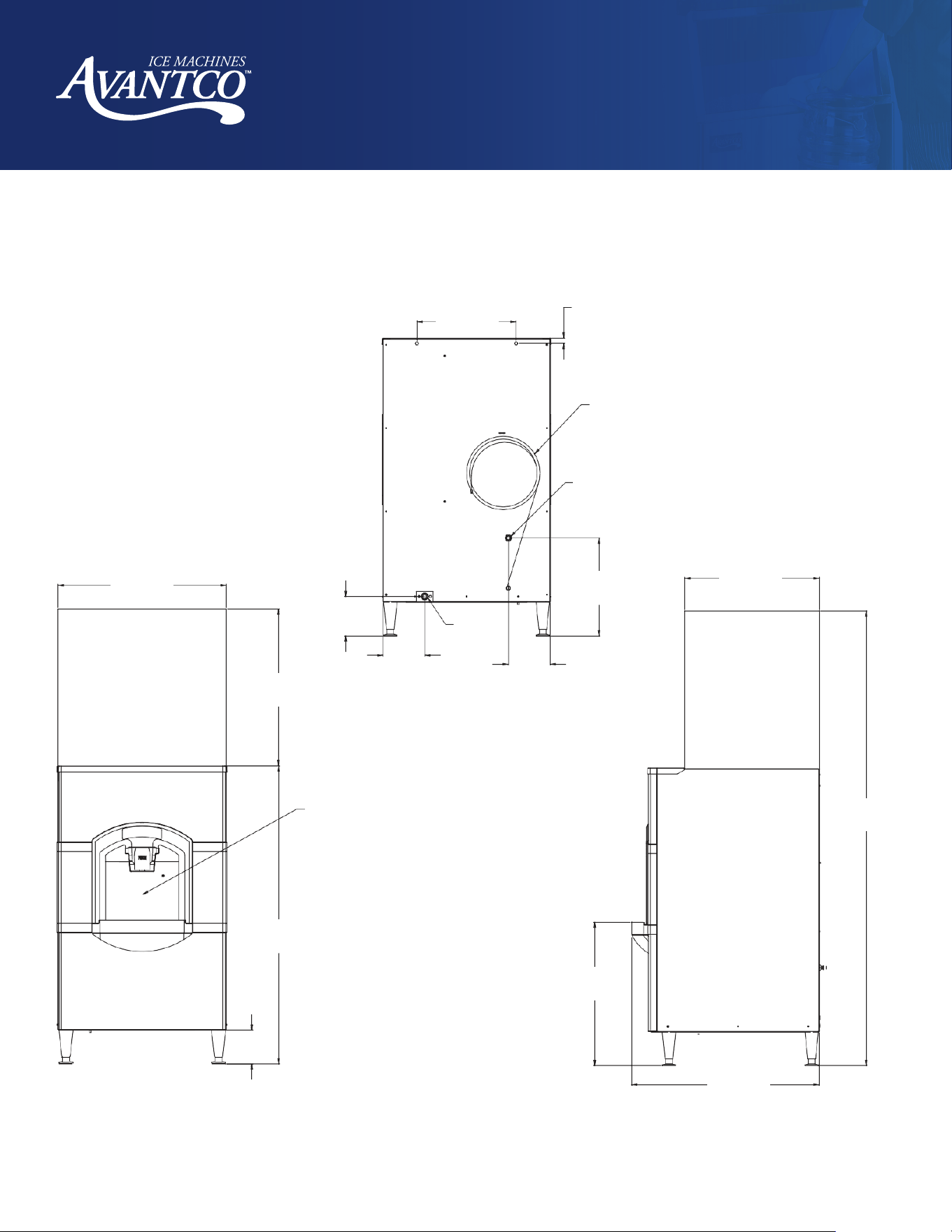

Dimensioned Illustration
558.8
22"
Ice Head Ice Head
609.6
24"
849.4
33 ½"
711.2
28"
2062.5
81 ¼"
650.5
25 ⅝"
1351.3
53 ¼"
152.4
6"
Ice Fill
Station
8 ¾ [221.5]
Height
13 ½ [342.9]
Width
8 ½ [215.9]
Depth
Note: Ice fill station depth is curved to
match large ice buckets. Listed number is
the maximum depth.
406.4
16"
88.9
3 ½"
¾ FPT
Drain
Power
Cord
24.1
1"
179.1
7"
Back
Front
Right Side
27
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser

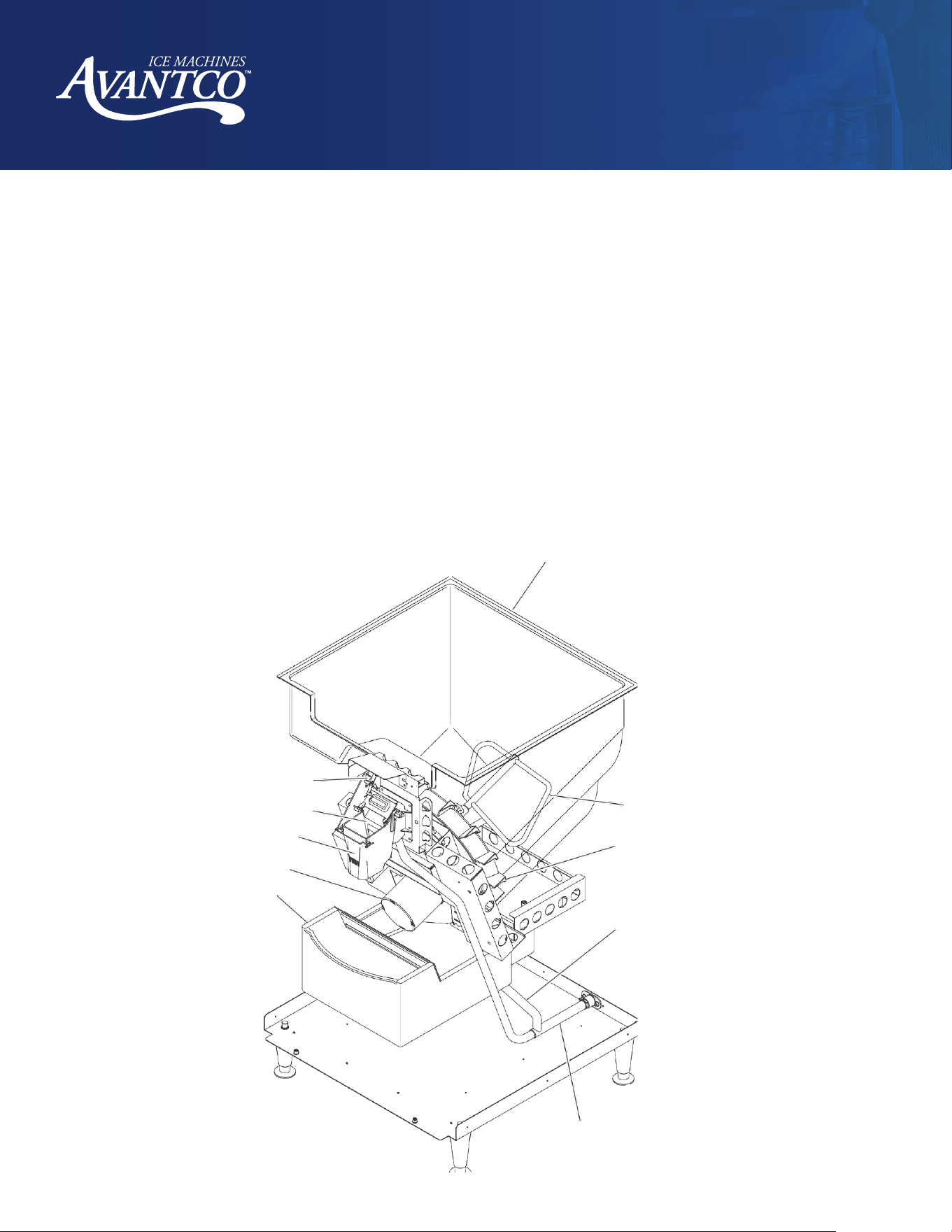

Product Description
All models consist of a plastic-lined, insulated hopper mounted to a metal base. The hopper contains a 15-blade
plastic dispense wheel and a stainless steel sweep arm. The top front of the hopper has a removable door to
facilitate maintenance and cleaning of the hopper without removal of the ice machine.
The dispense wheel and sweep arm rotate when the dispense drive motor is actuated. The drive motor's actuation
is controlled by the agitation timer or the vend switch. When the ice dispense chute is pushed back, it moves the
actuation lever up. The actuation lever releases the chute door and pushes the vend switch arm up. When the
vend switch arm has moved a preset distance, the vend switch contacts close, providing power to the dispense
drive motor. Ice is delivered to the top end of the ice chute by the dispense wheel and slides down the chute to the
container below.
The container rests on a grill. The grill's openings are over the ice catch pan, and any spilled ice goes there. The
grill has a flange at the front to help contain the ice that spills during vending. After the ice dispense chute is
released, the ice chute door closes to stop ice flow. Ice in the chute will eventually melt. Melted ice water is routed
to the drain through a hose attached to the bottom of the chute. Spilled ice is contained in an insulated ice catch
pan. Melted ice water from the ice catch pan is routed to the drain. User debris is kept away from the drain in the
catch pan by a slotted shield. The side and front exterior panels are stainless steel. The vending area and top panel
are made of plastic.
Vend Switch
Bin
Bin
Sweep Arm
Dispense Wheel
Drain Hose
Chute Door
Chute
Drive Motor
Ice Catch Pan
28
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
Unpacking
After removing the carton, check for the loose-shipped parts packed in the storage bin. The parts will include a
carton with four legs. Remove the leg carton and any other loose-shipped items.
To remove the pallet, place part of the carton behind the unit and tip the unit on its back. Remove the bolts holding
the pallet to the base of the HBN dispenser and separate the pallet from the unit.
Install the legs into the base of the unit, using the holes where the pallet bolts were. Turn the leg levelers in all the
way. Adjust them later after the unit is in its final installed position.
Move the dispenser to an upright position and set it in the location where it will be installed. Note where drain lines
and electrical connections will be made.

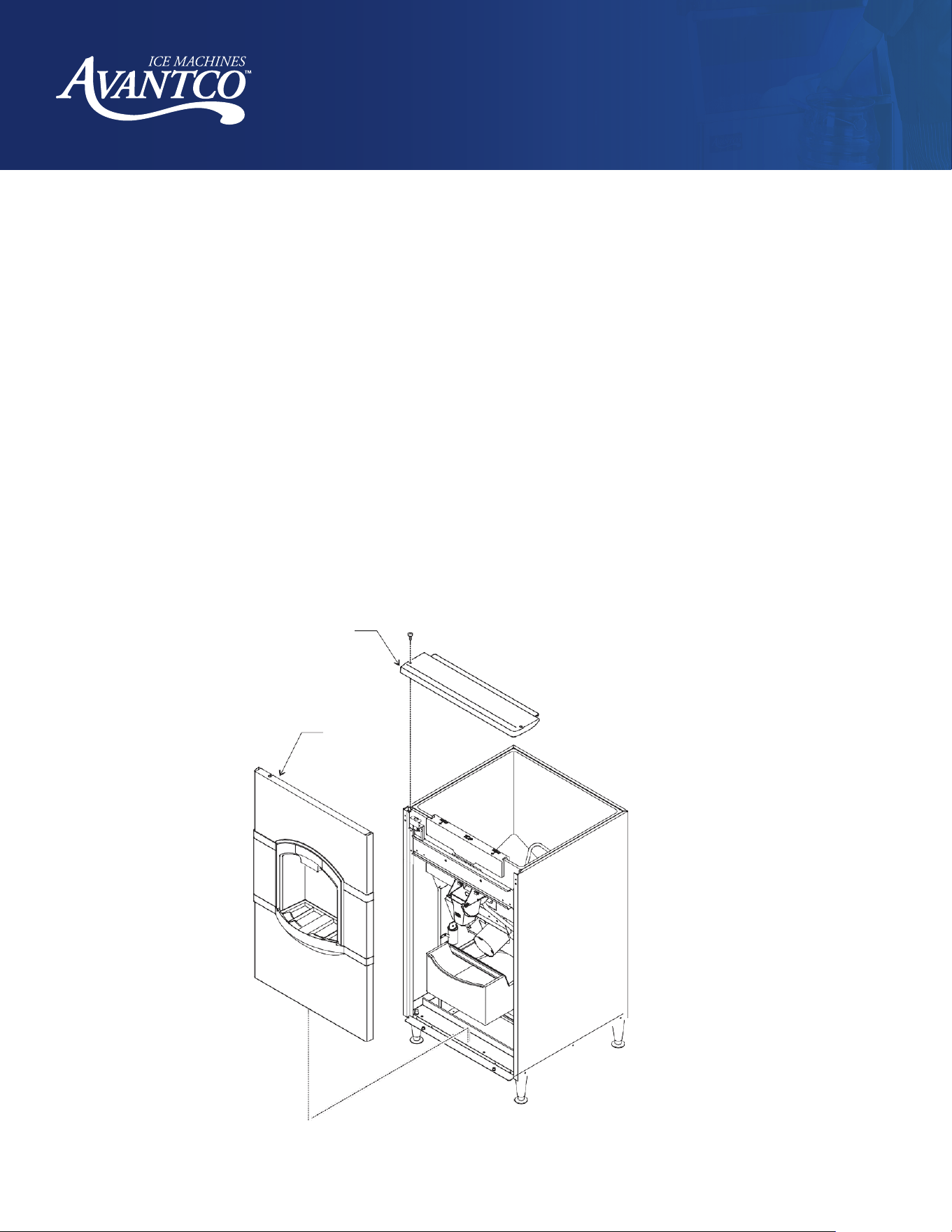

Front Panel Removal
The front panel rests on the base and is located with pins that stick up from the base. It is retained to the side
panels by strikes and latches. The top panel keeps the front panel from moving forward.
To remove:
1.
Disconnect electrical power.
2.
Remove the two screws holding the top panel to the dispenser. Lift the top panel up and over the dispenser.
3.
Pull the top edge of the front panel forward until the two snaps disengage.
4.
Lift the front panel up and o the base.
Top Panel
Front Panel
29
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
Installation - Plumbing
DRAIN
All models of the dispenser have a ¾" FPT drain fitting at the bottom of the back panel. Connect ¾" rigid tubing to
this connection. A vent is recommended for most installations. Route the drain tubing to the building drain.
Note: Drain fitting material is plastic. If using copper, sweat the copper tube to copper together before installing
on the dispenser.
Note: Keep PVC solvent away from all plastic parts of the dispenser.
Follow all applicable plumbing codes.
Because the drain tubing will be very cold, insulation is recommended for the tubing.
Drain Connection, Back View of Dispenser
30
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
Installation - Electrical & Ice Machine Assembly
The dispenser is supplied with a power cord. Do not use with an extension cord. The unit must be plugged into a
properly grounded outlet.
The dispenser must be installed so that it is a separate piece of equipment from the ice machine. The drains and
electrical supply must be separate.
Follow all local state and national codes.
ICE MACHINE
All models: Place the dispenser in the location where it will be used. Level the top edge of the dispenser front to
back and left to right, ensuring a seal between ice machine and dispenser.
Sanitize the dispenser bin with a locally approved sanitizer.
Place the ice machine on the dispenser and secure it to the dispenser with the hardware from 194BKTHBN Kit.
If using a compatible Oceanloch filter system, use the included M4 bolts from 194BKTHBN Kit to attach filter system
to the ice machine through the brackets provided holes.
Fasten Ice Machine to Dispenser
Back View of 194HBN18030 Installation Back View of 194HBN12022 Installation
31
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
Final Checklist / Initial Startup
1.
Check that electrical power has been supplied.
2.
Check that a drain, separate from the ice machine, insulated and made of rigid tubing, has been connected to
the dispenser.
3.
Check that the ice machine has been properly installed per the ice machine's installation directions.
4.
Check that the ice machine/dispenser assembly is level front to back and left to right.
To Start:
1.
Connect electrical power. The dispensing system will cycle on for a few seconds.
2.
Go through ice machine startup procedures. Let ice machine make two harvests.
3.
Push in the ice chute.
4.
Dispense wheel turns.
5.
Ice will be dispensed from ice chute.
6.
Give the operator any keys and the instructions on the operation and maintenance of the product. Check that
the operator knows who to call for service and has the product/service manuals for the machines.
ELECTRICAL SEQUENCE
Pushing the ice chute closes a contact to the gear motor.
The gear motor will have power and the dispenser will continue to operate as long as the ice chute is pushed in.
This model also has an agitation cycle of 3 seconds every 6 hours. Since the ice chute is not pushed in during
agitation, no ice is dispensed.
32
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser

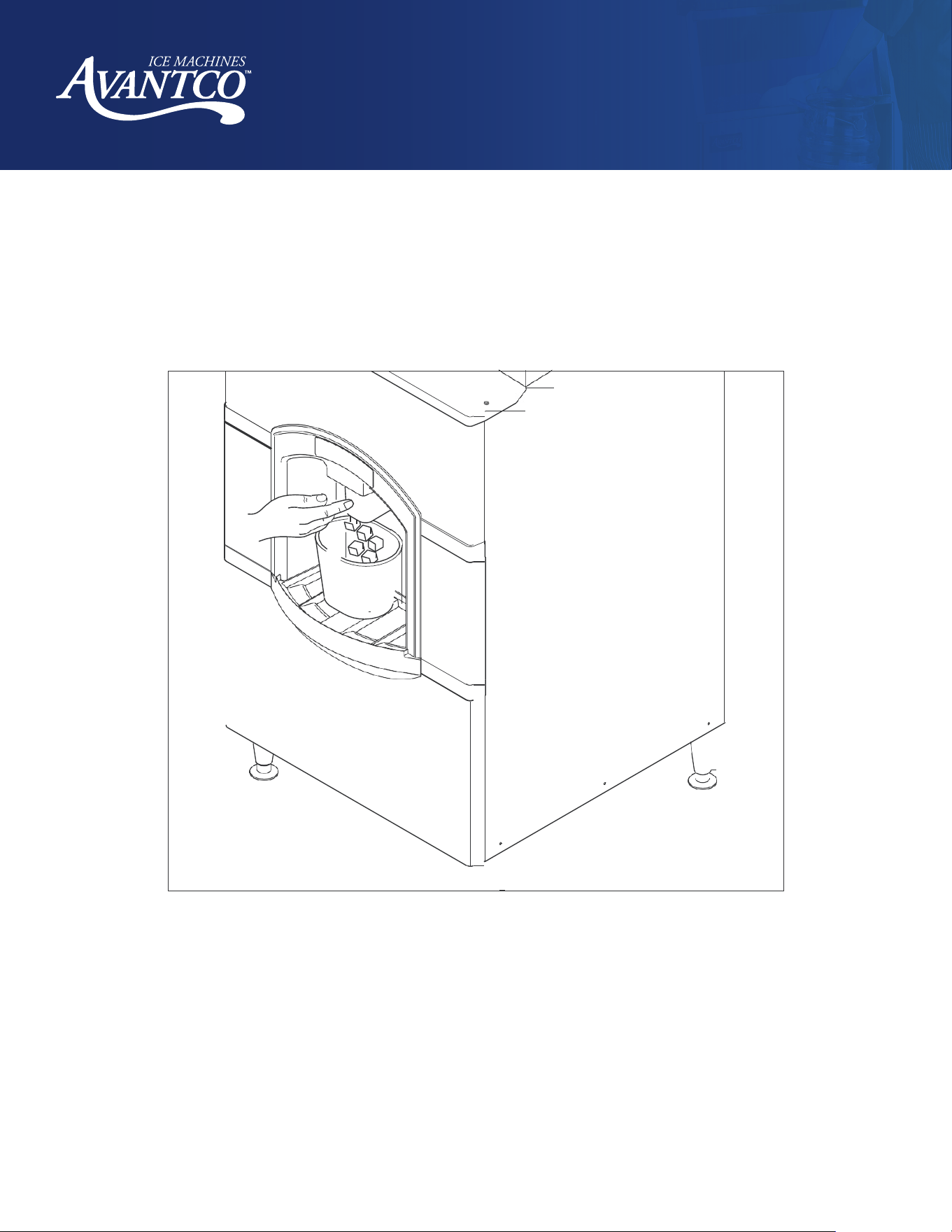

Push the chute back to dispense ice.
33
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
General Care and Cleaning
Periodically inspect and clean the ice dispenser to keep it operating at peak performance.
Wash the outside of the dispenser with warm water and soap. Rinse out and wipe dry.
Cleaning and Sanitizing of the Ice Storage Bin:
The minerals, chlorine, and other impurities in the water are rejected from the water during the freeze cycle of the
ice machine. These minerals will collect in the storage bin. The ice storage bin should be cleaned and sanitized
every 90 days.
1.
Remove all of the ice stored inside the dispenser bin and shut o the ice maker.
2.
Disconnect electrical power to the dispenser.
3.
Remove top front panel (in front of the machine).
4.
Remove the front panel.
5.
Lift up and remove the access door at the front of the bin.
6.
Reach into the opening, locate the hair pin, and pull it out of the shaft.
7.
Pull the sweep arm of the shaft and remove it from the dispenser.
8.
Pull the dispense wheel of the drive shaft and remove it from the dispenser.
9.
Mix a solution of 5 ounces of ice machine cleaner to 1 gallon of warm (95°F - 115°F) water. Wash the entire bin
area and the delivery area. Use a clean brush or cloth.
WARNING! Electrical shock and moving parts hazard.
Disconnect electrical power before beginning service or maintenance procedures.

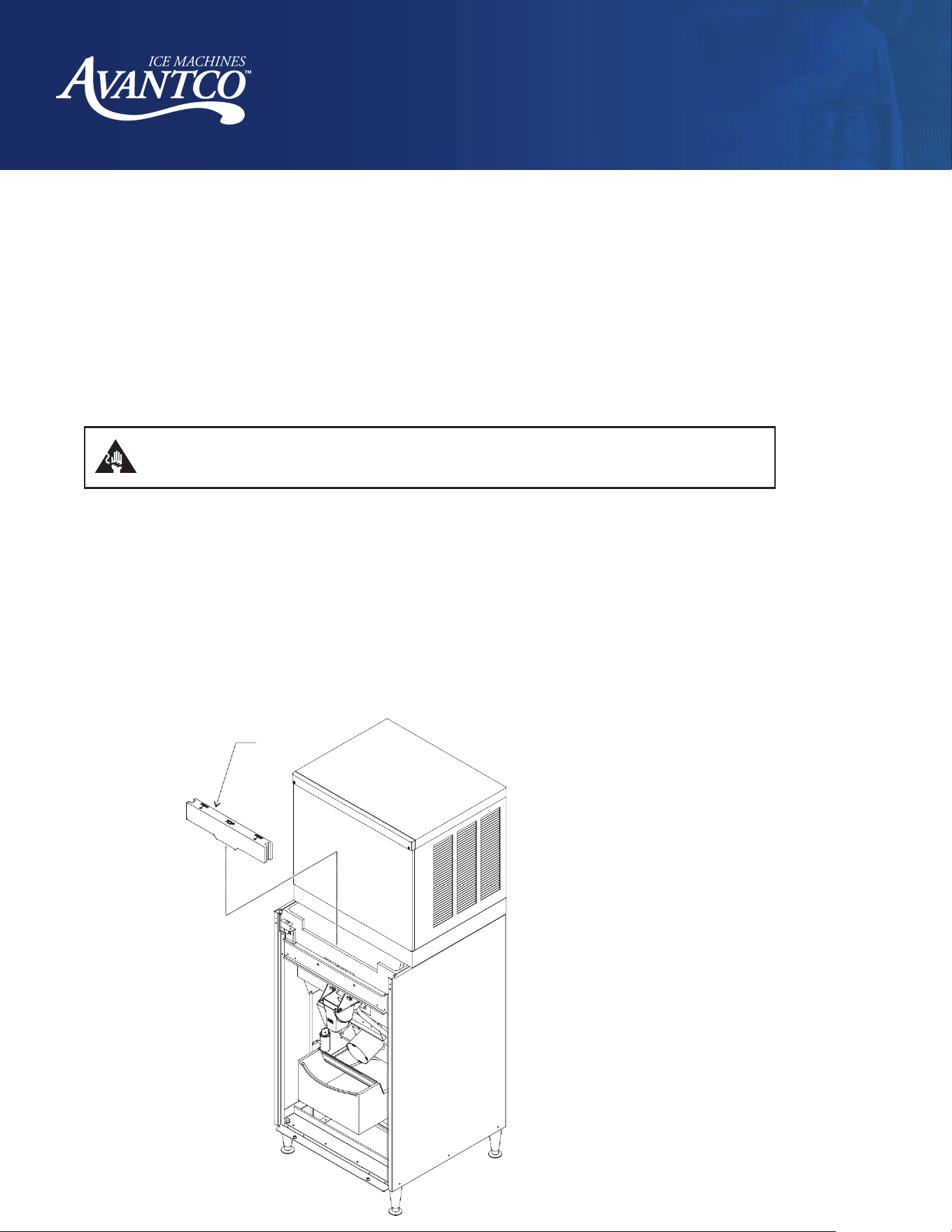

EZ Access
Door
34
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
General Care and Cleaning (cont.)
10. Rinse all areas washed with clean, fresh water.
11. Using the ice machine cleaning solution, clean the ice grill, sink, sweep arm, and dispense wheel. Rinse these
parts with clean, fresh water.
12. To sanitize: Use a locally approved sanitizer. A possible sanitizer: Mix a solution of ice machine sanitizer and
water; 1 ounce of household bleach to 2 gallons of warm (95°F - 115°F) water. Wash all interior surfaces, the
sweep arm, and the dispense wheel with the sanitizer solution. Use a clean cloth.
13. Allow the parts to air dry.
14. Reassemble wheel and sweep arm onto drive shaft. Be sure to reinsert hairpin.
15. Replace all panels.
16. Reconnect power. Be sure ice machine is switched back on.
Be sure to clean and sanitize your ice machine following the instructions that came with your ice machine.
The cleaning instructions in this manual are only for the ice dispenser.

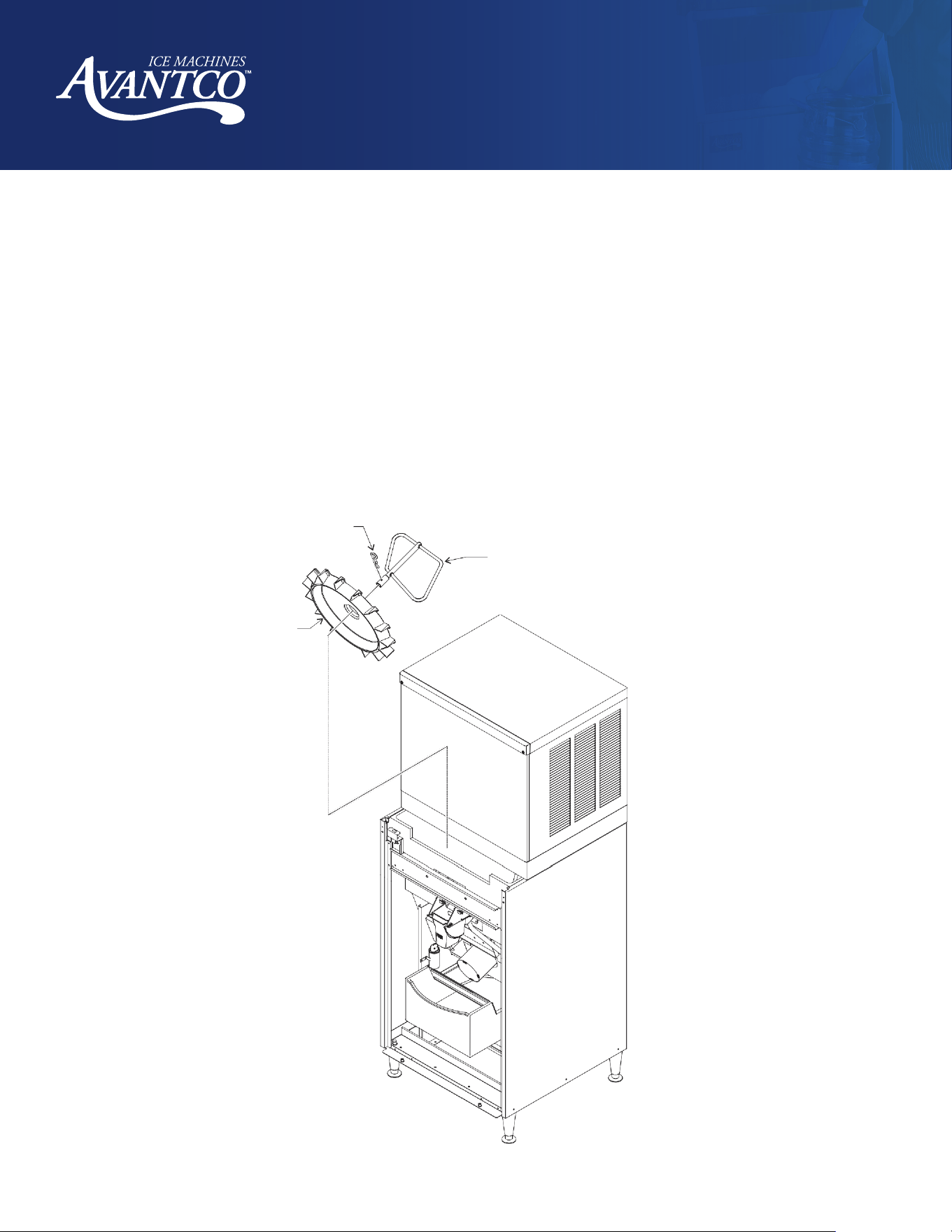

Sweep Arm
Hair Pin
Dispense Wheel
35
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
Maintenance

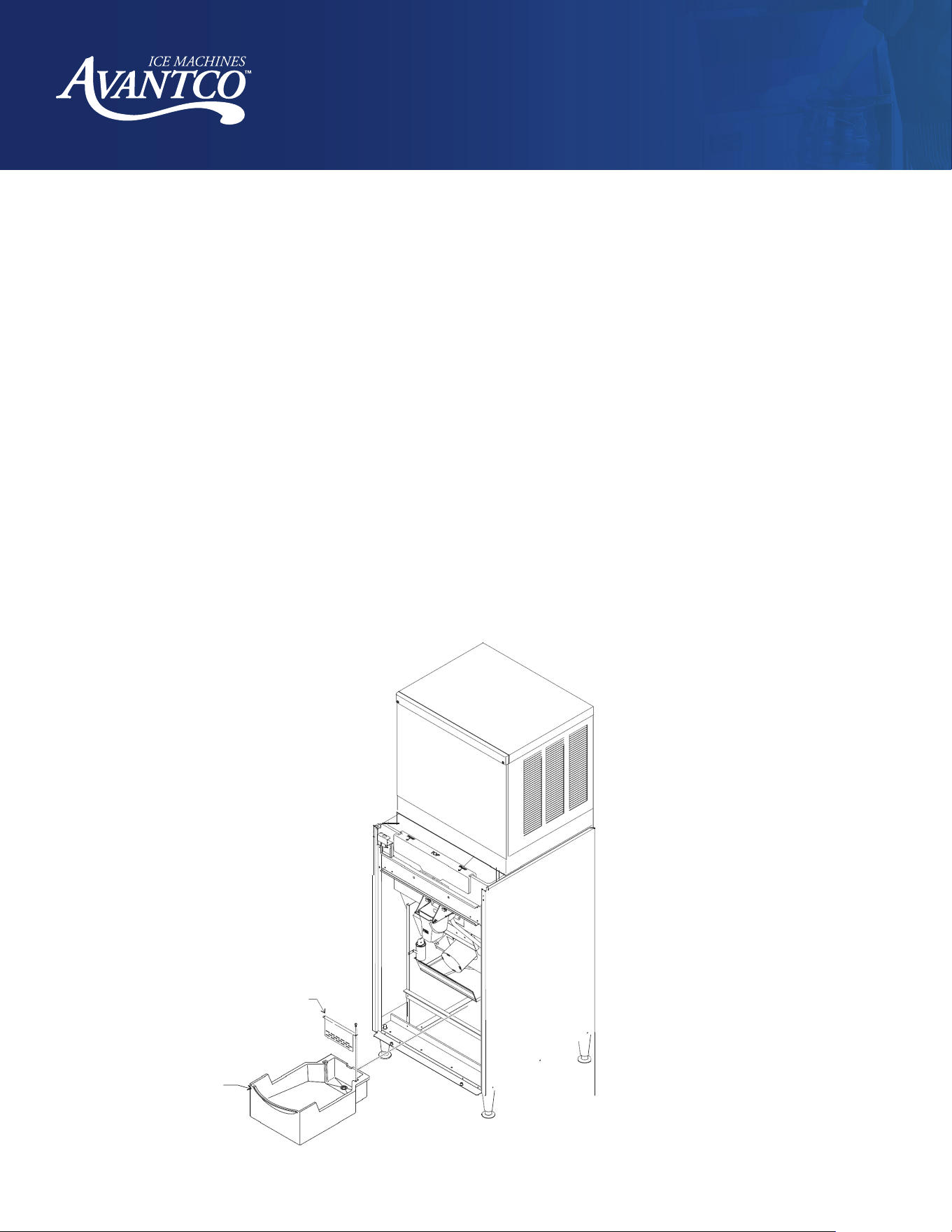

Spilled ice and user debris will collect in the ice catch pan, located just below the sink grill.
Occasionally, the debris will need to be removed and drained out to prevent water backups.
Note: Failure to clean out the ice catch pan will likely result in a leak one that is NOT covered by warranty.
To clean out the ice catch pan:
1.
Remove the front panel.
2.
Disconnect electrical power.
3.
Remove the two screws holding the top panel to the dispenser. Lift the top panel up and o the dispenser.
4.
Pull the top edge of the front panel forward until the two snaps disengage.
•
If the unit is a coin-operated model, reach behind the front panel and disconnect the coin mechanism harness
from the front panel.
•
If the unit is a water station model, reach behind the front panel and shut o the water supply valve to the water
faucet. Then, disconnect the water line from the shut o valve.
5.
Lift the front panel up and o the base.
6.
Pull the ice catch pan forward a few inches until the drain hose can be reached.
7.
Pull the drain hose from the ice catch pan.
8.
Slide the ice catch pan out of the ice dispenser and clear it of any debris. Wash out the drain.
9.
Return the ice catch pan to its normal position.
10.
Re-attach the drain hose.
Screen
Ice Catch Pan
36
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser

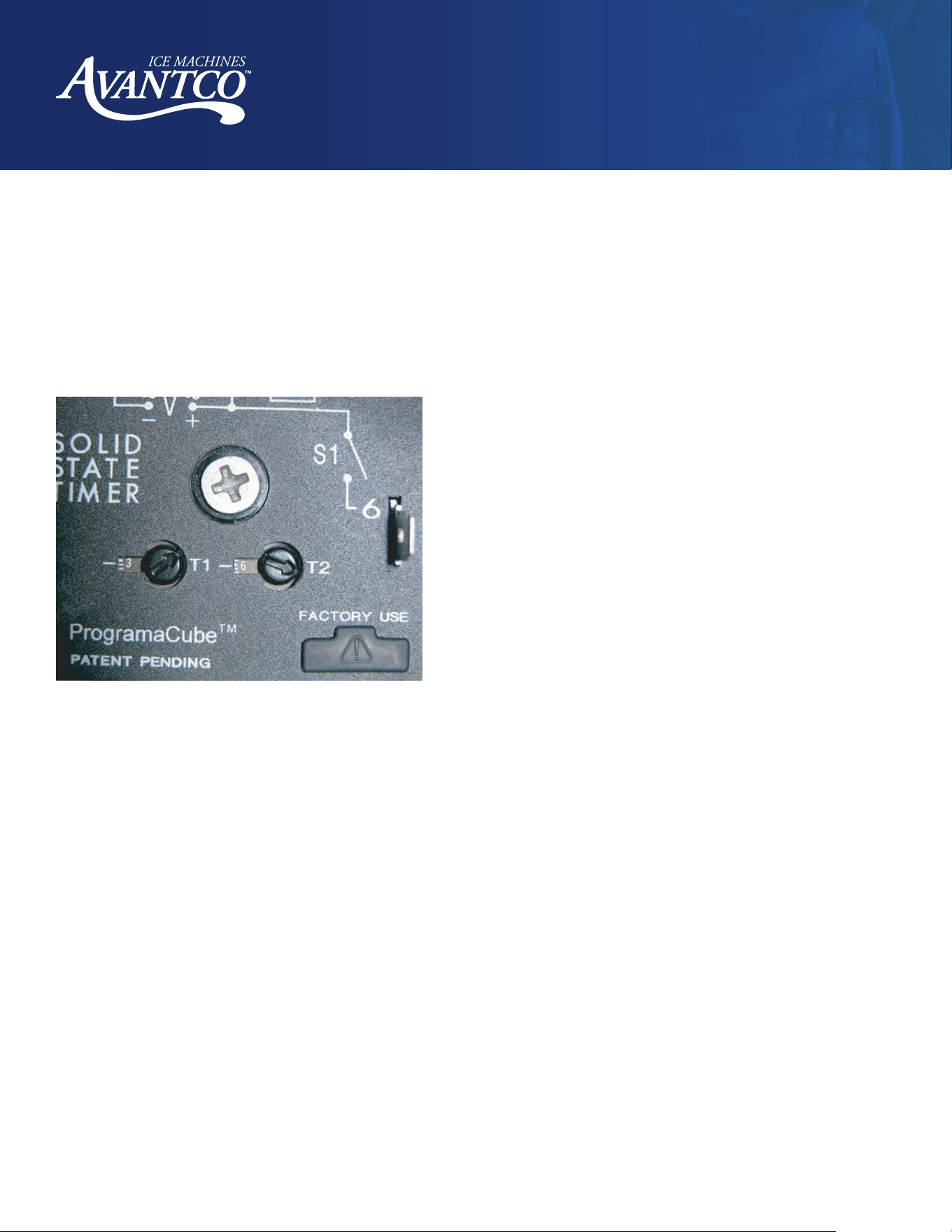

Adjustments
The dispenser is preset at the factory. Adjustments are rarely needed.
Agitation Time Recommendations:
The standard time is 3 seconds on every 6 hours. Adjust to agitate more frequently if the unit is installed in a low
temperature environment.
However, if the ice being produced by the ice machine is cloudy and crumbles easily, adjust to agitate less
frequently.
Agitation Timer, shown pre-set to 3 seconds every 6 hours.
37
www.AvantcoIce.com
User Manual
Hotel Ice Dispenser
Troubleshooting
Symptom
Probable Cause
Possible Fix
No ice is dispensed.
No power to dispenser.
Check for proper power. Is dispenser plugged
in?
No ice. Check ice machine.
Vend switch does not close.
Check vend switch.
Check chute for proper motion.
Chute cannot be pushed back. Check door lock for proper operation.
Interlock switch open.
Check interlock switch, ensure top panel is in
place.
Drive motor windings open. Check drive motor.
Drive gears failed. Check gear reducer.
Coin switch doesn't close. Check coin switch.
Vend timer does not work.
Connect power to post 6 of coin mech timer.
The timer should activate and the ready light
should be on. Pushing the chute should start
the gear motor. If not, replace the vend timer.
Only dispenses small amount of ice. Sweep arm damaged. Check/replace sweep arm.
No water is dispensed. Water shut o.
Check water supply to unit, check shut o valve
inside cabinet.
Water leak.
Drain is plugged. Check drain for restriction.
Ice catch pan has overfilled. Remove excess ice.
Ice catch pan screen is plugged. Clean screen.
Seal between ice machine and dispenser
is leaking.
Remove ice machine and replace gasket tape.
Water drip from spout.
Spout drain restriction.
Note: Some dripping is normal
Check spout drain for restriction.
"Ready" light is on all the time. Restrictor is open. Replace resistors (15K, 2 watt in parallel).
