www.AvantcoIce.com
You should read this manual in its entirety prior to equipment setup, operation, and maintenance.
Note:
User Manual
07/2023
Undercounter
Ice Machine
Models:
#194UCF120A
#194UCF160A
#194UCH160A
#194UCF210A
#194UCH210A
#194UCF280A
#194UCH280A
2
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Contents
Warnings ........................................................................................................................................................ 3
Installation ..................................................................................................................................................... 4
Start Up and Operation .............................................................................................................................. 8
Operating Instructions ................................................................................................................................ 9

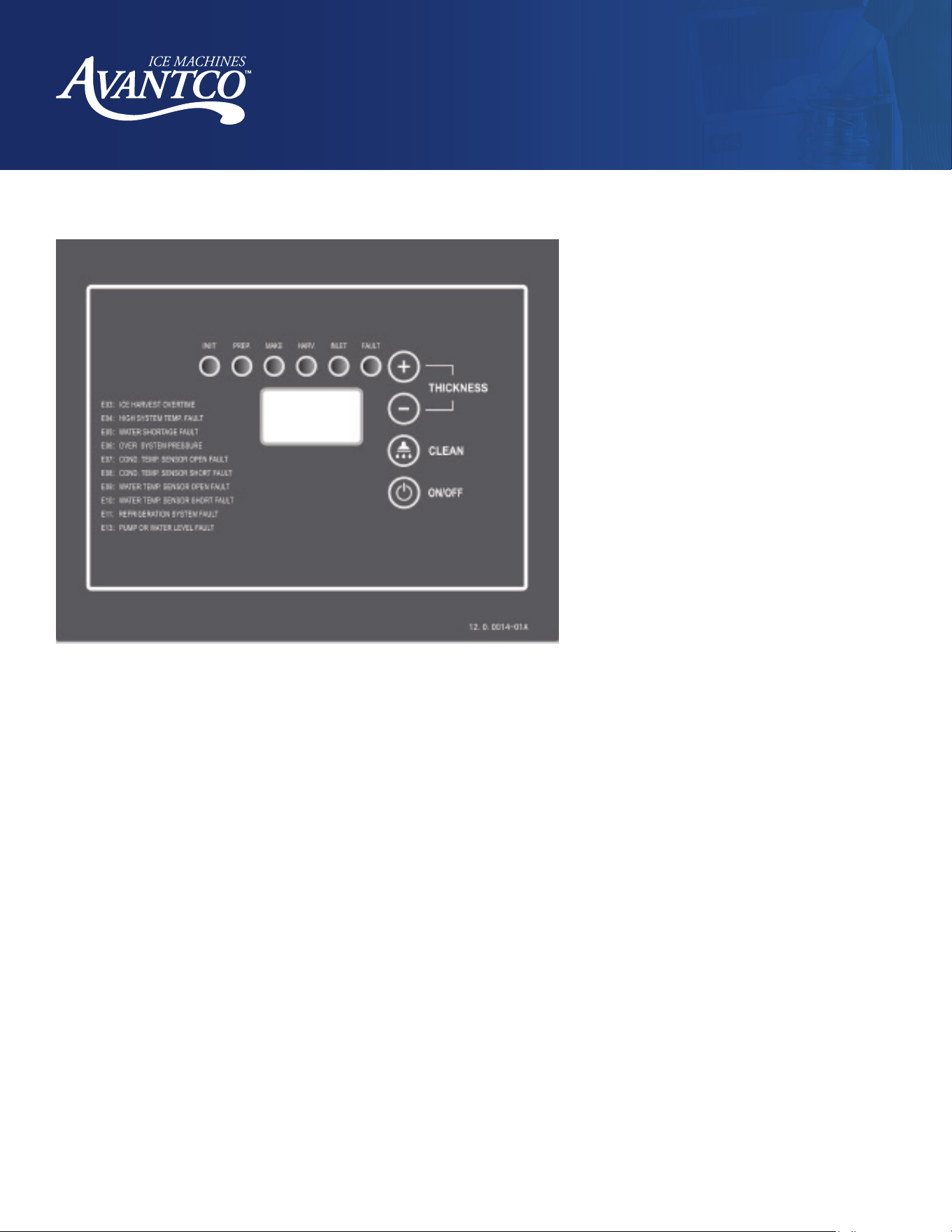

Control Panel ...............................................................................................................................................10
Other Special Protection ............................................................................................................................11
Cleaner/Sanitizer .........................................................................................................................................13
Maintenance ................................................................................................................................................. 15

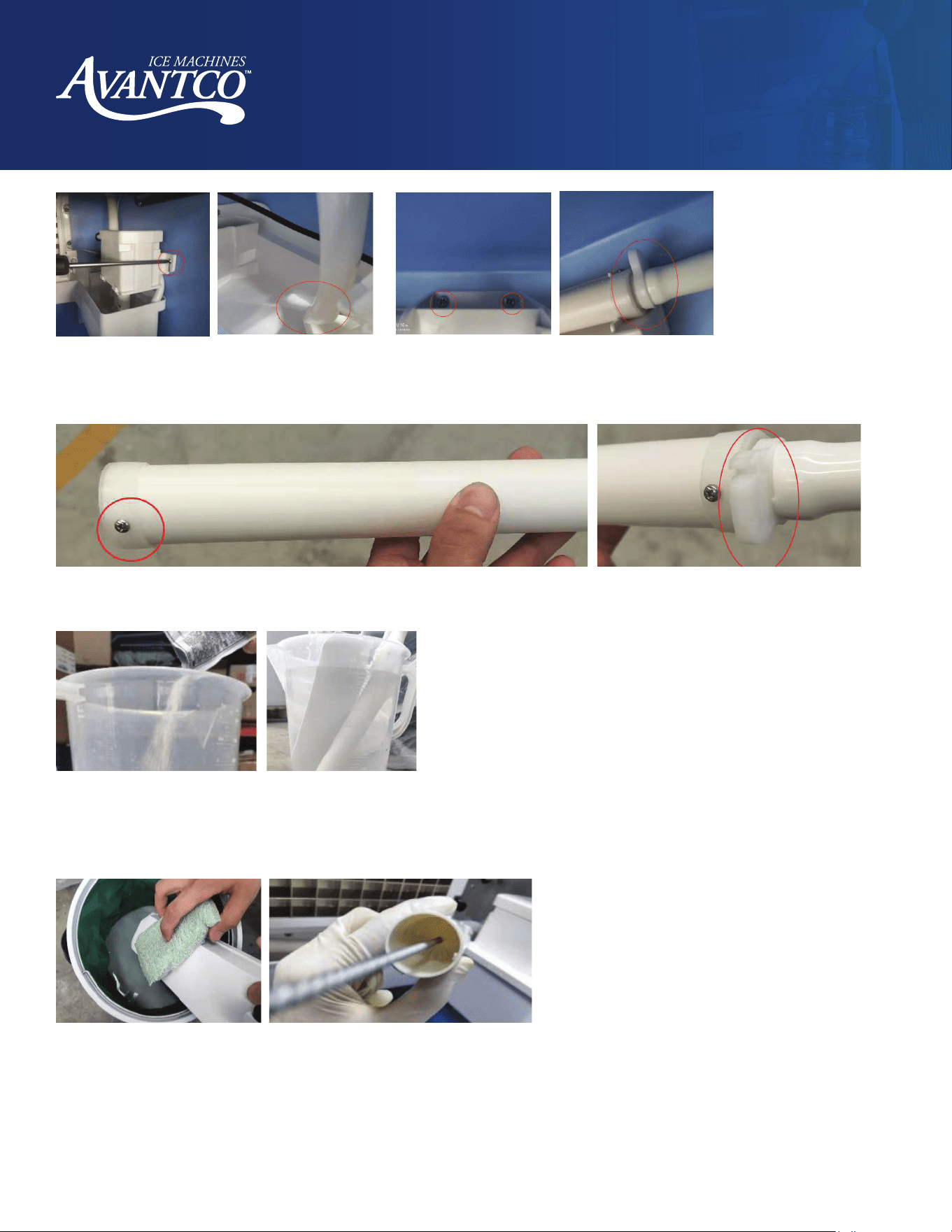

Clean Process ..............................................................................................................................................16
Service Call ..................................................................................................................................................20
Troubleshooting ..........................................................................................................................................21
3
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Warnings
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY
BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO – RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO.
CONSULTE EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR
SERVICIO A ESTE PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER
LE MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES
LE MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE
EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.
4
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Installation
This product cannot be used in outdoor envrionments. Not intended for use by children, persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge.
•
The installation, repair or maintenance of this ice machine must be carried out by professional and qualified
personnel. Electric shock, fire, personal injury may result from incorrect operation.
•
After the ice machine is delivered, please keep the machine upright for at least 24 hours to have the
refrigerant be fully precipitated before startup. Otherwise the compressor may be damaged.
•
When handling, keep the cabinet upright with the inclination not exceeding 45 degrees. Do not invert the
machine or lay it horizontally. This ice machine should not be placed in wet or easily splashed areas.
•
The grounding of this ice machine cannot be connected to a gas pipe, water pipe, telephone line or lightning
rods, etc.
•
There are rotating components in this ice machine. Do not insert slim objects into ventilation or exhaust ports,
or serious mechanical damage and injury may occur.
•
Do not store volatile or flammable substances in this ice machine or it may result in an explosion or fire.
•
Do not store any sundries or freeze any food in the storage bin. Keep the ice scoop clean.
•
The ice machine must be placed on a floor sucient enough to support its weight. An insucient base may
cause the equipment to fall over and cause injury.
•
There should be sucient ventilation space around the ice machine. See page 5 for clearance requirements.
•
Only the power supply specified on the machine nameplate can be used with this ice machine.
•
This ice machine cannot be connected to hot water.
•
Outlet for this ice maker must be reliably grounded with leakage protection.
•
The ice machine must be disconnected from power before manual cleaning, repairing and maintenance.
•
Before cleaning, repairing and maintenance, the remaining ice in the ice bin should be removed from the ice
machine to avoid contamination to ice.
•
Do not splash water directly onto the surface of the ice machine during the cleaning process; otherwise it may
cause short circuit, leakage or other faults.
•
Flammable foaming agent is used during the foaming process. The ice maker should be disposed of and
recycled by qualified personnel and institutions.
•
The ice machine should be properly managed to ensure that children will not play with the machine.
•
When the ice machine malfunctions, turn o the power and contact professional personnel to be repaired.
5
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
This ice machine is fully automatic. With proper installation and connection to potable water and power
source, the ice making will start properly. When the ice cubes fill up the storage bin, the machine will
automatically stop. The ice machine is generally used in the following and similar occasions:
•
Indoor, ambient controlled environments only.
•
The kitchen area of a store/restaurant, oce or other workplace, hotel and restaurant, catering and similar
non-retail occasions.
•
This ice machine is not intended for residential use
C Pure creates specialty water filters to be used with common restaurant equipment, ensuring that the water
utilized by the equipment is both clean and clear. These filters are easily installed into water lines, and their
cartridges can be quickly swapped out for fast, easy and ecient replacements. The water filters below
are approved for use with Avantco Ice Machines. Failure to use and maintain an appropriate water filter will
void warranty coverage on your Avantco Ice Machine. For installation instructions, refer to the C Pure water
filtration manual or contact a C Pure water filtration dealer.
Modular Ice Machine
Item Number
Ice Shape
Ice Production Per
24 Hrs.
Replacement Car-
tridge
Replacement
Cartridge
194UCF120A Full Dice 129 lbs. 790OCLOKITM 790OCLOCARTM
194UCF160A Full Dice 152 lbs. 790OCLOKITM 790OCLOCARTM
194UCH160A Half Dice 160 lbs. 790OCLOKITM 790OCLOCARTM
194UCF210A Full Dice 222 lbs. 790OCLOKITM 790OCLOCARTM
194UCH210A Half Dice 222 lbs. 790OCLOKITM 790OCLOCARTM
194UCF280A Full Dice 299 lbs. 790OCLOKITM 790OCLOCARTM
194UCH280A Half Dice 299 lbs. 790OCLOKITM 790OCLOCARTM
6
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Installation

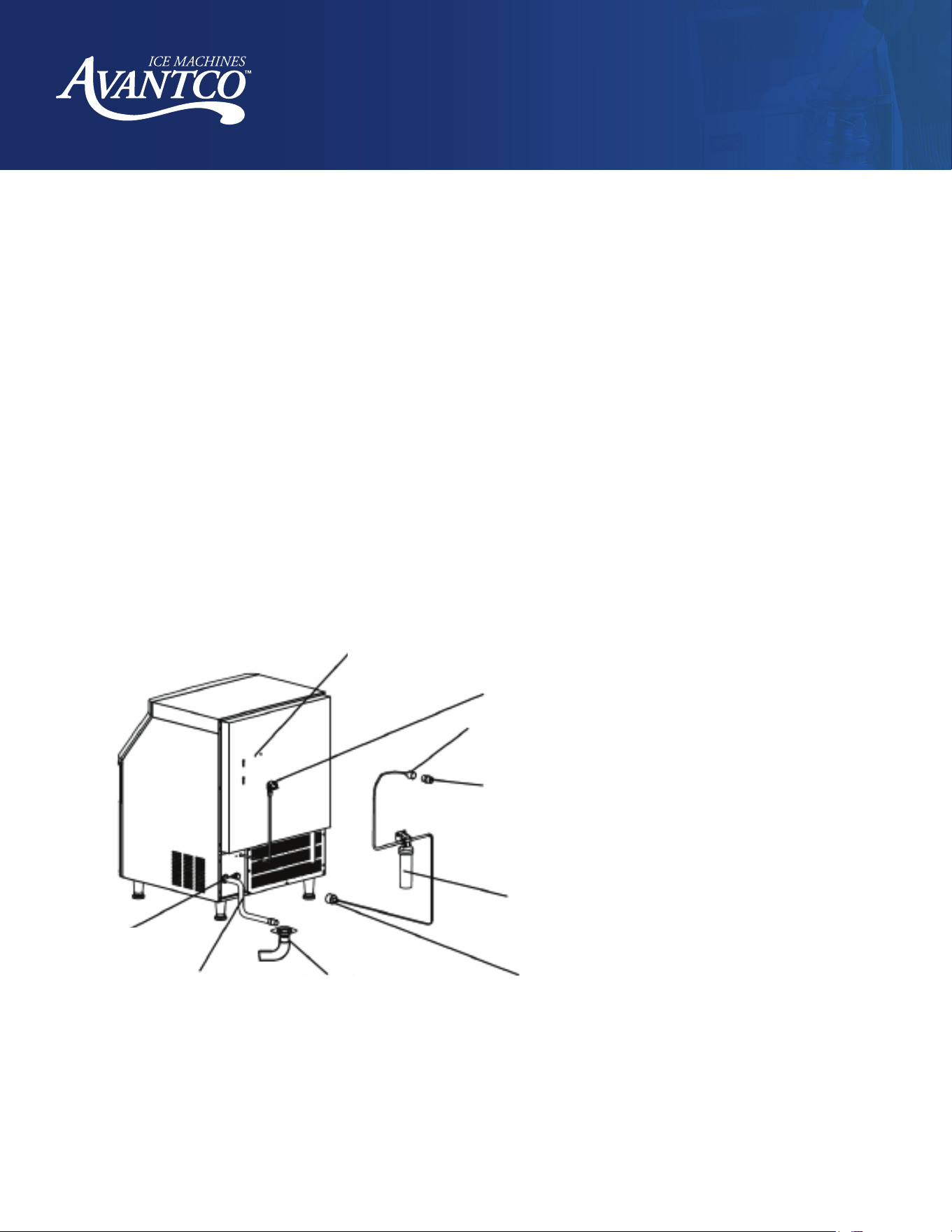

Schematic Diagram
The ice machine should be installed in a proper location meeting the following conditions:
•
Indoors, ambient temperature: 40-90°F;
•
Power supply: the rated voltage indicated on the machine nameplate ±6%;
•
Water source: potable water, with water pressure from 18.75 psi to 80 psi; water temperature: 40-90°F;
•
The ice machine should be kept away from heat sources, and should be to use an
•
extremely high or low temperature environment, and should avoid direct sunlight.
•
There should be sucient ventilation space around the ice machine; the distance from the ice
•
maker to the wall should be no less than 12” for the front, 6” for the sides, and 8” for the rear.
•
The ice machine must be placed on a floor sucient to support its weight;
•
The socket for the ice maker must be reliably grounded and leakage protection;
•
Proper floor drainage must be provided near the installation location of the ice machine.
Mounting Hole
for Water Filter
Power Cord
1/2" Joint Inner Thread
1/2" Joint External Thread
Water Filter
Floor DrainageDrain Pipe
3/4" Joint Inner Thread
Water Inlet Pipe
7
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Installation Steps
1.
Check to see if the ice machine is in good condition and the accessories are all present; check the machine
model and the machine nameplate.
2.
Clean the ice storage bin and the food area inside with a sponge soaked in warm water and soap. Then rinse
with potable water and dry.
3.
Place the ice machine in the operation area; ensure that the machine is placed on a leveled floor so the water
flows evenly into the evaporator.
4.
The compressor chamber is located below the front of the ice bin where the compressor and condenser are
installed. It requires good ventilation so the ice maker must have ventilation space of more than 8" in the rear,
6" on the sides, and 12" in the front.
5.
The bottom of the ice machine is equipped with adjustable legs for level adjustment and clearance for floor
cleaning.
6.
Connect the machine's inlet water filter and water line referring to the installation instructions of your water
filter brand; if the installation site is already equipped with a drinking water system, the water filter may not be
needed.
7.
Connect the machine to the water supply using the 3/4" inlet fitting supplied with the machine. It is
recommended to install a water ball valve (not supplied with this machine) on the water supply line.
8.
Connect the drain line to the drain connector. To achieve a proper draining, it is recommended that the drain
pipe should have a dierence in level of more than 1" per 3'; and confirm that the drain line is not blocked. It is
recommended that the drain line be connected to an open drainage port.
9.
Any joint in the drain line must not be higher than the machine drainage port; any joint in the drain line cannot
be higher than the previous joint.
10.
Confirm the power requirements stated in the machine's nameplate; ensure that the power supply meets the
requirements.
11.
Confirm the power requirements stated in the machine’s nameplate; ensure that the power supply meets the
requirements.
12.
A circuit breaker or switch with leakage protector and reliable grounding is required.
13.
Turn o the switch on the power line and connect the machine to the power source.
NOTE: The filter flow direction should be correctly installed as per the direction marker on the filter head cover
or the filter body. The filter cartridge should be replaced every 3 to 6 months.
8
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Start-up and Operation
1.
Before you start up the machine, please check and confirm:
• That the packaging tape inside the ice machine has been removed.
• The accessories or items in the ice bin have been taken out.
• The ice machine has been adjusted to a leveled state.
• The water line has been connected and the water valve is open.
• The plug has been connected to the power supply and the power switch is o.
• The ambient temperature, water temperature, and pressure of the water supply meet the
above requirements.
2. Start up: turn on the power switch. After power-on, the machine begins to make ice automatically.
3. For normal operation, please confirm:
• There is water in the water trough and no overflow occurs.
• The pump is working properly and water is flowing evenly in the evaporator.
• The compressor is running normally, the temperature of the evaporator and the ice making water is
gradually decreasing.
• For air cooled machines, make sure the fan is running normally, and there is stable air flow in the inlet and
outlet of the ice machine.
• The ice machine has no abnormal noise.
• The ice machine has no abnormal vibration.
• It takes about 10 to 20 minutes to make one batch of ice, depending on the ambient temperature and the
temperature of the water. The higher the temperature is, the longer the ice making will take.
• Ice cubes can be properly harvested from the machine.
9
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Operation Instructions
•
Startup: after proper installation, connect the water source and turn on the power supply to turn on the
machine. Please confirm that the machine is operating normally when you turn it on for the first time.
•
Self-check: with power on for the first time, the ice maker will do a self-check and pump out any remaining
water.
•
Preparing: after the ice machine has finished the self-check, the inlet valve opens and the inlet water will flow
in until it reaches the set level; then the ice maker will defrost one time.
•
Ice making: after pre-cooling for 30 seconds, the water pump starts, the water flows through the evaporator
smoothly and evenly, the ice cubes are gradually formed in the ice cube tray.
•
Ice harvest (Drop): after the ice making process finishes and the water pump is turned o, the defrosting
valve is turned on. After the hot gas enters into the evaporator for about 1-2 minutes the ice cubes slide from
the evaporator into the storage bin.
Warning: Do not put your hand into the ice storage bin during the ice-falling process to prevent the ice
from hitting your hand!
•
Shutdown: The ice maker will stop working when you push the “on/o” button on the control panel during the
running process.
•
Bin full stop: Once the ice storage bin is filled to a certain height, the ice making process will stop after 40
seconds. There is a sensor at the top of the bin which will trigger this stop in production. In order to maximize
the bin space make sure to spread around the ice that piles up in front of the sensor.
•
Repeat ice-making: When the ice cubes triggering this sensor are moved or taken away, the ice maker will go
back to the ice making process within seconds.
10
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines

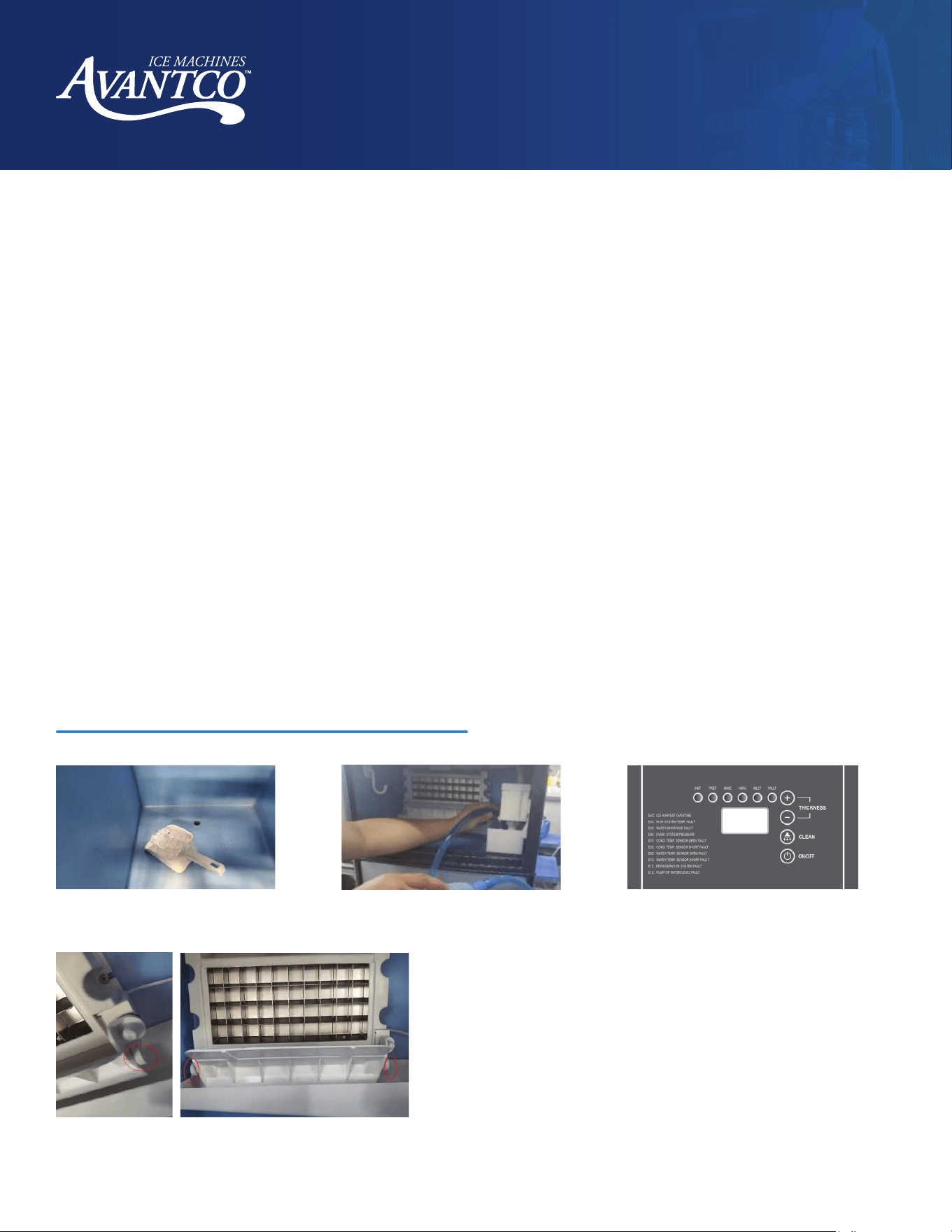

Control Panel
1. LED Display:
• Self-check: Display "ini" code.
• Preparing: Counts (in seconds) forwards.
• Ice making: Counts (in seconds) forwards prior to the water reaching 32 degrees F. Counts seconds
backwards to O seconds afterwards.
• Ice Harvest: Counts (in seconds) forwards.
• Clean: Display "CLE" during cleaning and descaling; Display "STL" during sanitizing; Display "RIN"
during rinsing.
2. LED Lamps: Turns lights on/o
3. Ice cube thickness adjustment: During the ice making process, if you are not satisfied with the ice thickness,
press the Ice cube "-" button for 3 seconds, then click the button "+" or "-" on the panel to adjust the thickness
of ice cube.
Note: By clicking the "+" or "-" button one time, the ice making time is extended or shortened by
1.5 minutes.
4. Cleaning: During the normal operation, hold the cleaning button for 3 seconds to enter the cleaning process.
During the entire cleaning process, cleaning agents and disinfectants need to be put into the water trough.
When the cleaning process is finished, the ice maker will go to the ice making process.
Note: All cleaning and sanitizing chemicals used must be nickel safe
5. ON/OFF: Press this button to switch the machine OFF/ON.
6. Please open and close the storage bin door gently. Do not slam the door. Keep door closed when not
removing ice.
7. If the ice maker is not in use for a long time, it should be energized and run for 2 to 4 hours every 2 months.
11
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Other Special Protection - Shutdown
•
If the ice machine has not detected ice harvest in three cycles, it will shut down for safety and protection.
The ice maker needs to be checked.
•
If the ice machine detects that the ambient temperature is too high it will stop for safety and protection.
•
The fault code and its comments are displayed as follows:
Code
Cause
How to Fix Machine Action
E01
Ice Skating Board or
Ice Full Switch Fault
1. Check to see if there is ice stuck between the water curtain and
evaporator, if so remove.
2. The water curtain may be deformed, check to see if the magnet on
the water curtain (lower right when installed) lines up with the ice full
switch. If not please replace the water curtain.w
3. The water curtain is not installed, if so please install.
4. If there is still an E01 code, replace the ice full switch.
Protective shutdown
E02 Ice Making Overtime
1. The ice is becoming too thick on the evaporator due to a faulty water
level sensor, if so please replace the water level/temperature sensor.
2. Verify compressor operation.
3. Verify hot gas valve operation.
4. Verify water inlet valve is not leaking by and constantly filling reservior
with water.
Protective shutdown
E03 Ice Harvest Overtime
If the unit can make ice after restarting the machine:
1. There is scale buildup in the evaporator, if so please clean the
evaporator.
2. Ice being made is too thin or too thick, if so please adjust the ice
thickness setting.
3. When a new batch of ice drop's from the evaporator, does the timer on
the display panel reset to counting from 0. If not and the timer keeps
counting up this means that the ice full sensor is not sensing the batch
of ice falling. Please replace the ice full sensor.
4. Verify LED lights on control board cycle ON/OFF when water curtain
(skateboard) is opened and closed by hand. If LEDs do not cycle ON/
OFF , verify proximatiy switch function.
If the unit can not make ice after restarting the machine:
1. If there is water in the water tank and the water flowing over the
evaporator is not freezing, there may be a refrigerant leakage. Find the
leak point, weld it, and re-inject gas.
2. If there is no water in the tank you should check the water inlet valve
function. Use a multimeter to check if the PCB supplies power to the
water inlet valve. If it does, there is a problem witht he inlet valve. If it
does not there is a problem with the PCB.
3. Use a multimeter to check if the PCB supplies power to the drain valve.
If it does there is an issue with the drain valve.
Protective shutdown
12
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Code
Cause
How to Fix Machine Action
E04
High System Temp.
Fault
1. The cooling fan is not functioning. Check to see if the fan blade is
stuck, if not please replace the fan.
2. Air filter net or condenser is dirty. Please clean air filter net or condenser.
Protective shutdown
E05 Water Shortage Fault
1. No or low pressure water supply. You may need to replace your
water filter cartridge. otherwise there is an issue with your incoming
water line.
2. If the water pressure is normal but there is water overflowing the water
tank, the water level sensor may be faulty. Please replace the water
level sensor.
3. Water inlet valve may be faulty.
For new machines, when you restart the machine please check if the water
inlet light flashes. If no it does not and there is no water in the water tank,
please replace the water level sensor. If it flashes but is no/little water in the
water tank, please check ther water source, there may be no water supply
or the water filter is blocked.
Protective shutdown
E06 Over System Pressure
1. Cooling fan does not work causing bad heat dissipation.
2. If the cooling fan is working normally there may be a problem with the
high pressure switch. Use a multimeter to measure the on/o status of
the high pressure switch.
Protective shutdown
E07
Cond.Temp.Sensor
Open Fault
Verify probe wires have a good connection in the controller by
disconnecting probe leads from controller and reconnectiong leads to
controller
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32F Ice water. Value should be with 10% of 2.704 kohms.
Does not shutdown,
Error LED light on every
5 seconds
E08
Cond.Temp.Sensor
Short Fault
Verify probe wires have a good connection in the controller by
disconnecting probe leads from controller and reconnectiong leads to
controller.
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32F Ice water. Value should be with 10% of 2.704 kohms. "
Does not shutdown,
Error LED light on every
5 seconds
E09
Water Temp. Sensor
Open Fault
Verify probe wires have a good connection in the controller by
disconnecting probe leads from controller and reconnectiong leads to
controller
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32F Ice water. Value should be with 10% of 2.678 kohms.
Note: Green and Yellow wires are the temperature probe leads on the harness.
Protective shutdown
13
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Code
Cause
How to Fix Machine Action
E10
Water Temp. Sensor
Short Fault
Verify probe wires have a good connection in the controller by
disconnecting probe leads from controller and reconnectiong leads to
controller.
Use a multimeter set to Ohm setting and verify resistance valve of the probe
in 32F Ice water. Value should be with 10% of 2.678 kohms.
Note: Green and Yellow wires are the temperature probe leads on the harness.
Protective shutdown
E11
Refrigeration System
Fault
1. There is no water flowing over the evaporator, the water pump may be
faulty. Please replace the water pump.
2. If there is water flowing over the evaporator yet not freezing there may
be an issue with the compressor or a refrigerant leak. Please replace
the compressor.
Protective shutdown
E12
Water Level Control
Fault
Water pump may be faulty, to check restart the machine and there will be a
140 second countdown. After 60 seconds the water pump should start, if it
doesn’t please replace the water pump.
Protective shutdown
E13
Pump or Water Level
Fault
Whichever step in the following process fail's is the cause of this error code.
Restart the machine.
1. The water tank should fill to a level specified by the water level sensor,
if the tank overflow's there is an issue with the water level senseor.
2. 60 seconds after the restart, the water pump should turn on. If it does
not please replace the water pump.
3. After the ice batch is harvested, the drain valve will open to drain the
water in the tank. Test the drain valve functionality.
Protective shutdown
14
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Item No.
Size
Type
147ARCTIC 16 oz. Concentrate
147ARCTICRPT 16 oz. Ready to use
147ARCTICR1G 1 Gallon Ready to use
Item No.
Size
Type
147QKSANICE 12 Pack/16 oz. Bottles Concentrate
999QKSANICE 16 oz. Concentrate
Noble Chemical oers a full line of products to clean and sanitize your commercial ice machine. These chemicals
are approved for use with Avantco Ice Machines. Failure to regularly clean and sanitize your Avantco Ice Machine
will void warranty coverage. For information and instructions, contact a Noble Chemical dealer. The ice machine
needs to be cleaned every other month, or once a month for high yeast environments.
Cleaners
Sanitizers
15
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Maintenance
NOTE: Maintenance must be done by a qualified technician.
WARNING: Before maintenance or manual cleaning, be sure to shut o the water source and power supply.
Exterior Cleaning
•
Frequently clean the environment around the ice machine to keep it clean. Do not block the vents.
•
The outer enclosure should be cleaned with a mild detergent and then wiped clean. If necessary, use
commercial stainless steel cleaners and polishes.
NOTE: Stainless steel may rust without proper maintenance.
Inlet Water Filter
•
The water filter should be inspected regularly. It is recommended to replace the filter cartridge every 3 to 6
months.
Interior Cleaning
•
The inside of the ice storage bin can be washed with water and cleaner solution. Rinse thoroughly with water.
Repeat this process with a water and sanitizer solution.
•
Note: Check and confirm the water pressure is lower than the maximum allowed pressure.
Do not flush the part above the water pump or the evaporator directly for water protection.
Condenser
•
For the air-cooled ice maker, the condenser should be cleaned every three weeks. Use a soft brush or a
vacuum cleaner with a brush to brush it up and down along the fin direction, to avoid damage to the fins and
further aecting the cooling eect.
•
The condenser filter should be cleaned every 2 weeks.
NOTE: Be careful when cleaning the condenser as the edges of the fins are sharp.
Water Line
•
In order to ensure food safety, the water line of the ice machine should be cleaned regularly.
Winterizing
•
Turn o the water and power supply, drain the residual water from the water trough inlet pipe and drain pipe
NOTE: The maintenance of the ice machine is not covered by the manufacturer’s warranty!
16
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines

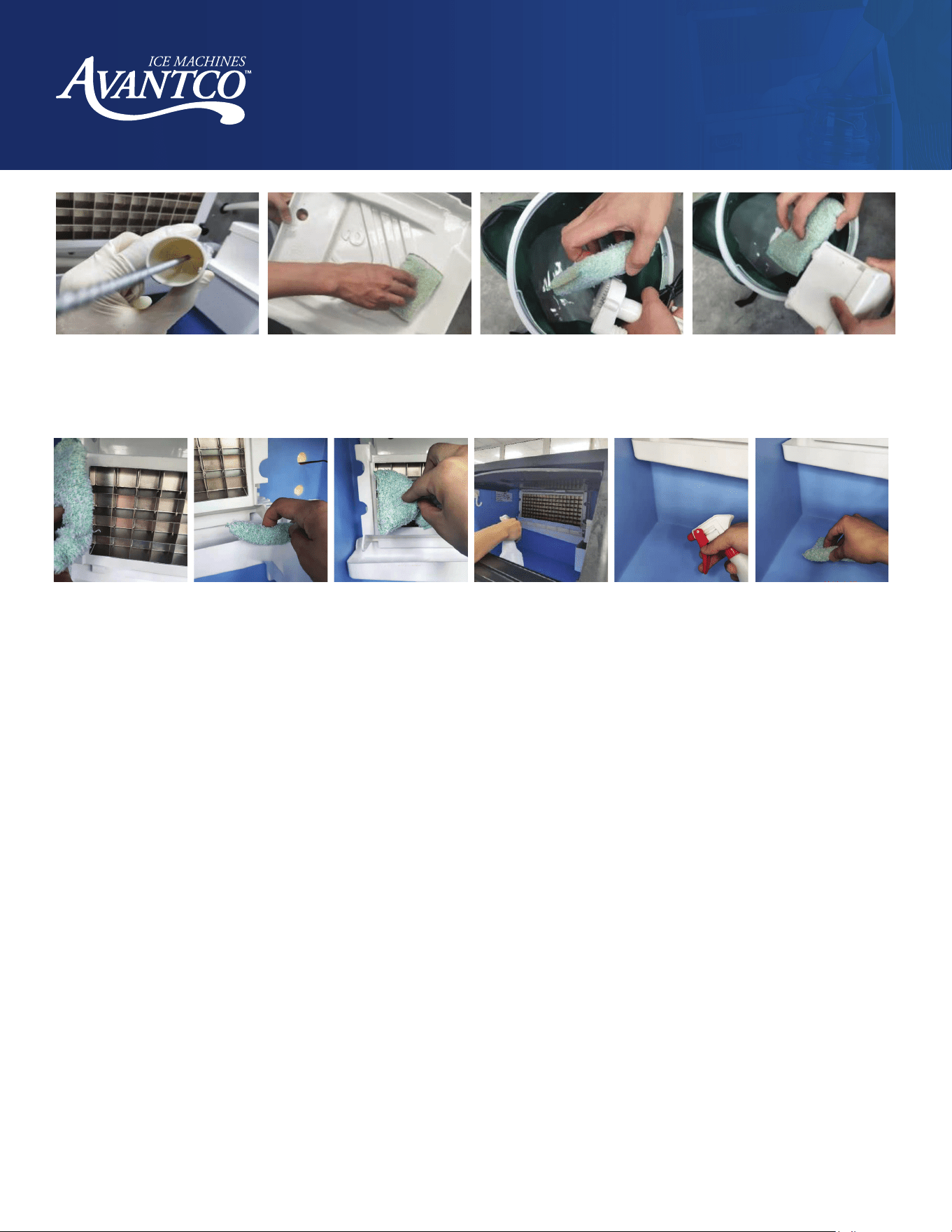

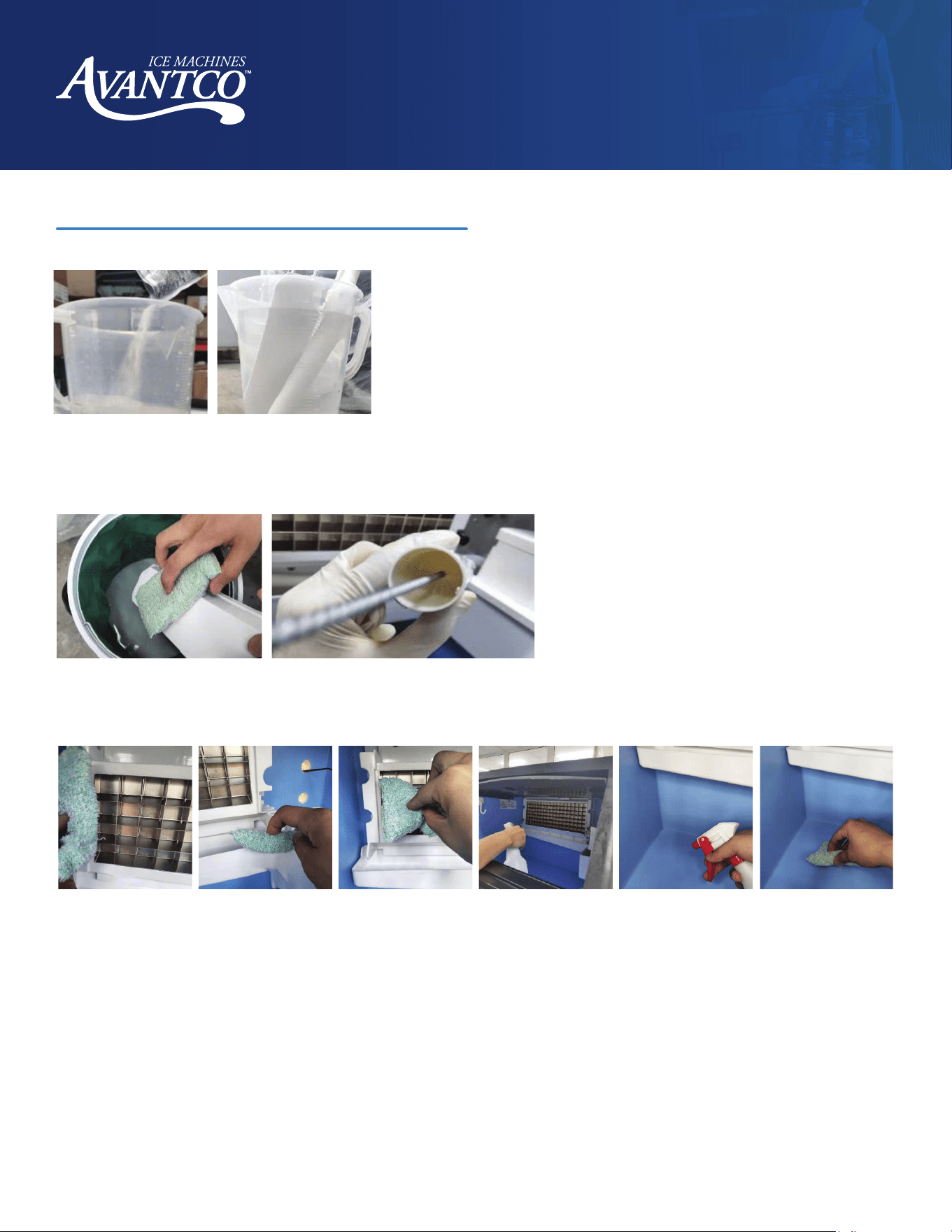

Monthly Clean Function
4-6 Month Manual Cleaning & Sanitizing
NOTE: Please empty the bin of ice in advance.
NOTE: Please clean and sanitize the bin and do a complete rinsing.
NOTE: Please clean and sanitize the ice sliding board, water distribution line, water supply line, water pump,
then do a complete rinsing.
•
Turn on the ice maker; push "clean" button for 3 seconds, the ice maker will begin the cleaning process. Put
in the proper amount of cleaning solution manually into the water trough until it reaches the normal operating
water level.
•
Push the "clean" button. The ice maker will do auto clean for about 15 minutes. Please spray the evaporator
with the cleaning solution in the meantime to ensure a complete clean. When finished, the LED display will
flash "Clean" slowly again.
•
Put in the proper amount of sanitizing solution manually into the water trough followed by the clean and
sanitizing process instruction. Push the "clean" button again, the ice maker will do auto sanitizing for about
15 minutes. Please spray the evaporator with the sanitizing solution in the meantime to ensure complete
sanitization. When finished, the ice maker will go into the rinsing process, this process will take about 5
minutes, and do 5 rinsing cycles. Refer to your cleaner and sanitizer for proper mixing & coding instructions.
•
The ice maker will go back to making ice as soon as the cleaning process ends.
•
Please throw away the next batch of ice in case of residual cleaner.
Cleaning Instructions
1.
Remove all ice from the ice bin
to avoid contamination.
2.
Empty the water from the tank.
3.
Remove the water curtain.
3. Remove the water curtain.
See our step by step video on how to clean your Avantco Ice Machine.
17
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
4. Remove the pump and pull out the
upper pipe of the pump circulation.
5. Remove screws which are securing the
spray pipe. Remove the spray pipe and
the upper pipe.
6. Disassemble fixed screws which are in the spray pipe. Dismantle the spray pipe.
7. Mix a solution of cleaner and water according to your ice machine cleaner instructions. Ensure the cleaning
agent dissolves completely. Soak the water pipe, inlet and outer spray pipe, head, spray pipe fixing seat and
screws, etc. in the cleaning solution for 5 minutes (or 15 minutes for heavily scaled components). Rinse all
components thoroughly with clean water.
8. Mix a solution of cleaner and water according to your ice machine cleaner instructions. Ensure the cleaning
agent dissolves completely. Soak the water pipe, inlet and outer spray pipe, head, spray pipe fixing seat and
screws, etc. in the cleaning solution for 5 minutes (or 15 minutes for heavily scaled components). Rinse all
components thoroughly with clean water.
18
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
12. After soaking, scrub the spray pipe, water curtain and pump base bracket with cleaning solution, and rinse with
clean water.
9. Spray the cleaning solution into the evaporator and wipe clean. Repeatedly wipe the water tank, ice plate
and its plastic parts, side plates, ice buckets and other sanitary areas with cleaning solution. Rinse all areas
thoroughly with clean water.
19
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Sanitizing Instructions
1. Mix a solution of sanitizer and water according to your ice machine sanitizer instructions. Ensure the sanitizer
dissolves completely. Soak the water pipe, inner and outer spray pipe, head spray pipe fixing seat and screws,
etc. in the solution for 5 minutes. If using a no-rinse sanitizer, there is no need to rinse.
2. Spray the spray pipe, water curtain and pump base bracket with the sanitizer solution. If using a no-rinse
sanitizer, there is no need to rinse.
3. Spray the sanitizer solution into the ice evaporator with a spray bottle. Spray the water tank, ice plate and its
plastic parts, side plates, ice bin and other sanitary areas with sanitizer solution. If using a no-rinse sanitizer,
there is no need to rinse.
4. Allow the dismantled spray pipe, water pump, water pipe, and water curtain to dry. Then install them back to
their original position.
20
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Service Call
If the ice machine works abnormally, please confirm below before making a service call:
1.
Check the water supply
• Whether there is water in the water trough.
• Whether the water pressure is 18.75 psi to 80 psi; the water temperature is 40-90°F.
• Whether the water valve is open.
• Whether there is no water leakage.
2. Check the power
• Whether the indicator on the display panel is ON.
• Whether the panel display does not display the OFF standby state.
• If the LED on the display panel is not ON, check whether the plug and socket are normal, and whether the
power supply switch is ON.
3. Check nameplate and serial number
• Check the nameplate located on the side or back of the ice machine and record the model and series
number of the ice machine.
Note: If the machine fails due to the user’s faults, such as failure to use and maintain a water filter, no supply
of water, electricity or environmental factors, rather than the fault of the ice maker, the door-to-door service
will be charged.
21
www.AvantcoRefrigeration.com
User Manual
Undercounter Ice Machines
Troubleshooting
Code
Comments
Machine Action
Not working Power switch not turned on Turn on the power switch
Indicator is OFF Plug is loose Check plug and socket
Shutdown every 3 minutes after startup The ambient temperature is too high Normal working temperature range of 41-95°F
The display shows E04 high temperature
Condenser is dirty and blocked high
pressure switch wires fallen o
Clean the condenser
The display shows E06 high pressure
protection
Fan does not start Check and correct high pressure switch wires
Ice defrost abnormal
Ambient temperature too low Normal working temperature range of 41-95°F
Defrost valve does not start normally Check and correct the defrosting valve
Ice thickness too thin or too thick Check and correct ice thickness setting
Poor transparency of ice cubes; ice cubes
too thin or incomplete
Ice thickness is too thin Check and correct ice thickness setting
Water pressure is too low
Check that the water supply pressure is 1.3 bar
to 5.5 bar
Inlet water valve is dirty and blocked Normal working temperature range of 41-95°F
Inlet water filter has not been replaced for
a long time
Check and correct the inlet water valve
Inlet water valve is dirty and blocked Check whether water leaks and correct
Water leaking
Check and correct the inlet water filter and
water connection
Inlet water filter has not been replaced for
a long time
Too slow in ice making
The condenser or air filter is dirty Clean the condenser and filter screen
High ambient temperature Normal working temperature range of 41-95°F
Poor ventilation Check the environment around the ice machine
Water temperature is too high Check the water supply temperature of 41-95°F
Too much noise
The ice machine is not placed in a leveled
foundation or the ice maker is not leveled
Level the ice machine
