User Manual
Breathalyzer
INTRODUCTION TABLE OF CONTENTS
This device is intended to measure alcohol
in human breath. Measurements obtained
by this device are used in the diagnosis of
alcohol intoxication.
Introduction ........................................................... 1
Dose-specific Effects of Alcohol.......................... 4
Preparation ........................................................... 6
Components Diagram .......................................... 6
Operation .............................................................. 7
Specifications .......................................................10
Precautions .......................................................... 11
Verification and Calibration ..............................12
One-Year Limited Warranty ..............................13
Track your B.A.C. – BACtrack!

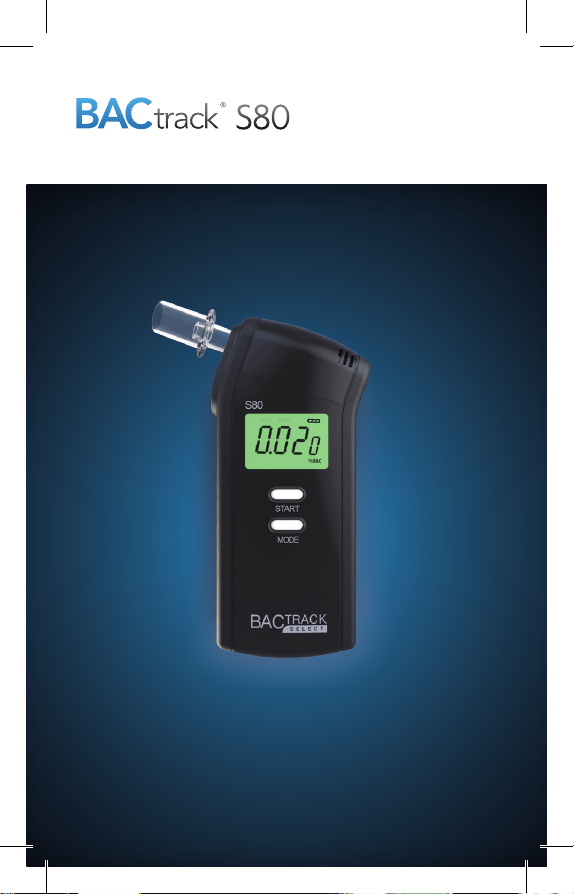

The BACtrack
®
Select S80 Breathalyzer is an
alcohol screening device, used for the detection of
alcohol in the breath. The BACtrack provides a digital
result, displaying an estimate of the subject’s BAC
(Blood Alcohol Content). Before you begin testing, it is
very important to read the entire owner’s manual.
It is also very important to have the instrument calibrated
periodically as recommended on page 13. Failure to do
so may result in readings that are inaccurate.
Alcohol and its effects on the human body
When a person consumes alcohol, the alcohol is
absorbed from the mouth, throat, stomach and intestines
into the bloodstream. The alcohol in the bloodstream
exchanges with air deep in the lungs. The percent of
alcohol in a person’s blood (BAC) is proportional to
the percent of alcohol in a person’s breath (BrAC). The
BACtrack measures a subject’s deep lung air alcohol
level and converts it to the estimated BAC.
“BAC” means Blood Alcohol Concentration. It is
measured in %.
How does alcohol affect my body?
Alcohol is a depressant. It has a relaxing effect on the
muscles in your body. The muscles of your eyes relax and
lose focus. Your eyesight will become fuzzy and you may
experience double vision. Brain activity is slowed. Your
judgment, reflexes, and coordination are all negatively
11
affected. Some vision impairments that occur when you
have been drinking include:
• Narrowing of your f eld of vision
• Reduction in your depth perception
• Decreased ability to see in darkness
• Increased sensitivity to glare and a longer time for
your eyes to readjust from the glare
Some mental (brain) impairment can occur when you
have been drinking, including:
• Reduced awareness of danger
• Becoming overly confdent and reckless
• Diffculty in making decisions
• Reduction in balance
• Slowed reflexes
• Impaired judgment
Variations among individuals and other factors, such
as altitude and air temperature, affect the degree of
intoxication. Some individuals may become intoxicated
at low BAC levels. A low BAC on a breath alcohol tester
does not mean that a person’s reaction times can respond
to any emergency encountered. Individuals should not
drink alcohol and drive or use any machinery after
consuming alcohol.
How does alcohol affect my driving?
We can’t emphasize enough how dangerous it is for you
to drink and drive. Your vision and your brain are the most
important factors in driving safely. If you jeopardize either
by drinking, and then you drive, you are likely to be
involved in a serious or fatal collision.
There is no safe way to drive under the
influence of alcohol. Even one drink can make
you unsafe.
From California Department of Motor Vehicles
(http://www.dmv.ca.gov)
2 3
DOSE-SPECIFIC EFFECTS OF
ALCOHOL
*
Dose-Specific Effects
Slight euphoria. Loss of shyness. Depressant
effects are not apparent. Impairment possible in
some individuals
.
BAC
0.02-0.03%
Feeling of well-being, relaxation, lower inhibitions
and sensation of warmth. Euphoria. Some minor
impairment of reasoning and memory. Lowering
of caution. Driving skills may be impaired at
this level of intoxication.
Slight impairment of balance, speech, vision,
reaction time, and hearing. Euphoria. Judgment
and self-control are reduced. Caution, reason and
memory are impaired. Driving skills are always
impaired at this level of intoxication and higher.
Significant impairment of motor coordination and
loss of good judgment. Speech may be slurred.
Balance, vision, reaction time and hearing will be
impaired. Euphoria.
Gross motor impairment and lack of physical
control. Blurred vision and major loss of balance.
Euphoria is reduced and dysphoria (anxiety,
restlessness) begins to appear.
0.04-0.06%
0.07-0.09%
0.10-0.12%
0.13-0.15%
Dysphoria predominates. Nausea may appear.
Need for assistance in walking. Total mental
confusion. Dysphoria with nausea and some
vomiting.
Loss of consciousness.
Onset of coma. Possible death due to respiratory
arrest**.
0.16-0.20%
0.25%
0.30%
0.40% +
Dose-Specific Effects
BAC
* The effects of alcohol intoxication are greatly influenced by individual
variations among users. Some users will be intoxicated at a much
lower BAC than shown on the previous page.
** Death can occur at a lower BAC in some individuals.
The generally accepted legal standard for alcohol intoxication in
the United States is 0.08%. However, your driving skills can be
impaired at any level above 0.00% BAC. It is never safe to drink
any amount of alcohol and drive.
4 5
OPERATION PREPARATION
IMPORTANT !
BAC
WAIT
BAC
IMPORTANT !
BAC
WAIT
BAC
IMPORTANT !
BAC
WAIT
BAC
IMPORTANT !
BAC
WAIT
BAC
COMPONENTS DIAGRAM
Installing the Battery
Install two AA batteries in the battery compartment.
Test subjects should wait 20 minutes after eating, drinking, or smoking
before blowing into the BACtrack Breathalyzer. Failure to wait 20
minutes can provide inaccurate test results and damage the sensor.
STEP 1 : Insert a mouthpiece
into the Mouthpiece In slot. Do
not force it - mouthpiece will only
insert a few millimeters.
STEP 2 : Press the start button.
The BACtrack will quickly
display the total number of tests
performed, and then begin a
countdown.
STEP 3 : When the countdown is
almost completed, begin to inhale
a deep breath.
6 7
FRONT VIEW
Start Button
Mouthpiece
Display
Mode Button
Battery Cover
(back)
Breath Out
Mouthpiece In
Error Notification
START
BAC
BAC
BAC
BAC
BAC
BAC
BAC
Error Notification
START
BAC
BAC
BAC
BAC
BAC
BAC
BAC
Error Notification
START
BAC
BAC
BAC
BAC
BAC
BAC
BAC
Error Notification
START
BAC
BAC
BAC
BAC
BAC
BAC
BAC
Error Notification
START
BAC
BAC
BAC
BAC
BAC
BAC
BAC
STEP 4: When the countdown reaches
zero, “START” will flash on the screen
and three lines will display. Blow
frmly through the mouthpiece for fve
seconds while the unit emits a long
beeping sound. Stop blowing as soon
as the beeping sound stops.
STEP 5: Once the sensor has
analyzed the breath sample, the
estimated BAC value is displayed.
If a user does not blow a suffcient
breath sample, the LCD will display
“FLo”. Press start to restart the
countdown cycle and retest. Please
ensure that you are blowing frmly
into the device for the entire fve
seconds.
If there is no breath sample blown
within 15 seconds, the LCD will
display “Out”. Press start to restart
the countdown cycle and retest.
If the unit is powered on outside of the
acceptable temperature range (0-40 °C
or 32-104 °F) the unit will display Out°F
and testing cannot be performed.
If the battery indicator display is
empty, install two new alkaline AA
batteries.
Advanced Menu Options
The BACtrack offers several user-adjustable features
through Menu Mode. To enter Menu Mode, turn on
the BACtrack and during the countdown hold MODE
for 5 seconds. To move between Menu Mode options,
press MODE.
8 9
BAC
mg/L
Units of Measure: By default, the
BACtrack will display test results in
%BAC, which is the standard in North
America and in many other regions. To
change to a different unit of measure,
press START. You can select Promille
(0/00) or mg/L as alternate units of
measure.
Audible Warnings: By default, the
BACtrack does not sound an audible
warning after a specifc %BAC result. To
set an audible warning after a specifc
%BAC test result, press START to cycle
through %BAC values.
SPECIFICATIONS
Dimensions 2.3 x 4.8 x 0.8 inches
(5.8 x 12.2 x 2.2 cm)
Weight 4.8 oz (136 g)
with mouthpiece and batteries
Sensor
Technology
Xtend™ electro-chemical fuel-cell
technology
Detection
Range
0.000 – 0.500 %BAC
Test Count Displays total number of tests
performed
Power Supply Two AA alkaline batteries, included
Battery Life Approximately 1500 tests
Warm Up Time 10-30 seconds, depending on last use
Response Time 3 seconds
Sensor
Accuracy
+/- 0.005 at 0.050 B.A.C
Operating
Temperature
32-104 °F (0-40 °C)
Blow Time: The default blow time is
5 seconds. This longer blowing time
generally provides a deep lung air
sample and a more accurate test result.
To adjust the blow time, press START.
Flow Detection Settings: Use this
option to adjust how hard a user is
required to blow. Press Start to change
the settings.
Standard level flow detection
This is the default setting for the unit.
This level requires a less forceful
breath by the user
Medium level flow detection
Press Start to change to the medium
level flow setting.
High level flow detection
Press Start to change to the high
level flow setting. This level requires
a more forceful breath by the user.
User activated test mode
Press Start again to change to the
USER activated test mode. When
testing in this mode the operator
must press Start during a breath
sample to activate the pump and
perform a test.
BAC
BAC
BAC
BAC
BAC
BAC
This device has been tested using NHTSA/DOT procedures. In this testing,
the accuracy of this device was established at Blood Alcohol Concentrations
(BAC) of 0.008 and 0.032, but not at greater concentrations. Additional
laboratory testing has been performed at concentrations ranging from
0.00 – 0.40% BAC.
10 11
PRECAUTIONS
1. Wait at least 20 minutes after drinking, eating or
smoking before testing. Not observing this waiting
period can cause inaccurate readings and damage
the sensor.
2. Do not blow smoke, food, or liquids into the
BACtrack as this will damage the sensor.
3. Do not test in areas with strong winds, smoke, or in
an area where a large amount of alcohol is being
consumed.
4. Replace the two AA batteries when the battery
indicator icon reaches one bar.
5. Send your tester in for periodic calibration service as
required. (See calibration).
6. The BACtrack Breathalyzer is designed to be used in
a temperature range of 32-104 °F (0-40 °C).
7. Avoid testing in the presence of any substances
that contain methyl alcohol, isopropyl alcohol or
acetone. These substances may interfere with the
results of the test.
8. You cannot use the results of this product in court.
9. Do not use the BACtrack as a tool to determine
whether you should operate a motor vehicle or
equipment, or perform any other dangerous act.
10. Do not drink and drive. Always have a designated
driver when alcohol is being consumed.
12
VERIFICATION AND
CALIBRATION
The BACtrack is calibrated during manufacture using
advanced alcohol simulation equipment. Known alcohol
concentrations are passed through the sensor to set baseline
values for testing. During testing, the unit compares users’
breath samples to these baseline values.
The accuracy of breath alcohol testers can fluctuate after six
to twelve months of normal use, depending on the number
of tests performed and operating conditions.
If this product is providing inconsistent test results, is not
providing any test results, or provides unusually high or low
test results, the product should be recalibrated immediately
by a trained professional.
The product should be recalibrated at least every six
to twelve months depending on frequency of use and
operating conditions. We recommend sending the unit in for
calibration after 200 tests have been performed, or every 6
to 12 months if less than 200 tests have been performed. If
the product is used every day, it may need to be recalibrated
as frequently as every month.
Calibration Instructions
Please visit www.bactrack.com/calibration or call 877-
334-6876 for information on how to get your BACtrack
Breathalyzer recalibrated. Calibrations are an important
part of the maintenance of your breathalyzer and should be
performed regularly.
During recalibration, a professional technician will reset the
sensor baseline values and also perform a full diagnostic
check to ensure the accuracy and reliability of the product.
13
ONE-YEAR LIMITED WARRANTY
KHN Solutions’ warranty obligations for this product are
limited to the following:
KHN Solutions warrants this product against defects in
materials and workmanship under normal use for a period
of ONE (1) YEAR from the date of retail purchase by the
original end-user purchaser (“Warranty Period”). Except as
provided in the preceding sentence or applicable law, KHN
Solutions provides this product “as is”. If a defect arises
and a valid claim is received by KHN Solutions within the
Warranty Period, at its option, KHN Solutions will either (1)
repair the product, (2) exchange the product with a product
that is new or which has been manufactured from new or
serviceable used parts and is at least functionally equivalent
to the original product, or (3) refund the purchase price of
the product. When a refund is given, the product for which
the refund is provided must be returned to KHN Solutions
and becomes KHN Solutions’ property. This warranty
is limited to the original end-user purchaser and is not
transferable to, or enforceable by, any subsequent owner.
Exclusions, Limitations, and Disclaimers
KHN Solutions makes no warranties, express or implied,
as to the ability of this product to determine whether, or
the extent to which, a test subject’s mental or physical
functioning, or judgment, may be impaired by blood
alcohol including whether the test subject is intoxicated
under any defnition of that word. KHN solutions expressly
disclaims any liability for direct, indirect, incidental, special,
or consequential damages of any nature under any legal
theory. Any act or failure to act based on a reading from
14
this product shall be at the test subject’s or user’s own risk.
KHN Solutions assumes no responsibility for consequences
to or of test subjects who use this product and later are
shown to have been under the influence of alcohol or to
have had their judgment or any mental or bodily function
impaired by alcohol. Correlation between breath alcohol
content and blood alcohol concentration depends on
many variables, including environmental factors (such as
air quality, wind, humidity, temperature, etc.) and health
conditions of the test subject. A low BAC reading does not
mean that the test subject’s physical or mental performance
or judgment (including reaction times) can respond to an
emergency. The concentration of alcohol in the blood of a
test subject cannot be exactly determined by using a breath
alcohol screening product.
KHN Solutions does not warrant that the operation of the
product will be error-free. KHN Solutions is not responsible
for any consequences arising from failure to follow
instructions or relating to the product’s use. This warranty
does not apply: (a) to consequences caused by accident,
abuse, tampering, misuse, flood, fre, earthquake or other
external causes; (b) to consequences caused by operating
the product outside the permitted or intended uses
described by KHN Solutions; (c) to consequences caused
by service performed by anyone who is not a representative
of KHN Solutions or a KHN Solutions Authorized Service
Provider; or (d) to a product or part that has been modifed
to alter functionality or capability without the written
permission of KHN Solutions.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY
AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES
AND CONDI-TIONS, WHETHER ORAL OR WRITTEN,
15
STATUTORY, EXPRESS OR IMPLIED. AS PERMITTED BY
APPLICABLE LAW, KHN SOLU-TIONS SPECIFICALLY
DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE AND WARRANTIES AGAINST
HIDDEN OR LATENT DEFECTS. IF KHN SOLUTIONS
CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED
WARRANTIES THEN TO THE EXTENT PERMITTED BY
LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN
DURATION TO THE DURATION OF THE EXPRESS
WARRANTY AND TO THE REPAIR OR REPLACEMENT
SERVICE AS DETERMINED BY KHN SOLUTIONS IN ITS
SOLE DISCRETION.
No KHN Solutions reseller, agent, or employee is
authorized to make any modifcation, extension, or
addition to this warranty. If any term is held to be illegal
or unenforceable, the legality or enforceability of the
remaining terms shall not be affected or impaired.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO
THE MAXIMUM EXTENT PERMITTED BY LAW, KHN
SOLUTIONS IS NOT RESPONSIBLE FOR DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
UNDER ANY LEGAL THEORY, INCLUDING BUT NOT
LIMITED TO LOSS OF USE; LOSS OF REVENUE OR
INCOME; LOSS OF ACTUAL OR ANTICIPATED PROFITS
(INCLUDING LOSS OF PROFITS FROM A CONTRACT);
LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED
SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY;
LOSS OF GOODWILL, OR LOSS OF REPUTATION.
This Breath Alcohol Tester is intended to measure alcohol in
human breath. Readings obtained by this device are used
in the diagnosis of alcohol intoxication.
16
Some countries, states and provinces do not allow the
exclusion or limitation of incidental or consequential
damages or allow limitations on how long an implied
warranty or condition may last, so the above limitations
or exclusions may not apply to you. This warranty gives
you specifc legal rights, and you may also have other
rights that vary by country, state or province. This Limited
Warranty is governed by and construed under the laws of
the country in which the product purchase took place.
Obtaining Warranty Service
Please be sure to read this instruction manual carefully if
you believe your product is not operating properly. If you
still feel that your product requires warranty service, please
follow these instructions:
Obtain a Return Authorization (RA) number by calling
toll-free 877-334-6876 or by emailing
When shipping the product back to KHN Solutions, please
package the product carefully and ship using a major
carrier (UPS, FedEx, USPS, etc). To ensure proper credit for
a returned item, be sure to obtain a delivery confrmation
on the return shipment. The customer is responsible for all
return shipping charges.
Include the following information with your
returned product:
• Your Return Authorization number
• Name, address, and phone number as stated
at the time of order
• A copy of your original sales receipt
17
KHN Solutions Inc.
300 Broadway, Suite 26
San Francisco, CA 94133
Phone: 877.334.6876 Fax: 415.358.8030
Sales: sales@bactrack.com
Support: support@bactrack.com
www.BACtrack.com
©2016 KHN Solutions Inc.
®
