Stainless Steel Commercial Restaurant Sinks
ASSEMBLY INSTRUCTION MANUAL
This manual covers all Koolmore one compartment, two compartment and three
compartment sinks.
2 of 10
Contact us
For assembly assistance, missing or damaged parts, please contact customer
service. We’re here to help, customer satisfaction is our number one priority.
Email: [email protected]
Phone: 718-576-6342
Thank you for your purchase!
Table of Contents
1. General Information Page 3
2. Parts List Page 4
3. Cleaning and Maintenance Page 5
4. Assembly Instructions Page 6
5. Warranty Information Page 10
3 of 10
1. General Information

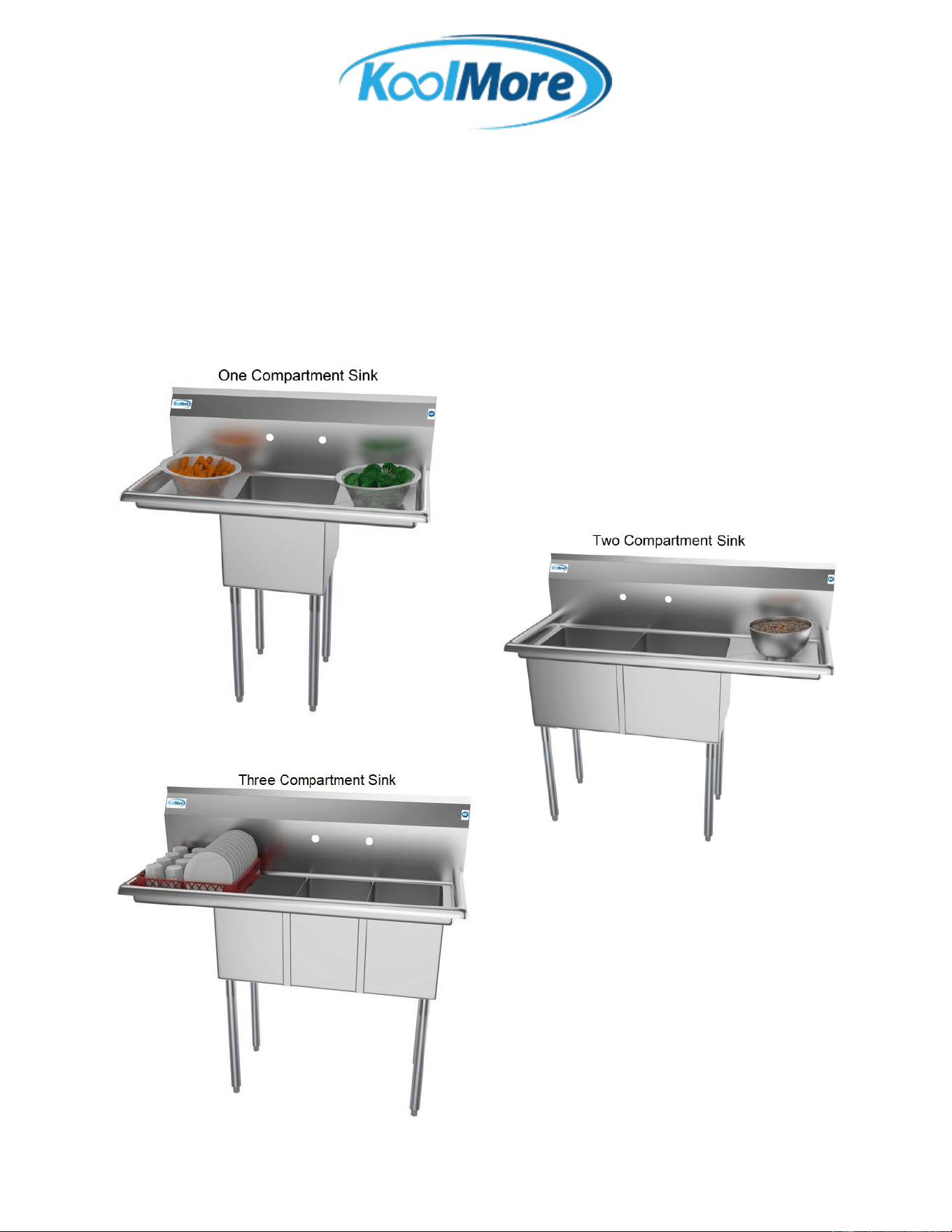

This instruction manual covers the assembly procedures for all Koolmore one
compartment, two compartment and three compartment sinks. The assembly
instructions are identical for all three models of sink.
NOTE: This manual does not include instructions for the plumbing of the faucets or
drains. For those installations, please contact a qualified professional.
Adjustable Bullet Feet
One-and-a-half-inch plastic bullet feet allow you to level the sink for the best
possible stability, even on uneven surfaces. The hard-wearing plastic protects your
floors from scratches.
High Backsplash And Raised Edges
The 10” backsplash with pre-punched holes for faucet mounting (not included) will
keep walls dry and clean while the raised edges prevent splashes and overflow.
The bowl has rounded corners to facilitate cleaning and maintenance.
NSF Certified
All Koolmore sinks are NSF certified, which means that they comply with strict
standards for public safety and health, and are certified for use in commercial
kitchens.
2. Parts List
4 of 10
Item
Quantity
A. Sink Unit
1
B. Sink Legs
4
C. Hex Key
1
D. Set Screw
9 (1 spare)
E. Sink Strainer
1
F. Basket Drain
1
5 of 10

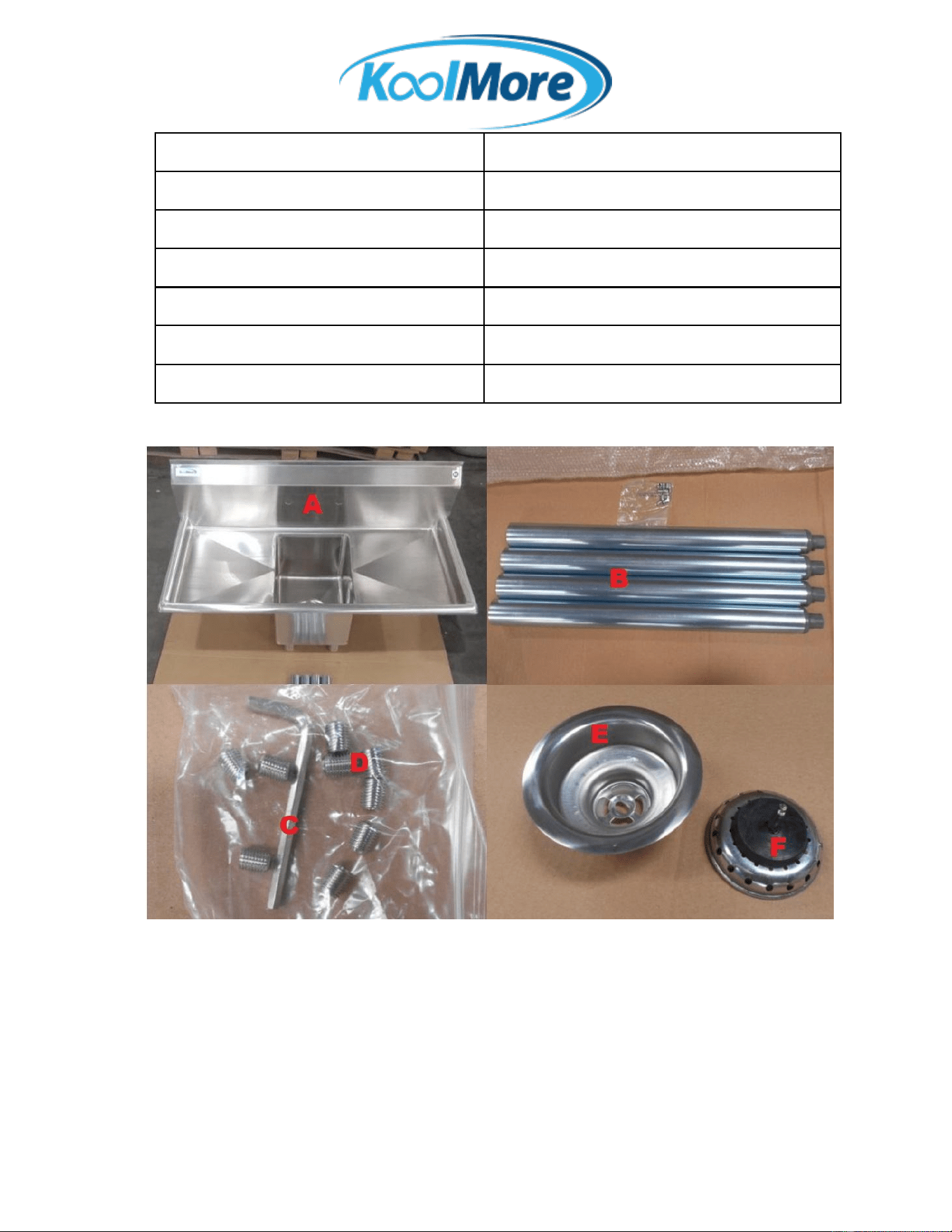

Figure 1 - Sink Components
3. Cleaning and Maintenance
Koolmore sink units are manufactured from high-quality, durable stainless steel.
This material is rust and corrosion resistant.
● To clean the sink unit, use mild detergent and non-abrasive cleaning products.
Pure white vinegar is also highly effective for cleaning stainless steel. Do not use
products containing bleach.
● Do not use steel wool, brushes or scourers when cleaning the sink.
WARNING: DO NOT USE METALLIC OR SHARP INSTRUMENTS TO
REMOVE DIRT, AS THESE MAY SCRATCH THE SURFACE AND
DAMAGE THE SURFACE.
● Make sure to rinse sink with clean hot water after each use, and after cleaning
● Remove food residue and any residue of cleaning products or grease to avoid
staining and discoloration.
● Leaving cloths, sponges and cooking utensils in or on the sink for extended
periods may also cause discoloration.
● Regularly drying your sink unit will help to avoid water spots on the surface.
WARNING: NEVER USE THE STAINLESS STEEL DRAINING BOARD AS A
CUTTING SURFACE. KNIVES OR OTHER SHARP UTENSILS
WILL DAMAGE THE SURFACE OF YOUR SINK UNIT.
6 of 10
4. Assembly Instructions
To assemble your sink unit, there are eight simple steps to follow.
Step 1: Unpack the contents of the box, verifying that all the parts are present (see
Section 2: Parts List).
Step 2: Place the sink unit on its side, with the backsplash panel facing down, as
shown in Figure 2 below.
NOTE: Take care to avoid placing the sink on a surface that will scratch the sink
unit.
WARNING: THE SINK UNIT MAY BE HEAVY, TAKE PRECAUTIONS TO AVOID
INJURY WHEN MOVING AND LIFTING THE SINK ASSEMBLY.

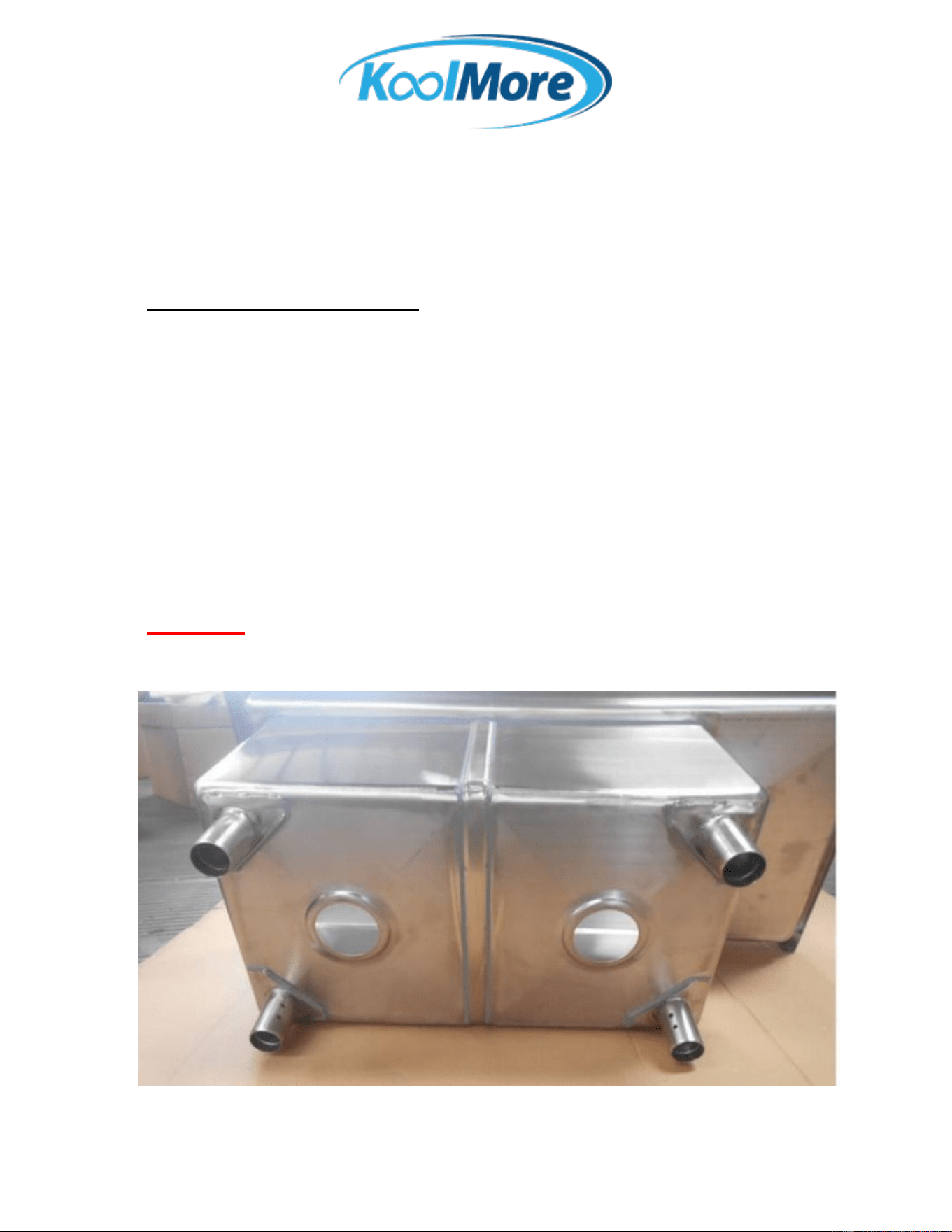

Figure 2 - Underside of Sink Unit
7 of 10
Step 3: Insert the four legs into the corresponding gussets on the underside of the
sink. Then insert the set screws into the set screw holes on the legs. There
are two set screws per leg.

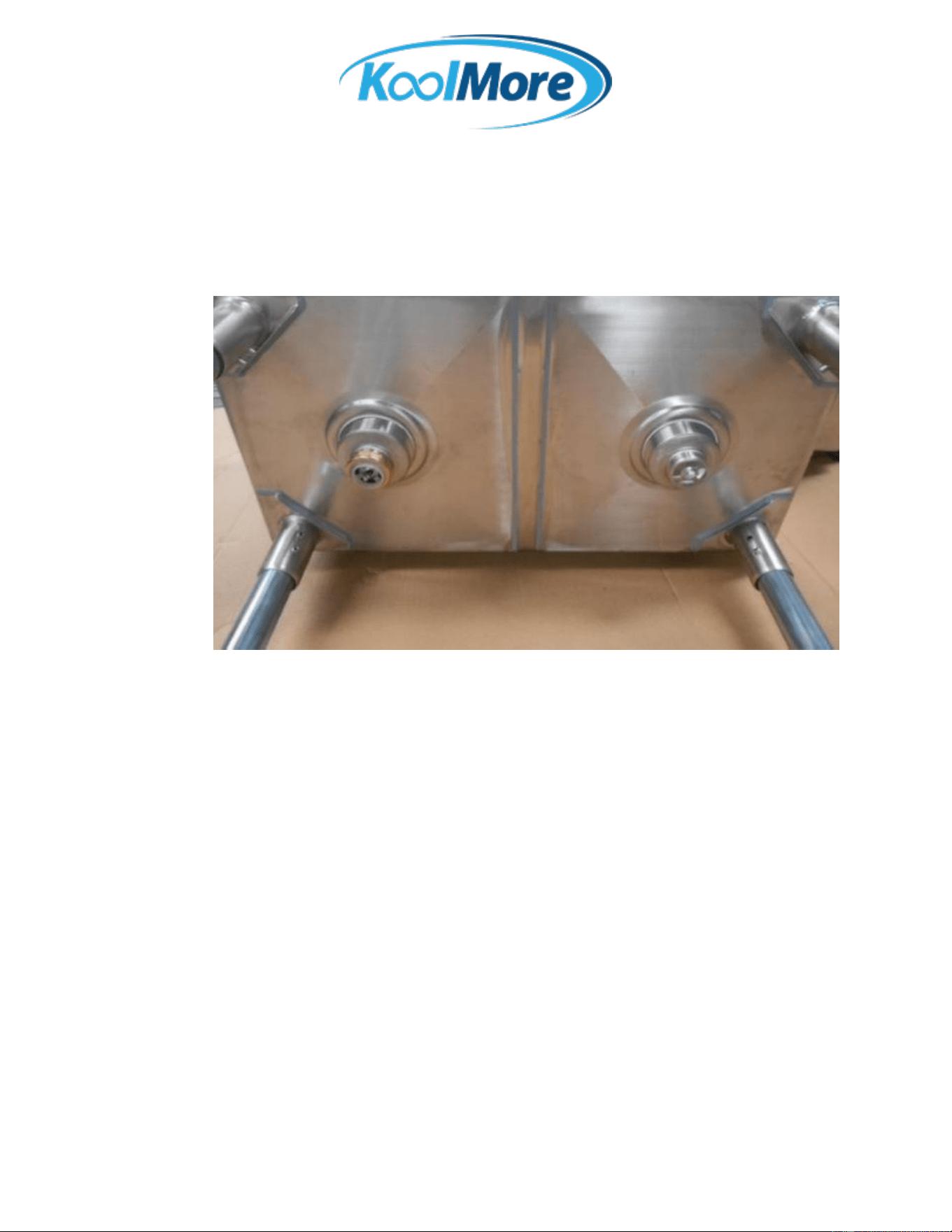

Figure 3 - Inserting the Legs
Step 4: Tighten the set screws using the hex key provided.
NOTE: Do not use excessive force as this will damage the sink leg.
8 of 10

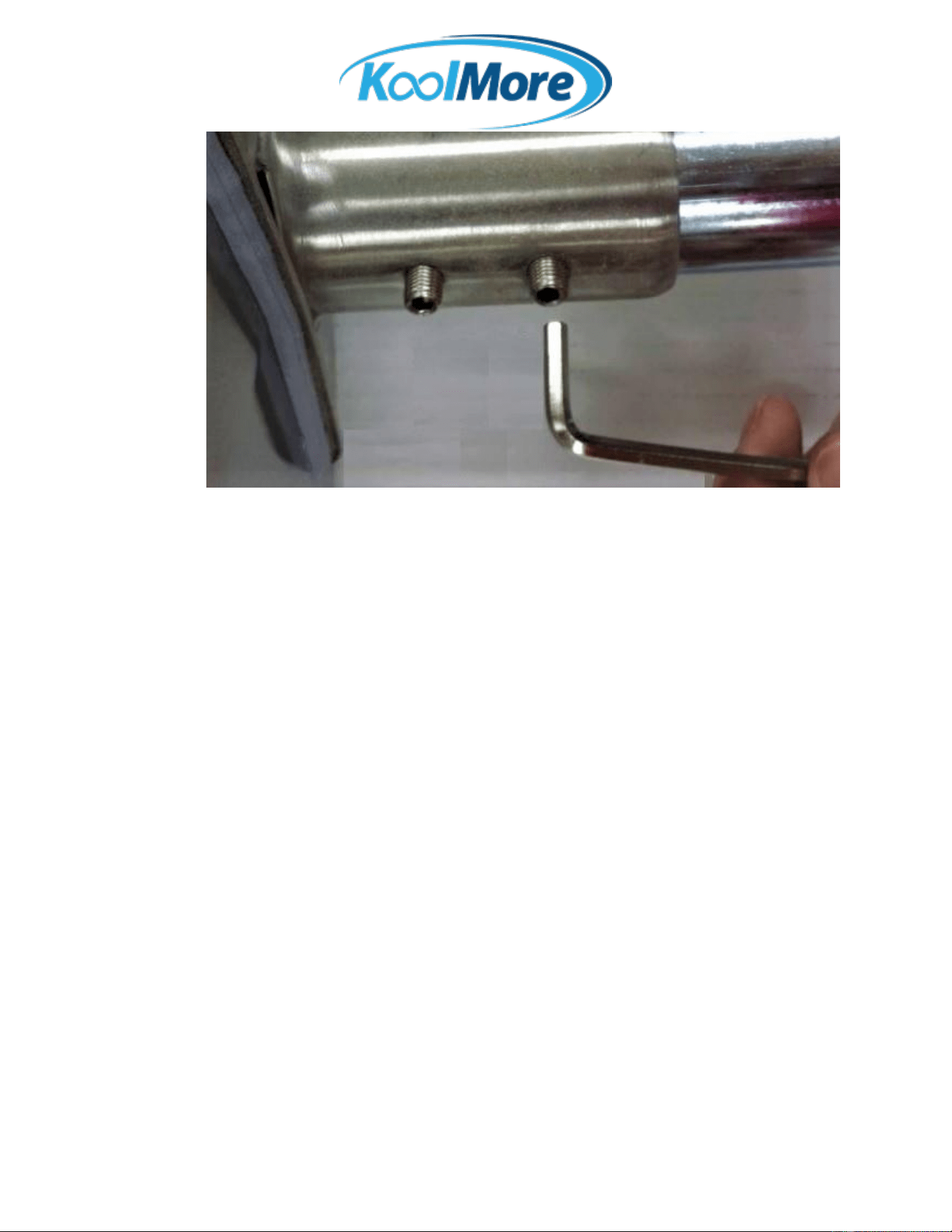

Figure 4 - Tightening the Set Screws
Step 5: Carefully turn the sink over onto its legs, placing it down on all four legs
simultaneously to avoid stress on any individual leg.
WARNING: TAKE CARE WHEN TURNING THE SINK UNIT OVER AS IT MAY
BE HEAVY. WE RECOMMEND THAT TWO PEOPLE LIFT THE
UNIT TOGETHER TO AVOID INJURY.
Step 6: Position the unit in the desired location, and use the adjustable bullet legs
to ensure that the unit is level. To adjust the bullet feet, simply twist them
until the desired extension is achieved.
9 of 10

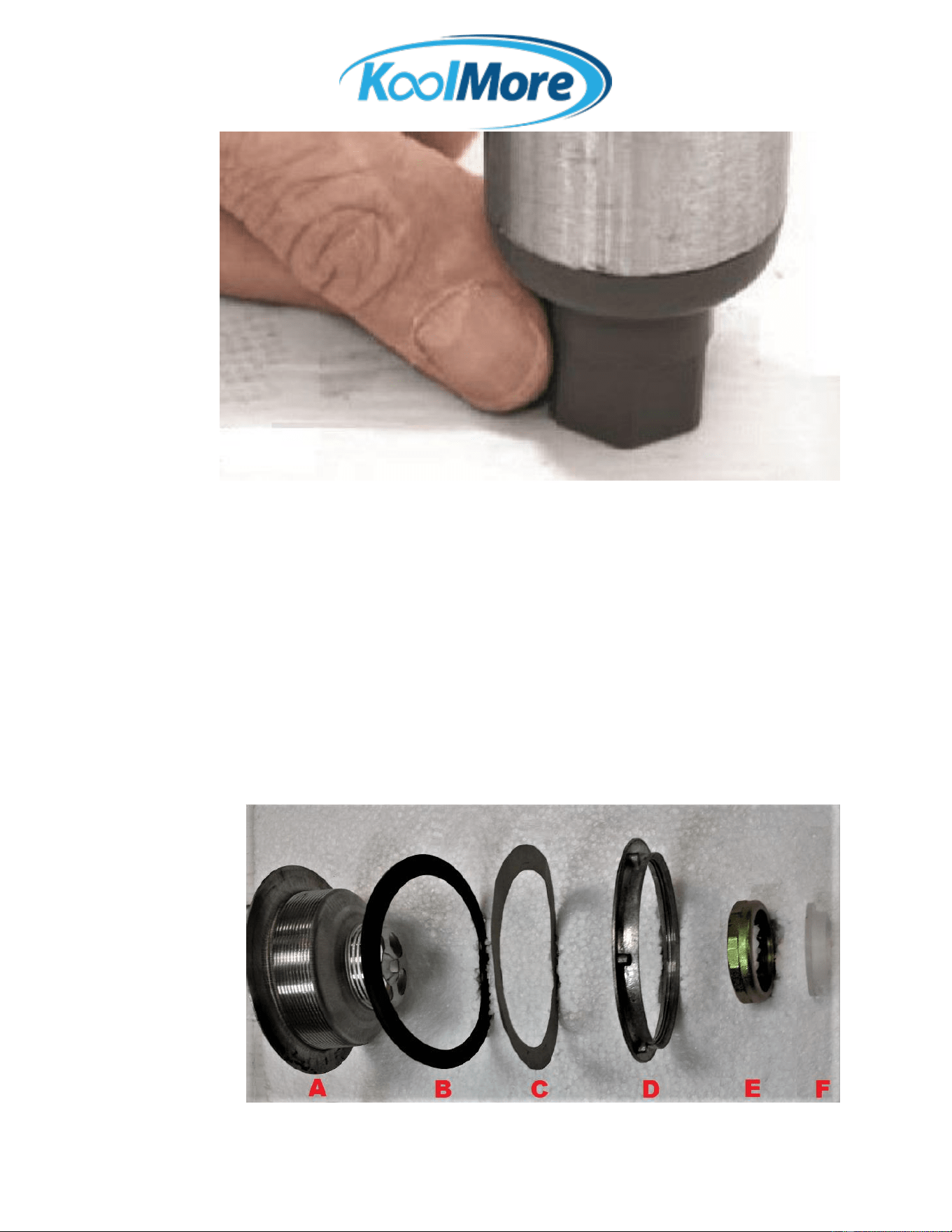

Figure 5 - Adjusting the Bullet Feet
Step 7: The sink strainer consists of six parts, as shown in Figure 6, on the next
page.These are:
A. Strainer
B. Rubber Washer
C. Cardboard Washer
D. Locknut
E. Tailpiece Nut
F. Tailpiece Washer
10 of 10
Figure 6 - Strainer Parts Breakdown
NOTE: To install the sink strainer correctly, you will need plumbers putty
and a locknut wrench or suitable alternative. These items are not
included with the sink assemble.
Ensure that the drain hole and surrounding areas are clean and dry. Apply
a ring of plumber’s putty around the drainhole on the inside of the sink.
NOTE: Parts E (tailpiece) and F (tailpiece nut) do not have to be removed
in order to install the sink strainer assembly. Leave these parts
attached.
Insert the strainer (A) into the hole. Then, from the bottom, attach parts B,
C and D in the order shown in Figure 6 above. First the rubber washer,
then the cardboard washer, and finally the the lock nut. Hand tighten the
locknut using a suitable wrench.
Step 8: The sink unit is now assembled and ready to be plumbed in. The unit can
now be affixed to a wall using suitable hardware, if necessary. If placing
against a wall, remember to use appropriate silicone sealant or an
alternative to contain any water spillage.
5. Warranty Information
Product Registration
Please register your product online at www.koolmore.com. Registering your
products will expedite any warranty claims and also allow us to communicate any
critical product-related notifications and updates.
90 Day Warranty
Unless otherwise stated, Koolmore sinks are backed by a 90-day warranty. This
warranty guarantees that new, qualified products will be free from defects in
material and workmanship under normal use during the specified warranty period.
This warranty is void on products sold or shipped outside of the United States. This
11 of 10
warranty is only valid to the original purchaser of Koolmore products. If a qualified
product is found to be defective during this period, Koolmore will repair the
defective product, replace any defective parts, or replace the defective product.
What This Warranty Does Not Cover
Koolmore will not warrant coverage for product failure or damages that arise under
the following conditions:
• Failure to install and/or use the unit within proper operating conditions.
• Installation in non-commercial or residential applications.
• Products sold or used outside of the United States.
• Any damage that occurs as a result of negligence or improper handling.
Additionally, no claims can be made against this warranty for spoilage of products,
loss of sales or profits, or any other consequential damages. If defects are the
result of freight or handling damage your first recourse must be to notify the
delivering freight carrier. Any damage should be noted on the delivery receipt at the
time of delivery. Refer these claims to the freight carrier for correction and
compensation (this applies regardless of who was responsible for paying the freight
charges or selecting the carrier).
