HXM8F2BK/HXM8F4BK/HXM65F2BK/
HXM65F4BK/HXM69F2BK/HXM69F4BK
3761 South Hill St.
Los Angeles, CA 90007
Limited Speaker Warranty Statement
Diamond Audio (a division of CV & DA Holdings, Inc.) warrants this product to be free from defects in
material and workmanship for a period of one (1) year from the original date of purchase provided it
was purchased from an authorized DAT retailer within the United States. However, if this product was
installed by the authorized DA retailer, the warranty period will be extended to two (2) years.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER
OF THIS PRODUCT IN ITS ORIGINAL INSTALLATION. Original purchaser must reside in the United
States and be able to provide proof of purchase and installation with the sales receipt from the
authorized DAT retailer and completion of online regoistration that sold and installed the product
.
Should a manufacturing defect occur during above said warranty period, DA will replace or repair the
defective product with a product of the same or equivalent value and performance.
Damage or failure caused by any of the following is not covered under this warranty policy:
negligence, improper use, abuse, product modification, unauthorized repair attempts, accident, acts
of God, misrepresentations by DA retailers, and improper/inadequate packaging during return
shipping.
Warranty is void if serial numbers have been removed, altered or defaced.
In the event a DA product should require service, you should visit the authorized DA retailer you
purchased the product from and they can expedite your claim. All claims must fall into the guidelines
lis
ted above and be accompanied by a copy of the original sales and installation receipt from that
authorized DA retailer.
Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked
with the Return Authorization (RA) number issued by DA. Any product returned to DAT that is
improperly packaged, does not have a RA number clearly marked on the package, or never received
a RA number may be refused upon delivery. DA does not assume responsibility for lost or misdirect-
ed product.
Repair or replacement under this warranty is the exclusive remedy of the consumer. DA shall not be
liable for any incidental or consequential damages for breach of any expressed or implied warranty
on this product. Some states do not allow the exclusion or limitation of incidental
or consequential
damages, or allow limitations on how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and you may also have
other rights that may vary from state to state.
We reserve the right to change the products and specifications at any time without notice.
Images may or may not include optional equipment.
7
2
Congratulations, you have just purchased one of the finest mobile audio products on
the market. Diamond Audio products represent the latest advances in acoustic
technology in sound reproduction for your vehicle. Diamond Audio products are
designed, developed, and engineered in the USA using the latest innovative materials
and components to provide the finest sound reproduction possible. Every Diamond
Audio product has been verified and tested to ensure the best sounding and most
reliable product on the market, if installed properly. Diamond Audio products will
provide many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can
cause permanent hearing loss. Using Diamond Audio products can exceed that level, so
please exercise restraint in its operation in order to preserve your ability to enjoy its
high fidelity sound for many years to come.
Diamond Audio recommends our products be professionally installed by an authorized
Diamond Audio dealer to achieve the best possible system recommendation and
installation. This will ensure a true Diamond Audio listening experience and sound you
would expect from Diamond Audio products. With proper validation use a Diamond
Audio Retailer for installation of your newly purchased amplifier. Diamond Audio will
extend the product warranty from one year to Two Years !!
Go ahead, Hear the Music
•
•
•
•
•
•
•
HXM8F2BK
HXM8F4BK
•
•
•
•
•
•
•
HXM65F2BK
•
•
•
•
•
•
•
2-WAY-8" 2OHM SPEAKER SYSTEM (PAIR)
RIDGID CARBON FIBRE CONE FOR INCREASED OUTPUT
1.5" INCH OVERSIZED TITANIUM DOME TWEETER
ULTRA LIGHT NEODYMIUM MOTOR STRUCTURE WITH MAX XMAX SUSPENSION
FLUSH OR BACK MOUNT DESIGN
WATER SPRAY AND SALT WATER RESISTANT, 100% UV STABLE
HIGH TEMP - LIGHT WEIGHT INJECTION MOLDED COMPOSITE BASKET
2-WAY-8" 4OHM SPEAKER SYSTEM (PAIR)
RIDGID CARBON FIBRE CONE FOR INCREASED OUTPUT
1.5" INCH OVERSIZED TITANIUM DOME TWEETER
ULTRA LIGHT NEODYMIUM MOTOR STRUCTURE WITH MAX XMAX SUSPENSION
FLUSH OR BACK MOUNT DESIGN
WATER SPRAY AND SALT WATER RESISTANT, 100% UV STABLE
HIGH TEMP - LIGHT WEIGHT INJECTION MOLDED COMPOSITE BASKET
2-WAY-6.5" 2OHM SPEAKER SYSTEM (PAIR)
RIDGID CARBON FIBRE CONE FOR INCREASED OUTPUT
1.5" INCH OVERSIZED TITANIUM DOME TWEETER
ULTRA LIGHT NEODYMIUM MOTOR STRUCTURE WITH MAX XMAX SUSPENSION
FLUSH OR BACK MOUNT DESIGN
WATER SPRAY AND SALT WATER RESISTANT, 100% UV STABLE
HIGH TEMP - LIGHT WEIGHT INJECTION MOLDED COMPOSITE BASKET
6
3

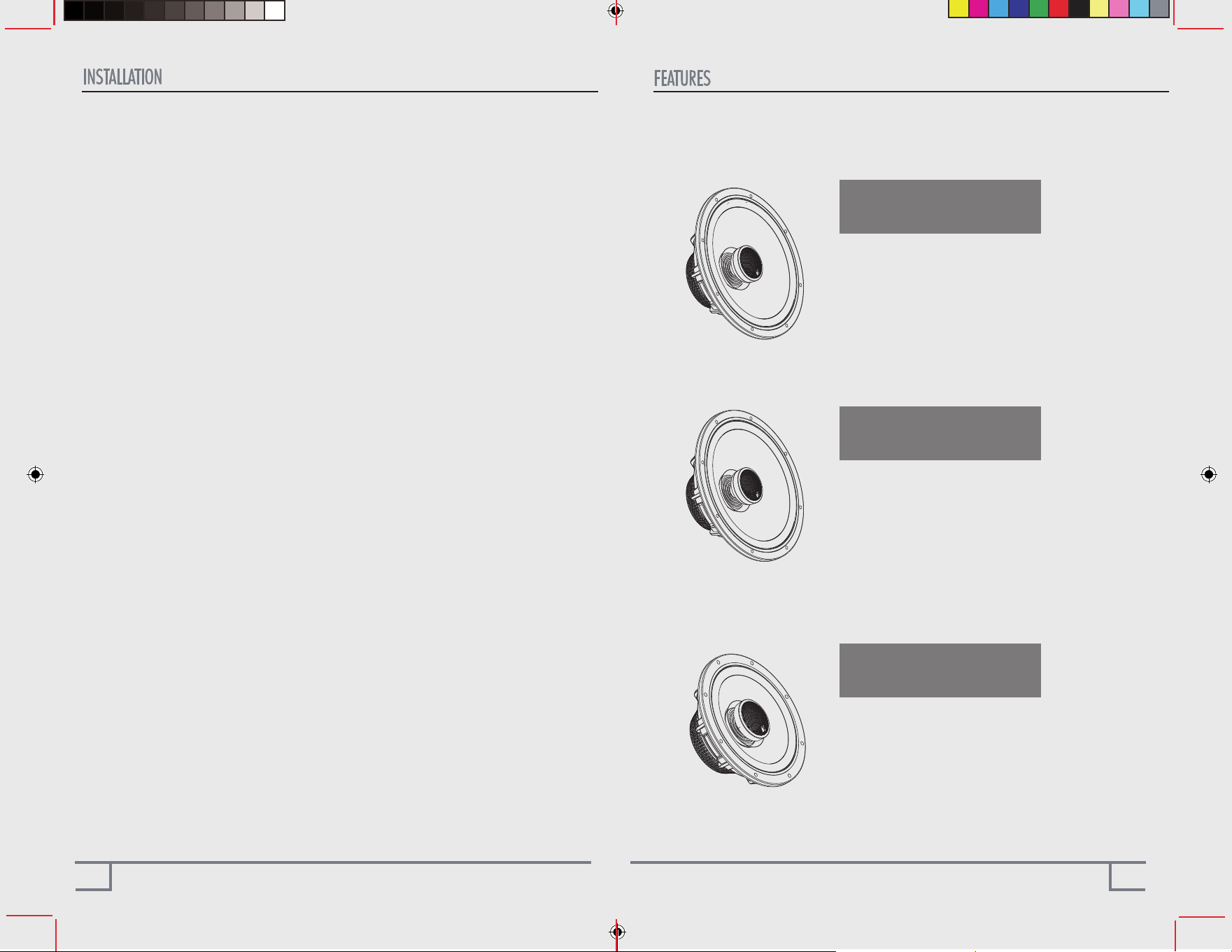

Installing the Speakers
Your new Diamond Audio series speakers were designed with the flexibility to be installed in
multiple locations. However, to ensure the best performance possible, it is important to
isolate the front sound waves of the speaker from its rear sound waves. This is done by
securely mounting the speaker to a flat surface known as a baffle. Make sure to seal the
speaker to ensure there are no air leaks around its frame.
Installation Considerations before attempting Install
1. Be sure to carefully read and understand the instructions before attempting to install these
speakers.
2. For safety, disconnect the negative battery terminal from the battery prior to beginning the
installation.
3. For easier assembly, we suggest you run all wires prior to mouinting speakers in place.
4. Use high quality connectors for a reliable installation an d to minimize signal or power loss.
5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or
hydraulic lines, vacuum lines or electrical wiring when w orking on any vehicle. If
installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or hull area
provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to
protect any wires routed through metal, especially the firewall.
Mounting
1. Determine where the speakers will be mounted. Ensure an area large enough for the
speaker to mount evenly. Be sure that the mounting location is deep enough for the
speaker to fit; only mount to a flat surface. Use extra caution when mounting on panels
with ureathane foam.
2. Refer to the specification chart to determine the proper diameter hole to cut for your
speaker model. Cutting and mounting templates can be found at
WWW.DIAMONDAUDIO.com.
3. Mark the locations for the mounting screws. Drill the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals. Be sure
to observe proper polarity when connecting the wires. The speaker's positive terminal is
indicated with a In +".
5. Fit the trim ring over the speaker and mount into place using eight (8) screws.
6. Tighten the screws until the speaker is snug in place to prevent Pay close attention to the
notch in the grille for proper grille/tweeter alighnment.

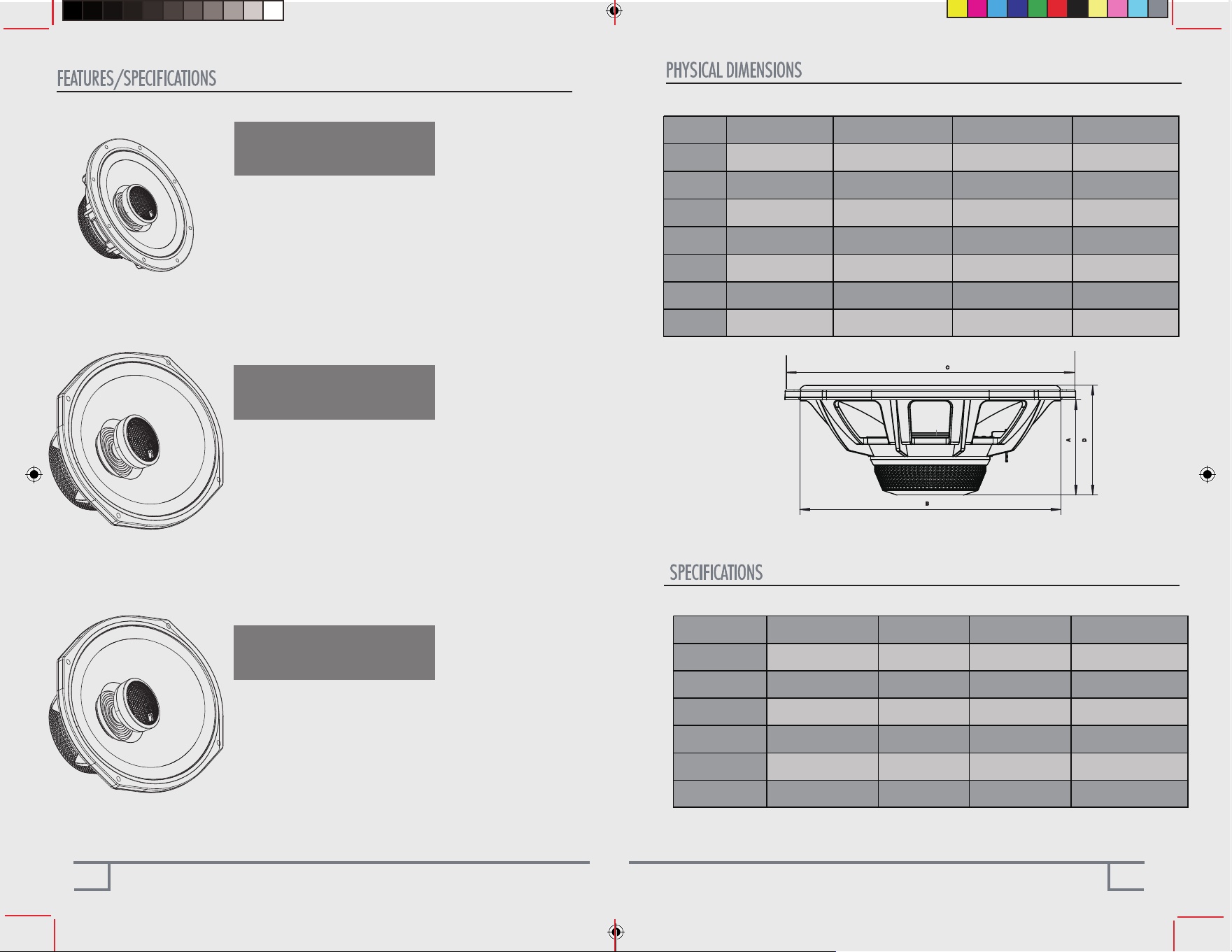

The next generation of Diamond Audio HXM Black Series Drivers features and specifications are on
the next few pages. Makes sure to read this manual and get to know your drivers and the many
applications and set up scenarios available to you.
HXM69F2BK
•
•
•
•
•
•
•
2-WAY-6X9" 2OHM SPEAKER SYSTEM (PAIR)
RIDGID CARBON FIBRE CONE FOR INCREASED OUTPUT
1.5" INCH OVERSIZED TITANIUM DOME TWEETER
ULTRA LIGHT NEODYMIUM MOTOR STRUCTURE WITH MAX XMAX SUSPENSION
FLUSH OR BACK MOUNT DESIGN
WATER SPRAY AND SALT WATER RESISTANT, 100% UV STABLE
HIGH TEMP - LIGHT WEIGHT INJECTION MOLDED COMPOSITE BASKET
4
5
HXM65F4BK
•
•
•
•
•
•
•
2-WAY-6.5" 4OHM SPEAKER SYSTEM (PAIR)
RIDGID CARBON FIBRE CONE FOR INCREASED OUTPUT
1.5" INCH OVERSIZED TITANIUM DOME TWEETER
ULTRA LIGHT NEODYMIUM MOTOR STRUCTURE WITH MAX XMAX SUSPENSION
FLUSH OR BACK MOUNT DESIGN
WATER SPRAY AND SALT WATER RESISTANT, 100% UV STABLE
HIGH TEMP - LIGHT WEIGHT INJECTION MOLDED COMPOSITE BASKET
HXM69F4BK
•
•
•
•
•
•
•
2-WAY-6X9" 4OHM SPEAKER SYSTEM (PAIR)
RIDGID CARBON FIBRE CONE FOR INCREASED OUTPUT
1.5" INCH OVERSIZED TITANIUM DOME TWEETER
ULTRA LIGHT NEODYMIUM MOTOR STRUCTURE WITH MAX XMAX SUSPENSION
FLUSH OR BACK MOUNT DESIGN
WATER SPRAY AND SALT WATER RESISTANT, 100% UV STABLE
HIGH TEMP - LIGHT WEIGHT INJECTION MOLDED COMPOSITE BASKET
B
C
D
A
D
imension MOUNTING DEPTH (A): CUT-OUT DIAMETER (B): OVER-ALL DIAMETER (C): OVER-ALL HEIGHT (D):
U
nit in(mm) in(mm) in(mm) in(mm)
H
XM8F2BK 3.10(78.90) 7.02(178.38) 8.31(211) 3.56(90.32)
H
XM8F4BK 3.10(78.90) 7.02(178.38) 8.31(211) 3.56(90.32)
H
XM65F2BK 2.51(64) 5.43(138.06) 6.61(167.79) 3.03(77.02)
H
XM65F4BK 2.51(64) 5.43(138.06) 6.61(167.79) 3.03(77.02)
H
XM69F2BK 3.10(78.81) 8.51X5.93(216.03X150.76) 9.46X6.63(240.29X168.39) 3.58(90.81)
H
XM69F4BK 3.10(78.81) 8.51X5.93(216.03X150.76) 9.46X6.63(240.29X168.39) 3.58(90.81)
Specifications Power Rating Sensitivity( 1W/M) Frequency Response Nominal Impedance(Ω
HXM8F2BK 150W RMS/450W MAX 96dB 95Hz - 20kHz 2
HXM8F4BK 150W RMS/450W MAX 96dB 95Hz - 20kHz 4
HXM65F2BK 125W RMS/375W MAX 95dB 110Hz - 20kHz 2
HXM65F4BK 125W RMS/375W MAX 96dB 110Hz - 20kHz 4
HXM69F2BK 150W RMS/450W MAX 94dB 95Hz - 20kHz 2
HXM69F4BK 150W RMS/450W MAX 95dB 95Hz - 20kHz 4
）
