MABLE 52-INCH CEILING FAN
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Questions?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
USE AND CARE GUIDE
To view an instructional video on how to install this product:
1. Go to www. homedepot.com and enter either the item
or model number, found in the top right corner of the cover of
this instruction manual, in the search eld.
2. Click on your product from the list of search results and
click on the video link in the “Product Overview” section.
Scan for text based
customer support
Scan for online product
warranty information
Item # 1011 954 858
Model # 59071
Basic Model # 52-MABL-R1-07262024
2
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum
of 35 lb (15.9 kg). Use only UL Listed outlet boxes marked
“Acceptable for Fan Support of 35 lb (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Suitable for use in wet location.
10. Use only with light kits marked suitable for use in wet location.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to
as anges) during assembly or after installation.
Do not insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL Listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: To reduce the risk of re, electric
shock or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. LDDP40-L3620, manufactured by
HD ASO.
WARNING: To reduce the risk of electric shock,
this fan must be installed with an isolating wall
switch.
WARNING: To reduce the risk of re, electric
shock or injury to persons, do not use replacement
parts that have not been recommended by the
manufacturer (e.g. parts made at home using a 3D
printer).
Safety Information........................................................................2
Warranty........................................................................................3
Pre-Installation.............................................................................3
Installation....................................................................................6
Assembly.........................................................................................7
Operation.......................................................................................17
Care and Cleaning.........................................................................19
Troubleshooting.............................................................................19
Table of Contents
READ AND SAVE THESE INSTRUCTIONS.
Safety Information
3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.

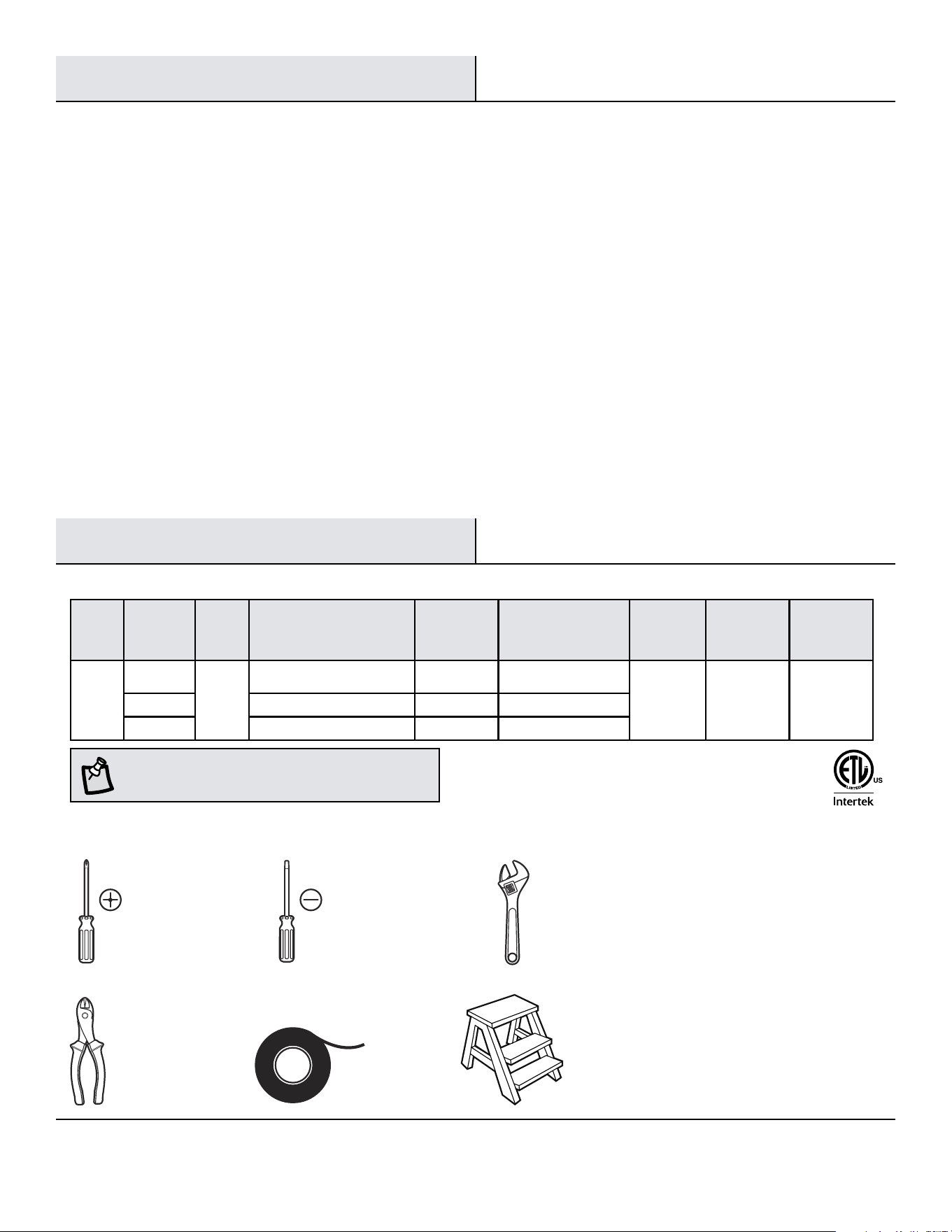

TOOLS REQUIRED
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory
for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase
by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects
in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product
is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories,
is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized
persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to
you. This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes
all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com
Warranty
Pre-Installation
Phillips
screwdriver
Flat head
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter/
stripper
Step
ladder
Size Speed Volts
Fan Power Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight
Cubic Feet
52 in.
Low
120
5 2110 422
14.88 lb
(6.75 kg)
20.61 lb
(9.35 kg)
1.93 cu. ft.
Medium 17 4127 242
High 29 4975 171
4
Part Description Quantity
AA Blade screw 16
BB Plastic wire connecting nut 4
CC Hanger pin 1
DD Locking pin 1
EE Machine screw (remote control wall cradle) 2
FF Short tapered screw (remote control wall cradle) 2
GG Long tapered screw (remote control wall cradle) 2
II Extra mounting screws (outlet box) 2

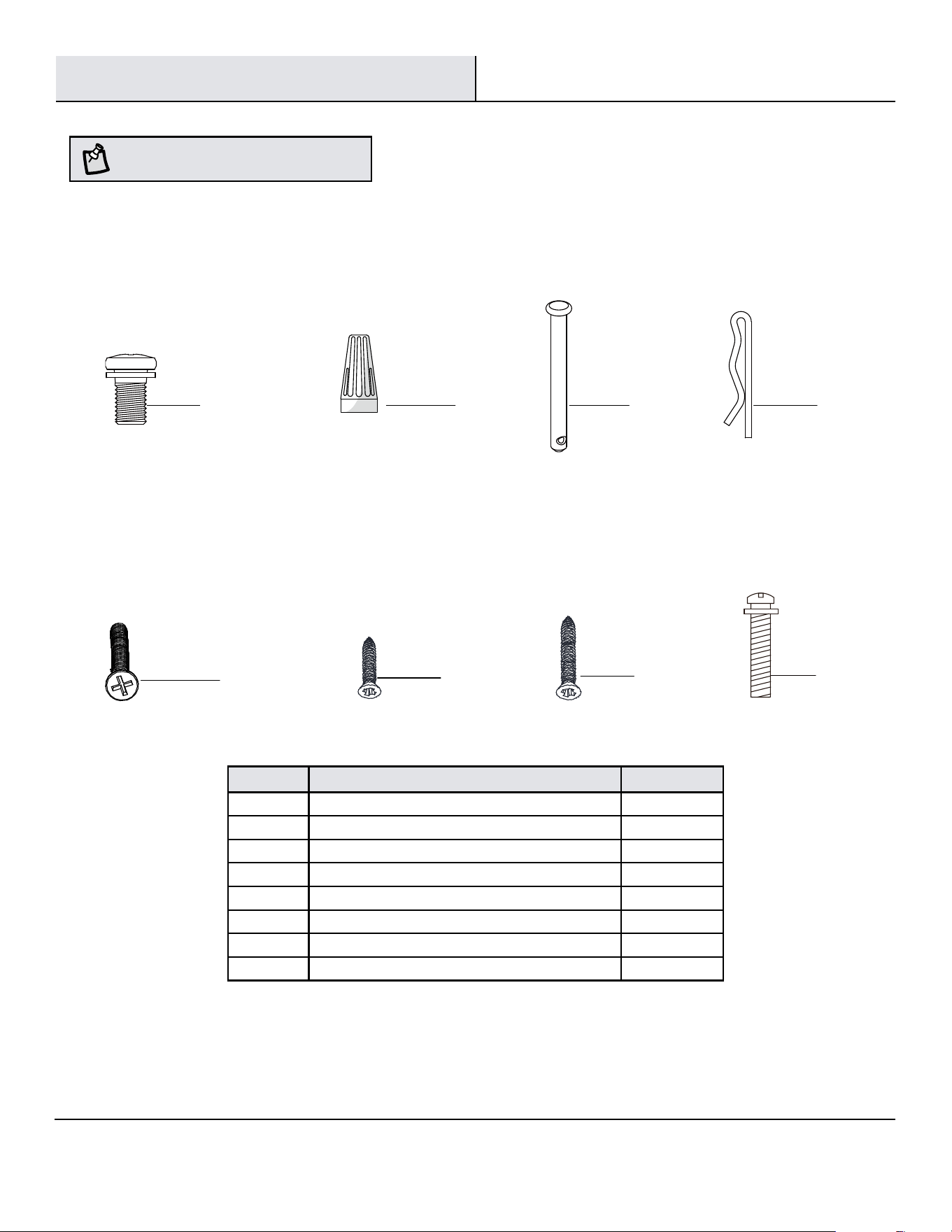

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Pre-Installation (continued)
BB CC DDAA
EE
FF
GG
II
5
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
A
Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Blade 5
G Light kit pan 1
Part Description Quantity
H Light kit tter assembly 1
I Shatter resistant shade 1
J Outer glass shade 1
K Receiver 1
L Remote control 1
M 3-pin extension wire (motor) 1
N 3-pin extension wire (light) 1
O Battery 2
P
Remote control wall cradle with
toggle switch spacer included
1
Q Waterproof cover 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416; 6,210,117
and other patents pending.

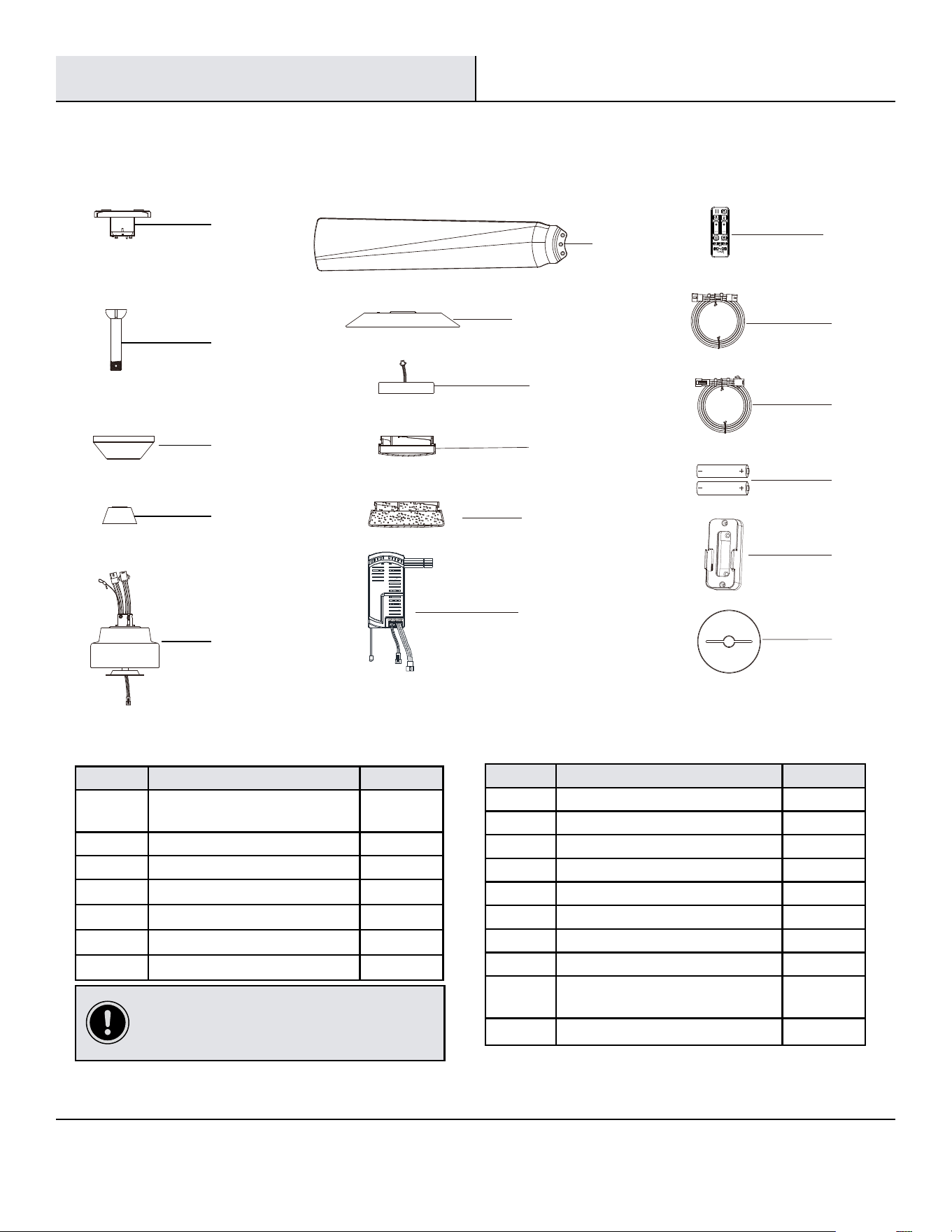

PACKAGE CONTENTS
Pre-Installation (continued)
G
H
E
F
C
D
B
A
I
J
K
L
M
O
N
Q
P
6
If the canopy (C) touches the ball/downrod assembly (B),
then remove the decorative motor collar cover (D), and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting plate.
To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar as shown
above (available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 15° away from
horizontal.
MOUNTING OPTIONS
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.

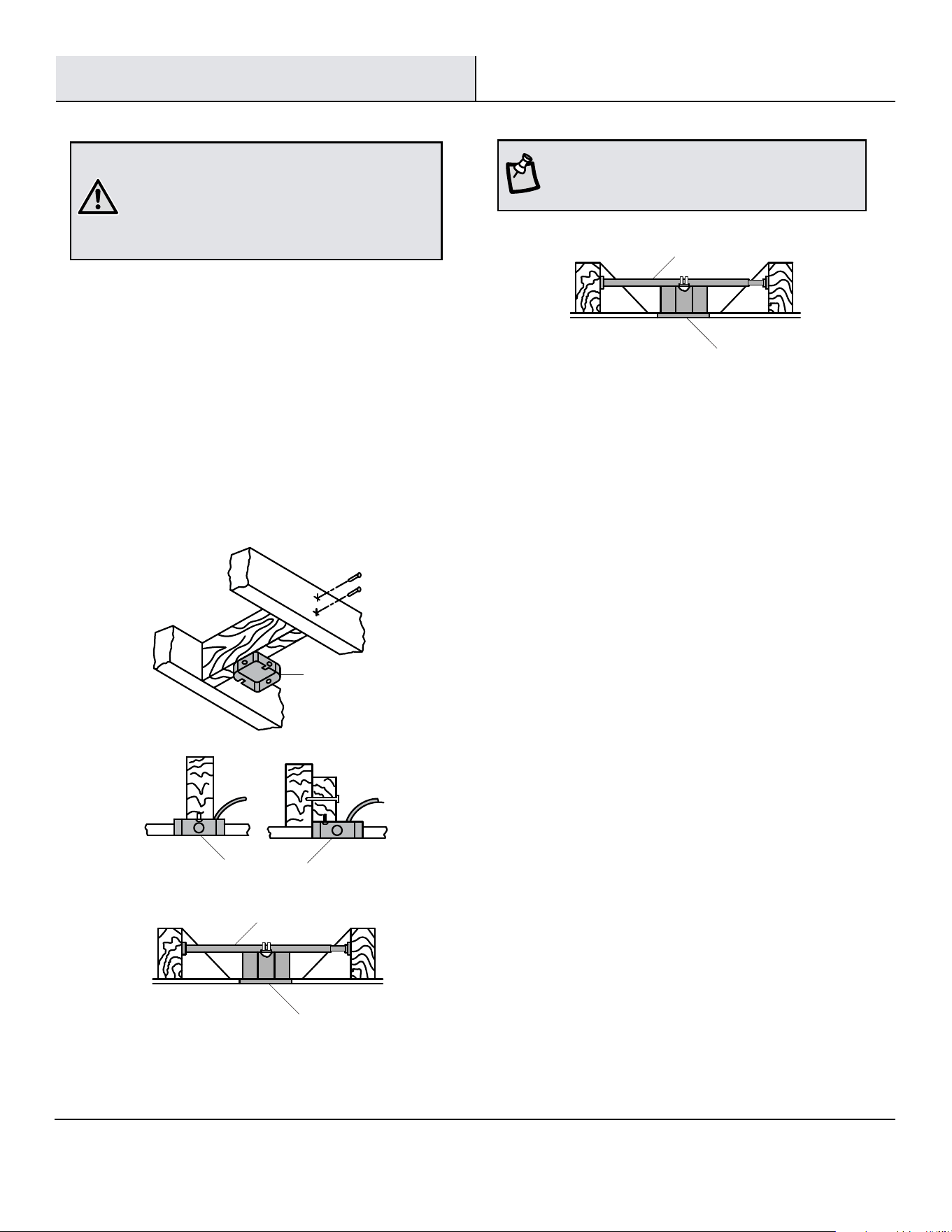

□ Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for fan support of
35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.

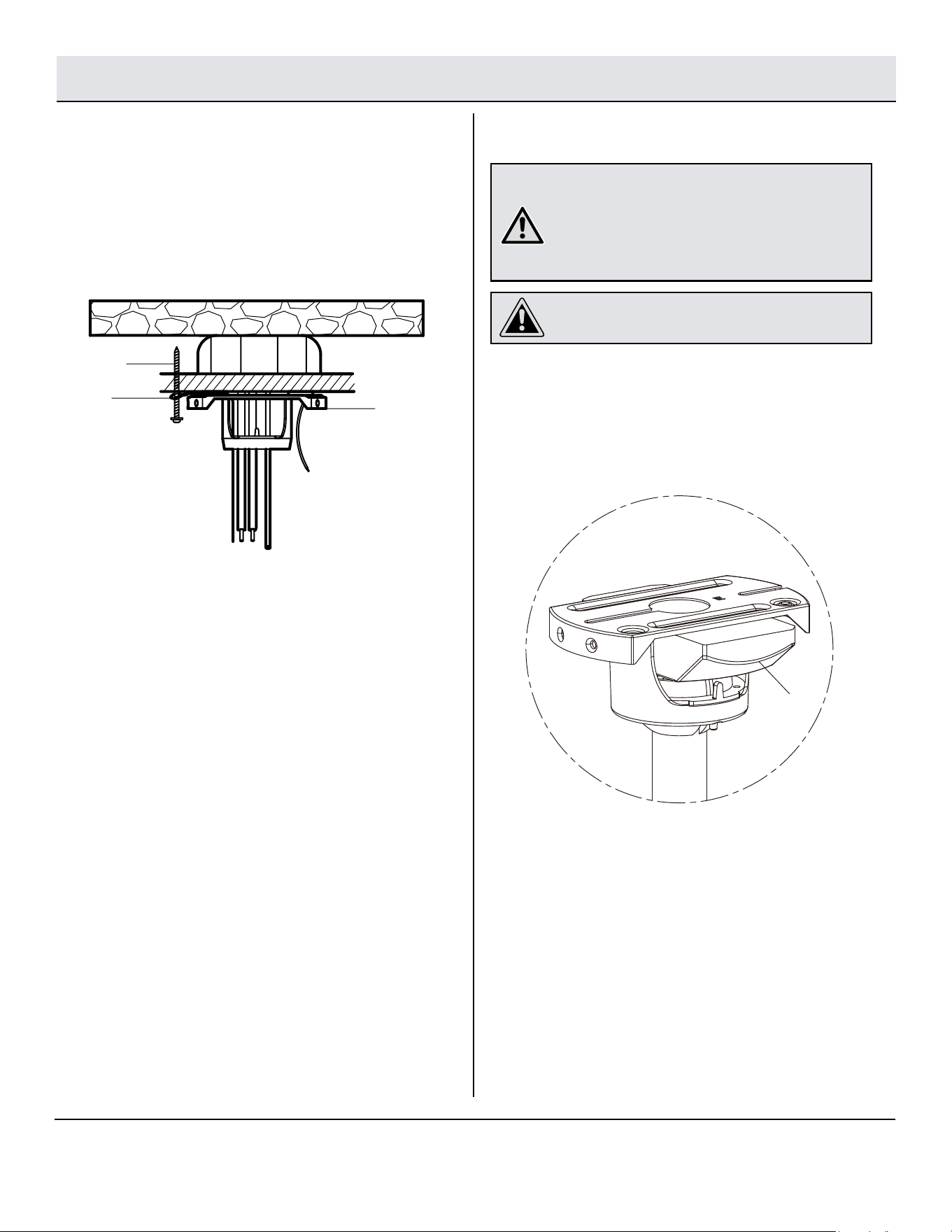

The illustrations below show three different ways to mount the
outlet box.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lb (15.9 kg) or less”, and use screws
provided with the outlet box. An outlet box commonly
used for the support of lighting xtures may not be
acceptable for fan support and may need to be replaced.
If in doubt, consult a qualied electrician.
Installation
Outlet Box
Hanger Bar
Outlet Box
Outlet Box
Outlet Box
Hanger Bar
7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

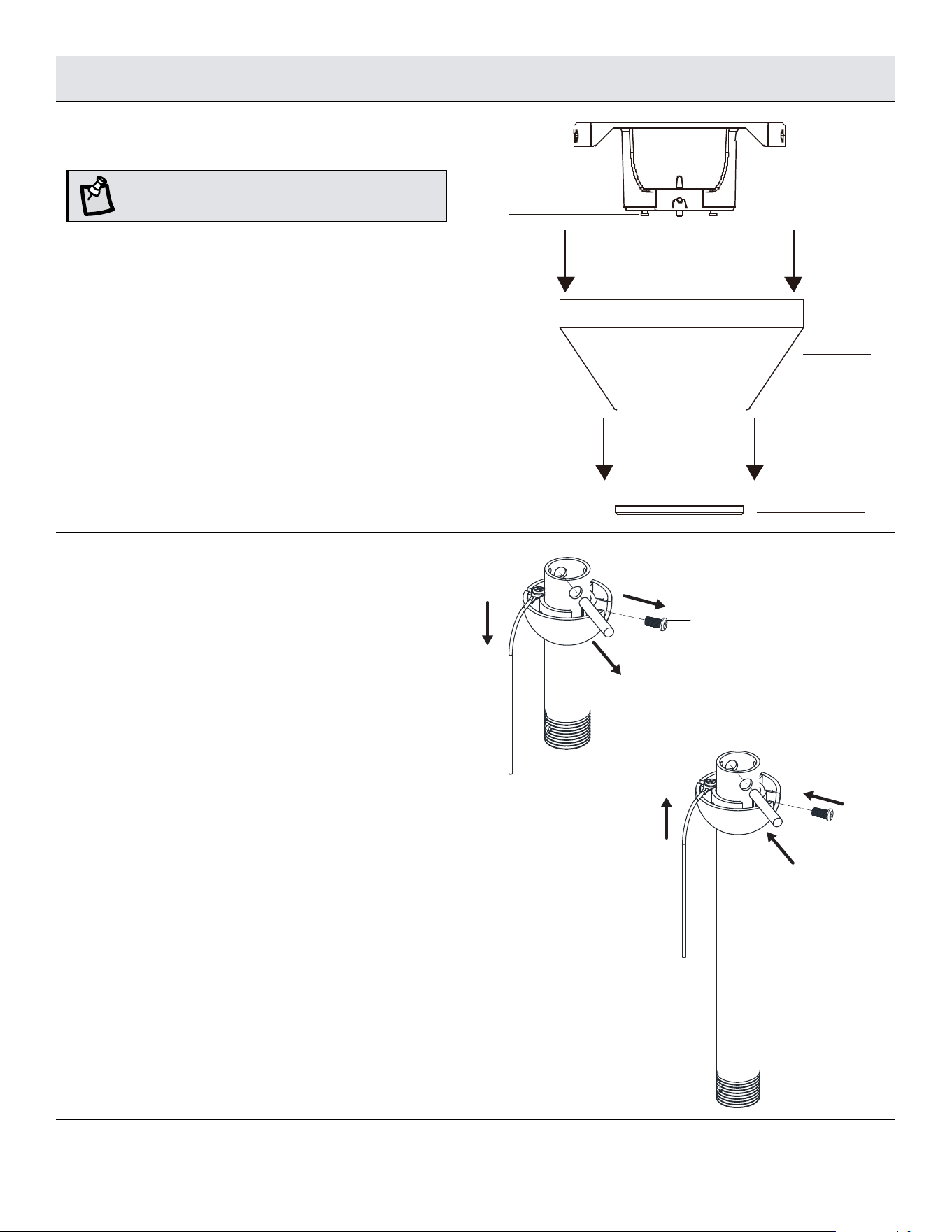

□ Remove the magnetic canopy bottom cover (JJ) from
the canopy (C) by pulling it off.
□ Loosen the two canopy screws (SS) located in the
bottom of the slide-on mounting bracket (A).
□ Turn the slide-on mounting bracket (A)
counterclockwise and lift it up to remove the slide-on
mounting bracket from the canopy (C).
Preparing for mounting
1
NOTE: The magnet is pre-attached on the canopy
bottom cover for you to remove and install easily.
2
Installing with an extension downrod
(sold separately)
□ Disassemble the hanger ball from the downrod by removing
the set screw (MM) slide the hanger ball down the downrod
and remove the pin (OO),keep parts.
□ Place the hanger ball on the new downrod and insert the
in (OO) through the holes at top of downrod and slide the
hanger ball up to the downrod until the pin (OO) locked into
the slots of hanger ball.
□ Re-install the set screw (MM) tighten it so the set screw is
secured against the downrod.
□ Then routing the wires according to step 3 “routing the
wires”.
Assembly - Standard Ceiling Mount
SS
C
A
JJ
OO
B
MM
OO
B
MM
8

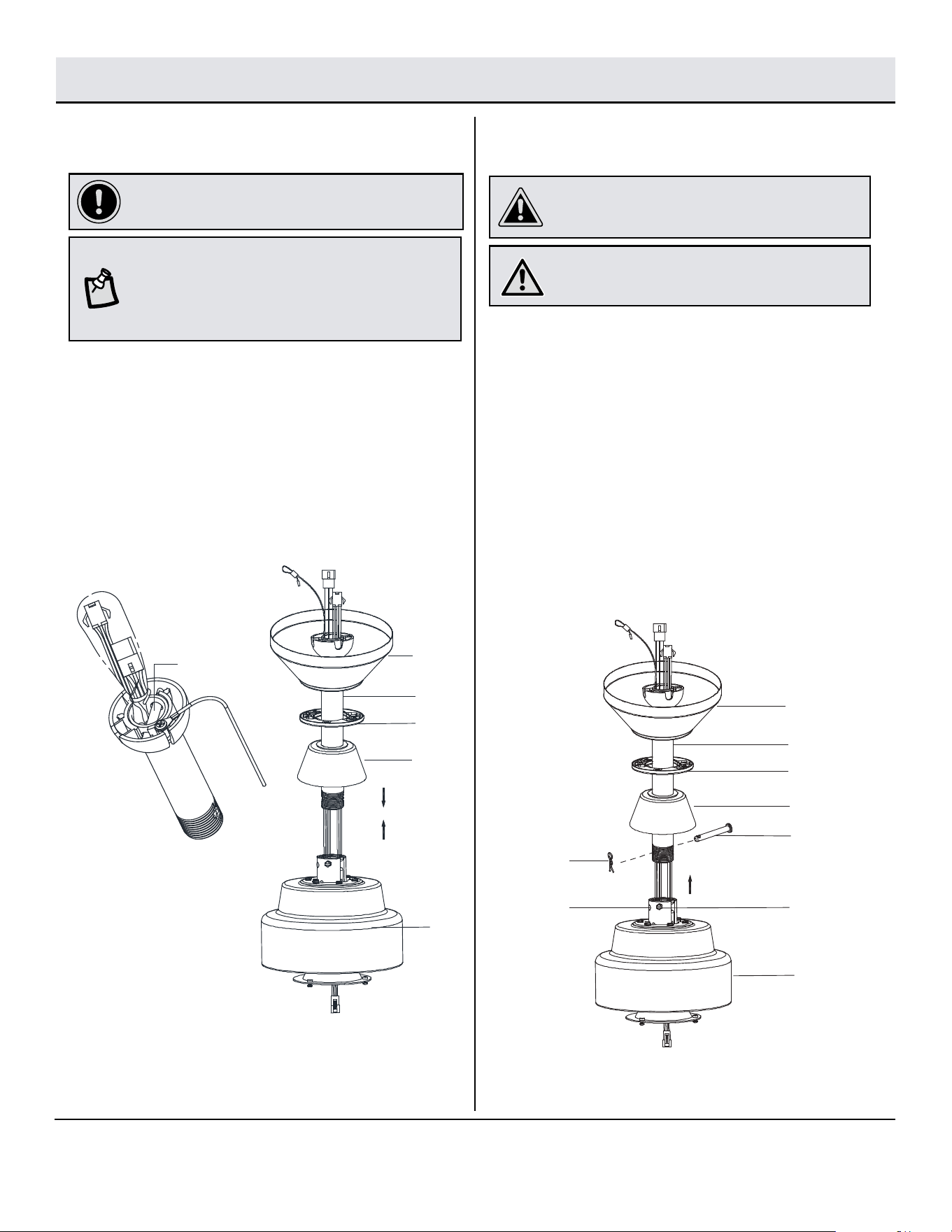

□ Loosen, but do not remove, the setscrew (KK) on the collar
(PP) on top of the fan motor assembly (E).
□ Install the downrod (B) by inserting it into the motor collar
(PP), and turning it clockwise until the holes at the bottom
of the ball/ downrod assembly (B) align with the holes in
the collar on top of the fan-motor assembly (E).
□ Carefully insert the hanger pin (CC) through the holes in
the collar and ball/downrod assembly (B). Be careful not to
jam the hanger pin (CC) against the wiring inside the ball/
downrod assembly (B).
□ Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□ Re-tighten the setscrew (KK) on the collar (PP) on top of
the fan-motor assembly (E).
WARNING: Failure to properly install the locking
pin (DD) could result in the fan becoming loose and
possibly falling.
CAUTION: To ensure wobble-free operation and
to avoid damage to the fan, the downrod (B) and the
setscrew (KK) must be completely tightened.

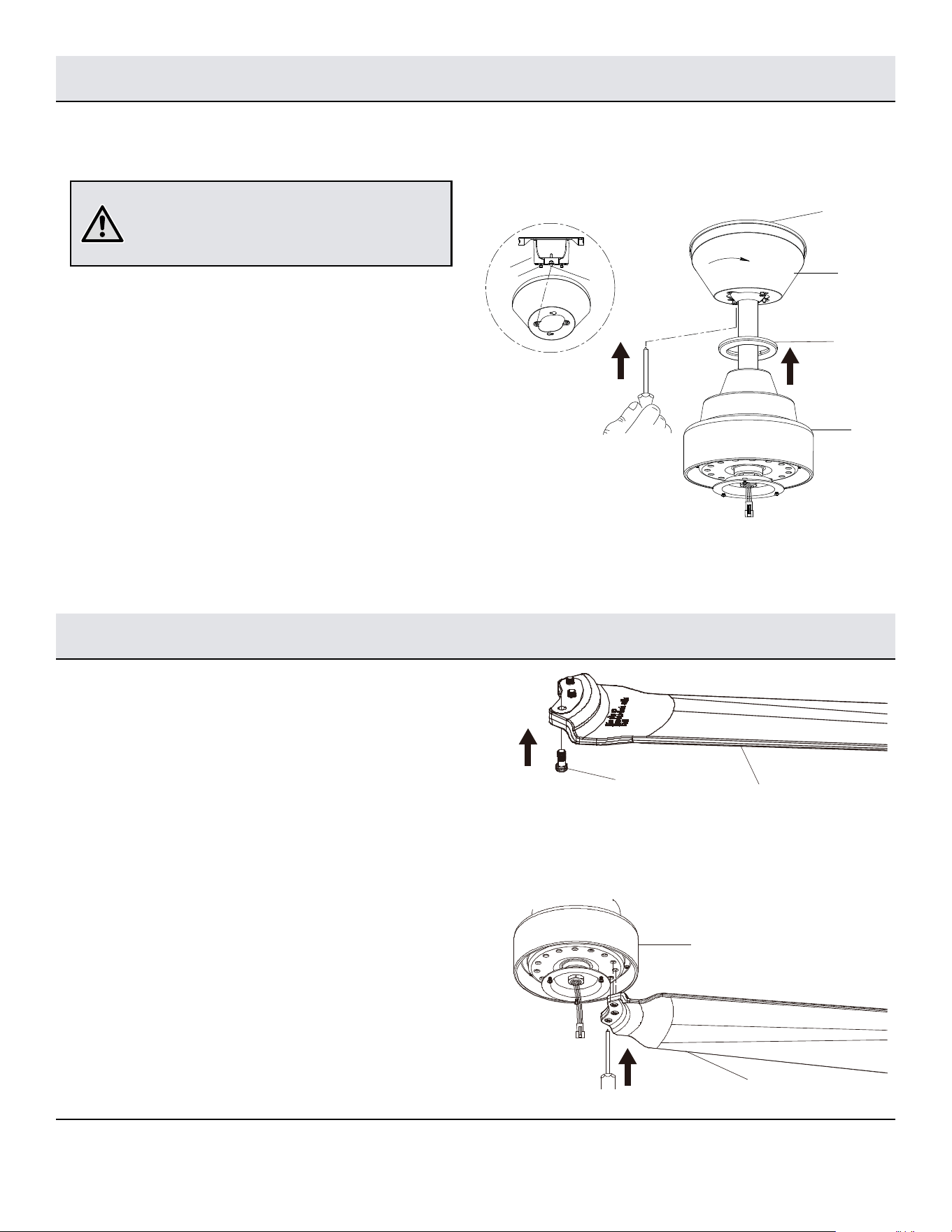

□ Insert the ball/downrod (B) through the large opening of the
canopy (C). Next, slide the canopy bottom cover (JJ) over
the ball/downrod (B) with the magnets facing the canopy.
Finally, slide the decorative motor collar cover (D) on the ball/
downrod (B) as shown in the illustration.
□ Route the wires exiting the top of the fan motor assembly
(E) through the ball/downrod (B). Ensure that both wire
connectors exit the ball/downrod (B) on the same side of the
hanger ball pin (OO).
NOTE: The fan comes with 8 in. lead wires for use with the
provided 6 in. ball downrod assembly (B). If you wish to use
a longer downrod, attach the 3-pin extension wire (M) and
3-pin extension wire (N) to the fan by connecting the molded
adaptor plugs from the extension wires to the 3-pin adaptor
plugs from the fan.
IMPORTANT: DO NOT remove the wires from the plastic
bag before routing the wires the to the downrod and fan.
3
Assembly - Standard Ceiling Mount (continued)
Routing the wires
4
Assembling the fan
KK
PP
CC
DD
E
B
C
JJ
D
B
C
OO
JJ
D
E
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
□ Loosen the two mounting screws (HH) in the outlet box.
□ Place the water proof cover(Q) to the outlet box over the
two mounting screws(HH)
□ Pass the 120-Volt supply wires through the center hole
in the slide-on mounting bracket (A) and waterproof
cover (Q).
□ Slide the slide-on mounting bracket (A) on to the mounting
screws (HH) and center the slide-on mounting bracket
(A) in relation to the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting
bracket (A) and the outlet box. The at side of the slide-on
mounting bracket (A) should face toward the outlet box, as
shown.
□ Securely tighten the two mounting screws (HH).
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The slide-on mounting bracket (A) is designed
to slide into place on an outlet box with the outlet box
screws (HH) installed.
Hanging the fan
□ Carefully lift the fan motor assembly (E) up to the
slide-on mounting bracket (A).
□ Insert the ball portion of the ball/downrod assembly (B)
into the socket of the slide-on mounting bracket (A).
□ Turn the ball/downrod assembly (B) clockwise until it
is seated with the tab of the slide-on mounting bracket
(A) aligned with the slot in the ball.
2
Attaching the fan to the electrical box
1
Assembly - Hanging the Fan
A
HH
Q
E
C
B
JJ
A
D
10
□ Turn the wood screw (RR) (not provided) in the ceiling.
□ Place the looped end of the safety cable (T) onto the
wood screw and then tighten the screw rmly, or
conncect safety cable directly to the outer joist.
Installing the receiverConnecting the safety cable
□ Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A). Position the fan wires to
the opposite side.
□ Insert the end of the receiver (K) (as shown, at side
towards the ceiling) into the slide-on mounting bracket
(A) until it rests on top of the ball/downrod assembly (B).
3 4
WARNING: To reduce the risk of re or electric
shock, remember to disconnect power. The electrical
wiring must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have
this unit installed by a licensed electrician.
K
A
T
RR
Assembly - Hanging the Fan (continued)
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
5
5a
□ If using the 6 in. ball downrod assembly (B) provided,
wire the receiver to the fan wires by connecting the
molded adaptor plug from the receiver (K) with the
molded adaptor of the fan motor assembly (E) together.
□ If you wish to use longer downrod, you can use the
extension lead wire (42 in.) (N) and (M) provided by
connecting the molded adaptor together.
□ Remove the hanger ball from the downrod (B) by
loosening the set screw and removing the pin as shown
in illustration. and using the long extension dowrod (not
provided) for your desire option.
Making the electrical connections
Wire Connections
Single Wall Switch
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire and two
wires from the fan. If you have larger than 12-gauge house
wiring or more than one house wire to connect to the fan
wiring, consult an electrician for the proper size wire nuts
to use.
NOTE: 3-wire receiver will enable independent control of
fan and light at the wall switch if house wiring has separate
household red and black power wires.
NOTE: If your house wiring does not have a red switch wire,
please connect the receiver black wire and receiver red wire
to the house black wire and secure using a plastic wire nut.
NOTE: If the light and/or fan is turned off using the remote
and you want to turn it back on using the wall switch (with
the wall switch already in the “on” position), simply toggle
the light wall switch off and then back on within one second
to activate the light/fan.

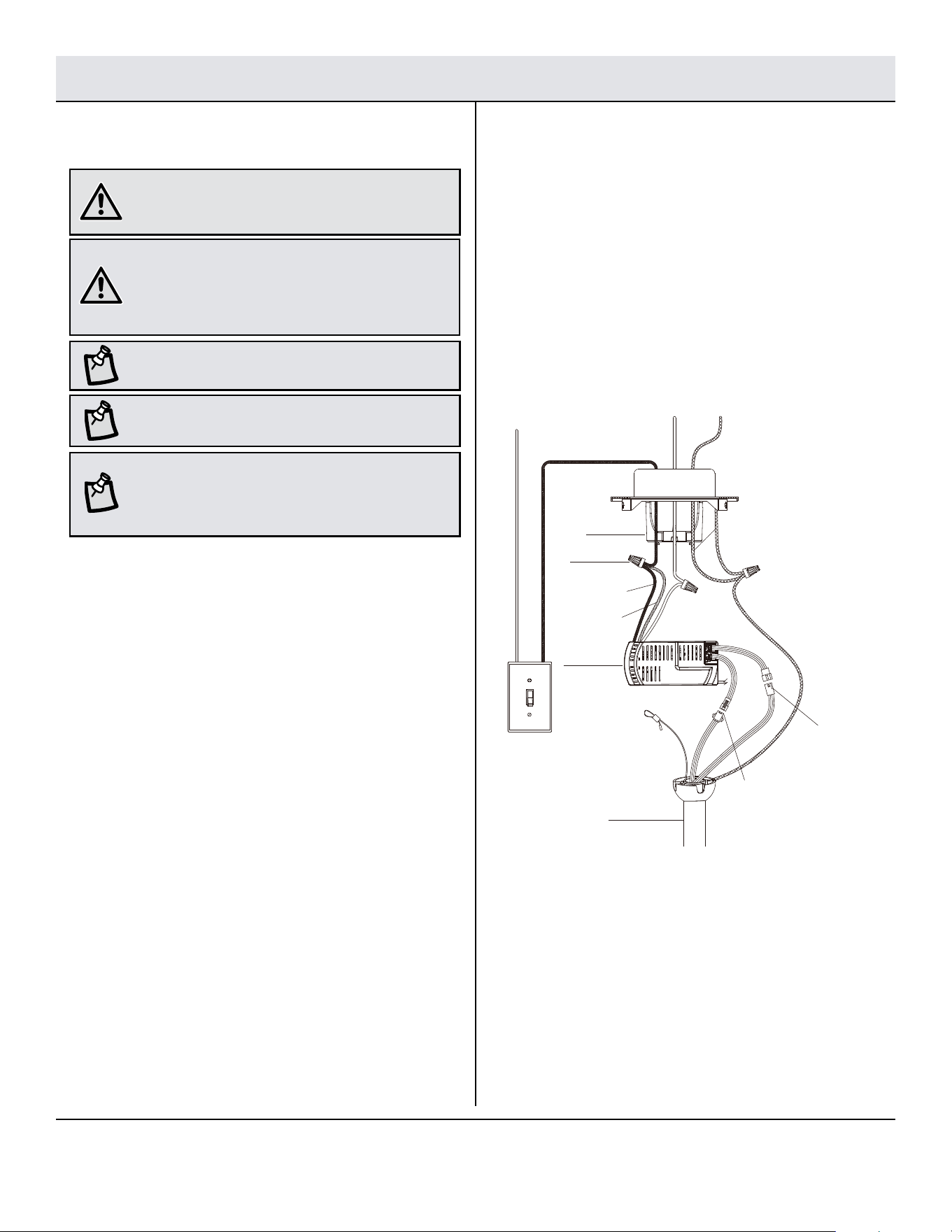

WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you feel
you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Assembly - Hanging the Fan (continued)
□ On a single switch the fan and light can be turned on
or off together. Make wire connections as follows,
using the wire nuts (BB). Wall switch not included.
From Fan To Outlet Box
Black + Red Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire
(Ground)
Green
Outlet box
White
Black
Black
AC IN
SINGLE
SWITCH
Red
Black
White
Green
3-pin connector
(for motor)
3-pin connector
(for light)
B
K
A
BB
12
Assembly - Hanging the Fan (optional)

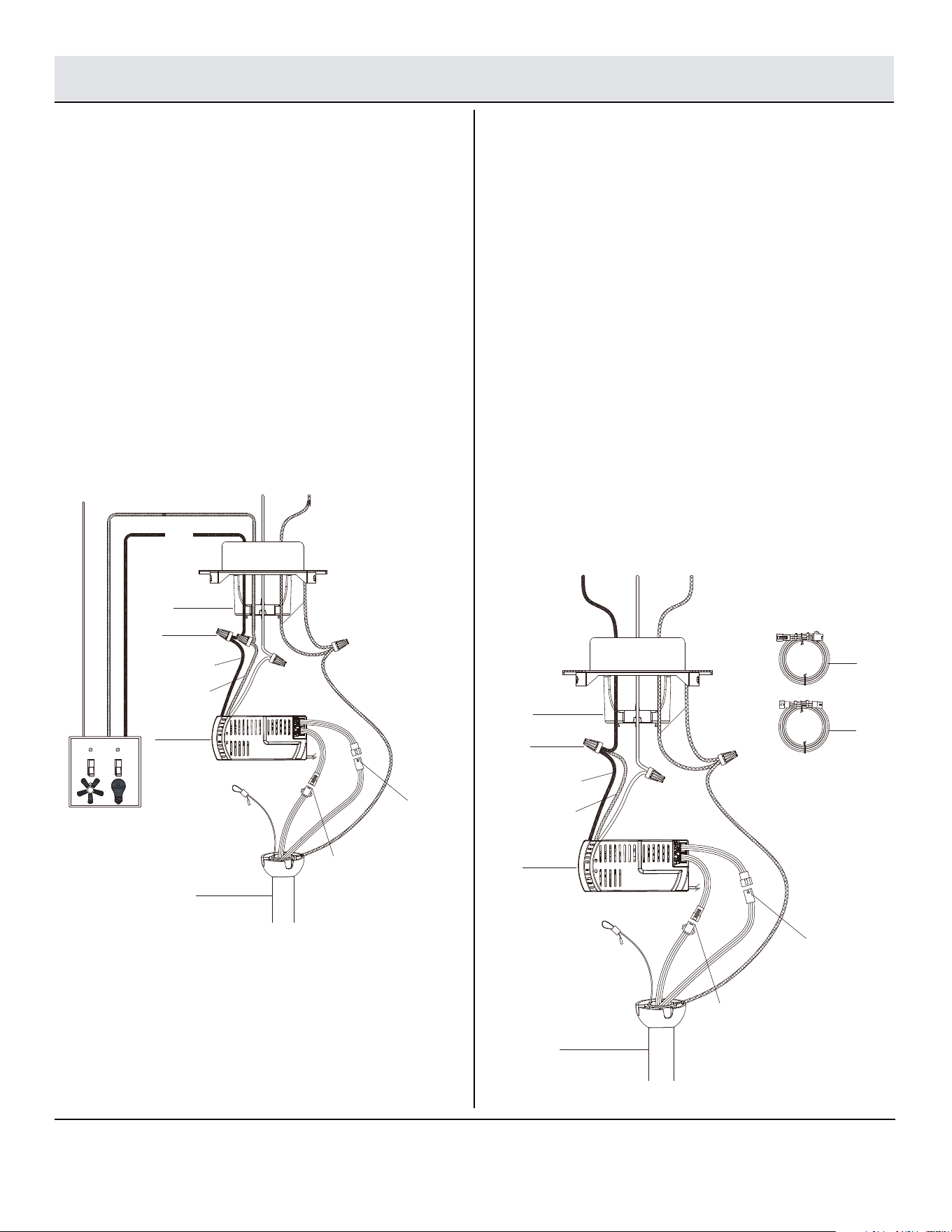

□ On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (BB). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Red Wire (for Light) --------- Red Wire (Hot #2 but may
be in a color other than black,
white or green)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
Wire Connections
Dual Wall Switch
Wire Connections
No Wall Switch
5b 5c
From Fan To Receiver
3-pin connector--------------- 3-pin connector
□ Make wire connections from the receiver (K) and fan to the
outlet box as follows, using the wire nuts (BB).
From Receiver To Outlet Box
Black “AC in L” + Red wire “for Light” ---------- Black wire (Hot)
White wire “AC in N” --------- White wire (Neutral)
From Receiver To Outlet Box
Green wires* ----------------- Green or bare wire (Ground)
* There are two green grounding leads: one from the
mounting bracket (A) and one from the hanger ball/downrod
assembly (B) if installed.
□ Turn the wire nut connections upward, spreading them apart
so the green (ground) and white wires will be on one side of
the outlet box and the black wire will be on the other side.
Carefully tuck the connections up into the outlet box.
White
Red
Black
White
Green
3-pin connector
(for motor)
3-pin connector(for light)
Outlet box
Green
B
K
A
BB
Black
DUAL SWITCH
AC IN
Red
Green
Outlet box
BB
White
Black
Red
Black
White
Green
3-pin connector
(for motor)
3-pin connector(for light)
M
B
K
A
N
13
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Mounting the fan motor assembly
(standard mount)
6
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the slide-
on mounting bracket (A) must rest in the groove of
the hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
□ Align the locking slots of the canopy (C) with the two
screws (SS) and alignment post (QQ) in the slide-on
mounting bracket (A).
□ Push up the canopy (C) and turn it clockwise until the
alignment post (QQ) engages to the round hole and the
screws (SS) engage to the key slots.
□ Firmly tighten the two mounting screws (SS).
□ Align the oval shape on the canopy (C) with canopy bottom
cover (JJ).
□ Align the oval shape on the canopy (C) with the canopy
bottom cover (JJ). Push up the canopy bottom cover (JJ)
until the screw (HH) heads engage with the slots on the
canopy bottom cover (JJ) so that it attaches magnetically.
□ Adjust the waterproof cover (Q) to make sure it cover
the canopy properly to prevent water from entering the
ceiling fan.
Fastening the blades to the motor assembly
□ Firstly insert the three blade attachment screws (AA)
into the blade (F).
□ Fasten the blade (F) to the fan motor assembly (E) by
aligning the three holes of blade and the three holes of
bottom of the motor and securing with blade attachment
screws (AA)
□ Make sure all the blade attachment screws (AA) are
rmly tightened.
□ Repeat this step for the remaining blade assemblies.
Assembly - Attaching the Fan Blades
F
AA
F
E
C
E
JJ
QQ
A
SS
Q
Assembly - Hanging the Fan (continued)
14

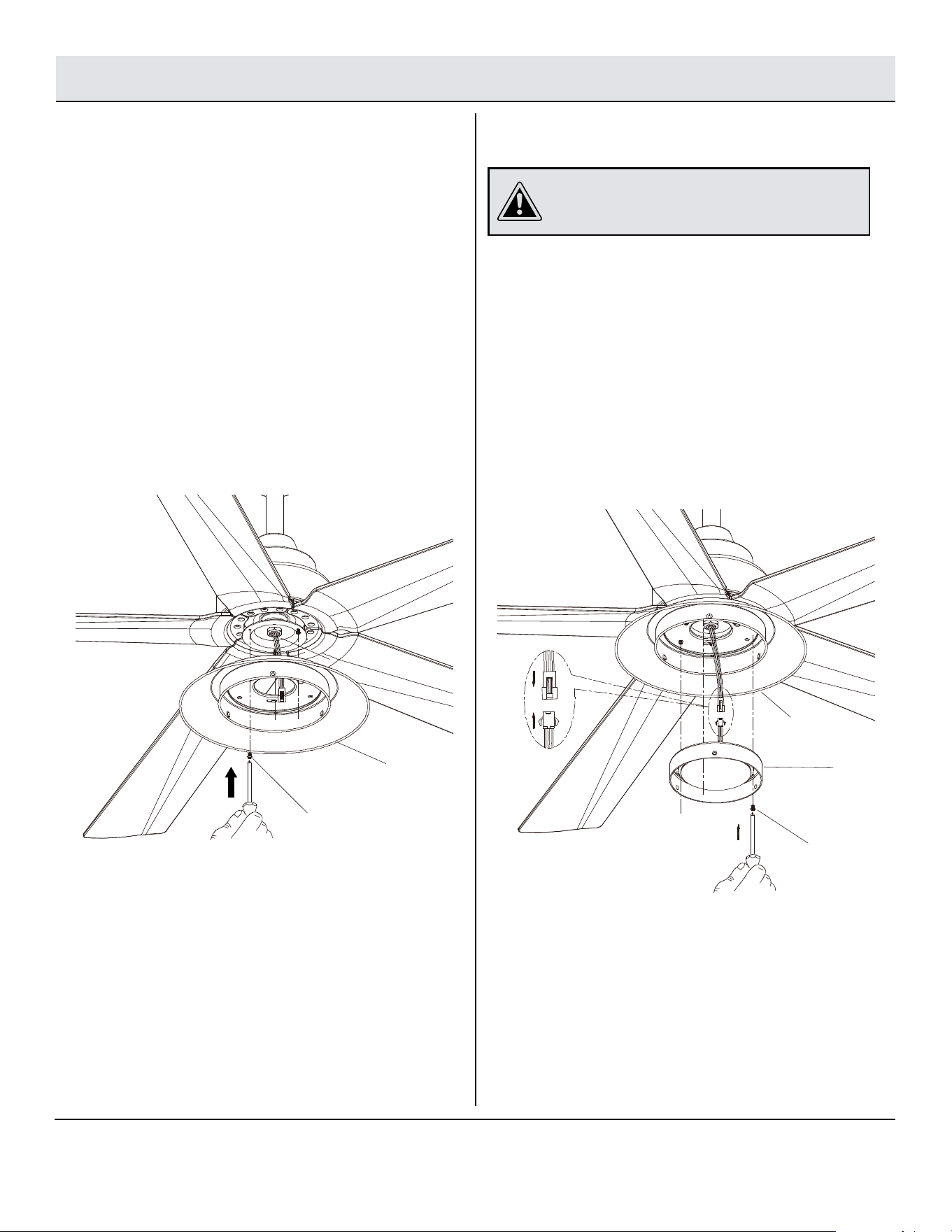

Installing the light kit tter assembly
Installing the light kit pan
21
□ Remove one screw (TT) from the light kit pan (G), and
loosen, but do not remove, the other two screws.
□ Connect the wires from the light kit pan (H) to the wires
from the fan motor assembly by connecting the molded
adaptor plugs together. Carefully tuck all wires and splices
into the switch cup.
□ Push the light kit tter assembly (H) up to the light kit
pan (G) so that the two loosened screw heads t into the
keyhole slots. Turn the light kit tter assembly (H) clockwise
to secure.
□ Re-install the screw that was removed in the rst step.
□ Make sure all the screws are rmly tightened.
□ Remove one screw (LL) from the black bracket
below the fan motor assembly and loosen but do
not remove the other two screws.
□ Push the light kit pan (G) up to the fan motor
assembly so that the two loosened screw heads
t into the keyhole slots.Turn the light kit pan (G)
clockwise.
□ Pull the light kit wire through the center of the
light kit pan (G).
□ Re-install the screw (LL) that was removed in the
rst step.
□ Make sure all the screws are rmly tightened.
CAUTION: To reduce the risk of electric shock,
disconnect the electrical supply circuit to the fan before
installing the light xture.
Assembly - Attaching the Light Kit
G
LL
H
TT
G
15
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

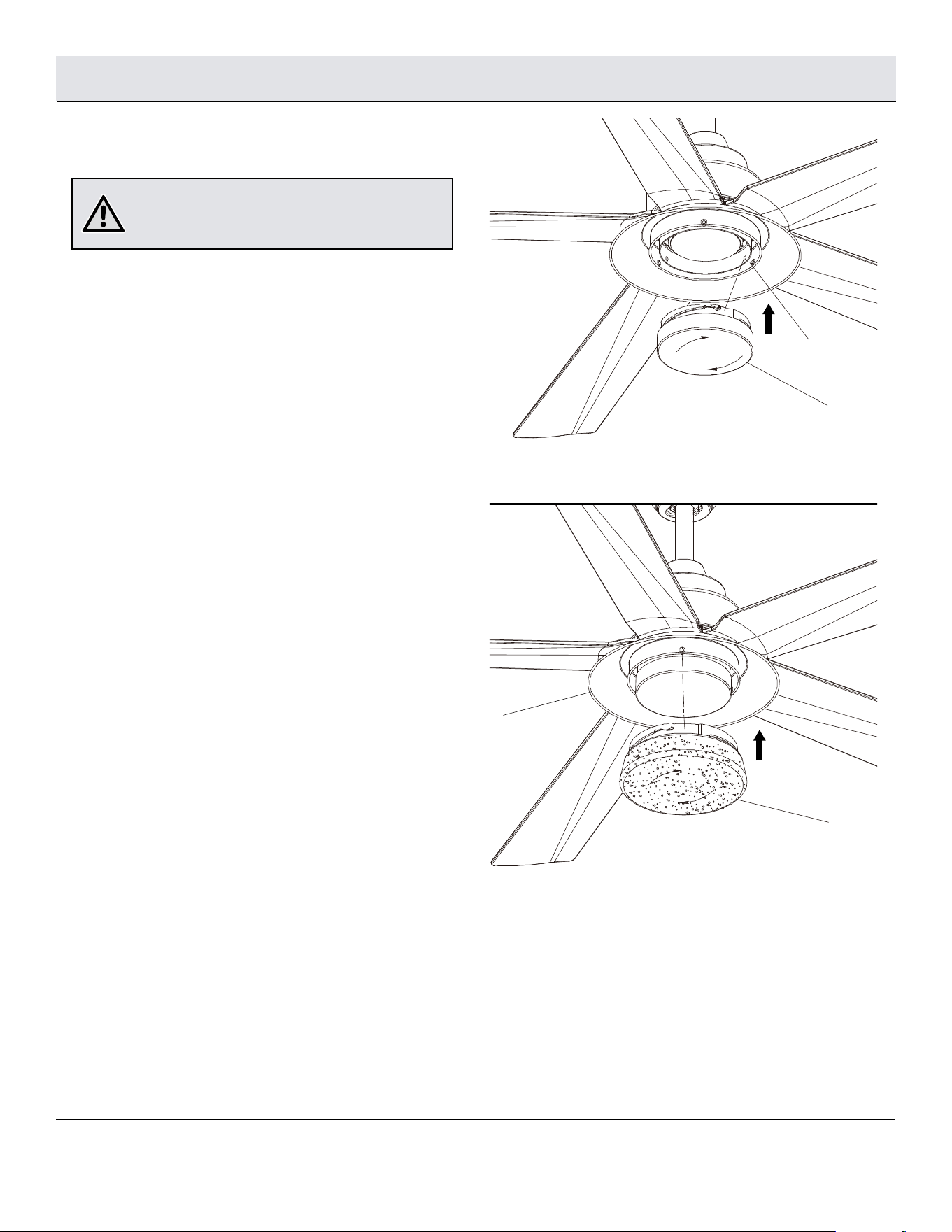

Installing the shatter resistant
shade and glass shade
3
□ Place the shatter resistant shade (I) into the light kit tter
assembly (H), aligning the three at areas on the top of
the ange of the shatter resistant shade (I) with the three
raised dimples in the light kit tter assembly (H). Turn the
shade clockwise until it stops.
□ Place the glass shade (J) into the light kit pan (G), aligning
the three at areas on the top of the ange of the glass
shade (J) with the three raised dimples in the light kit
pan (G). Turn the shade clockwise until it stops.
WARNING: Do not overtighten when installing the
shatter resistant shade and glass shade into the light
kit. Allow the shatter resistant shade and glass shade
to cool completely before removing.
Assembly - Attaching the Light Kit (continued)
I
H
J
G
16

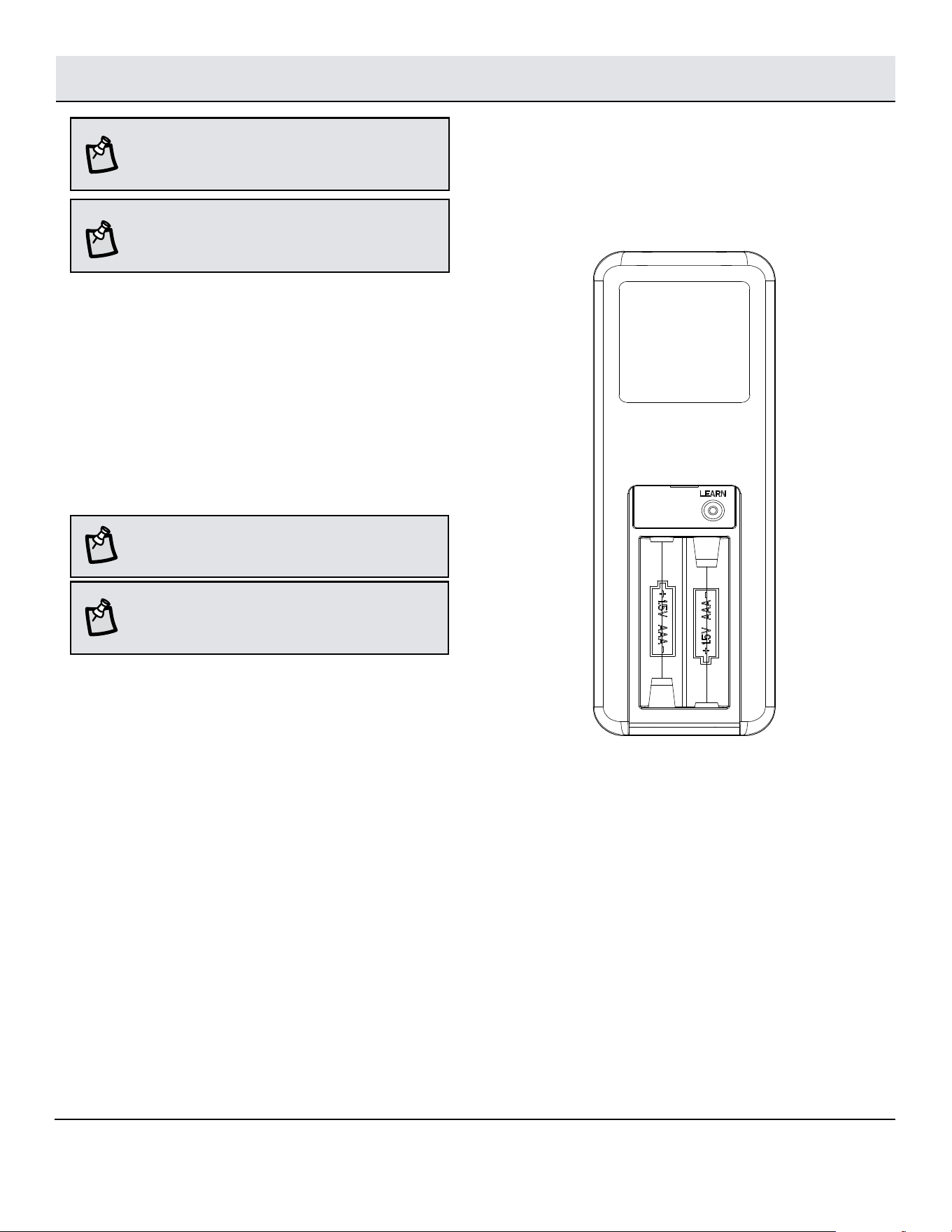

□ Conrm that the power to the fan is off at either the wall
switch or breaker box.
□ Return power to the fan and, within 30 seconds, press and
hold the learn button for 1-2 seconds and release.
□ If pairing is successful, the blades will begin to spin and the
light will also ash.
NOTE: The remote control has already been paired to
the ceiling fan for your convenience. If the remote control
does not communicate with the fan, follow the pairing
instructions below.
NOTE: The remote control battery will weaken with age
and should be replaced before leaking takes place, as this
will damage the remote control. Dispose of used battery
properly and keep the battery out of the reach of children.
Pairing one remote to one ceiling fan
□ Conrm that the power to the fan is off at either the wall
switch or breaker box.
□ Turn the power to the fan on at the breaker box or wall
switch and, within 30 seconds, press and hold the
“Learn” button for 10 seconds and release. Once pairing
is successful, the blades will begin to spin and the light
will also ash.
□ Repeat the above process for the remote controls you
want to work with this fan.
Pairing multiple remote controls
to one ceiling fan
NOTE: The fan can be controlled by up to three remote
controls. To order extra remote controls, please call
customer service 1-855-HD-HAMPTON.
NOTE: The fan can only be controlled by 3 remote
controls maximum at the same time after “Learning”. If
you pair a fourth remote control to the fan, the rst remote
control will be erased from the receiver memory.
Preparing the Remote Control
17
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
ALL ON/OFF
Press and release the ALL button to turn the fan and light on or off.
LIGHT ON/OFF
Press and release the button to turn the light on or off.
DIMMING
Press and hold the (+) button to brighten light to the desired level.
Press and hold the (-) button to dim light to the desired level.
COLOR TEMPERATURE ADJUSTMENT
Push and release the button to cycle through the six color
temperature options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000K(Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Daylight Deluxe).
NOTE: The default temperature of the ceiling fan light is
3000K (Soft White).
FAN SPEED
Press and release the + button to increase the fan speed.
Press and release the - button to decrease the fan speed.
FAN ON/OFF
Press and release the fan button to turn the fan on or off.
LED SPEED INDICATOR
LEDs will illuminate to the corresponding speed:
1 Light - Lowest speed
6 Lights - Highest speed
Comfort Breeze
TM
Press and release the Comfort Breeze
TM
button to simulate an
outdoor breeze.
To cancel this feature press the Comfort Breeze button or other
speed button or holding the Comfort Breeze
TM
button for 3 seconds.
TIMER
Pressing the timer button will automatically turn the fan off after
2, 4, or 8 hours (depending on button pressed.
Holding the timer button for 3 seconds will cancel this function.
FAN DIRECTION
Hold the SUMMER button for 3 seconds to rotate fan forward.
Hold the WINTER button for 3 seconds to rotate fan in reverse.
NOTE: On start up your ceiling fan will oscillate back and
forth. This is NORMAL OPERATION for DC ceiling fans as it
goes through its calibration cycle. The fan is NOT DEFECTIVE.
NOTE: The fan must be on and rotating prior to pressing the
winter or summer button. The fan will not reverse direction if
the fan is not moving.
Operating - Your Fan and Remote Control
Warm Weather - (Forward)
A downward airflow creates a cooling effect.
This allows you to set your air conditioner on a
higher setting without affecting your comfort.
Cool Weather - (Reverse)
An upward airflow moves warm air off of the
ceiling. This allows you to set your heating unit on
a lower setting without affecting your comfort.
Color
temperature
adjustment
Fan On/Off
Increases fan
speed
D
ecreases fan
speed
Comfort
Breeze
TM
Timer
Fan direction
All On/Off
Light On/Off
Increases light
level (dimmer)
Decreases ligh
t
level (dimmer)
LED speed
indicator
18
GG
GG
P
Toggle switch spacer
Toggle switch face plate
FF
EE
P
EE
P
Paddle switch face plate
□ Remove the two screws from the toggle switch face plate.
□ Place the toggle switch spacer over the toggle switch face
plate and align the two large holes of the toggle switch spacer
with the holes in the face plate. Secure the toggle switch
spacer to the face plate using the two included machine
screws (EE).
□ Attach the remote wall cradle (P) to the toggle switch spacer
using the included two short tapered screws (FF). Screw a
short tapered screw (FF) into the top hole and bottom hole of
the wall cradle and into the toggle switch spacer until tight.
NOTE: Screw wall anchors are included for extra support.
The included screws are designed to screw easily into the
wall. If you would like a more permanent or secure hold,
install the wall anchors prior to attaching the wall cradle to
the wall.
□ Remove the two screws from the paddle switch face plate.
□ Place the remote wall cradle (P) over the paddle switch and
align the two holes of the remote wall cradle (P) with the
holes in the face plate. Secure the remote wall cradle (P) to
the face plate using the two included machine screws (EE).
□ Position the remote wall cradle (P) in the desired
position and attach to the wall using the included two
long tapered screws (GG).
NOTE: The remote wall cradle is designed to allow you to
access an existing switch. The remote wall cradle can be
mounted on the wall or to the face plate of a standard toggle
switch or a paddle switch. Follow the instructions below for
the option that best suits your needs.

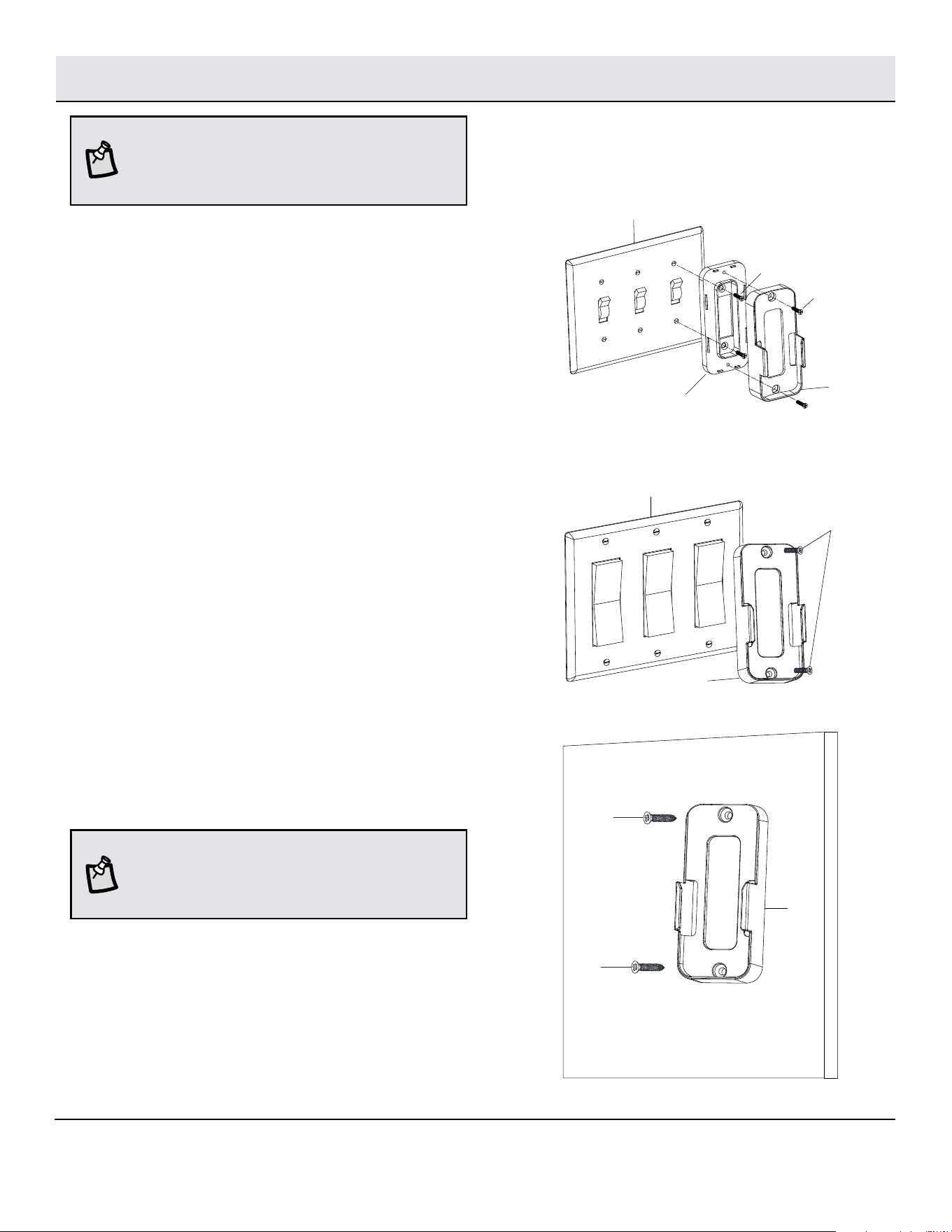

Assembly - Mounting the remote wall cradle
Attaching over a standard toggle switch
1a
Attaching over a paddle switch
1b
Attaching to the wall
1c
19
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Problem Solution
The fan will not start. □ Check the main and branch circuit fuses or breakers.
□ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check the battery in the remote control.
□ Ensure you are in the normal range of 10-20 feet.
□ Ensure the dip switch settings are the same on the remote control and receiver.
□ Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□ Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point
on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any
measurement deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please
contact Customer Service and a balancing kit will be sent to you at no charge.
The fan moves backwards
and forwards when turned on
□ This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC
motor aligning the internal magnetic poles for proper motor operation. This design saves electricity and allows
the fan to operate much more quietly than standard AC motor fans.
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could
damage the motor or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching
the nish. The plating is sealed with a lacquer to minimize discoloration or tarnishing.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches
with a light application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before
cleaning your fan.
Care and Cleaning
Troubleshooting
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Responsible Party - U.S. Contact Information: King of Fans, Inc 1951 NW 22nd Street, Fort Lauderdale, FL 33311, (954) 484-7500
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
