CABLE RAILING POST
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/
HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014
HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/
HR-022/HR-023
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/
HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014
HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/
HR-022/HR-023
<Picture Only For Reference >
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CABLE RAILING POST
- 2 -
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before
operating or servicing this product. Failure to follow these
warnings and instructions can cause personal injury or
damage to valuable property.
1.The warning indicates that appropriate action should be taken to avoid
the potential danger of personal injury.
2.Product capabilities apply to properly and completely assembled product
only.
3.Please keep small spare parts out of children's reach,it is not a toy, Do
not allow children to play.
4. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap and
separate all parts in a clean work area.
SAVE THESE INSTRUCTIONS
MAIN FEATRUES
This product is mainly used for column installation of wire functions and
decorative accessories.
VEVOR’s Cable Railing Post is made of all stainless steel materials, which
has great resistance to rust and corrosion. It will work for long life time for
interior and exterior railings with low maintenance. Please note that it is not
recommended for coastal projects.
We work with every effort to provide quality products and professional
service, and make VEVOR a reliable brand.
INSTALLATION INSTRUCTION
Installation indication and Applicable post
Applicable to all engineering installation scenarios.
Note: This product only includes the column and its installation fasteners,
excluding wire rope, Cable Railing Kit, handrail.
- 3 -
PRODUCT INFORMATION
Model
Drille
d
Heig
ht
(mm)
Drille
d
numb
er
Hole
diamet
er
(mm)
Pitch
of
holes
(mm)
Section
size
(mm)
Color
Inclu
de
(pcs)
A
- 4 -
HR-00
1
level
1067
12
φ10.5
80
50*50
Black
4
HR-00
2
level
914
10
φ10.5
80
50*50
Black
4
HR-00
3
level
1067
12
φ8
80
30*50
Black
4
HR-00
4
level
914
10
φ8
80
30*50
Black
4
HR-00
5
30°
1067
12
10.5×1
5
80
50*50
Silver
1
HR-00
6
30°
1067
12
10.5×1
5
80
50*50
Black
1
HR-00
7
L
1067
12
φ10.5
80
50*50
Black
1
HR-00
8
Non
914
/
/
/
50*50
Black
1
HR-00
9
level
914
10
φ10.5
80
50*50
Black
1
HR-01
0
30°
914
10
10.5×1
5
80
50*50
Black
1
HR-01
1
L
914
10
φ10.5
80
50*50
Black
1
HR-01
2
level
914
10
φ10.5
80
50*50
Silver
1
HR-01
3
30°
1067
12
8×13
80
30*50
Black
1
HR-01
4
L
1067
12
φ8
80
30*50
Black
1
HR-01
5
30°
914
10
8×13
80
30*50
Black
1
HR-01
6
L
914
10
φ8
80
30*50
Black
1
- 5 -
HR-01
7
Non
914
/
/
/
38*38
Black
1
HR-01
8
level
1067
12
φ8
80
30*50
Black
1
HR-01
9
Non
1067
/
/
/
50*50
Black
1
HR-02
0
level
914
10
φ8
80
30*50
Black
1
HR-02
1
level
1067
12
φ10.5
80
50*50
Black
1
HR-02
2
level
914
10
Φ8
80
30*50
Silver
1
HR-02
3
level
1067
12
φ10.5
80
50*50
Silver
1
PACKAGE INCLUDE
No
Compone
nts
QTY
Fit model
HR-001/
HR-002
HR005~HR0
12/HR-019/H
R-021/HR-02
3/
HR-003/
HR-004
HR-013~
HR-016/
HR-018/
HR-020/
HR-022/
HR-0
17
1
post
4
1
4
1
/
/
/
/
/
1
2
Square
cover
4
1
/
/
/
- 6 -
3
Rectangul
ar cover
/
/
4
1
/
4
anchor
bolt
16
4
16
4
4
5
Curved
bracket
4
1
4
1
/
6
Horizontal
bracket
4
1
4
1
/
7
hex
wrench
4
1
4
1
1
8
Open end
wrench
4
1
4
1
1
9
Tapping
screw
8
2
8
2
4
10
Plastic
cover
/
/
/
/
1
INSTALLATION
For concrete or wood floor
Step1.Mark the drilling
points at the
appropriate installation
locations.
Step2.use a hammer
drill to make a hole for
∅ 12 at the marked
points.
Step3.Hammer the
anchor screw into the
drilled hole.
- 7 -
Step4.Tighten the
screws
Step5.Close the lid and finish fixing the post.
Note：Ensure that the column is upright when fixing the bottom plate of
the post.

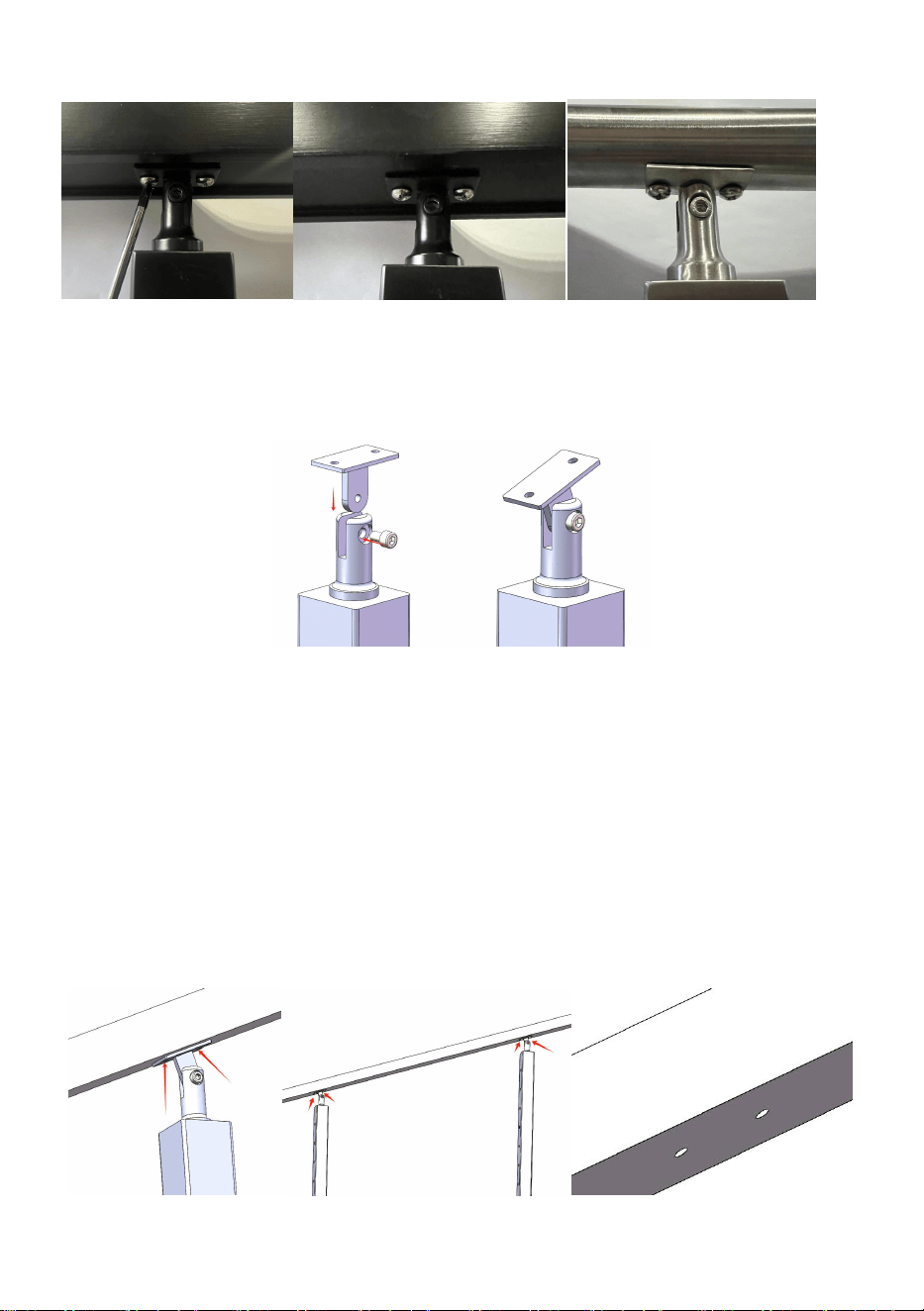

Mount with handrail(horizontal)
Step1: Fixed bracket
Step2: Determine the installation position of the handrail, and then mark
the position under the handrail and bracket holes and drill holes with a
∅ 5.5-∅ 5.6mm drill.
Step3: Use the self-tapping screws in the accessory to fix the handrail to
- 8 -
the support.
It is also suitable for the installation of arc handrails and brackets.
Mount with handrail(gradient)
Step1: Fixed bracket
Step2: Adjust the Angle of the bracket to fit the underside of the
handrail.Determine the installation position of the handrail, and then mark
the position under the handrail and bracket holes and drill holes with a ∅
5.5-∅ 5.6mm drill.
Note:The handrail and bracket can be pre-fixed with the help of
clamping tools, so that multiple bracket installation points can be
marked and positioned at the same time.
- 9 -
Step3:Remove the bracket from the post and then use the self-tapping
screws in the accessory to fix the bracket to the handrail.
Fix the post and bracket again.
It is also suitable for the installation
of arc handrails and brackets.
For model HR-017
Install with wire rope and fittings
For Level Wheel Protector Sleeve
- 10 -
For Stud Tensioner Horizontal mounting and Angle
For Turnbuckle Tensioner and Fixed Terminal
