USER MANUAL WASHER-DRYER
2 ENGLISH
CUSTOMER CARE AND SERVICE
Get usage advice, brochures, troubleshooter, service information, buy
accessories & spare parts, online product registration:
www.electrolux.com
Welcome to Electrolux! Thank you for choosing our appliance.
We recommend the use of original spare parts. When contacting Service, ensure
that you have the following data available. The information can be found on the
rating plate: Model Name, Product Number Code, and Serial Number.
CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6. PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. SMARTSELECT, OPTIONS AND SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
8.
WI-FI CONNECTIVITY SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
9. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
10. DAILY USE-WASHING (ONLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
11. DAILY USE-DRYING (ONLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
12. DAILY USE-WASHING & DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
13. WASHING HINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
14. DRYING HINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
15. INTERNATIONAL WASH CODE SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
16. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
17. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
18. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Warning / Caution-Safety information.
General information and tips.
Environmental information.
The information provided may be subject to change without prior notice due
to updates aimed at improving user experience. For the latest information, please
visit www.electrolux.com.
ENGLISH 3
1. SAFETY INFORMATION
1.1 Conditions Of Use
• staff kitchen areas in shops, offices and other working
environment;
• farm houses;
• by clients in hotels motels, and other residential type
environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in
launderettes.
This appliance is intended to be used in household and
similar applications such as:
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance,
read this user manual carefully, including its hints and
warnings.
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so
that everyone using it through its life will be properly
informed on appliance use and safety.
WARNING!
The appliance must not be supplied through an
external switching device, such as timer, or connected
to a circuit that is regularly switched on and off by
utility.
4 ENGLISH
1.2 Child Safety
1.3 General Safety
• This machine is not intended for use by children or
infirm persons without supervision.
• The children should be supervised to ensure that they
do not play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children-danger of
suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into the
drum.
• This machine is provided with lock option ( ) to
prevent children playing with the control panel.
• It is dangerous to alter the
specifications or attempt to modify this
product in any way.
• During high temperature wash
programme the door glass may get
hot. Do not touch it!
• Make sure that small pets do not climb
into the drum. To avoid this, please
check inside the drum before using the
appliance.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp
material can cause extensive damage
and must not be placed into the
machine.
• Wash small items such as socks, laces,
washable belts etc. in a washing bag
or pillow case as it is possible for such
items to slip down between the tub
and the inner drum.
• Only use manufacturer’s recommended
quantities of fabric softener and
detergent. Damage to the fabric or
appliance can occur if you exceed the
recommended amount.
• Do not use your machine to wash
articles with whalebones, material
without hems or torn material.
• Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
• Pre-treatment sprays and stain
remover can damage plastic
components on your machine. If you
use pre-treatment sprays or stain
removers, apply them to the clothing
well away from your machine.
ENGLISH 5
1.4 Installation
1.5 Use
• This appliance is heavy. Care should
be taken when moving it.
• When unpacking the appliance, check
that it is not damaged. If in doubt,
do not use it and contact the Service
Centre.
• All packing and transit bolts must
be removed before use. Serious
damage can occur to the product
and to property if this is not adhered
to. See relevant section in section
"Unpacking".
• After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
• If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
• Always be sure, that there is no
water leakage from hoses and their
connections after the installation.
• Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
• Any electrical work required to install
this appliance should be carried out
by a qualified electrician.
• Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
• Do not overload the appliance. See
the relevant section in the user manual.
• Before washing, ensure that all pockets
are empty and buttons and zips are
fastened. Avoid washing frayed or torn
articles and treat stains such as paint,
ink, rust, and grass before washing.
• Garments which have been in contact
with volatile petroleum products
should not be machine washed. If
volatile cleaning fluids are used, care
should be taken to ensure that the fluid
is removed from the garment before
placing in the machine.
• Never pull the power supply cable
to remove the plug from the socket;
always hold the plug itself.
• Never use the machine if the power
supply cable, the control panel, the
working surface, or when the base is
damaged; and where the inside of the
machine is accessible.
• If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
• As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of
their bulk, please check with the
manufacturer of the item before
washing/drying in a domestic machine.
• The users should always check that
they have not left their gas lighters,
and matches (disposable or otherwise)
in their clothing.
• Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of volatile
nature and could cause an explosion.
Only tumble dry items which have
been washed in water or require airing.
• Plastic detergent dispensers/capsules
should not remain in the drum during
the drying cycle, as the plastic used
is not designed to withstand heat. If
you wish to wash through to dry you
should use the conventional detergent
dispenser drawer.
CAUTION!
During the Drying phase, pressing on
the Pause touch key will temporarily
stop the cycle. The door will remain
locked as the temperature inside the
drum is high and may pose a safety
risk. The door will automatically unlock
when the machine’s sensors detect that
the temperature is at a safe level.
Never stop a washer-dryer before the
end of the drying cycle unless all items
are quickly removed and spread out so
that the heat is dissipated.
Do not dry cloths in washer-dryer with
dry clean solvents. Also, do not use
laundry enhancement products during
the drying cycle.
6 ENGLISH
1.6 Electrical Connection
Check that your domestic electrical
installation can take the maximum load
required from technical data, also taking
into account any other appliances in use.
When the appliance is installed, the
power supply cable must be easily
accessible.
WARNING!
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT touch
the wet clothes and metal parts.
For safety reasons do not use double
adapters, extension cords and multi-
plug adapters.
CAUTION!
Connect the machine to an earthed
socket outlet.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
Should the appliance power supply
cable need to be replaced, this shall be
carried out by our Service Centre.
"An incorrect power supply may void
your warranty."
To minimize the risk of fire in a washer-
dryer, the following should be observed:
• Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should not
placed in a washer-dryer.
Oil-affected items can ignite
spontaneously, especially when
exposed to heat sources such as in
washer-dryer.
The items become warm, causing an
oxidation which creates heat.
If the heat cannot escape, the items
can become hot enough to catch fire.
Piling, stacking or storing oil-affected
items can prevent heat from escaping
and so create a fire hazard.
• If it is unavoidable that fabrics contain
vegetable or cooking oil or have been
contaminated by hair care products
be placed in washer-dryer, it should
first be washed in hot water with extra
detergent - this will reduce, but not
eliminate the hazard.
• The "cool down" cycle of washer-dryer
is used to reduce the temperature of
the items. It should not be removed
from the washer-dryer or piled or
stacked while hot.
• Items that have been previously
cleaned in, washed in, soaked in
or spotted with petrol/gasoline, dry
cleaning solvents or other flammable
or explosive substances should not be
placed in washer-dryer.
• Highly flammable substances
commonly used in domestic
environments include acetone,
denatured alcohol, petrol/gasoline,
kerosene, spot removers (some
brands), turpentine, waxes, and wax
removers.
• Items containing foam rubber (also
known as latex foam), similarly
textured rubber, or materials e.g.
shower caps, waterproof textiles,
rubber-backed articles, and clothes or
pillows fitted with foam rubber pads
should not be dried in a washer-dryer
on a heat setting.
• Foam rubber materials can produce
fire by spontaneous combustion when
heated.
• Fabric softeners or similar products
should not be used in a washer-
dryer to eliminate the effects of
static electricity unless this practice
is specifically recommended by the
manufacturer of the fabric softener or
product.
• Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer.
• Damage to the washer-dryer can
result if metal reinforcements come
loose during drying. When available
a drying rack could be used for such
items.
• Plastic articles such as shower caps,
babies’ waterproof napkin covers
should not be placed in washer-dryer.
ENGLISH 7
I
L
J
K
M
N

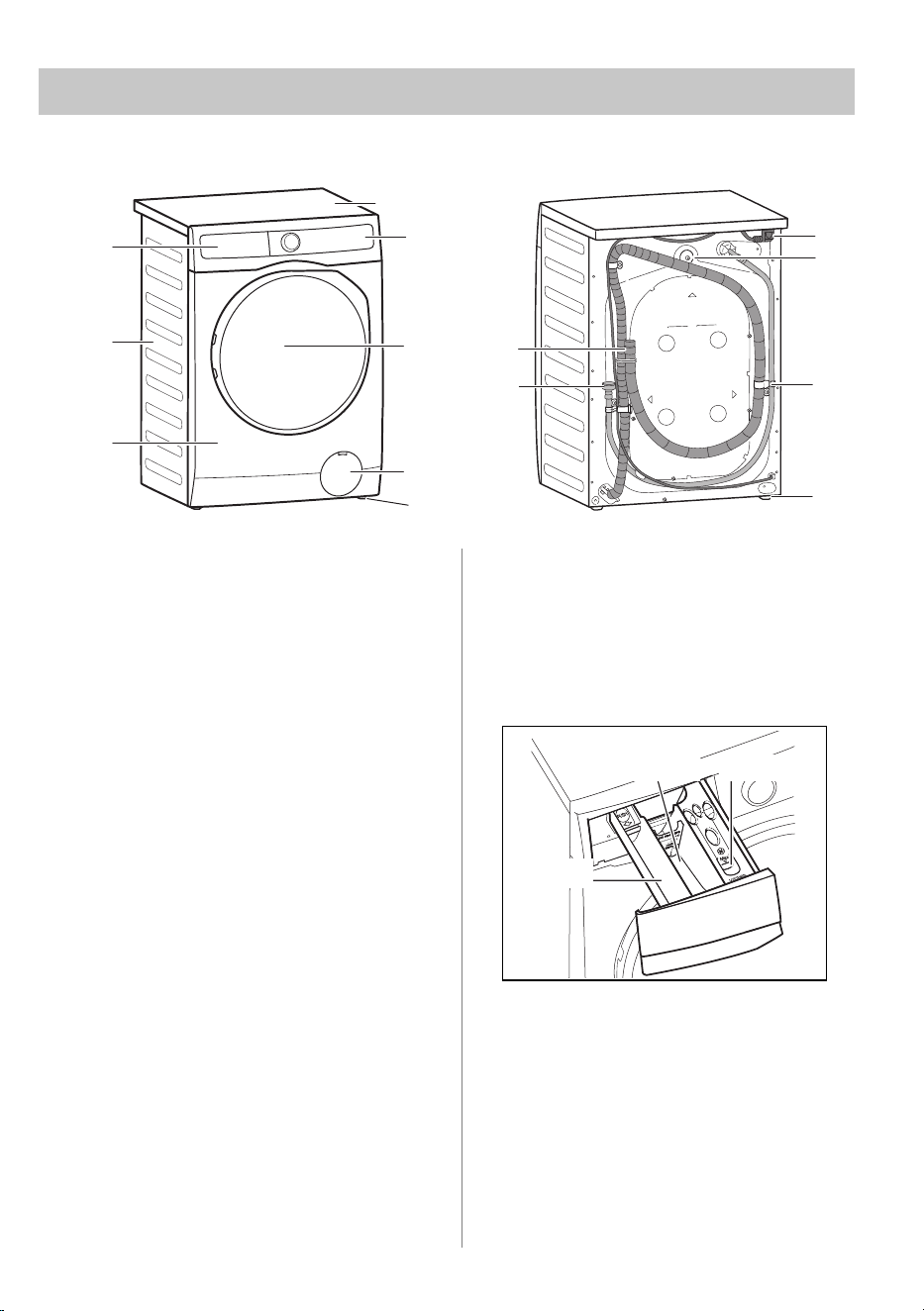

2.1 General overview
A
B
D
C
E
H
G
F
2. PRODUCT DESCRIPTION
A
Worktop
B
Control Panel
C
Door
D
Drain Pump Filter
E
Level Adjustment Feet
F
Front Panel
G
Cabinet
H
Detergent/Softener Dispenser Drawer
I
Mains Cable
J
Transit Bolts
K
Transit Bolts & Hose Support
L
Level Adjustment Feet
M
Water Inlet Hose
N
Water Drainage Hose

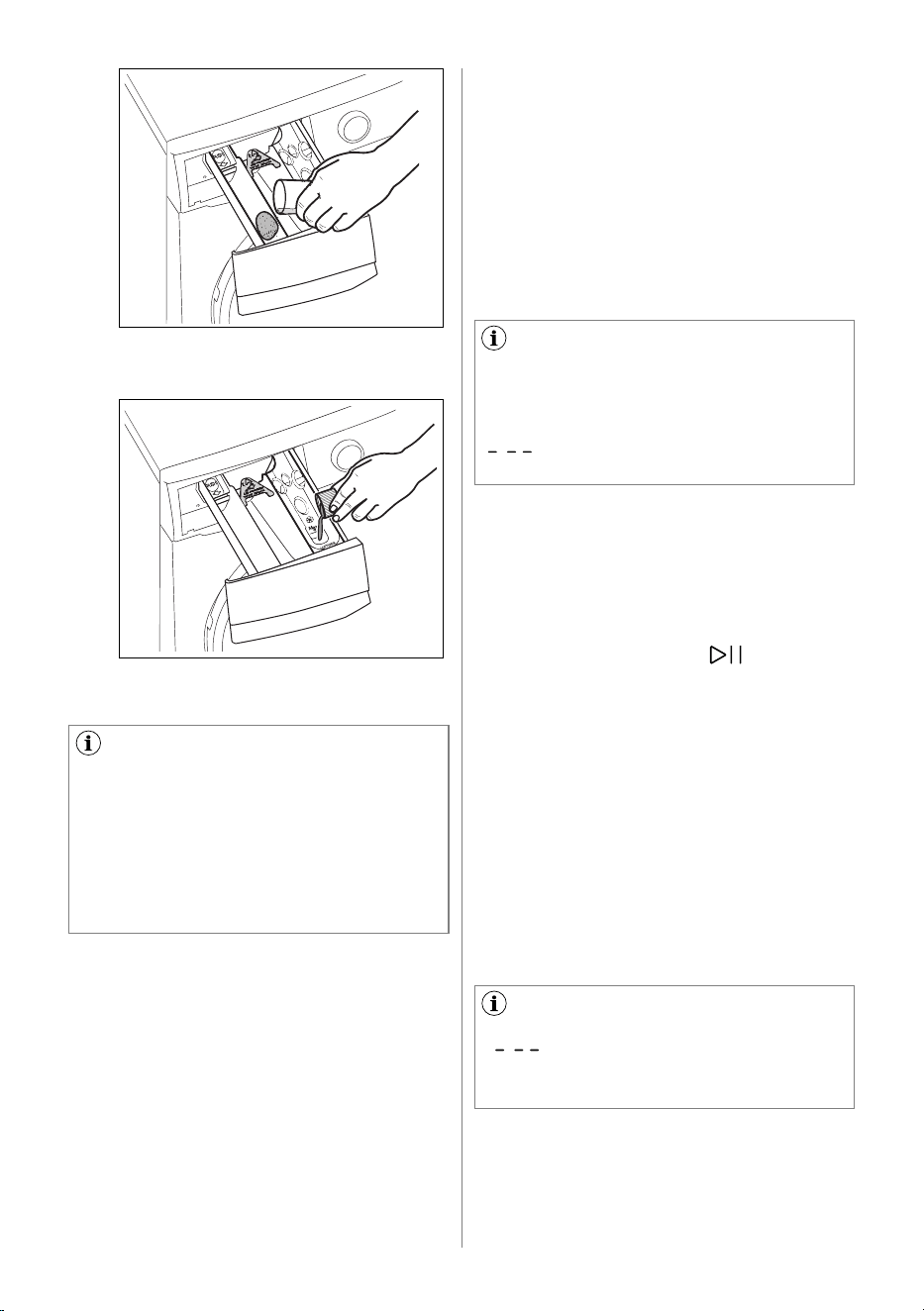

2.1.1 Detergent/Softener Dispenser
Drawer
The detergent dispenser drawer
compartment information, For details
about using detergent and additives, see
page 28.
Prewash
Main wash Softener
8 ENGLISH

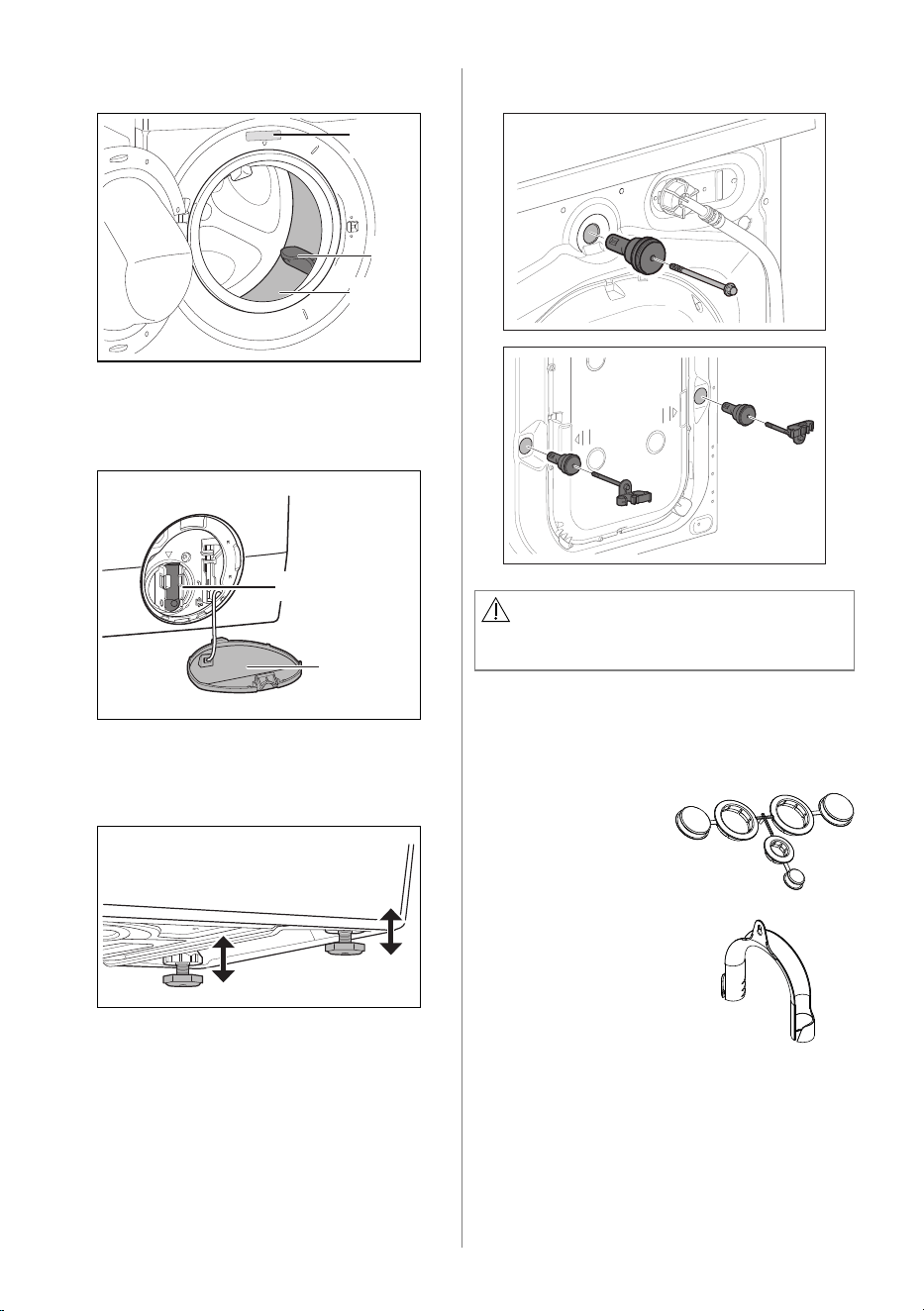

2.1.2 Door (when open)
2.2 Accessories
Plastic Caps
To close the holes
on the rear side of
the cabinet after
the removal of the
transit bolts.
Plastic Hose Guide
To connect the drain
hose on the edge of
a sink.

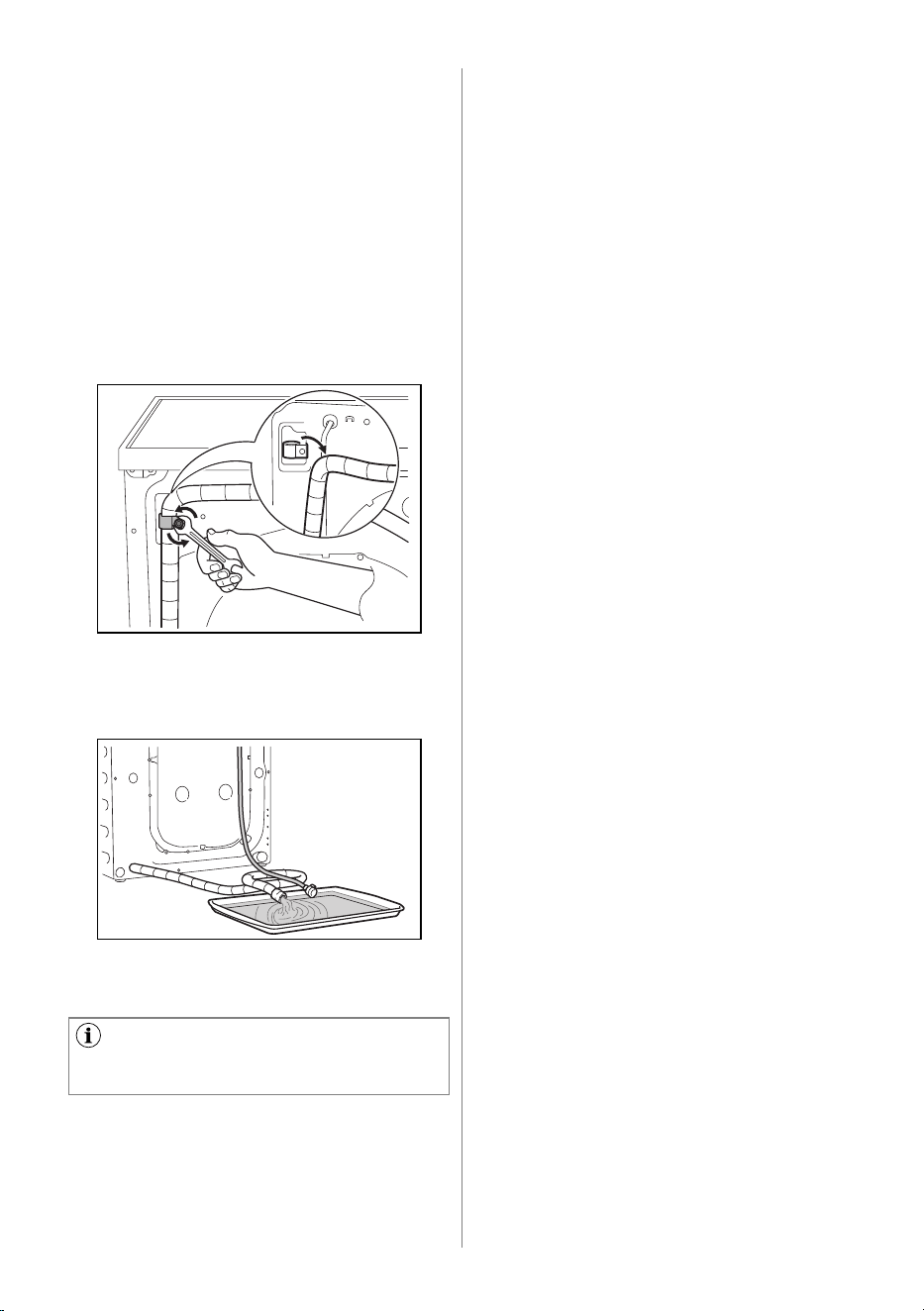

2.1.3 Drain Pump Filter (when open)
2.1.4 Level Adjustment feet
2.1.5 Transit Bolt (when remove)
Drain Pump Filter
Drain Pump
Filter Door
CAUTION!
Transit bolts must be removed before
using the appliance.
Drum
Lifter
Stainless
Steel
Washing
Drum
Rating
Label
ENGLISH 9
3. TECHNICAL DATA
Dimensions (Height / Width / Depth) 850 x 600 x 659 mm
Power supply (Voltage / Frequency) 220 - 240 V~/ 50 Hz
Total power absorbed
EWW10******: Wash 2000 W / Dry 1500 W
EWW12******: Wash 2100 W / Dry 1500 W
Water supply pressure
(Maximum / Minimum)
0.8 MPa / 0.05 MPa
Maximum Spin Speed 1400 rpm
4. INSTALLATION

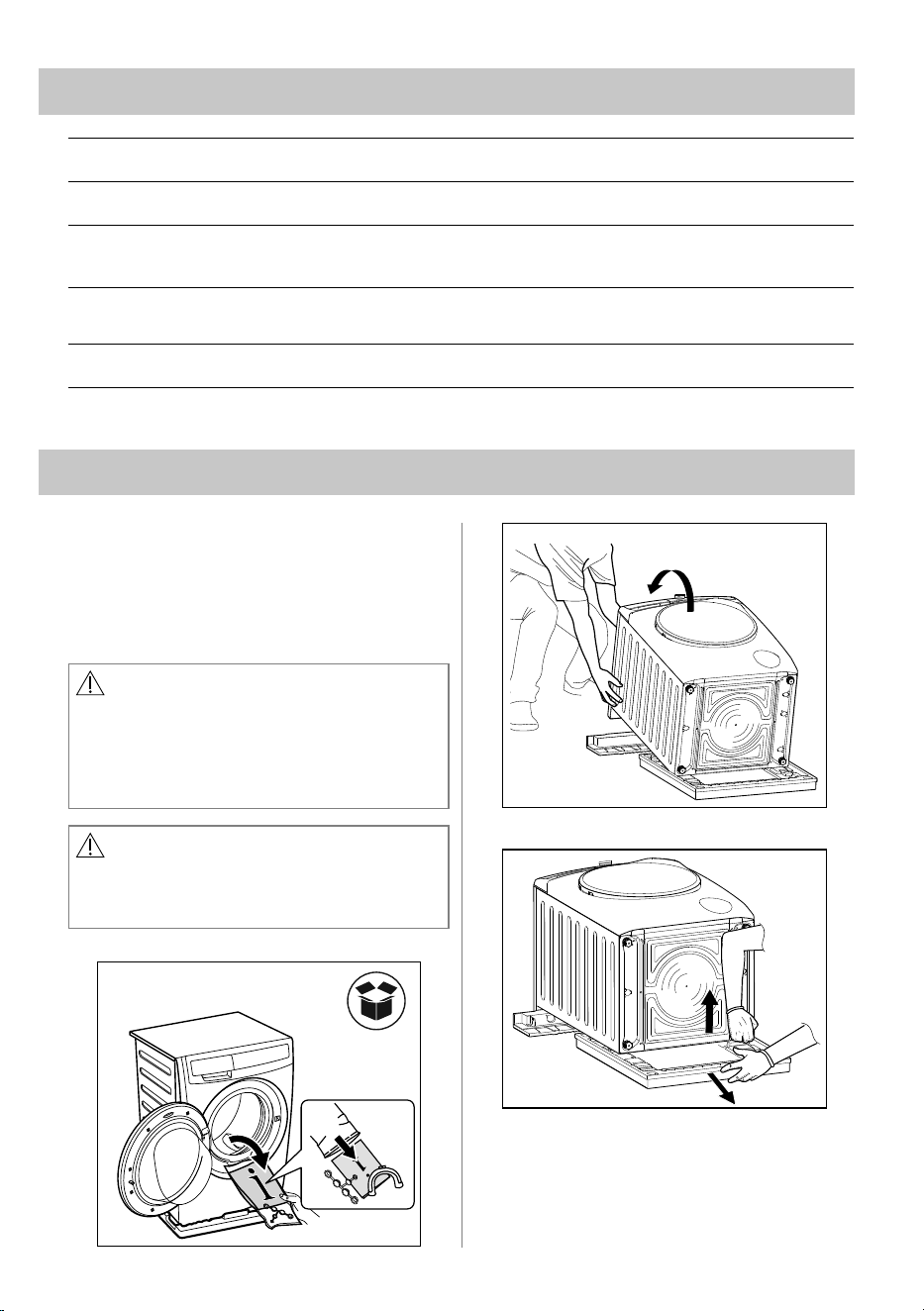

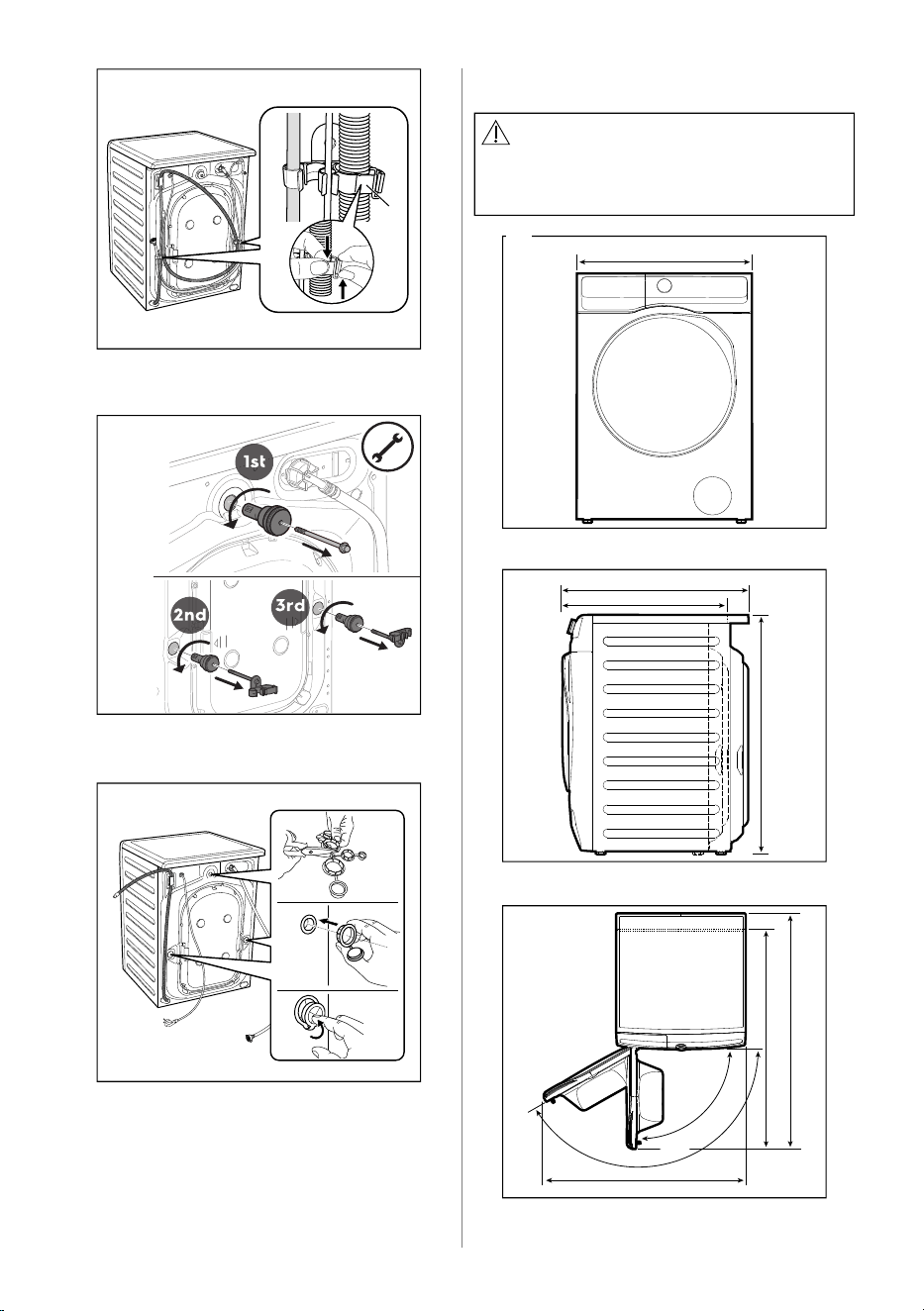

4.1 Unpacking
You are advised to keep all transit
devices so that they can be refitted if
the machine ever has to be transported
again.
WARNING!
All transit bolts and packing must be
removed before using the appliance.
Requires using a wrench or hexagon
head block number 10 to remove the
transit bolts at all 3 points.
CAUTION!
Carefully put down the appliance with
the rear side on it. Make sure not to
damage the hoses.
1
2
3
10 ENGLISH
A
4
5
1
2
3
6
4.2 Positioning
1
600 mm
659 mm
575 mm
850 mm
2
WARNING!
Before proceeding with installation,
read the safety information, and
dimension preferred.
1017 mm
1102 mm
930 mm
3
150°
90°
ENGLISH 11

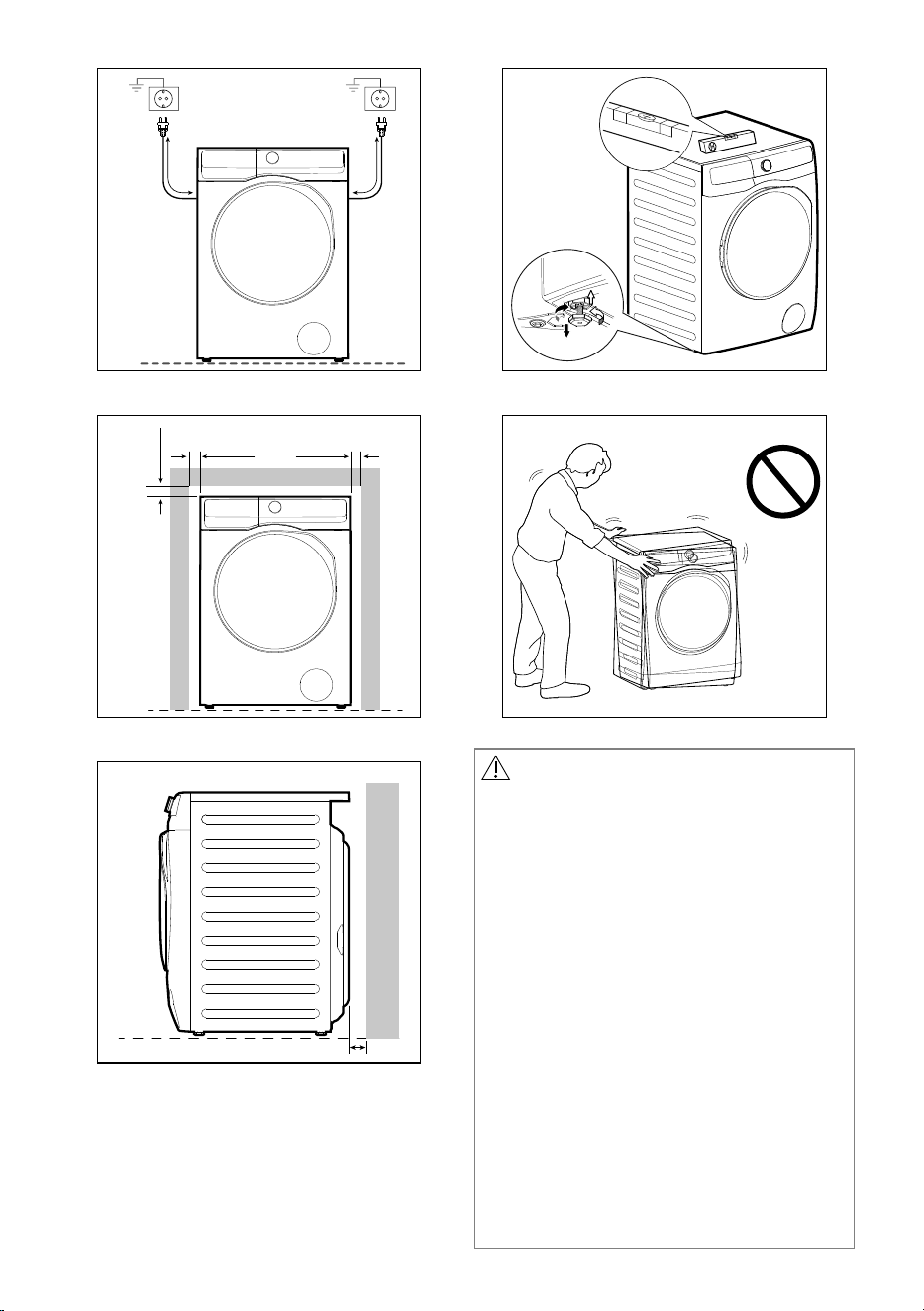

wall
20 mm
30 mm
20 mm
20 mm
6
5
1530 mm
1000 mm
4
7
8

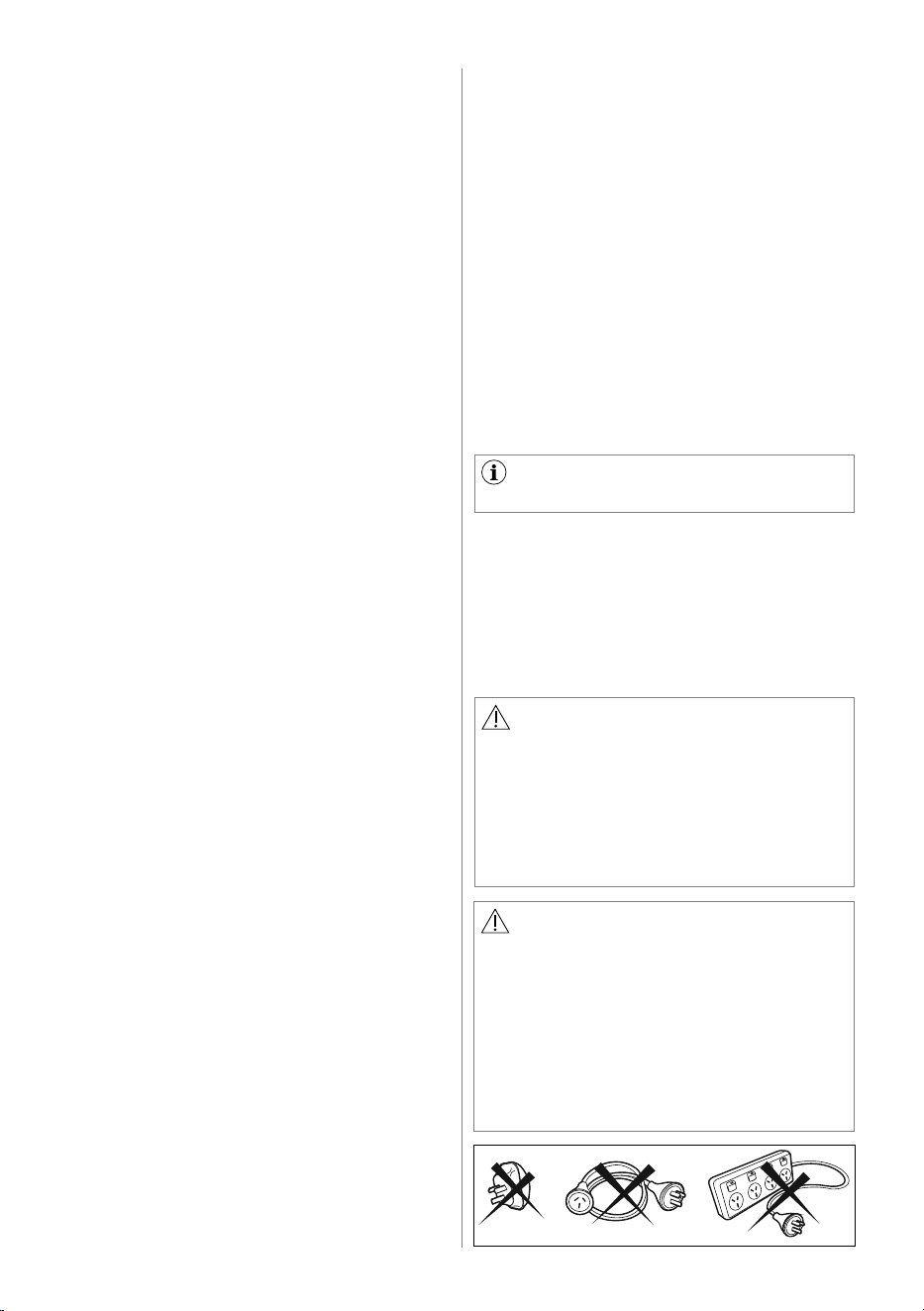

CAUTION!
When installing the product make sure
the levelling feet is not pressing on the
power cord.
When the machine is levelled, try to
rock it from corner to corner.
If it does rock, adjust the legs again
until it is levelled and does not rock.
Never place cardboard, wood, or
similar materials under the machine
to compensate for any unevenness in
the floor. Install the machine on a flat
hard floor. Make sure that air circulation
around the machine is not impeded by
carpets, rugs, etc.
The appliance must not be installed
behind a lockable door, a sliding door,
or a door with a hinge on the opposite
side to that of the machine, in such a
way that a full opening of the door is
restricted.
12 ENGLISH
45°
35°

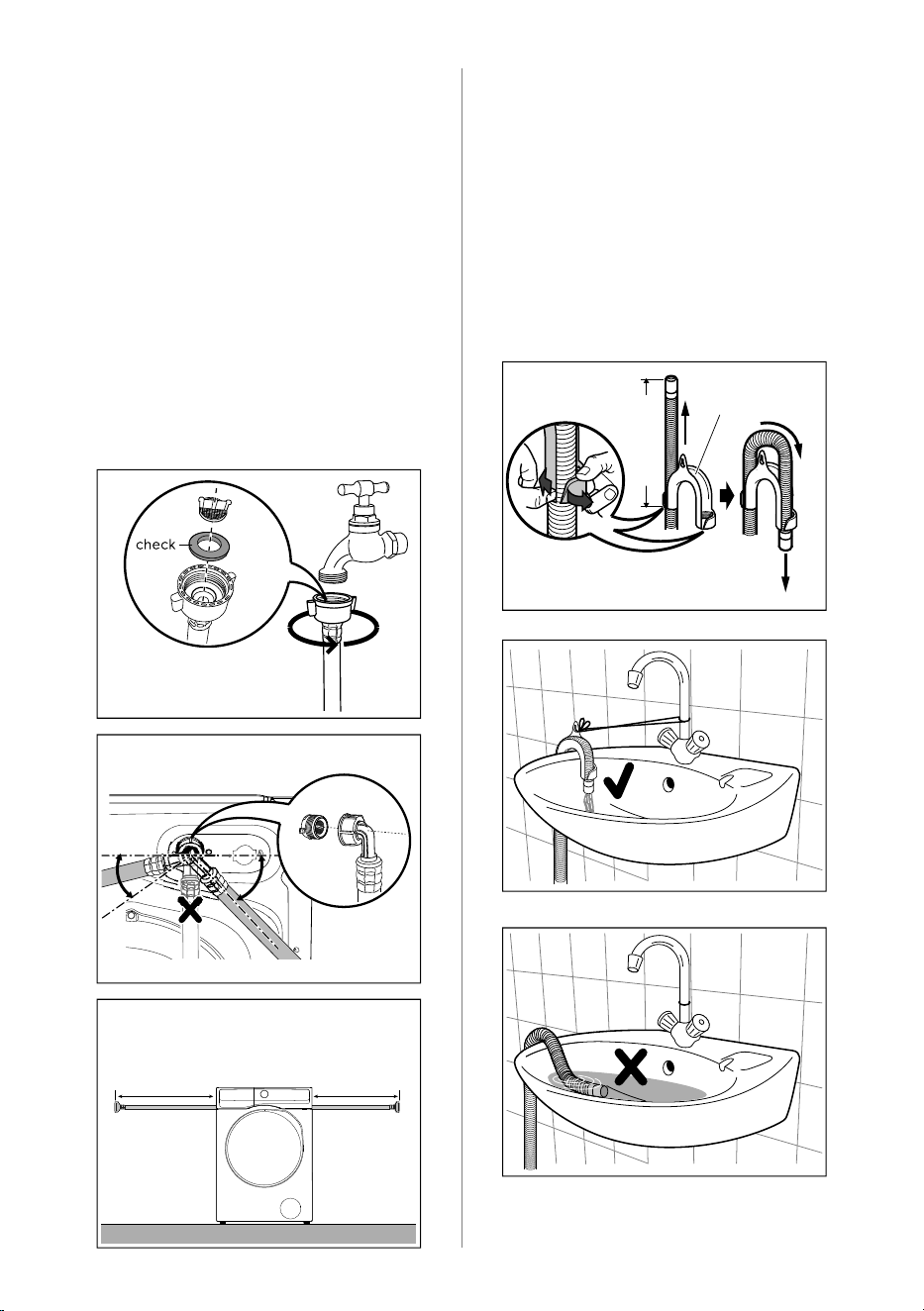

4.3 Water Inlet
Connect the water inlet hose to a tap
with 3/4” BSP thread. Use the hose
supplied with the machine. DO NOT USE
OLD HOSES.
The inlet hose must not be lengthened.
If it is too short and you do not wish to
move the tap, you will have to purchase
a new, longer hose specially designed for
this type of use.
Loosen the ring nut to angle the hose
to the left or right depending on the
position of your water tap. Do not place
the inlet hose downwards.
After positioning the inlet hose, be sure
to tighten the ring nut again to prevent
leaks.
Max.
91 cm
Max.
117 cm

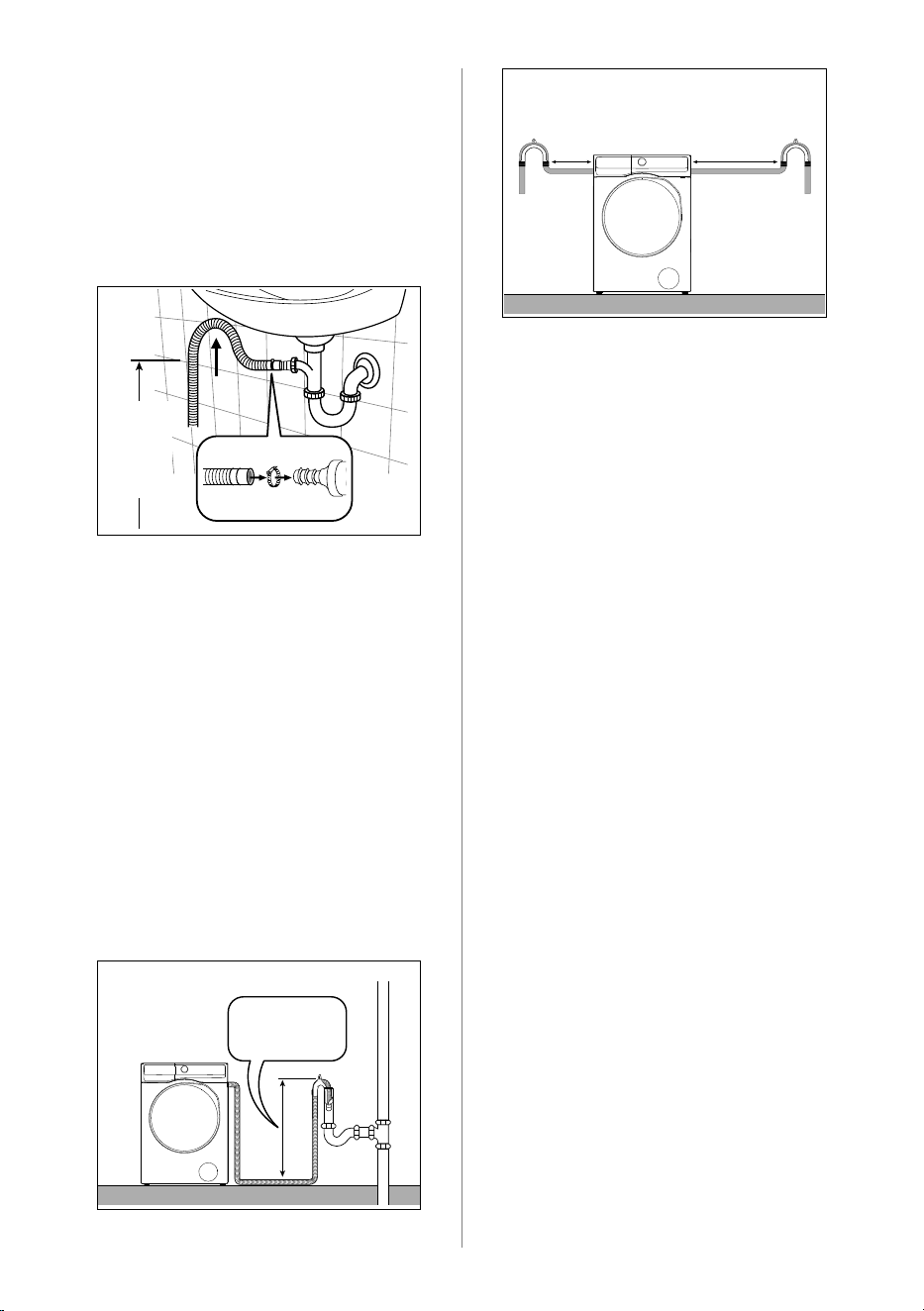

The end of the drain hose can be
positioned in three ways:
• Hooked over the edge of a sink, using
the plastic hose guide supplied with
the machine.
Fitting Hose Guide
In this case, make sure the end cannot
come unhooked when the machine is
being emptied. This could be done by
tying it to the tap with a piece of string
or attaching it to the wall.
4.4 Water Drainage
Pull hose, and adjust
length to suit trough.
Bend
hose
Hose
Guide
Pull apart to
insert hose.
45 cm approx.
ENGLISH 13
Max.
90 cm
Min.
60 cm
Max. 90 cm
Min. 60 cm
Max.
41 cm
Max.
88 cm
• Directly into a drain pipe, at a height
of not less than 60 cm and not more
than 90 cm.
The end of the drain hose must always
be ventilated, i.e. the inside diameter
of the drain pipe must be larger than
the outside diameter of the drain hose.
The drain hose must not be twisted or
curled. Run it along the floor; only the
part near the drainage point must be
raised.
For the correct functioning of the
machine, the drain hose must remain
hooked on the proper support piece
situated on the top part of back side
of the appliance.
• In a sink, drain pipe branch.
This branch must be above the trap so
that the bend is at least 60 cm above
the ground.
Push the drain hose onto the spigot
and secure with a clip, ensure a loop
is formed in the drain hose to prevent
waste from the sink entering the
appliance.
14 ENGLISH
5.1 Control Panel Description
5. CONTROL PANEL
A
Programme selector knob
B
Display
C
SmartSelect touch key
• Refresh touch key
• Light touch key
• Normal touch key
• Intensive touch key
D
Start/Pause touch key
(Add clothes option)
E
Remote Start touch key
F
Prewash touch key
G
Hygienic Care touch key
(Child lock option)
B
DC
E
F
J
L
M
IH
G
K
A
H
Time Dry and Dryness Level touch key
• Iron Dry touch key
• Cupboard Dry touch key
• Extra Dry touch key
I
Stain Pro touch key
J
Finish In adjustment
Plus touch key
Minus touch key
K Spin touch key
L
Temp touch key
M On/Off touch key
ENGLISH 15
5.2 Display

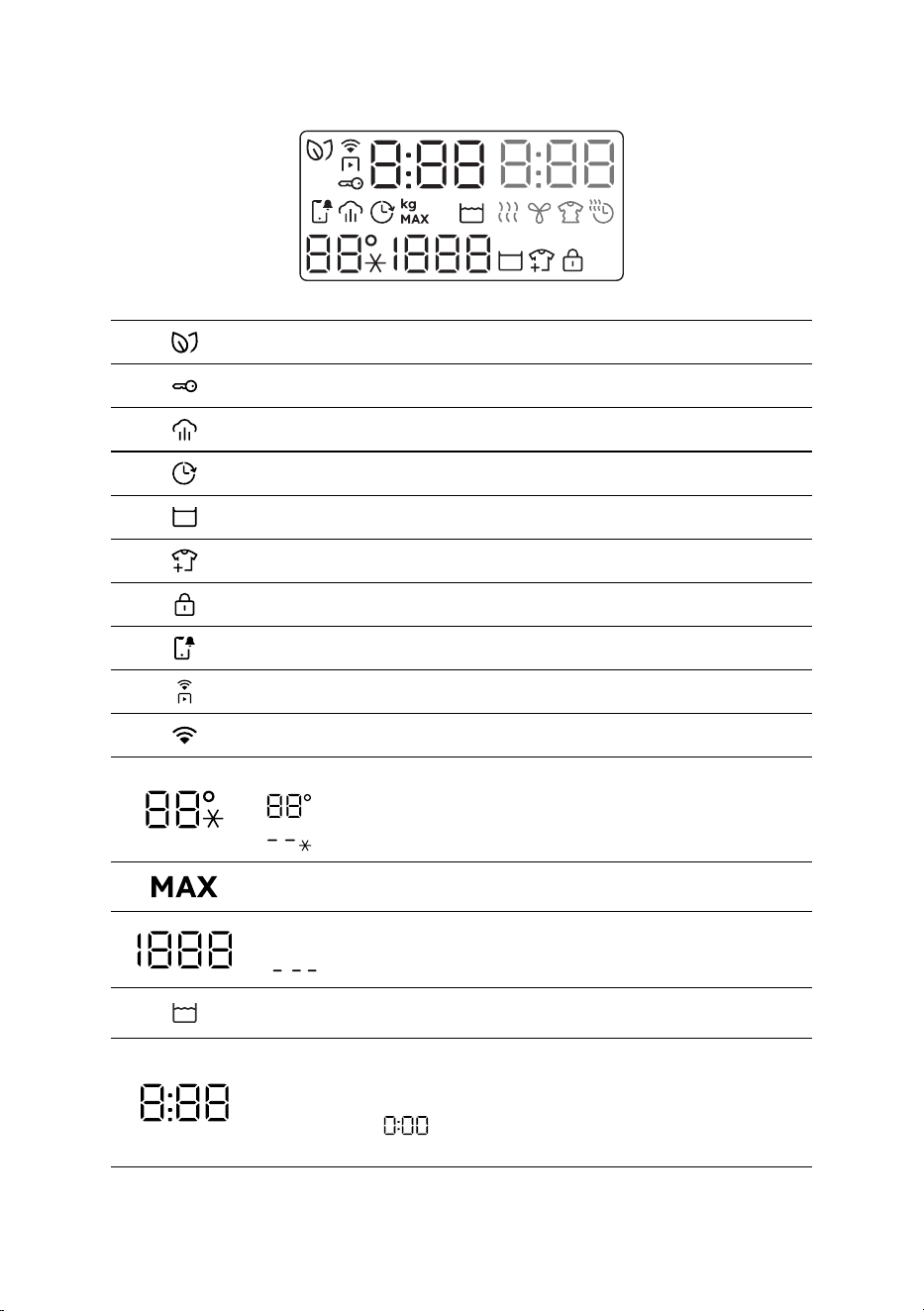

SmartLeaf feedback icon
Door locked icon
Stream icon
Finish In icon
Rinse Hold icon
Add clothes icon
Child Lock icon
Notification icon
Remote Start mode icon
Wi-Fi connection icon
The Temperature area:
Temperature icon
Cold water
Maximum load icon
The spin area:
Spin Speed indicator
(
) No Spin indicator, Spin phase if off .
Wash phase icon (included Prewash phase)
The digital icon can show:
• Programme duration, washing phase
• Delay time
• Cycle End (
)
• Warning and Error codes
16 ENGLISH
5.3 SmartLeaf feedback
SmartLeaf symbols give feedback on
consumption, guiding the user to save
energy, time and water.
This feature will indicate levels of
energy savings in a programme based
on:
1. Programme Duration with rated
capacity
2. Energy consumption
3. Water consumption
4. Wash temperature
SmartLeaf feedback is not affected by:
1. Amount of loaded laundry
2. Spin speed selection
There are three different level of
SmartLeaf feedback indicated:
1. No SmartLeaf (no icon in the display)
2. One leaf
icon
3. Two leaf
icon
• Prewash will reduce the SmartLeaf
symbol by 1 leaf.
• Temperature = 40°C will reduce the
SmartLeaf symbol by 1 leaf.
• Temperature > 40°C will reduce the
SmartLeaf symbol by 2 leaves.
Drying phase icon
The digital icon can show:
• Programme duration, drying phase
• Delay time
• Cycle End (
)
• Warning and Error codes
Time Dry icon
Anticrease phase icon
Cooling phase icon
The icon, function or phase names that appeared in this manual may differ from
your product.
Wash and Dry
For Wash+Dry mode, SmartLeaf setup
values are as calculated as follows:
1. For all cycles with 2 leaves in dry
mode, in washing + drying mode the
values are the same as in only wash
mode.
2. For all other cycles, the washing +
drying values are set to 1 leaf
3. Washing + drying values reduced by
1 leaf in case of Extra Dry or Sport
Jacket programme.
ENGLISH 17
6. PROGRAMMES
6.1 Programme Chart
Programme;
Temperature
range
Max.
Spin
speed
(rpm)
Max. Load
(Dry Clothes)
Type of load and soil level
Wash Dry
Cottons;
Cold to 90°C
1400 Max
1)
Max
1)
White cotton and coloured
cotton. Normally, heavily and
lightly soiled items.
Eco Cottons;
Cold and
40°C
3)
1400 Max
1)
Max
1)
Low energy cycle for cottons.
Decreases temperature and
extends time to reach good
washing results.
DelicatesPlus;
Cold to 40°C
1200
EWW10******
4 kg - Delicate fabrics. Thin cottons,
acrylics, viscose and polyester.
EWW12******
5 kg
Bedding;
Cold to 60°C
800 3 kg - Washing cycle for three bed
linen sets.
Sanitise;
60°C
1400 Max
1)
- White cotton items. This high
performance wash programme
combined with steam vapour,
removes more than 99,99% of
bacteria and viruses
2)
keeping
the temperature above 60°C
throughout the washing phase;
with an additional action on the
fi bres thanks to a vapour phase,
an enhanced rinsing phase
ensures a proper removal of
detergent and micro-organism
residues. This programme
ensures also a proper reduction
of pollens/allergenic items.
DuvetCare 60 --
EWW10******
2 kg Steam vapour cleaning and
drying in 60 mins.
EWW12******
3 kg
Spin 1400 Max
1)
Max
1)
To spin the laundry and to drain
the water in the drum. All fabrics,
except woollens and delicate
fabrics.
Sports;
Cold to 40°C
1200 4 kg - Sport wear, synthetic fi bres like
polyester, polyester/elastane
blends, polyamide. Suitable to
remove sweat and body soil
from technical sport garments.
Wool
;
Cold to 40°C
1200
EWW10******
2 kg 1 kg Machine washable wool, hand
washable wool and other fabrics
with "hand washing" care symbol.
EWW12******
3 kg
Quick 15;
Cold to 30°C
1200 1.5 kg - Lightly soiled synthetics or mixed
fabrics.
18 ENGLISH
6.2 Woolmark Apparel Care - Blue
1)
Maximum capacity depends on a sticker in front of the machine.
Model: EWW1043R7SC 10/6 kg, EWW1043R7WC 10/6 kg, EWW1243R7SC 12/8 kg, EWW1243R7WC 12/8
kg (wash/dry capacity)
2)
Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas
aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in
2021 (Test Report No. 202120117).
3)
The Eco Cottons at 40°C is recommended for normally soiled full load of cotton and is the program
for energy and water label, tested according to AS/NZS2040.1 and labelled according to AS/
NZS2040.2 and AS/NZS 6400
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as "hand wash"
provided that the products are
washed according to the instructions
on the garment label and those issued
by the manufacturer of this washing
machine.
Model: EWW1043R7SC, EWW1043R7WC;
M1361
Model: EWW1243R7SC, EWW1243R7WC;
M2423
Programme;
Temperature
range
Max.
Spin
speed
(rpm)
Max. Load
(Dry Clothes)
Type of load and soil level
Wash Dry
IntelliQuick;
Cold to 30°C
1200 Max
1)
4 kg Light to normal soiled coloured
cottons. Automatic cycle time
adjustment base on load size.
WashDry 60;
30°C to 40°C
1200 1 kg 1 kg 1 KG mixed fabrics. Wash and
dry in 60 mins.
(App
Favourite)
- - - Recall your favourite
programme.
Note for test institutions:
• Loading sequence for Performance testing can be found using the following QR
code.
• Any further data required for performance tests shall be provided upon request.
Request can be made to the following address:
https://www.electrolux.com.au/support/contact-us/
ENGLISH 19
• The wool drying cycle of this machine
has been tested and approved by
The Woolmark Company. The cycle is
suitable to dry wool garments which are
labelled "hand wash" provided that the
garments are washed in a Woolmark
endorsed hand washing cycle and dried
according to the instructions issued by
the manufacturer.
Model: EWW1043R7SC, EWW1043R7WC;
M1224
Model: EWW1243R7SC, EWW1243R7WC;
M2424
6.3 Programme Options Compatibility
Options
Programme
Cottons
Eco Cottons
DelicatesPlus
Bedding
Sanitise
DuvetCare 60
Spin
Sports
Wool
Quick 15
IntelliQuick
WashDry 60
SmartSelect
No Spin
Rinse Hold
Refresh
Stain Pro
Hygienic Care
1)
Prewash
SensorWash
2)
Time Dry
3)
Dryness Level
3)
Finish In
1)
"Hygienic Care" option can be combined with temperature 40 to 90°C only.
20 ENGLISH
If a certain soil level is not
available, pressing it will generate an
error, a double beep and symbol blinks
twice.
7. SMARTSELECT, OPTIONS AND SETTINGS
7.1 SmartSelect
This new feature has been created to
guide the user to save energy, time and
water, with the aim of improving the
sustainability of cycles, the care and
maintenance of fabrics and consumer
experience.
For each washing cycle it is possible
to have different durations and
consumption, based on the level of
soiling of the laundry.
There are possible options:
1. Refresh
With this SmartSelect the user selects
Refresh programme.
It can reduce wrinkles and light odours
and will refresh clothes that does not
need a wash.
2. Light
This option is recommended for very
lightly soiled clothing, without visible
stains.The suggested temperature is
cold.
3. Normal
This option is ideal for everyday
light soiled clothes, with small stains
for example sweat. The suggested
temperature is 30°C.
4. Intensive
This option is recommended for
normal/ heavy soiled clothes, with for
example food spills or mud.
To activate one of this options turn the
dial to select the desired programme. The
default soil level icon light on.
To change it tap on the related icon.
Every SmartSelect level can
modify temperature, spin speed and
programme duration of the selected
cycle.
Time Dry ( )
In the programme where it is selectable,
press this touch key to set the time that
suits the fabrics you have to dry. The
display shows the set value.
This option is used to select desired
drying time in programmes where time
drying is available. With each tap on the
touch key the time value increases by 10
minutes steps up to the maximum time
allowed for selected programme (refer to
Programme Options Compatibility).
If Time Dry or Dryness level are selected,
tapping on desired smart washing level,
deactivate wash cycle and remains
only the drying phase. After Time Dry
have reached the maximum time, the
appliance shift automatically to the
default dryness level; If a dryness level is
selected, tapping on it, the drying cycle
will be deactivate and sets only the
default washing programme.
2)
The SensorWash always active, intelligently assesses the dirt and detergent residue in your laundry.
The SensorWash adjusts the washing time and rinse cycles to match the load. This not only ensures
optimal cleanliness but also helps prevent damage to your clothes, thereby extending their lifespan.
However, this feature can be deactivated by pressing and holding touch keys "Hygienic Care" and
"Prewash" for about 3 seconds the display had shown
.
Please note that turning off the SensorWash feature may affect the efficiency of your washing cycle.
To reactivate the SensorWash feature, simply repeat the same process, then
come on.
3)
Do not select a spin speed LOWER than that proposed by the appliance to avoid a too long drying
time so saving energy. In any case the reduction of the spin speed is only possible after selecting
drying.
ENGLISH 21
If you wish to open the door during
the anticrease phase or interrupt it,
press Start/Pause touch key.
Time Dry Option Guidelines:
Type of fabric
Load
(kg)
Spin
Speed
(rpm)
Suggested
Times
(Hrs)
Cotton and linen
(bathrobes, bath
towels, etc.).
5-Max.
1)
1400 3-4
3-5 1400 2-3
2-3 1400 1-2
Synthetic or
mixed fabric
items (jumpers,
blouses,
underwear,
household linen,
etc.).
3 1200 2-3
1 1200 1
Wool and hand
washable wool.
1 1200 2
1)
Maximum capacity depends on a sticker in
front of the machine.
If you wish to open the door during
the anticrease phase or interrupt it,
press Start/Pause touch key.
To activate one of this options turn
the selector knob to select the desired
programme.
The default soil level icon light on.
To change it press on the related icon.
Dryness Levels
For drying the three possible choices are:
• Extra dry
This option is recommended for
towelling materials.
• Cupboard dry
It is the default drying level selected
for most programme, and it is
indicated for items to be stored.
• Iron dry
This option is recommended to dry
garments suitable for ironing.
Dryness Level Type of fabric Load
Extra Dry
Ideal for
towels or
similar
Cotton and linen
(bathrobes, bath
towels, etc.)
up to
Max.
1)
kg
Cupboard Dry
Suitable for
items to put
away without
ironing
Cotton and linen
(bathrobes, bath
towels, etc.)
up to
Max.
1)
kg
Synthetics and
mixed fabrics
(jumpers, blouses,
underwear,
household linen)
up to
3 kg
Iron Dry
Suitable for
ironing
Cotton and linen
(sheets, tablecloths,
shirts, etc.)
up to
Max.
1)
kg
1)
Maximum capacity depends on a sticker in
front of the machine.
Dryness Option Guidelines:
Duration of the drying cycle
The drying time can vary according to:
• the final spin speed;
• dryness level (Extra Dry or Cupboard
Dry or Iron Dry);
• the type of laundry;
• the size of load.
Fibre residue
After drying fluffy fabrics, such as new
towels, it is advisable to perform a
Cottons programme at 60°C to ensure
that any residue that may remain in the
tub is completely removed and does not
stick to garments dried afterwards. After
each drying cycle, clean the drain pump
filter. Please refer to care and cleaning in
section "CARE AND CLEANING".
Additional drying
Should the laundry still be too wet at
the end of the programme, set another
short drying cycle.
The final part of a washer-dryer cycle
occurs without heat (cool down cycle).
This ensures the laundry will be left at a
low temperature.
22 ENGLISH
WARNING!
To prevent the formation of creases or
shrinking of fabrics, avoid excessive
drying.
7.2 Options
Temperature Touch key
Touch this touch key repeatedly
to increase or decrease the wash
temperature if you want your laundry to
be washed at a temperature different
from the one proposed by the machine.
(
corresponds to cold wash).
Spin Touch key
Press this touch key repeatedly to
increase or decrease the spin speed
or select Rinse Hold, if you want your
laundry to be spun at a speed different
from the one proposed by the machine.
• No Spin (
)
No spin option eliminates all the spin
phases and increase the number of
rinses.
• Rinse Hold (
)
By selecting this option the water of
the last rinse is not emptied out and
the drum turns regularly to prevent the
laundry creases.
The door is still locked to indicate that
the water must be emptied out.
Tapping on the SmartSelect level
could change the selected temperature.
SmartSelect level could automatically
change, according to the temperature
selected.
The door stays locked with the water in
the drum. To continue the cycle, you must
press
(Start/Pause).
Hygienic Care Touch key
Select this option to add approximately
30 minutes of tumbling in vapour after the
rinse cycle. The indicator of this option
will be on.
• Vapour may not necessarily be visible
inside the drum during a vapour cycle.
Vapour is created below the drum
and allowed to naturally rise into the
clothes.
• Vapour may not be present during the
entire vapour cycle.
• At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may notice
vapour exiting from the drain hose of
the machine, this is normal and there is
no cause for alarm.
Select this option if you wish your laundry
to be pre-washed before the main
wash. Use this option for heavy soil. The
indicator of this option will be on.
When you set this function, put the
detergent into the prewash compartment.
This function increase the programme
duration.
Prewash Touch key
Press this touchpad to add the stain
phase to a programme. The indicator of
this option comes on.
Use this function for laundry with hard
stains to remove.
When you set this function, put the stain
remover into prewash compartment.
Stain Pro Touchpad
ENGLISH 23
When the door is open, remote
functions are disabled.
Remote Start Touchpad ( )
This option allows you to connect
machine to Wi-Fi network and to link it to
your smart phone.
By this functionality you can receive
notifications, control and monitor your
machine from your mobile devices.
Please refer to chapter "
WI-FI
CONNECTIVITY SETUP".
Finish In Touch key
Before you start the programme, this
option makes it possible to define the
end of the washing programme from
minimum of 1 hour to maximum of 24
hours.
This button allows activating the Finish In
option and by mean of the Plus
(
increase) and Minus ( decrease)
touch key it is possible to choose the
time within which a programme should
terminate. The programme end can be
postponed by 1 hour every
touch key.
The option time can be removed by
pressing
touch key until 0.
If programme duration is longer
than 3 hours, minimum Finish In option
starts from 4 hours.
This option must be selected after
choosing the wash programme, and
before pressing the "Start/Pause" touch
key.
For example, if the programme duration
of your selected programme is 3.20 hours
and you define the "Finish In" time to 6
hours. This means your wash programme
will finish in 6 hours. (See diagram)
"Finish In" Time : 6 hrs.
Countdown
2.40 hrs.
Pressed
Start/Pause
Start the
Programme
End of
Cycle
Working Cycle
3.20 hrs.
After selecting Finish In time, press Start/
Pause touch key to start the programme.
Machine will then countdown and update
time on the display every hours until it
reaches the starting point of the wash
cycle.
If you wish to cancel these option after
starting:
1. Press Start/Pause touch key to pause
machine.
2. Press On/Off touch key to power off
and power on again.
After machine start, it can not pause
the machine and press finish in touch
key to decrease finish in time to "
".
7.3 Settings
Child Lock Option
Your appliance is provided with CHILD
SAFETY LOCK which permits you to leave
the appliance unsupervised with the
door closed without having to worry that
children might be injured by or cause
damage to the appliance.
• To activate the option, press and hold
"Hygienic Care" touch key about 3
seconds until the display shows the
icon "
".
To set "Child Lock" option:
Set this option after pressing the
Start/Pause touch key.
• To deactivate the option, press and
hold this touch key until the icon goes
off.
If you press any touch key while
Child Lock is activated, the icon
"
"
will flash on display 3 times along
with buzzer sound.
This function remains enabled even
after the appliance is switched off.
24 ENGLISH
Enabled only by enabling Remote
Start mode.
This setting permits you to either enable
or disable the buzzer at the end of the
programme. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when the
wash fi nished approximately 1 hour later, it
will not disturb you through the night.
Enabling/Disabling End-Of-Wash
Buzzer
• To disable the buzzer sound, press
"Temp" and "Spin" touch keys at the
same time until the icon "
" will
show on display along with buzzer
sound.
• To return to default configuration press
these 2 touch keys at the same until
the icon "
" will show on display
along with buzzer sound.
Error warning beeps such as critical
faults are not disabled.
Save App Favourite Programme
Programme settings that are frequently
used can be saved (e.g. Cottons, 60°C,
1200 rpm, with Prewash and Hygienic
Care).
To programme/re-programme Favourite
with your own selections and save them,
proceed as follows:
To recall the favourite programme, turn
selector knob to "
" position.
You favourite programme showing in the
display.
Tapping Start/Pause touch key to start
the programme.
1. Turn on the machine.
2. Connect the machine with Wi-Fi
network and our app.
3. Select your desired wash settings,
then save. (following guide in our app)
7.4 Start/Pause ( ) and Add
Clothes ( ) Touch key
This touch key has 2 functions:
After you have selected the desired
programme and options, press this
touch key to start the machine. The
Start/Pause pilot light will stop flashing
and remain lit. If you have selected
a "Finish In" option, the countdown
will begin and will be shown on the
display.
To interrupt a programme which is
running, press this touch key to pause
the machine, the Start/Pause pilot light
flashes.
To restart the programme from the
point at which it was interrupted, press
this touch key again, the Start/Pause
pilot light will stop flashing.
1. Start/Pause ( )
1. Pressing the "Start/Pause" touch key
to pause the programme.
2. Wait for the machine to come to a
complete stop before opening the
door (wait for door lock "
" icon
to turn off).
3. Add clothing and close the door.
4. Resume the programme by pressing
"Start/Pause" touch key again.
2. Add Clothes ( )
You can only add clothes when the
icon "
" shown on the display.
ENGLISH 25
8. WI-FI CONNECTIVITY SETUP
The software in this product
contains components that are based
on free and open source software.
Electrolux gratefully acknowledges
the contributions of the open software
and robotics communities to the
development project. To access the
source code of these free and open
source software components whose
license conditions require publishing,
and to see their full copyright
information and applicable license
terms, please visit:
http://electrolux.pensoftwarerepository.
com
(folder NIUS)
This chapter describes how to connect the
smart appliance to the Wi-Fi network and
to link it to a mobile devices.
By this functionality you can monitor and
control your laundry appliance from your
mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with internet
connection enabled.
• Mobile device connected to wireless
network.
8.1 Download, installing our app
1. Go to the App Store/Play Store,
download and install our app on your
smart device.
2. Create an account. This account can
be shared across multiple devices.
3. Follow the instructions on our app
for the appliance registration and
configuration.
8.2 Wi-Fi network connection
Turning On Wi-Fi
To connect the appliance to a Wi-Fi
network, tap and hold the Remote Start
Mode touch key for 5 seconds. This
action will open up the access point
(goes to AP mode). If it is not previously
provisioned, it will start the provisioning
process.
When the access point is open, if there
is a new network credential provided,
it will replace any network credentials
previously saved. If not, it will keep
connecting to the previously saved
network.
During this phase, the display shows only
Wi-Fi icon
and "AP" message while all
other indicator on control panel are Off.
The Wi-Fi icon
will start blinking.
When the access point is open, the
display will show "AP".
Wi-Fi icon
continues to blink until it is
connected to the home network.
Once provisioning is successfully
concluded, a sound will play and the
Wi-Fi icon
lit steadily.
You will need to install our app,
create an account, and accept the
Terms and Conditions and Electrolux’s
Privacy Policy in the app to use the
connected features of the laundry
appliance. Internet and Wi-Fi
connections are required to use the full
features of the App and the laundry
appliance. Minimum operating system
for app refer App FAQ.
Wi-Fi module parameter
Frequency/
Protocol
Wi-Fi: 2.4 GHz / 802.11 bgn
Max Power Wi-Fi 2.4 GHz: < 20 dBm
Encryption WPA, WPA2, WEP
26 ENGLISH
Connect your machine with our app,
following setting process in application.
Once connected, tapping on the Remote
Start
Mode touch key On will enable
users to be able to start cycles remotely
on the our app.
Auto connection to registered network
Once the appliance has been
successfully set-up and registered
to the home network, every time it is
powered On, it will try to connect to the
network automatically. There will not
be any sound when Wi-Fi connection is
successful.
Connecting to a different network
(Reopening Access Point)
Every time user tap and hold Remote
Start
Mode touch key for 10 seconds,
the access point will be open and
broadcasted. New network credentials
received at this point will overwrite
previously saved credentials, and the
appliance then connects to the new Wi-Fi
network.
During the time when Wi-Fi and
access point is turning On, pressing any
key buttons will play the error jingle.
Turning Off Wi-Fi
If the user decides to no longer connect
the appliance to Wi-Fi, he can tap and
hold Remote Start
Mode touch key for
10 seconds and the appliance will reset
and turn off.
The display shows only "Fn" for 5 seconds
while all other indicators on control
panel are Off.
After reset, the display goes back to
initial state, with Wi-Fi icon
turned off.
8.3 Over-the-air update
8.4 Wi-Fi Always On
The application may propose an update
for downloading new features.
The update is accepted via app only.
If a programme is running, the app
notifies that the update will start at the
end of the programme.
During the update, the appliance shows
in the display.
The appliance will be usable again
at the end of the update, without any
notification about a successful update.
If an error occurs, the appliance shows
in the display: just press any buttons
or turn the knob to return to normal use.
The Wi-Fi Always On function is available
in our app.
This function keeps the appliance
connected to the network even when the
appliance is turned off.
The icon
goes on and off
intermittently.
It is possible to turn the appliance on by
pressing the On/Off button or through the
our app.
The Wi-Fi Always On function may
affect your energy consumption.
ENGLISH 27

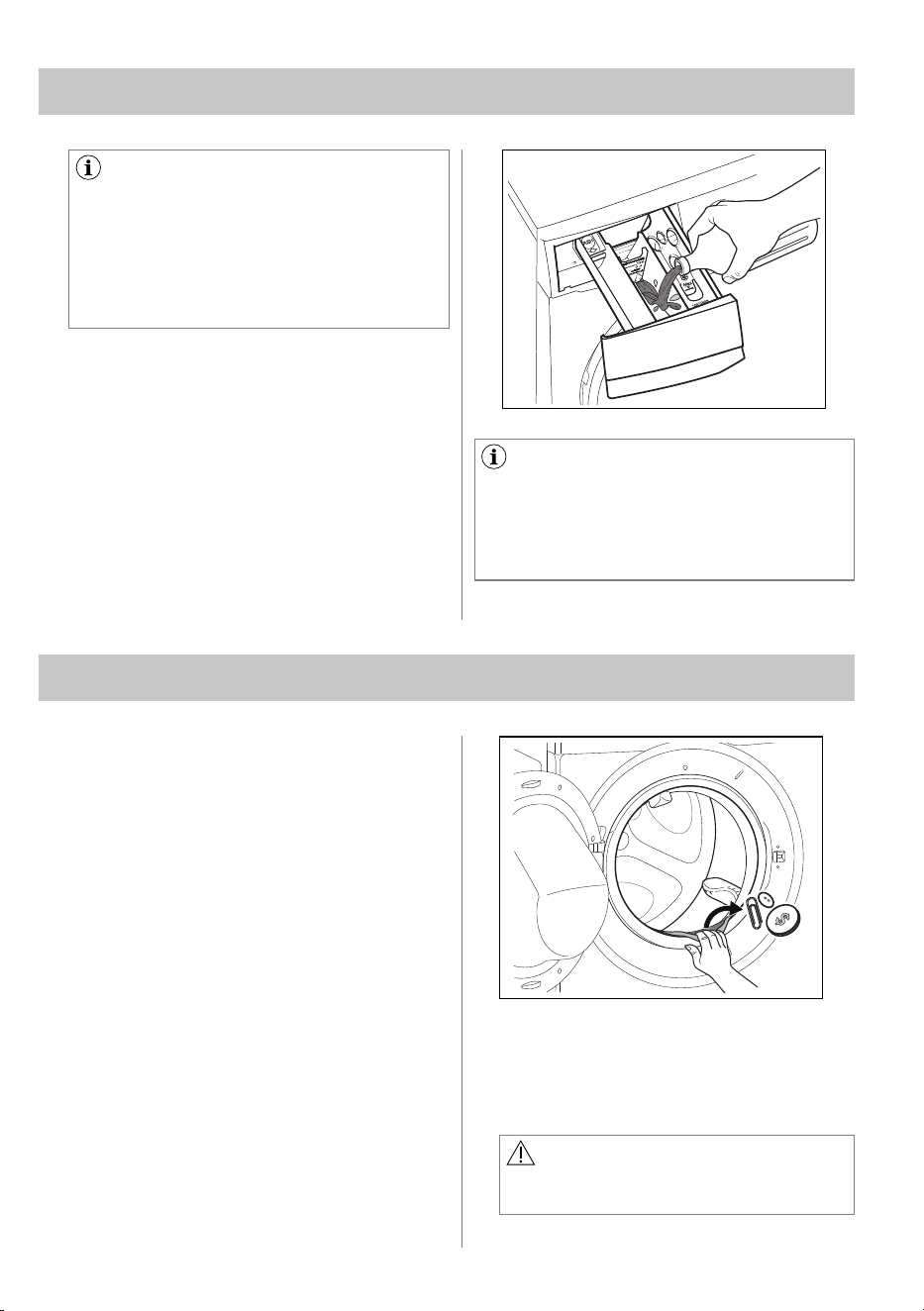

1. Ensure that the electrical and
water connections comply with the
installation instructions.
2. Put 2 litres of water in the detergent
compartment for washing phase. This
activates the drain system.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine,
to remove any manufacturing residue
from the drum and tub then start the
machine.
During installation or before first
use you may observe some water in the
machine. This is a residual water left in
the machine after a full functional test
in the factory to ensure the machine
is delivered to customers in perfect
working order and is no cause for
concern.
The Figures that take place in this
manual are schematic and may not
correspond exactly with your product.
If the subject parts are not included in
the product you have purchased, then it
is valid for other models.
9. BEFORE FIRST USE
10. DAILY USE-WASHING (ONLY)
10.1 Loading The Laundry
1. Turn the water tap on.
2. Connect the main plug to the main
socket.
3. Press the On/Off touch key to turn on
the machine. Turn the knob to set a
programme. The machine will propose
a temperature and automatically
select the spin speed provided for the
programme you have chosen.
The selector knob can be turned either
clockwise or counter-clockwise.
4. Check and remove objects (if there are
any) that could be trapped in the fold.
5. Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to chapter
"WASHING HINTS", page 34)
6. Close the door.
WARNING!
Make sure that no laundry remains
between the seal and the door.
28 ENGLISH

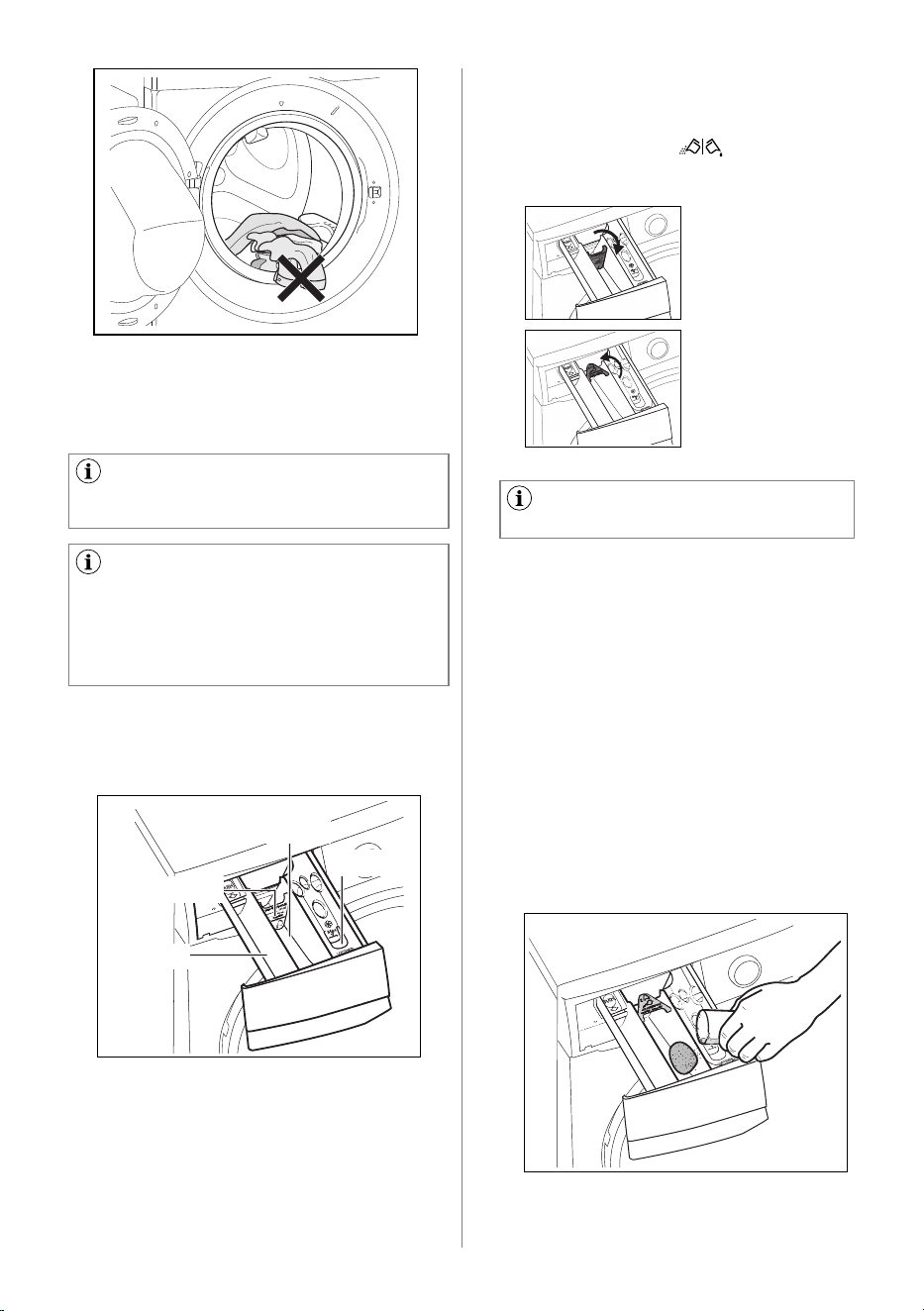

The Figures that take place in this
manual are schematic and may not
correspond exactly with your product.
If the subject parts are not included in
the product you have purchased, then it
is valid for other models.
10.2 Using Detergent And Additives
1. Detergent Dispenser Drawer.
The detergent dispenser is divided
into three compartment.
• Compartment "PREWASH"
This compartment is only used for
detergent when a "Prewash" option
is selected.
• Compartment "MAIN WASH"
This compartment is used for
detergent on all programmes.
Please refer to section "Detergents
Type and Quantity of Detergent" page
35 before use.
Prewash
Main wash
Detergent fl ap
Softener
• Compartment "SOFTENER"
This compartment is used for fabric
conditioner and starching agent.
• Detergent fl ap (
);
Flap before input a powder or liquid
detergent.
Position down: for
liquid detergent.
Position up: for
powder detergent
2. Measure out the detergent and the
fabric softener;
- Do not use gelatinous or intense liquid
detergents.
- Do not put more liquid than the
maximum level.
- Do not set the "Prewash" phase.
- Do not set the "Finish In".
- Pull out the dispenser drawer until it
stops.
- Measure out the amount of
detergent required, pour it into the
main wash compartment.
- If you wish to carry out the
"Prewash" phase, pour it into the
Prewash compartment.
When you use the liquid
detergent.
ENGLISH 29
- If required, pour fabric softener into
the Softener compartment.
- Close the drawer gently.
The softener amount used must not
exceed the "MAX" mark in the drawer.
If you use intense softeners it is
recommended to dilute with water.
Residues of detergent, softener and
water may remain in the dispenser. It is
recommended to clean the dispenser
regularly to remove any residue.
1. If you want your laundry to be spin
or use temperature different from
the one proposed by the machine,
press "Spin" and "Temp" touch keys
repeatedly to change the spin speed
and temperature.
Press the option touch keys, if you
want your laundry to be washed with
special functions.
10.3 Options Setting
Different functions can be combined
which is dependent on the programme
selected.
If an option is not compatible with the
wash programme selected, the symbol
"
" will flash on display along with
buzzer sound.
2. If you want to define the end of the
washing programme, press the "Finish
In" touch key repeatedly to choose
your machine working time.
10.4 Starting A Cycle ( )
To start a programme, press the Start/
Pause touch key. The corresponding
pilot light will stop flashing and a default
programme duration will be displayed on
the screen.
After approx. 15 minutes from the start of
a programme:
• The appliance will automatically
adjust the selected programme
duration according to the type and
size of the load.
• The display will show adjusted
programme duration.
If you press any touch key while a
programme is operating, the symbol
"
" will flash on display along
with buzzer sound. (except Start/Pause
touch key and On/Off touch key)
30 ENGLISH
10.5 Interruption Of A Programme
• To pause, press Start/ Pause.
The indicator will start flashing.
• Press the Start/Pause again.
The programme will continue.
10.6 Changing A Programme
Changing a running programme is possi-
ble only by switching off the appliance.
• Press the "On/Off" touch key to cancel
the programme and to turn off the
appliance.
• Press the "On/Off" touch key again to
turn on the machine.
Now you can set a new wash programme
and change any available options. Press
Start/Pause to start the new programme.
10.7 Changing The Options
10.8 Opening The Door
1. Press the Start/Pause touch key. The
indicator will start flashing.
2. If available change the options that
you wish.
3. Press Start/Pause again. The
programme will continue.
It may be possible to change some of
the options after a wash programme has
started.
While a programme or the Finish In is
operating, the appliance door is locked
and the display shows the indicator "
".
First, set the machine to PAUSE by press-
ing the "Start/Pause" touch key. Wait until
the door lock indicator goes off, then the
door can be opened.
The appliance will not drain the
water (except programmes; Sanitise,
Spin).
WARNING!
In case of emergency please refer to
section "Emergency door opening" on
page 47.
10.9 At The End Of The Programme
• The appliance stops automatically.
• The acoustic signal will operate.
• The display will show "
".
• The indicator of the touch key Start/
Pause goes off.
• The door lock icon "
" goes off.
• Remove the laundry from the
appliance. Make sure that the drum is
empty.
• Keep the door partly open, to prevent
mildew and odours.
• Turn off the water tap.
At the end of the programme, the
time remaining can suddenly decrease
from 7 minutes or less to 0 due to the
overestimated total programme time
during the load sensing phase. In some
cases (with perfectly balanced load)
the programme time can be shorter
than the time estimated after the load
sensing phase is completed. This is a
normal behaviour of the machine and
not a cause for concern as it does not
compromise its performance.
If the door lock icon " " does not dis-
appear, this means that the machine is
already heating and the water level is
above the bottom edge of the door or
the drum is turning. In this case the door
CAN NOT be opened. If you need to
open it, you must drain the water to open
the door.
In case of Remote Start (
) option is
activated, when program cycle end
and anticrease phase is complete. The
door will remain locked for 5 minutes, if
you want to open the door at that time,
press Remote Start (
) touch key once
to turned off function then the door is
unlocked.
ENGLISH 31
10.10 When The Washing Programme
Is Completed, But There Is
Water In The Drum
(Option "Rinse Hold " is used.)
• The drum turns regularly to prevent the
creases in the laundry.
• The indicator "Start/Pause" flashes to
remind you to drain the water.
• The door lock icon "
" is on. The door
stays locked.
You must drain the water to open
the door.
To drain the water:
1. Press the "Start/Pause
" touch key.
The appliance drains the water and
spins with the maximum spin speed for
selected programme.
Alternatively, before pressing the
"Start/Pause" touch key, you can press
the "Spin" touch key to change the
spin speed. You can select "No Spin
(
)", if you want the machine to
only drain the water.
2. When the programme is completed
and the door lock icon "
" goes off,
you can open the door.
3. Press "On/Off" touch key to deactivate
the appliance.
After approximately 18 hours, if
you do not press Start/Pause touch
key, the appliance will drain and spin
automatically.
10.11 AUTO Off Mode
The AUTO Off mode automatically
deactivates the appliance to decrease
the energy consumption when:
• You do not press any touch key for
5 minutes before you press "Start/
Pause".
- Press "On/Off" touch key to activate
the appliance again.
• After 5 minutes from the end of the
washing programme.
- Press "On/Off" touch key to
reactivate the appliance. Display
will show the end of the last wash.
- Press any touch key again to show
the last wash programme.
11. DAILY USE-DRYING (ONLY)
1. Press the On/Off touch key to turn on
the machine.
2. Load the laundry. Make sure the load
size does not exceed the maximum
drying capacity of the machine.
3. Turn the selector knob to the
programme suitable for the items to
dry.
The water tap must be open and
the drain hose must be positioned in
the sink or connected to the drain pipe.
11.1 Preparation to drying
When selecting a programme by
default washing level indicator
illuminates availability for few
seconds.
4. To activate drying mode only,
deactivate the wash mode first by
pressing on the illuminated washing
level in that SmartSelect.
Then pressing the Time Dry
or
Dryness Level. The drying symbol
will appear on the display and the
corresponding drying level LEDs
illuminates.
32 ENGLISH
When drying a big amount
of laundry, to have good drying
performances, make sure that the
laundry itself is not rolled up and that is
uniformly distributed in the drum.
After some minutes from the end
of the programme, the energy saving
function deactivates the machine
automatically.
After drying phase, clean the drum,
the seal and the inside of the door with
a wet cloth.
11.2 At the end of the drying
programme
• The appliance stops automatically.
• The acoustic signals operate (if they
are active).
• In the display " " comes on.
• The indicator of the Start/Pause "
"
touch key goes off. The door locked "
" goes off and the door unlocks.
The appliance continues to operate
with the anticrease phase for
approximately 30 minutes or more if
Anticrease option was set.
The anticrease phase reduces
creasing.
1. Remove the laundry from the machine.
2. Make sure that the drum is empty.
You can remove the laundry before
the anticrease phase is completed.
We recommend, for better results,
that you remove the laundry when
the phase is almost completed or
completed. The icon "
" remains lit.
• Press the On/Off touch key for some
seconds to deactivate the appliance.
12. DAILY USE-WASHING & DRYING
12.1 Complete wash & dry
programme
Automatic Non-Stop programme or
programmes
Depending on the model, the appliance
may be equipped with one or more Wash
and Dry programmes, automatic one-go
programmes where it is not necessary to
set the drying phase manually (refer to
programme change on page 17).
Proceed as follows:
1. After loading laundry and detergent,
press the On/Off touch key for some
seconds to activate the appliance.
2. Set the Wash And Dry programme
by means of the programme selector
knob.
3. Touch the Start/Pause "
" touch key
to start the programme.
Non-automatic wash & dry
programmes
In some washing programmes, you can
combine the washing cycle and the drying
phase selecting one of the dryness level
shown in the panel.
Proceed as follows:
1. After loading laundry and detergent,
press the On/Off touch key for some
seconds to activate the appliance.
2. Load the laundry one item at a time.
3. Put the detergent and the additives in
the appropriate compartment.
4. Turn the programme selector knob to
the washing programme. The appliance
defaults to the washing only mode and
the indicator of the default soil level
touch key is on. The display shows
the default temperature and spin. If
necessary, change them according to
your laundry. The display also shows
the maximum recommended load for
washing phase.
ENGLISH 33
5. Set the desired options, if there are
available. (refer to programme options
compatibility on page 19)
6. Press on the desired dryness level
touch key to activate also the drying
function. The appliance defaults
shown the default drying level for the
programme selected.
7. Touch the Start/Pause "
" touch key
to start the programme.
12.2 Washing and Drying -
Automatic levels
To have a good drying by using
less energy and in a shorter time, the
appliance does not let you set a too
low spin speed for the items to be
washed and dried.
1. Press on the Dryness Level touch key
repeatedly until the display shows the
required level. The indicators in the
display illuminate accordingly:
a. Iron dry
: for cotton items;
b. Cupboard dry
: for cotton and
synthetic items;
c. Extra dry
: for cotton items.
The time value on the display is the
duration of both cycles washing and
drying, calculated on a default load
size.
2. Touch the Start/Pause "
" touch key
to start the programme.
In the display the door locked "
" icon
comes on.
The display also shows the remaining
programme time.
12.3 Washing and Timed Drying
1. Press on the Time Dry touch key
repeatedly to set the desired time
value (see the "Time Dry option
guideline" table). The dryness level
touch key indicator goes off and the
touch key icon
comes on.
12.4 At the end of the drying
programme
• The appliance stops automatically.
• The acoustic signals operate (if they
are active).
• In the display "
" comes on.
• The indicator of the Start/Pause "
"
touch key goes off. The door locked "
" goes off and the door unlocks.
• Press the On/Off touch key for some
seconds to deactivate the appliance.
After some minutes from the end
of the programme, the energy saving
function deactivates the machine
automatically.
After drying phase, clean the drum,
the seal and the inside of the door with
a wet cloth.
1. Remove the laundry from the machine.
2. Make sure that the drum is empty.
The appliance continues to operate with
the anticrease phase for approximately
10 minutes or more if Anticrease option
was set.
The anticrease phase reduces creasing.
You can remove the laundry before
the anticrease phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed or completed. The
icon "
" remains lit.
At the end with Anticrease phase
Each time you press on this touch key the
time value increases by 10 minutes. The
display shows the set new time value.
2. Touch the Start/Pause "
" touch key
to start the programme.
In the display the door locked "
" icon
comes on.
The display also shows the remaining
programme time.
34 ENGLISH

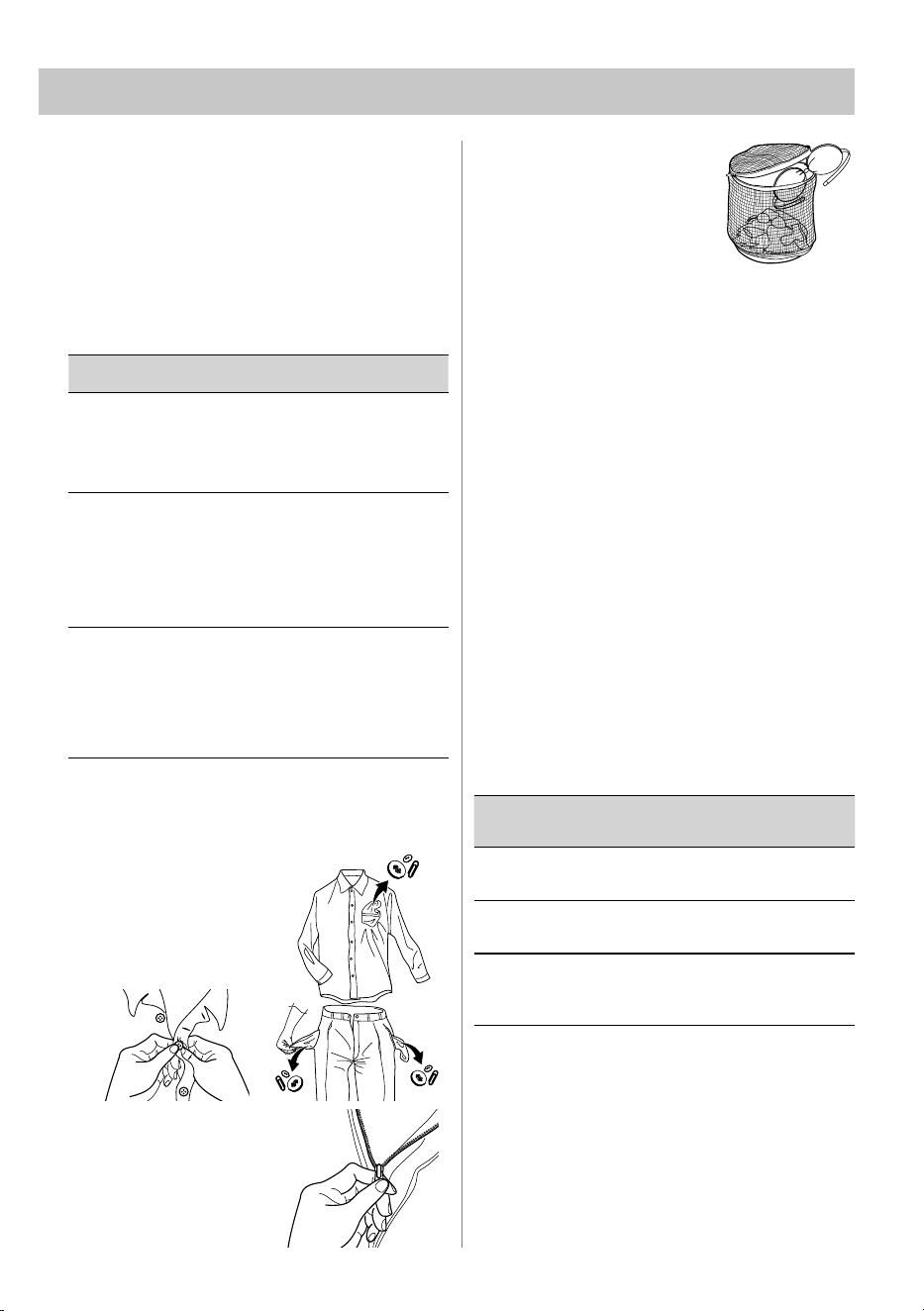

13.1 Sorting The Laundry
13.2 Temperatures
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry
as follows: whites, coloureds, synthetics,
delicates, woollens.
Temp Soil level
90°C
For normally soiled
white cottons and linen
(e.g. teacloths, towels,
tablecloths, sheets...).
60°C
50°C
For normally soiled, colourfast
garments (e.g. shirts, night
dresses, pyjamas...) in linen,
cotton or synthetic fibres and
for lightly soiled white cotton
(e.g. underwear).
40°C
30°C
Cold
For delicate items (e.g. net
curtains), mixed laundry
including synthetic fibres and
woollens bearing the label
pure new wool, machine
washable, non-shrink.
13.3 Before Loading The Laundry
• Make sure that
no metal objects
are left in the
laundry (e.g.
coin, hair clips,
safety pins, pins).
• Button up
pillowcases, close
zip fasteners,
hooks and
poppers. Tie any
belts or long
tapes.
• Wash bras, pantyhose
and other delicates in
a mesh laundry bag,
which you can
purchase from your
supermarket.
• Make sure that you
wash lint collectors separately from lint
producers.
• Never wash whites and coloured
fabrics together. Whites may lose their
"whiteness" in the wash. New coloured
items may run in the first wash; they
should therefore be washed separately
the first time.
• Remove persistent stains before
washing.
• Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Remove hooks or tie them up in a bag
or a net.
13.4 Maximum Loads
Recommended loads are indicated in the
programme chart on page 17.
General rules:
Clothes
Load
Quantity
Cotton,
linen
drum full but not too tightly
packed;
Synthetics drum no more than half full;
Delicate
fabrics and
woollens
drum no more than one
third full.
Washing a maximum load makes the
most efficient use of water and energy.
For heavily soiled laundry, reduce the
load size.
13. WASHING HINTS
ENGLISH 35
13.5 Removing Stains
Stubborn stains may not be removed by
just water and detergent. It is therefore
advisable to treat them prior to washing.
Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine
stain remover, lay the garment on a soft
cloth and dab the stain; treat several
times.
Dried grease stains: moisten with turpen-
tine, lay the garment on a soft surface
and dab the stain with the fingertips and
a cotton cloth.
Rust: oxalic acid dissolved in hot water
or a rust removing product used in cold
water. Be careful with rust stains which
are not recent since the cellulose struc-
ture will already have been damaged
and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only). Grass:
soap lightly and treat with bleach (whites
and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft
cloth and dab the stain.
Lipstick: moisten with acetone (*) as
above, then treat stains with methylated
spirits. Remove any residual marks from
white fabrics with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink, mois-
ten the fabric first with acetone (*), then
with acetic acid; treat any residual marks
on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub
with detergent paste.
(*) do not use acetone on artificial silk.
13.6 Detergents Type And Quantity
Of Detergent
Low suds detergent is required for this
machine to prevent over suds problems,
unsatisfactory washing result and harm to
the machine.
Low suds detergents designed for front
load washing machines are labelled
"Front Loading", "High Efficiency", "HE",
such as Cold Power for Front Loaders or
"Matic".
Do not use wrong types of detergent,
such as Top Loading, Hand wash deter-
gent or Soap-Based products in your
front load washing machine. This can
result in excessive suds, longer cycle
time, low spin speeds, poor rinsing and
overloading of the motor.
Quantity of detergent to be used
The choice of detergent and use of cor-
rect quantities not only affects your wash
performance, but also helps to avoid
waste and protect the environment.
Although biodegradable detergents con-
tain substances which in large quantities
can upset the delicate balance of nature.
The choice and quantity of detergent will
depend on ;
• type of fabric (delicates, woollens,
cottons, etc.);
• the colour of clothes;
• size of the load;
• degree of soil;
• wash temperature ; and
• hardness of the water used.
Water hardness is classified by so-called
"degrees" of hardness.
Information on hardness of the water in
your area can be obtained from the rele-
vant water supply company, or from your
local authority.
You may have to try using the detergent
quantity as per manufacturers’ instruc-
tions then compare the wash result to
the list below and adjust the amount of
detergent for your future washes accord-
ingly.
36 ENGLISH
Not enough detergent causes:
• the wash load to turn grey,
• greasy clothes.
Too much detergent causes:
• over suds,
• reduced washing effect,
• inadequate rinsing.
14. DRYING HINTS
Use less detergent if:
• you are washing a small load,
• the laundry is lightly soiled,
• large amounts of foam during
washing.
• Particularly delicate items such as
synthetic curtains, woollen and silk,
garments with metal inserts, nylon
stockings, bulky garments such as
anoraks, bed covers, quilts, sleeping
bags and duvets must not be machine
dried.
• Avoid drying dark clothes with light
coloured fluffy items such as towels as
these can attract fluff.
• Remove the laundry when the
appliance has finished drying.
• To avoid a static charge when drying
is completed, use either a fabric
softener when you are washing
the laundry or a fabric conditioner
specifically for tumble dryers.
14.1 Preparing The Drying Cycle
14.2 Laundry Not Suitable For
Drying
14.3 Garment Labels
As a dryer, the appliance works on
condensation principle.
Therefore, the water tap must be open
and the drain hose must drain water into
a sink or into the drain pipe, even during
the drying cycle.
For drying, follow the indications given
on the manufacturer’s labels:
= May be tumble dried.
= Drying at medium temperature.
= Drying at reduced temperature.
= Do not tumble dry.
Before starting the drying
programme. Make sure the load size
does not exceed the maximum drying
capacity of the machine. In order to
obtain good performances. (Refer to
section 6.1)
If using liquid detergents, a
programme without prewash must be
selected
14.4 Drying Cycle Duration
The drying time may vary depending on:
• speed of the final spin;
• dryness level required (Extra dry,
Cupboard dry, Iron dry);
• type of laundry;
• weight of the load.
• Garments padded with foam-rubber or
materials similar to foam-rubber must
not be machine dried; they represent a
fire hazard.
• Also, fabrics containing residue of
setting lotions or hair sprays, nail
solvents or similar solutions must not
be machine dried to avoid formation
of harmful vapours.
The detergent and any additives must be
placed in the appropriate compartments
of the dispenser drawer before starting
the wash programme.
ENGLISH 37

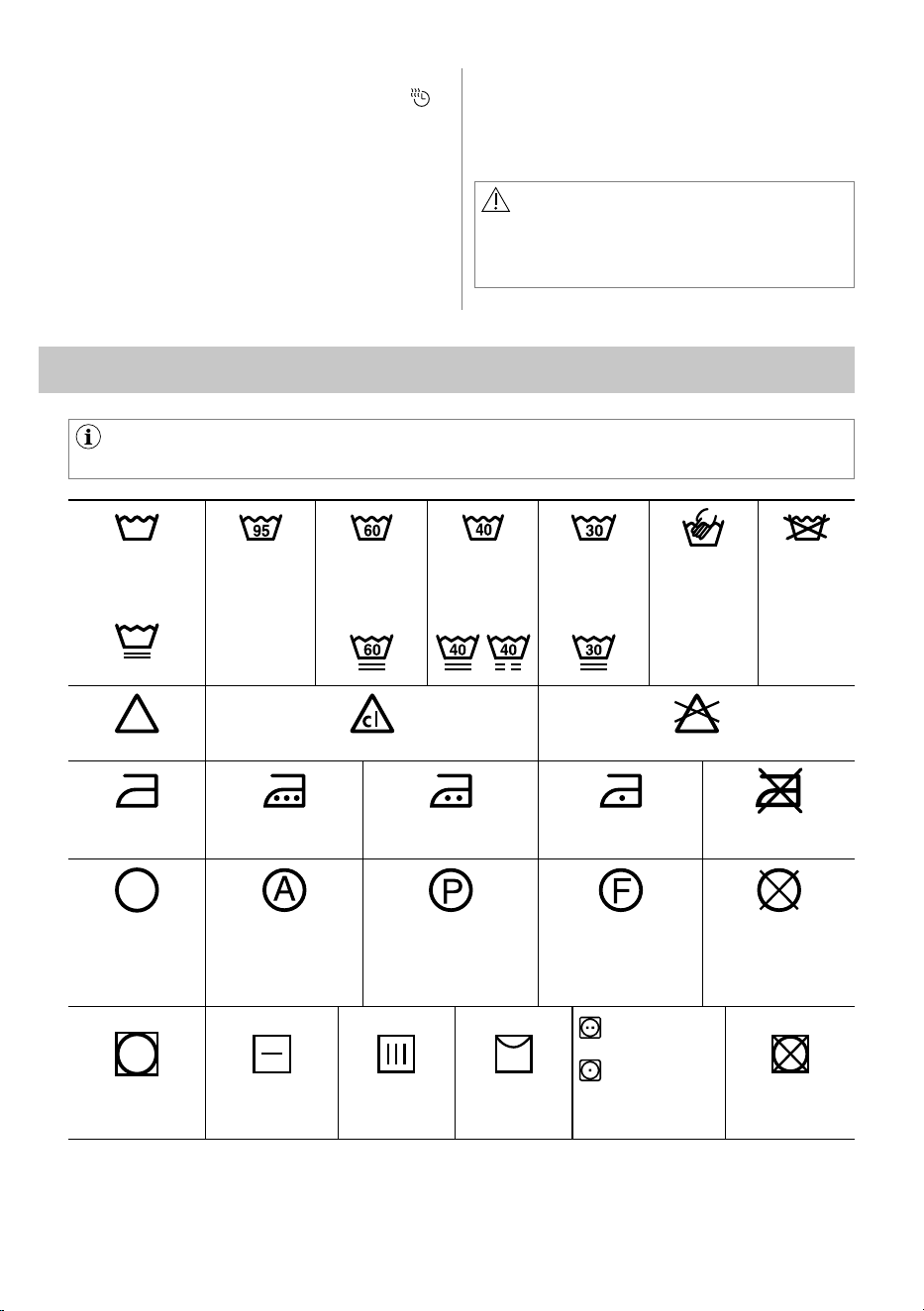

These symbols appear on fabric labels, in order to help you choose the best
way to treat your laundry.
Energetic wash
Max. wash
temperature
95 °C
Max. wash
temperature
60 °C
Max. wash
temperature
40 °C
Max. wash
temperature
30 °C
Hand wash
DO NOT
wash at all
Delicate wash
Bleaching
Bleach with Chlorine DO NOT bleach
Ironing Hot iron
max. 200 °C
Warm iron
max. 150 °C
Lukewarm iron
max. 110 °C
DO NOT iron
Dry cleaning Dry cleaning in all
solvents
Dry cleaning in
perchloroethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning in petrol,
pure alcohol and
R 113
DO NOT
dry clean
Medium
temperature
Low
temperature
Drying Flat On the line On clothes
hanger
Tumble dry DO NOT
tumble dry
15. INTERNATIONAL WASH CODE SYMBOLS
The average drying time for a timed
drying are indicated in the "Time Dry
"
option (see page 20).
The experience will help you to dry your
laundry in a more suitable way according
to the different fabrics.
14.5 Additional Drying
If the laundry is still damp at the end of
the drying programme, select a short
drying cycle again.
WARNING!
Do not over dry the laundry in order to
avoid creasing of fabrics or garments
shrinking.
38 ENGLISH
16.1 External Cleaning
16.2 Descaling
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
The water we use normally contains lime.
It is a good idea to periodically use a
water softening powder in the machine.
Do this separately from any laundry
washing, and according to the softening
powder manufacturer's instructions.
This will help to prevent the formation of
lime deposits.
16. CARE AND CLEANING
WARNING!
You must DISCONNECT the appliance
from the electricity supply, before
you can carry out any cleaning or
maintenance work.
CAUTION!
Do not use alcohol, solvents or
chemical products.
16.3 After Each Wash
Leave the door open for a while. This
helps to prevent mould and stagnant
smells forming inside the appliance.
Keeping the door open after a wash will
also help to preserve the door seal.

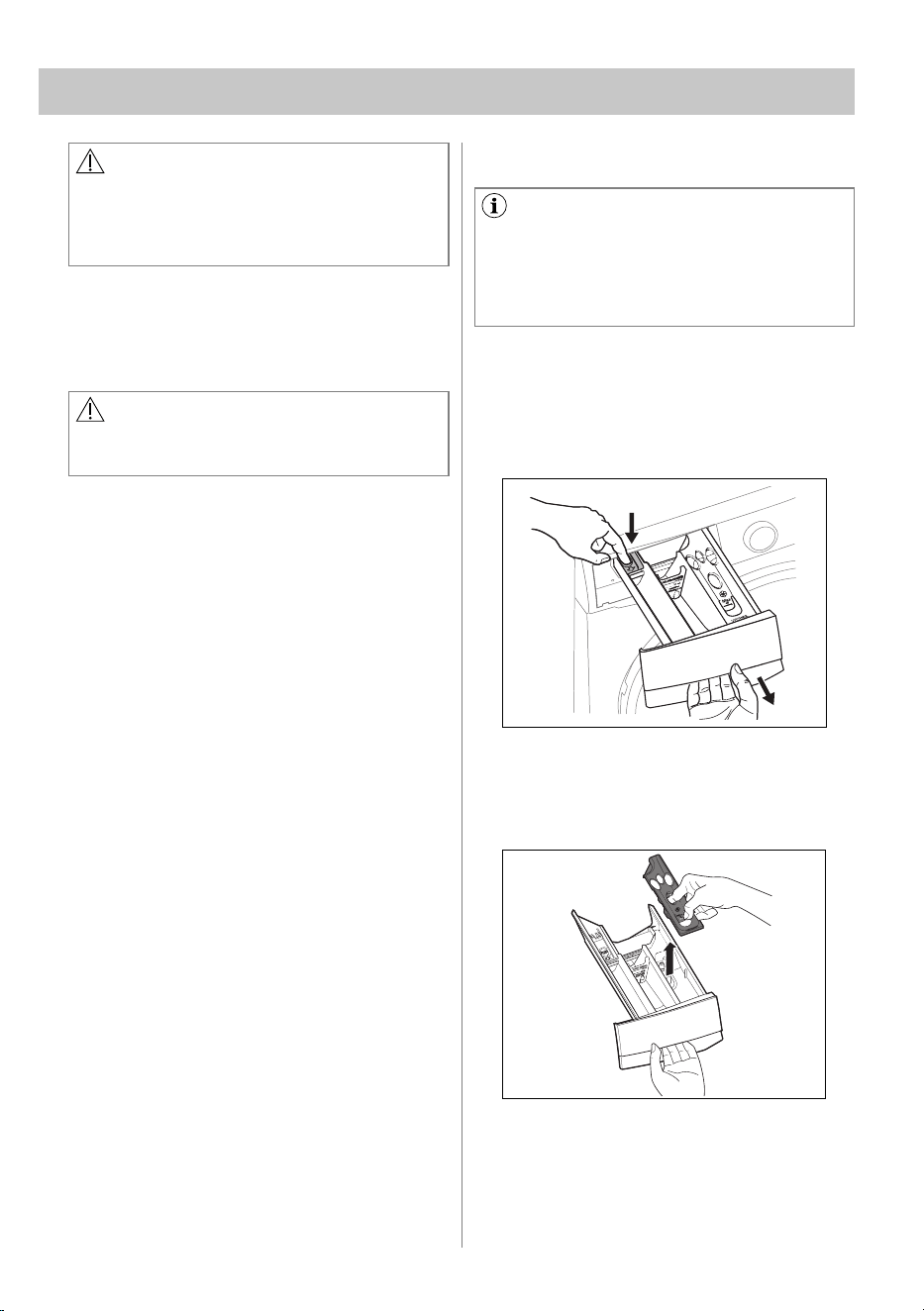

16.5 Cleaning The Dispenser Drawer
The washing powder and additive
dispenser drawer should be cleaned
regularly.
Remove the drawer by pressing the catch
downwards and by pulling it out.
The Figures that take place in this
manual are schematic and may not
correspond exactly with your product.
If the subject parts are not included in
the product you have purchased, then it
is valid for other models.
To aid cleaning, the top part of the
additive compartment should be
removed.
16.4 Maintenance Wash
With the use of low temperature washes
it is possible to get a build up of residues
inside the drum.
We recommend that a maintenance wash
be performed on a regular basis.
To run a maintenance wash:
• The drum should be empty of laundry.
• Select the hottest Cottons programme.
• Press Start/Pause to start the
programme.
ENGLISH 39

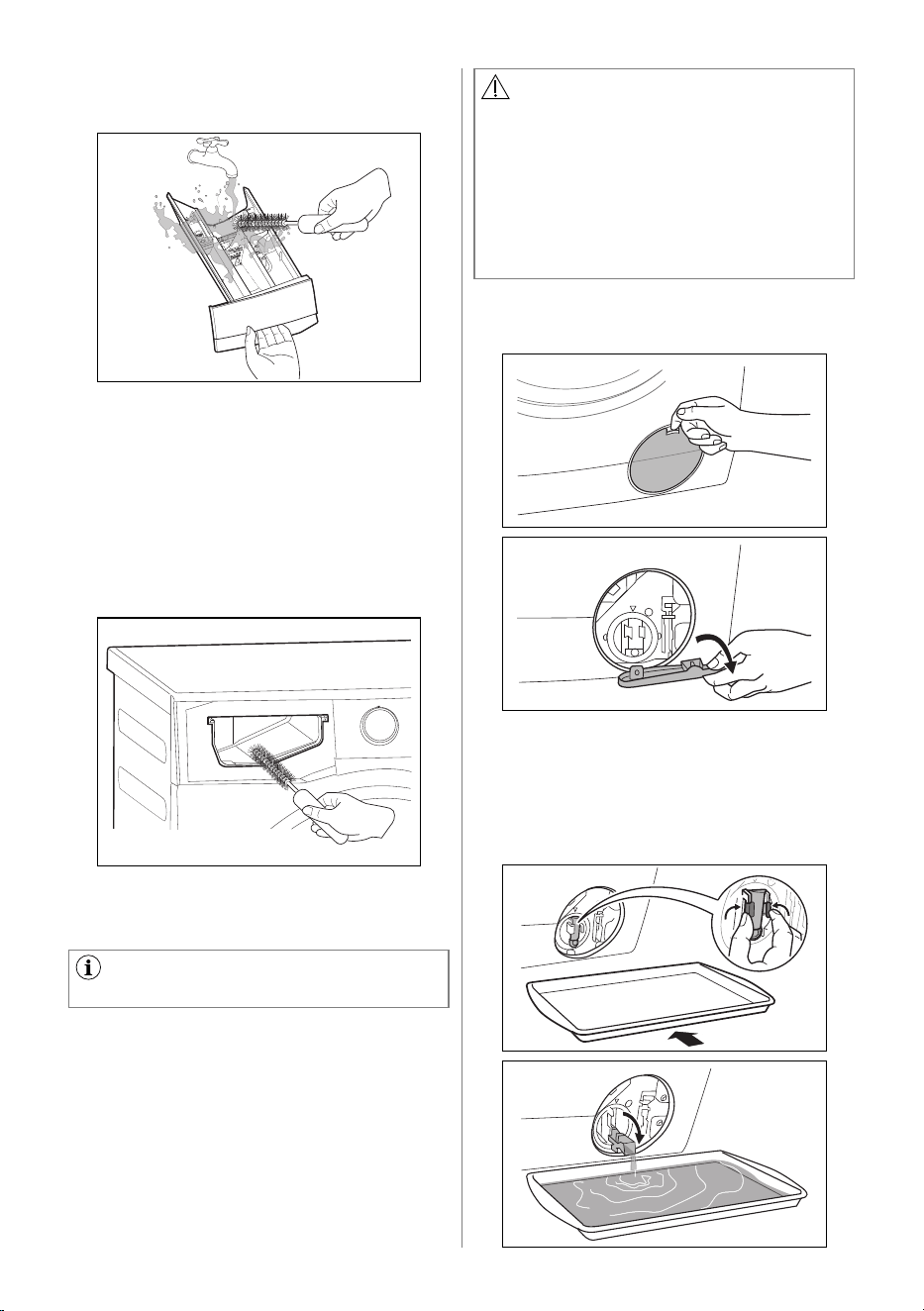

WARNING!
Disconnect the mains plug from the
mains socket.
Do not remove the filter while the
appliance is operating. Do not clean
the drain pump if the water in the
appliance is hot. The water must be
cold before you clean the drain pump.
Regularly examine the drain pump
and make sure that it is clean.
Flush it out under a tap to remove any
traces of accumulated powder.
Having removed the drawer, use a small
brush to clean the recess, ensuring that
all washing powder residue is removed
from the upper and lower part of the
recess. Replace the drawer and run the
rinse programme without any clothes in
the drum.
16.6 Cleaning The Drawer Recess
16.7 Cleaning The Pump
Clean the pump if:
• The appliance does not drain the
water.
• The drum cannot turn.
• The appliance makes an unusual noise
because of the blockage of the drain
pump.
• The display shows an alarm code
because of the problem with water
drain.
To clean the drain pump:
1. Open the drain pump door.
2. Place a suitable water container
below the recess of the drain pump to
collect the water that flows out.
Press the two levers and pull forward
the drainage duct to let the water flow
out.
40 ENGLISH

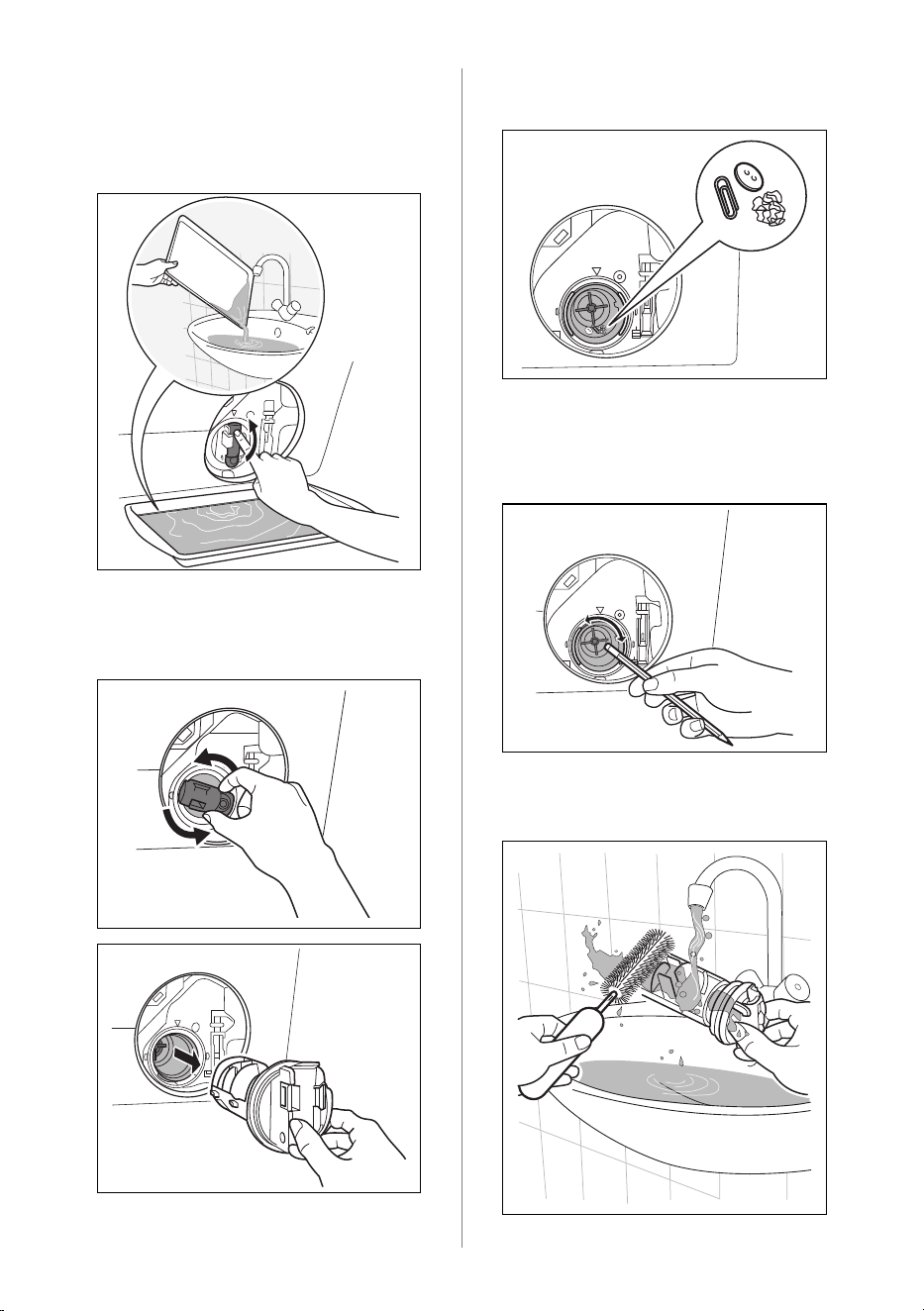

3. When the container is full of water,
put the drainage duct back again
and empty the container. Do step 2, 3
again and again until no more water
flows out from the drain pump.
4. Push back the drainage duct and turn
the filter counter-clockwise to remove
it.
5. Remove fluff and objects from the
pump (if there are any).
6. Make sure that the impeller of the
pump can turn. If this does not occur,
contact the service centre.
7. Clean the filter under the water tap.
ENGLISH 41

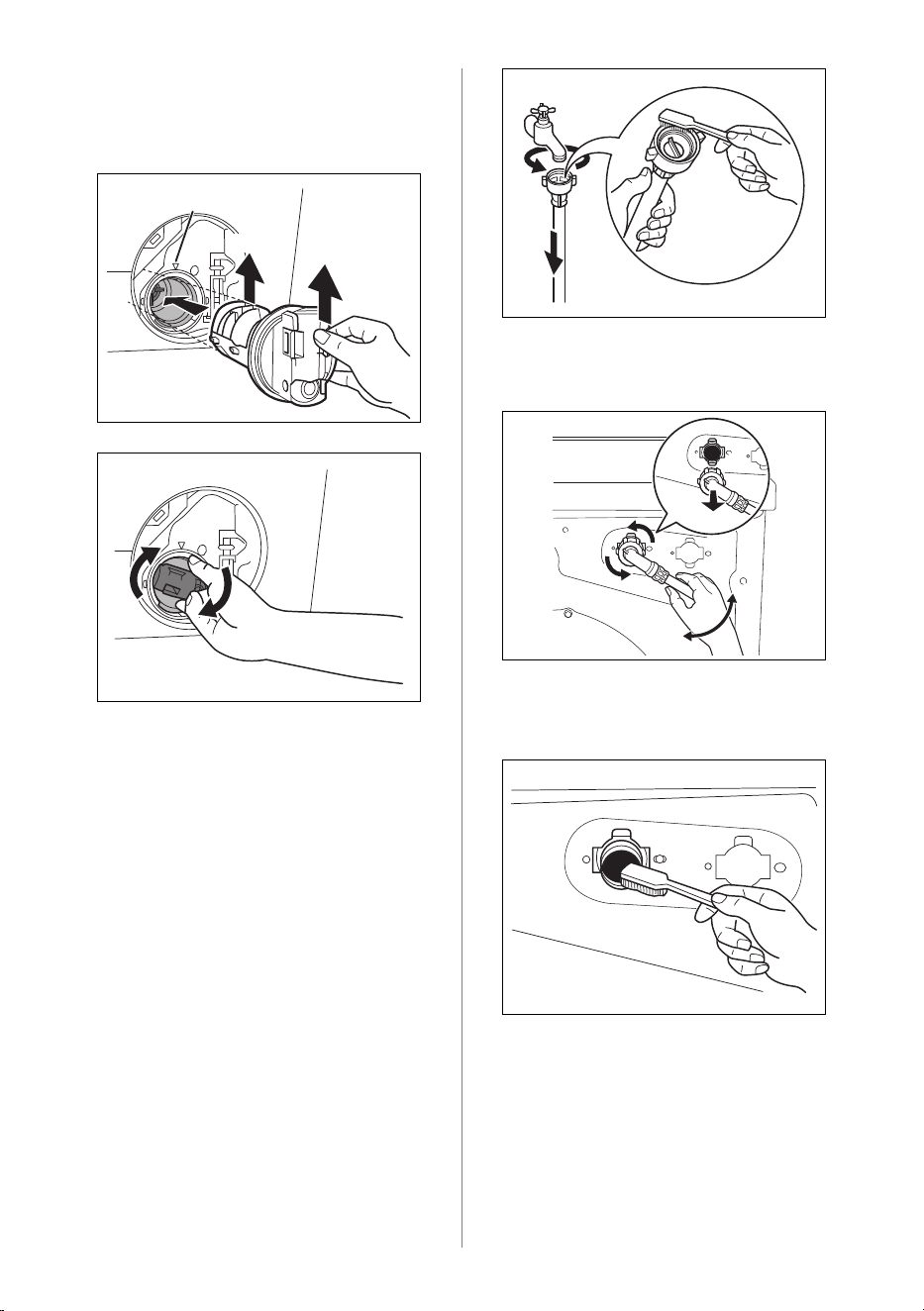

4. Remove the inlet hose behind the
appliance.
5. Clean the filter in the valve with a stiff
brush or a towel.
6. Install the inlet hose again. Make sure
that the couplings are tight to prevent
leakages.
7. Open the water tap.
16.8 Cleaning The Water Inlet Filter
If your water is very hard or contains
traces of lime deposit, the water inlet
filter may become clogged. It is therefore
a good idea to clean it from time to time.
To clean the water inlet filters:
1. Close the water tap.
2. Remove the water inlet hose from the
water tap.
3. Clean the filter in the inlet hose with a
stiff brush.
8. Put the filter back into the housing
with exposed section facing up. Make
sure that you correctly tighten the filter
to prevent leakages.
9. Close the drain pump door.
Guide
UP
UP
42 ENGLISH
16.9 Frost Precautions
If the appliance is installed in an area
where the temperature can be less than
0 °C, remove the remaining water from
the inlet hose and the drain pump.
Emergency Drain
1. Disconnect the main plug from the
main socket. Turn off the water tap.
2. Remove the water inlet hose.
3. Remove the drain hose from the rear
support and unhook it from sink or
spigot.
4. Put the end of the drain and inlet hose
in a container. Let the water flow out
of the hoses.
5. When no more water flows, install the
inlet hose and the drain hose again.
Make sure that the temperature
is more than 0 °C before you use the
appliance again.
ENGLISH 43
17.1 Possible Failures
Certain problems are due to lack of
simple maintenance or oversights, which
can be solved easily without calling
out an engineer. Before contacting
your local Service Centre, please check
troubleshooting below.
Once the problem has been eliminated,
press the Start/Pause touch key to restart
the programme. If after all checks, the
problem persists, contact your local
Service Centre.
Alarm code:
The appliance does not fi ll with water
properly.
The appliance does not drain the
water.
The appliance door is open or not
closed correctly. Please check the
door!
The main supply is unstable. Wait until
the main supply is stable.
No communication between
electronic elements of the appliance.
Switch off and switch on again.
No Registration Data found in
machine or Server.
Malfunction Possible cause Solution
Machine does
not start:
The door has not been closed.
(Error code: )
Close the door firmly.
The plug is not properly inserted
into the power socket.
Insert the plug into the power
socket.
There is no power at the socket. Please check your domestic
electrical installation.
The Start/Pause touch key has not
been pressed.
Press the Start/Pause touch key.
The "Finish In" has been selected. If the laundry are to be washed
immediately, cancel the "Finish In".
The Main supply is unstable.
(If
appears on the display.)
Wait until the main supply is
stable. Appliance will start
automatically.
Machine does
not fill the
water:
The water tap is closed.
(Error code: )
Open the water tap.
The inlet hose is squashed or
kinked. (Error code:
)
Check the inlet hose connection.
The filter in the inlet hose is
blocked. (Error code:
)
Clean the water inlet hose filter.
The door is not properly closed.
(Error code:
)
Close the door firmly.
Machine fills
then empties
immediately:
The end of the drain hose is too
low. (Error code:
)
Refer to relevant paragraph in
"water drainage" section.
17. TROUBLESHOOTING
WARNING!
Deactivate the appliance before you
do the checks.
44 ENGLISH
Malfunction Possible cause Solution
Machine does
not empty
and/or does
not spin:
The drain hose is squashed or
kinked. (Error code:
)
Check the drain hose connection.
The drain pump is clogged.
(Error code:
)
Clean the drain filter.
The option "Rinse Hold" has been
selected.
Press Start/Pause touch key to
drain the water or select spin
programme.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry manually.
There is water
on the floor:
Too much detergent or unsuitable
detergent (creates too much
foam) has been used.
Reduce detergent quantity and
use correct type of detergent (see
page 35).
Check whether there are any
leaks from one of the inlet hose
fittings. It is not always easy to
see this as the water runs down
the hose; check to see if it is
damp.
Check the water inlet hose
connection.
The drain hose is damaged. Call Service.
Unsatisfac-
tory washing
results:
Too little detergent or unsuitable
detergent has been used.
Increase detergent quantity or
use different detergent (see page
35).
Stubborn stains have not been
treated prior to washing.
Use commercial products to treat
the stubborn stains.
The correct temperature was not
selected.
Check if you have selected the
correct temperature.
Excessive laundry load. Reduce load.
The door will
not open:
The programme is still running. Wait until the end of cycle.
There is water in the drum. You must drain the water to open
the door (refer to Opening The
Door section, page 30).
This problem may be caused by a
failure of the appliance.
Contact Service. If you need
to open the door, please read
carefully "Emergency door
opening" on page 47.
Machine
vibrates or is
noisy:
The transit bolts and packing
have not been removed.
Check the correct installation of
the appliance.
The support feet have not been
adjusted.
Check the correct levelling of the
appliance.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry manually.
ENGLISH 45
Malfunction Possible cause Solution
Machine
vibrates or is
noisy:
There is very little laundry in the
drum.
Load more laundry.
Unstable floors e.g. wooden
floors.
Refer to relevant paragraph in
"Positioning" section.
Cycle time
longer than
displayed:
Detergent over dose. Reduce the detergent quantity or
use another one. (see page 35)
Machine unbalance. Redistribute laundry manually in
the drum and start the spin phase
again.
The cycle is
shorter than
the time dis-
played.
The appliance calculated a new time according to the laundry load.
Spinning starts
late or
machine does
not spin:
The electronic unbalance
detection device has cut in
because the laundry is not evenly
distributed in the drum. The
laundry is redistributed by reverse
rotation of the drum.
This may happen several times
before the unbalance disappears
and normal spinning can resume.
If, after 10 minutes, the laundry is
still not evenly distributed in the
drum, the machine will not spin.
In this case, redistribute the load
manually and select the spin
programme.
Pause the machine and
redistribute laundry manually.
Machine
makes an
unusual noise:
Machine not installed properly. Make sure the levelling of the
appliance is correct. Refer to
section "Installation".
Transit bolts or packaging not
removed.
Make sure that the packaging
and/or the transit bolts are
removed. Refer to section
"Unpacking".
The load may be too small. Add more laundry in the drum.
No water is
visible in the
drum:
Machines based on modern technology operate very
economically using very little water without affecting performance.
Remote
function does
not work:
Registration data lost or
damaged. (Error Code: )
Restart machine by turn Off and
turn On again. If problem not
solved, please contact Service
Centre.
46 ENGLISH
If you are unable to identify or solve the problem, contact our service centre.
Before calling, make a note of the model, serial number in the rating label behind
the door when you open, and purchase date of your machine.
Malfunction Possible cause Solution
Machine does
not dry or
does not dry
properly:
The "Time Dry" or the "Dryness
Level" degree has not been
selected.
Select the drying time or the
dryness level degree.
The water tap is not turned on.
(Error code:
)
Open the water tap.
The drain filter is clogged.
(Error code:
)
Clean the drain filter.
The machine is overloaded. Reduce the laundry load in the
drum.
The selected drying programme,
time or dryness level was not
suitable for the laundry.
Select the suitable drying
programme, time or dryness level
for the laundry.
Display time is
frozen at the
end of drying
cycle for more
than 30
minutes:
Machine is optimizing the drying
cycle according to the laundry
type and load size. It will vary for
each kind of fabric as the water
absorption is different.
This is a normal behaviour of
the machine and not a cause
for concern as it does not
compromise its performance.
ENGLISH 47

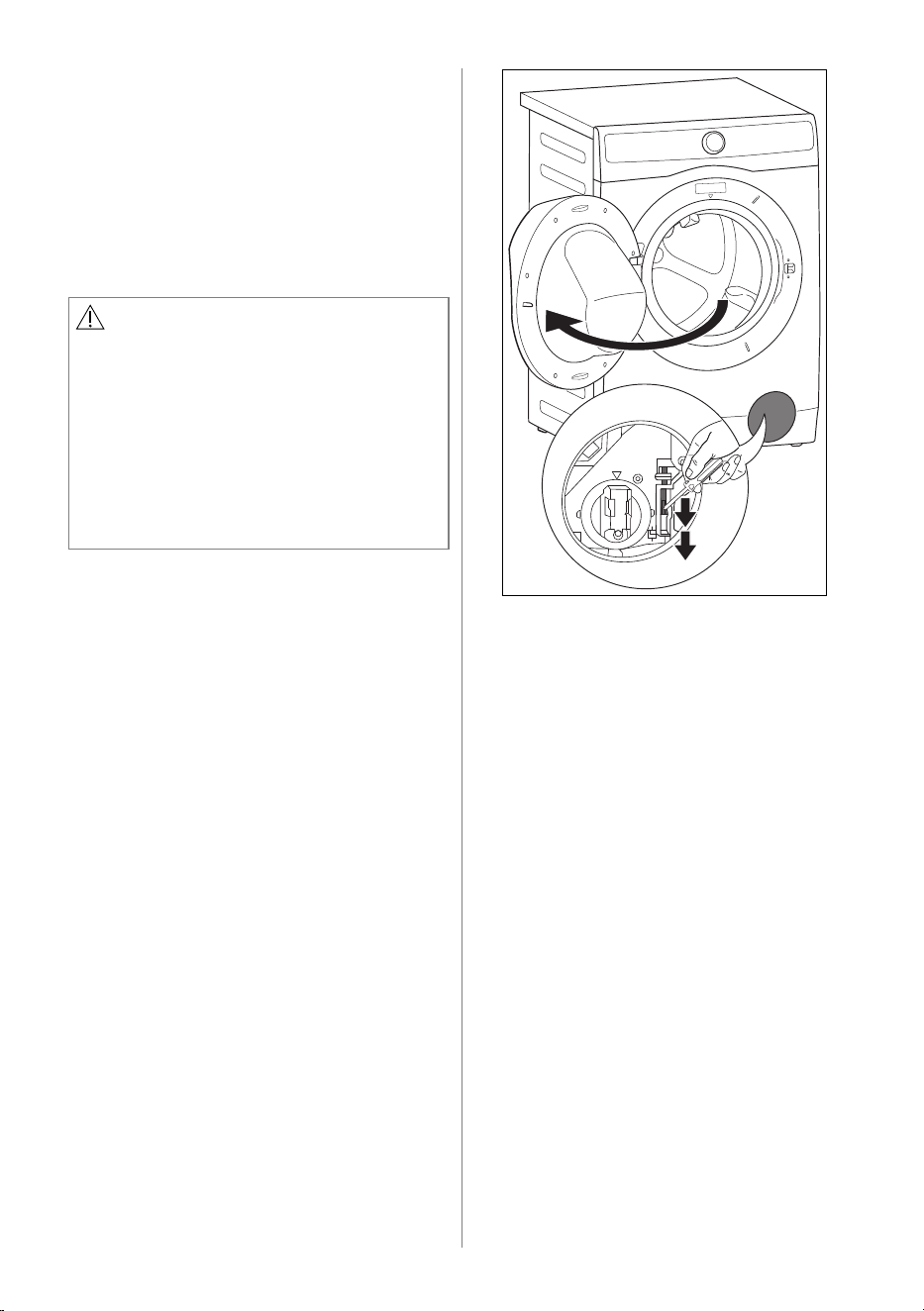

17.2 Emergency Door Opening
In case of power failure or appliance
failure, the appliance door remains
locked. The wash programme continues
when power is restored. If the door
remains locked in case of failure, it is
possible to open it using the emergency
unlock feature.
Before opening the door:
To open the door proceed as follows:
1. Press the On/Off touch key to switch
the appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Open the filter cover.
4. Using a suitable tool to pulling the
emergency unlock strap (red strap)
downward twice (you will hear "click"
sound) and hold it, at the same time
pull the door handle to open the door.
If the door cannot open while holding
the strap, try to release it then open
the door.
5. Take out the laundry.
6. Close the filter door.
WARNING!
Make sure that the water temperature
and the laundry are not hot. Wait until
they cool down if necessary.
Make sure that the water level inside
the drum is not too high. If necessary,
perform an Emergency Drain (see page
42).
Make sure that the drum is not rotating.
Wait until the drum stops rotating if
necessary.
48 ENGLISH
18.1 Packaging Materials
18.2 Old Machine
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene.
This means that they can be recycled by
disposing them properly in appropriate
collection containers.
Use authorized disposal sites for your
old appliance. Help to keep your country
tidy!
The symbol
on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
For more detailed information about
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop where
you purchased the product.
18. ENVIRONMENT CONCERNS
18.3 Ecological Hints
To save water, energy and to help
protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be
washed without pre-washing in order
to save detergent, water and time (the
environment is protected too!).
• The machine works more economically
if it is fully loaded.
• With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.
• Measure out detergent according to
the water hardness, the degree of
soiling and the quantity of laundry
being washed.
ENGLISH 49
electrolux.com
G0044680-002-A28643610
