Axis TP3206-E Installation Guide

This is the main product document for model 03267-001.

The file format is pdf, 10 pages, you can download this manual here .

background

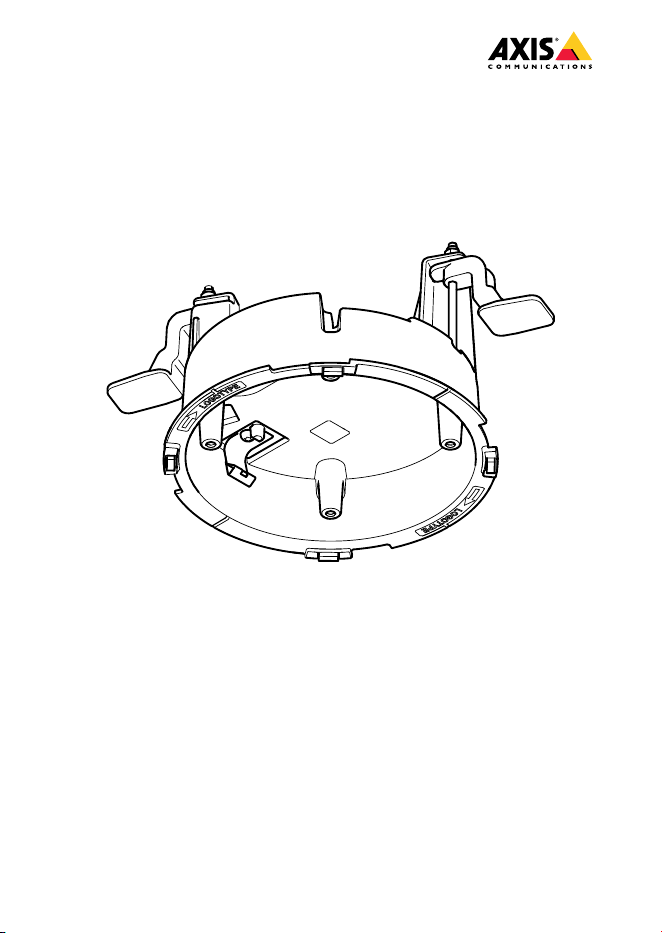

AXISTP3206-E
AXIS TP3206-E
Installation guide
Guide d’installation
Installationsanleitung
Guida all’installazione
Guía de instalación
イインンスストトーールルガガイイドド
Guia de instalação
Руководство поустановке
설치가이드
安安装装指指南南
Panduan instalasi
background

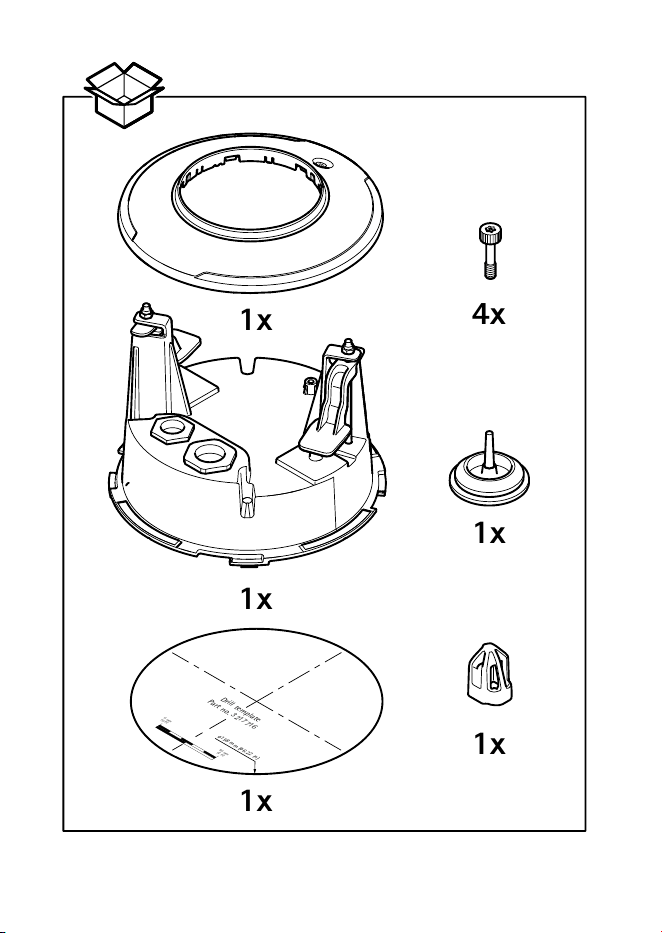

2
4x
1x
1x
1x
1x
1x
ø158 mm (ø6.22
in)
Dr
il
l template
Part
no.
3217716
0 mm
(0 in
)
50
m
m
(2
i
n)
background
3

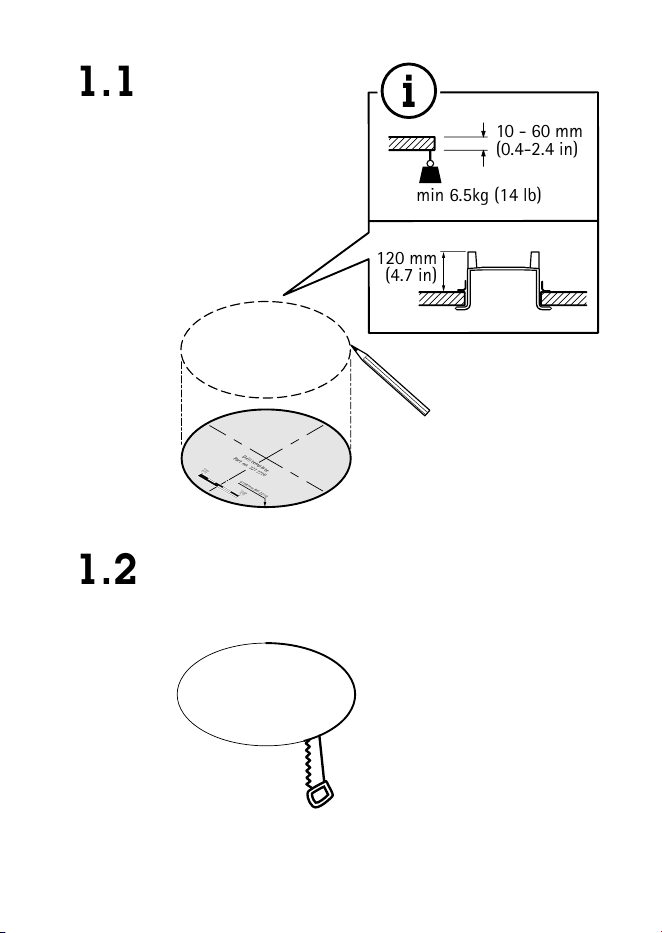

1.1
1.2
10 - 60 mm
(0.4-2.4 in)
120 mm
(4.7 in)
min 6.5kg (14 lb)
ø
15
8
mm (
ø6.2
2
in)
Drill template
Part no. 3217716
0
mm
(0
in)
50 m
m
(2
in)
background

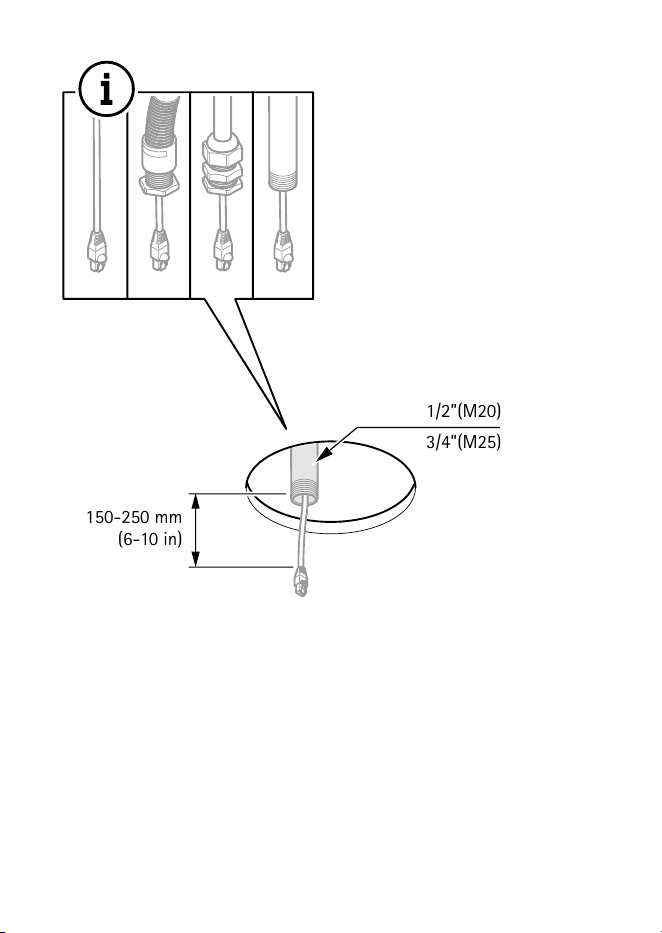

4
1/2”(M20)
3/4”(M25)
150-250 mm
(6-10 in)
background
5

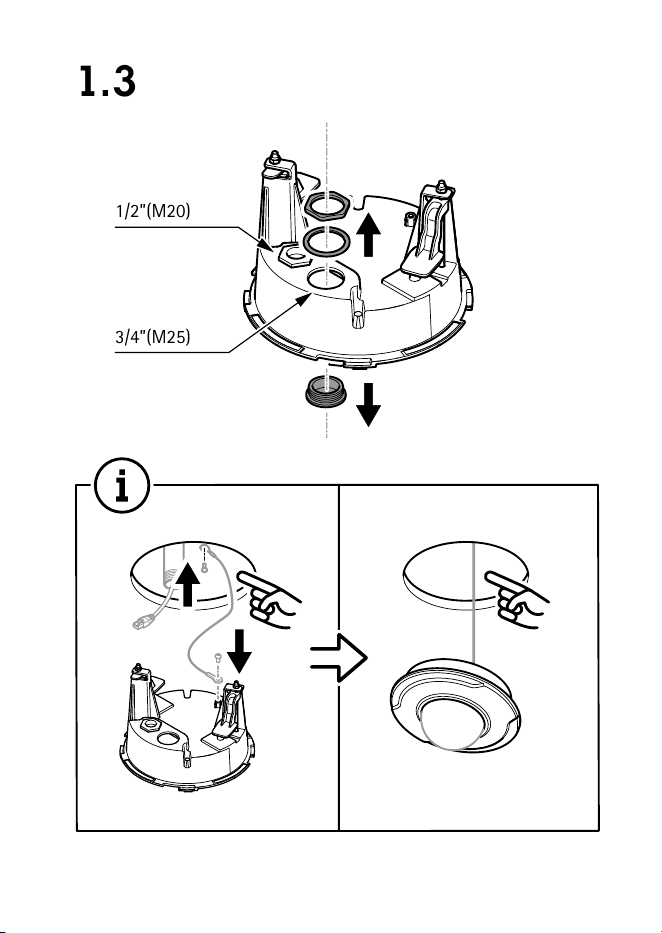

1.3
1/2”(M20)
3/4”(M25)
background

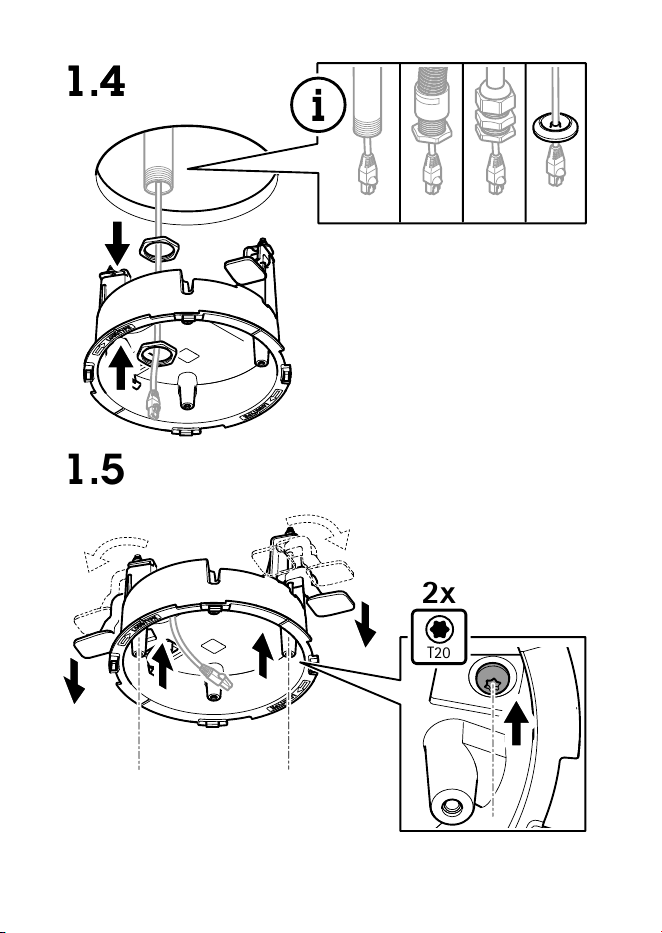

6

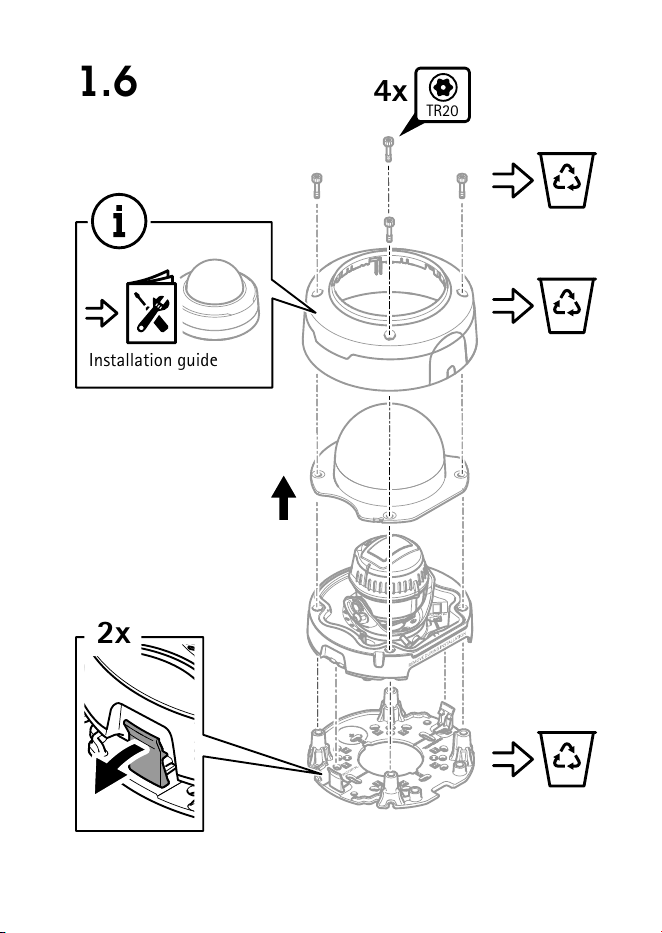

1.41.4
1.5
2x
T20
background
7
4x
TR20
2x
1.6
Installation guide
background
8

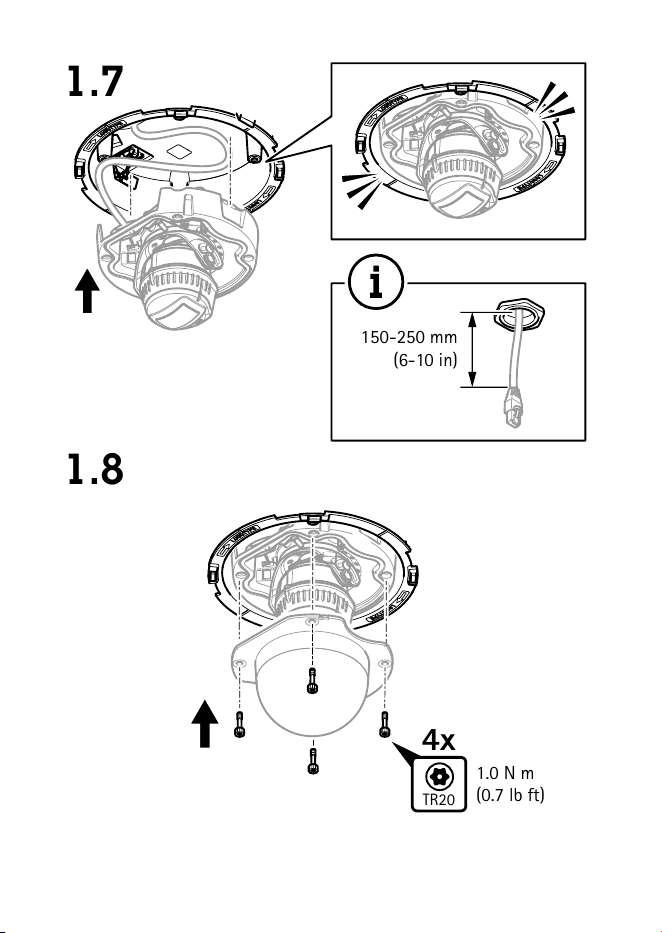

1.0 N m
(0.7 lb ft)
4x
TR20
1.7
1.8
150-250 mm
(6-10 in)
background
9

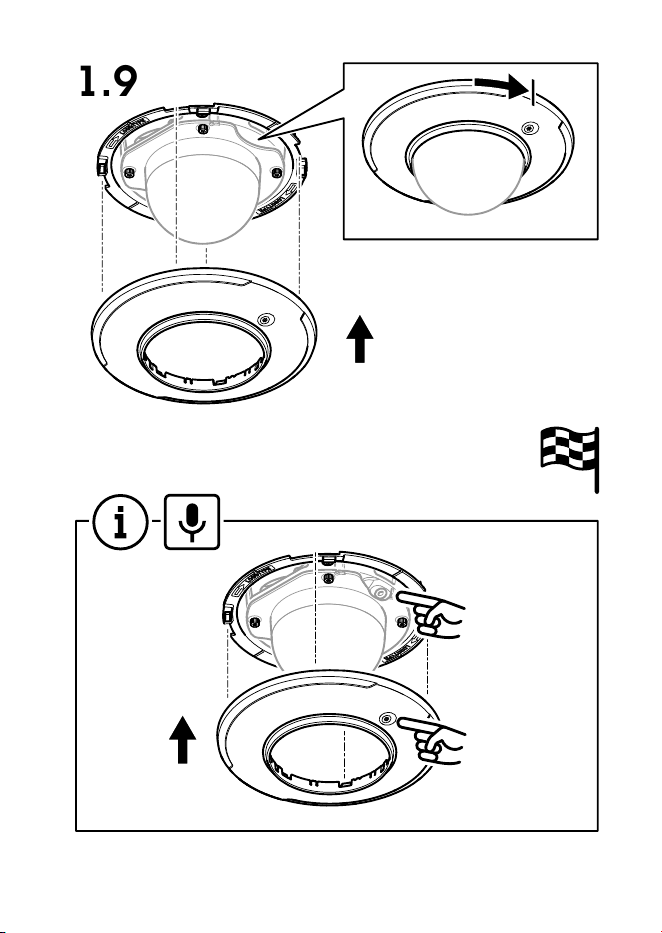

1.9
background
.
3126189
2025-01 (M1.3)
