Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2021 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 58459
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 4
Setup .......................................................... 4
Operation .................................................... 6
Maintenance ............................................... 8

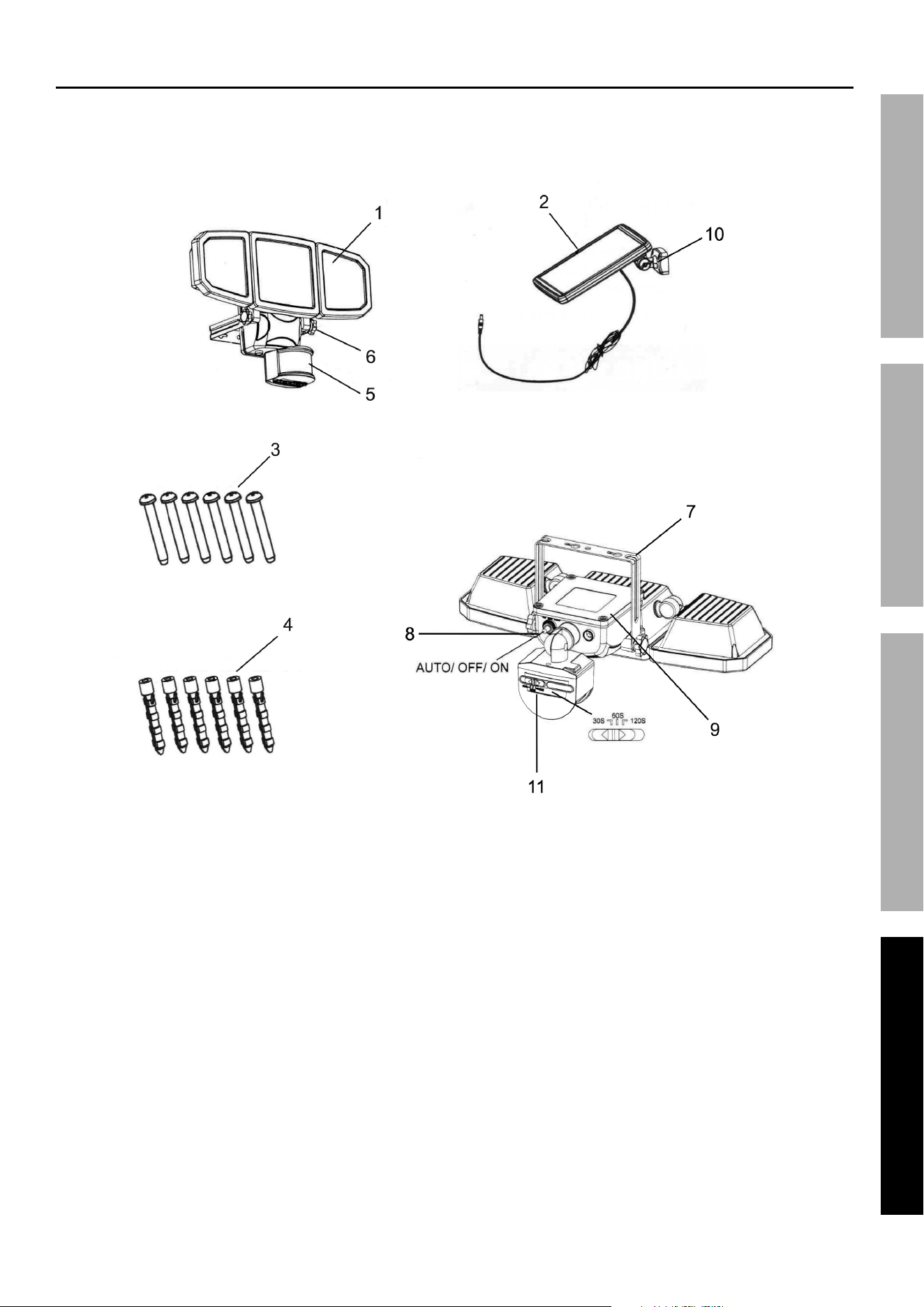

Parts List and Diagram .............................. 10
Warranty .................................................... 12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. Keep installation area clean.
Cluttered areas invite accidents.
2. Observe installation area conditions. Keep
work area well lit during installation.
3. Check for damaged parts. Before using
any product, any part that appears damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function. Check for any broken or damaged
parts and any other conditions that may affect its
operation. Replace or repair damaged or worn
parts immediately. Do not use the Security Light
if any switch does not turn on and off properly.
4. Replacement parts and accessories. When
servicing, use only identical replacement parts.
Use of any other parts will void the warranty.
5. Check hardware and assembled parts
after assembling. All connections should
be tight and hardware tightened.
6. Keep children away. Mount the Light, Solar
Panel, and Cord out of children’s reach.
7. Dress properly. Protective, electrically non-
conductive clothes and nonskid footwear are
recommended when working with the Solar
Powered Security Light. Wear restrictive
hair covering to contain long hair.
8. Use eye protection. Wear ANSI-approved impact
safety goggles when setting up this product.
SAFETY OPERATION MAINTENANCESETUP
Page 3For technical questions, please call 1-888-866-5797.Item 58459
9. Maintain products with care. Keep the Solar
Powered Security Light clean for better and safer
performance. Inspect the Light periodically. If
damaged, have it repaired by a qualified technician.
10. Do not overreach. Keep proper footing and
balance at all times. If a ladder is to be used during
installation, it should be supported by an assistant.
11. Do not set up the Solar Powered Security Light
if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your
judgement or reflexes are impaired while taking
drugs. If there is any doubt, do not set up the Light.
12. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
13. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
14. Contains Li-Ion battery. Battery must be
recycled or disposed of properly. Do not open,
crush, heat above 140°F or incinerate.
SAVE THESE INSTRUCTIONS.
SAFETYOPERATIONMAINTENANCE SETUP
Page 4 For technical questions, please call 1-888-866-5797. Item 58459
Specifications
Lamp 120 SMD LEDs
Battery Pack 3.7 VDC, 6000 mAh Li-Ion Battery
Brightness 2850 Lumens
Color Temperature 6600K
Solar Panel Cord 10 ft.
Detection Angle 120 deg.
Detection Range 40 ft.
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in the following
pages, refer to Parts List and Diagram on page 11.
Installation
1. Decide where to place the Lamp and Solar Panel.
a. The Solar Panel is equipped with a 10 foot long
Solar Power Cable, so the Lamp and Solar
Panel can be installed up to 10 feet apart.
b. The Solar Panel must be set in a location
that receives full, direct sunlight, a minimum
of 8 hours a day. Ideally, the Solar
Panel should be angled slightly toward
the South (northern hemisphere).
2. Mount the Solar Panel:
a. Place the Solar Panel in the desired location,
adjusting the unit to best fit the surface.
b. Using the Solar Panel’s mounting bracket as
a template, mark the hole locations to install
the panel. Set the Solar Panel aside.
c. Verify that installation surface has no
hidden utility lines before drilling or driving
screws. Drill holes for the enclosed
mounting Screws and Anchors.
d. Secure Anchors into holes and connect the
Solar Panel in place with the Screws.
3. Mount the Lamp:
a. Locate the unit 6 to 8 feet above ground on
a solid surface capable of supporting the
Lamp and secure enough so that it will not
move when exposed to vibrations or wind.
The unit must be high enough to allow for
motion detection and light distribution.
b. Using the Mounting Bracket as a
template, mark the hole locations to
install the Lamp. Set Lamp aside.
c. Verify that installation surface has no hidden
utility lines before drilling or driving screws. Drill
holes for the enclosed Screws and Anchors.
d. Secure Anchors into the holes and connect
the Lamp in place with the Screws.
4. Carefully route the Solar Power Cable from the
Solar Panel to the Lamp and plug it into the Solar
Power Input on the Lamp’s Battery Housing.
5. Adjust the Motion Detector Head by moving it left
or right so that it faces the area where movement
will occur. Move it up or down using the screw
located on the neck of the Motion Detector Head.
SAFETY OPERATION MAINTENANCESETUP
Page 5For technical questions, please call 1-888-866-5797.Item 58459

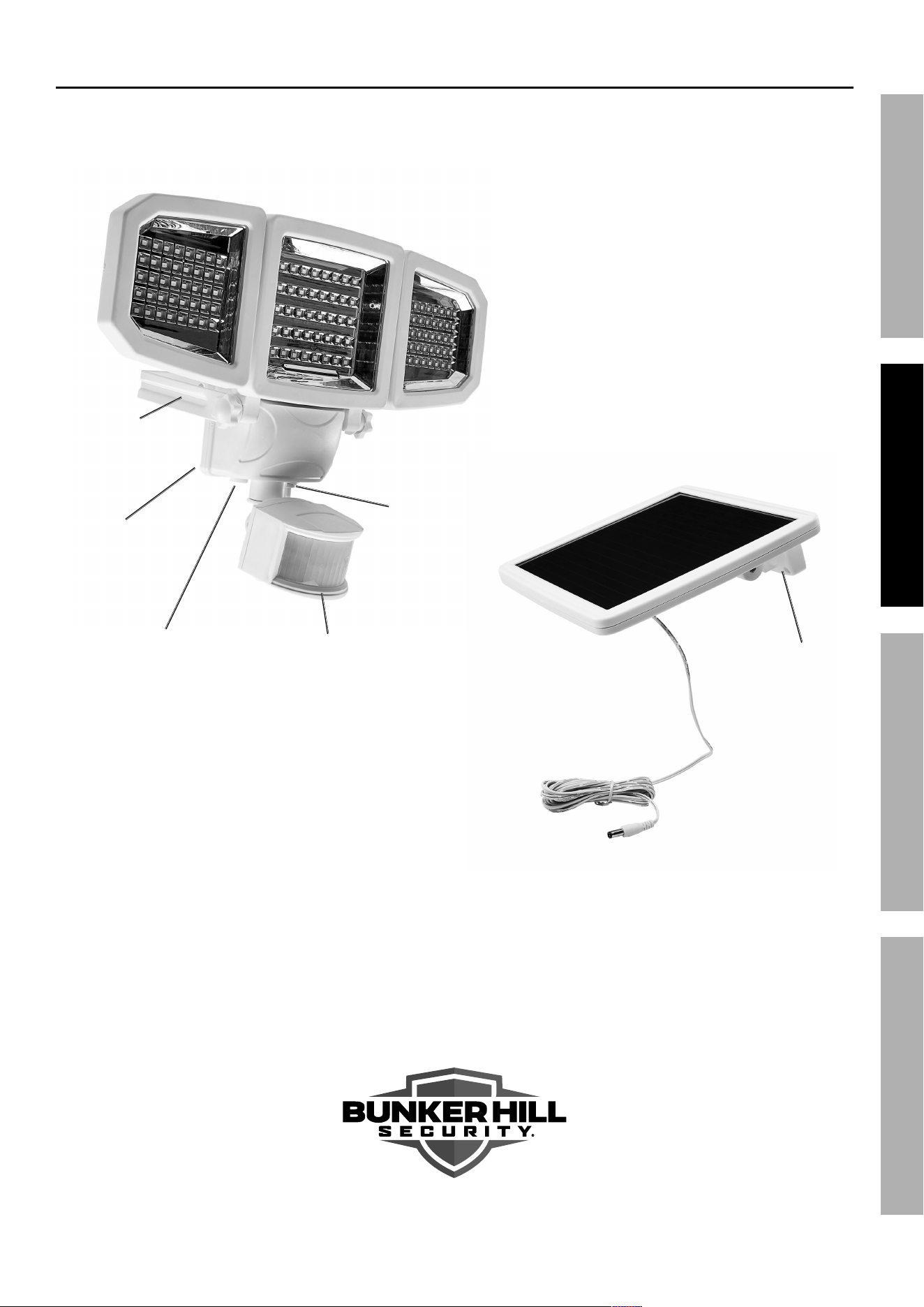

Functions
Mounting Bracket
Solar Panel
Solar Power Cable
Motion Detector
Head
Triple Lamp
Battery Housing
Power Switch
Solar Power Input
Mounting
Bracket
SAFETYOPERATIONMAINTENANCE SETUP
Page 6 For technical questions, please call 1-888-866-5797. Item 58459
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Initial Battery Charging
Before the Security Light can operate properly, the
battery needs to be fully charged. To charge the battery:
1. Turn OFF the Power Switch.
2. ALLOW 3 DAYS OF FULL SUNLIGHT
to fully charge the battery.
3. After charging, turn the Power Switch to
Auto. The light will illuminate for a short
time when first switched to Auto. This
indicates that it is working properly.
CAUTION
The UNIT WILL NOT FUNCTION
UNLESS:
The Solar Panel is first charged for
3 DAYS OF FULL SUN
with the SENSOR POWER OFF.
Power Switch
The Power Switch, located under the Battery
Housing of the Lamp has three settings:
OFF: Center position.
ON: Towards the Lamp. The lamp stays
on functioning as a normal light.
AUTO: Away from the Lamp. The light
will turn on automatically when motion is
detected by the Motion Sensor Head.
AUTO
OFF
ON
Note: If the Power Switch is turned on but the Security
Light does not light, the battery may need to be charged.
Power off the Security Light and allow it to charge
3 days in full sunlight to fully charge the battery.
SAFETY OPERATION MAINTENANCESETUP
Page 7For technical questions, please call 1-888-866-5797.Item 58459

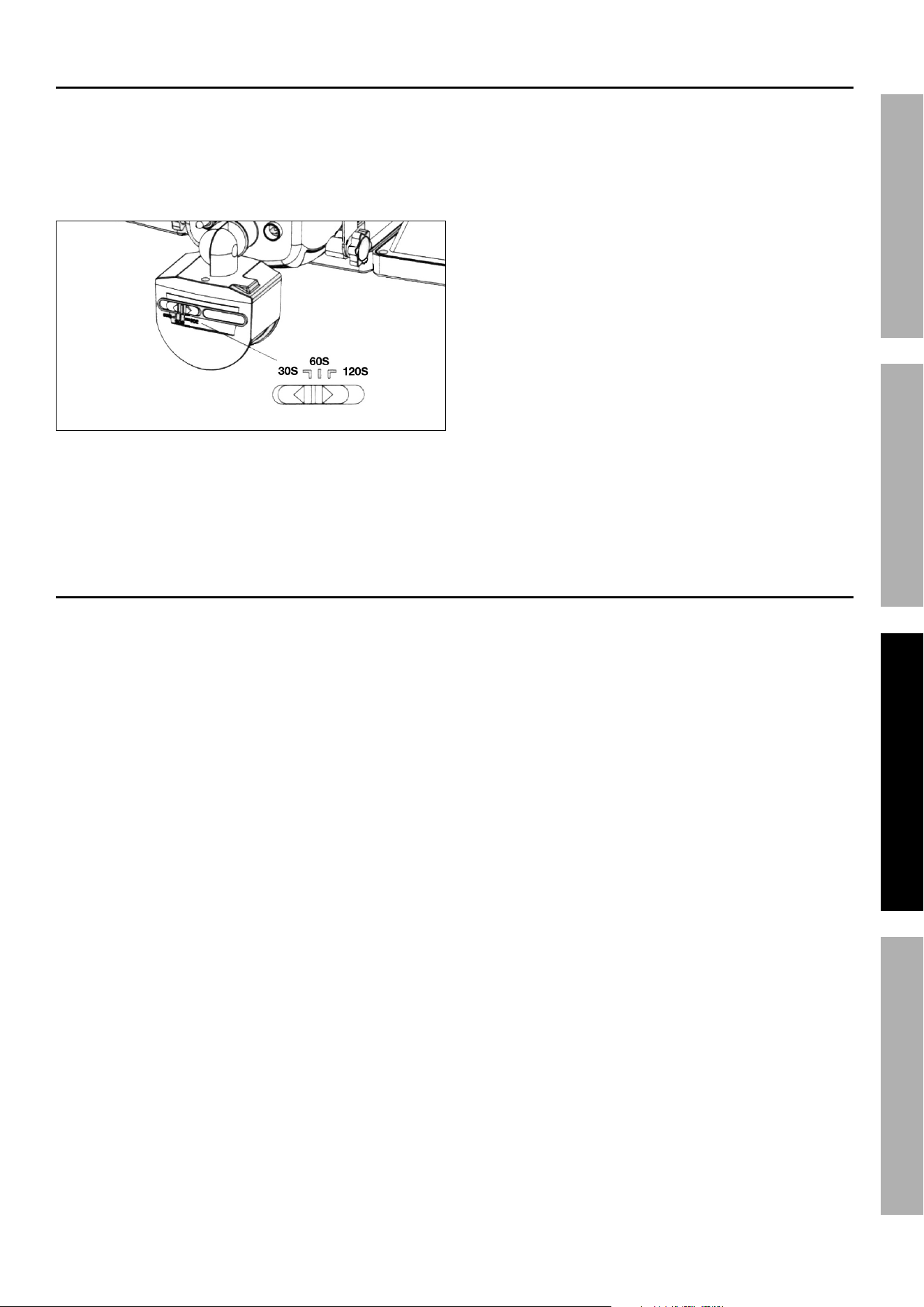

Time (Light Duration) Control Switch
The Solar Powered Security Light has a sliding
switch on the underside of the Motion Detector
Head. It controls how long the Light stays lit after
motion is no longer detected by the sensor.
Set the switch to 30, 60 or 120 seconds.
Adjust Time
(how long the light will stay on)
Testing the Light
1. After the battery is charged and the time duration
is set, walk slowly around the detection area.
The sensor detects infrared radiation given off
by a person or animal. This triggers the Light
to turn on. The Light should go on in the area
that you set up the Security Light to monitor.
2. The Security Light is designed to
operate from dusk to dawn.
SAFETYOPERATIONMAINTENANCE SETUP
Page 8 For technical questions, please call 1-888-866-5797. Item 58459
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• leaking, swollen, or cracked battery,
• loose hardware,
• misalignment or binding of parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Keep Solar Panel free of dirt and debris to maintain
optimum efficiency in recharging the battery.
Battery Removal and Disposal
1. The battery is located inside the Lamp assembly.
2. Turn the Lamp off and remove
the screws on the back.
3. Disconnect the battery and remove it from the Lamp.
4. Contains Li-Ion battery. Battery must be
recycled or disposed of properly. Do not open,
crush, heat above 140°F or incinerate.
SAFETY OPERATION MAINTENANCESETUP
Page 9For technical questions, please call 1-888-866-5797.Item 58459
Troubleshooting
Problem Possible Causes Likely Solutions
Light won’t
turn on.
1. Power is not on.
2. Cable connection is loose.
3. Motion sensor not
detecting movement.
4. Battery pack not fully charged.
1. Check that Power Switch is set to ON or AUTO.
2. Plug in firmly at back of Battery Housing.
3. Adjust angle and direction of Motion Detector Head.
4. Keep solar panel clean. Allow to charge in full
sunlight for 3 days with the Power Switch OFF.
Light flashes
on and off with
clicking sounds.
Low battery. With Switch set to “OFF”, allow to charge in full
sunlight for 3 days before further use.
Light stays
“ON”.
1. Duration time setting too long.
2. Frequent changes in heat being
detected.
3. Power Switch set to ON.
1. Push switch to lower time setting.
2. Check sensing area for possible heat sources
such as air vents, vehicles or objects in wind.
Reposition the Motion Detector Head if needed.
3. Turn Power Switch to AUTO.
Light turns ON
and OFF.
1. Changes in heat are being
detected from a fixed heat
source or moving object.
2. Sudden temperature change
due to storms or high winds.
1. Check sensing area for possible heat sources
such as air vents, vehicles or objects in wind.
Reposition the Motion Detector Head.
2. Turn Power Switch “OFF” until storm passes.
Mount in a sheltered location.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect Battery and Charger power supply before service.
SAFETYOPERATIONMAINTENANCE SETUP
Page 10 For technical questions, please call 1-888-866-5797. Item 58459
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List and Diagram
Parts List
Part Description Qty
1 Light Fixture 1
2 Solar Panel 1
3 Mounting Screw 6
4 Wall Anchor 6
5 Motion Detector Head 1
6 Star Knob 2
Part Description Qty
7 Mounting Bracket 1
8 Power Switch 1
9 Battery Housing Outlet 1
10 Solar Panel Mounting Bracket 1
11 Time Adjusting Knob 1
12 3.7V Li-ion Battery Pack (not shown) 1
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175439468 when ordering parts.
SAFETY OPERATION MAINTENANCESETUP
Page 11For technical questions, please call 1-888-866-5797.Item 58459
Parts Diagram
SAFETYOPERATIONMAINTENANCE SETUP
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
