C1, C2, C3 Back Bar Chiller User Manual
To ensure safe operation, please read this user manual thoroughly before use.
© Husky. Husky reserve the right to change specications at any time without notice.
Images used are for illustration only.
UK back bar manual 051224.indd 1UK back bar manual 051224.indd 1 05/12/2024 14:2405/12/2024 14:24
2
UK back bar manual 051224.indd 2UK back bar manual 051224.indd 2 05/12/2024 14:2405/12/2024 14:24
3
Welcome To Your New Husky
Thank you for buying this Husky commercial appliance. It has been designed and manufactured for
many years of trouble-free service. Operation is very simple, but please take a few minutes to read
this user manual. It contains important safety information, and tips to ensure you receive the best
possible service from your Husky appliance.
Contents
Important Notes ............................................................................................................................................4
Safety Instructions & Warnings ...............................................................................................................4
How To Minimise The Energy Consumption Of Your Appliance .........................................................5
Before Using For The First Time ...............................................................................................................6
Troubleshooting ............................................................................................................................................ 7
Operating Instructions .................................................................................................................................8
To Operate The Electronic Thermostat ...................................................................................................8
Interior Light ...............................................................................................................................................8
Defrosting ...................................................................................................................................................8
Replacing Led Lights ...............................................................................................................................10
Installing Shelves .....................................................................................................................................10
Easy Maintenance Access .......................................................................................................................10
Cleaning ....................................................................................................................................................10
Getting Service Assistance .....................................................................................................................10

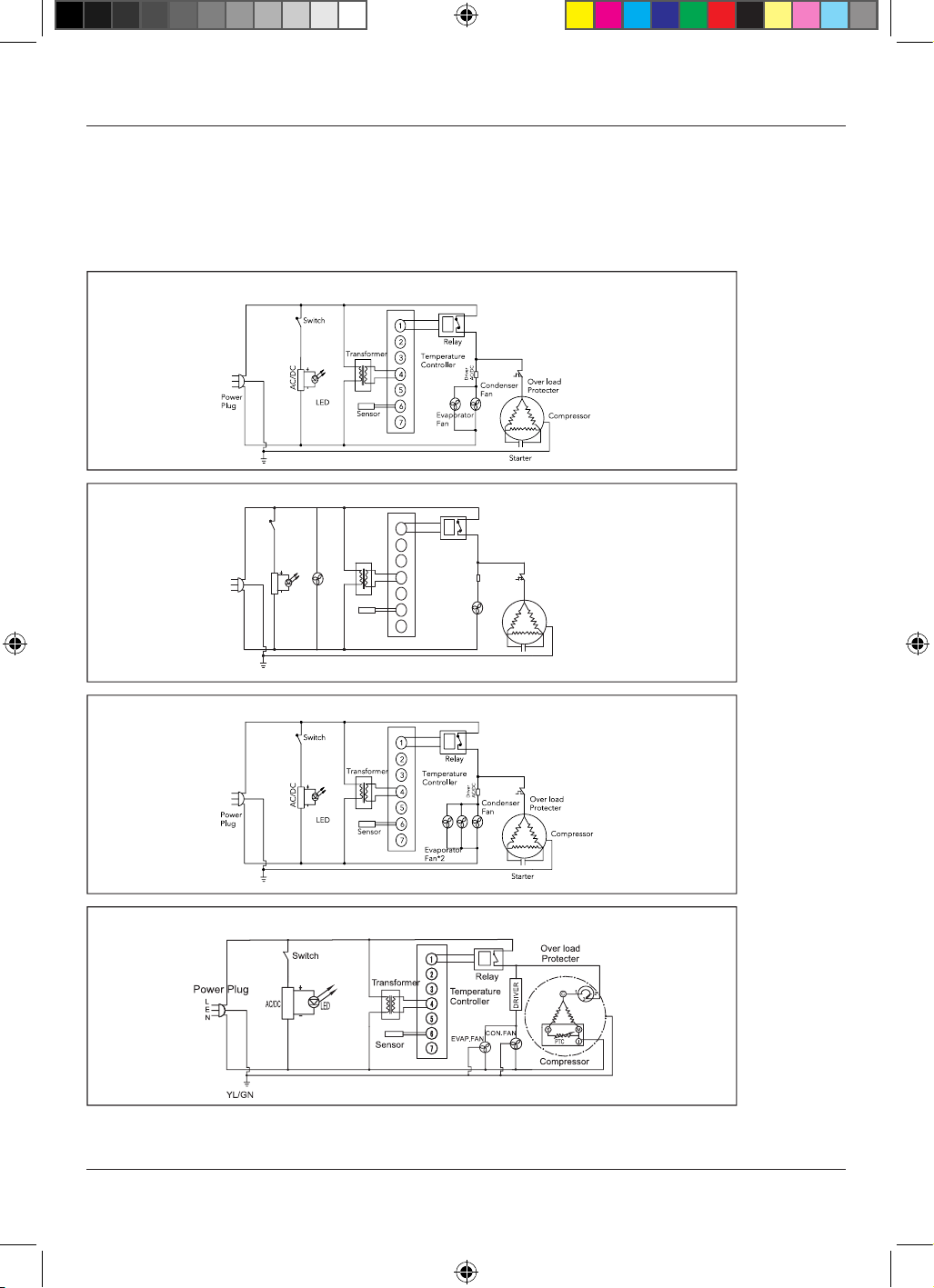

Circuit Diagrams .........................................................................................................................................11
UK back bar manual 051224.indd 3UK back bar manual 051224.indd 3 05/12/2024 14:2405/12/2024 14:24
4
Important Notes
WARNING: RISK OF ELECTRICAL SHOCK HAZARD
DISPOSAL OF OLD APPLIANCE
WEEE COMPLIANCE
SAFETY INSTRUCTIONS & WARNINGS
If the power cable is damaged, it must be replaced by a qualied engineer to avoid shock hazard.
DO NOT ATTEMPT TO SERVICE THE ITEM YOURSELF. Ensure that the appliance is properly
earthed. Stop using the appliance immediately if electric shock is felt when touching the cabinet.
BE SURE TO MAKE ANY LOCKS UNUSABLE. IF POSSIBLE, REMOVE THE
DOOR(S) AND DISCARD SEPARATELY.
WARNING – CHEMICAL HAZARD: DO NOT ALLOW CHILDREN TO PLAY
WITH OLD Appliance. CONTACT YOUR LOCAL AUTHORITY FOR PROPER
DISPOSAL PROCEDURES.
Before disposing of an old appliance, please make sure it is switched off and safe. Unplug the
appliance and break any locks in order to avoid children becoming trapped.
Please note: the appliance system contains gases and refrigerants which require specialist waste
disposal. The valuable materials contained in a appliance can be recycled.
Contact your local waste disposal depot for proper disposal of an old appliance and contact your
local authority or dealer if you have any questions.
Ensure the pipework of your appliance is not damaged prior to disposal. You can contribute to the
environmental awareness by insisting on an appropriate non-polluting method of disposal.
Husky appliances are authorised to carry the CE (Conformité
Européene) and WEEE (Waste Electrical and Electronic
Equipment Directive) symbols.
The WEEE symbol on this appliance indicates that the product must
not be disposed of with household waste. To help prevent possible harm to health and the
environment, the product must be disposed of by recycling methods authorised as environmentally
safe. For more information on how to dispose of this product appropriately, contact your dealer or
the recycling department at your local authority. Husky appliances and their components undergo
strict product testing by independent companies to comply or exceed all applicable local and
international regulatory standards.
Before switching on your Husky appliance, read the information in this user manual carefully. The
user manual contains important observa tions relating to the assembly, operation and maintenance
of the appliance.
Please keep this user manual in a safe place for future reference. If you ever sell this appliance, hand
this user manual to the new owner. The manufacturer does not accept responsibility for any
damages that may arise due to non-observation of these instructions.
All models
UK back bar manual 051224.indd 4UK back bar manual 051224.indd 4 05/12/2024 14:2405/12/2024 14:24
5
HOW TO MINIMISE THE ENERGY CONSUMPTION
OF YOUR APPLIANCE
• Do not use the appliance if it is damaged. If you are in any doubt, consult an engineer.
• Connection and installation of your Husky appliance are to be carried out in strict compliance
with the relative instructions in this user manual.
• Make sure there is a suitable power outlet (230 volts, 13 amps outlet) with proper grounding
to power the appliance.
• For safety, the appliance must be properly earthed in accordance with specications.
• Always remember to unplug the appliance before cleaning. Never unplug this appliance
by pulling on the power cable. Always grip plug rmly and pull straight out from the socket.
• All electrical repairs must be carried out by a qualied engineer. Inadequate repairs may be
dangerous.
• Do not damage any parts of the appliance which carry refrigerant by piercing, perforating,
crushing, twisting or scraping. If refrigerant comes into contact with the eyes it may cause
serious eye injury.
• Do not obstruct or cover the ventilation grille.
• Do not allow children to play with the appliance, or to sit on it.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabil ities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Energy consumption will be lower if the appliance stands in a well-ventilated space and in
particular if the vents on the appliance are clear of obstruction.
• Do not place the appliance in direct sunlight or near a heat source such as ovens, radiators,
heaters, etc. as this will increase energy consumption.
• Keep the appliance doors closed as much as possible.
• Setting the thermostat colder means higher energy consumption, so set only as cold as you
really require.
• Do not overll the appliance - overlling means the cool air cannot circulate freely inside
the appliance which may slow the process of chilling/freezing the contents and make the
appliance less efcient.
• Defrost the appliance if frost can be seen building up inside - frost will increase energy
consumption and make the chilling/freezing process slower (see section ‘Defrosting’).
• Turn the appliance off completely if it is not required for a period of days (or longer) to avoid
wasting energy.
• Keep the door seal (gasket) clean and check regularly to ensure it is seated rmly and
free from damage. Replace if required as a damaged seal will reduce the efciency of the
appliance.
UK back bar manual 051224.indd 5UK back bar manual 051224.indd 5 05/12/2024 14:2405/12/2024 14:24
6
BEFORE USING FOR THE FIRST TIME
• To ensure correct operation, it is important that the appliance is level. The appliance may be
levelled by turning either or both of the adjustable feet in the front corners. Use a spirit level
to check.
• Before operation, we recommend that the appliance is cleaned for reasons of hygiene and to
remove any residue left from manufacture.
• For good circulation, vents must not be blocked. Keep a minimum of 100mm of clear space
around the appliance. Your Husky appliance should be placed on at and rm surface for
quieter operation.
• Do not expose the appliance to direct sunlight or a heat source such as ovens, radiators,
heaters, etc.
• Do not under any circumstances place heated food or beverages in your Husky appliance.
• Do not open the door more often than necessary to lessen the escape of cold air.
• For better air circulation, do not overll the appliance.
• Adjust the thermostat according to the amount of product and the ambient temperature.
• This appliance has been tested as a beverage cooler and is not suitable for the storage of
perishable food.
IMPORTANT: Before switching the appliance on, we recommend you allow it to stand
upright for 8 hours. Failure to do this may result in damage to the appliance.
IMPORTANT: This appliance is intended to operate in a climate where the
maximum temperature is 25 degrees Celsius and the humidity do not exceed 60%.
UK back bar manual 051224.indd 6UK back bar manual 051224.indd 6 05/12/2024 14:2405/12/2024 14:24
7
Troubleshooting
Before calling Technical Support, please check the following points; you may be able to solve any
problem yourself.
Problem Possible Cause Action
The appliance has no power.
The appliance is not plugged
in.
Connect the plug to the power
supply.
The plug and/or the power
cable are faulty.
Call your supplier or a
qualied engineer.
The fuse has blown.
Replace the fuse with one of
the same rating.
The appliance’s internal
temperature is too high or
too low.
The wrong temperature is
selected.
Check the controller and
adjust the set temperature.
The factory default settings for
the controller are incorrect.
Contact Husky for advice.
The condenser is blocked by
an accumulation of dust.
Clean using a vacuum cleaner
and soft brush attachment
(see p9).
The doors are not fully closed.
Check the appliance is level
and the door seals are not
damaged or not seated
correctly.
The appliance is close to a
heat source or the ambient
temperature is too high.
Move the appliance to a better
location and check it is out of
direct sunlight.
The ventilation grille is
blocked.
Move the appliance to
improve free movement of air.
The appliance is noisy in
operation or makes unusual
noises.
• Note: It is normal to hear
some noises as refrigerant
ows through the
compressor.
The appliance is not on a level,
rm surface, or the appliance
may be touching other items.
Check location and position
using a spirit level.
The appliance is vibrating
against a neighbouring object.
Relocate the appliance or the
object.
Outer surfaces are wet
Appliance may be close to a
water source or leak.
Dry surfaces thoroughly and
move the appliance.
Inner surfaces are wet
The door may be opened too
often or kept open too long.
Door gasket may be unseated
or damaged.
Try to minimise the opening
of the doors for better cooling
performance. Ensure door
seals are seated correctly and
replace if worn or damaged.
UK back bar manual 051224.indd 7UK back bar manual 051224.indd 7 05/12/2024 14:2405/12/2024 14:24
8
Operating Instructions
TO OPERATE THE ELECTRONIC THERMOSTAT
REFRIGERATION LIGHT DEFROSTING LIGHT
The thermostat has been pre-set, and in most cases it is not necessary to adjust the settings.
When the appliance is operating normally, the display will show the current temperature.
To display the set temperature press the button. Press the button again to return to normal
operation.
To set a new temperature, press . The display will ash and the current set temperature will be
displayed. Press the button to increase the set temperature, or press the button to decrease
the set temperature. Press the button to save the new setting. The display will ash with the new
value and then revert to display the cabinet temperature.
Please note:
1. When the appliance is connected to the mains for the rst time there will be a short delay
before cooling starts. During this time the Refrigeration Light will ash. After the short delay,
cooling will begin and the Refrigeration Light will be illuminated. When the appliance reaches
the set temperature, the Refrigeration Light will be off.
2. If you do not press any button, after six seconds the thermostat will return to its normal display.
INTERIOR LIGHT
The interior light may be switched on or off using the rocker switch on the inside right-hand wall
of the cabinet (see Fig. 2 on page 9).
DEFROSTING
The appliance defrosts automatically at pre-set intervals. If however the door is opened too often,
or if the appliance if in a location with high humidity, or if the contents are changed more frequently,
it may be necessary to defrost the appliance manually. To start or stop manual defrosting, press
the button for six seconds. The Defrosting Light will be illuminated. Melt water runs to a
container placed in the compressor compartment and evaporates. After defrosting is complete, the
appliance will return to normal operation.
UK back bar manual 051224.indd 8UK back bar manual 051224.indd 8 05/12/2024 14:2405/12/2024 14:24
9

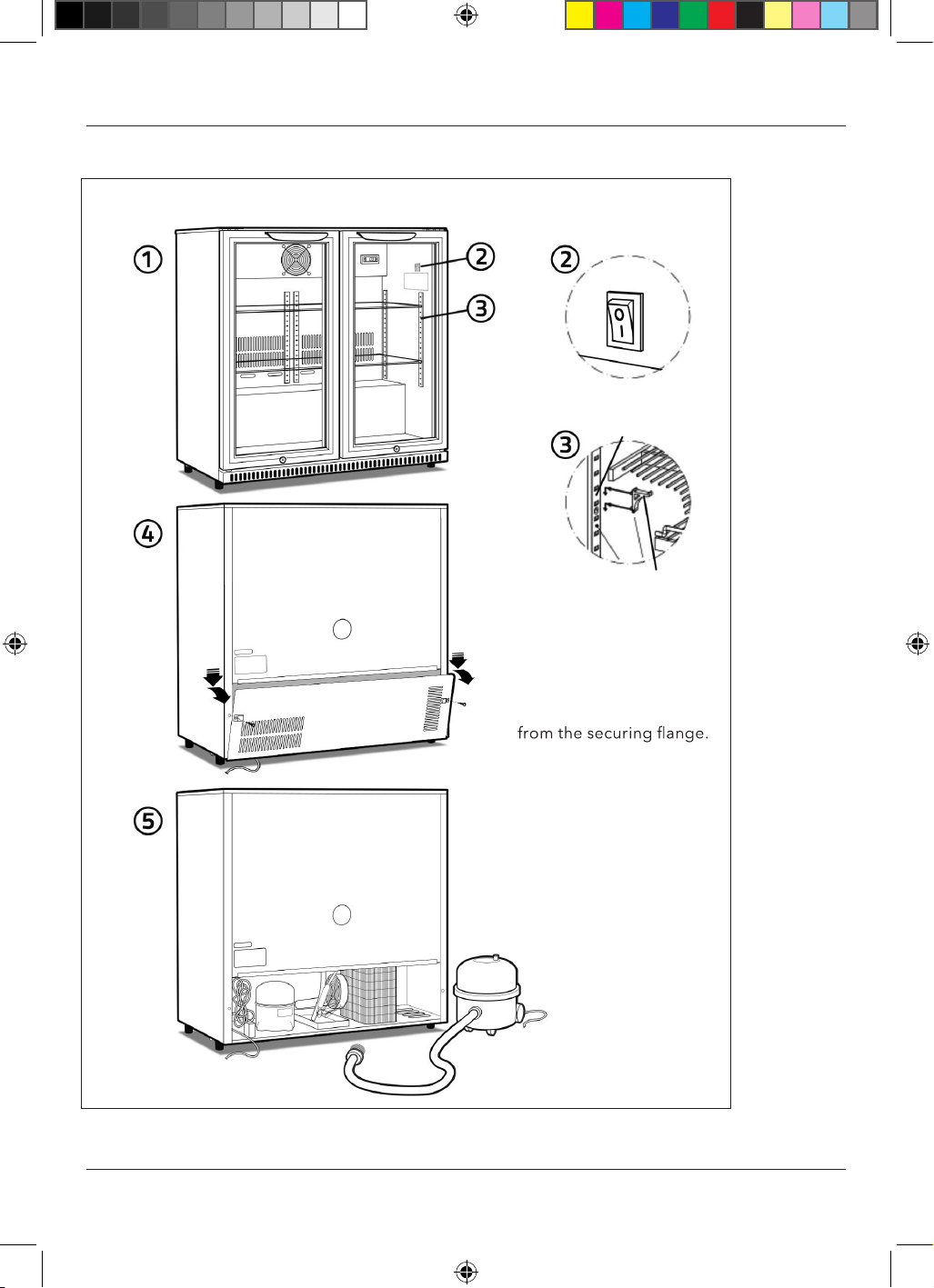

To access the compressor
Shelf clip
Ladder rack
compar tment:
i. Remove the two screws.
ii. Push the removable panel
down slightly to free it
iii. Angle the removable panel
forwards and down to
remove it.
i
ii
iii
UK back bar manual 051224.indd 9UK back bar manual 051224.indd 9 05/12/2024 14:2405/12/2024 14:24
10
REPLACING LED LIGHTS
1. Disconnect the appliance from the power supply.
2. Pull the LED light out of the clips and disconnect the cable.
3. Ret the cable and push the LED light back into the clips.
4. Reconnect the appliance to the power supply.
INSTALLING SHELVES
Fit the shelf clips to the ladder racks (see Fig. 3 on page 9) and install the shelves horizontally.
Ensure the clips are located rmly and the shelves are secure before loading the appliance.
EASY MAINTENANCE ACCESS
Switch the appliance off and disconnect from the mains supply. To access the compressor
compartment, simply remove the screws securing the rear access panel – see Fig 4 on page 9.
Any repairs or maintenance, other than CLEANING (see below) must be carried out by QUALIFIED
ENGINEERS ONLY.
CLEANING
If the condenser coil is not cleaned quarterly, the energy efciency of the appliance will decrease
signicantly and it will reduce the life of the appliance. Switch the appliance off and disconnect from
the mains supply. See ‘Easy Maintenance Access’ how to access the compressor compartment. Use
a vacuum cleaner tted with a soft brush attachment to remove dust carefully from the condenser,
the components and grilles – see Fig 5 on page 9.
The external and internal surfaces of the appliance should be cleaned regularly. Switch the
appliance off and disconnect from the mains supply. Clean the external and internal surfaces of the
appliance with a mild soap solution, then wipe dry. Do NOT use cleansers containing chlorine or
other harsh cleansing agents, as these can damage the stainless steel surfaces and components.
Use mild soapy water to clean the gasket and seals.
GETTING SERVICE ASSISTANCE
The cooling system is a hermetically sealed circuit and does not require any maintenance other
than regular cleaning (see ‘Cleaning’).
If the appliance fails to work, rst check the power supply. If you cannot locate the reason for the
failure, please contact your supplier, stating the model and serial number of the cabinet. You will
nd this information on the rating plate, which is afxed inside the appliance on the top right-hand
interior wall.
UK back bar manual 051224.indd 10UK back bar manual 051224.indd 10 05/12/2024 14:2405/12/2024 14:24
11
CIRCUIT DIAGRAMS
C1H-E-865 & C2H-E-865
C2S-E-865
C3H-E-865
C1H-ECO, C2H-ECO & C3H-ECO
condenser
fan
Over load
Protecter
Compressor
Starter
Temperature
Controller
Evaporator
Fan
Relay
Transformer
Sensor
LED
AC/DC
Switch
Power
Plug
Driver
AC/DC
1
2
3
4
5
6
7
UK back bar manual 051224.indd 11UK back bar manual 051224.indd 11 05/12/2024 14:2405/12/2024 14:24
www.husky.co.uk
HELPLINE/TECHNICAL SUPPORT
Tel: 01455 555340 (Monday to Friday 0900 – 1700).
Email: sales@husky.co.uk
SALES
Tel: 01455 555340 (Monday to Friday 0900 – 1700).
Email: sales@husky.co.uk
OUT-OF-WARRANTY SPARES
Email: sales@husky.co.uk
25.11.24
Welcome to Husky, the home of smart refrigeration. We are a leading global
refrigeration specialist with over 25 years experience in commercial
refrigeration for convenience and hospitality professionals. Whatever your
requirements, we’re sure to have a good looking energy-efficient model that’s
perfect for you.
UK back bar manual 051224.indd 12UK back bar manual 051224.indd 12 05/12/2024 14:2405/12/2024 14:24
