sphere
12VDC 2.6Kg/3.5Kg
DC SERIES - OFF-GRID
Power source 12V DC
Carry basket with
locking clips
This is located in the top of the machine
carton packing and needs to be fitted prior
to installation.
Weight of
the product
Rated volume
of wash and
spinning
2.6kg
3.5kg
2.6kg
3.5kg
2.6kg
3.5kg
410x420x740(mm)
3.5
18.5kg
2.6kg(dry clothes)
160W
DC12V
+
-
dedicated 12V DC circuit only.
+
-

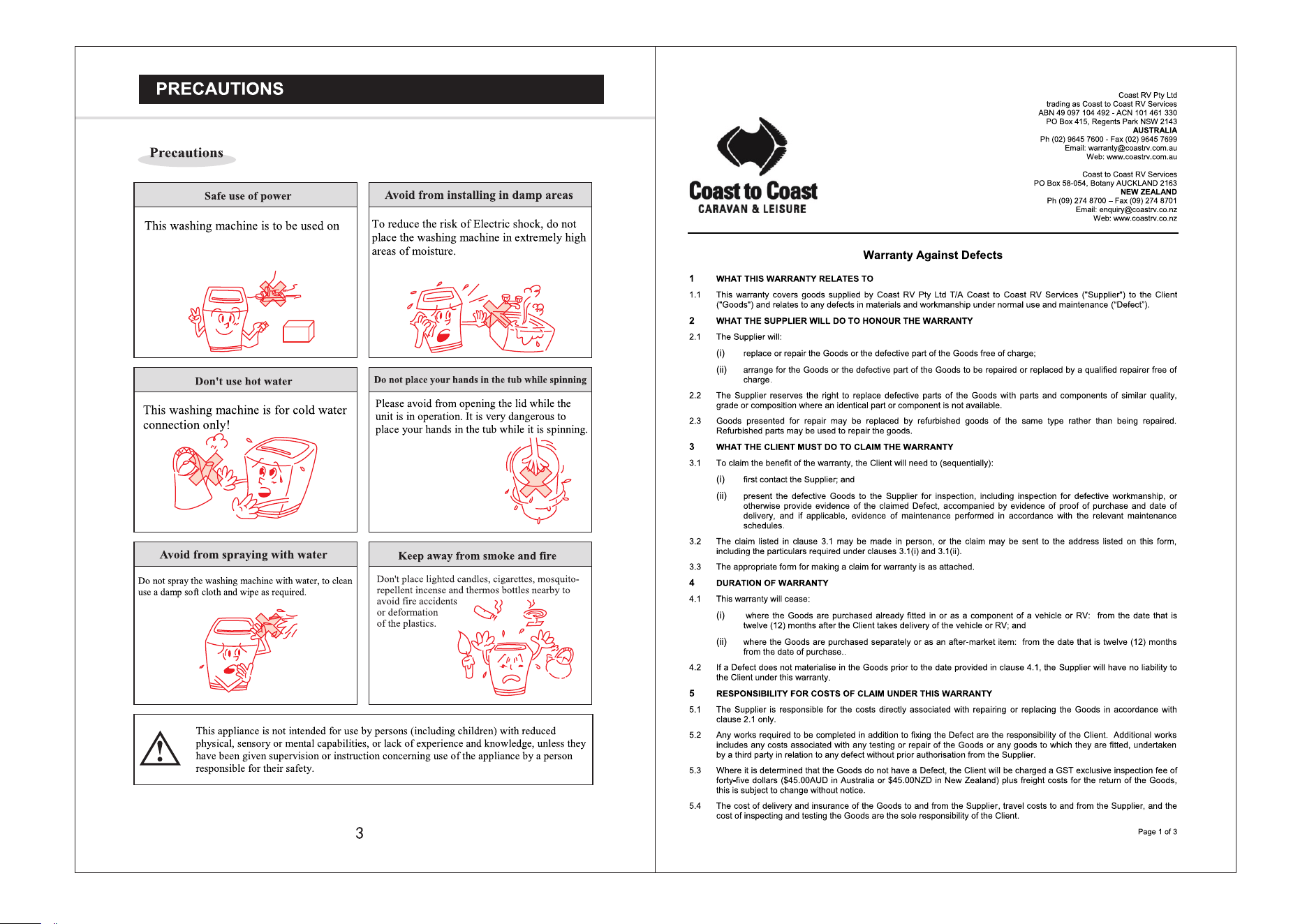

The machine must be installed in a serviceable area, this must not be mounted or installed
within a concealed cupboard or in a hard to service location. Should a service under warranty be
required this cost of accessing the machine is not covered by the warranty terms.
5
1.Should the machine be turned on, with no program selected within 10 minutes, the machine will
power off automatically to save power.
2.After the washing program has finished the buzzer will sound six times to alert you that the cycle
has finished and will power off to save power.
1.If the clothes are uneven around the spin dry tub,the satety device will activate and may stop the
spin process, the washer may automatically revert to rinse mode to help to adjust the washing load.
After the tub is balanced the spin mode will resume.
2.This function will activate twice if needed, if there is no change, the alarm “E3” will be activated.
The Sphere 12V DC Off-grid series machines require a dedicated FUSED MIN
30A Supply circuit direct from the RV house battery bank. Use a Minimum* 8
B&S wire size for a run of 5m or less from the battery (larger cable will be
needed for longer runs).
The machine comes with a pre-fitted 50 AMP "Anderson" style plug for ease of
connection/disconnection into the RV power supply.
*Please consult your RV Manufacture, RV Dealer or RV Auto electrician if any
questions or advice is needed on the correct wiring solution for your particular
layout. Warranty may be void if the above wiring requirements are not meet*
Step 6:
Power source 12V DC
carry basket

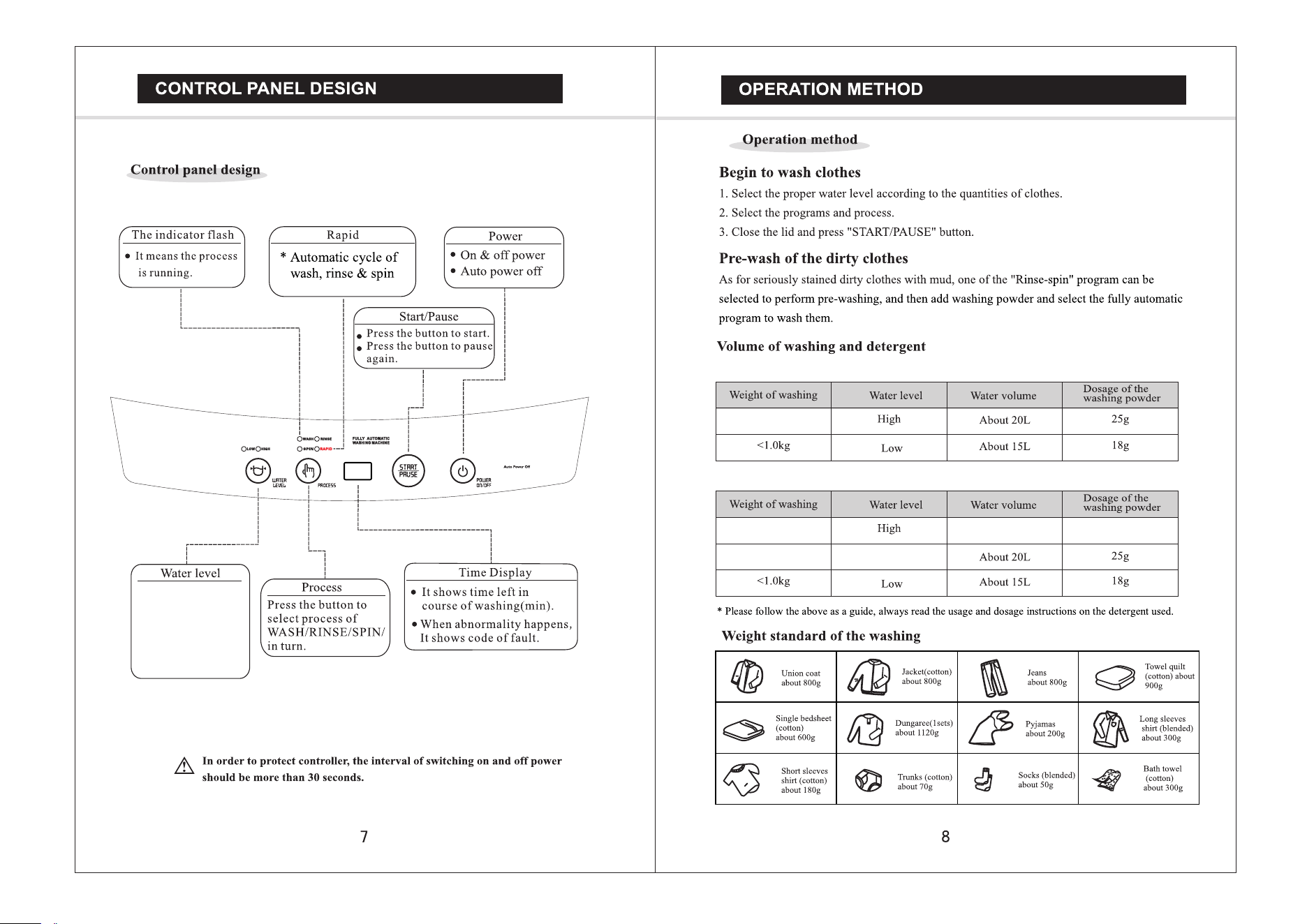

and FULLY AUTOMATIC PROGRAM
Press the button to
select water level
of LOW/HIGH for
2.6kg in turn.
For 3.5kg 3 water
selections can be made
LOW/MED/HIGH.
For 2.6kg
For 3.5kg
Med
1.0~2.0kg
2.0~3.5kg
About 26L
32g
1.0~2.6kg
