VSR27A
VSR48A
Instruction Manual
by
Issued: 03-14-2025
2
Only qualified service technicians should install and service the
appliance. To obtain the name and phone number of your local Cered
Service Representave, visit www.hoshizakiamerica.com. No installaon
or service should be undertaken unl the technician has thoroughly
read this Instrucon Manual. Likewise, the owner/manager should
not proceed to operate the appliance unl the installer has instructed
them on its proper operaon. Failure to install, operate, and maintain
the appliance in accordance with this manual may adversely aect
safety, performance, component life, and warranty coverage. Proper
installaon is the responsibility of the installer. Product failure or
property damage due to improper installaon is not covered under
warranty.
This manual is provided primarily to assist qualied service technicians in
the installaon, maintenance, and service of the appliance.
Should the reader have any quesons or concerns which have not been
sasfactorily addressed, please call, send an e-mail message, or write to
the Technical Support Department for assistance.
Phone: (800) 227-3172
E-mail: t[email protected]
618 Highway 74 South
Peachtree City, GA 30269
An: Technical Support Department
Web Site: www.hoshizakiamerica.com
NOTE: To expedite assistance, all correspondence/communicaon MUST
include the following informaon:
• Model Number ____________________________
• Serial Number _____________________________
• Complete and detailed explanaon of the problem.
WARNING
3
Table of Contents
Important Safety Informaon ..................................................... 5
Know your Equipment ................................................................ 9
Check for Shipping Damage ........................................................ 10
Handling the Cabinet .................................................................. 11
Locaon ...................................................................................... 11
Remove the Crate and Skid .........................................................12
Level the Cabinet ........................................................................ 12
Electrical Installaon .................................................................. 13
Shelves Installaon ..................................................................... 14
Start up the Cabinet ...................................................................14
Final Checklist ............................................................................. 15

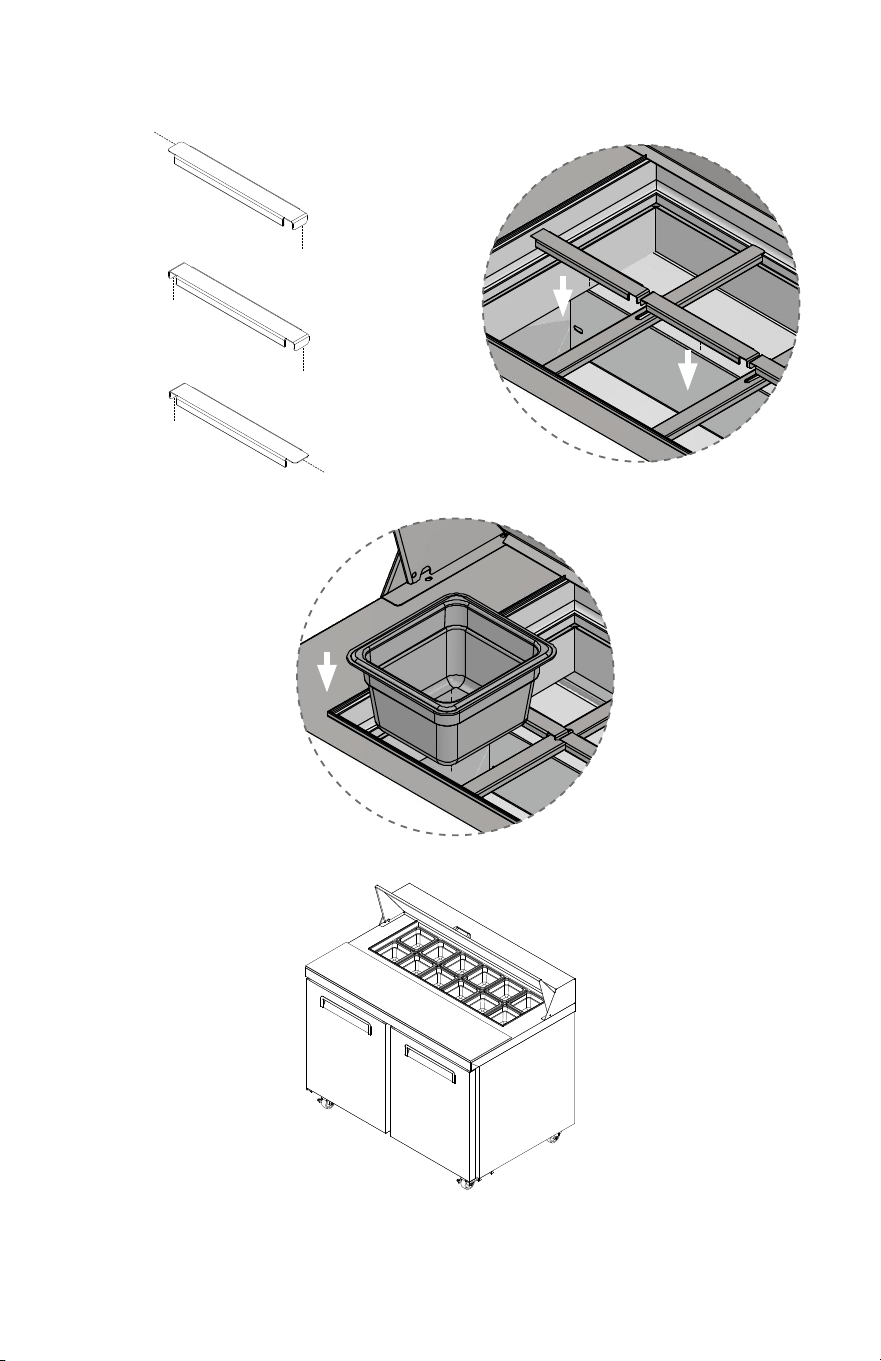

Installaon of Trays and Separators ............................................16
Controls and Adjustments ..........................................................18
Cleaning and Prevenve Maintenance ....................................... 19
Disposal ...................................................................................... 20
4
VSR48A
VSR27A
5
Important Safety Informaon
Important Safety Informaon
Throughout this manual, noces appear to bring your aenon to situaons
which could result in death, serious injury, damage to the appliance, or damage
to property.
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
NOTICE
Indicates a situation that, if not avoided, could result in
damage to the appliance or property.
IMPORTANT
Indicates important information about the use and care of the
appliance.
DANGER
Risk of Fire or Explosion
Flammable Refrigerant Used
• Follow handling instrucons carefully
in compliance with U.S. government
regulaons.
• Do not use mechanical devices to
defrost.
• Do not puncture refrigerant tubing. Risk
of re or explosion due to puncture
of refrigerant tubing; follow handling
instrucons carefully.
• Component parts shall be replaced with
like components.
• Servicing shall be done by factory
authorized service personnel to
minimize the risk of possible ignion
due to incorrect parts or improper
service.
• Consult instrucon manual / service
manual before aempng to install
or service this product. All safety
precauons must be followed.
• Dispose of properly in accordance with
federal or local regulaons.
• Do not place any potenal ignion
sources in or near the appliance.
Risque De Feu Ou D'Explosion
Le Frigorigène Est Inammable
• Suivre aenvement les instrucons
de manipulaon conformément à la
réglementaon gouvernementale.
• Ne pas uliser d'appareils
mécaniques pour
dégivrer le réfrigérateur.
• Ne pas perforer la tubulure
contenant le frigorigène. Risque
de feu ou d'explosion si la tubulure
contenant le frigorigène est
perforée; suivre les instrucons de
manutenon avec soin.
• Les pièces des composants doivent
être remplacées par des pièces et
accessoires équivalents.
• L’entreen doit être eectué par le
personnel de service autorisé par
le fabricant an de minimiser les
risques d’inammaon aribuables à
l’installaon d’une pièce inadéquate
ou à la mauvaise exécuon du
service.
• Consulter le manuel du propriétaire/
guide de réparaon avant de tenter
une réparaon. Toutes les mesures
de sécurité doivent être respectées.
• Éliminer conformément aux
règlements fédéraux ou locaux.
• Ne placez aucune source
d’inammaon potenelle dans ou
près de l’appareil.
6
WARNING
This appliance should be desned only to the use for which it has been
expressly conceived. Any other use should be considered improper and
therefore dangerous. The manufacturer cannot be held responsible for injury
or damage resulng from improper, incorrect, and unreasonable use. Failure
to install, operate, and maintain the appliance in accordance with this manual
will adversely aect safety, performance, component life, and warranty
coverage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precauons including the following:
• Only qualied service technicians should install and service this appliance.
• Wear appropriate personal protecve equipment (PPE) when servicing
the appliance.
• The appliance must be installed in accordance with applicable naonal,
state, and local codes and regulaons.
• Appliance is heavy. Use care when liing or posioning. Work in pairs
when needed to prevent injury or damage.
• The appliance requires an independent power supply of proper
capacity. See the nameplate for electrical specicaons. Failure to use
an independent power supply of proper capacity can result in a tripped
breaker, blown fuse, or damage to exisng wiring. This could lead to heat
generaon or re.
• To reduce the risk of electric shock, do not touch the plug with damp
hands.
• Unplug the appliance from the electrical outlet.
• THE APPLIANCE MUST BE GROUNDED: The appliance is equipped with a
NEMA 5-15 three-prong grounding plug to reduce the risk of potenal
shock hazards. It must be plugged into a properly grounded, independent
3-prong wall outlet. If the outlet is a 2-prong outlet, it is your personal
responsibility to have a qualied electrician replace it with a properly
grounded, independent 3-prong wall outlet. Do not remove the ground
prong from the plug and do not use an adapter plug. Failure to follow
these instrucons may result in death, electric shock, or re.
• The GREEN ground wire in the factory-installed power cord is connected
to the appliance. If it becomes necessary to remove or replace the power
cord, be sure to connect the power cord’s ground wire.
• Do not use an extension cord.
• Do not use an appliance with a damaged power cord. The power cord
should not be altered, jerked, bundled, weighed down, pinched, or
tangled. Such acons could result in electric shock or re. To unplug the
appliance, be sure to pull the plug, not the cord, and do not jerk the cord.
• Do not splash, pour, or spray water directly onto or into the appliance.
This might cause short circuit, electric shock, corrosion, or failure.
• Do not make any alteraons to the appliance. Alteraons could result in
electric shock, injury, re, or damage to the appliance.
7
WARNING, continued
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilies, or lack of experience
and knowledge, unless they have been given supervision or instrucon
concerning use of the appliance by a person responsible for their safety.
• Children should be properly supervised around this appliance.
• Do not climb, stand, or hang on the appliance or door or allow children
or animals to do so. Do not climb into the appliance or allow children or
animals to do so. Death or serious injury could occur or the appliance
could be damaged.
• Be careful not to pinch ngers when opening and closing the doors. Be
careful when opening and closing the doors when children are in the area.
• Open and close the doors with care. Doors opened too quickly or forcefully
may cause injury or damage to the appliance or surrounding equipment.
• Do not use combusble spray or place volale or ammable substances
in or near the appliance. They might catch re.
• Keep the area around the appliance clean. Dirt, dust, or insects in the
appliance could cause harm to individuals or damage to the equipment.
• Do not throw anything onto the shelves or load any single shelf with more
than 100 lb. (45.36 kg) of product. They might fall o and cause injury.
• Do not place anything on top of the appliance. Foreign objects or moisture
could enter the appliance and result in electric shock or re.
• This appliance is designed only for storage and/or display of packaged or
boled products. Employ sanitary methods. Use for any other purposes
(for example, storage of chemicals or medical supplies such as vaccine
and serum) could cause deterioraon of stored items.
• Do not block the cabinet air inlet or outlet, otherwise cooling performance
may be reduced.
• Do not ghtly pack the cabinet. Allow some space between items to
ensure good air ow. Also allow space between items and interior
surfaces.
• Do not place any product on the oor of the cabinet. All product must be
placed on properly installed shelves.
• Do not put warm or hot products in the cabinet. Let them cool rst, or
they will raise the cabinet temperature and could deteriorate other foods
in the cabinet or overload the appliance.
• Do not store items near the air outlet. They might freeze up and crack or
break causing a risk of injury or contaminaon of other food.
• This appliance must be installed and located appropriately, following the
installaon instrucons before its use.
• Do not allow children to climb, step or hang onto the shelves inside the
appliance. Death or serious injury could occur or the appliance could be
damaged.
• Do not touch the cold surfaces of the appliance with wet or moist hands.
Skin can sck to these cold surfaces.
8
NOTICE
• Protect the oor when moving the appliance to prevent damage to the
oor.
• Keep venlaon openings, in the appliance enclosure or in the built-
in structure, clear of obstrucon. Do not place anything on top of the
appliance. Blockage of airow could negavely aect performance and
damage the appliance.
• To prevent deformaon or cracks, do not spray inseccide onto the plasc
parts or let them come into contact with oil.
• To avoid damage to the gasket, use only the door handle when opening
and closing.
- Avoid prolonged exposure of the appliance to direct sunlight.
- Only genuine parts should be used to service this appliance.
GENERAL SAFETY
WARNING, continued
• Do not store gasoline or other ammable liquids or gases, near this or
other electrical equipment.
• Keep your ngers away from grills; the spaces between doors and cabinet
are small, so be careful when closing doors when children are around.
• Unplug the cooler before cleaning or performing any repair.
DANGER
DANGER-RISQUE DE FEU OU D´EXPLOSION.
LE FRIGORIGÈNE EST INFLAMMABLE.
CONFIER LES RÉPARATIONS À UN
TECHNICIEN SPÉCIALISÉ. NE PAS
PERFORER LA TUBULURE CONTENANT LE
FRIGORIGÈNE.
DANGER-RISK OF FIRE OR EXPLOSION.
FLAMMABLE REFRIGERANT USED. TO BE
REPAIRED ONLY BY TRAINED SERVICE
PERSONNEL. DO NOT PUNCTURE
REFRIGERANT TUBING.
9
Know your Equipment
CONTROL
MODULE
DOOR
SHELF CLIP
CASTER
POWER CORD
BACK GRILL
SHELF
CONDENSING UNIT
THERMOMETER
CUTTING BOARD
LID
TRAY
10
Check for Shipping Damage
Prior to leaving the factory, each cabinet is throughly inspected and
performance tested to assure proper operang temperatures.
Check the crate thoroughly for signs of shipping damage. If external
damage exists, internal damage is also probable. Uncrang should be done
while the carrier´s representave is present. Otherwise, the equipment
should be uncrated as soon as possible, preferably within ve (5) days.
The manufacturer is not responsible for in-transit damage and the
consignee must le any required damage claims directly with the carrier.
If the damage is severe and obvious, write a brief descripon of the evidence
on the carrier’s delivery receipt, and above the carrier representave’s
signature. Call the distributor or dealer immediately, indicang that the
cabinet was damaged.
If no obvious crate damage is present, within two hours of receiving the
cabinet from the carrier, remove the packaging to inspect for concealed
damage.
If concealed damage is found, call the carrier immediately, save all crang
materials, and le the necessary freight claim with the carrier.
• This appliance must be installed in accordance with all applicable naonal,
state, and local regulaons.
• Appliance is heavy. Use care when liing or posioning. Work in pairs
when needed to prevent injury or damage.
• Do not lt the appliance more than 45°.
Installaon instrucons
Check for accesories: Check that the shelves are inside the appliance,
including the four clips or supports for each shelf.
WARNING
11
Handling the Cabinet
8”
1. Always move the appliance in an upright posion. Do not set it on its side or
upside down as you may damage the cabinet and spill the compressor oil.
2. If liing the appliance, hold it from its base. It is recommended to use a dolly.
3. Do not let the appliance fall abruptly.
1. Place the cabinet on a surface solid enough to prevent vibraon and strong
enough to support the combined weight of the cabinet and the product load.
Quick guideline: Esmate 35 pounds per cubic foot of storage space.
2. Cabinets should never be placed in front of windows or glass doors where
sunlight will be in direct contact with the appliances. If a cabinet is located near
a window or glass door, provide an adequate shade to block the sun´s rays.
3. Ambient temperature must be between 45°F (7°C) and 100°F (38°C). Low
ambient temperatures below 45°F (7°C) are as harmful as high ambient
temperatures. Extreme temperatures will denitely aect the performance
of the cabinet.
4. Failure to properly level the cabinet could hinder proper drainage and door
operaon. Leveling legs are provided with the cabinets. Level the cabinet by
using the adjustable poron of the leveling legs as needed.
5. Clearance: Leave a space of at least 8” between the back of the cabinet and
the wall to provide adequate air circulaon of the unit compartment.
Locaon
• This appliance is not intended for outdoor use.
WARNING
12
Remove the Crate and Skid
Level the Cabinet
1. Remove the external packaging
(corrugated board and plastic
wrapping). Check for concealed
damage. If any damage is idened,
immediately forward a complaint to
the transportaon company.
2. Move the appliance to its final
locaon, before removing the skid.
3. Using a screwdriver remove the
screws that aaches the skid to the
appliance.
Screw
To install casters:
Casters are supplied as oponal equipment. Only use genuine casters or the base
of the appliance might suer damage. When installing the casters it is important to
hand ghten securely against the base rail reinforcement assembly (see image). The
top edge of the caster must make rm contact with the reinforcement assembly.
Caster
Base rail
NOTE:
Locking casters must be placed in the front and non-locking casters in the rear.
Hand-brake
13
Electrical Installaon
• Electrical connecon must meet naonal, state, and local electrical code
requirements. Failure to meet these code requirements could result in
death, electric shock, serious injury, re, or severe damage to equipment.
• This appliance requires an independent power supply of proper
capacity. See the nameplate for electrical specicaons. Failure to use
an independent power supply of proper capacity can result in a tripped
breaker, blown fuse, damage to exisng wiring, or component failure.
This could lead to heat generaon or re.
• THIS APPLIANCE MUST BE GROUNDED: This appliance is equipped with a
NEMA 5-15 three-prong grounding plug to reduce the risk of potenal
shock hazards. It must be plugged into a properly grounded, independent
3-prong wall outlet. If the outlet is a 2-prong outlet, it is your personal
responsibility to have a qualied electrician replace it with a properly
grounded, independent 3-prong wall outlet. Do not remove the ground
prong from the plug and do not use an adapter plug. Failure to follow
these instrucons may result in death, electric shock, or re.
• To reduce the risk of electric shock, do not touch the power switch or plug
with damp hands.
• Do not use an extension cord.
• Do not use an appliance with a damaged power cord. The power cord
should not be altered, jerked, bundled, weighed down, pinched, or
tangled. Such acons could result in electric shock or re. To unplug the
appliance, be sure to pull the plug, not the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected
to the appliance. If it becomes necessary to remove or replace the power
cord, be sure to connect the power cord’s ground wire.
Electrical Connecon
• Usually an electrical permit and services of a licensed electrician are required.
• The maximun allowable voltage variaon is ± 10 percent of the nameplate
rang.
WARNING
14
Shelves Installaon
Shelves and shelf clips (4 clips per shelf) are packed inside the cabinet prior
to shipment. Aer selecng the appropriate spacing inside the cabinet,
install shelf clips by inserng top of clip inside the pilaster and then press
the lower secon of the clip while pushing inwards unl it snaps into place.
Repeat unl all clips are in desired locaon. Place shelf on clips checking that
all four corners of shelves are leveled and supported by the four shelf clips.
Pilaster
Shelf clip
1. Plug the appliance in the electrical outlet, following the
recommendaons about electrical installaon in this manual.
2. Allow the appliance to cool down prior to loading it with food
products.
3. When placing products in the appliance, you should leave small gaps
between one and the other to assure free circulaon of air inside the
cabinet.
4. Do not leave the door open for extended periods of me, to avoid
increased temperature of the products.
5. Do not unplug your appliance during the night, since when you turn it
back on during the day the electrical consumpon will increase.
The temperature range of the appliance is 34°F (1°C) to 40°F (4°C).
Start up the Cabinet
15
1. Is the appliance level?
2. Have the casters been properly installed and have the front casters
been locked?
3. Is the appliance in a site where the ambient temperature is constantly
within 45°F to 100°F (7°C to 38°C)?
4. Have the shipping carton, tape, and packing material been removed
from the appliance? Has the protecve plasc lm been removed
from both the exterior panels and the interior door/drawer panel?
5. Have the appliance and accessories been checked for shipping
damage?
6. Are the factory-installed rear bumpers in place to ensure proper rear
clearance? For undercounter and worktop models, is there at least
1.5” (4 cm) overhead clearance for proper venlaon? For prep table
models, is there at least 10” (25 cm) clearance above the rail hood to
allow the rail cover to open?
7. For prep table models, have the rail dividers, pans, rail cover, cung
board brackets, and cung board been properly installed?
8. Has the power supply voltage been checked or tested against
the nameplate rang?Is the power supply a properly grounded,
independent wall outlet? Does the electrical connecon meet all
naonal, state, and local code and regulaon requirements?
9. Have the refrigerant lines been checked to make sure they do not
rub or touch other lines or surfaces? Has the condenser fan blade
been checked to make sure it turns freely? Is the compressor securely
aached?
10. Have the shelves been adjusted to the desired height?
11. Has the end user been given the instrucon manual, and instructed
on how to operate the appliance and the importance of the
recommended periodic maintenance?
12. Has the end user been given the contact informaon of an authorized
service agent?
13. Has the warranty card been lled out and forwarded to the factory
for warranty registraon?
Final Checklist
16
1. Remove the packaging from the trays and separators.
2. Open the lid.
3. Place the long separators according to the width of the transparent
plasc tray.
Installaon of Trays and Separators
17
4. Place the short separators on top of the long separators according to
the width of the transparent plasc tray.
5. Arrange the trays.
6. Verify that the trays are installed correctly.
Notes:
It is recommended to keep the lid closed when not in use.
The trays must always be installed while the equipment is in use, otherwise
the evaporator may freeze or the appliance may not cool properly.
Le separator
Right separator
Middle separator
18
Controls and Adjustments
The position of the cabinet temperature control dial is preset to an
appropriate temperature under normal condions.
To decrease temperature, move the cabinet temperature control dial to
a higher number.
To increase temperature, move the cabinet temperature control dial to a
lower number.
Control module
DEFROST CYCLES
The control module is programmed to perform a defrost cycle every
six hours for a duraon of 45 minutes. These defrosts ensure that the
evaporator remains free of ice build-up, opmizing the performance of
the appliance.
VSR27A VSR48A
19
Your appliance requires very lile maintenance. However, periodic cleaning
can help maintain eciency and prolong product life. Unplug the appliance
from the electrical outlet bedore cleaning. Remove all products and place
them in another pre-cooled appliance.
1. Clean the inside and the exterior of your appliance, including the
shelves, with a mild soap soluon. Do not use strong detergents. Wipe
dry the inside of the appliance before loading product again.
2. Allow the appliance to cool down to setpoint before loading with
product.
Cleaning and Prevenve Maintenance
20
Disposal
DANGER
• The appliance contains refrigerant and must be disposed of in accordance
with applicable naonal, state, and local codes and regulaons.
Refrigerant must be recovered by properly cered service personnel.
• The insulaon foaming agent used for the unit body contains ammable
gas cyclopentane. With this in mind, dispose of the product properly.
• Remove the door to reduce the risk of children geng trapped. Leave the
shelves in place so that children may not easily climb inside.
FLAMMABLE
• Follow handling instrucons carefully in compliance with U.S. government
regulaons.
• Do not puncture refrigerant tubing. Risk of re or explosion due to
puncture of refrigerant tubing; follow handling instrucons carefully.
• Dispose of properly in accordance with federal or local regulaons.
Risk of Fire or Explosion Flammable Refrigerant Used
DANGER
• Suivre aenvement les instrucons de manipulaon conformément à la
réglementaon gouvernementale.
• Ne pas perforer la tubulure contenant le frigorigène. Risque de feu ou
d’explosion si la tubulure contenant le frigorigène est perforèe; suivre les
instrucons de manutenon avec soin.
• Éliminer conformément aux règlements fédéraux ou locaux.
Risque De Feu Ou D’Explosion Le Frigorigène Est Inammable
618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) (800) 227-3172
www.hoshizakiamerica.com
MAN-398-R-01
by
